![Location What they do Possible contacts
Kent : Cable assemblies. Optical cable assemblies. “Aftermarket”. Filter connectors (from Tempe) [Molly Buller / Samantha Evankovich]
Cerritos : Connector assembly, overbraided products, RF assemblies [Erica Gordillo]
El Segundo : “TRISTAR” : Contacts (Riverside make the ‘blanks’ and Lugano provide machined parts) [Teresa Tovar]
Production moving to Nogales by end 2019. Some admin and test staying
Riverside : Make blanks for El Segundo [???]
Tempe : Moved to Kent in 2018
Nogales : Bulk wire and cable, contacts [Claudia Castillo]
Mobile : STAR Aviation – design and engineering services [???]
St.Augustine: Bulk wire and cable, optical cables, medical cables, development activities [Jordan Tarter, Paige Draper, Erin Oneal]
Pottstown : RF connector manufacture, semi rigid cables, Aracon, plating, microwave cables [Sarah Maharrey]
Franklin : ECS brand cables and components, metal structures [Victoria Knaak, Shanna Mazarra]
Blackburn : RF and Microwave assemblies. DC assemblies, Lacing tapes & cords [Eilis Kidde]
Coventry : Tenencia – aircraft modification design and certification work [Paul Johnson, John Given]
Lugano : Machined components for El Segundo [???]
Shenzhen : Medical harnesses [???]
Dongguan : Medical and aerospace harnesses [???]

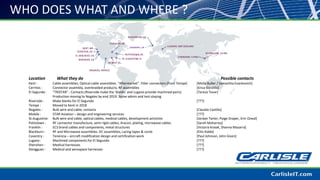

WHO DOES WHAT AND WHERE ?
COVENTRY, UK](https://image.slidesharecdn.com/citoverviewsmd-200430121207/85/Carlisle-Interconnect-Technologies-Product-Overview-2-320.jpg)
More Related Content
Similar to Carlisle Interconnect Technologies - Product Overview
Carlisle Interconnect Technologies - Product Overview
- 1.
- 2. Location What theydo Possible contacts Kent : Cable assemblies. Optical cable assemblies. “Aftermarket”. Filter connectors (from Tempe) [Molly Buller / Samantha Evankovich] Cerritos : Connector assembly, overbraided products, RF assemblies [Erica Gordillo] El Segundo : “TRISTAR” : Contacts (Riverside make the ‘blanks’ and Lugano provide machined parts) [Teresa Tovar] Production moving to Nogales by end 2019. Some admin and test staying Riverside : Make blanks for El Segundo [???] Tempe : Moved to Kent in 2018 Nogales : Bulk wire and cable, contacts [Claudia Castillo] Mobile : STAR Aviation – design and engineering services [???] St.Augustine: Bulk wire and cable, optical cables, medical cables, development activities [Jordan Tarter, Paige Draper, Erin Oneal] Pottstown : RF connector manufacture, semi rigid cables, Aracon, plating, microwave cables [Sarah Maharrey] Franklin : ECS brand cables and components, metal structures [Victoria Knaak, Shanna Mazarra] Blackburn : RF and Microwave assemblies. DC assemblies, Lacing tapes & cords [Eilis Kidde] Coventry : Tenencia – aircraft modification design and certification work [Paul Johnson, John Given] Lugano : Machined components for El Segundo [???] Shenzhen : Medical harnesses [???] Dongguan : Medical and aerospace harnesses [???] WHO DOES WHAT AND WHERE ? COVENTRY, UK

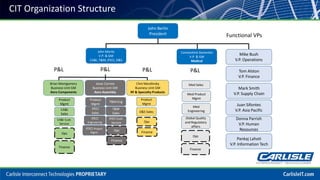

- 3. John Berlin President John Moritz V.P.& GM CA&I, T&M, IFECI, D&S Brian Montgomery Business Unit GM Aero Components Constantine Davlantes V.P. & GM Medical Donna Parrish V.P. Human Resources Pankaj Lahoti V.P. Information Tech Tom Alston V.P. Finance Juan Sifontes V.P. Asia Pacific Mike Bush V.P. Operations Mark Smith V.P. Supply Chain Clint Mendinsky Business Unit GM RF & Specialty Products Jesse Correia Business Unit GM Aero Assembly T&M Eng Ops Product Mgmt Product Mgmt Product Mgmt CA&I Sales D&S Sales T&M Sales IFECI Sales Ops Ops Finance Finance Finance CIT Organization Structure Med Product Mgmt Med Sales Ops Finance P&L P&L P&L P&L Functional VPs CA&I Cust. Service IFECI Engineering IFECI Cust. Service Med Engineering IFECI Project Mgmt Global Quality and Regulatory affairs
- 4. A VERTICALLY INTEGRATEDCOMPANY June 2019
- 5. CARLISLE COMPANIES INC(NYSE : CSL)

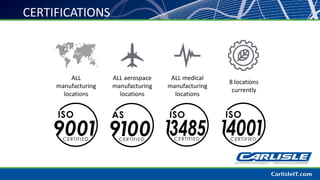

- 6.

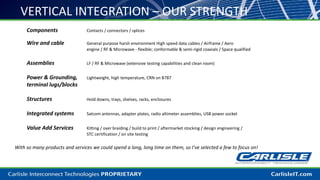

- 7. Components Contacts /connectors / splices Wire and cable General purpose harsh environment High speed data cables / Airframe / Aero engine / RF & Microwave - flexible; conformable & semi-rigid coaxials / Space qualified Assemblies LF / RF & Microwave (extensive testing capabilities and clean room) Power & Grounding, Lightweight, high temperature, CRN on B787 terminal lugs/blocks Structures Hold downs, trays, shelves, racks, enclosures Integrated systems Satcom antennas, adapter plates, radio altimeter assemblies, USB power socket Value Add Services Kitting / over braiding / build to print / aftermarket stocking / design engineering / STC certification / on site testing With so many products and services we could spend a long, long time on them, so I’ve selected a few to focus on! VERTICAL INTEGRATION – OUR STRENGTH
- 8.
- 9. AS39029 and EN3155CONTACTS ➢ Tri-Star El Segundo, California & Lugano, Switzerland • $80m annual sales Industry’s largest contact supplier • AS39029: ❖ Crimp, solder cup and wire wrap contacts ❖ PC Tail, coax, triax, twinax and thermocouple varieties ❖ Custom types ❖ At least 70 styles of AS39029 contact qualified – largest portfolio in the world ❖ Supplier to a number of competitor connector manufacturers • EN3155: ❖ Crimp, solder cup and wire wrap contacts ❖ PC Tail, coax, triax, twinax and thermocouple varieties ❖ Custom types ❖ At least 30 styles of EN3155 contact qualified
- 10. CONNECTORS – examplesof what we make Low pass filters include C, LC/CL, Pi and T types constructed using planar technology ARINC 404 and 600 Filter Connectors Blind Mate antenna connector SMP connector with integral locking mechanism

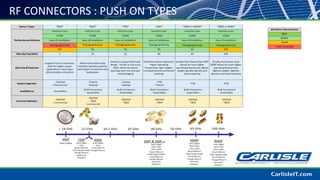

- 11. RF CONNECTORS :PUSH ON TYPES

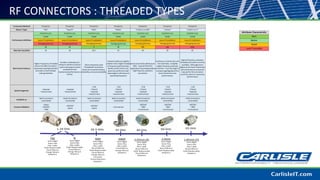

- 12. RF CONNECTORS :THREADED TYPES
- 13. MULTI CHANNEL RFTERMINATIONS High-performance RF harnesses for Mil/Def and Space Applications: • Custom build-to-print or built to our dedicated specifications • DC-40 GHz • Ruggedized • MIL-DTL-38999 multi-port shell or custom shells • Typical Market Segment: Payload and Interconnect Integration Core GD Brand multi-channel PCB RF Interconnects primarily for T&M but also suitable for Mil/Def and Space Applications: • Standard and custom configurations • DC-65 GHz • High density, economical, quick disconnect for up-to 20 channels • Tight 4mm pitch between lines • SMPM interfaces Core HC Brand multi-channel PCB RF Interconnects primarily for T&M but also suitable for Mil/Def and Space Applications: • Standard and custom configurations • DC-26.5 GHz • High density, economical, quick disconnect for up-to 10 channels • Tight 4mm pitch between lines • Press-on interfaces for high-mate/de-mate applications

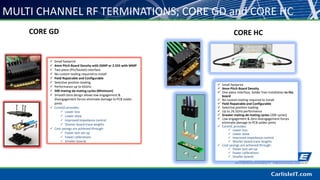

- 14. MULTI CHANNEL RFTERMINATIONS; CORE GD and CORE HC ✓ Small footprint ✓ 4mm Pitch Board Density with SSMP or 2.555 with WMP ✓ Two piece (Pin/Socket) interface ✓ No custom tooling required to install ✓ Field Repairable and Configurable ✓ Selective position loading ✓ Performance up to 65GHz ✓ 500 mating-de mating cycles (Minimum) ✓ Smooth bore design allows low engagement & disengagement forces eliminate damage to PCB solder joints ✓ CoreGD provides: ✓ Lower loss ✓ Lower skew ✓ Improved impedance control ✓ Shorter board trace lengths ✓ Cost savings are achieved through: ✓ Faster test set-up ✓ Fewer calibrations ✓ Smaller boards ✓ Small footprint ✓ 4mm Pitch Board Density ✓ One piece interface, Solder free installation to the board ✓ No custom tooling required to install ✓ Field Repairable and Configurable ✓ Selective position loading ✓ Up to 26.5GHz performance ✓ Greater mating-de mating cycles (20K cycles) ✓ Low engagement & Zero disengagement forces eliminate damage to PCB solder joints ✓ CoreHC provides: ✓ Lower loss ✓ Lower skew ✓ Improved impedance control ✓ Shorter board trace lengths ✓ Cost savings are achieved through: ✓ Faster test set-up ✓ Fewer calibrations ✓ Smaller boards CORE GD CORE HC
- 15. OCTAX® – 10GBitEthernet Connectivity …. “Solo” version OCTAX® SOLO
- 16. OCTAX®–10GBit Ethernet Connectivity... 38999 Versions OCTAX® 38999 versions Size 11 Size 19 Size 25

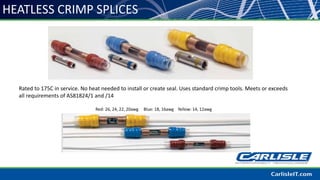

- 17. HEATLESS CRIMP SPLICES Ratedto 175C in service. No heat needed to install or create seal. Uses standard crimp tools. Meets or exceeds all requirements of AS81824/1 and /14 Red: 26, 24, 22, 20awg Blue: 18, 16awg Yellow: 14, 12awg
- 18.

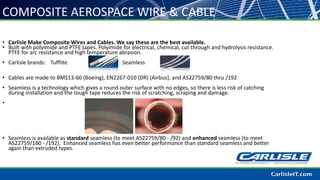

- 19. • Carlisle MakeComposite Wires and Cables. We say these are the best available. • Built with polyimide and PTFE tapes. Polyimide for electrical, chemical, cut through and hydrolysis resistance. PTFE for arc resistance and high temperature abrasion. • Carlisle brands: Tufflite Seamless • Cables are made to BMS13-60 (Boeing), EN2267-010 (DR) (Airbus), and AS22759/80 thru /192 • Seamless is a technology which gives a round outer surface with no edges, so there is less risk of catching during installation and the tough tape reduces the risk of scratching, scraping and damage. • • Seamless is available as standard seamless (to meet AS22759/80 - /92) and enhanced seamless (to meet AS22759/180 - /192). Enhanced seamless has even better performance than standard seamless and better again than extruded types. COMPOSITE AEROSPACE WIRE & CABLE

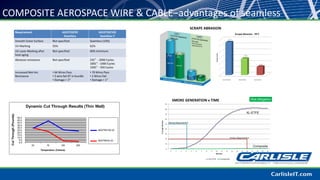

- 20. COMPOSITE AEROSPACE WIRE& CABLE–advantages of seamless 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 45.0 50.0 23 70 150 200 CutThrough(Pounds) Temperature (Celsius) Dynamic Cut Through Results (Thin Wall) M22759/44-22 M22759/192-22 SMOKE GENERATION v TIME SCRAPE ABRASION

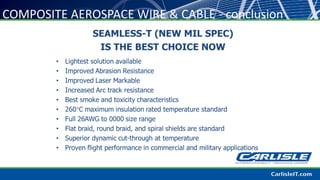

- 21. COMPOSITE AEROSPACE WIRE& CABLE - conclusion
- 22. ENGINE FIREZONE WIREAND CABLE
- 23. ENGINE FIREZONE WIREAND CABLE

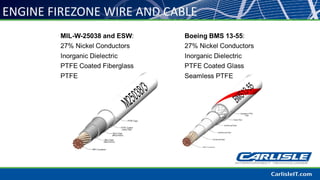

- 24. ENGINE FIREZONE WIREAND CABLE
- 25. RF AND MICROWAVECABLES Range of styles : semi rigid, semi flex, low loss, ultra low loss, high flex ……………………………………

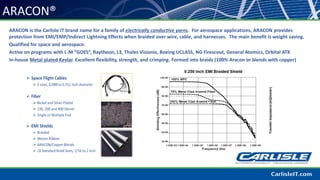

- 26. ARACON® ARACON is theCarlisle IT brand name for a family of electrically conductive yarns. For aerospace applications, ARACON provides protection from EMI/EMP/Indirect Lightning Effects when braided over wire, cable, and harnesses. The main benefit is weight saving. Qualified for space and aerospace. Active on programs with L-M “GOES”, Raytheon, L3, Thales Visionix, Boeing UCLASS, NG Firescout, General Atomics, Orbital ATK In-house Metal plated Kevlar. Excellent flexibility, strength, and crimping. Formed into braids (100% Aracon or blends with copper)

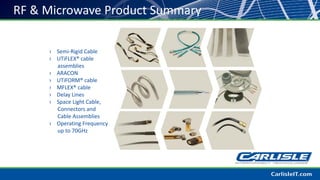

- 27. RF & MicrowaveProduct Summary › Semi-Rigid Cable › UTiFLEX® cable assemblies › ARACON › UTiFORM® cable › MFLEX® cable › Delay Lines › Space Light Cable, Connectors and Cable Assemblies › Operating Frequency up to 70GHz

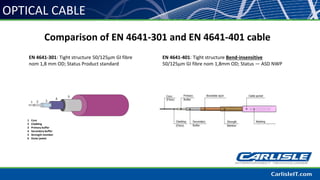

- 28. OPTICAL CABLE Comparison ofEN 4641-301 and EN 4641-401 cable 1 Core 2 Cladding 3 Primary buffer 4 Secondary buffer 5 Strength member 6 Outer jacket EN 4641-401: Tight structure Bend-insensitive 50/125µm GI fibre nom 1,8mm OD; Status — ASD NWP EN 4641-301: Tight structure 50/125µm GI fibre nom 1,8 mm OD; Status Product standard
- 29. OPTICAL CABLE EN 4641-301:Tight structure 50/125 µm GI fibre nominal 1,8 mm outside diameter — Product standard Compared to: EN 4641-401: Tight structure Bend- insensitive 50/125µm GI fibre nominal 1,8mm outside diameter — ASD NWP February 16, 2018Advantages of Carlisle optical cable (EN4641-401) : • Bend insensitive fibre. Tighter cladding diameter tolerance. Higher bandwidth at 850nm • Operates at up to 175°C for 1000 hours • Higher tensile strength and greater longitudinal stability • Enhanced temperature cycle and thermal shock performance • Improved cold bend performance • Significantly improved scrape abrasion, micro-bending and tensile strength • Significantly improved torsion, kink, bend, flex, crush and cable to cable abrasion Other optical cables : • Liteflight EP : semi loose structure. Available as simplex, duplex, ruggedized duplex and ruggedized quad in all fibre types and three temperature ratings (125°°C, 150°C, 260°C) • Liteflight HD : 12, 24, 48 fibre cables for use with MPO connectors Fibre optic assemblies : Available to your custom design (fibre count, fibre type, temperature rating, and contact type)

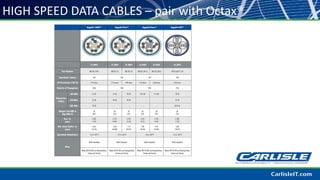

- 30. HIGH SPEED DATACABLES – pair with Octax®
- 31.

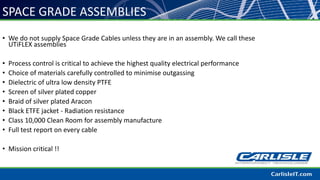

- 32. SPACE GRADE ASSEMBLIES •We do not supply Space Grade Cables unless they are in an assembly. We call these UTiFLEX assemblies • Process control is critical to achieve the highest quality electrical performance • Choice of materials carefully controlled to minimise outgassing • Dielectric of ultra low density PTFE • Screen of silver plated copper • Braid of silver plated Aracon • Black ETFE jacket - Radiation resistance • Class 10,000 Clean Room for assembly manufacture • Full test report on every cable • Mission critical !!

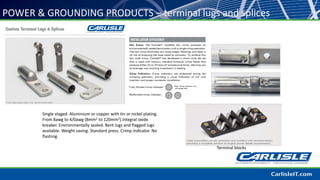

- 33. POWER & GROUNDINGPRODUCTS – terminal lugs and splices Single staged. Aluminium or copper with tin or nickel plating. From 8awg to 4/0awg (8mm2 to 120mm2).Integral oxide breaker. Environmentally sealed. Bent lugs and flagged lugs available. Weight saving. Standard press. Crimp indicator. No flashing. Terminal blocks
- 34. POWER AND GROUNDINGPRODUCTS
- 35.

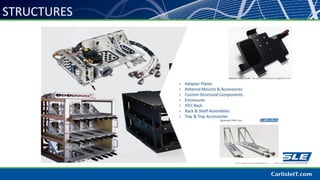

- 36.
- 37.
- 38.

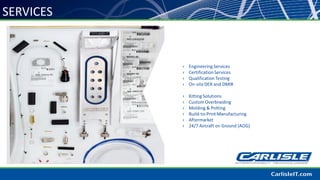

- 39.
- 40.
