Walter Burley Griffin planned Canberra as Australia's capital city based on his winning design in an international competition in 1912. His plan featured bisecting land and water axes, with Parliament House at the intersection. It was influenced by designs of Washington D.C. and Chicago, incorporating wide tree-lined avenues and an artificial lake. Construction began in 1913 but faced challenges from changes in government and World War I that slowed progress until the legislature moved to Canberra in 1927.

1. Canberra
NationalCapitalOfAustralia
Planned by Walter Burley Griffin
C
A
N
B
E
R
R
A
1

2. 2

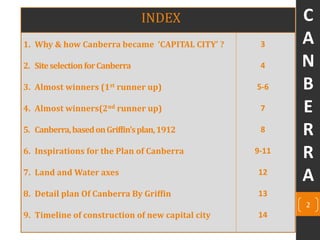

INDEX
1. Why & how Canberra became ‘CAPITAL CITY’ ?
2. SiteselectionforCanberra
3. Almost winners (1st runner up)
4. Almost winners(2nd runner up)
5. Canberra,basedonGriffin’splan,1912
6. Inspirations for the Plan of Canberra
7. Land and Water axes
8. Detail plan Of Canberra By Griffin
9. Timeline of construction of new capital city
3
4
5-6
7
8
9-11
12
13
14
C
A
N
B
E
R
R
A

3. Why & how Canberra became ‘CAPITAL CITY’ ?
 The most significant reason, which all politicians agreed with at the time, was
that whites could only really thrive and lead by living in a cold climate.
 The other consent, apart from cool temperatures, was that the site should not
have a significant settlement, nor should it be on the coast.
 They couldn't have it on the coast because of the possibility of sea
bombardment, and it was also a very bad period for disease, particularly at sea
level, so there was a double worry.
 In 1911, an International Competition (conducted by the Department of Home
Affairs) for the design of its new city was launched.
Source :- https://www.google.co.in/maps
 Canberra – Sydney NSW, Australia– 286km
 Canberra – Melbourne, Victoria, Australia –
669km
 Nearest Sea is around 200km
 Walter Burley Griffin, a Chicago
landscape architect was the first
prize-winner of the International
Competition for the design of this
city.
3
Fig-1:- Figure showing the distance between Melbourne,
Canberra & Sydney. Also, the nearest coastline to Canberra
C
A
N
B
E
R
R
A

4. Site selection for
Canberra
4
Source - Lionel Wigmore, 1963. The Long View: A History of
Canberra, Australia's National Capital. F.W. Cheshire, University
of Michigan, page-33
Fig-2:-The highlighted area is the final site selected by
the Federal Commission of Australia for the capital city
within the 50 mile radius provided by New South
Whales.
After the survey was done in
1908, the highlighted area is
the final site selected by the
Federal Commission of
Australia for the capital city
from the 50 mile radius
provided by New South
Whales. Both Sydney and
Melbourne got rejected in the
survey.
C
A
N
B
E
R
R
A

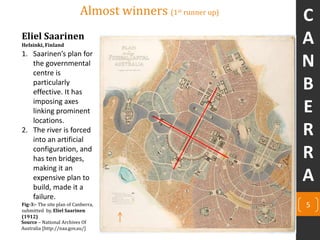

5. Eliel Saarinen
Helsinki, Finland
Source – National Archives Of
Australia [http://naa.gov.au/]
Almost winners (1st runner up)
1. Saarinen’s plan for
the governmental
centre is
particularly
effective. It has
imposing axes
linking prominent
locations.
2. The river is forced
into an artificial
configuration, and
has ten bridges,
making it an
expensive plan to
build, made it a
failure.
5Fig-3:- The site plan of Canberra,
submitted by, Eliel Saarinen
(1912)
C
A
N
B
E
R
R
A

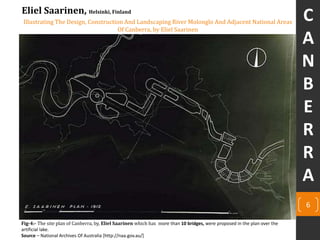

6. Illustrating The Design, Construction And Landscaping River Molonglo And Adjacent National Areas
Of Canberra, by Eliel Saarinen
6
Eliel Saarinen, Helsinki, Finland
Fig-4:- The site plan of Canberra, by, Eliel Saarinen which has more than 10 bridges, were proposed in the plan over the
artificial lake.
Source – National Archives Of Australia [http://naa.gov.au/]
C
A
N
B
E
R
R
A

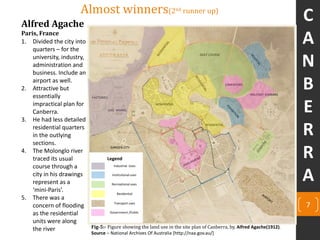

7. Alfred Agache
Paris, France
Almost winners(2nd runner up)
1. Divided the city into
quarters – for the
university, industry,
administration and
business. Include an
airport as well.
2. Attractive but
essentially
impractical plan for
Canberra.
3. He had less detailed
residential quarters
in the outlying
sections.
4. The Molonglo river
traced its usual
course through a
city in his drawings
represent as a
‘mini-Paris’.
5. There was a
concern of flooding
as the residential
units were along
the river
CIMENTORY
MILITARY BARRAKS
GOLF COURSE
RESIDENTIAL
RESIDENTIAL
GARDEN CITY
GAS WORKS
FACTORIES
7
Legend
Industrial Uses
Institutional uses
Recreational uses
Residential
Transport uses
Government /Public
Fig-5:- Figure showing the land use in the site plan of Canberra, by, Alfred Agache(1912).
Source – National Archives Of Australia [http://naa.gov.au/]
C
A
N
B
E
R
R
A

8. Canberra, based on Griffin’s plan, 1912.
8
Fig-6:-The site plan of
Canberra, submitted by,
Walter Burley
Griffin(1912).
Source – National
Archives Of Australia
[http://naa.gov.au/]
C
A
N
B
E
R
R
A

9. 9

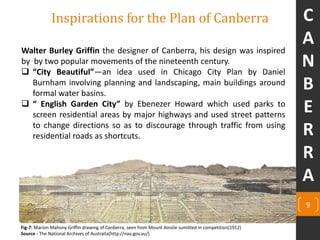

Inspirations for the Plan of Canberra
Walter Burley Griffin the designer of Canberra, his design was inspired
by by two popular movements of the nineteenth century.
 “City Beautiful”—an idea used in Chicago City Plan by Daniel
Burnham involving planning and landscaping, main buildings around
formal water basins.
 “ English Garden City” by Ebenezer Howard which used parks to
screen residential areas by major highways and used street patterns
to change directions so as to discourage through traffic from using
residential roads as shortcuts.
Fig-7: Marion Mahony Griffin drawing of Canberra, seen from Mount Ainslie sumitted in competition(1912)
Source - The National Archives of Australia[http://naa.gov.au/]
C
A
N
B
E
R
R
A

10. 10

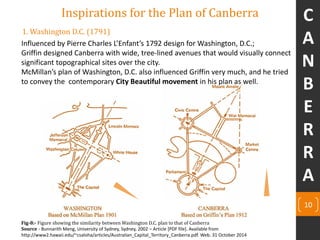

1. Washington D.C. (1791)
Influenced by Pierre Charles L’Enfant’s 1792 design for Washington, D.C.;
Griffin designed Canberra with wide, tree-lined avenues that would visually connect
significant topographical sites over the city.
McMillan’s plan of Washington, D.C. also influenced Griffin very much, and he tried
to convey the contemporary City Beautiful movement in his plan as well.
Inspirations for the Plan of Canberra
Fig-8:- Figure showing the similarity between Washington D.C. plan to that of Canberra
Source - Bunnarith Meng, University of Sydney, Sydney, 2002 – Article [PDF file]. Available from
http://www2.hawaii.edu/~csaloha/articles/Australian_Capital_Territory_Canberra.pdf. Web. 31 October 2014
C
A
N
B
E
R
R
A

11. 11

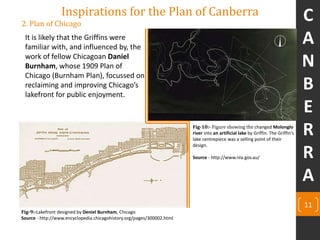

2. Plan of Chicago
It is likely that the Griffins were
familiar with, and influenced by, the
work of fellow Chicagoan Daniel
Burnham, whose 1909 Plan of
Chicago (Burnham Plan), focussed on
reclaiming and improving Chicago’s
lakefront for public enjoyment.
Inspirations for the Plan of Canberra
Fig-10:- Figure showing the changed Molonglo
river into an artificial lake by Griffin. The Griffin’s
lake centrepiece was a selling point of their
design.
Source - http://www.nla.gov.au/
Fig-9:-Lakefront designed by Deniel Burnham, Chicago
Source - http://www.encyclopedia.chicagohistory.org/pages/300002.html
C
A
N
B
E
R
R
A

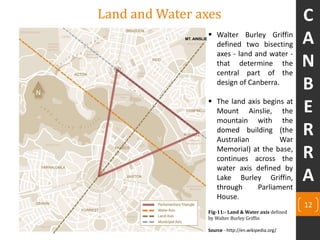

12. Land and Water axes
 Walter Burley Griffin
defined two bisecting
axes - land and water -
that determine the
central part of the
design of Canberra.
 The land axis begins at
Mount Ainslie, the
mountain with the
domed building (the
Australian War
Memorial) at the base,
continues across the
water axis defined by
Lake Burley Griffin,
through Parliament
House.
12
Fig-11:- Land & Water axis defined
by Walter Burley Griffin
Source - http://en.wikipedia.org/
MT. AINSLIE
C
A
N
B
E
R
R
A

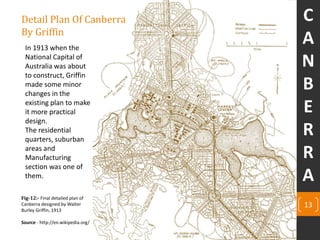

13. Detail Plan Of Canberra
By Griffin
13
Fig-12:- Final detailed plan of
Canberra designed by Walter
Burley Griffin, 1913
Source - http://en.wikipedia.org/
In 1913 when the
National Capital of
Australia was about
to construct, Griffin
made some minor
changes in the
existing plan to make
it more practical
design.
The residential
quarters, suburban
areas and
Manufacturing
section was one of
them.
C
A
N
B
E
R
R
A

14. Timeline of construction of new capital city
 1912- International design competition was held for designing the capital city
of Australia
 1913- 12th March 1913- The foundation stone was laid the Capital Hill and
the City was formally named Canberra.
 Mid 1913- Change of governments and the new Ministry appointed Griffin
as a Federal Director of Design and Construction.
 1914- World war –I, which lead to a new government again and also affected
the fast of work on site.
 1914- Extension of railway from Queanbeyan to the south-east comer of
Canberra, and also a power station was built at Kingston.
 1920- Griffin was fired, with little work done due to lack of funding.
 1927- The federal legislature moved to Canberra, with the opening of the
Provisional Parliament House.
 1936 - Walter Burley Griffin died.
14
C
A
N
B
E
R
R
A

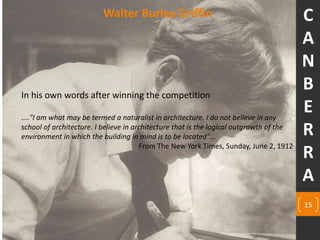

15. Walter Burley Griffin
In his own words after winning the competition
...."I am what may be termed a naturalist in architecture. I do not believe in any
school of architecture. I believe in architecture that is the logical outgrowth of the
environment in which the building in mind is to be located"...
From The New York Times, Sunday, June 2, 1912.
15
C
A
N
B
E
R
R
A

16. 16
Sources
Books/E-books
 Bunnarith Meng, University of Sydney, Sydney, 2002 – Article [PDF file].
Available from
http://www2.hawaii.edu/~csaloha/articles/Australian_Capital_Territory_Canber
ra.pdf. Web. 31 October 2014
 Edmund N. Bacon, 1976. ‘Griffin and Canberra’ in Design of Cities: Revised
Edition (Penguin Books). Revised Edition. Penguin Books.
 Lionel Wigmore, 1963. The Long View: A History of Canberra, Australia's
National Capital. F.W. Cheshire, University of Michigan,
Online sources
 National Archives Of Australia [http://naa.gov.au/]
 Wikipedia http://en.wikipedia.org/Canberra
 Wikipedia http://en.wikipedia.org/wiki/History_of_Canberra
 http://www.encyclopedia.chicagohistory.org/pages/300002.html
 http://www.idealcity.org.au/
 http://www.griffinsociety.org/
 Google Maps - https://www.google.co.in/maps
 Google Images - https://www.google.co.in/imghp
