C# Unit5 Notes

25

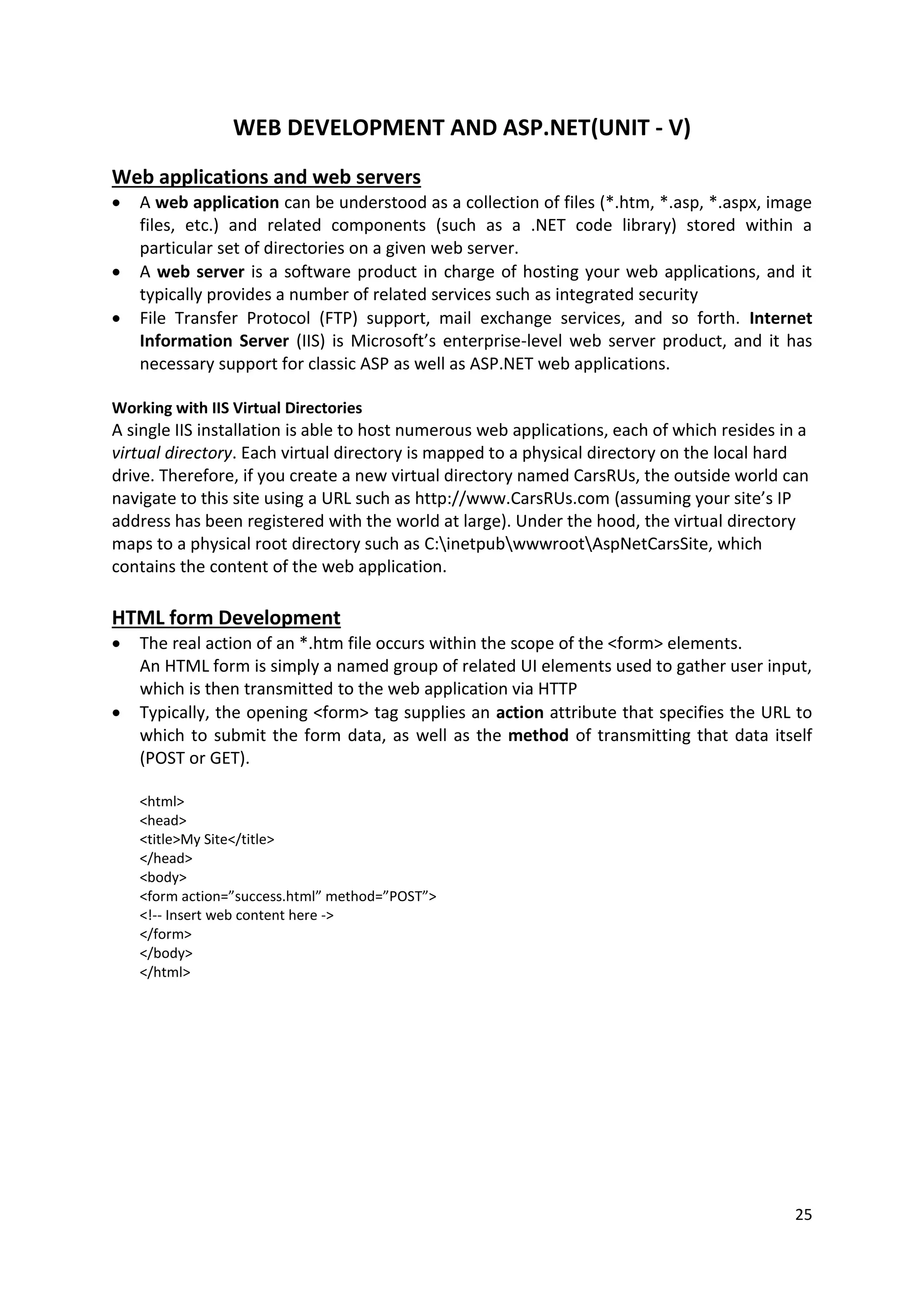

WEB DEVELOPMENT AND ASP.NET(UNIT - V)
Web applications and web servers
 A web application can be understood as a collection of files (*.htm, *.asp, *.aspx, image
files, etc.) and related components (such as a .NET code library) stored within a
particular set of directories on a given web server.
 A web server is a software product in charge of hosting your web applications, and it
typically provides a number of related services such as integrated security
 File Transfer Protocol (FTP) support, mail exchange services, and so forth. Internet
Information Server (IIS) is Microsoft’s enterprise-level web server product, and it has
necessary support for classic ASP as well as ASP.NET web applications.
Working with IIS Virtual Directories
A single IIS installation is able to host numerous web applications, each of which resides in a
virtual directory. Each virtual directory is mapped to a physical directory on the local hard
drive. Therefore, if you create a new virtual directory named CarsRUs, the outside world can
navigate to this site using a URL such as http://www.CarsRUs.com (assuming your site’s IP
address has been registered with the world at large). Under the hood, the virtual directory
maps to a physical root directory such as C:inetpubwwwrootAspNetCarsSite, which
contains the content of the web application.
HTML form Development
 The real action of an *.htm file occurs within the scope of the <form> elements.
An HTML form is simply a named group of related UI elements used to gather user input,
which is then transmitted to the web application via HTTP
 Typically, the opening <form> tag supplies an action attribute that specifies the URL to
which to submit the form data, as well as the method of transmitting that data itself
(POST or GET).
<html>
<head>
<title>My Site</title>
</head>
<body>
<form action=”success.html” method=”POST”>
<!-- Insert web content here ->
</form>
</body>
</html>

26
GET and POST (Submitting the Form Data)
Used to submit form data to the web server for processing.
<form name="defaultPage" id="defaultPage"
action="ClassicAspPage.asp" method = "GET">
...
</form>
GET:
When you specify method = "GET" as the mode of transmission, the form data is appended to the
query string as a set of name/value pairs separated by ampersands:
http://localhost/Cars/ClassicAspPage.asp?txtUserName=Andrew&txtPassword=abcd123
POST:
The other method of transmitting form data to the web server is to specify method = "POST".
In this case, the form data is not appended to the query string, but instead is written to a separate
line within the HTTP header. Using POST, the form data is not directly visible to the outside world.
More important, POST data does not have a character-length limitation (many browsers
have a limit for GET queries).
ASP.NET application
Below is the simple asp.net application using VBScript.
Index.asp
<html>
<body>
<form action=”process.asp” method=”GET” >
Username: <input type=”text” name=”txtUserName” />
Password: <input type=”text” name=”txtPassword” />
<input type=”submit” name=”btnSubmit” />
</form>
</body>
</html>
process.asp
<%@ language="VBScript" %>
<html>
<head>
<title>Demo </title>
</head>
<body>
<h1> Here is what you sent me:</h1>
<%= Dim name = Request.QueryString("txtUserName ")
<%= Dim pwd = Request.QueryString("txtPassword") %>
User Name: <%=Response.Write(name) %> <br>
Password: <%=Response.Write(pwd) %>
</body>
</html>

27
ASP.NET namespaces
As of .NET 2.0, there are no fewer than 34 web-centric namespaces in the base class
libraries.
These namespaces can be grouped into four major categories:
1. Core functionality (e.g., types that allow you to interact with the HTTP request and response)
2. Web Form and HTML controls
3. Mobile web development
4. XML web services
Below table describes several of the core ASP.NET 2.0 namespaces.
Creating sample C# web Applications
<%
HelloWorldLabel.Text = "Hello, world!";
%>
<html xmlns="http://www.w3.org/1999/xhtml" >
<head runat="server">
<title>MyPage</title>
</head>
<body>
<form id="form1" runat="server">
<div>
<asp:Label runat="server" id="HelloWorldLabel"></asp:Label>
</div>
</form>
</body>
</html>

28
ASP.NET Website Directory Structure
Life Cycle of an ASP.NET Web Page

29
Introduction to web Form controls
 Web Forms are compiled and executed on the server, which generates the HTML that
displays the web pages.
 Web Forms comes with hundreds of different web controls and web components to
build user-driven web sites with data access.
The types in System.Web.UI.WebControls can be broken down into several broad
categories:
 Simple controls
- The simple controls are so named because they are ASP.NET web controls that map to
standard HTML widgets (buttons, lists, hyperlinks, image holders, tables, etc.).
 Rich controls
- Rich controls are those for which there is no direct HTML equivalent (such as the
Calendar, TreeView, Wizard, etc.)
 Data-centric controls
- Data-centric controls are widgets that are typically populated via a given data
connection. (eg, GridView)
 Input validation controls
- Validation controls are server-side widgets that automatically emit client-side
JavaScript, for the purpose of form field validation
 Login controls
- These UI elements completely encapsulate the details of logging into a site, providing
password-retrieval services and managing user roles
Building Web Services
The term "web service" refers to a form of a component that can be used remotely
Microsoft offers two types of web services in their .NET framework, XML web services and
.NET remoting.
Web services are invoked remotely using SOAP(Simple Object Access Protocol) or HTTP-GET
and HTTP-POST protocols .
The file extension for a web service is .asmx.
Benefits of XML Web Services:
Language and platform independence: XML web services provide a way for unrelated platforms, operating
systems, and programming languages to exchange information in harmony.
Automatic upgrade: Unlike components, if a web service requires an update, that update is propagated to all
applications consuming that web service immediately
The following code shows the most basic web service:
HelloWorld.asmx
<%@ WebService Language="C#" class="HelloWorld"%>
using System.Web.Services;
public class HelloWorld : WebService{ // HelloWorld class inherits from the WebService base class
[WebMethod] // indicates to IIS and the .NET compiler that the following method is to be exposed and web callable.
public string HelloWorldMethod() {
return "Hello World";
} }

30
Web Service Namespace
The base class libraries define a number of namespaces that allow you to interact with each
web service technology
