1. Business case and cost
modelling for an end-to-end
RDM service
Frances Madden, Research Data and Curation Manager
Dave Cobb, Project Manager

2. Background

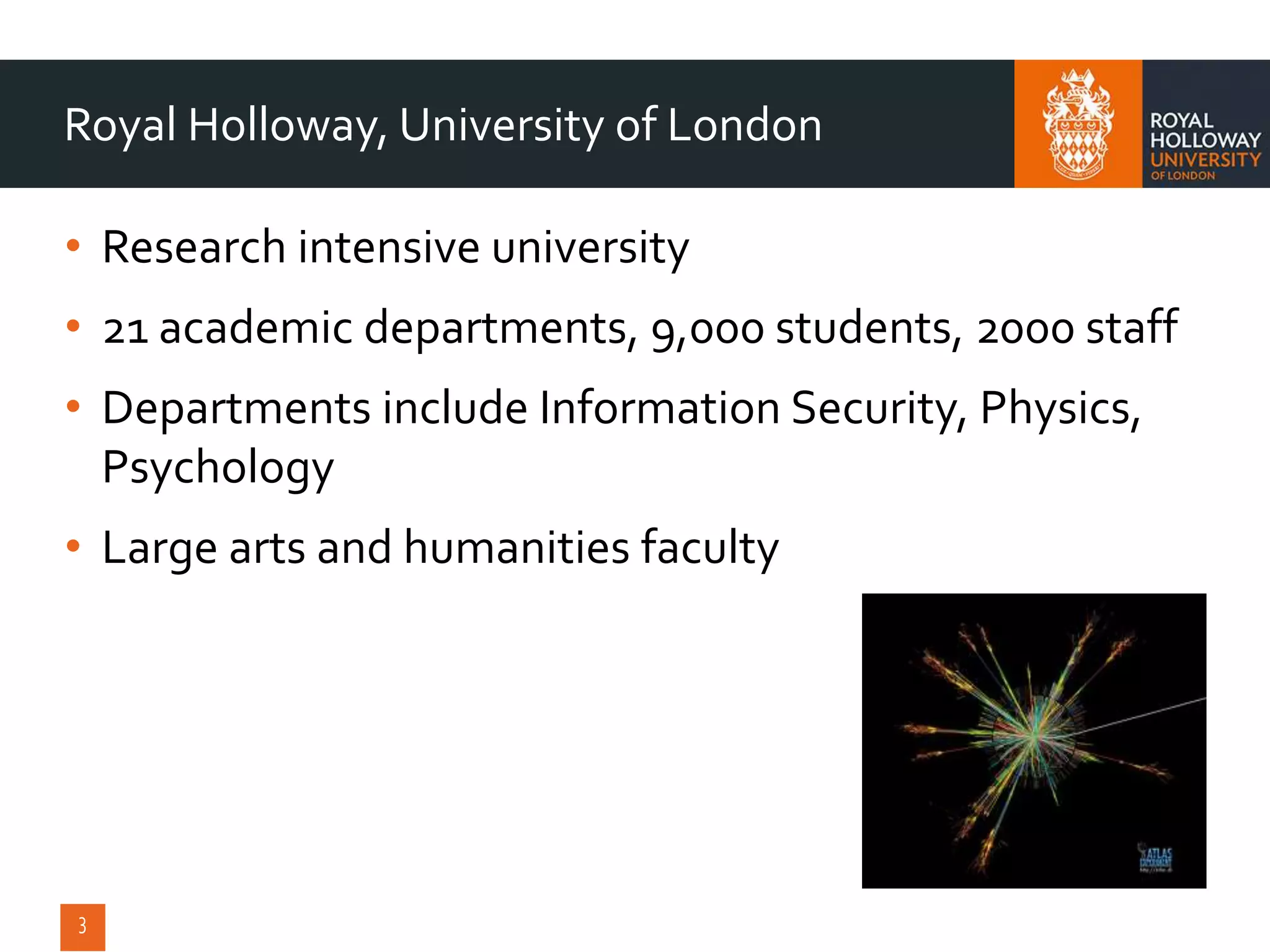

3. • Research intensive university
• 21 academic departments, 9,000 students, 2000 staff
• Departments include Information Security, Physics,
Psychology
• Large arts and humanities faculty
Royal Holloway, University of London

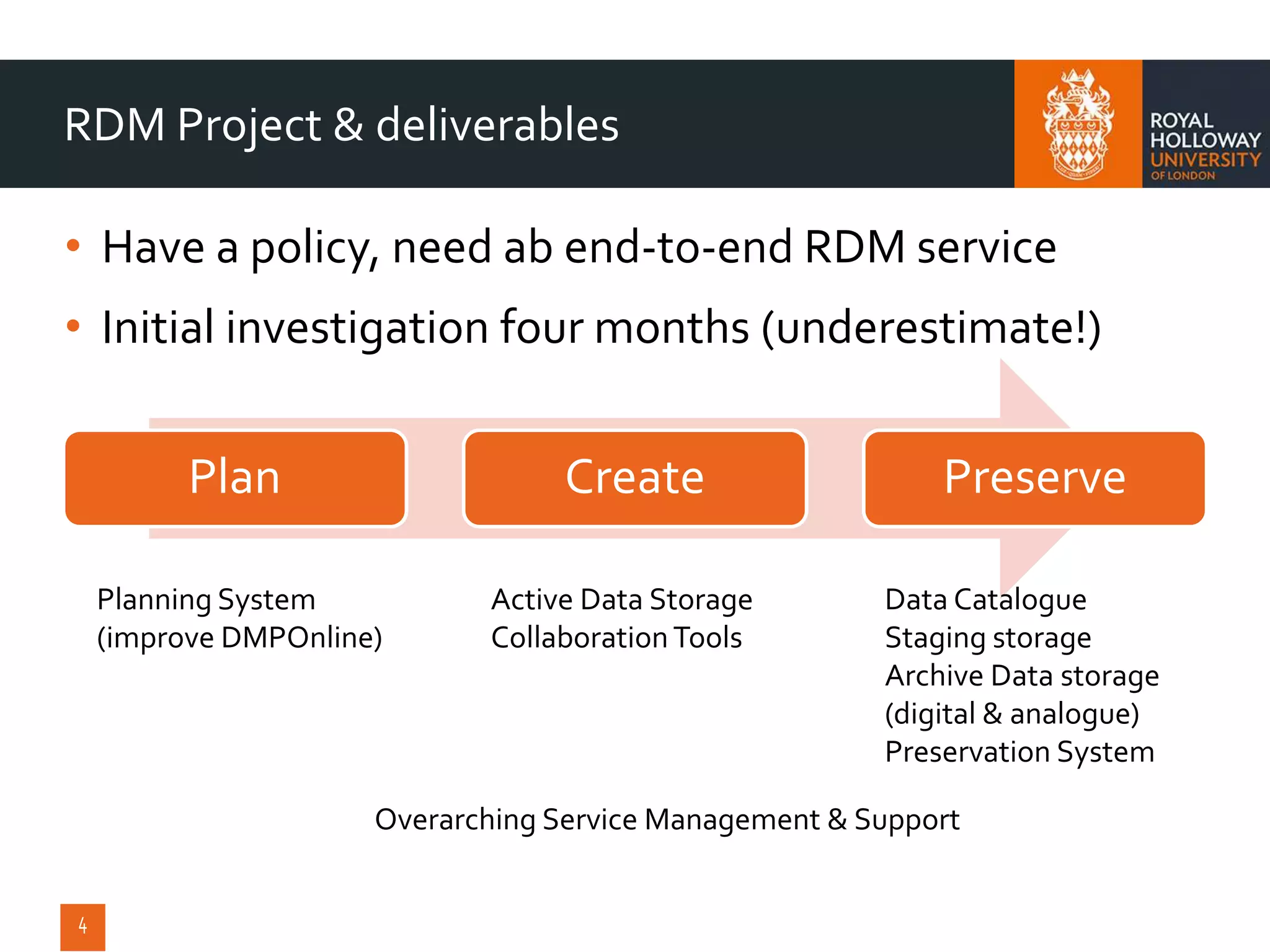

4. • Have a policy, need ab end-to-end RDM service
• Initial investigation four months (underestimate!)
RDM Project & deliverables
Plan Create Preserve
Overarching Service Management & Support
Planning System
(improve DMPOnline)
Active Data Storage
CollaborationTools
Data Catalogue
Staging storage
Archive Data storage
(digital & analogue)
Preservation System

5. BusinessCase

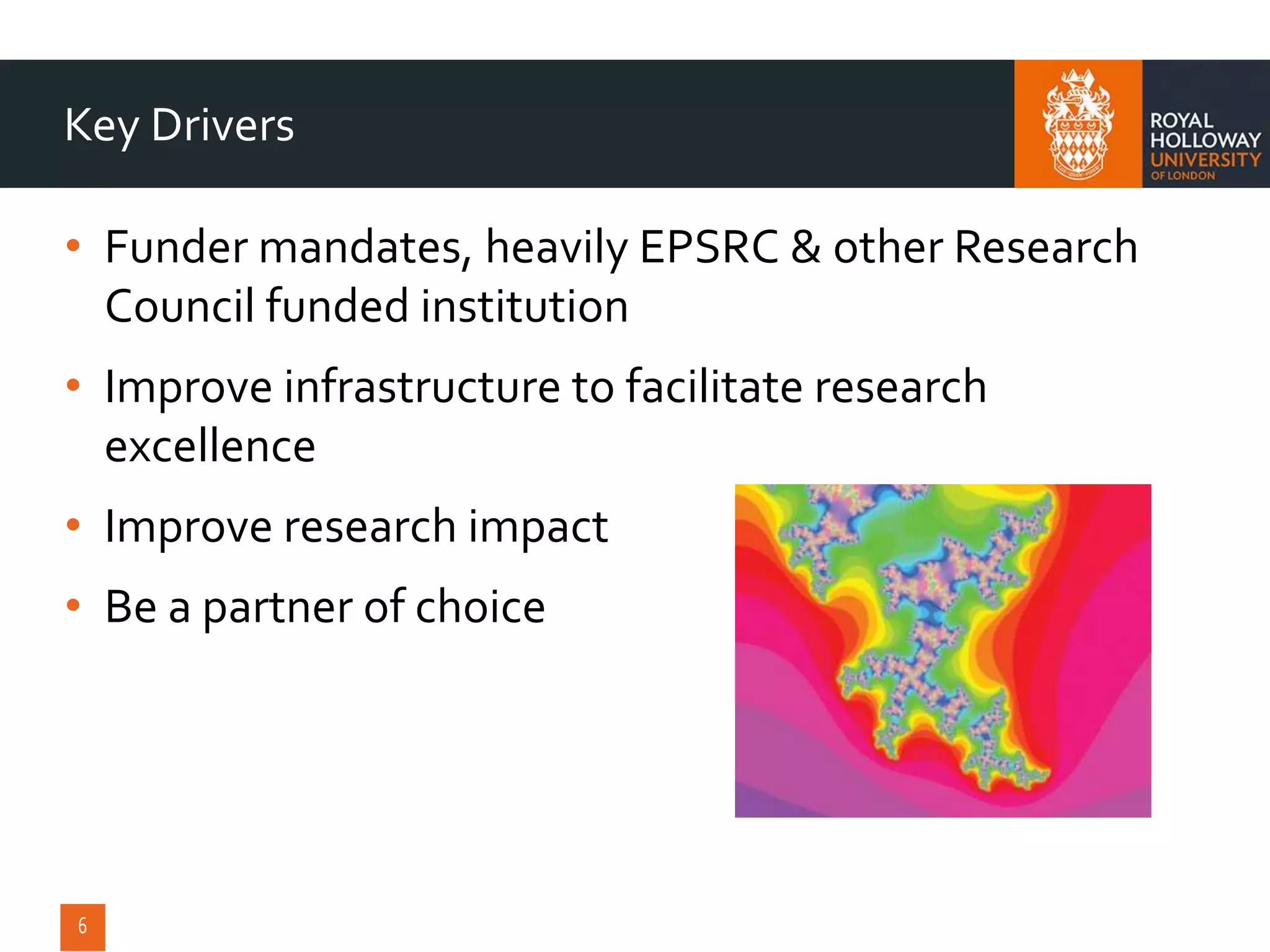

6. • Funder mandates, heavily EPSRC & other Research
Council funded institution
• Improve infrastructure to facilitate research
excellence
• Improve research impact
• Be a partner of choice
Key Drivers

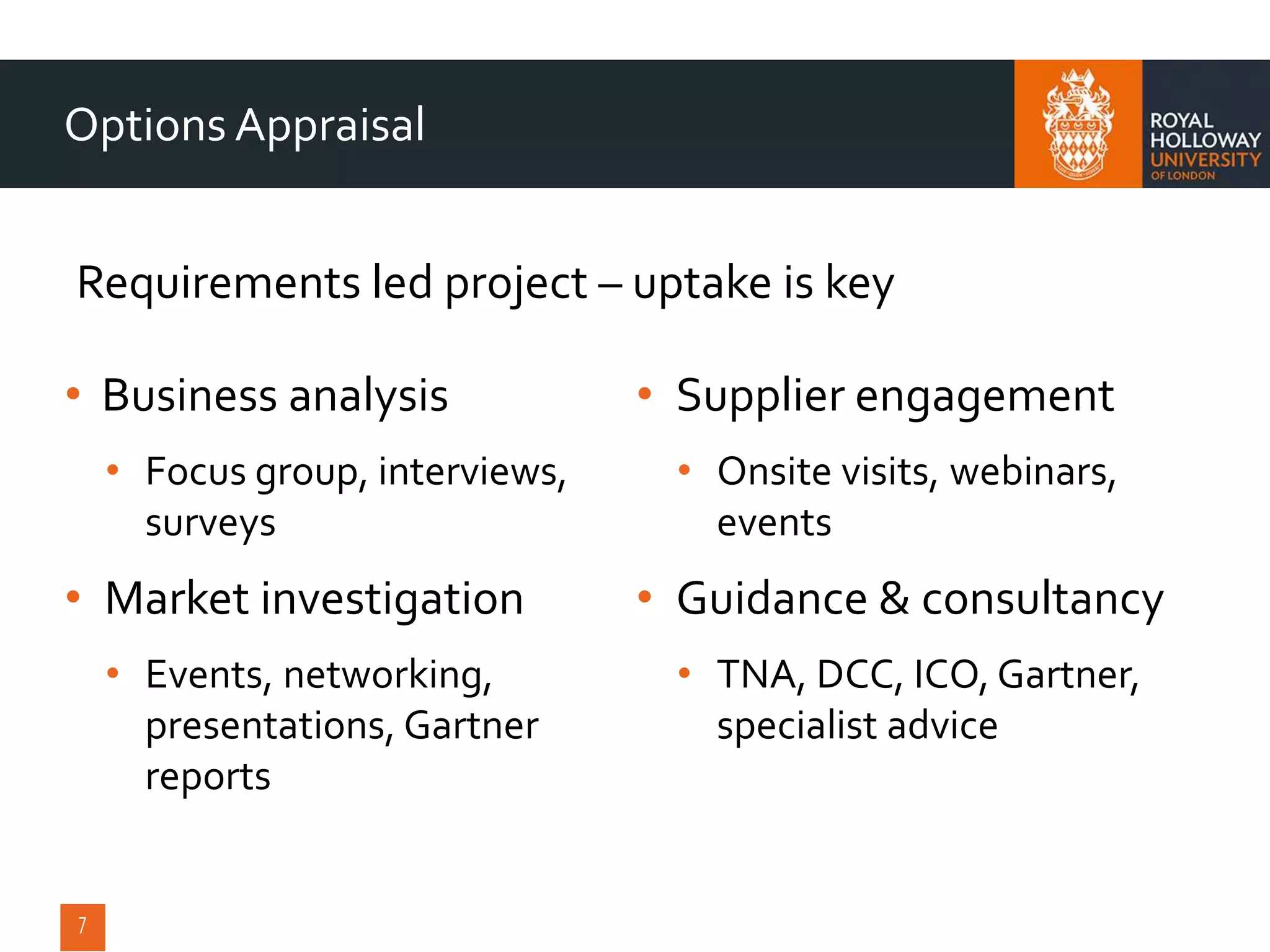

7. • Business analysis
• Focus group, interviews,
surveys
• Market investigation
• Events, networking,
presentations, Gartner
reports
• Supplier engagement
• Onsite visits, webinars,
events
• Guidance & consultancy
• TNA, DCC, ICO, Gartner,
specialist advice
Options Appraisal
Requirements led project – uptake is key

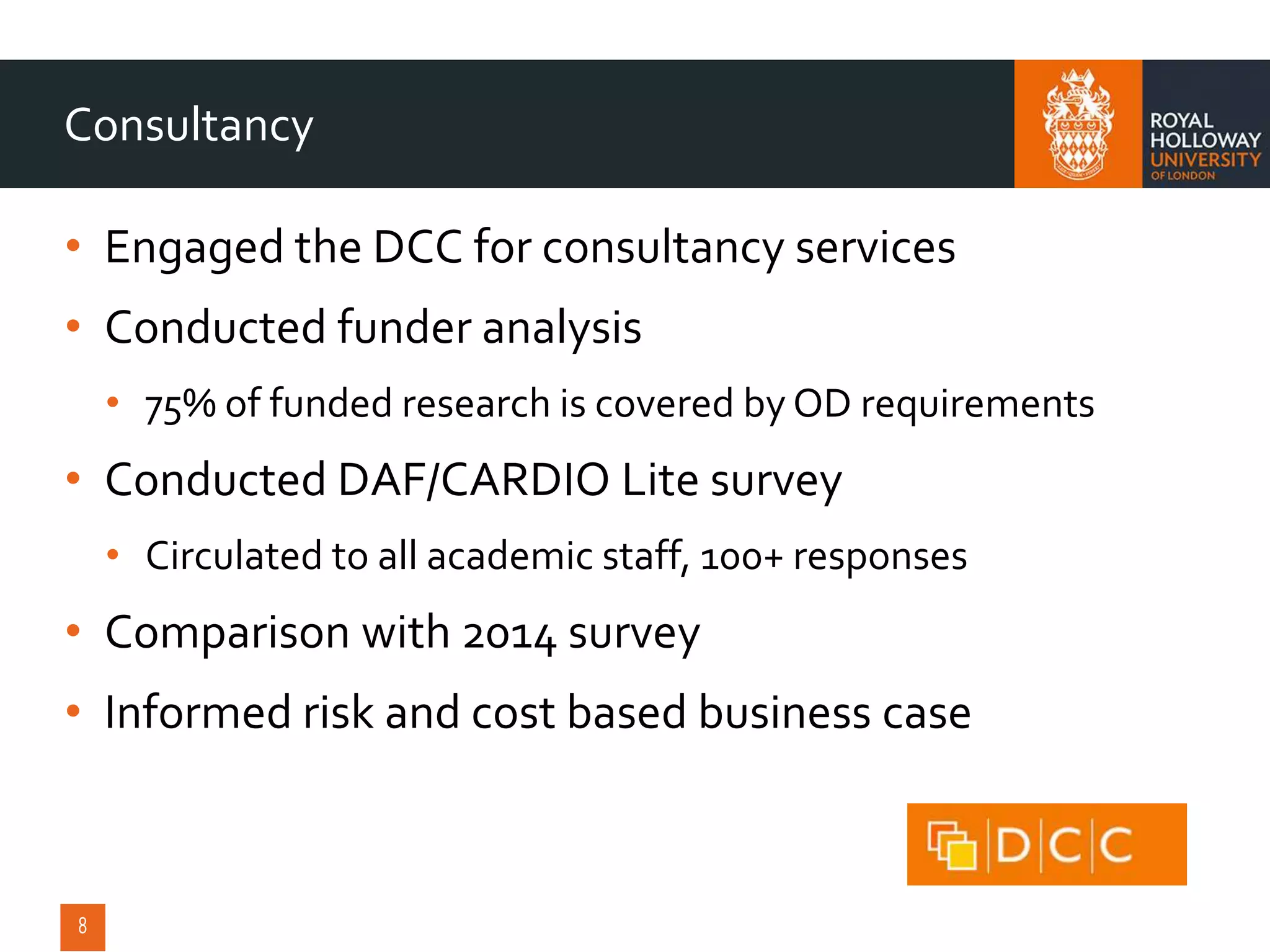

8. • Engaged the DCC for consultancy services
• Conducted funder analysis
• 75% of funded research is covered by OD requirements
• Conducted DAF/CARDIO Lite survey
• Circulated to all academic staff, 100+ responses
• Comparison with 2014 survey
• Informed risk and cost based business case
Consultancy

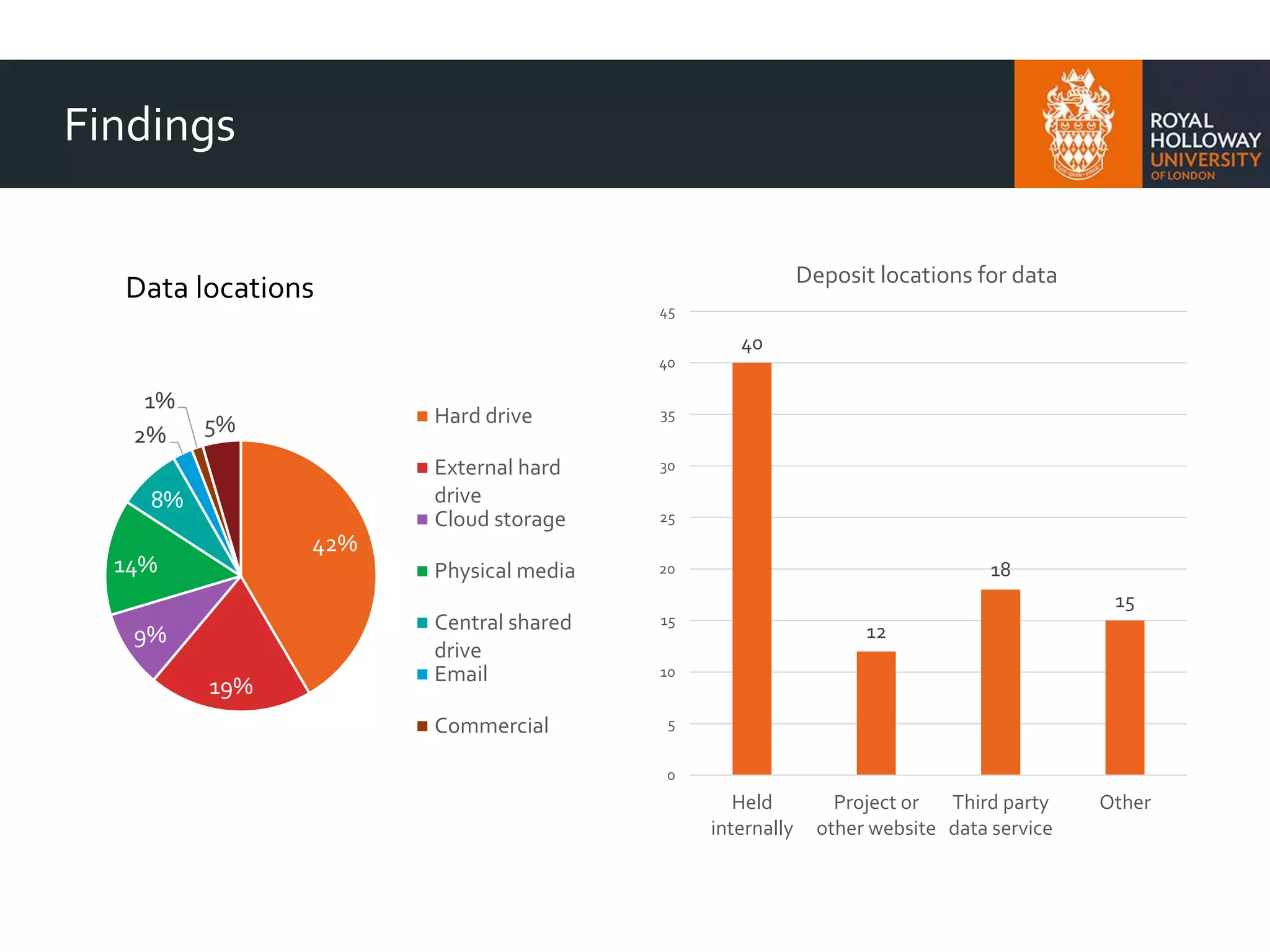

9. Findings
42%
19%
9%
14%
8%
2%
1%
5%
Data locations
Hard drive
External hard
drive
Cloud storage
Physical media
Central shared
drive
Email
Commercial
40
12
18
15
0
5
10
15
20
25
30
35
40
45
Held
internally
Project or
other website
Third party
data service
Other
Deposit locations for data

10. Findings
63%11%
10%
6%
4%
3% 2% 1%
Funding sources
RCUK funding
EU Government
Charity funding
Overseas
Other EU
British Academy
Government
funding (inc. NHS)
Industry
[CELLRA
NGE]
[CELLRA
NGE]
[CELLRA
NGE]
[CELLRA
NGE]
[CELLRA
NGE]
[CELLRA
NGE]
[CELLRA
NGE]
0 5 10 15 20 25 30
Less than 1GB
1-10GB
10-100GB
100-500GB
500GB-1TB
1-10TB
Over 10TB
DataVolumes

11. Costs

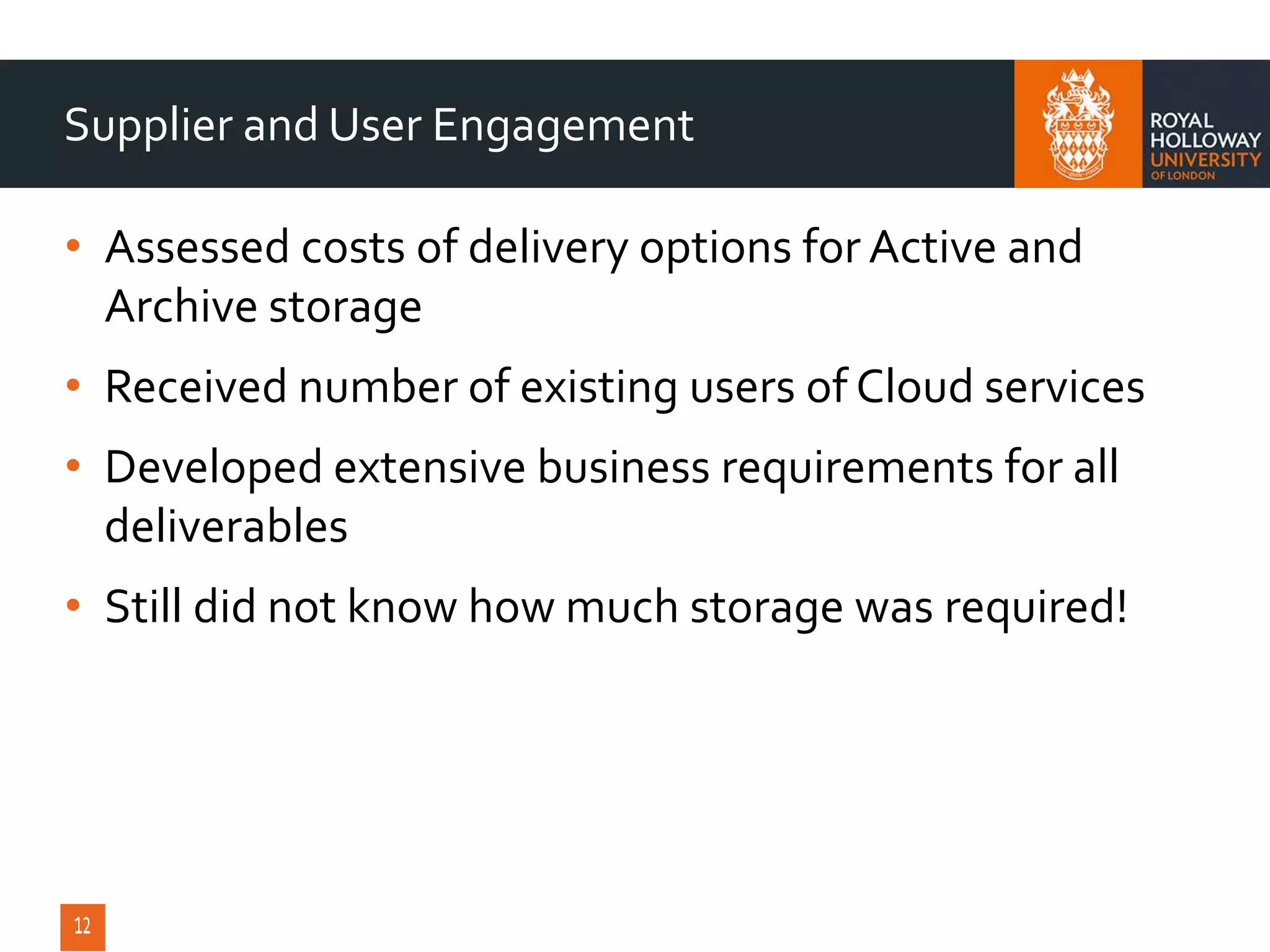

12. • Assessed costs of delivery options for Active and
Archive storage
• Received number of existing users of Cloud services
• Developed extensive business requirements for all
deliverables
• Still did not know how much storage was required!
Supplier and User Engagement

13. This became this….
[CELLRA
NGE]
[CELLRA
NGE]
[CELLRA
NGE]
[CELLRA
NGE]
[CELLRA
NGE]
[CELLRA
NGE]
[CELLRA
NGE]
0 5 10 15 20 25 30
Less than 1GB
1-10GB
10-100GB
100-500GB
500GB-1TB
1-10TB
Over 10TB
DataVolumes

14. And this….

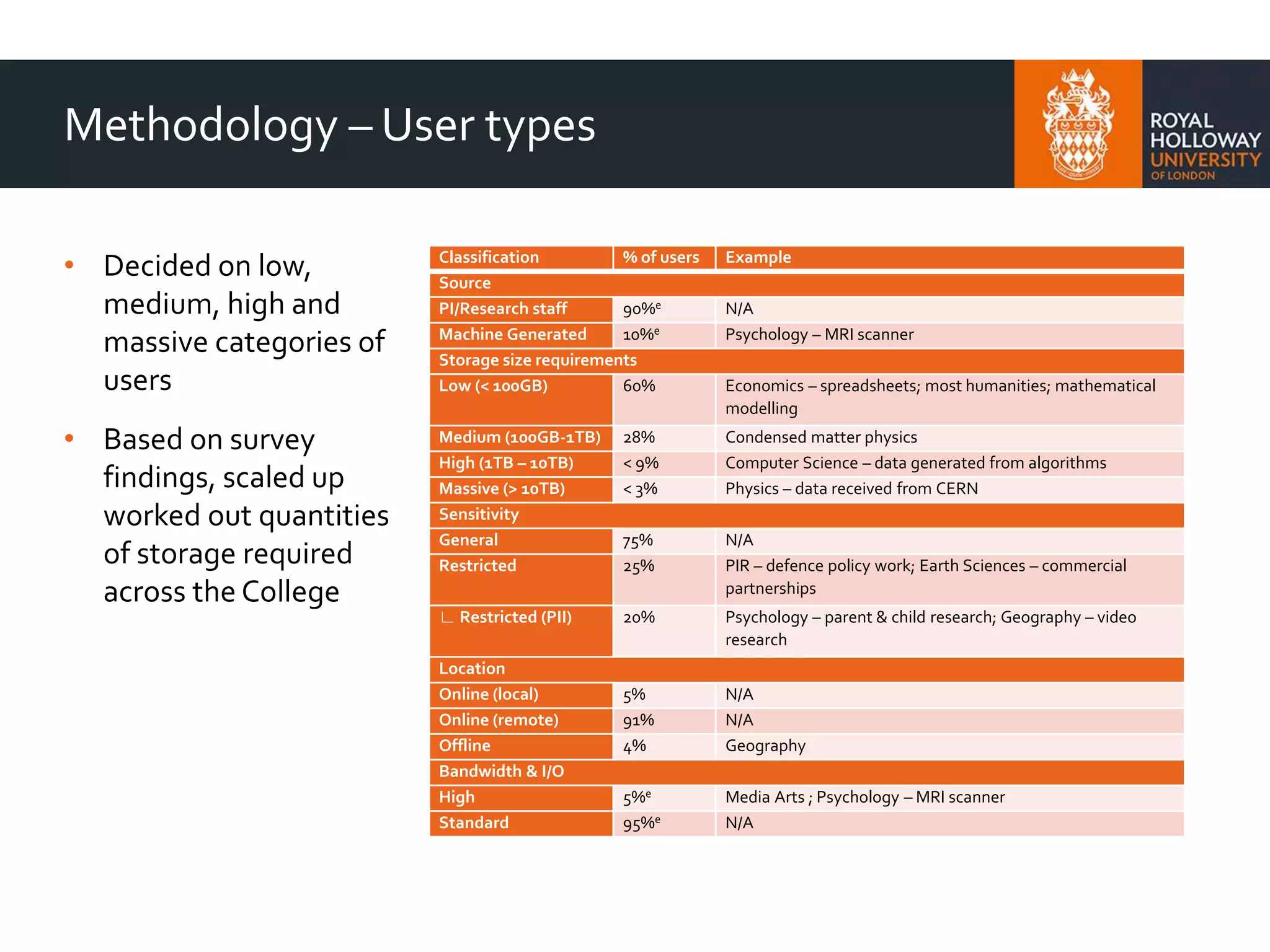

15. Methodology – User types
• Decided on low,
medium, high and
massive categories of
users
• Based on survey
findings, scaled up
worked out quantities
of storage required
across the College
Classification % of users Example
Source
PI/Research staff 90%e N/A
Machine Generated 10%e Psychology – MRI scanner
Storage size requirements
Low (< 100GB) 60% Economics – spreadsheets; most humanities; mathematical
modelling
Medium (100GB-1TB) 28% Condensed matter physics
High (1TB – 10TB) < 9% Computer Science – data generated from algorithms
Massive (> 10TB) < 3% Physics – data received from CERN
Sensitivity
General 75% N/A
Restricted 25% PIR – defence policy work; Earth Sciences – commercial
partnerships
∟ Restricted (PII) 20% Psychology – parent & child research; Geography – video
research
Location
Online (local) 5% N/A
Online (remote) 91% N/A
Offline 4% Geography
Bandwidth & I/O
High 5%e Media Arts ; Psychology – MRI scanner
Standard 95%e N/A

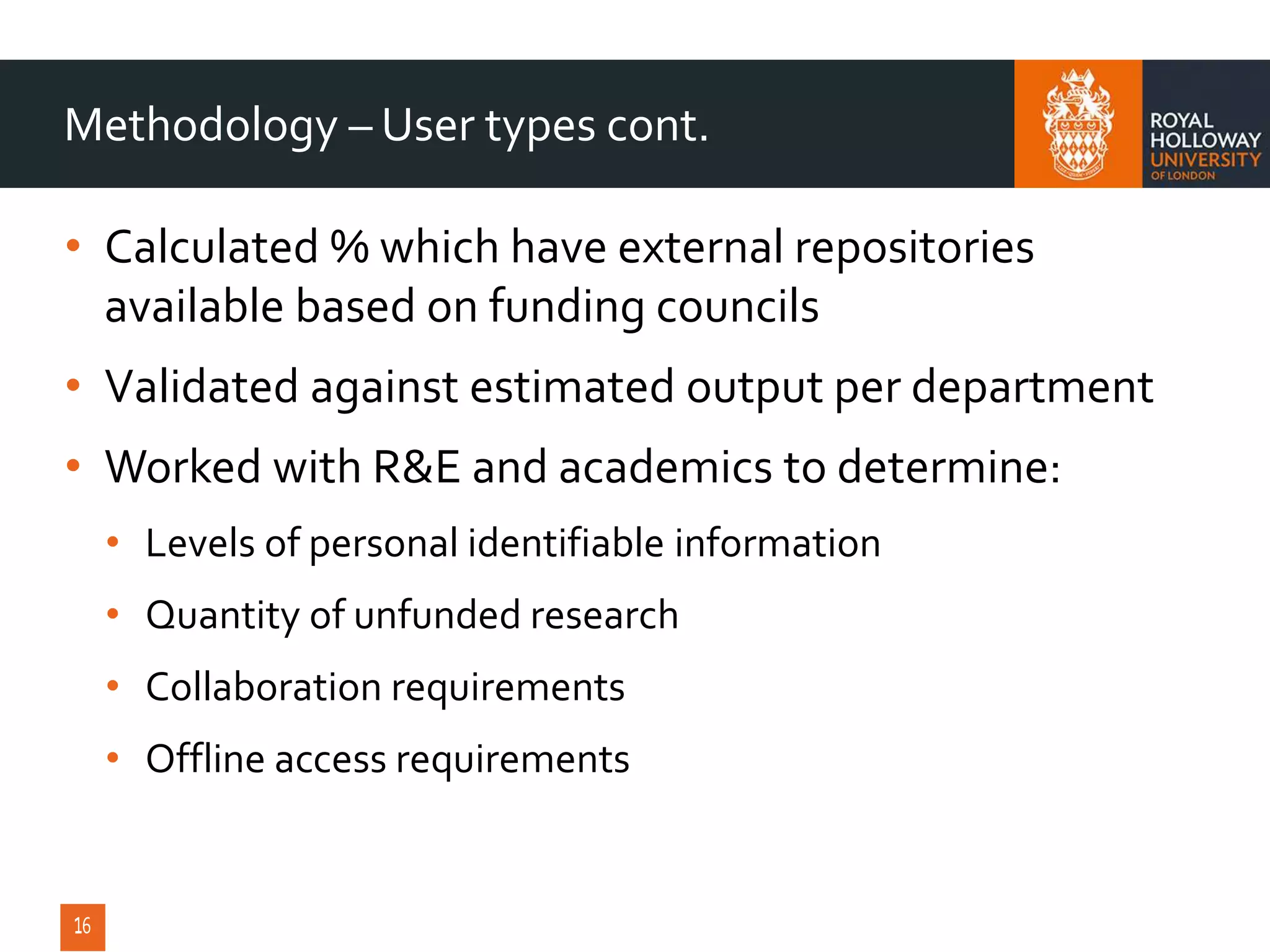

16. • Calculated % which have external repositories
available based on funding councils
• Validated against estimated output per department
• Worked with R&E and academics to determine:
• Levels of personal identifiable information
• Quantity of unfunded research
• Collaboration requirements
• Offline access requirements
Methodology – User types cont.

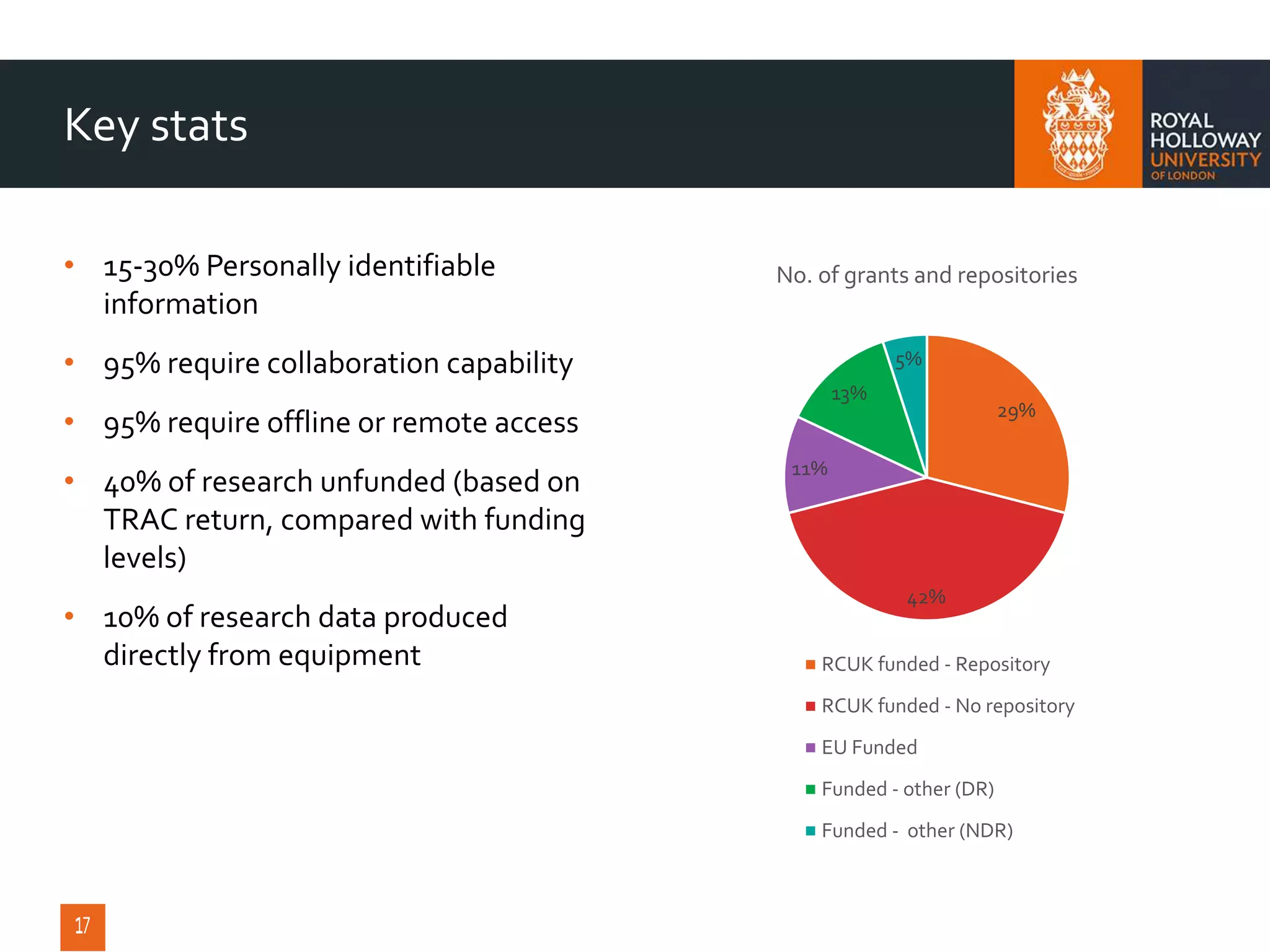

17. Key stats
• 15-30% Personally identifiable
information
• 95% require collaboration capability
• 95% require offline or remote access
• 40% of research unfunded (based on
TRAC return, compared with funding
levels)
• 10% of research data produced
directly from equipment
29%
42%
11%
13%
5%
No. of grants and repositories
RCUK funded - Repository
RCUK funded - No repository
EU Funded
Funded - other (DR)
Funded - other (NDR)

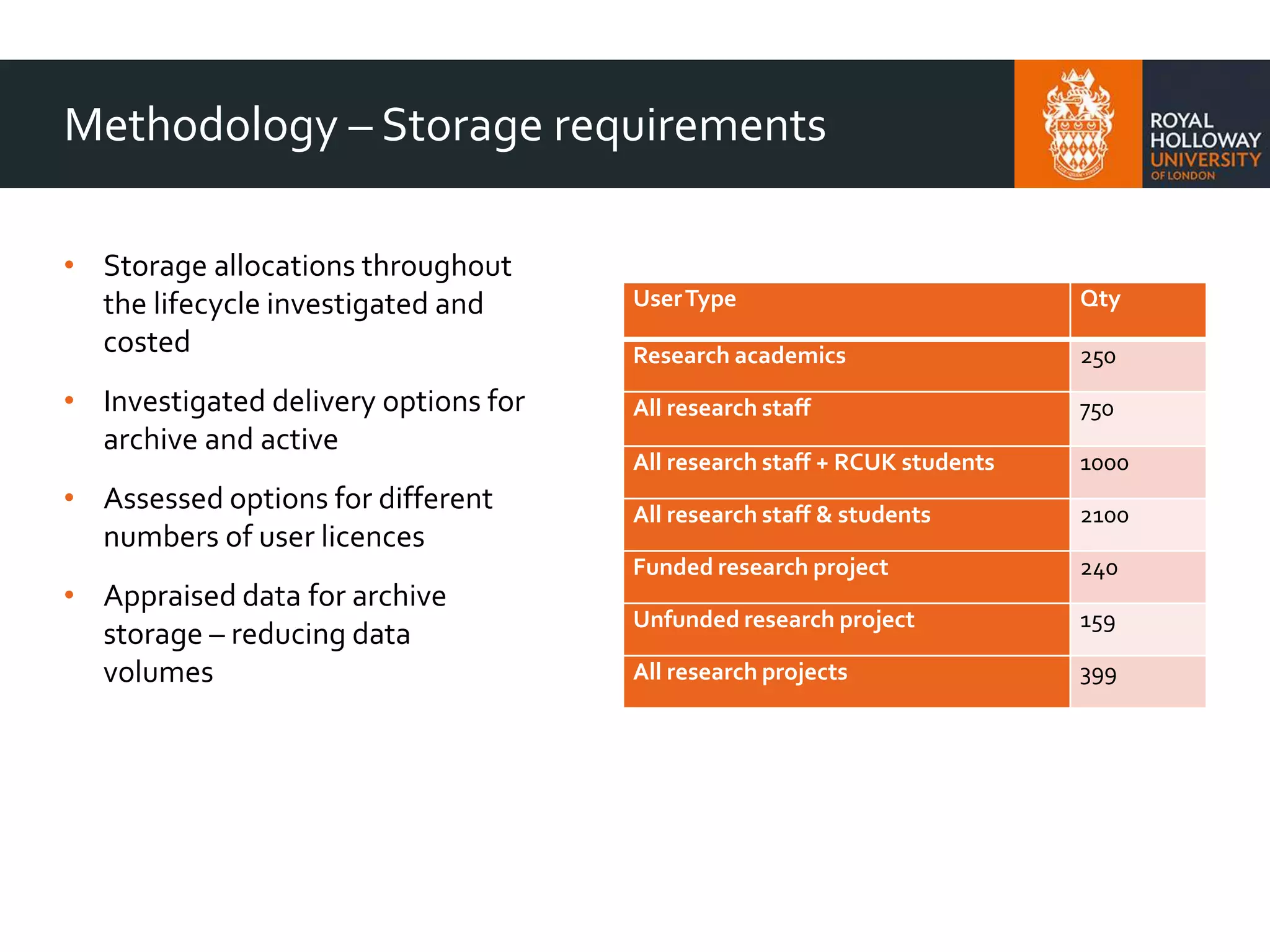

18. Methodology – Storage requirements
• Storage allocations throughout
the lifecycle investigated and
costed
• Investigated delivery options for
archive and active
• Assessed options for different
numbers of user licences
• Appraised data for archive
storage – reducing data
volumes
UserType Qty
Research academics 250
All research staff 750
All research staff + RCUK students 1000
All research staff & students 2100
Funded research project 240
Unfunded research project 159
All research projects 399

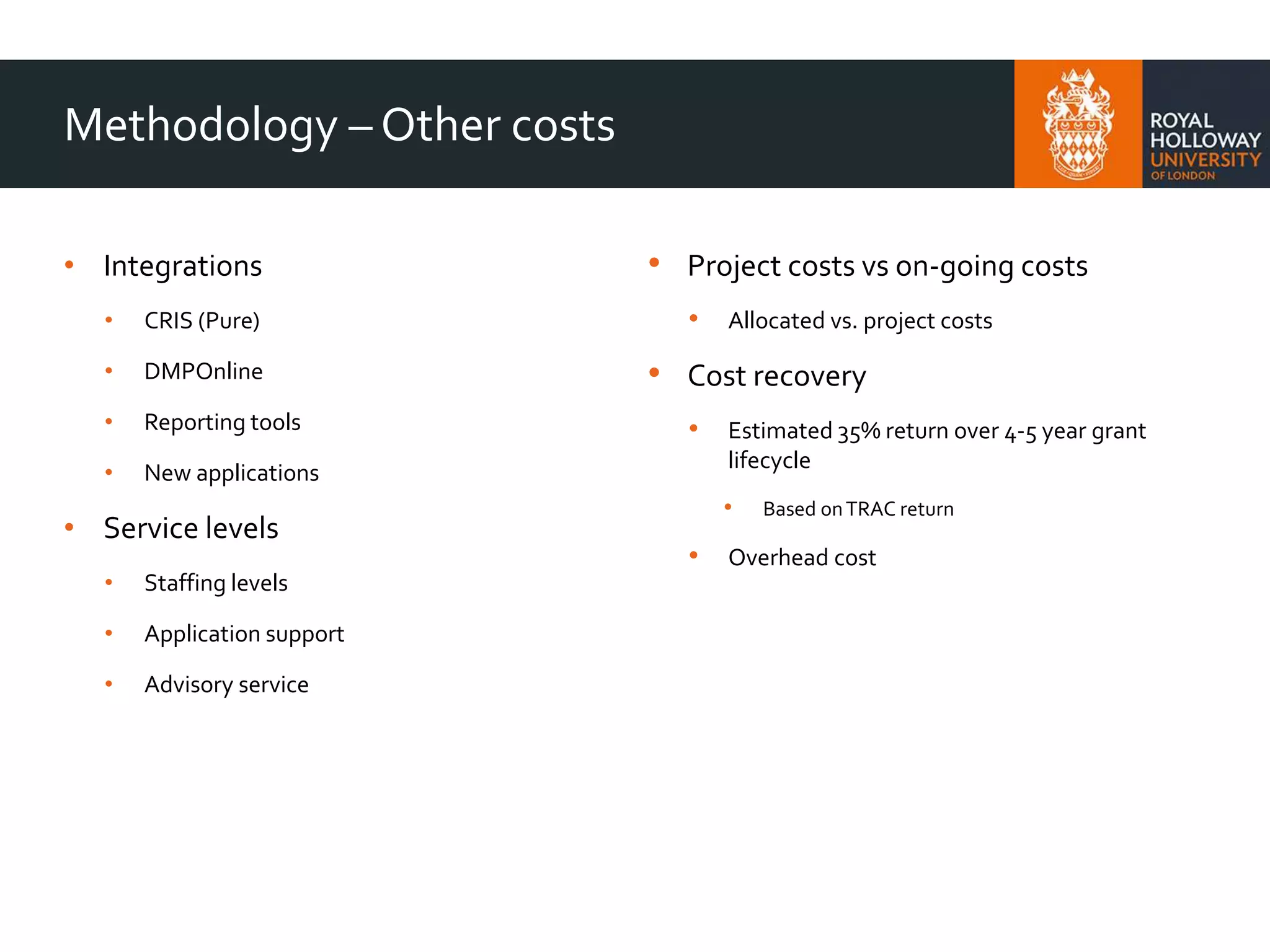

19. Methodology – Other costs
• Integrations
• CRIS (Pure)
• DMPOnline
• Reporting tools
• New applications
• Service levels
• Staffing levels
• Application support
• Advisory service
• Project costs vs on-going costs
• Allocated vs. project costs
• Cost recovery
• Estimated 35% return over 4-5 year grant
lifecycle
• Based onTRAC return
• Overhead cost

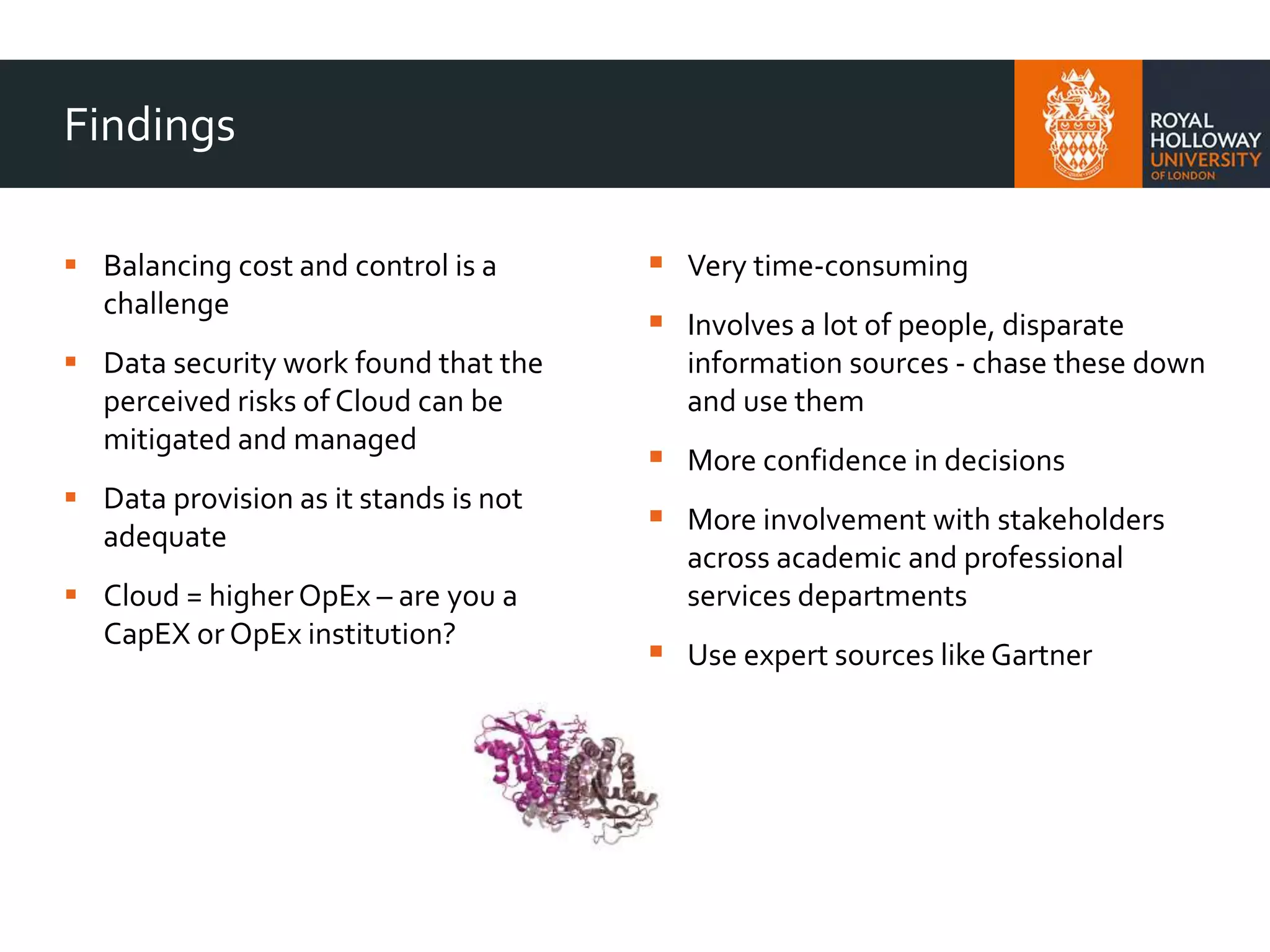

20. Findings
 Balancing cost and control is a
challenge
 Data security work found that the
perceived risks of Cloud can be
mitigated and managed
 Data provision as it stands is not
adequate
 Cloud = higher OpEx – are you a
CapEX or OpEx institution?
 Very time-consuming
 Involves a lot of people, disparate
information sources - chase these down
and use them
 More confidence in decisions
 More involvement with stakeholders
across academic and professional
services departments
 Use expert sources like Gartner

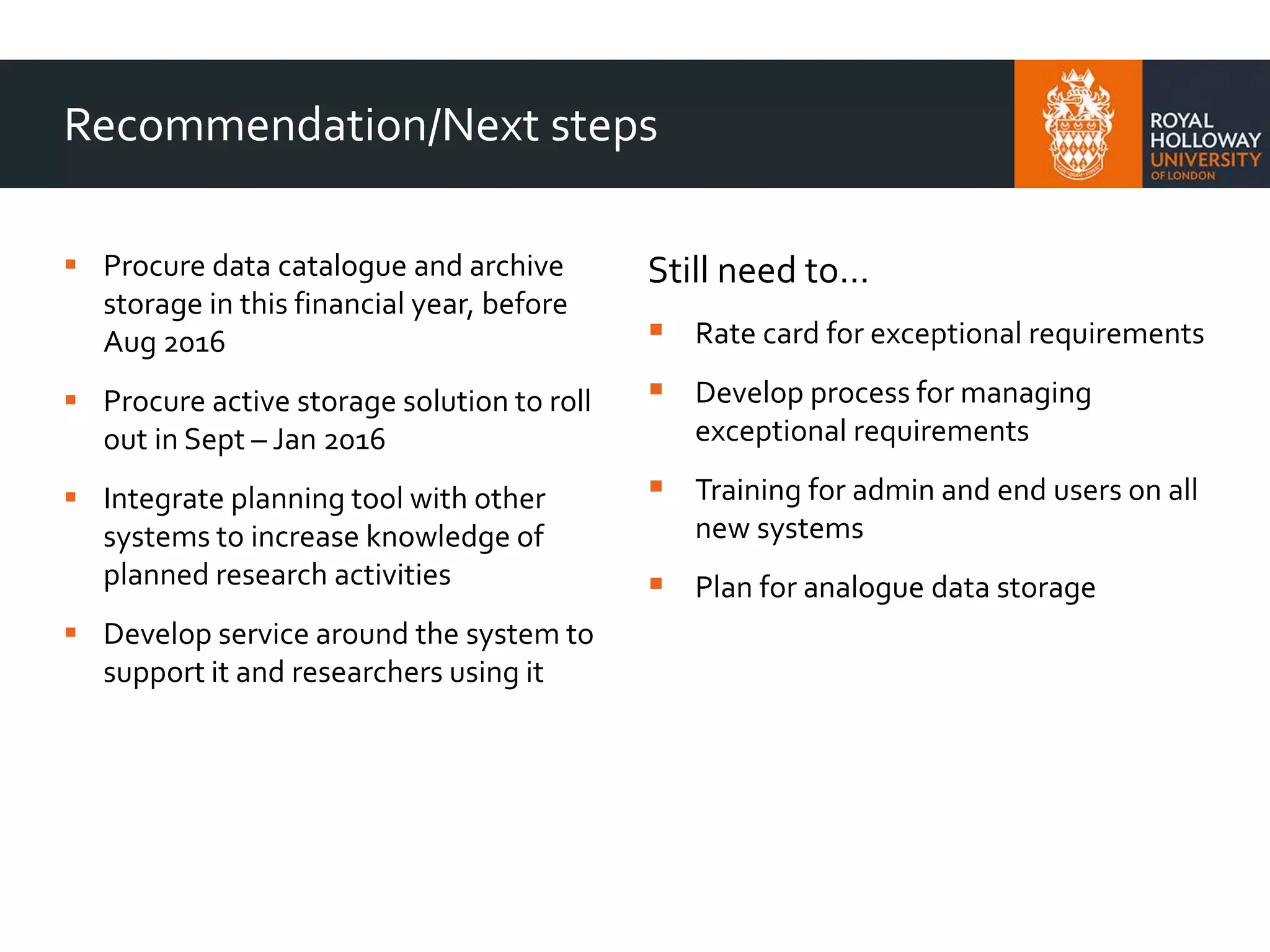

21. Recommendation/Next steps
 Procure data catalogue and archive
storage in this financial year, before
Aug 2016
 Procure active storage solution to roll
out in Sept – Jan 2016
 Integrate planning tool with other
systems to increase knowledge of
planned research activities
 Develop service around the system to
support it and researchers using it
Still need to…
 Rate card for exceptional requirements
 Develop process for managing
exceptional requirements
 Training for admin and end users on all
new systems
 Plan for analogue data storage

22. Questions?
Frances Madden
frances.madden@rhul.ac.uk
@maddenfc
Dave Cobb
d.cobb@rhul.ac.uk
@dave_cobb
