In May 2015 the EPSRC policy framework on research data came into effect. Salford University partnered with figshare to not only answer the mandate but to enhance the visibility of the research generated at the institution. All public facing research outputs are freely available to the wider public at salford.figshare.com. Learn more about University of Salford’s approach and get a high level overview of the latest figshare functionality.

1. Work smart. Discover more.
Supported by

2. Work smart. Discover more.
Supported by

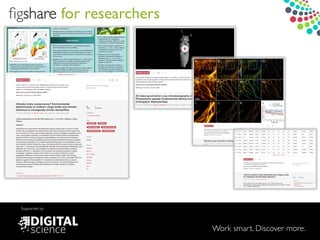

figshare for researchers

3. Work smart. Discover more.
Supported by
figshare for publishers

4. Work smart. Discover more.
Supported by

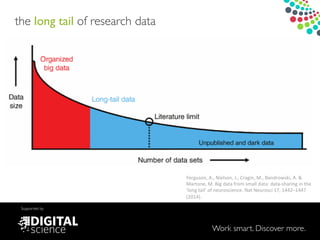

the long tail of research data !
Ferguson,!A.,!Nielson,!J.,!Cragin,!M.,!Bandrowski,!A.!&!
Martone,!M.!Big!data!from!small!data:!data=sharing!in!the!
‘long!tail’!of!neuroscience.!Nat!Neurosci!17,!1442–1447!
(2014).!

5. Work smart. Discover more.
Supported by

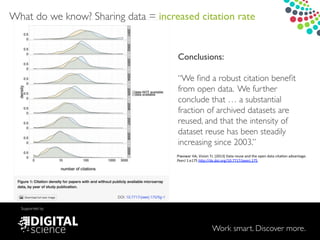

Conclusions: !
!
“We find a robust citation benefit
from open data. We further
conclude that … a substantial
fraction of archived datasets are
reused, and that the intensity of
dataset reuse has been steadily
increasing since 2003.”
Piwowar!HA,!Vision!TJ.!(2013)!Data!reuse!and!the!open!data!citaQon!advantage.!!
PeerJ!1:e175!hTp://dx.doi.org/10.7717/peerj.175!
!
What do we know? Sharing data = increased citation rate

6. Work smart. Discover more.
Supported by

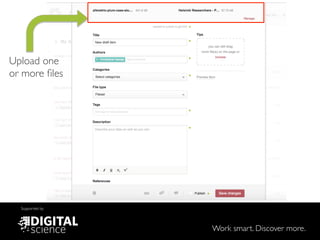

Upload one !
or more files

7. Work smart. Discover more.
Supported by
Compulsory
metadata fields
marked with
green spots:!
!
Title!
!
Authors (can
remove yourself)!
!
Categories –
1,000+ FOR
codes!
!
Tags!
!
Description!
!
References
(unlimited URLs)

8. Work smart. Discover more.
Supported by

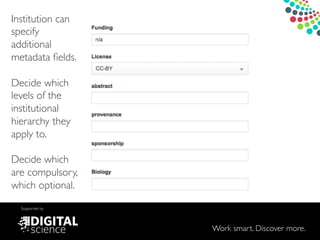

Institution can
specify !
additional
metadata fields.!
!
Decide which
levels of the
institutional
hierarchy they
apply to.!
!
Decide which
are compulsory,
which optional.!
!

9. Work smart. Discover more.
Supported by

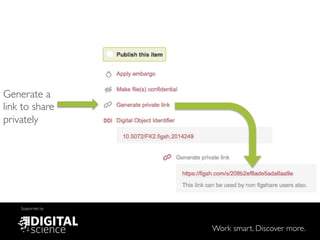

Generate a
link to share
privately

10. Work smart. Discover more.
Supported by

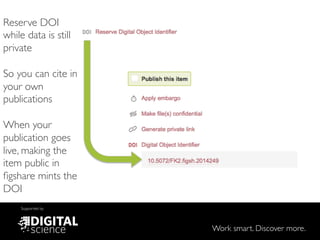

Reserve DOI
while data is still
private!
!
So you can cite in
your own
publications!
!
When your
publication goes
live, making the
item public in
figshare mints the
DOI

11. Work smart. Discover more.
Supported by

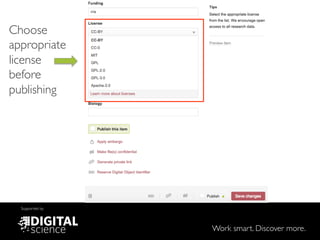

Choose
appropriate
license
before
publishing

12. Work smart. Discover more.
Supported by

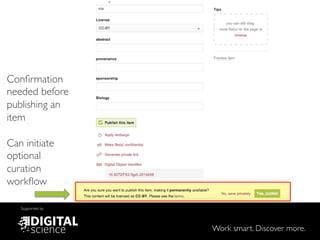

Confirmation
needed before
publishing an
item!
!
Can initiate
optional
curation
workflow !

13. Work smart. Discover more.
Supported by

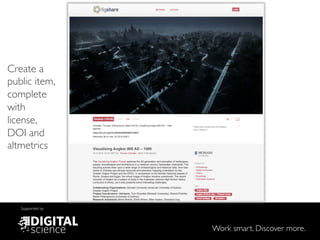

Create a
public item,
complete
with
license,
DOI and
altmetrics

14. Work smart. Discover more.
Supported by

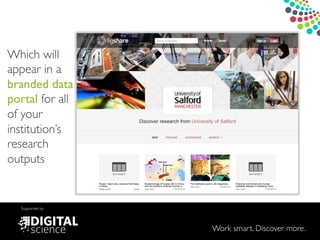

Which will
appear in a
branded data
portal for all
of your
institution’s
research
outputs

15. Work smart. Discover more.
Supported by

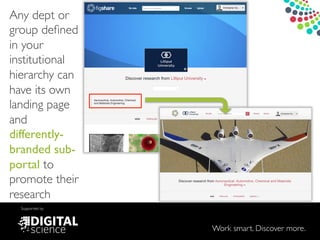

Any dept or
group defined
in your
institutional
hierarchy can
have its own
landing page
and
differently-
branded sub-
portal to
promote their
research

16. Work smart. Discover more.
Supported by

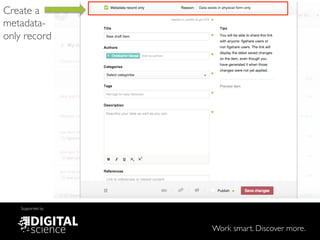

Create a
metadata-
only record

17. Work smart. Discover more.
Supported by

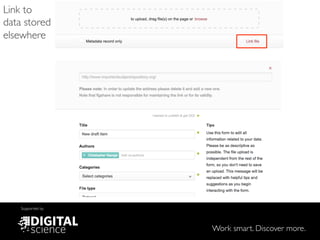

Link to
data stored
elsewhere

18. Work smart. Discover more.
Supported by
Link out
to files
stored
elsewhere

19. Work smart. Discover more.
Supported by

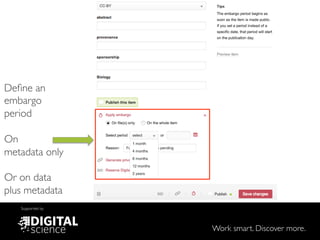

Define an
embargo
period!
!
On !
metadata only!
!
Or on data
plus metadata

20. Work smart. Discover more.
Supported by

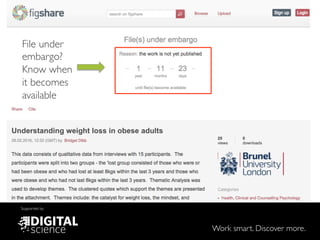

File under
embargo?
Know when
it becomes
available

21. Work smart. Discover more.
Supported by

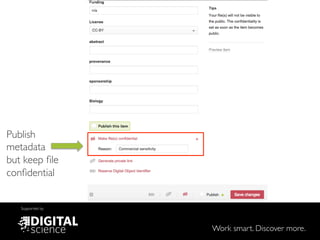

Publish
metadata !
but keep file
confidential

22. Work smart. Discover more.
Supported by

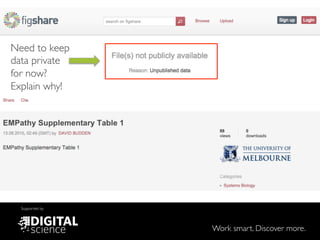

Need to keep
data private !
for now?!
Explain why!

23. Work smart. Discover more.
Supported by

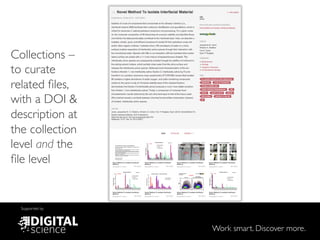

Collections –
to curate
related files,
with a DOI &
description at
the collection
level and the
file level

24. Work smart. Discover more.
Supported by

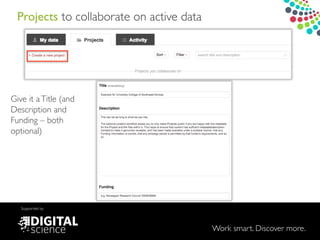

Projects to collaborate on active data
Give it aTitle (and
Description and
Funding – both
optional)

25. Work smart. Discover more.
Supported by

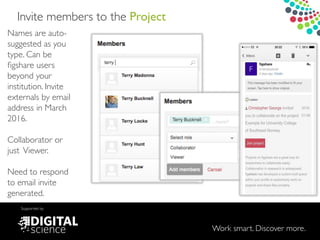

Invite members to the Project
Names are auto-
suggested as you
type. Can be
figshare users
beyond your
institution. Invite
externals by email
address in March
2016.!
!
Collaborator or
just Viewer.!
!
Need to respond
to email invite
generated.

26. Work smart. Discover more.
Supported by

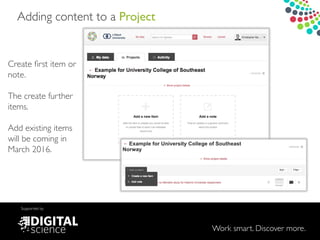

Adding content to a Project
Create first item or
note.!
!
The create further
items.!
!
Add existing items
will be coming in
March 2016.

27. Work smart. Discover more.
Supported by
Collaborating in the Project
Speech bubble
icon to create
comments.!
!
Can edit or delete
the item, including
uploading new
version of file
(version control)

28. Work smart. Discover more.
Supported by

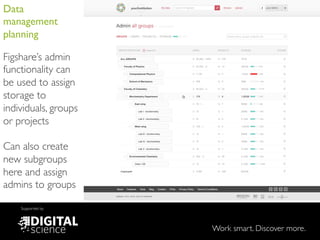

Data
management
planning
Figshare’s admin
functionality can
be used to assign
storage to
individuals, groups
or projects
Can also create
new subgroups
here and assign
admins to groups

29. Work smart. Discover more.
Supported by

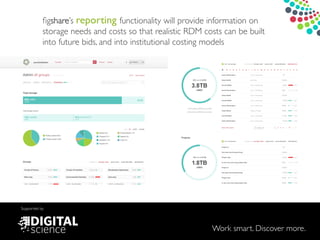

figshare’s reporting functionality will provide information on
storage needs and costs so that realistic RDM costs can be built
into future bids, and into institutional costing models

30. Work smart. Discover more.
Supported by
Our two-way API
The figshare API allows you to push and
pull metadata and data into and out of
figshare, in JSON format

31. Work smart. Discover more.
Supported by

32. Work smart. Discover more.
Supported by

33. Work smart. Discover more.
Supported by

34. Work smart. Discover more.
Supported by

35. Work smart. Discover more.
Supported by

36. Work smart. Discover more.
Supported by

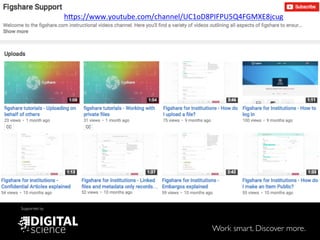

hTps://www.youtube.com/channel/UC1oD8PIFPU5Q4FGMXE8jcug!!

37. Work smart. Discover more.
Supported by

38. David Clay
Jisc%Digifest%
March%2016%
Research Data Management at
the University of Salford

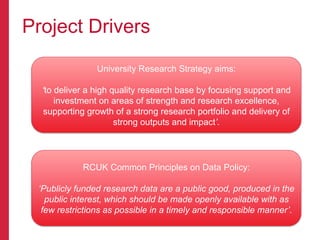

39. Project Drivers
RCUK Common Principles on Data Policy:
‘Publicly funded research data are a public good, produced in the
public interest, which should be made openly available with as
few restrictions as possible in a timely and responsible manner’.
University Research Strategy aims:
‘to deliver a high quality research base by focusing support and
investment on areas of strength and research excellence,
supporting growth of a strong research portfolio and delivery of
strong outputs and impact’.

40. Requirements gathering
Functional requirements and Business case
Jan 2015
CARDIO
March 2013
UoS Data
Audit
Survey
Jun – Sep 2014
Interview’s
with
researchers
October 2014
Functional
Requirements
November 2014
Solutions
assessment
November 2014
Business
case
January 2015

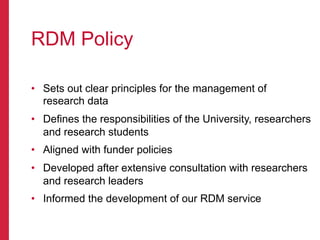

41. RDM Policy
• Sets out clear principles for the management of
research data
• Defines the responsibilities of the University, researchers
and research students
• Aligned with funder policies
• Developed after extensive consultation with researchers
and research leaders
• Informed the development of our RDM service

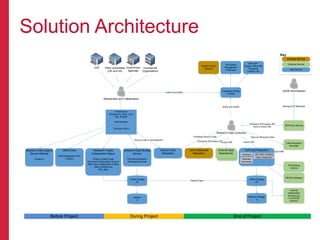

42. Solution Architecture
Client Device
Windows PC, Mac, Linux
iOS, Android
Online Storage
££
Nearline Storage
£
UoS Data RepositoryUoS Institutional
Repository
DOI Proxy Service
Research Data Consumer
Data Repository
Harvester
USDR AdministratorFederated Identity
Provider
OAI-PMH Interface
Research Data Storage
Service
File Synchronisation
Web-based Access
Researchers and Collaborators
Online Storage
££
File Sync Client
DOI Minting
Service
ORCID Validation
External
preservation
services e.g.
CLOCKSS
Archive?
Web Browser
Other Interfaces?
Research Project
Collaboration Space
Project Landing Page
Document Collaboration (Async)
Real-Time Collaborative Editing
Web Conferencing
Wiki, Blog
Backup
£
Metadata
Standards
Deposit Data
External Data
Repositories
During Project End of Project
ISDADS (UoS)
Directory
UK Access
Management
Federation
Other IdP –
Google, Office 365,
Facebook,
LinkedIn, etc.
AuthZ and AuthN
AuthZ and AuthN
UoS Government
Agencies
Commercial
Organisations
Other Universities
(UK and Intl)
Source Code
Repository
Source Code in Development
Key
Existing Service
External Service
New Service
DMPOnline
Data Management Plan
Creation
Research Data Support
Service Website
Guidance
Before Project
Catalogue

43. Client Device
Windows PC, Mac, Linux
iOS, Android
Online Storage
££
Nearline Storage
£
UoS Data RepositoryUoS Institutional
Repository
DOI Proxy Service
Research Data Consumer
Data Repository
Harvester
USDR AdministratorFederated Identity
Provider
OAI-PMH Interface
Research Data Storage
Service
File Synchronisation
Web-based Access
Researchers and Collaborators
Online Storage
££
File Sync Client
DOI Minting
Service
ORCID Validation
External
preservation
services e.g.
CLOCKSS
Archive?
Web Browser
Other Interfaces?
Research Project
Collaboration Space
Project Landing Page
Document Collaboration (Async)
Real-Time Collaborative Editing
Web Conferencing
Wiki, Blog
Backup
£
Metadata
Standards
Deposit Data
External Data
Repositories
During Project End of Project
ISDADS (UoS)
Directory
UK Access
Management
Federation
Other IdP –
Google, Office 365,
Facebook,
LinkedIn, etc.
AuthZ and AuthN
AuthZ and AuthN
UoS Government
Agencies
Commercial
Organisations
Other Universities
(UK and Intl)
Source Code
Repository
Source Code in Development
Key
Existing Service
External Service
New Service

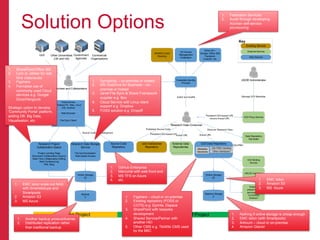

Solution Options
1. Syncplicity – on-premise or hosted
2. MS OneDrive for Business – on-
premise or hosted
3. Janet File Sync & Share Framework
supplier e.g. Box
4. Cloud Service with Linux client
support e.g. Dropbox
5. FOSS solution e.g. Dropoff
1. SharePoint/Office 365
2. Lync or Jabber for real
time video/audio
3. Figshare
4. Formalise use of
commonly used Cloud
services e.g. Google
Docs/Hangouts
Strategic option to develop
‘Community Portal’ platform,
adding DB, Big Data,
Visualisation, etc.
1. GitHub Enterprise
2. Mercurial with web front-end
3. MS TFS on Azure
4. etc.
1. Another backup product/license
2. Distributed replication rather
than traditional backup
1. Figshare – cloud or on-premise
2. Existing repository (FOSS or
COTS) e.g. Eprints, Dspace
3. SharePoint with bespoke
development
4. Shared Service/Partner with
another HEI
5. Other CMS e.g. TikiWiki CMS used
by the BBC
1. EMC isilon scale-out NAS
with Smartdedupe and
Smartpools
2. Amazon S3
3. MS Azure
1. EMC Isilon
2. Amazon S3
3. MS Azure
1. Nothing if online storage is cheap enough
2. EMC Isilon (with Smartpools)
3. Arkivum – cloud or on-premise
4. Amazon Glacier
1. Federation Services
2. Avoid through developing
Accman self-service
provisioning

44. Pilot Infrastructure
• Launched November 2015

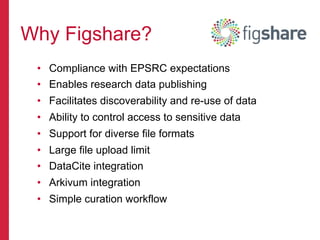

45. • Compliance with EPSRC expectations
• Enables research data publishing
• Facilitates discoverability and re-use of data
• Ability to control access to sensitive data
• Support for diverse file formats
• Large file upload limit
• DataCite integration
• Arkivum integration
• Simple curation workflow
Why Figshare?

46. Data Publication Process
Publication+
Process
Existing+Meta+Data+
inc+DOI
Add+Public+
Research+Data+to+
Meta+Data+Record
Full+Research+Data+
Openly+Accessible
Add+DOI+to+article
Add+DOI+to+&+write+up++
Data+Access+Statement
Discoverable+
Data
End
Yes
No
Yes
No
Yes
No
RDM.BP06:*Research*Publication*Process
+
Closed
Embargoed
Externally+Hosted
Define+Date+Range Upload+Data
Flag+as+Closed+ Upload+Data End
End
Create+Meta+Data+Only
Create+Meta+Data+
inc+Reserve+DOI
Yes
Figshare*Boundary*
Externally+
Hosted+Data
Backed+up+to+
Arkivum
Backed+up+to+
Arkivum
Provide+Link+to+
External+Data
Meta+Data+
Only
Yes
No
Embargo+
Ends
Publicly+Available+Data
Unavailable+(to+Public)+
Data
Yes
No
End
Unavailable+(to+Public)+
Data

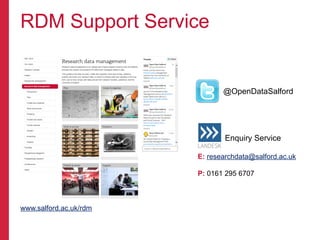

48. RDM Support Service
www.salford.ac.uk/rdm
Enquiry Service
E: researchdata@salford.ac.uk
P: 0161 295 6707
@OpenDataSalford

49. • Strong support from Senior Management
• Excellent Researcher engagement and culture change
• Bringing together skills and expertise from across the
university
• Good vendor engagement
– Responsive and flexible to changing user needs
– Knowledgeable
– Supportive
• Positive initial response to the new service
Our Experience

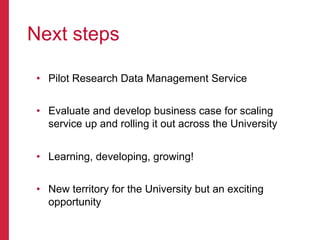

50. • Pilot Research Data Management Service
• Evaluate and develop business case for scaling
service up and rolling it out across the University
• Learning, developing, growing!
• New territory for the University but an exciting
opportunity
Next steps

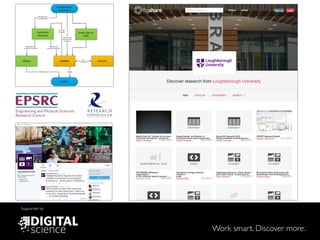

51. Work smart. Discover more.
Supported by
Thank you for your time!
t.bucknell@digital-science.com!
@figshare!
http://www.figshare.com!
