Building your own
Desktop Cloud Environment

Gautham Pai, Founder
jnaapti

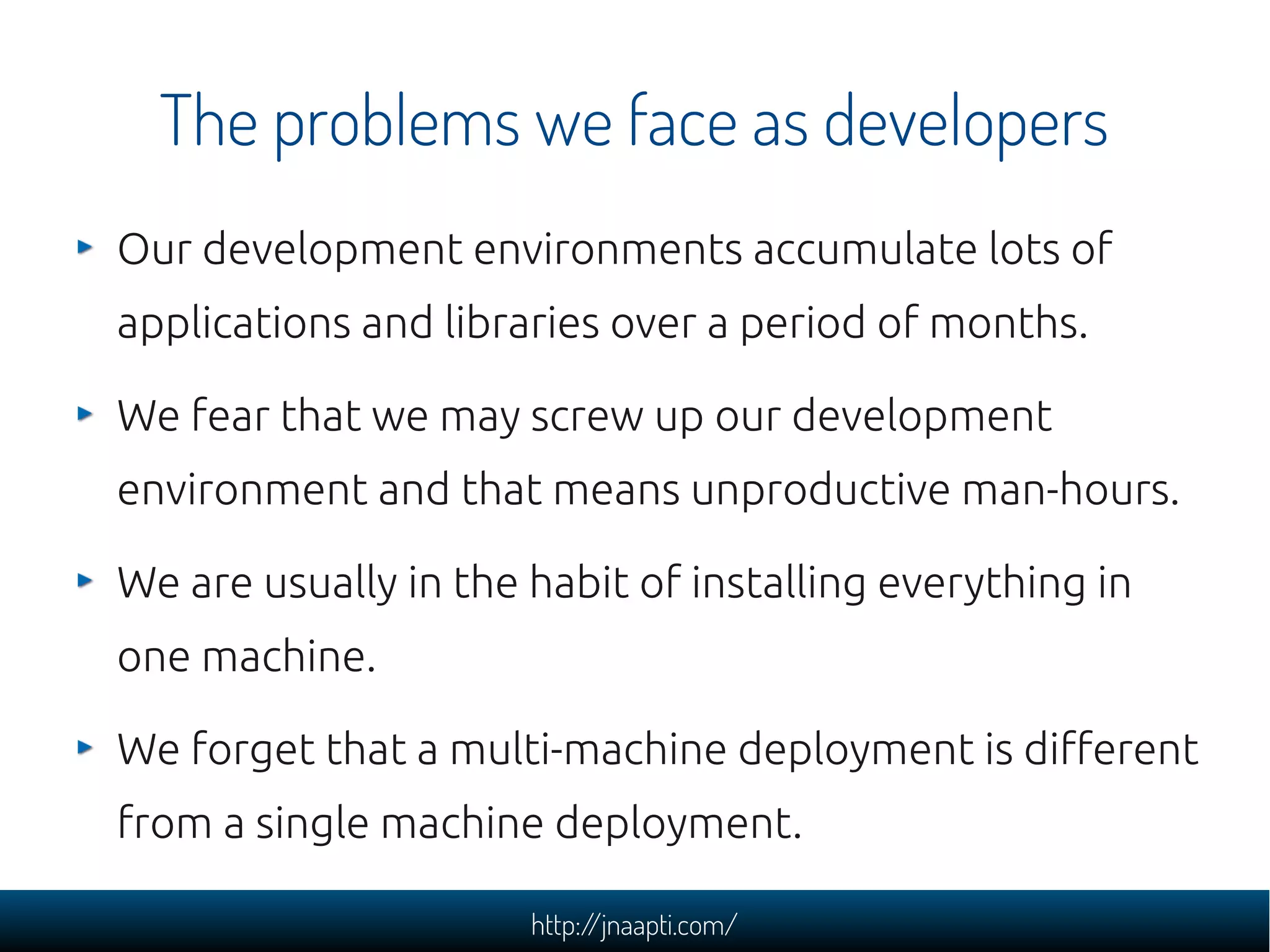

The problems we face as developers
Our development environments accumulate lots of
applications and libraries over a period of months.

We fear that we may screw up our development
environment and that means unproductive man-hours.

We are usually in the habit of installing everything in
one machine.

We forget that a multi-machine deployment is different
from a single machine deployment.

                      http://jnaapti.com/
Solution?




How about Desktop Virtualization?




            http://jnaapti.com/
Why Desktop Virtualization?
Bringing our development environment as close to the
production environment as possible.

Replicable deployment - verify everything before
deploying to staging or production.

Containerising functionality.

"Don't panic" environment for experimentation

Ease of provisioning for new employees.


                     http://jnaapti.com/
Virtualization or Cloud?
What I am talking about is closer to virtualization than
cloud computing.

For example, we are not dealing with transparent
scaling, spike load handling etc.




                     http://jnaapti.com/
Why QEMU-KVM and not Virtualbox?
KVM is part of the Linux Kernel

Virtualbox is from Oracle

KVM provides better performance




                    http://jnaapti.com/
What we want to try out
Create a development environment with functionalities
partitioned over separate VMs.

Ensure that setting up this environment is not more
than a few hours job.

Ensure that bringing up the environment does not take
more than a few minutes if not seconds.

Ensure that the environment can run in a laptop with
standard configuration.

                        http://jnaapti.com/
System Requirements
 A laptop/desktop with

    a processor that supports virtulization technology
    to use KVM

    a Debian Linux environment

    atleast 2GB of free RAM

    atleast 10G of free disk space

This will help us run as many as 5 VM images in parallel

                      http://jnaapti.com/
Demo




http://jnaapti.com/
The Approach
In this demo, I will take you through the steps to
create a multi-VM development environment

In addition to our dev environment (dev-server), we
will have a separate code-server, a web-server and a
db-server setup.

We then run it end-to-end – write some code, check it
in, pull it into the web server, deploy the code and
then test the new version of the app.

                     http://jnaapti.com/
First, a look at a few terminologies
QEMU is a generic and open source machine emulator
and virtualizer.

KVM (for Kernel-based Virtual Machine) is a full
virtualization solution for Linux on x86 hardware.

The Virtual Machine Manager application (virt-
manager for short package name) is a desktop user
interface for managing virtual machines.



                     http://jnaapti.com/
Demo




http://jnaapti.com/
The Approach
We first create a base VM and install the OS in it, using
the standard Ubuntu 10.04.2 Server ISO image

We then install a SSH server and setup passwordless
SSH access

We then clone this system to as many systems as we
need and setup various servers
(code/caching/web/etc) on them



                     http://jnaapti.com/
Installing Pre-requisites
$ sudo apt-get install virt-manager qemu-kvm




                    http://jnaapti.com/
Starting Virt Manager
$ sudo virt-manager




                  http://jnaapti.com/
Networking Requirements
Every VM should have its own IP address.

Every VM should be accessible from every other VM
and that includes host.

Every VM must be able to connect to the Internet.

Solution? Bridged Networking.




                     http://jnaapti.com/
Setting up the Bridge Network




          http://jnaapti.com/
Name your Virtual Network




        http://jnaapti.com/
Choose an IPv4 Address Space




          http://jnaapti.com/
Select DHCP Range




     http://jnaapti.com/
Setup NAT forwarding




      http://jnaapti.com/
Review and finish the wizard




          http://jnaapti.com/
Create the Base VM




     http://jnaapti.com/
Choose the Distribution to Install




            http://jnaapti.com/
Set RAM and CPUs




    http://jnaapti.com/
Set the Disk Space




     http://jnaapti.com/
Finalize the VM Creation




        http://jnaapti.com/
Install the OS in the Base VM




          http://jnaapti.com/
Select Hostname




    http://jnaapti.com/
Select Disk




 http://jnaapti.com/
Confirm Disk Format




     http://jnaapti.com/
Installation Progress




      http://jnaapti.com/
Installation Progress




      http://jnaapti.com/
Create User




 http://jnaapti.com/
Set Username




  http://jnaapti.com/
Configure APT




  http://jnaapti.com/
Set Automatic Upgrades




       http://jnaapti.com/
Install Additional Software




         http://jnaapti.com/
Install Pre-defined Collections




           http://jnaapti.com/
Installation Progress




      http://jnaapti.com/
Install GRUB




  http://jnaapti.com/
Install GRUB




  http://jnaapti.com/
Installation Complete




      http://jnaapti.com/
Installation Complete




      http://jnaapti.com/
Verifying the Base VM Installation
Login to the Base VM

Install the latest updates

Make sure you can connect to the host from guest and
vice-versa

Setup password-less SSH access

(Update interface identifier)



                     http://jnaapti.com/
Cloning the Base VM
Add the DNS server that we use for guest IP allocation
to resolv.conf, so that you can address VMs using their
hostnames

Use virt-clone to clone the base VM

Start the new VM

Change the hostname of the new VM

Reboot the new VM


                     http://jnaapti.com/
Starting and Stopping the VMs
$ #Start the domains
$ virsh start webserver && virsh start dbserver &&
virsh start codeserver
$ #Destroy the domains
$ virsh destroy webserver && virsh destroy
dbserver && virsh destroy codeserver




                       http://jnaapti.com/
Where to go from here?
Setting up package mirrors

Snapshot creation on the fly

You can mimic things like S3, EBS etc




                     http://jnaapti.com/
Resources
More detailed notes here

Code is over at Github

KVM

Virtual Machine Manager

KVM Networking

QEMU Networking

QEMU Images

                    http://jnaapti.com/
Courtesy
 Server image from OpenClipArt

 CD image from pr0gr4mm3r.com



Thanks to Pradeep Kumar, Ananth M, Kiran S, Ananda M,
Madhukar Pai and Shrinivas S Kulkarni for reviewing the
        slides and providing valuable feedback




                      http://jnaapti.com/
The Jnaapti development environment is based
                on this setup




                 http://jnaapti.com/
This talk was first delivered in the “PHP Cloud” event
                 organized by HasGeek




                      http://jnaapti.com/
Thank you!
Email: gautham@jnaapti.com




        http://jnaapti.com/
Happy Hacking
