Building the Next-Generation Messaging Platform on Pulsar at Intuit - Pulsar Summit NA 2021 Keynote
The document details Intuit's journey in migrating from an outdated ActiveMQ messaging platform to a next-generation messaging solution using Apache Pulsar due to scalability and performance issues. It outlines the current state of the messaging platform, the need for migration, various challenges faced during the transition, and the solutions implemented to create a more resilient and efficient system. Intuit is now in production with the new platform, focusing on scalability, resiliency, and plans for future enhancements.
In this document
Powered by AI
Introduces Intuit's messaging journey, background, technology, migration goals, and a roadmap.
Details current Intuit messaging platform capabilities, including workflows, use cases, and systems involved.
Explains the architecture and operations of ActiveMQ, highlighting resiliency, latency issues, and limitations.
Identifies reasons for migrating from ActiveMQ due to outdated technology, scalability, throughput, and cost concerns.
Discusses the feasibility study for Pulsar, results showing higher throughput and lower latencies compared to ActiveMQ.
Describes the new architecture of the Pulsar-based messaging platform including zookeeper and scalable components.
Outlines challenges faced with zookeeper in regional setups, and solutions implemented to ensure quorum stability.
Highlights high publish latencies with Pulsar and describes solutions for ledger recovery and efficient topic management.
Discusses production readiness, future enhancements including resiliency, transaction support, and multi-cloud capabilities.
Invites feedback for improvements and expresses gratitude at the end of the presentation.
More Related Content
Similar to Building the Next-Generation Messaging Platform on Pulsar at Intuit - Pulsar Summit NA 2021 Keynote
![Vibe Coding vs. Spec-Driven Development [Free Meetup]](https://cdn.slidesharecdn.com/ss_thumbnails/vibecodingvsspecdrivendevelopment-251209105622-43f455e7-thumbnail.jpg?width=640&height=640&fit=bounds)
Building the Next-Generation Messaging Platform on Pulsar at Intuit - Pulsar Summit NA 2021 Keynote
- 1. Presenters: Madhavan NarayananSajith Sebastian Amit Kaushal Gokul Sarangapani Pulsar Journey@Intuit Building our next-gen messaging platform Topic : persistent://pulsar/intuit/our-migration-story

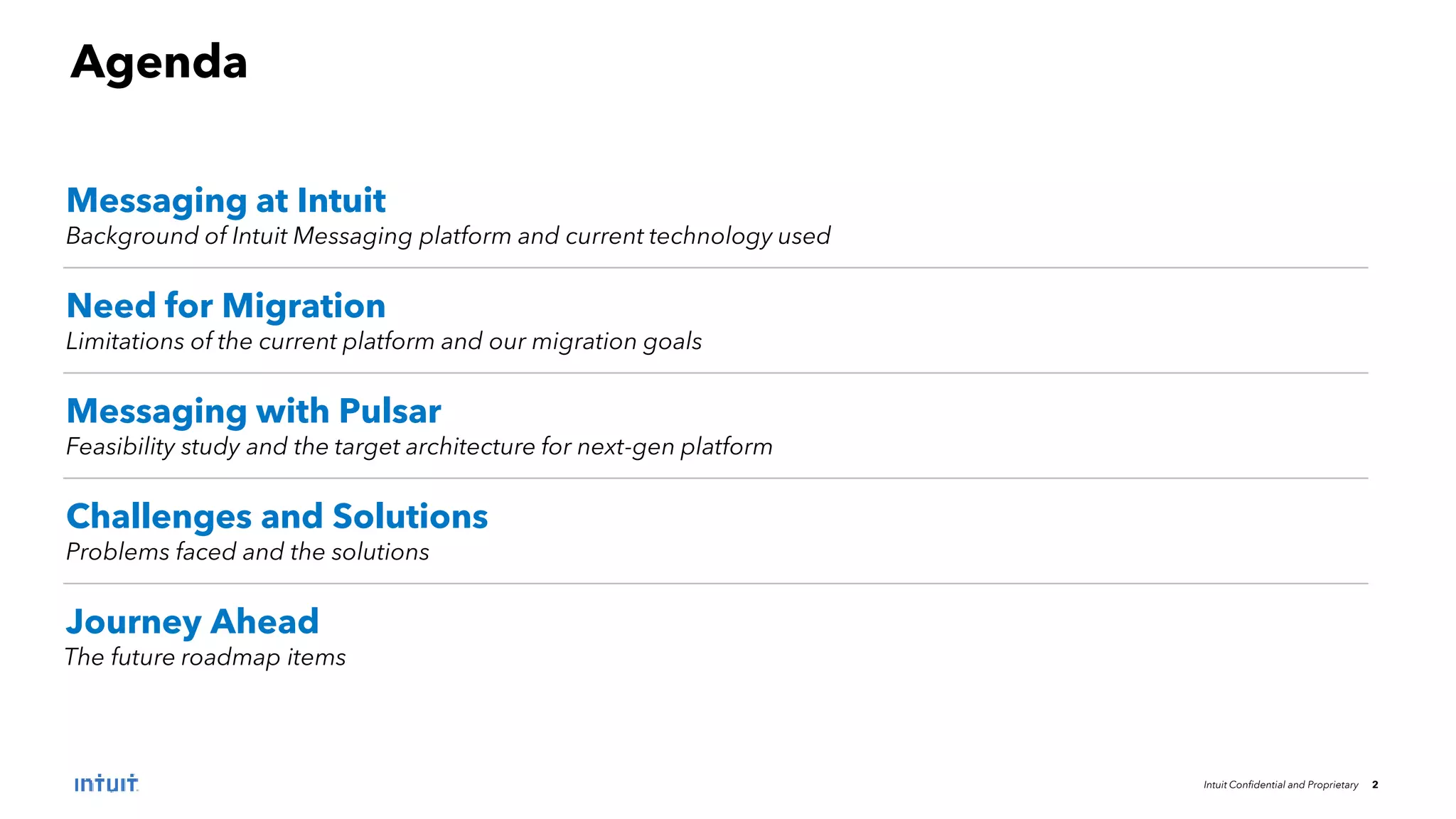

- 2. Intuit Confidential andProprietary 2 Messaging at Intuit Background of Intuit Messaging platform and current technology used Need for Migration Limitations of the current platform and our migration goals Messaging with Pulsar Feasibility study and the target architecture for next-gen platform Challenges and Solutions Problems faced and the solutions Journey Ahead The future roadmap items Agenda
- 3.

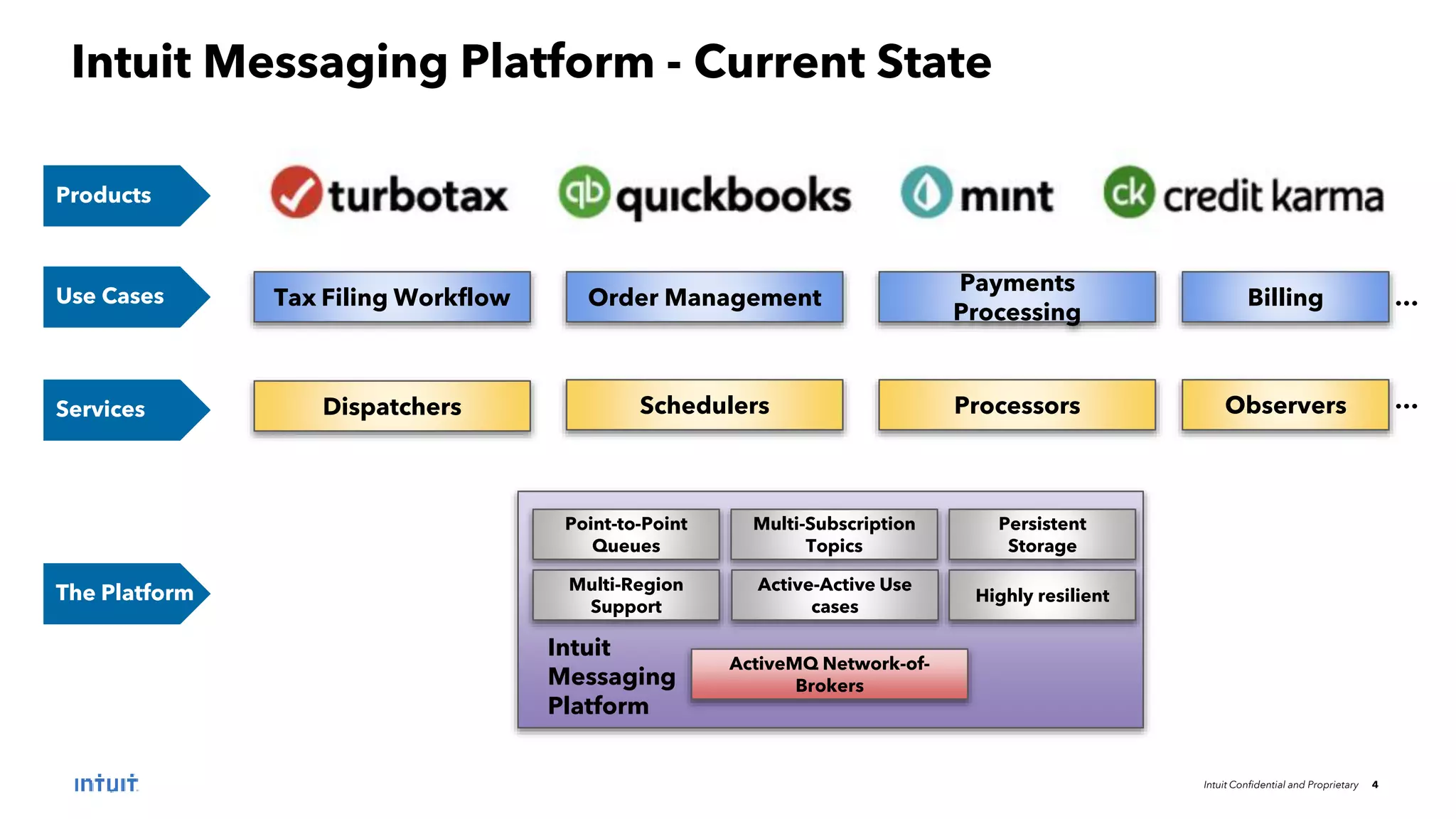

- 4. Intuit Confidential andProprietary 4 Intuit Messaging Platform - Current State Tax Filing Workflow Dispatchers Order Management Payments Processing Billing Schedulers Processors Observers … … Products Use Cases Services The Platform Point-to-Point Queues Multi-Subscription Topics Persistent Storage Multi-Region Support Active-Active Use cases Highly resilient ActiveMQ Network-of- Brokers Intuit Messaging Platform

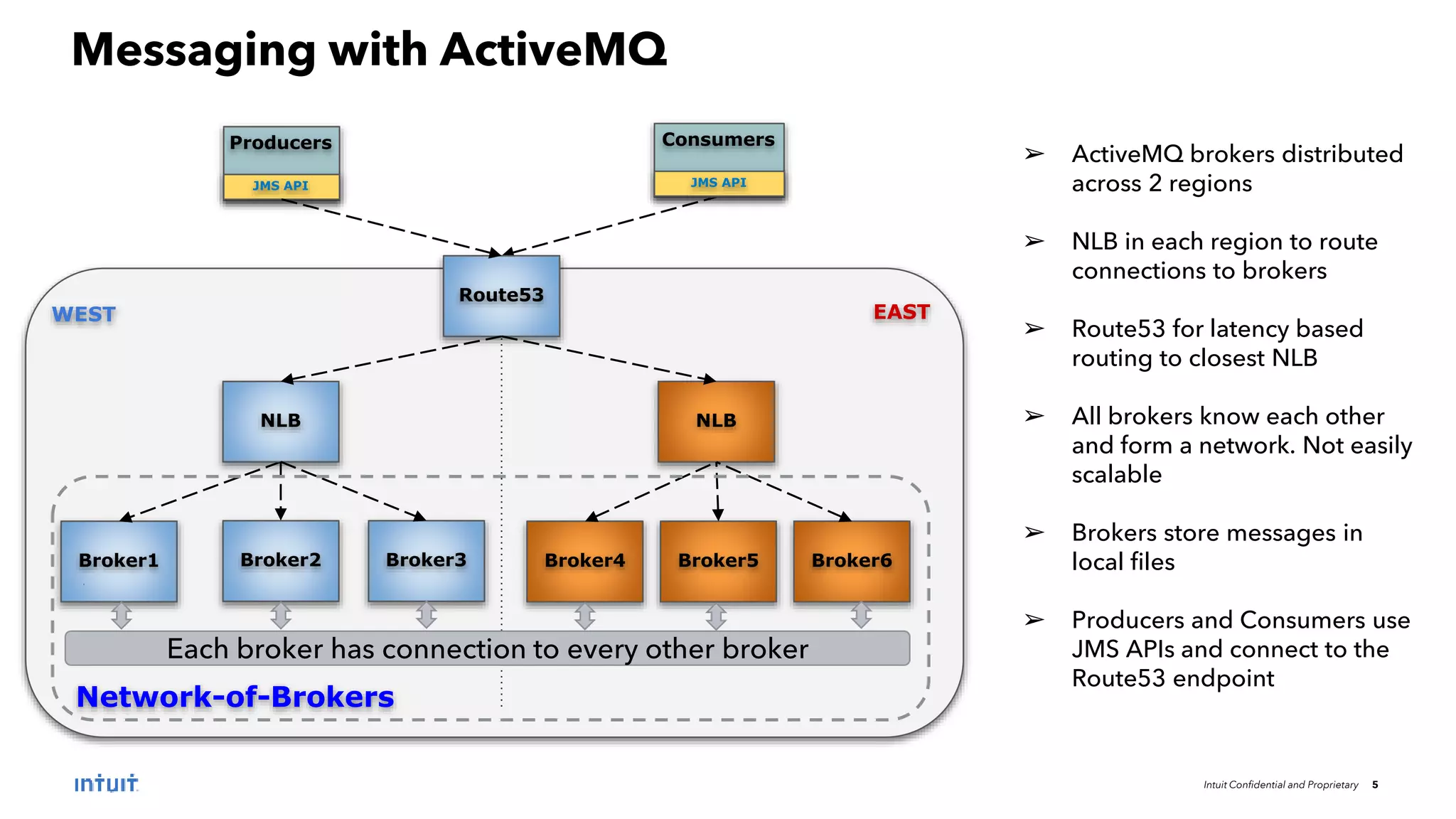

- 5. Intuit Confidential andProprietary 5 Messaging with ActiveMQ Network-of-Brokers Broker2 Broker1 WEST EAST Producers Broker3 Broker4 Broker5 Broker6 ➢ ActiveMQ brokers distributed across 2 regions ➢ NLB in each region to route connections to brokers ➢ Route53 for latency based routing to closest NLB ➢ All brokers know each other and form a network. Not easily scalable ➢ Brokers store messages in local files ➢ Producers and Consumers use JMS APIs and connect to the Route53 endpoint NLB NLB Route53 Consumers JMS API JMS API Each broker has connection to every other broker

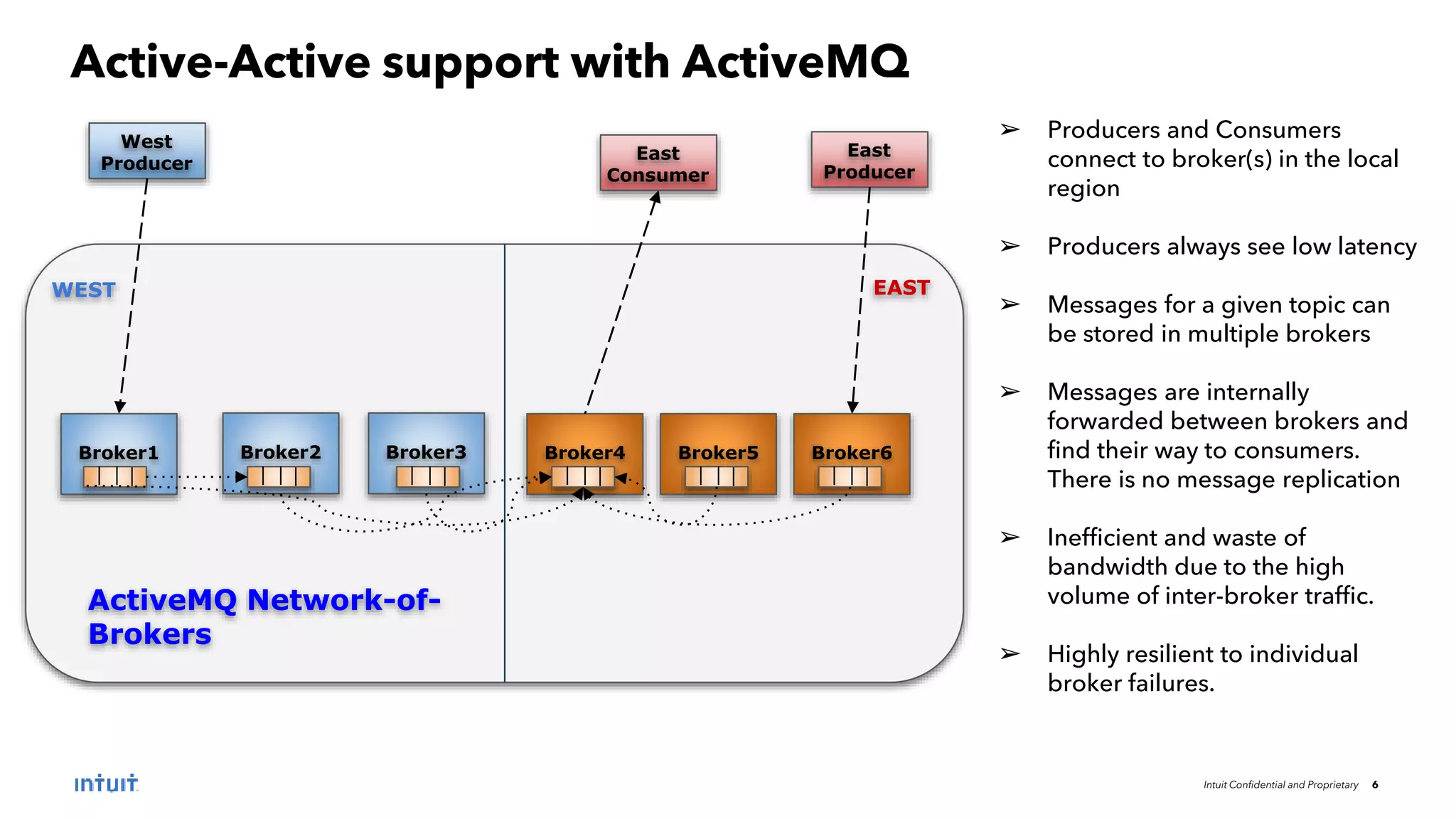

- 6. Intuit Confidential andProprietary 6 Active-Active support with ActiveMQ ActiveMQ Network-of- Brokers Broker2 Broker1 WEST EAST West Producer Broker3 Broker4 Broker5 Broker6 East Consumer East Producer ➢ Producers and Consumers connect to broker(s) in the local region ➢ Producers always see low latency ➢ Messages for a given topic can be stored in multiple brokers ➢ Messages are internally forwarded between brokers and find their way to consumers. There is no message replication ➢ Inefficient and waste of bandwidth due to the high volume of inter-broker traffic. ➢ Highly resilient to individual broker failures.

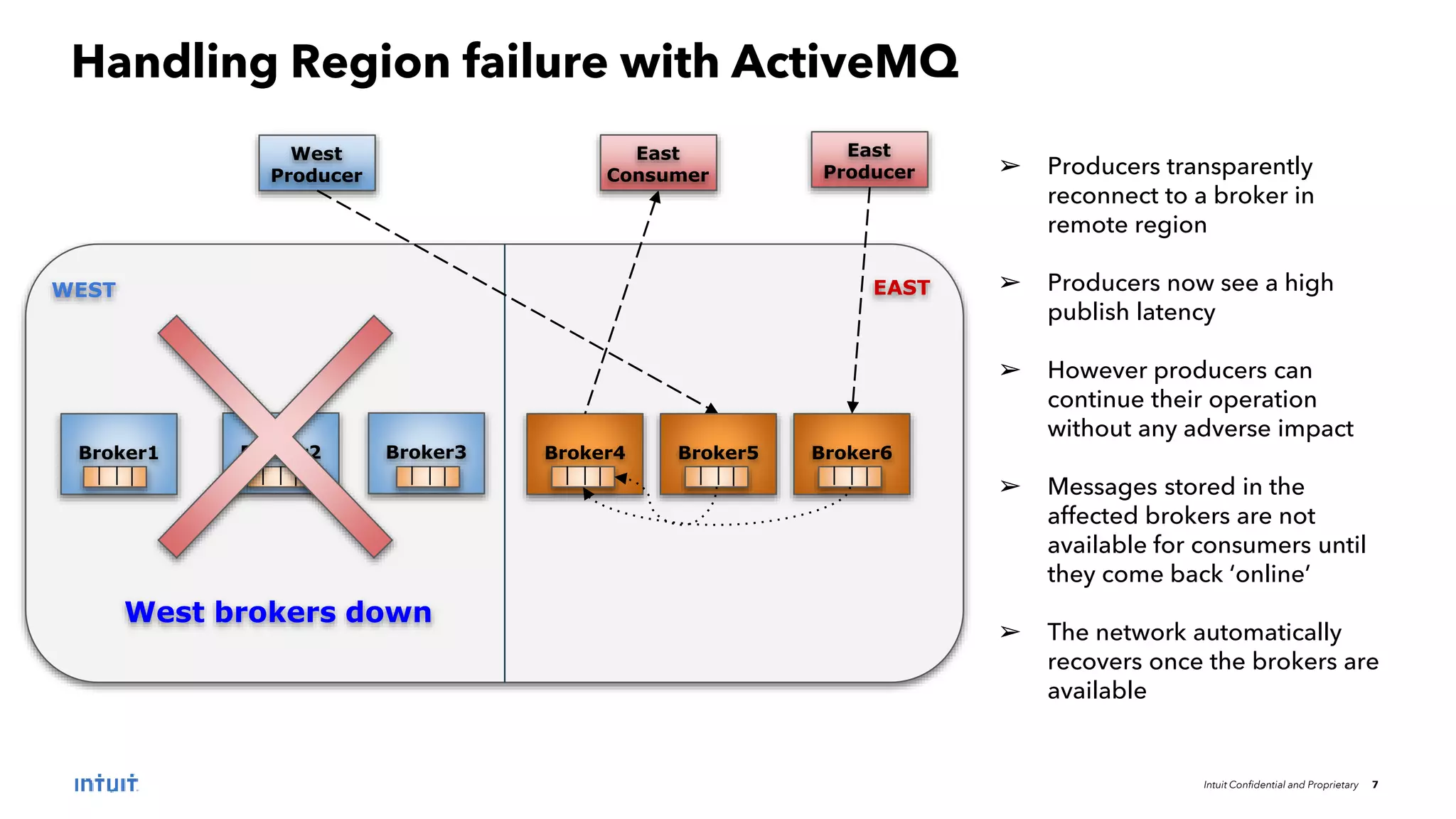

- 7. Intuit Confidential andProprietary 7 Handling Region failure with ActiveMQ West brokers down Broker2 Broker1 WEST EAST West Producer Broker3 Broker4 Broker5 Broker6 East Consumer East Producer ➢ Producers transparently reconnect to a broker in remote region ➢ Producers now see a high publish latency ➢ However producers can continue their operation without any adverse impact ➢ Messages stored in the affected brokers are not available for consumers until they come back ‘online’ ➢ The network automatically recovers once the brokers are available
- 8.

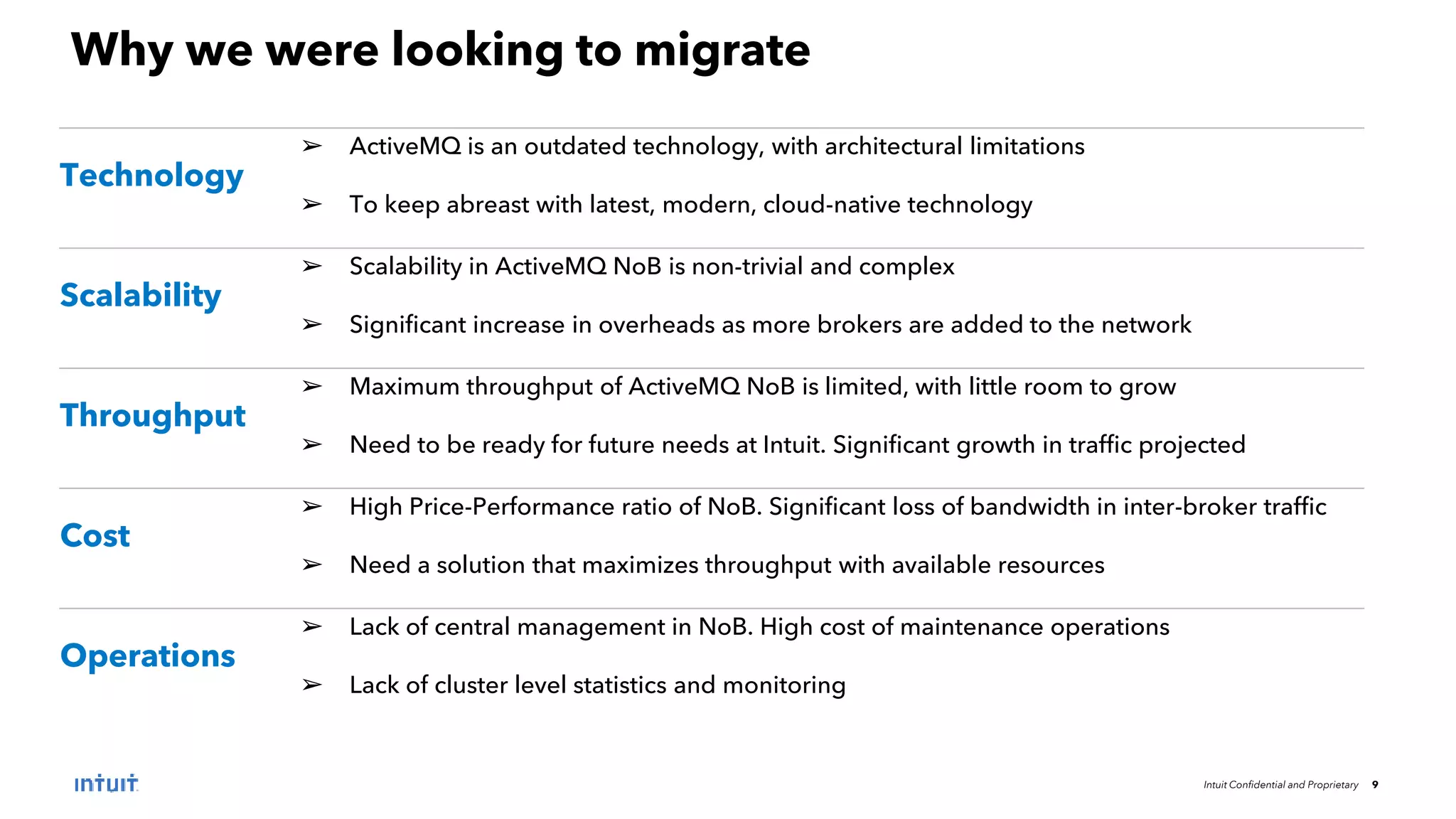

- 9. Intuit Confidential andProprietary 9 Technology ➢ ActiveMQ is an outdated technology, with architectural limitations ➢ To keep abreast with latest, modern, cloud-native technology Scalability ➢ Scalability in ActiveMQ NoB is non-trivial and complex ➢ Significant increase in overheads as more brokers are added to the network Throughput ➢ Maximum throughput of ActiveMQ NoB is limited, with little room to grow ➢ Need to be ready for future needs at Intuit. Significant growth in traffic projected Cost ➢ High Price-Performance ratio of NoB. Significant loss of bandwidth in inter-broker traffic ➢ Need a solution that maximizes throughput with available resources Operations ➢ Lack of central management in NoB. High cost of maintenance operations ➢ Lack of cluster level statistics and monitoring Why we were looking to migrate

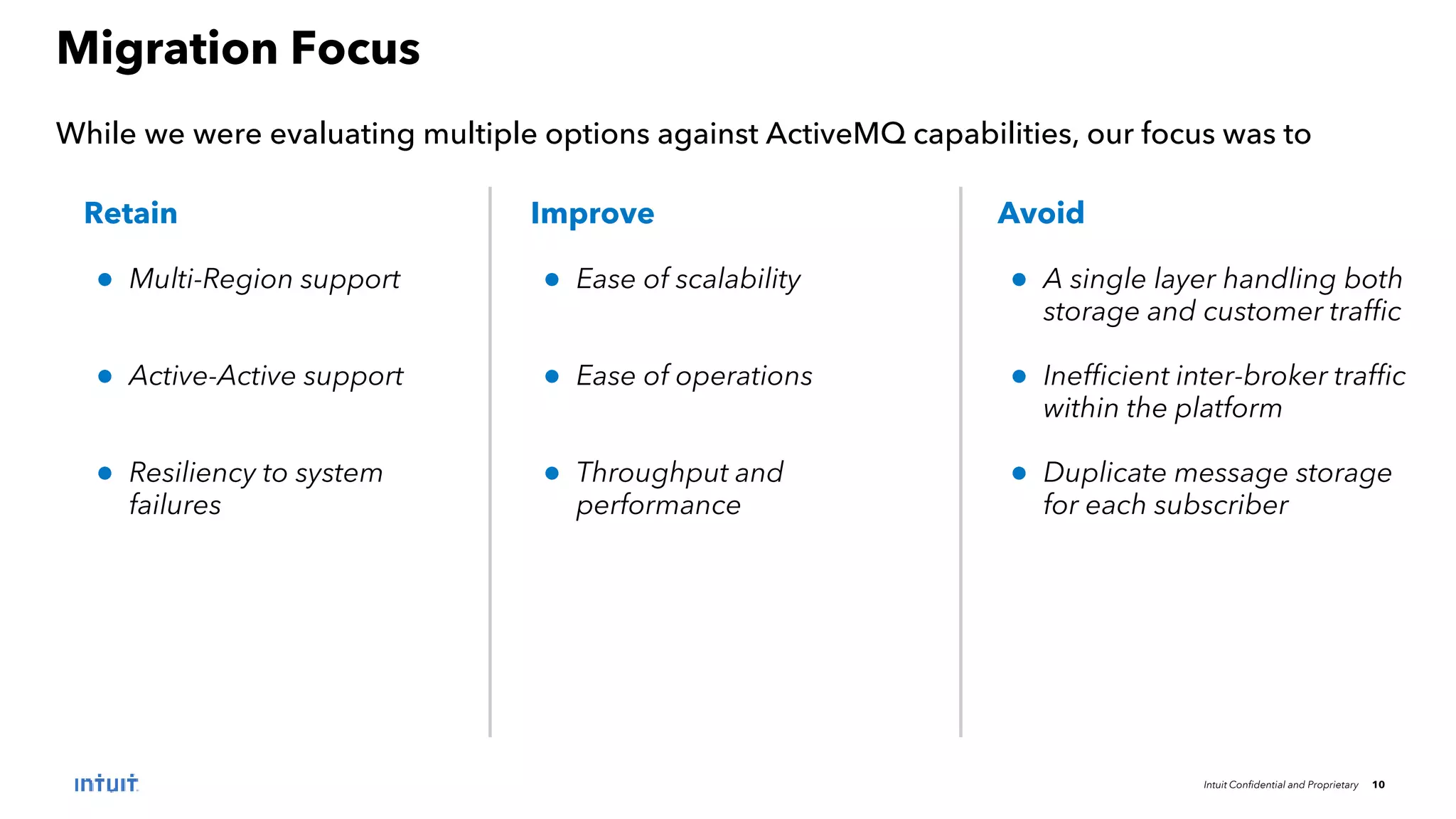

- 10. Intuit Confidential andProprietary 10 Retain ● Multi-Region support ● Active-Active support ● Resiliency to system failures While we were evaluating multiple options against ActiveMQ capabilities, our focus was to Migration Focus Improve ● Ease of scalability ● Ease of operations ● Throughput and performance Avoid ● A single layer handling both storage and customer traffic ● Inefficient inter-broker traffic within the platform ● Duplicate message storage for each subscriber
- 11.

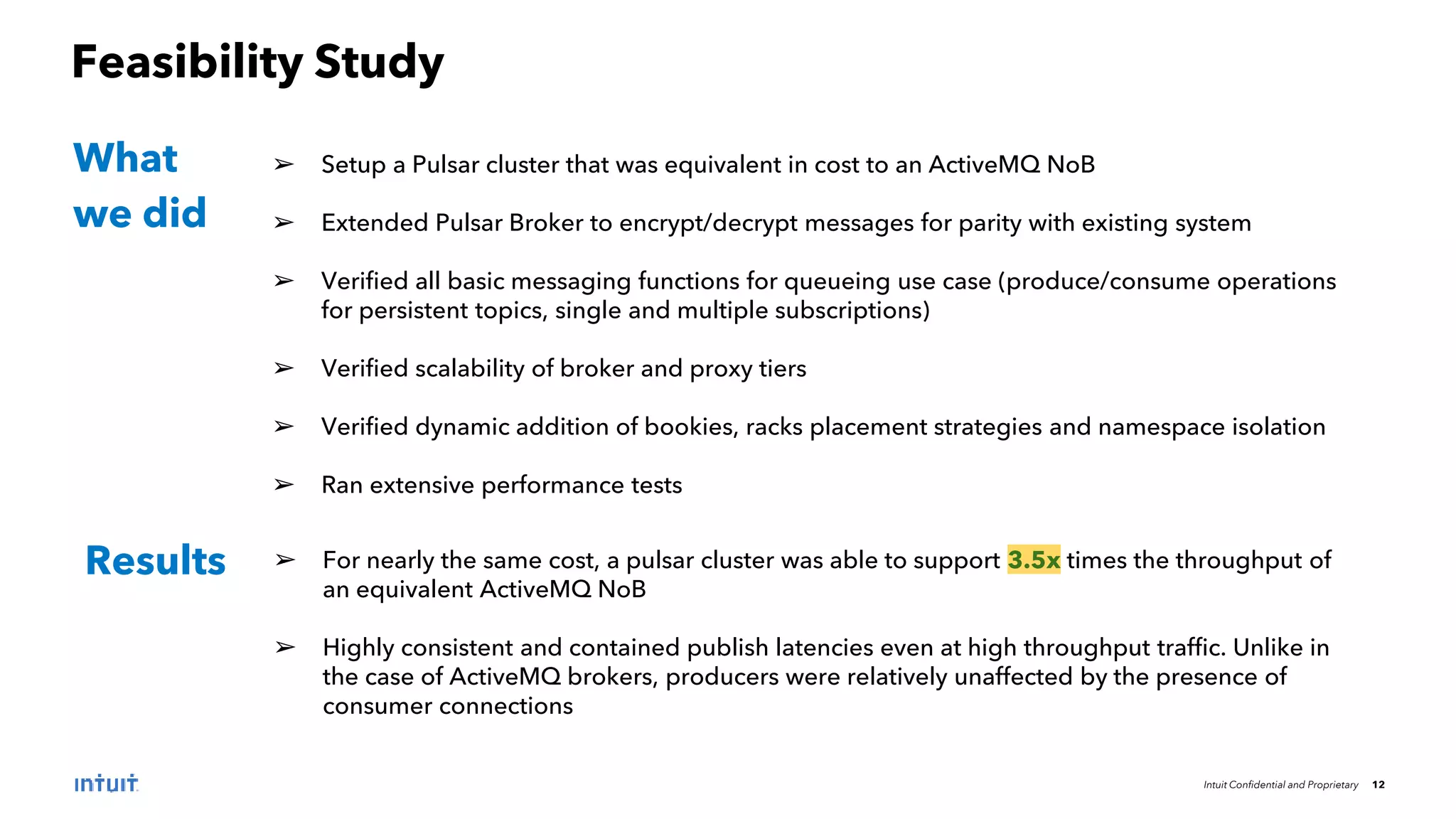

- 12. Intuit Confidential andProprietary 12 Feasibility Study ➢ Setup a Pulsar cluster that was equivalent in cost to an ActiveMQ NoB ➢ Extended Pulsar Broker to encrypt/decrypt messages for parity with existing system ➢ Verified all basic messaging functions for queueing use case (produce/consume operations for persistent topics, single and multiple subscriptions) ➢ Verified scalability of broker and proxy tiers ➢ Verified dynamic addition of bookies, racks placement strategies and namespace isolation ➢ Ran extensive performance tests What we did Results ➢ For nearly the same cost, a pulsar cluster was able to support 3.5x times the throughput of an equivalent ActiveMQ NoB ➢ Highly consistent and contained publish latencies even at high throughput traffic. Unlike in the case of ActiveMQ brokers, producers were relatively unaffected by the presence of consumer connections

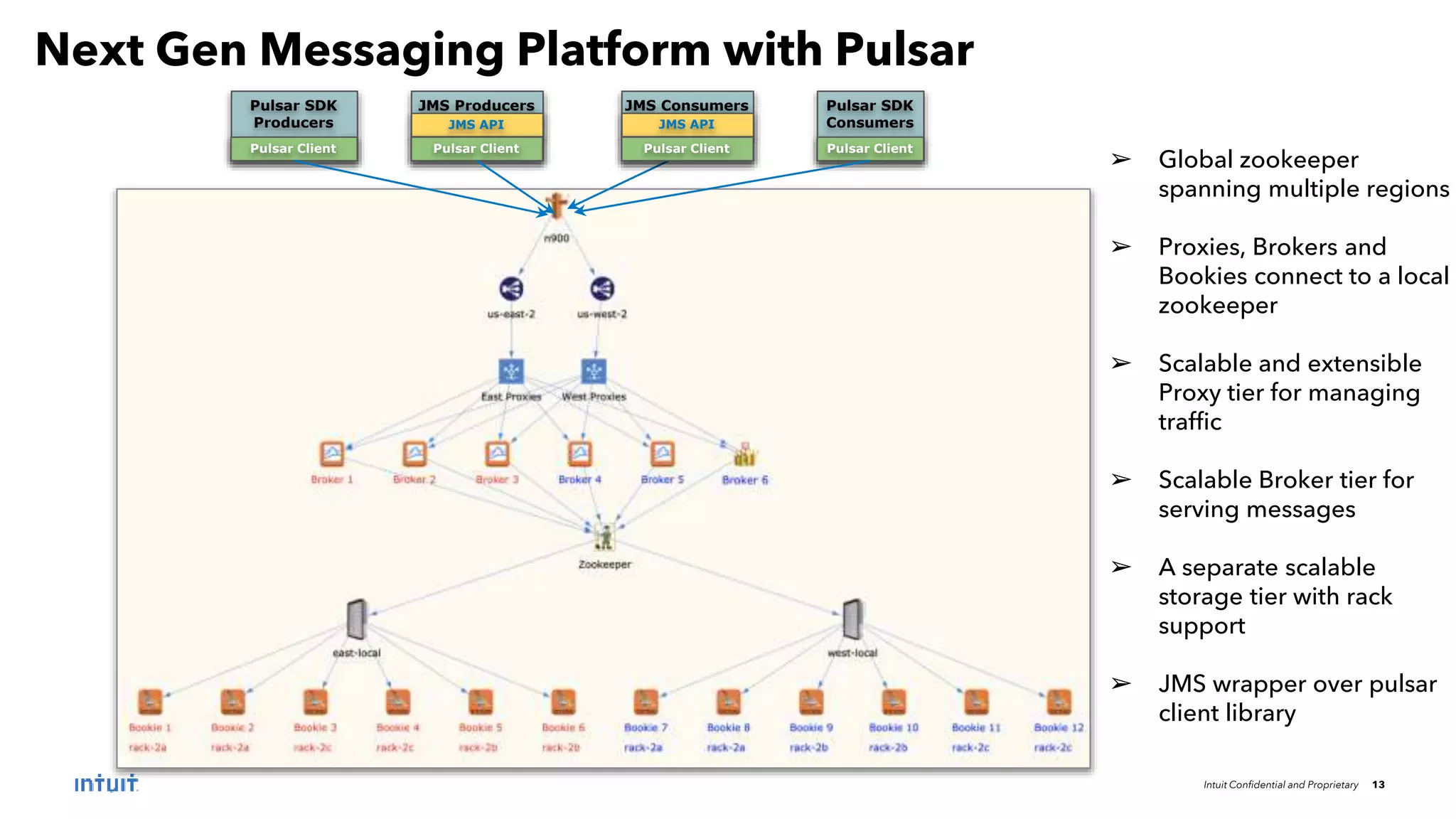

- 13. Intuit Confidential andProprietary 13 Next Gen Messaging Platform with Pulsar ➢ Global zookeeper spanning multiple regions ➢ Proxies, Brokers and Bookies connect to a local zookeeper ➢ Scalable and extensible Proxy tier for managing traffic ➢ Scalable Broker tier for serving messages ➢ A separate scalable storage tier with rack support ➢ JMS wrapper over pulsar client library JMS Producers JMS API Pulsar Client JMS Consumers JMS API Pulsar Client Pulsar SDK Producers Pulsar Client Pulsar SDK Consumers Pulsar Client
- 14.

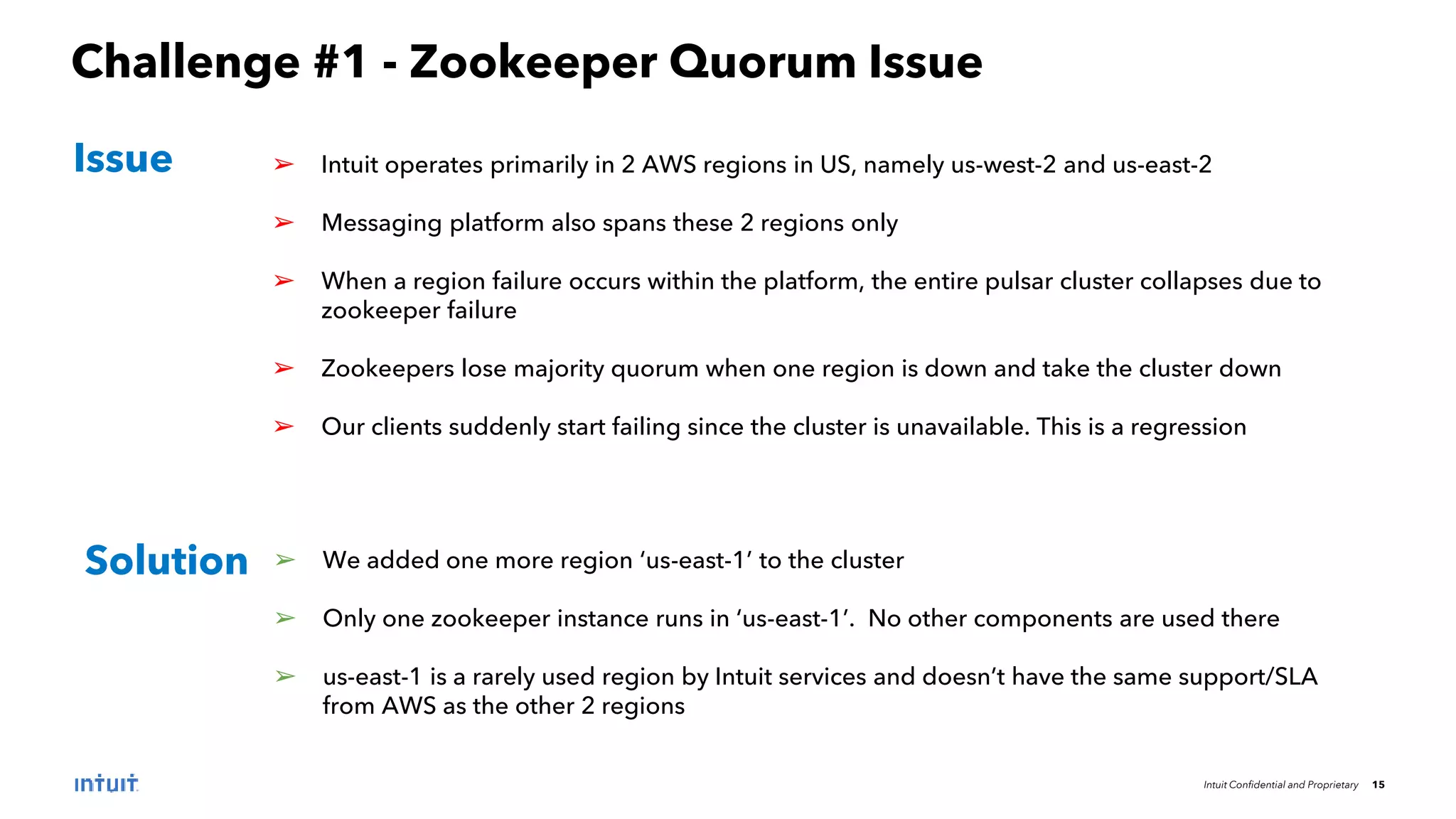

- 15. Intuit Confidential andProprietary 15 Challenge #1 - Zookeeper Quorum Issue ➢ Intuit operates primarily in 2 AWS regions in US, namely us-west-2 and us-east-2 ➢ Messaging platform also spans these 2 regions only ➢ When a region failure occurs within the platform, the entire pulsar cluster collapses due to zookeeper failure ➢ Zookeepers lose majority quorum when one region is down and take the cluster down ➢ Our clients suddenly start failing since the cluster is unavailable. This is a regression Issue Solution ➢ We added one more region ‘us-east-1’ to the cluster ➢ Only one zookeeper instance runs in ‘us-east-1’. No other components are used there ➢ us-east-1 is a rarely used region by Intuit services and doesn’t have the same support/SLA from AWS as the other 2 regions

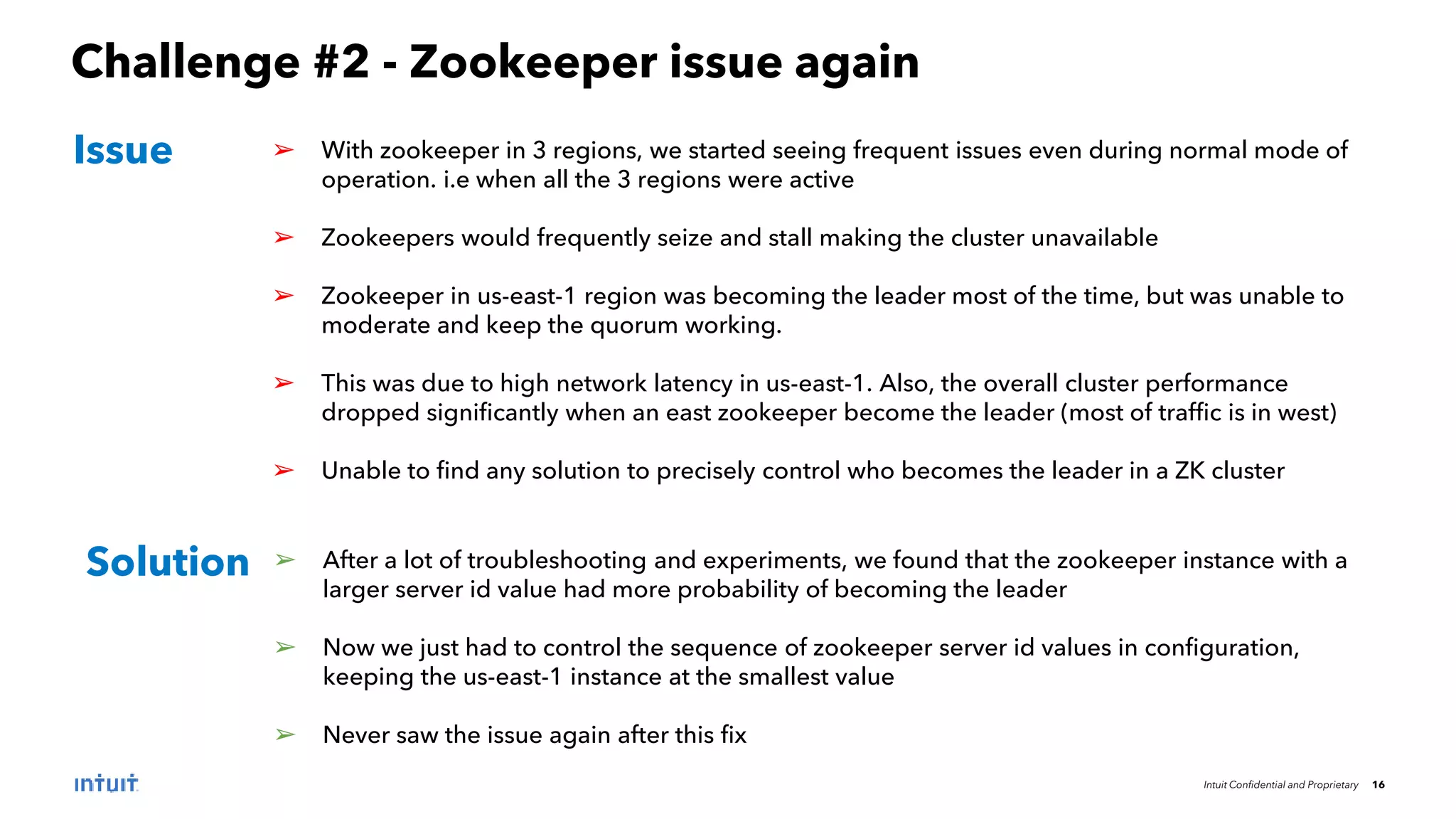

- 16. Intuit Confidential andProprietary 16 Challenge #2 - Zookeeper issue again ➢ With zookeeper in 3 regions, we started seeing frequent issues even during normal mode of operation. i.e when all the 3 regions were active ➢ Zookeepers would frequently seize and stall making the cluster unavailable ➢ Zookeeper in us-east-1 region was becoming the leader most of the time, but was unable to moderate and keep the quorum working. ➢ This was due to high network latency in us-east-1. Also, the overall cluster performance dropped significantly when an east zookeeper become the leader (most of traffic is in west) ➢ Unable to find any solution to precisely control who becomes the leader in a ZK cluster Issue Solution ➢ After a lot of troubleshooting and experiments, we found that the zookeeper instance with a larger server id value had more probability of becoming the leader ➢ Now we just had to control the sequence of zookeeper server id values in configuration, keeping the us-east-1 instance at the smallest value ➢ Never saw the issue again after this fix
- 17. Challenges & Solutions Latencyand Ledger Issues

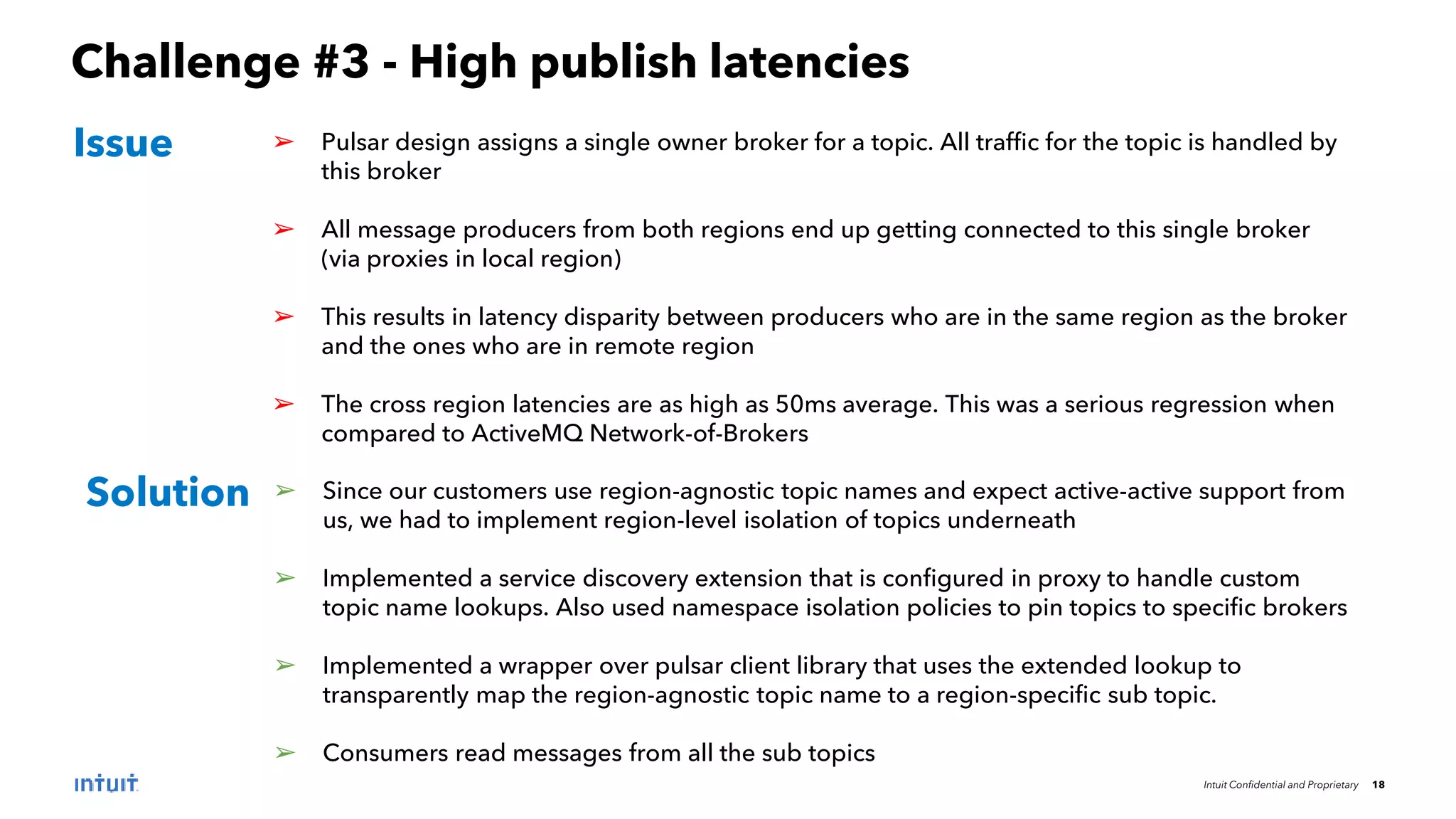

- 18. Intuit Confidential andProprietary 18 Challenge #3 - High publish latencies ➢ Pulsar design assigns a single owner broker for a topic. All traffic for the topic is handled by this broker ➢ All message producers from both regions end up getting connected to this single broker (via proxies in local region) ➢ This results in latency disparity between producers who are in the same region as the broker and the ones who are in remote region ➢ The cross region latencies are as high as 50ms average. This was a serious regression when compared to ActiveMQ Network-of-Brokers Issue Solution ➢ Since our customers use region-agnostic topic names and expect active-active support from us, we had to implement region-level isolation of topics underneath ➢ Implemented a service discovery extension that is configured in proxy to handle custom topic name lookups. Also used namespace isolation policies to pin topics to specific brokers ➢ Implemented a wrapper over pulsar client library that uses the extended lookup to transparently map the region-agnostic topic name to a region-specific sub topic. ➢ Consumers read messages from all the sub topics

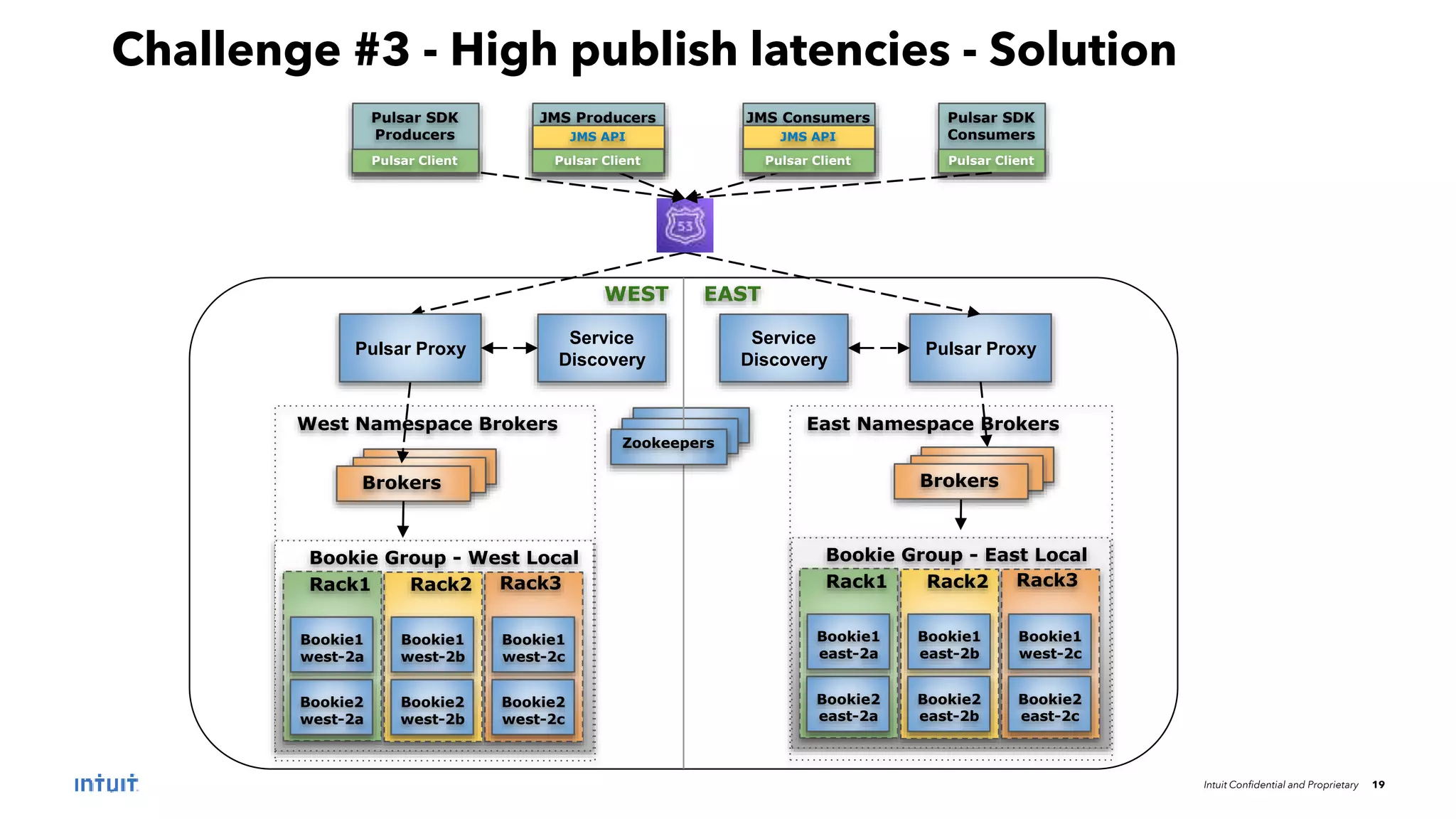

- 19. Intuit Confidential andProprietary 19 Brokers West Namespace Brokers Bookie2 west-2a Bookie1 west-2b Bookie2 west-2b Bookie1 west-2c Bookie2 west-2c Rack1 Rack2 Rack3 Bookie Group - West Local Bookie1 west-2a Bookie2 east-2a Bookie1 east-2b Bookie2 east-2b Bookie1 west-2c Bookie2 east-2c Rack1 Rack2 Rack3 Bookie Group - East Local Bookie1 east-2a Pulsar Proxy Service Discovery WEST EAST Zookeepers Brokers Pulsar Proxy Service Discovery JMS Producers JMS API Pulsar Client JMS Consumers JMS API Pulsar Client Pulsar SDK Producers Pulsar Client Pulsar SDK Consumers Pulsar Client Challenge #3 - High publish latencies - Solution East Namespace Brokers
- 20. Intuit Confidential andProprietary 20 Challenge #4 - Ledger recovery failure ➢ Messages for a topic are stored in a sequence of ledgers in BookKeeper. The owner broker for the topic manages the state of the ledgers. ➢ Ledgers are replicated to multiple bookies based on the write quorum value ➢ When a bookie crashes, open ledgers in it are closed by brokers which then create new ledgers using other available bookies. When a broker crashes, other brokers assume ownership of the abandoned topics and are able to re-open the ledgers ➢ However in case of multiple system failures resulting in a combination of broker and bookie crashes, it leads to a situation where the ledgers cannot be recovered and topic producers are stalled and new messages cannot be published. This results in business impact Issue Solution ➢ For recovery, a quick restart of the bookies is needed. Due to sync operation, a delayed restart can overshoot the SLA and result in customer impact ➢ We are working on a solution to use our custom service discovery to detect this condition and redirect producer to the sub-topic for the remote region.
- 21.

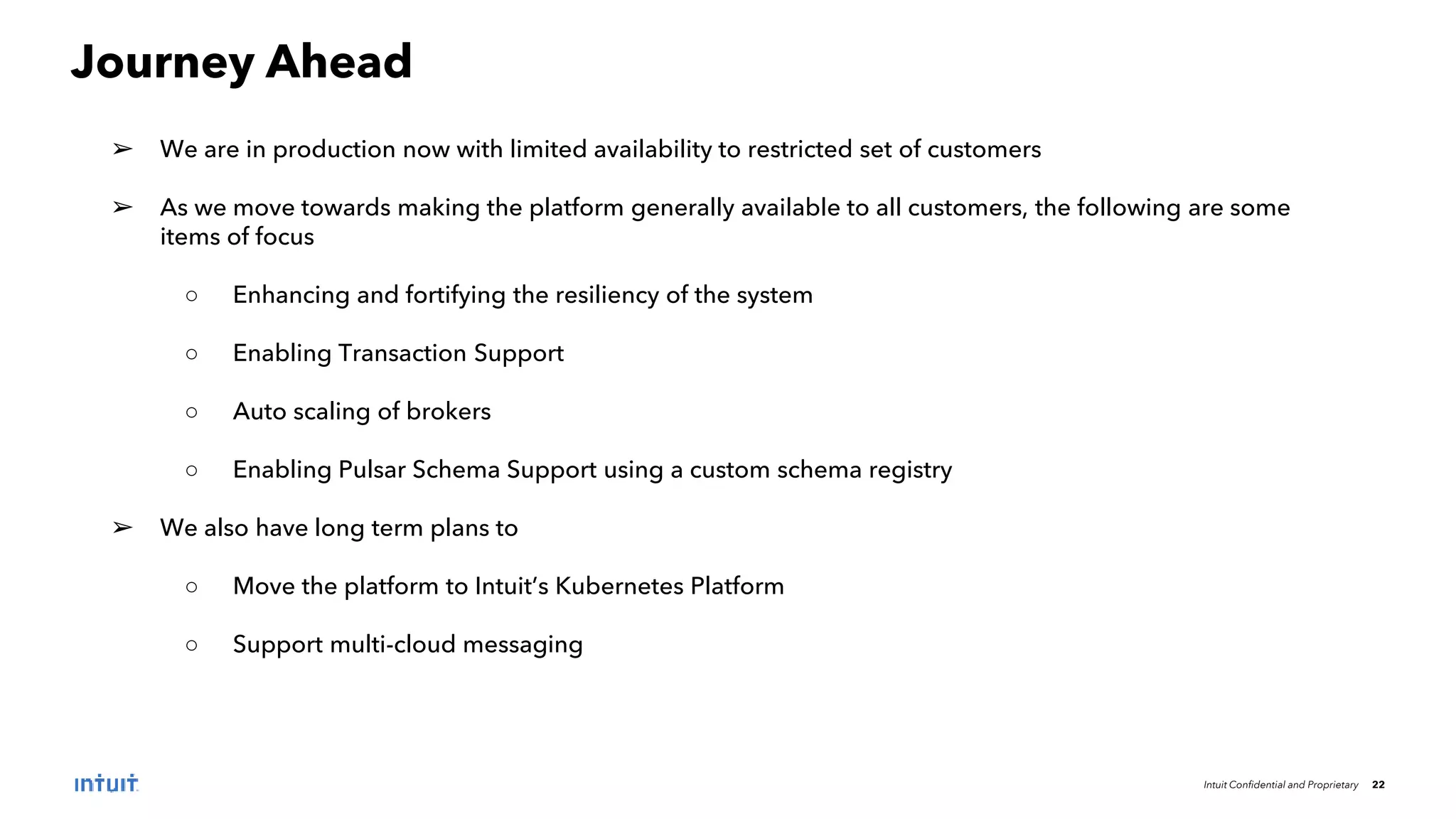

- 22. Intuit Confidential andProprietary 22 Journey Ahead ➢ We are in production now with limited availability to restricted set of customers ➢ As we move towards making the platform generally available to all customers, the following are some items of focus ○ Enhancing and fortifying the resiliency of the system ○ Enabling Transaction Support ○ Auto scaling of brokers ○ Enabling Pulsar Schema Support using a custom schema registry ➢ We also have long term plans to ○ Move the platform to Intuit’s Kubernetes Platform ○ Support multi-cloud messaging

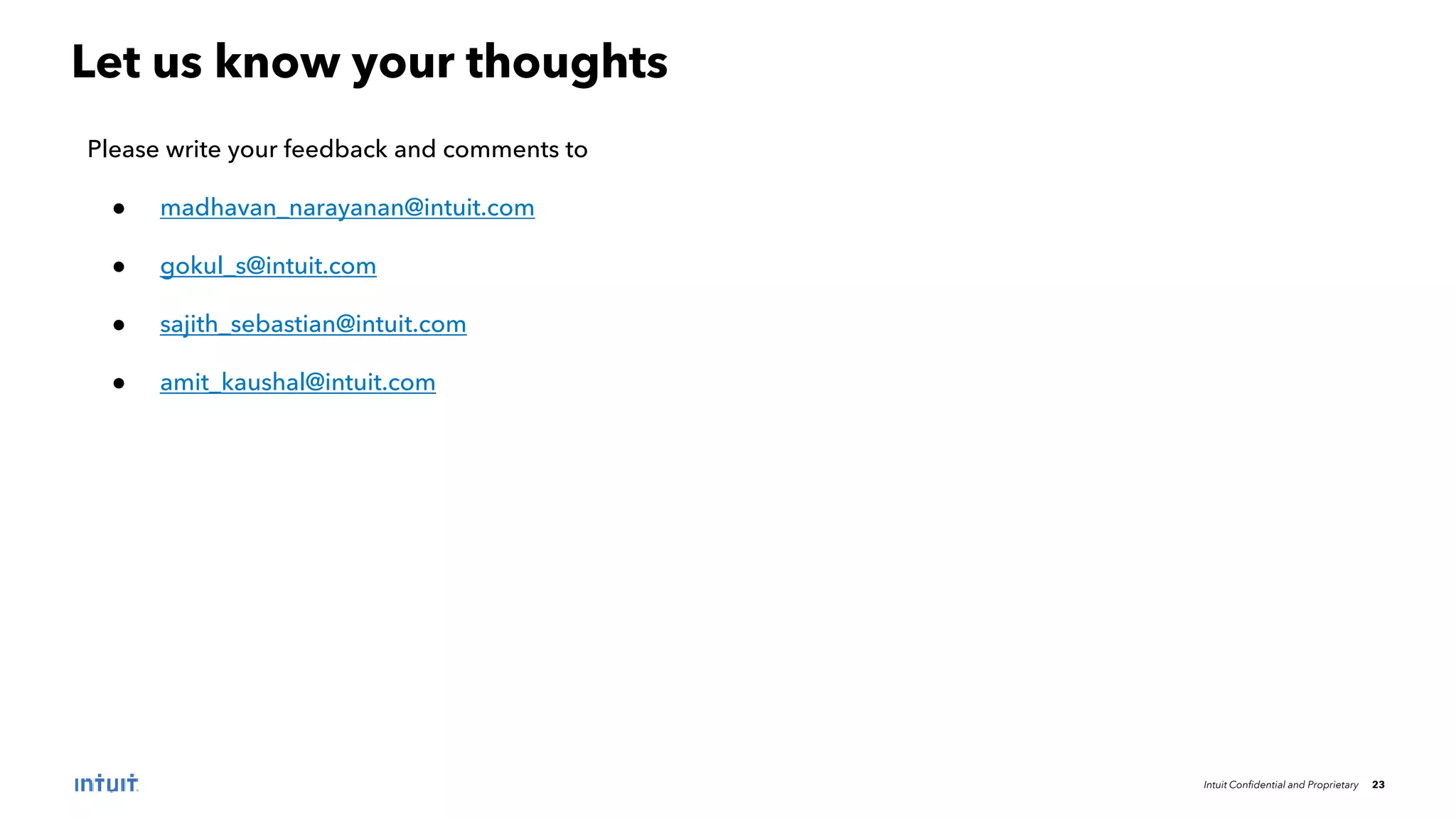

- 23. Intuit Confidential andProprietary 23 Let us know your thoughts Please write your feedback and comments to ● madhavan_narayanan@intuit.com ● gokul_s@intuit.com ● sajith_sebastian@intuit.com ● amit_kaushal@intuit.com
- 24.
