The document discusses the transition from a legacy DNS infrastructure to a dynamic DNS system using PowerDNS, highlighting performance issues, the need for automation, and centralized management. It outlines the architecture of PowerDNS, its replication features, and disaster recovery protocols, as well as results from extensive load testing to ensure production readiness. Additionally, it emphasizes integration with existing workflows and monitoring metrics for effective governance.

1. Building a Dynamic DNS Infrastructure
Khalid Hasanov

2. ★ Motivation
★ Legacy DNS Infrastructure
★ New DNS Infrastructure
○ Design
○ Monitoring
○ Performance
★ Questions

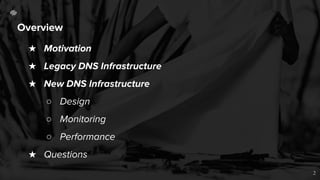

Overview
2

3. 1. Authoritative DNS server - simply the owner of the hostname
2. Recursive DNS server - resolves any query they receive by consulting a
corresponding authoritative server if there is no answer in its own cache
3. A validating DNS server - a resolver which verifies the response it has
received is correct
DNS Terminology
3

4. DNS Update Workflow
4

5. Legacy DNS Architecture - Bind
5

6. Issues we had with Bind
● Performance
○ Several attempts to optimize Bind - CI build plans
○ It would take at least 15 minutes for Bind updates to take
effect
● Not centralized source of truth for all DNS Servers
● No automatic replication
● No dynamicity, no API to programmatically modify DNS data
6

7. Needs for a new DNS system
● Better performance
● Dynamic updates
● Automatic replication and failover
● Centralized source of truth for all our DNS servers
● Migration should be transparent for our engineers
7

8. What’s out there? DNS server software
8

9. PowerDNS Architecture
9

10. Interaction with other infrastructure components
10

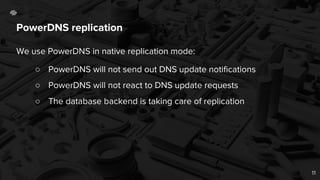

11. PowerDNS replication
We use PowerDNS in native replication mode:
○ PowerDNS will not send out DNS update notifications
○ PowerDNS will not react to DNS update requests
○ The database backend is taking care of replication
11

12. PowerDNS native replication
● PostgreSQL continuously ship
Write-Ahead Log records to the
standby servers
● Each standby server operates in
continuous recovery mode
12

13. Disaster Scenarios - Actions
1. Database backend failure:
Action: Kill PostgreSQL backend
2. Authoritative backend failure:
Action: Kill PowerDNS authoritative application
3. Recursor failure:
Action: Kill PowerDNS recursor application
13

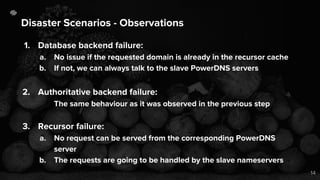

14. Disaster Scenarios - Observations
1. Database backend failure:
a. No issue if the requested domain is already in the recursor cache
b. If not, we can always talk to the slave PowerDNS servers
2. Authoritative backend failure:
The same behaviour as it was observed in the previous step
3. Recursor failure:
a. No request can be served from the corresponding PowerDNS
server
b. The requests are going to be handled by the slave nameservers
14

15. Production readiness - Load testing
15
● Load testing using JMeter
● JMeter tests started on 6 different VMs in parallel
● The test continued in 10 minutes and the total number of samples reached over 6 million
● Only 5 error in 6 million samples

16. Production readiness - Load testing
16
● Load testing using JMeter
● JMeter tests started on 6 different VMs in parallel
● The test continued in 10 minutes and the total number of samples reached over 6 million
● Only 5 error in 6 million samples

17. Production readiness - Load testing
17
● Load testing using JMeter
● JMeter tests started on 6 different VMs in parallel
● The test continued in 10 minutes and the total number of samples reached over 6 million
● Only 5 error in 6 million samples

18. Integration with existing workflow
● Existing process of updating DNS zones and records:
○ Ansible inventories and group vars
○ We need a way to be in sync with PDNS while we use
existing BIND based DNS
● Internal tool called Staple:
○ Parses Git logs of Ansible inventory files to get DNS
related changes
○ The changes are synced with PDNS using its HTTP API
18

19. What metrics we monitor and alert on
● Record-by-record and zone-by-zone comparison between Bind and
PowerDNS
● PowerDNS specific metrics
● Host specific metrics
19

20. Record-by-record and zone-by-zone comparison between
Bind and PowerDNS
20

21. PowerDNS specific metrics
21

22. Host specific metrics
22

23. User Interface
23

24. Future Work ...
24

25. Questions?
25
