This document provides a parts list and requirements for building a mid-range gaming PC. It includes the motherboard, CPU, RAM, graphics card, case, cooling fans, power supply, hard drive, optical drive, keyboard, mouse, monitor, and operating system. Pictures are included to show how to install the components. The total cost of the parts listed is $1286. The computer is designed specifically for gaming and to provide high performance.

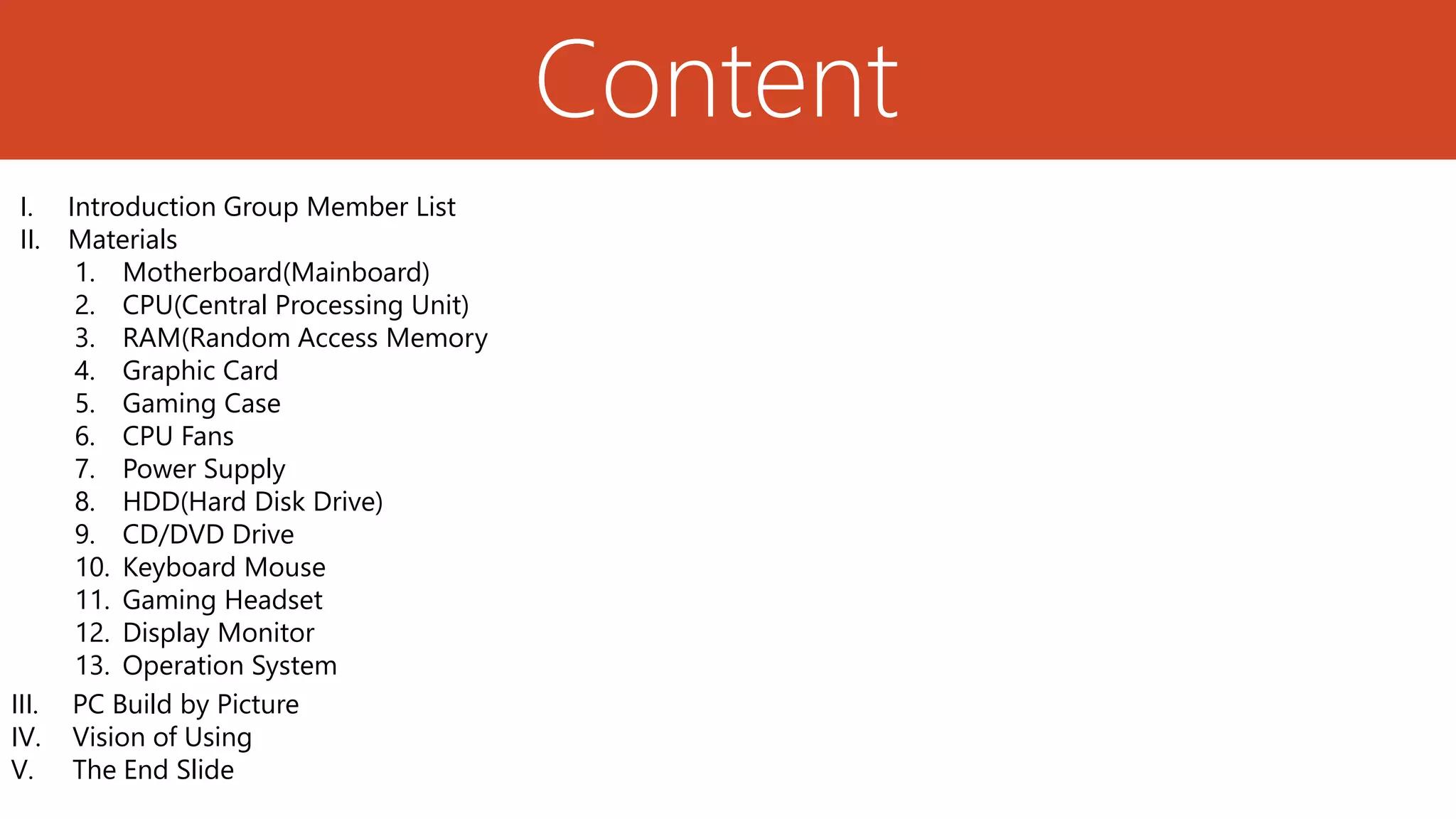

1. Content
I. Introduction Group Member List
II. Materials
1. Motherboard(Mainboard)
2. CPU(Central Processing Unit)
3. RAM(Random Access Memory
4. Graphic Card
5. Gaming Case
6. CPU Fans
7. Power Supply
8. HDD(Hard Disk Drive)
9. CD/DVD Drive
10. Keyboard Mouse
11. Gaming Headset
12. Display Monitor
13. Operation System
III. PC Build by Picture
IV. Vision of Using
V. The End Slide

2. Computer hardware installation and requirement
I. Your Name
II. Your Name
III. Your Name
IV. Your Name
V. Your Name
Group Member
Topic:
Assignment A+
Gaming PC Build(Mid Minimum)

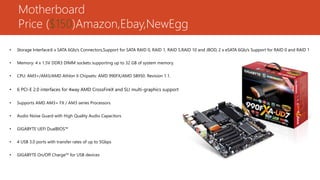

3. Motherboard
Price ($150)Amazon,Ebay,NewEgg
• Storage Interface:6 x SATA 6Gb/s Connectors,Support for SATA RAID 0, RAID 1, RAID 5,RAID 10 and JBOD, 2 x eSATA 6Gb/s Support for RAID 0 and RAID 1
• Memory: 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory.
• CPU: AM3+/AM3/AMD Athlon II Chipsets: AMD 990FX/AMD SB950. Revision 1.1.
• 6 PCI-E 2.0 interfaces for 4way AMD CrossFireX and SLI multi-graphics support
• Supports AMD AM3+ FX / AM3 series Processors
• Audio Noise Guard with High Quality Audio Capacitors
• GIGABYTE UEFI DualBIOS™
• 4 USB 3.0 ports with transfer rates of up to 5Gbps
• GIGABYTE On/Off Charge™ for USB devices

4. CPU (Cantral Processing Unit)
Price:($230)Amazon,NewEgg,Ebay,SuperBiiz
AMD FX -9590
Socket: AM3+
Clockspeed: 4.7 GHz,
Overclock: 5.0 GHz
TDP: 220 W
Core: 8

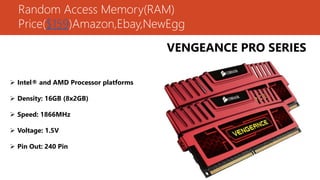

5. Random Access Memory(RAM)
Price($159)Amazon,Ebay,NewEgg
VENGEANCE PRO SERIES
 Intel® and AMD Processor platforms
 Density: 16GB (8x2GB)
 Speed: 1866MHz
 Voltage: 1.5V
 Pin Out: 240 Pin

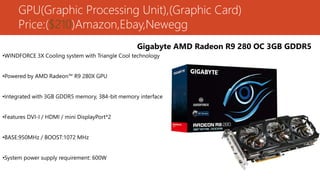

6. GPU(Graphic Processing Unit),(Graphic Card)
Price:($210)Amazon,Ebay,Newegg
Gigabyte AMD Radeon R9 280 OC 3GB GDDR5
•WINDFORCE 3X Cooling system with Triangle Cool technology
•Powered by AMD Radeon™ R9 280X GPU
•Integrated with 3GB GDDR5 memory, 384-bit memory interface
•Features DVI-I / HDMI / mini DisplayPort*2
•BASE:950MHz / BOOST:1072 MHz
•System power supply requirement: 600W

7. Gaming Case
Price:($45)EveryShop
STRIKE X ONE ADVANCE
•Have 2 fans
•Can install 120mm 8 fans more
•Supports Long VGA Cards up to 400mm
•USB2.0 x 2 + Audio (HD) + Mic
•Includes 1 x 12cm Black fan (Back)
•w/ Dust filter for PSU
•w/ 4 x ODD screw-less kit
•w/ 6 x 5 1/4" < 3 1/2" convertor brackets – can be used as fan adaptor,
can install 3.5" HDDs and 2.5" HDDs and can be used to install floppy or card reader.
•w/ Cable Routing Management (pre-drilled holes on the MB plate)
•w/ Pre-drilled CPU holes for easy mounting and removable of CPU cool

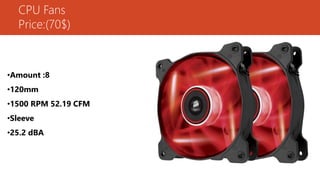

8. CPU Fans
Price:(70$)
•Amount :8
•120mm
•1500 RPM 52.19 CFM
•Sleeve
•25.2 dBA

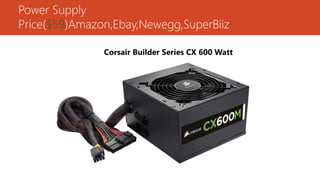

9. Power Supply
Price($59)Amazon,Ebay,Newegg,SuperBiiz
Corsair Builder Series CX 600 Watt

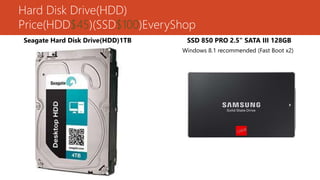

10. Hard Disk Drive(HDD)
Price(HDD$45)(SSD$100)EveryShop
Seagate Hard Disk Drive(HDD)1TB SSD 850 PRO 2.5" SATA III 128GB
Windows 8.1 recommended (Fast Boot x2)

11. CD/DVD Drive
Price:($20)Every Shop
•LG CD/DVD-Drive
•Interface: SATA
•Buffer Memory: 0.5MB
•Operating System: Windows XP/ Vista/ 7/ 8
•Sustained Rate: DVD-ROM: 22.16 Mb/s (16x) max,
CD-ROM: 7,200 Kb/s (48x) max-Write Speed DVD+R
24XDVD+RW 8XDVD-R 24XDVD-RW 6XCD-R 48XCD-
RW 24XDVD+R DL 8XDVD-R DL 8XDVD-RAM 5X

12. Keyboard Mouse
Price:(Keyboard $20)(Mouse $7)EveryShop
Black LED Lighted
Black Led Lighted Keyboard W-9868BK USB
E-BLUE Puntero
E-3lue Optical Mouse Light Wired USB

13. Monitor
Price:($150)Amazon,Ebay,Newegg
AOC Full-HD LED IPS Monitor
• Model AOC i2367Fh
• 23" display, 250 cd/m2 Brightness, 5ms Response Time
• 1920 x 1080 Full HD Resolution, 50M:1 MEGA Dynamic
Contrast Ratio
• IPS panel for consistent image appearance from all
viewing positions, 2mm ultra-narrow bezel for virtually
borderless appearance
• VGA, HDMI with HDCP (2x) ports
• Detachable multi-purpose stand for standard or photo
frame applications, 16:9 Aspect Ratio

14. Gaming Headset
Price:(70$)Amazon,Newegg,Ebay,Superbiiz
•Surround 7.1 Sound (Black)
•Interchangeable ear-cushions for both hear-through cloth and noise dampening leather
•Optimized soundscape for crystal clear high, low and mid-tones
•50 mm driver units provide a rich reproduction of all acoustic details
•Pull-out, invisible microphone
•Travel friendly and can be dismantled into 4 separate pieces

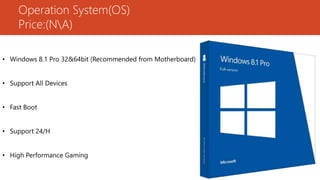

15. Operation System(OS)
Price:(NA)
• Windows 8.1 Pro 32&64bit (Recommended from Motherboard)
• Support All Devices
• Fast Boot
• Support 24/H
• High Performance Gaming

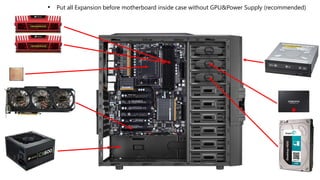

16. • Put all Expansion before motherboard inside case without GPU&Power Supply (recommended)

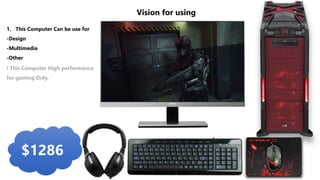

17. 1. This Computer Can be use for
-Design
-Multimedia
-Other
$1286
Vision for using
! This Computer High performance
for gaming Only.
