1. Cheap 3D-PC
Project
By: Jorge Viloria

2. Introduction
• Building a cheap 3d-PC is feasible
nowadays, in this project all the parts and
components have been thoroughly
researched to assure compatability and
operationability. This is just the
components list and there will be a more
informative presentation once the project
have gone to a fruitful conclusion

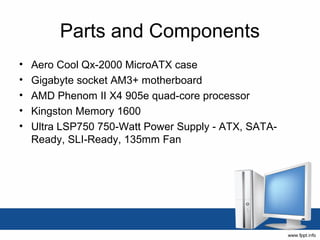

3. Parts and Components
• Aero Cool Qx-2000 MicroATX case
• Gigabyte socket AM3+ motherboard
• AMD Phenom II X4 905e quad-core processor
• Kingston Memory 1600
• Ultra LSP750 750-Watt Power Supply - ATX, SATA-
Ready, SLI-Ready, 135mm Fan

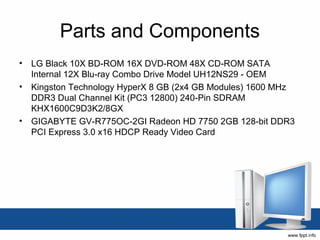

4. Parts and Components
• LG Black 10X BD-ROM 16X DVD-ROM 48X CD-ROM SATA
Internal 12X Blu-ray Combo Drive Model UH12NS29 - OEM
• Kingston Technology HyperX 8 GB (2x4 GB Modules) 1600 MHz
DDR3 Dual Channel Kit (PC3 12800) 240-Pin SDRAM
KHX1600C9D3K2/8GX
• GIGABYTE GV-R775OC-2GI Radeon HD 7750 2GB 128-bit DDR3
PCI Express 3.0 x16 HDCP Ready Video Card

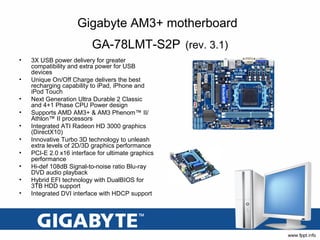

5. Gigabyte AM3+ motherboard
GA-78LMT-S2P (rev. 3.1)
• 3X USB power delivery for greater
compatibility and extra power for USB
devices
• Unique On/Off Charge delivers the best
recharging capability to iPad, iPhone and
iPod Touch
• Next Generation Ultra Durable 2 Classic
and 4+1 Phase CPU Power design
• Supports AMD AM3+ & AM3 Phenom™ II/
Athlon™ II processors
• Integrated ATI Radeon HD 3000 graphics
(DirectX10)
• Innovative Turbo 3D technology to unleash
extra levels of 2D/3D graphics performance
• PCI-E 2.0 x16 interface for ultimate graphics
performance
• Hi-def 108dB Signal-to-noise ratio Blu-ray
DVD audio playback
• Hybrid EFI technology with DualBIOS for
3TB HDD support
• Integrated DVI interface with HDCP support

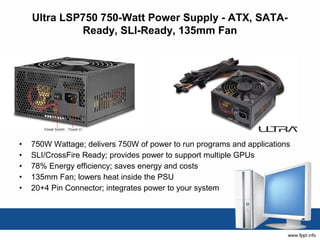

6. Ultra LSP750 750-Watt Power Supply - ATX, SATA-
Ready, SLI-Ready, 135mm Fan
• 750W Wattage; delivers 750W of power to run programs and applications
• SLI/CrossFire Ready; provides power to support multiple GPUs
• 78% Energy efficiency; saves energy and costs
• 135mm Fan; lowers heat inside the PSU
• 20+4 Pin Connector; integrates power to your system

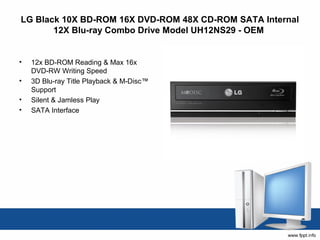

7. LG Black 10X BD-ROM 16X DVD-ROM 48X CD-ROM SATA Internal
12X Blu-ray Combo Drive Model UH12NS29 - OEM
• 12x BD-ROM Reading & Max 16x
DVD-RW Writing Speed
• 3D Blu-ray Title Playback & M-Disc™
Support
• Silent & Jamless Play
• SATA Interface

8. Kingston Technology HyperX 8 GB (2x4 GB Modules) 1600 MHz
DDR3 Dual Channel Kit (PC3 12800) 240-Pin SDRAM
KHX1600C9D3K2/8GX
• 8GB Kit including two 4GB
modules of 1600MHz Class 9
DDR3 Desktop Memory
• Utilizes HyperX module with
faster latency timing for higher
performance and speed
• Specifically designed and
tested for compatibility in
various makes and models of
desktop computers
• From the industry leader in PC
memory
• Non-ECC Low-Latency 240-
pin unbuffered DIMM type

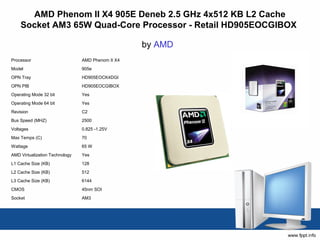

9. AMD Phenom II X4 905E Deneb 2.5 GHz 4x512 KB L2 Cache
Socket AM3 65W Quad-Core Processor - Retail HD905EOCGIBOX
by AMD
Processor AMD Phenom II X4
Model 905e
OPN Tray HD905EOCK4DGI
OPN PIB HD905EOCGIBOX
Operating Mode 32 bit Yes
Operating Mode 64 bit Yes
Revision C2
Bus Speed (MHZ) 2500
Voltages 0.825 -1.25V
Max Temps (C) 70
Wattage 65 W
AMD Virtualization Technology Yes
L1 Cache Size (KB) 128
L2 Cache Size (KB) 512
L3 Cache Size (KB) 6144
CMOS 45nm SOI
Socket AM3

10. GIGABYTE GV-R775OC-2GI Radeon HD 7750 2GB 128-bit DDR3
PCI Express 3.0 x16 HDCP Ready Video Card
GIGABYTE HD Experience Series
• Powered by AMD Radeon HD
7750 GPU
• Integrated with the first 2GB
DDR3 memory and 128-bit
memory interface
• Features Dual-link DVI-D*2 /
HDMI / D-Sub
• Overclock to 850 MHz
• Support AMD Avivo™HD
• System power supply
requirement: 400W

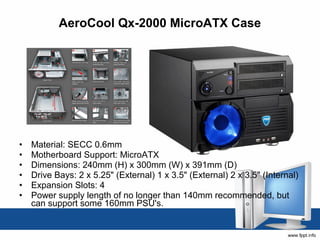

11. AeroCool Qx-2000 MicroATX Case
• Material: SECC 0.6mm
• Motherboard Support: MicroATX
• Dimensions: 240mm (H) x 300mm (W) x 391mm (D)
• Drive Bays: 2 x 5.25" (External) 1 x 3.5" (External) 2 x 3.5" (Internal)
• Expansion Slots: 4
• Power supply length of no longer than 140mm recommended, but
can support some 160mm PSU's.

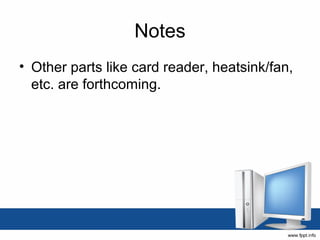

12. Notes
• Other parts like card reader, heatsink/fan,
etc. are forthcoming.

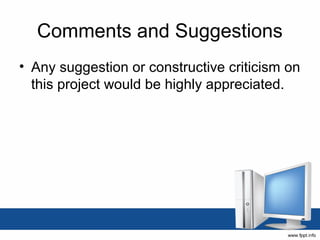

13. Comments and Suggestions
• Any suggestion or constructive criticism on
this project would be highly appreciated.
