1. SOLAR POWER SYSTEM
FOR BTS SUPPLY

2. • Leading EPC company in renewable energy
sector
• Having track record on delivering high quality
green energy system in all over Indonesia
WHO WE ARE • One of subsidiary company for PT LEN
Industri (Persero)

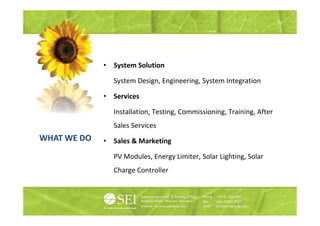

3. • System Solution
System Design, Engineering, System Integration
• Services
Installation, Testing, Commissioning, Training,
Installation Testing Commissioning Training After
Sales Services
WHAT WE DO • Sales Marketing
S l &M k i
PV Modules, Energy Limiter, Solar Lighting, Solar
Charge Controller

4. • Solar Module (PT LEN Industri facility)
Annual capacity of 9 MW
• Solar Home System
• Solar Street Lighting
• PV Stand Alone Power Supply System
• Hybrid Power Supply System
OUR PRODUCTS
• Grid Connected System
• Grid Connected With Backup System

5. SOLAR POWER SYSTEM
FOR BTS SUPPLY

6. • Effective land use with high roof PV module installation
g
• High efficient solar energy extraction
• Compact packaging for control and di t ib ti panel
C t k i f t l d distribution l
• Direct status and alarm signal to BTS
• Data logger for recording energy usage (up to 3 month)
FEATURES • Monitoring system (optional)
g y ( p )

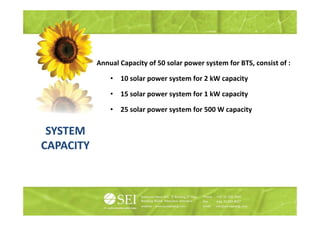

7. Annual Capacity of 50 solar power system f BTS consist of :
A lC it f l t for BTS, it f
• 10 solar power system for 2 kW capacity
• 15 solar power system for 1 kW capacity
• 25 solar power system for 500 W capacity
p y p y
SYSTEM
CAPACITY

8. DC BUS
Battery Bank
PLN
Wind
Controller RECTIFIER GRID
Wind Turbine

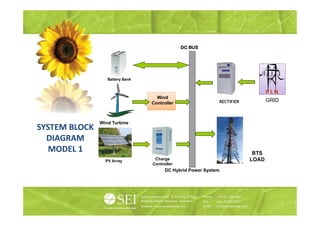

SYSTEM BLOCK
DIAGRAM
MODEL 1 BTS
PV Array Charge LOAD
Controller
DC Hybrid Power System

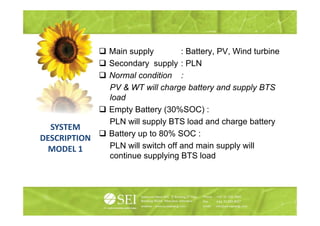

9. Main supply : Battery, PV, Wind turbine
Secondary supply : PLN
S d l
Normal condition :
PV & WT will charge battery and supply BTS
load
Empty Battery (
py y (30%SOC) : )
PLN will supply BTS load and charge battery
SYSTEM
Battery up to 80% SOC :
DESCRIPTION
MODEL 1 PLN will switch off and main supply will
continue supplying BTS load

10. DC BUS
Battery Bank
RECTIFIER GENSET

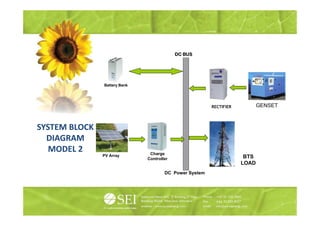

SYSTEM BLOCK
DIAGRAM
MODEL 2 Charge
PV Array BTS
Controller
LOAD
DC Power System

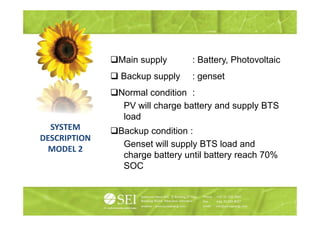

11. Main supply : Battery, Photovoltaic
Battery
Backup supply : genset
Normal condition :
PV will charge battery and supply BTS
load
SYSTEM Backup condition :
DESCRIPTION
Genset will supply BTS load and
MODEL 2
charge battery until battery reach 70%
SOC

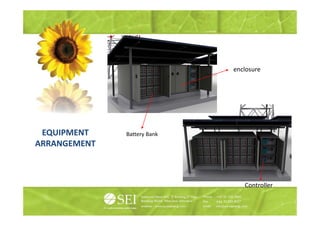

12. enclosure
EQUIPMENT Battery Bank
ARRANGEMENT
Controller

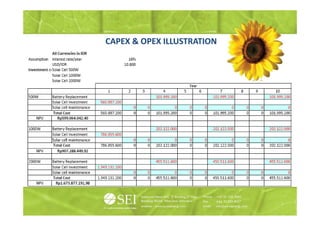

13. CAPEX & OPEX ILLUSTRATION

14. OUR EXPERIENCE
BTS GIRISARI BALI

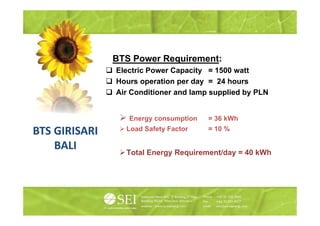

15. BTS Power Requirement:
S o e equ e e t
Electric Power Capacity = 1500 watt
Hours operation per day = 24 hours
Air Conditioner and lamp supplied by PLN
Energy consumption = 36 kWh
Load Safety Factor = 10 %
BTS GIRISARI
BALI Total Energy Requirement/day = 40 kWh

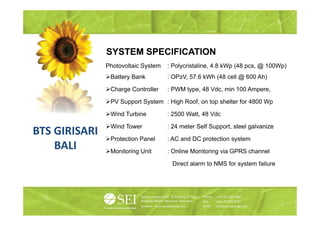

16. SYSTEM SPECIFICATION
Photovoltaic System : Polycristaline, 4.8 kWp (48 pcs, @ 100Wp)
Battery Bank : OPzV, 57.6 kWh (48 cell @ 600 Ah)
Charge C t ll
Ch Controller : PWM t
type, 48 Vd min 100 A
Vdc, i Ampere,
PV Support System : High Roof, on top shelter for 4800 Wp
Wind Turbine : 2500 Watt 48 Vdc
Watt,
Wind Tower : 24 meter Self Support, steel galvanize
BTS GIRISARI
Protection Panel : AC and DC protection system
BALI Monitoring Unit : Online Monitoring via GPRS channel
Direct alarm to NMS for system failure

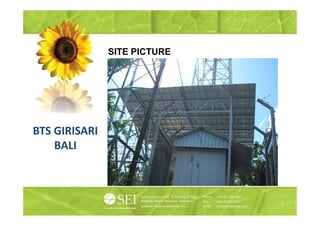

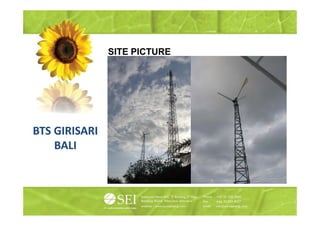

17. SITE PICTURE
BTS GIRISARI
BALI

18. SITE PICTURE
BTS GIRISARI
BALI

19. SITE PICTURE
BTS GIRISARI
BALI

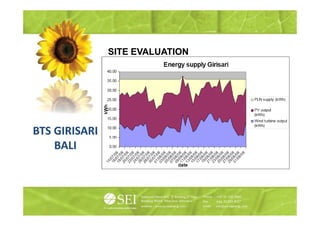

20. SITE EVALUATION
BTS GIRISARI
BALI

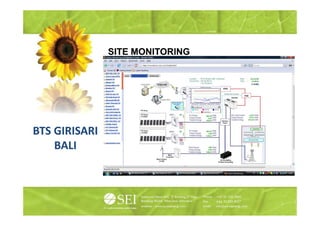

21. SITE MONITORING
BTS GIRISARI
BALI

22. OUR EXPERIENCE
BTS RD BANGKO & RUMBAI JAYA
RIAU

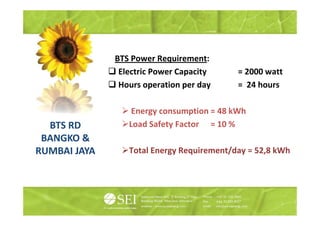

23. BTS Power Requirement:
q
Electric Power Capacity = 2000 watt
Hours operation per day = 24 hours
Energy consumption = 48 kWh
BTS RD Load Safety Factor = 10 %
BANGKO &
RUMBAI JAYA Total Energy Requirement/day = 52,8 kWh

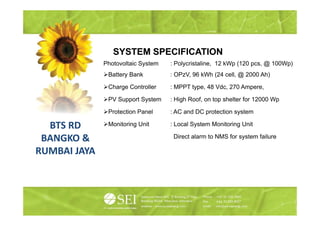

24. SYSTEM SPECIFICATION
Photovoltaic S t
Ph t lt i System : P l i t li
Polycristaline, 12 kW (120 pcs, @ 100W )
kWp 100Wp)
Battery Bank : OPzV, 96 kWh (24 cell, @ 2000 Ah)
Charge Controller : MPPT type 48 Vdc 270 Ampere
type, Vdc, Ampere,
PV Support System : High Roof, on top shelter for 12000 Wp
Protection Panel : AC and DC protection system
BTS RD Monitoring Unit : Local System Monitoring Unit
BANGKO & Direct alarm to NMS for system failure
ect a a S o syste a u e
RUMBAI JAYA

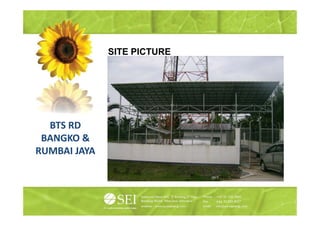

25. SITE PICTURE
BTS RD
BANGKO &
RUMBAI JAYA

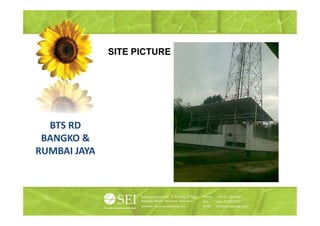

26. SITE PICTURE
BTS RD
BANGKO &
RUMBAI JAYA

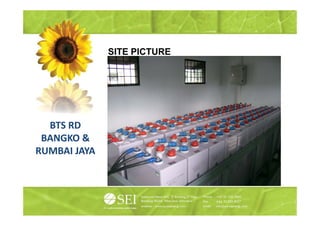

27. SITE PICTURE
BTS RD
BANGKO &
RUMBAI JAYA

28. SITE PICTURE
BTS RD
BANGKO &
RUMBAI JAYA
