1. Off-grid Rooftop PV
– An Elegant
Alternative To The
Unreliable Central
Grid
Copyright©ElsolSolutionsPvt.Ltd.

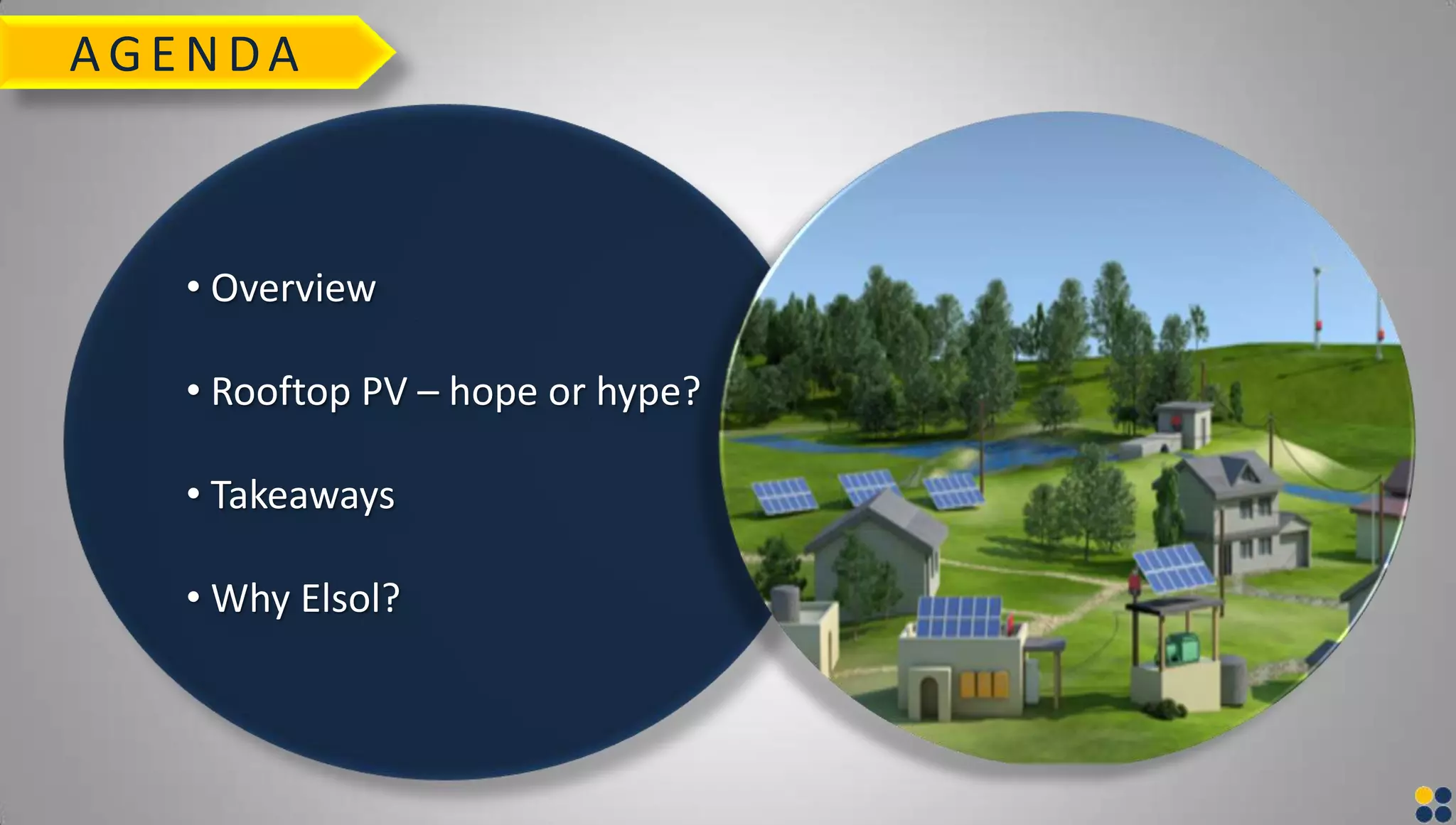

2. • Overview
• Rooftop PV – hope or hype?
• Takeaways
• Why Elsol?
AGE NDA

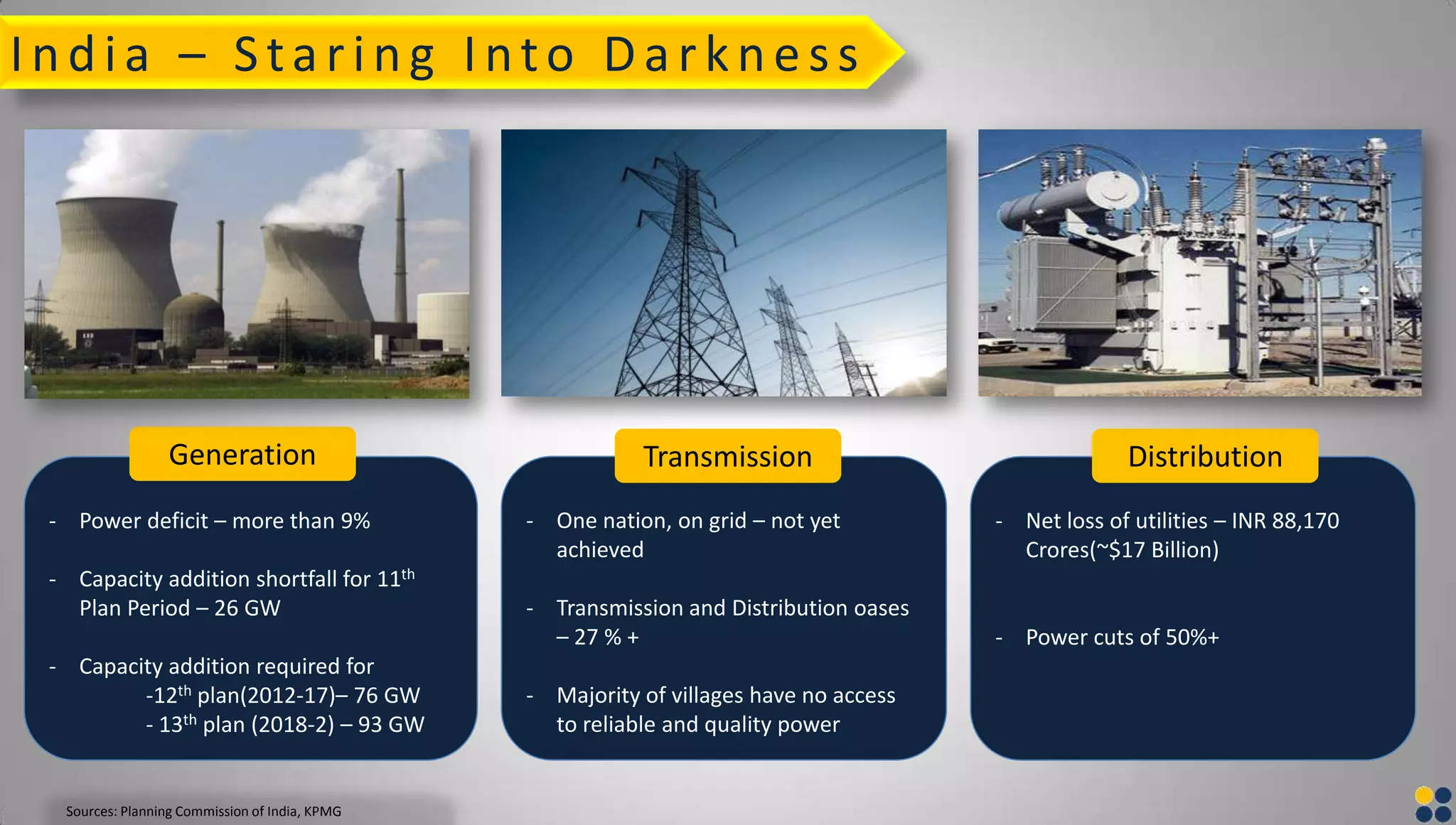

3. - Power deficit – more than 9%
- Capacity addition shortfall for 11th
Plan Period – 26 GW
- Capacity addition required for
-12th plan(2012-17)– 76 GW
- 13th plan (2018-2) – 93 GW
- One nation, on grid – not yet
achieved
- Transmission and Distribution oases
– 27 % +
- Majority of villages have no access
to reliable and quality power
- Net loss of utilities – INR 88,170
Crores(~$17 Billion)
- Power cuts of 50%+
Generation Transmission Distribution
Sources: Planning Commission of India, KPMG
India – Sta ring Into Da rkness

4. A window to the future…

5. Eco no mic & E nviro nmenta l Impa ct – Grim!!

6. J uly 3 0 - 3 1 , 2 0 1 2 .
The World’s Biggest Blackout happens in India
Affec ts 6 2 0 million people.

7. Sha me to Us…

8. The So lutio n ?
UNLEASH THE
UNLIMITED POWER

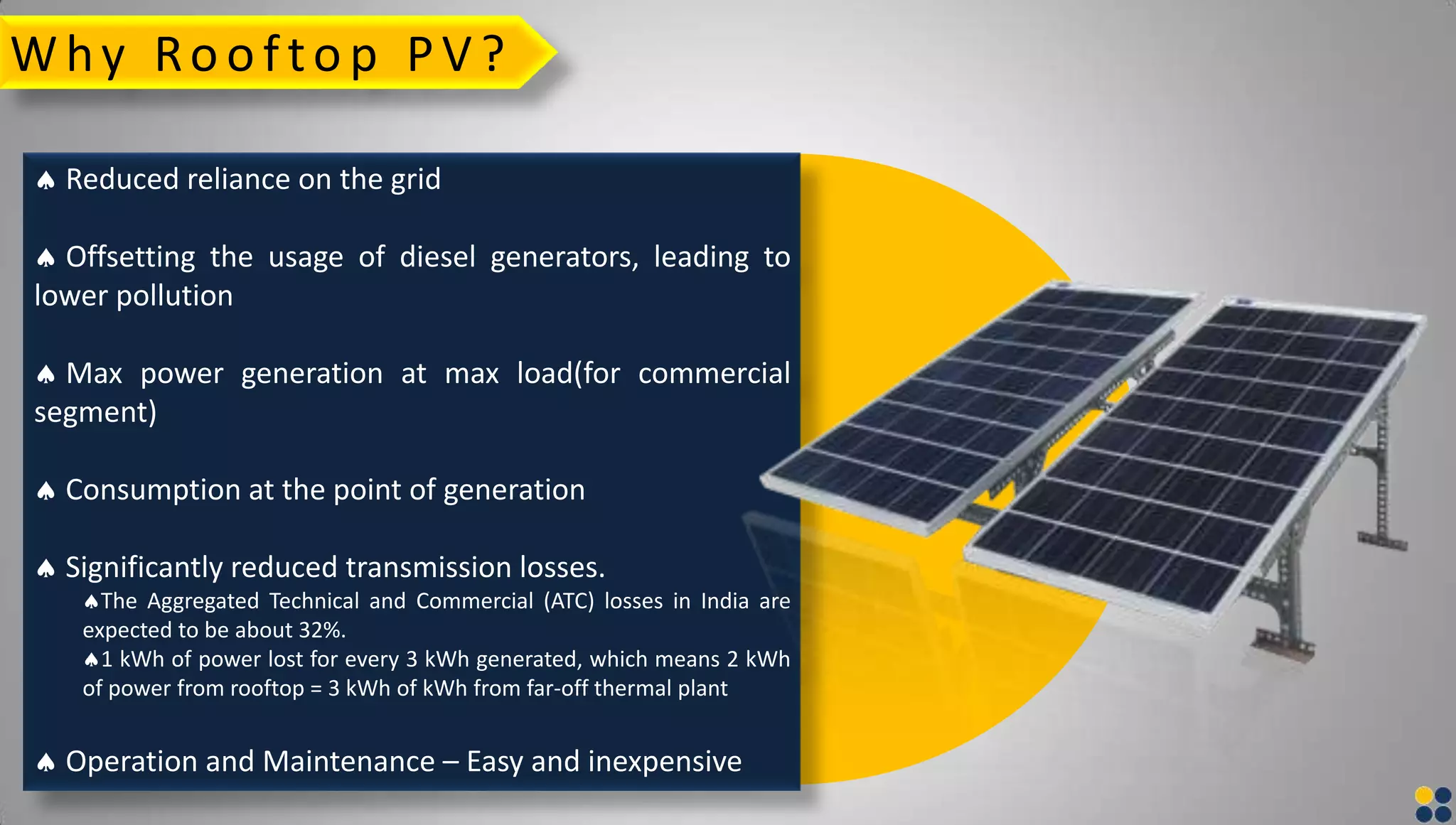

9. Why Ro o fto p PV?
Reduced reliance on the grid
Offsetting the usage of diesel generators, leading to
lower pollution
Max power generation at max load(for commercial
segment)
Consumption at the point of generation
Significantly reduced transmission losses.
The Aggregated Technical and Commercial (ATC) losses in India are
expected to be about 32%.
1 kWh of power lost for every 3 kWh generated, which means 2 kWh
of power from rooftop = 3 kWh of kWh from far-off thermal plant
Operation and Maintenance – Easy and inexpensive

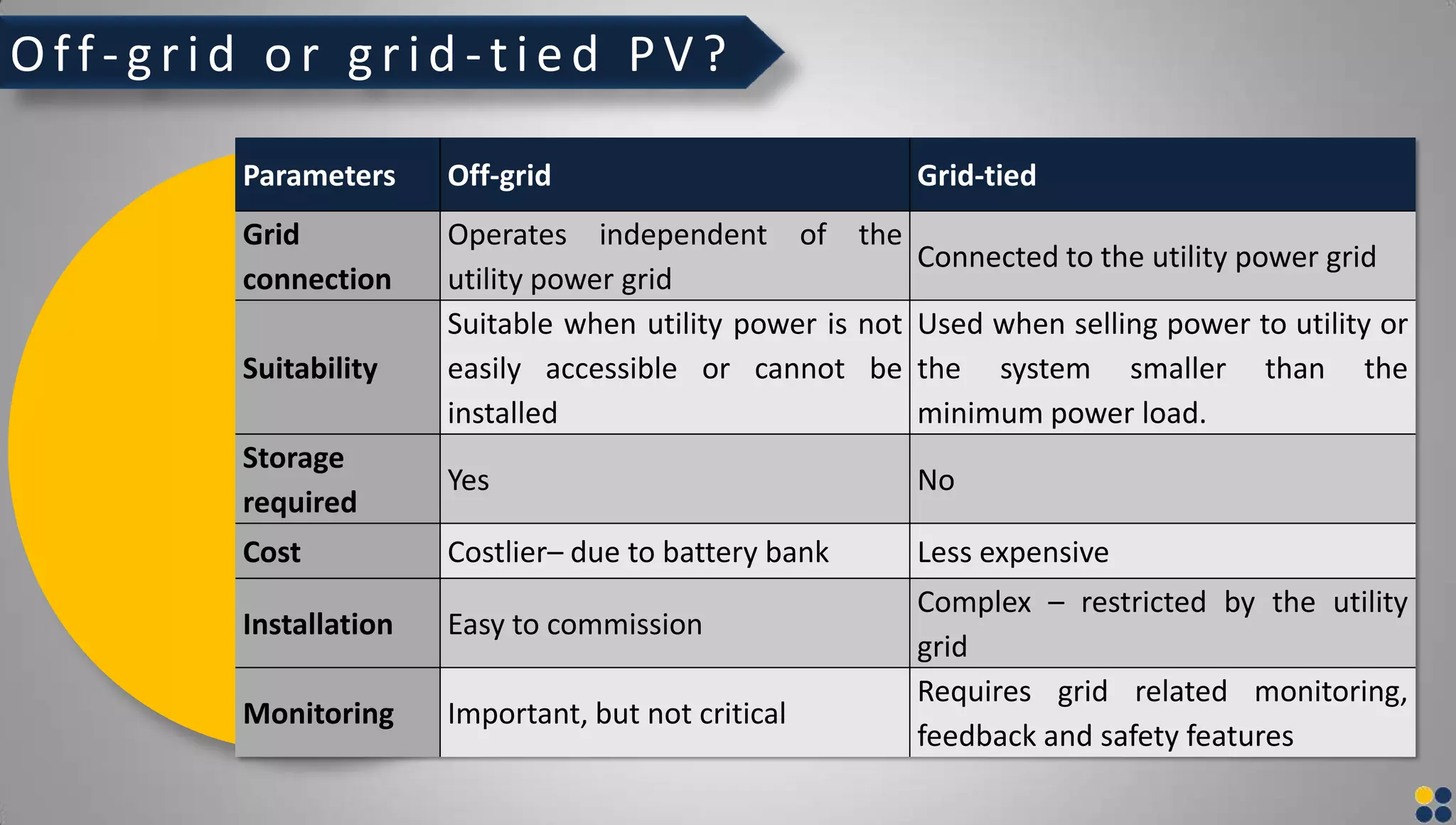

10. Off - grid o r grid - tied PV?
Parameters Off-grid Grid-tied
Grid
connection
Operates independent of the
utility power grid
Connected to the utility power grid
Suitability
Suitable when utility power is not
easily accessible or cannot be
installed
Used when selling power to utility or
the system smaller than the
minimum power load.
Storage
required
Yes No
Cost Costlier– due to battery bank Less expensive
Installation Easy to commission
Complex – restricted by the utility
grid
Monitoring Important, but not critical
Requires grid related monitoring,
feedback and safety features

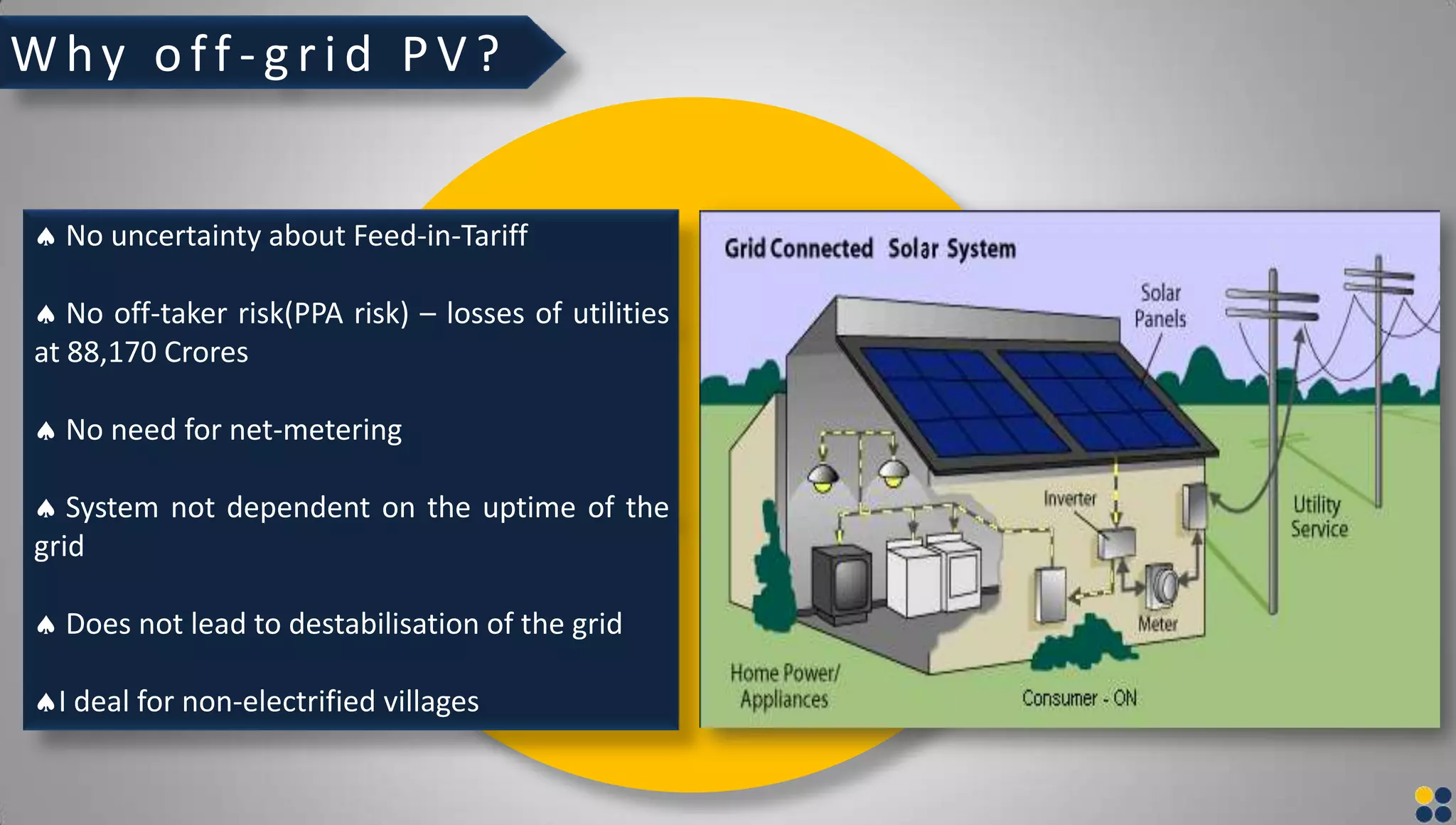

11. Why o ff - grid PV?
No uncertainty about Feed-in-Tariff
No off-taker risk(PPA risk) – losses of utilities
at 88,170 Crores
No need for net-metering
System not dependent on the uptime of the
grid
Does not lead to destabilisation of the grid
I deal for non-electrified villages

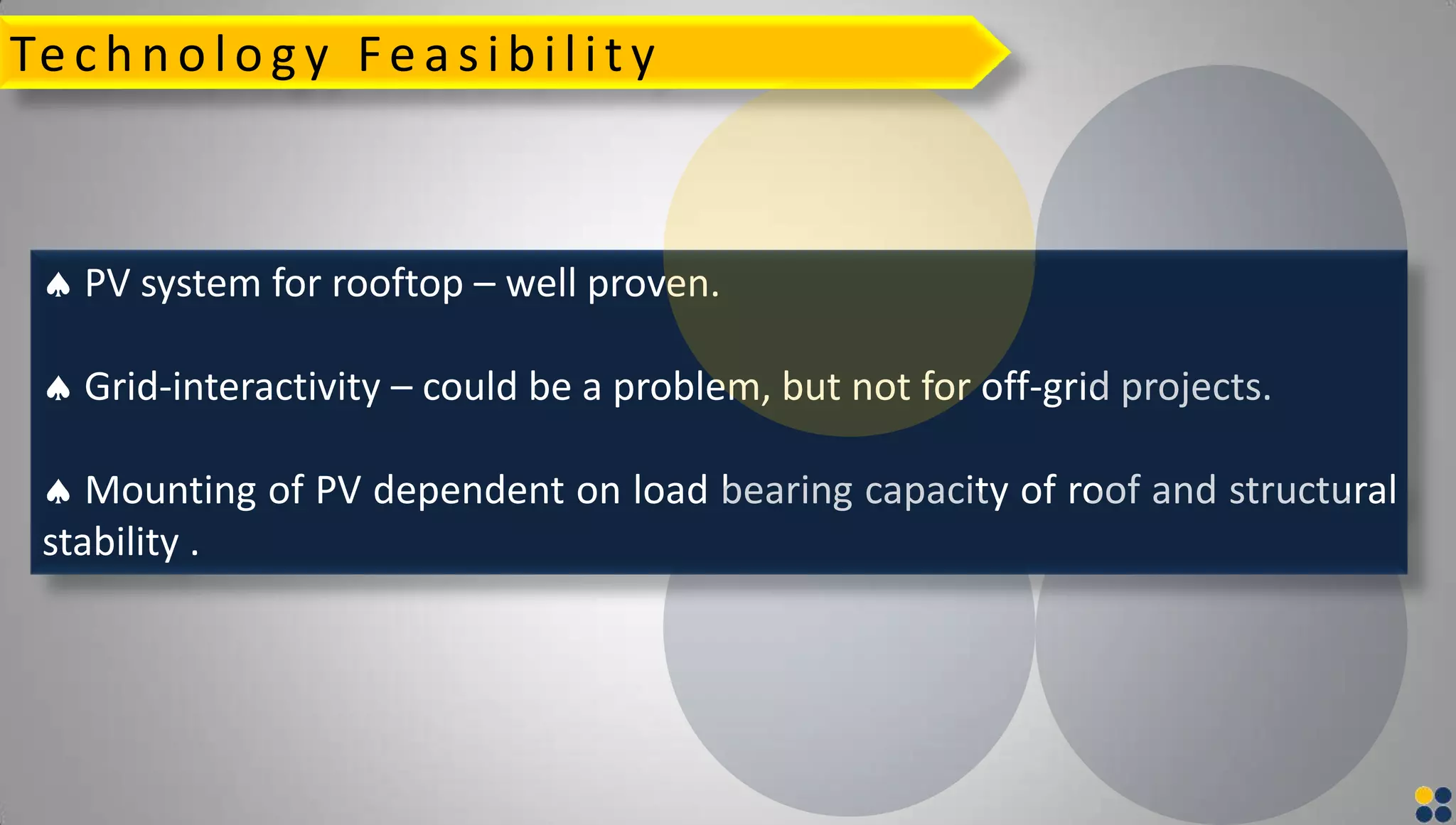

12. Techno lo gy Fea sibility
PV system for rooftop – well proven.
Grid-interactivity – could be a problem, but not for off-grid projects.
Mounting of PV dependent on load bearing capacity of roof and structural
stability .

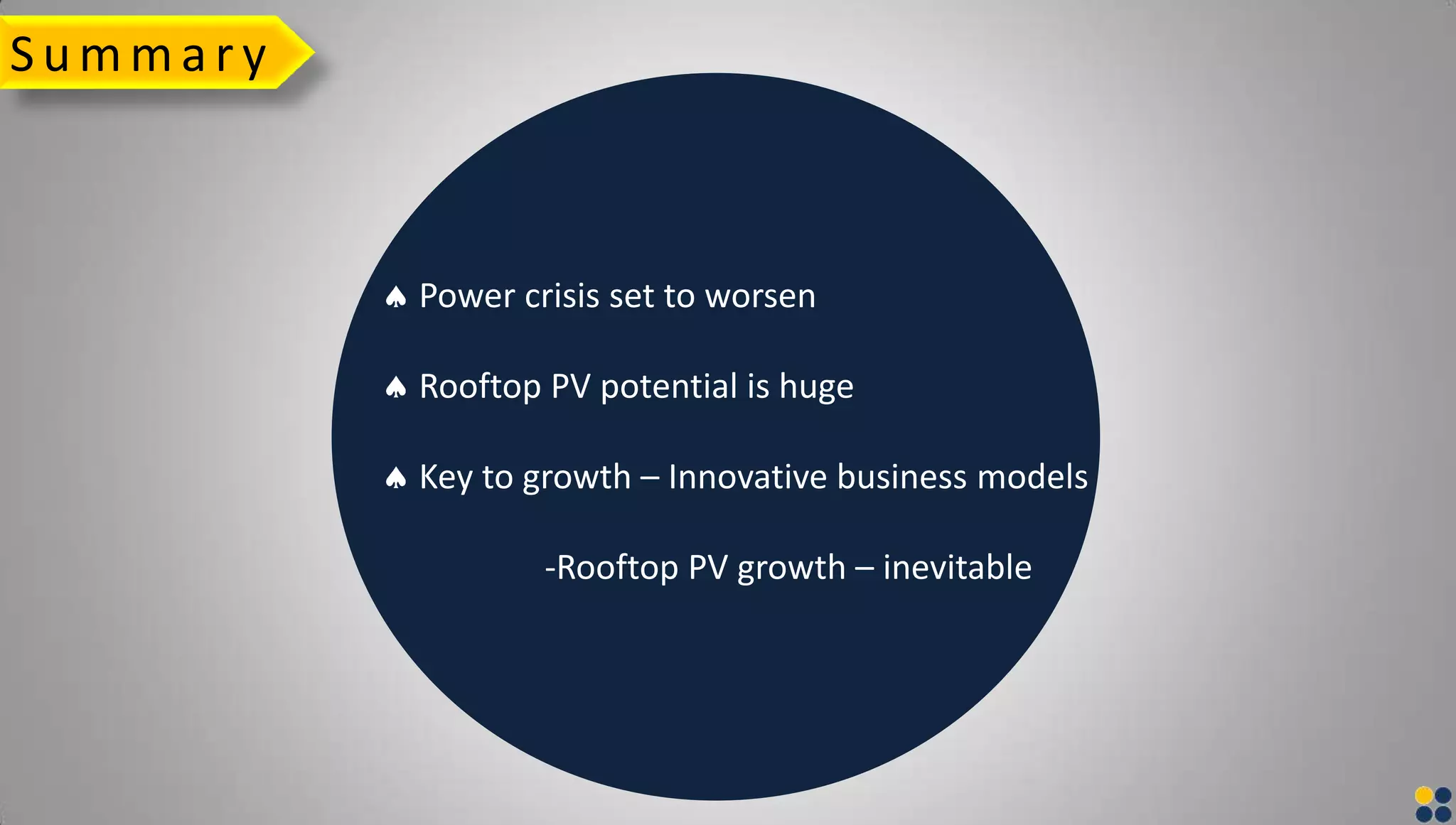

13. Summa r y
Power crisis set to worsen
Rooftop PV potential is huge
Key to growth – Innovative business models
-Rooftop PV growth – inevitable

14. Business Profile

15. •World of Elsol Solar
•Our Value System
•Our Corporate Philosophy
•Our Product Range
•Contact Us

16. Elsol solar is paving the way into a new horizon in solar backup industries as
a world class manufacturer, solution provider and project developers.
Elsol Solar offers a vertically integrated approach to developing solar
projects, providing world-class network of services. We aim to reach beyond
contracting and supply work to offer a comprehensive and specialized
approach to solar project.
Elsol provides comprehensive solution for off -grid roof top solutions with
world class technology and solutions with class a part hybrid inverter and
ups for the homes, restaurant, motels, schools and colleges.
We also engage with off-grid, hybrid systems, railways, defense and offshore
platforms. At Elsol solar we have skills and capabilities to provide complete
arrangements for large, commercial solar power plants of megawatt scale.
WorldofElsolSolar

17. Our Mission:
Elsol provides the world with a truly unconventional source of
energy through a fully-integrated solar business model.
ELSOL is committed to offering its stakeholders innovative and
reliable products with the ultimate goal of providing best service
with satisfaction in the industry.
Our Vision
Our vision is to become a global leader in the solar industry by
2020, offering engagements with distinctive and innovative
solutions for enhanced solar energy user satisfaction .
Our Values
Challenge / Integrity / Dedication

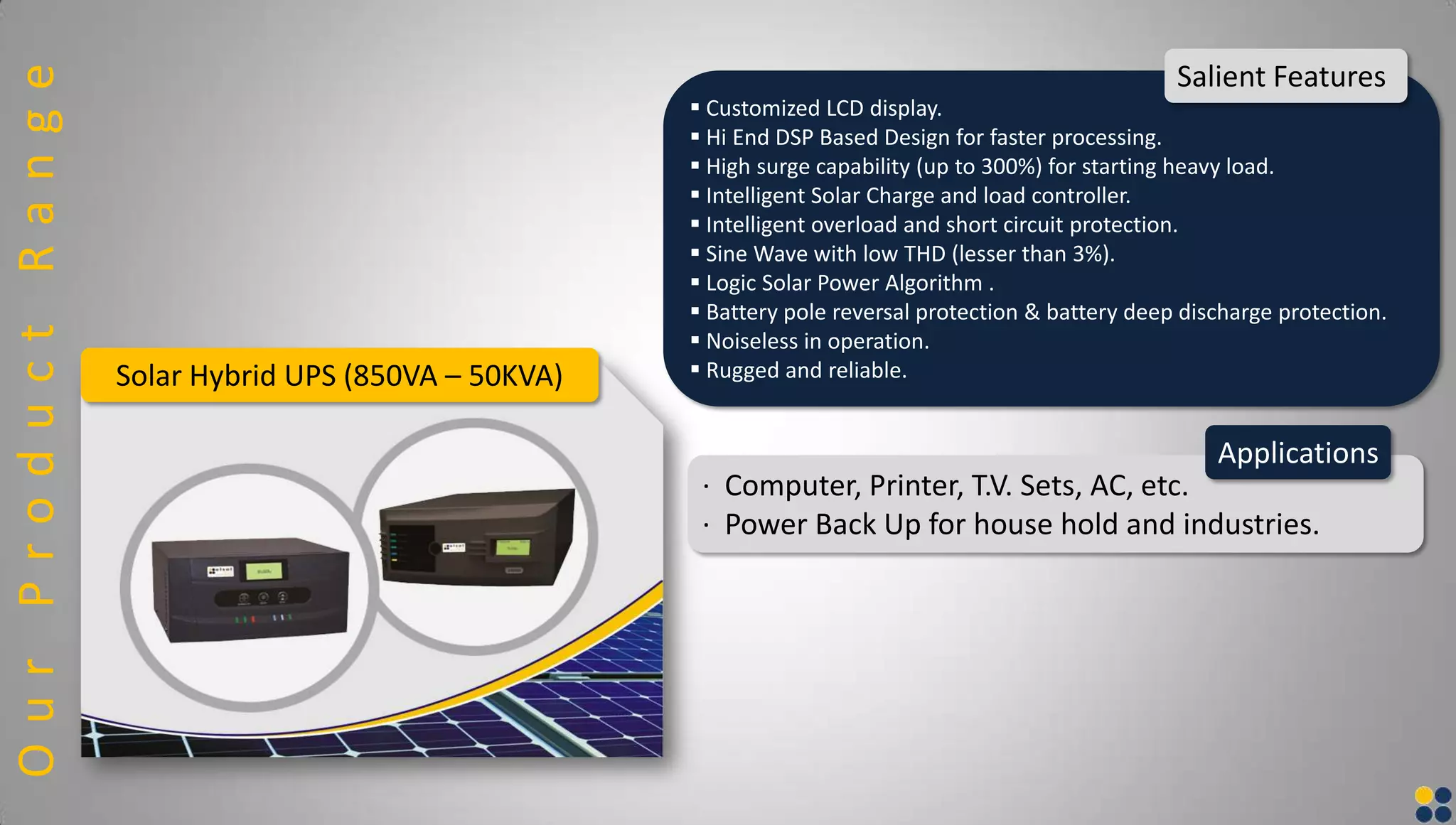

18. Solar Hybrid UPS (850VA – 50KVA)
 Customized LCD display.
 Hi End DSP Based Design for faster processing.
 High surge capability (up to 300%) for starting heavy load.
 Intelligent Solar Charge and load controller.
 Intelligent overload and short circuit protection.
 Sine Wave with low THD (lesser than 3%).
 Logic Solar Power Algorithm .
 Battery pole reversal protection & battery deep discharge protection.
 Noiseless in operation.
 Rugged and reliable.
Salient Features
OurProductRange
· Computer, Printer, T.V. Sets, AC, etc.
· Power Back Up for house hold and industries.
Applications

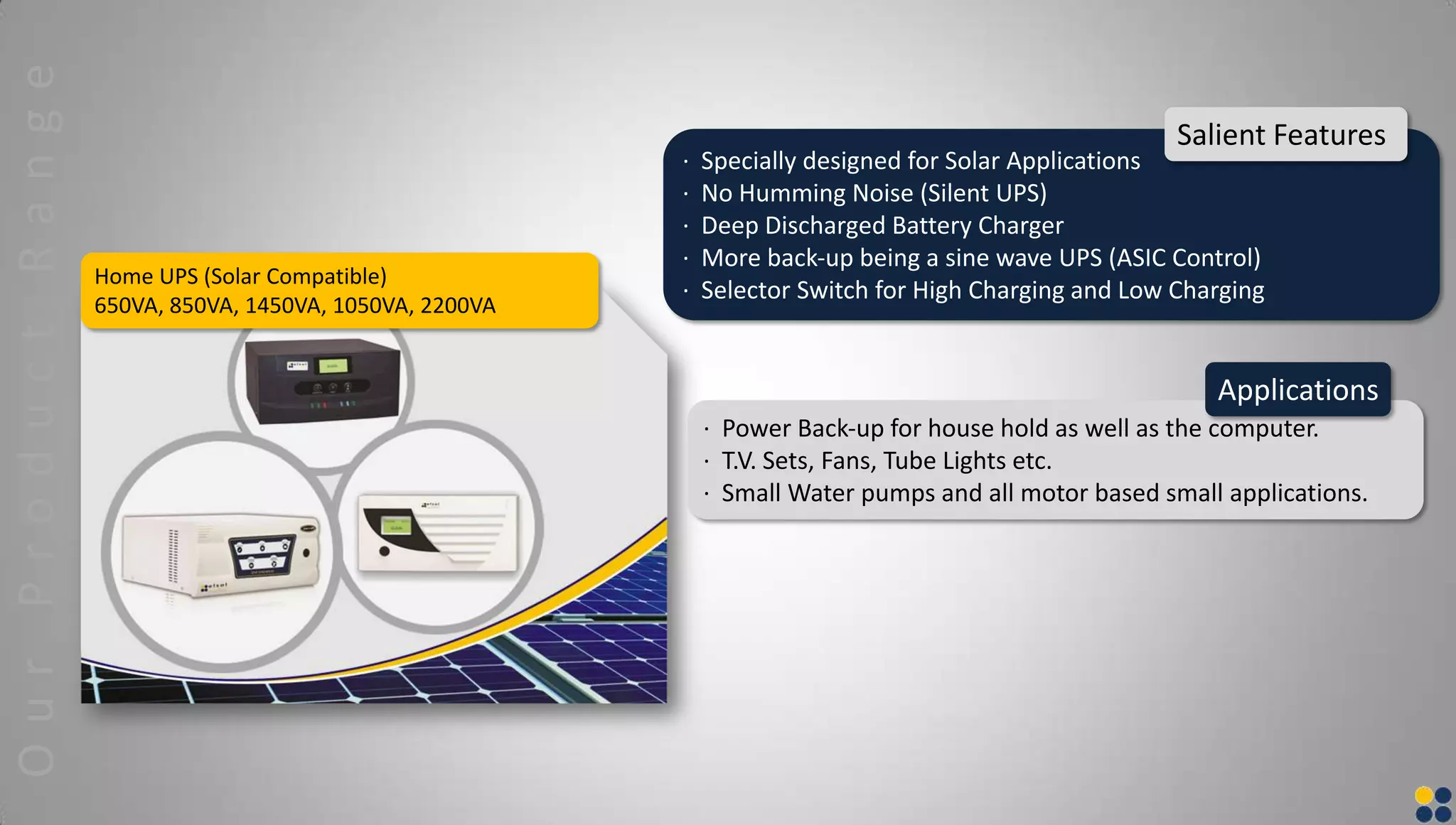

19. Home UPS (Solar Compatible)
650VA, 850VA, 1450VA, 1050VA, 2200VA
· Specially designed for Solar Applications
· No Humming Noise (Silent UPS)
· Deep Discharged Battery Charger
· More back‐up being a sine wave UPS (ASIC Control)
· Selector Switch for High Charging and Low Charging
Salient Features
· Power Back‐up for house hold as well as the computer.
· T.V. Sets, Fans, Tube Lights etc.
· Small Water pumps and all motor based small applications.
Applications
OurProductRange

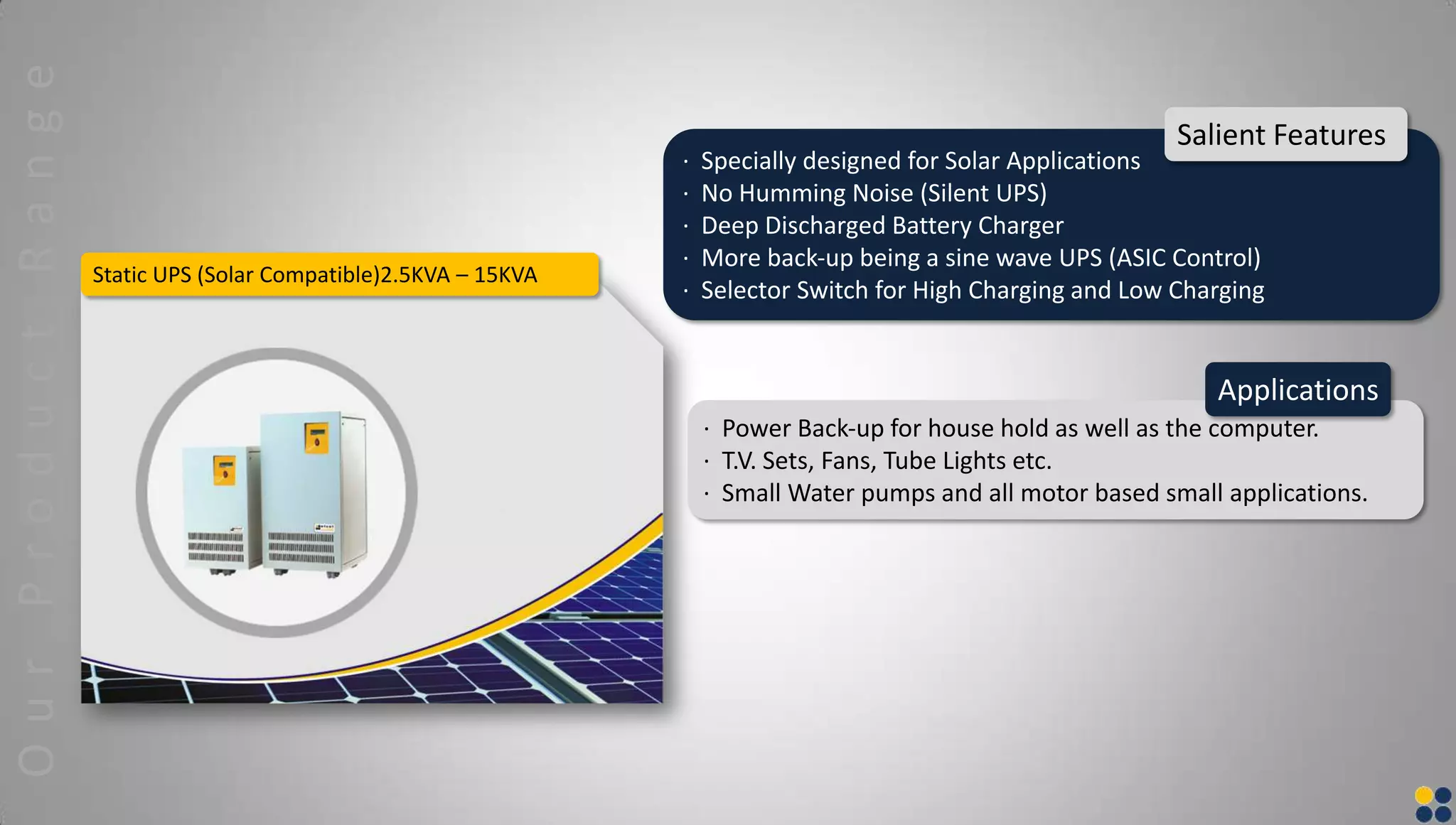

20. Static UPS (Solar Compatible)2.5KVA – 15KVA
· Specially designed for Solar Applications
· No Humming Noise (Silent UPS)
· Deep Discharged Battery Charger
· More back‐up being a sine wave UPS (ASIC Control)
· Selector Switch for High Charging and Low Charging
Salient Features
· Power Back‐up for house hold as well as the computer.
· T.V. Sets, Fans, Tube Lights etc.
· Small Water pumps and all motor based small applications.
Applications
OurProductRange

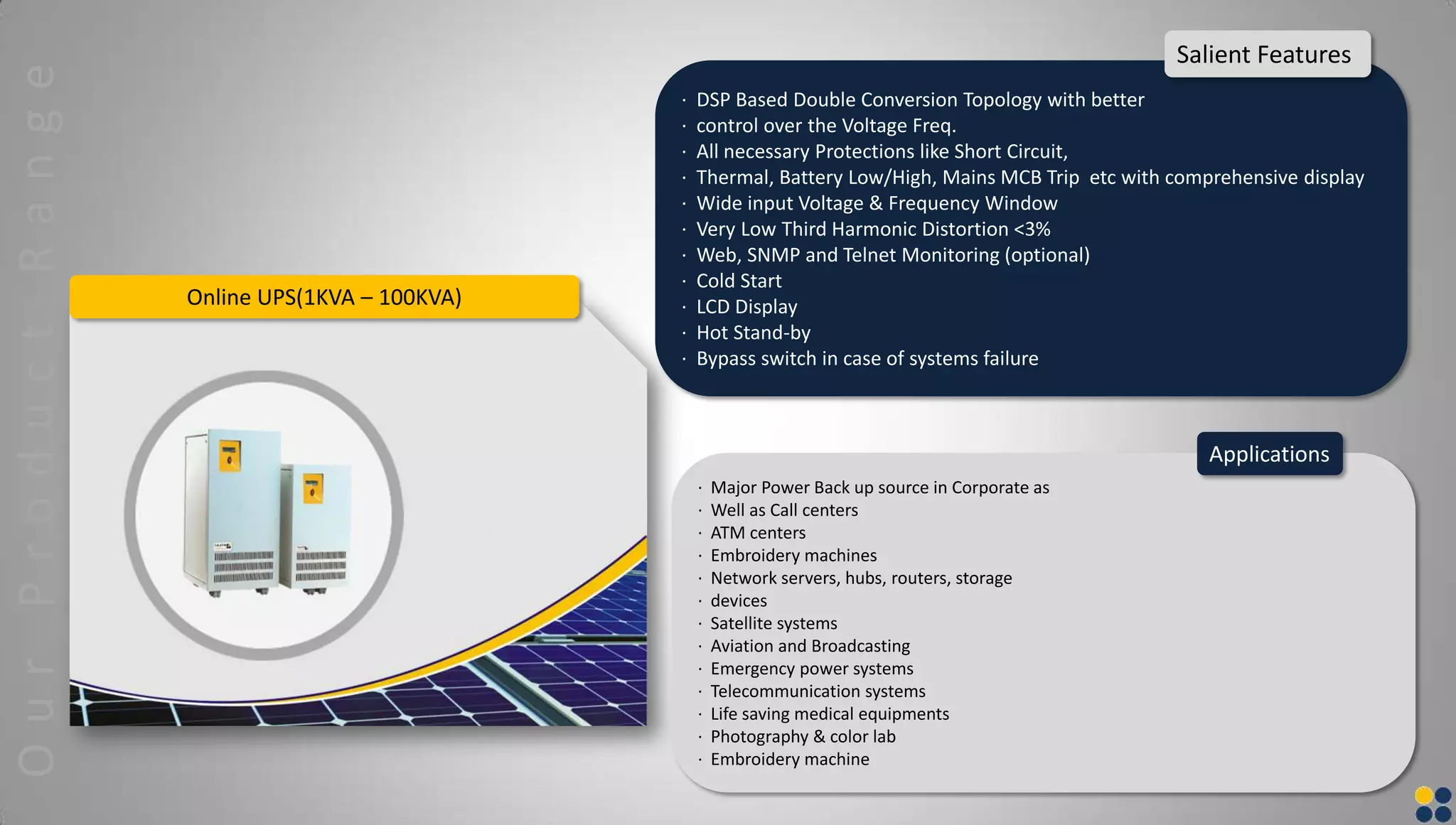

21. Online UPS(1KVA – 100KVA)
· DSP Based Double Conversion Topology with better
· control over the Voltage Freq.
· All necessary Protections like Short Circuit,
· Thermal, Battery Low/High, Mains MCB Trip etc with comprehensive display
· Wide input Voltage & Frequency Window
· Very Low Third Harmonic Distortion <3%
· Web, SNMP and Telnet Monitoring (optional)
· Cold Start
· LCD Display
· Hot Stand-by
· Bypass switch in case of systems failure
Salient Features
· Major Power Back up source in Corporate as
· Well as Call centers
· ATM centers
· Embroidery machines
· Network servers, hubs, routers, storage
· devices
· Satellite systems
· Aviation and Broadcasting
· Emergency power systems
· Telecommunication systems
· Life saving medical equipments
· Photography & color lab
· Embroidery machine
Applications
OurProductRange

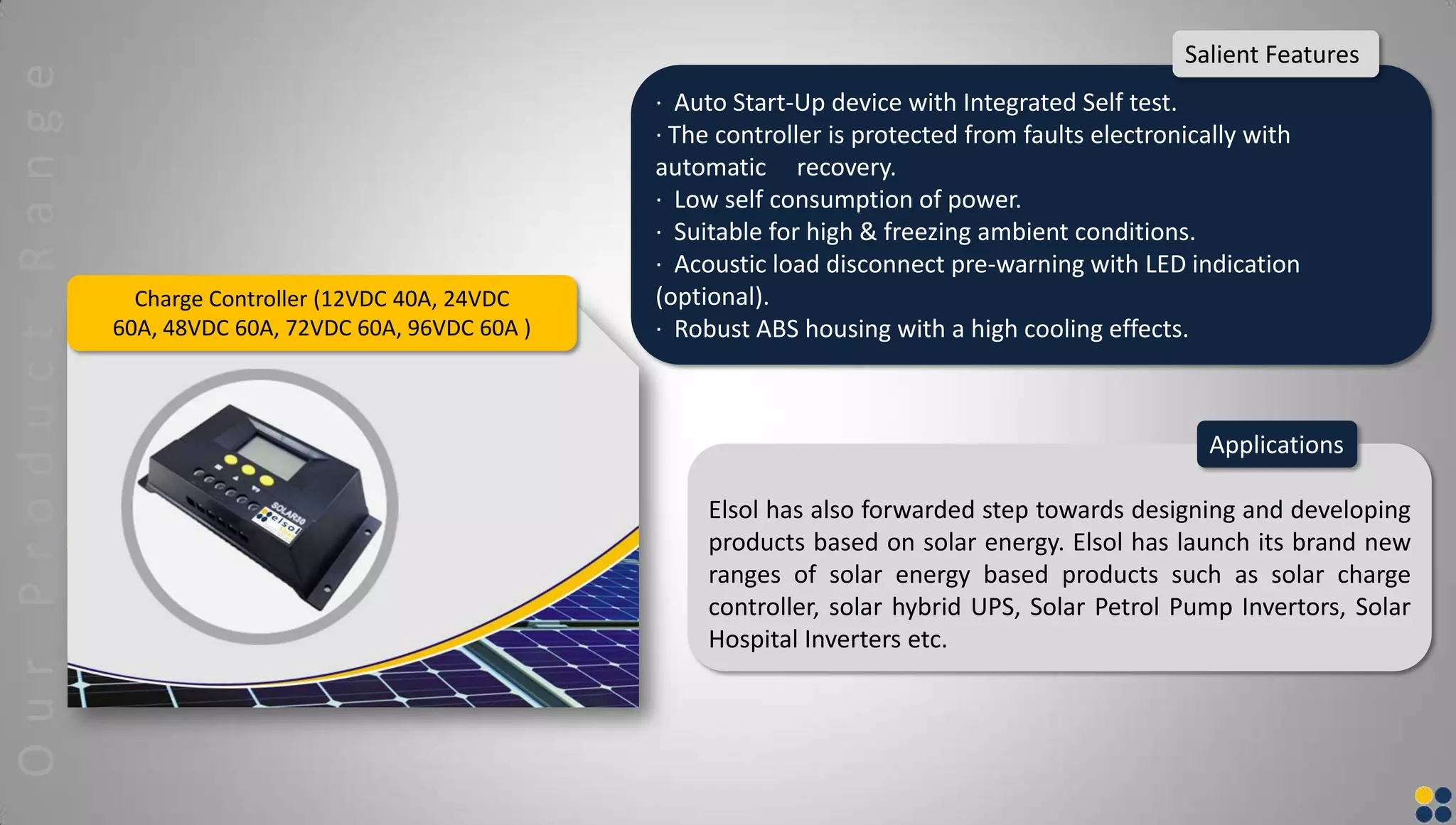

22. Charge Controller (12VDC 40A, 24VDC
60A, 48VDC 60A, 72VDC 60A, 96VDC 60A )
Elsol has also forwarded step towards designing and developing
products based on solar energy. Elsol has launch its brand new
ranges of solar energy based products such as solar charge
controller, solar hybrid UPS, Solar Petrol Pump Invertors, Solar
Hospital Inverters etc.
Applications
· Auto Start-Up device with Integrated Self test.
· The controller is protected from faults electronically with
automatic recovery.
· Low self consumption of power.
· Suitable for high & freezing ambient conditions.
· Acoustic load disconnect pre-warning with LED indication
(optional).
· Robust ABS housing with a high cooling effects.
Salient FeaturesOurProductRange

23. Battery ( 20AH – 220 AH)
 Specially mixed corrosion resistant alloy for spines & grids.
 Tubular gauntlets of high brushing strength with high Performance for
positive plates.
 Low maintenance battery.
 Specially designed vent plugs to trap electrolyte loss.
Salient Features
· UPS Systems
· Domestic Inverters
· EPABX
· Alarm Systems
· Banks / Hospitals / Hotels / Labs
· Solar & Wind Power Storage
· Elevator Backups
· Telecommunication
· Pipe Line Projects
· Off Shore Sea Projects
Applications
OurProductRange

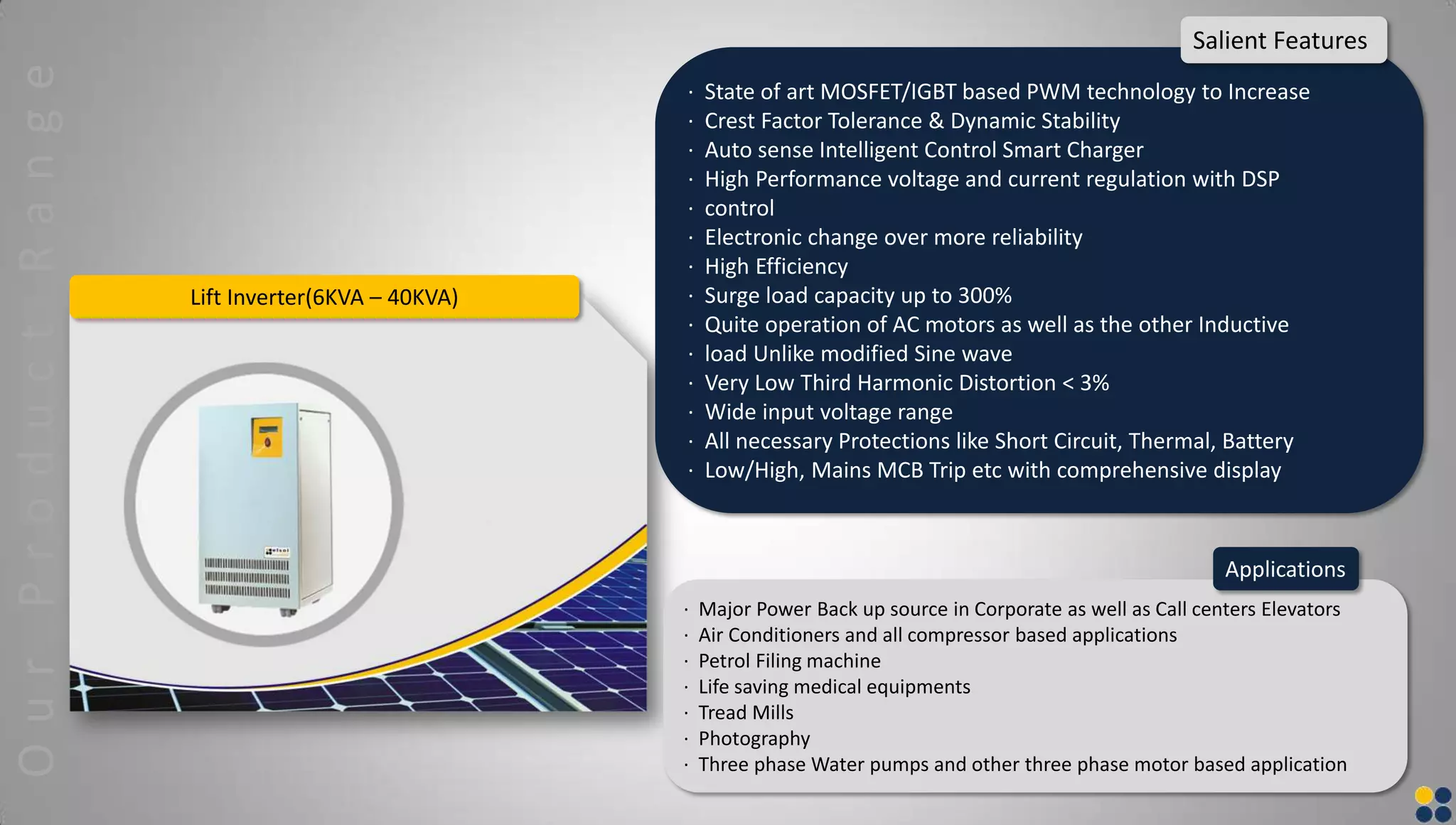

24. Lift Inverter(6KVA – 40KVA)
· State of art MOSFET/IGBT based PWM technology to Increase
· Crest Factor Tolerance & Dynamic Stability
· Auto sense Intelligent Control Smart Charger
· High Performance voltage and current regulation with DSP
· control
· Electronic change over more reliability
· High Efficiency
· Surge load capacity up to 300%
· Quite operation of AC motors as well as the other Inductive
· load Unlike modified Sine wave
· Very Low Third Harmonic Distortion < 3%
· Wide input voltage range
· All necessary Protections like Short Circuit, Thermal, Battery
· Low/High, Mains MCB Trip etc with comprehensive display
Salient Features
· Major Power Back up source in Corporate as well as Call centers Elevators
· Air Conditioners and all compressor based applications
· Petrol Filing machine
· Life saving medical equipments
· Tread Mills
· Photography
· Three phase Water pumps and other three phase motor based application
Applications
OurProductRange

25. Solar Petrol Pump Inverter(5KVA – 15KVA)
· State of art MOSFEET/IGBT based PWM technology to
· Increase crest factor tolerance & dynamic stability
· Auto sense intelligent control smart charger
· Electronic change-over so more reliable
· Quite operation of AC motors as well as the other
· inductive load unlike modified Sine Wave
· Very low third harmonic distortion <3%
· Wide input voltage range
· Fast changeover which makes it compatible to computer
· TDR time delay really for compressor based applications
· Mains mode short circuit protection
· Surge load capacity up to 300%
· Less operating cost as compare to online UPS as well as DG Sets
· Bypass switch incase of systems failure
Salient Features
· Major Power Back up source in Petrol Pump Units.
· Air Conditioners and all compressor based applications
· Petrol Filing machine
· Life saving medical equipments
· Three phase Water pumps and other three phase motor based application
Applications
OurProductRange

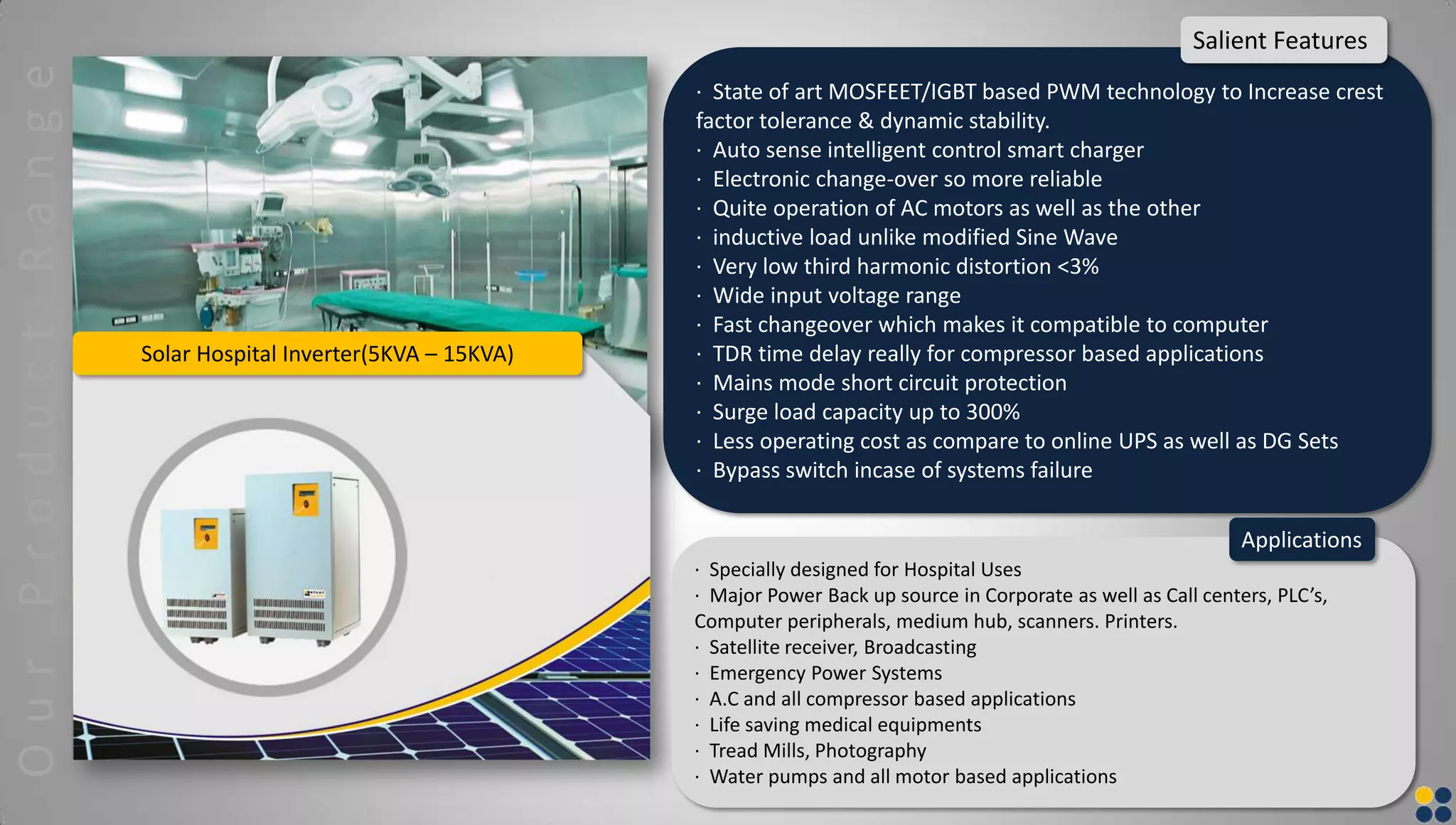

26. Solar Hospital Inverter(5KVA – 15KVA)
· State of art MOSFEET/IGBT based PWM technology to Increase crest
factor tolerance & dynamic stability.
· Auto sense intelligent control smart charger
· Electronic change-over so more reliable
· Quite operation of AC motors as well as the other
· inductive load unlike modified Sine Wave
· Very low third harmonic distortion <3%
· Wide input voltage range
· Fast changeover which makes it compatible to computer
· TDR time delay really for compressor based applications
· Mains mode short circuit protection
· Surge load capacity up to 300%
· Less operating cost as compare to online UPS as well as DG Sets
· Bypass switch incase of systems failure
Salient Features
· Specially designed for Hospital Uses
· Major Power Back up source in Corporate as well as Call centers, PLC’s,
Computer peripherals, medium hub, scanners. Printers.
· Satellite receiver, Broadcasting
· Emergency Power Systems
· A.C and all compressor based applications
· Life saving medical equipments
· Tread Mills, Photography
· Water pumps and all motor based applications
Applications
OurProductRange

27. Certifications&
Affiliations
* O u r m a n u f a c t u r e r s a r e c a r r y i n g t h e a b o v e m e n t i o n e d c e r t i f i c a t e s .

28. “I’d put my money on
the Sun and Solar
Energy, what a source of
Power! I hope we don’t
have to wait until oil and
coal run out, before we
tackle that.”
~Thomas Edison

29. Elsol Solar Solutions Pvt. Ltd.
B-99, Sector-63,Gautambudh
Nagar,
Noida-201301 (U.P) India
+91-(120)-416-3-888
Email:
info@elsolsolutions.com
www.elsolsolutions.com
© All rights reserved.
No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means
electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of the Elsol Solar Solutions Pvt. Ltd.
