1. workshop
Introduction to git (version control system)
By Samundra Shrestha
1

2. WHAT IS GIT ?
 Distributed Version Control Systems
 Changes track over the entire repository (tree of files)
2
Similar VCS
• Subversion
• Mercurial
• CVS
• Perforce
• Git has integrity
• SHA-1 hash (40 –character string composed of hexadecimal characters, 0-9 & a-f)
• E.g. 8abc7564536d0756ec30a37c49e9a894ad822d52

3. DISTRIBUTED VERSION CONTROL SYSTEMS
3

4. HISTORY OF GIT
 Linux kernel project (during 1991-2002)
 DVCS Bitkeeper unavailable
 Developed in 2005 by Linus Torvalds
4

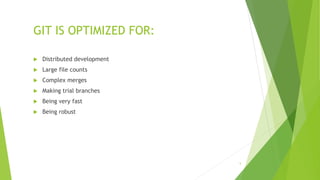

5. GIT IS OPTIMIZED FOR:
 Distributed development
 Large file counts
 Complex merges
 Making trial branches
 Being very fast
 Being robust
5

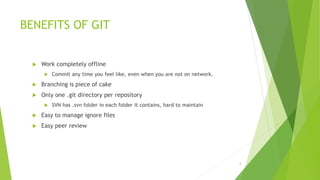

6. BENEFITS OF GIT
 Work completely offline
 Commit any time you feel like, even when you are not on network.
 Branching is piece of cake
 Only one .git directory per repository
 SVN has .svn folder in each folder it contains, hard to maintain
 Easy to manage ignore files
 Easy peer review
6

7. POPULAR FREE HOSTINGS FOR GIT
 Github.com (only public repos, commercial private
repos)
http://www.github.com
 Bitbucket.org (private and public repos)
http://www.bitbucket.org
7

8. COMPANIES USING GIT
8

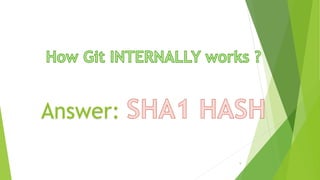

9. Answer:
9

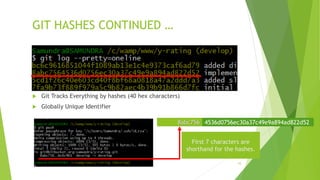

10. GIT HASHES CONTINUED …
 Git Tracks Everything by hashes (40 hex characters)
 Globally Unique Identifier
10
8abc756 4536d0756ec30a37c49e9a894ad822d52
First 7 characters are
shorthand for the hashes.

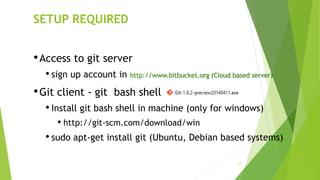

11. 11
SETUP REQUIRED
•Access to git server
• sign up account in http://www.bitbucket.org (Cloud based server)
•Git client - git bash shell
• Install git bash shell in machine (only for windows)
• http://git-scm.com/download/win
• sudo apt-get install git (Ubuntu, Debian based systems)

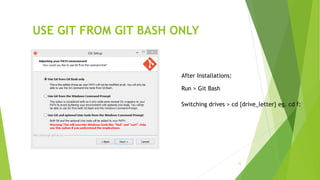

12. 12
USE GIT FROM GIT BASH ONLY
Run > Git Bash
Switching drives > cd {drive_letter} eg. cd f:
After Installations:

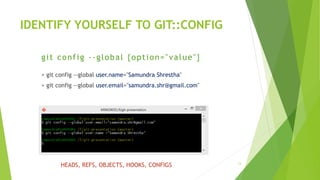

13. IDENTIFY YOURSELF TO GIT::CONFIG
> git config --global user.name="Samundra Shrestha"
> git config --global user.email="samundra.shr@gmail.com"
13
git config --global {option="value"}
HEADS, REFS, OBJECTS, HOOKS, CONFIGS

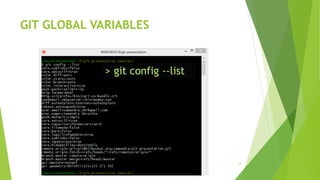

14. GIT GLOBAL VARIABLES
14
> git config --list

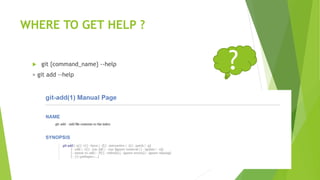

15. WHERE TO GET HELP ?
 git {command_name} --help
> git add --help
15
?

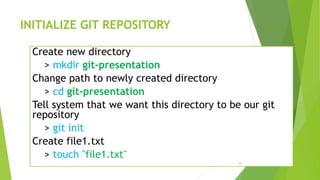

16. INITIALIZE GIT REPOSITORY
Create new directory
> mkdir git-presentation
Change path to newly created directory
> cd git-presentation
Tell system that we want this directory to be our git
repository
> git init
Create file1.txt
> touch "file1.txt"
16

17. INITIALIZE GIT REPOSITORY CONTD…
> git add .
> git status
> git commit -am "initial commit"
> git remote add origin git@bitbucket.org:samundra/git-presentation.git
> git push -u origin master
> git log
17

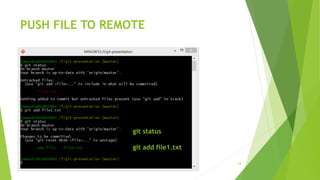

18. PUSH FILE TO REMOTE
18
git status
git add file1.txt

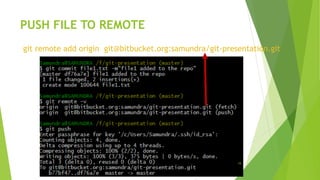

19. PUSH FILE TO REMOTE
19
git remote add origin git@bitbucket.org:samundra/git-presentation.git

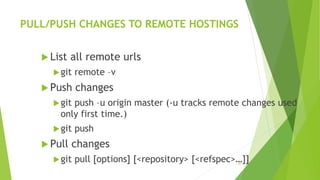

20. PULL/PUSH CHANGES TO REMOTE HOSTINGS
 List all remote urls
git remote –v
 Push changes
git push –u origin master (-u tracks remote changes used
only first time.)
git push
 Pull changes
git pull [options] [<repository> [<refspec>…]]20

21. BASIC GIT WORKFLOWS
21
Master
Develop Feature Request
commits/changes
git branches
push/pull

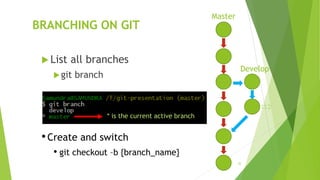

22. BRANCHING ON GIT
 List all branches
git branch
22
Master
Develop
•Create and switch
• git checkout –b {branch_name}
* is the current active branch

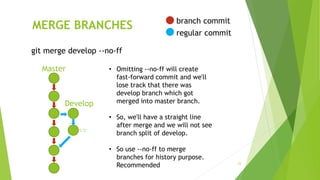

23. MERGE BRANCHES
23
Master
Develop
git merge develop --no-ff
• Omitting --no-ff will create
fast-forward commit and we'll
lose track that there was
develop branch which got
merged into master branch.
• So, we'll have a straight line
after merge and we will not see
branch split of develop.
• So use --no-ff to merge
branches for history purpose.
Recommended
branch commit
regular commit

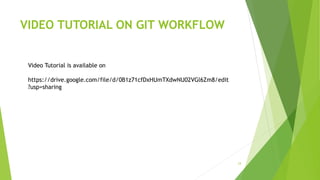

24. VIDEO TUTORIAL ON GIT WORKFLOW
24
Video Tutorial is available on
https://drive.google.com/file/d/0B1z71cfDxHUmTXdwNU02VGl6Zm8/edit
?usp=sharing

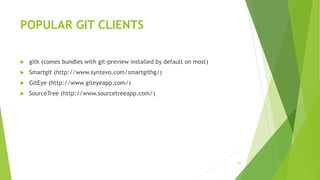

25. POPULAR GIT CLIENTS
 gitk (comes bundles with git-preview installed by default on most)
 Smartgit (http://www.syntevo.com/smartgithg/)
 GitEye (http://www.giteyeapp.com/)
 SourceTree (http://www.sourcetreeapp.com/)
25

26. Thank You All
Questions ?
26

27. POPULAR GIT COMMANDS
• git init
• git clone
• git status
• git log
• git stash
• git add
27
• git commit
• git push
• git pull
• git checkout
• git stash
• git add
• git diff
• git branch
• git merge
• git fetch
• git reset
• git format-patch

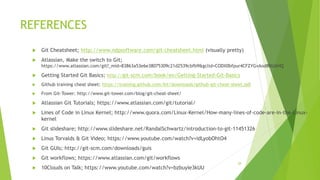

28. REFERENCES
 Git Cheatsheet; http://www.ndpsoftware.com/git-cheatsheet.html (visually pretty)
 Atlassian, Make the switch to Git;
https://www.atlassian.com/git?_mid=83863a53e6e38075309c21d2539cbfb9&gclid=CODX0bfpur4CFZYGvAod8KUAHQ
 Getting Started Git Basics; http://git-scm.com/book/en/Getting-Started-Git-Basics
 Github training cheat sheet: https://training.github.com/kit/downloads/github-git-cheat-sheet.pdf
 From Git-Tower: http://www.git-tower.com/blog/git-cheat-sheet/
 Atlassian Git Tutorials; https://www.atlassian.com/git/tutorial/
 Lines of Code in Linux Kernel; http://www.quora.com/Linux-Kernel/How-many-lines-of-code-are-in-the-Linux-
kernel
 Git slideshare; http://www.slideshare.net/RandalSchwartz/introduction-to-git-11451326
 Linus Torvalds & Git Video; https://www.youtube.com/watch?v=idLyobOhtO4
 Git GUIs; http://git-scm.com/downloads/guis
 Git workflows; https://www.atlassian.com/git/workflows
 10Clouds on Talk; https://www.youtube.com/watch?v=bzbuyIe3kUU
28
