1) TELLION, Inc. is a Korean telecommunications equipment company established in 2000 that develops DSL, FTTH, home networking, and wireless access technologies. 2) The company has 49 employees focused on R&D and has developed VDSL, GPON, and Ethernet products that have been deployed by major Korean and Japanese telecom providers. 3) TELLION aims to be a leading global supplier of access network solutions and has a strategic goal of offering a full line-up of products for quadruple play services through global partnerships.

1. Seeking Maximum Value In The Last Drop Market
TELLION, Inc.
www.tellion.com
Proprietary

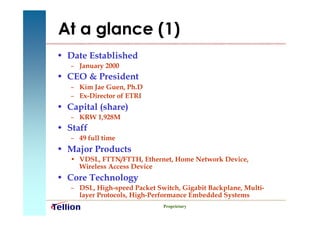

2. At a glance (1)
• Date Established
– January 2000
• CEO & President
– Kim Jae Guen, Ph.D
– Ex-Director of ETRI
• Capital (share)
– KRW 1,928M
• Staff
– 49 full time
• Major Products
• VDSL, FTTN/FTTH, Ethernet, Home Network Device,
Wireless Access Device
• Core Technology
– DSL, High-speed Packet Switch, Gigabit Backplane, Multi-
layer Protocols, High-Performance Embedded Systems
Proprietary

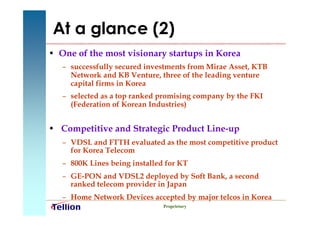

3. At a glance (2)
• One of the most visionary startups in Korea
– successfully secured investments from Mirae Asset, KTB
Network and KB Venture, three of the leading venture
capital firms in Korea
– selected as a top ranked promising company by the FKI
(Federation of Korean Industries)
• Competitive and Strategic Product Line-up
– VDSL and FTTH evaluated as the most competitive product
for Korea Telecom
– 800K Lines being installed for KT
– GE-PON and VDSL2 deployed by Soft Bank, a second
ranked telecom provider in Japan
– Home Network Devices accepted by major telcos in Korea
Proprietary

4. Our Mission & Goal
Mission & Vision
Mission & Vision
Mission
• Bridging present and beyond
• Creative destruction of legacy networks
• Accommodating totally various services
Vision
To be the world best supplier of the access network
solutions
Strategic Goal 2009
Strategic Goal 2009
• Full line-up of products for quadruple play services
• Synergy consolidation through global partnership
• Spread of brand image
Proprietary

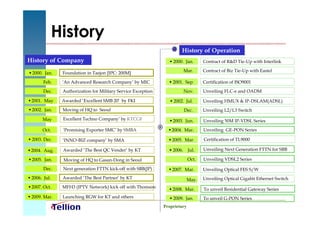

5. History
History of Operation
History of Company 2000. Jan. Contract of R&D Tie-Up with Interlink
Mar. Contract of Biz Tie-Up with Eastel
2000. Jan. Foundation in Taejon [IPC: 200M]
Feb. ‘ Advanced Research Company’by MIC
An 2001. Sep. Certification of ISO9001
Dec. Authorization for Military Service Exception Nov. Unveiling FLC-e and OADM
2001. May Awarded ‘Excellent SMB 20’ by FKI 2002. Jul. Unveiling HMUX & IP-DSLAM(ADSL)
2002. Jan. Moving of HQ to Seoul Dec. Unveiling L2/L3 Switch
May Excellent Techno Company’by KTCGF 2003. Jun. Unveiling 50M IP-VDSL Series
Oct. ‘Promising Exporter SMC’by SMBA 2004. Mar. Unveiling GE-PON Series
2003. Dec. ‘INNO-BIZ company’by SMA 2005. Mar. Certification of TL9000
2004. Aug. Awarded ‘The Best QC Vender’by KT 2006. Jul. Unveiling Next Generation FTTN for SBB
2005. Jan. Moving of HQ to Gasan-Dong in Seoul Oct. Unveiling VDSL2 Series
Dec. Next generation FTTN kick-off with SBB(JP) 2007. Mar. Unveiling Optical FES S/W
2006. Jul. Awarded ‘The Best Partner’by KT May. Unveiling Optical Gigabit Ethernet Switch
2007. Oct. MFH3 (IPTV Network) kick off with Thomson 2008. Mar. To unveil Residential Gateway Series
2009. Mar. Launching RGW for KT and others 2009. Jan. To unveil G-PON Series
Proprietary

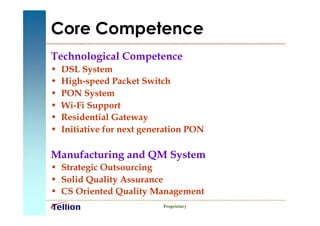

6. Core Competence
Technological Competence
• DSL System
• High-speed Packet Switch
• PON System
• Wi-Fi Support
• Residential Gateway
• Initiative for next generation PON
Manufacturing and QM System
• Strategic Outsourcing
• Solid Quality Assurance
• CS Oriented Quality Management
Proprietary

7. People
• Structure : 1 Division and 4 Teams
• Staff : 49 full time (R&D : 32 engineers, including test engineer)
Personnel Organization
The Company’s R&D engineers have
Marketing & Sales extensive experience in the optical access
Admin
network industry and the executives have
QC/QA
10% 10% proven track records and are well known
15% in the industry for technological
R&D innovation. Four engineers came from
65% ETRI, a prestigious Korean research
institute and have experience of 10~14
cycles of system development. The
Company’ R&D engineers have an
s
average of 4-years industry experience and
a combined 128 years experience in access
network technologies.
Proprietary

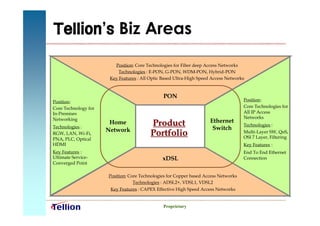

8. Tellion’ Biz Areas
s
Position: Core Technologies for Fiber deep Access Networks
Technologies : E-PON, G-PON, WDM-PON, Hybrid-PON
Key Features : All Optic Based Ultra-High Speed Access Networks
PON
Position: Position:
Core Technology for Core Technologies for
In-Premises All IP Access
Networking Networks
Ethernet
Technologies :
Home Product Switch
Technologies :
Network
RGW, LAN, Wi-Fi, Portfolio Multi-Layer SW, QoS,
OSI 7 Layer, Filtering
PNA, PLC, Optical
HDMI Key Features :
Key Features : End To End Ethernet
Ultimate Service- xDSL Connection
Converged Point
Position: Core Technologies for Copper based Access Networks
Technologies : ADSL2+, VDSL1, VDSL2
Key Features : CAPEX Effective High Speed Access Networks
Proprietary

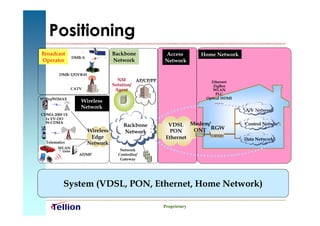

9. Positioning
Broadcast Backbone Access Home Network
DMB-S
Operator Network Network
DMB-T/DVB-H
NM AP/CP/PP Ethernet
Solution/ ZigBee
CATV Agent WLAN
PLC
WiBro/WiMAX Optical HDMI
Wireless … … .
Network
A/V Network
CDMA 2000 1X
1x EV-DO
W-CDMA
Backbone VDSL Modem/ Control Network
Wireless Network PON ONT RGW
Edge Ethernet Data Network
Telematics Network
WLAN
Access Network
AP/MP Controller/
Gateway
System (VDSL, PON, Ethernet, Home Network)
Proprietary

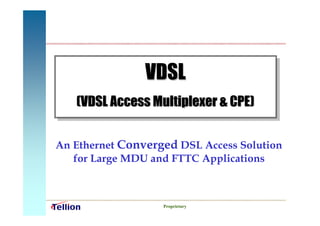

10. VDSL
(VDSL Access Multiplexer & CPE)
An Ethernet Converged DSL Access Solution
for Large MDU and FTTC Applications
Proprietary

11. Product Line : VDSL2
EX-5124B
VDSL2 VOD/MOD
100/1000BASE-TX/FX
Ethernet Aggregation
Interactive AV
(Fast/Gigabit) EX-5204AP
100/1000BASE-TX/FX EX-5148S
VDSL2
LOD/EOD
VDSL2
High-speed
Internet Access
100/1000BASE-TX/FX(Optional) EX-5124Plus
GE-PON POTS
EX-5140Plus
접지
DATA LINE KT
VDSL2/Ethernet EX-5201
전원 LINE OUT
광케 블
이
접지
POTS IN
Proprietary

12. IP-VDSL Products
Lower Price
• Subtending allows cost reduction per subscriber line
Scalability
• High density configuration
• Multiple uplink options (100Base-TX/FX, 1000Base-SX/LX)
Flexibility
• Inside premises and outside plant deployments
– Rack-mounted shelf, outside cabinet mounted shelf
– Pole & wall mounted shelf
– Pizza box low profile form factor
• Increments of 24 ports per switch card
Ease of Use and Deployment
• Embedded management (SNMP, CLI & GUI)
• Remote management via in band or out of band connections
• Profile based provisioning & plug-play installation
• Hot swapping
Proprietary

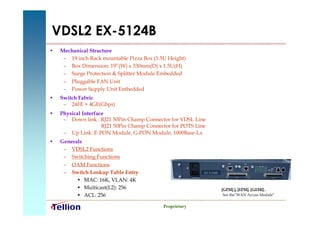

13. VDSL2 EX-5124B
• Mechanical Structure
– 19 inch Rack mountable Pizza Box (1.5U Height)
– Box Dimension: 19”(W) x 330mm(D) x 1.5U(H)
– Surge Protection & Splitter Module Embedded
– Pluggable FAN Unit
– Power Supply Unit Embedded
• Switch Fabric
– 24FE + 4GE(Gbps)
• Physical Interface
– Down link : RJ21 50Pin Champ Connector for VDSL Line
RJ21 50Pin Champ Connector for POTS Line
– Up Link: E-PON Module, G-PON Module, 1000Base-Lx
• Generals
– VDSL2 Functions
– Switching Functions
– OAM Functions
– Switch Lookup Table Entry EX 5124B
• MAC: 16K, VLAN: 4K
• Multicast(L2): 256 [GPM] ], [EPM], [GEMf] ,
• ACL: 256 See the”WAN Access Module”
Proprietary

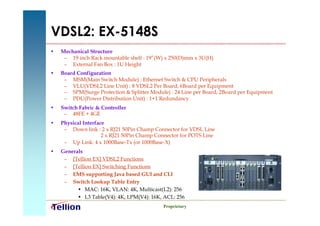

14. VDSL2: EX-5148S
• Mechanical Structure
– 19 inch Rack mountable shelf : 19”(W) x 250(D)mm x 3U(H)
– External Fan Box : 1U Height
• Board Configuration
– MSM(Main Switch Module) : Ethernet Switch & CPU Peripherals
– VLU(VDSL2 Line Unit) : 8 VDSL2 Per Board, 6Board per Equipment
– SPM(Surge Protection & Splitter Module) : 24 Line per Board, 2Board per Equipment
– PDU(Power Distribution Unit) : 1+1 Redundancy
• Switch Fabric & Controller
– 48FE + 4GE
• Physical Interface
– Down link : 2 x RJ21 50Pin Champ Connector for VDSL Line
2 x RJ21 50Pin Champ Connector for POTS Line
– Up Link: 4 x 1000Base-Tx (or 1000Base-X)
• Generals
– [Tellion EX] VDSL2 Functions
– [Tellion EX] Switching Functions
– EMS supporting Java based GUI and CLI
– Switch Lookup Table Entry
• MAC: 16K, VLAN: 4K, Multicast(L2): 256
• L3 Table(V4): 4K, LPM(V4): 16K, ACL: 256
Proprietary

15. VDSL2: EX-5124Plus (Outside Plant)
• Mechanical Structure
– Electric Pole /Messenger Wire /Wall Mountable Die-Casting Box
– Box Dimension: 500mm(W) x 250mm(H) x 200mm(D)
– Surge Protection & Splitter Module Embedded
– ARB &ELB, Back-up Battery & OFD Installed
– Airtight Container: IP 66 Grades, Vibration-free
– Noiseless Fan-less type
• Switch Fabric & Controller
– 24FE + 4GE(Gbps)
– Linux
• Physical Interface
– Down link : 24-port VDSL2
(embedded POTS splitter module)
– Up Link: [GEMf] 1000Base-Lx
[EPM] E-PON Module
• Generals
– [Tellion EX] VDSL2 Functions
– [Tellion EX] Switching Functions
– DHCP Server, Snoop & Relay (option 82)
– PIM-SM
– Static Routing
– Switch Lookup Table Entry
• MAC: 16K, VLAN: 4K
• Multicast(L2): 256, Multicast(L3): 256, VLAN replication: 32 [EPM], [GEMf] ,
• L3 Table(V4): 4K, LPM(V4): 16K, ACL: 256 per Line Card See the”WAN Access Module”
Proprietary

16. VDSL2: EX-5140Plus (Outside Plant)
• Mechanical Structure
– Electric Pole /Messenger Wire /Wall Mountable Die-Casting Box
– Box Dimension: 500mm(W) x 250mm(H) x 200mm(D)
– Surge Protection & Splitter Module Embedded
– ARB &ELB, Back-up Battery & OFD Installed
– Airtight Container: IP 66 Grades, Vibration-free
– Noiseless Fan-less type
• Switch Fabric & Controller
– 24FE + 4GE(Gbps)
– Linux
• Physical Interface
– Down link : 40-port VDSL2 (embedded POTS splitter module)
– Up Link: [GEMf] 1000Base-Lx
[EPM] E-PON Module
• Generals
– [Tellion EX] VDSL2 Functions
– [Tellion EX] Switching Functions
– DHCP Server, Snoop & Relay (option 82)
– PIM-SM
– Static Routing
– Switch Lookup Table Entry
• MAC: 16K, VLAN: 4K
• Multicast(L2): 256, Multicast(L3): 256, VLAN replication: 32
• L3 Table(V4): 4K, LPM(V4): 16K, ACL: 256 per Line Card [EPM], [GEMf] ,
See the”WAN Access Module”
Proprietary

17. Software embedded
on the VDSL2 DSLAM Products
Proprietary

18. VDSL2 System S/W
 Function
L2
maximum 16K MAC table
STP, RSTP supported
802.1Q VLAN supported
802.1X port based Authentication control Function
802.1p priority Function supported
IGMP snooping: maximum 256 groups
LACP Function supported
Port based Rate Limiting Function supported(by 64Kbps)
 of MAC address Function:1~256
No
Monitoring Function by Port based/ACL
 Function
L3
Max. 4K IPv4 Host table
Max. 8/16K LPM table
ECMP/WCMP
Static Routing Function supported
RIP, OSPF, BGP routing protocol supported
 multicasting, IGMP proxy
IP
 pim-sm : Hardware packet replication Function supported:(max. 8 VLANs)
IP
DHCP server/Relay Function supported
DHCP snooping Function supported
Proprietary

19. QoS
ACL Function Supported

Max. 256 Routing table supported/(8port, EPIC),

128ea/port for up-link supported
Max.8ea COS queue/port supported

WRED Function supported

SPQ, WRR, WFQ, SPQ+WRR, SPQ+WFQ Function supported

Netbios / Netbeui Packet Filtering Function supported

DHCP packet filtering Function supported

Proprietary

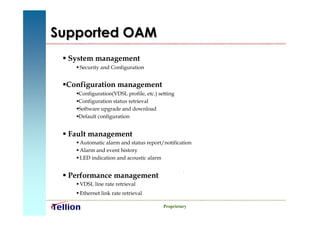

20. Supported OAM
System management
Security and Configuration
Configuration management

Configuration(VDSL profile, etc.) setting

Configuration status retrieval

Software upgrade and download

Default configuration

Fault management
Automatic alarm and status report/notification
Alarm and event history
LED indication and acoustic alarm
Performance management
VDSL line rate retrieval
Ethernet link rate retrieval
Proprietary

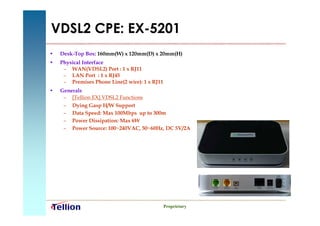

21. VDSL2 CPE: EX-5201
• Desk-Top Box: 160mm(W) x 120mm(D) x 20mm(H)
• Physical Interface
– WAN(VDSL2) Port : 1 x RJ11
– LAN Port : 1 x RJ45
– Premises Phone Line(2 wire): 1 x RJ11
• Generals
– [Tellion EX] VDSL2 Functions
– Dying Gasp H/W Support
– Data Speed: Max 100Mbps up to 300m
– Power Dissipation: Max 6W
– Power Source: 100~240VAC, 50~60Hz, DC 5V/2A
Proprietary

22. LAN+WLAN Switch: EX-5204AP
• Desk-Top Box: 190mm(W) x 160mm(D) x 30mm(H)
• Physical Interface
– WAN(VDSL2) Port : 1 x RJ11
– LAN Port : 4 x RJ45
– WLAN 802.11b/g
– Premises Phone Line(2 wire): 1 x RJ11
• Generals
– VDSL2 Functions
– Switching: Full wire speed guaranteed for all packet
– VLAN: port Based VLAN, Tagged/Untagged frame for each port
– Multicast: IGMP, IGMP Snooping/Proxy/Join & Leave suppression, Fast Leave
– NAT: NAT, NATP for any Packet size, DMZ,ALG
– DHCP:DHCP Server/relay/client
– QoS
- 4 label Q, Port rate limiting/sharing, DSCP,TOS,IEEE 802.1p classification
- SPQ,WFQ,WRR,DWRR scheduling, Tail drop, RED, WRED
– ACL for QoS: Layer 1/2/3/4
– Security: Storm control, MAC Counting, Packet filtering, Fire-wall
– WLAN : 802.11b/g
• WEP, WPA/WPA2, WMM
– Management: Consol, SNMP, Telnet, Web
– Power Source: 100~240VAC, 50~60Hz, DC 12V/2A
Proprietary

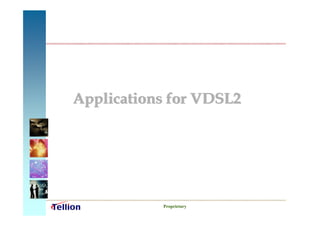

23. Applications for VDSL2
Proprietary

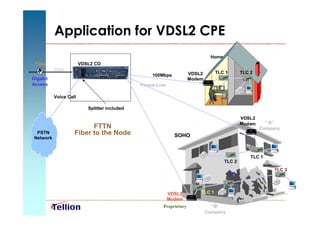

24. Application for VDSL2 CPE
Home
Fiber VDSL2 CO
Data
VDSL2 TLC 1 TLC 2
EX 5124B 100Mbps
Gigabit Modem
Access Phone-Line
Voice Call
Splitter included
VDSL2
Modem “A”
FTTN Company
PSTN Fiber to the Node SOHO
Network
TLC 1
TLC 2
TLC 3
TLC 2
+
VDSL2 TLC 1
Modem
Proprietary “B”
Company

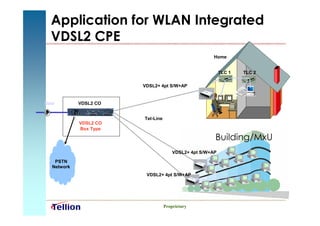

25. Application for WLAN Integrated
VDSL2 CPE
Home
TLC 1 TLC 2
VDSL2+ 4pt S/W+AP
Data VDSL2 CO
EX 5124B
Tel-Line
VDSL2 CO
Box Type
Building/MxU
VDSL2+ 4pt S/W+AP
PSTN
Network
VDSL2+ 4pt S/W+AP
Proprietary

26. Gigabit Ethernet-PON
(Fiber To The Premises Solutions)
An Ethernet Converged FTTP Solution
Proprietary

27. GE-PON Applications
ONT 10/100
>= 20 km Reach Ethernet
LAN
OLT
(Optical Line Terminal) Splitter
GBE PON
Metro
10/100
Ethernet
US: 1.25Gb/s ONU Ethernet
@ 1310nm
DS: 1.25Gb/s LAN
@ 1490(1550)nm
ONU VDSL
Proprietary

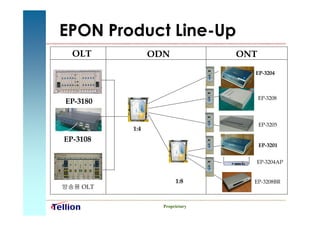

28. EPON Product Line-Up
OLT ODN ONT
EP-3204
EP-3208
EP-3180
EP-3205
1:4
EP-3108
EP-3201
EP-3204AP
1:8 EP-3208BR
방송용 OLT
Proprietary

29. ILEC-class OLT(EP-3180)
6U
19 “ Rack Mountable.
 IEEE 802.3ah compliant ODN interface
• Up(1310nm)/Down(1490/1550nm), max. 80 PON interface
 Gigabit Ethernet core network interface
• min 8 GbE
 Gigabit Ethernet Switch Fabric
• 96Gb/s throughput
 L2/L3 Switching
 IP Multicast
 Security, Encryption, IEEE 802.1x, Ranging, Flexible DBA
Proprietary

30. CLEC-class OLT(EP-3108)
430(W)*255(D)*88(H)
 IEEE 802.3ah compliant ODN interface
• Up(1310nm)/Down(1490/1550nm), max. 8 PON interface
 Gigabit Ethernet core network interface
• max 12 GbE, min 4 GbE
 Concentration ratio
• Uplink GbE : PON = 4:8 recommended
 Gigabit Ethernet Switch Fabric
• 24Gb/s throughput
 Security, Encryption, IEEE 802.1x, Ranging, Flexible DBA
Proprietary

31. ONT : EP-3201
항목 사양
▪ Link Length: 10Km, 20Km(option)
Performance
▪ Dynamic Bandwidth Allocation
Physical ▪ W*H*D (mm) = 96 * 30 * 135
Dimension
LED ▪ PWR, LINK, LAN, DATA
▪ RX: 1490 nm, TX: 1310 nm, reach: 10Km
ODN Interface
▪ max. 20Km(optional)
Interface
▪ EP3201A : 100 Base-TX only
UNI Interface
▪ EP3201B: 100Base_TX/1000Base_TX
▪ Full Duplex 1.25Gbps
▪ IEEE802.3ah MPCP
▪ 128 bit AES Encryption
Protocol & Service ▪ Dying Gasp H/W Support
▪ IEEE 802.3x Flow control
▪ IEEE 802.3p(128KB queueing with 8 classes)
▪ IEEE 802.3q(VLAN)
▪ IEEE802.3ah Full OAM
▪ Fault Management, Link Status Management,
Fault Isolation
OAM
▪ Remote Loopback
▪ Remote statistics query capability
▪ Dying Gasp
▪ 110 - 220V AC/60Hz
Power consumption
▪ Output 12Vdc / 2A
▪ Operating Temperature : 0-50 도
Environmental Condition
▪ Humidity: 10%-80%
Proprietary

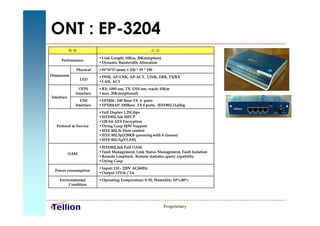

32. ONT : EP-3204
항목 사양
▪ Link Length: 10Km, 20Km(option)
Performance
▪ Dynamic Bandwidth Allocation
Physical ▪ W*H*D (mm) = 220 * 35 * 190
Dimension ▪ PWR, AP-LNK, AP-ACT, LINK, ERR, TX/RX
LED
▪ LAN, ACT
ODN ▪ RX: 1490 nm, TX: 1310 nm, reach: 10Km
Interface ▪ max. 20Km(optional)
Interface
UNI ▪ EP3204 : 100 Base-TX 4 ports
Interface ▪ EP3204AP: 100Base_TX 4 ports, IEEE802.11a/b/g
▪ Full Duplex 1.25Gbps
▪ IEEE802.3ah MPCP
▪ 128 bit AES Encryption
Protocol & Service ▪ Dying Gasp H/W Support
▪ IEEE 802.3x Flow control
▪ IEEE 802.3p(128KB queueing with 8 classes)
▪ IEEE 802.3q(VLAN)
▪ IEEE802.3ah Full OAM
▪ Fault Management, Link Status Management, Fault Isolation
OAM
▪ Remote Loopback, Remote statistics query capability
▪ Dying Gasp
▪ Input: 110 - 220V AC/60Hz
Power consumption
▪ Output 12Vdc / 2A
Environmental ▪ Operating Temperature: 0-50, Humidity: 10%-80%
Condition
Proprietary

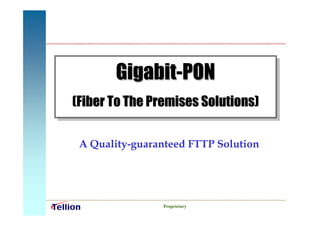

33. Gigabit-PON
(Fiber To The Premises Solutions)
A Quality-guaranteed FTTP Solution
Proprietary

34. GPON Applications
ONT
>= 10 km Reach (20Km)
Residential
ODN
MTU/MDU
OLT ONU
DS: 2.5Gb/s S
GBE @ 1490(1550)nm
Metro
Ethernet S ONU
US: 2.5Gb/s
@ 1310nm Business
Complex
• Point-Multipoint communication over a single fiber ONU
• Every ONT/ONU assigned a timeslot(TDM channel)
• Data encapsulation in MAC-level frame
• Ranging needed for synchronization
Municipal
Facilities
Proprietary

35. G-PON Products
OLT Optical Distribution Customer Premises
Network ONT/ONUs
at Cenrtal Office Equipments
ES-7224 (22 GE Ports)
GP-1140 (40 PONs)
ES-6224 (24 FE Ports)
GP-11404 (4 PONs) EX-5124B (24 VDSL2 Ports)
EX 5124B
ES-6208 (8 FE Ports)
GP-2102 (2 FE Ports)
Proprietary

36. G-PON Showcase in Tellion
20Km
O/F Spool
64 ONTs
Proprietary

37. Ethernet Switch
(Ethernet Access Network)
Proprietary

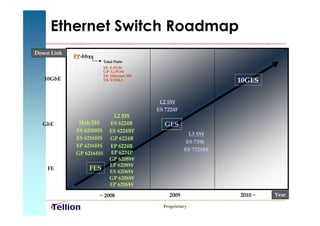

38. Ethernet Switch Roadmap
Down Link
PP-bbxx
Total Ports
EP: E-PON
GP: G-PON
ES: Ethernet SW
10GbE EX: VDSL2 10GES
L2 SW
ES 7224F
L2 SW
GbE Hub SW ES 6224B GES
ES 6208HS ES 6224BF
L3 SW
ES 6216HS GP 6224B
ES 7396
EP 6216HS EP 6224B
ES 7324BF
GP 6216HS EP 6224P
GP 6208W
EP 6208W
FE FES ES 6206W
GP 6206W
EP 6206W
~ 2008 2009 2010 ~ Year
Proprietary

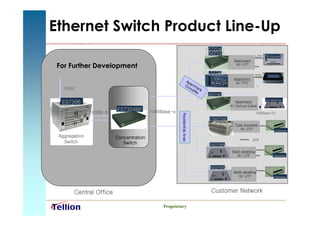

39. Ethernet Switch Product Line-Up
ES7224B
ES6224B UTP ES62xxW
Apartment
For Further Development W/ UTP
EX 5124B+ TPC EX520x
Apartment
Ap
a W/ TPC
Co rt m
10GbE m p en
lex t
ES6224BF AON Based FTTH
ES 620xHS
ES7396 Apartment
W/ Optical Cable
1000B-X
ES7324BF 1000Base-x 100Base-Fx
Residential Area
ES6224P
Pole mounted
W/ UTP Gateway
Aggregation Concentration UTP
Switch Switch ES6208W
Multi-dwelling
W/ UTP Gateway
ES6206W
Multi-dwelling
W/ UTP Gateway
Central Office Customer Network
Proprietary

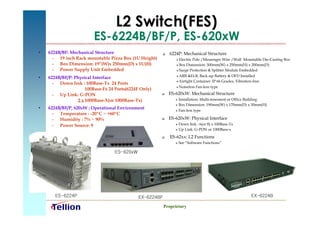

40. L2 Switch(FES)
ES-6224B/BF/P, ES-620xW
• 6224B/BF: Mechanical Structure  6224P: Mechanical Structure
– 19 inch Rack mountable Pizza Box (1U Height)  Electric Pole /Messenger Wire /Wall Mountable Die-Casting Box
– Box Dimension: 19”(W)x 250mm(D) x 1U(H)  Box Dimension: 500mm(W) x 250mm(H) x 200mm(D)
– Power Supply Unit Embedded  Surge Protection & Splitter Module Embedded
ARB &ELB, Back-up Battery & OFD Installed
• 6224B/BF/P: Physical Interface 
 Airtight Container: IP 66 Grades, Vibration-free
– Down link : 100Base-Tx 24 Ports
 Noiseless Fan-less type
100Base-Fx 24 Ports(6224F Only)
– Up Link: G-PON  ES-620xW: Mechanical Structure
2 x 1000Base-X(or 1000Base-Tx)  Installation: Multi-tenement or Office Building
 Box Dimension: 190mm(W) x 170mm(D) x 30mm(H)
• 6224B/BF/P, 620xW : Operational Environment  Fan-less type
– Temperature : -20ºC ~ +60ºC
– Humidity : 7% ~ 90%  ES-620xW: Physical Interface
– Power Source: 90 ~ 250 Vac  Down link : 6(or 8) x 100Base-Tx
 Up Link: G-PON or 1000Base-x
 ES-62xx: L2 Functions
 See “Software Functions”
ES-620xW
ES-6224P EX-6224BF EX-6224B
Proprietary

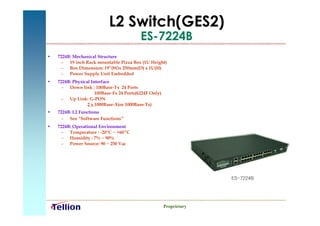

41. L2 Switch(GES2)
ES-7224B
• 7224B: Mechanical Structure
– 19 inch Rack mountable Pizza Box (1U Height)
– Box Dimension: 19”(W)x 250mm(D) x 1U(H)
– Power Supply Unit Embedded
• 7224B: Physical Interface
– Down link : 100Base-Tx 24 Ports
100Base-Fx 24 Ports(6224F Only)
– Up Link: G-PON
2 x 1000Base-X(or 1000Base-Tx)
• 7224B: L2 Functions
– See “Software Functions”
• 7224B: Operational Environment
– Temperature : -20ºC ~ +60ºC
– Humidity : 7% ~ 90%
– Power Source: 90 ~ 250 Vac
ES-7224B
Proprietary

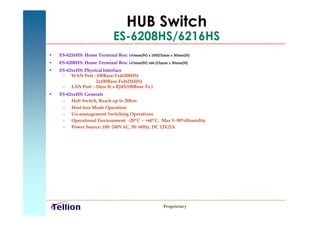

42. HUB Switch
ES-6208HS/6216HS
• ES-6216HS: Home Terminal Box: 160mm(W) x 100(D)mm x 30mm(H)
• ES-6208HS: Home Terminal Box: 145mm(W) x66 (D)mm x 30mm(H)
• ES-62xxHS: Physical Interface
– WAN Port : 100Base-Tx(6208HS)
2x100Base-Fx(6216HS)
– LAN Port : 16(or 8) x RJ45(100Base-Tx )
• ES-62xxHS: Generals
– Hub Switch, Reach up to 20Km
– Host-less Mode Operation
– Un-management Switching Operations
– Operational Environment: -20ºC ~ +60ºC, Max 5~90%Humidity
– Power Source: 100~240VAC, 50~60Hz, DC 12V/2A
Proprietary

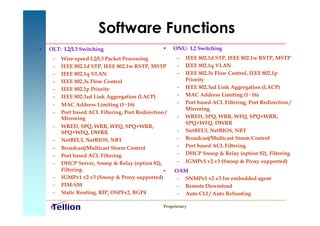

43. Software Functions
• OLT: L2/L3 Switching • ONU: L2 Switching
– Wire-speed L2/L3 Packet Processing – IEEE 802.1d STP, IEEE 802.1w RSTP, MSTP
– IEEE 802.1d STP, IEEE 802.1w RSTP, MSTP – IEEE 802.1q VLAN
– IEEE 802.1q VLAN – IEEE 802.3x Flow Control, IEEE 802.1p
– IEEE 802.3x Flow Control Priority
– IEEE 802.1p Priority – IEEE 802.3ad Link Aggregation (LACP)
– IEEE 802.3ad Link Aggregation (LACP) – MAC Address Limiting (1~16)
– MAC Address Limiting (1~16) – Port based ACL Filtering, Port Redirection /
Mirroring
– Port based ACL Filtering, Port Redirection /
Mirroring – WRED, SPQ, WRR, WFQ, SPQ+WRR,
SPQ+WFQ, DWRR
– WRED, SPQ, WRR, WFQ, SPQ+WRR,
SPQ+WFQ, DWRR – NetBEUI, NetBIOS, NBT
– NetBEUI, NetBIOS, NBT – Broadcast/Multicast Storm Control
– Broadcast/Multicast Storm Control – Port based ACL Filtering
– Port based ACL Filtering – DHCP Snoop & Relay (option 82), Filtering
– DHCP Server, Snoop & Relay (option 82), – IGMPv1 v2 v3 (Snoop & Proxy supported)
Filtering • OAM
– IGMPv1 v2 v3 (Snoop & Proxy supported) – SNMPv1 v2 v3 for embedded agent
– PIM-SM – Remote Dowmload
– Static Routing, RIP, OSPFv2, BGP4 – Auto CLI / Auto Rebooting
Proprietary

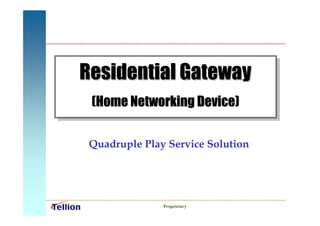

44. Residential Gateway
(Home Networking Device)
Quadruple Play Service Solution
Proprietary

45. RGW: HN-2204Ap
• Desk-Top or Wall Mountable Box: 142mm(W) x 90(D)mm x 26mm(H)
• Ethernet Switch & Controller
– Switch Capacity: 6FE
– MIPS32-266MHz Packet Processor
– 8MB Flash Memory, 16MB SDRAM
• Physical Interface
– LAN Port : 4 x 100Base-Tx
– WAN Port : 100Base-Tx
– WLAN: IEEE802.11b/g
• Generals
– [Tellion HN] Switching Functions
– Packet Classification for QoS: 4 Level Priority Queue
• Layer 2: Src/Dest Mac, VLAN ID, COS
• Layer 3: Src/Dest IP, DSCP, TOS, Precedence, Protocol
• Layer 4: Src/Dest TCP/UDP Port
– Lookup Table Entry
• Mac : 1024
• Multicast Mac : 1024
• VLAN : 16
• Software NAT : 10K
• QoS Policy: 8
– Wireless Security, Including WPA/WPA2.0/WEP/WMM/802.1x
– Operational Environment: 0ºC ~ +50ºC
– Power Source: 5Vdc
Proprietary

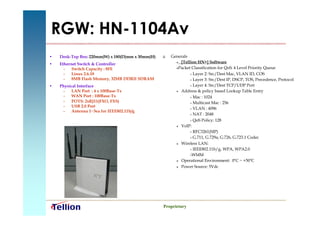

46. RGW: HN-1104Av
• Desk-Top Box: 220mm(W) x 180(D)mm x 30mm(H)  Generals
 [Tellion HN+] Software
• Ethernet Switch & Controller
Packet Classification for QoS: 4 Level Priority Queue
– Switch Capacity : 8FE
– Linux 2.6.18  Layer 2: Src/Dest Mac, VLAN ID, COS
– 8MB Flash Memory, 32MB DDRII SDRAM  Layer 3: Src/Dest IP, DSCP, TOS, Precedence, Protocol
• Physical Interface  Layer 4: Src/Dest TCP/UDP Port
– LAN Port : 4 x 100Base-Tx  Address & policy based Lookup Table Entry
– WAN Port : 100Base-Tx  Mac : 1024
– POTS: 2xRJ11(FXO, FXS)  Multicast Mac : 256
– USB 2.0 Port
 VLAN : 4096
,
– Antenna 1~3ea for IEEE802.11b/g
 NAT : 2048
 QoS Policy: 128
 VoIP:
 RFC3261(SIP)
 G.711, G.729a, G.726, G.723.1 Codec
 Wireless LAN:
 IEEE802.11b/g, WPA, WPA2.0
WMM
 Operational Environment: 0ºC ~ +50º C
 Power Source: 5Vdc
Proprietary

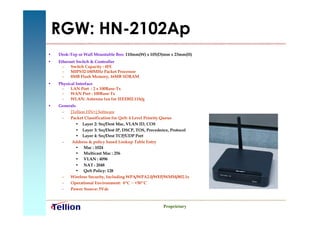

47. RGW: HN-2102Ap
• Desk-Top or Wall Mountable Box: 110mm(W) x 105(D)mm x 23mm(H)
• Ethernet Switch & Controller
– Switch Capacity : 4FE
– MIPS32-180MHz Packet Processor
– 8MB Flash Memory, 16MB SDRAM
• Physical Interface
– LAN Port : 2 x 100Base-Tx
– WAN Port : 100Base-Tx
– WLAN: Antenna 1ea for IEEE802.11b/g
• Generals
– [Tellion HN+] Software
– Packet Classification for QoS: 4 Level Priority Queue
• Layer 2: Src/Dest Mac, VLAN ID, COS
• Layer 3: Src/Dest IP, DSCP, TOS, Precedence, Protocol
• Layer 4: Src/Dest TCP/UDP Port
– Address & policy based Lookup Table Entry
• Mac : 1024
• Multicast Mac : 256
• VLAN : 4096
• NAT : 2048
• QoS Policy: 128
– Wireless Security, Including WPA/WPA2.0/WEP/WMM/802.1x
– Operational Environment: 0ºC ~ +50ºC
– Power Source: 5Vdc
Proprietary

48. RGW: HN-3104
• Desk-Top Box: 142mm(W) x 90(D)mm x 26mm(H)
• Ethernet Switch & Controller
– Switch Capacity : 6FE
– ARM9 CPU
– Linux 2.6.18
– 8MB Flash Memory, 16MB SDRAM
• Physical Interface
– LAN Port : 4 x 100Base-Tx
– WAN Port : 100Base-Tx
• Generals
– [Tellion HN+] Software
– Packet Classification for QoS: 4 Level Priority Queue
• Layer 2: Src/Dest Mac, VLAN ID, COS
• Layer 3: Src/Dest IP, DSCP, TOS, Precedence, Protocol
• Layer 4: Src/Dest TCP/UDP Port
– Address & policy based Lookup Table Entry
• Mac : 1024
• Multicast Mac : 256
• VLAN : 4096
• NAT : 2048
• QoS Policy: 128
– Operational Environment: 0ºC ~ +50ºC
– Power Source: 5Vdc
Proprietary

49. Optical HDMI Device
HDMI
Optical Fiber
Source
- Game Console Display
- DVD Player
- STB
- Projector Optical HDMI Device
- Video Server
- Serialization of HDMI Signal
- 1080p 60 fps Resolution Support
- Reach up to 1000 meters
- Bi-Directional / Return Channel
- HDCP Support
- Plug and Play with standard HDMI Connector
Proprietary

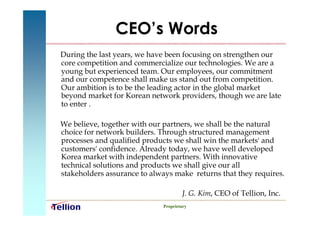

50. CEO’s Words
During the last years, we have been focusing on strengthen our
core competition and commercialize our technologies. We are a
young but experienced team. Our employees, our commitment
and our competence shall make us stand out from competition.
Our ambition is to be the leading actor in the global market
beyond market for Korean network providers, though we are late
to enter .
We believe, together with our partners, we shall be the natural
choice for network builders. Through structured management
processes and qualified products we shall win the markets' and
customers' confidence. Already today, we have well developed
Korea market with independent partners. With innovative
technical solutions and products we shall give our all
stakeholders assurance to always make returns that they requires.
J. G. Kim, CEO of Tellion, Inc.
Proprietary

51. What is the access gear in today and
tomorrow?
You already know the answer,
fiber-deep access network solutions
and consumer gateway solutions
securing quadruple play services
and QoE.
Proprietary

52. Thanks a lot for your attention !
Proprietary
