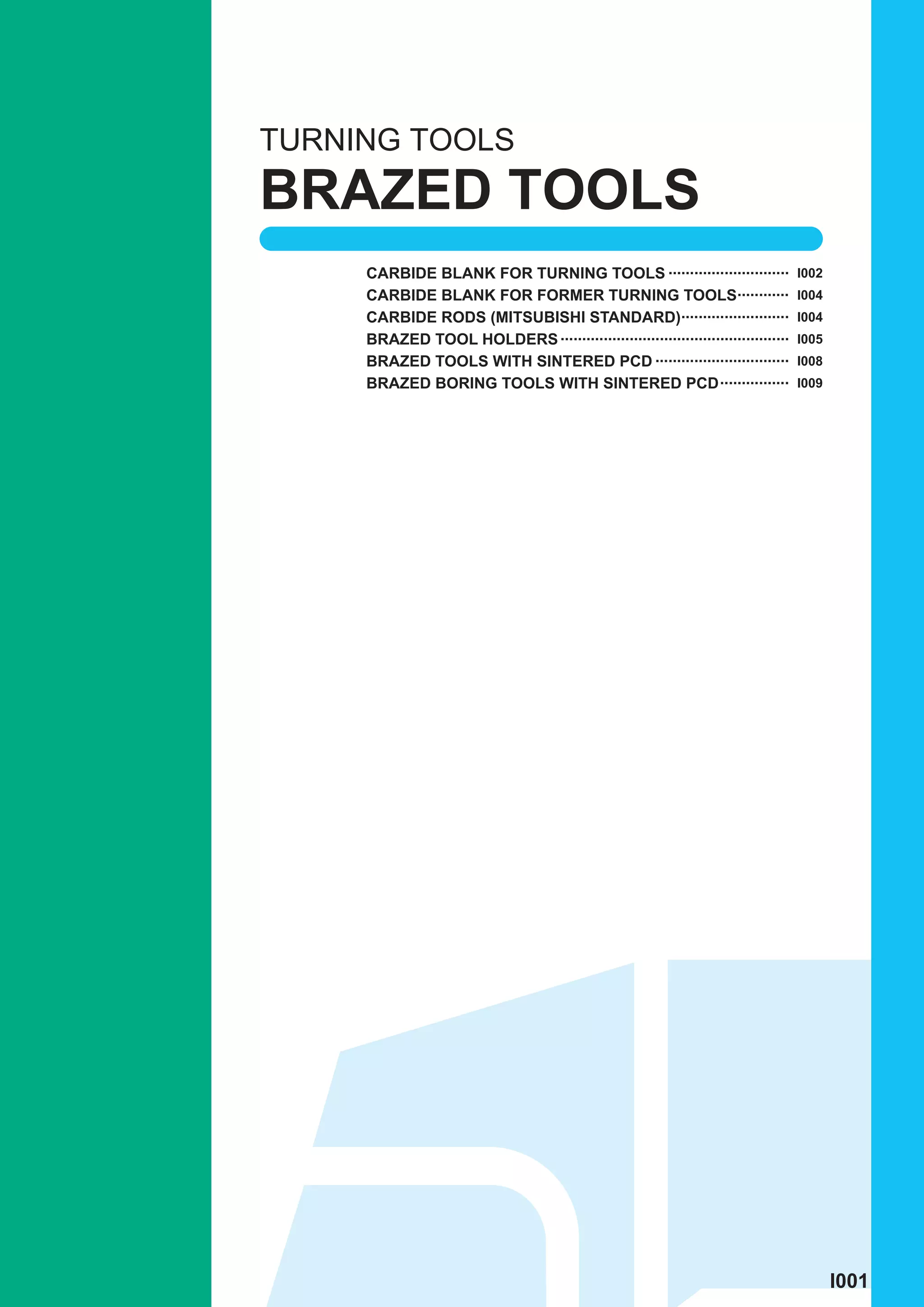

1. TURNING TOOLS
BRAZED TOOLS
CARBIDE BLANK FOR TURNING TOOLS ............................ I002
CARBIDE BLANK FOR FORMER TURNING TOOLS............ I004
CARBIDE RODS (MITSUBISHI STANDARD)......................... I004
BRAZED TOOL HOLDERS ..................................................... I005
BRAZED TOOLS WITH SINTERED PCD ............................... I008
BRAZED BORING TOOLS WITH SINTERED PCD ................ I009
I001

2. BRAZED TOOLS

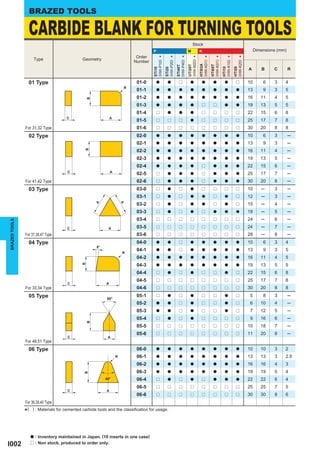

CARBIDE BLANK FOR TURNING TOOLS
Stock
P M K Dimensions (mm)
Order * * * * * * * *
Type Geometry
Number
(HW-M20)
(HW-P10)
(HW-P20)
(HW-P40)
(HW-K01)
(HW-K01)
(HW-K10)
(HW-K20)
HTi03A
UTi20T
HTi05T
STi40T
HTi10
HTi20
A B C R
STi10
STi20
01 Type 01-0 a a r a a a a r 10 6 3 4
R
01-1 a a a a a a a a 13 9 3 5
01-2 a a a a a a a a 16 11 4 5
B
01-3 a a a a r r a a 19 13 5 5
01-4 r a a a r r r r 22 15 6 8
C A
01-5 r r r a r r r r 25 17 7 8
For 31,32 Type 01-6 r r r r r r r r 30 20 8 8
02 Type 02-0 a a a a a a a a 10 6 3 ─
02-1 a a a a a a a a 13 9 3 ─
02-2
B
a a a a a a a a 16 11 4 ─
02-3 a a a a a a a a 19 13 5 ─
02-4 a a a a r a a a 22 15 6 ─
C A
02-5 r a a a r a a a 25 17 7 ─
For 41,42 Type 02-6 r a a a r a a a 30 20 8 ─
03 Type 03-0 r a r a r r r r 10 ─ 3 ─
03-1 r a r a a r a r 12 ─ 3 ─
03-2 15 ─ 4 ─
A
A
r a r a a r a r
03-3 r a r a r a a a 18 ─ 5 ─
03-4 r r r r r r r r 24 ─ 6 ─
BRAZED TOOLS
C A 03-5 r r r r r r r r 24 ─ 7 ─
For 37,38,47 Type 03-6 r r r r r r r r 28 ─ 8 ─
04 Type 04-0 a a r a a a a a 10 6 3 4
8°
04-1 a a r a a a a a 13 9 3 5
R
04-2 a a a a a a a a 16 11 4 5
04-3 19 13 5 5
B
a a a a a a a a
04-4 r a r a r r a r 22 15 6 8
04-5 r r r r r r r r 25 17 7 8
C A
For 33,34 Type 04-6 r r r r r r r r 30 20 8 8
05 Type 60°
05-1 r a r a r r a r 5 8 3 ─
05-2 a a r a r r a r 6 10 4 ─
05-3 a a r a r r a r 7 12 5 ─
05-4 r a r a r r r r 9 16 6 ─
B
05-5 r r r r r r r r 10 18 7 ─
05-6 r r r r r r r r 11 20 8 ─
C A
For 49,51 Type
06 Type 06-0 a a a a a a a a 10 10 3 2
R 06-1 a a a a a a a a 13 13 3 2.5
06-2 a a a a a a a a 16 16 4 3
06-3 a a a a a a a a 19 19 5 4
B
40° 06-4 r a r a r a a a 22 22 6 4
06-5 r r r r r r r r 25 25 7 5
C A
06-6 r r r r r r r r 30 30 8 6
For 36,39,40 Type
*( ) : Materials for cemented carbide tools and the classification for usage.
a : Inventory maintained in Japan. (10 inserts in one case)
I002 r : Non stock, produced to order only.

3. Stock
P M K Dimensions (mm)
Order * * * * * * * *
Type Geometry
Number
(HW-M20)
(HW-P10)
(HW-P20)
(HW-P40)
(HW-K01)
(HW-K01)
(HW-K10)
(HW-K20)
HTi03A
UTi20T
HTi05T
STi40T
HTi10
HTi20
A B C R
STi10
STi20

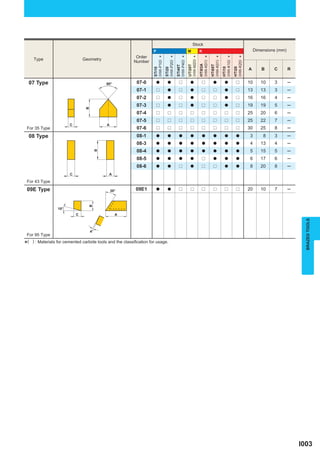

07 Type 80° 07-0 a a r a r a a r 10 10 3 ─
07-1 r a r a r r a r 13 13 3 ─
07-2 r a r a r r a r 16 16 4 ─
07-3 r a r a r r a r 19 19 5 ─
B
07-4 r r r r r r r r 25 20 6 ─
07-5 r r r r r r r r 25 22 7 ─
C A
For 35 Type 07-6 r r r r r r r r 30 25 8 ─
08 Type 08-1 a a a a a a a a 3 8 3 ─
08-3 a a a a a a a a 4 13 4 ─
08-4 a a a a a a a a 5 15 5 ─
08-5 a a a a r a a a 6 17 6 ─
08-6 a a r a r r a a 8 20 8 ─
For 43 Type
09E Type 30° 09E1 a a r r r r r r 20 10 7 ─
B
10°
C A
BRAZED TOOLS
4°
For 95 Type
*( ) : Materials for cemented carbide tools and the classification for usage.
I003

4. BRAZED TOOLS

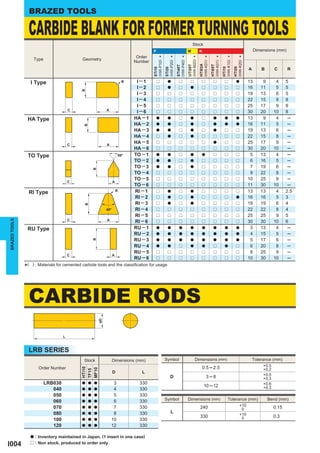

CARBIDE BLANK FOR FORMER TURNING TOOLS
Stock
P M K Dimensions (mm)
Order * * * * * * * *
Type Geometry
Number
(HW-M20)
(HW-P10)
(HW-P20)
(HW-P40)
(HW-K01)
(HW-K01)
(HW-K10)
(HW-K20)
HTi03A
UTi20T
HTi05T
STi40T
HTi10
HTi20
A B C R
STi10
STi20
I Type R I−1 r a r r r r r a 13 9 4 5
I−2 r a r a r r r r 16 11 5 5
B
I−3 r r r r r r r r 19 13 6 5
I−4 r r r r r r r r 22 15 8 8
I−5 r r r r r r r r 25 17 9 8
C A
I−6 r r r r r r r r 30 20 10 8
HA Type HA − 1 a a r a r a a a 13 9 4 ─
HA − 2 a a r a r a a a 16 11 5 ─
B
HA − 3 a a r a r a r r 19 13 6 ─
HA − 4 r a r a r r r r 22 15 8 ─
C A
HA − 5 r r r r r a r r 25 17 9 ─
HA − 6 r r r r r r r r 30 20 10 ─
TO Type 60° TO − 1 a a r a a r r r 5 13 4 ─
TO − 2 a a r a r r r r 6 16 5 ─
TO − 3 a a r a r r r r 7 19 6 ─
B
TO − 4 r r r r r r r r 9 22 8 ─
TO − 5 r r r r r r r r 10 25 9 ─
C A
TO − 6 r r r r r r r r 11 30 10 ─
RI Type R RI − 1 r a r a r r r r 13 13 4 2.5
RI − 2 r a r a r r r a 16 16 5 3
RI − 3 r a r a r r r r 19 19 6 4
B
40° RI − 4 r r r r r r r r 22 22 8 4
RI − 5 r r r r r r r r 25 25 9 5
C A
BRAZED TOOLS
RI − 6 r r r r r r r r 30 30 10 6
RU Type RU − 1 a a a a a a a a 3 13 4 ─
RU − 2 a a a a a a a a 4 15 5 ─
RU − 3 a a a a a a a a 5 17 6 ─
RU − 4 a a r a a r a r 6 20 8 ─
RU − 5 r r r r r r r r 8 25 9 ─
RU − 6 r r r r r r r r 10 30 10 ─
( ) : Materials for cemented carbide tools and the classification for usage.
*
CARBIDE RODS
øD
L
LRB SERIES
Stock Dimensions (mm) Symbol Dimensions (mm) Tolerance (mm)
+0.5
Order Number 0.5 ─ 2.5
HTi10
MF10
+0.2
TF15
D L
+0.5
D 3─8 +0.3
LRB030 a a a 3 330 +0.6
10 ─12 +0.3
040 a a a 4 330
050 a a a 5 330
060 a a a 6 330 Symbol Dimensions (mm) Tolerance (mm) Bend (mm)
+10
070 a a a 7 330 240 0 0.15
080 a a a 8 330 L
+10
330 0 0.3
100 a a a 10 330
120 a a a 12 330
a : Inventory maintained in Japan. (1 insert in one case)
I004 r : Non stock, produced to order only.

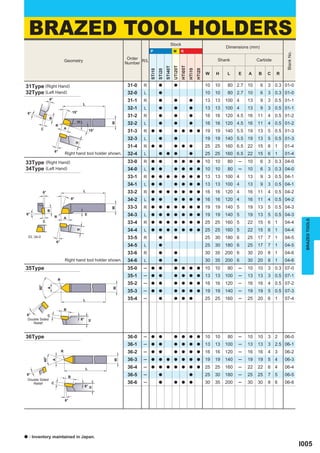

5. BRAZED TOOL HOLDERS
Stock
Dimensions (mm)
P M K
Blank No.
Order Shank Carbide
Geometry R/L
Number
UTi20T
HTi05T
STi40T
HTi10
HTi20
STi10
STi20
W H L E A B C R
31Type (Right Hand) 31-0 R a a 10 10 80 2.7 10 6 3 0.3 01-0
32Type (Left Hand) 32-0 L a 10 10 80 2.7 10 6 3 0.3 01-0
6° 31-1 R a a a 13 13 100 4 13 9 3 0.5 01-1
L
32-1 L a a a 13 13 100 4 13 9 3 0.5 01-1
6° 15°
B
31-2 R a a a 16 16 120 4.5 16 11 4 0.5 01-2
E
32-2 L 16 16 120 4.5 16 11 4 0.5 01-2
W
a a a
R
C A
15° 31-3 R a a a a a a 19 19 140 5.5 19 13 5 0.5 01-3
32-3 L a a 19 19 140 5.5 19 13 5 0.5 01-3
H
31-4 R a a a a a 25 25 160 6.5 22 15 6 1 01-4
6°
Right hand tool holder shown. 32-4 L a a a a 25 25 160 6.5 22 15 6 1 01-4
33Type (Right Hand) 33-0 R a a a a a a 10 10 80 ─ 10 6 3 0.3 04-0
34Type (Left Hand) 34-0 L a a a a a a 10 10 80 ─ 10 6 3 0.3 04-0
33-1 R a a a a a a a 13 13 100 4 13 9 3 0.5 04-1
34-1 L a a a a a a 13 13 100 4 13 9 3 0.5 04-1
6° L 33-2 R a a a a a a a 16 16 120 4 16 11 4 0.5 04-2
8° 34-2 L a a a a a a 16 16 120 4 16 11 4 0.5 04-2
33-3 R a a a a a a a 19 19 140 5 19 13 5 0.5 04-3
W
B
6°
R
E 34-3 L a a a a a a a 19 19 140 5 19 13 5 0.5 04-3
A
BRAZED TOOLS
C 33-4 R a a a a a a a 25 25 160 5 22 15 6 1 04-4
H 34-4 L a a a a a a a 25 25 160 5 22 15 6 1 04-4
33, 34-0 33-5 R a a 25 30 180 6 25 17 7 1 04-5
6°
34-5 L a 25 30 180 6 25 17 7 1 04-5
33-6 R a a 30 35 200 6 30 20 8 1 04-6
Right hand tool holder shown. 34-6 L a a 30 35 200 6 30 20 8 1 04-6
35Type 35-0 ─ a a a a a a 10 10 80 ─ 10 10 3 0.3 07-0
35-1 ─ a a a a a a 13 13 100 ─ 13 13 3 0.5 07-1
R
35-2 ─ a a a a a a 16 16 120 ─ 16 16 4 0.5 07-2
80°
W
A
35-3 ─ a a a a a a 19 19 140 ─ 19 19 5 0.5 07-3
L 35-4 ─ a a a a 25 25 160 ─ 25 20 6 1 07-4
B
6° C
Double Sided 6°
H
Relief
36Type 36-0 ─ a a a a a a 10 10 80 ─ 10 10 3 2 06-0
36-1 ─ a a a a a a 13 13 100 ─ 13 13 3 2.5 06-1
R 36-2 ─ a a a a a a 16 16 120 ─ 16 16 4 3 06-2
36-3 ─ 19 19 140 ─ 19 19 5 4 06-3
40°
a a a a a a a
W
A
L 36-4 ─ a a a a a a a 25 25 160 ─ 22 22 6 4 06-4
6°
B
36-5 ─ a a 25 30 180 ─ 25 25 7 5 06-5
Double Sided
Relief C 36-6 ─ a a a a 30 35 200 ─ 30 30 8 6 06-6
6°
H
6°
a : Inventory maintained in Japan.
I005

6. BRAZED TOOLS

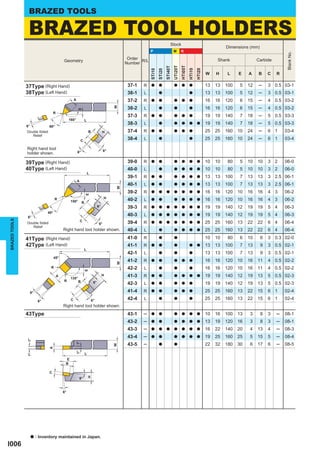

BRAZED TOOL HOLDERS
Stock
Dimensions (mm)
P M K
Blank No.
Order Shank Carbide
Geometry R/L
Number
UTi20T
HTi05T
STi40T
HTi10
HTi20
STi10
STi20
W H L E A B C R
37Type (Right Hand) 37-1 R a a a a a 13 13 100 5 12 ─ 3 0.5 03-1
38Type (Left Hand) 38-1 L a a 13 13 100 5 12 ─ 3 0.5 03-1
A 37-2 R a a a a a 16 16 120 6 15 ─ 4 0.5 03-2
38-2
W
L a a a 16 16 120 6 15 ─ 4 0.5 03-2
E
R
37-3 R a a a a a 19 19 140 7 18 ─ 5 0.5 03-3
160° L
38-3 L a a a a a 19 19 140 7 18 ─ 5 0.5 03-3
6° 60°
Double Sided B H 37-4 R a a a a a 25 25 160 10 24 ─ 6 1 03-4
Relief
C 38-4 L a a 25 25 160 10 24 ─ 6 1 03-4
Right hand tool 6°
holder shown. 6°
39Type (Right Hand) 39-0 R a a a a a a 10 10 80 5 10 10 3 2 06-0
40Type (Left Hand) 40-0 L a a a a a 10 10 80 5 10 10 3 2 06-0
L
39-1 R a a a a a a 13 13 100 7 13 13 3 2.5 06-1
A
40-1 L a a a a a a 13 13 100 7 13 13 3 2.5 06-1
W
39-2 R a a a a a a a 16 16 120 10 16 16 4 3 06-2
E
H
R
150° 40-2 L a a a a a a 16 16 120 10 16 16 4 3 06-2
B
6° 39-3 R a a a a a a a 19 19 140 12 19 19 5 4 06-3
40°
6°
40-3 L a a a a a a a 19 19 140 12 19 19 5 4 06-3
BRAZED TOOLS
C 39-4 R a a a a a a a 25 25 160 13 22 22 6 4 06-4
Double Sided 6°
Relief
Right hand tool holder shown. 40-4 L a a a a a 25 25 160 13 22 22 6 4 06-4
41Type (Right Hand) 41-0 R a a 10 10 80 6 10 6 3 0.3 02-0
42Type (Left Hand) 41-1 R a a a a a 13 13 100 7 13 9 3 0.5 02-1
L
42-1 L a a a 13 13 100 7 13 9 3 0.5 02-1
45°
41-2 R a a a a a 16 16 120 10 16 11 4 0.5 02-2
W
R 42-2 L a a a 16 16 120 10 16 11 4 0.5 02-2
E
A
135°
H 41-3 R a a a a a a 19 19 140 12 19 13 5 0.5 02-3
R B 6° 42-3 L a a a a a 19 19 140 12 19 13 5 0.5 02-3
6° 41-4 R a a a a a 25 25 160 13 22 15 6 1 02-4
6° C 6° 42-4 L a a a 25 25 160 13 22 15 6 1 02-4
Right hand tool holder shown.
43Type 43-1 ─ a a a a a a 10 16 100 13 3 8 3 ─ 08-1
43-2 ─ a a a a a a 13 19 120 16 3 8 3 ─ 08-1
43-3 ─ a a a a a a a 16 22 140 20 4 13 4 ─ 08-3
43-4 ─ a a a a a a 19 25 160 25 5 15 5 ─ 08-4
1°
1°
43-5 ─ a a 22 32 180 30 6 17 6 ─ 08-5
W
A
1°
L
1°
E
B
C
H
6°
6°
a : Inventory maintained in Japan.
I006

7. Stock
Dimensions (mm)
P M K
Blank No.
Order Shank Carbide
Geometry R/L
Number
UTi20T
HTi05T
HTi10
STi10
STi20
W H L d E I A B C R

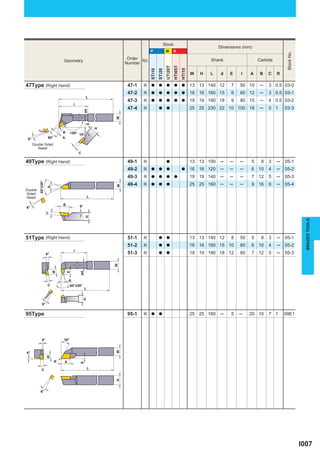

47Type (Right Hand) 47-1 R a a a a a 13 13 140 12 7 50 10 ─ 3 0.5 03-0
47-2 R a a a a a 16 16 160 15 8 60 12 ─ 3 0.5 03-1
L
47-3 R a a a a a 19 19 190 18 9 80 15 ─ 4 0.5 03-2
l
47-4 R a a 25 25 230 22 10 100 18 ─ 5 1 03-3
ød
W
E
H
R 158° 10°
6° 60° A
Double Sided
Relief
C
49Type (Right Hand) 49-1 R a 13 13 100 ─ ─ ─ 5 8 3 ─ 05-1
49-2 R a a a a 16 16 120 ─ ─ ─ 6 10 4 ─ 05-2
49-3 R a a a a 19 19 140 ─ ─ ─ 7 12 5 ─ 05-3
60°±30°
49-4 R a a a 25 25 160 ─ ─ ─ 9 16 6 ─ 05-4
W
A
Double
Sided
Relief L
B 6°
6°
C
H
BRAZED TOOLS
51Type (Right Hand) 51-1 R a a 13 13 140 12 8 50 5 8 3 ─ 05-1
51-2 R a a 16 16 160 15 10 60 6 10 4 ─ 05-2
l
6° 51-3 R a a 19 19 190 18 12 80 7 12 5 ─ 05-3
W
B
E
ød
A
C 60°±30°
L
H
6°
95Type 95-1 R a a 25 25 160 ─ 5 ─ 20 10 7 1 09E1
4° 30°
W
6°
B
R A
E
C L
H
6°
I007

8. BRAZED TOOLS

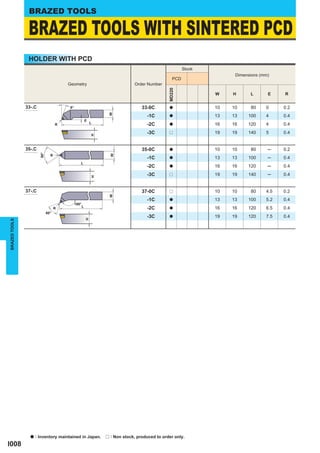

BRAZED TOOLS WITH SINTERED PCD
HOLDER WITH PCD
Stock
Dimensions (mm)
PCD
Geometry Order Number
MD220
W H L E R
33-.C 8° 33-0C a 10 10 80 0 0.2
W
-1C a 13 13 100 4 0.4
E
R L -2C a 16 16 120 4 0.4
-3C r 19 19 140 5 0.4
H
35-.C 35-0C a 10 10 80 ─ 0.2
90°
R
W
-1C a 13 13 100 ─ 0.4
L
-2C a 16 16 120 ─ 0.4
-3C r 19 19 140 ─ 0.4
H
37-.C 37-0C r 10 10 80 4.5 0.2
W
-1C a 13 13 100 5.2 0.4
160°
R L -2C a 16 16 120 6.5 0.4
60°
-3C a 19 19 120 7.5 0.4
H
BRAZED TOOLS
a : Inventory maintained in Japan. r : Non stock, produced to order only.
I008

9. BORING BARS WITH PCD
a Standard type
Stock
Dimensions (mm)
PCD
Geometry Order Number
MD220
D H L h E R
BR 3..C L * BR305C a 5 4 20 3.5 2.5 0.2
38° 306C a 6 5 25 4 3 0.2
308C 8 7 35 6 4 0.4
øD
a
E
R
H 30°
H h
BR 5..C BR506C a 6 5 25 4 ─ 0.2
L
508C a 8 7 35 6 ─ 0.4
90°
øD
R
H h
a Special designed shape
BRAZED TOOLS
Dimensions (mm)
Geometry Order Number
D H L h E R
BR 2..C L
15° * BR203C 3 2.5 13 2.5 0.5 0.2
* 204C 4 3.5 16 3 0.7 0.2
* 205C
øD
E
5 4 20 3.5 1 0.2
15° R
H 206C 6 5 25 4 1.5 0.2
208C 8 7 35 6 2 0.4
H h
210C 10 9 50 7 3 0.4
BR 3..C L * BR303C 3 2.5 13 2.5 1.5 0.2
38°
* 304C 4 3.5 16 3 2 0.2
310C 10 9 50 7 5 0.4
øD
E
R
H 30°
H h
BR 5..C
L * BR503C 3 2.5 13 2.5 ─ 0.2
* 504C 4 3.5 16 3 ─ 0.2
90°
*
øD
505C 5 4 20 3.5 ─ 0.2
R
510C 10 9 50 7 ─ 0.4
H h
*Carbide shank
I009
