1. Design Kit
Class D Audio Amplifier Using IRS2092
1 All Rights Reserved Copyright (c) Bee Technologies Inc. 2009

2. Contents
Slide #
1. Specification........................................................................................................................................... 3
• Efficiency........................................................................................................................................... 4-5
• THD................................................................................................................................................... 6-7
• Frequency Response........................................................................................................................ 8-9
• Note: Po[W] vs. Vin[VPEAK] ............................................................................................................... 10
2. Waveforms Evaluations.......................................................................................................................... 11
3. Simulated vs. Measured Waveforms...................................................................................................... 12-14
4. Voltage Gain – GV…............................................................................................................................... 15-16
5. Self Oscillation Frequency...................................................................................................................... 17-18

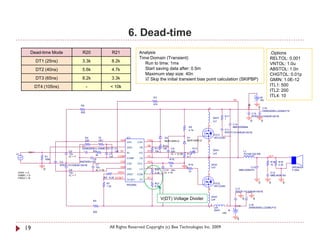

6. Dead time............................................................................................................................................... 19-21
7. Turn on transient.................................................................................................................................... 22-25

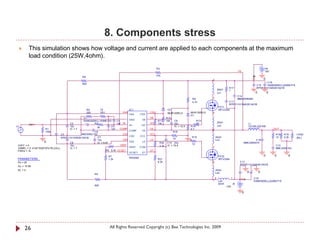

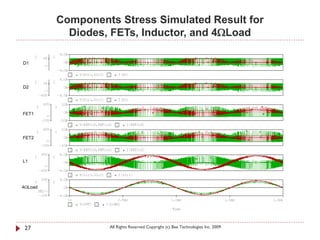

8. Components stress................................................................................................................................. 26-27

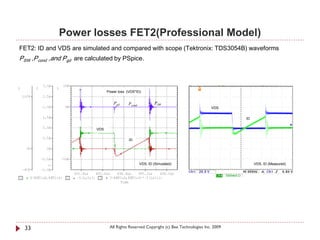

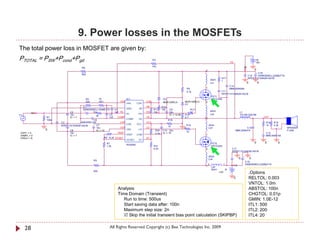

9. Power loss in the MOSFETs................................................................................................................... 28
• Standard Model................................................................................................................................. 29-30
• Professional Model............................................................................................................................ 31-33
• Standard vs. Professional Model....................................................................................................... 34-35

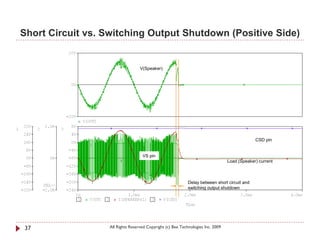

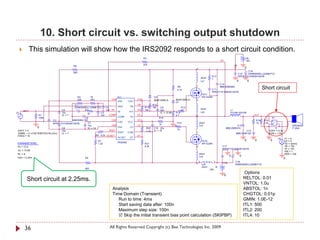

10. Short circuit vs. switching output shutdown............................................................................................ 36-38
11. Short Circuit Response........................................................................................................................... 39-41

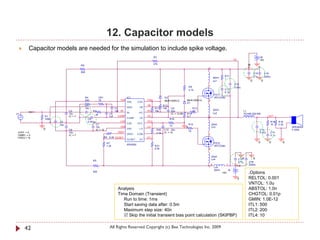

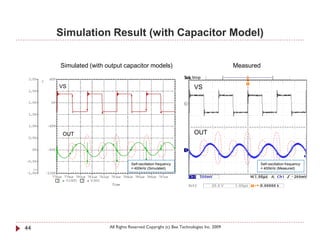

12. Capacitor Models........................................................................................... ........................................ 42-44

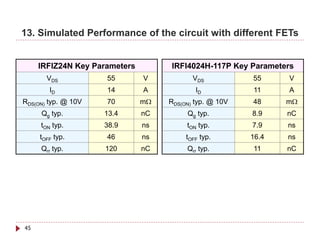

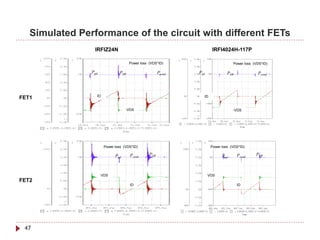

13. Simulated Performance of the circuit with different FETs......... .............................................................. 45-47
14. Simulation Index .................................................................................................................................... 48
2 All Rights Reserved Copyright (c) Bee Technologies Inc. 2009

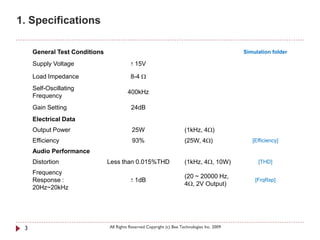

3. 1. Specifications
General Test Conditions Simulation folder
Supply Voltage + 15V
Load Impedance 8-4 Ω
Self-Oscillating
400kHz
Frequency
Gain Setting 24dB
Electrical Data
Output Power 25W (1kHz, 4Ω)
Efficiency 93% (25W, 4Ω) [Efficiency]
Audio Performance
Distortion Less than 0.015%THD (1kHz, 4Ω, 10W) [THD]
Frequency
(20 ~ 20000 Hz,
Response : + 1dB [FrqRsp]
4Ω, 2V Output)
20Hz~20kHz
3 All Rights Reserved Copyright (c) Bee Technologies Inc. 2009

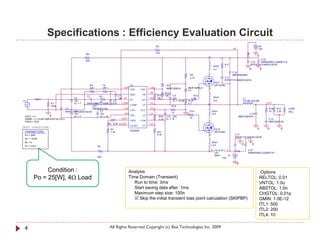

4. Specifications : Efficiency Evaluation Circuit
R3 +B
VS 15V
47k +B
R8
2 0
C16
+
820
C15 EKMG500ELL222MLP1S
R17 RPER11H104K2K1A01B
20nH 1
Ls1 0 0
C14
R9 1 MMH250K684
4.7k C11
RPER11H104K2K1A01B
FET1
R4 75 IC1 D2 IRFIZ24N
220 VR1 VAA CSH MUR120RLG MUR120RLG 2
VAA CSH D1
VB R12
C4 GND VB R11 10k C9 R13
C1 R2 20nH
IN C2 + 1nF IN- HO 10k 22u 10 L1
10u C5 IN- HO IC = 12.85 R14 Ls2 7G14N-220-RB
V1 3k
R1 IC = 7 EKMG500ELL100ME11D1nF COMP VS 4.7 2 OUT
100k C6 COMP VS R16 1
C3 AMZ0050J102 CSD VCC R18 R19 LOAD
C8 C7 CSD VCC R15 20nH 10 2.2k
RPER11H103K2K1A01B 10 {RL}
10u 10u VSS LO 0 Ls3 C12
VOFF = 0 0 IC = 7 IC = 10 VSS LO R20 C10 22u MMC250K474
VREF 10
VAMPL = {1.4142*SQRT(Po*RL)/Gv } 3.3k IC = 15 C13
FREQ = {f in} VREF COM 1 MMC400K104
R6 8.2k OCSET DT
OCSET DT
TEST CONDITION: 0 0 0
R7 FET2
PARAMETERS: IRS2092
1.2k R21 IRFIZ24N
Po = 25W 8.2k 2 C17
RPER11H104K2K1A01B
Gv = 15.85
RL = 4 20nH
+
Ls4 0 0
f in = 1kHz R5
2 1 -B C18
1 Ls5 EKMG500ELL222MLP1S
20nH -B
820 -15V
0
Condition : Analysis .Options
Po = 25[W], 4Ω Load Time Domain (Transient) RELTOL: 0.01
Run to time: 3ms VNTOL: 1.0u
Start saving data after: 1ms ABSTOL: 1.0n
Maximum step size: 100n CHGTOL: 0.01p
 Skip the initial transient bias point calculation (SKIPBP) GMIN: 1.0E-12
ITL1: 500
ITL2: 200
ITL4: 10
4 All Rights Reserved Copyright (c) Bee Technologies Inc. 2009

5. Specifications : Efficiency Simulation Result
%Efficiency
PSUPPLY [W]
PO [W]
5 All Rights Reserved Copyright (c) Bee Technologies Inc. 2009

6. Specifications : THD Evaluation Circuit
R3 +B
VS 15V
47k +B
R8
2 0
C16
+
820
C15 EKMG500ELL222MLP1S
R17 RPER11H104K2K1A01B
20nH 1
Ls1 0 0
C14
R9 1 MMH250K684
4.7k C11
RPER11H104K2K1A01B
FET1
75 U5 D2 IRFIZ24N
R4 VR1 VAA CSH MUR120RLG MUR120RLG 2
220 VAA CSH D1
VB R12
C4 GND VB R11 10k C9 R13
C1 10u R2 20nH
IN C2 1nF IN- HO 10k 22u 10 L1
10u C5 IN- HO IC = 12.85 R14 Ls2 7G14N-220-RB
V1 3k
R1 IC = 7 1nF COMP VS 4.7 2 OUT
100k C6 COMP VS R16 1
1n CSD VCC R18 R19 LOAD
C3 C8 C7 CSD VCC R15 20nH 10 2.2k
10 {RL}
10u 10u 10u VSS LO 0 Ls3 C12
0 IC = 14 IC = 7 IC = 10 VSS LO R20 C10 22u MMC250K474
VREF 10
VOFF = 0 3.3k IC = 15 C13
VAMPL = {1.4142*SQRT(Po*RL)/Gv } VREF COM 1 MMC400K104
FREQ = 1k R6 8.2k OCSET DT
OCSET DT
TEST CONDITION: R7 FET2 0 0 0
IRS2092
1.2k R21 IRFIZ24N
PARAMETERS: 8.2k 2 C17
Po = 10 RPER11H104K2K1A01B
Gv = 15.85 20nH
+
RL = 4 Ls4 0 0
R5
f in = 1k
2 1 -B C18
1 Ls5 EKMG500ELL222MLP1S
20nH -B
820 -15V
0
Analysis .Options
Condition : Time Domain (Transient) RELTOL: 0.01
fin = 1kHz, Po = 10[W], Run to time: 3ms VNTOL: 1.0u
4Ω Load Start saving data after: 0s ABSTOL: 1.0n
Maximum step size: 100n CHGTOL: 0.01p
 Skip the initial transient bias point calculation (SKIPBP) GMIN: 1.0E-12
ITL1: 500
Output File Options... ITL2: 200
 Perform Fourier Analysis ITL4: 10
Center Frequency: 1khz
Output Variables: V(OUT)
6 All Rights Reserved Copyright (c) Bee Technologies Inc. 2009

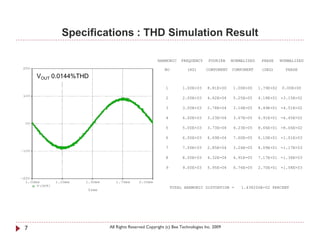

7. Specifications : THD Simulation Result
HARMONIC FREQUENCY FOURIER NORMALIZED PHASE NORMALIZED
NO (HZ) COMPONENT COMPONENT (DEG) PHASE
VOUT 0.0144%THD
1 1.00E+03 8.81E+00 1.00E+00 1.79E+02 0.00E+00
2 2.00E+03 4.62E-04 5.25E-05 4.18E+01 -3.15E+02
3 3.00E+03 2.78E-04 3.16E-05 8.49E+01 -4.51E+02
4 4.00E+03 3.23E-04 3.67E-05 6.91E+01 -6.45E+02
5 5.00E+03 3.73E-04 4.23E-05 8.66E+01 -8.06E+02
6 6.00E+03 6.69E-04 7.60E-05 6.10E+01 -1.01E+03
7 7.00E+03 2.85E-04 3.24E-05 8.09E+01 -1.17E+03
8 8.00E+03 4.32E-04 4.91E-05 7.17E+01 -1.36E+03
9 9.00E+03 5.95E-04 6.76E-05 2.70E+01 -1.58E+03
TOTAL HARMONIC DISTORTION = 1.438206E-02 PERCENT
7 All Rights Reserved Copyright (c) Bee Technologies Inc. 2009

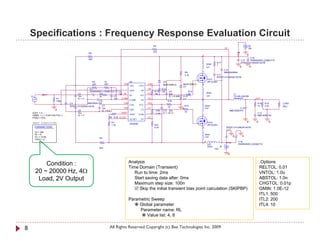

8. Specifications : Frequency Response Evaluation Circuit
R3 +B
VS 15V
47k +B
R8
2 0
C16
+
820
C15 EKMG500ELL222MLP1S
R17 RPER11H104K2K1A01B
20nH 1
Ls1 0 0
C14
R9 1 MMH250K684
4.7k C11
RPER11H104K2K1A01B
FET1
R4 75 U5 D2 IRFIZ24N
220 VR1 VAA CSH MUR120RLG MUR120RLG 2
VAA CSH D1
C1 VB R12
EKMG500ELL100ME11D C4 GND VB R11 10k C9 R13
C2 + R2 1nF IN- HO 10k 22u 10 20nH L1
IN IN- HO Ls2
V1 10u 3k C5 IC = 8.499 R14 7G14N-220-RB
R1 IC = 7 1nF COMP VS 4.7 2 OUT
100k C6 COMP VS R16 1
C3 AMZ0050J102 CSD VCC R18 R19 LOAD
C7 CSD VCC R15 20nH 10 2.2k
RPER11H103K2K1A01B 10 {RL}
10u VSS LO 0 Ls3 C12
0 C8 IC = 9.8 VSS LO R20 C10 22u MMC250K474
VREF 10
VOFF = 0 10u 3.3k IC = 15.11 C13
VAMPL = { 1.4142*VOUT/Gv } IC = 7 VREF COM 1 MMC400K104
FREQ = {f in} R6 8.2k OCSET DT
OCSET DT
TEST CONDITION: R7 FET2 0 0 0
IRS2092
1.2k R21 IRFIZ24N
PARAMETERS: 8.2k 2 RPER11H104K2K1A01B
C17
f in = 20k
RL = 8 20nH
+
Gv = 15.85 Ls4 0 0
R5
VOUT = 2
2 1 -B C18
1 Ls5 EKMG500ELL222MLP1S
20nH -B
820 -15V
0
Analysis .Options
Condition : Time Domain (Transient) RELTOL: 0.01
20 ~ 20000 Hz, 4Ω Run to time: 2ms VNTOL: 1.0u
Load, 2V Output Start saving data after: 0ms ABSTOL: 1.0n
Maximum step size: 100n CHGTOL: 0.01p
 Skip the initial transient bias point calculation (SKIPBP) GMIN: 1.0E-12
ITL1: 500
Parametric Sweep ITL2: 200
 Global parameter ITL4: 10
Parameter name: RL
 Value list: 4, 8
8 All Rights Reserved Copyright (c) Bee Technologies Inc. 2009

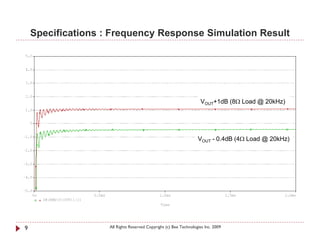

9. Specifications : Frequency Response Simulation Result
VOUT+1dB (8Ω Load @ 20kHz)
VOUT - 0.4dB (4Ω Load @ 20kHz)
9 All Rights Reserved Copyright (c) Bee Technologies Inc. 2009

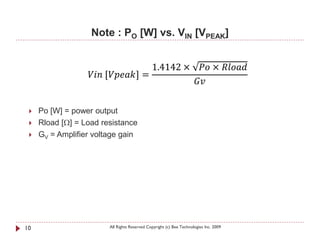

10. Note : PO [W] vs. VIN [VPEAK]
1.4142 × √������������������������ × ������������������������������������������������������������
������������������������������������ [������������������������������������������������������������] =
������������������������
 Po [W] = power output
 Rload [Ω] = Load resistance
 GV = Amplifier voltage gain
10 All Rights Reserved Copyright (c) Bee Technologies Inc. 2009

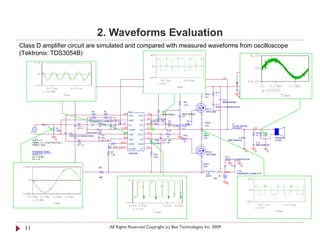

11. 2. Waveforms Evaluation
Class D amplifier circuit are simulated and compared with measured waveforms from oscilloscope
(Tektronix: TDS3054B)
R3 +B
VS 15V
47k +B
R8
2 0
C16
+
820
C15 EKMG500ELL222MLP1S
R17 RPER11H104K2K1A01B
20nH 1
Ls1 0 0
C14
R9 1 MMH250K684
4.7k C11
RPER11H104K2K1A01B
FET1
R4 75 IC1 D2 IRFIZ24N
220 VR1 VAA CSH MUR120RLG MUR120RLG 2
VAA CSH D1
C1 VB R12
EKMG500ELL100ME11D C4 GND VB R11 10k C9 R13
C2 + R2 1nF IN- HO 10k 22u 10 20nH L1
IN IN- HO Ls2
10u 3k C5 IC = 12.85 R14 7G14N-220-RB
R1 IC = 7 1nF COMP VS 4.7 2 OUT +
V COMP VS V 1
100k C6 R16
V1 C3 AMZ0050J102 CSD VCC R18 R19V
V CSD VCC V
RPER11H103K2K1A01B C7 R15 20nH 10 2.2k -
VSS LO 10
10u 0 Ls3 C12 SPEAKER
VOFF = 0 0 C8 IC = 10 VSS LO R20 C10 22u MMC250K474 F120A
VREF 10
VAMPL = { 1.4142*VOUT/Gv } 10u 3.3k
V
IC = 15 C13
FREQ = {f in} IC = 7 VREF COM 1 MMC400K104
R6 8.2k OCSET DT
OCSET DT
PARAMETERS: R7 FET2 0 0 0
IRS2092
VOUT = 2 1.2k R21 IRFIZ24N
Gv = 15.85 8.2k 2 C17
f in = 1k RPER11H104K2K1A01B
20nH
+
Ls4 0 0
R5
2 1 -B C18
1 Ls5 EKMG500ELL222MLP1S
20nH -B
820 -15V
0
11 All Rights Reserved Copyright (c) Bee Technologies Inc. 2009

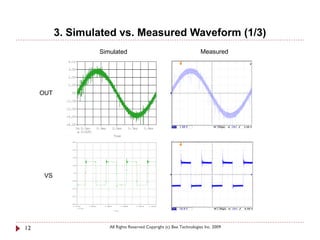

12. 3. Simulated vs. Measured Waveform (1/3)
Simulated Measured
OUT
VS
12 All Rights Reserved Copyright (c) Bee Technologies Inc. 2009

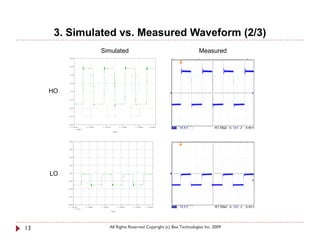

13. 3. Simulated vs. Measured Waveform (2/3)
Simulated Measured
HO
LO
13 All Rights Reserved Copyright (c) Bee Technologies Inc. 2009

14. 3. Simulated vs. Measured Waveform (3/3)
Simulated Measured
COMP
14 All Rights Reserved Copyright (c) Bee Technologies Inc. 2009

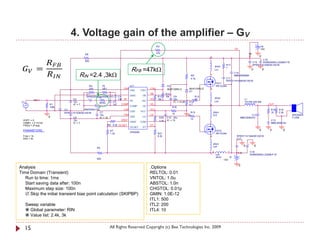

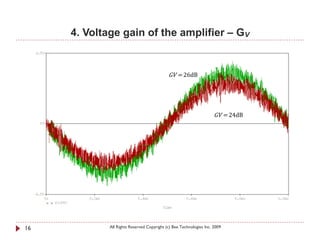

15. 4. Voltage gain of the amplifier – GV
������������������������������������
R3 +B
������������������������ =
VS 15V
������������������������������������
47k +B
R8
2 0
C16
+
820
C15 EKMG500ELL222MLP1S
R17 RPER11H104K2K1A01B
RFB =47kΩ
20nH 1
Ls1 0 0
RIN =2.4 ,3kΩ R9
4.7k
1
C11
C14
MMH250K684
RPER11H104K2K1A01B
FET1
R4 75 IC1 D2 IRFIZ24N
220 VR1 VAA CSH MUR120RLG MUR120RLG 2
VAA CSH D1
C1 VB R12
EKMG500ELL100ME11D C4 GND VB R11 10k C9 R13
R2 20nH
IN C2 + 1nF IN- HO 10k 22u 10 L1
10u C5 IN- HO IC = 12.85 R14 Ls2 7G14N-220-RB
V1 {RIN}
R1 IC = 7 1nF COMP VS 4.7 2 OUT +
100k C6 COMP VS R16 1
C3 AMZ0050J102 CSD VCC R18 R19
C7 CSD VCC R15 20nH 10 2.2k -
RPER11H103K2K1A01B 10
10u VSS LO 0 Ls3 C12 SPEAKER
0 C8 IC = 10 VSS LO R20 C10 22u MMC250K474 F120A
VREF 10
VOFF = 0 10u 3.3k IC = 15 C13
VAMPL = 0.14142 IC = 7 VREF COM 1 MMC400K104
FREQ = {Freq} R6 8.2k OCSET DT
OCSET DT
PARAMETERS: R7 FET2 0 0 0
IRS2092
1.2k R21 IRFIZ24N
Freq = 1k 8.2k 2 RPER11H104K2K1A01B
RIN = 3k C17
20nH
+
Ls4 0 0
R5
2 1 -B C18
1 Ls5 EKMG500ELL222MLP1S
20nH -B
820 -15V
0
Analysis .Options
Time Domain (Transient) RELTOL: 0.01
Run to time: 1ms VNTOL: 1.0u
Start saving data after: 100n ABSTOL: 1.0n
Maximum step size: 100n CHGTOL: 0.01p
 Skip the initial transient bias point calculation (SKIPBP) GMIN: 1.0E-12
ITL1: 500
Sweep variable ITL2: 200
 Global parameter: RIN ITL4: 10
 Value list: 2.4k, 3k
15 All Rights Reserved Copyright (c) Bee Technologies Inc. 2009

16. 4. Voltage gain of the amplifier – GV
GV = 26dB
GV = 24dB
16 All Rights Reserved Copyright (c) Bee Technologies Inc. 2009

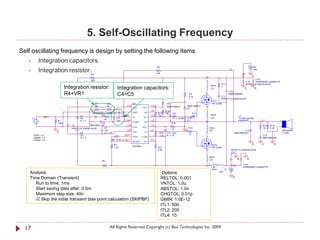

17. 5. Self-Oscillating Frequency
Self oscillating frequency is design by setting the following items
• Integration capacitors.
Integration resistor.
R3 +B
VS 15V
• 47k
R8 +B
2 0
C16
+
820
C15 EKMG500ELL222MLP1S
R17 RPER11H104K2K1A01B
20nH
Integration resistor: Integration capacitors: Ls1
1
0 0
C14
R4+VR1 C4=C5 R9
4.7k
1
C11
MMH250K684
RPER11H104K2K1A01B
FET1
R4 VR1 IC1 D2 IRFIZ24N
220 75 VAA CSH MUR120RLG MUR120RLG 2
VAA CSH D1
C1 VB R12
EKMG500ELL100ME11D C4 GND VB R11 10k C9 R13
C2 + R2 1nF IN- HO 10k 22u 10 20nH L1
IN IN- HO Ls2
V1 10u 3k C5 IC = 12.85 R14 7G14N-220-RB
R1 IC = 7 1nF COMP VS 4.7 2 OUT +
100k C6 COMP VS R16 1
C3 AMZ0050J102 CSD VCC R18 R19
C7 CSD VCC R15 20nH 10 2.2k -
RPER11H103K2K1A01B 10
10u VSS LO 0 Ls3 C12 SPEAKER
0 C8 IC = 10 VSS LO R20 C10 22u MMC250K474 F120A
VREF 10
VOFF = 0 10u 3.3k IC = 15 C13
VAMPL = 0 IC = 7 VREF COM 1 MMC400K104
FREQ = 1k R6 8.2k OCSET DT
OCSET DT
R7 FET2 0 0 0
IRS2092
1.2k R21 IRFIZ24N
8.2k 2 RPER11H104K2K1A01B
C17
20nH
+
Ls4 0 0
R5
2 1 -B C18
1 Ls5 EKMG500ELL222MLP1S
20nH -B
820
Analysis .Options -15V
Time Domain (Transient) RELTOL: 0.001 0
Run to time: 1ms VNTOL: 1.0u
Start saving data after: 0.5m ABSTOL: 1.0n
Maximum step size: 40n CHGTOL: 0.01p
 Skip the initial transient bias point calculation (SKIPBP) GMIN: 1.0E-12
ITL1: 500
ITL2: 200
ITL4: 10
17 All Rights Reserved Copyright (c) Bee Technologies Inc. 2009

18. 5. Self-Oscillating Frequency

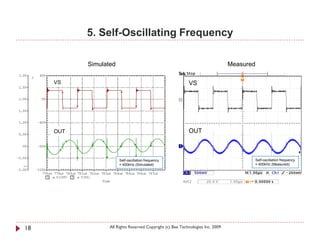

Simulated Measured
VS VS
OUT OUT
Self-oscillation frequency Self-oscillation frequency
= 400kHz (Simulated) = 400kHz (Measured)
18 All Rights Reserved Copyright (c) Bee Technologies Inc. 2009

19. 6. Dead-time
Dead-time Mode R20 R21 Analysis .Options
Time Domain (Transient) RELTOL: 0.001
DT1 (25ns) 3.3k 8.2k Run to time: 1ms VNTOL: 1.0u
DT2 (40ns) 5.6k 4.7k Start saving data after: 0.5m ABSTOL: 1.0n
Maximum step size: 40n CHGTOL: 0.01p
DT3 (65ns) 8.2k 3.3k  Skip the initial transient bias point calculation (SKIPBP) GMIN: 1.0E-12
DT4 (105ns) - < 10k ITL1: 500
ITL2: 200
R3 +B
ITL4: 10
VS 15V
47k +B
R8
2 0 C16
EKMG500ELL222MLP1S
+
820
C15
R17 RPER11H104K2K1A01B
20nH 1
Ls1 0 0
C14
R9 1 MMH250K684
4.7k C11
RPER11H104K2K1A01B
FET1
R4 75 IC1 D2 D1 IRFIZ24N
220 VR1 VAA CSH MUR120RLG MUR120RLG 2
VAA CSH
C1 VB R12
EKMG500ELL100ME11D C4 GND VB R11 10k C9 R13
C2 + R2 1nF IN- HO 10k 22u 10 20nH L1
IN IN- HO Ls2
V1 10u 3k C5 IC = 12.85 R14 7G14N-220-RB
R1 IC = 7 1nF COMP VS 4.7 2 OUT +
100k C6 COMP VS R16 1
C3 AMZ0050J102 CSD VCC R18 R19
C7 CSD VCC R15 20nH 10 2.2k -
RPER11H103K2K1A01B 10
10u VSS LO 0 Ls3 C12 SPEAKER
0 C8 IC = 10 VSS LO R20 C10 22u MMC250K474 F120A
VREF 10
VOFF = 0 10u 3.3k IC = 15 C13
VAMPL = 0 IC = 7 VREF COM 1 MMC400K104
FREQ = 1k R6 8.2k OCSET DT
OCSET DT
R7 R21 FET2 0 0 0
IRS2092
1.2k 8.2k IRFIZ24N
2 C17
RPER11H104K2K1A01B
20nH
+
R5
V(DT) Voltage Divider Ls4 0 0
2 1 -B C18
1 Ls5 EKMG500ELL222MLP1S
20nH -B
820 -15V
0
19 All Rights Reserved Copyright (c) Bee Technologies Inc. 2009

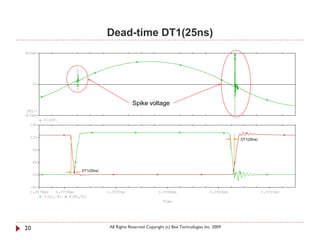

20. Dead-time DT1(25ns)
Spike voltage
DT1(25ns)
DT1(25ns)
20 All Rights Reserved Copyright (c) Bee Technologies Inc. 2009

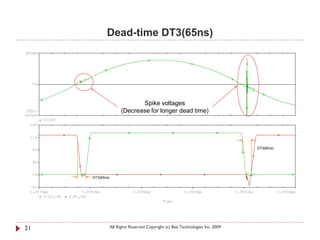

21. Dead-time DT3(65ns)
Spike voltages
(Decrease for longer dead time)
DT3(65ns)
DT3(65ns)
21 All Rights Reserved Copyright (c) Bee Technologies Inc. 2009

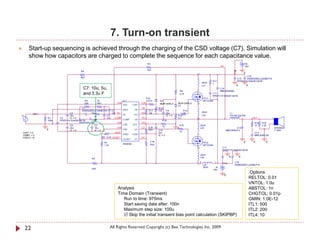

22. 7. Turn-on transient
 Start-up sequencing is achieved through the charging of the CSD voltage (C7). Simulation will
show how capacitors are charged to complete the sequence for each capacitance value.
R3 +B
VS 15V
47k +B
R8
2 0
C16
+
820
C15 EKMG500ELL222MLP1S
R17 RPER11H104K2K1A01B
20nH 1
Ls1 0 0
C7: 10u, 5u, 1
C14
R9 MMH250K684
and 3.3u F 4.7k C11
RPER11H104K2K1A01B
R10 FET1
R4 75 IC1 0.01m D2 IRFIZ24N
220 VR1 VAA CSH MUR120RLG MUR120RLG 2
VAA CSH D1
C1 VB R12
EKMG500ELL100ME11D C4 GND VB R11 10k C9 R13
C2 + R2 1nF IN- HO 10k 22u 10 20nH L1
IN IN- HO Ls2
V1 22u 3k C5 IC = 0 R14 7G14N-220-RB
R1 C3 IC = 0 1nF COMP VS 4.7 2 OUT +
100k RPER11H103K2K1A01B C6 COMP VS R16 1
AMZ0050J102 CSD VCC R18 R19
C8 C7 CSD VCC R15 20nH 10 2.2k -
VSS LO 8.2k 10
22u 10u 0 Ls3 C12 SPEAKER
0 IC = 0 IC = 0 VSS LO R21 C10 MMC250K474 F120A
VREF 10
VOFF = 0 22u C13
VAMPL = 0 VREF COM IC = 0 1 MMC400K104
FREQ = 1k R6 8.2k OCSET DT
OCSET DT
R7 3.3k FET2 0 0 0
IRS2092 R20
1.2k IRFIZ24N
2 C17
RPER11H104K2K1A01B
20nH
+
Ls4 0 0
R5
2 1 -B C18
1 Ls5 EKMG500ELL222MLP1S
20nH -B
820 -15V
.Options
0
RELTOL: 0.01
VNTOL: 1.0u
Analysis ABSTOL: 1n
Time Domain (Transient) CHGTOL: 0.01p
Run to time: 975ms GMIN: 1.0E-12
Start saving data after: 100n ITL1: 500
Maximum step size: 100u ITL2: 200
 Skip the initial transient bias point calculation (SKIPBP) ITL4: 10
22 All Rights Reserved Copyright (c) Bee Technologies Inc. 2009

23. Turn-on transient: C7 = 10uF
V(VCC,COM)
V(VB,VS)
V(HO)
V(LO)
V(VAA)
Vth2___
V(CSD) Vth1___
V(VSS)
Class D Startup
@ 0.976second.
23 All Rights Reserved Copyright (c) Bee Technologies Inc. 2009

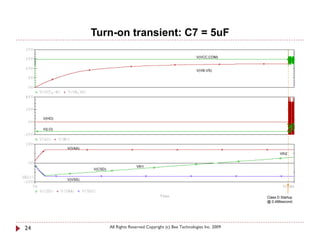

24. Turn-on transient: C7 = 5uF
V(VCC,COM)
V(VB,VS)
V(HO)
V(LO)
V(VAA)
Vth2
Vth1
V(CSD)
V(VSS)
Class D Startup
@ 0.488second.
24 All Rights Reserved Copyright (c) Bee Technologies Inc. 2009

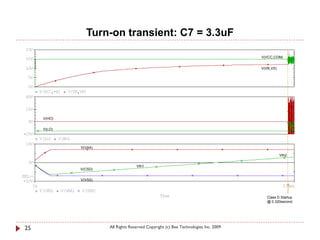

25. Turn-on transient: C7 = 3.3uF
V(VCC,COM)
V(VB,VS)
V(HO)
V(LO)
V(VAA)
Vth2
Vth1
V(CSD)
V(VSS)
Class D Startup
@ 0.320second.
25 All Rights Reserved Copyright (c) Bee Technologies Inc. 2009
