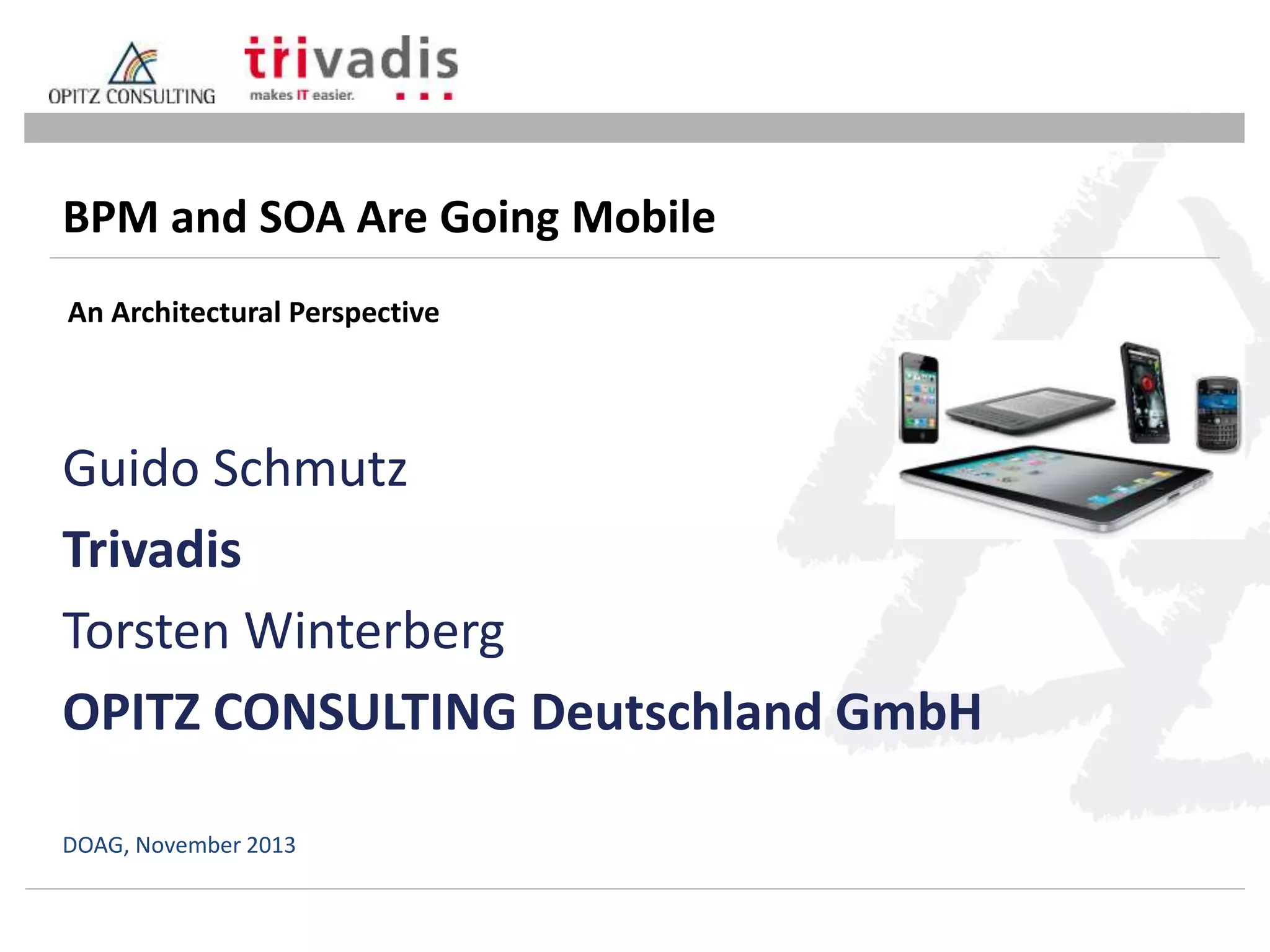

1. BPM and SOA Are Going Mobile
An Architectural Perspective
Guido Schmutz
Trivadis
Torsten Winterberg
OPITZ CONSULTING Deutschland GmbH
DOAG, November 2013

2. Mobile Development
What does this mean today?
An architectural point of view

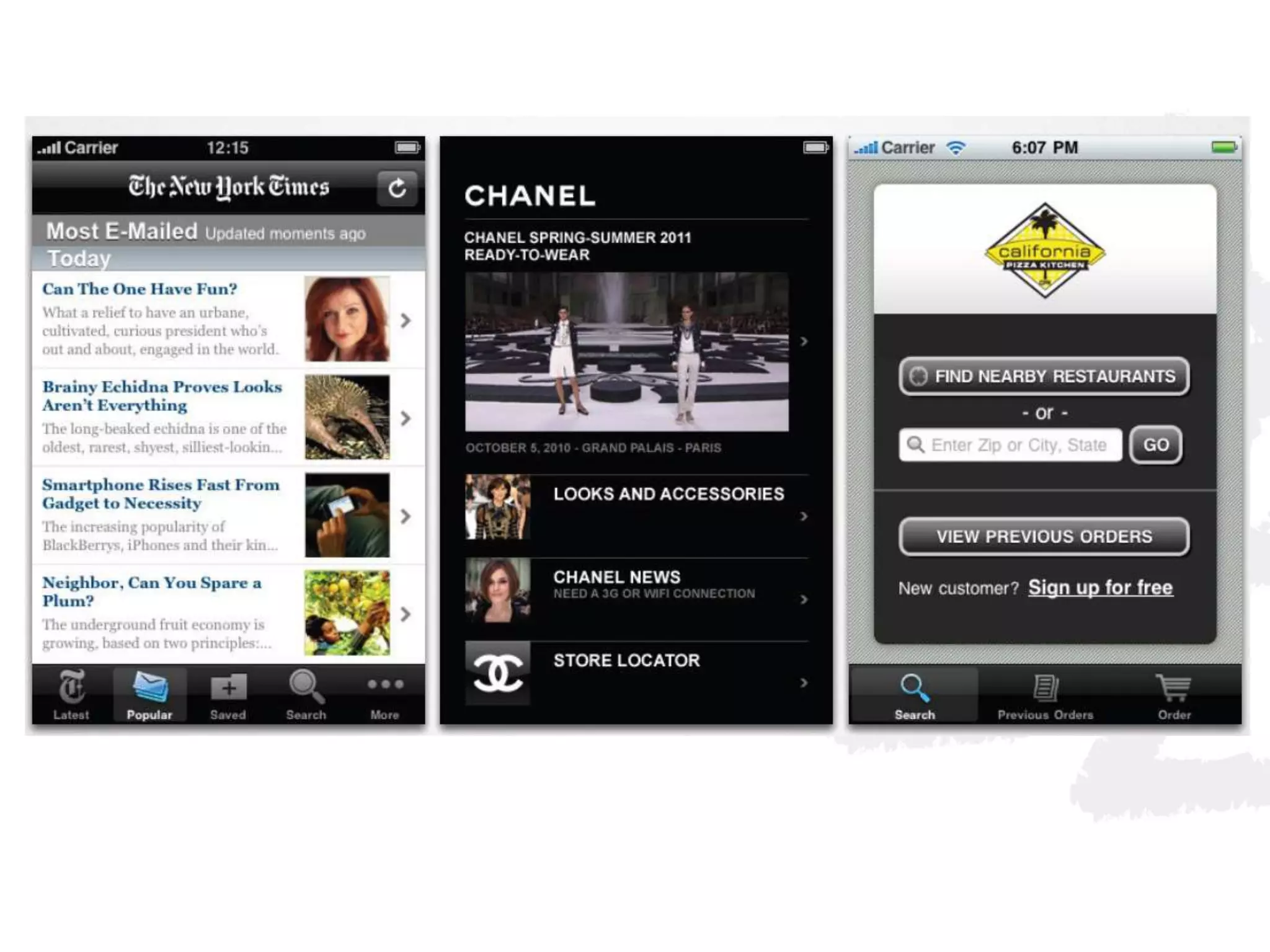

3. We need an iPhone App!
2008

6. Cloud-Services become more
and more important
Dropbox, Evernote, …

7. We need an Android App!
2010

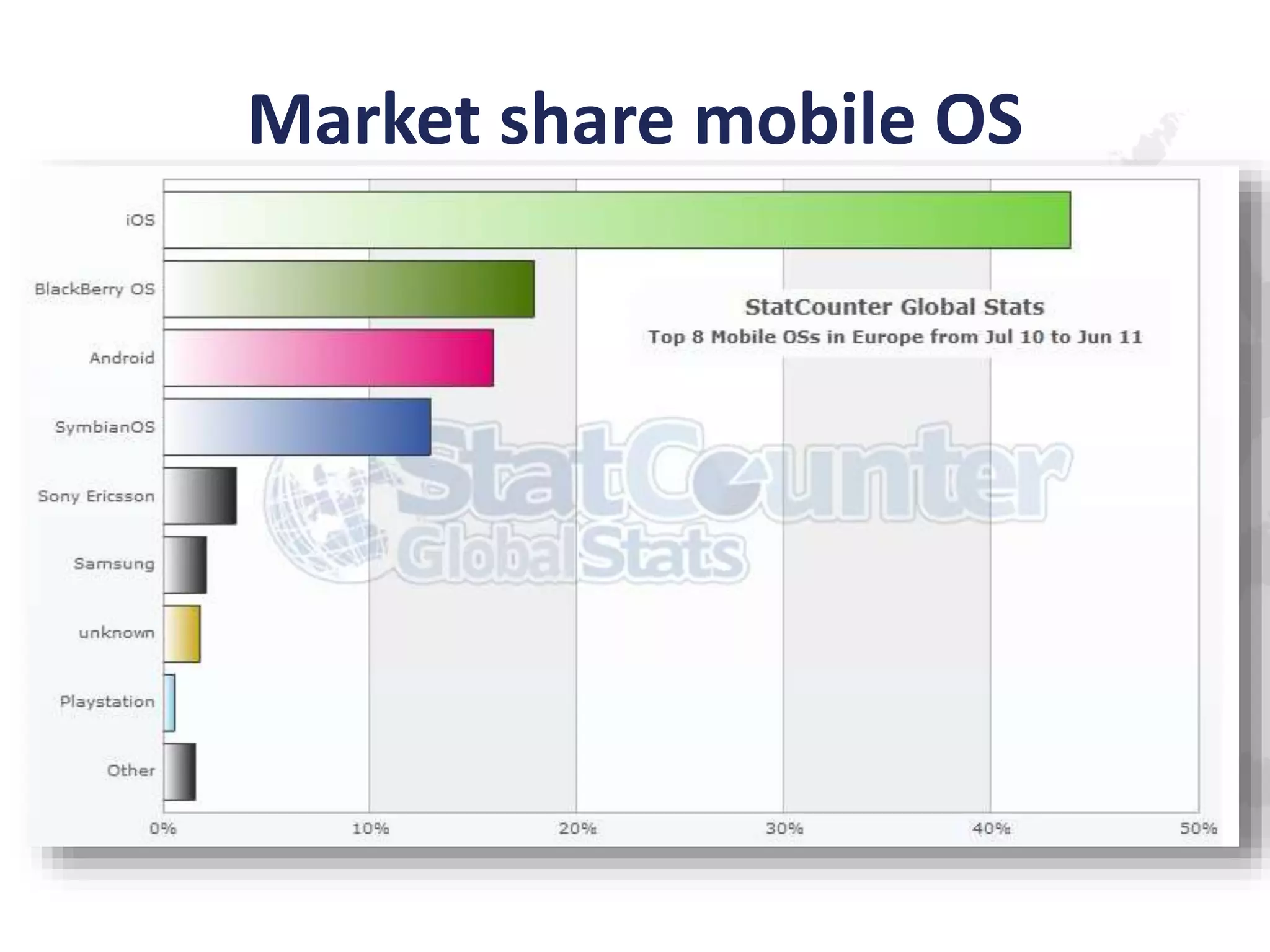

10. Market share mobile OS

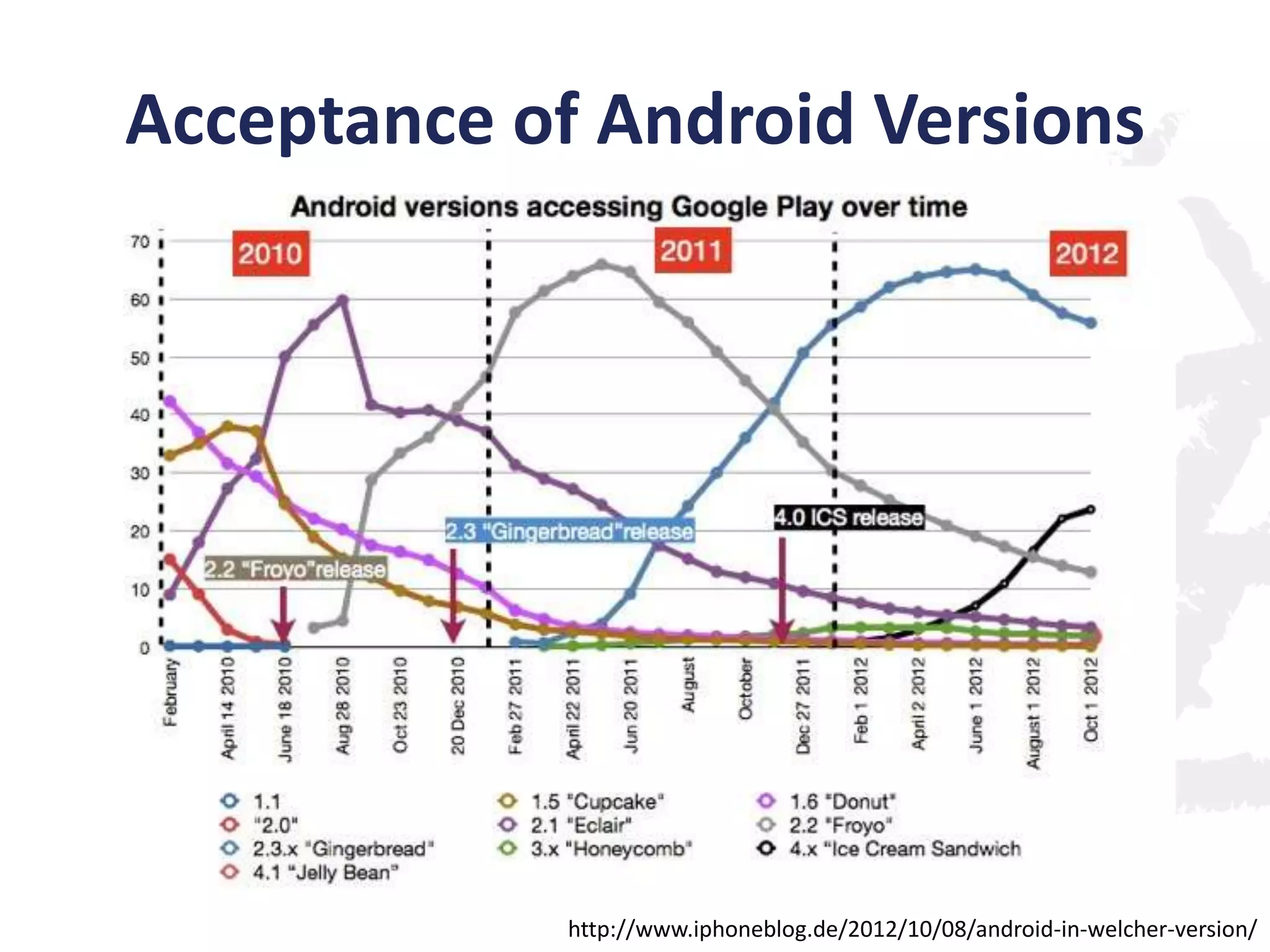

12. Acceptance of Android Versions
http://www.iphoneblog.de/2012/10/08/android-in-welcher-version/

15. The Web: Cross-Plattform
Write Once, run everywhere

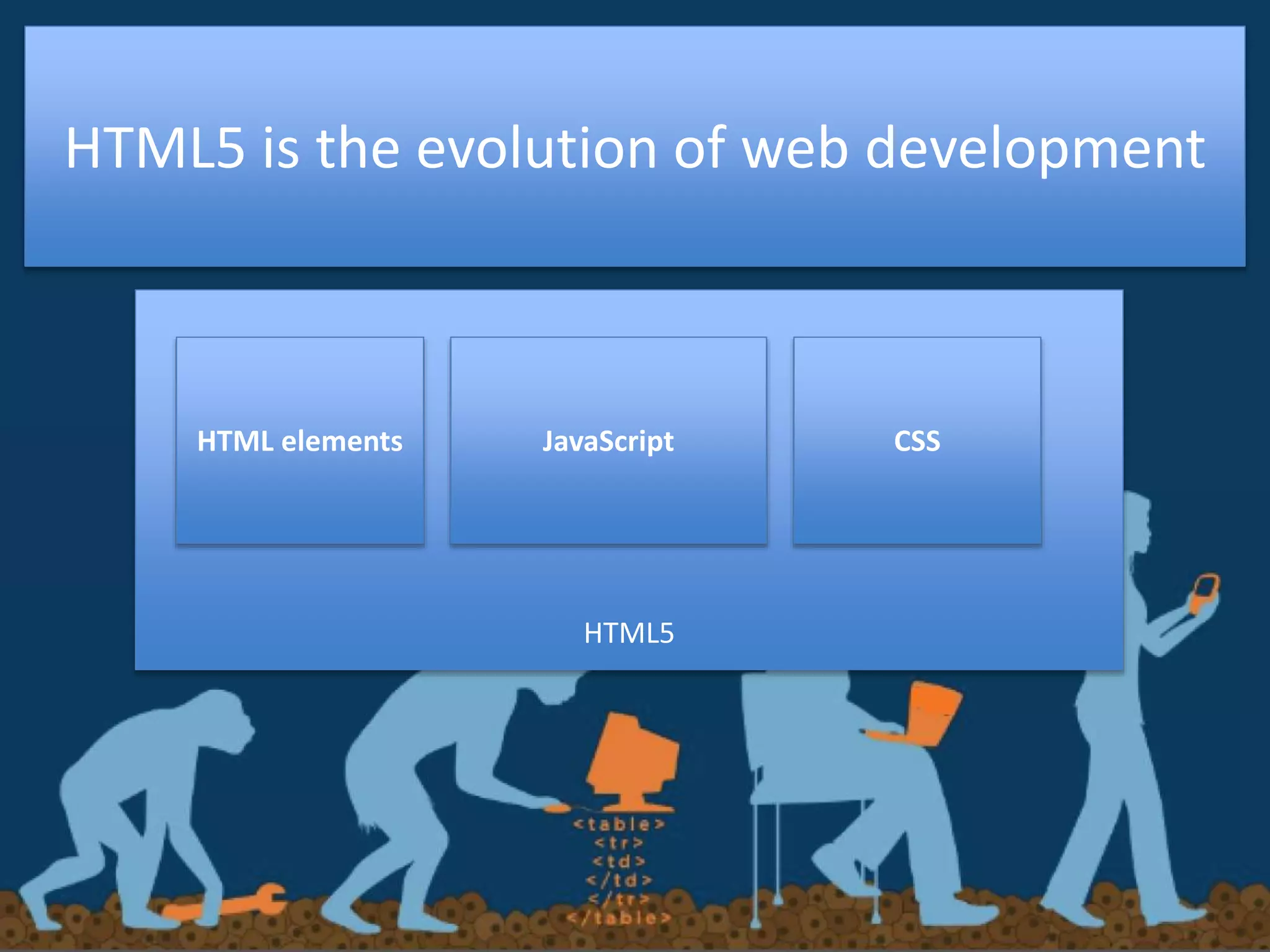

16. HTML5 is the evolution of web development
HTML elements
JavaScript
HTML5
CSS

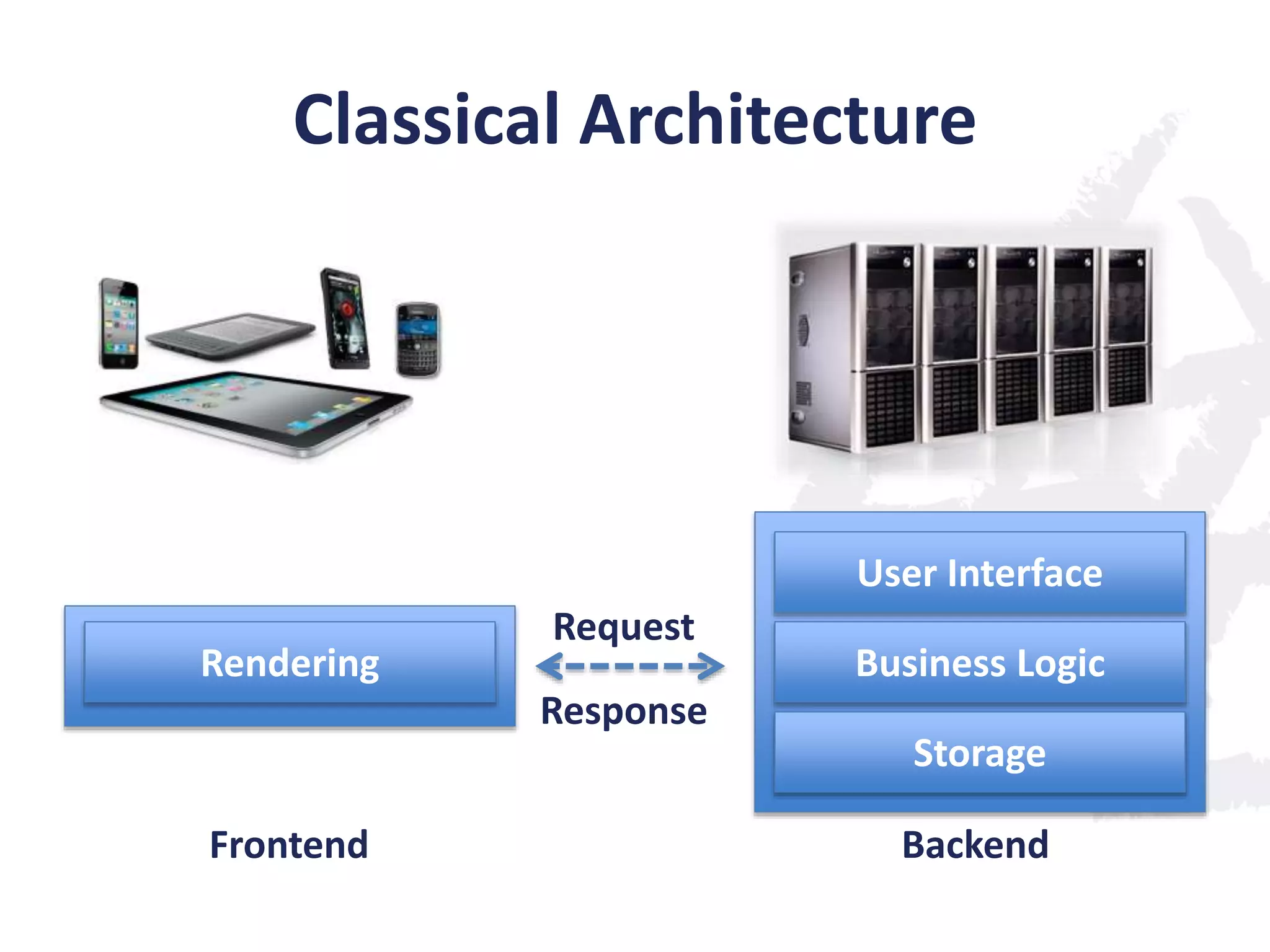

20. Classical Architecture
User Interface
Rendering
Request
Business Logic
Response
Storage
Frontend
Backend

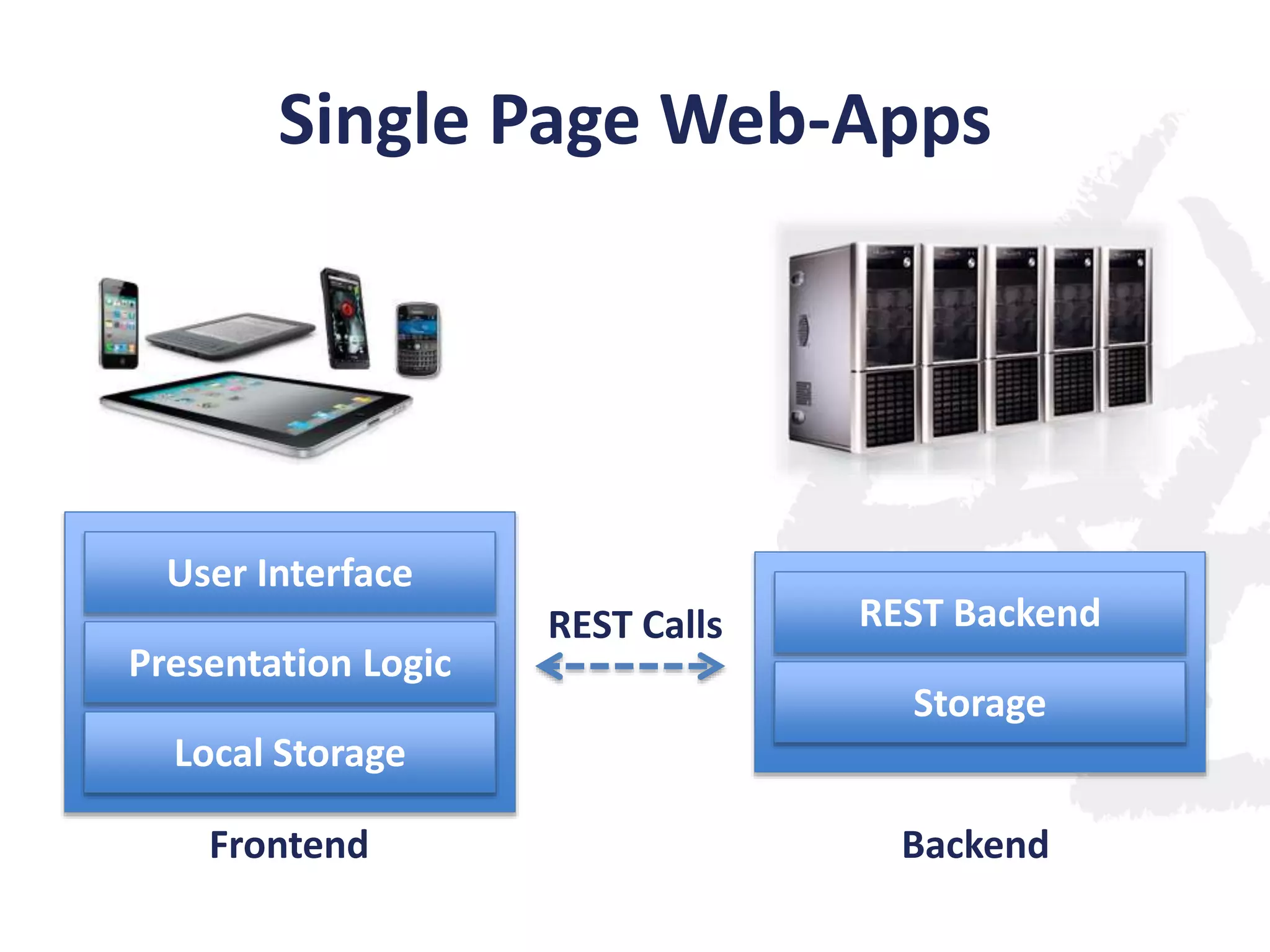

21. Single Page Web-Apps
User Interface
Presentation Logic
REST Calls
REST Backend
Storage
Local Storage
Frontend
Backend

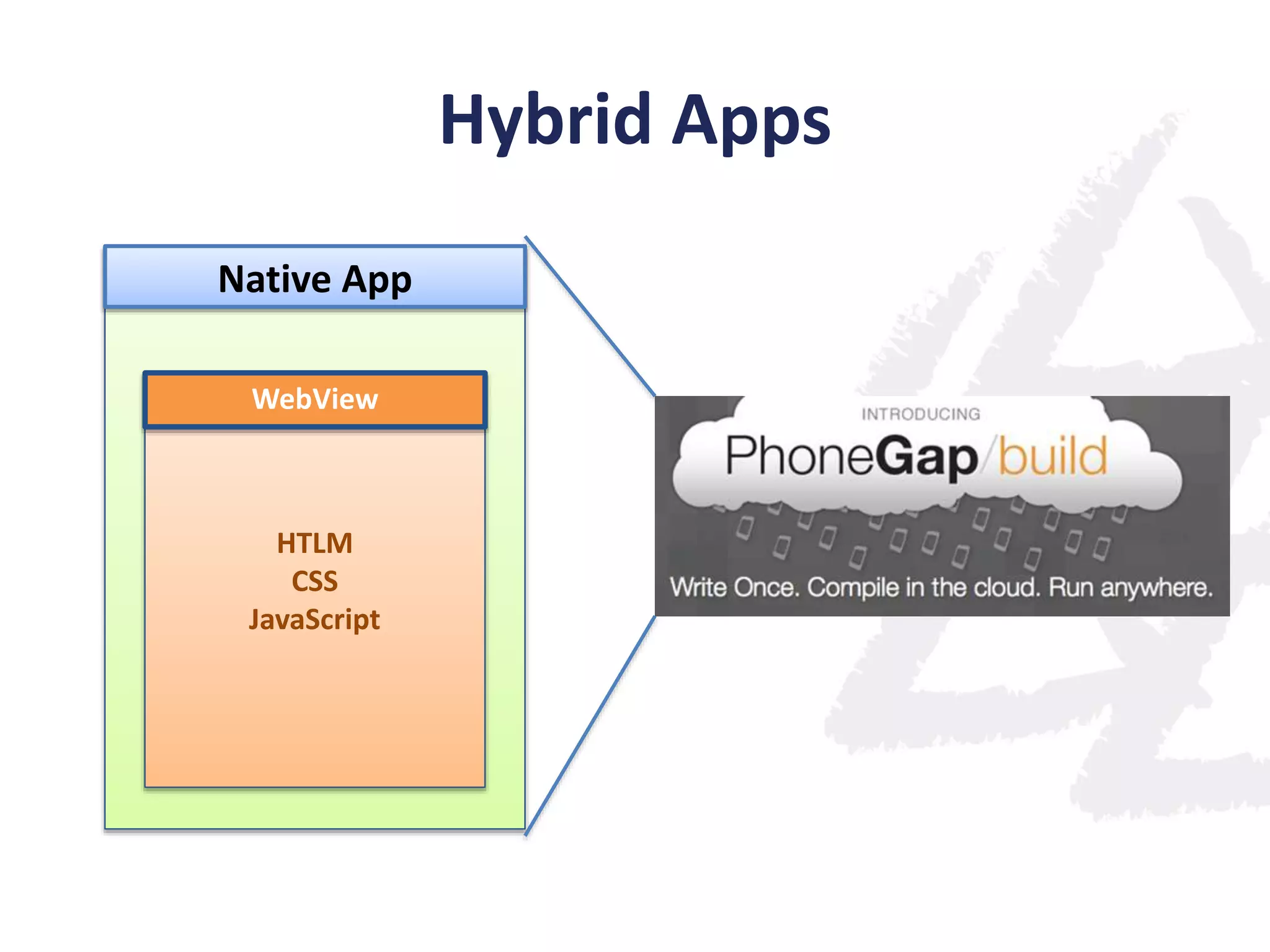

22. Hybrid Apps
Native App
WebView
HTLM
CSS
JavaScript

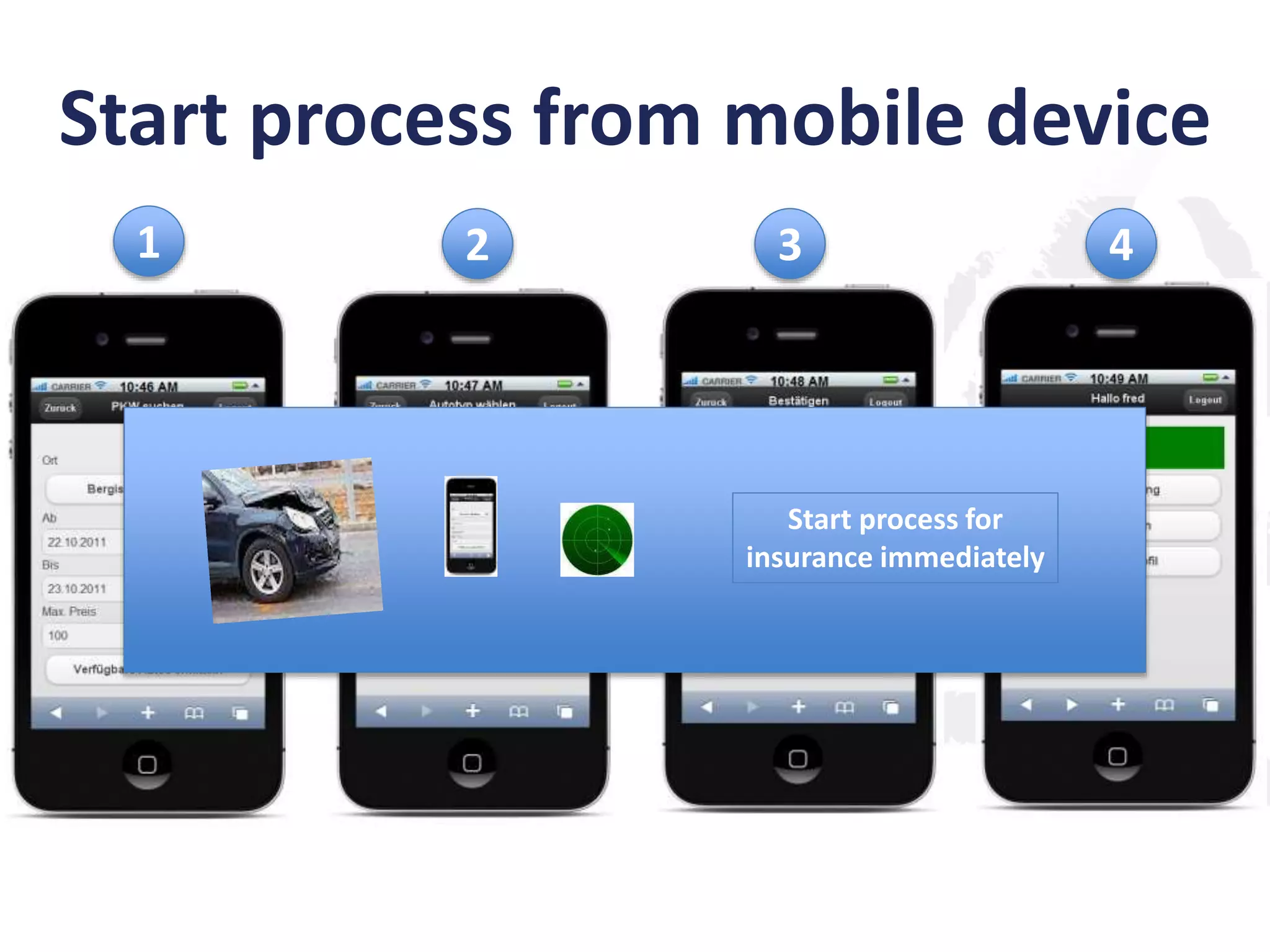

23. Start process from mobile device
1
2
3
Start process for
insurance immediately
4

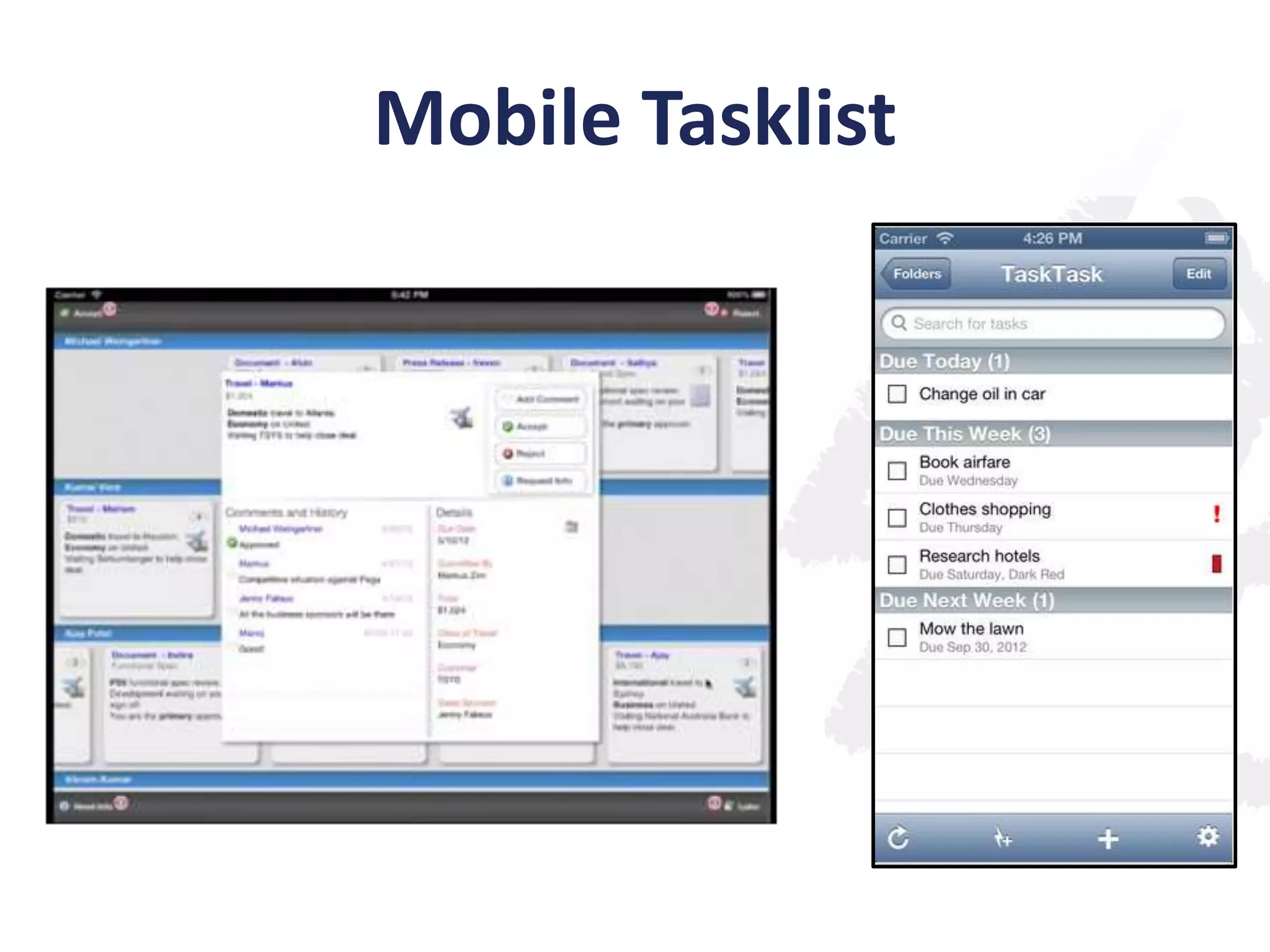

24. Mobile Tasklist

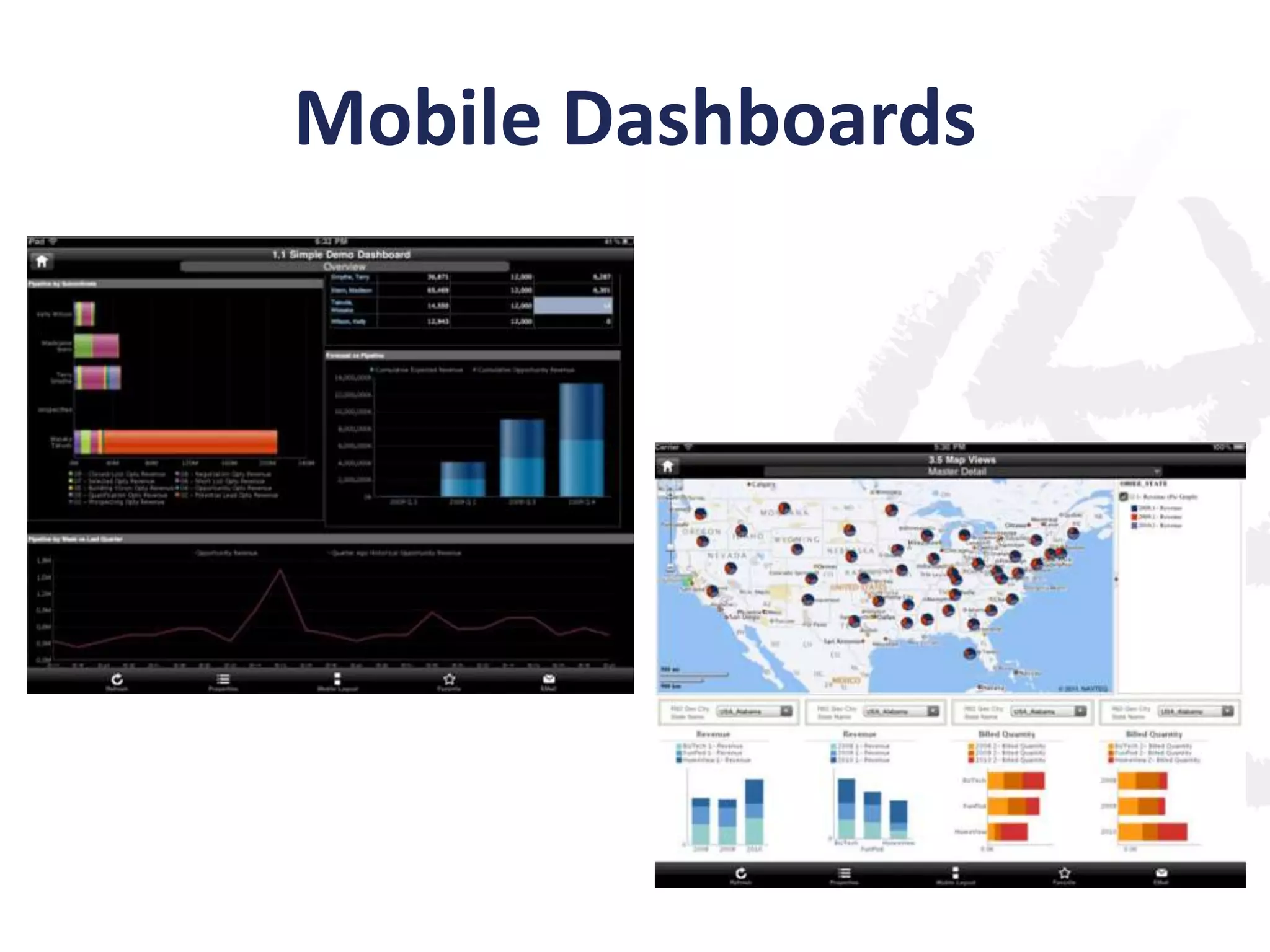

25. Mobile Dashboards

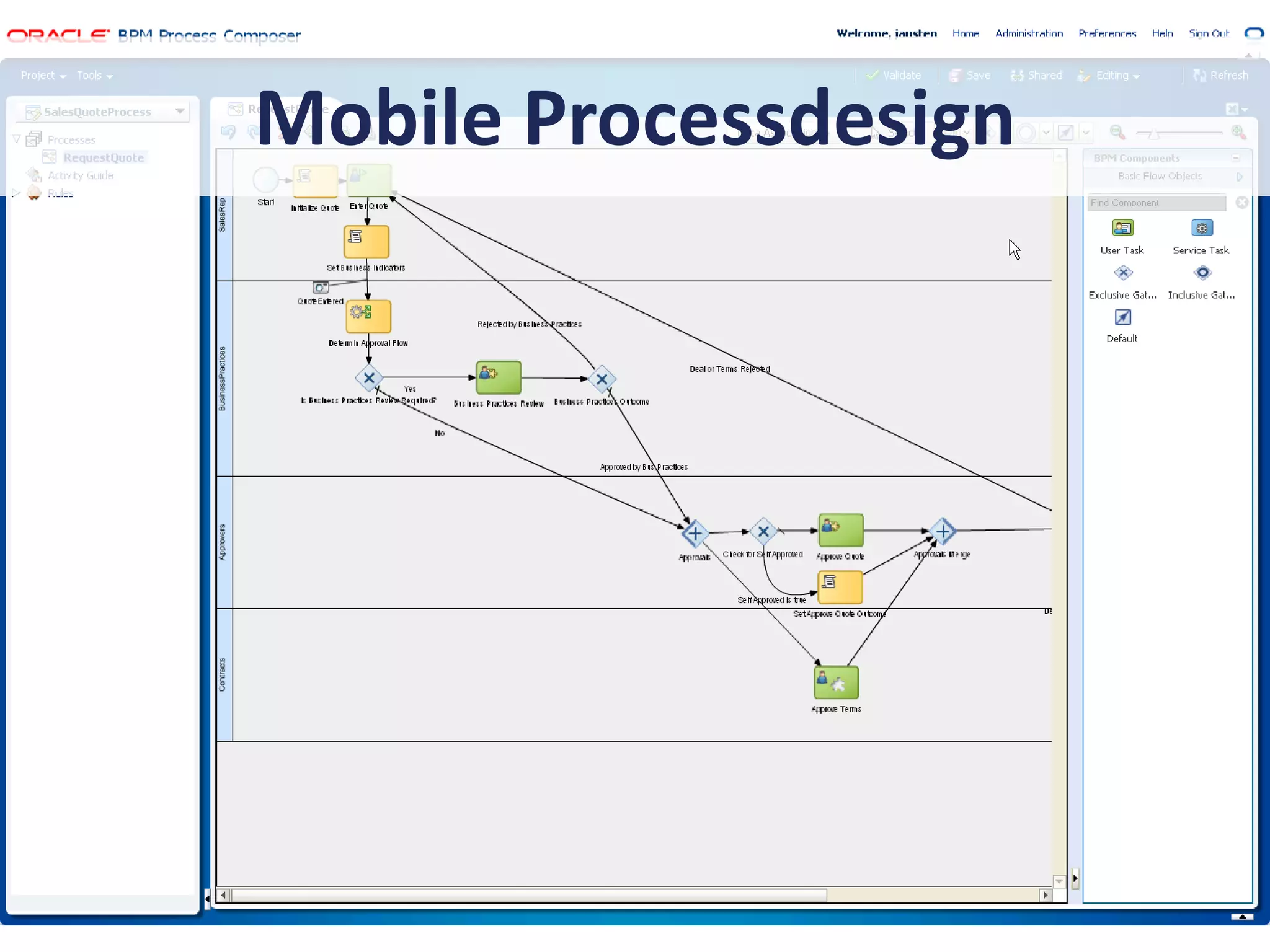

26. Mobile Processdesign

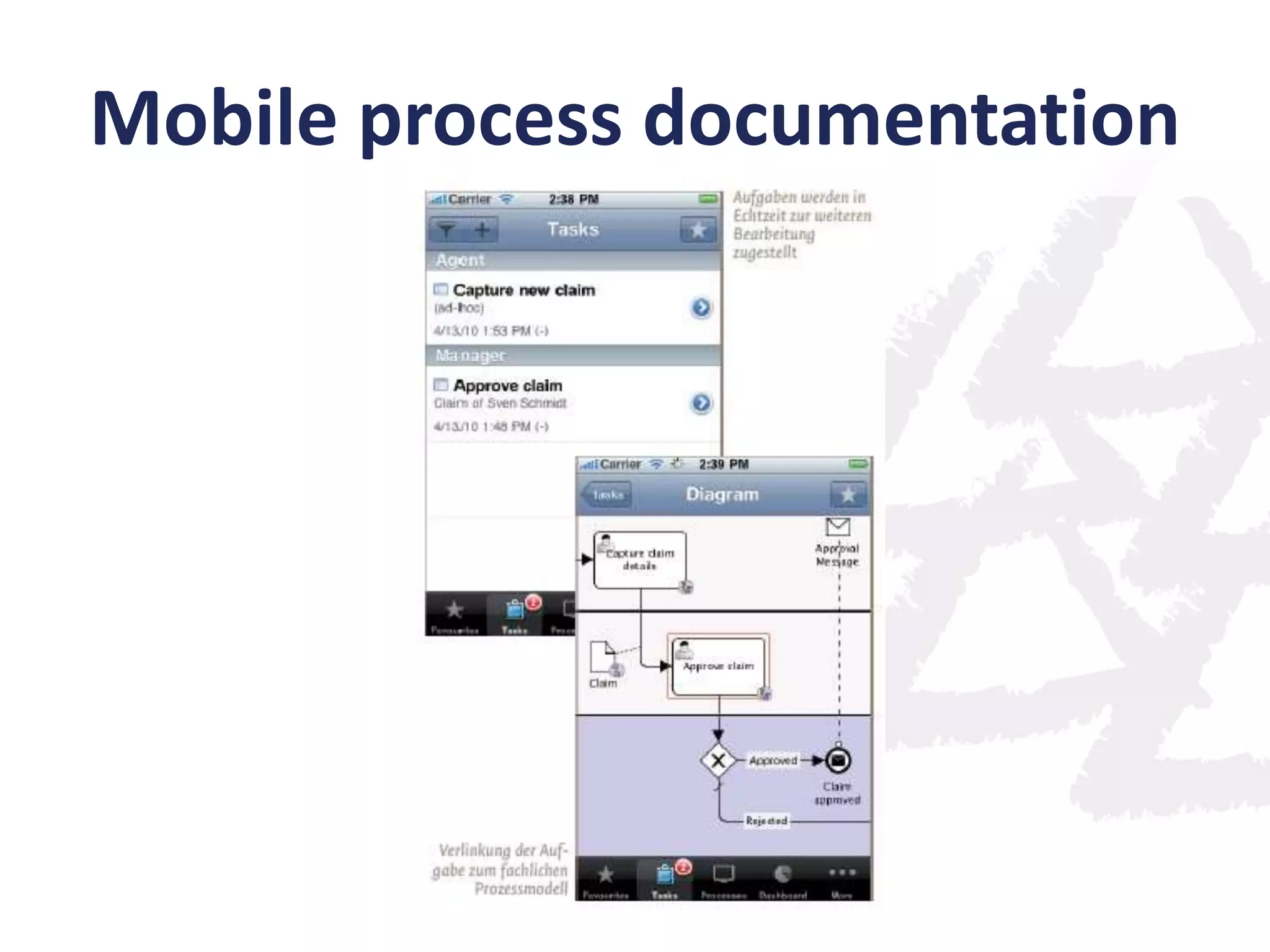

27. Mobile process documentation

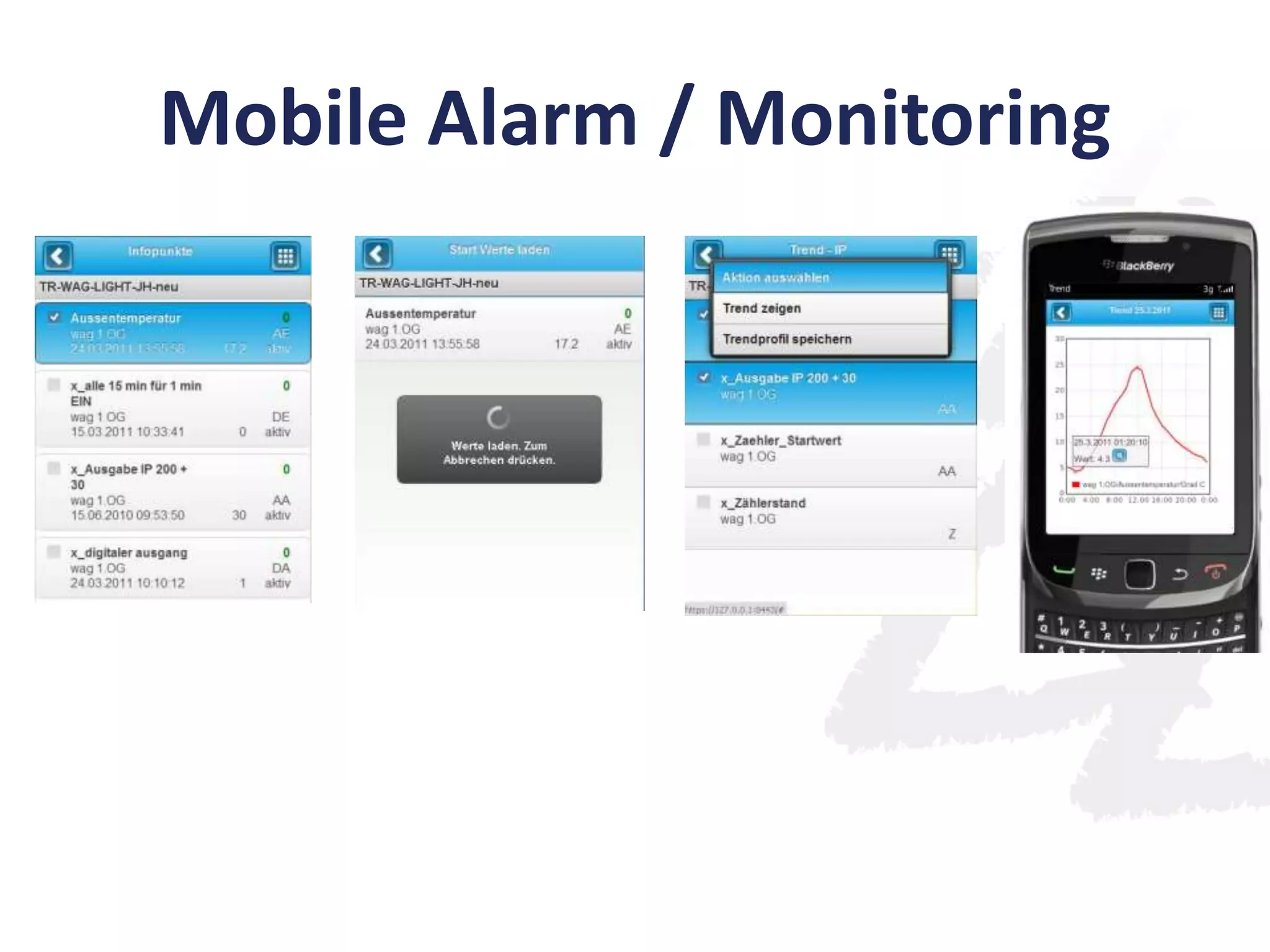

28. Mobile Alarm / Monitoring

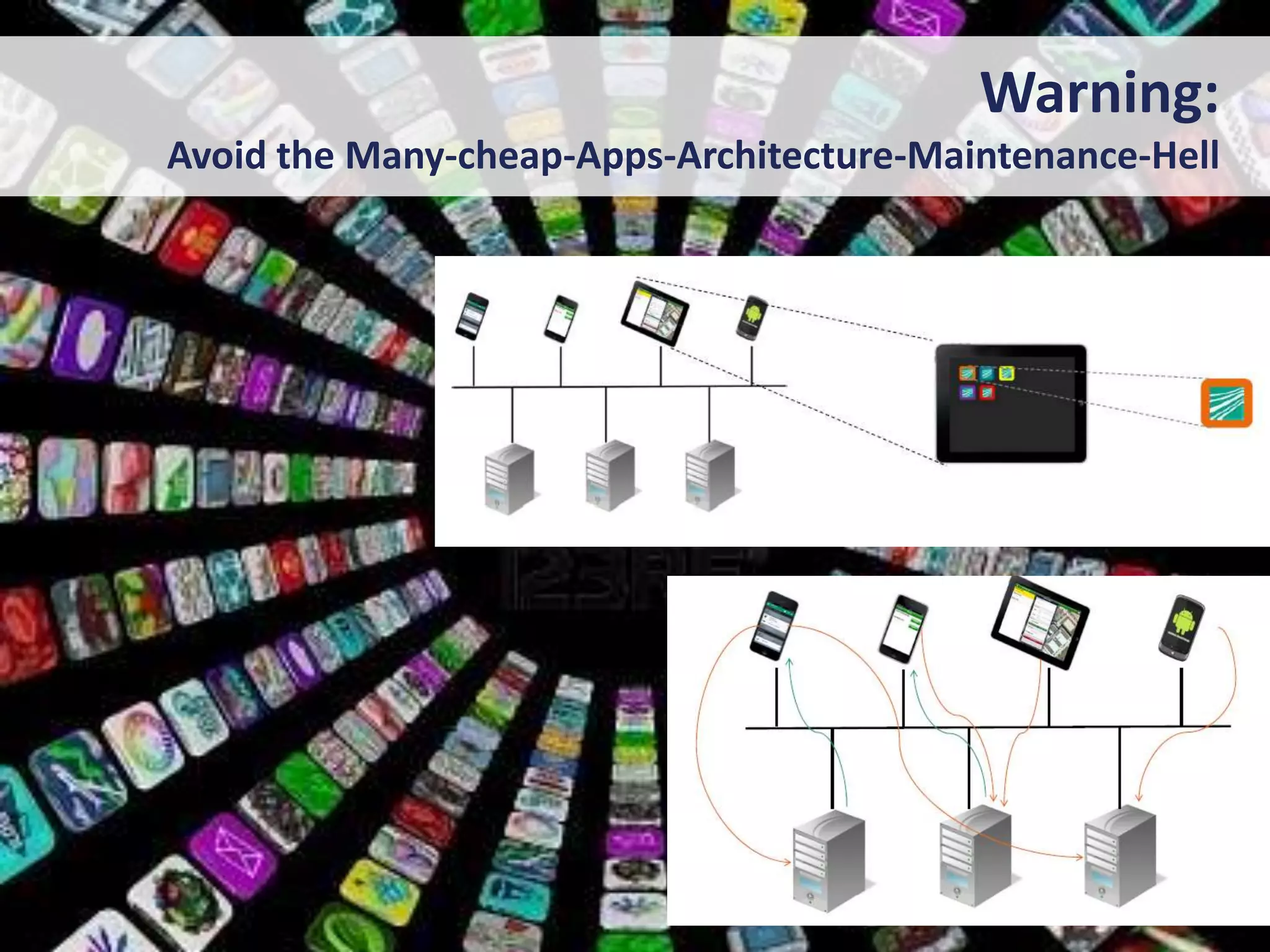

29. Warning:
Avoid the Many-cheap-Apps-Architecture-Maintenance-Hell

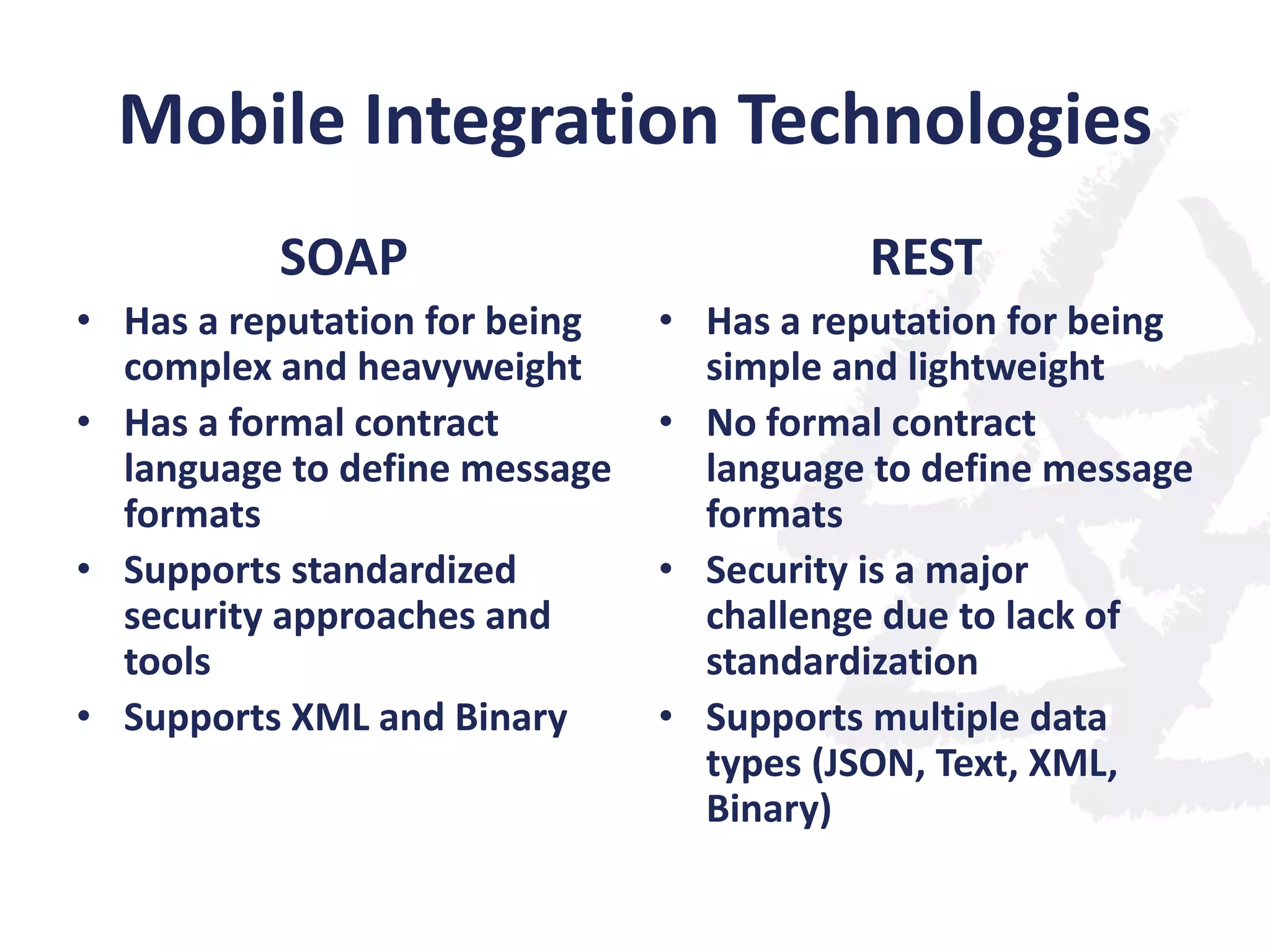

30. Mobile Integration Technologies
SOAP
REST
• Has a reputation for being
complex and heavyweight
• Has a formal contract
language to define message
formats
• Supports standardized
security approaches and
tools
• Supports XML and Binary
• Has a reputation for being
simple and lightweight
• No formal contract
language to define message
formats
• Security is a major
challenge due to lack of
standardization
• Supports multiple data
types (JSON, Text, XML,
Binary)

31. Mobile Integration Patterns
SOAP Style
34
REST Style

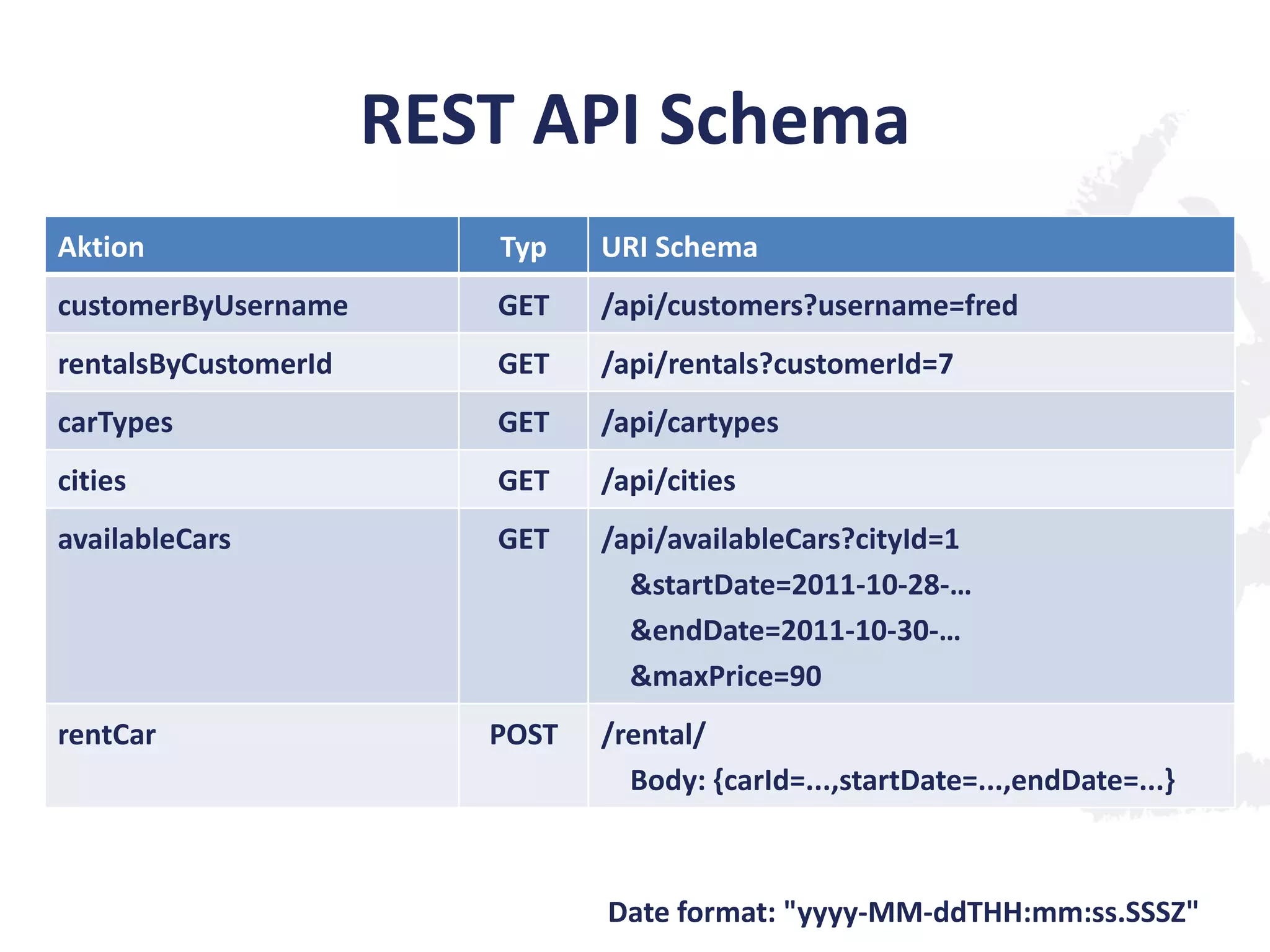

32. REST API Schema
Aktion
Typ
URI Schema
customerByUsername
GET
/api/customers?username=fred
rentalsByCustomerId
GET
/api/rentals?customerId=7
carTypes
GET
/api/cartypes
cities
GET
/api/cities
availableCars
GET
/api/availableCars?cityId=1
&startDate=2011-10-28-…
&endDate=2011-10-30-…
&maxPrice=90
rentCar
POST
/rental/
Body: {carId=...,startDate=...,endDate=...}
Date format: "yyyy-MM-ddTHH:mm:ss.SSSZ"

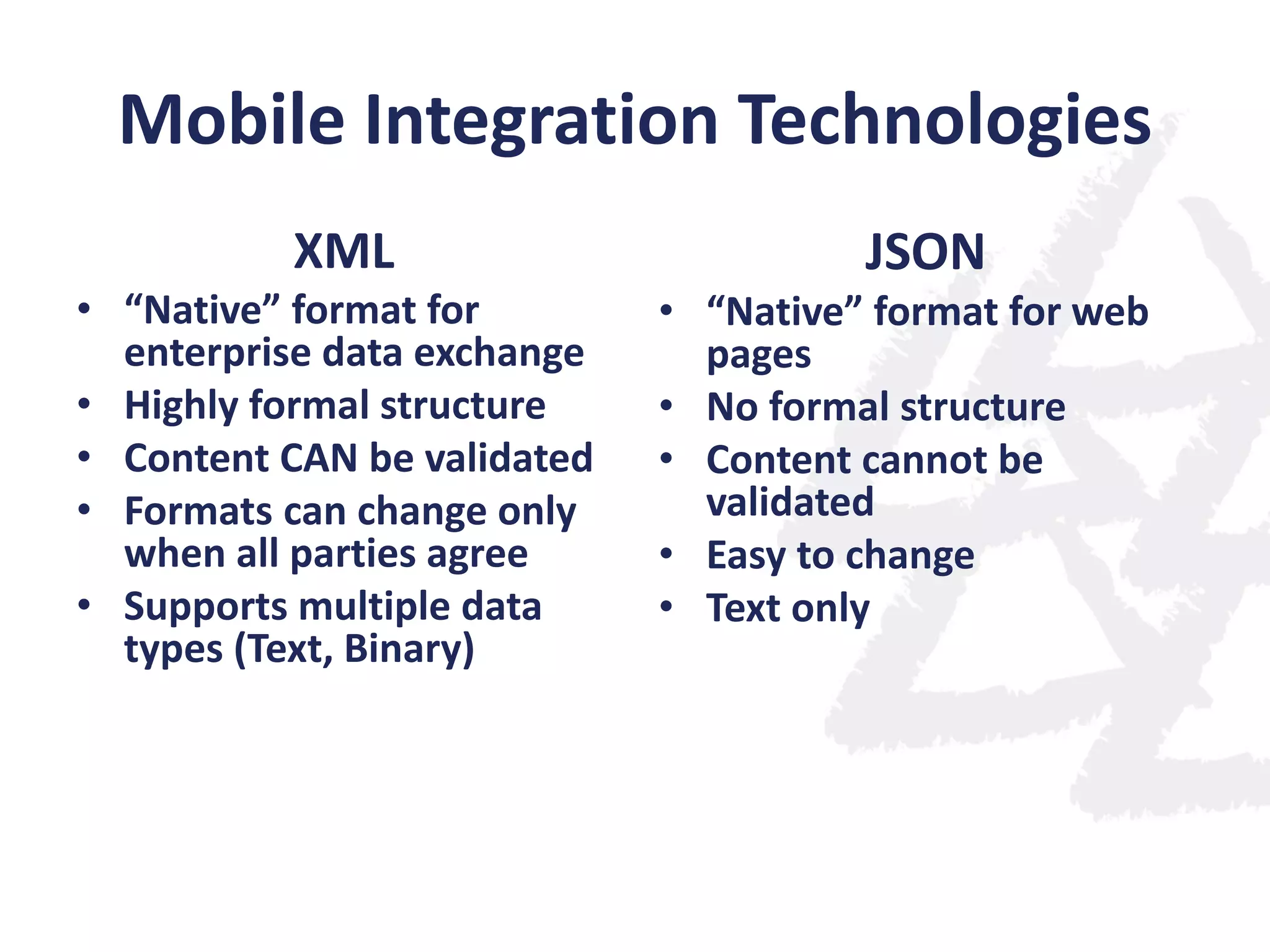

33. Mobile Integration Technologies
XML
• “Native” format for
enterprise data exchange
• Highly formal structure
• Content CAN be validated
• Formats can change only
when all parties agree
• Supports multiple data
types (Text, Binary)
JSON
• “Native” format for web
pages
• No formal structure
• Content cannot be
validated
• Easy to change
• Text only

34. Mobile Integration Patterns
REST: URI addressing and data representation
37

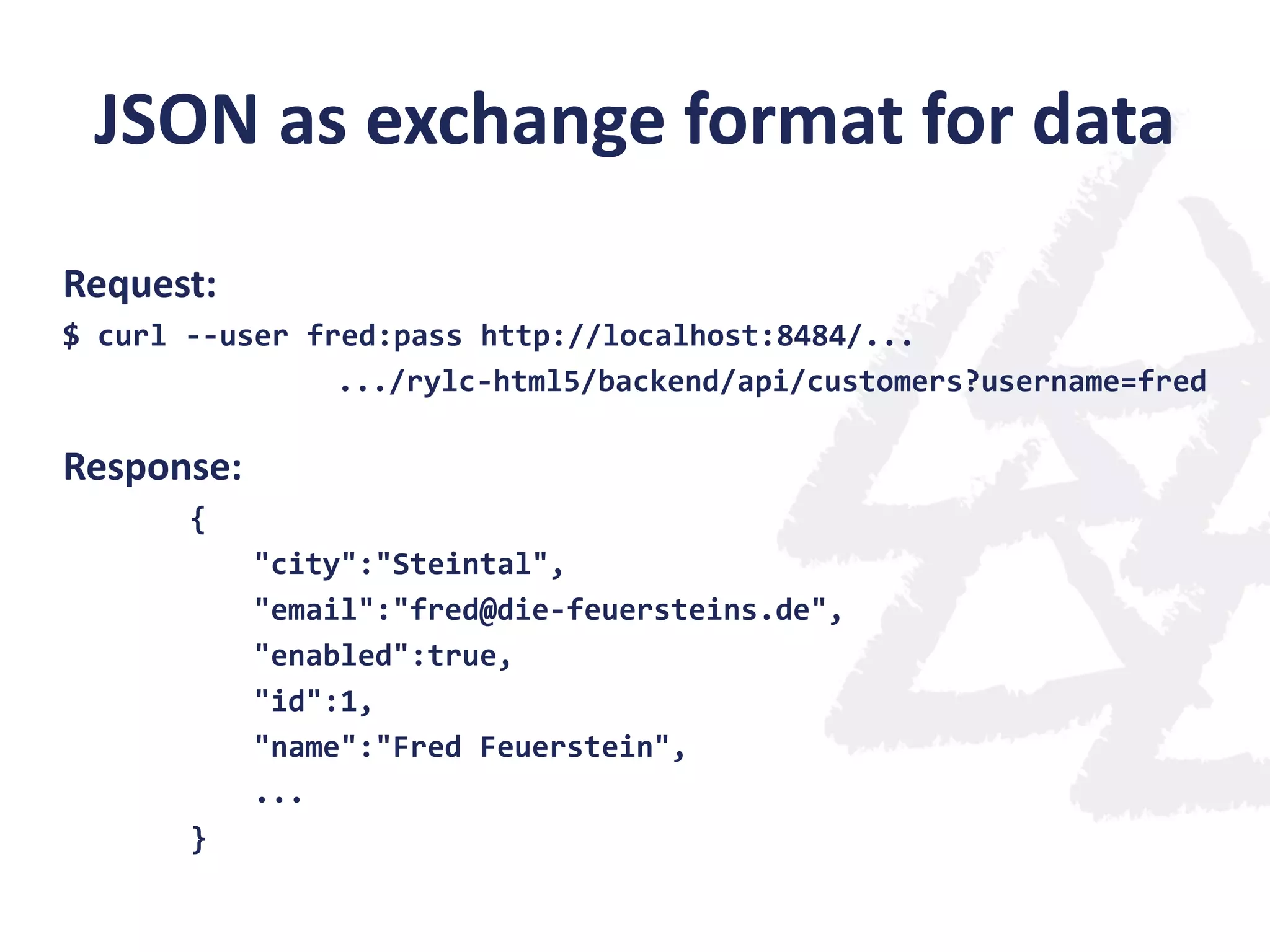

35. JSON as exchange format for data
Request:
$ curl --user fred:pass http://localhost:8484/...
.../rylc-html5/backend/api/customers?username=fred
Response:
{
"city":"Steintal",
"email":"fred@die-feuersteins.de",
"enabled":true,
"id":1,
"name":"Fred Feuerstein",
...
}

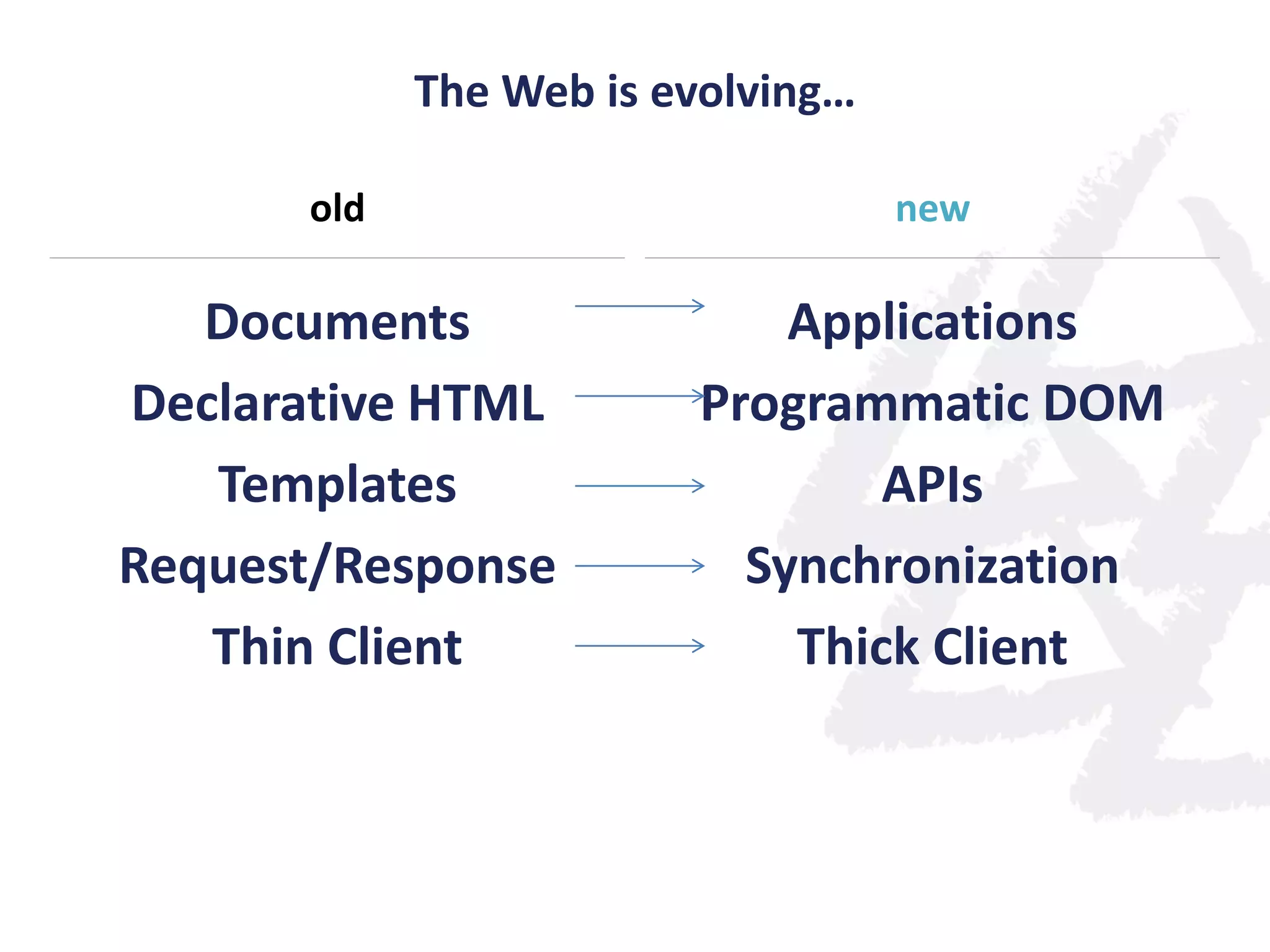

36. The Web is evolving…
old
new
Documents
Declarative HTML
Templates
Request/Response
Thin Client
Applications
Programmatic DOM
APIs
Synchronization
Thick Client

37. Digital Natives

38. Back to terminator vision

39. Google Glasses
Google Glasses
© http://www.flickr.com/photos/azugaldia/7457645618

40. Internet of Things

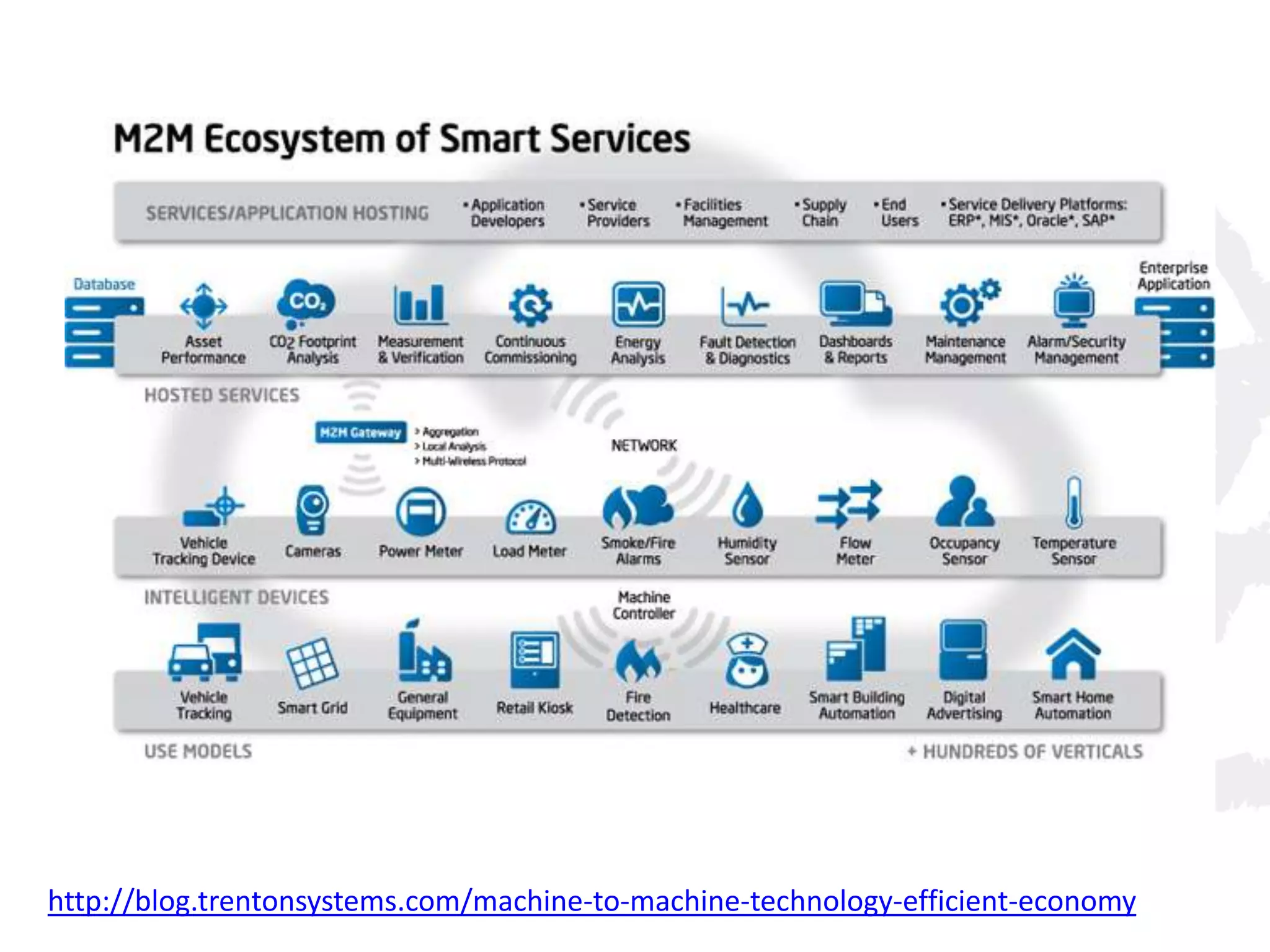

41. http://blog.trentonsystems.com/machine-to-machine-technology-efficient-economy

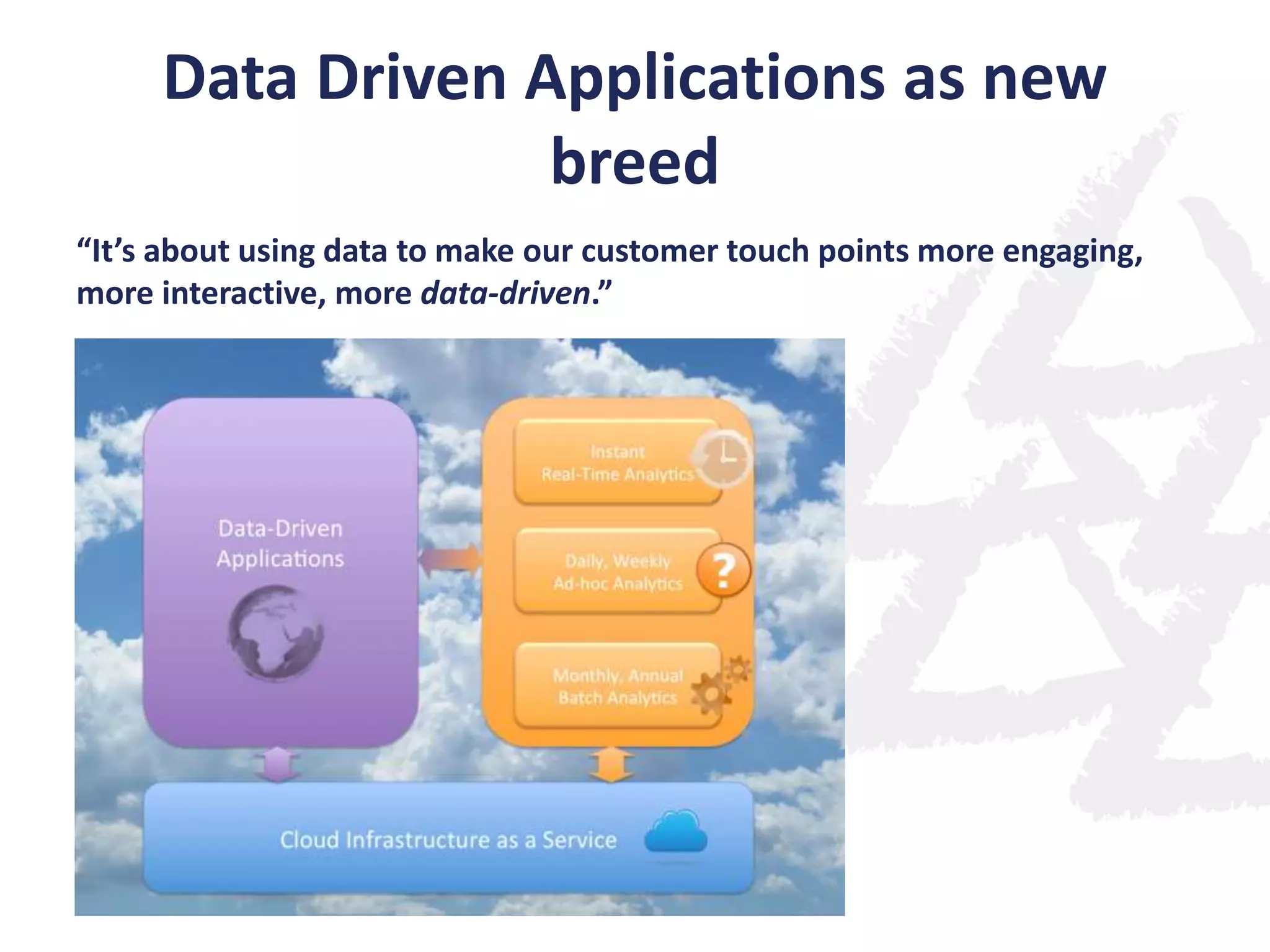

43. Data Driven Applications as new
breed
“It’s about using data to make our customer touch points more engaging,
more interactive, more data-driven.”

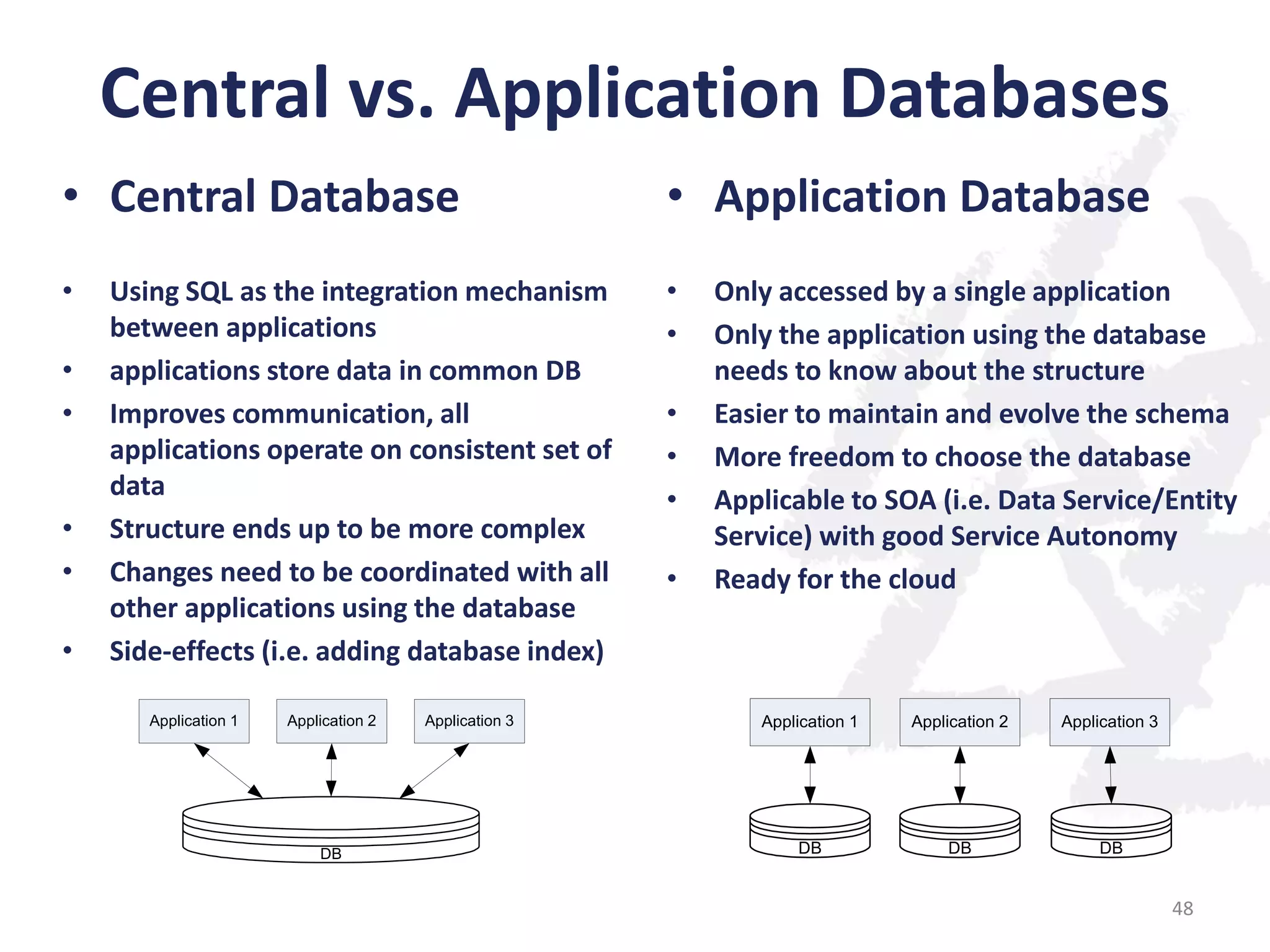

44. Central vs. Application Databases
• Central Database
• Application Database
•
•
•
•
•
•
•
•
Using SQL as the integration mechanism
between applications
applications store data in common DB
Improves communication, all
applications operate on consistent set of
data
Structure ends up to be more complex
Changes need to be coordinated with all
other applications using the database
Side-effects (i.e. adding database index)
Application 1
Application 2
DB
Application 3
•
•
•
•
Only accessed by a single application
Only the application using the database
needs to know about the structure
Easier to maintain and evolve the schema
More freedom to choose the database
Applicable to SOA (i.e. Data Service/Entity
Service) with good Service Autonomy
Ready for the cloud
Application 1
Application 2
Application 3
DB
DB
DB
48

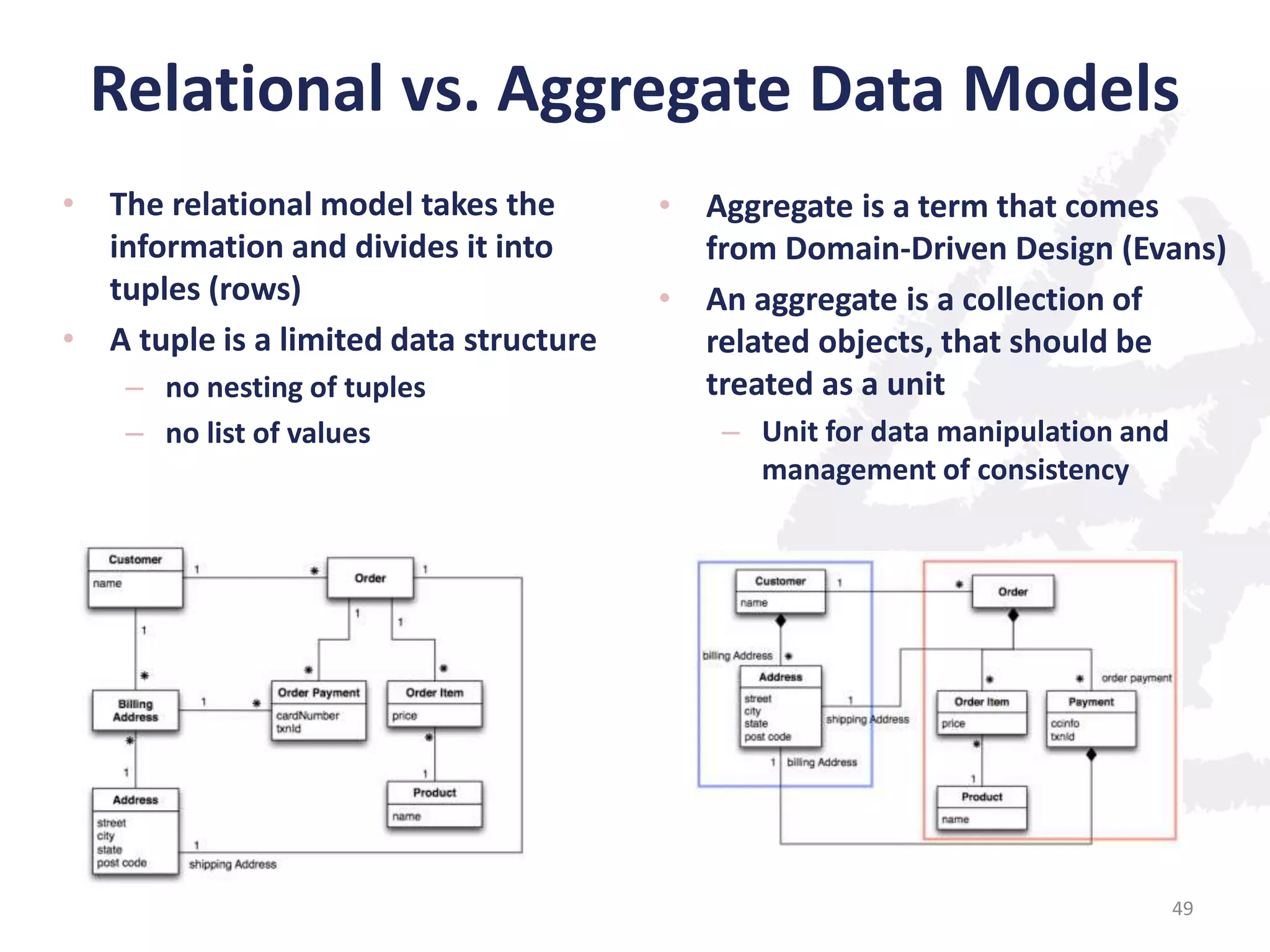

45. Relational vs. Aggregate Data Models
• The relational model takes the
information and divides it into
tuples (rows)
• A tuple is a limited data structure
– no nesting of tuples
– no list of values
• Aggregate is a term that comes
from Domain-Driven Design (Evans)
• An aggregate is a collection of
related objects, that should be
treated as a unit
– Unit for data manipulation and
management of consistency
49

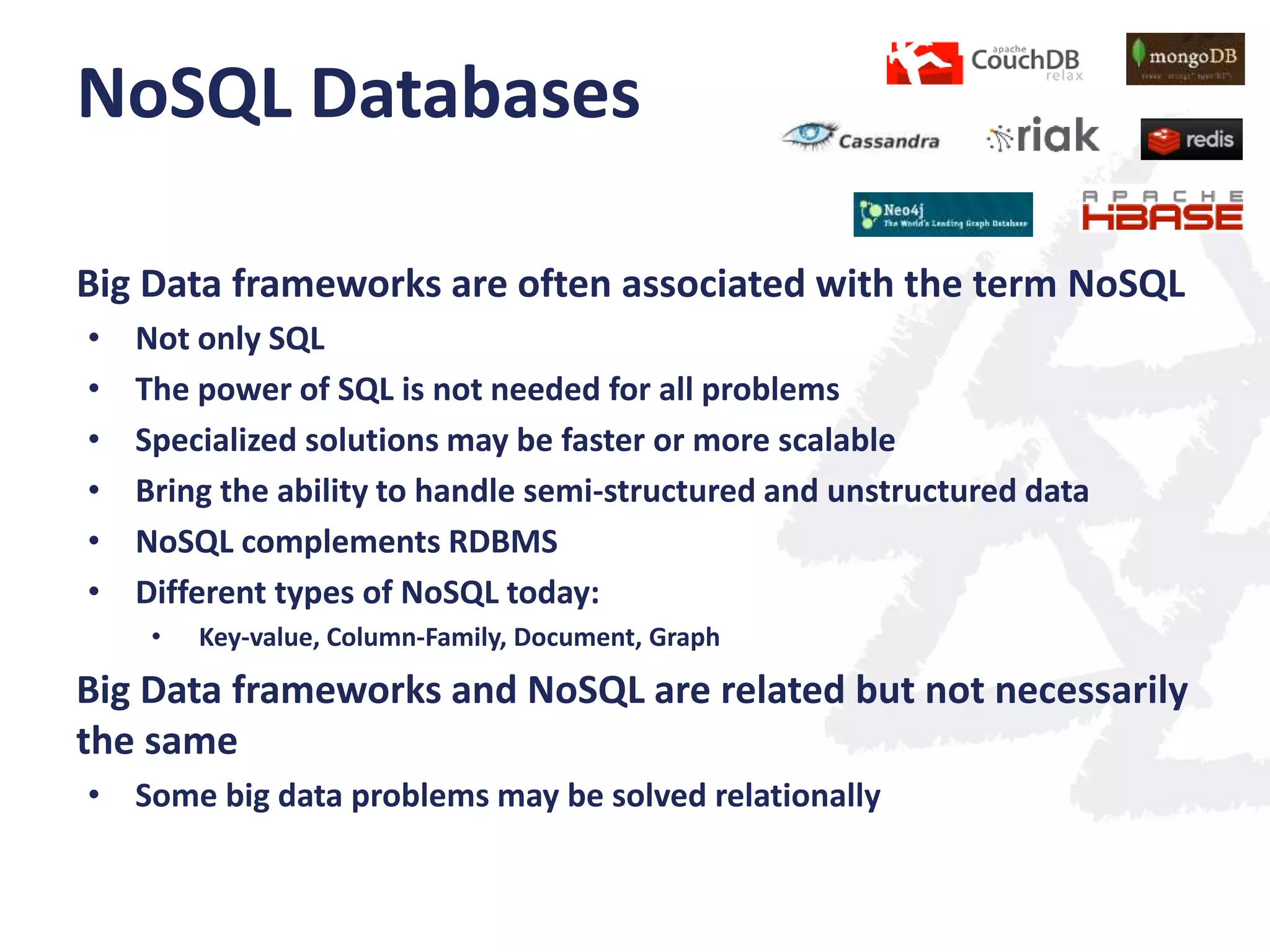

46. NoSQL Databases
Big Data frameworks are often associated with the term NoSQL
•
•
•
•
•
•
Not only SQL
The power of SQL is not needed for all problems
Specialized solutions may be faster or more scalable
Bring the ability to handle semi-structured and unstructured data
NoSQL complements RDBMS
Different types of NoSQL today:
•
Key-value, Column-Family, Document, Graph
Big Data frameworks and NoSQL are related but not necessarily
the same
• Some big data problems may be solved relationally

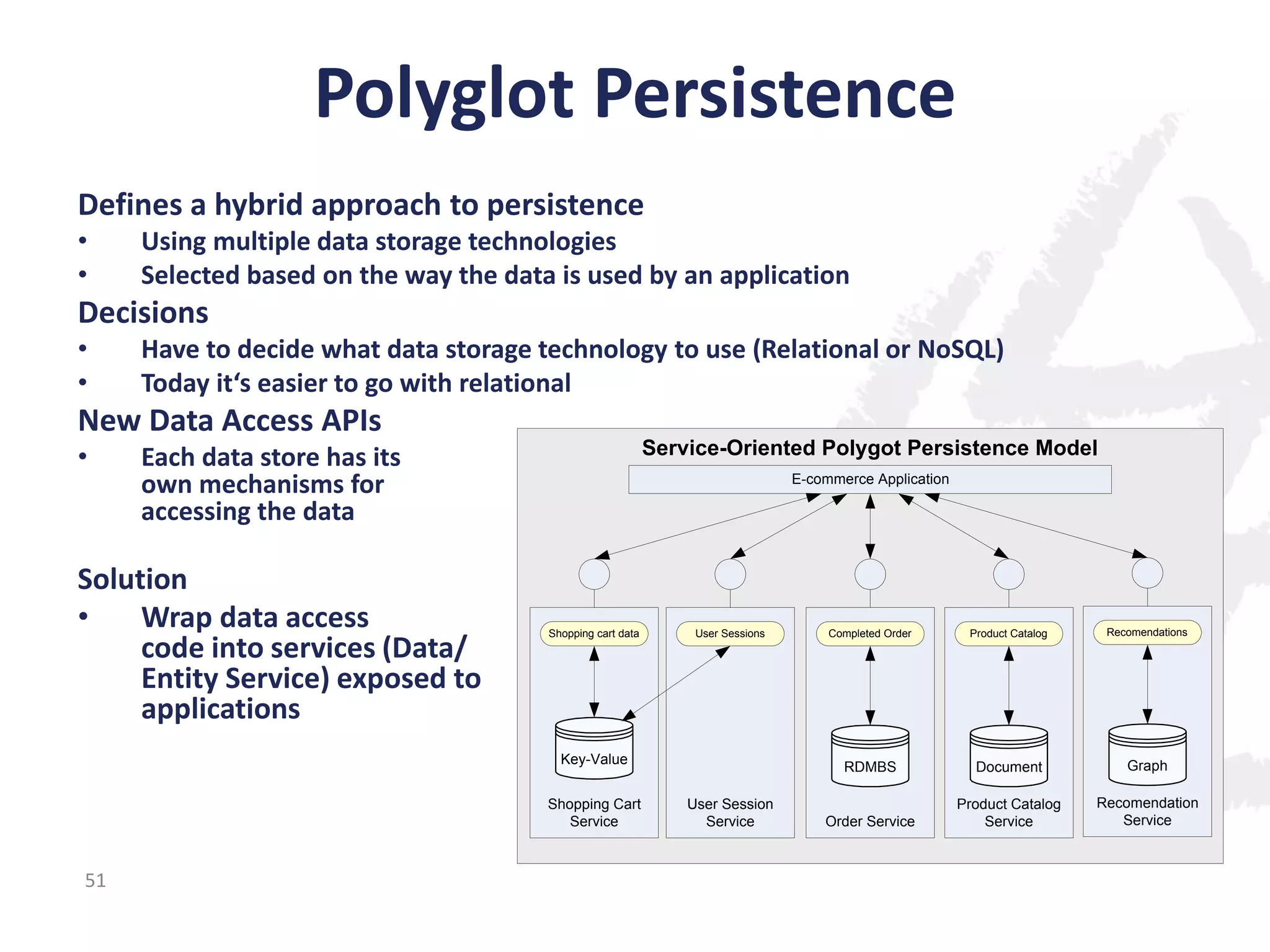

47. Polyglot Persistence
Defines a hybrid approach to persistence
•
•
Using multiple data storage technologies
Selected based on the way the data is used by an application
Decisions
•
•
Have to decide what data storage technology to use (Relational or NoSQL)
Today it‘s easier to go with relational
New Data Access APIs
•
Service-Oriented Polygot Persistence Model
Each data store has its
own mechanisms for
accessing the data
Solution
•
Wrap data access
code into services (Data/
Entity Service) exposed to
applications
E-commerce Application
Shopping cart data
Key-Value
Shopping Cart
Service
51
User Session
Service
Completed Order
Product Catalog
Recomendations
RDMBS
User Sessions
Document
Graph
Order Service
Product Catalog
Service
Recomendation
Service

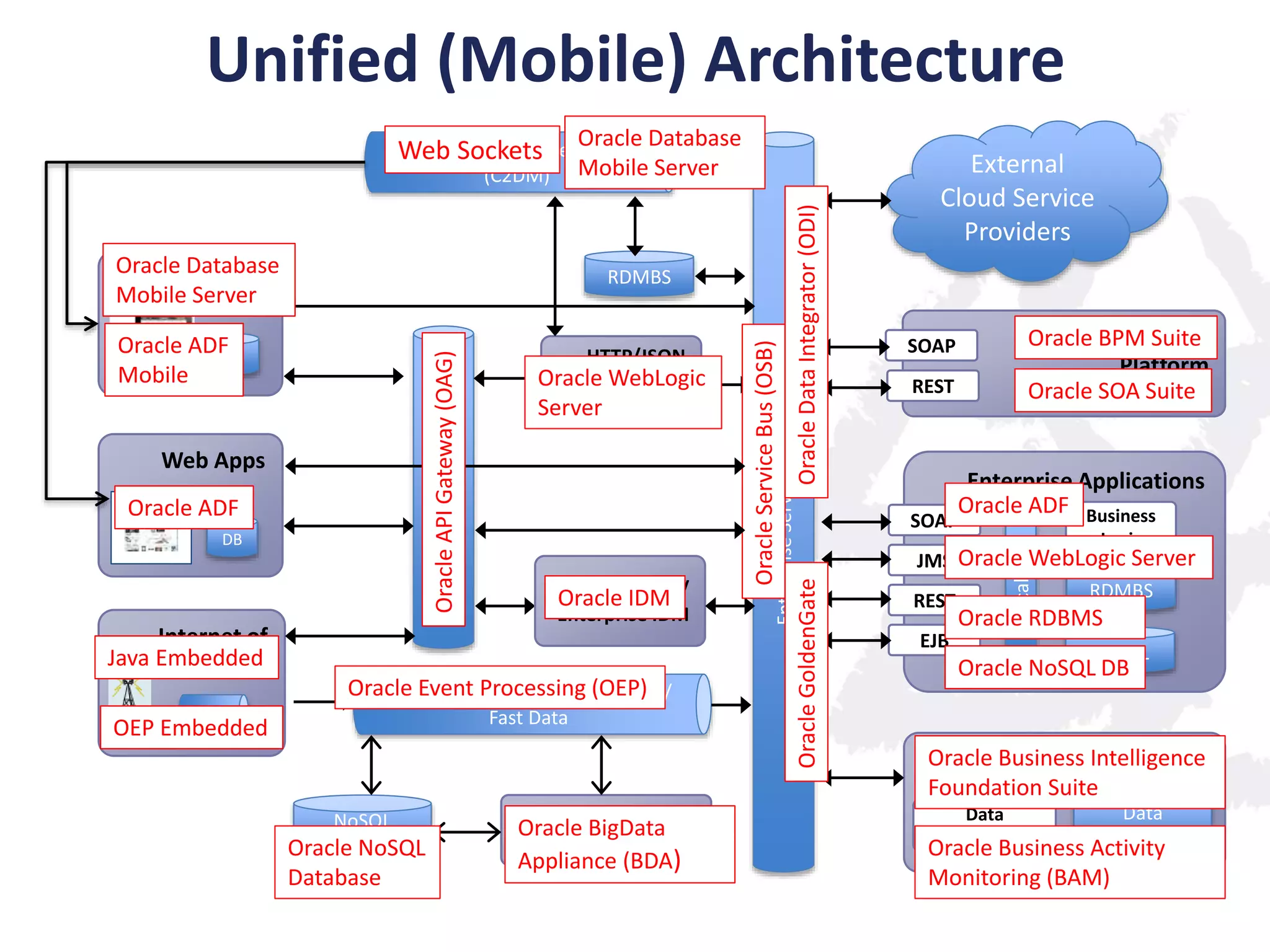

48. Unified (Mobile) Architecture
Web Apps
53
Oracle ADF
DB
Internet of
Java Embedded
Things
HTTP/JSON
Oracle WebLogic
Application
Server Server
LDAP
Oracle IDM /
Enterprise IDM
Oracle Event Processing (OEP) /
Complex Event Processing (CEP)
CEP
Fast Data
OEP Embedded
NoSQL
/ BigNoSQL
Oracle Data
Database
(Big) Data
Oracle BigData
Analytics
Appliance (BDA)
Enterprise Service Bus (ESB)
Service Gateway
Oracle API Gateway (OAG)
Oracle ADF
DB
Mobile
Oracle Service Bus (OSB)
RDMBS
Oracle GoldenGate
Oracle Database
Mobile Apps
Mobile Server
Oracle Data Integrator (ODI)
Mobile Server
(C2DM)
External
Cloud Service
Providers
BPM und SOA
Oracle BPM Suite
Platform
Oracle SOA Suite
SOAP
REST
Enterprise Applications
Oracle ADF Business
SOAP
Local ESB
Oracle
Cloud Sockets
Web to Device Messaging Database
Logic
JMS Oracle WebLogic Server
RDMBS
REST
EJB
Oracle RDBMS
NoSQL
Oracle NoSQL DB
Oracle Business Intelligence
Analytical Applications
Foundation Suite
Data
Integration
Data
Warehouse
Oracle Business Activity
Monitoring (BAM)

49. Conclusion

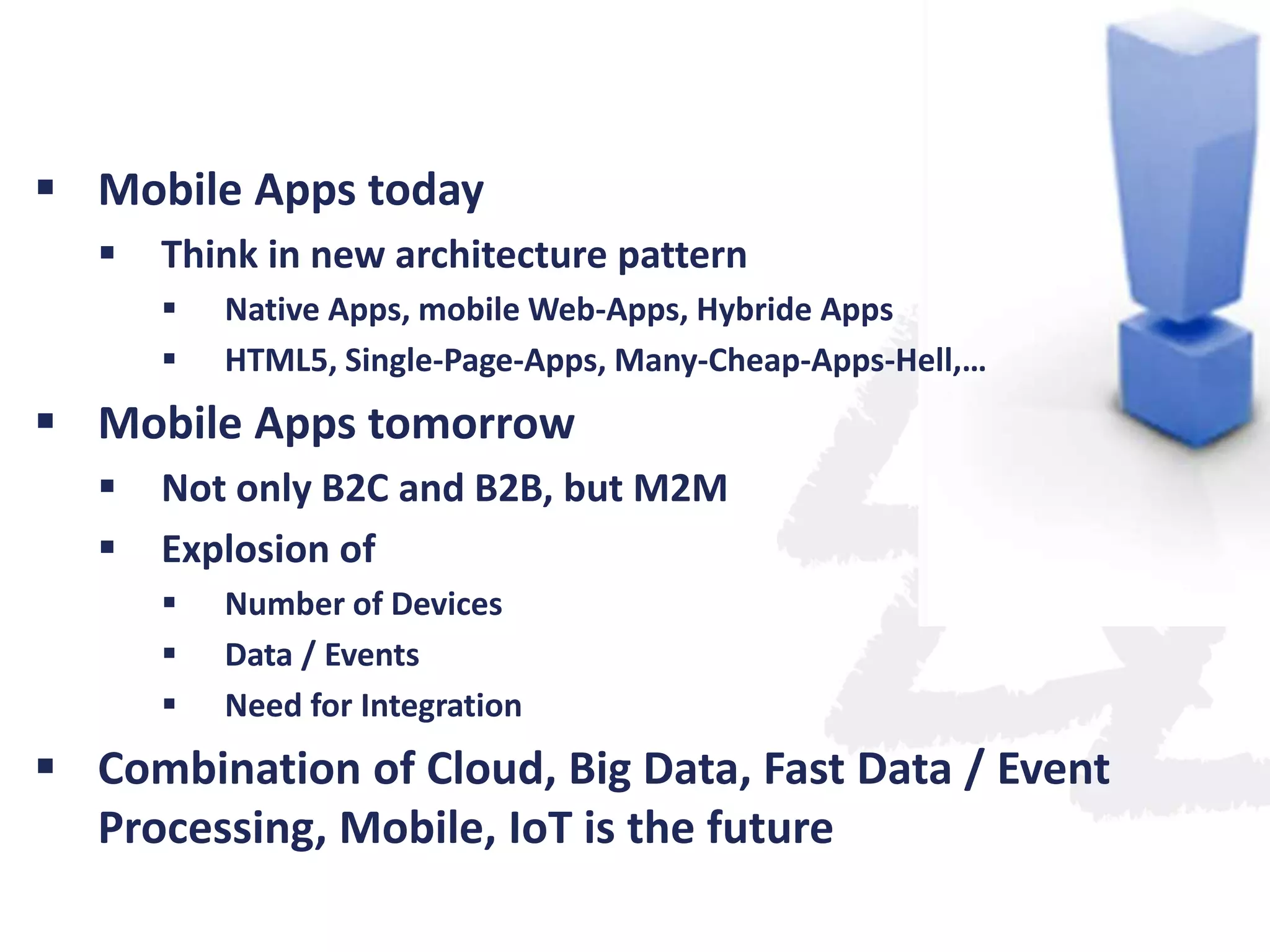

50.  Mobile Apps today

Think in new architecture pattern


Native Apps, mobile Web-Apps, Hybride Apps
HTML5, Single-Page-Apps, Many-Cheap-Apps-Hell,…
 Mobile Apps tomorrow


Not only B2C and B2B, but M2M
Explosion of



Number of Devices
Data / Events
Need for Integration
 Combination of Cloud, Big Data, Fast Data / Event
Processing, Mobile, IoT is the future

51. Oracle products fitting in this
architecture

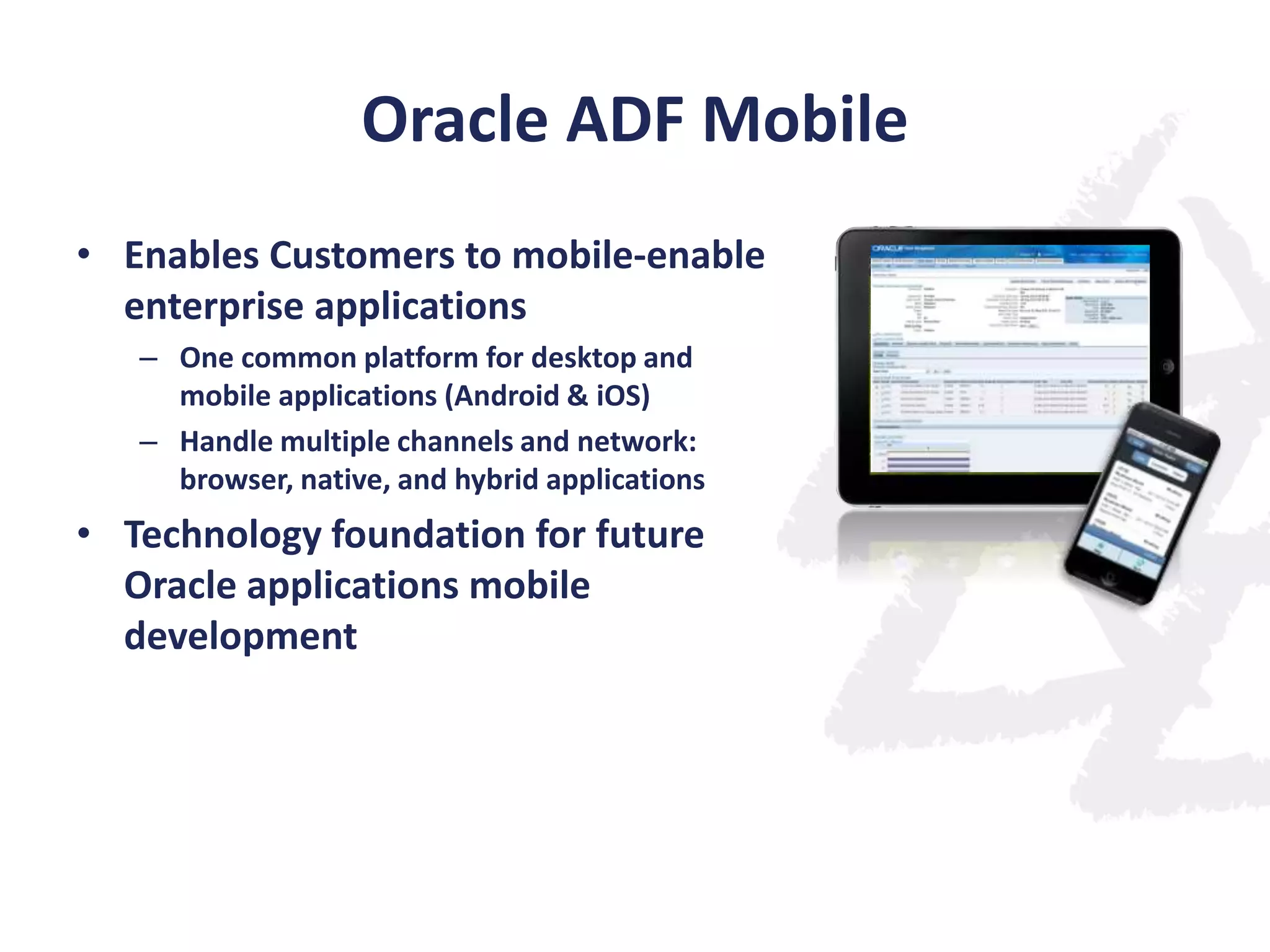

52. Oracle ADF Mobile
• Enables Customers to mobile-enable
enterprise applications
– One common platform for desktop and
mobile applications (Android & iOS)
– Handle multiple channels and network:
browser, native, and hybrid applications
• Technology foundation for future
Oracle applications mobile
development

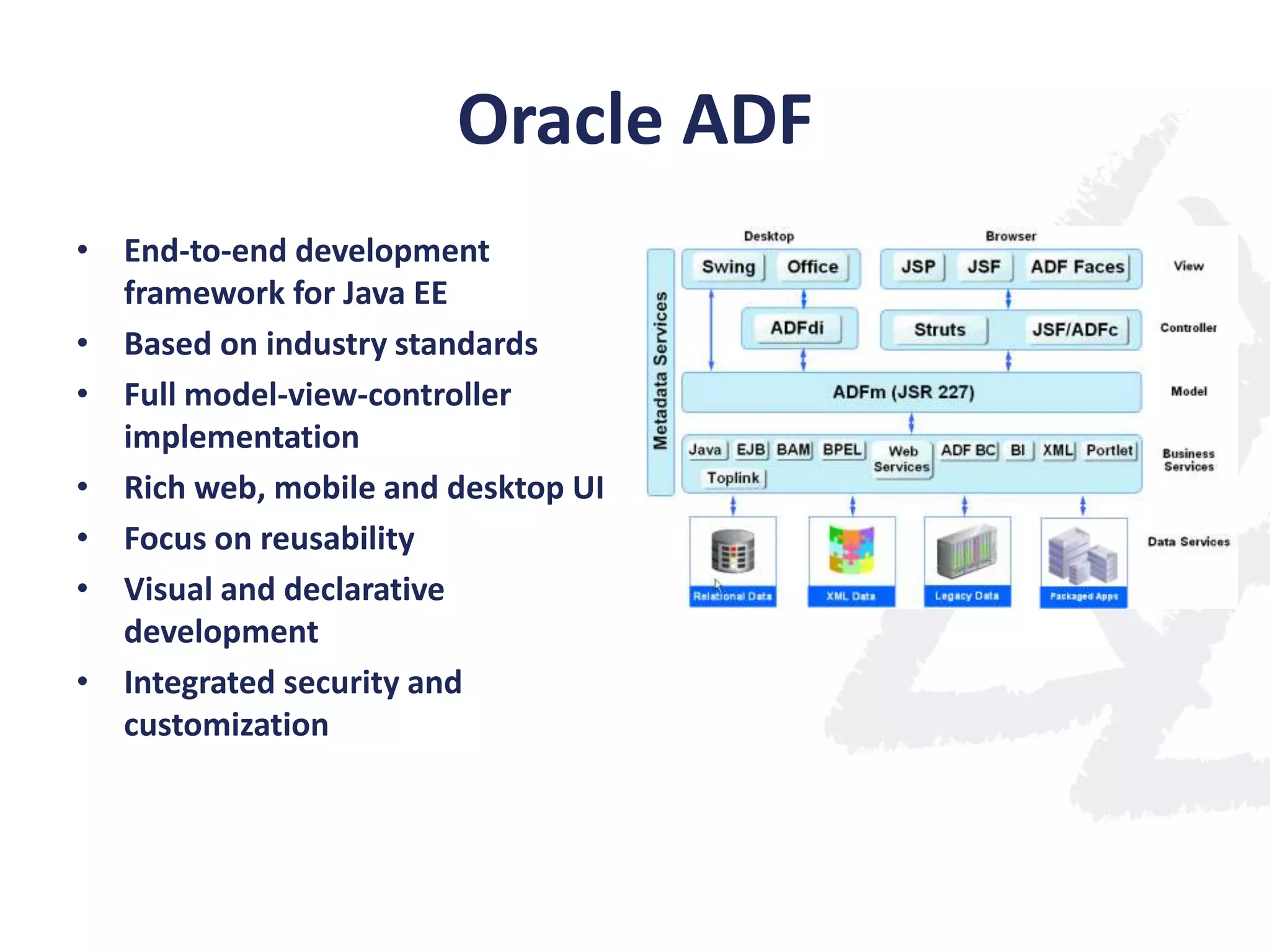

53. Oracle ADF
• End-to-end development
framework for Java EE
• Based on industry standards
• Full model-view-controller
implementation
• Rich web, mobile and desktop UI
• Focus on reusability
• Visual and declarative
development
• Integrated security and
customization

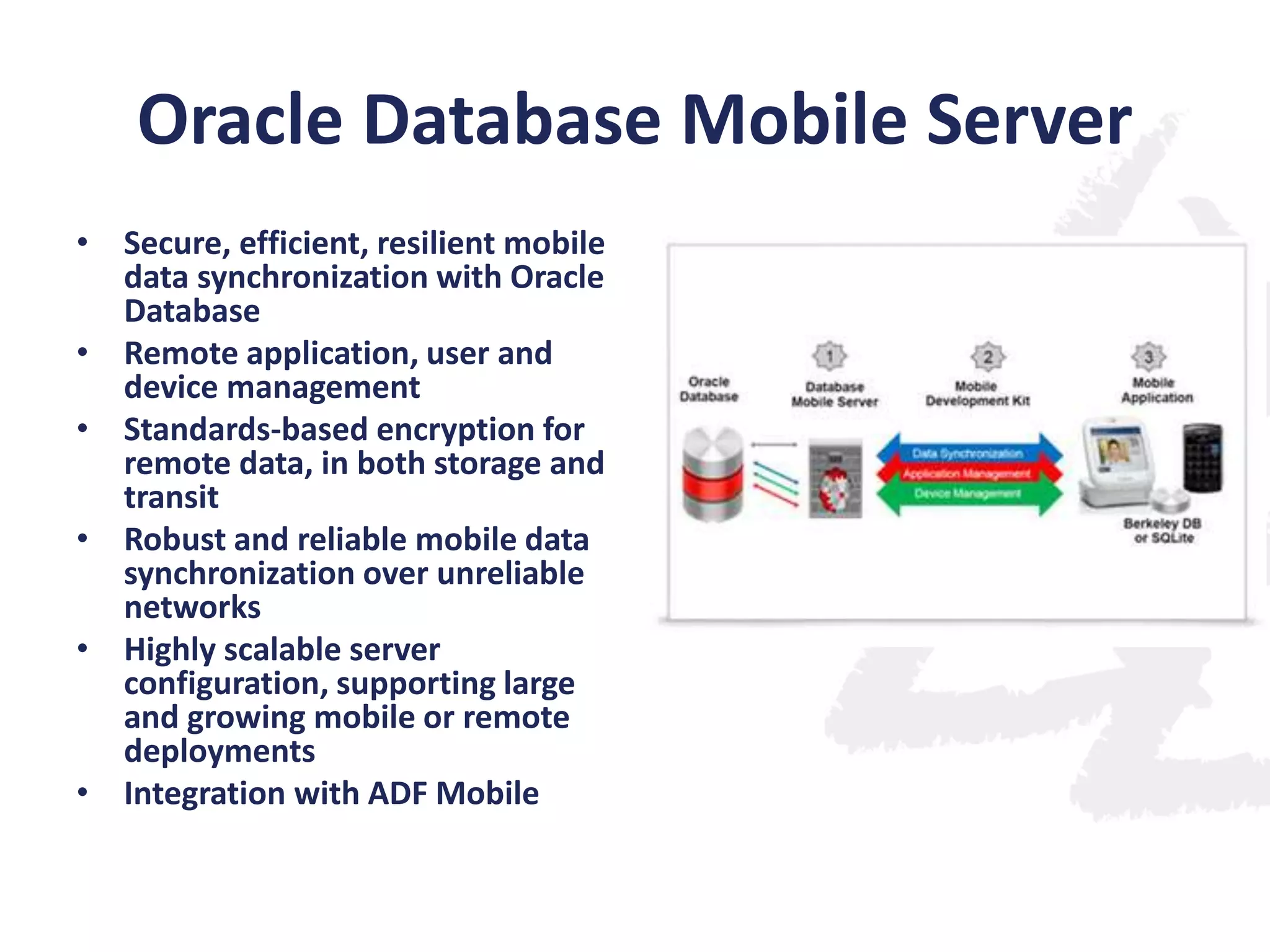

54. Oracle Database Mobile Server
• Secure, efficient, resilient mobile
data synchronization with Oracle
Database
• Remote application, user and
device management
• Standards-based encryption for
remote data, in both storage and
transit
• Robust and reliable mobile data
synchronization over unreliable
networks
• Highly scalable server
configuration, supporting large
and growing mobile or remote
deployments
• Integration with ADF Mobile

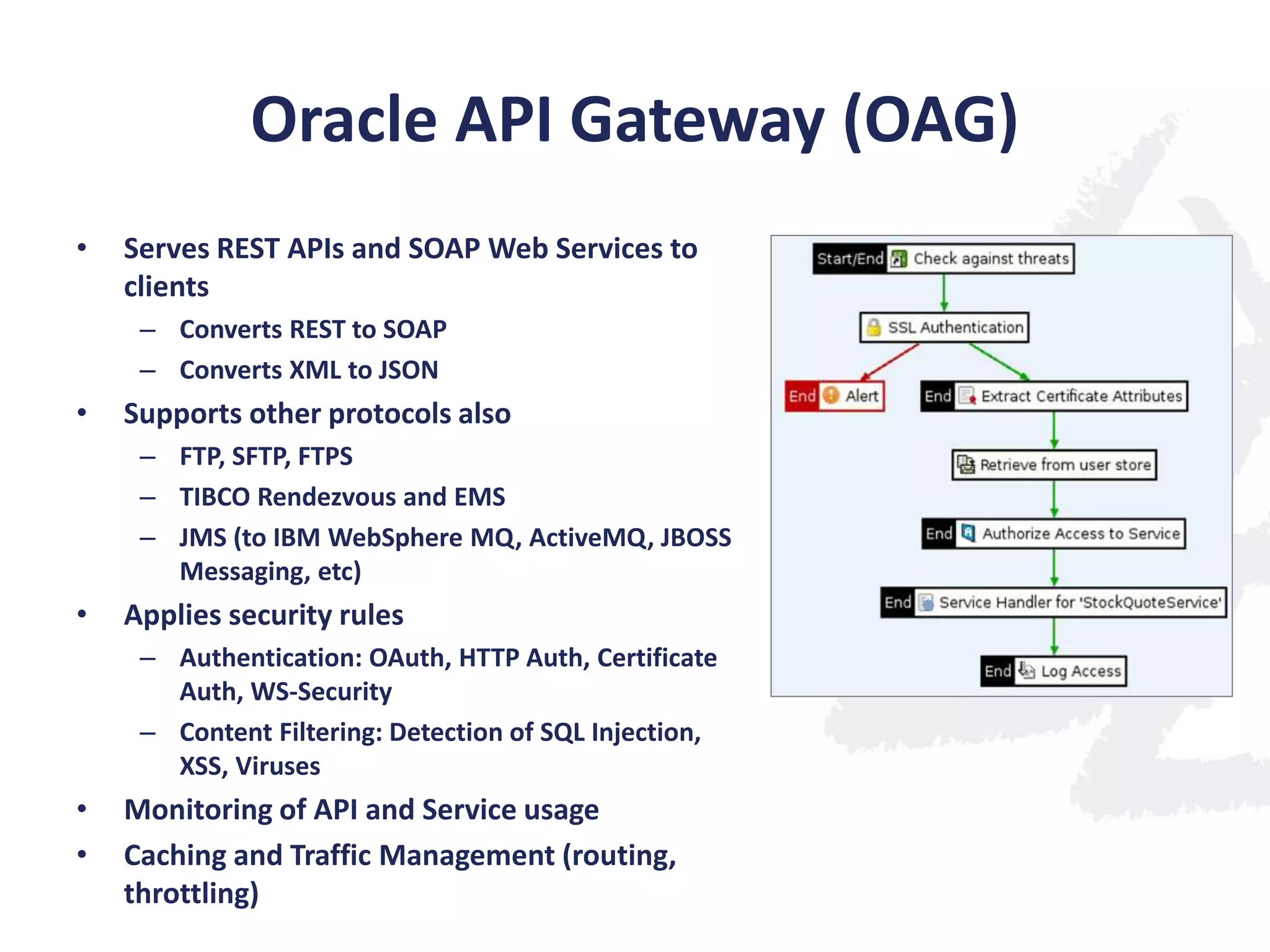

55. Oracle API Gateway (OAG)
•
Serves REST APIs and SOAP Web Services to
clients
– Converts REST to SOAP
– Converts XML to JSON
•
Supports other protocols also
– FTP, SFTP, FTPS
– TIBCO Rendezvous and EMS
– JMS (to IBM WebSphere MQ, ActiveMQ, JBOSS
Messaging, etc)
•
Applies security rules
– Authentication: OAuth, HTTP Auth, Certificate
Auth, WS-Security
– Content Filtering: Detection of SQL Injection,
XSS, Viruses
•
•
Monitoring of API and Service usage
Caching and Traffic Management (routing,
throttling)

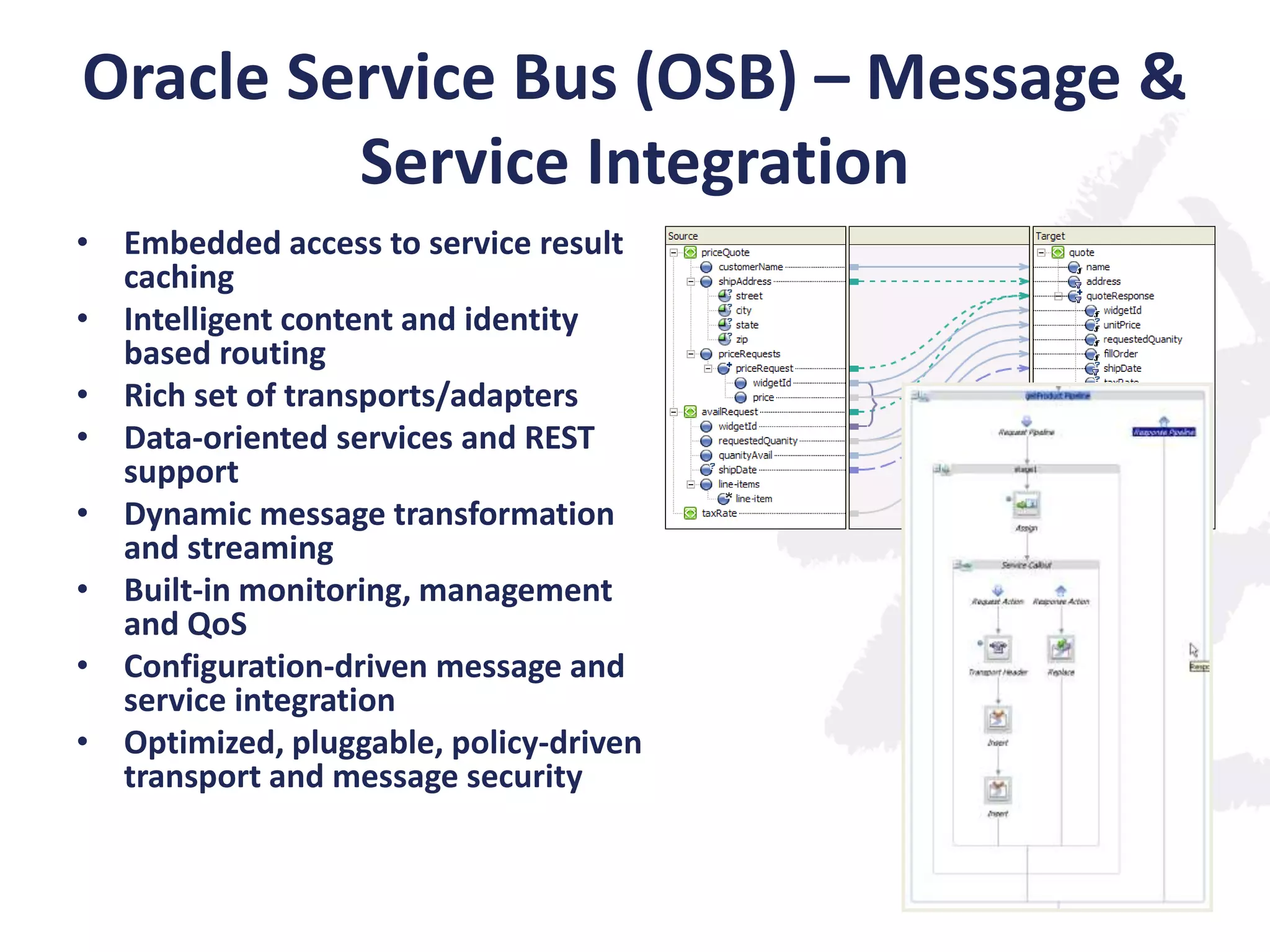

56. Oracle Service Bus (OSB) – Message &
Service Integration
• Embedded access to service result
caching
• Intelligent content and identity
based routing
• Rich set of transports/adapters
• Data-oriented services and REST
support
• Dynamic message transformation
and streaming
• Built-in monitoring, management
and QoS
• Configuration-driven message and
service integration
• Optimized, pluggable, policy-driven
transport and message security

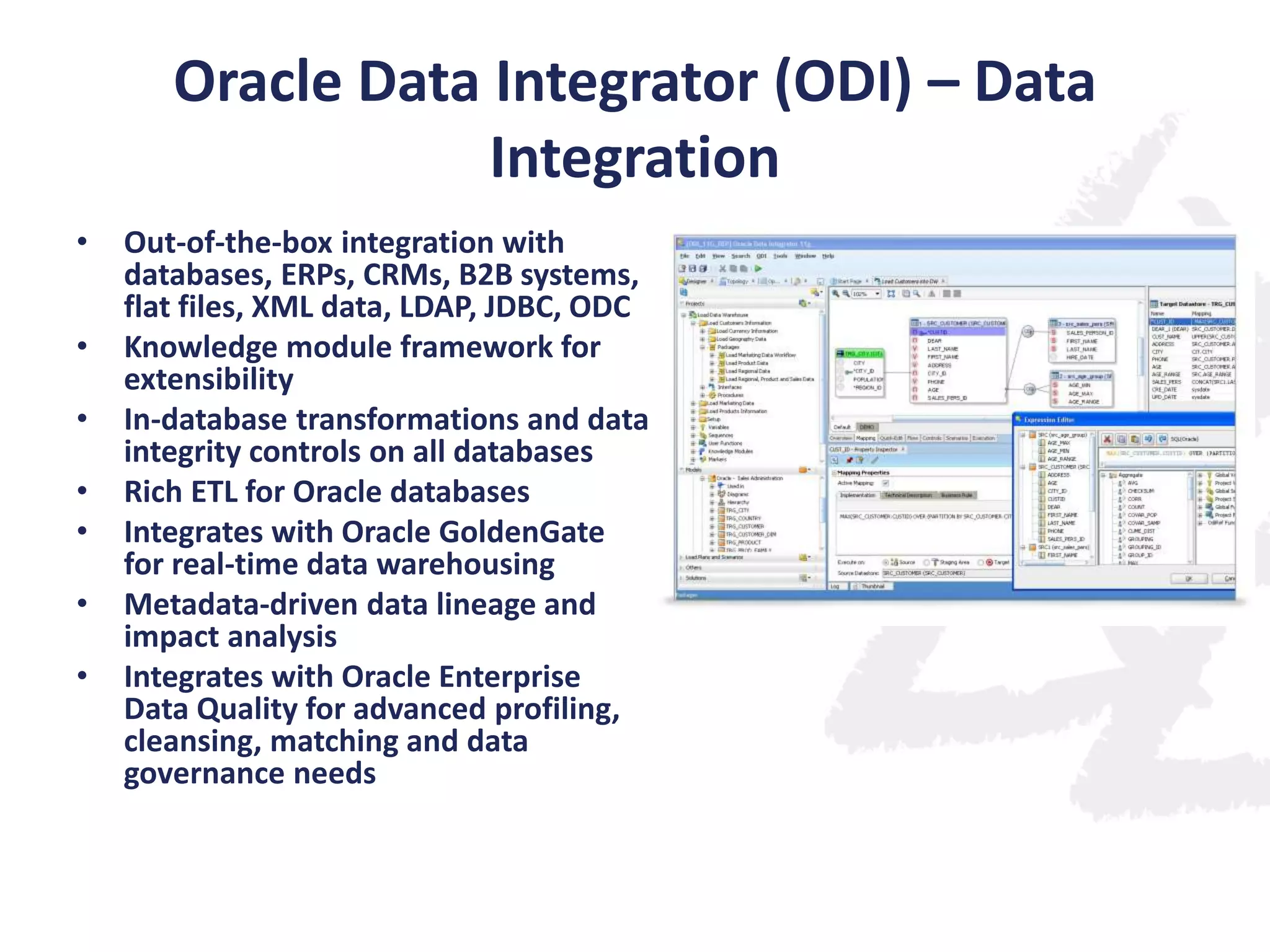

57. Oracle Data Integrator (ODI) – Data
Integration
•
•
•
•
•
•
•
Out-of-the-box integration with
databases, ERPs, CRMs, B2B systems,
flat files, XML data, LDAP, JDBC, ODC
Knowledge module framework for
extensibility
In-database transformations and data
integrity controls on all databases
Rich ETL for Oracle databases
Integrates with Oracle GoldenGate
for real-time data warehousing
Metadata-driven data lineage and
impact analysis
Integrates with Oracle Enterprise
Data Quality for advanced profiling,
cleansing, matching and data
governance needs

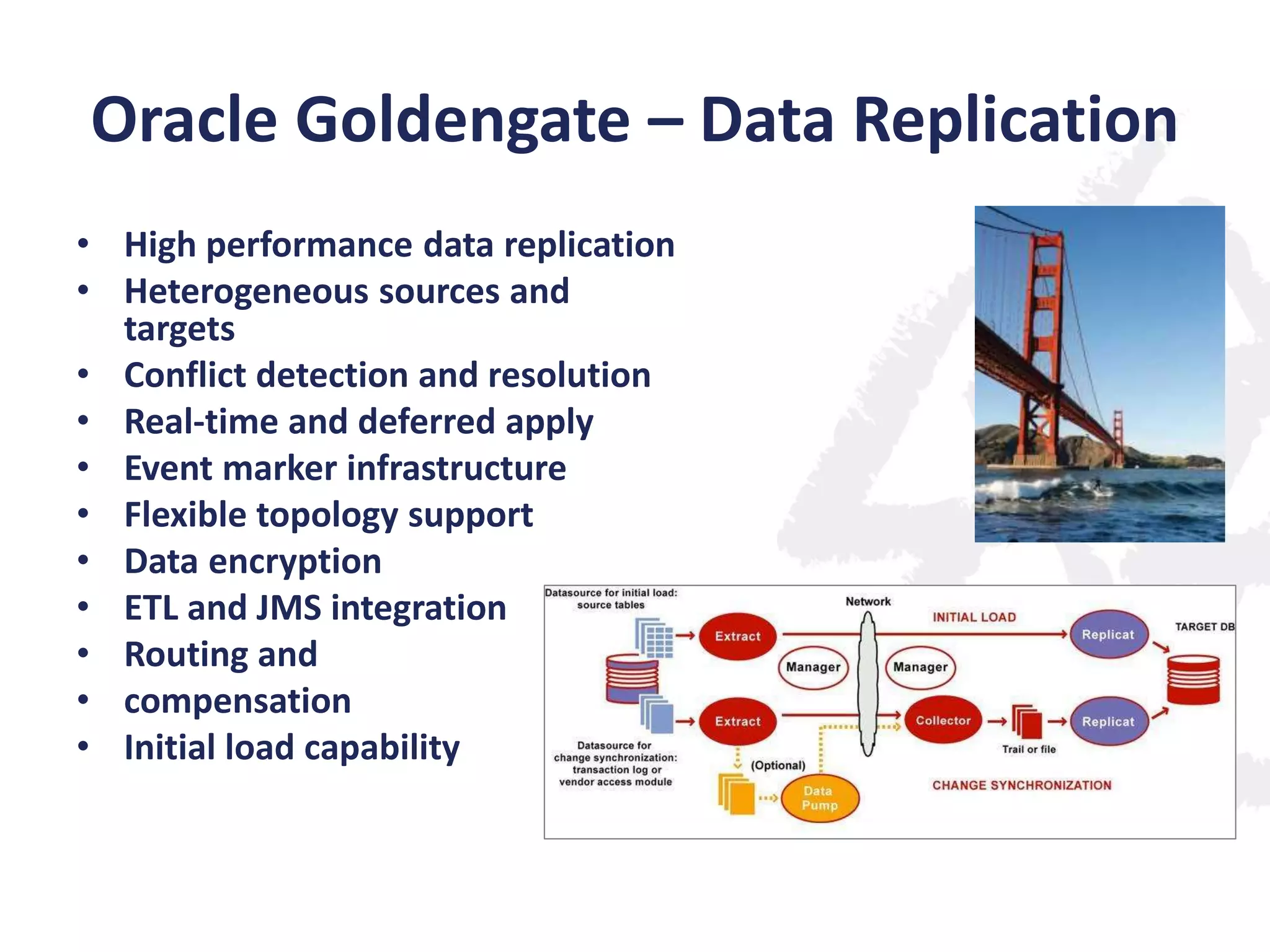

58. Oracle Goldengate – Data Replication
• High performance data replication
• Heterogeneous sources and
targets
• Conflict detection and resolution
• Real-time and deferred apply
• Event marker infrastructure
• Flexible topology support
• Data encryption
• ETL and JMS integration
• Routing and
• compensation
• Initial load capability

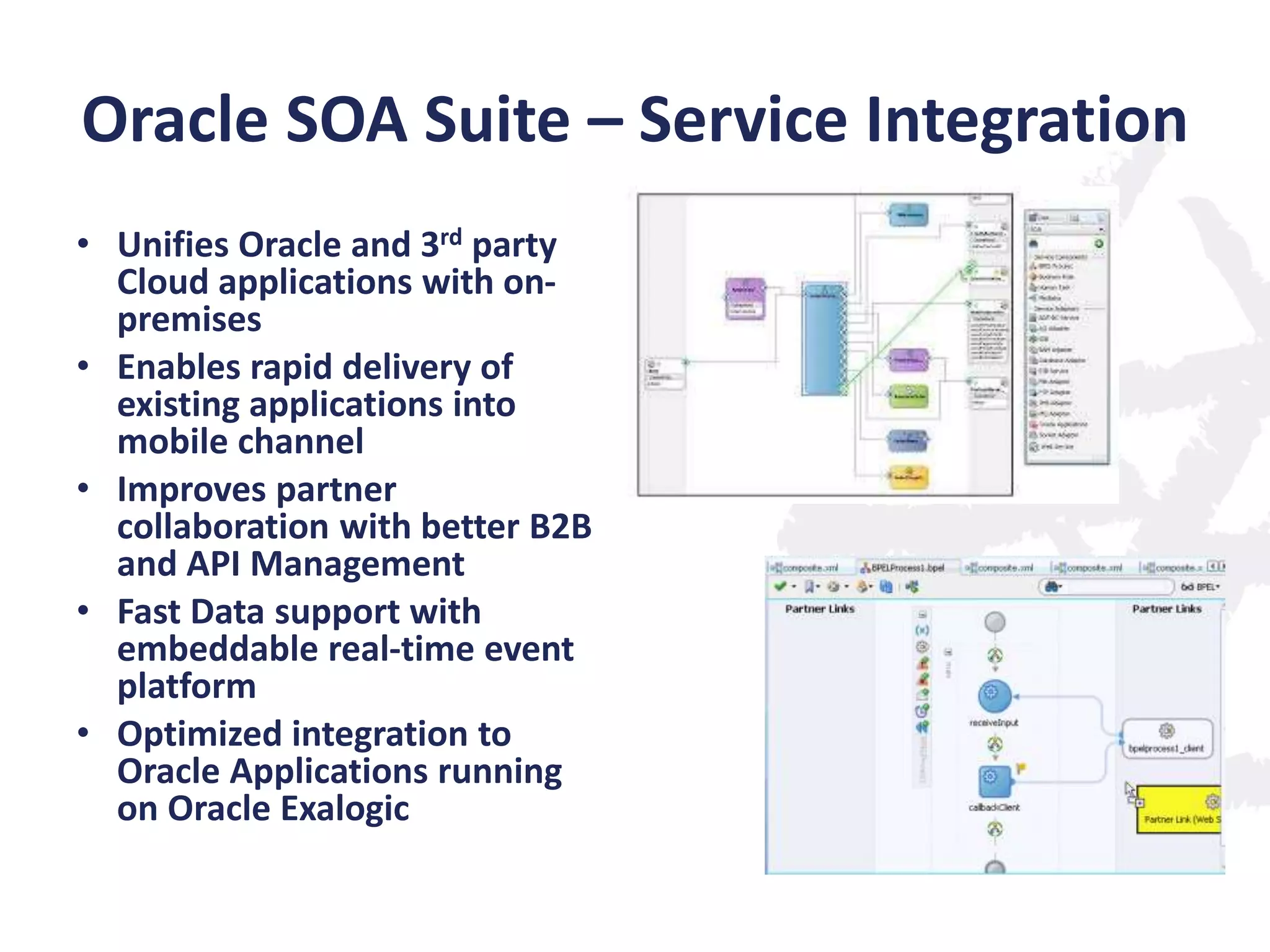

59. Oracle SOA Suite – Service Integration
• Unifies Oracle and 3rd party
Cloud applications with onpremises
• Enables rapid delivery of
existing applications into
mobile channel
• Improves partner
collaboration with better B2B
and API Management
• Fast Data support with
embeddable real-time event
platform
• Optimized integration to
Oracle Applications running
on Oracle Exalogic

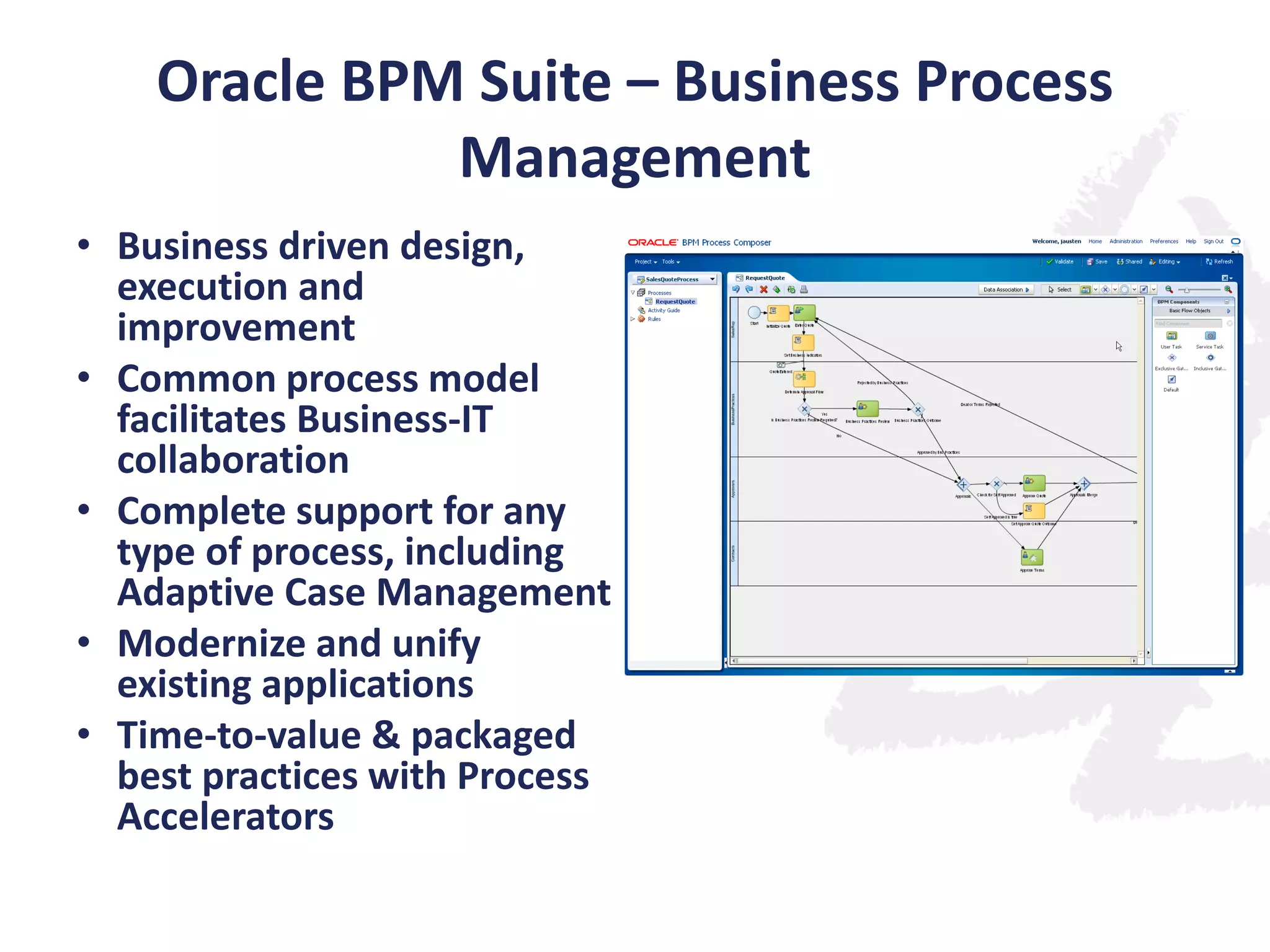

60. Oracle BPM Suite – Business Process
Management
• Business driven design,
execution and
improvement
• Common process model
facilitates Business-IT
collaboration
• Complete support for any
type of process, including
Adaptive Case Management
• Modernize and unify
existing applications
• Time-to-value & packaged
best practices with Process
Accelerators

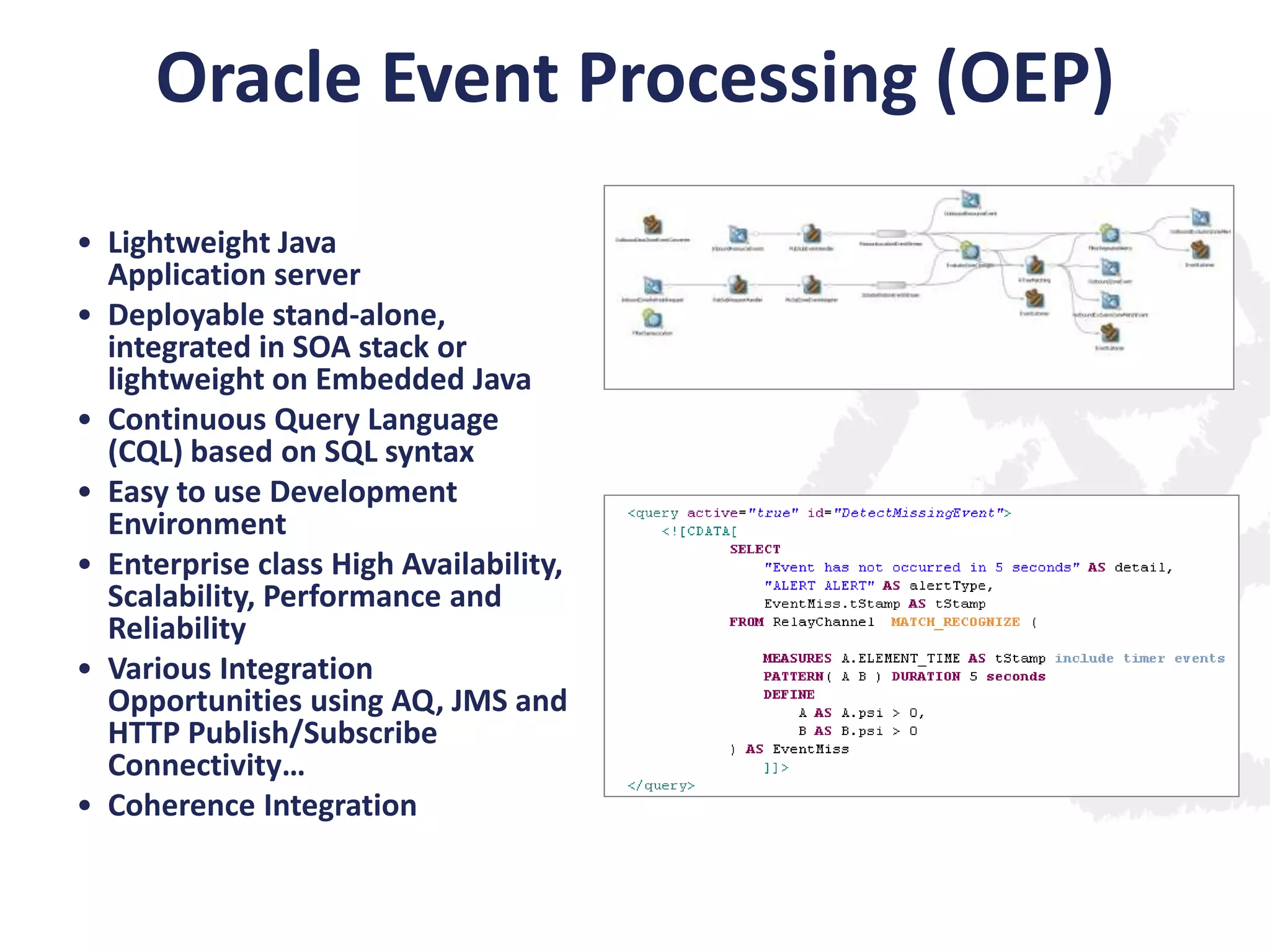

61. Oracle Event Processing (OEP)
• Lightweight Java
Application server
• Deployable stand-alone,
integrated in SOA stack or
lightweight on Embedded Java
• Continuous Query Language
(CQL) based on SQL syntax
• Easy to use Development
Environment
• Enterprise class High Availability,
Scalability, Performance and
Reliability
• Various Integration
Opportunities using AQ, JMS and
HTTP Publish/Subscribe
Connectivity…
• Coherence Integration

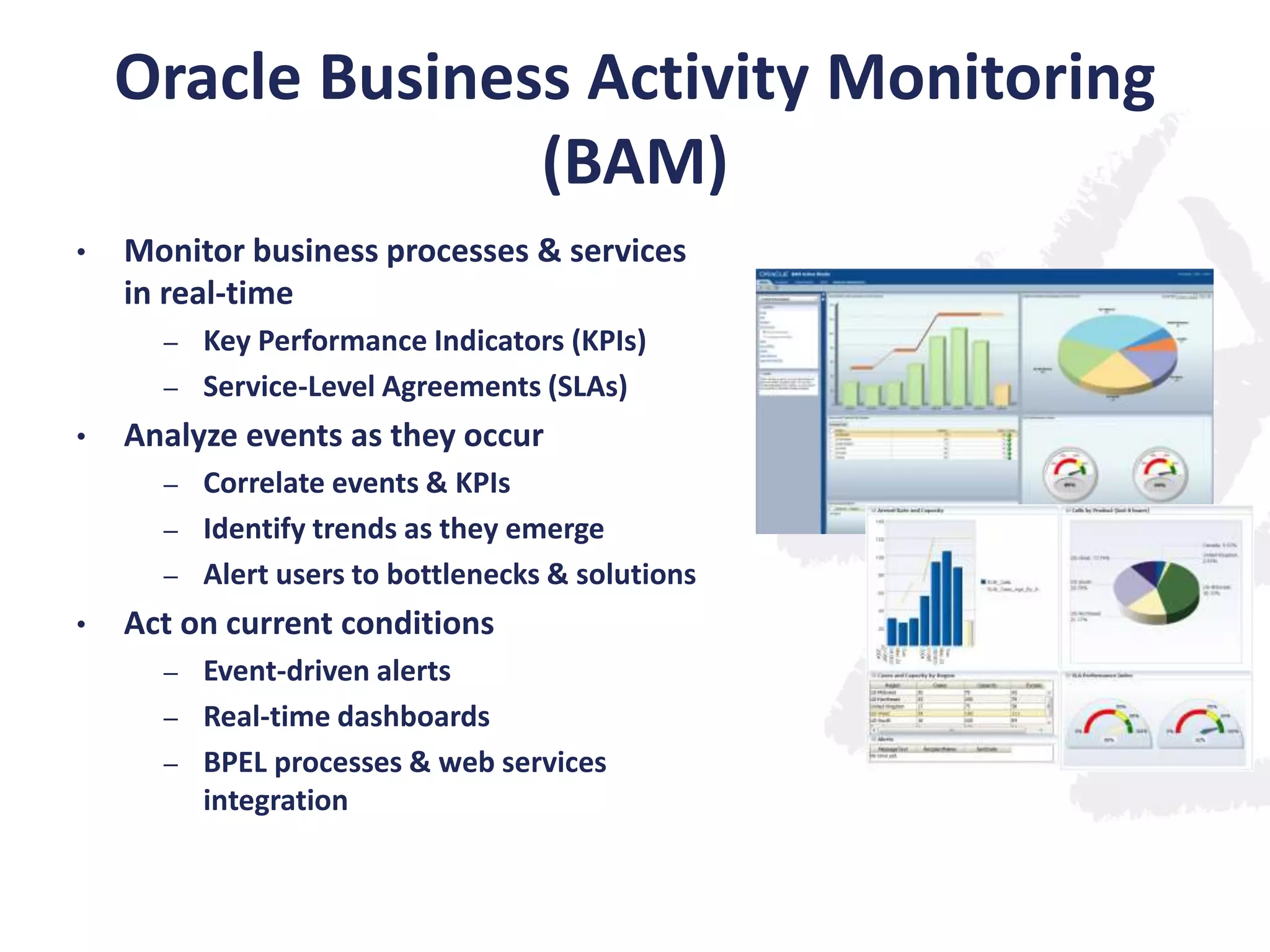

62. Oracle Business Activity Monitoring
(BAM)
•
Monitor business processes & services
in real-time
Key Performance Indicators (KPIs)
– Service-Level Agreements (SLAs)
–
•
Analyze events as they occur
Correlate events & KPIs
– Identify trends as they emerge
– Alert users to bottlenecks & solutions
–
•
Act on current conditions
Event-driven alerts
– Real-time dashboards
– BPEL processes & web services
integration
–

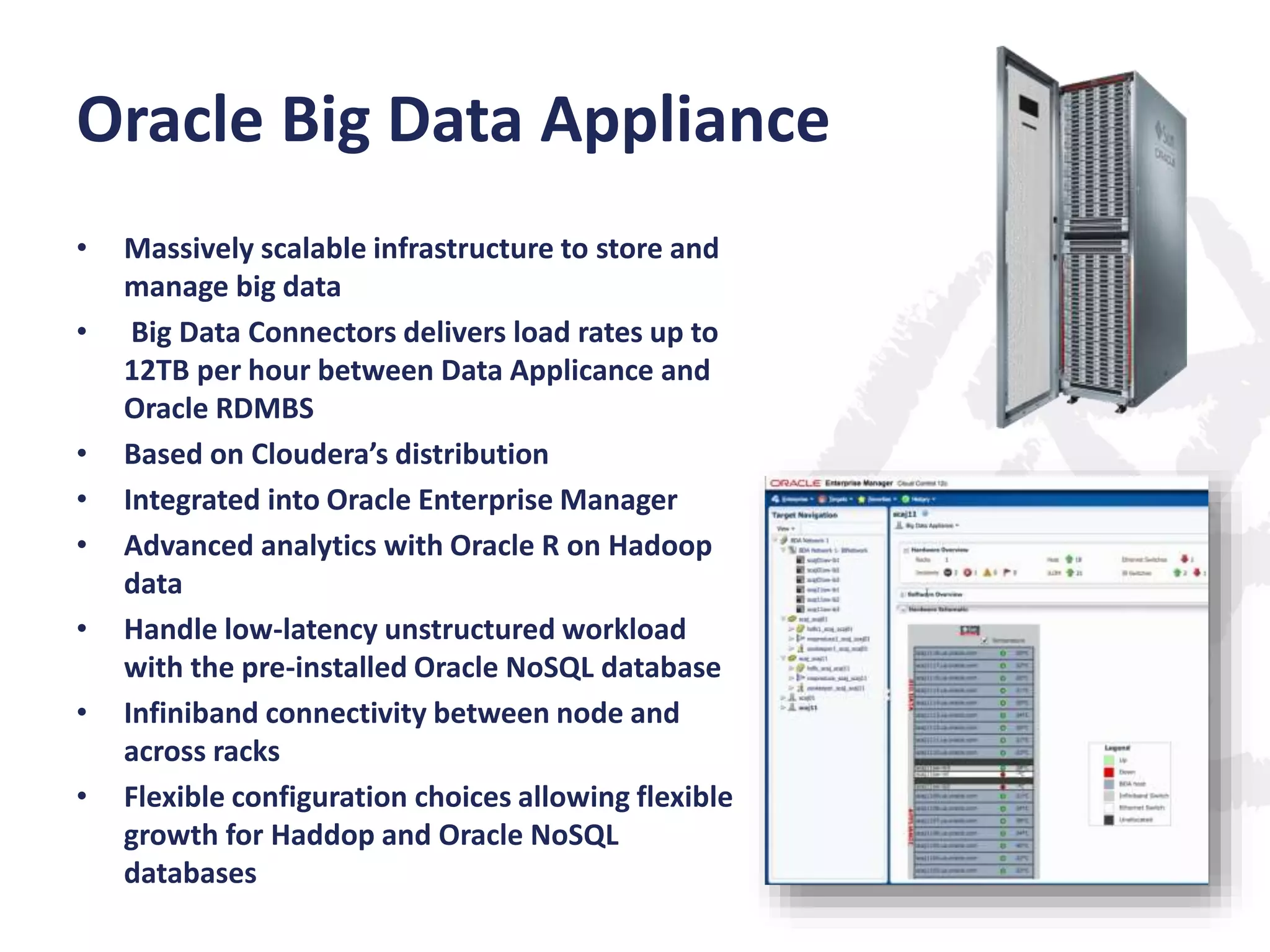

63. Oracle Big Data Appliance
•
•
•
•
•
•
•
•
Massively scalable infrastructure to store and
manage big data
Big Data Connectors delivers load rates up to
12TB per hour between Data Applicance and
Oracle RDMBS
Based on Cloudera’s distribution
Integrated into Oracle Enterprise Manager
Advanced analytics with Oracle R on Hadoop
data
Handle low-latency unstructured workload
with the pre-installed Oracle NoSQL database
Infiniband connectivity between node and
across racks
Flexible configuration choices allowing flexible
growth for Haddop and Oracle NoSQL
databases

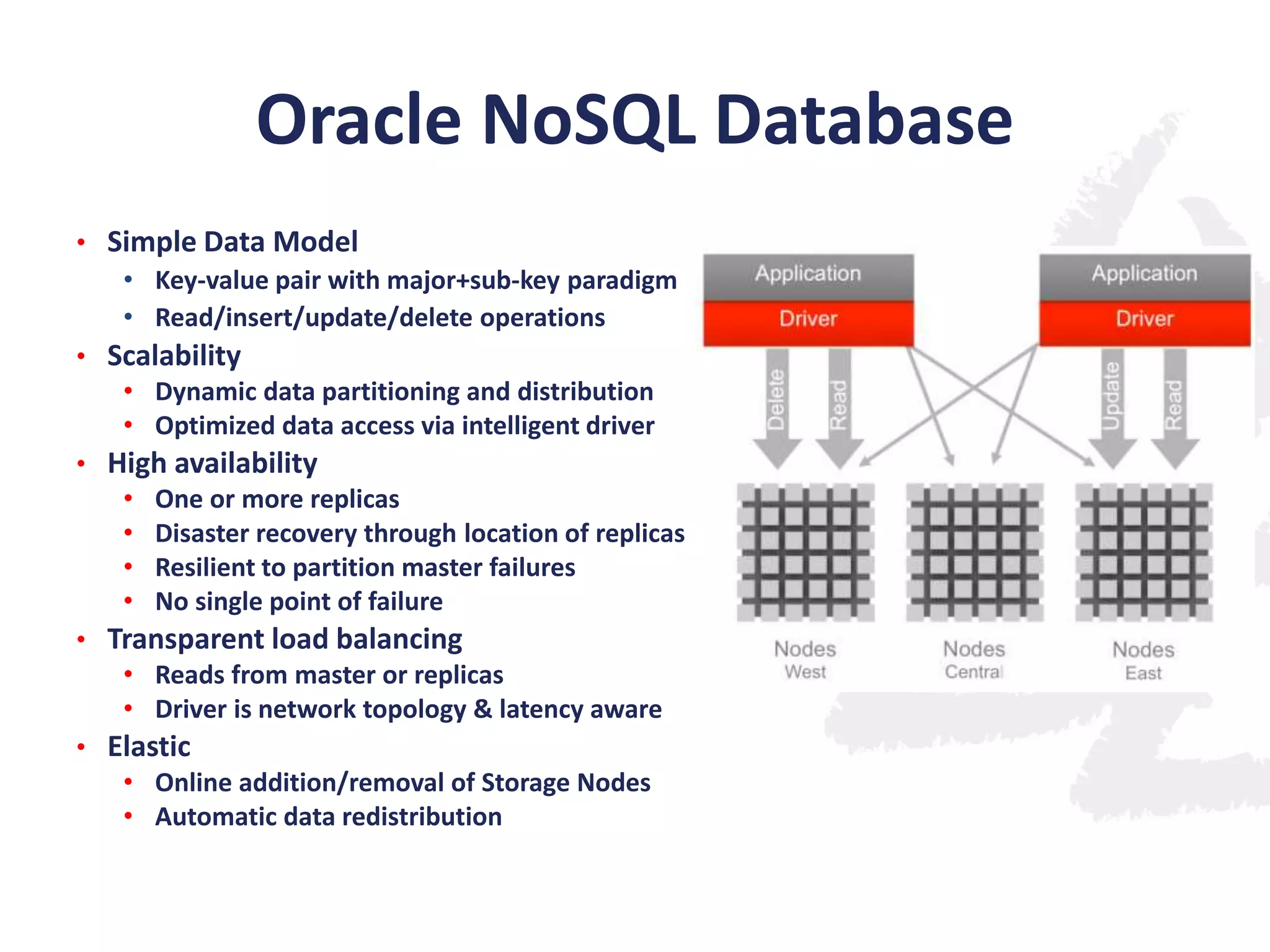

64. Oracle NoSQL Database
• Simple Data Model
• Key-value pair with major+sub-key paradigm
• Read/insert/update/delete operations
• Scalability
• Dynamic data partitioning and distribution
• Optimized data access via intelligent driver
• High availability
• One or more replicas
• Disaster recovery through location of replicas
• Resilient to partition master failures
• No single point of failure
• Transparent load balancing
• Reads from master or replicas
• Driver is network topology & latency aware
• Elastic
• Online addition/removal of Storage Nodes
• Automatic data redistribution

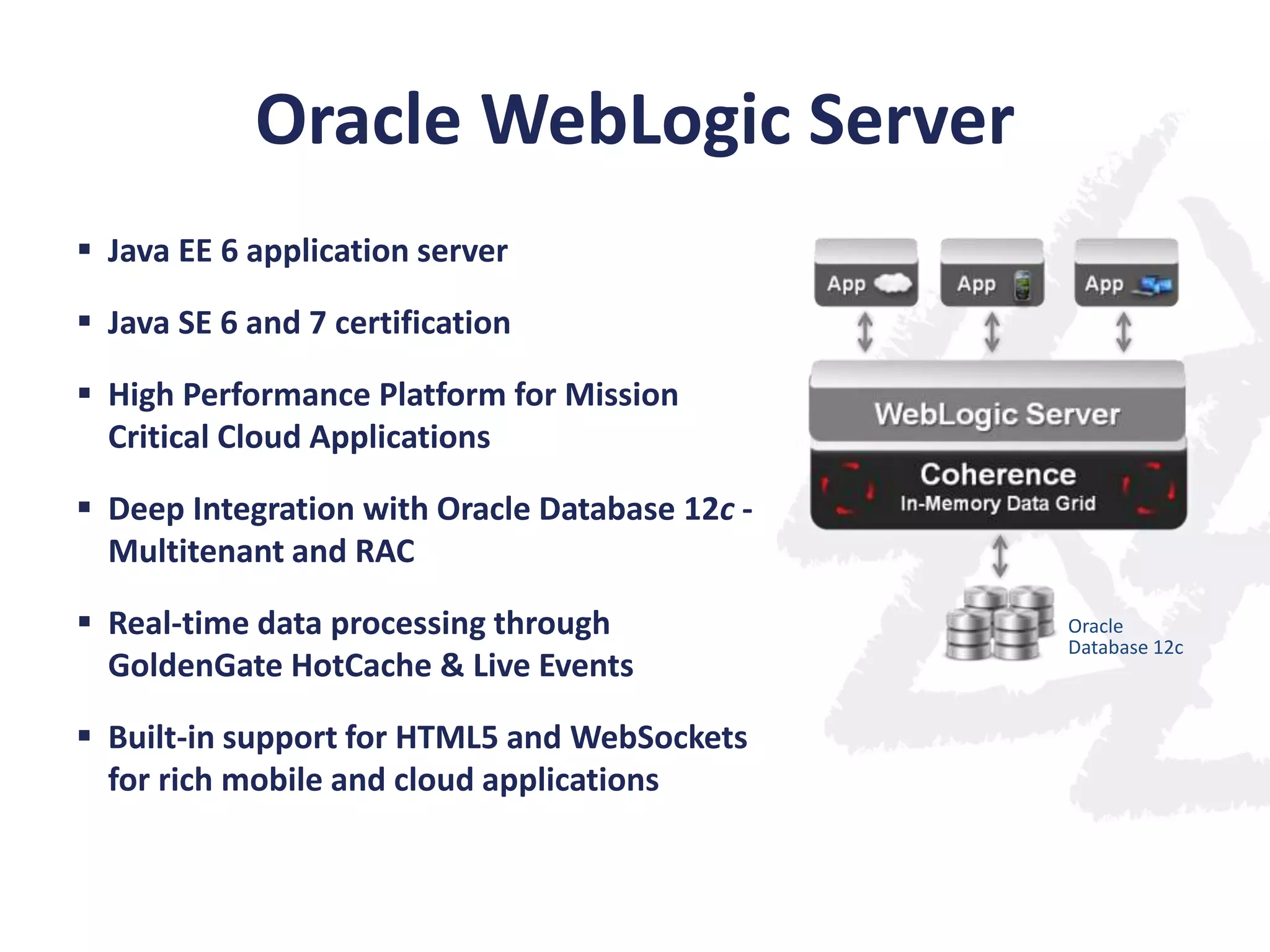

65. Oracle WebLogic Server
 Java EE 6 application server
 Java SE 6 and 7 certification
 High Performance Platform for Mission
Critical Cloud Applications
 Deep Integration with Oracle Database 12c Multitenant and RAC
 Real-time data processing through
GoldenGate HotCache & Live Events
 Built-in support for HTML5 and WebSockets
for rich mobile and cloud applications
Oracle
Database 12c

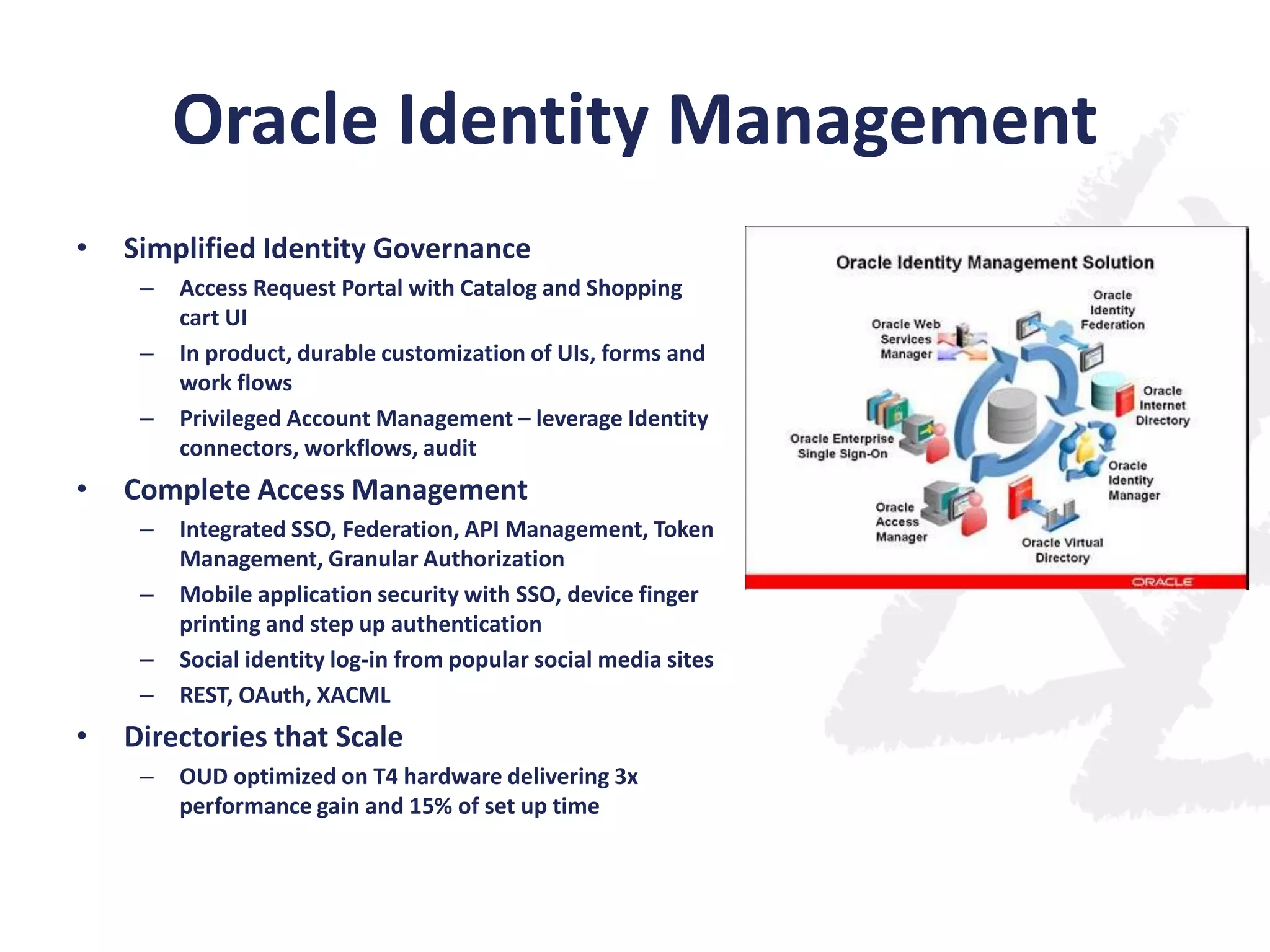

66. Oracle Identity Management
•
Simplified Identity Governance
–
–
–
•
Complete Access Management
–
–
–
–
•
Access Request Portal with Catalog and Shopping
cart UI
In product, durable customization of UIs, forms and
work flows
Privileged Account Management – leverage Identity
connectors, workflows, audit
Integrated SSO, Federation, API Management, Token
Management, Granular Authorization
Mobile application security with SSO, device finger
printing and step up authentication
Social identity log-in from popular social media sites
REST, OAuth, XACML
Directories that Scale
–
OUD optimized on T4 hardware delivering 3x
performance gain and 15% of set up time

67. Contact

68. Contact
Torsten Winterberg
Business Development & Innovation
OPITZ CONSULTING Deutschland GmbH
Kirchstr. 6, 51647 Gummersbach, Germany
Phone: +49 173 54 79 302
torsten.winterberg@opitz-consulting.com
@t_winterberg
Mobile Lösungen und BPM
© OPITZ CONSULTING GmbH 2011
Seite 73

69. Contact
Guido Schmutz
Technology Manager
Trivadis AG
Europa-Strasse 5, 8152 Glattbrugg, Schweiz
Phone: +49 173 54 79 302
guido.schmutz@trivadis.com
@gschmutz
Mobile Lösungen und BPM
© OPITZ CONSULTING GmbH 2011
Seite 74
