Bluetooth1
This document discusses Bluetooth security issues, threats, and consequences. It provides an introduction to Bluetooth technology and describes how Bluetooth networks are formed. It then outlines several security issues with Bluetooth, including that many devices operate in insecure modes by default. It describes specific attacks like Bluesnarfing, Helomoto, and Bluebugging that take advantage of these issues to access devices without authorization. These attacks can steal information from both individuals and corporations. The document concludes by noting a large number of popular devices are potentially vulnerable and references are provided.
Bluetooth1
- 1.
- 2. BLUETOOTH INTRODUCTION ♦ Wire replacementtechnology ♦ Low power ♦ Short range 10m - 100m ♦ 2.4 GHz ♦ 1 Mb/s data rate
- 3. What Is BlueTooth? ♦A unique new wireless technology specifically for: ♦ Short range 10 - 100 meters typically ♦ Modest performance (780Kbps) ♦ Dynamically configurable ad hoc networking/ roaming ♦ Low power Well suited to handheld applications ♦ Support for both voice and data
- 4. BlueTooth - Whatis the Technology ? ♦ Uses 2.4 GHZ unlicensed ISM band ♦ Frequency hopping spread spectrum radio for higher interference immunity. ♦ Supports point to point and point to multipoint connection with single radio link. ♦ Designed to provide low cost, robust, efficient, high capacity voice and data networking. ♦ Uses a combination of circuit and packet switching.
- 5. Why BlueTooth? ♦ Simpleto install and expand ♦ Need not be in line of sight ♦ Low Cost ♦ Perfect for File transfer and printing application ♦ Simultaneous handling of data and voice on the same channel
- 6. Application Of BlueTooth ♦PC and Peripheral networking ♦ Hidden Computing ♦ Data synchronization for Address book and calendars ♦ Cellphone acting as a modem for PDA or Laptop ♦ Personal Area Networking (PAN) – Enabling a collection of YOUR personal devices to cooperatively work together
- 7. Bluetooth in theHome - No Wires xDSL Access Point PDA Cell Phone Cordless Phone Base Station Inkjet Printer Scanner Home Audio System Computer Digital Camera MP3 Player
- 8. Hotel Phone & AccessPoint And On the Road Car Audio System Pay Phone & Access Point Headset MP3 Player PDA Cell Phone Laptop
- 9. BLUETOOTH NETWORKS ♦ PICONET ♦SACTTERNET
- 10. BLUETOOTH PICONET ♦ Bluetoothdevices create a piconet ♦ One master per piconet ♦ Up to seven active slaves ♦ Over 200 passive members are possible ♦ Master sets the hopping sequence ♦ Transfer rates of 721 Kbit/sec ♦ Bluetooth 1.2 and EDR (aka 2.0) ♦ Adaptive Frequency Hopping ♦ Transfer rates up to 2.1 Mbit/sec
- 11. BLUETOOTH SCATTERNET ♦ Connectedpiconets create a scatternet ♦ Master in one and slave in another piconet ♦ Slave in two different piconets ♦ Only master in one piconet ♦ Scatternet support is optional
- 12.
- 13. Inquiry (Discovering Who’sOut There) D A H M N L P O Q B C F KJ G I E H Note that a device can be “Undiscoverable”
- 14. Paging (Creating aPiconet) D E F H G I K J C M N L P O Q BBAA 10 meters
- 15.
- 16. SECURITY ISSUES AND ATTACKSUNVEILED

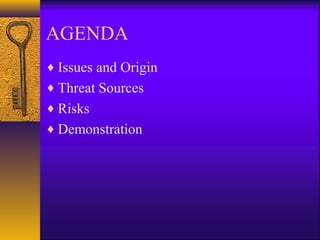

- 17. AGENDA ♦ Issues andOrigin ♦ Threat Sources ♦ Risks ♦ Demonstration
- 18. A COMMON MISCONCEPTION ♦ Nopractical Bluetooth vulnerabilities ♦ The core bluetooth protocol has maintained its integrity ♦ A corectly implemented Bluetooth stack should have no vulnerabilities
- 19. MYTHS DEBUNKED ♦ Bluetoothneeds pairing ♦ Short Range(1.7miles achieved) ♦ Only mobile devices affected ♦ Non-Discoverable saves me ♦ Secure as Encryption is Used
- 20. SECURITY MODES ♦ Securitymode 1 ♦ No active security enforcement ♦ Security mode 2 ♦ Service level security ♦ On device level no difference to mode 1 ♦ Security mode 3 ♦ Device level security ♦ Enforce security for every low-level connection
- 21. Who is Vulnerable ♦Both individuals and corporations ♦ Owners of various popular phones.nokia 6310,Ericsson T series ♦ PC owners,Laptop users and other pocket PC owners ♦ Symbion device owners ♦ Embedded devices,Bluetooth heating systems etc

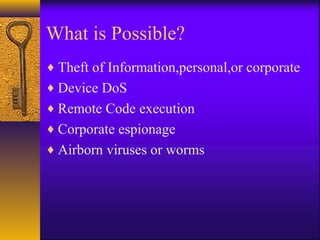

- 22. What is Possible? ♦Theft of Information,personal,or corporate ♦ Device DoS ♦ Remote Code execution ♦ Corporate espionage ♦ Airborn viruses or worms
- 23. ATTACKS IDENTIFIED ♦ June2003 Ollie Whitehouse releases RedFang ♦ Pentest Ltd release btscanner ♦ Nov 2003 BLUEJACKING comes to open ♦ Jan 2004 BLUESNARFING unveilled
- 24. VARIOUS ATTACKS ♦ TheBlueSnarf Attack ♦ The HeloMoto Attack ♦ The BlueBug Attack ♦ Bluetooone ♦ Blueprinting
- 25. BLUESNARFING Trivial OBEX PUSHchannel attack – obexapp (FreeBSD) – PULL known objects instead of PUSH – No authentication ● Infrared Data Association – IrMC (Specifications for Ir Mobile Communications) ● e.g. telecom/pb.vcf ● Ericsson R520m, T39m, T68 ● Sony Ericsson T68i, T610, Z1010 ● Nokia 6310, 6310i, 8910, 8910i
- 26. HELOMOTO ♦ Requires entryin 'Device History' ♦ OBEX PUSH to create entry ♦ Connect RFCOMM to Handsfree or Headset ♦ No Authentication required ♦ Full AT command set access ♦ Motorola V80, V5xx, V6xx and E398
- 27. BLUEBUGGING BlueBug is basedon AT Commands (ASCII Terminal) – Very common for the configuration and control of telecommunications devices – High level of control... ● Call control (turning phone into a bug) ● Sending/Reading/Deleting SMS ● Reading/Writing Phonebook Entries ● Setting Forwards
- 28. BLUETOONE ♦ Enhancing therange of a Bluetooth dongle by connecting a directional antenna -> as done in the Long Distance Attack

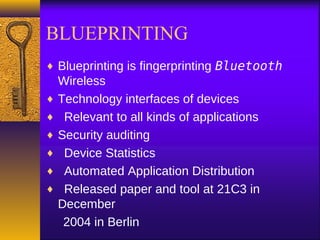

- 29. BLUEPRINTING ♦ Blueprinting isfingerprinting Bluetooth Wireless ♦ Technology interfaces of devices ♦ Relevant to all kinds of applications ♦ Security auditing ♦ Device Statistics ♦ Automated Application Distribution ♦ Released paper and tool at 21C3 in December 2004 in Berlin
- 30. BLUESMACK ♦ Using L2CAPecho feature ♦ Signal channel request/response ♦ L2CAP signal MTU is unknown ♦ No open L2CAP channel needed ♦ Buffer overflow ♦ Denial of service attack
- 31. AFFECTED DEVICES ♦ Asmall number of Bluetooth implementations are common across many platforms ♦ The most popular devices are vulnerable ♦ Result is a large number of affected devices in public ♦ Tests show between 85% and 94% vulnerability
- 32. IMPACT ON INDIVIDUALS ♦Information theft by advertisers ♦ Location based SPAM ♦ ID theft ♦ Theft through billing ♦ Call theft
- 33. CORPORATE IMPACT ♦ Informationtheft ♦ Corporate espionage ♦ Bribery
- 34.
- 35.
