Hybrid IP Radio
IP730D/IP740D
(LTE + VHF) / (LTE + UHF)

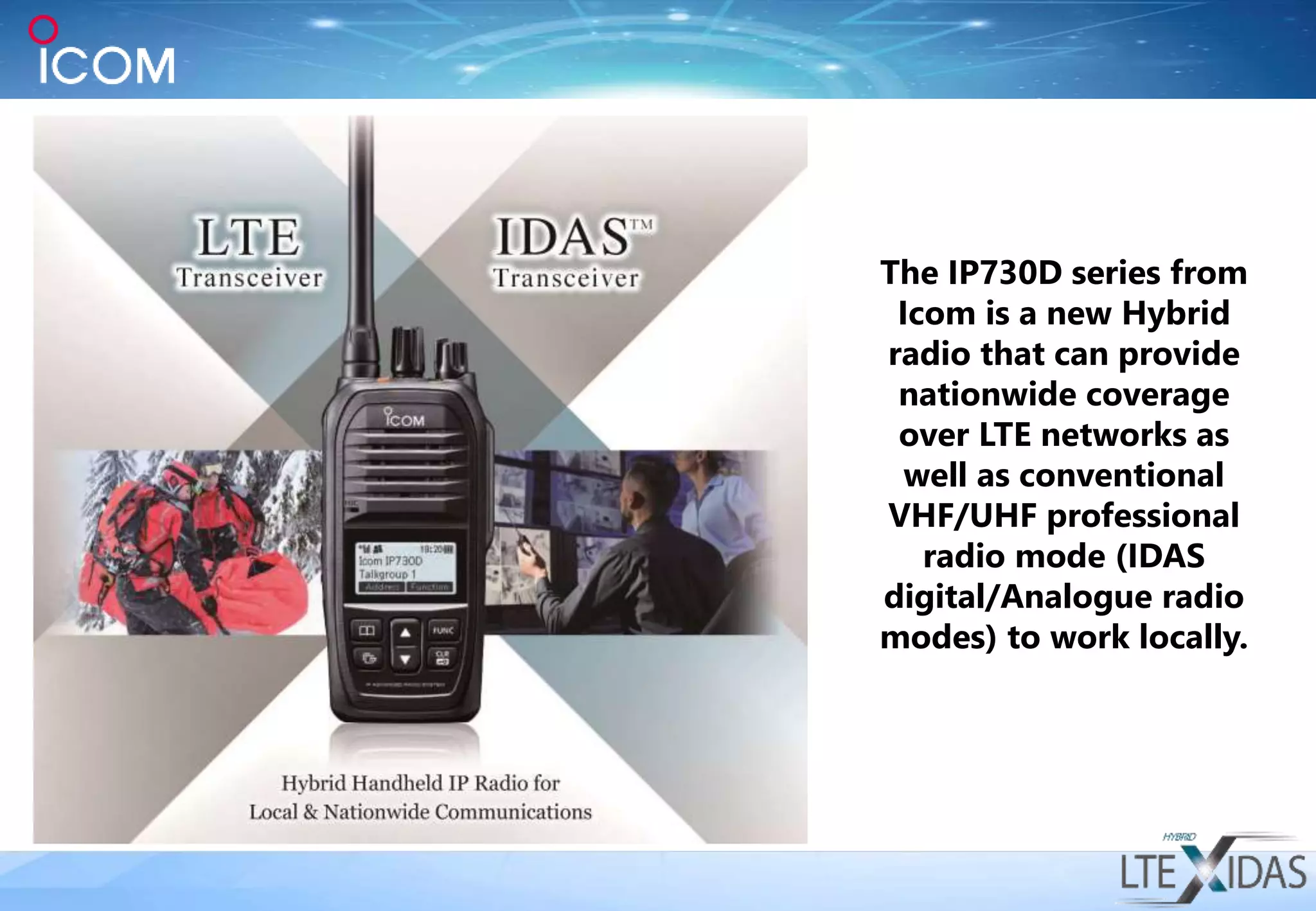

The IP730D series from
Icom is a new Hybrid
radio that can provide
nationwide coverage
over LTE networks as
well as conventional
VHF/UHF professional
radio mode (IDAS
digital/Analogue radio
modes) to work locally.

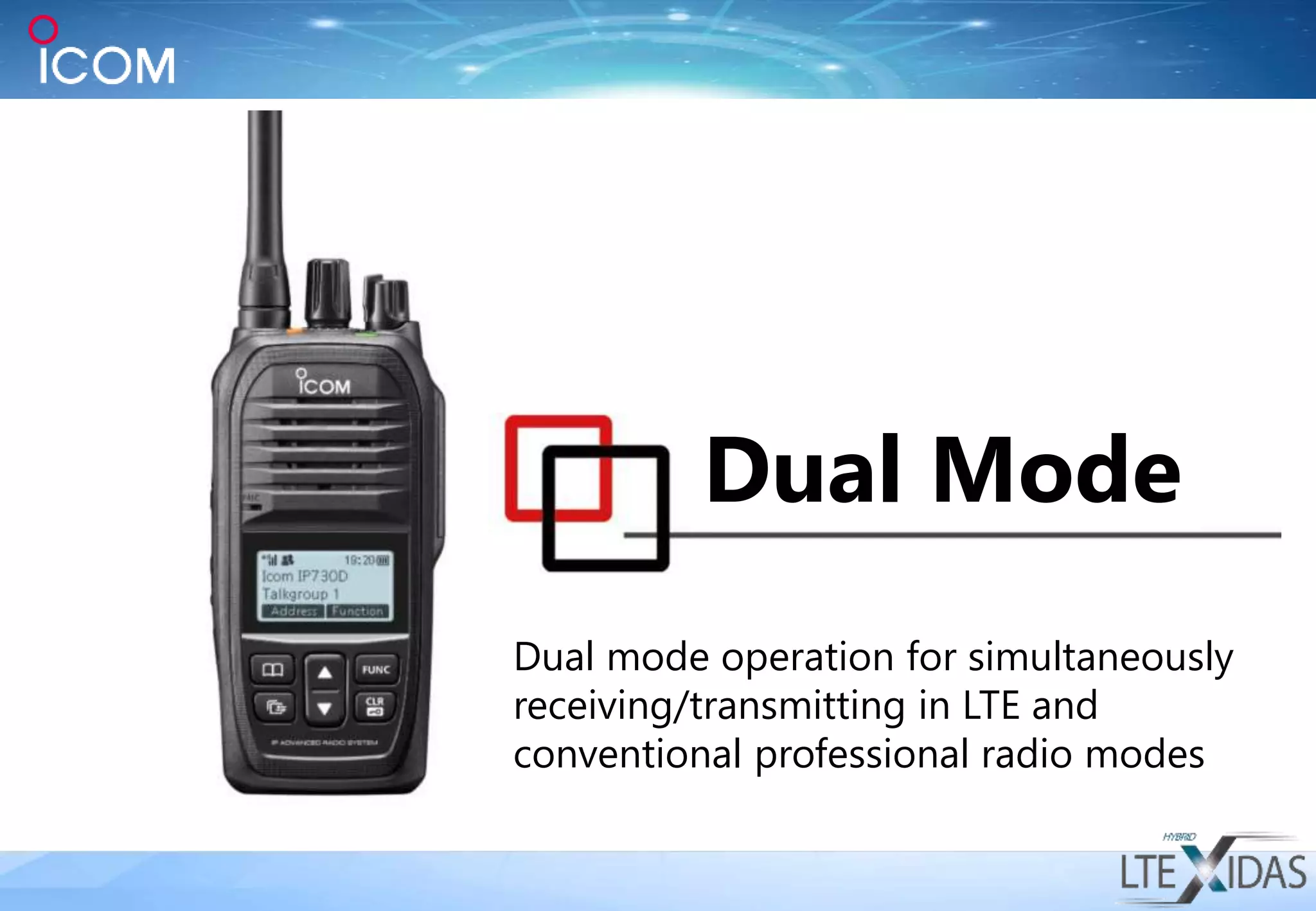

Dual Mode
Dual mode operation for simultaneously
receiving/transmitting in LTE and
conventional professional radio modes
LTE and IDAS/FM
simultaneous transmission
Expand your existing IDAS system with an LTE network

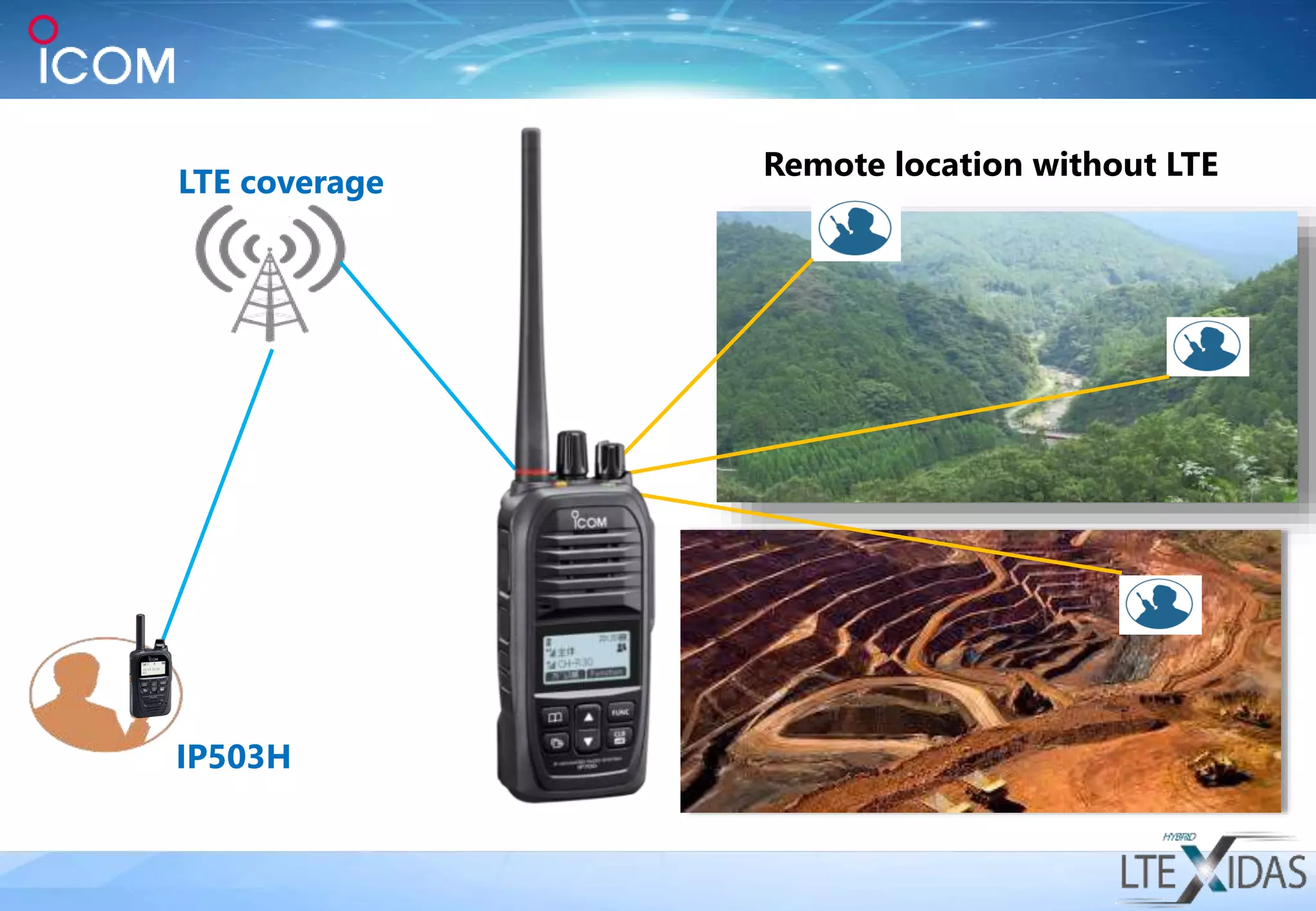

LTE coverage
Remote location without LTE
IP503H

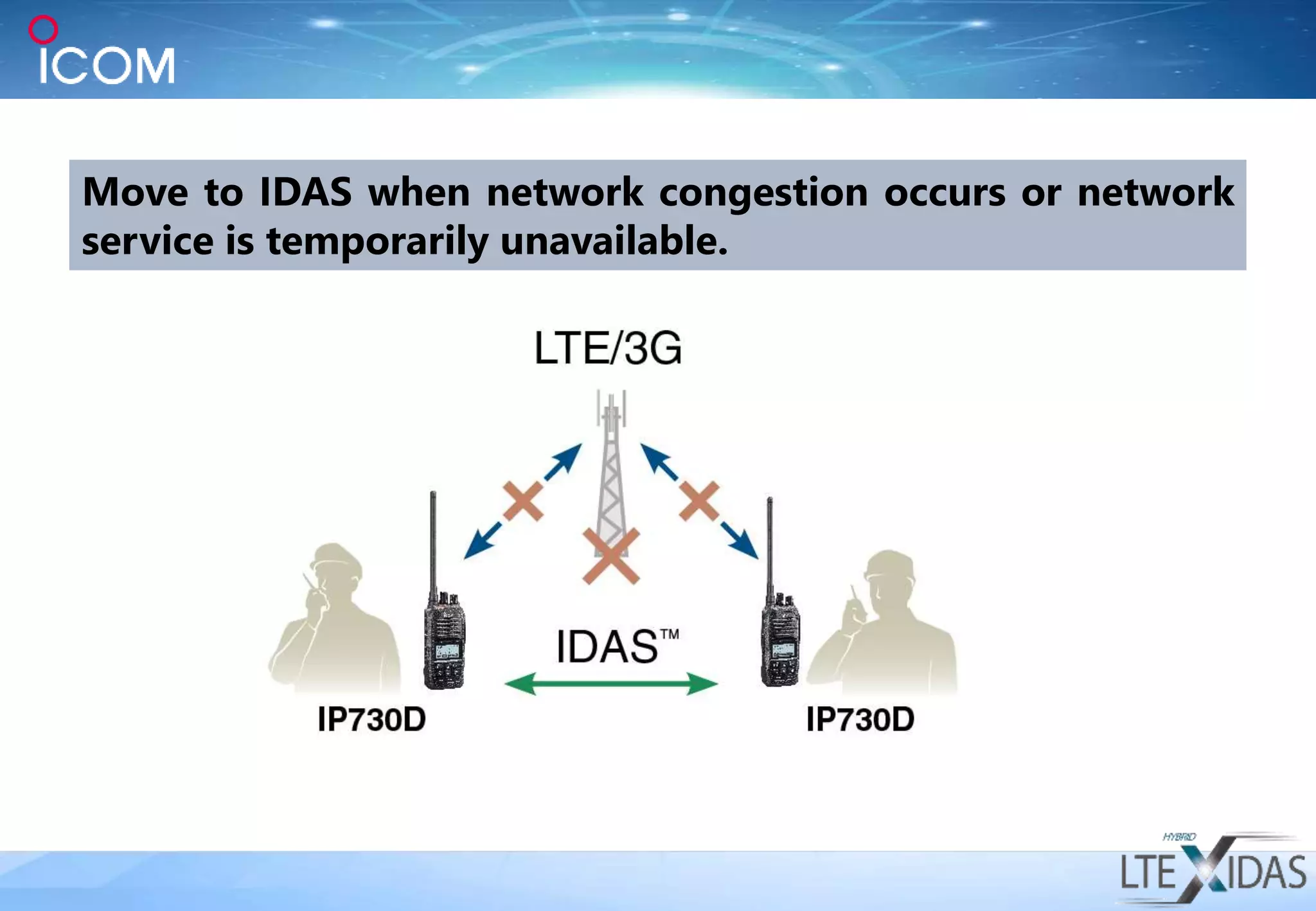

Move to IDAS when network congestion occurs or network
service is temporarily unavailable.

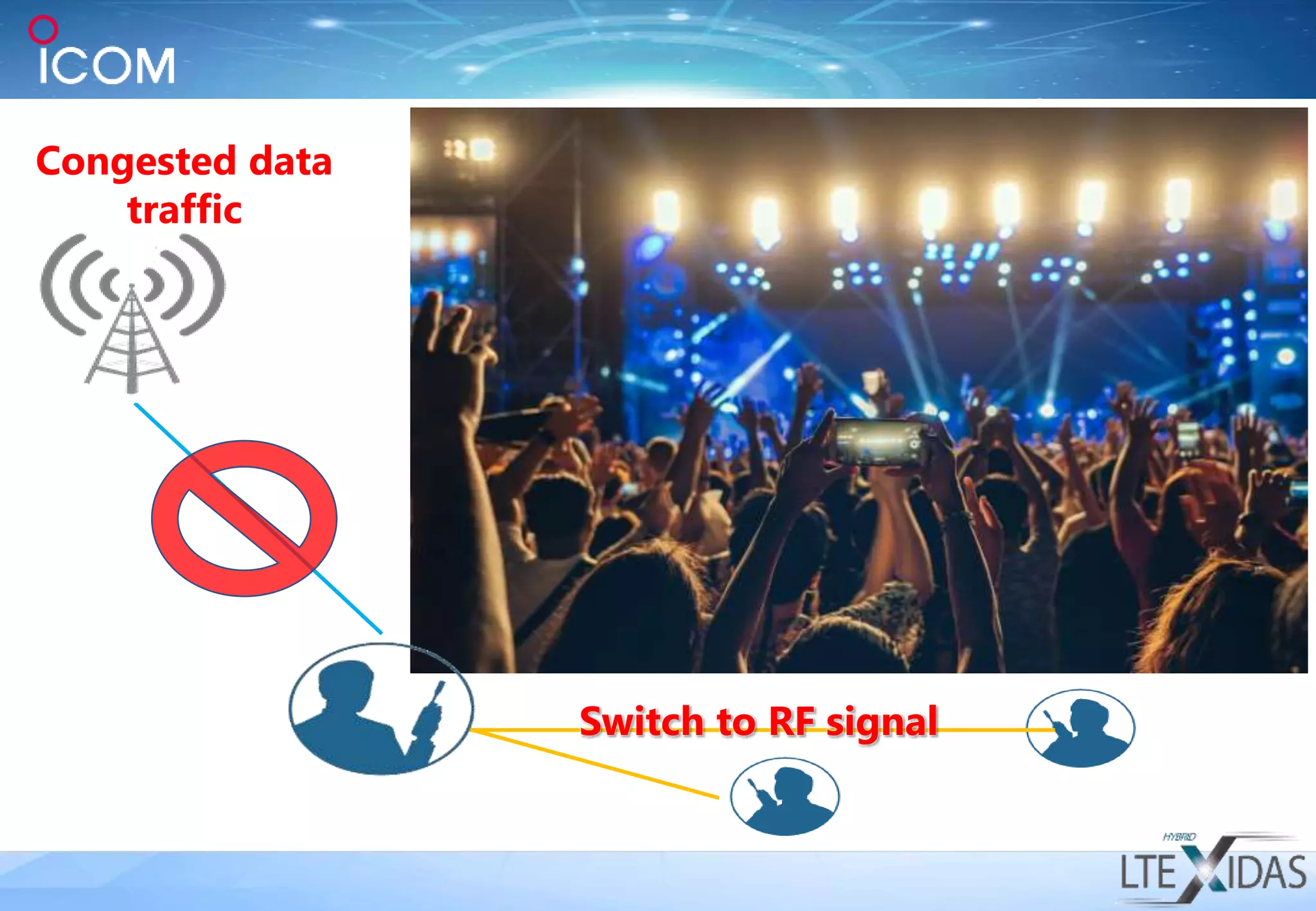

Switch to RF signal
Congested data
traffic

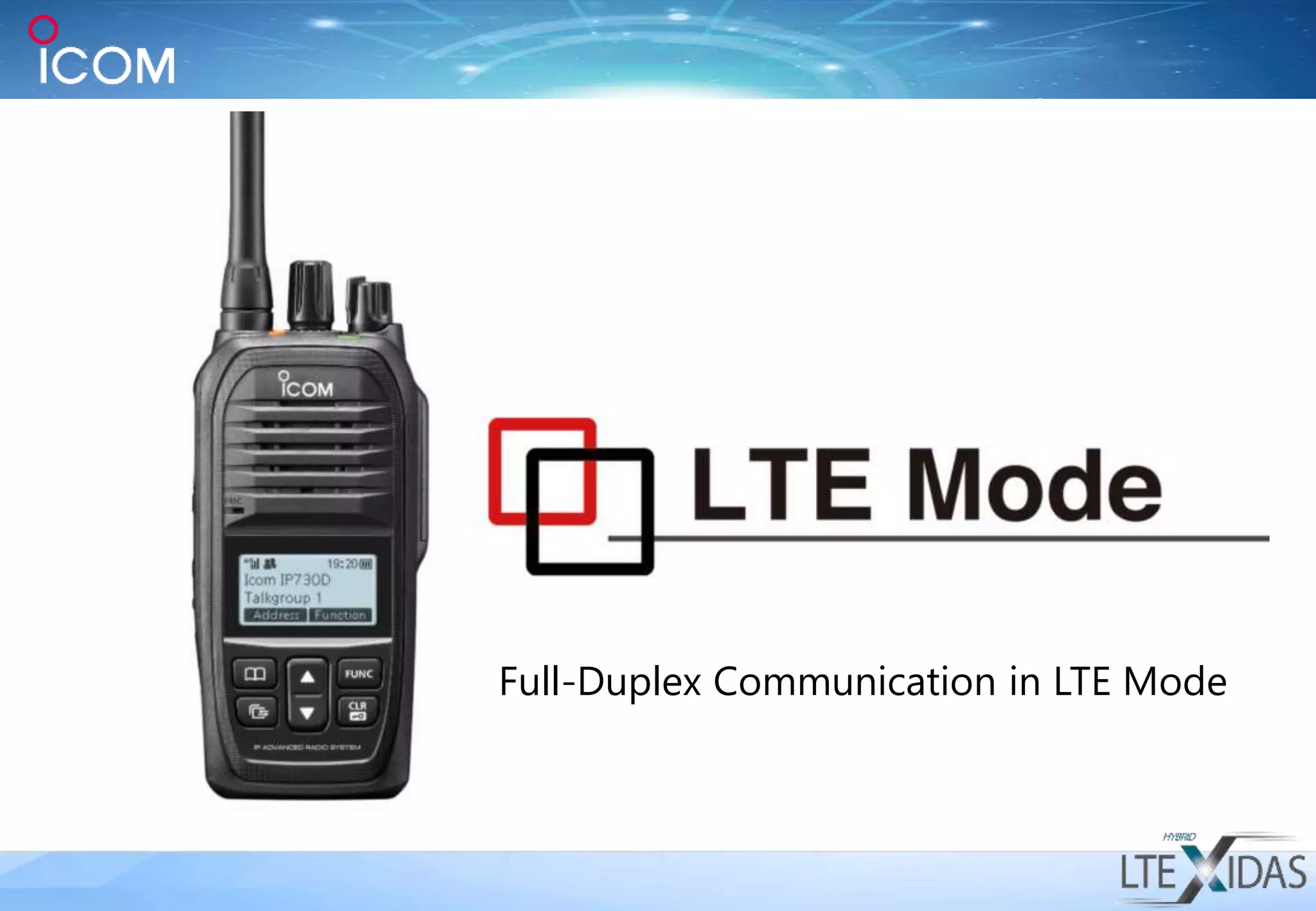

Full-Duplex Communication in LTE Mode

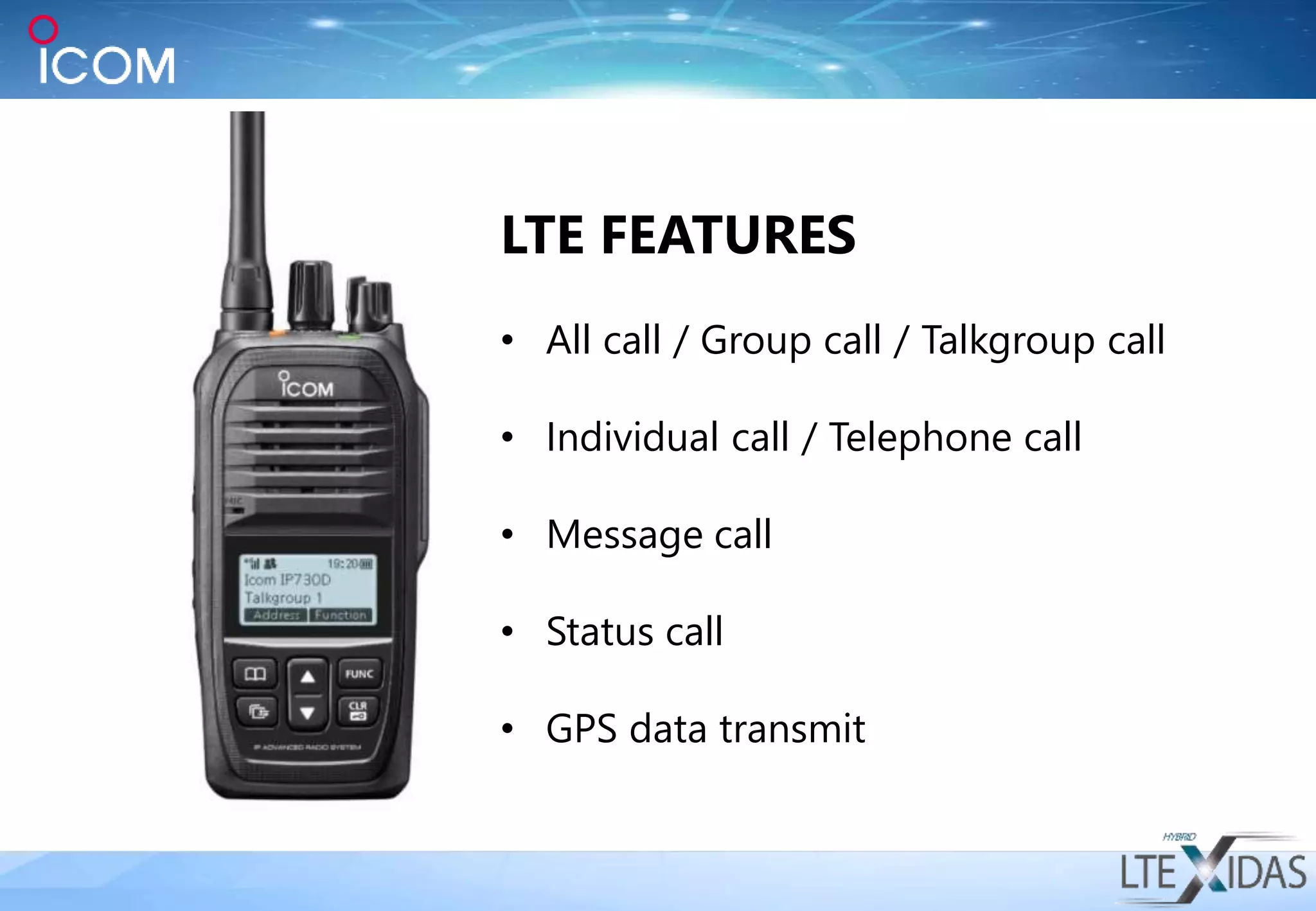

LTE FEATURES
• All call / Group call / Talkgroup call
• Individual call / Telephone call
• Message call
• Status call
• GPS data transmit

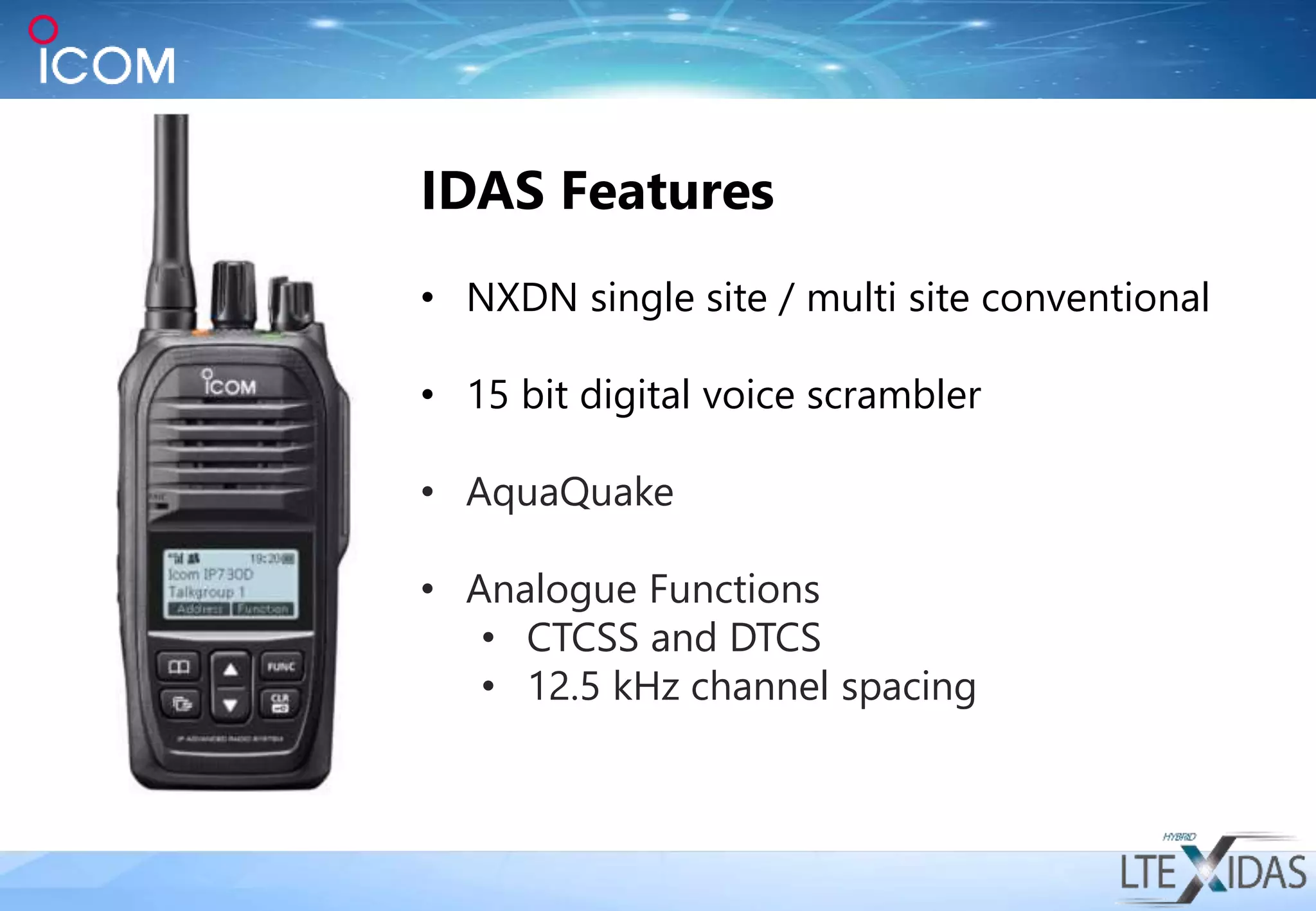

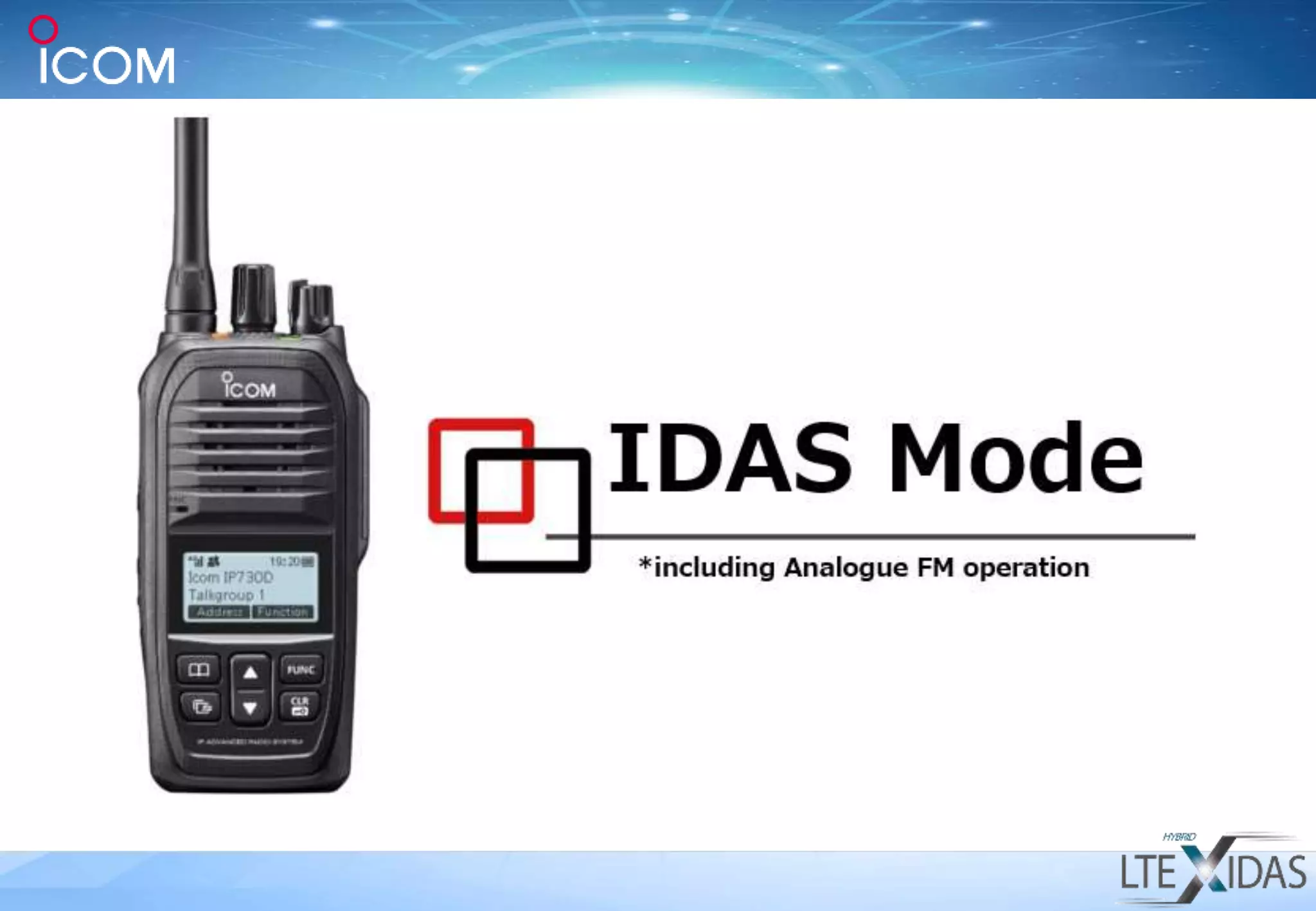

IDAS Features
• NXDN single site / multi site conventional
• 15 bit digital voice scrambler
• AquaQuake
• Analogue Functions
• CTCSS and DTCS
• 12.5 kHz channel spacing

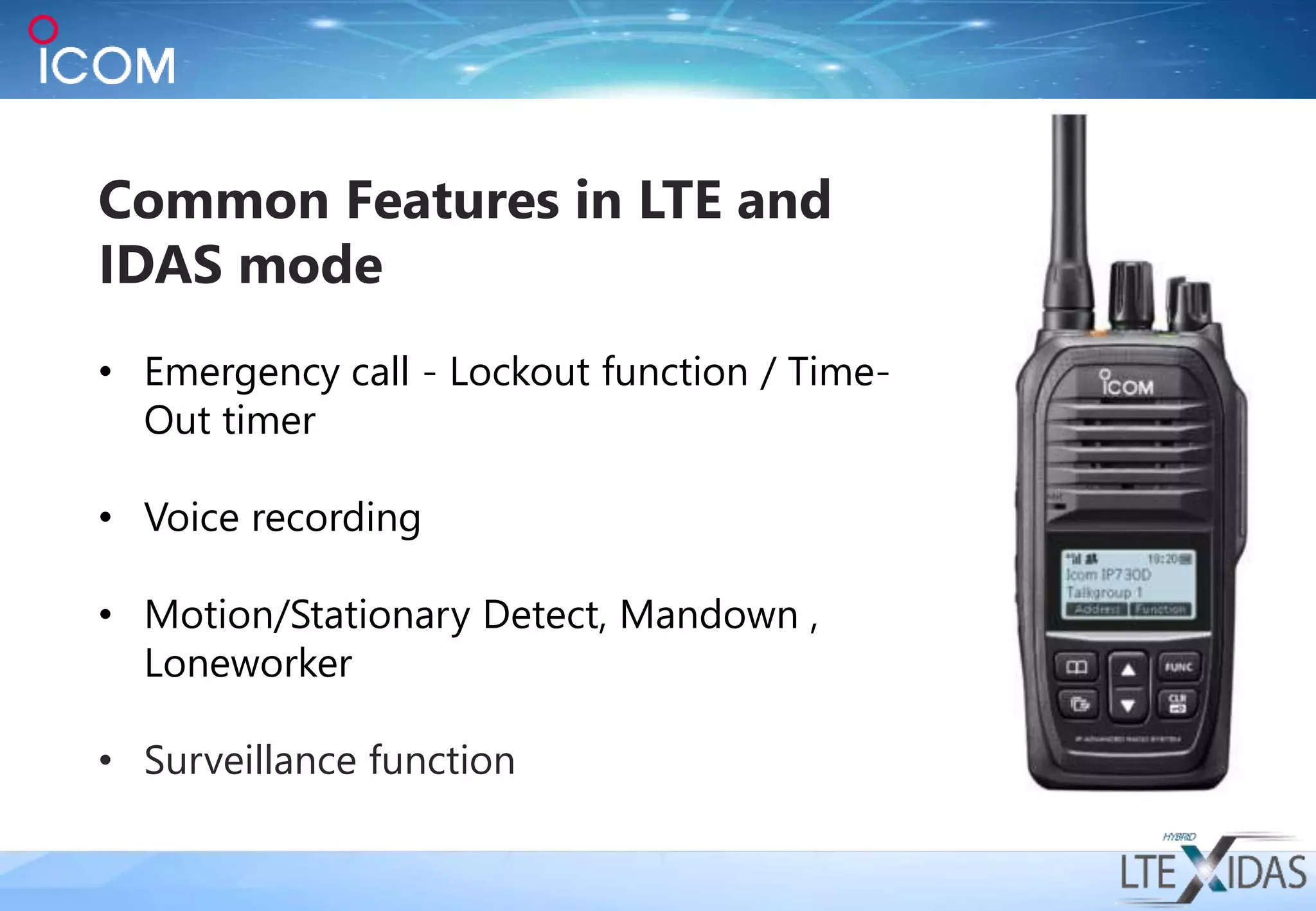

Common Features in LTE and
IDAS mode
• Emergency call - Lockout function / Time-
Out timer
• Voice recording
• Motion/Stationary Detect, Mandown ,
Loneworker
• Surveillance function

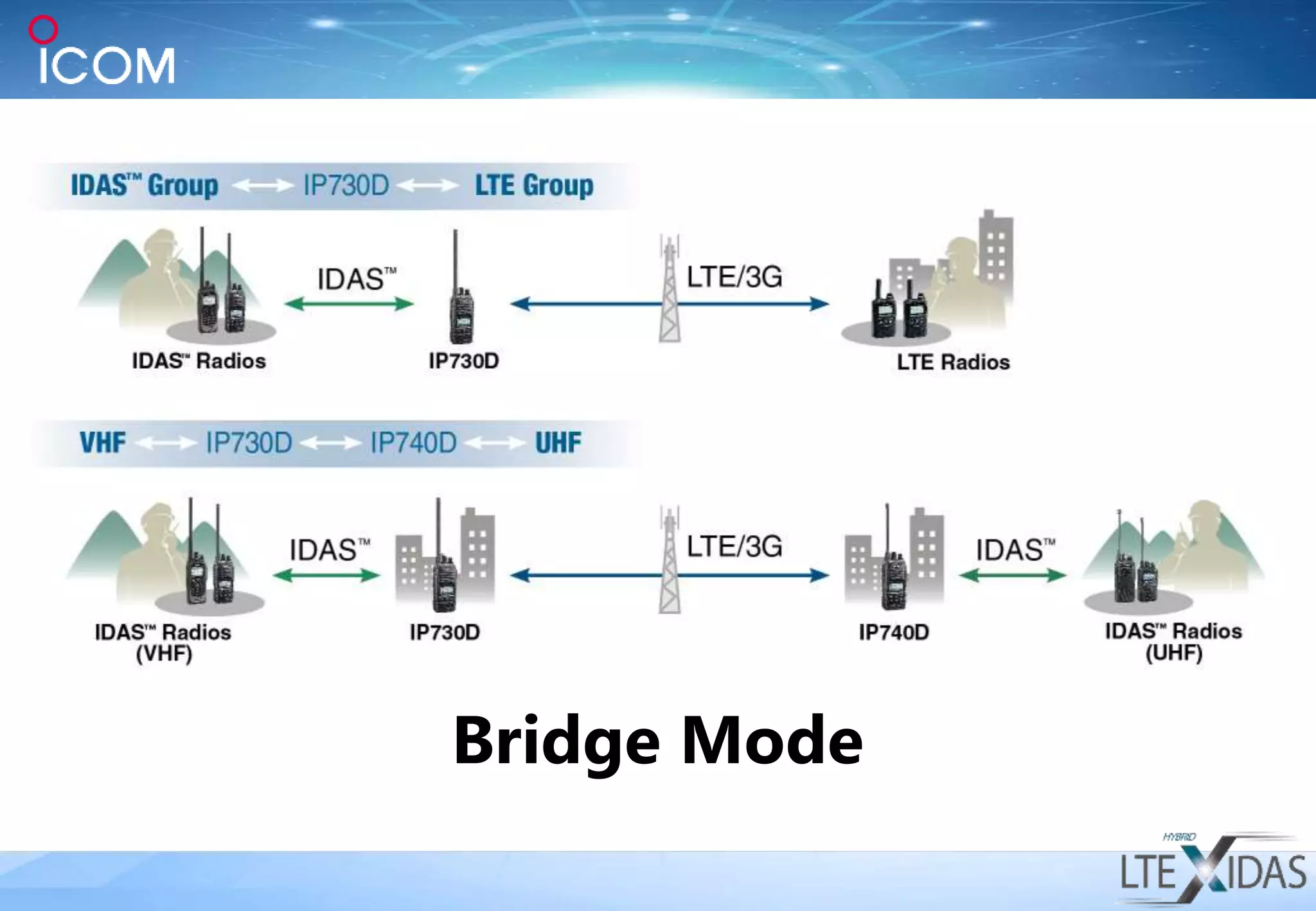

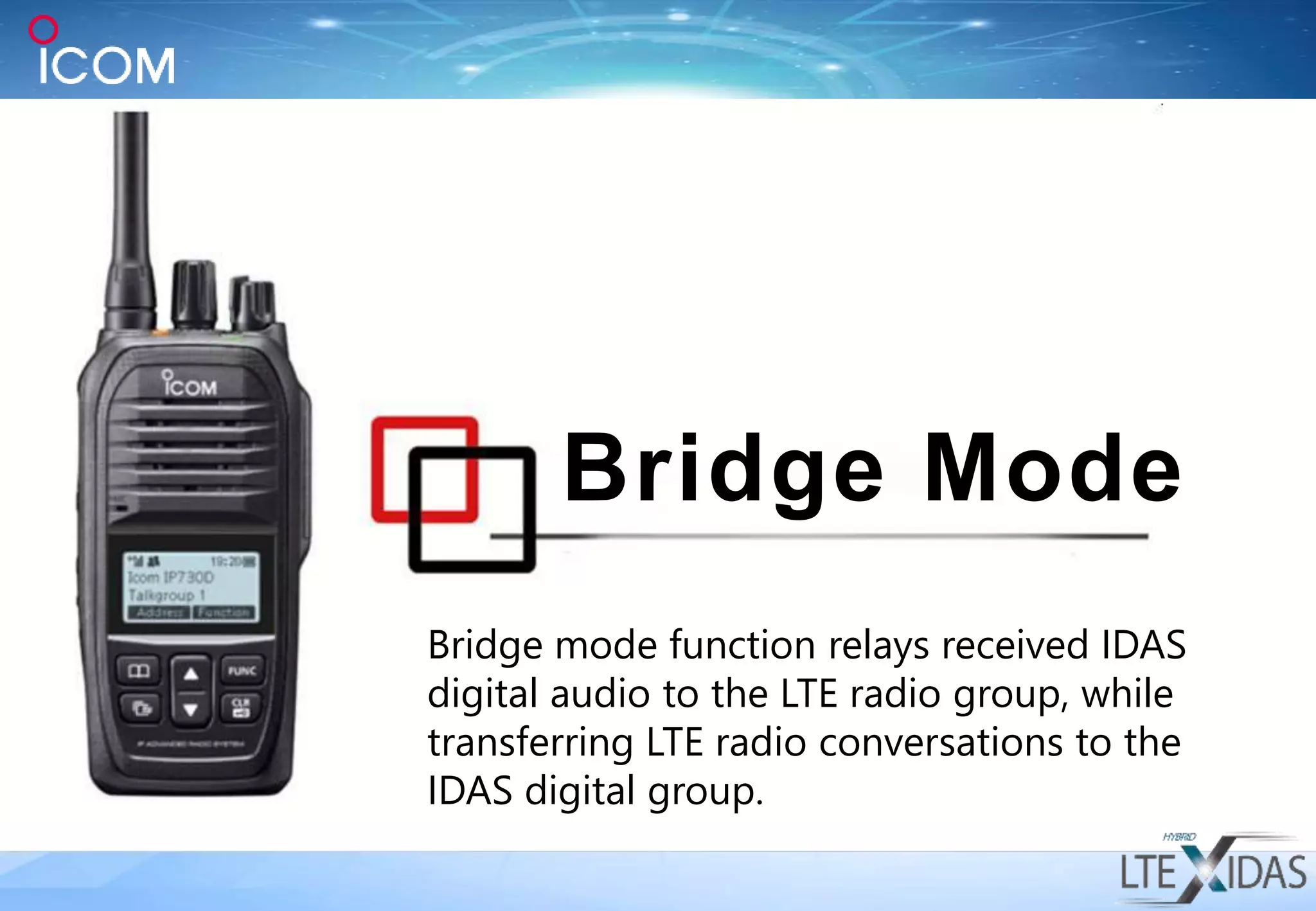

Bridge mode function relays received IDAS
digital audio to the LTE radio group, while
transferring LTE radio conversations to the
IDAS digital group.
Bridge Mode
Bridge Mode

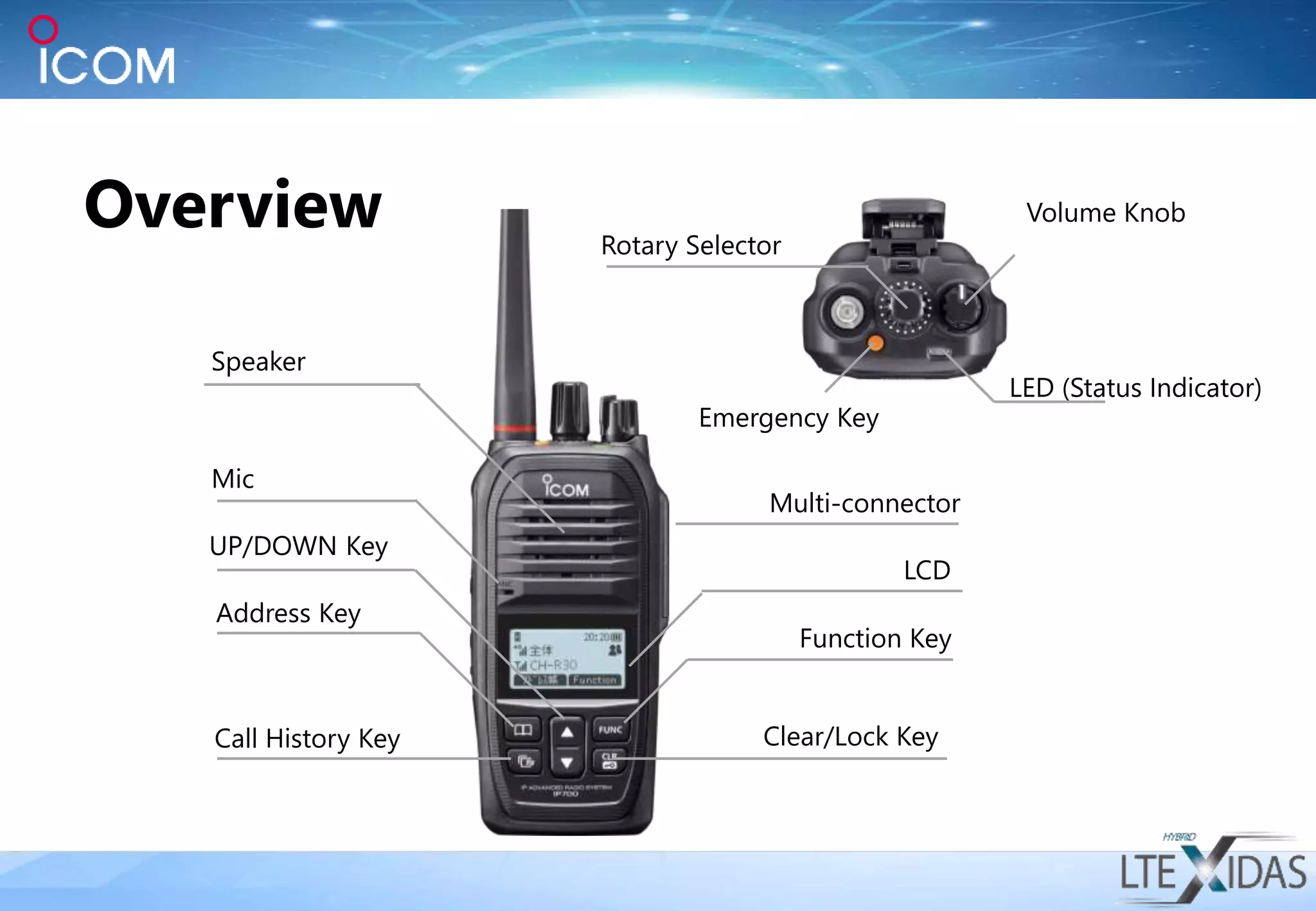

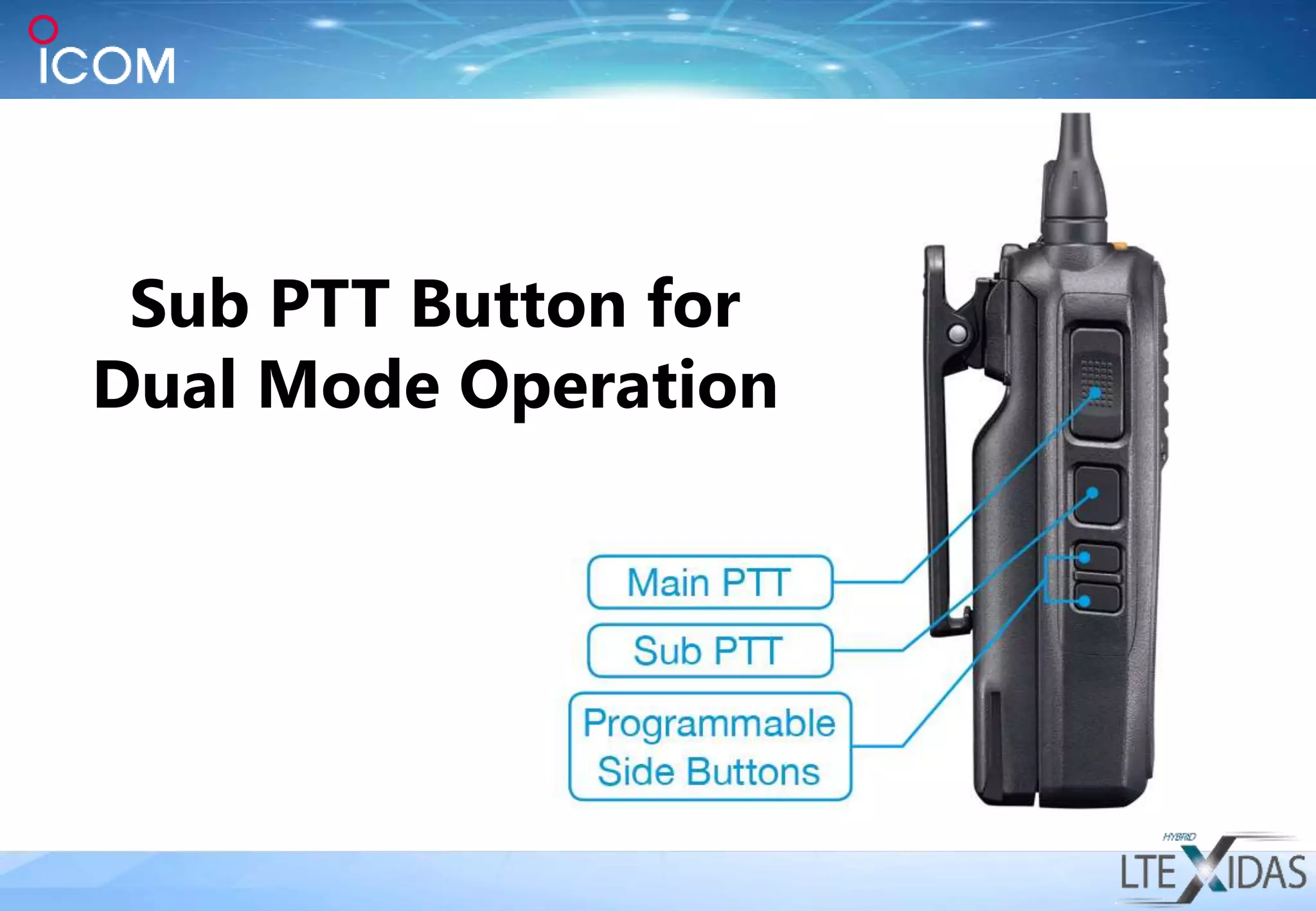

Sub PTT Button for
Dual Mode Operation
Call History Key
Address Key
UP/DOWN Key
Mic
Emergency Key
Rotary Selector
Volume Knob
LED (Status Indicator)
Multi-connector
Function Key
Clear/Lock Key
LCD
Speaker
Overview

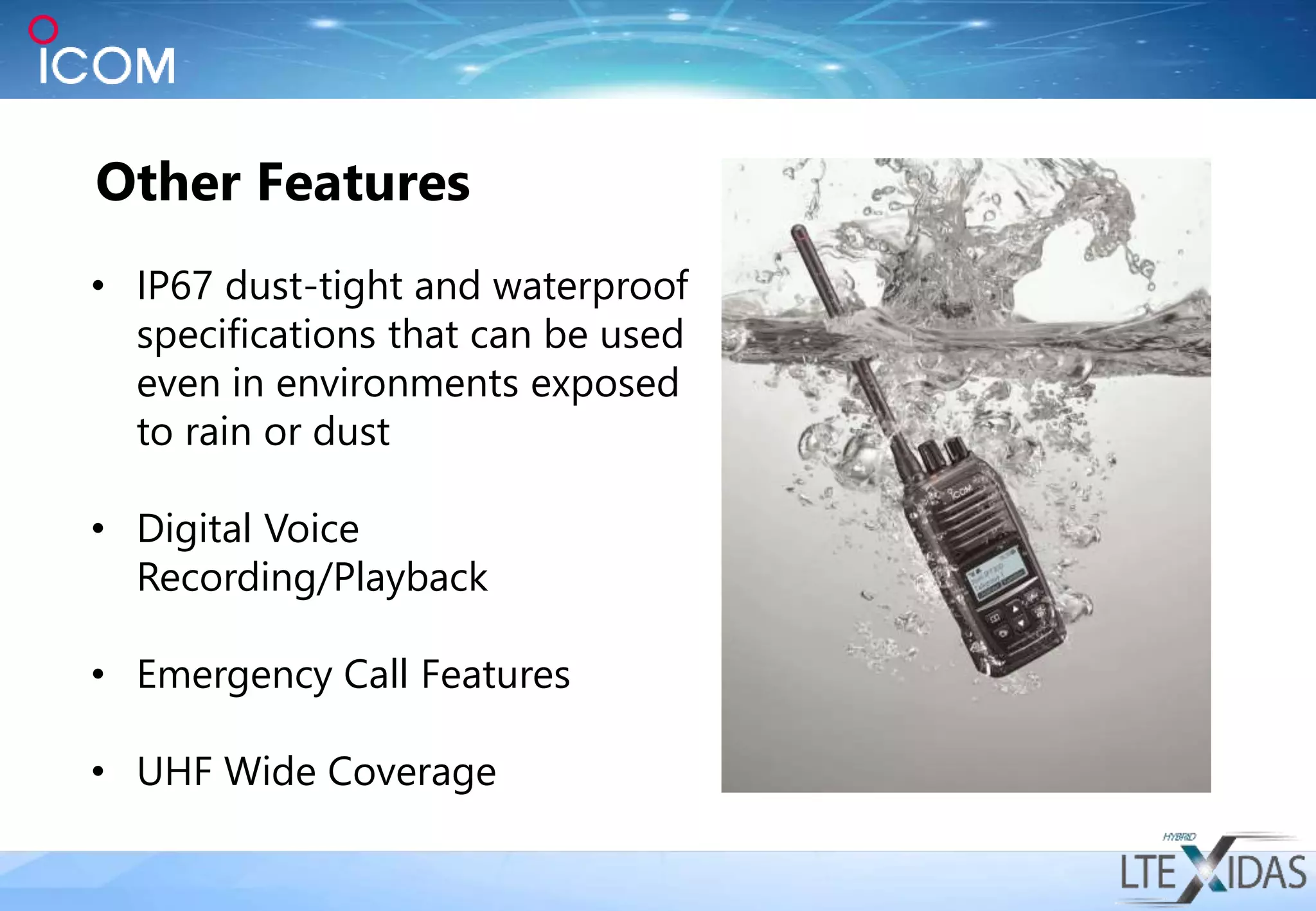

Other Features
• IP67 dust-tight and waterproof
specifications that can be used
even in environments exposed
to rain or dust
• Digital Voice
Recording/Playback
• Emergency Call Features
• UHF Wide Coverage

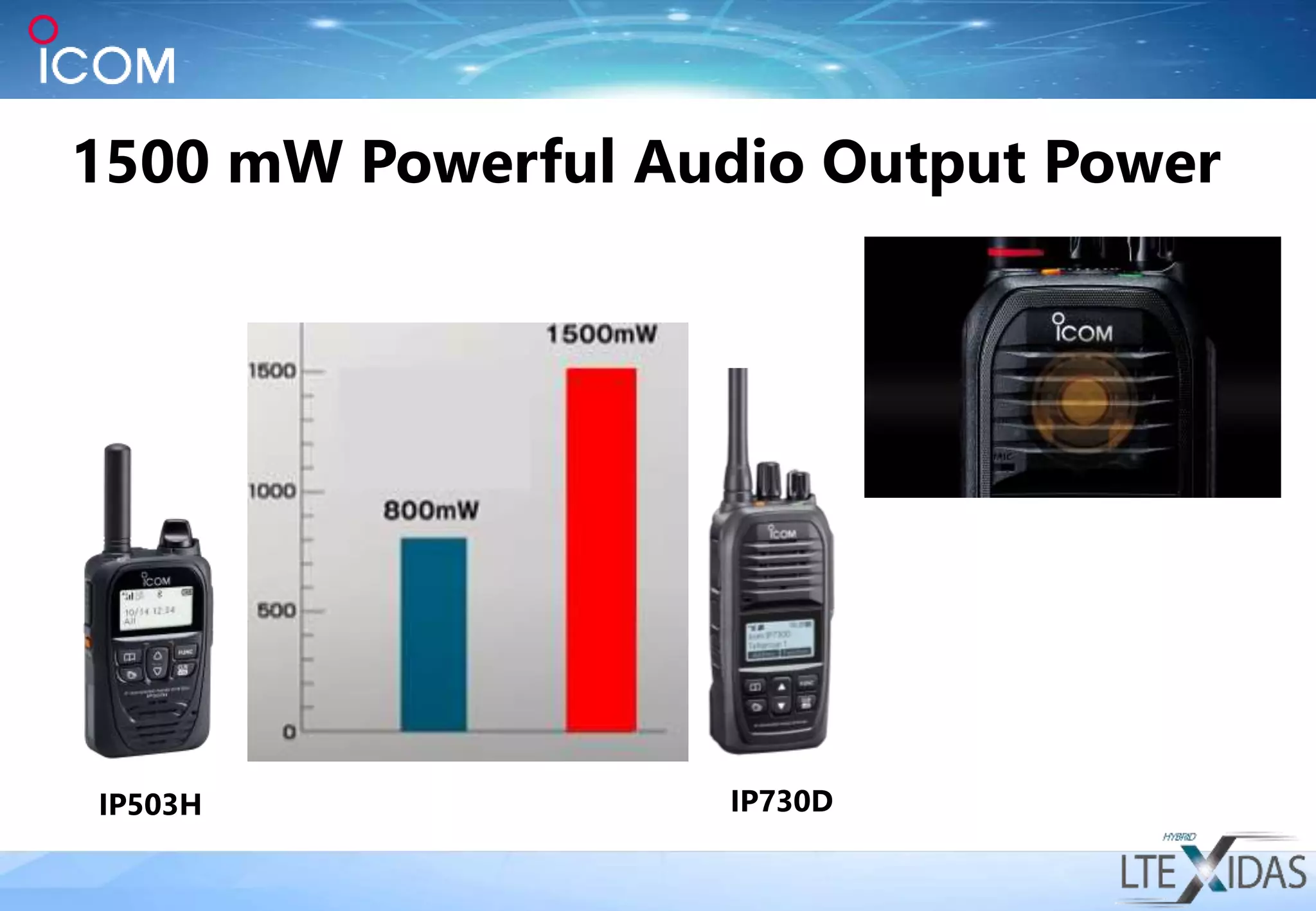

1500 mW Powerful Audio Output Power
IP503H IP730D

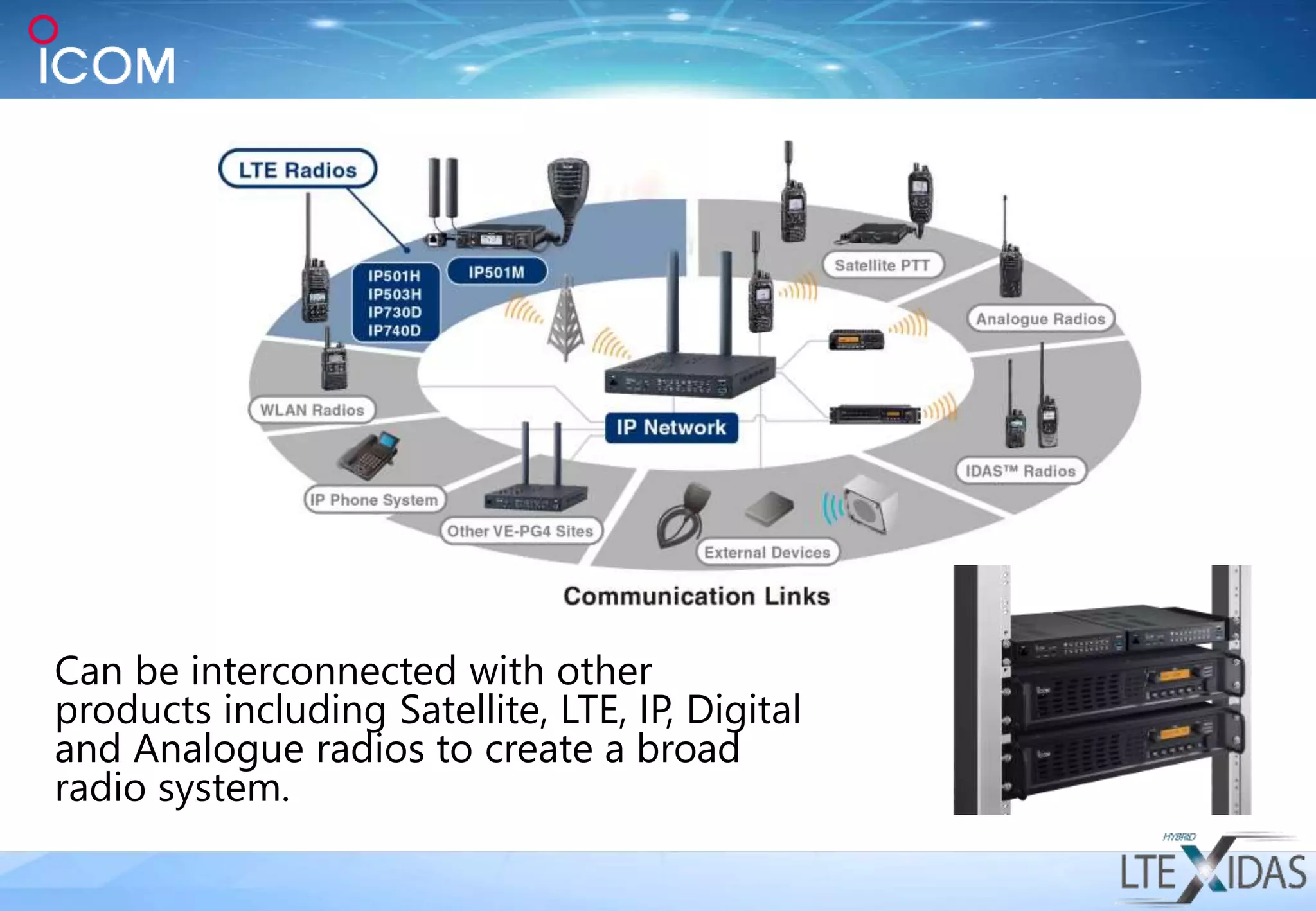

Can be interconnected with other
products including Satellite, LTE, IP, Digital
and Analogue radios to create a broad
radio system.
• Radios are programmed
‘Over The Air’ (OTA).
• No licence keys or
downloads are required.
• Can be used remotely,
anywhere in the world.

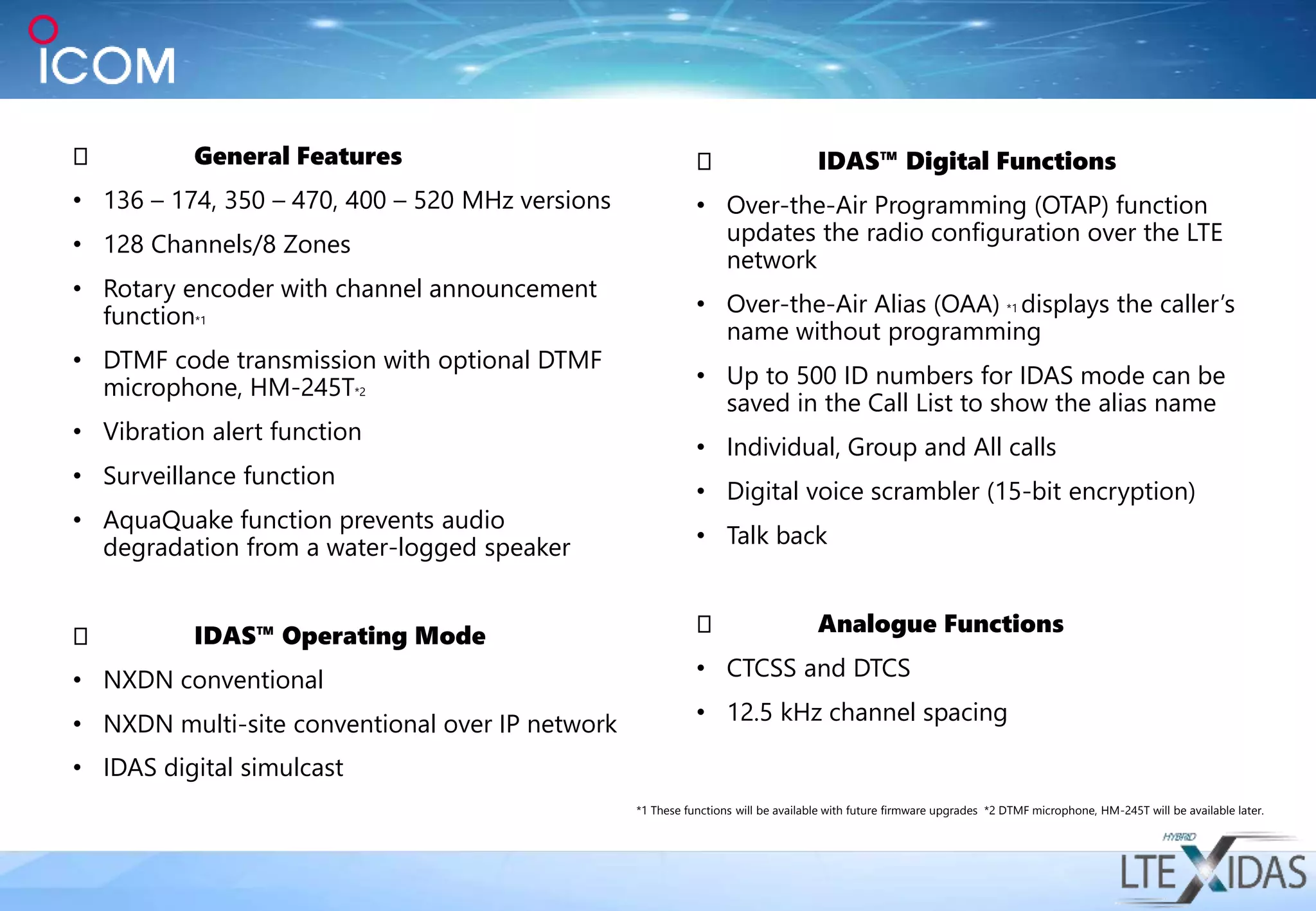

General Features
• 136 – 174, 350 – 470, 400 – 520 MHz versions
• 128 Channels/8 Zones
• Rotary encoder with channel announcement
function*1
• DTMF code transmission with optional DTMF
microphone, HM-245T*2
• Vibration alert function
• Surveillance function
• AquaQuake function prevents audio
degradation from a water-logged speaker
IDAS™ Operating Mode
• NXDN conventional
• NXDN multi-site conventional over IP network
• IDAS digital simulcast
IDAS™ Digital Functions
• Over-the-Air Programming (OTAP) function
updates the radio configuration over the LTE
network
• Over-the-Air Alias (OAA) *1 displays the caller’s
name without programming
• Up to 500 ID numbers for IDAS mode can be
saved in the Call List to show the alias name
• Individual, Group and All calls
• Digital voice scrambler (15-bit encryption)
• Talk back
Analogue Functions
• CTCSS and DTCS
• 12.5 kHz channel spacing
*1 These functions will be available with future firmware upgrades *2 DTMF microphone, HM-245T will be available later.
Compatible
with RMS-IP
LTE Radio
Dispatcher

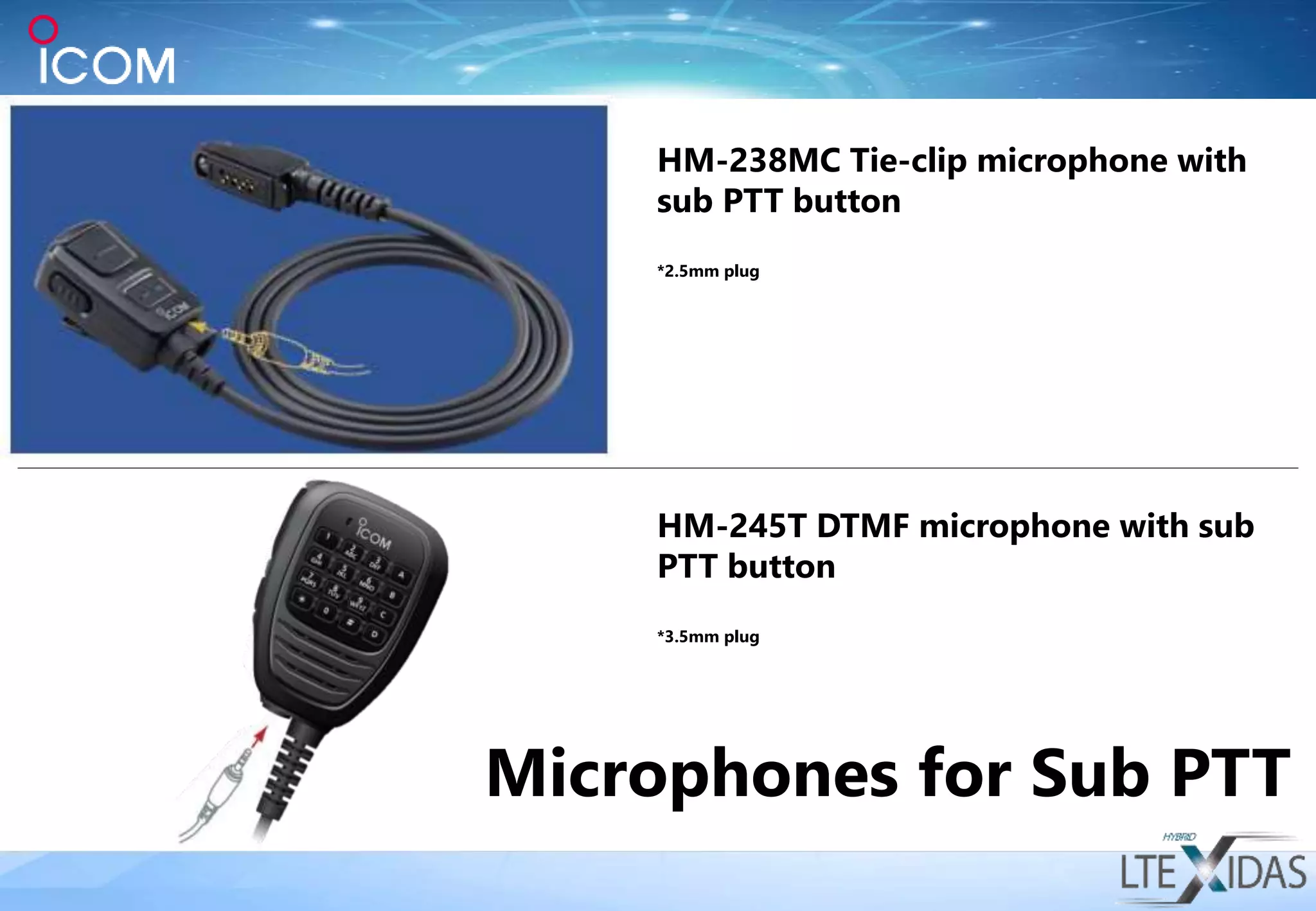

Microphones for Sub PTT
HM-245T DTMF microphone with sub
PTT button
*3.5mm plug
HM-238MC Tie-clip microphone with
sub PTT button
*2.5mm plug

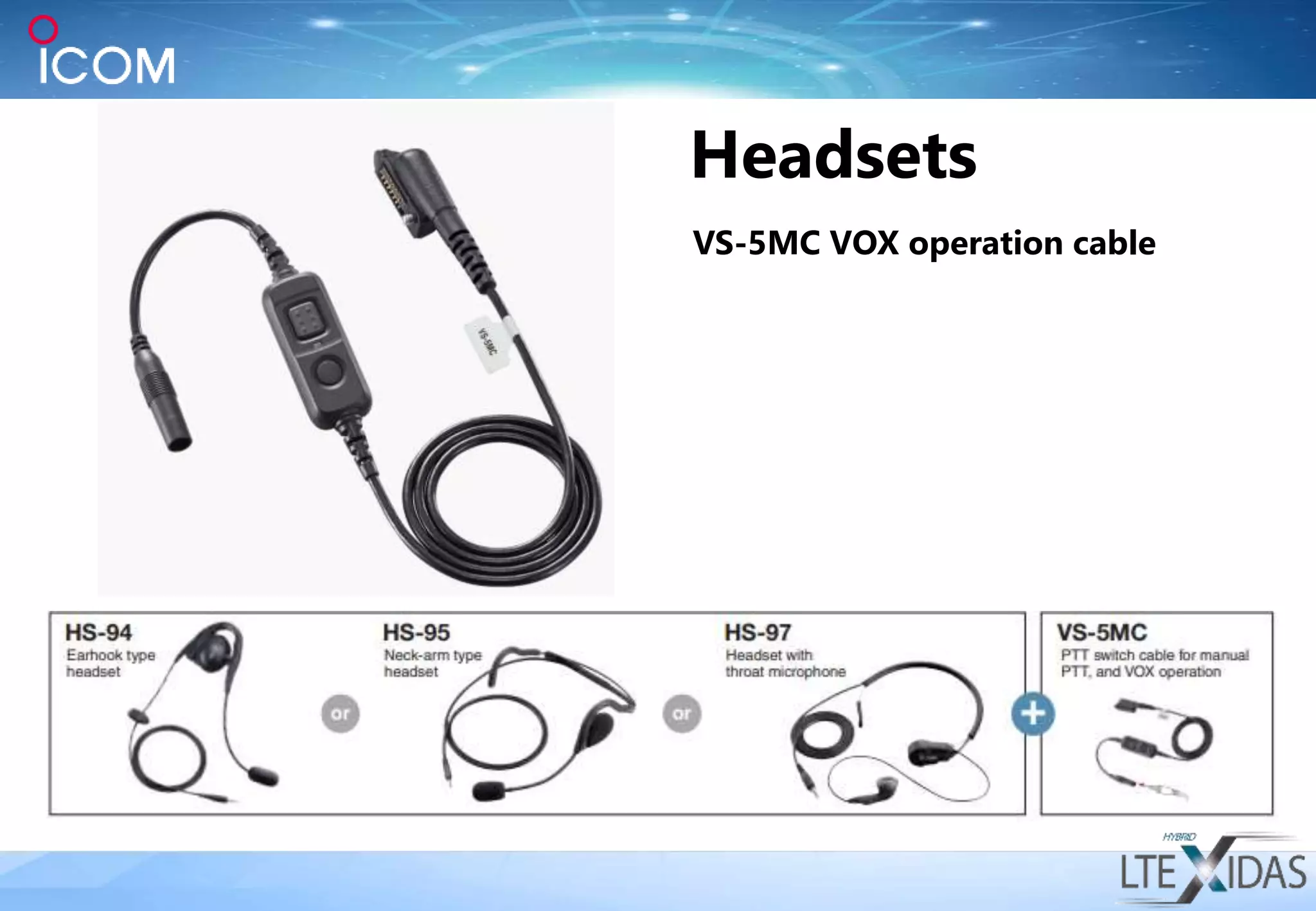

VS-5MC VOX operation cable
Headsets

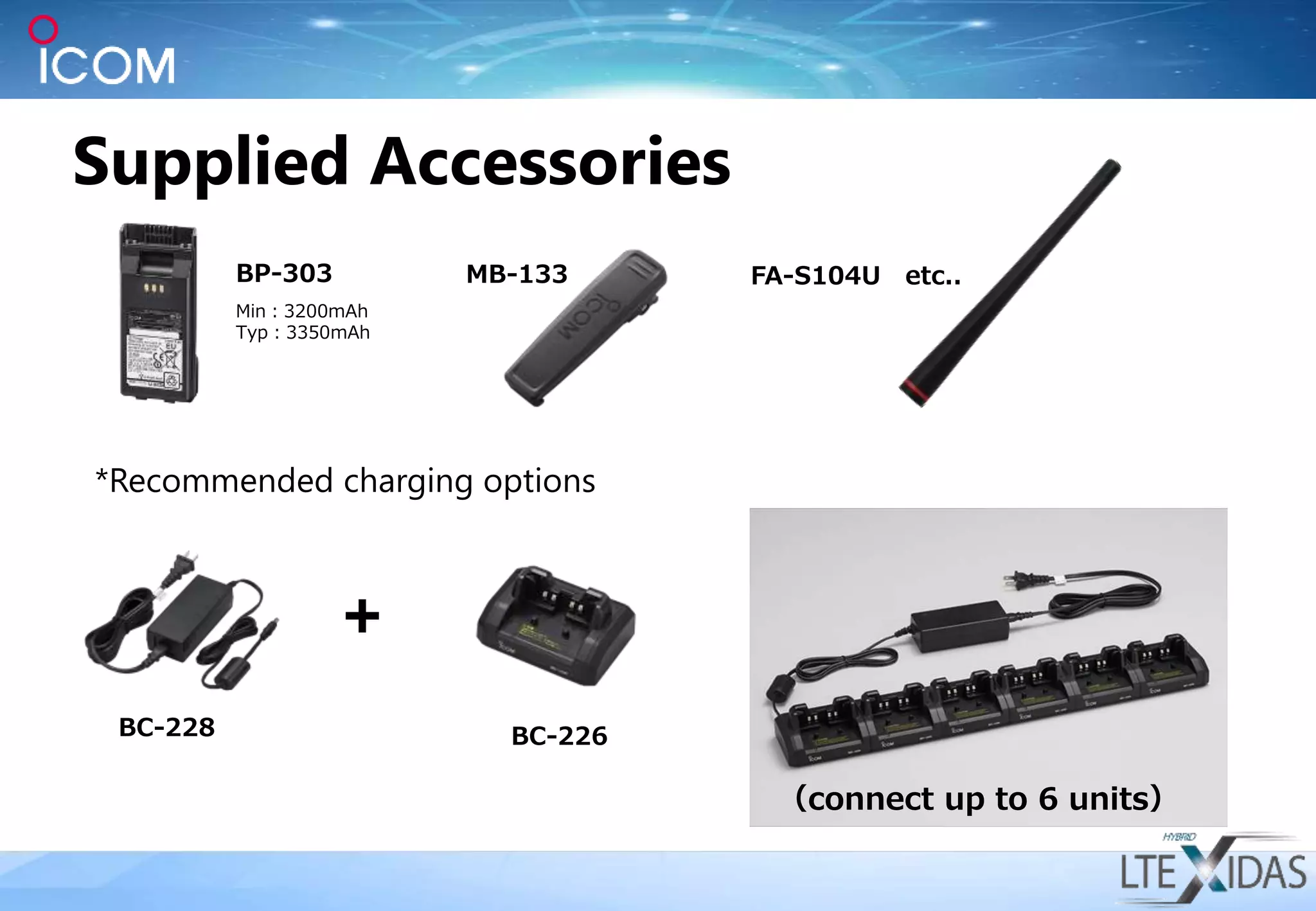

Min:3200mAh
Typ:3350mAh
BP-303 MB-133 FA-S104U etc..
BC-226
BC-228
(connect up to 6 units)
➕
*Recommended charging options
Supplied Accessories

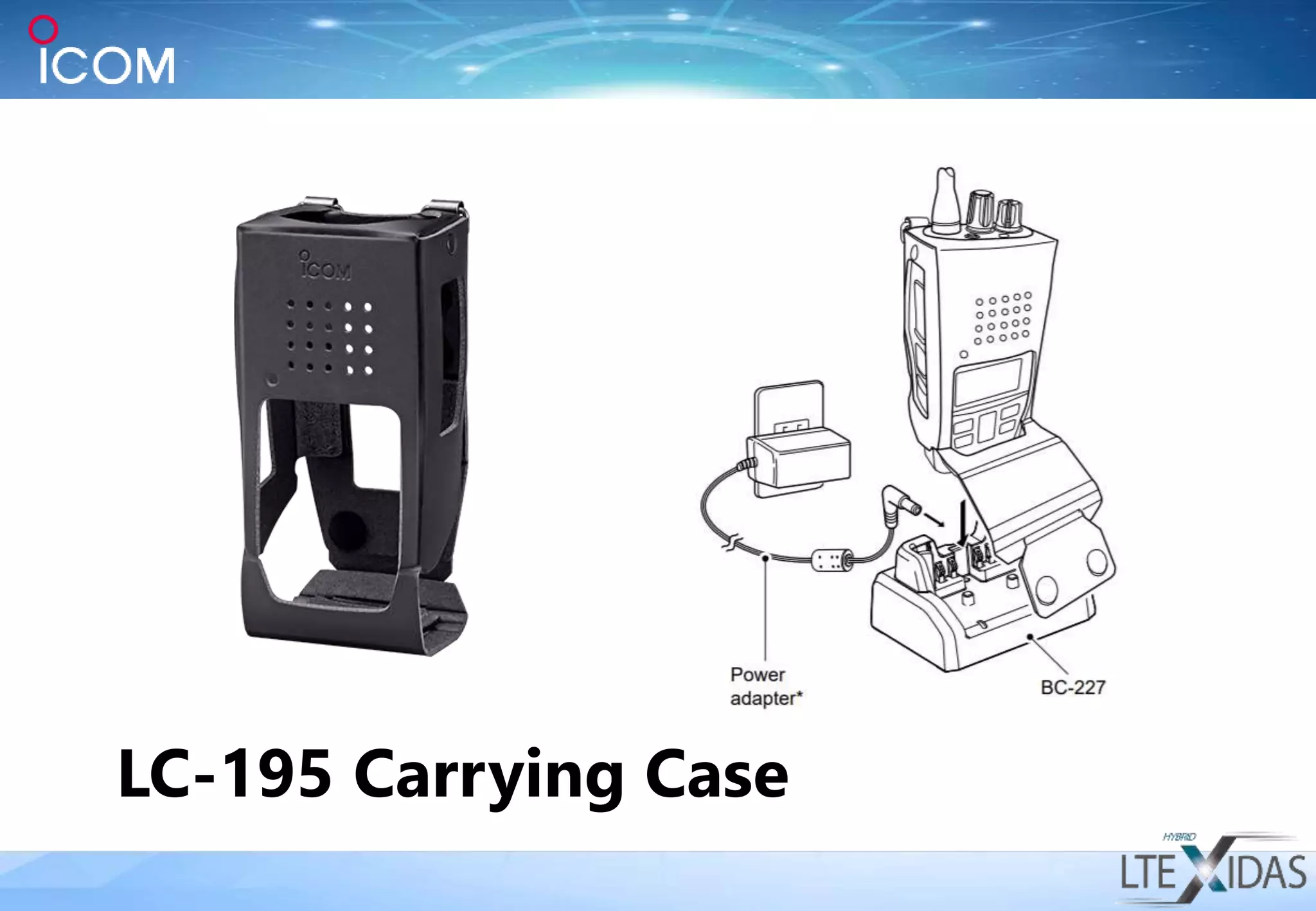

LC-195 Carrying Case

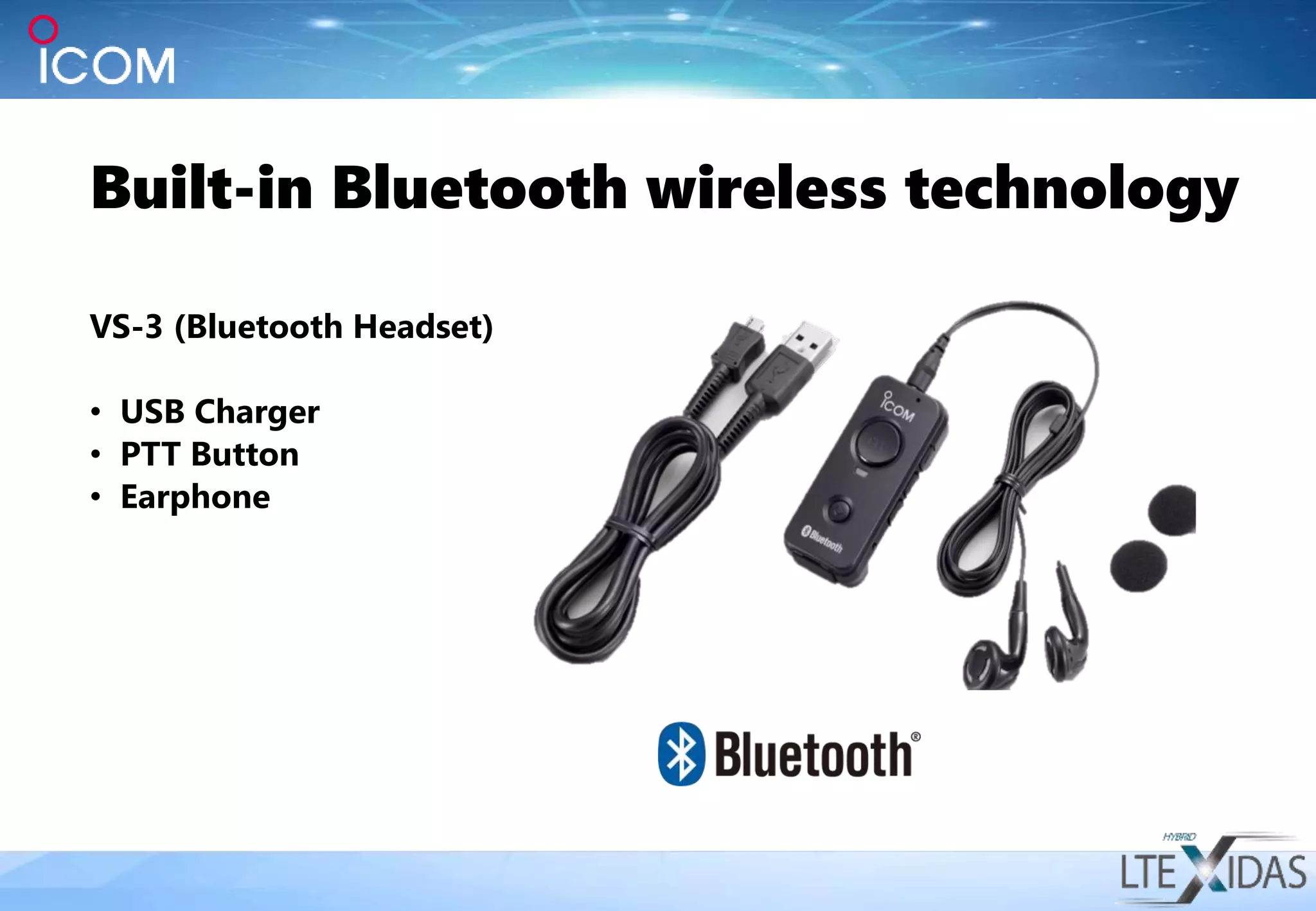

VS-3 (Bluetooth Headset)
• USB Charger
• PTT Button
• Earphone
Built-in Bluetooth wireless technology
Talk to
Anyone,
Anywhere,
Anytime!
• For a demonstration, contact Icom UK today:
• Tel: 01227 741741
• Email: sales@icomuk.co.uk
• Web: www.icomuk.co.uk
