Iconnector is an IoT gateway, functioning as a 3-in-1 device that combines a logic controller, data logger, and gateway with no programming required. It supports multiple fieldbus protocols and various communication interfaces, including GPRS, 3G, LTE, and Wi-Fi. The document provides specifications for different versions, including Wi-Fi and cellular options, along with ordering codes and accessory details.

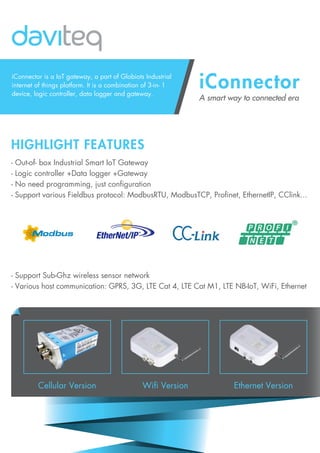

1. HIGHLIGHT FEATURES
iConnector is a IoT gateway, a part of Globiots Industrial
internet of things platform. It is a combination of 3-in- 1
device, logic controller, data logger and gateway.
- Out-of- box Industrial Smart IoT Gateway
- Logic controller +Data logger +Gateway
- No need programming, just configuration
- Support various Fieldbus protocol: ModbusRTU, ModbusTCP, Profinet, EthernetIP, CClink...
- Support Sub-Ghz wireless sensor network
- Various host communication: GPRS, 3G, LTE Cat 4, LTE Cat M1, LTE NB-IoT, WiFi, Ethernet
Cellular Version Wifi Version Ethernet Version
A smart way to connected era
iConnector

2. LOGIC CONTROLLER + DATA LOGGER + GATEWAY.
iConnector is a combination of 3-in- 1 device:
Functions
Typical Applications
Dimension drawings
Specification
Wifi Version
Cellular Version
Cellular Version
Ethernet Version
iConnector

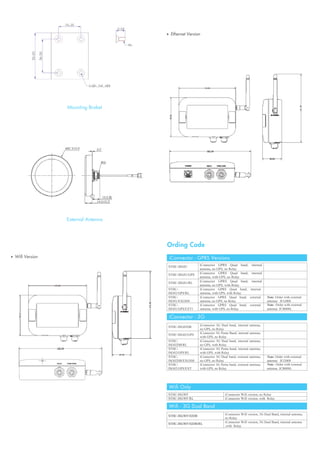

3. Wifi Version
Ethernet Version
Mounting Braket
External Antenna
Ording Code
iConnector - GPRS Versions
iConnector - 3G
Wifi Only
Wifi - 3G Dual Band

4. Accesssories
STHC-ISGWF/02DB /WR433-01
iConnector Wifi version, 3G Dual Band, internal antenna,
with RF Reveiver, no Relay
STHC-ISGWF/02DB /WR433-01/RL
iConnector Wifi version, 3G Dual Band, internal antenna,
with RF Reveiver, with Relay
Wifi - RF
Wifi - RF - 3G Dual Band
Ethernet Only
Ethernet - 3G Dual Band
Ethernet - RF
Ethernet - RF - 3G Dual Band
STHC-ISGLAN iConnector Ethernet version, no Relay
STHC-ISGLAN/RL iConnector Ethernet version, with Relay
STHC- ISGLAN /02DB
STHC- ISGLAN /02DB/RL iConnector Ethernet version, 3G Dual Band, internal antenna, with
Relay
iConnector Ethernet version, 3G Dual Band, internal antenna, with
Relay
STHC- ISGLAN /WR433-01 iConnector Ethernet version, with RF Reveiver, no Relay
STHC- ISGLAN /WR433-01 iConnector Ethernet version, with RF Reveiver, withRelay
STHC- ISGLAN/ 02DB
/WR433-01
iConnector Ethernet version, with RF Reveiver, 3G Dual Band,
internal antenna, no Relay
STHC- ISGLAN/02DB/
WR433-01/ RL
iConnector Ethernet version, with RF Reveiver, 3G Dual Band,
internal antenna, with Relay
JCB008L
GPS+GSM Combination Antenna, IP 65-67, for STHC-ISG01/GPS/EXT1 & STHC-
ISG02/GPS/EXT
JCG008 GSM Antenna,IP 67, for STHC-ISG01/EXGSM & STHC-ISG02DB/EXGSM
JCG008
JCB008L
