1. SEMINAR 2011-2012
Vaisali K
B070225AR

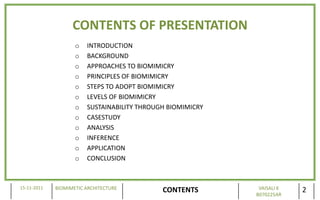

2. CONTENTS OF PRESENTATION
o INTRODUCTION
o BACKGROUND
o APPROACHES TO BIOMIMICRY
o PRINCIPLES OF BIOMIMICRY
o STEPS TO ADOPT BIOMIMICRY
o LEVELS OF BIOMIMICRY
o SUSTAINABILITY THROUGH BIOMIMICRY
o CASESTUDY
o ANALYSIS
o INFERENCE
o APPLICATION
o CONCLUSION
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
CONTENTS B070225AR
2

3. WHAT IS BIOMIMETICS?
Biomimetics is the term used to describe the
substances, equipment, mechanism and systems by
which humans imitate natural systems and designs.
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
INTRODUCTION B070225AR
3

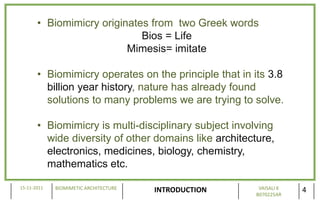

4. • Biomimicry originates from two Greek words
Bios = Life
Mimesis= imitate
• Biomimicry operates on the principle that in its 3.8
billion year history, nature has already found
solutions to many problems we are trying to solve.
• Biomimicry is multi-disciplinary subject involving
wide diversity of other domains like architecture,
electronics, medicines, biology, chemistry,
mathematics etc.
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
INTRODUCTION B070225AR
4

5. 15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
CONCEPT B070225AR
5

6. FLIGHT OF BIRD LEONARDO DA VINCI’S FLYING MACHINE
AEROPLANE TODAY WRIGHT BROTHER’S FIRST PROTOTYPE
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
CONCEPT B070225AR
6

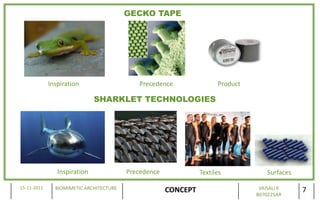

7. GECKO TAPE
Inspiration Precedence Product
SHARKLET TECHNOLOGIES
Inspiration Precedence Textiles Surfaces
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
CONCEPT B070225AR
7

8. HOW DID IT BEGIN?
• American biophysicist and
polymath.
• Coined the term Biomimetics in
1950’s.
• Developed Schmitt trigger by
studying the nerves in squid.
• Attempted to engineer a device
that replicated the system of
nerve propagation.
Otto Schmitt (1913-1998)
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
BACKGROUND B070225AR
8

9. HOW DID IT BEGIN?
• American writer and scientific observer
from Montana.
• Wrote the book “Biomimicry: Innovation
Inspired by Nature” in 1997
• The books gives an insight on how
significant biomimicry is in shaping the
future.
• In 1998 she co-founded the Biomimicry
Guild which helps inform , inspire and
empower the bridging of nature’s wisdom Janine M. Benyus (b 1958)
with human knowledge.
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
BACKGROUND B070225AR
9

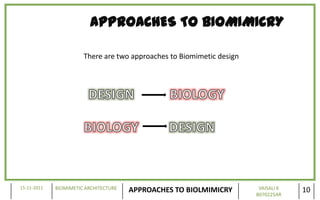

10. APPROACHES TO BIOMIMICRY
There are two approaches to Biomimetic design
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
APPROACHES TO BIOLMIMICRY B070225AR
10

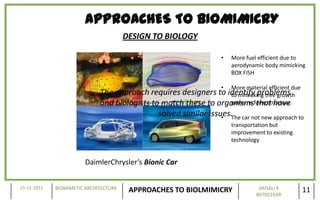

11. APPROACHES TO BIOMIMICRY
DESIGN TO BIOLOGY
• More fuel efficient due to
aerodynamic body mimicking
BOX FISH
• More material efficient due
The approach requires designers to identify problems
to mimicking tree growth
and biologists to match these to organismsform structure.
patterns that have
solved similar issues.The car not new approach to
•
transportation but
improvement to existing
technology
DaimlerChrysler’s Bionic Car
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
APPROACHES TO BIOLMIMICRY B070225AR
11

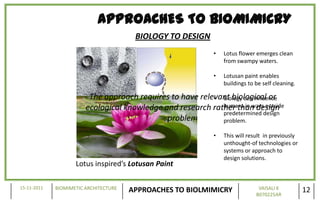

12. APPROACHES TO BIOMIMICRY
BIOLOGY TO DESIGN
• Lotus flower emerges clean
from swampy waters.
• Lotusan paint enables
buildings to be self cleaning.
The approach requires to have relevant biological or
• Biology can influence
humans in ways outside
ecological knowledge and research rather than design
predetermined design
problem problem.
• This will result in previously
unthought-of technologies or
systems or approach to
design solutions.
Lotus inspired’s Lotusan Paint
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
APPROACHES TO BIOLMIMICRY B070225AR
12

13. PRINCIPLES OF BIOMIMICRY
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
PRINCIPLES OF BIOMIMICRY B070225AR
13

14. PRINCIPLES OF BIOMIMICRY
• Nature runs on sunlight.
• Nature uses only the energy it needs.
• Nature fits form to function.
• Nature recycles everything.
• Nature rewards cooperation.
• Nature banks on diversity.
• Nature demands local expertise.
• Nature curbs excesses from within.
• Nature taps the power of limits
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
PRINCIPLES OF BIOMIMICRY B070225AR
14

15. NATURE AS A MODEL
NATURE AS A MEASURE
NATURE AS A MENTOR
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
PRINCIPLES OF BIOMIMICRY B070225AR
15

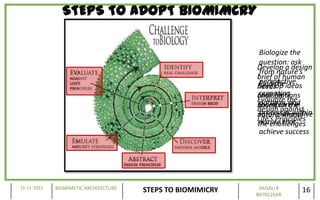

16. STEPS TO ADOPT BIOMIMCRY
Biologize the
question: ask
Develop a design
from nature’s
brief of human
perspective.
Find the
needs ideas
Develop
repeating
Look for
and solutions
Evaluate the
based on and
patterns the
champions in
design against
processes within
naturalwho solve
nature model
Life’s Principles
nature that
the challlenges
achieve success
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
STEPS TO BIOMIMICRY B070225AR
16

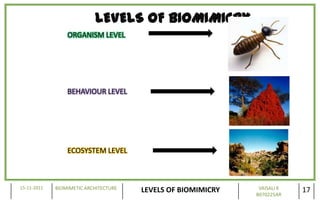

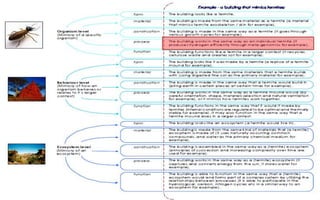

17. LEVELS OF BIOMIMICRY
ORGANISM LEVEL
BEHAVIOUR LEVEL
ECOSYSTEM LEVEL
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
LEVELS OF BIOMIMICRY B070225AR
17

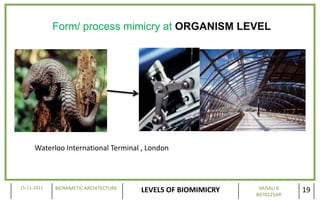

19. Form/ process mimicry at ORGANISM LEVEL
Waterloo International Terminal , London
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
LEVELS OF BIOMIMICRY B070225AR
19

21. Process/function mimicry at BEHAVIOUR LEVEL
Eastgate Council
Centre , House 2,
Harare Melbourne
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
LEVELS OF BIOMIMICRY B070225AR
21

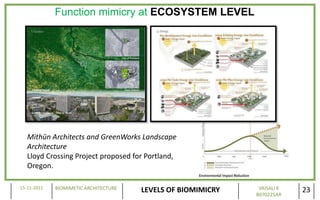

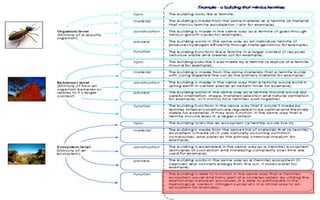

23. Function mimicry at ECOSYSTEM LEVEL
Mithūn Architects and GreenWorks Landscape
Architecture
Lloyd Crossing Project proposed for Portland,
Oregon.
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
LEVELS OF BIOMIMICRY B070225AR
23

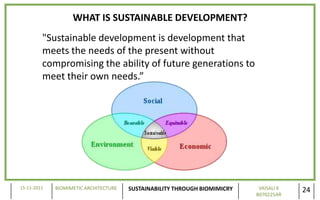

24. WHAT IS SUSTAINABLE DEVELOPMENT?
"Sustainable development is development that
meets the needs of the present without
compromising the ability of future generations to
meet their own needs.”
15-11-2011 BIOMIMETIC ARCHITECTURE SUSTAINABILITY THROUGH BIOMIMICRY VAISALI K
B070225AR
24

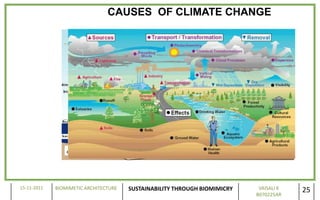

25. CAUSES OF CLIMATE CHANGE
15-11-2011 BIOMIMETIC ARCHITECTURE SUSTAINABILITY THROUGH BIOMIMICRY VAISALI K
B070225AR
25

26. In order to tackle the issue of global climate change two approaches can
be adopted:
MITIGATION
ADAPTATION
15-11-2011 BIOMIMETIC ARCHITECTURE SUSTAINABILITY THROUGH BIOMIMICRY VAISALI K
B070225AR
26

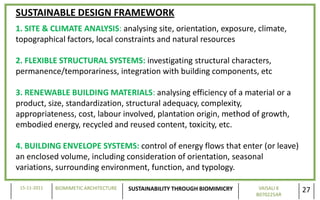

27. SUSTAINABLE DESIGN FRAMEWORK
1. SITE & CLIMATE ANALYSIS: analysing site, orientation, exposure, climate,
topographical factors, local constraints and natural resources
2. FLEXIBLE STRUCTURAL SYSTEMS: investigating structural characters,
permanence/temporariness, integration with building components, etc
3. RENEWABLE BUILDING MATERIALS: analysing efficiency of a material or a
product, size, standardization, structural adequacy, complexity,
appropriateness, cost, labour involved, plantation origin, method of growth,
embodied energy, recycled and reused content, toxicity, etc.
4. BUILDING ENVELOPE SYSTEMS: control of energy flows that enter (or leave)
an enclosed volume, including consideration of orientation, seasonal
variations, surrounding environment, function, and typology.
15-11-2011 BIOMIMETIC ARCHITECTURE SUSTAINABILITY THROUGH BIOMIMICRY VAISALI K
B070225AR
27

28. 5. MODULAR BUILDING SYSTEMS: construction and assembling methods to
facilitate substitution, repair, maintenance, diversified lifetime, etc.
6. RENEWABLE & NON-CONVENTIONAL ENERGY SYSTEMS: integrating sources
of energy that do not reduce or exhaust their point of origin;
7. INNOVATIVE HVAC SYSTEMS: implementing strategies to provide thermo-
hygrometric and air quality comfort, exploiting mechanically regulated, hybrid,
or, preferably, totally passive techniques;
8. WATER COLLECTION & STORAGE SYSTEMS: adopting methods, system and
strategies to collect, store, distribute, use, recycle and re-use water.
15-11-2011 BIOMIMETIC ARCHITECTURE SUSTAINABILITY THROUGH BIOMIMICRY VAISALI K
B070225AR
28

29. 15-11-2011 BIOMIMETIC ARCHITECTURE SUSTAINABILITY THROUGH BIOMIMICRY VAISALI K
B070225AR
29

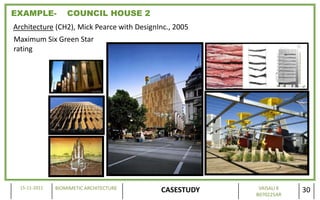

30. EXAMPLE- COUNCIL HOUSE 2
Architecture (CH2), Mick Pearce with DesignInc., 2005
Maximum Six Green Star
rating
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
CASESTUDY B070225AR
30

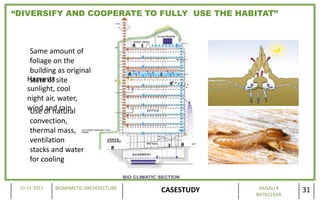

31. “DIVERSIFY AND COOPERATE TO FULLY USE THE HABITAT”
Same amount of
foliage on the
building as original
Harvests site
state of
sunlight, cool
night air, water,
wind of natural
Use and rain
convection,
thermal mass,
ventilation
stacks and water
for cooling
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
CASESTUDY B070225AR
31

32. “USE WASTE AS RESOURCES”
Sustainable timber selection
Recycled structural
concrete
PVC minimisation
Recycled structural steel
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
CASESTUDY B070225AR
32

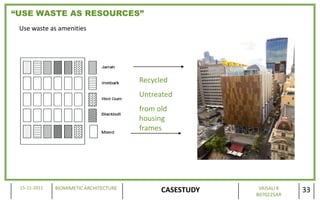

33. “USE WASTE AS RESOURCES”
Use waste as amenities
Recycled
Untreated
from old
housing
frames
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
CASESTUDY B070225AR
33

34. “GATHER AND USE ENERGY EFFICIENTLY”
Gas-fired
micro-turbine (co-generation) Electricity
micro-
turbine
lifts  generate power in breaking Waste heat Used in A/C
mode plant
Heating hot
solar hot water produced by 48
water;
square metres of solar hot water
panels on roof, supplemented by gas cooling via
boiler absorption
chiller
solar power (PV cells) : 3.5kW
energy  used to power Western
timber shutters
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
CASESTUDY B070225AR
34

35. “OPTIMIZE RATHER THEN MAXIMIZE”
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
CASESTUDY B070225AR
35

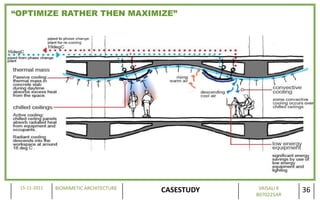

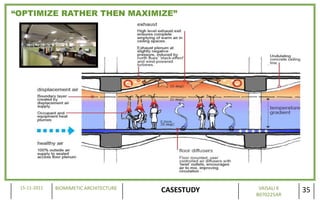

36. “OPTIMIZE RATHER THEN MAXIMIZE”
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
CASESTUDY B070225AR
36

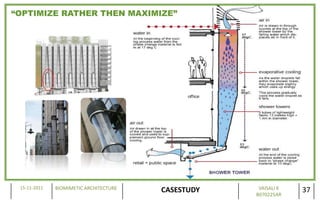

37. “OPTIMIZE RATHER THEN MAXIMIZE”
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
CASESTUDY B070225AR
37

38. “OPTIMIZE RATHER THEN MAXIMIZE”
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
CASESTUDY B070225AR
38

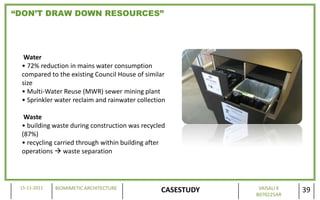

39. “DON’T DRAW DOWN RESOURCES”
Water
• 72% reduction in mains water consumption
compared to the existing Council House of similar
size
• Multi-Water Reuse (MWR) sewer mining plant
• Sprinkler water reclaim and rainwater collection
Waste
• building waste during construction was recycled
(87%)
• recycling carried through within building after
operations  waste separation
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
CASESTUDY B070225AR
39

40. ANALYSIS
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
ANALYSIS B070225AR
40

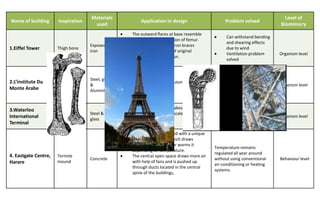

41. Materials Level of
Name of building Inspiration Application in design Problem solved
used Biomimicry
The outward flares at base resemble
Can withstand bending
the upper curved portion of femur.
and shearing effects
Exposed The internal wrought iron braces
1.Eiffel Tower Thigh bone
iron closely follow design of original
due to wind
Ventilation problem Organism level
trabeculae within femur.
solved
Controls the amount of
sunlight entering the
Steel, glass
2.L’institute Du Cladded with screens with automated lens to building, keeping it cool and
Iris of eye & Organism level
Monte Arabe control light flooding room with natural
Aluminium
light.
3.Waterloo The glass panel fixing that makes up the Ability to move in response
Steel & structure mimic the flexible scale to the imposed air pressure
International Pangolin
glass arrangement of Pangolin. forces when trains enter and
Organism level
Terminal depart.
The building is designed with a unique
ventilation system, which draws
outside air and cools or warms it
Temperature remains
depending on temperature.
regulated all year around
4. Eastgate Centre, Termite The central open space draws more air
Concrete without using conventional Behaviour level
Harare mound with help of fans and is pushed up
air-conditioning or heating
through ducts located in the central
systems.
spine of the buildings,

42. Inspiratio Materials Level of
Name of building Application in design Problem solved
n used Biomimicry
Protects spectators
from elements
Provides acoustic
“Cushion system” adopted where façade is
insulation,
5.Beijing Steel, in-filled with translucent ETFE panels just
Bird’s nest Reduces maintenance Behaviour Level
National Stadium ETFE like a nest is insulated by small pieces of
cost
material.
Reduces dead load,
Filters sun rays
The epidermis provides
CH2 uses ventilation strategy similar
primary sun and glare
to termite mould using natural
control while creating
convention, ventilation stacks,
a semi-closed micro-
thermal mass, phase change material
environment.
and water for cooling
The wavy design helps
The façade is composed of dermis
it efficient collection
and epidermis, which provides
and channelling out of
microclimate
Concrete, heated air.
6. Council House Termite Ventilation stacks are implemented
recycled The vaulted ceiling also Behaviour level
2, Melbourne mound on the north and south facades of the
timber allow more filtration of
building
natural light to the
The ceilings are wavy shaped to
deeper parts of the
optimise surface area to increase
space.
thermal mass capacity
Shower towers provide
The west façade is covered with
a reduction of 4-13
system of timber louvers to optimize
degrees C from the top
the penetration of natural light and
of the tower to the
views.
bottom.

43. Name of Materials Level of
Inspiration Application in design Problem solved
building used Biomimicry
Minimum possible
energy used in the
7. Sinosteel form of conventional
Concrete, The windows are designed in five different
energy.
International Bee hive steel and sizes of hexagon, placed in an energy-
The skin removes the
Organism level
Plaza glass efficient configuration.
need for internal
structures
The exterior designs as living skin
which serves connection between Electricity not
exterior and interior, like stomata on required during day
leaf surface. Air and wind filtered
Stomata of Designed as The surface automatically positions to provide clean air
8. Habitat 2020 leaves living skin itself according to the sunlight and let and natural air
Organism level
it in conditioned
Surface absorbs water and converts Recycling of water air
waste to biogas energy and waste
The building sits on 12 columns to
Tensile allow other species to develop around
Effective air conditioning at
9. Rafflesia Rafflesia environment it, trying to change traditional
independent zones Behaviour level
House flower ally friendly definitions of its characteristics.
fabric Concave and convex internal walls to
regulate flow of air inside.
10. National The bubbles collect solar
The surface is covered with membrane of lit
Water Steel, energy to heat swimming Organism
Aquatics Centre, bubbles ETFE
blue bubbles or pneumatic cushions made of
pools. level
Beijing EFTE creating bubble effect
Temperature regulation

44. Material Level of
Name of building Inspiration Application in design Problem solved
s used Biomimicry
Its aerodynamic, Glazed shape
Using a series of triangulations
minimizes wind loads and
on the exterior similar to those
maximizes natural light and
of a glass sponge
ventilation, reducing the building's
11. Swiss Re The building ventilates air in a
energy consumption
Steel & similar fashion just like glass
Headquarters, Glass sponge
glass sponge filters nutrients from the
Triangulations on the exterior Organism level
London similar to those of a glass sponge
water by sucking water from its
makes the structure stiff enough to
base and expelling it through the
resist lateral structural loads
holes at its top
without extra reinforcements.
It uses minimal construction
The southern façade would be materials, while making maximum
made of photovoltaic panels that use of the enclosed space.
12.Treescraper convert sunlight into electricity. All of the water in the building is
Growing of Steel & A combined heat-and-power recycled.
Tower of tree glass plant installed, to be fuelled by All products, from building Behaviour level
Tomorrow natural gas, to supply the power materials to furnishings, could be
that the solar panels cannot. recycled or returned safely to the
earth
Sun shades on the windows can be
opened or closed to suit the prevailing
13. Ministry of temperature , mimicking the activity of Temperature regulated.
Steel &
Municipal and Cactus plant
glass
the cactus which performs Absorption and loss of heat Behaviour level
Agriculture transpiration at night rather than controlled.
during the day in order to retain water.

45. •Buildinginspired by plants /flower:
Self-sustainable
Energy efficient
Recycling
Aesthetically appealing
Low maintenance
•Building inspired by organisms:
Resistant to imposed forces
Structural stability
Controlled entry of sunlight
Regulation of internal temperature
Aesthetics
Acoustics
•Buildings inspired by natural forms:
 Effective channelling of wind
 Increase thermal mass capacity
 Dynamic form
 Acoustics.
 Energy efficiency
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
INFERENCE B070225AR
45

46. APPLICATION
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
APPLICATION B070225AR
46

47. INDUSTRIAL BUILDING DESIGN
• Large & clear unobstructed areas • Triangulated exoskeleton or
frame inspired from glass
sponge, thigh bone ,beehive
• Proper lighting ( Natural and Artificial) • Louvers, living skin which
etc. or
• can regulate entry of span
load distribution& long
daylight inspired from or
inspired by water lily
stomata fly leave or
dragon of wings
• Ventilation • • Cushion effect of Birds nest,
• Irissystem which utilises
A of eye
ventilation mechanism of
resources available locally
termite moulds, embedded
with minimum
• Acoustical treatment • Curved walls recycles for
energy and ceilings to
channelling like growth of
maximum air.
• Cushion effect of Birds nest,
tree or
two layer skin( dermis and
• emulate natural forms like
• Energy-efficiency epidermis) to act as passive
termite mound for sound
buffer or to reduce cost and
systems insulation
15-11-2011 BIOMIMETIC ARCHITECTURE
energy consumption. K
VAISALI
APPLICATOIN B070225AR
47

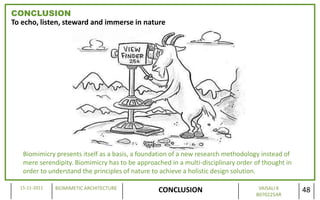

48. CONCLUSION
To echo, listen, steward and immerse in nature
Biomimicry presents itself as a basis, a foundation of a new research methodology instead of
mere serendipity. Biomimicry has to be approached in a multi-disciplinary order of thought in
order to understand the principles of nature to achieve a holistic design solution.
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
CONCLUSION B070225AR
48

49. CONCLUSION
For nature has been field-tested for millions of years through evolution
15-11-2011 BIOMIMETIC ARCHITECTURE VAISALI K
CONCLUSION B070225AR
49
