Andrea Pietracaprina - In this talk, we will overview some popular computing frameworks (e.g., MapReduce, Spark) which are widely used to unleash the computational potential of the cloud for big-data applications. For concreteness, we will describe efficient implementations of some key tools used in data analysis (e.g, clustering, diversity maximization).

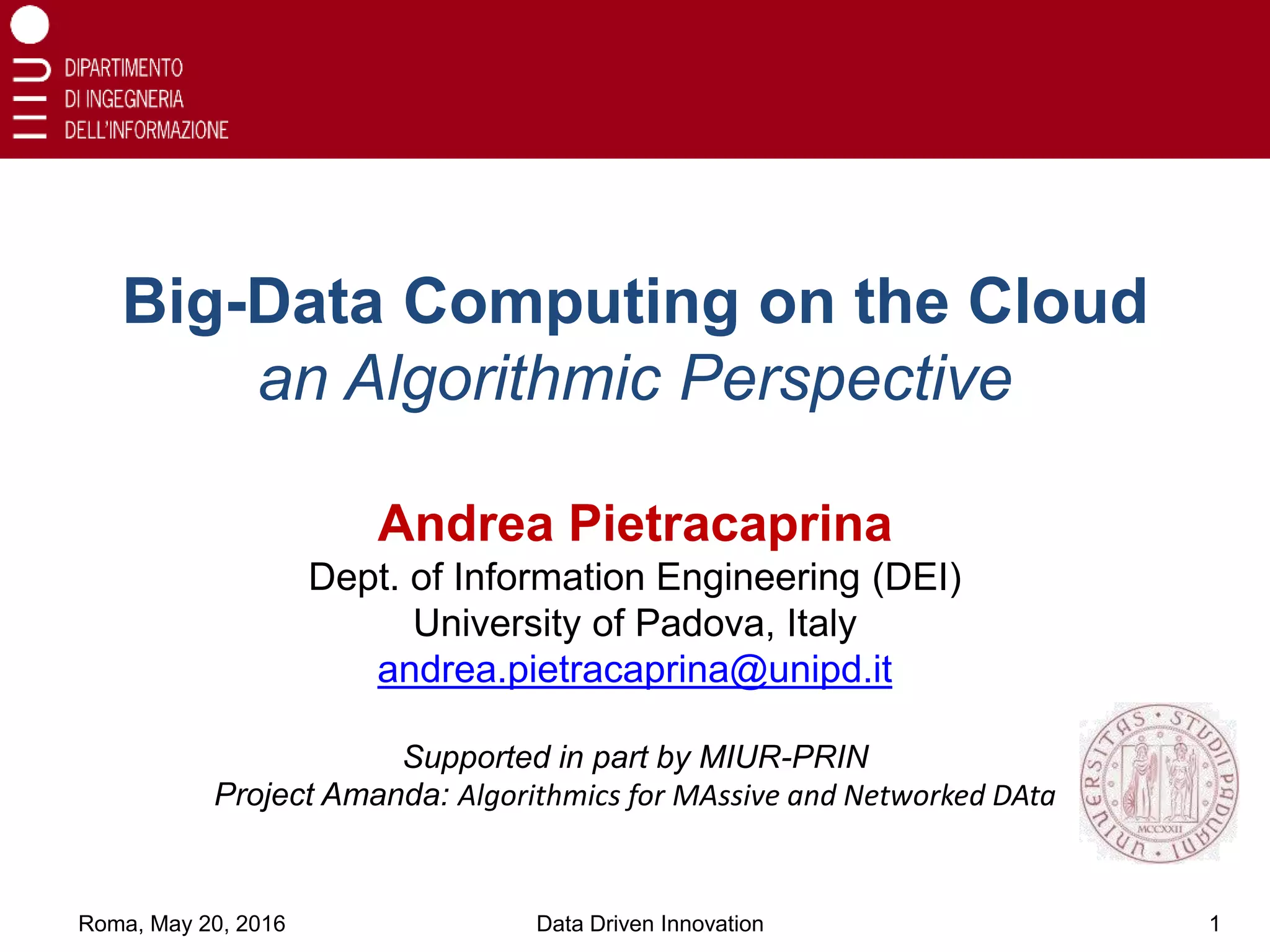

1. Big-Data Computing on the Cloud
an Algorithmic Perspective
Andrea Pietracaprina
Dept. of Information Engineering (DEI)
University of Padova, Italy
andrea.pietracaprina@unipd.it
Supported in part by MIUR-PRIN
Project Amanda: Algorithmics for MAssive and Networked DAta
Roma, May 20, 2016 Data Driven Innovation 1

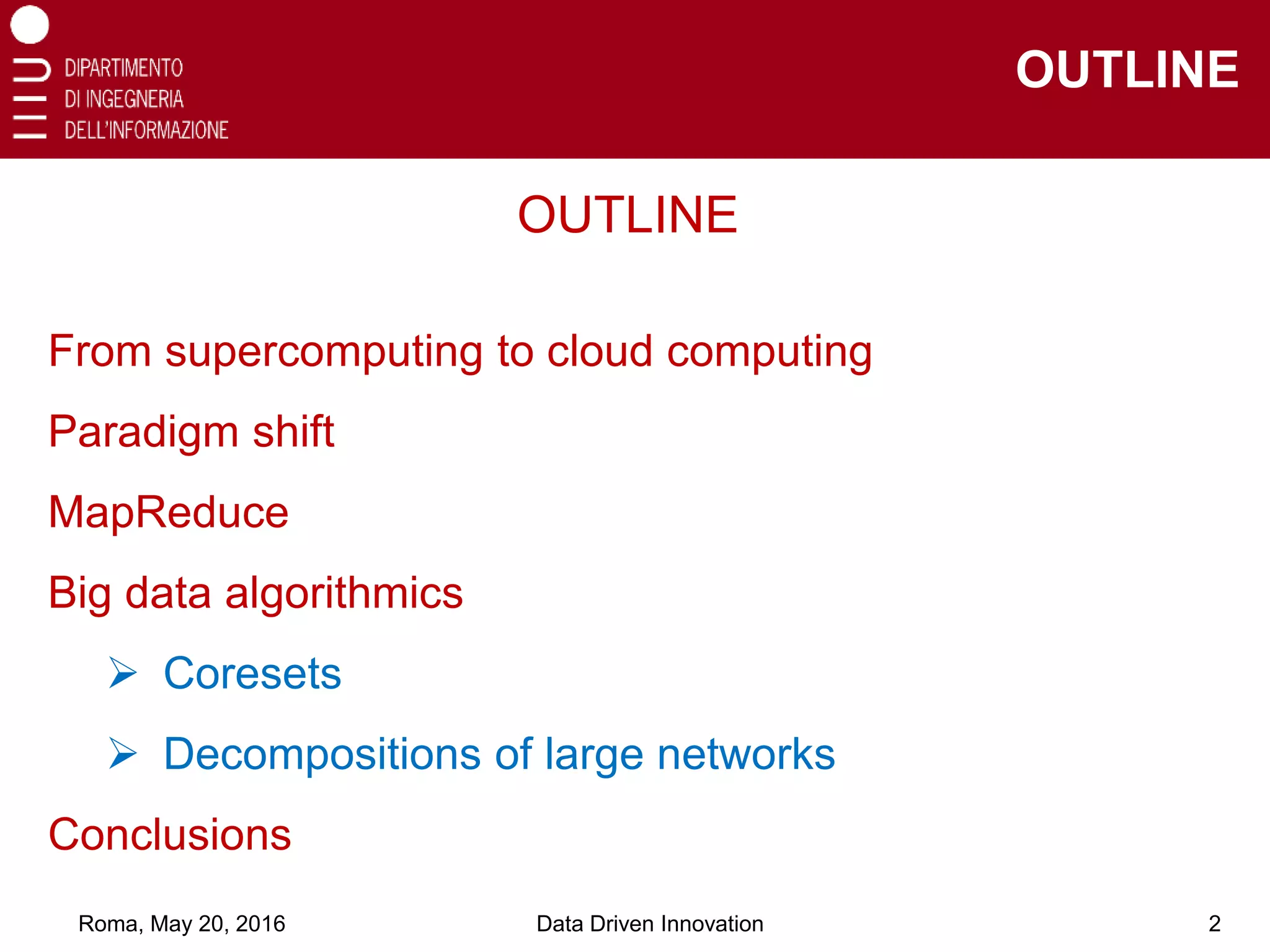

2. OUTLINE
Roma, May 20, 2016 Data Driven Innovation 2
OUTLINE
From supercomputing to cloud computing
Paradigm shift
MapReduce
Big data algorithmics
 Coresets
 Decompositions of large networks
Conclusions

3. From Supercomputing to Cloud Computing
Roma, May 20, 2016 Data Driven Innovation 3
Supercomputing (‘70s – present)
Tianhe-2 (PRC)
Algorithm design
full knowledge and exploitation of
platform architecture
• Low productivity, high costs
• Grand Challenges
• Maximum performance (exascale in 2018?)
• Massively parallel systems

4. From Supercomputing to Cloud Computing
Roma, May 20, 2016 Data Driven Innovation 4
Cluster era (‘90s – present)
Algorithm design
Exploitation of architectural features
abstracted by few parameters
• Higher productivity and lower costs
• Wide range of commercial/scientific applications
• Good cost/performance tradeoffs
• Distributed systems (e.g., clusters, grids)
Network
(bandwidth/latency)

5. From Supercomputing to Cloud Computing
Roma, May 20, 2016 Data Driven Innovation 5
Cloud Computing (‘00s – present)
Algorithm design
Architecture-oblivious design
Data-centric perspective
• Novel computing environments: e.g., Hadoop, Spark, Google DF
• Popular for big-data applications
• Flexibility of usage, low costs, reliability
• Infrastructure, Software as Services
(IaaS, SaaS)
INPUT
DATA
OUTPUT
DATA
Map – Shuffle - Reduce

6. Paradigm Shift
Roma, May 20, 2016 Data Driven Innovation 6
Traditional Algorithmics Big-Data Algorithmics
Best balance between
computation, parallelism,
communication
Few scans of the whole input
data
Machine-conscious design Machine-oblivious design
Noiseless, static input data Noisy, dynamic input data
Polynomial complexity (Sub-)Linear complexity
PARADIGM SHIFT

7. Roma, May 20, 2016 Data Driven Innovation 7
MAPREDUCE
MapReduce: single round
INPUT
MAPPER
MAPPER
MAPPER
MAPPER
MAPPER
MAPPER
OUTPUT
REDUCER
REDUCER
REDUCER
S
H
U
F
F
L
E
MAPPER: computation on individual data items
REDUCER: computation on small subsets of input

8. Roma, May 20, 2016 Data Driven Innovation 8
MAPREDUCE
MapReduce: multiround
Key Performance Indicators (input size N):
 Memory requirements per reducer: << N
 #Rounds (i.e., #shuffles): 1,2
 Aggregate space and communication  N
MAPPER
MAPPER
MAPPER
MAPPER
MAPPER
MAPPER
OUTPUT
REDUCER
REDUCER
REDUCER
INPUT
MAPPER
MAPPER
MAPPER
MAPPER
MAPPER
MAPPER
REDUCER
REDUCER
REDUCER
MAPPER
MAPPER
MAPPER
MAPPER
MAPPER
MAPPER
REDUCER
REDUCER
REDUCER
ROUND 1 ROUND 2 ROUND r

9. Roma, May 20, 2016 Data Driven Innovation 9
Big Data Algorithmics
Coresets

10. Roma, May 20, 2016 Data Driven Innovation 10
Big Data Algorithmics
INPUT
CORESET
Coreset: a subset of data (summary) which maintains
the characteristics of the whole input, filtering out
redundancy

11. Roma, May 20, 2016 Data Driven Innovation 11
Big Data Algorithmics
General 2-round MapReduce approach
Round 1: partition into small subsets and extraction of partial coresets
Round 2: perform analysis on aggregation of partial coresets
INPUT
AGGREGATE
CORESET
PARTIAL
CORESET
CHALLENGE: composability of coresets

12. Roma, May 20, 2016 Data Driven Innovation 12
Big Data Algorithmics
Example: diversity maximization

13. Roma, May 20, 2016 Data Driven Innovation 13
Big Data Algorithmics
Example: diversity maximization
Goal: find k most diverse data objects
Applications: Recommendation systems, search engines

14. Roma, May 20, 2016 Data Driven Innovation 14
Big Data Algorithmics
INPUT
MapReduce
Solution
Round 1:
• Partition input data arbitrarily

15. Roma, May 20, 2016 Data Driven Innovation 15
Big Data Algorithmics: coresets
MapReduce
Solution
Round 1:
• Partition input data arbitrarily
• In each subset:
 k’-clustering based on similarity (k’>k)
 pick one representative per cluster
( partial coreset)
subset of partition k’-clustering partial coreset
N.B. For enhanced accuracy, it is crucial to fix k’>k

16. Roma, May 20, 2016 Data Driven Innovation 16
Big Data Algorithmics: coresets
MapReduce
Solution
Round 2:
• Aggregate partial coresets
• Compute output on aggregate coreset
partial
coresets
aggregate coreset
OUTPUT

17. Roma, May 20, 2016 Data Driven Innovation 17
Big Data Algorithmics
Round 1
Round 2
INPUT
PARTIAL
CORESET
AGGREGATE
CORESET
OUTPUT

18. Roma, May 20, 2016 Data Driven Innovation 18
Big Data Algorithmics
Experiments:
• N=64000 data objects
• Seek k=64 most diverse ones
• Final coreset size: [21024]∙k
• Measure: accuracy of solution
• 4 diversity measures
N.B. Same approach can be used in a streaming setting

19. Roma, May 20, 2016 Data Driven Innovation 19
Big Data Algorithmics
Decompositions of Large
Networks

20. Roma, May 20, 2016 Data Driven Innovation 20
Big Data Algorithmics
Analysis of large networks in
MapReduce must avoid:

21. Roma, May 20, 2016 Data Driven Innovation 21
Big Data Algorithmics
• Long traversals
• Superlinear complexities
Known exact algorithms often
do not meet these criteria
Analysis of large networks in
MapReduce must avoid:

22. Roma, May 20, 2016 Data Driven Innovation 22
Big Data Algorithmics
• Long traversals
• Superlinear complexities
Known exact algorithms often
do not meet these criteria
Analysis of large networks in
MapReduce must avoid:
Network decomposition can
provide concise summary of
network characteristics

23. Roma, May 20, 2016 Data Driven Innovation 23
Big Data Algorithmics
Example : network diameter
Goal: determine max distance
Applications: social networks,
internet/web, linguistics,
biology
B
A

24. Roma, May 20, 2016 Data Driven Innovation 24
Big Data Algorithmics
MapReduce
Solution
• Cluster the network into
few regions with small
radius R, around random
nodes
•  R rounds
R

25. Roma, May 20, 2016 Data Driven Innovation 25
Big Data Algorithmics
MapReduce
Solution
• Network summary: one
node per region
• Determine overlay network
of selected nodes
• Few rounds

26. Roma, May 20, 2016 Data Driven Innovation 26
Big Data Algorithmics
MapReduce
Solution
• Compute diameter of
overlay network
• Adjust for radius of original
regions
• 1 round
R R
N.B. overlay network is a good summary of input network;
its size can be chosen to fit memory constraints of reducers

27. Roma, May 20, 2016 Data Driven Innovation 27
Big Data Algorithmics
Experiments: 16-node cluster, 10Gbit Ethernet, Apache Spark
Network No. Nodes No. Links Time (s) Rounds Error
Roads-USA 24M 29M 158 74 26%
Twitter 42M 1.5G 236 5 19%
Artificial 500M 8G 6000 5 30%
benchmarks
scalability
(10K nodes in overlay network)

28. Roma, May 20, 2016 Data Driven Innovation 28
Big Data Algorithmics
Efficient network partitioning
• Progressive node sampling
• Local cluster growth from sampled nodes
• #rounds = #cluster growing steps

29. Roma, May 20, 2016 Data Driven Innovation 29
Big Data Algorithmics
Example

30. Roma, May 20, 2016 Data Driven Innovation 30
Big Data Algorithmics

31. Roma, May 20, 2016 Data Driven Innovation 31
Big Data Algorithmics
Round 2

32. Roma, May 20, 2016 Data Driven Innovation 32
Big Data Algorithmics

33. Roma, May 20, 2016 Data Driven Innovation 33
Big Data Algorithmics
Round 4

34. Roma, May 20, 2016 Data Driven Innovation 34
Big Data Algorithmics

35. Roma, May 20, 2016 Data Driven Innovation 35
Big Data Algorithmics
Round 6

36. Roma, May 20, 2016 Data Driven Innovation 36
Big Data Algorithmics
Coping with uncertainty
Links exist with certain
probabilities
Applications: biology, social
network analysis
• Network partitioning strategy suitable for this scenario
• cluster = region connected with high probability

37. Roma, May 20, 2016 Data Driven Innovation 37
Big Data Algorithmics
• PPI viewed as uncertain network
• Hp: protein complex  region
with high connection probability
• Traditional general partitioning
approaches slowed down by
uncertainty
Example: identification of protein complexes from
Protein-Protein Interaction (PPI) networks
Experiments show effectiveness of approach

38. Roma, May 20, 2016 Data Driven Innovation 38
Conclusions
CONCLUSIONS
• Design of big data algorithms (on clouds) entails
paradigm shift
 Data centric view
 Handling size through summarization
 Give up exact solution
 Cope with noisy/unreliable data

39. Roma, May 20, 2016 Data Driven Innovation 39
References
References
M. Ceccarello, A.P., G. Pucci, E. Upfal: Space and Time Efficient Parallel Graph Decomposition,
Clustering, and Diameter Approximation. ACM SPAA 2015
M. Ceccarello, A.P., G. Pucci, E. Upfal : A Practical Parallel Algorithm for Diameter
Approximation of Massive Weighted Graphs. IEEE IPDPS 2016
M. Ceccarello, A.P., G. Pucci, E. Upfal : MapReduce and Streaming Algorithms for Diversity
Maximization in Metric Spaces of Bounded Doubling Dimension. ArXiv 1605.05590 , 2016
M. Ceccarello, C. Fantozzi, A.P., G. Pucci, F. Vandin: Clustering in uncertain graphs. Work in
progress. 2016
