This document provides an introduction to big data, Hadoop, and NoSQL databases. It defines big data as large, diverse, and growing datasets that are difficult to process using traditional databases. Hadoop is an open-source software framework for distributed storage and processing of big data across commodity hardware. It includes HDFS for storage and MapReduce as a programming model. NoSQL databases are non-tabular databases designed for high performance on large datasets. They are more flexible and scalable than SQL databases but provide fewer consistency guarantees.

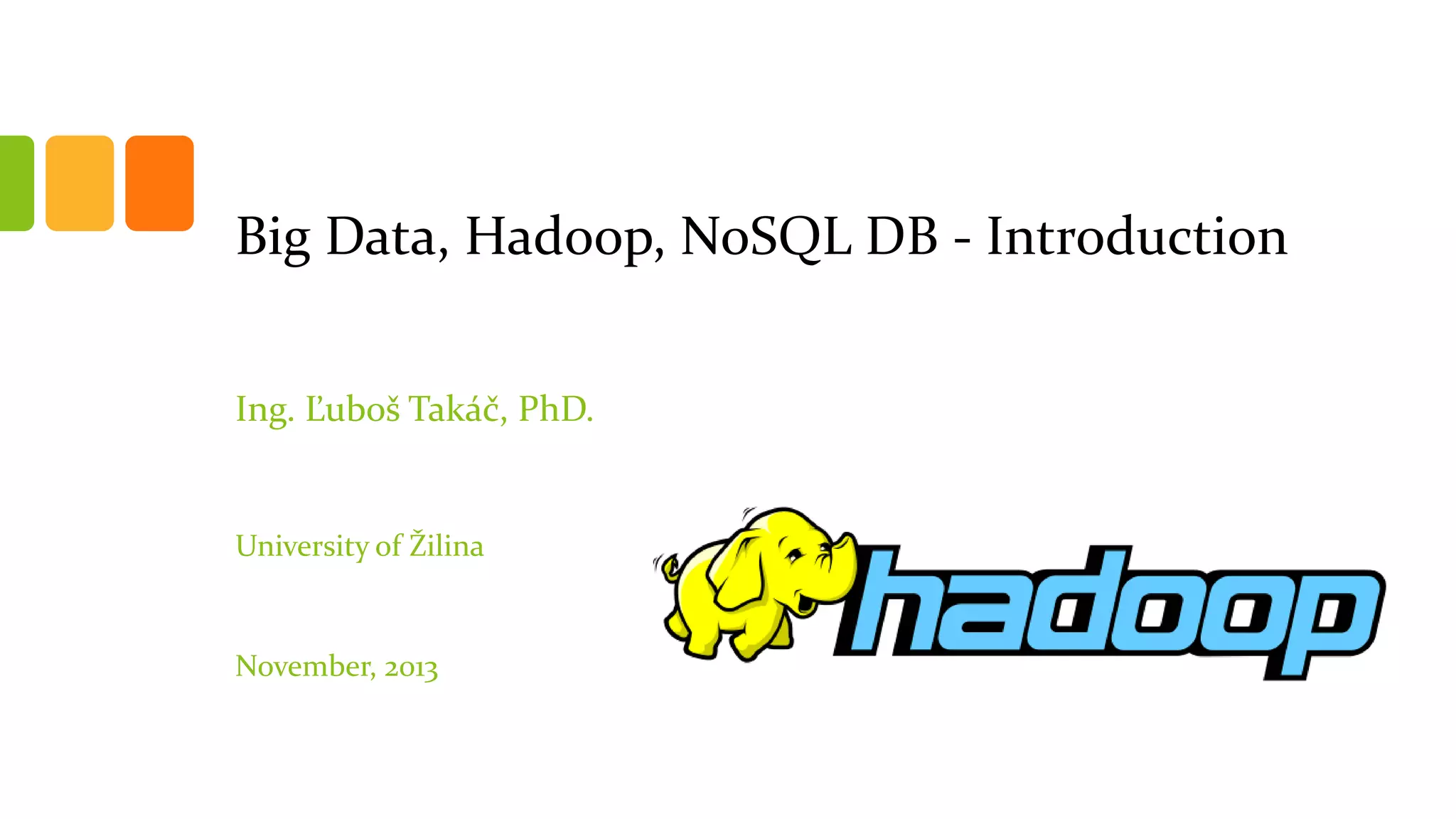

1. Big Data, Hadoop, NoSQL DB - Introduction
Ing. Ľuboš Takáč, PhD.
University of Žilina
November, 2013

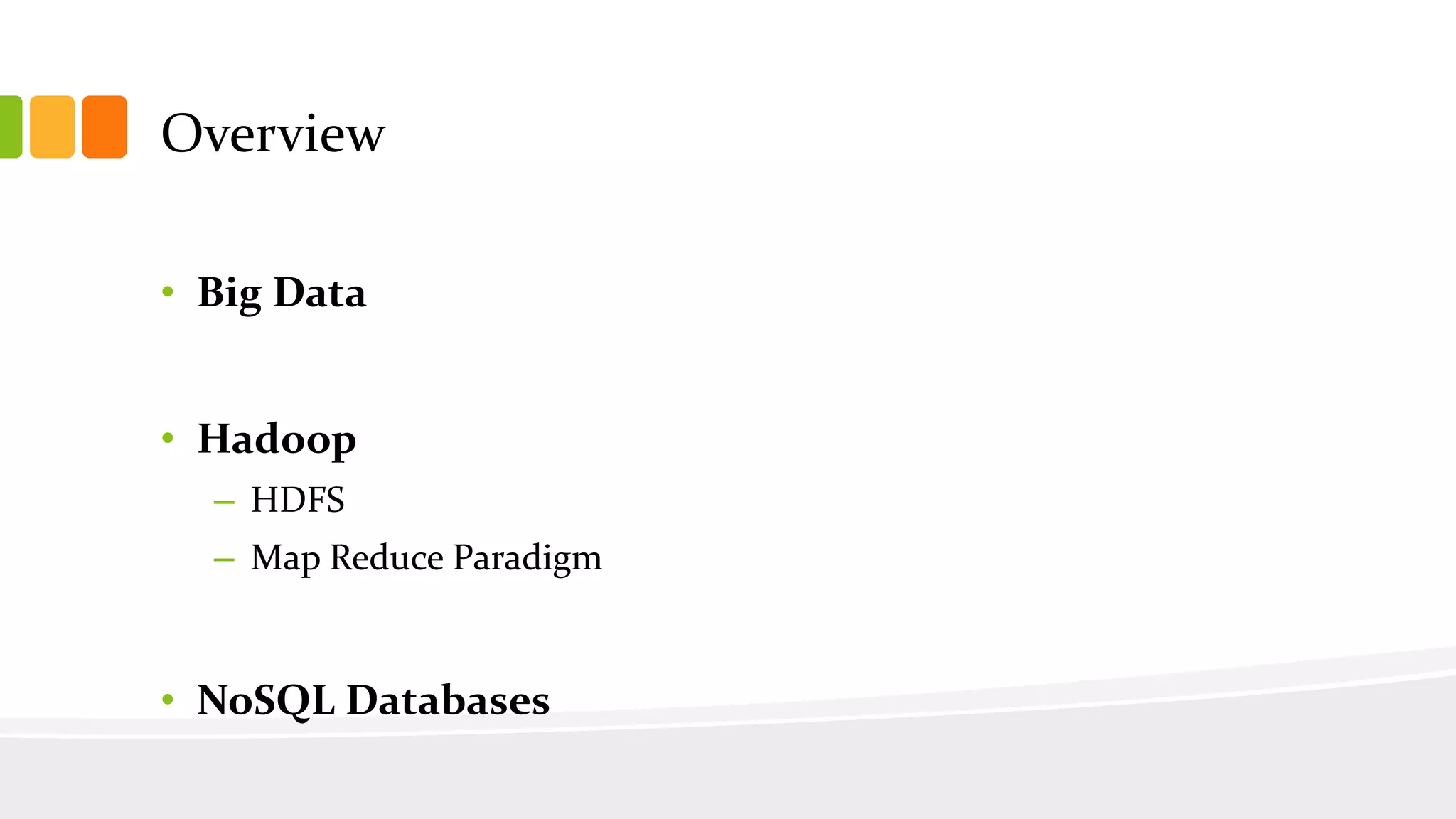

2. Overview
• Big Data
• Hadoop
– HDFS
– Map Reduce Paradigm
• NoSQL Databases

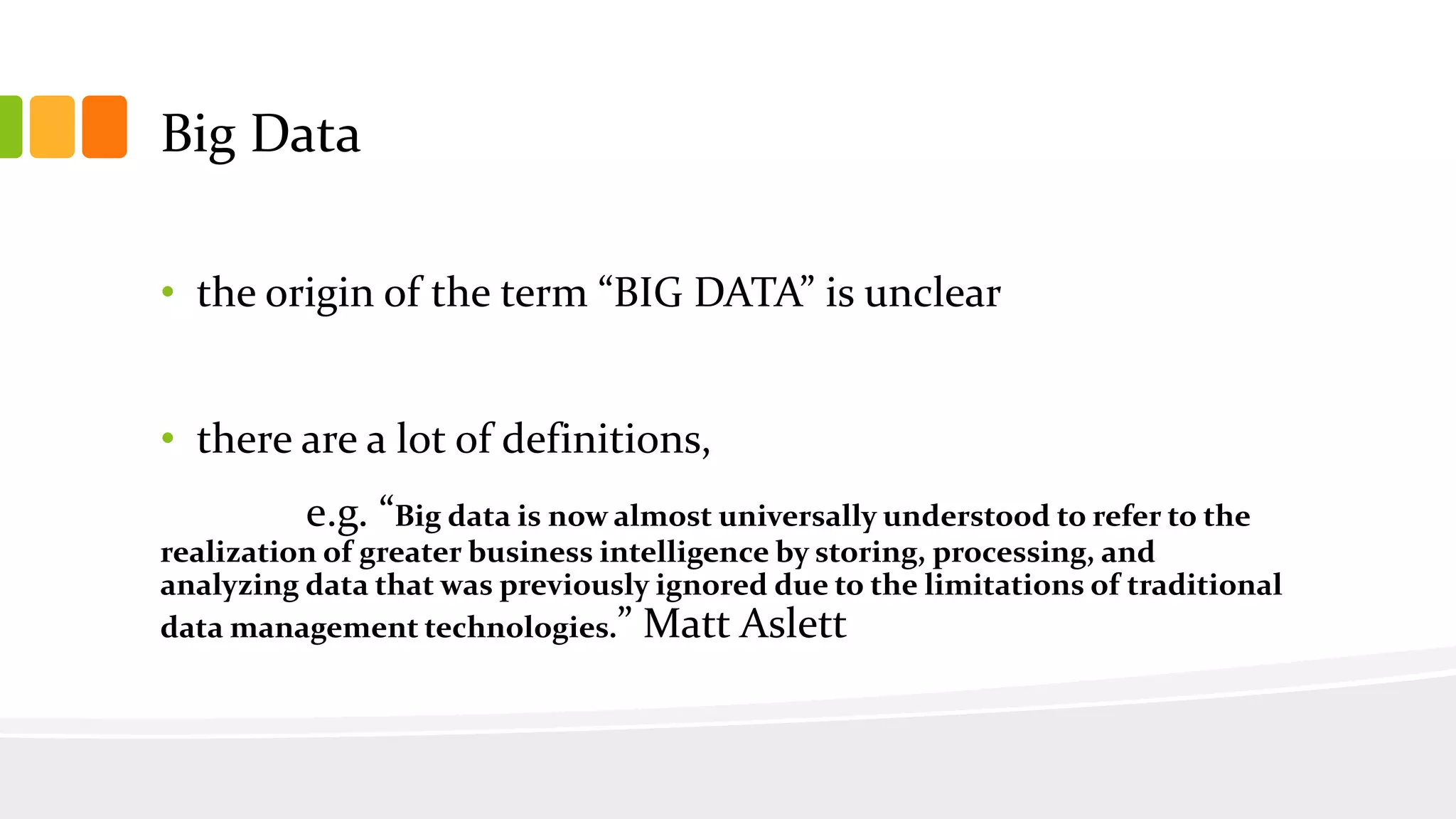

3. Big Data
• the origin of the term “BIG DATA” is unclear
• there are a lot of definitions,
e.g. “Big data is now almost universally understood to refer to the
realization of greater business intelligence by storing, processing, and
analyzing data that was previously ignored due to the limitations of traditional
data management technologies.” Matt Aslett

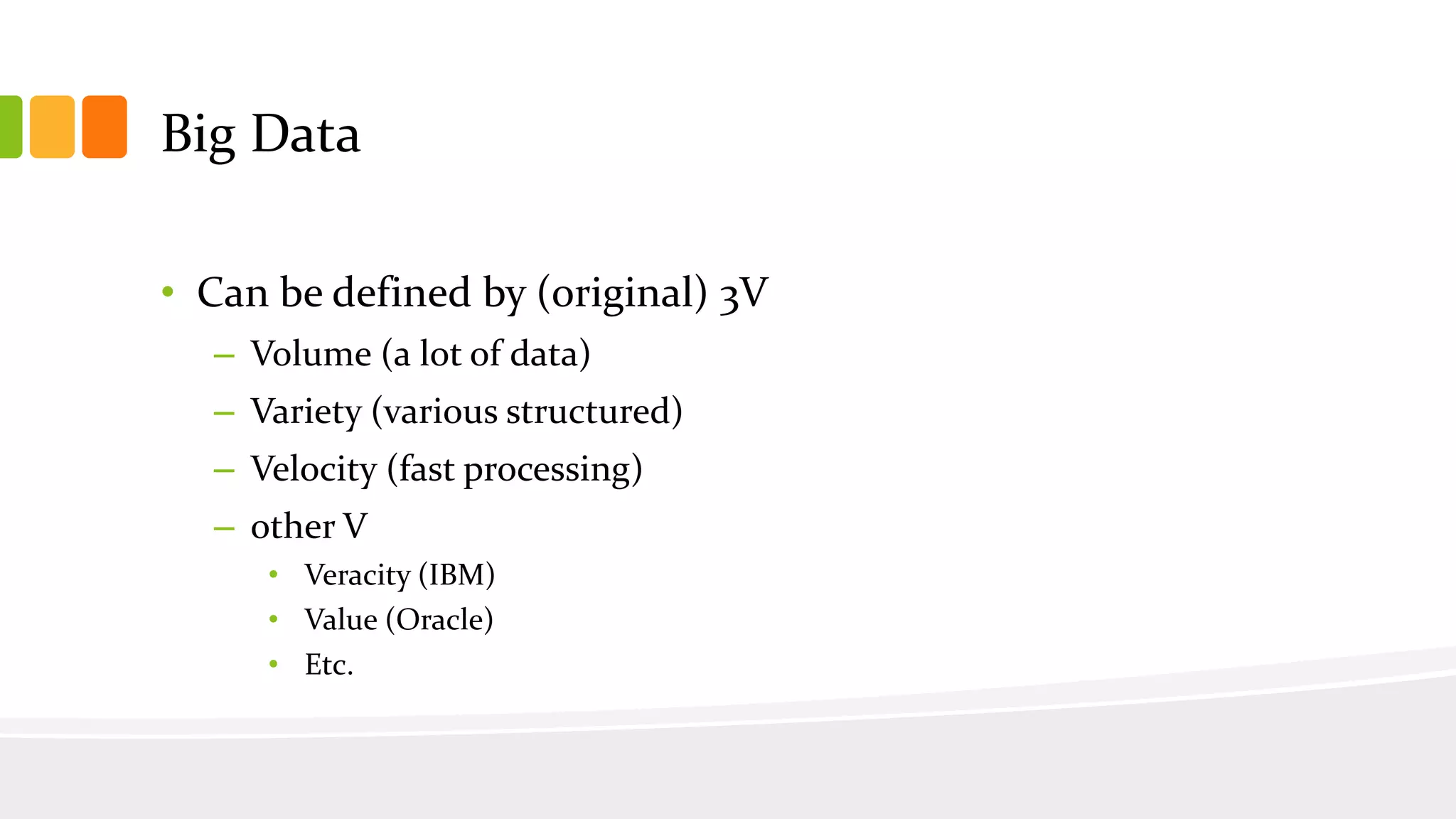

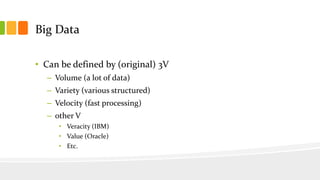

4. Big Data
• Can be defined by (original) 3V
– Volume (a lot of data)
– Variety (various structured)
– Velocity (fast processing)
– other V
• Veracity (IBM)
• Value (Oracle)
• Etc.

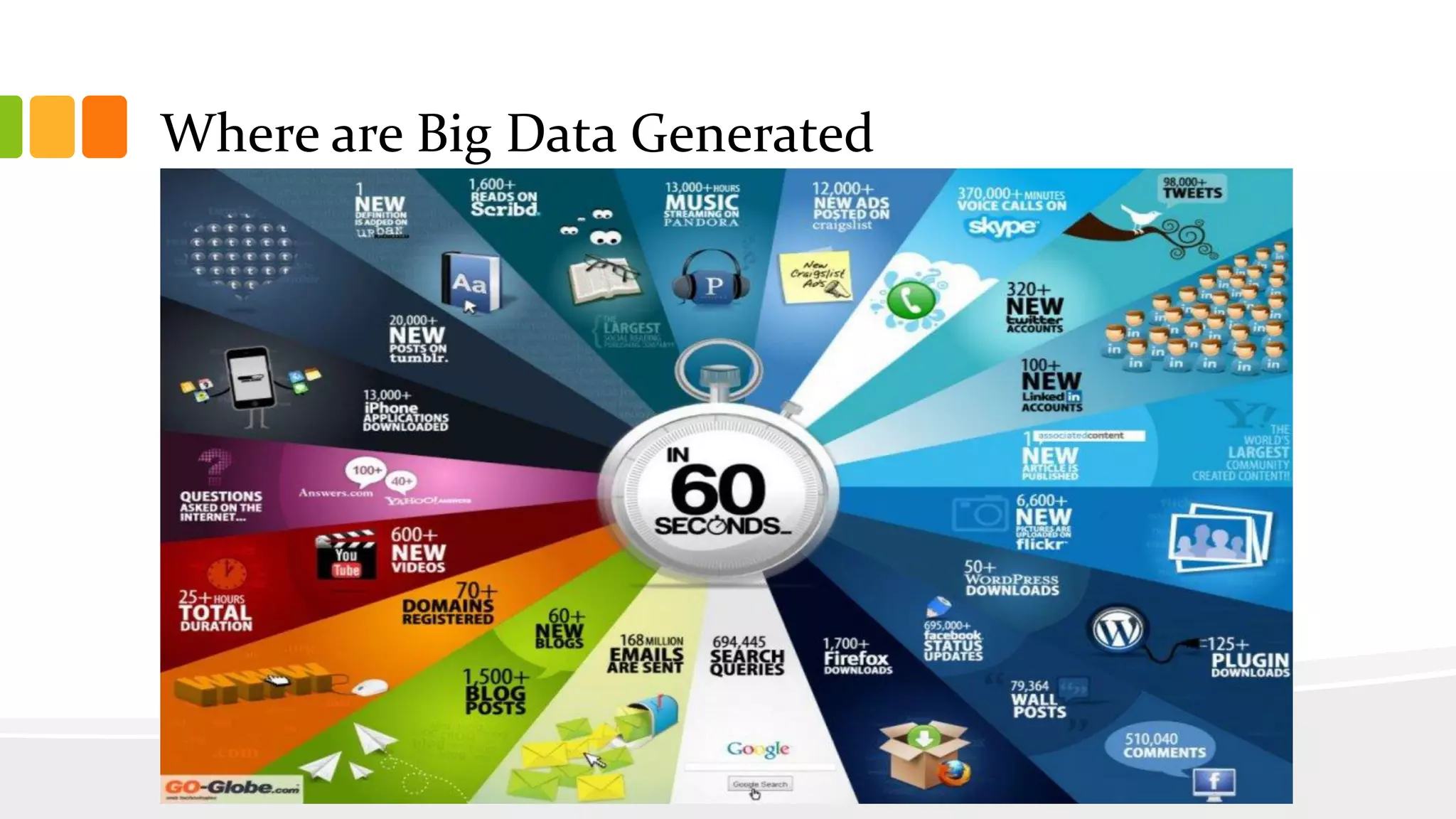

5. Where are Big Data Generated

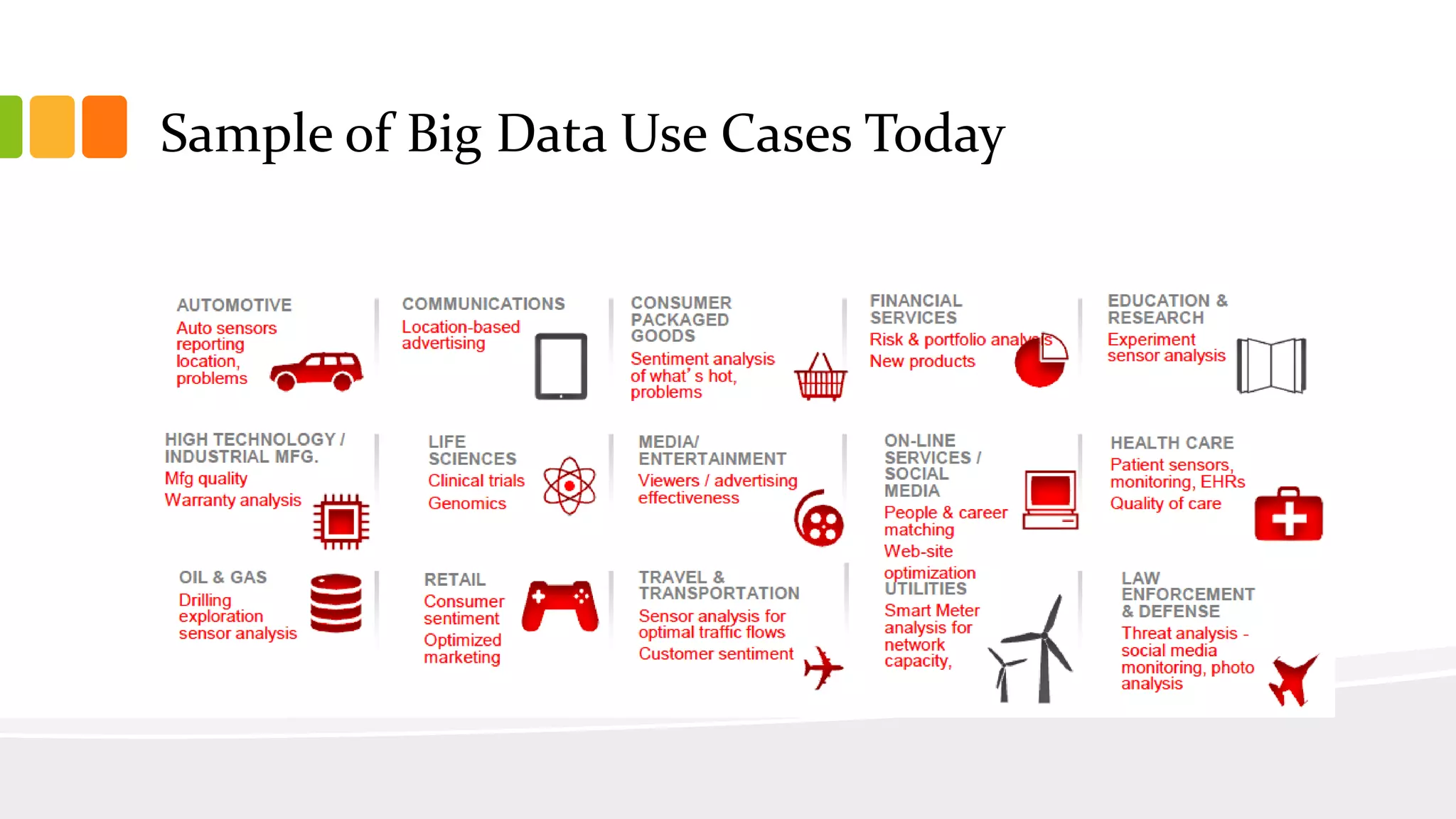

6. Sample of Big Data Use Cases Today

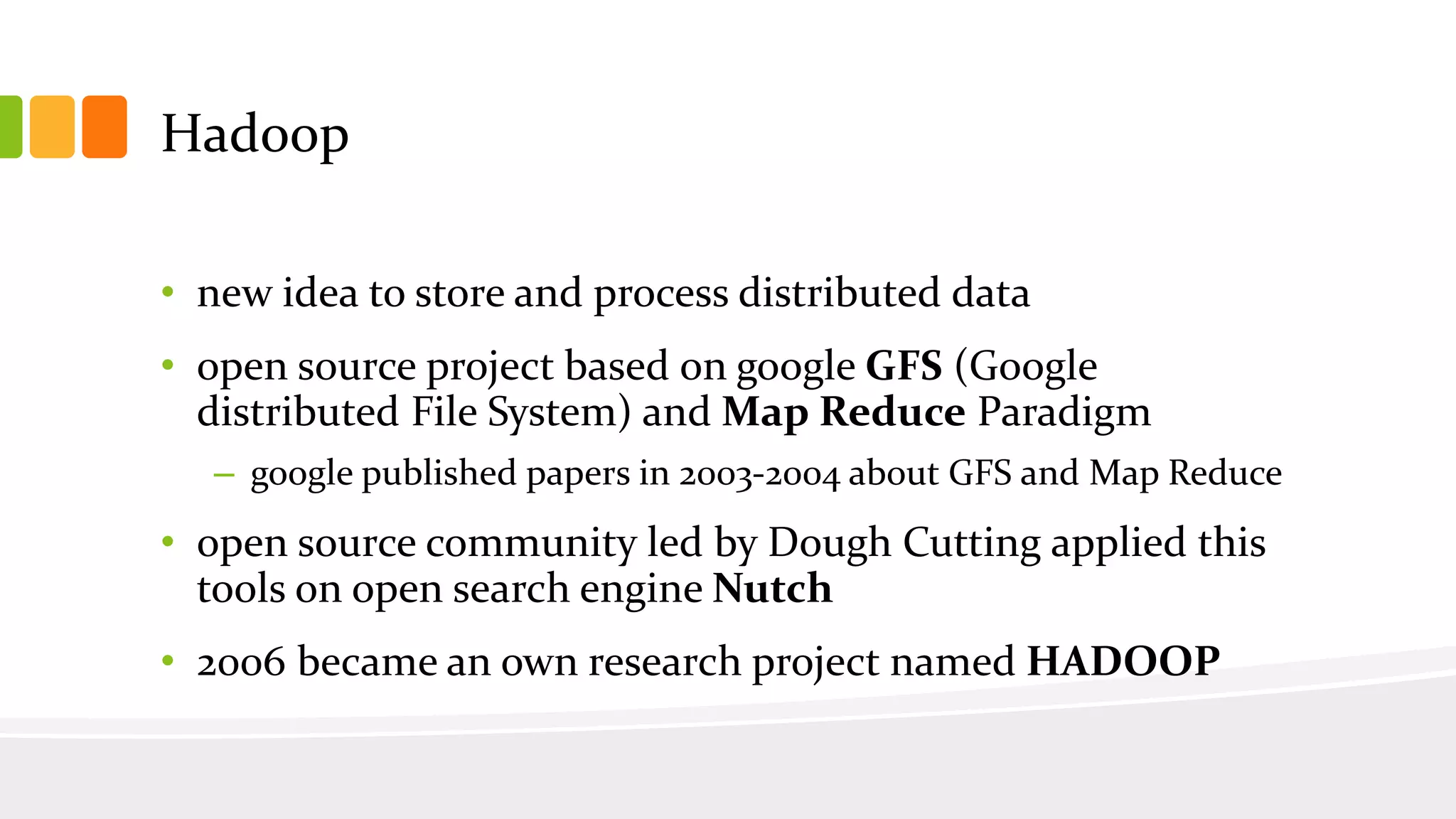

7. Hadoop
• new idea to store and process distributed data
• open source project based on google GFS (Google
distributed File System) and Map Reduce Paradigm
– google published papers in 2003-2004 about GFS and Map Reduce
• open source community led by Dough Cutting applied this
tools on open search engine Nutch
• 2006 became an own research project named HADOOP

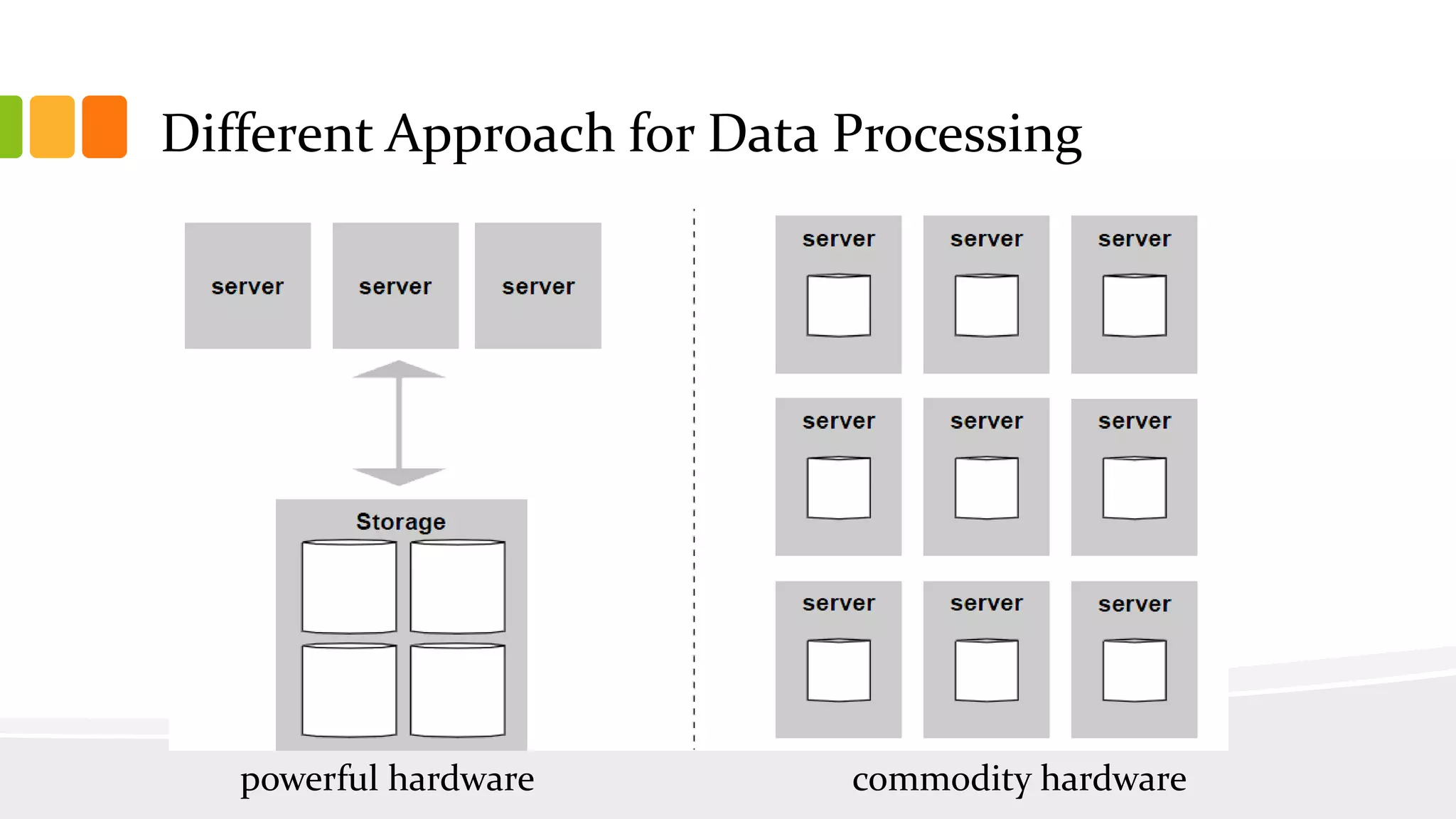

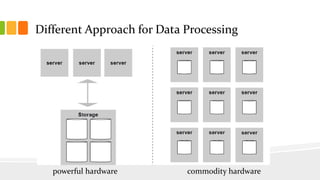

8. Different Approach for Data Processing
powerful hardware
commodity hardware

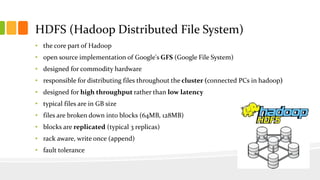

9. HDFS (Hadoop Distributed File System)
• the core part of Hadoop
• open source implementation of Google's GFS (Google File System)
• designed for commodity hardware
• responsible for distributing files throughout the cluster (connected PCs in hadoop)
• designed for high throughput rather than low latency
• typical files are in GB size
• files are broken down into blocks (64MB, 128MB)
• blocks are replicated (typical 3 replicas)
• rack aware, write once (append)
• fault tolerance

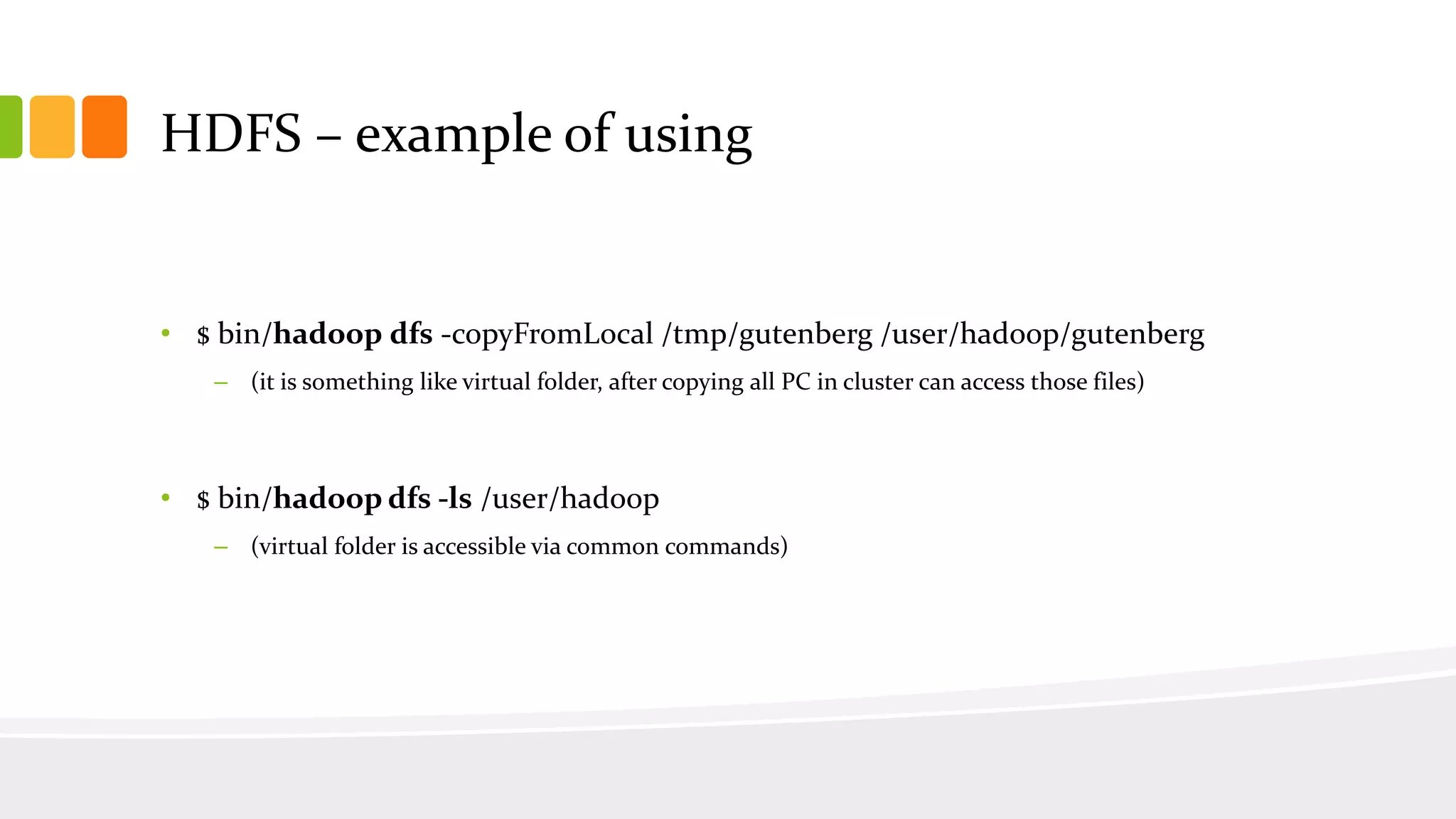

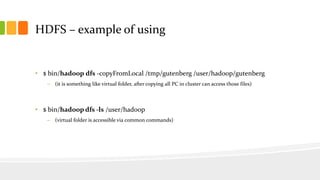

10. HDFS – example of using
• $ bin/hadoop dfs -copyFromLocal /tmp/gutenberg /user/hadoop/gutenberg
– (it is something like virtual folder, after copying all PC in cluster can access those files)
• $ bin/hadoop dfs -ls /user/hadoop
– (virtual folder is accessible via common commands)

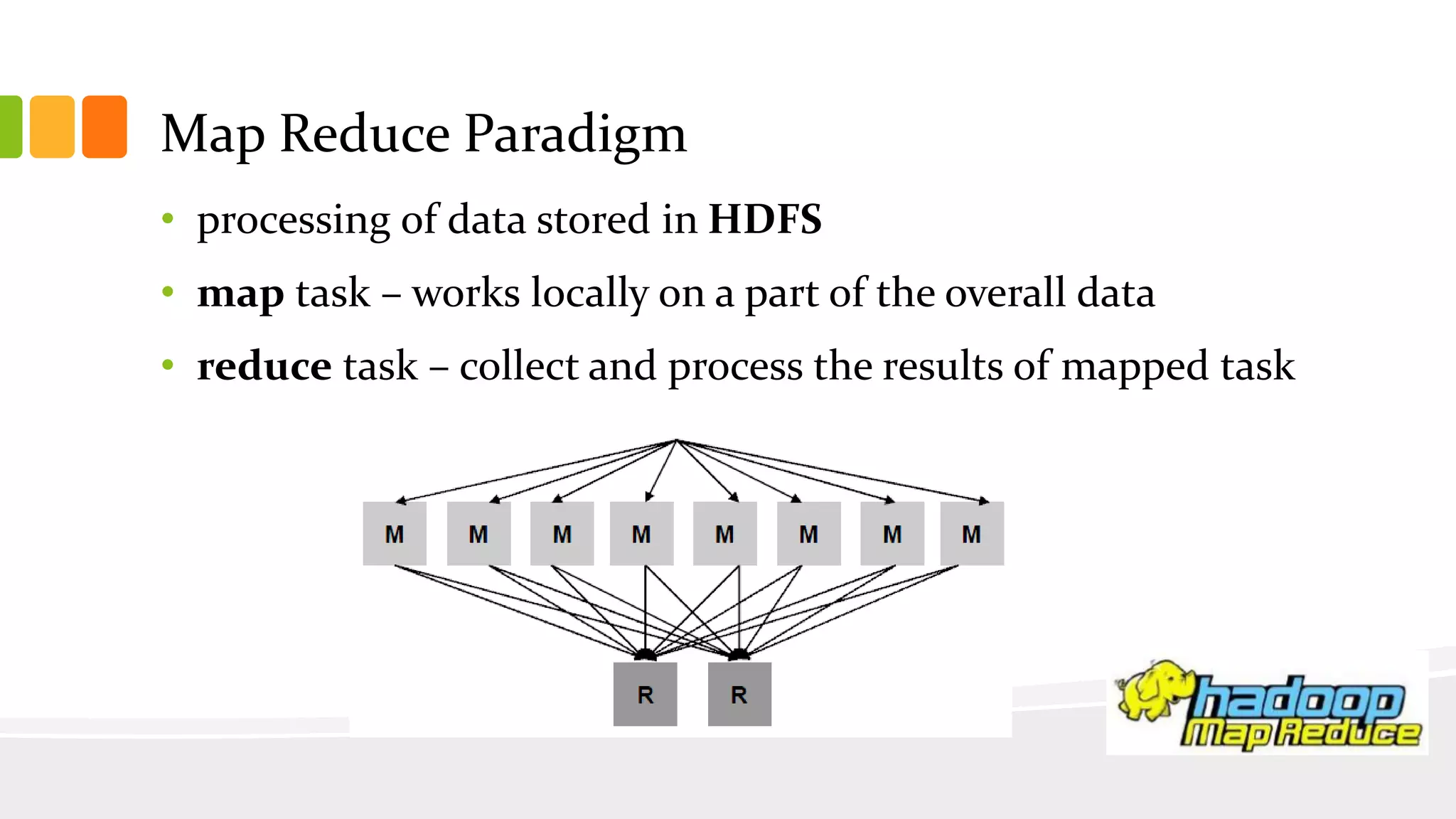

11. Map Reduce Paradigm
• processing of data stored in HDFS
• map task – works locally on a part of the overall data
• reduce task – collect and process the results of mapped task

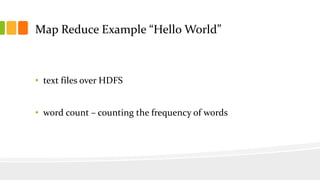

12. Map Reduce Example “Hello World”
• text files over HDFS
• word count – counting the frequency of words

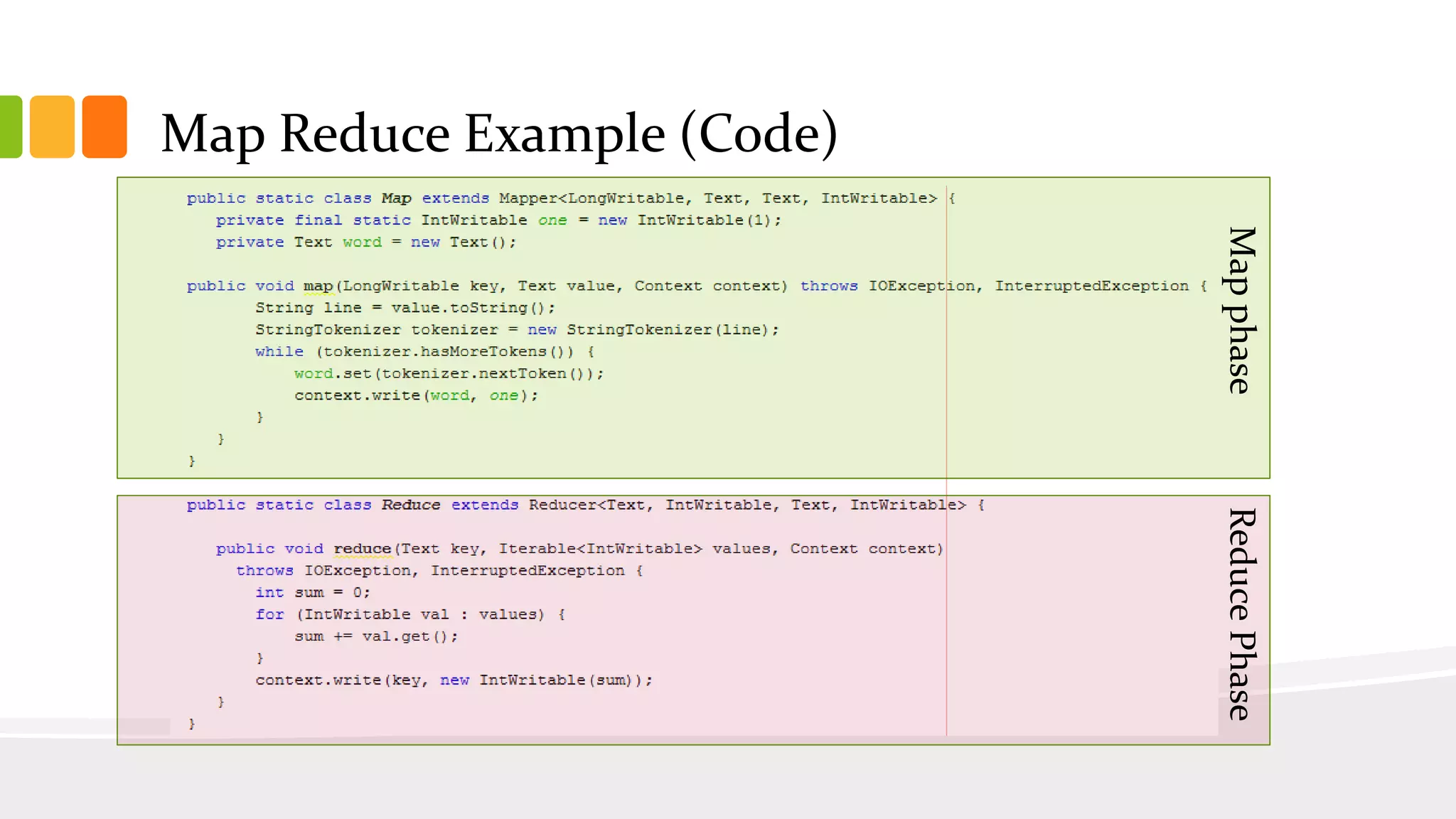

13. Map Reduce Example (Code)
Map phase
Reduce Phase

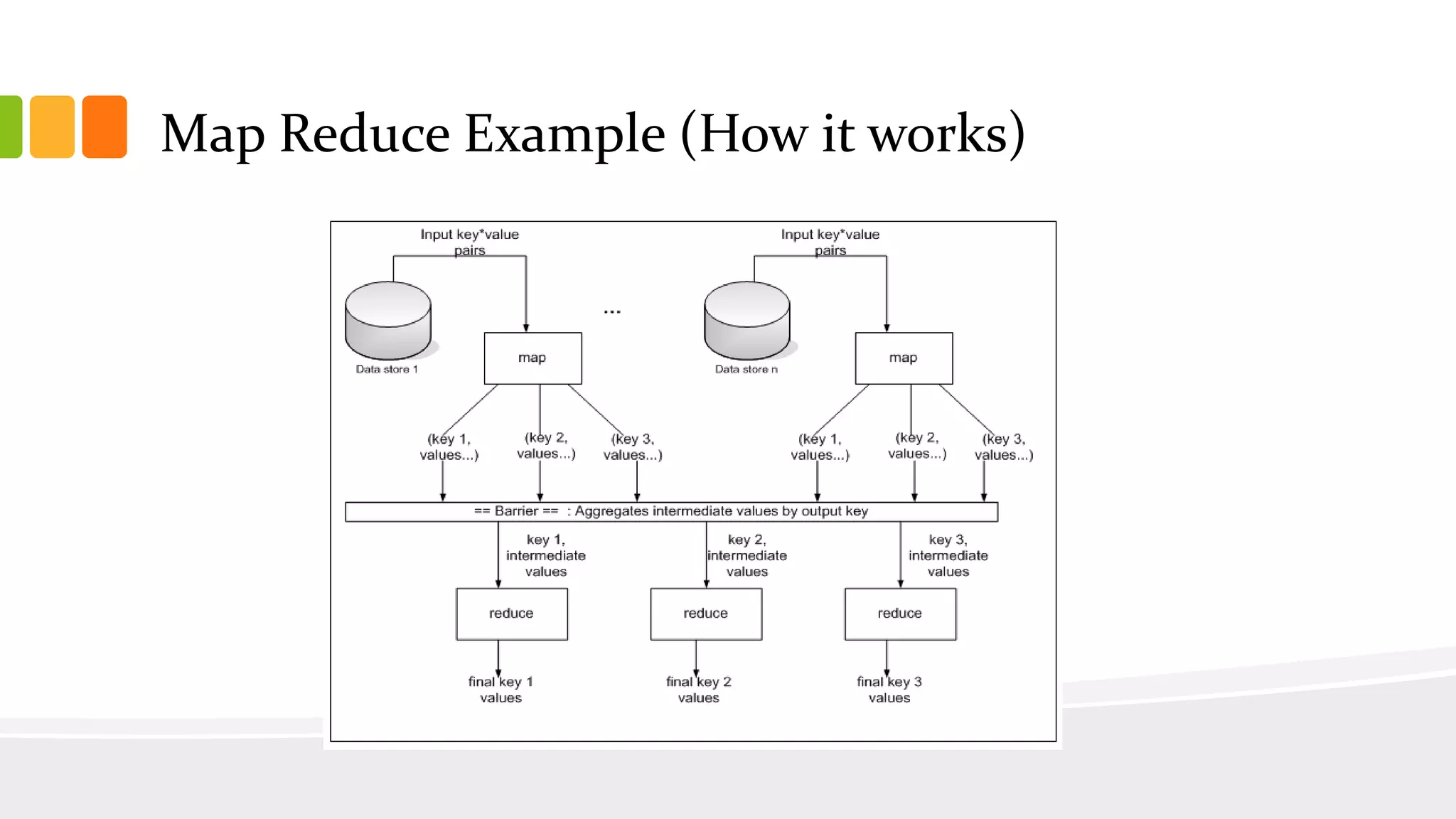

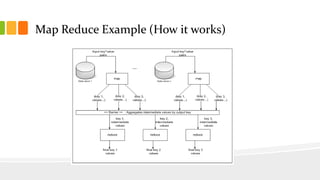

14. Map Reduce Example (How it works)

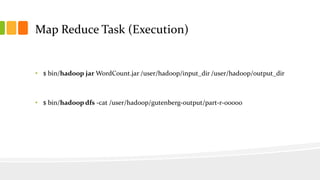

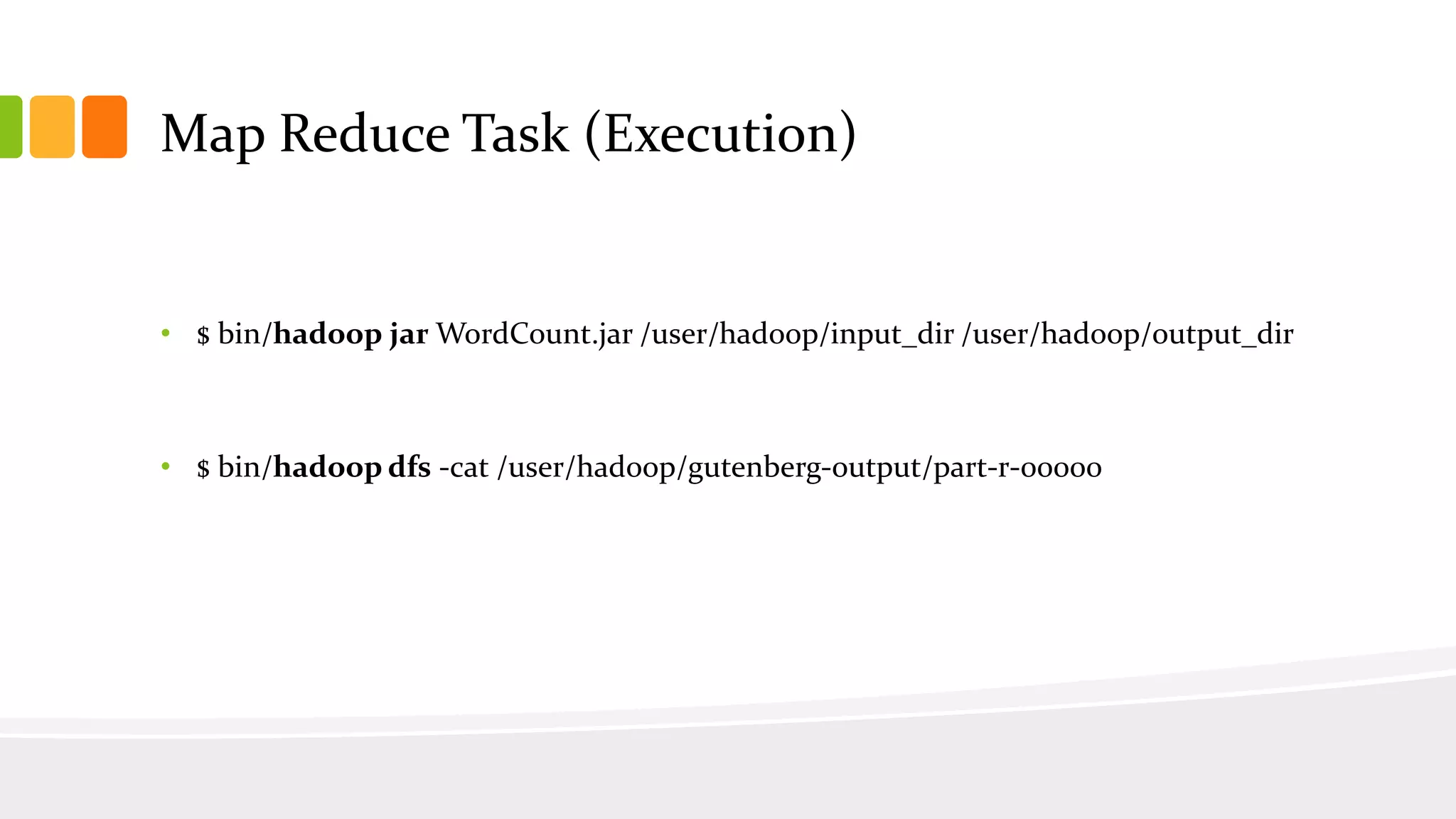

15. Map Reduce Task (Execution)
• $ bin/hadoop jar WordCount.jar /user/hadoop/input_dir /user/hadoop/output_dir
• $ bin/hadoop dfs -cat /user/hadoop/gutenberg-output/part-r-00000

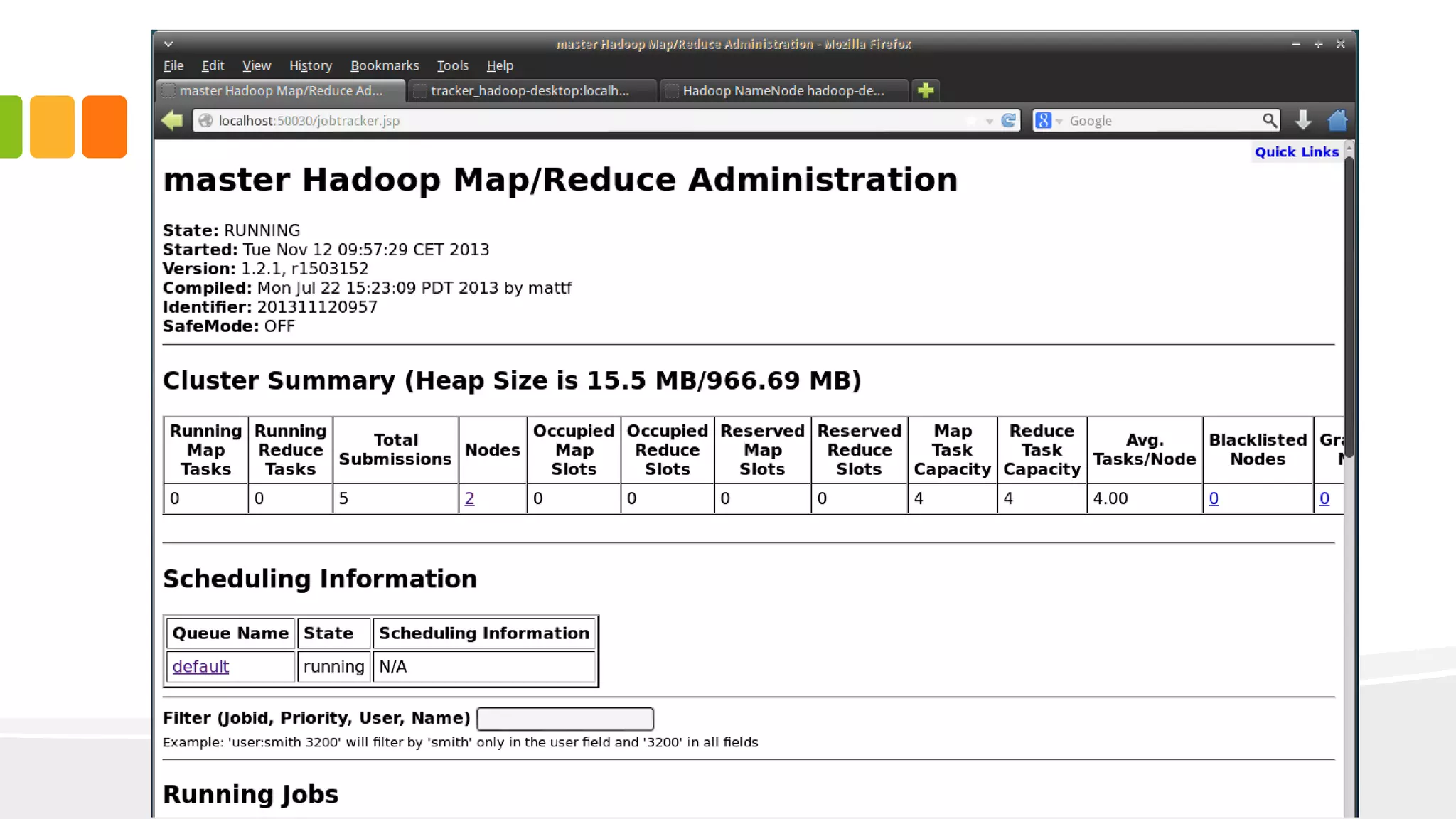

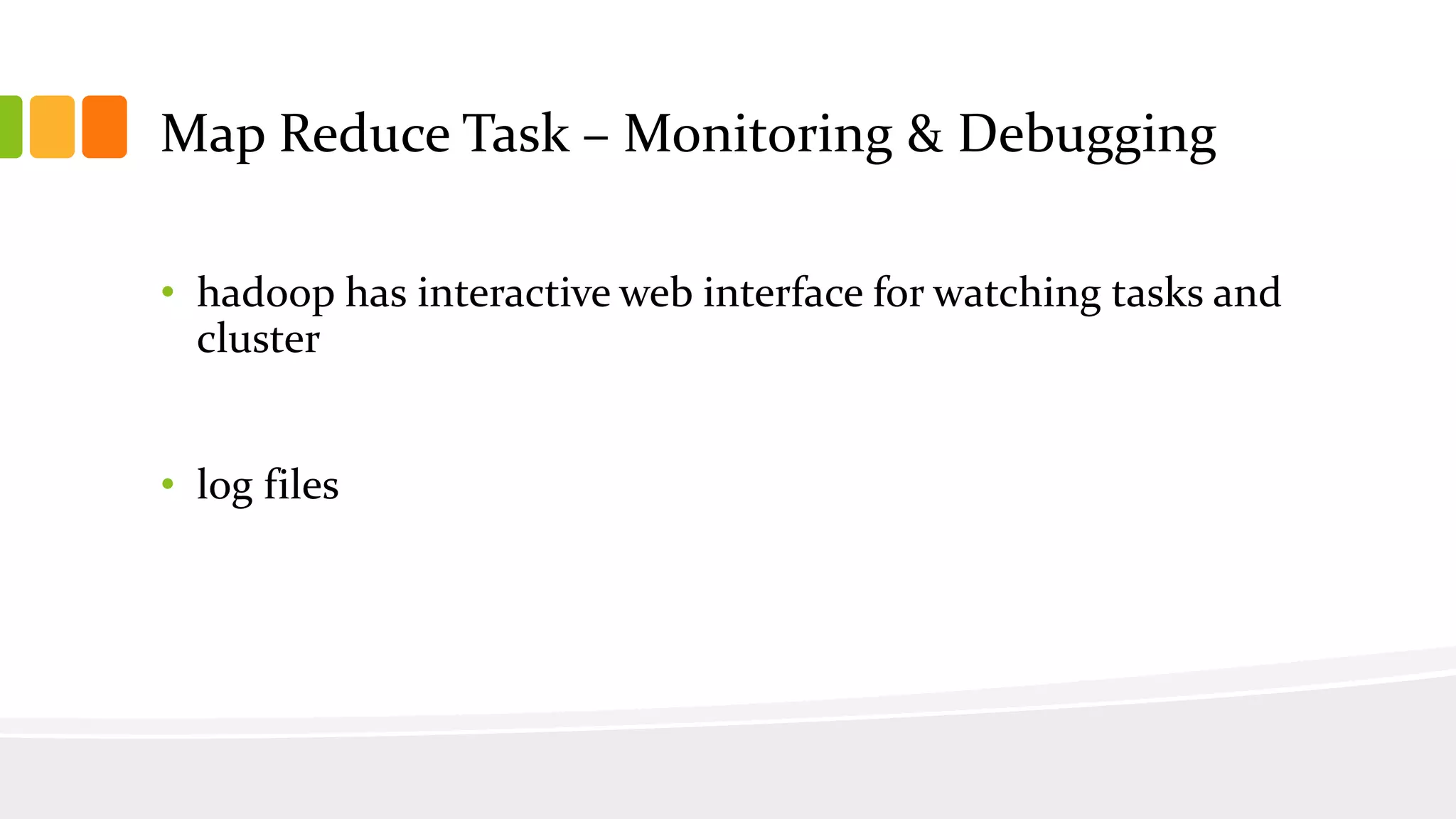

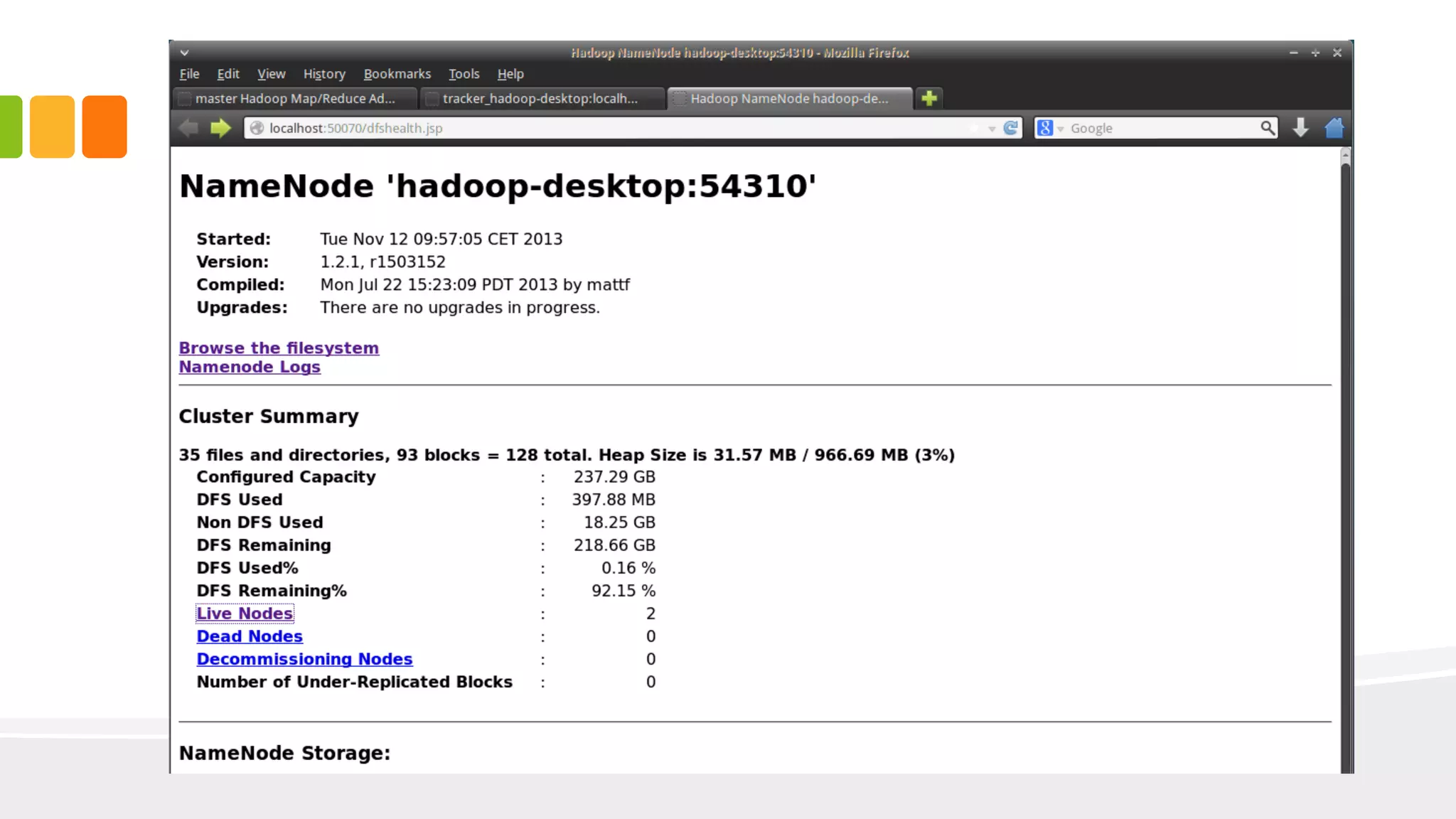

16. Map Reduce Task – Monitoring & Debugging
• hadoop has interactive web interface for watching tasks and
cluster
• log files

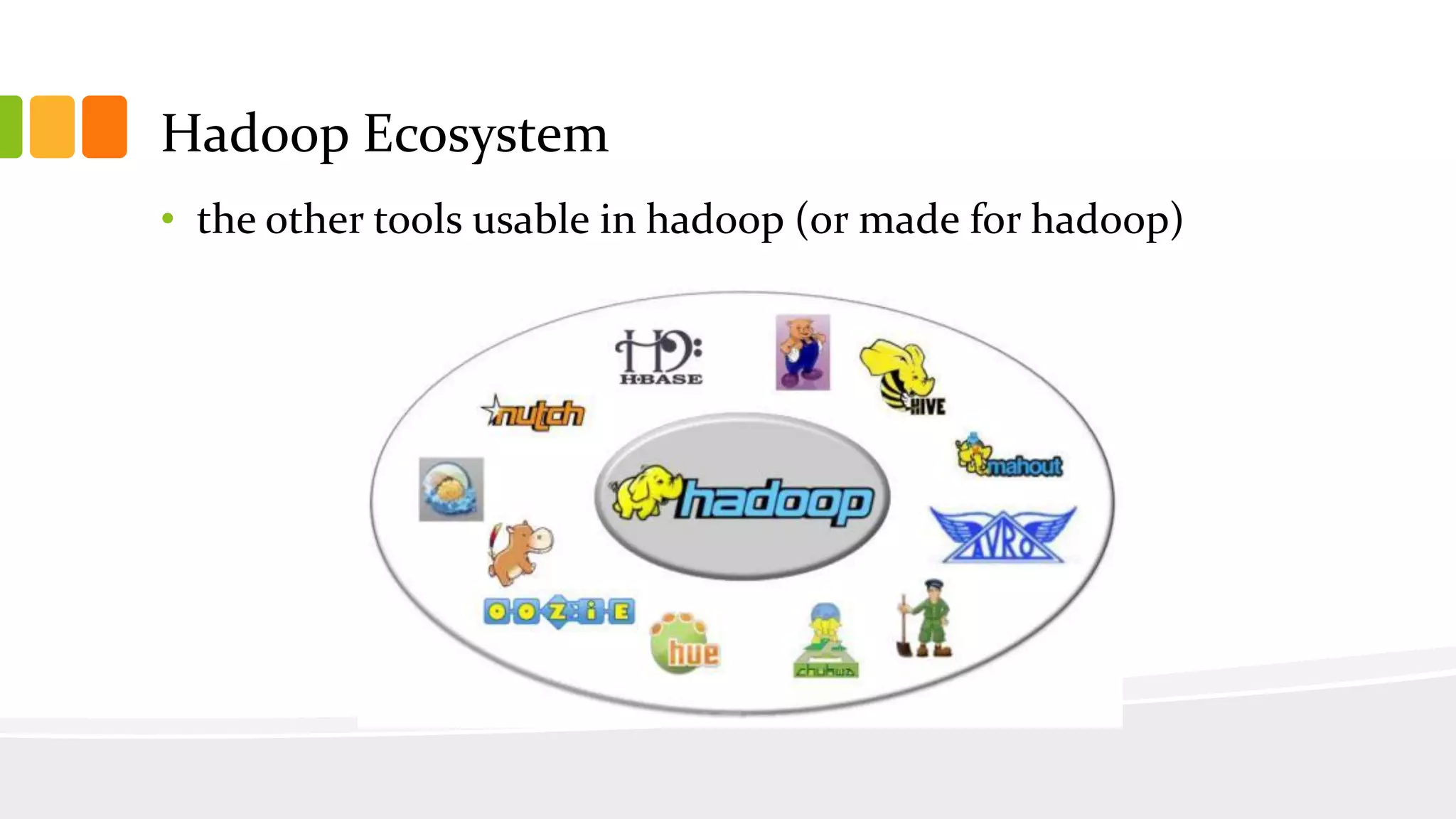

19. Hadoop Ecosystem
• the other tools usable in hadoop (or made for hadoop)

20. Hadoop Ecosystem
• Hadoop (HDFS, Map Reduce Framework)
• Avro (data serialization)
• Chukwa (monitoring large clustered systems)
• Flume (data collection and navigation)
• HBase (real-time read and write database)
• Hive (data summarization and querying)
• Lucene (text search)
• Pig (programming and query language)
• Sqoop (data transfer between hadoop and databases)
• Oozie (work flow and job orchestration)
• etc.

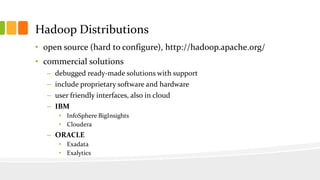

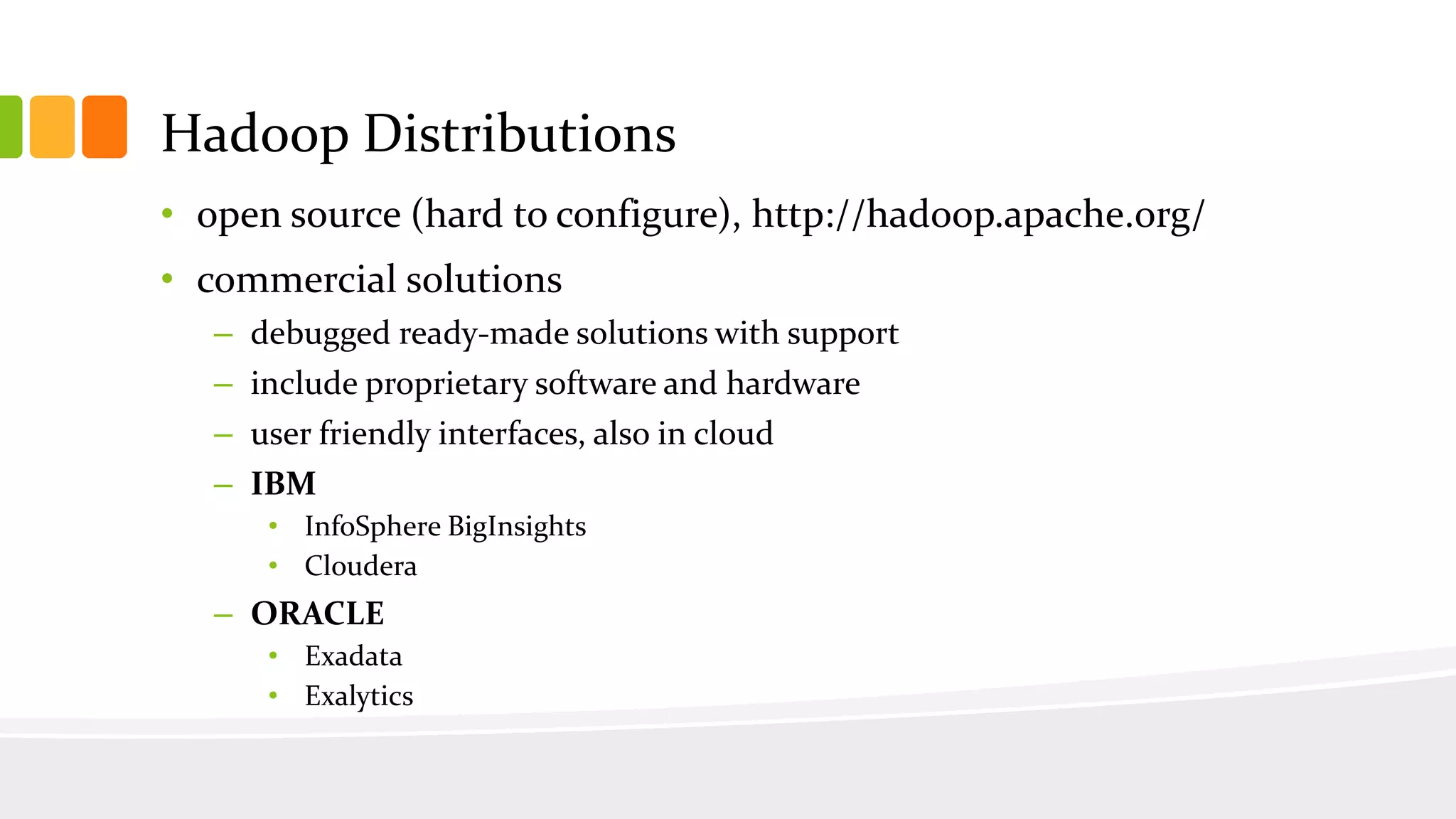

21. Hadoop Distributions
• open source (hard to configure), http://hadoop.apache.org/
• commercial solutions
– debugged ready-made solutions with support
– include proprietary software and hardware
– user friendly interfaces, also in cloud
– IBM
• InfoSphere BigInsights
• Cloudera
– ORACLE
• Exadata
• Exalytics

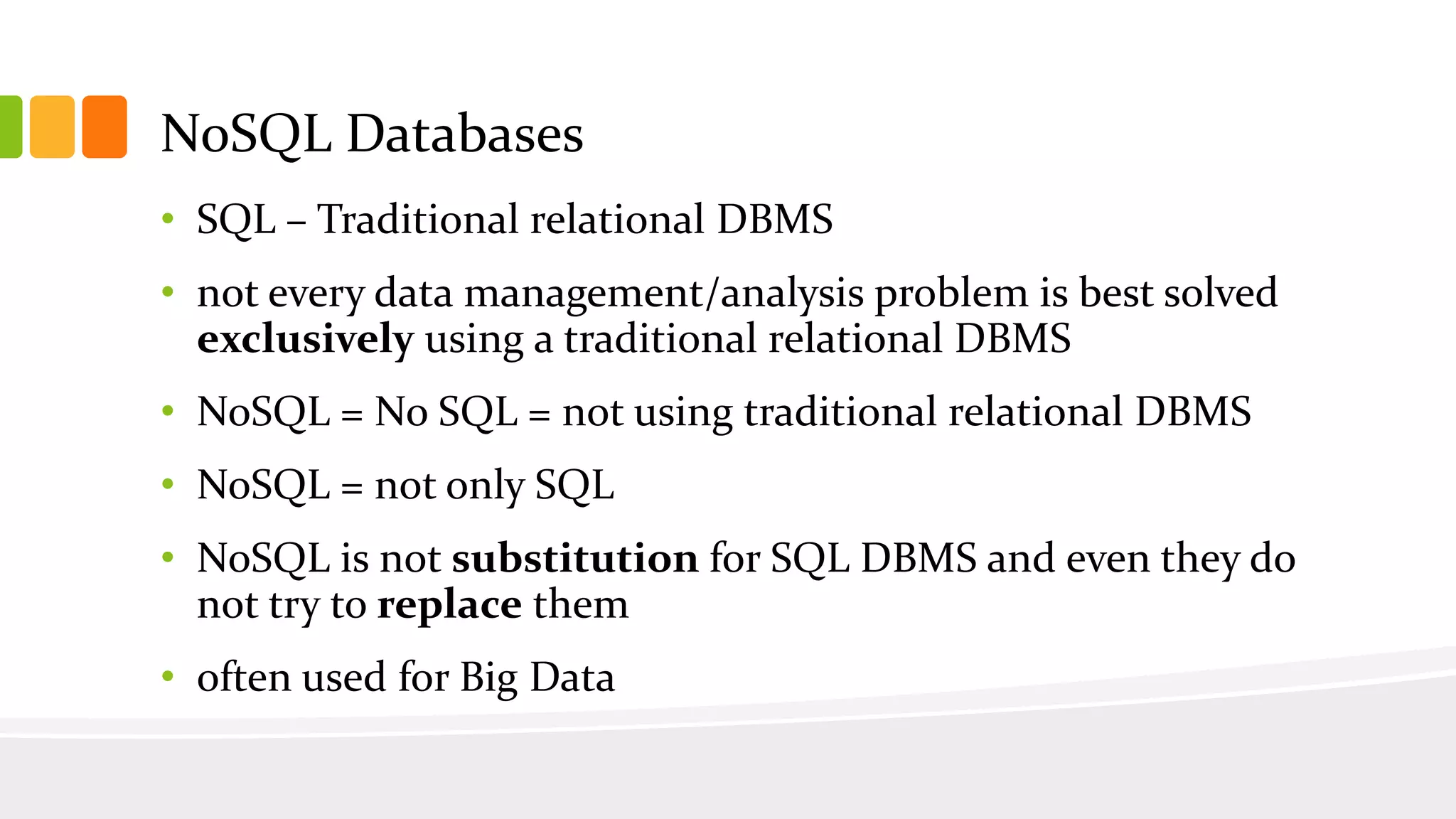

22. NoSQL Databases
• SQL – Traditional relational DBMS
• not every data management/analysis problem is best solved
exclusively using a traditional relational DBMS
• NoSQL = No SQL = not using traditional relational DBMS
• NoSQL = not only SQL
• NoSQL is not substitution for SQL DBMS and even they do
not try to replace them
• often used for Big Data

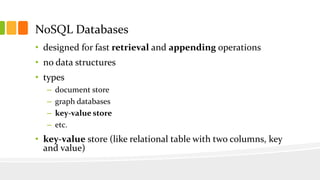

23. NoSQL Databases
• designed for fast retrieval and appending operations
• no data structures
• types
–
–
–
–
document store
graph databases
key-value store
etc.
• key-value store (like relational table with two columns, key
and value)

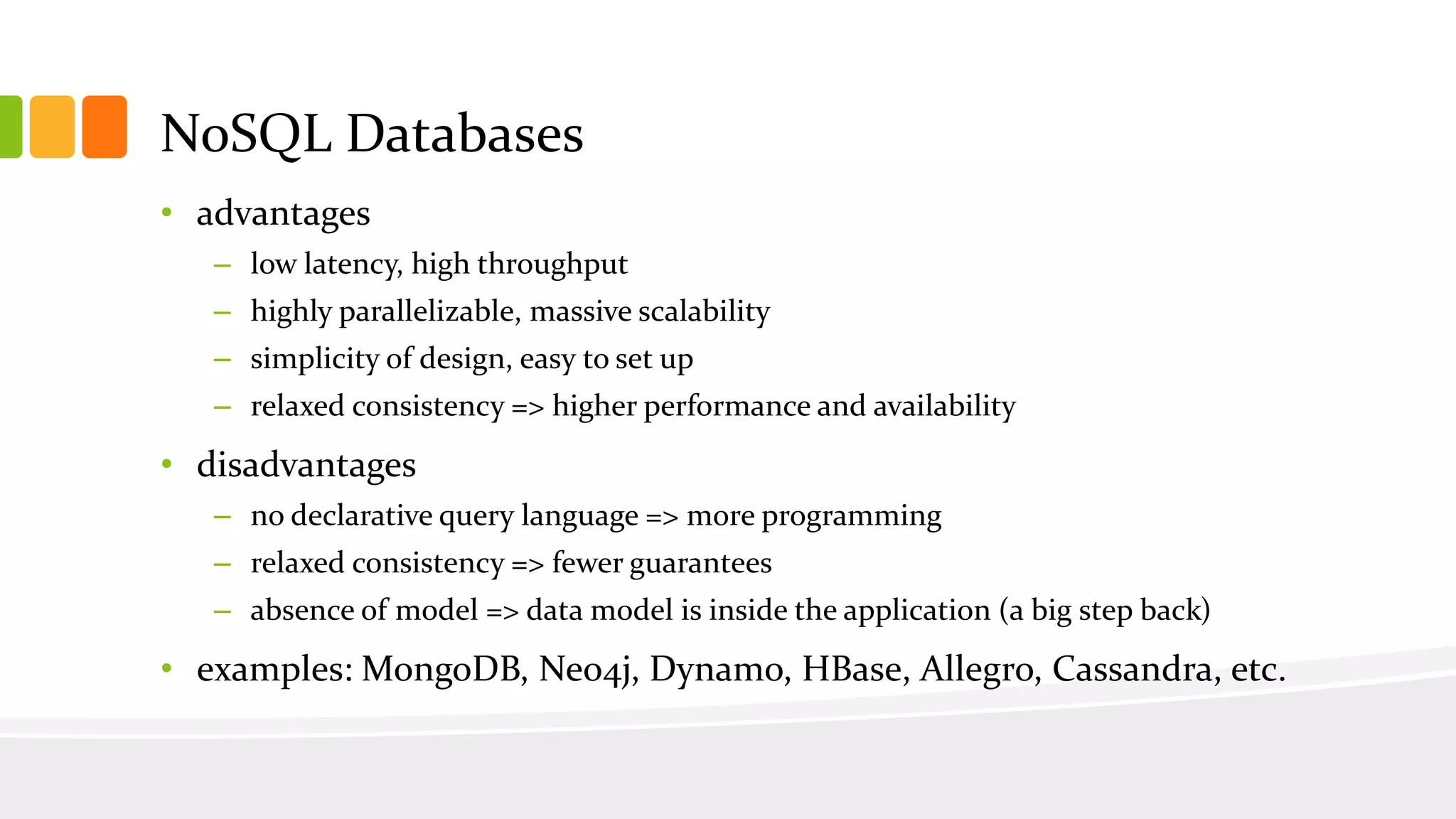

24. NoSQL Databases
• advantages
– low latency, high throughput
– highly parallelizable, massive scalability
– simplicity of design, easy to set up
– relaxed consistency => higher performance and availability
• disadvantages
– no declarative query language => more programming
– relaxed consistency => fewer guarantees
– absence of model => data model is inside the application (a big step back)
• examples: MongoDB, Neo4j, Dynamo, HBase, Allegro, Cassandra, etc.

25. Summary
• Big Data
– unstructured typically generated data (sensors, applications) with potential
– often not used before
– volume, variety, velocity => hard to process it by traditional technologies
• Hadoop
– open source technology for storing and processing distributed data
– processing Big Data on commodity hardware cluster
– HDFS, Map Reduce (and the other components of Hadoop Ecosystem)
• NoSQL Databases
– not using traditional relational DBMS
– typically key-value stores, easy
– designed for fast retrieval and appending operations
– highly parallelizable

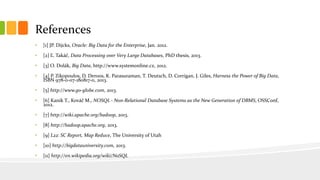

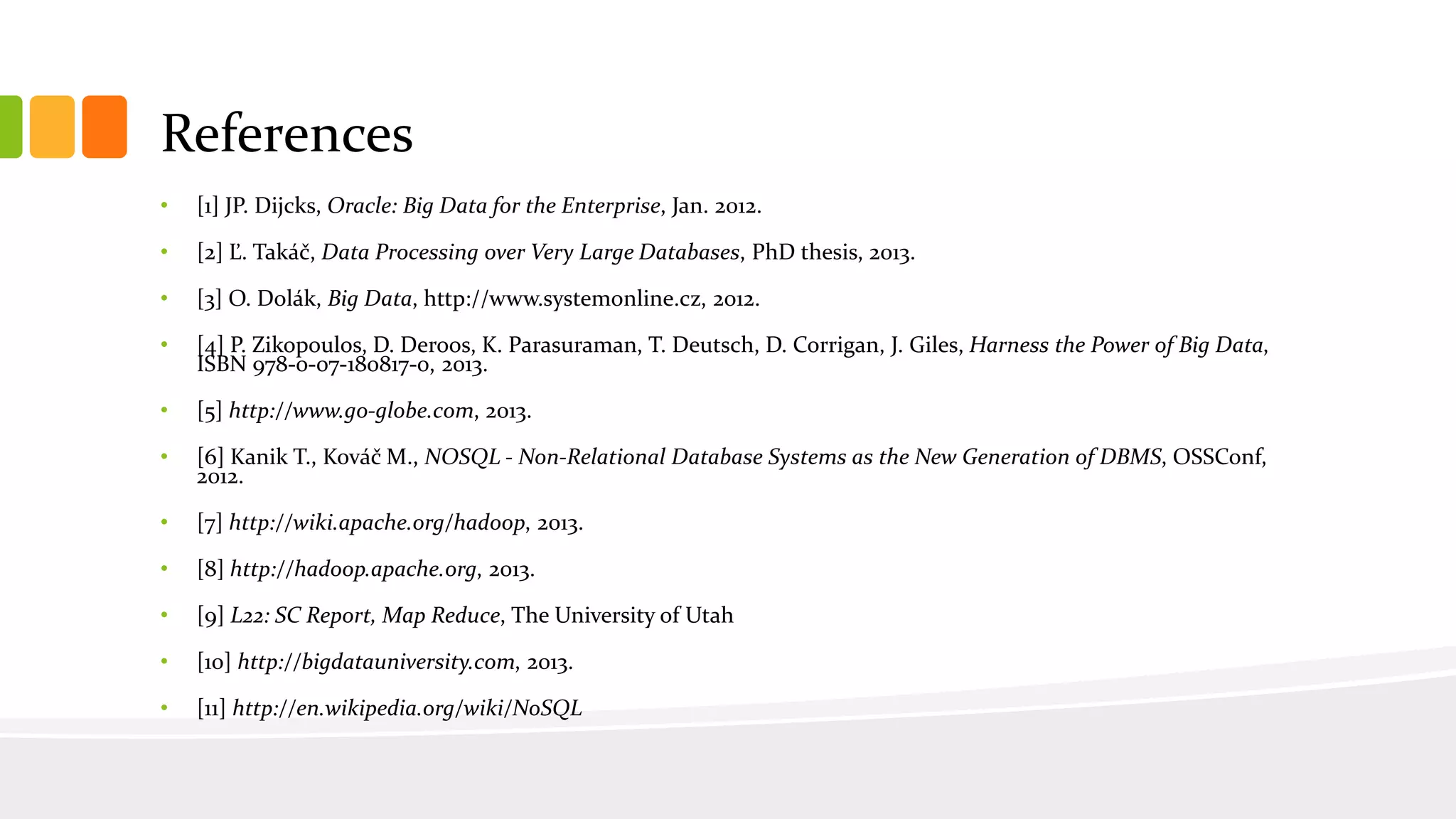

26. References
•
[1] JP. Dijcks, Oracle: Big Data for the Enterprise, Jan. 2012.
•
[2] Ľ. Takáč, Data Processing over Very Large Databases, PhD thesis, 2013.
•
[3] O. Dolák, Big Data, http://www.systemonline.cz, 2012.
•
[4] P. Zikopoulos, D. Deroos, K. Parasuraman, T. Deutsch, D. Corrigan, J. Giles, Harness the Power of Big Data,
ISBN 978-0-07-180817-0, 2013.
•
[5] http://www.go-globe.com, 2013.
•
[6] Kanik T., Kováč M., NOSQL - Non-Relational Database Systems as the New Generation of DBMS, OSSConf,
2012.
•
[7] http://wiki.apache.org/hadoop, 2013.
•
[8] http://hadoop.apache.org, 2013.
•
[9] L22: SC Report, Map Reduce, The University of Utah
•
[10] http://bigdatauniversity.com, 2013.
•
[11] http://en.wikipedia.org/wiki/NoSQL

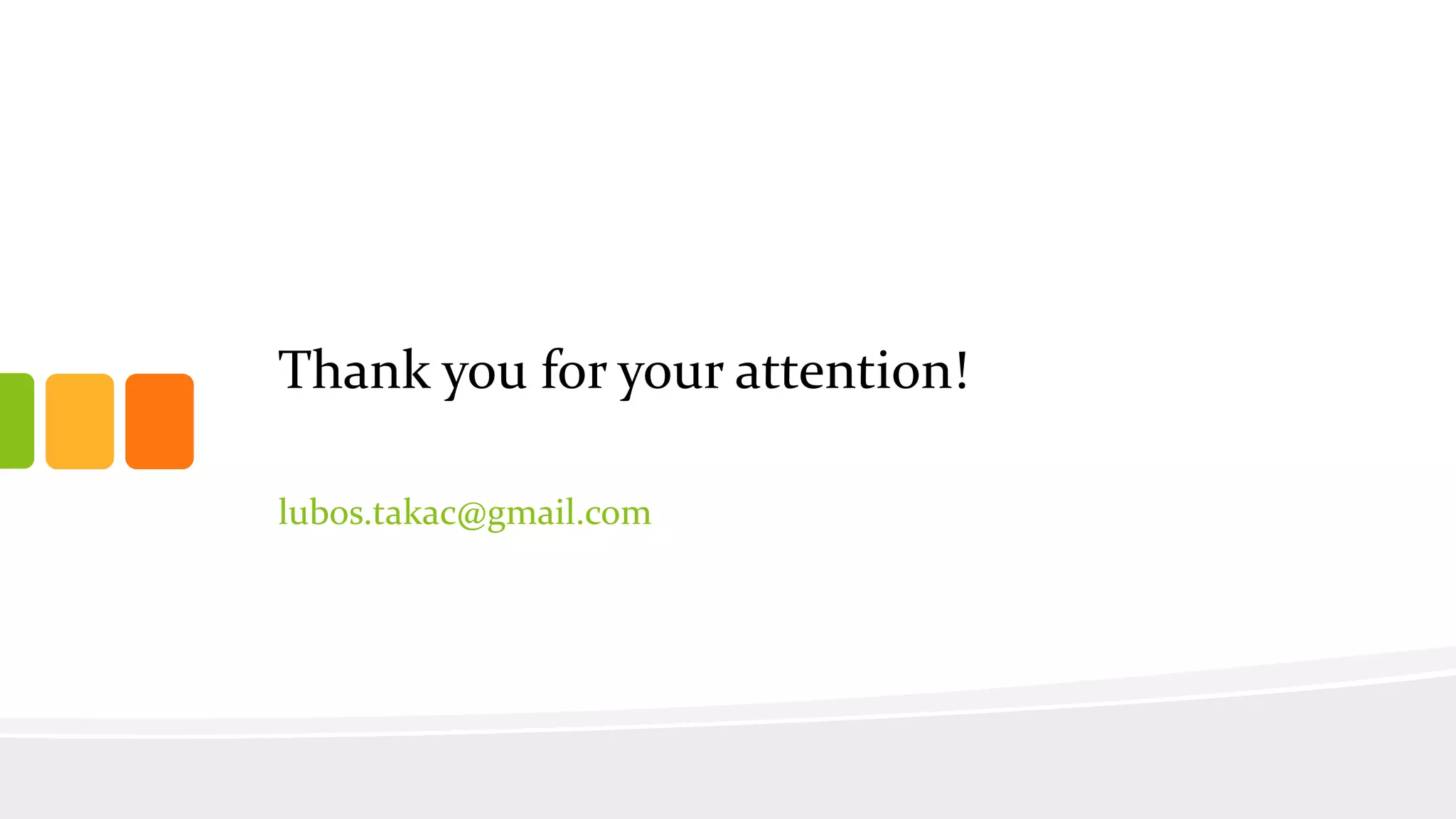

27. Thank you for your attention!
