This document describes a bi-directional visitor counter system that uses infrared sensors to detect people entering or exiting a room. It counts the number of visitors on a 7-segment display. When the count reaches certain thresholds, it controls appliances in the room using relays. The system works automatically to count visitors and control appliances without human intervention based on the visitor count. It has advantages like saving electricity by turning appliances off when empty, but is limited to counting one person at a time and a maximum of 9 visitors displayed on the single-digit 7-segment display.

1. Bi Directional Visitor Counter
Submitted By :Er. Vishwesh Kumar Sharma

2. Bi Directional Visitor Counter System
Relay

3. Technology & Working

Bi Directional visitor counter system uses the logic
of sensors.

Infra Red Sensors are used to check if someone
is entering or going to outside.

Here We are connecting the sensors in Through
Beam Configuration. If no one is entering the
response of sensor will be checked and work will
be done according to that.

4. Technology & Working


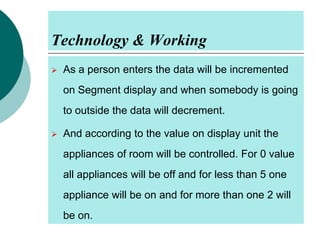

As a person enters the data will be incremented
on Segment display and when somebody is going
to outside the data will decrement.

And according to the value on display unit the
appliances of room will be controlled. For 0 value
all appliances will be off and for less than 5 one
appliance will be on and for more than one 2 will
be on.

5. Schematic Diagram

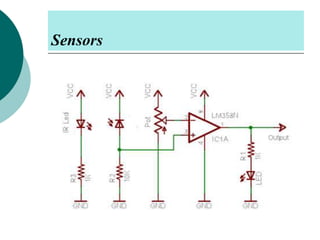

6. Sensors

7. Components

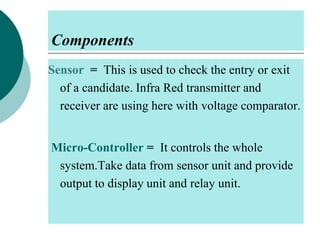

Sensor = This is used to check the entry or exit
of a candidate. Infra Red transmitter and
receiver are using here with voltage comparator.
Micro-Controller = It controls the whole
system.Take data from sensor unit and provide
output to display unit and relay unit.

8. Components

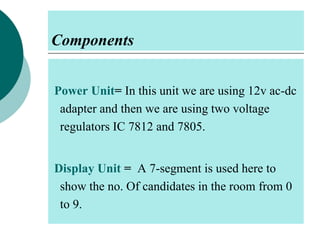

Power Unit= In this unit we are using 12v ac-dc
adapter and then we are using two voltage
regulators IC 7812 and 7805.
Display Unit = A 7-segment is used here to
show the no. Of candidates in the room from 0
to 9.

9. Components

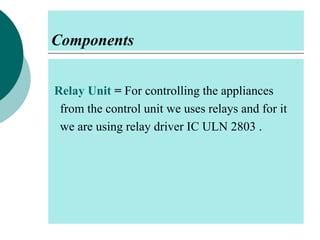

Relay Unit = For controlling the appliances
from the control unit we uses relays and for it
we are using relay driver IC ULN 2803 .

10. Components
IC7805
Components

11. Advantages




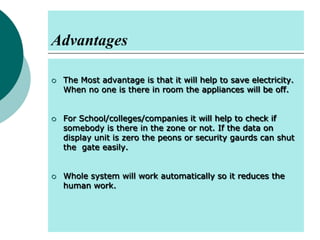

The Most advantage is that it will help to save electricity.
When no one is there in room the appliances will be off.
For School/colleges/companies it will help to check if
somebody is there in the zone or not. If the data on
display unit is zero the peons or security gaurds can shut
the gate easily.
Whole system will work automatically so it reduces the
human work.

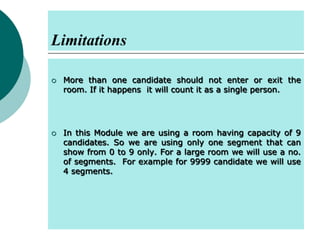

12. Limitations


More than one candidate should not enter or exit the
room. If it happens it will count it as a single person.
In this Module we are using a room having capacity of 9
candidates. So we are using only one segment that can
show from 0 to 9 only. For a large room we will use a no.
of segments. For example for 9999 candidate we will use
4 segments.
