Best practices for data analysis when using UMI adapters to improve variant detection
- 1. Best practices for data analysis when using UMI adapters to improve variant detection 1 Wendy Lee, PhD Staff Scientist

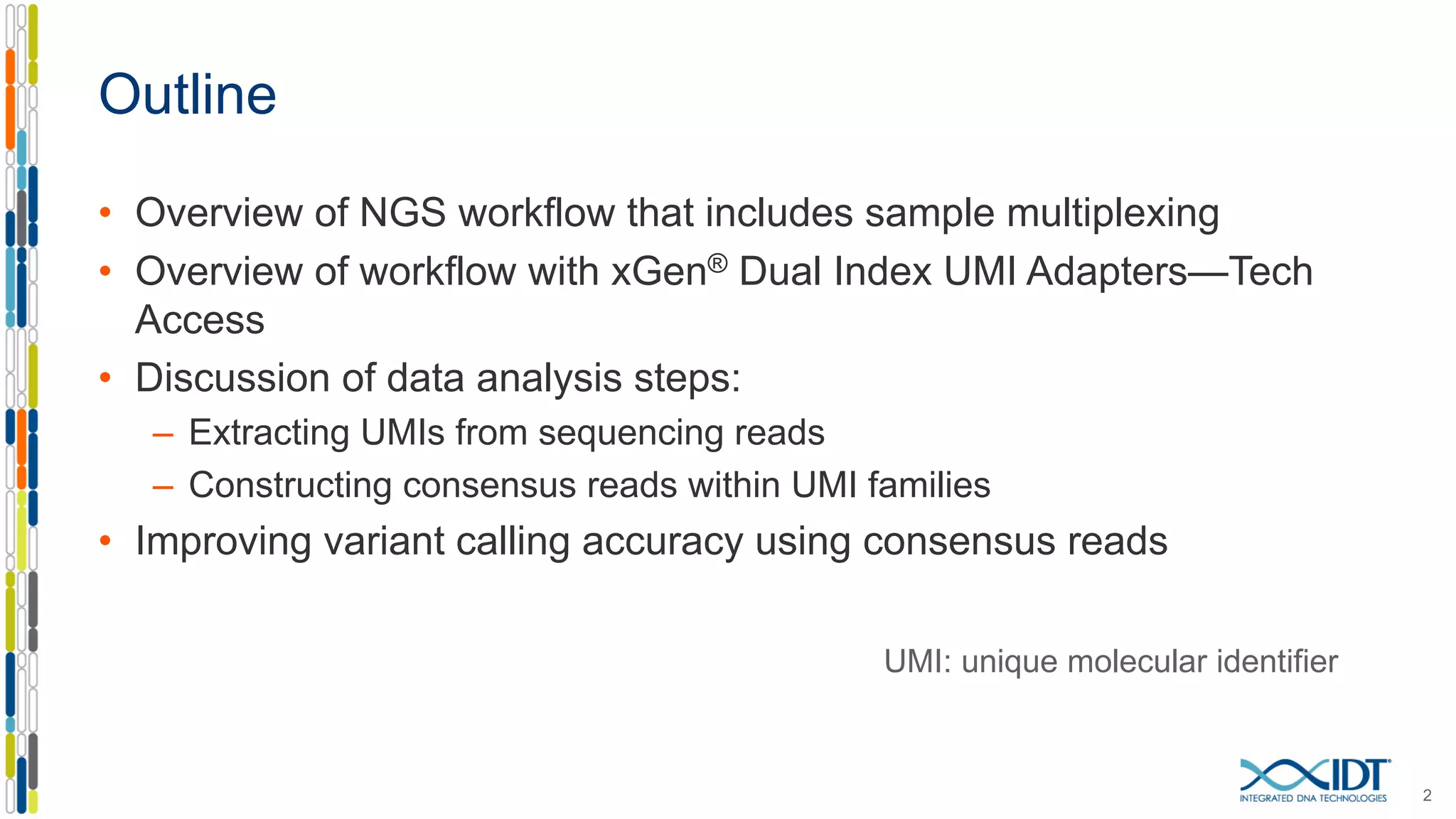

- 2. Outline • Overview of NGS workflow that includes sample multiplexing • Overview of workflow with xGen® Dual Index UMI Adapters—Tech Access • Discussion of data analysis steps: – Extracting UMIs from sequencing reads – Constructing consensus reads within UMI families • Improving variant calling accuracy using consensus reads 2 UMI: unique molecular identifier
- 3. NGS workflow with xGen Dual Index UMI Adapters 3 xGen Universal Blockers xGen
- 4. xGen Dual Index UMI Adapters—Tech Access 4 3-in-1 design • Designed for Illumina sequencers • Compatible with standard end-repair and A-tailing library construction, including PCR-free library methods • Dual unique sample indices reduce sample cross-talk • Degenerate 9-base UMI is incorporated for error correction and/or counting applications
- 5. xGen Dual Index UMI Adapters—Tech Access 5 3-in-1 design
- 6. Consensus calling reduces artifacts in sequencing data 6 TP Total readsDedup by start/stop positions
- 7. 7 TP Total reads TP Consensus reads (Min3) Dedup by start/stop positions A UMI family Consensus calling reduces artifacts in sequencing data
- 8. 8 TP TP Consensus reads (Min3) Dedup by start/stop positions Consensus calling reduces artifacts in sequencing data
- 9. Extracting UMIs within sample index reads during demultiplexing 9
- 10. Assumptions and requirements • Sequencing data are generated from the Illumina platform • The following tools are installed in a Linux environment: – Picard, version 2.9.0 – Burrows-Wheeler Aligner (BWA), version 0.7.15-r1140 – Fgbio, version 0.5.0 – VarDict Java • Access to the raw basecall data output from the sequencer 10
- 11. Data analysis guidelines on IDT website 11 www.idtdna.com/UMI-techaccess
- 12. Overall workflow 12 Sample Sheet Steps D1–6: Converted base-calls to short reads with UMI information during demultiplexing NGS runs Short reads files with UMI info Illumina basecalls Steps C1–4: Call consensus reads using UMI Steps P1–4: Post-consensus calling analysis Variant calls
- 13. Extract UMIs from sample index reads through Illumina demultiplexing workflow 13 Step D1: Create the sample barcode input file Barcode_file.txt Step D2: Create output directory for storing the extracted barcode from the sample index reads Step D3: Determine the read structure 100T8B9M8B100T Step D4: Run ExtractIlluminaBarcodes (Picard) Extracted barcode files Step D5: Create an input file to specify the output BAM file associated with the sample Library_param.txt Step D6: Run IlluminaBasecallsToSam (Picard) Unmapped BAM files Sample sheet
- 15. 15
- 16. 16 Step D1: Create the sample barcode input file Barcode_file.txt Step D2: Create output directory for storing the extracted barcode from the sample index reads Step D3: Determine the read structure 100T8B9M8B100T Step D4: Run ExtractIlluminaBarcodes (Picard) Extracted barcode files Step D5: Create an input file to specify the output BAM file associated with the sample Library_param.txt Step D6: Run IlluminaBasecallsToSam (Picard) Unmapped BAM files Steps D1,2: Create a barcode file containing the sample barcode information for each sample. Steps 1 and 2 of 6 in demultiplexing
- 17. 17 Steps D1,2: Create a barcode file containing the sample barcode information for each sample. 17 • UMI bases are in Ns in the barcode sequence • This is a tab-delimited file • In this example, we saved this file in /mnt/demodata/barcode_file.txt • In this example, we create an output directory in /mnt/demodata/barcodes barcode_name library_name barcode_sequence_1 barcode_sequence_2 20180326-BN573-S1 Mix1_Rep1 CTGATCGTNNNNNNNNN GCGCATAT 20180326-BN573-S2 Mix1_Rep2 ACTCTCGANNNNNNNNN CTGTACCA 20180326-BN573-S3 Mix1_Rep3 TGAGCTAGNNNNNNNNN GAACGGTT Steps 1 and 2 of 6 in demultiplexing
- 18. 18 Step D1: Create the sample barcode input file Barcode_file.txt Step D4: Run ExtractIlluminaBarcodes (Picard) Extracted barcode files Step D5: Create an input file to specify the output BAM file associated with the sample Library_param.txt Step D6: Run IlluminaBasecallsToSam (Picard) Unmapped BAM files Step D2: Create output directory for storing the extracted barcode from the sample index reads Step D3: Determine the read structure 100T8B9M8B100T Step D3: Determine the read structure for running ExtractIlluminaBarcodes. Step 3 of 6 in demultiplexing
- 19. 19 Step D3: Determine the read structure for running ExtractIlluminaBarcodes. Step 3 of 6 in demultiplexing For xGen Dual Index UMI Adapters—Tech Access with DNA insert of 100 bp, use the following corresponding read structure: 100T8B9M8B100T T – template (insert) B – Sample barcode M – Molecular index (UMI) Read
- 20. Step 4 of 6 in demultiplexing 20 Step D1: Create the sample barcode input file Barcode_file.txt Step D4: Run ExtractIlluminaBarcodes (Picard) Extracted barcode files Step D5: Create an input file to specify the output BAM file associated with the sample Library_param.txt Step D6: Run IlluminaBasecallsToSam (Picard) Unmapped BAM files Step D2: Create output directory for storing the extracted barcode from the sample index reads Step D3: Determine the read structure 100T8B9M8B100T Step D4: Run Picard ExtractIlluminaBarcodes to extract sample barcodes.
- 21. Input: BARCODE_FILE: Barcode file created in Step D1 BASECALLS_DIR: Directory with sequencing basecall files READ_STRUCTURE: 100T8B9M8B100T from Step D3 LANE: ExtractIlluminaBarcodes process one lane at a time Output: 1. A metrics file with the barcode extraction summary 2. Extracted barcodes in output directory created in Step D2. 21 java -Xmx4g -jar picard-2.9.0.jar ExtractIlluminaBarcodes BARCODE_FILE=/mnt/demodata/barcode_file.txt BASECALLS_DIR=/mnt/runs/BN573/Data/Intensities/BaseCalls READ_STRUCTURE=100T8B9M8B100T LANE=1 OUTPUT_DIR=/mnt/demodata/barcodes METRICS_FILE=/mnt/demodata/barcode_metrics.txt Step 4 of 6 in demultiplexing Step D4: Run Picard ExtractIlluminaBarcodes to extract sample barcodes.
- 22. 22 Step D1: Create the sample barcode input file Barcode_file.txt Step D4: Run ExtractIlluminaBarcodes (Picard) Extracted barcode files Step D5: Create an input file to specify the output BAM file associated with the sample Library_param.txt Step D6: Run IlluminaBasecallsToSam (Picard) Unmapped BAM files Step D2: Create output directory for storing the extracted barcode from the sample index reads Step D3: Determine the read structure 100T8B9M8B100T Step D5: Create a tab-delimited file to specify the BAM file for each sample in the sequencing run with the corresponding barcode sequence(s). Step 5 of 6 in demultiplexing
- 23. 23 In this example, we saved this file in /mnt/demodata/library_param.txt. Be sure to create the output directory for the BAM file. In this example, the output directory is /mnt/bam/L001 OUTPUT SAMPLE_ALIAS LIBRARY_NAME BARCODE_1 BARCODE_2 /mnt/bam/L001/BN573-S1_unmapped.bam 20180326-BN573-S1 Mix1_Rep1 CTGATCGTNNNNNNNNN GCGCATAT /mnt/bam/L001/BN573-S2_unmapped.bam 20180326-BN573-S2 Mix1_Rep2 ACTCTCGANNNNNNNNN CTGTACCA /mnt/bam/L001/BN573-S3_unmapped.bam 20180326-BN573-S3 Mix1_Rep3 TGAGCTAGNNNNNNNNN GAACGGTT /mnt/bam/L001/Unmatched.bam Unmatched Unmatched N Step D5: Create a tab-delimited file to specify the BAM file for each sample in the sequencing run with the corresponding barcode sequence(s). Step 5 of 6 in demultiplexing
- 24. 24 Step D1: Create the sample barcode input file Barcode_file.txt Step D4: Run ExtractIlluminaBarcodes (Picard) Extracted barcode files Step D5: Create an input file to specify the output BAM file associated with the sample Library_param.txt Step D6: Run IlluminaBasecallsToSam (Picard) Unmapped BAM files Step D2: Create output directory for storing the extracted barcode from the sample index reads Step D3: Determine the read structure 100T8B9M8B100T Step D6: Run IlluminaBasecallsToSam to convert sequencing base-calls to short reads in the BAM files. Step 6 of 6 in demultiplexing
- 25. 25 Step D6: Run IlluminaBasecallsToSam to convert sequencing base-calls to short reads BAM files. java -Xmx4g -jar picard-2.9.0.jar IlluminaBasecallsToSam BASECALLS_DIR=/mnt/runs/BN573/Data/Intensities/BaseCalls BARCODES_DIR=/mnt/demodata/barcodes # Step D4 LANE=1 # process by lane READ_STRUCTURE=100T8B6M8B100T # Step D3 RUN_BARCODE=180326_BN573 # prefixed to the read names in the output LIBRARY_PARAMS= /mnt/demodata/library_param.txt # Step D5 TMP_DIR=/mnt/tmp MOLECULAR_INDEX_TAG=RX # BAM tag that stores UMI sequence ADAPTERS_TO_CHECK=INDEXED READ_GROUP_ID=BN573-S1 NUM_PROCESSORS=8 Step 6 of 6 in demultiplexing
- 26. BAM file created by IlluminaBasecallsToSam • The reads in the BAM file generated by IlluminaBasecallsToSam are not yet aligned to the reference genome. • UMI sequence is in the RX tag. • UMI sequence quality is in the QX tag. • Sequencing adapter location is in the XT tag. Adapter sequence can be trimmed using SamToFastq in Picard tools. 26 180326_BN573:1:1101:10008:4281 77 * 0 0 * * 0 0 ACAACGCTCCACGGGAGACCCACCCATCCCTGCCAGGTGAGCCAGACAGTGGCCAAGGGTCTCTAGGTCGAGGCAG CDDDDCCCDDFFGGGGGGGGGGGGGGHHHHHHHHHHHGHHHHHHHHGHHHHHGHHHHGGHHHHHHHHHHGEFGGGG RG:Z:BN573-S1 XT:i:114 QX:Z:FFFFGGGG RX:Z:GGTAAAATG An example record from the BAM file:
- 27. Calling consensus using UMIs 27
- 28. Workflow for consensus calling 28 Step C1: Align reads to reference genome Mapped BAM without UMI tags Step C2: Include UMI tags from unmapped BAM in the mapped BAM Mapped BAM with UMI tags Mapped BAM with UMI family tags Step C3: Group reads by UMIs Unmapped BAM with UMI tags Extract UMIs from sample index during demultiplexing Unmapped BAM with consensus reads Step C4: Call consensus
- 29. Step C1,2: Aligning reads from unmapped BAM files to reference genome, and including the UMI tags 29 Step C1: Align reads to reference genome Mapped BAM without UMI tags Unmapped BAM with UMI tags Extract UMIs from sample index Step C2: Include UMI tags from unmapped BAM in the mapped BAM Mapped BAM with UMI tags Mapped BAM with UMI family tags Step C3: Group reads by UMIs Unmapped BAM with consensus reads Step C4: Call consensus Steps 1 and 2 of 4 in consensus calling
- 30. Step C1,2: Aligning reads from unmapped BAM files to reference genome, and including the UMI tags The following command consists of three steps: 1. Convert BAM to FASTQ 2. Align reads using BWA-MEM 3. Include UMI tags from the unmapped BAM in the mapped BAM Steps 1 and 2 of 4 in consensus calling 30 java -Xmx4g -jar picard-2.9.0.jar SamToFastq I=BN573-S1_unmapped.bam F=/dev/stdout INTERLEAVE=true | bwa mem –p –t 8 hg38.fa /dev/stdin | java –Xmx4g –jar picard.jar MergeBamAlignment UNMAPPED=BN573-S1_unmapped.bam ALIGNED=/dev/stdin O=BN573-S1_mapped.bam R=hg38.fa SORT_ORDER=coordinate MAX_GAPS=-1 ORIENTATIONS=FR
- 31. 31 Step C3: Grouping reads by UMIs Unmapped BAM with UMI tags Extract UMIs from sample index Step C1: Align reads to reference genome Mapped BAM without UMI tags Step C2: Include UMI tags from unmapped BAM in the mapped BAM Mapped BAM with UMI tags Mapped BAM with UMI family tags Step C3: Group reads by UMIs Unmapped BAM with consensus reads Step C4: Call consensus Step 3 of 4 in consensus calling
- 32. Step C3: Grouping reads by UMIs The reads are grouped into families that share the same UMI Step 3 of 4 in consensus calling 32 java -Xmx4g -jar fgbio.jar GroupReadsByUmi --input=BN573-S1_mapped.bam --output=BN573-S1_grouped.bam --strategy=adjacency --edits=1 --min-map-q=20 -–assign-tag=MI
- 33. Step 4 of 4 in consensus calling 33 Step C1: Align reads to reference genome Mapped BAM without UMI tags Unmapped BAM with UMI tags Extract UMIs from sample index Step C4: Calling consensus Step C2: Include UMI tags from unmapped BAM in the mapped BAM Mapped BAM with UMI tags Mapped BAM with UMI family tags Step C3: Group reads by UMIs Unmapped BAM with consensus reads Step C4: Call consensus
- 34. Step C4: Calling consensus Consensus reads will be generated using fgbio’s CallMolecularConsensusReads Step 4 of 4 in consensus calling 34 java -Xmx4g -jar fgbio.jar CallMolecularConsensusReads --input=BN573-S1_grouped.bam --output=BN573-S1_ssConsensus_unmapped.bam --min-reads=1 --rejects=BN573-S1_ssConsensus_rejected.bam --min-input-base-quality=30 --read-group-id=BN573-S1
- 35. Workflow for post consensus-calling analysis 35 Step P2: Include UMI tags from unmapped BAM in the mapped BAM Mapped BAM with UMI tags Step P3: Filter consensus reads Filtered consensus BAM Unmapped BAM with consensus reads Mapped BAM without UMI tags Step P1: Align reads to reference genome VCF Step P4: Variant calling
- 36. Steps 1 and 2 of 4 in post-consensus calling analysis 36 Step P2: Include UMI tags from unmapped BAM in the mapped BAM Mapped BAM with UMI tags Step P3: Filter consensus reads Filtered consensus BAM Unmapped BAM with single strand consensus reads Mapped BAM without UMI tags Step P1: Align reads to reference genome Step P1,2: Aligning reads from unmapped BAM files to reference genome and merging the UMI tags VCF Step P4: Variant calling
- 37. Step P1,2: Aligning reads from unmapped BAM files to reference genome and merging the UMI tags The following command consists of three steps: 1. Converting BAM to FASTQ 2. Aligning reads using bwa mem 3. Including UMI tags from the unmapped BAM in the mapped BAM Steps 1 and 2 of 4 in post-consensus calling analysis 37 java -Xmx4g -jar picard-2.9.0.jar SamToFastq I=BN573-S1_consensus_unmapped.bam F=/dev/stdout INTERLEAVE=true | bwa mem –p –t 8 hg38.fa /dev/stdin | java –Xmx4g –jar picard.jar MergeBamAlignment UNMAPPED=BN573-S1_dsConsensus_unmapped.bam ALIGNED=/dev/stdin O=BN573-S1_consensus_mapped.bam R=hg38.fa SORT_ORDER=coordinate MAX_GAPS=-1 ORIENTATIONS=FR
- 38. Step 3 of 4 in post-consensus calling analysis 38 Step P2: Include UMI tags from unmapped BAM in the mapped BAM Mapped BAM with UMI tags Step P3: Filter consensus reads Filtered consensus BAM VCF Unmapped BAM with single strand consensus reads Mapped BAM without UMI tags Step P1: Align reads to reference genome Step P3: Filtering consensus reads Step P4: Variant calling
- 39. Step P3: Filtering consensus reads There are two kinds of filtering of consensus reads: 1. Masking or filtering individual bases in reads 2. Filtering reads (i.e., not writing them to the output BAM file) Step 3 of 4 in post-consensus calling analysis 39 java -Xmx4g -jar fgbio.jar FilterConsensusReads --input=BN573-S1_ssConsensus_mapped.bam --output=BN573-S1_ssConsensus_mapped_filtered.bam --min-reads=3 --min-base-quality=50 --max-no-call-fraction=0.05
- 40. Step 4 of 4 in post-consensus calling analysis 40 Step P2: Include UMI tags from unmapped BAM in the mapped BAM Mapped BAM with UMI tags Step P3: Filter consensus reads Filtered consensus BAM VCF Unmapped BAM with single strand consensus reads Mapped BAM without UMI tags Step P1: Align reads to reference genome Step P4: Variant calling Step P4: Variant calling
- 41. Step P4: Variant calling Step 4 of 4 in post-consensus calling analysis 41 • Variant calling can be accomplished with the variant caller of your choice • The following example shows how to use VarDictJava to generate a VCF file VarDictJava/bin/VarDict –G hg38.fa -N tumor -f 0.01 -b BN573-S1_ssConsensus_mapped_filtered.bam -z –c 1 –S 2 –E 3 –g 4 –th 4 target_regions.bed | VarDictJava/VarDict/teststrandbias.R | VarDictJava/VarDict/var2vcf_valid.pl –N tumor –E –f 0.01 | awk ‘{if ($1 ~/^#/) print; else if ($4 != $5) print}’ > BN573-S1.ssConsensus.VarDict.vcf
- 42. Tumor model system for benchmarking • 25 ng of a 1% mixture (0.5% minimum allelic frequency) was used to assess sensitivity and positive predictive value (PPV) • Libraries were captured with a set of custom xGen Lockdown Probes covering a total target area of ~35 kb • Variant calling was performed with VarDict 42
- 43. Consensus analysis increases variant calling accuracy 43 All expected variants 0.2% variant calling threshold Positive predictive value (PPV)
- 44. THANK YOU 44
- 45. Take-home messages • Building consensus sequences enables in silico error correction, dramatically increasing variant calling specificity • Due to the prevalence of artifacts arising from sample degradation, PCR amplification and sequencing, consensus analysis is necessary to accurately detect variants present below 1% • xGen Dual Index UMI Adapters mitigate index switching and can accurately assign rare variants in multiplexing studies 45 www.idtdna.com/UMI-techaccess
- 46. Sensitivity and specificity (PPV) 46 TP: True positive FP: False positive FN: False negative PPV: Positive Predictive Value Sensitivity = TP TP+FN Specificity (PPV) = TP TP+FP
