1. Configuration-Process of codeBeamer Templates
Design, Review, Approve, and Efficiently Deploy Project Templates
22.10.2020, Alexandros Velikis

2. 01 Short introduction Bertrandt
02 Specification and Design of cB-Templates
03 Testing and Deployment of cB-Templates
04 Configuration Process
Agenda

3. Bertrandt Key Facts
Intland User Conference | 22.10.2020 | Alexandros Velikis
experience in engineering-solutions for the international automotive
and aerospace industries
45 Years
50 Locations in Europe, China and USA in close proximity to our
customers. The main customers include the automotive OEM and numerous system
suppliers.
accompany our customers with their
extensive know-how and future-oriented project solutions from the idea to series
production throughout the entire product development process.
13.600 Employees

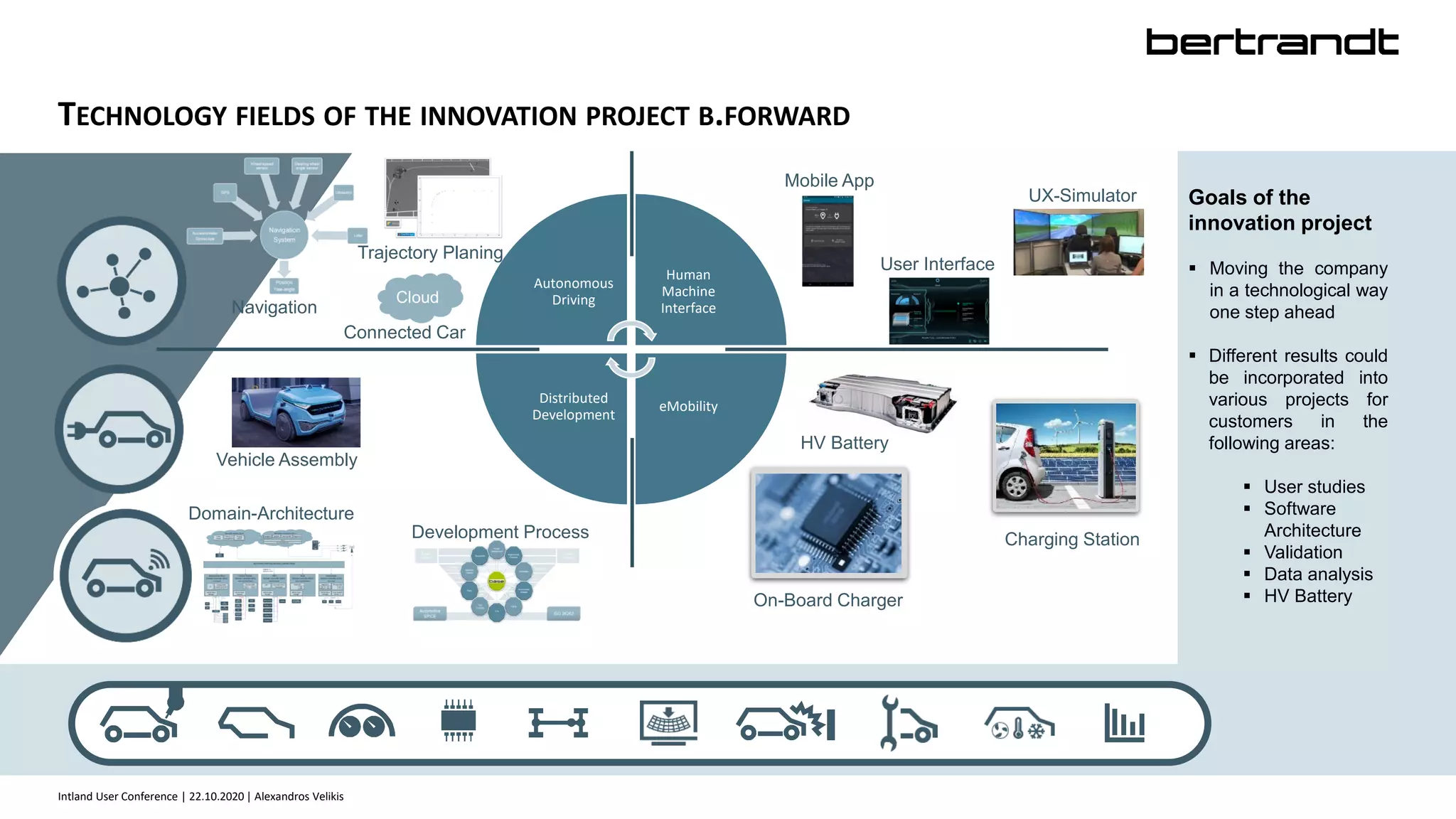

4. Four major trends dominate our strategy and efforts
Intland User Conference | 22.10.2020 | Alexandros Velikis

5. Autonomous
Driving
Human
Machine
Interface
eMobility
Distributed
Development
TECHNOLOGY FIELDS OF THE INNOVATION PROJECT B.FORWARD
Goals of the
innovation project
 Moving the company
in a technological way
one step ahead
 Different results could
be incorporated into
various projects for
customers in the
following areas:
 User studies
 Software
Architecture
 Validation
 Data analysis
 HV Battery
Trajectory Planing
Domain-Architecture
Vehicle Assembly
Navigation
Development Process
HV Battery
Connected Car
User Interface
Mobile App
On-Board Charger
Charging Station
UX-Simulator
Intland User Conference | 22.10.2020 | Alexandros Velikis

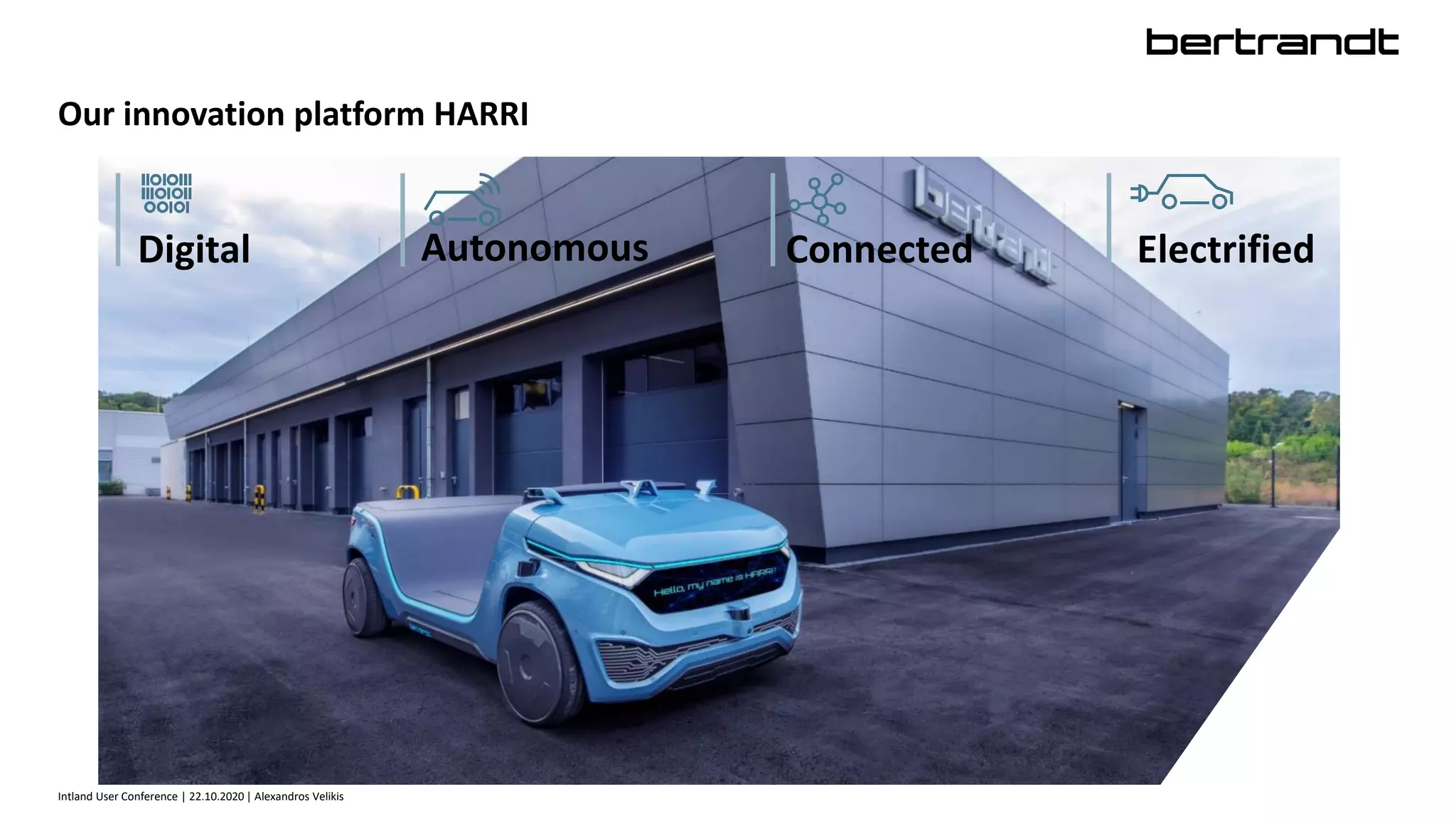

6. Our innovation platform HARRI
Digital Autonomous Connected Electrified
Intland User Conference | 22.10.2020 | Alexandros Velikis

7. 01 Short introduction Bertrandt
02 Specification and Design of cB-Templates
03 Testing and Deployment of cB-Templates
04 Configuration Process
Agenda

8. Intland User Conference | 22.10.2020 | Alexandros Velikis

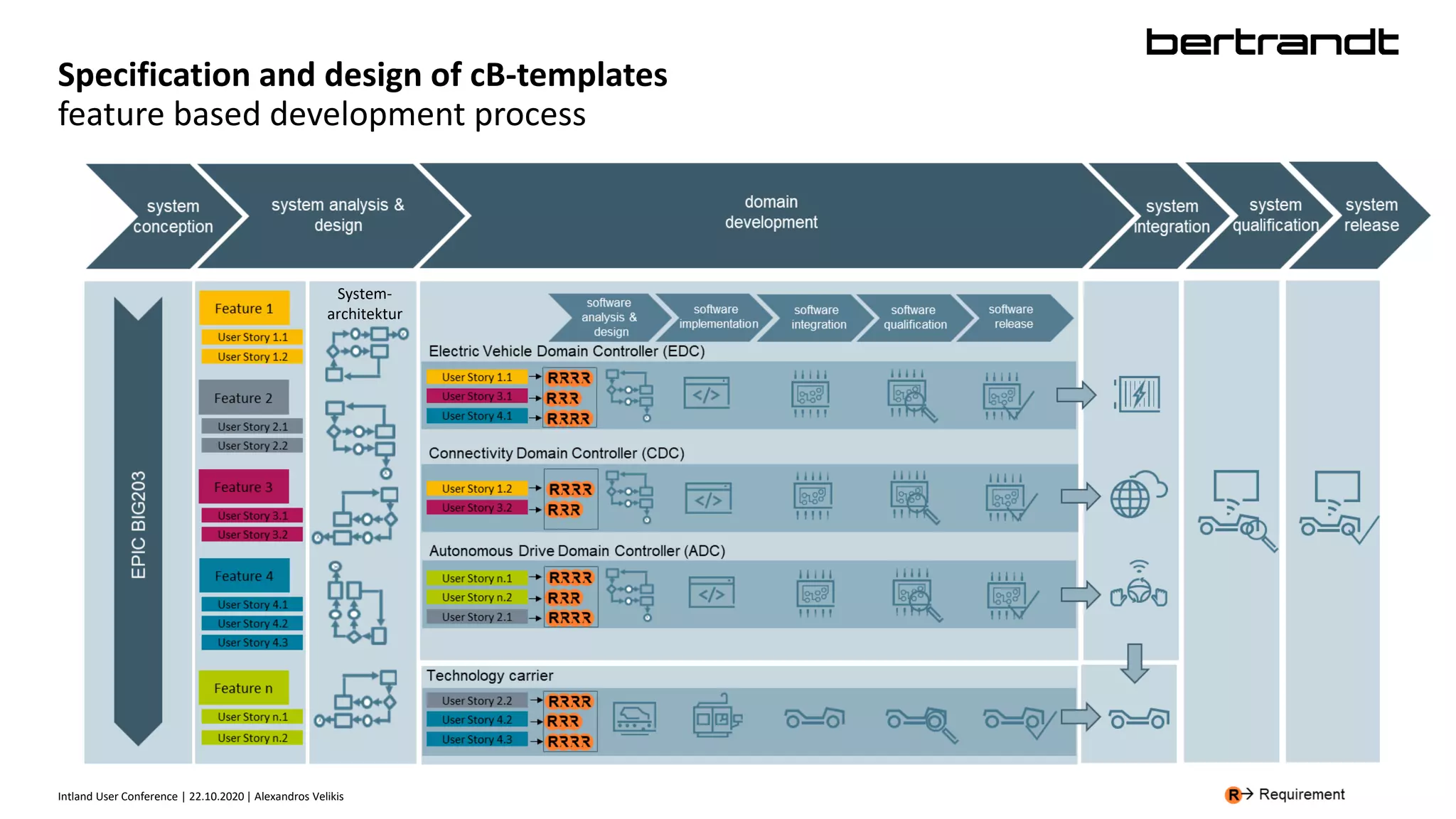

Specification and design of cB-templates
feature based development process
System-
architektur

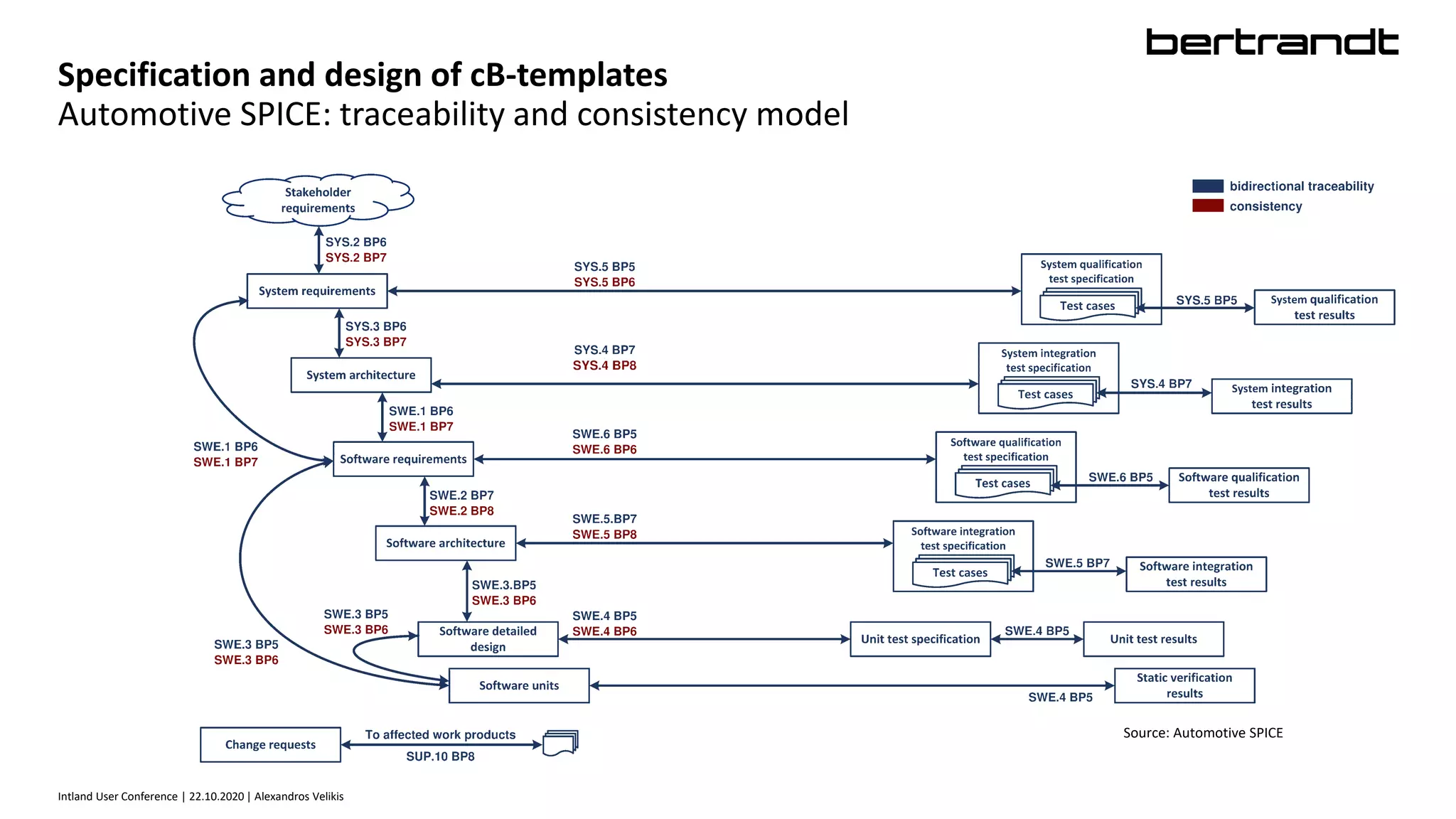

9. Intland User Conference | 22.10.2020 | Alexandros Velikis
Specification and design of cB-templates
Automotive SPICE: traceability and consistency model
Source: Automotive SPICE

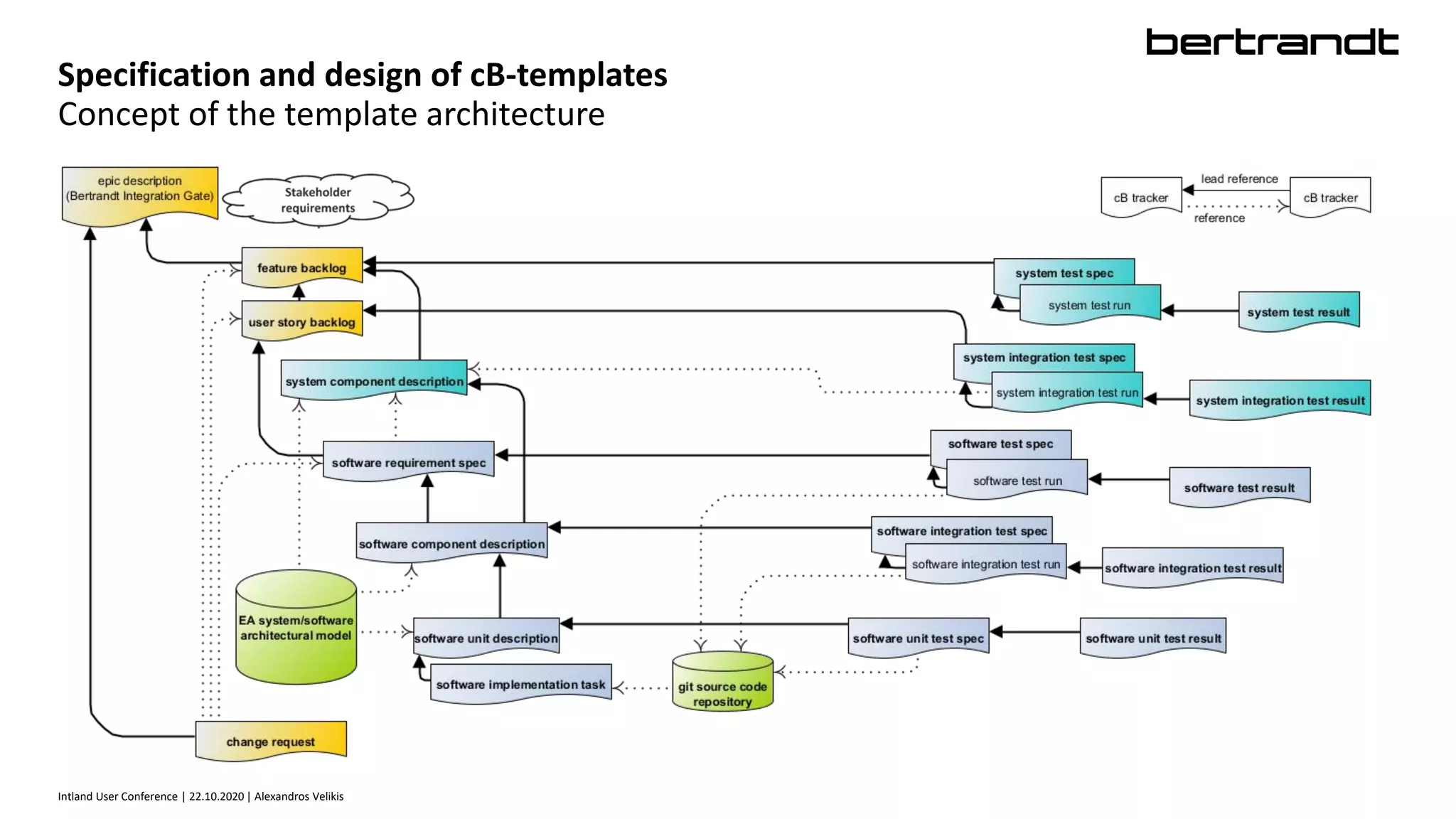

10. Intland User Conference | 22.10.2020 | Alexandros Velikis
Specification and design of cB-templates
Concept of the template architecture

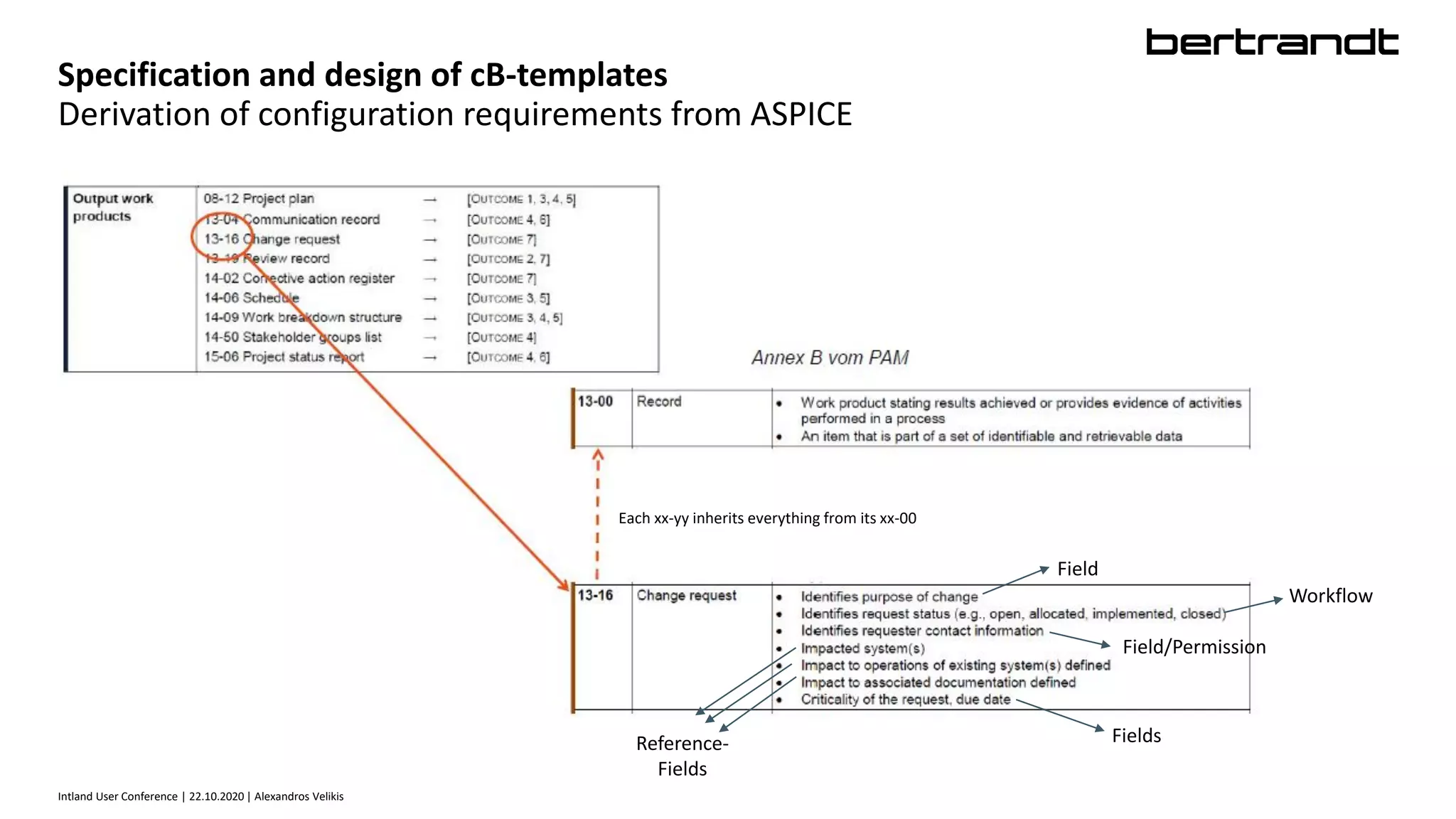

11. Specification and design of cB-templates
Derivation of configuration requirements from ASPICE
Intland User Conference | 22.10.2020 | Alexandros Velikis
Field/Permission
Workflow
Field
FieldsReference-
Fields
Each xx-yy inherits everything from its xx-00

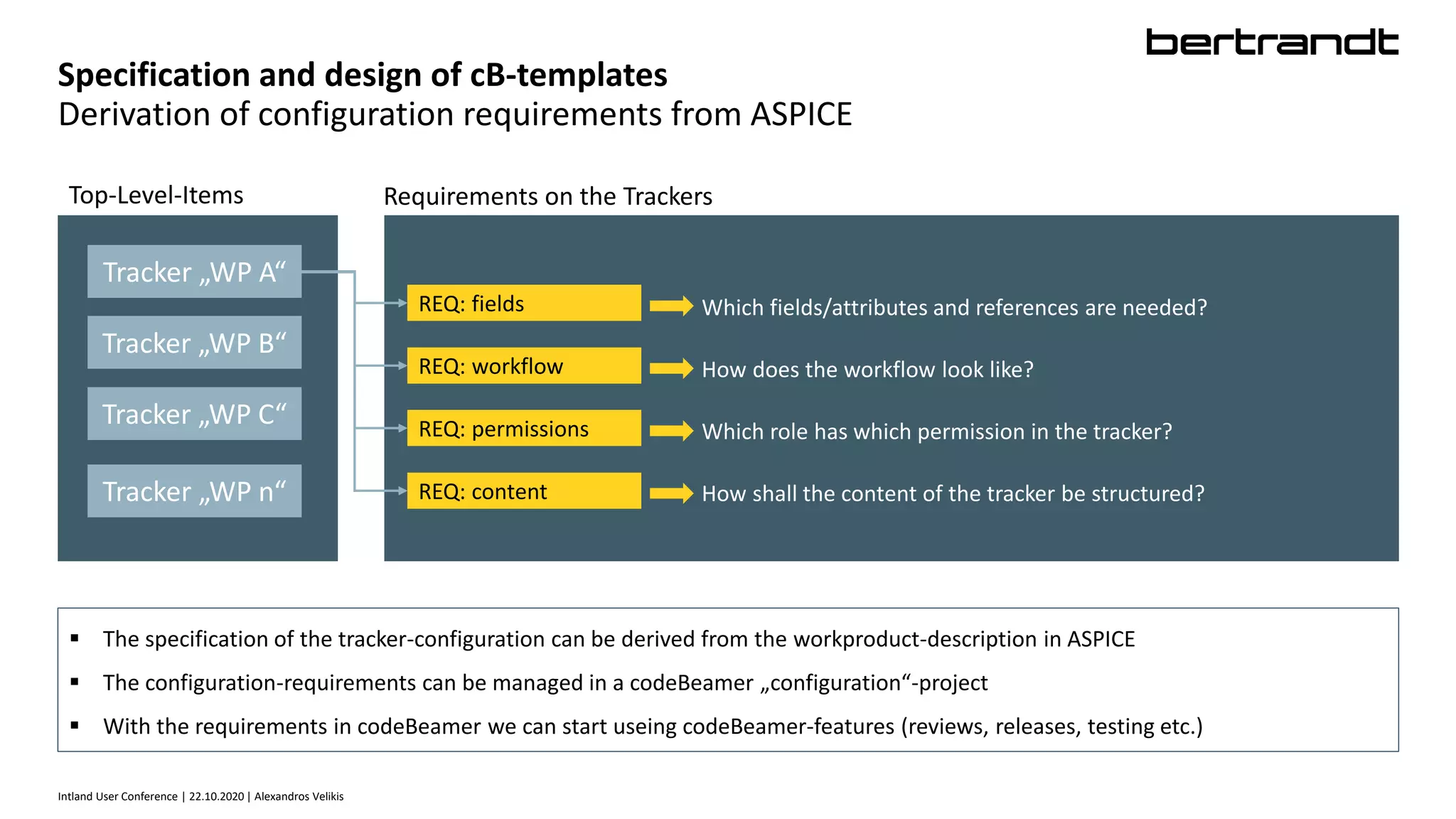

12. Specification and design of cB-templates
Derivation of configuration requirements from ASPICE
Tracker „WP A“
Tracker „WP B“
Tracker „WP C“
Tracker „WP n“
Top-Level-Items
REQ: fields
REQ: workflow
REQ: permissions
REQ: content
Which fields/attributes and references are needed?
How does the workflow look like?
Which role has which permission in the tracker?
How shall the content of the tracker be structured?
Requirements on the Trackers
Intland User Conference | 22.10.2020 | Alexandros Velikis
 The specification of the tracker-configuration can be derived from the workproduct-description in ASPICE
 The configuration-requirements can be managed in a codeBeamer „configuration“-project
 With the requirements in codeBeamer we can start useing codeBeamer-features (reviews, releases, testing etc.)

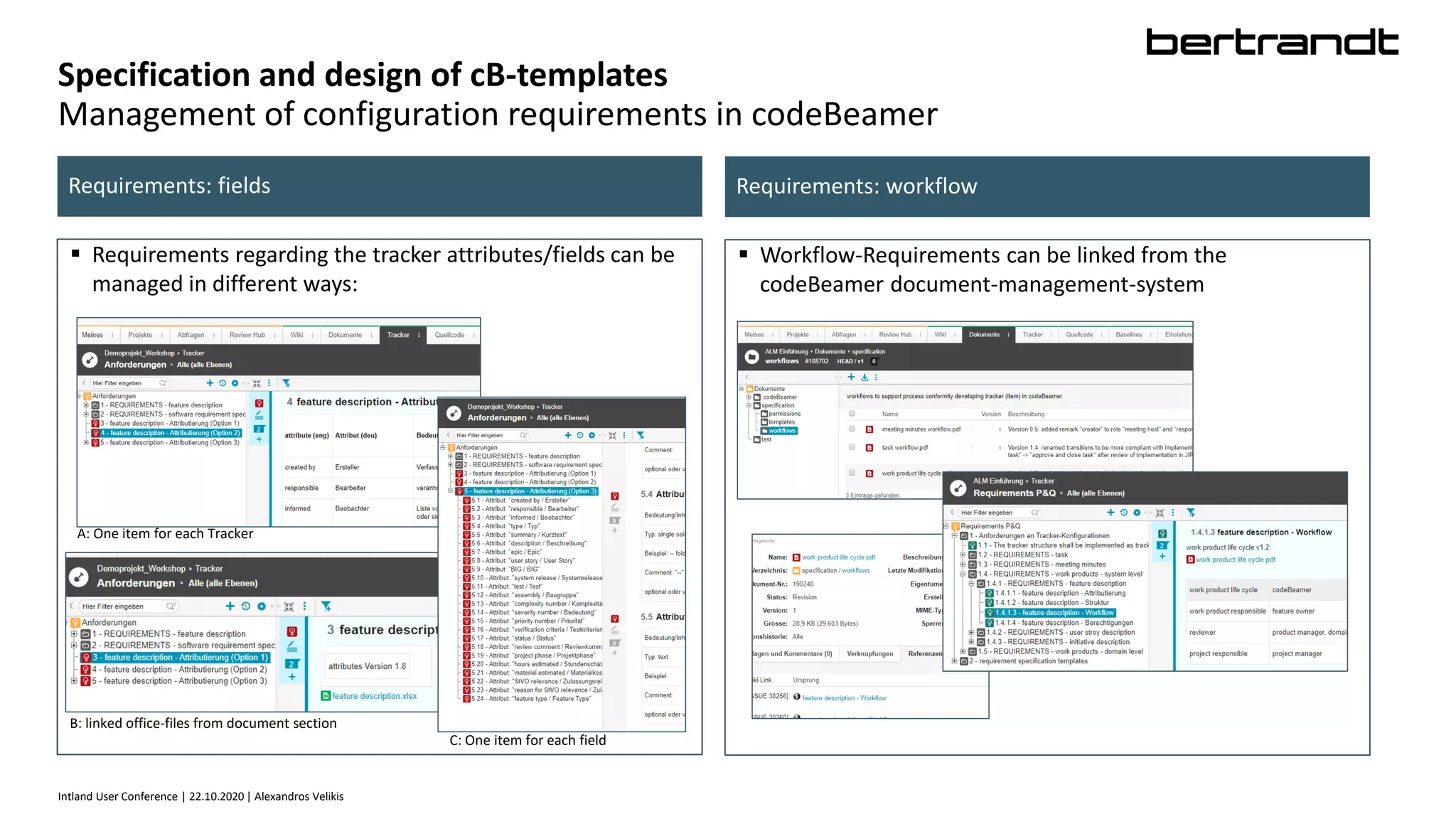

13. Intland User Conference | 22.10.2020 | Alexandros Velikis
Specification and design of cB-templates
Management of configuration requirements in codeBeamer
 Requirements regarding the tracker attributes/fields can be
managed in different ways:
Requirements: fields Requirements: workflow
 Workflow-Requirements can be linked from the
codeBeamer document-management-system
A: One item for each Tracker
C: One item for each field
B: linked office-files from document section

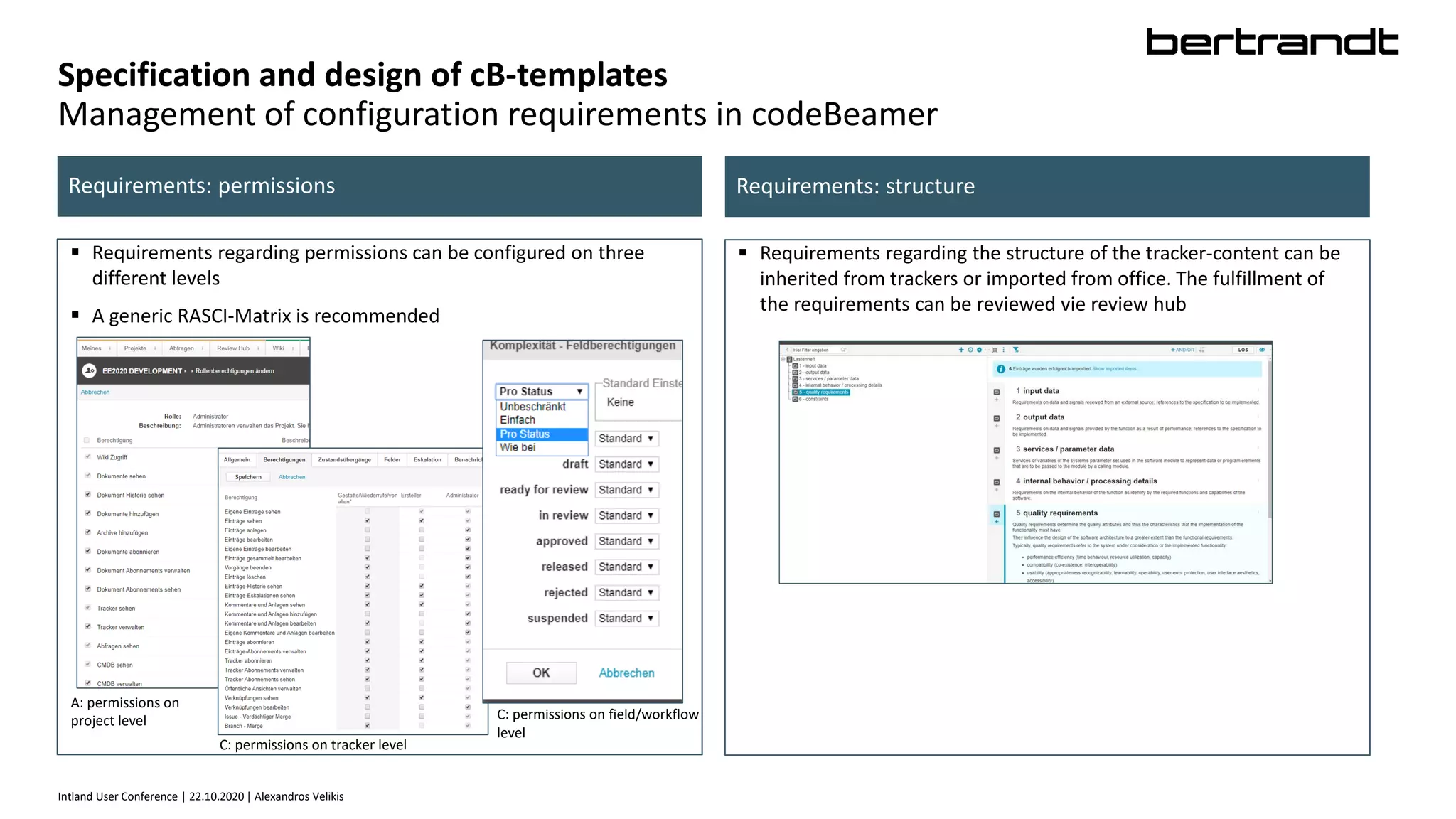

14. Intland User Conference | 22.10.2020 | Alexandros Velikis
Specification and design of cB-templates
Management of configuration requirements in codeBeamer
 Requirements regarding permissions can be configured on three
different levels
 A generic RASCI-Matrix is recommended
Requirements: permissions Requirements: structure
 Requirements regarding the structure of the tracker-content can be
inherited from trackers or imported from office. The fulfillment of
the requirements can be reviewed vie review hub
A: permissions on
project level
C: permissions on tracker level
C: permissions on field/workflow
level

15. 01 Short introduction Bertrandt
02 Specification and Design of cB-Templates
03 Testing and Deployment of cB-Templates
04 Configuration Process
Agenda

16. Intland User Conference | 22.10.2020 | Alexandros Velikis

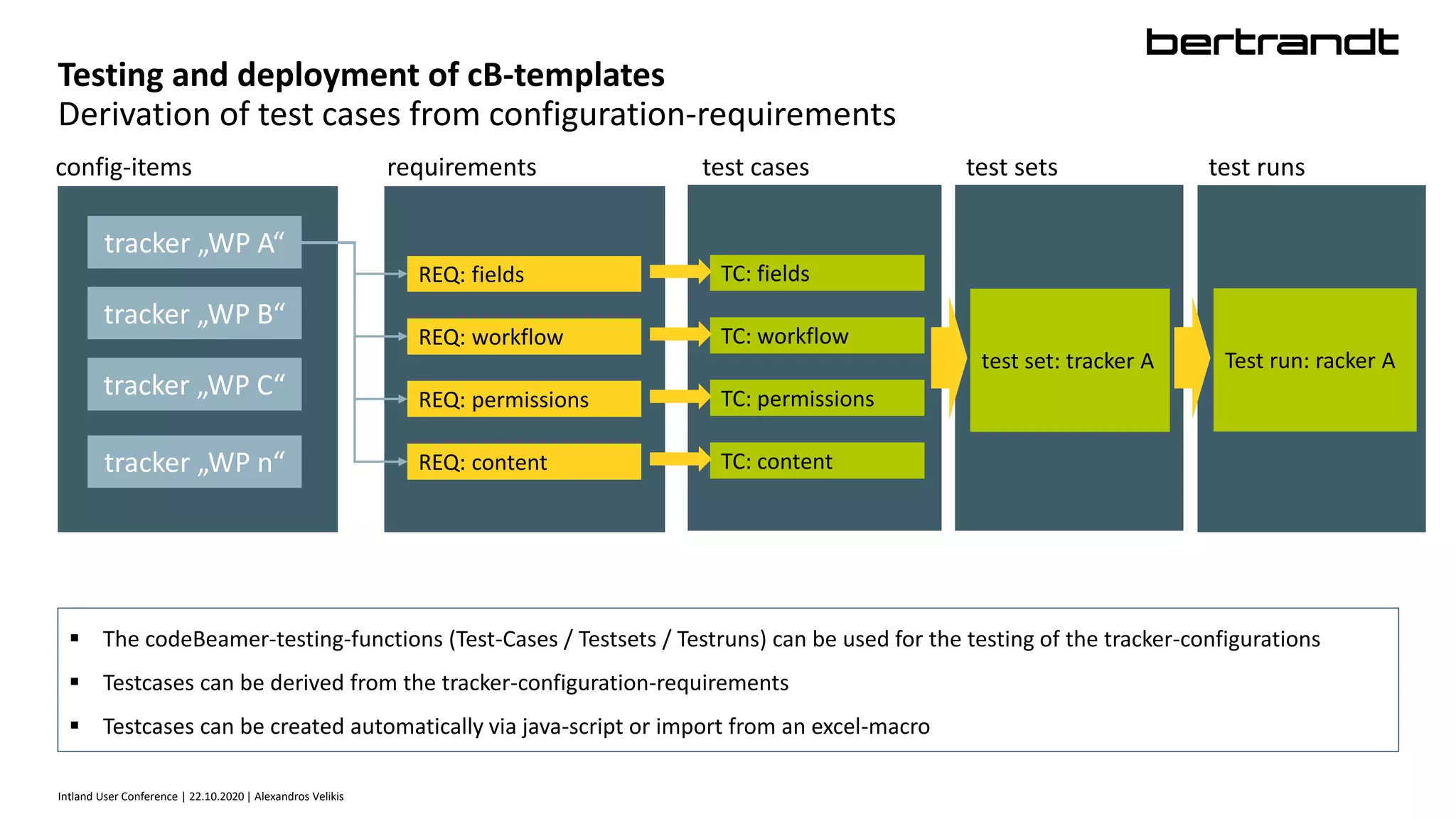

Testing and deployment of cB-templates
Derivation of test cases from configuration-requirements
tracker „WP A“
tracker „WP B“
tracker „WP C“
tracker „WP n“
config-items
REQ: fields
REQ: workflow
REQ: permissions
REQ: content
requirements
TC: fields
TC: workflow
TC: permissions
TC: content
test cases
test set: tracker A
test sets
Test run: racker A
test runs
 The codeBeamer-testing-functions (Test-Cases / Testsets / Testruns) can be used for the testing of the tracker-configurations
 Testcases can be derived from the tracker-configuration-requirements
 Testcases can be created automatically via java-script or import from an excel-macro

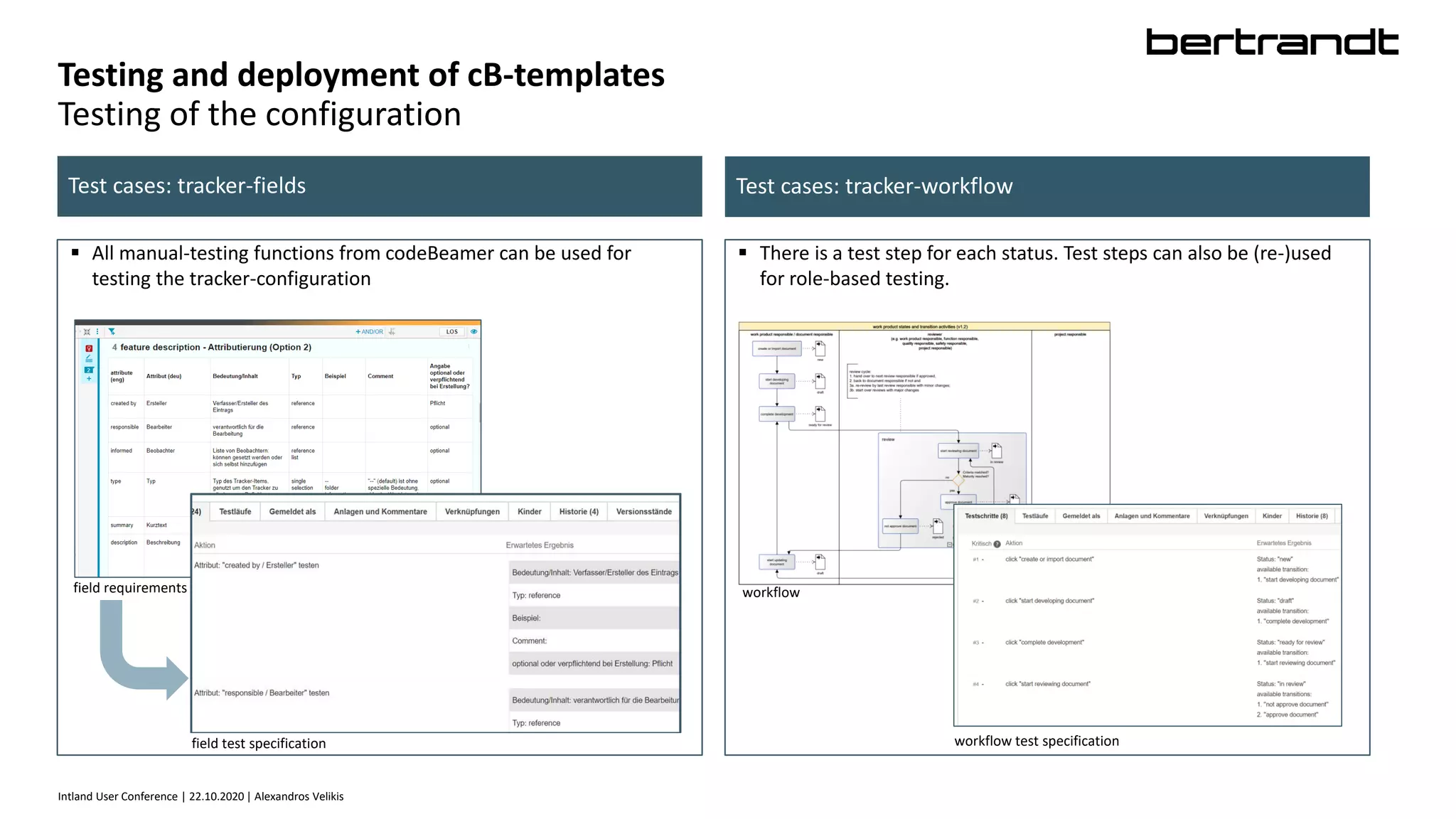

17. Intland User Conference | 22.10.2020 | Alexandros Velikis
Testing and deployment of cB-templates
Testing of the configuration
 All manual-testing functions from codeBeamer can be used for
testing the tracker-configuration
Test cases: tracker-fields Test cases: tracker-workflow
 There is a test step for each status. Test steps can also be (re-)used
for role-based testing.
field requirements
field test specification
workflow
workflow test specification

18. Intland User Conference | 22.10.2020 | Alexandros Velikis

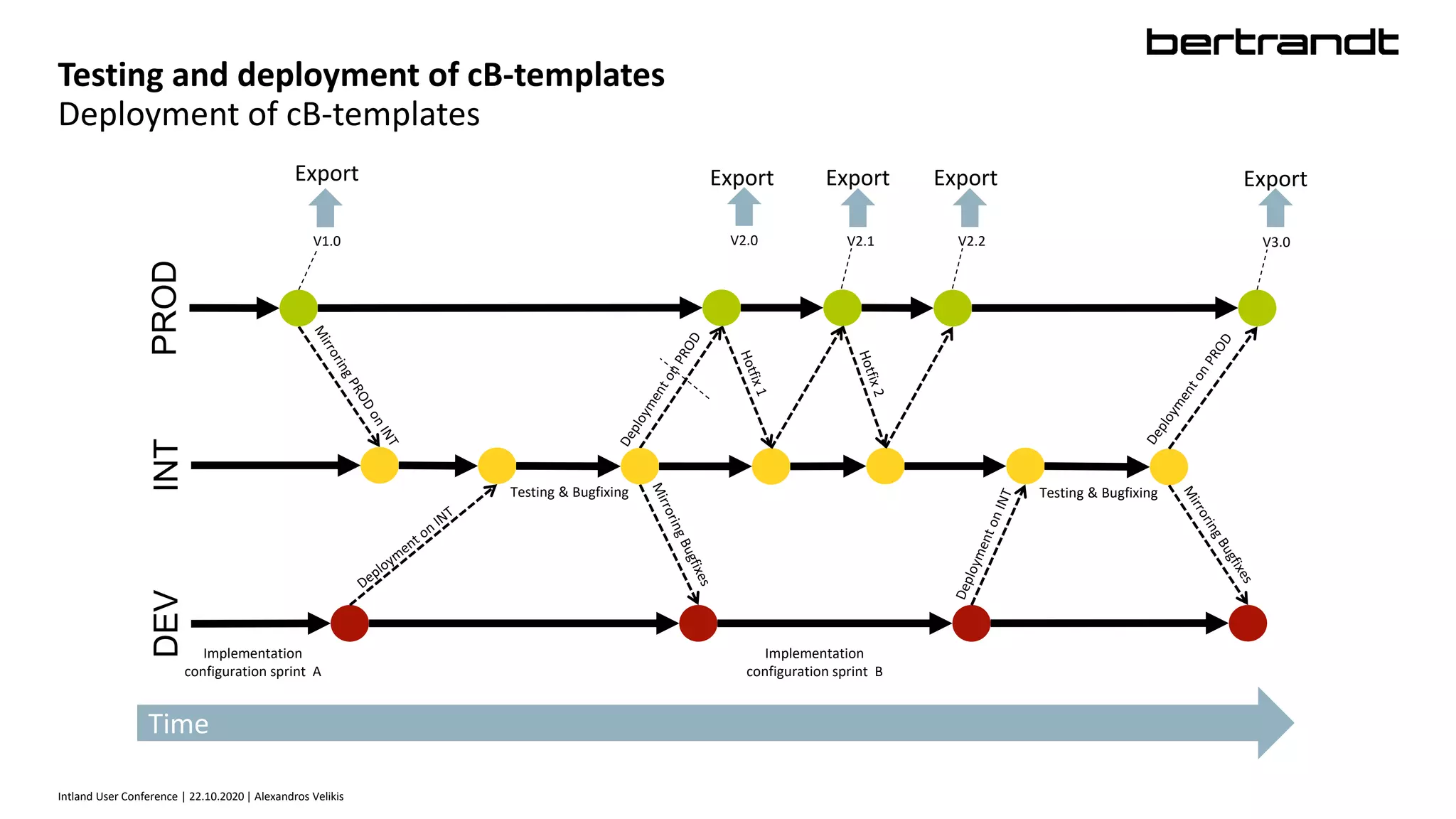

Testing and deployment of cB-templates
Deployment of cB-templates
Implementation
configuration sprint A
Testing & Bugfixing
DEVINTPROD
V1.0 V2.0 V2.1 V2.2 V3.0
Testing & Bugfixing
Time
Export Export Export Export Export
Implementation
configuration sprint B

19. 01 Short introduction Bertrandt
02 Specification and Design of cB-Templates
03 Testing and Deployment of cB-Templates
04 Configuration Process
Agenda

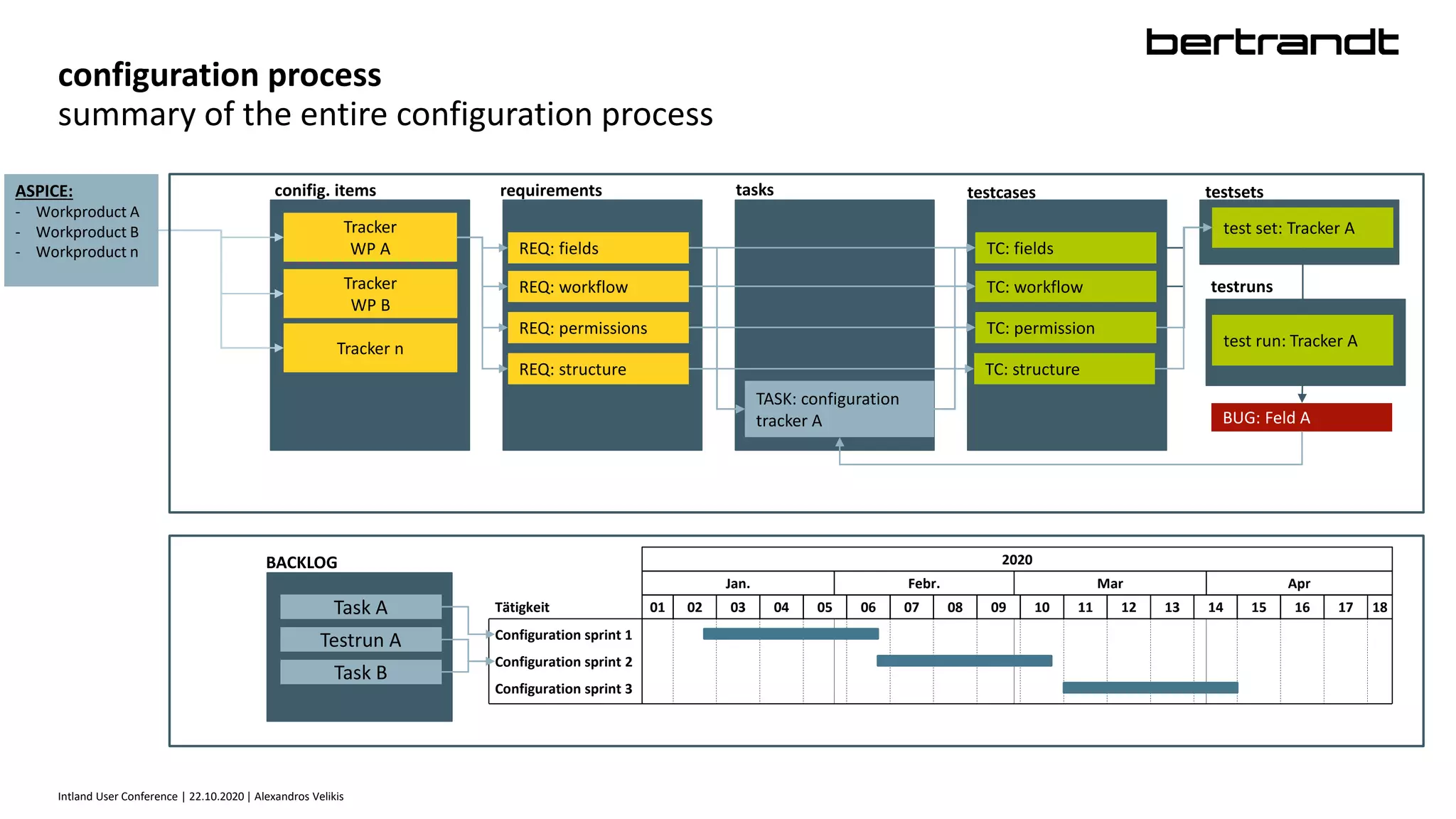

20. configuration process
summary of the entire configuration process
ASPICE:
- Workproduct A
- Workproduct B
- Workproduct n
Tracker
WP A
Tracker
WP B
Tracker n
REQ: fields
REQ: workflow
REQ: permissions
TC: fields
TC: workflow
TC: permission
test set: Tracker A
test run: Tracker A
TASK: configuration
tracker A
conifig. items requirements tasks testcases testsets
testruns
BUG: Feld A
2020
Jan. Febr. Mar Apr
01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18
Configuration sprint 1
Tätigkeit
Configuration sprint 2
Configuration sprint 3
Task A
Testrun A
Task B
BACKLOG
REQ: structure
Intland User Conference | 22.10.2020 | Alexandros Velikis
TC: structure
