Basic ECG
Interpretation
Dr Syed Raza

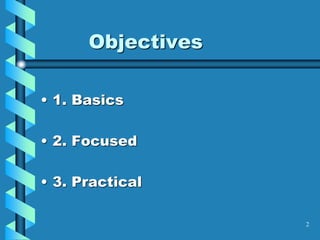

Objectives
• 1. Basics
• 2. Focused
• 3. Practical
2
3
4
Wrong lead placement
(limb leads switch)
5
6

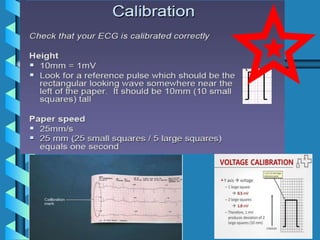

Calibration
7
Rhythm
8
Irregularly irregular
9
10

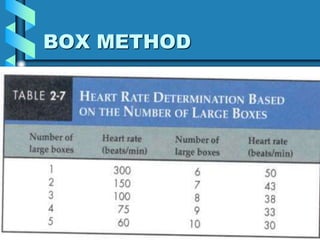

BOX METHOD
Heart rate calculation in
irregular rhythm
11

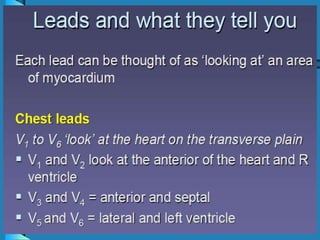

12
13
14

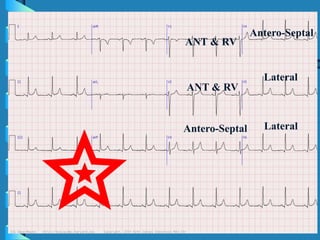

ANT & RV
ANT & RV
Antero-Septal
Antero-Septal
Lateral
Lateral
15
INFERIOR
INFERIOR INFERIOR
16
LATERAL
LATERAL
17
RIGHT SIDE
18

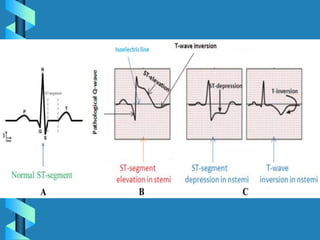

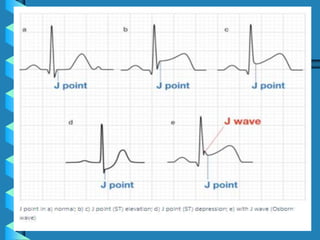

ST Segment
19
21

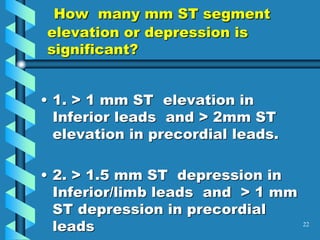

How many mm ST segment
elevation or depression is
significant?
• 1. > 1 mm ST elevation in
Inferior leads and > 2mm ST
elevation in precordial leads.
• 2. > 1.5 mm ST depression in
Inferior/limb leads and > 1 mm
ST depression in precordial
leads 22

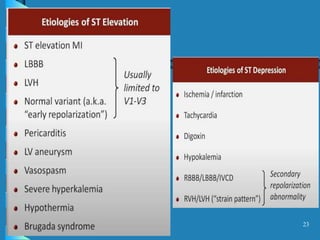

23

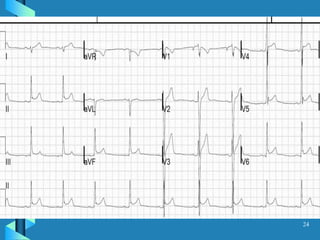

24

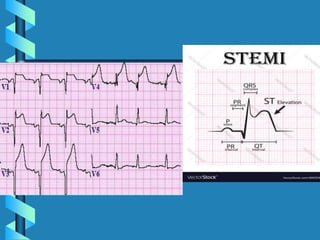

26

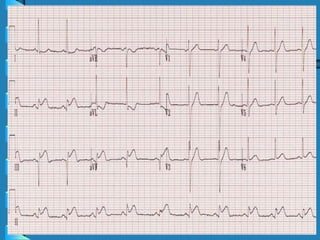

27

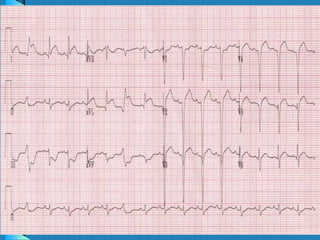

28

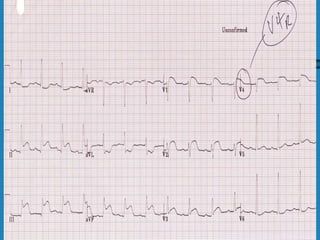

29

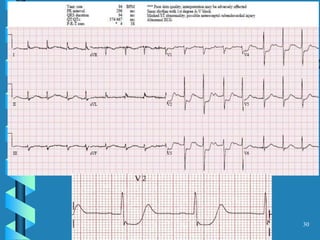

30

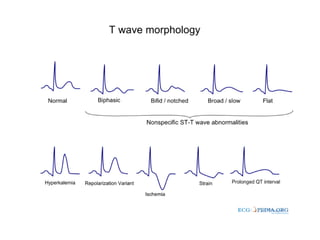

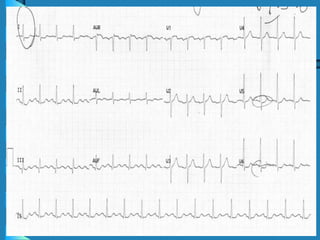

33

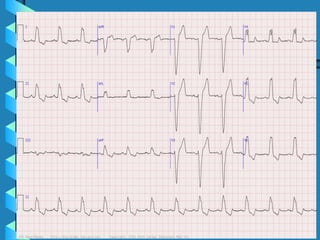

34

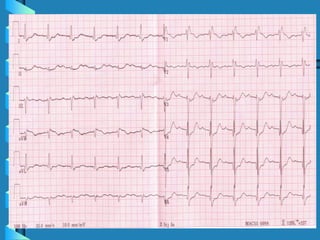

35

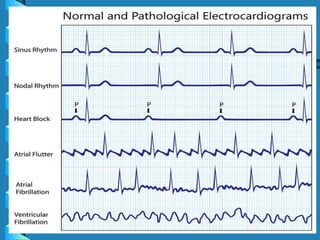

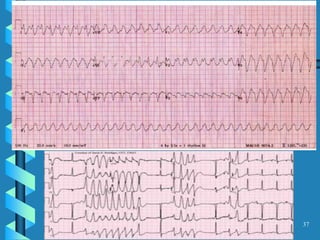

37

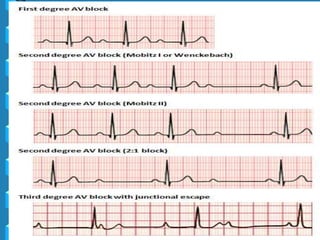

38
