WebRTC allows for real-time communications directly in the web browser without plugins. It includes APIs for accessing the camera and microphone, establishing peer-to-peer connections, and exchanging arbitrary data. Popular applications of WebRTC include video chat, online gaming, live video streaming, file sharing and remote desktop access. Several startups are building WebRTC-based services for voice and video calling, video collaboration, and social video applications.

1. WebRTC
Bring real-time to the web

2. HCMC University of Technology
NEW TRENDS of
WEB TECHNOLOGY ON MOBILE
VIDEO COMMUNICATION
with
09/2012

3. I. What is WebRTC ?
II. Key Features
1. Media Stream
2. Peer Connection
3. Data Channels
III. Applications
IV. Demos

4. WebRTC
TỔNG QUAN
Bring real-time to the web

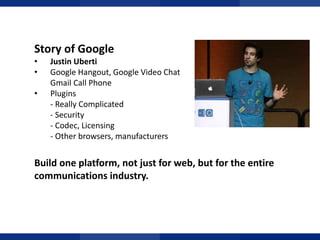

5. Story of Google
•
•
•
Justin Uberti
Google Hangout, Google Video Chat
Gmail Call Phone
Plugins
- Really Complicated
- Security
- Codec, Licensing
- Other browsers, manufacturers
TỔNG QUAN
Build one platform, not just for web, but for the entire
communications industry.

6. What is WebRTC ?
• Real Time Communications meets the web
• A state-of-the-art audio/video communication stack in your web
browser
• A cross-industry effort to create a new communications platform
TỔNG QUAN
“WebRTC and HTML5 could enable the same transformation for real
time that the original browser did for information.”
Phil Edholm

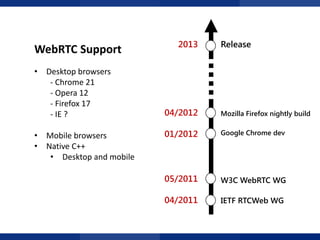

7. WebRTC Support
• Desktop browsers
- Chrome 21
- Opera 12
- Firefox 17
- IE ?
2013
04/2012
Mozilla Firefox nightly build
01/2012
Google Chrome dev
05/2011
W3C WebRTC WG
04/2011
IETF RTCWeb WG
TỔNG QUAN
• Mobile browsers
• Native C++
• Desktop and mobile
Release

8. ỨNG DỤNG
Key Features
TRONG ĐÀO TẠO TỪ XA

9. I. What is WebRTC ?
II. Key Features
1. Media Stream
2. Peer Connection
3. Data Channels
III. Applications
IV. Demos

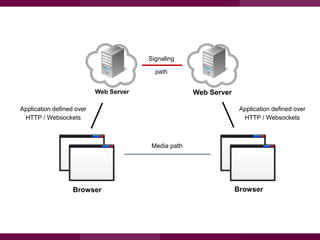

10. Signaling
path
Web Server
Application defined over
HTTP / Websockets
Web Server
TỔNG QUAN
Application defined over
HTTP / Websockets
Media path
Browser
Browser

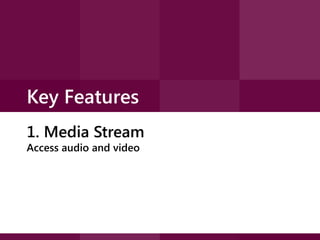

11. Key Features
1. Media Stream
Access audio and video

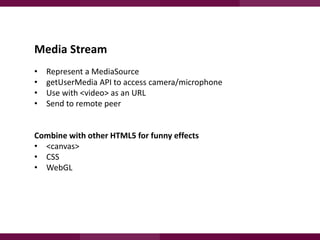

12. Media Stream
•
•
•
•
Represent a MediaSource
getUserMedia API to access camera/microphone
Use with <video> as an URL
Send to remote peer
Combine with other HTML5 for funny effects
• <canvas>
• CSS
• WebGL

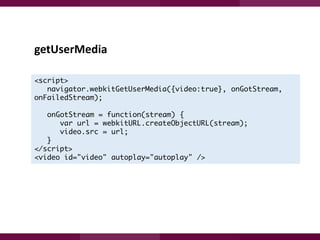

13. getUserMedia
<script>
navigator.webkitGetUserMedia({video:true}, onGotStream,
onFailedStream);
onGotStream = function(stream) {
var url = webkitURL.createObjectURL(stream);
video.src = url;
}
</script>
<video id="video" autoplay="autoplay" />

14. Key Features
2. Peer Connection
Audio and video session

15. PeerConnection
API for establishing audio/video calls
Built-in
• Peer-to-peer
• Codec control
• Encryption
• Bandwidth management

16. Setup a session
To start a session, a client needs
• Local Session Description
• Remote Session Description
• Remote Session Candidates

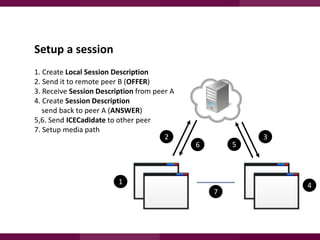

17. Setup a session
1. Create Local Session Description
2. Send it to remote peer B (OFFER)
3. Receive Session Description from peer A
4. Create Session Description
send back to peer A (ANSWER)
5,6. Send ICECadidate to other peer
7. Setup media path
2
5
6
1
7
3
4

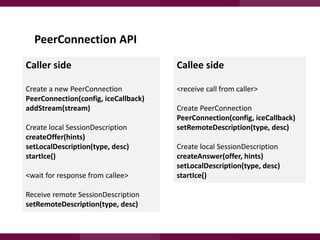

18. PeerConnection API
Caller side
Callee side
Create a new PeerConnection
PeerConnection(config, iceCallback)
addStream(stream)
<receive call from caller>
Create local SessionDescription
createOffer(hints)
setLocalDescription(type, desc)
startIce()
<wait for response from callee>
Receive remote SessionDescription
setRemoteDescription(type, desc)
Create PeerConnection
PeerConnection(config, iceCallback)
setRemoteDescription(type, desc)
Create local SessionDescription
createAnswer(offer, hints)
setLocalDescription(type, desc)
startIce()

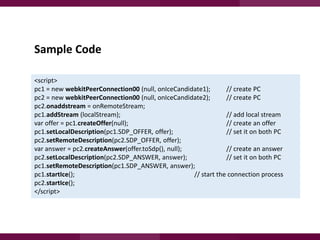

19. Sample Code
<script>
pc1 = new webkitPeerConnection00 (null, onIceCandidate1);
// create PC
pc2 = new webkitPeerConnection00 (null, onIceCandidate2);
// create PC
pc2.onaddstream = onRemoteStream;
pc1.addStream (localStream);
// add local stream
var offer = pc1.createOffer(null);
// create an offer
pc1.setLocalDescription(pc1.SDP_OFFER, offer);
// set it on both PC
pc2.setRemoteDescription(pc2.SDP_OFFER, offer);
var answer = pc2.createAnswer(offer.toSdp(), null);
// create an answer
pc2.setLocalDescription(pc2.SDP_ANSWER, answer);
// set it on both PC
pc1.setRemoteDescription(pc1.SDP_ANSWER, answer);
pc1.startIce();
// start the connection process
pc2.startIce();
</script>

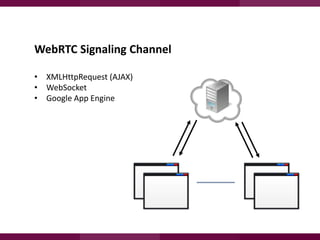

20. WebRTC Signaling Channel
• XMLHttpRequest (AJAX)
• WebSocket
• Google App Engine

21. Key Features
3. Data Channels
Peer-to-peer data exchange in browsers

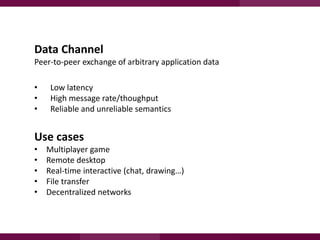

22. Data Channel
Peer-to-peer exchange of arbitrary application data
•
•
•
Low latency
High message rate/thoughput
Reliable and unreliable semantics
Use cases
•
•
•
•
•
Multiplayer game
Remote desktop
Real-time interactive (chat, drawing…)
File transfer
Decentralized networks

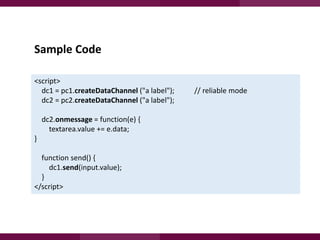

23. Sample Code
<script>
dc1 = pc1.createDataChannel ("a label");
dc2 = pc2.createDataChannel ("a label");
dc2.onmessage = function(e) {
textarea.value += e.data;
}
function send() {
dc1.send(input.value);
}
</script>
// reliable mode

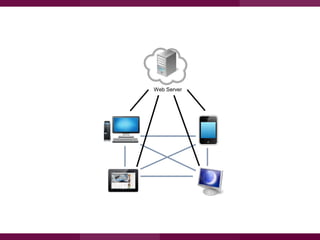

24. Web Server

25. Web Server

26. CƠ SỞ LÝ THUYẾT
Applications

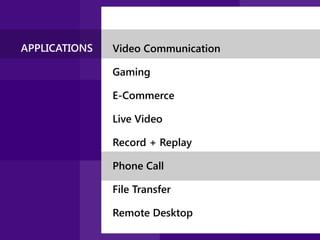

27. APPLICATIONS
Video Communication
Gaming
E-Commerce
Live Video
Record + Replay
Phone Call
File Transfer
Remote Desktop

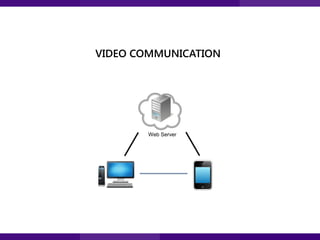

28. VIDEO COMMUNICATION
Web Server

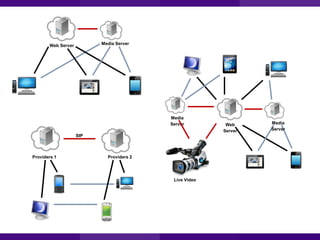

29. Media Server
Web Server
Media
Server
SIP
Providers 1
Providers 2
Live Video
Web
Server
Media
Server

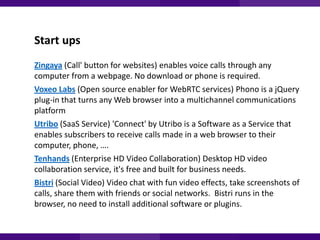

30. Start ups
Zingaya (Call' button for websites) enables voice calls through any
computer from a webpage. No download or phone is required.
Voxeo Labs (Open source enabler for WebRTC services) Phono is a jQuery
plug-in that turns any Web browser into a multichannel communications
platform
Utribo (SaaS Service) 'Connect' by Utribo is a Software as a Service that
enables subscribers to receive calls made in a web browser to their
computer, phone, ….
Tenhands (Enterprise HD Video Collaboration) Desktop HD video
collaboration service, it's free and built for business needs.
Bistri (Social Video) Video chat with fun video effects, take screenshots of
calls, share them with friends or social networks. Bistri runs in the
browser, no need to install additional software or plugins.

31. WebRTC
Bring real-time to the web

32. HCMC University of Technology
WebRTC
Bring real-time to the web
Nguyễn Mậu Quang Vũ
Phạm Nguyên Trình
