1. Presented By:
Fatimah M. Alqadheeb
218002332

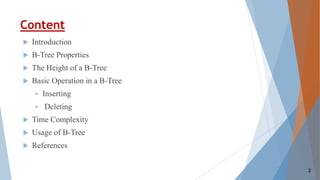

2. Content
 Introduction
 B-Tree Properties
 The Height of a B-Tree
 Basic Operation in a B-Tree
 Inserting
 Deleting
 Time Complexity
 Usage of B-Tree
 References
2

3. Quote of the Day!
3

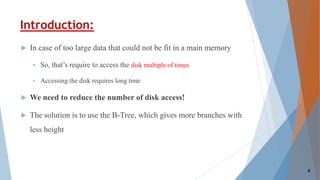

4. Introduction:
 In case of too large data that could not be fit in a main memory
 So, that’s require to access the disk multiple of times
 Accessing the disk requires long time
 We need to reduce the number of disk access!
 The solution is to use the B-Tree, which gives more branches with
less height
4

5. B-Tree
 B-Tree: is a balanced rooted tree whose root is T root.
 Properties of B- Tree:
1. For every node x in B- Tree:
a. x.n the number of keys in x node
b. The x.n keys themselves x. key1, x. key2, …, x. keyn (increasing
order)
c. x.leaf is a Boolean value that is true if x is a leaf & false if x is an
internal node
x.n
x. 𝒌𝒆𝒚 𝟏 x. 𝒌𝒆𝒚 𝟐 x. 𝒌𝒆𝒚 𝟑
5

6. 10 16
1 2 3
9 11 12 13 14 17 20

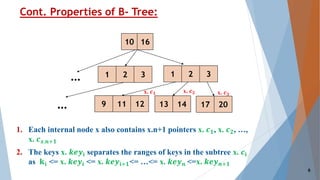

Cont. Properties of B- Tree:
…
1. Each internal node x also contains x.n+1 pointers x. 𝒄 𝟏, x. 𝒄 𝟐, …,
x. 𝒄 𝒙.𝒏+𝟏
2. The keys x. 𝒌𝒆𝒚𝐢 separates the ranges of keys in the subtree x. 𝒄𝐢
as 𝐤 𝐢 <= x. 𝒌𝒆𝒚𝐢 <= x. 𝒌𝒆𝒚𝐢+𝟏<= …<= x. 𝒌𝒆𝒚 𝒏 <=x. 𝒌𝒆𝒚 𝒏+𝟏
1 2 3
…
x. 𝒄 𝟏 x. 𝒄 𝟐 x. 𝒄 𝟑
6

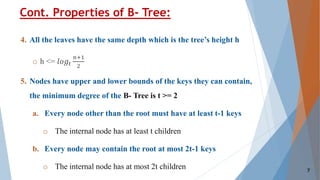

7. 4. All the leaves have the same depth which is the tree’s height h
o h <= 𝑙𝑜𝑔𝑡
𝑛+1
2
5. Nodes have upper and lower bounds of the keys they can contain,
the minimum degree of the B- Tree is t >= 2
a. Every node other than the root must have at least t-1 keys
o The internal node has at least t children
b. Every node may contain the root at most 2t-1 keys
o The internal node has at most 2t children
Cont. Properties of B- Tree:
7

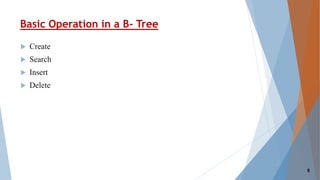

8. Basic Operation in a B- Tree
 Create
 Search
 Insert
 Delete
8

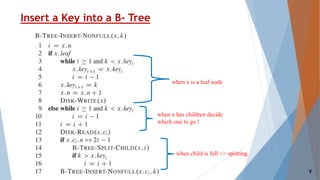

9. Insert a Key into a B- Tree
when x is a leaf node
when x has children decide
which one to go !
when child is full => splitting
9

10. Example 1: (Insertion into B- Tree)
 Insert key = 2 ?
7 13 16 24
1 3 4 5 10 11 14 15 18 19 20 21 22 25 26
10

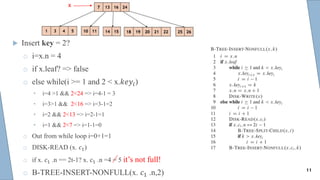

11.  Insert key = 2?
o i=x.n = 4
o if x.leaf? => false
o else while(i >= 1 and 2 < x.𝑘𝑒𝑦𝑖)
• i=4 >1 && 2<24 => i=4-1 = 3
• i=3>1 && 2<16 => i=3-1=2
• i=2 && 2<13 => i=2-1=1
• i=1 && 2<7 => i=1-1=0
o Out from while loop i=0+1=1
o DISK-READ (x. 𝑐1)
o if x. 𝑐1 .n == 2t-1? x. 𝑐1 .n =4 = 5 it’s not full!
o B-TREE-INSERT-NONFULL(x. 𝑐1 .n,2)
x
11

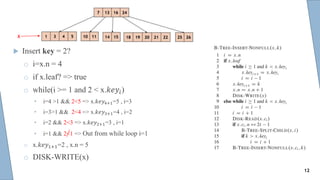

12.  Insert key = 2?
o i=x.n = 4
o if x.leaf? => true
o while(i >= 1 and 2 < x.𝑘𝑒𝑦𝑖)
• i=4 >1 && 2<5 => x.𝑘𝑒𝑦4+1=5 , i=3
• i=3>1 && 2<4 => x.𝑘𝑒𝑦3+1=4 , i=2
• i=2 && 2<3 => x.𝑘𝑒𝑦2+1=3 , i=1
• i=1 && 2<1 => Out from while loop i=1
o x.𝑘𝑒𝑦1+1=2 , x.n = 5
o DISK-WRITE(x)
x
12

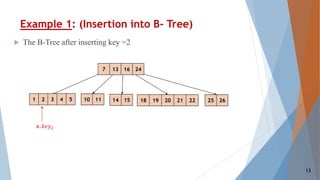

13. Example 1: (Insertion into B- Tree)
7 13 16 24
1 2 3 4 5 10 11 14 15 18 19 20 21 22 25 26
x.𝑘𝑒𝑦2
 The B-Tree after inserting key =2
13

14. Example 2: (Insertion into B- Tree)
7 13 16 24
1 2 3 4 5 10 11 14 15 18 19 20 21 22 25 26
 Insert key = 17 ?
14

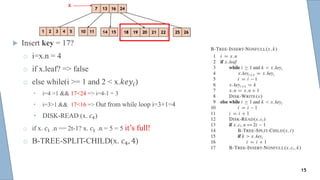

15.  Insert key = 17?
o i=x.n = 4
o if x.leaf? => false
o else while(i >= 1 and 2 < x.𝑘𝑒𝑦𝑖)
• i=4 >1 && 17<24 => i=4-1 = 3
• i=3>1 && 17<16 => Out from while loop i=3+1=4
• DISK-READ (x. 𝑐4)
o if x. 𝑐1 .n == 2t-1? x. 𝑐1 .n = 5 = 5 it’s full!
o B-TREE-SPLIT-CHILD(x. 𝑐4, 4)
x
15

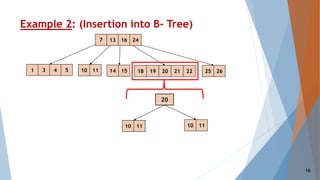

16. Example 2: (Insertion into B- Tree)
7 13 16 24
1 3 4 5 10 11 14 15 18 19 20 21 22 25 26
20
10 11 10 11
16

17. Example 2: (Insertion into B- Tree)
 The new B-Tree after splitting
7 13 16 20 24
1 2 3 4 5 10 11 14 15 18 19 25 2621 22
17

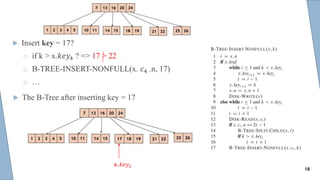

18.  Insert key = 17?
o if k > x.𝑘𝑒𝑦4 ? => 17 > 22
o B-TREE-INSERT-NONFULL(x. 𝑐4 .n, 17)
o …
x.𝑘𝑒𝑦2
 The B-Tree after inserting key = 17
18

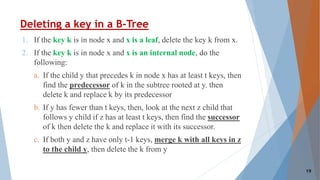

19. Deleting a key in a B-Tree
1. If the key k is in node x and x is a leaf, delete the key k from x.
2. If the key k is in node x and x is an internal node, do the
following:
a. If the child y that precedes k in node x has at least t keys, then
find the predecessor of k in the subtree rooted at y. then
delete k and replace k by its predecessor
b. If y has fewer than t keys, then, look at the next z child that
follows y child if z has at least t keys, then find the successor
of k then delete the k and replace it with its successor.
c. If both y and z have only t-1 keys, merge k with all keys in z
to the child y, then delete the k from y
19

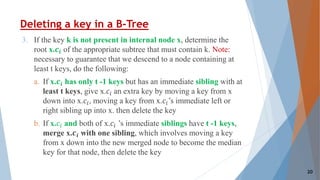

20. Deleting a key in a B-Tree
3. If the key k is not present in internal node x, determine the
root x.𝒄𝒊 of the appropriate subtree that must contain k. Note:
necessary to guarantee that we descend to a node containing at
least t keys, do the following:
a. If x.𝒄𝒊 has only t -1 keys but has an immediate sibling with at
least t keys, give x.𝑐𝑖 an extra key by moving a key from x
down into x.𝑐𝑖, moving a key from x.𝑐𝑖’s immediate left or
right sibling up into x. then delete the key
b. If x.𝑐𝑖 and both of x.𝑐𝑖 ’s immediate siblings have t -1 keys,
merge x.𝒄𝒊 with one sibling, which involves moving a key
from x down into the new merged node to become the median
key for that node, then delete the key
20

21. Example 1: Deleting a key in a B-Tree
 Delete key 6:
 Key 6 is in a leaf node, this is Case 1 , Just delete it
21
t=3

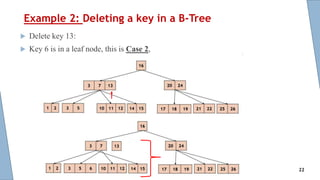

22. Example 2: Deleting a key in a B-Tree
 Delete key 13:
 Key 6 is in a leaf node, this is Case 2,
22

23. Example 2: Deleting a key in a B-Tree
 Delete key 13:
 Key 6 is in a leaf node, this is Case 2,
 Case 2.a delete k and find its predecessor and place it in key’s
position
23

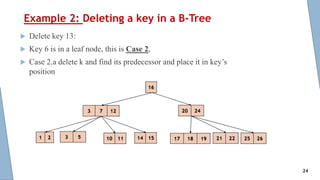

24. Example 2: Deleting a key in a B-Tree
 Delete key 13:
 Key 6 is in a leaf node, this is Case 2,
 Case 2.a delete k and find its predecessor and place it in key’s
position
24

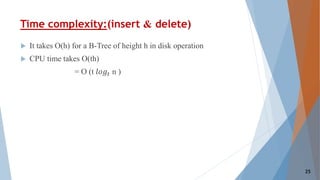

25. Time complexity:(insert & delete)
 It takes O(h) for a B-Tree of height h in disk operation
 CPU time takes O(th)
= O (t 𝑙𝑜𝑔𝑡 n )
25

26. Usage of B-Tree
 Database: useful in searching
 File system: in NTFS directory to make finding an entry faster
26
Unindexed and unsorted data => O(n)
Key n
B-Tree => O(log n)

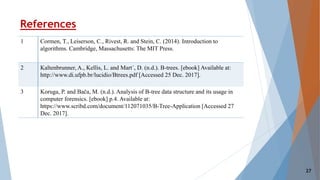

27. References
1 Cormen, T., Leiserson, C., Rivest, R. and Stein, C. (2014). Introduction to
algorithms. Cambridge, Massachusetts: The MIT Press.
2 Kaltenbrunner, A., Kellis, L. and Mart´, D. (n.d.). B-trees. [ebook] Available at:
http://www.di.ufpb.br/lucidio/Btrees.pdf [Accessed 25 Dec. 2017].
3 Koruga, P. and Bača, M. (n.d.). Analysis of B-tree data structure and its usage in
computer forensics. [ebook] p.4. Available at:
https://www.scribd.com/document/112071035/B-Tree-Application [Accessed 27
Dec. 2017].
27

28. Any Question!
Thank you 😘
28
