This document provides an overview of Microsoft Azure platform services including compute services, storage services, core infrastructure, SQL Azure, virtual networks, content delivery, and platform appliances. Compute services include web roles, worker roles, and virtual machines. Key storage services are blobs, drives, tables, and queues. The core infrastructure is provided by AppFabric for scalability, availability, and middleware services. SQL Azure provides scalable relational database capabilities. Virtual networks enable private connectivity between on-premises and Azure resources. Content delivery and platform appliances extend Azure capabilities for specific use cases.

1. Presented By - Pratik Sawant
Guided By - prof. K. K. Joshi

2. Contents
 Overview
 Compute Services
 Storage Services
 Core Infrastructure – AppFabric
 Azure Platform Architecture
 SQL Azure
 SQL Azure Architecture
 Azure Virtual Network
 Azure Content Delivery Network
 Azure Platform Appliance

3. Overview
 Cloud Operating System by Microsoft
 Scalable runtime environment for web and distributed
applications
 Concept of role is the base to organize applications
 It offers
 Compute Services
 Storage Services
 Other Services
 Hence, Platform-as-a-Service

4. Compute Services
 Computing is core of Azure
 It offers different roles i.e. a runtime environment
customized for specific compute task
 Roles managed and instantiated by Azure
 Three roles are –
 Web Role
 Worker Role
 Virtual Machine Role

5. Web Role
 Configuration and Customization to run web
applications
 Requires programming languages/ technologies
supported by IIS (Internet Information Srvices)
 Eg. ASP.NET, PHP, WCF (Windows Communication
Foundation), Fast CGI

6. Worker Role
 Runs applications and services level tasks, which does
not requires IIS
 Supporting background tasks like compressing
uploaded image, running scripts for database etc.

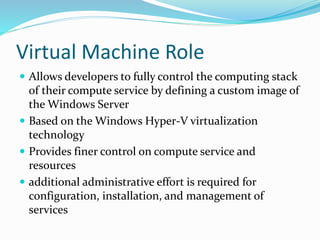

7. Virtual Machine Role
 Allows developers to fully control the computing stack
of their compute service by defining a custom image of
the Windows Server
 Based on the Windows Hyper-V virtualization
technology
 Provides finer control on compute service and
resources
 additional administrative effort is required for
configuration, installation, and management of
services

8. Storage Services
 Compute resources stores data in the local file system
temporarily i.e. until current execution cycle of the role
 Hence, data loss on while restarting or activating on
different physical machine
 Azure provides more durable and redundant storage
 It can be accessed by multiple clients simultaniously
 Storage services are –
 Blob
 Azure Drive
 Tables
 Queues
 Storage services are geo-replicated 3 times

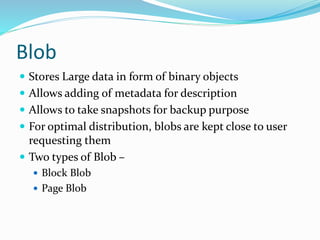

9. Blob
 Stores Large data in form of binary objects
 Allows adding of metadata for description
 Allows to take snapshots for backup purpose
 For optimal distribution, blobs are kept close to user
requesting them
 Two types of Blob –
 Block Blob
 Page Blob

10. Block Blob
 Composed of blocks
 Optimized for sequential access
 Can vary from 4MB to 200GB dimension

11. Page Blob
 Stored in form of pages and identified according to
offset from beginning
 Optimized for random access
 Can store maximum 1 TB of data

12. Azure Drive
 A page blob mounted as a part of NTFS tree
 Single Virtual Hard Drive (VHD) stores entire file
system
 VHD Can be mounted as NTFS file system by Azure
Compute Resources
 Persistent and Durable storage

13. Tables
 Allows to store entities with their properties
 Entities are stored in form of table
 Each row is identified as by a key or unique index build
on the table
 No schema enforcing done neither entity relationship
can be shown, so more analogous to spreadsheet than
to SQL table
 Can handle large amount of data
 Tables are partitioned among several servers for load
balancing

14. Table
 Maximum storage capacity of Table
 Contains Maximum of 100 TB data
 Rows can have maximum 255 properties
 Maximum 1 MB data per row
 Maximum dimension of row and partition key is 1 KB

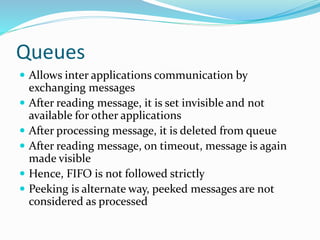

15. Queues
 Allows inter applications communication by
exchanging messages
 After reading message, it is set invisible and not
available for other applications
 After processing message, it is deleted from queue
 After reading message, on timeout, message is again
made visible
 Hence, FIFO is not followed strictly
 Peeking is alternate way, peeked messages are not
considered as processed

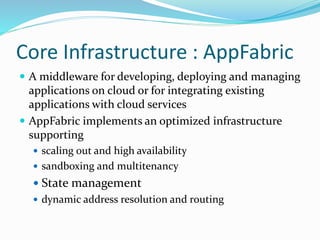

16. Core Infrastructure : AppFabric
 A middleware for developing, deploying and managing
applications on cloud or for integrating existing
applications with cloud services
 AppFabric implements an optimized infrastructure
supporting
 scaling out and high availability
 sandboxing and multitenancy
 State management
 dynamic address resolution and routing

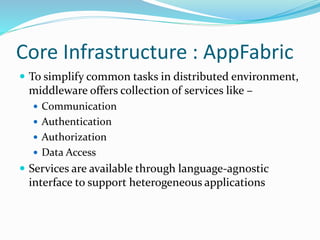

17. Core Infrastructure : AppFabric
 To simplify common tasks in distributed environment,
middleware offers collection of services like –
 Communication
 Authentication
 Authorization
 Data Access
 Services are available through language-agnostic
interface to support heterogeneous applications

18. Azure Platform Architecture

19. Access Control
 Flexible Access control to resources and services
 Flexibility is in terms of ability to secure components
of application and defile access control policy for the
user or group of users
 Integrate several authentication providers into a single
coherent identity management framework
 Allows easy building of hybrid systems, with some
parts existing in the private premises and others
deployed in the public cloud

20. Service Bus
 It’s connectivity infrastructure working with AppFabric
 Allows applications to interact with different protocols
and patterns
 Reliable i.e. guaranteed delivery
 Main Motto –
 Allows transparent network traversal
 simplify the development of loosely coupled
applications
 To avoid renouncing security and reliability

21. Service Bus
 Services are available on URL
 It supports
 Publish-subscribe model
 Full duplex communication
 Peer-to-peer or point to point communication
 Unicast and multicast delivery in one way
communication
 Asynchronous messaging
 Prices on a pay-as-you-go basis i.e. Pay only when you
use

22. Azure Cache
 Cache is used over durable storage solution to avoid
bottleneckness due to
 Client requests
 Dataset size dimensions
 Stores .NET objects and common data formats like
xml, table rows and binary data
 Easily integrates with ASP.NET applications
 Available cache sizes are ranging from 128 MB to 4 GB

23. SQL Azure
 Relational Database service hosted on windows Azure
 Extends capacity of SQL server to cloud
 Scalable, highly available, fault-tolerant relational
database
 Fully compatible with interface of SQL server
 Manageable by REST API
 Max size for web application is 1 GB or 5 GB
 Max size for enterprise application is 10 GB to 50 GB

24. SQL Azure Architecture

25. Azure Virtual Network
 Networking services which includes –
 Azure Connect
 Azure Traffic Manager
 Azure Connect
 Setup for IP-based network connectivity in private
premises
 Roles deployed on Azure Cloud
 Useful for VM role
 Cloud becomes part of private network of enterprise

26. Azure Virtual Network
 Azure Traffic Manager
 Load Balancing to HTTP and HTTPS ports
 Allows to choose load balancing strategies-
 Performance
 Round-Robin
 Failover

27. Azure Content Delivery Network
 Improves Content Delivery capability
 Allows serving
 Web objects
 Streaming content
 Distributed at 24 different places across the world

28. Azure Platform Appliance
 Making Azure platform available for third party data
centre
 Includes
 Windows Azure
 Azure SQL
 MS Specifies network, storage and server hardware
 It is ideal for two major scenarios
 Organization with very large computing needs
 Organizations which can not afford sending data
outside their premises

29. Thank You!
