Axis deployable 4G/LTE solution
The document discusses Axis Communications' deployable surveillance solution that uses 4G/LTE connectivity to provide real-time video monitoring from network cameras without needing network cables by using a Sierra Wireless LTE gateway. The solution allows for flexible and quick deployment of camera systems for temporary installations such as at construction sites, remote locations, or for disaster recovery situations where traditional network infrastructure is not present. Axis cameras can be deployed with edge storage and connected to a video management system over 4G/LTE cellular networks for remote monitoring and access control applications.
More Related Content
![Selenium 4 with Simon Stewart [Webinar]](https://cdn.slidesharecdn.com/ss_thumbnails/selenium4browserstackwebinar-190702161824-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Axis deployable 4G/LTE solution
Axis deployable 4G/LTE solution
- 1.

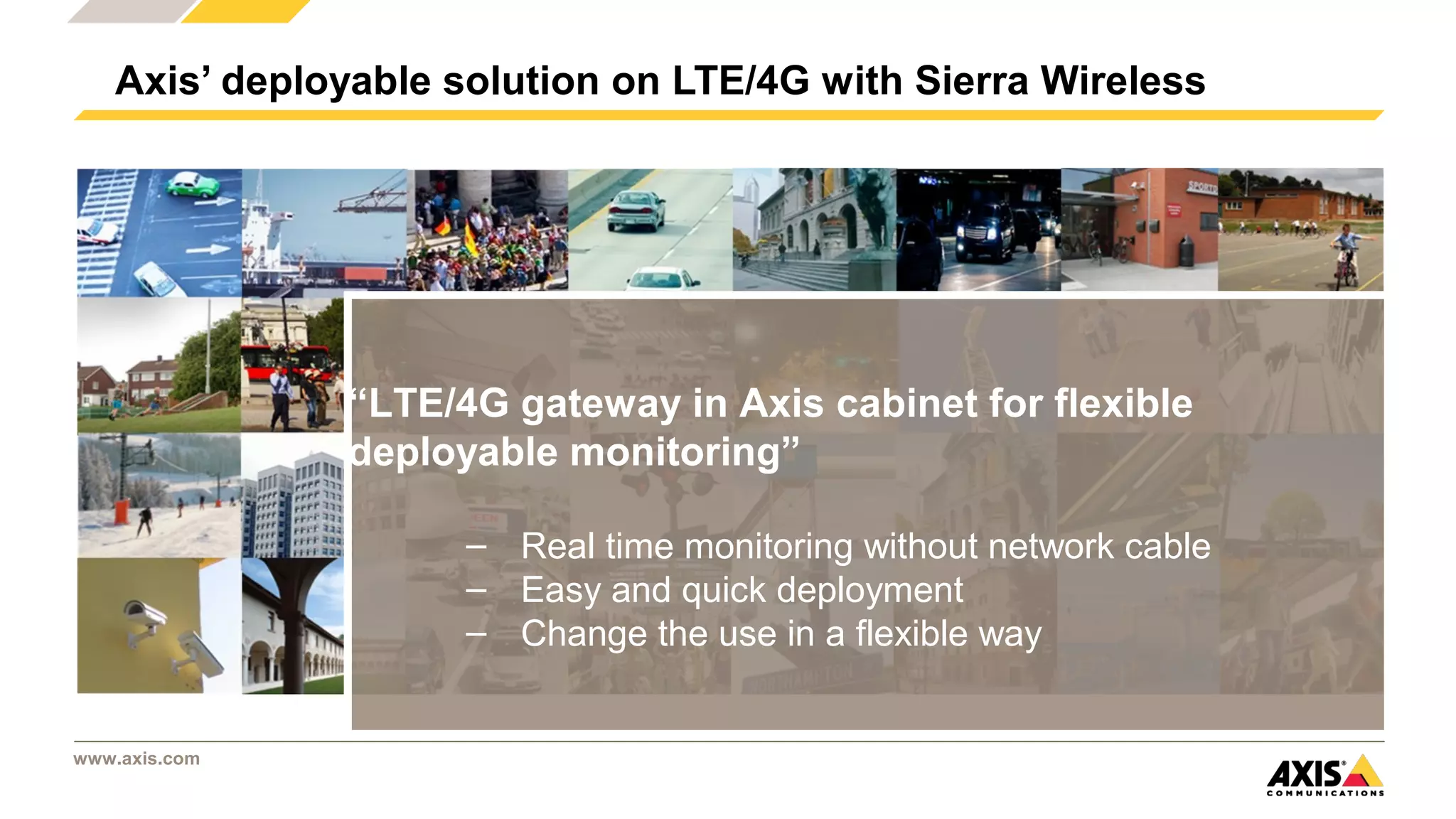

- 2. www.axis.com Axis’ deployable solution on LTE/4G with Sierra Wireless “LTE/4G gateway in Axis cabinet for flexible deployable monitoring” – Real timemonitoring without network cable – Easy and quick deployment – Change the use in a flexible way

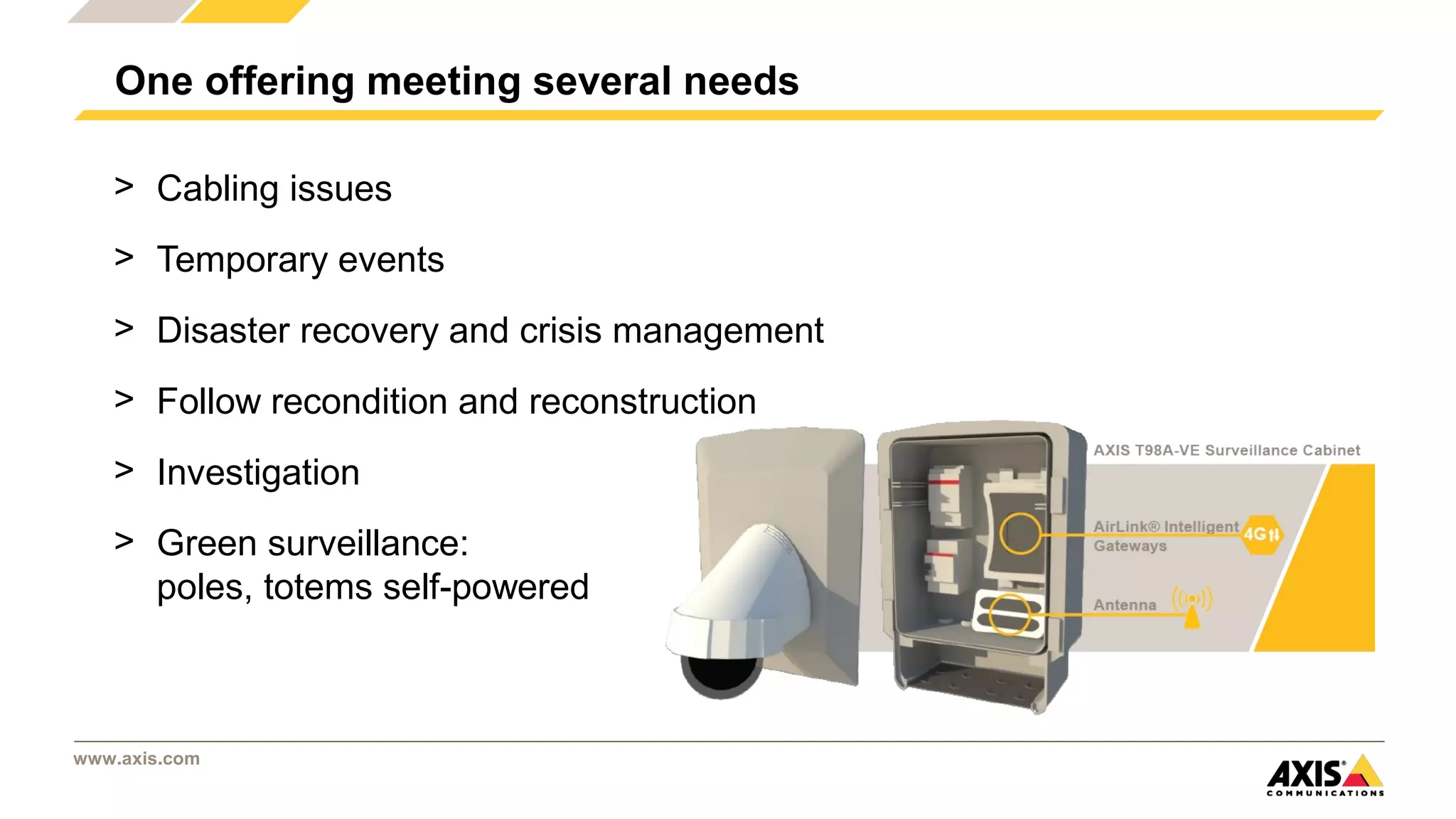

- 3. www.axis.com > Cabling issues >Temporary events > Disaster recovery and crisis management > Follow recondition and reconstruction > Investigation > Green surveillance: poles, totems self-powered One offering meeting several needs

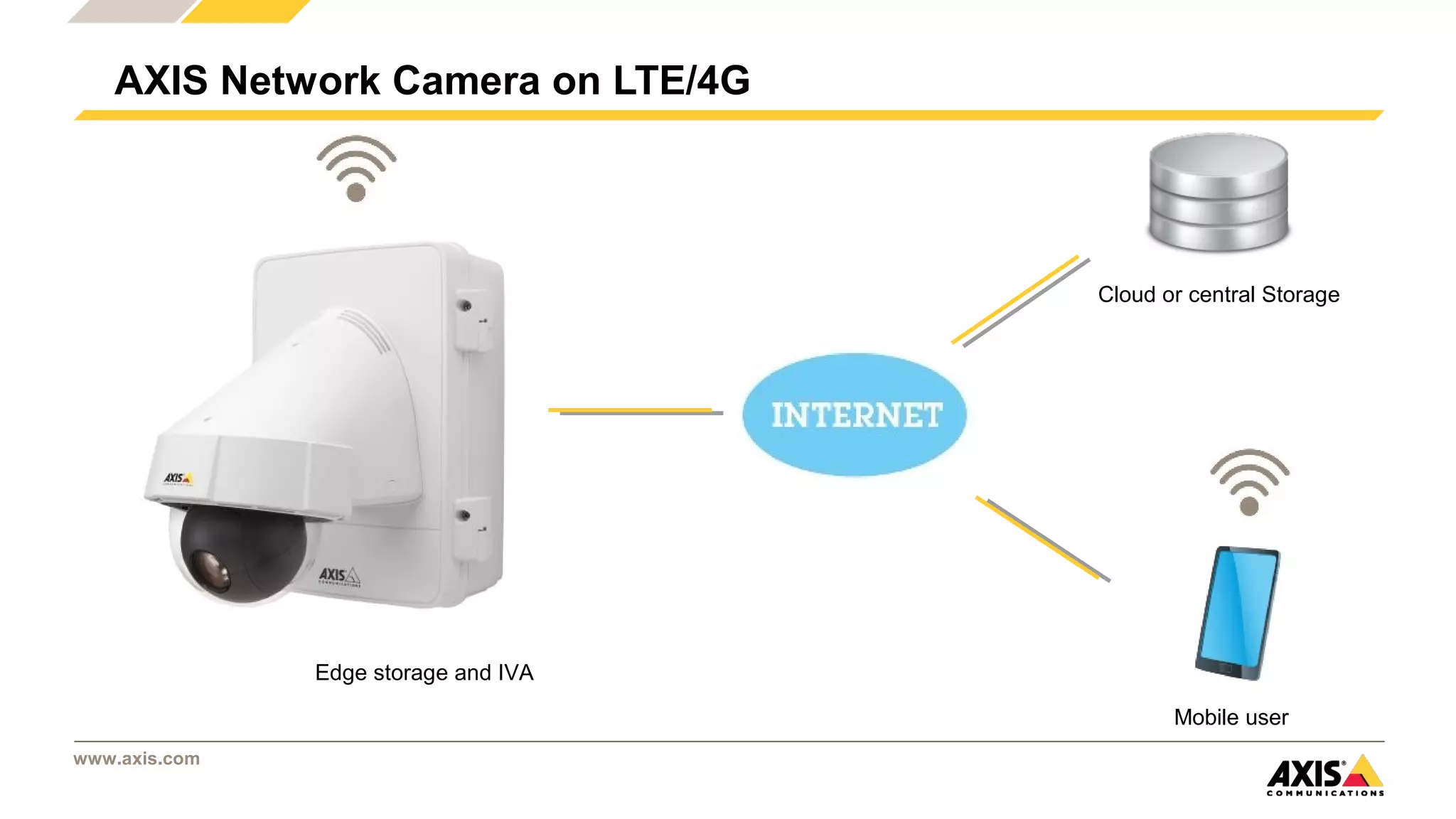

- 4. www.axis.com AXIS Network Camera on LTE/4G Cloud or centralStorage Mobile user Edge storage and IVA

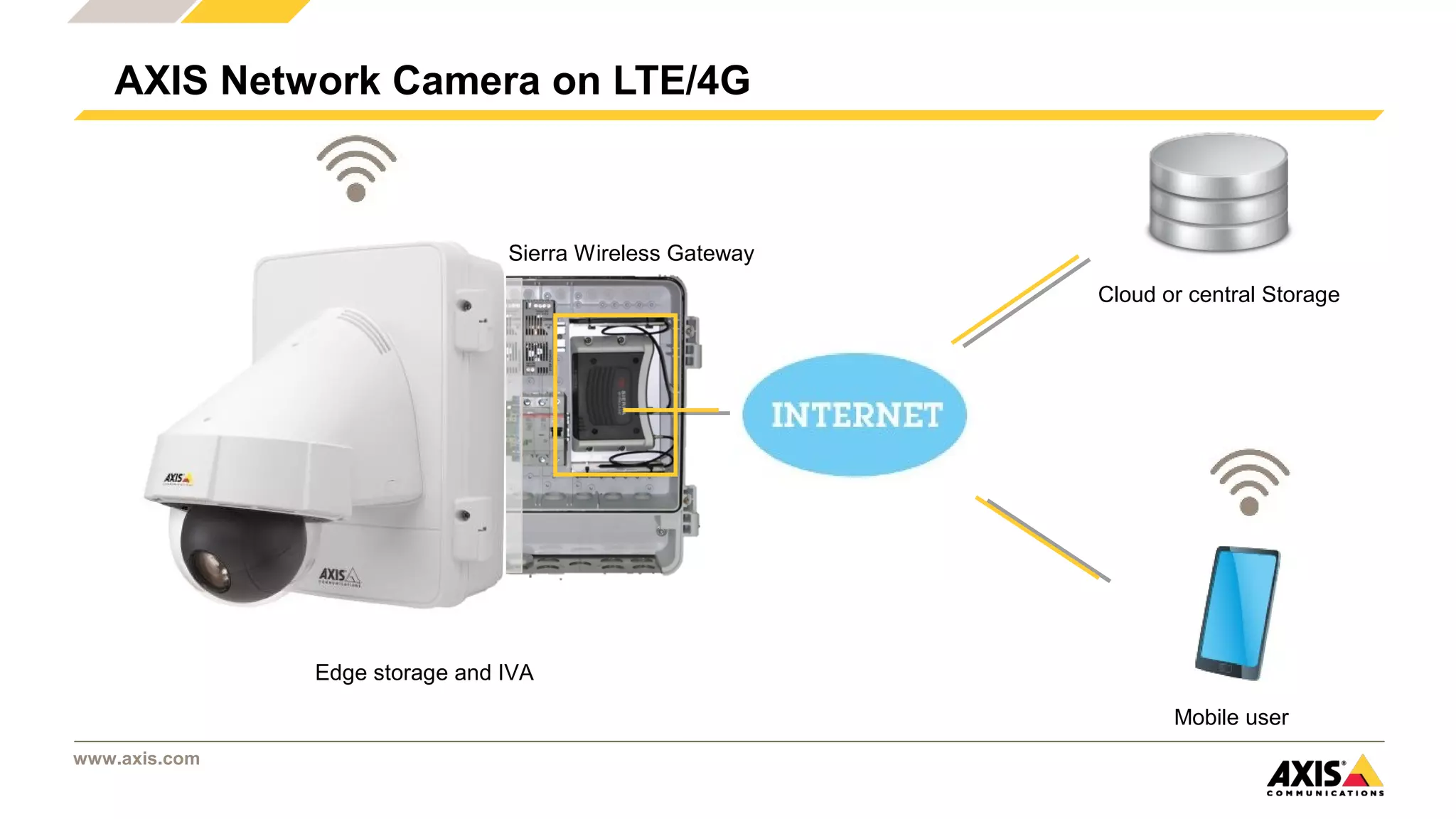

- 5. www.axis.com AXIS Network Camera on LTE/4G Edge storage Cloud orcentral Storage Mobile user Edge storage and IVA Sierra Wireless Gateway

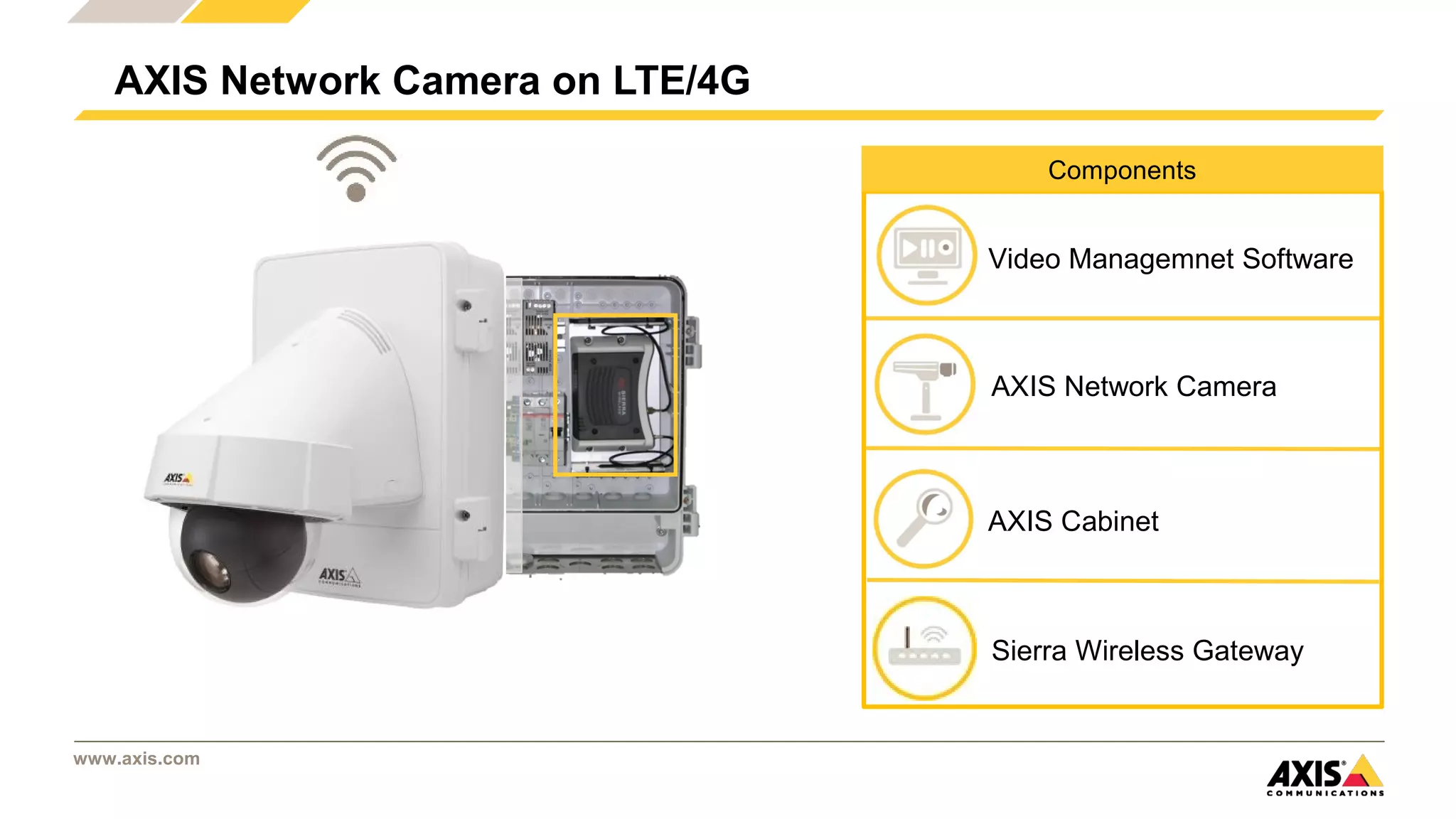

- 6. www.axis.com AXIS Network Camera on LTE/4G Edge storage Video ManagemnetSoftware AXIS Network Camera AXIS Cabinet Sierra Wireless Gateway Components

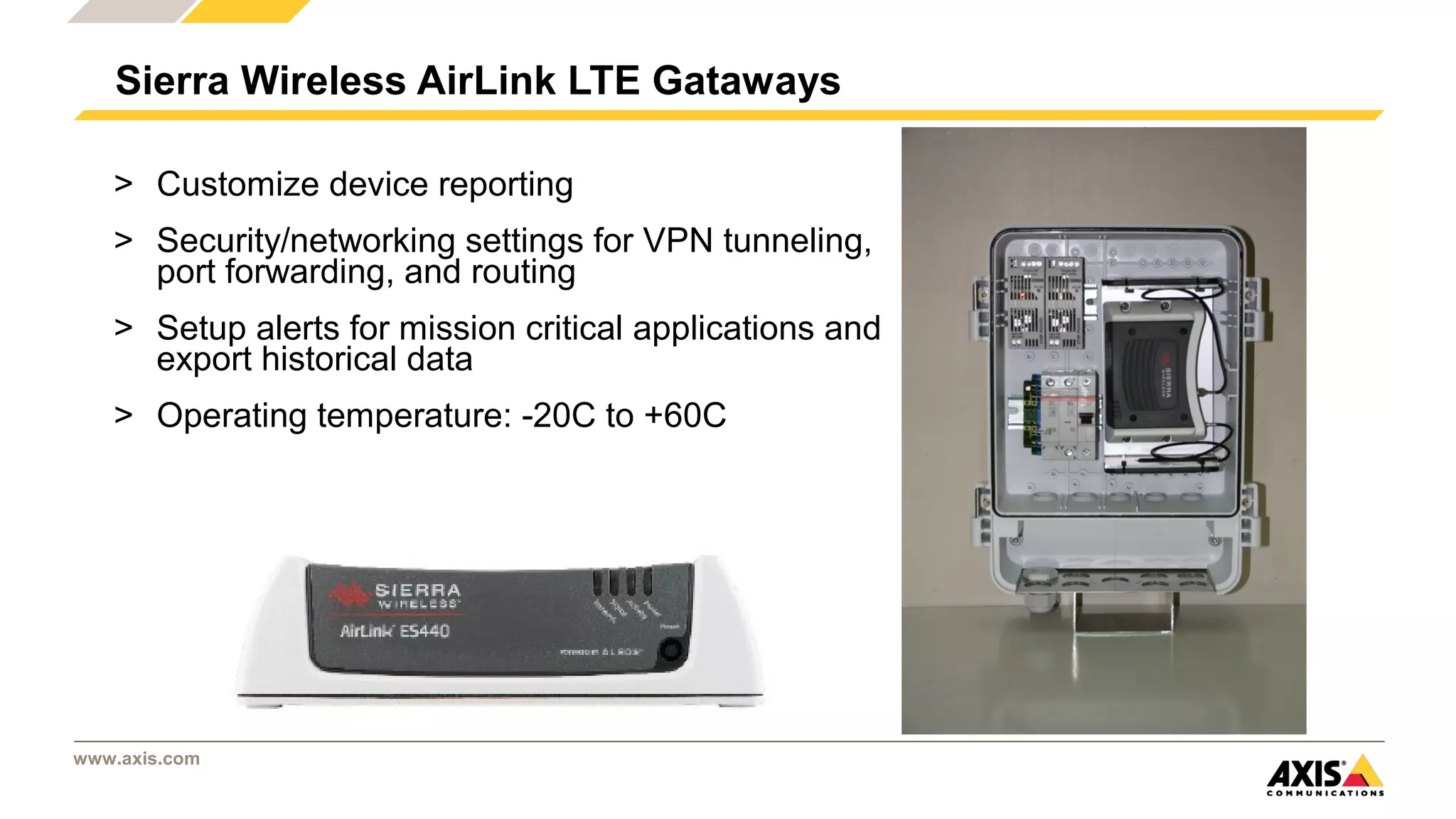

- 7. www.axis.com > Customize devicereporting > Security/networking settings for VPN tunneling, port forwarding, and routing > Setup alerts for mission critical applications and export historical data > Operating temperature: -20C to +60C Sierra Wireless AirLink LTE Gataways

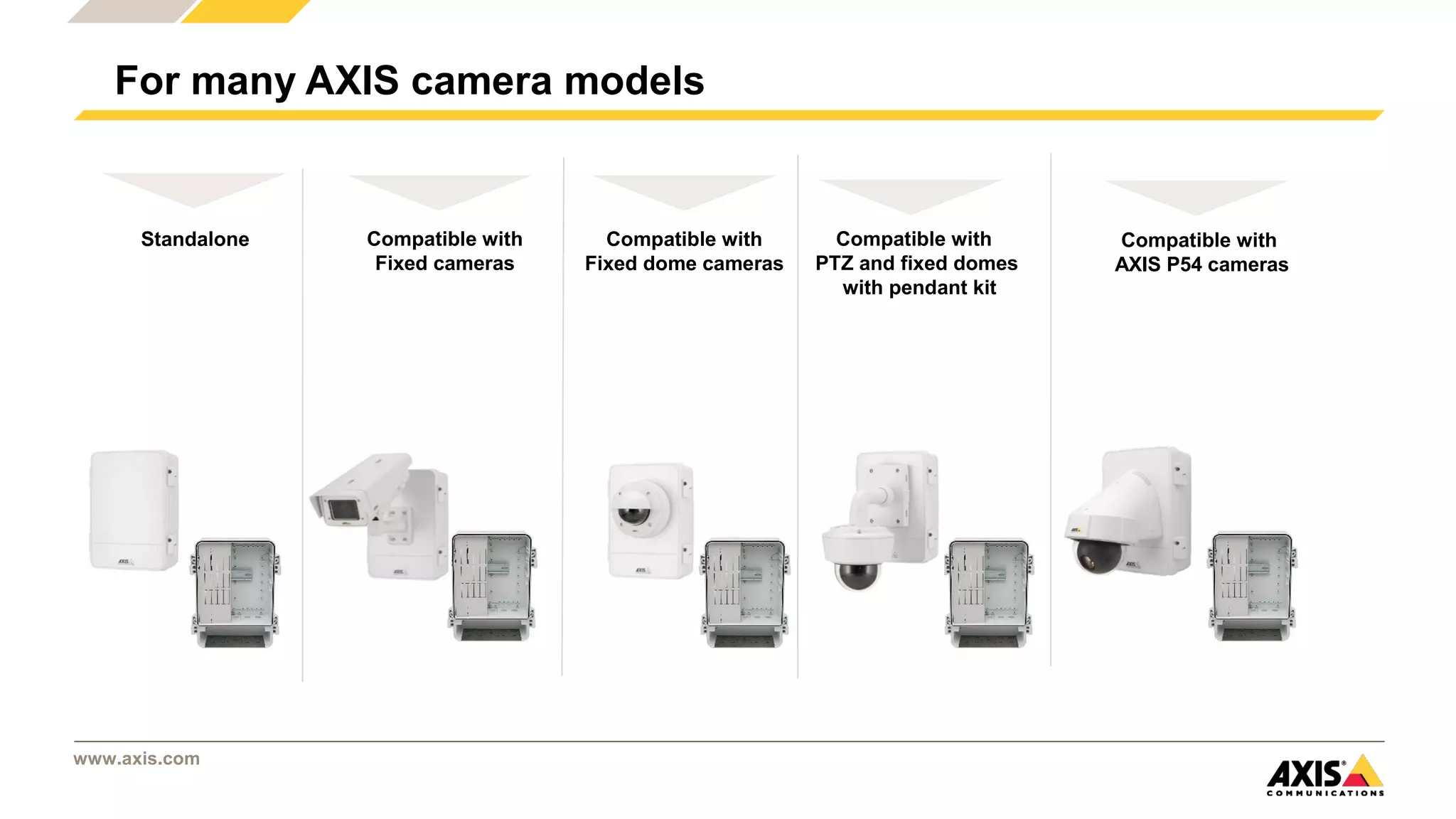

- 8. www.axis.com For many AXIScamera models Standalone Compatible with Fixed cameras Compatible with Fixed dome cameras Compatible with PTZ and fixed domes with pendant kit Compatible with AXIS P54 cameras
- 9. www.axis.com > About 4Mb/s upload Pilot on site

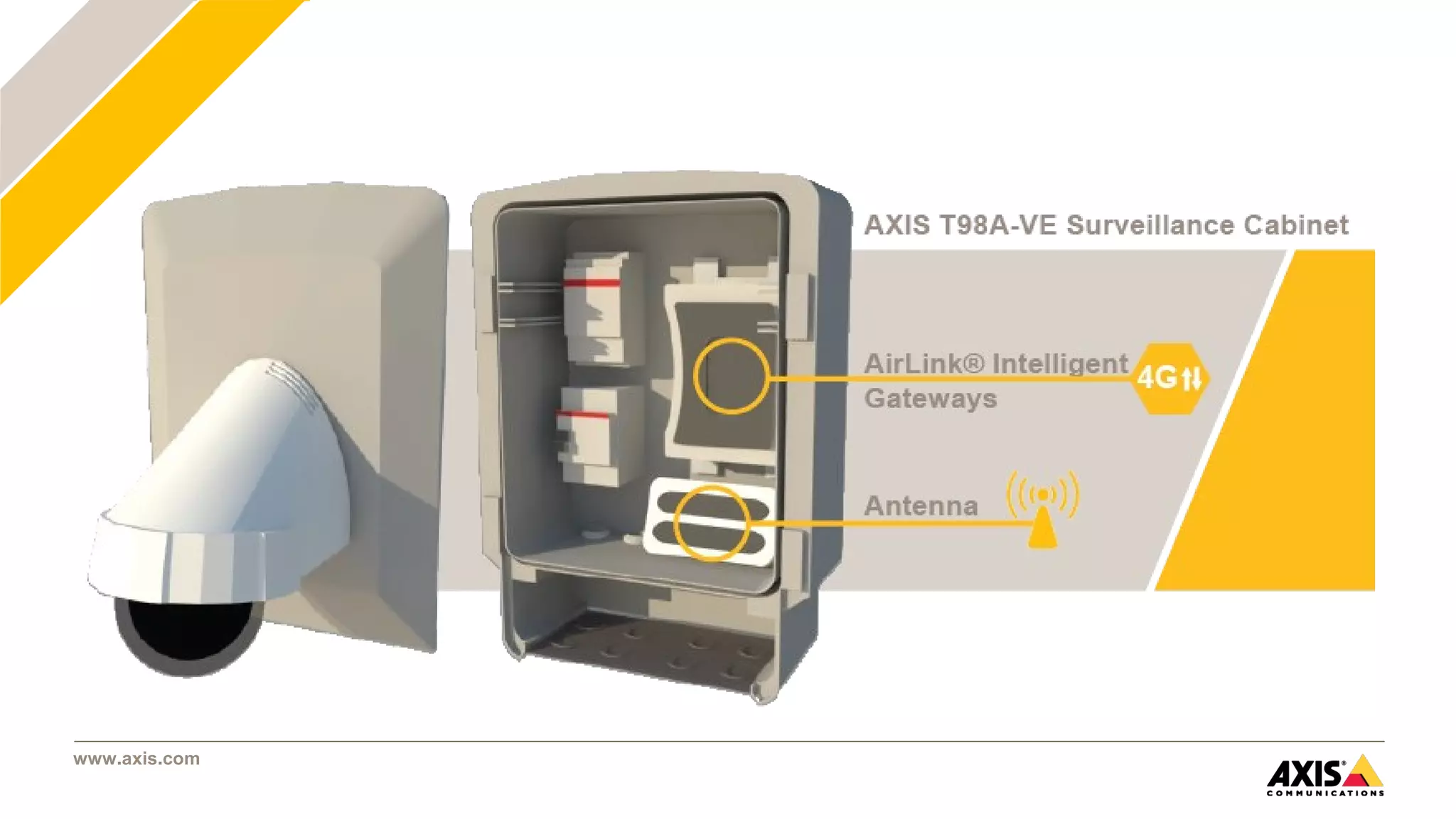

- 10. www.axis.com > 1280x720 High resolutionon local SD card

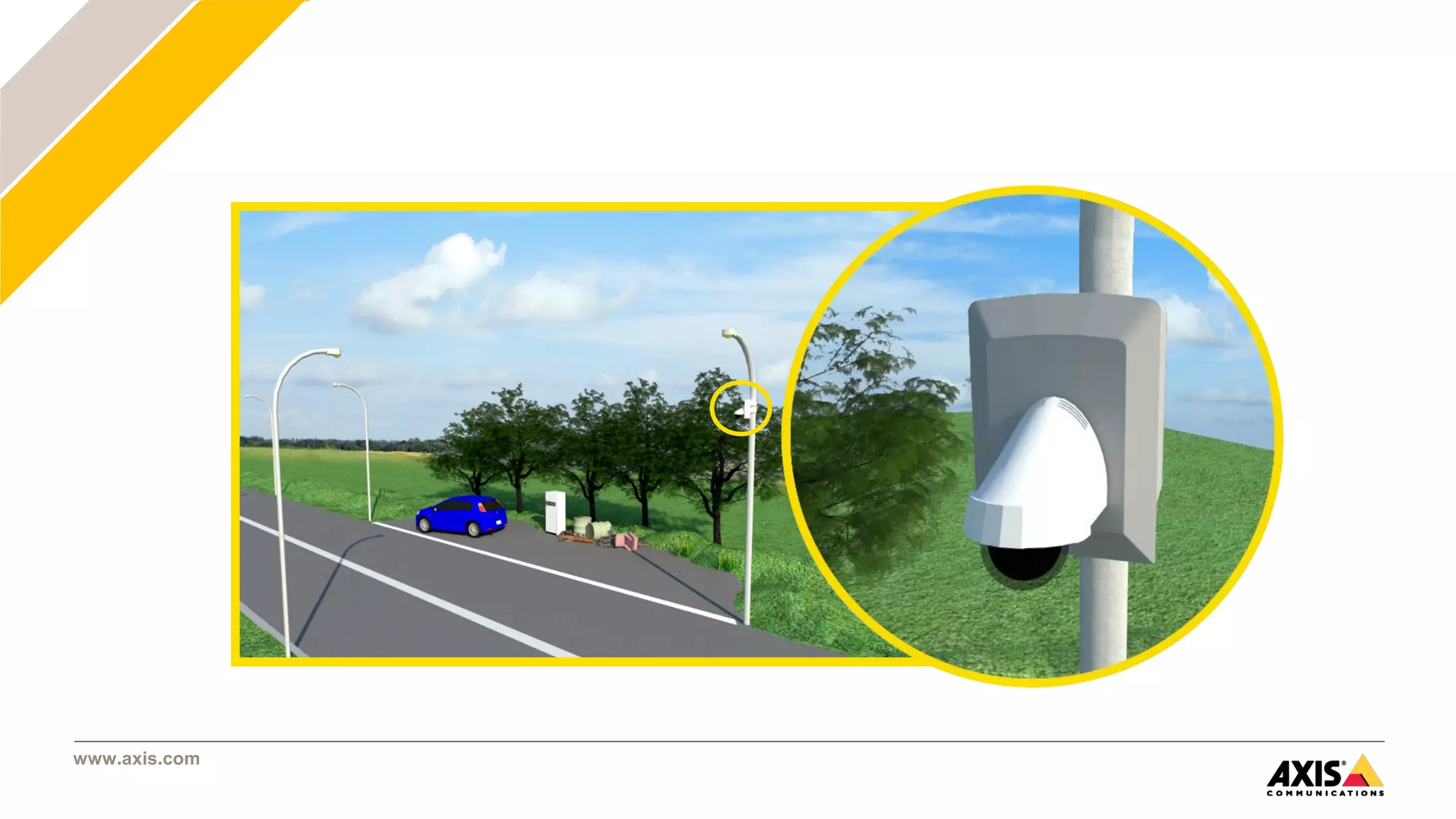

- 11. www.axis.com > 480x270 Low resolutionon remote server

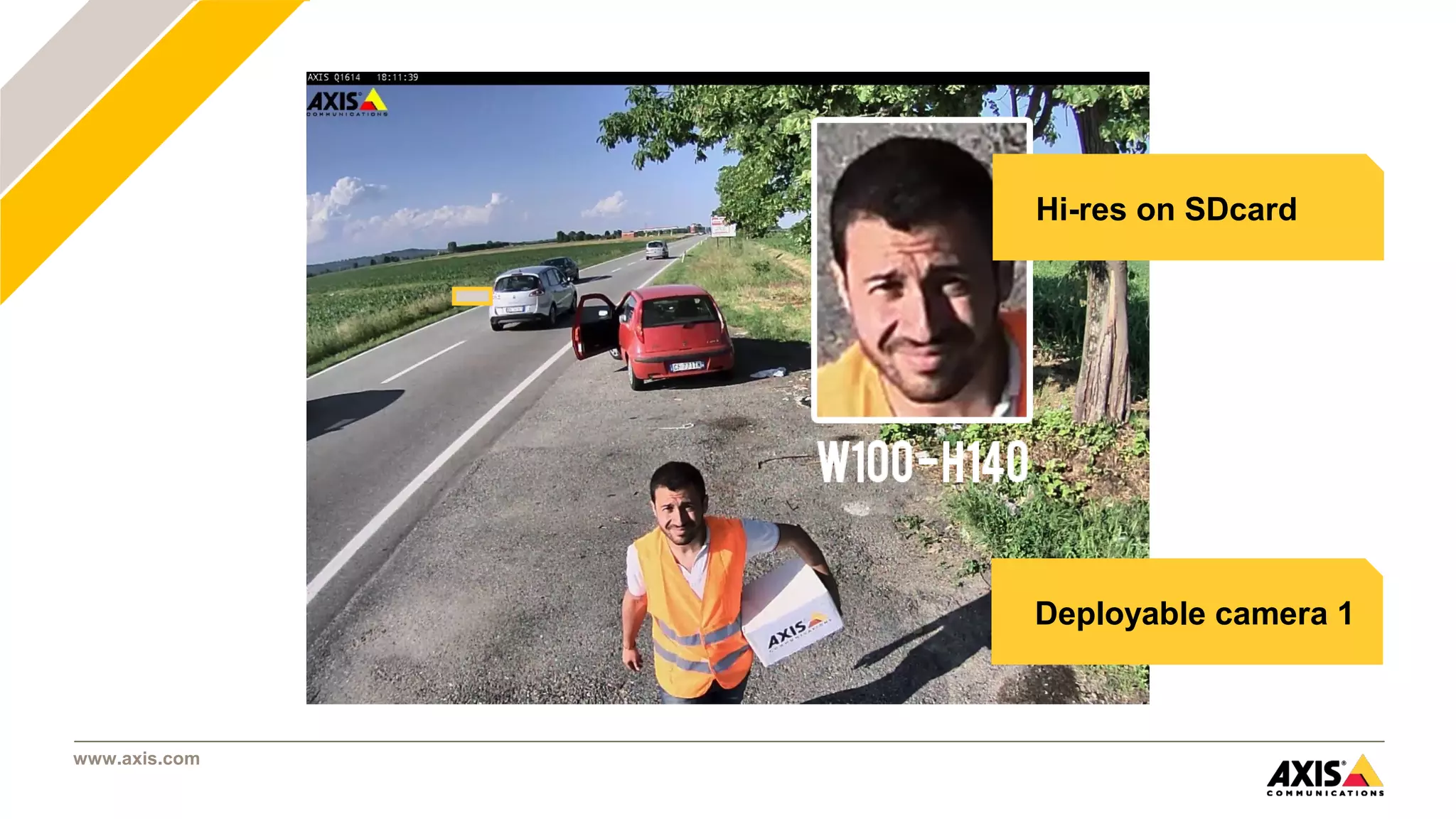

- 12. www.axis.com AXIS CAMERA COMPANIONvia LTE Low resolution on remote server > 480x270

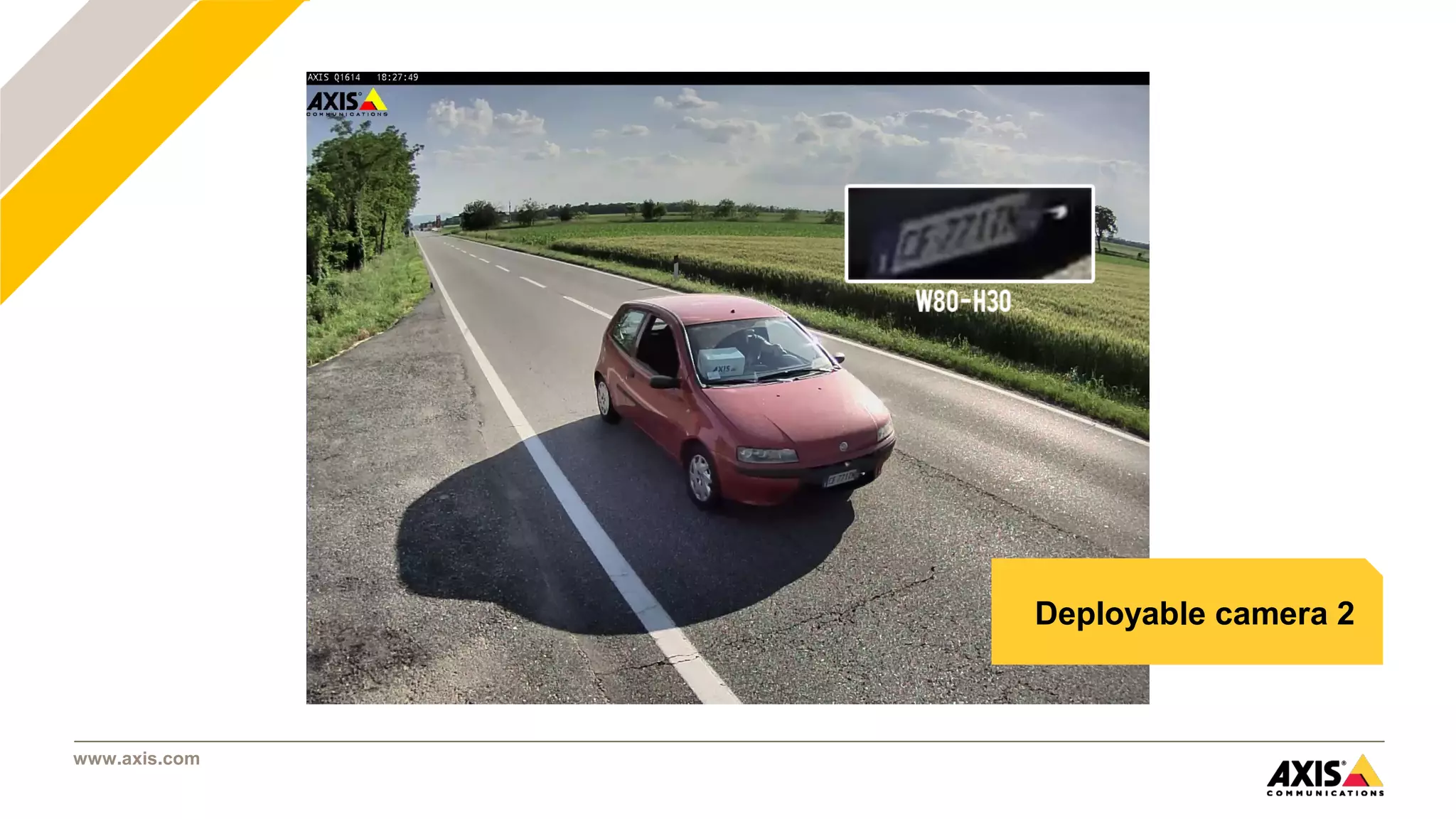

- 13. Concept use case: Illegaldumping
- 14.
- 15.
- 16.
- 17.
- 18. 4G/LTE and AXISA8004-VE Network Door Controller
- 19. www.axis.com Remote audio visualidentification and entry control over 4G >A perfect complement to any surveillance installation to effectively control entry: – Identify and talk to visitors – Record what happens at the entrances >Suitable for remote locations where connectivity is an issue 4G and AXIS A8004-VE Network Video Door Station VMS 4G

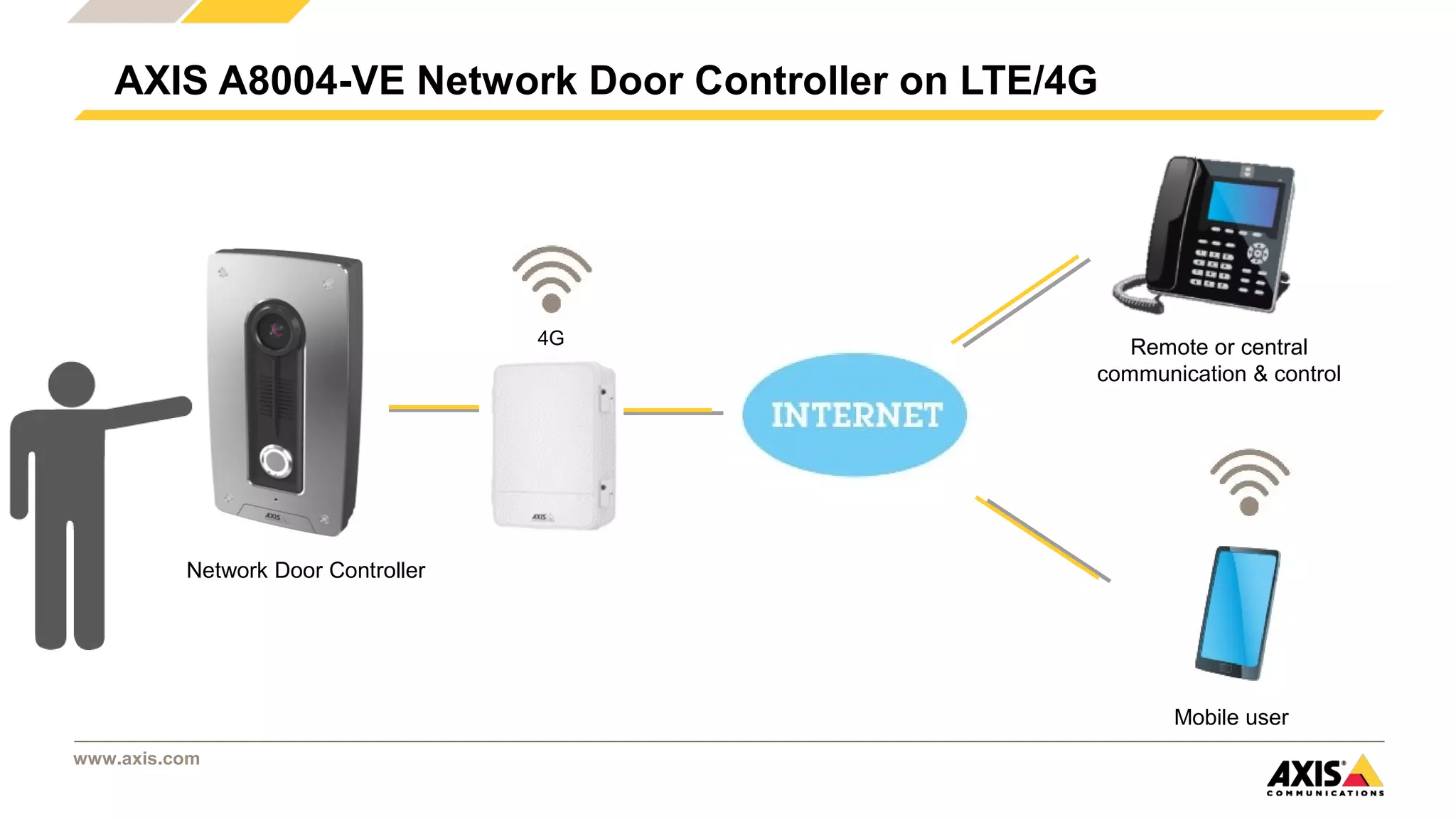

- 20. www.axis.com AXIS A8004-VE NetworkDoor Controller on LTE/4G Remote or central communication & control Mobile user Network Door Controller 4G
- 21. www.axis.com Remote 4G audiovisualentry control
- 22. www.axis.com Concept use case1 - Temporary Installations > High security demands and limited network connectivity > Deliveries and temporary personnel requesting access around the clock > Foreman answers calls from the door station during day time > Guard company monitor and control access to site during after hours > Easy deployment, improved control and security services packed in a single box Construction Sites
- 23. www.axis.com Concept use case2 - Remote Sites > Many unmanned sites spread over large areas with regular maintenance work and deliveries > Network connectivity often very limited > Access to site granted from central office - No driving back and forth for key distribution > Site and ongoing work monitored from central point > Flexible solution with easy deployment that improves security, control and efficiency Central Office Power & Base Stations
- 24.
Editor's Notes
- #3 In a city there are numerous situations where a surveillance solution needs to be deployed quickly but there is not fixed network connectivity. Examples include; demonstrations, temporary events & crisis management situations, amongst many others. The advent of 4G now makes is possible to stream surveillance data across a cellular network. By teaming up with Sierra Wireless we have created such a deployable surveillance solution, which takes advantage of the 4G ‘mobile data’ availability. This also provides the added benefit of re-deploying the solution to a new location when needed. Axis Zipstream technology is also extremely relevant here. This is the very latest surveillance innovation where Axis has developed intelligent compression delivering HDTV quality video with up to 90% reduced bite rate. (bandwidth) When streaming across a service providers network this will obviously have clear cost and performance benefits.
- #5 Goals - capture hi-res video - minimize network usage when not needed - easy access/retrieval/analysis to the recorded streams - high availability and reliability - multiple customer consoles and devices - scalable architecture, unlimited number of cameras and customer consoles 1) Video motion detection or intelligent video analysis are set on the camera in order to reduce both the storage and the network usage 2) Hi-res video stream is continuously saved on the camera's SD card (Estimated capacity 24 h of video mkv files) 2a) Every hour an ad-hoc on camera script moves with FTP 1 h video on the USB storage connected to the router. Estimated capacity from 1 to 10 days of video mkv files. 3) Low-res real-time video stream is continuously saved on a smb cloud storage space. 4) The VMS can fetch the hi-res video when requested, otherwise the customer console can access to the low-res real-time video.
- #6 To complete the solution and provide 4G connectivity a wireless gateway is a key component. Sierra came out on top in Axis own ‘Solutions Lab’ tests of numerous products. By working together in partnership across the world we also hope to connect the surveillance world with the ‘Internet of Things’ ‘Smart Cities’ & beyond.
- #7 To summarize the complete solution is comprised of; VMS, Axis Camera, Axis Cabinet, Sierra Wireless Gateway…a simple but effective deployable surveillance solution on 4G
- #21 We can already take this solution to the next stage by adding the latest Axis ‘thing’ to the IoT. By combining audio & video communication plus access control the Axis Door Station delivers a valuable new security and operational solution. Using the same PoE as our surveillance cameras the door station enables customers to remotely control access to sites across a city from remote locations. The availability of wireless network connectivity through the 4G cellular network would also be beneficial in many cases, hence the Sierra Wireless gateway completes this solution as well.
