Aviq Design Sdn Bhd is an engineering services company formed in 2004 comprising experienced aerospace engineers. Their vision is to be a center of excellence for engineering services, and their mission is to be competitive in engineering through developing capabilities, people, and products. They offer services including CAD/CAM/CAE, engineering design, structural and mechanical design, engineering analysis, and project management. They have experience with projects for companies such as BAE Systems, Airbus, and Bombardier.

1. Aviq Design Sdn Bhd Company Profile

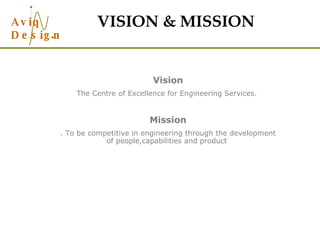

2. VISION & MISSION Vision The Centre of Excellence for Engineering Services. Mission . To be competitive in engineering through the development of people,capabilities and product

3. Aviq Design Sdn Bhd formed in 2004 Comprise of experienced and capable aerospace engineers Experience encompassed entire Malaysian aerospace industries design and development efforts Company Brief

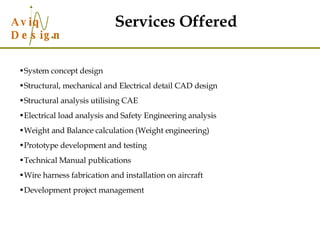

4. System concept design Structural, mechanical and Electrical detail CAD design Structural analysis utilising CAE Electrical load analysis and Safety Engineering analysis Weight and Balance calculation (Weight engineering) Prototype development and testing Technical Manual publications Wire harness fabrication and installation on aircraft Development project management Services Offered

5. CAD/CAM/CAE CAPABILITY CATIA V5R14 CATIA 4.2.2 Pro Engineer MSC Nastran/Patran MathCAD Laminate Analysis Programme (LAP) SolidWorks

6. ENGINEERING DESIGN STRUCTURAL & MECHANICAL DESIGN Conceptual Design Complete Design and Drafting Complete Digital Mock-up Aircraft structural life upgrade Prototyping & testing validation

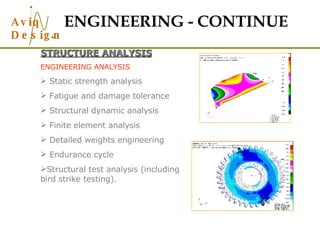

7. ENGINEERING - CONTINUE STRUCTURE ANALYSIS ENGINEERING ANALYSIS Static strength analysis Fatigue and damage tolerance Structural dynamic analysis Finite element analysis Detailed weights engineering Endurance cycle Structural test analysis (including bird strike testing).

8. ENGINEERING - CONTINUE STRUCTURE ANALYSIS ENGINEERING ANALYSIS Static strength analysis Fatigue and damage tolerance Structural dynamic analysis Finite element analysis Detailed weights engineering Endurance cycle Structural test analysis (including bird strike testing).

9. WORK FLOW PROCESS WORK FLOW PROCESS 1. BRAINSTORMING 2. 3D DESIGN 3. STRESS ANALYSIS 5. DRAFTING 6. MANUFACTURING 4. CONCEPT TESTING

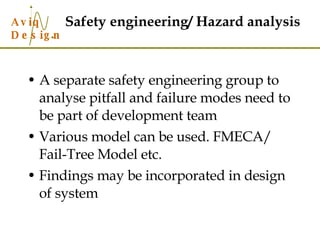

10. Safety engineering/ Hazard analysis A separate safety engineering group to analyse pitfall and failure modes need to be part of development team Various model can be used. FMECA/ Fail-Tree Model etc. Findings may be incorporated in design of system

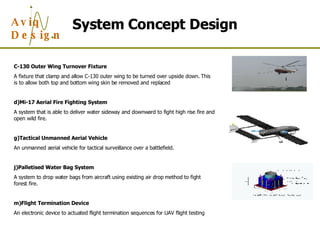

11. System Concept Design C-130 Outer Wing Turnover Fixture A fixture that clamp and allow C-130 outer wing to be turned over upside down. This is to allow both top and bottom wing skin be removed and replaced Mi-17 Aerial Fire Fighting System A system that is able to deliver water sideway and downward to fight high rise fire and open wild fire. Tactical Unmanned Aerial Vehicle An unmanned aerial vehicle for tactical surveillance over a battlefield. Palletised Water Bag System A system to drop water bags from aircraft using existing air drop method to fight forest fire. Flight Termination Device An electronic device to actuated flight termination sequences for UAV flight testing

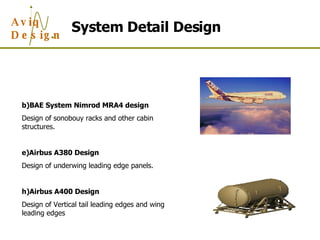

12. System Detail Design BAE System Nimrod MRA4 design Design of sonobouy racks and other cabin structures. Airbus A380 Design Design of underwing leading edge panels. Airbus A400 Design Design of Vertical tail leading edges and wing leading edges

13. BAE SYSTEMS NIMROD’S MRA4 MARITIME PATROL AIRCRAFT FOR RAF UK Airstairs Ordnance Workstation Sonobuoy Rack APU Battery Box Floor Panel Accident Data Recorder Flight Control

14. BAE SYSTEMS NIMROD MRA4 - AIRSTAIRS Complete turnkey project from design to qualification testing and production A manually deployable Airstair that takes 3 minutes or less to deploy completely.

15. BAE SYSTEMS NIMROD MRA4 – SONOBUOY RACK Design engineering task and manufacturing, including 3 rd and 99 th percentile human engineering test (mockup test). An interchangeable design that has to withstand all crash loads with full complement of the sonobuoys. Flexible design around available facilities in country Complex welding and heat treatment process. Test on prototype for post-welding NDT and Destructive tests.

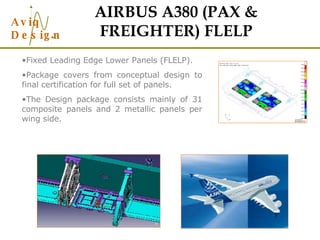

16. AIRBUS A380 (PAX & FREIGHTER) FLELP Fixed Leading Edge Lower Panels (FLELP). Package covers from conceptual design to final certification for full set of panels. The Design package consists mainly of 31 composite panels and 2 metallic panels per wing side.

17. A400M – GKNAES (UK) & EADS/CASA (SPAIN) Contract with GKNAES (UK) – A400M Fixed Trailing Edge. This package consists of 32 composite panels per wing side. It also includes all supporting metallic parts that hold the panel to interface components such as buttstraps, seals and brackets. Contract with EADS/CASA - To design the components of the A400M Horizontal Stabilizer Trailing Edge Panels, Vertical Tail Plane Leading Edge (VTPLE) panels and VTPLE – bird strike test plan.

18. A400M – GKNAES (UK) & EADS/CASA (SPAIN) Vertical Tail Plane Leading Edge Panels Wing Trailing Edge Panels (M1F03) Horizontal Tail Plane Trailing Edge Panels & Actuator Fitting

19. TRACK RECORD SUMMARY DESIGN Nimrod’s floor panels Nimrod’s APU Nimrod’s ordnance workstation Nimrod’s accident data recorder installation. Nimrod’s flying control pulley bracket Nimrod’s floor mod kit & restraints A400M Wing Trailing Edge panels, HTPTE panels & Actuator fittings and VTPTLE panels. A380’s fixed leading edge lower panels.

20. TRACK RECORD SUMMARY -CONTINUE DRAFTING Nimrod’s mid structures Nimrod’s elevator structures change Nimrod’s pitot Static Installation Nimrod’s port A/C Crate Nimrod’s wind screen Bombardier’s CRJ 700 Package from Clairis Technologies. DESIGN & BUILD Nimrod’s Airstair. Nimrod’s Sonobouy Rack

21. Structural Analysis BAE System Nimrod MRA4 design Structural analysis, Hand Calculations and PATRAN?NASTRAN, for design of sonobouy racks, airstairs and other cabin structures. Airbus A380 Design Structural analysis, MathCAD and PATRAN/NASTRAN for design of underwing leading edge panels. Airbus A400 Design Structural analysis, MATHCAD and PATRAN/ NASTRAN for design of Vertical tail leading edges and wing leading edges

22. Electrical Design and Analysis We have the system and experienced personnel to develop Electrical Design and analysis for the aircraft and UAV systems The analysis consist of electrical load analysis and system safety engineering. Our personnel have experience in providing electrical. design and analysis for the followings; S-61 helicopter avionic upgrade Avionic upgrade with introduction of new systems (Navigations, Communications etc). Eagle ARV System Converting a GA aircraft, Eagle 150 B into unmanned aircraft. UAV electrical system Power management and system design for UAV

23. 100110010101000111100011100011100101101011110000011110000110 Company Structure

24. Project Done By Aviq Design S-61 helicopter Doppler Navigation System Integration New Doppler Nav system which interface with flight Information Display is integrated and installed on RMAF S-61A-4 helicopter. We provide the design analysis, wire harness fabrication, installation and testing activities for the project. M-55 Antenna Mounting Design A Russian High altitude aircraft (M-55) is to be used to provide Broadband signal over an area. We provide the concept deign for antenna mounting that can hold up to 200 kg of antenna weight but installed internally inside the aircraft.

25. Thank You We look forward to our future business partnership For enquiries, contact: Mohd Jamil Zulkifli Director Aviq Design Sdn Bhd D2-12-2, Block D2 Pusat Perdagangan Dana 1 Jalan PJU 1A/46 47301 PJ Malaysia E-mail: mojazu@gmail.com
