1. The document discusses India's Deviation Settlement Mechanism (DSM) and related regulations.
2. It provides background on grid failures in 2012 that prompted a review of the UI mechanism and implementation of DSM regulations in 2014.

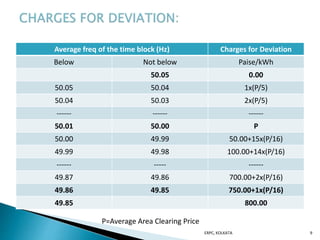

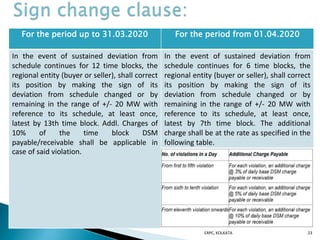

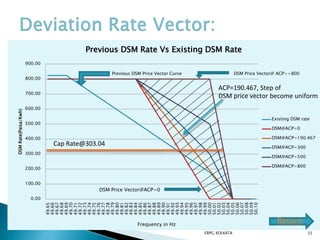

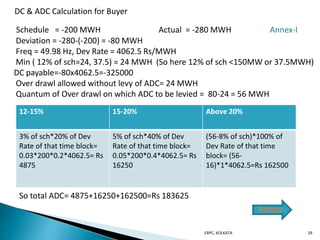

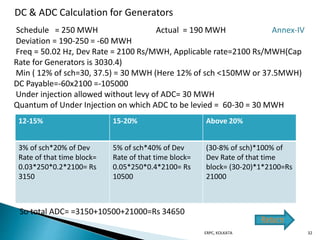

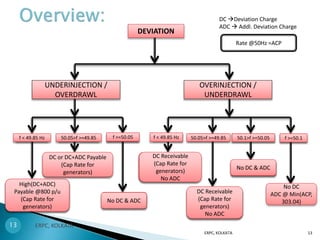

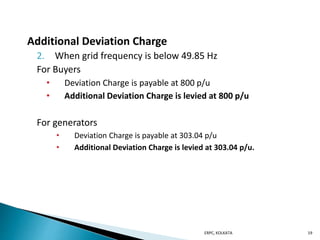

3. Key aspects of the DSM regulations are described, including the frequency band, deviation price calculation linked to ACP, volume limits, and additional charges.
Central Electricity Regulatory Commission (Deviation Settlement Mechanism and related matters) (Fourth Amendment) Regulations, 2018 effective from 01.01.2019
Central Electricity Regulatory Commission implemented the Deviation Settlement Mechanism w.e.f 17.02.2014 throughout the country by bringing out the CERC (Deviation Settlement Regulations and other matters) Regulations, 2014. This regulation had a far-reaching consequences on any stakeholder like STUs, IPPs, ISGS for deviating from the injection/drawal Schedule in a time block beyond a certain prescribed limit by levying Deviation Charges including Additional Deviation Charges
Tariff structure for Conventional and Non Conventional electricity generation sources, For tariff regulation of 2009-14 & 2014-19 and Renewable tariff order for 2015
This document provides an overview of the availability based tariff (ABT) mechanism and deviation settlement mechanism (DSM) in India. It discusses the constituents of the power grid in India and the evolution of the regional grids into a unified national grid. It then explains the constituents of ABT, including generators, transmission lines, load dispatch centers, and regulatory authorities. The key aspects of ABT are described, such as scheduling of generation and load, deviation charges for over-injection and under-injection to incentivize grid discipline. Finally, the document outlines the changes introduced in Maharashtra through the DSM regulations of 2019, bringing the state mechanism in line with the central electricity regulatory commission guidelines.
The document discusses open access regulation and grant of connectivity regulation in India. It provides definitions of open access, objectives of open access such as increasing competition and reducing losses. It describes the working process of open access involving generators, utilities, traders and consumers. It also outlines the types of open access transactions and various regulations issued over time in 2004, 2006, 2008, 2013 and 2014 that govern open access.
The document provides an overview of availability based tariff (ABT) in India. Some key points:
- ABT was introduced to address issues with the previous single and two-part tariff systems and encourage grid discipline.
- Under ABT, generators declare their expected output capacity daily and regional load dispatch centers schedule generation and issue dispatch instructions. Beneficiaries pay capacity charges based on entitlements and energy charges based on scheduled generation.

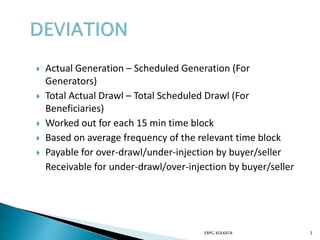

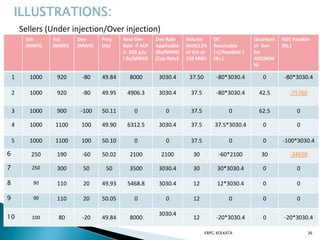

- Deviations from schedules are settled at 15-minute intervals using frequency-linked UI charges, with penalties for overdrawals at lower frequencies.
- Fixed costs recovered through capacity charges include return on equity, interest, depreciation and O&M. Variable
ABT (Availability Based Tariff) - UI (Unscheduled Interchange)shyamies11
The document summarizes the introduction and implementation of Availability Based Tariff (ABT) in India's electricity sector. Some key points:
- ABT was introduced to address issues like grid instability and lack of incentives under the previous two-part tariff system. It establishes a three-part tariff with incentives for availability and penalties for deviations from schedules.
- Implementation began regionally in 2002-2003. ABT introduced the concept of unscheduled interchange (UI) charges for deviations above a certain band around 50Hz frequency. UI rates were gradually increased over time.
- The role of regional and national load dispatch centers is to administer scheduling, metering, and accounting for deviations and UI charges between
Central Electricity Regulatory Commission (Deviation Settlement Mechanism and related matters) (Fourth Amendment) Regulations, 2018 effective from 01.01.2019
Central Electricity Regulatory Commission implemented the Deviation Settlement Mechanism w.e.f 17.02.2014 throughout the country by bringing out the CERC (Deviation Settlement Regulations and other matters) Regulations, 2014. This regulation had a far-reaching consequences on any stakeholder like STUs, IPPs, ISGS for deviating from the injection/drawal Schedule in a time block beyond a certain prescribed limit by levying Deviation Charges including Additional Deviation Charges
Tariff structure for Conventional and Non Conventional electricity generation sources, For tariff regulation of 2009-14 & 2014-19 and Renewable tariff order for 2015
This document provides an overview of the availability based tariff (ABT) mechanism and deviation settlement mechanism (DSM) in India. It discusses the constituents of the power grid in India and the evolution of the regional grids into a unified national grid. It then explains the constituents of ABT, including generators, transmission lines, load dispatch centers, and regulatory authorities. The key aspects of ABT are described, such as scheduling of generation and load, deviation charges for over-injection and under-injection to incentivize grid discipline. Finally, the document outlines the changes introduced in Maharashtra through the DSM regulations of 2019, bringing the state mechanism in line with the central electricity regulatory commission guidelines.
The document discusses open access regulation and grant of connectivity regulation in India. It provides definitions of open access, objectives of open access such as increasing competition and reducing losses. It describes the working process of open access involving generators, utilities, traders and consumers. It also outlines the types of open access transactions and various regulations issued over time in 2004, 2006, 2008, 2013 and 2014 that govern open access.
The document provides an overview of availability based tariff (ABT) in India. Some key points:
- ABT was introduced to address issues with the previous single and two-part tariff systems and encourage grid discipline.
- Under ABT, generators declare their expected output capacity daily and regional load dispatch centers schedule generation and issue dispatch instructions. Beneficiaries pay capacity charges based on entitlements and energy charges based on scheduled generation.
- Deviations from schedules are settled at 15-minute intervals using frequency-linked UI charges, with penalties for overdrawals at lower frequencies.
- Fixed costs recovered through capacity charges include return on equity, interest, depreciation and O&M. Variable
ABT (Availability Based Tariff) - UI (Unscheduled Interchange)shyamies11
The document summarizes the introduction and implementation of Availability Based Tariff (ABT) in India's electricity sector. Some key points:
- ABT was introduced to address issues like grid instability and lack of incentives under the previous two-part tariff system. It establishes a three-part tariff with incentives for availability and penalties for deviations from schedules.
- Implementation began regionally in 2002-2003. ABT introduced the concept of unscheduled interchange (UI) charges for deviations above a certain band around 50Hz frequency. UI rates were gradually increased over time.
- The role of regional and national load dispatch centers is to administer scheduling, metering, and accounting for deviations and UI charges between
Excitation System & capability curve of synchronous generatorMANOJ KUMAR MAHARANA
Excitation systems perform control and protective functions essential to the satisfactory performance of the power system.
The amount of continuous reactive power a generator can supply is restricted by various limits. In the over-excitation region limits are imposed by rotor heating or amount of field current and second is the stator current. In the under excitation region the limits are imposed by load angle. So in steady state the generator should always operate within this region and the loci of the various limiters are called the capability curve of the generator.
The document provides an overview of the Mejia Thermal Power Station (MTPS) located in West Bengal, India. It is owned by the Damodar Valley Corporation and has a total installed capacity of 2340 MW generated from various units. The document describes the key components of the thermal power plant including the coal handling system, pulverizer, boiler, turbine, condenser, and switchyard. It also provides a step-by-step explanation of how coal is converted into electrical energy within the power station.
The document provides details about the cooling and sealing system of a 247MVA turbo generator. It describes the generator specifications including rating, connection type, phases, rated speed, and insulation class. It then summarizes the need for generator cooling using hydrogen gas and water to minimize heat and ensure uniform temperature distribution. The rotor and stator cooling systems are explained along with specifications. Finally, the generator sealing system is outlined, which uses seal oil to prevent hydrogen leakage and maintain differential pressure between the oil and hydrogen.
This document presents an overview of reactive power compensation. It defines reactive power compensation as managing reactive power to improve AC system performance. There are two main aspects: load compensation to increase power factor and voltage regulation, and voltage support to decrease voltage fluctuations. Several methods of reactive power compensation are discussed, including shunt compensation using capacitors and reactors, series compensation, static VAR compensators (SVCs), static compensators (STATCOMs), and synchronous condensers. SVC and STATCOM technologies are compared, with STATCOMs having advantages of smaller components, better control, and transient response.
The document summarizes electricity regulations in India. It discusses the Central Electricity Regulatory Commission (CERC) and State Electricity Regulatory Commissions (SERCs), which regulate the electricity sector. It also outlines key aspects of the Electricity Act 2003, including provisions related to power generation, transmission, and distribution. The act aims to increase competition and private sector participation in the electricity industry.
The load dispatch center monitors and controls the power system to ensure reliable power supply. It collects data using a SCADA system and oversees elements like generators, transformers, and transmission lines. The load dispatch center performs economic and secure operation of the power system, and works to restore power lines after faults. It is responsible for functions like load forecasting, outage monitoring, voltage regulation, load scheduling, and coordination between grids.
Best ppt on thermal power station workingRonak Thakare
The document provides an overview of thermal power generation and the key components involved. It discusses how chemical energy from fuel is converted through various processes into electrical energy. The main components that enable this conversion are the boiler, turbine, and generator. Steam generated in the boiler powers the turbine, which spins the generator's rotor to produce electricity via electromagnetic induction. The turbine has high, intermediate, and low pressure sections to efficiently extract energy from the steam.
This document discusses cogeneration and improving energy efficiency in sugar mills. It provides information on:
1) Cogeneration involves the combined production of electrical power and useful thermal energy from a common fuel source. This allows for better utilization of resources and independence in power and steam.
2) Major advantages of cogeneration include lower production costs, quick return on investment, and ability to use biomass fuels. It also provides a solution to power problems when hydropower availability is low.
3) Case studies show potential energy savings through retrofitting with high-pressure boilers, improving control systems, reducing downtime, and acquiring best available technologies for new projects.
This document discusses the different types of transformers used in power generating stations. It describes 7 main types: generator transformer, station transformer, distribution transformer, unit auxiliary transformer, auxiliary transformer, instrument transformer, and rectifier transformer. It provides details on the functions and purpose of each transformer type. The generator transformer steps up voltage from the generator, while station and auxiliary transformers provide power for starting units and station equipment. Instrument transformers are used for metering and protection.
The document contains electrical parameters and power loss calculations for three different transmission line configurations transmitting 40 MW of power: a 33kV double circuit line, a 66kV line, and a 132kV line. It compares the current, conductor type, resistance, distance, power loss in Watts, and percentage power losses for each configuration using both 261 sqmm and 484 sqmm conductors over a 1 km distance. The percentage power losses are highest for the 33kV line at 0.375% and reduce progressively for the 66kV and 132kV lines.
The document provides an overview of the Indian Electricity Act of 2003 and its amendments. Some key points:
- The Act was enacted to consolidate laws around electricity generation, transmission, distribution and use. It aims to promote competition and protect consumer interests.
- It establishes regulatory commissions and an appellate tribunal to regulate tariffs and resolve disputes.
- Amendments in 2007 focused on rural electrification, reducing cross-subsidies gradually, and recognizing power theft as a criminal offense.
- Proposed 2014 amendments aim to enforce grid security, promote renewable energy, streamline tariff determination and encourage retail competition.
The document discusses India's power generation sources and capacity. It notes that thermal power makes up the largest share at 86,003 MW, followed by hydro at 36,953 MW. It provides a breakdown of installed capacity by source and highlights the emphasis on developing non-conventional energy sources like solar and wind. The document also discusses India's electricity act, tariff structures, scheduling guidelines, benefits of intra-state ABT, trends in grid disturbances and voltage profiles.
This document provides an overview of different types of power plants including thermal, hydroelectric, nuclear, gas, diesel, and non-conventional power plants. It describes the basic components and working principles of each type of power plant. For hydroelectric plants specifically, it explains the key features and applications of Pelton wheels, reaction turbines, Kaplan turbines, and Francis turbines. The document also provides details on ocean thermal energy conversion, wind power, tidal power, geothermal energy, and magnetohydrodynamic power generation.
This document discusses a presentation on variable frequency drives (VFDs). It includes sections on load profiles, motor and load torques, control methods for drives, VFD components and working principles, advantages of VFDs, and a case study on potential energy savings from installing VFDs at a power plant. The case study estimates total annual energy savings of 2,350,000 kWh and payback period of 41 months for a VFD installation project with a total investment of 1,758.6 lakhs.
This document describes the thermal power cycle of a steam turbine power plant. It includes diagrams of the boiler, turbines, condenser and other components. It discusses the efficiencies of the boiler (86.5%), high pressure turbine (81.11%), intermediate pressure turbine (89.83%) and low pressure turbine (85%). It states that the overall steam cycle efficiency is 40%, with 60% of heat being removed by the condenser. Losses at each stage are also outlined.
This document provides an overview of congestion management in power systems. It discusses that congestion occurs when the physical or operational limits of the transmission network are reached. Congestion management aims to prioritize transactions to avoid overloading the network. It involves both precautionary actions by system operators to allow only transactions within limits, and remedial actions if congestion occurs in real-time due to unscheduled flows. The document then covers various congestion management methods including explicit auctions, implicit auctions, market splitting, counter trading, and re-dispatching. It compares the characteristics and examples of different market-based and non-market based approaches.
This document summarizes the principles and operation of an induction generator. It explains that an induction generator operates when the rotor spins faster than synchronous speed, inducing a current in the stator. Reactive power is required from an external capacitor bank to generate a rotating magnetic field. Induction generators are simpler and cheaper than other generators but have lower efficiency and cannot independently regulate voltage levels. Their applications include use in variable-speed wind turbines and dynamic braking systems.
The document covers the newly implemented regulation "Deviation settlement and mechanism" by CERC (central electricity regulatory commission.
This regulation has replaced the UI Regulation and mechanism.
The document discusses the evolution of India's power tariff system from pre-1992 to the introduction of the availability based tariff (ABT) system in 2002. It provides details on the key components of ABT including capacity charges, energy charges, unscheduled interchange charges, and incentives. It also defines availability under ABT as the declared capacity of a generator accounting for planned and unplanned outages. The document outlines the methodology for generation scheduling under ABT and provisions for revising schedules due to outages or transmission constraints. It discusses capacity charges calculation and penalty for misdeclaration of capacity.
Excitation System & capability curve of synchronous generatorMANOJ KUMAR MAHARANA
Excitation systems perform control and protective functions essential to the satisfactory performance of the power system.
The amount of continuous reactive power a generator can supply is restricted by various limits. In the over-excitation region limits are imposed by rotor heating or amount of field current and second is the stator current. In the under excitation region the limits are imposed by load angle. So in steady state the generator should always operate within this region and the loci of the various limiters are called the capability curve of the generator.
The document provides an overview of the Mejia Thermal Power Station (MTPS) located in West Bengal, India. It is owned by the Damodar Valley Corporation and has a total installed capacity of 2340 MW generated from various units. The document describes the key components of the thermal power plant including the coal handling system, pulverizer, boiler, turbine, condenser, and switchyard. It also provides a step-by-step explanation of how coal is converted into electrical energy within the power station.
The document provides details about the cooling and sealing system of a 247MVA turbo generator. It describes the generator specifications including rating, connection type, phases, rated speed, and insulation class. It then summarizes the need for generator cooling using hydrogen gas and water to minimize heat and ensure uniform temperature distribution. The rotor and stator cooling systems are explained along with specifications. Finally, the generator sealing system is outlined, which uses seal oil to prevent hydrogen leakage and maintain differential pressure between the oil and hydrogen.
This document presents an overview of reactive power compensation. It defines reactive power compensation as managing reactive power to improve AC system performance. There are two main aspects: load compensation to increase power factor and voltage regulation, and voltage support to decrease voltage fluctuations. Several methods of reactive power compensation are discussed, including shunt compensation using capacitors and reactors, series compensation, static VAR compensators (SVCs), static compensators (STATCOMs), and synchronous condensers. SVC and STATCOM technologies are compared, with STATCOMs having advantages of smaller components, better control, and transient response.
The document summarizes electricity regulations in India. It discusses the Central Electricity Regulatory Commission (CERC) and State Electricity Regulatory Commissions (SERCs), which regulate the electricity sector. It also outlines key aspects of the Electricity Act 2003, including provisions related to power generation, transmission, and distribution. The act aims to increase competition and private sector participation in the electricity industry.
The load dispatch center monitors and controls the power system to ensure reliable power supply. It collects data using a SCADA system and oversees elements like generators, transformers, and transmission lines. The load dispatch center performs economic and secure operation of the power system, and works to restore power lines after faults. It is responsible for functions like load forecasting, outage monitoring, voltage regulation, load scheduling, and coordination between grids.
Best ppt on thermal power station workingRonak Thakare
The document provides an overview of thermal power generation and the key components involved. It discusses how chemical energy from fuel is converted through various processes into electrical energy. The main components that enable this conversion are the boiler, turbine, and generator. Steam generated in the boiler powers the turbine, which spins the generator's rotor to produce electricity via electromagnetic induction. The turbine has high, intermediate, and low pressure sections to efficiently extract energy from the steam.
This document discusses cogeneration and improving energy efficiency in sugar mills. It provides information on:
1) Cogeneration involves the combined production of electrical power and useful thermal energy from a common fuel source. This allows for better utilization of resources and independence in power and steam.
2) Major advantages of cogeneration include lower production costs, quick return on investment, and ability to use biomass fuels. It also provides a solution to power problems when hydropower availability is low.
3) Case studies show potential energy savings through retrofitting with high-pressure boilers, improving control systems, reducing downtime, and acquiring best available technologies for new projects.
This document discusses the different types of transformers used in power generating stations. It describes 7 main types: generator transformer, station transformer, distribution transformer, unit auxiliary transformer, auxiliary transformer, instrument transformer, and rectifier transformer. It provides details on the functions and purpose of each transformer type. The generator transformer steps up voltage from the generator, while station and auxiliary transformers provide power for starting units and station equipment. Instrument transformers are used for metering and protection.
The document contains electrical parameters and power loss calculations for three different transmission line configurations transmitting 40 MW of power: a 33kV double circuit line, a 66kV line, and a 132kV line. It compares the current, conductor type, resistance, distance, power loss in Watts, and percentage power losses for each configuration using both 261 sqmm and 484 sqmm conductors over a 1 km distance. The percentage power losses are highest for the 33kV line at 0.375% and reduce progressively for the 66kV and 132kV lines.
The document provides an overview of the Indian Electricity Act of 2003 and its amendments. Some key points:
- The Act was enacted to consolidate laws around electricity generation, transmission, distribution and use. It aims to promote competition and protect consumer interests.
- It establishes regulatory commissions and an appellate tribunal to regulate tariffs and resolve disputes.
- Amendments in 2007 focused on rural electrification, reducing cross-subsidies gradually, and recognizing power theft as a criminal offense.
- Proposed 2014 amendments aim to enforce grid security, promote renewable energy, streamline tariff determination and encourage retail competition.
The document discusses India's power generation sources and capacity. It notes that thermal power makes up the largest share at 86,003 MW, followed by hydro at 36,953 MW. It provides a breakdown of installed capacity by source and highlights the emphasis on developing non-conventional energy sources like solar and wind. The document also discusses India's electricity act, tariff structures, scheduling guidelines, benefits of intra-state ABT, trends in grid disturbances and voltage profiles.
This document provides an overview of different types of power plants including thermal, hydroelectric, nuclear, gas, diesel, and non-conventional power plants. It describes the basic components and working principles of each type of power plant. For hydroelectric plants specifically, it explains the key features and applications of Pelton wheels, reaction turbines, Kaplan turbines, and Francis turbines. The document also provides details on ocean thermal energy conversion, wind power, tidal power, geothermal energy, and magnetohydrodynamic power generation.
This document discusses a presentation on variable frequency drives (VFDs). It includes sections on load profiles, motor and load torques, control methods for drives, VFD components and working principles, advantages of VFDs, and a case study on potential energy savings from installing VFDs at a power plant. The case study estimates total annual energy savings of 2,350,000 kWh and payback period of 41 months for a VFD installation project with a total investment of 1,758.6 lakhs.
This document describes the thermal power cycle of a steam turbine power plant. It includes diagrams of the boiler, turbines, condenser and other components. It discusses the efficiencies of the boiler (86.5%), high pressure turbine (81.11%), intermediate pressure turbine (89.83%) and low pressure turbine (85%). It states that the overall steam cycle efficiency is 40%, with 60% of heat being removed by the condenser. Losses at each stage are also outlined.
This document provides an overview of congestion management in power systems. It discusses that congestion occurs when the physical or operational limits of the transmission network are reached. Congestion management aims to prioritize transactions to avoid overloading the network. It involves both precautionary actions by system operators to allow only transactions within limits, and remedial actions if congestion occurs in real-time due to unscheduled flows. The document then covers various congestion management methods including explicit auctions, implicit auctions, market splitting, counter trading, and re-dispatching. It compares the characteristics and examples of different market-based and non-market based approaches.
This document summarizes the principles and operation of an induction generator. It explains that an induction generator operates when the rotor spins faster than synchronous speed, inducing a current in the stator. Reactive power is required from an external capacitor bank to generate a rotating magnetic field. Induction generators are simpler and cheaper than other generators but have lower efficiency and cannot independently regulate voltage levels. Their applications include use in variable-speed wind turbines and dynamic braking systems.
The document covers the newly implemented regulation "Deviation settlement and mechanism" by CERC (central electricity regulatory commission.
This regulation has replaced the UI Regulation and mechanism.
The document discusses the evolution of India's power tariff system from pre-1992 to the introduction of the availability based tariff (ABT) system in 2002. It provides details on the key components of ABT including capacity charges, energy charges, unscheduled interchange charges, and incentives. It also defines availability under ABT as the declared capacity of a generator accounting for planned and unplanned outages. The document outlines the methodology for generation scheduling under ABT and provisions for revising schedules due to outages or transmission constraints. It discusses capacity charges calculation and penalty for misdeclaration of capacity.
1) Ancillary services are necessary to support power grid operations and maintain power quality, reliability and security. They include frequency support, reactive power support, and black start capabilities.
2) India's power grids currently face issues like frequent unplanned load shedding due to lack of flexibility and reserves. There is a need for ancillary services to harness available generation and relieve congestion.
3) The document proposes a framework for Frequency Support Ancillary Services (FSAS) in India utilizing fragmented generation capacity through competitive bidding on power exchanges. This aims to stabilize grid frequency and reduce load shedding.
The document discusses concepts of cost analysis including short-run cost functions. It provides a table showing the relationship between total fixed cost, total variable cost, total cost, average variable cost, average fixed cost, average cost, and marginal cost at different output levels. It notes that average cost is lowest when marginal cost equals average cost, representing the least cost input combination or optimal level of production. An example table is given showing output levels and total costs, from which the least cost input combination can be identified as the output level where average cost is lowest.
In just a few short years from now
the UK demand for electricity will be
uncomfortably close to the combined
generating power of both home and
imported power. There has been
significant investment in renewables
and wind in particular for the ‘green’
imperative and this has improved
where in 2017 a reported 52% of
demand was supplied from
renewable sources.
Some renewable sources are more
reliable than others and
furthermore, the gas and coal power
stations are being decommissioned to
align with emissions legislations from
Brussels, and any nuclear alternatives
will take years to come on line.
Consequently, there is an
understandable requirement for
embedded or distributed power
generation sources to secure supplies
and to export (Either partly, wholly,
or as part of a smart supply) to keep
the country running through all power
cycles. All of this means that relatively
small generators, diesel or gas;
reciprocating or turbine, are connected
to the grid and are increasing in their
percentage contribution.
The grid, as we know it now, is
fixed in volts and frequency and fairly
immovable. The grid of the future with
increasing wind power input and lighter
generators (say 30kW to 5mW) will
be less so and subjected to volts and
frequency excursions exceeding what
we see now.
1 |
The document discusses automatic power factor controllers (APFC). It defines power factor and explains how inductive loads can cause low power factors. An APFC automatically switches capacitors to improve the power factor as loads vary. This reduces electricity bills, demand charges, losses, and improves voltage regulation. APFC panels ranging from 10 to 300kVar are presented along with their benefits like cost savings, better equipment performance, and reduced infrastructure needs. APFCs are recommended for various industrial and commercial applications.
Product: Power Factor & Harmonics: StacoSine: TechnicalStaco Energy
This document discusses power factor, harmonics, and power quality issues. It defines power factor as the ratio of real power to apparent power, and explains how low power factor means electrical power is not being fully utilized. Common sources of harmonics and symptoms caused by harmonics are outlined. The document also provides an overview of power factor correction capacitors and considerations for their application, as well as basics of harmonics and potential economic impacts.
Net metering requirements in punjab for grid interactive rooftop SPV Power PlantHarish Sharma
All the consumers of the State Distribution licensee or PSPCL who intend to encourage solar energy and set up solar PV plants at available places on roof-tops of Individual households, industries, Government or Semi-Government or Local Body offices, commercial establishments, institutions, residential complexes shall be eligible with project capacity ranging from minimum 1 KWp upto 1MWp (AC side) with or without battery back-up support. Consumers may generate solar power for self consumption and may feed excess power into the grid to be adjusted.
Electrical & MEP Design - Study material.pdfsureshrajan38
The document provides information on mechanical, electrical, and plumbing (MEP) systems for buildings. It discusses the roles of mechanical, electrical, and public health engineering in building design and construction. It also outlines some common challenges in MEP coordination and design, including limited building space, construction schedules, and lack of skilled workers. Additionally, it provides cost breakdowns for typical MEP systems, lists various electrical components and their specifications, and discusses standards and best practices for electrical design, installation, and testing.
This document discusses power transformer energy performance standards and regulations around the world. It covers background topics, common policy instruments used to promote energy efficiency, reference standards used to measure performance, and categories of energy performance metrics. Key points addressed include definitions of rated power, reference temperatures, frequencies and voltages in standards, as well as common metrics like maximum losses, minimum efficiency, and peak efficiency index.
The document provides an overview of CERC regulations issued in 2022 related to the electricity sector in India. It summarizes the key provisions of the Deviation Settlement Mechanism (DSM) Regulation 2022 and Ancillary Services Regulation 2022. The DSM Regulation 2022 aims to incentivize zero deviation from schedules by grid entities through penalties for over-injection and under-injection beyond certain thresholds. It outlines deviation charges and rates calculated based on examples for different station scenarios. The Ancillary Services Regulation 2022 replaces existing mechanisms with performance-based secondary reserves and bid-based tertiary reserves.
Demand-Side Flexibility for Reliable Ancillary Services in a Smart Grid: Elim...Sean Meyn
A survey of our 2015 HICSS article (reference below), which is largely a survey of demand response technology developed at the University of Florida.
Presented at the Workshop on Electricity Markets and Optimization 27th of November 2014. Aalborg University, Denmark
@inproceedings{barbusmey14,
Address = {Kauai, Hawaii},
Author = {Barooah, Prabir and Bu\v{s}i\'{c}, Ana and Meyn, Sean},
Booktitle = {Proc. {48th Annual Hawaii International Conference on System Sciences (HICSS)}},
Note = {(invited)},
Publisher = {University of Hawaii},
Title = {Spectral Decomposition of Demand-Side Flexibility for Reliable Ancillary Services in a Smart Grid},
Year = {2015}}
This document describes an intermediate frequency induction melting cooker technology that uses two electric cooker bodies powered by a single intermediate frequency electrical source. The system includes electric cookers rated at 5-6 tons capacity that can reach 1750°C, a 3500KVA transformer that reduces voltage from 10KV to 750V, and an intermediate frequency electrical source rated at 3000KW and 250Hz. The scheme allows one cooker to melt material while the other remains on standby.
Power factor is the ratio of active power to apparent power. Low power factors are caused by inductive loads and non-linear loads which result in inefficient energy use and overloading of electrical equipment. Automatic power factor correction (APFC) systems automatically switch capacitor banks to maintain a target power factor under varying loads without manual intervention. Proper selection of capacitors, switching equipment, and harmonic filters is required when implementing APFC to prevent overloading and resonance issues.
This document discusses power transformer ratings, including rated power, voltages, tapping, short circuit impedance, losses, clock hour notation, and liquid immersed vs dry types. It provides details on calculating rated power based on load power and factors, selecting standard rated voltages, common tapping ranges, choosing short circuit impedance values, and standards for no-load and load losses. It also compares risks of liquid immersed and dry transformers in case of fire.
The document discusses the purpose and performance specifications of an excitation system used to regulate the terminal voltage of an electrical machine. It describes the types of excitation systems as indirect or direct and covers topics like auto and manual controls, analog and digital control configurations, parameter settings, and limiters to prevent over and under excitation. The excitation system aims to maximize machine capability while maintaining stability under different operating conditions.
Similar to Deviation Settlement Mechanism (DSM) (20)
Walmart Business+ and Spark Good for Nonprofits.pdfTechSoup
"Learn about all the ways Walmart supports nonprofit organizations.
You will hear from Liz Willett, the Head of Nonprofits, and hear about what Walmart is doing to help nonprofits, including Walmart Business and Spark Good. Walmart Business+ is a new offer for nonprofits that offers discounts and also streamlines nonprofits order and expense tracking, saving time and money.
The webinar may also give some examples on how nonprofits can best leverage Walmart Business+.
The event will cover the following::
Walmart Business + (https://business.walmart.com/plus) is a new shopping experience for nonprofits, schools, and local business customers that connects an exclusive online shopping experience to stores. Benefits include free delivery and shipping, a 'Spend Analytics” feature, special discounts, deals and tax-exempt shopping.
Special TechSoup offer for a free 180 days membership, and up to $150 in discounts on eligible orders.
Spark Good (walmart.com/sparkgood) is a charitable platform that enables nonprofits to receive donations directly from customers and associates.
Answers about how you can do more with Walmart!"
ISO/IEC 27001, ISO/IEC 42001, and GDPR: Best Practices for Implementation and...PECB
Denis is a dynamic and results-driven Chief Information Officer (CIO) with a distinguished career spanning information systems analysis and technical project management. With a proven track record of spearheading the design and delivery of cutting-edge Information Management solutions, he has consistently elevated business operations, streamlined reporting functions, and maximized process efficiency.
Certified as an ISO/IEC 27001: Information Security Management Systems (ISMS) Lead Implementer, Data Protection Officer, and Cyber Risks Analyst, Denis brings a heightened focus on data security, privacy, and cyber resilience to every endeavor.
His expertise extends across a diverse spectrum of reporting, database, and web development applications, underpinned by an exceptional grasp of data storage and virtualization technologies. His proficiency in application testing, database administration, and data cleansing ensures seamless execution of complex projects.
What sets Denis apart is his comprehensive understanding of Business and Systems Analysis technologies, honed through involvement in all phases of the Software Development Lifecycle (SDLC). From meticulous requirements gathering to precise analysis, innovative design, rigorous development, thorough testing, and successful implementation, he has consistently delivered exceptional results.
Throughout his career, he has taken on multifaceted roles, from leading technical project management teams to owning solutions that drive operational excellence. His conscientious and proactive approach is unwavering, whether he is working independently or collaboratively within a team. His ability to connect with colleagues on a personal level underscores his commitment to fostering a harmonious and productive workplace environment.
Date: May 29, 2024
Tags: Information Security, ISO/IEC 27001, ISO/IEC 42001, Artificial Intelligence, GDPR
-------------------------------------------------------------------------------
Find out more about ISO training and certification services
Training: ISO/IEC 27001 Information Security Management System - EN | PECB
ISO/IEC 42001 Artificial Intelligence Management System - EN | PECB
General Data Protection Regulation (GDPR) - Training Courses - EN | PECB
Webinars: https://pecb.com/webinars
Article: https://pecb.com/article
-------------------------------------------------------------------------------
For more information about PECB:
Website: https://pecb.com/
LinkedIn: https://www.linkedin.com/company/pecb/
Facebook: https://www.facebook.com/PECBInternational/
Slideshare: http://www.slideshare.net/PECBCERTIFICATION
Communicating effectively and consistently with students can help them feel at ease during their learning experience and provide the instructor with a communication trail to track the course's progress. This workshop will take you through constructing an engaging course container to facilitate effective communication.
Leveraging Generative AI to Drive Nonprofit InnovationTechSoup
In this webinar, participants learned how to utilize Generative AI to streamline operations and elevate member engagement. Amazon Web Service experts provided a customer specific use cases and dived into low/no-code tools that are quick and easy to deploy through Amazon Web Service (AWS.)
Main Java[All of the Base Concepts}.docxadhitya5119
This is part 1 of my Java Learning Journey. This Contains Custom methods, classes, constructors, packages, multithreading , try- catch block, finally block and more.
Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) CurriculumMJDuyan
(𝐓𝐋𝐄 𝟏𝟎𝟎) (𝐋𝐞𝐬𝐬𝐨𝐧 𝟏)-𝐏𝐫𝐞𝐥𝐢𝐦𝐬
𝐃𝐢𝐬𝐜𝐮𝐬𝐬 𝐭𝐡𝐞 𝐄𝐏𝐏 𝐂𝐮𝐫𝐫𝐢𝐜𝐮𝐥𝐮𝐦 𝐢𝐧 𝐭𝐡𝐞 𝐏𝐡𝐢𝐥𝐢𝐩𝐩𝐢𝐧𝐞𝐬:
- Understand the goals and objectives of the Edukasyong Pantahanan at Pangkabuhayan (EPP) curriculum, recognizing its importance in fostering practical life skills and values among students. Students will also be able to identify the key components and subjects covered, such as agriculture, home economics, industrial arts, and information and communication technology.
𝐄𝐱𝐩𝐥𝐚𝐢𝐧 𝐭𝐡𝐞 𝐍𝐚𝐭𝐮𝐫𝐞 𝐚𝐧𝐝 𝐒𝐜𝐨𝐩𝐞 𝐨𝐟 𝐚𝐧 𝐄𝐧𝐭𝐫𝐞𝐩𝐫𝐞𝐧𝐞𝐮𝐫:
-Define entrepreneurship, distinguishing it from general business activities by emphasizing its focus on innovation, risk-taking, and value creation. Students will describe the characteristics and traits of successful entrepreneurs, including their roles and responsibilities, and discuss the broader economic and social impacts of entrepreneurial activities on both local and global scales.
Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum
Deviation Settlement Mechanism (DSM)
1. Eastern Regional Power Committee, Kolkata-33
S K Pradhan, Assistant Director
Email: shishir.1505@gmail.com, eecom1.erpc@gov.in,
Phone: +91-8249244719
2. Actual Generation – Scheduled Generation (For
Generators)
Total Actual Drawl – Total Scheduled Drawl (For
Beneficiaries)
Worked out for each 15 min time block
Based on average frequency of the relevant time block
Payable for over-drawl/under-injection by buyer/seller
Receivable for under-drawl/over-injection by buyer/seller
ERPC, KOLKATA 2

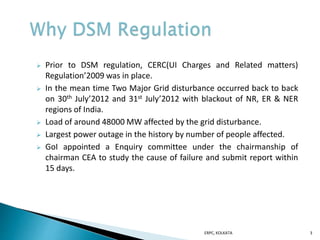

3. Prior to DSM regulation, CERC(UI Charges and Related matters)
Regulation’2009 was in place.
In the mean time Two Major Grid disturbance occurred back to back
on 30th July’2012 and 31st July’2012 with blackout of NR, ER & NER
regions of India.
Load of around 48000 MW affected by the grid disturbance.
Largest power outage in the history by number of people affected.
GoI appointed a Enquiry committee under the chairmanship of
chairman CEA to study the cause of failure and submit report within
15 days.
ERPC, KOLKATA 3

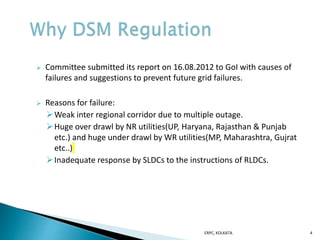

4. Committee submitted its report on 16.08.2012 to GoI with causes of
failures and suggestions to prevent future grid failures.
Reasons for failure:
Weak inter regional corridor due to multiple outage.
Huge over drawl by NR utilities(UP, Haryana, Rajasthan & Punjab
etc.) and huge under drawl by WR utilities(MP, Maharashtra, Gujrat
etc..)
Inadequate response by SLDCs to the instructions of RLDCs.
ERPC, KOLKATA 4

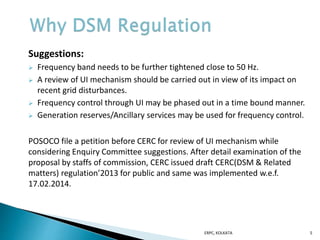

5. Suggestions:
Frequency band needs to be further tightened close to 50 Hz.
A review of UI mechanism should be carried out in view of its impact on
recent grid disturbances.
Frequency control through UI may be phased out in a time bound manner.
Generation reserves/Ancillary services may be used for frequency control.
POSOCO file a petition before CERC for review of UI mechanism while
considering Enquiry Committee suggestions. After detail examination of the
proposal by staffs of commission, CERC issued draft CERC(DSM & Related
matters) regulation’2013 for public and same was implemented w.e.f.
17.02.2014.
ERPC, KOLKATA 5

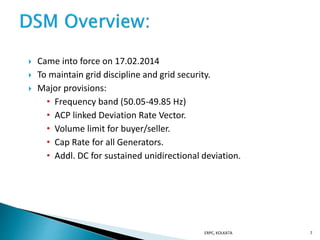

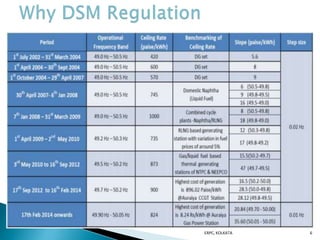

7. Came into force on 17.02.2014
To maintain grid discipline and grid security.
Major provisions:
• Frequency band (50.05-49.85 Hz)
• ACP linked Deviation Rate Vector.
• Volume limit for buyer/seller.
• Cap Rate for all Generators.
• Addl. DC for sustained unidirectional deviation.
ERPC, KOLKATA 7

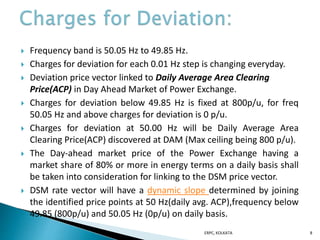

8. Frequency band is 50.05 Hz to 49.85 Hz.
Charges for deviation for each 0.01 Hz step is changing everyday.
Deviation price vector linked to Daily Average Area Clearing
Price(ACP) in Day Ahead Market of Power Exchange.
Charges for deviation below 49.85 Hz is fixed at 800p/u, for freq
50.05 Hz and above charges for deviation is 0 p/u.
Charges for deviation at 50.00 Hz will be Daily Average Area
Clearing Price(ACP) discovered at DAM (Max ceiling being 800 p/u).
The Day-ahead market price of the Power Exchange having a
market share of 80% or more in energy terms on a daily basis shall
be taken into consideration for linking to the DSM price vector.
DSM rate vector will have a dynamic slope determined by joining
the identified price points at 50 Hz(daily avg. ACP),frequency below
49.85 (800p/u) and 50.05 Hz (0p/u) on daily basis.
ERPC, KOLKATA 8
9. Average freq of the time block (Hz) Charges for Deviation
Below Not below Paise/kWh
50.05 0.00
50.05 50.04 1x(P/5)
50.04 50.03 2x(P/5)
------ ------ ------
50.01 50.00 P
50.00 49.99 50.00+15x(P/16)
49.99 49.98 100.00+14x(P/16)
------ ----- ------
49.87 49.86 700.00+2x(P/16)
49.86 49.85 750.00+1x(P/16)
49.85 800.00
ERPC, KOLKATA 9
P=Average Area Clearing Price
10. E1 E2

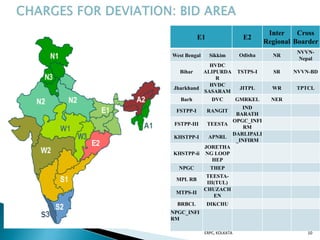

Inter
Regional
Cross
Boarder
West Bengal Sikkim Odisha NR
NVVN-
Nepal
Bihar
HVDC
ALIPURDA
R
TSTPS-I SR NVVN-BD
Jharkhand
HVDC
SASARAM
JITPL WR TPTCL
Barh DVC GMRKEL NER
FSTPP-I RANGIT
IND
BARATH
FSTPP-III TEESTA
OPGC_INFI
RM
KHSTPP-I APNRL
DARLIPALI
_INFIRM
KHSTPP-ii
JORETHA
NG LOOP
HEP
NPGC THEP
MPL RB
TEESTA-
III(TUL)
MTPS-II
CHUZACH
EN
BRBCL DIKCHU
NPGC_INFI
RM
ERPC, KOLKATA 10

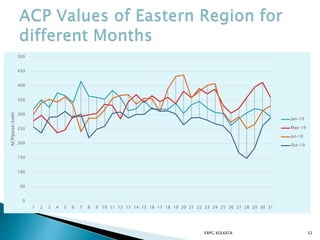

13. ERPC, KOLKATA 13
ERPC, KOLKATA13
DEVIATION
UNDERINJECTION /
OVERDRAWL
OVERINJECTION /
UNDERDRAWL
f < 49.7 Hz f >=50.05
High(DC+ADC)
Payable @824.04p/u
(APM Cap Rate
303.04p/u)
50.05>f >=49.7
DC or DC+ADC Payable
(Cap Rate for APM
303.04p/u)
f < 49.7 Hz 50.1>f >=50.05 f >=50.150.05>f >=49.7
DC Receivable
(Cap Rate for APM
303.04 p/u)
No ADC
DC Receivable
(Cap Rate for
APM 303.04 p/u)
No ADC
No DC
ADC @ 178 p/u
No DC & ADC
No DC & ADC
DC Deviation Charge
ADC Addl. Deviation Charge
Rate @50Hz =178p/uRate @50Hz =ACP
f < 49.85 Hz 50.05>f >=49.85 f >=50.05 f < 49.85 Hz
High(DC+ADC)
Payable @800 p/u
(Cap Rate for
generators)
DC or DC+ADC Payable
(Cap Rate for
generators)
No DC & ADC
DC Receivable
(Cap Rate for
generators)
No ADC
f >=50.1
No DC
ADC @ Min(ACP,
303.04)
DC Receivable
(Cap Rate for
generators)
No ADC
No DC & ADC
50.05>f >=49.85 50.1>f >=50.05

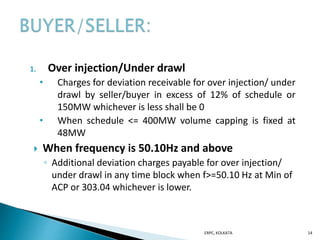

14. 1. Over injection/Under drawl
• Charges for deviation receivable for over injection/ under
drawl by seller/buyer in excess of 12% of schedule or
150MW whichever is less shall be 0
• When schedule <= 400MW volume capping is fixed at
48MW
When frequency is 50.10Hz and above
◦ Additional deviation charges payable for over injection/
under drawl in any time block when f>=50.10 Hz at Min of
ACP or 303.04 whichever is lower.
ERPC, KOLKATA 14

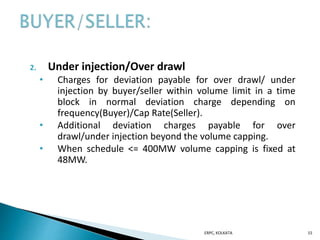

15. 2. Under injection/Over drawl
• Charges for deviation payable for over drawl/ under
injection by buyer/seller within volume limit in a time
block in normal deviation charge depending on
frequency(Buyer)/Cap Rate(Seller).
• Additional deviation charges payable for over
drawl/under injection beyond the volume capping.
• When schedule <= 400MW volume capping is fixed at
48MW.
ERPC, KOLKATA 15
16. Additional Deviation Charge (Under injection/Over drawl)
1. When grid frequency is 49.85 Hz and above
• When 12% of schedule in a time block <= 150MW
• When 12% of schedule in a time block > 150MW
2. When grid frequency is below 49.85 Hz
ERPC, KOLKATA 16
17. Additional Deviation Charge (Over drawl)
1. When grid frequency is 49.85 Hz and above
ERPC, KOLKATA 17
When 12% <=150 MW When 12%> 150MW Additional Charges
12-15% 150-200MW 20 % of Normal
Deviation Charge
depending on average
freq of that block
15-20% 200-250MW 40 % of Normal
Deviation Charge
depending on average
freq of that block
Above 20% Above 250 MW 100 % of Normal
Deviation Charge
depending on average
freq of that block
18. Additional Deviation Charge (Under injection)
1. When grid frequency is 49.85 Hz and above
ERPC, KOLKATA 18
When 12% <=150 MW When 12%> 150MW Additional Charges
12-15% 150-200MW 20 % of MIN (Cape
rate, Deviation Charge
of that time block)
15-20% 200-250MW 40 % of MIN (Cape
rate, Deviation Charge
of that time block)
Above 20% Above 250 MW 100 % of MIN (Cape
rate, Deviation Charge
of that time block)
19. Additional Deviation Charge
2. When grid frequency is below 49.85 Hz
For Buyers
• Deviation Charge is payable at 800 p/u
• Additional Deviation Charge is levied at 800 p/u
For generators
• Deviation Charge is payable at 303.04 p/u
• Additional Deviation Charge is levied at 303.04 p/u.
ERPC, KOLKATA 19
20. 1. Injection
• Domestic coal/lignite/hydro: Capped at 178 p/u
• Imported coal: Capped at 303 p/u
• RLNG: At 800 p/u
• Exemption from volume limit
• Exemption from sign change violation
2. Drawl
• Exemption from volume limit
• No additional charge
• Exemption from sign change violation
ERPC, KOLKATA 20
21. ERPC, KOLKATA 21
A State whose minimum combined installed
capacity* of wind and solar power is 1000 MW or
more.
(* capacity installed as on the last day of the
previous month for present month.)
22. Deviation Charge for Wind/Solar:
ERPC, KOLKATA 22
Absolute Error (%) Under injection (Payable) Over injection (Receivable)
<=15% At the Fixed Rate up to 15% At the Fixed Rate up to 15%
>15% but <=25% At the fixed rate up to 15% +
110% of Fixed Rate for balance
energy >15% but <=25%
At the Fixed Rate up to 15% + 90%
of fixed rate for balance energy
>15% but <=25%
>25% but <=35% At the fixed rate up to 15% +
110% of fixed rate for balance
energy >15% but <=25% + 120%
of the Fixed Rate for balance
energy >25% but <=35%
At the fixed rate up to 15% + 90%
of fixed rate for balance energy
>15% but <=25% + 80% of the
Fixed Rate for balance energy
>25% but <=35%
>35% At the fixed rate up to 15% +
110% of fixed rate for balance
energy >15% but <=25% + 120%
of the Fixed Rate for balance
energy >25% but <=35% + 130%
of the Fixed Rate for balance
energy >35%
At the fixed rate up to 15% + 90%
of fixed rate for balance energy
>15% but <=25% + 80% of the
Fixed Rate for balance energy
>25% but <=35% + 70% of the
Fixed Rate for balance energy
>35%
23. ERPC, KOLKATA 23
For the period up to 31.03.2020 For the period from 01.04.2020
In the event of sustained deviation from
schedule continues for 12 time blocks, the
regional entity (buyer or seller), shall correct
its position by making the sign of its
deviation from schedule changed or by
remaining in the range of +/- 20 MW with
reference to its schedule, at least once,
latest by 13th time block. Addl. Charges of
10% of the time block DSM
payable/receivable shall be applicable in
case of said violation.
In the event of sustained deviation from
schedule continues for 6 time blocks, the
regional entity (buyer or seller), shall correct
its position by making the sign of its
deviation from schedule changed or by
remaining in the range of +/- 20 MW with
reference to its schedule, at least once,
latest by 7th time block. The additional
charge shall be at the rate as specified in the
following table.

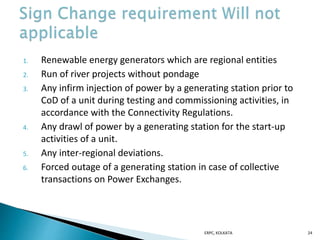

24. 1. Renewable energy generators which are regional entities
2. Run of river projects without pondage
3. Any infirm injection of power by a generating station prior to
CoD of a unit during testing and commissioning activities, in
accordance with the Connectivity Regulations.
4. Any drawl of power by a generating station for the start-up
activities of a unit.
5. Any inter-regional deviations.
6. Forced outage of a generating station in case of collective
transactions on Power Exchanges.
ERPC, KOLKATA 24

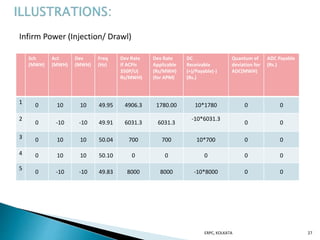

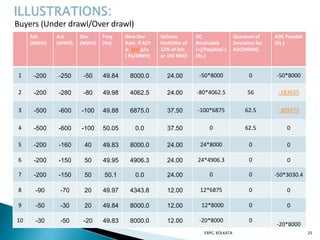

28. Solar (Over injection/ Under injection)
ERPC, KOLKATA 28
Sch
(MWH)
Act
(MWH)
Dev
(MWH)
Dev (MW) Absolute Error(%)
(ABS(Dev)/10))*100
Fixed Dev
Rate
( Rs/MWH)
DC
Receivable
(+)/Payable(-)
(Rs.)
1 2 1.99 -0.01 -0.04 0.4 9350 -0.01*9350
2 2 2.5 0.5 2 20 9350 4558.13
3 4 2.5 -1.5 6 60 9350 -16479.38
29. ERPC, KOLKATA 29
Schedule = -200 MWH Actual = -280 MWH Annex-I
Deviation = -280-(-200) = -80 MWH
Freq = 49.98 Hz, Dev Rate = 4062.5 Rs/MWH
Min ( 12% of sch=24, 37.5) = 24 MWH (So here 12% of sch <150MW or 37.5MWH)
DC payable=-80x4062.5=-325000
Over drawl allowed without levy of ADC= 24 MWH
Quantum of Over drawl on which ADC to be levied = 80-24 = 56 MWH
12-15% 15-20% Above 20%
3% of sch*20% of Dev
Rate of that time block=
0.03*200*0.2*4062.5= Rs
4875
5% of sch*40% of Dev
Rate of that time block=
0.05*200*0.4*4062.5= Rs
16250
(56-8% of sch)*100% of
Dev Rate of that time
block= (56-
16)*1*4062.5=Rs 162500
So total ADC= 4875+16250+162500=Rs 183625
DC & ADC Calculation for Buyer
Return
30. ERPC, KOLKATA 30
Schedule = -500 MWH Actual = -600 MWH Annex-II
Deviation = -600-(-500) = -100 MWH
Freq = 49.88 Hz, Dev Rate = 6875 Rs/MWH
Min ( 12% of sch=60, 37.5) = 37.5 MWH (So here 12% of sch>150MW or 37.5MWH)
DC payable=-100x6875=-687500
Over drawl allowed without levy of ADC= 37.5 MWH
Quantum of Over drawl on which ADC to be levied = 100-37.5 = 62.5 MWH
150-200 MW 200-250 MW Above 250 MW
(200-150)/4*20% of Dev
Rate of that time block=
(200-150)/4*0.2*6875= Rs
17187.5
(250-200)/4*40% of Dev
Rate of that time block=
(250-200)/4*0.4*6875= Rs
34375
(62.5-12.5-12.5)*100% of
Dev Rate of that time
block= 37.5*1*6875=Rs
257812.5
So total ADC= 17187.5+34375+257812.5=Rs 309375
DC & ADC Calculation for Buyer
Return
31. ERPC, KOLKATA 31
Schedule = 1000 MWH Actual = 920 MWH Annex-III
Deviation = 920-1000 = -80 MWH
Freq = 49.95 Hz, Dev Rate = 4906.3 Rs/MWH, Applicable rate=3030.4 Rs/MWH(Cap
Rate for Generators)
Min ( 12% of sch=120, 37.5) = 37.5 MWH (Here 12% of sch >150MW or 37.5MWH)
DC Payable=-100x3030.4 =-242432
Under injection allowed without levy of ADC= 37.5 MWH
Quantum of Under Injection on which ADC to be levied = 80-37.5 = 42.5 MWH
150-200 MW 200-250 MW Above 250 MW
(200-150)/4*20% of MIN
(303.04p/u, Deviation
Charge of that time
block)= 12.5*0.2*3030.4=
Rs 7576
(250-200)/4*40% MIN
(303.04p/u, Deviation
Charge of that time
block)= 12.5*0.4*3030.4=
Rs 15152
(42.5-12.5-12.5)*100%
MIN (303.04p/u,
Deviation Charge of that
time block)=
17.5*1*3030.4=Rs 53032
So total ADC= 7576+15152+53032=Rs 75760
DC & ADC Calculation for Generators
Return
32. ERPC, KOLKATA 32
Schedule = 250 MWH Actual = 190 MWH Annex-IV
Deviation = 190-250 = -60 MWH
Freq = 50.02 Hz, Dev Rate = 2100 Rs/MWH, Applicable rate=2100 Rs/MWH(Cap
Rate for Generators is 3030.4)
Min ( 12% of sch=30, 37.5) = 30 MWH (Here 12% of sch <150MW or 37.5MWH)
DC Payable=-60x2100 =-105000
Under injection allowed without levy of ADC= 30 MWH
Quantum of Under Injection on which ADC to be levied = 60-30 = 30 MWH
So total ADC= =3150+10500+21000=Rs 34650
12-15% 15-20% Above 20%
3% of sch*20% of Dev
Rate of that time block=
0.03*250*0.2*2100= Rs
3150
5% of sch*40% of Dev
Rate of that time block=
0.05*250*0.4*2100= Rs
10500
(30-8% of sch)*100% of
Dev Rate of that time
block= (30-20)*1*2100=Rs
21000
DC & ADC Calculation for Generators
Return

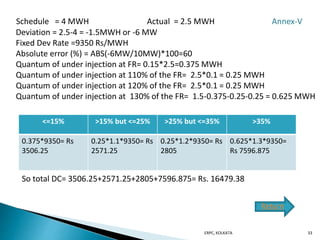

33. ERPC, KOLKATA 33
Schedule = 4 MWH Actual = 2.5 MWH Annex-V
Deviation = 2.5-4 = -1.5MWH or -6 MW
Fixed Dev Rate =9350 Rs/MWH
Absolute error (%) = ABS(-6MW/10MW)*100=60
Quantum of under injection at FR= 0.15*2.5=0.375 MWH
Quantum of under injection at 110% of the FR= 2.5*0.1 = 0.25 MWH
Quantum of under injection at 120% of the FR= 2.5*0.1 = 0.25 MWH
Quantum of under injection at 130% of the FR= 1.5-0.375-0.25-0.25 = 0.625 MWH
<=15% >15% but <=25% >25% but <=35% >35%
0.375*9350= Rs
3506.25
0.25*1.1*9350= Rs
2571.25
0.25*1.2*9350= Rs
2805
0.625*1.3*9350=
Rs 7596.875
So total DC= 3506.25+2571.25+2805+7596.875= Rs. 16479.38
Return

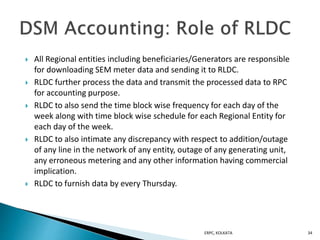

34. All Regional entities including beneficiaries/Generators are responsible
for downloading SEM meter data and sending it to RLDC.
RLDC further process the data and transmit the processed data to RPC
for accounting purpose.
RLDC to also send the time block wise frequency for each day of the
week along with time block wise schedule for each Regional Entity for
each day of the week.
RLDC to also intimate any discrepancy with respect to addition/outage
of any line in the network of any entity, outage of any generating unit,
any erroneous metering and any other information having commercial
implication.
RLDC to furnish data by every Thursday.
ERPC, KOLKATA 34
35. Design program as per relevant CERC regulation incorporating
various rate/volume capping/Cap rate and DSM rate vector for
accounting.
Every week download the processed meter data along with Net
schedule, AGC schedule and frequency data sent by RLDC.
ACP values for each day of the week is taken from NLDC website.
Feed inputs(Actual, Net Schedule, AGC schedule, Frequency, ACP
values).
RPC prepare and issue statement of deviation including
Additional charges for Deviation by every Tuesday for 7 day
period ending on Sunday.
All payments including interest, if any, to be credited to “Regional
Deviation Pool Account Fund” operated by RLDCs.
ERPC, KOLKATA 35

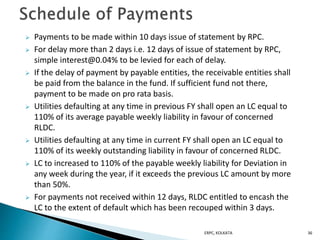

36. Payments to be made within 10 days issue of statement by RPC.
For delay more than 2 days i.e. 12 days of issue of statement by RPC,
simple interest@0.04% to be levied for each of delay.
If the delay of payment by payable entities, the receivable entities shall
be paid from the balance in the fund. If sufficient fund not there,
payment to be made on pro rata basis.
Utilities defaulting at any time in previous FY shall open an LC equal to
110% of its average payable weekly liability in favour of concerned
RLDC.
Utilities defaulting at any time in current FY shall open an LC equal to
110% of its weekly outstanding liability in favour of concerned RLDC.
LC to increased to 110% of the payable weekly liability for Deviation in
any week during the year, if it exceeds the previous LC amount by more
than 50%.
For payments not received within 12 days, RLDC entitled to encash the
LC to the extent of default which has been recouped within 3 days.
ERPC, KOLKATA 36
