Automating a PostgreSQL High Availability Architecture with Ansible

Automating a PostgreSQL
High Availability
Architecture with Ansible
Vibhor Kumar, Chief Performance Architect
Marc Linster, Chief Technology Officer
November 2020

© Copyright EnterpriseDB Corporation, 2020. All rights reserved.2
• Slides and recording will be available in next 48 hours
• Submit questions via Zoom – will be answering at end
• We will be sharing info about EDB and Postgres later
Welcome – Housekeeping Items

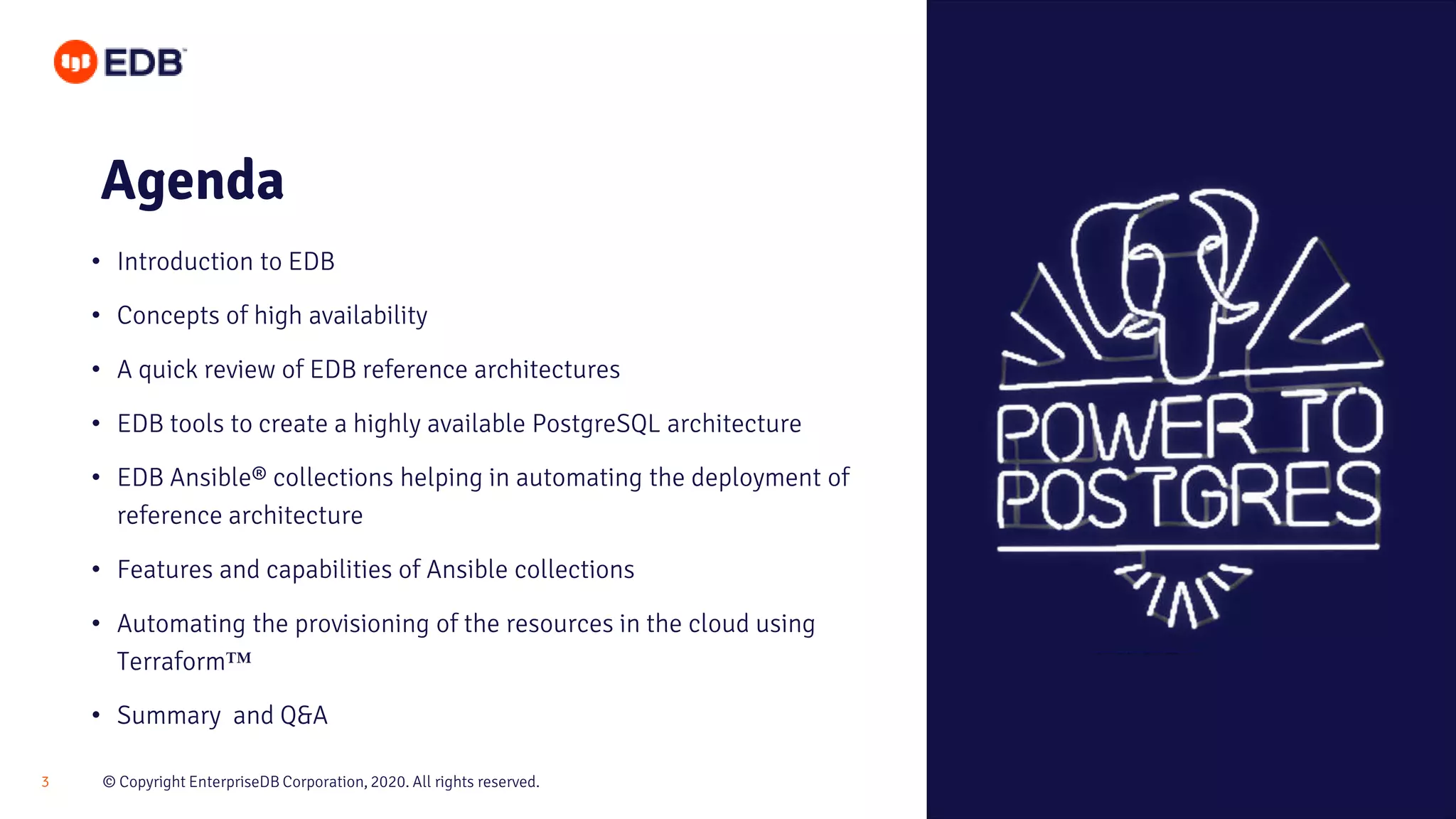

Agenda
• Introduction to EDB
• Concepts of high availability
• A quick review of EDB reference architectures
• EDB tools to create a highly available PostgreSQL architecture
• EDB Ansible® collections helping in automating the deployment of
reference architecture
• Features and capabilities of Ansible collections
• Automating the provisioning of the resources in the cloud using
Terraform™
• Summary and Q&A

The largest dedicated PostgreSQL company
• More customers: Than any dedicated PostgreSQL company
• More experts: Leading PostgreSQL contributors
• More innovation: Positioned to lead in enterprise PostgreSQL
and hybrid cloud
EDB acquires 2ndQuadrant in Sept 2020
+

EDB supercharges PostgreSQL
Largest dedicated
PostgreSQL company
Major PostgreSQL
community leader
Over 5,000 customers -
1 in 4 of Fortune 500
Founded in
2004
Over 10 years of
consecutive quarterly
subscription growth
500+
employees
Recognised leader in Relational
Database Management Systems
(RDBMS) by both Gartner and Forrester
2019
Challengers Leaders
Niche Players Visionaries
Abilitytoexecute
Completeness of
vision

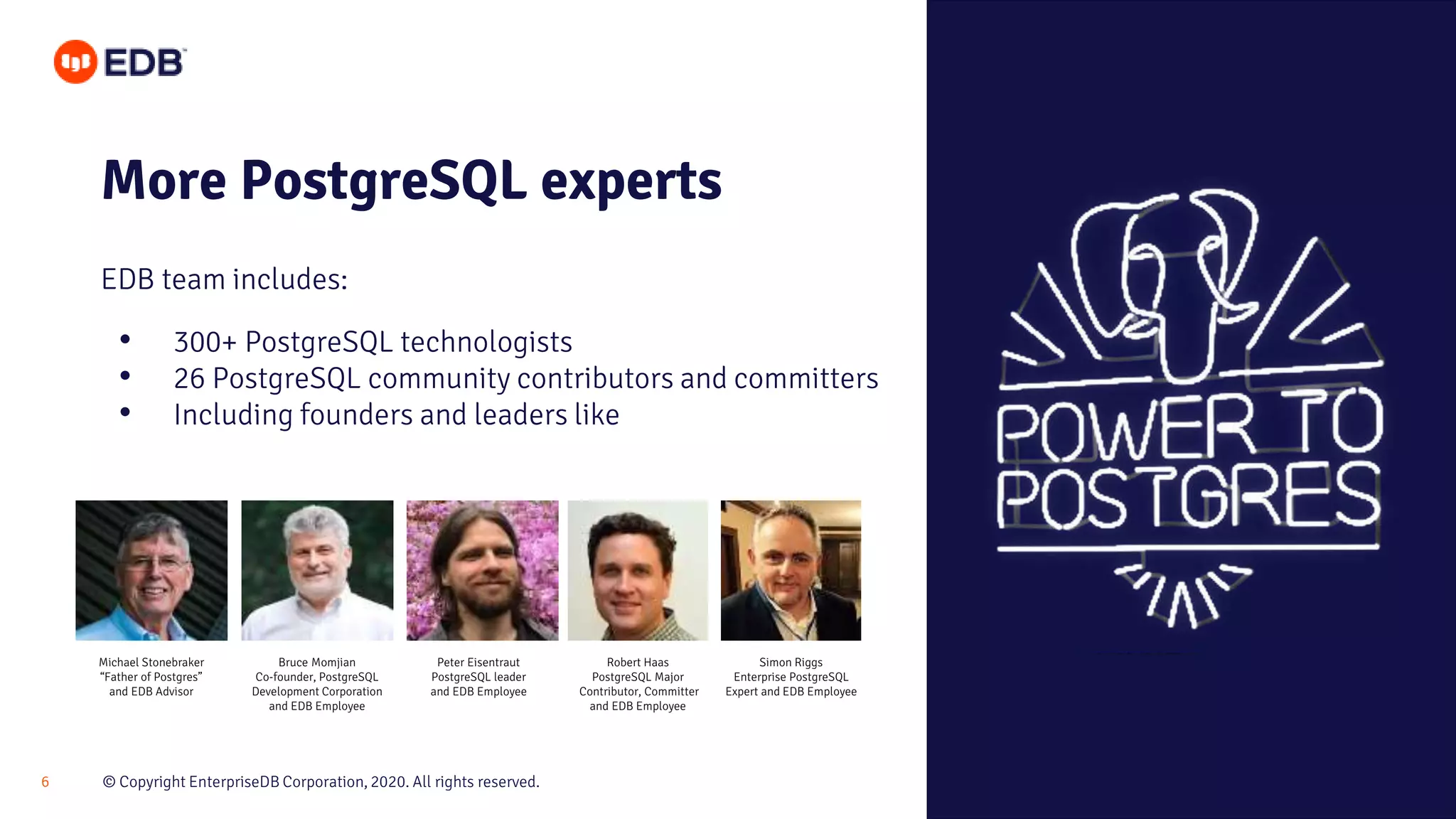

EDB team includes:
More PostgreSQL experts
• 300+ PostgreSQL technologists
• 26 PostgreSQL community contributors and committers
• Including founders and leaders like
Michael Stonebraker
“Father of Postgres”
and EDB Advisor
Bruce Momjian
Co-founder, PostgreSQL
Development Corporation
and EDB Employee
Peter Eisentraut
PostgreSQL leader
and EDB Employee
Robert Haas
PostgreSQL Major
Contributor, Committer
and EDB Employee
Simon Riggs
Enterprise PostgreSQL
Expert and EDB Employee

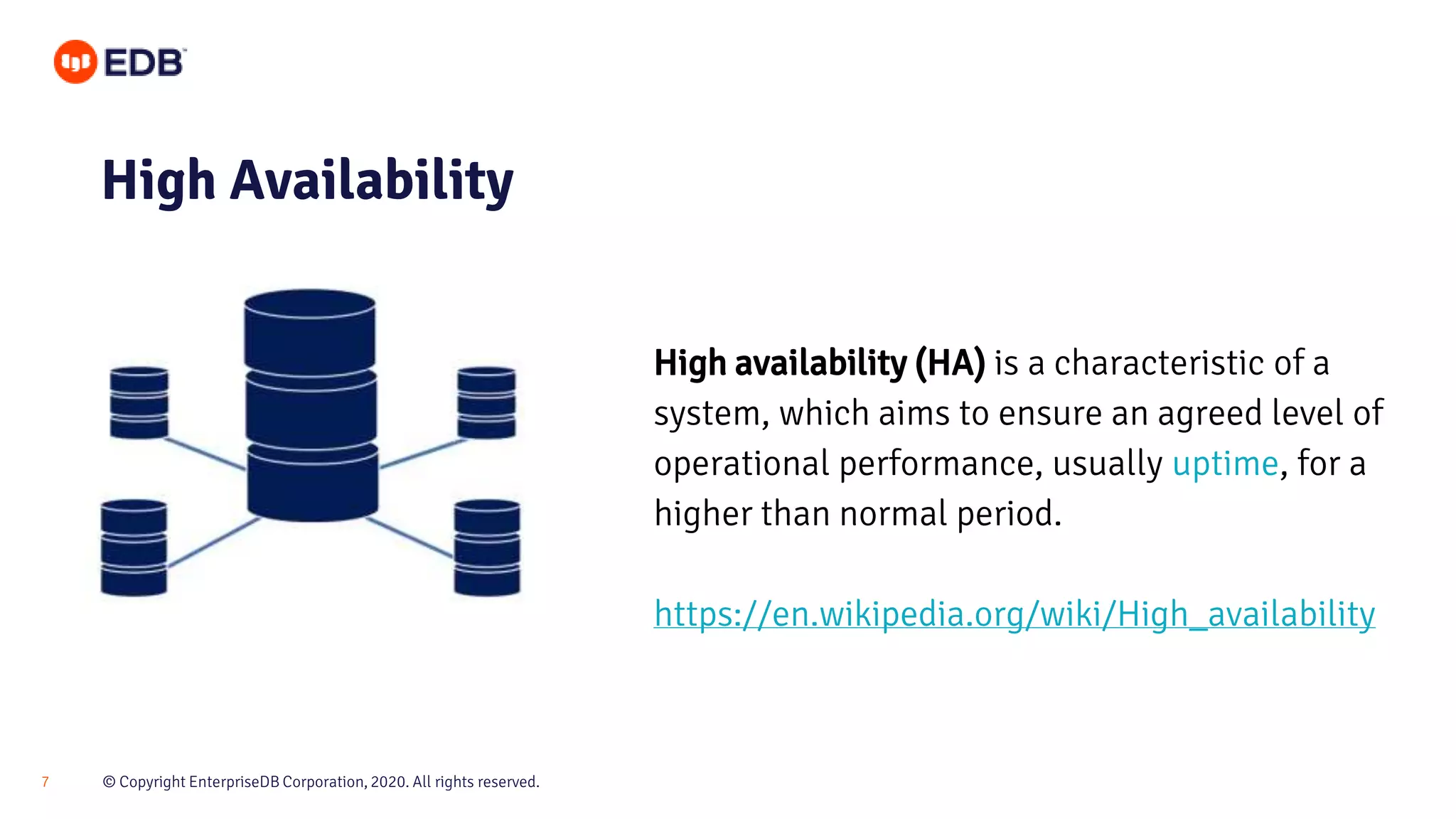

High Availability
High availability (HA) is a characteristic of a
system, which aims to ensure an agreed level of
operational performance, usually uptime, for a
higher than normal period.
https://en.wikipedia.org/wiki/High_availability

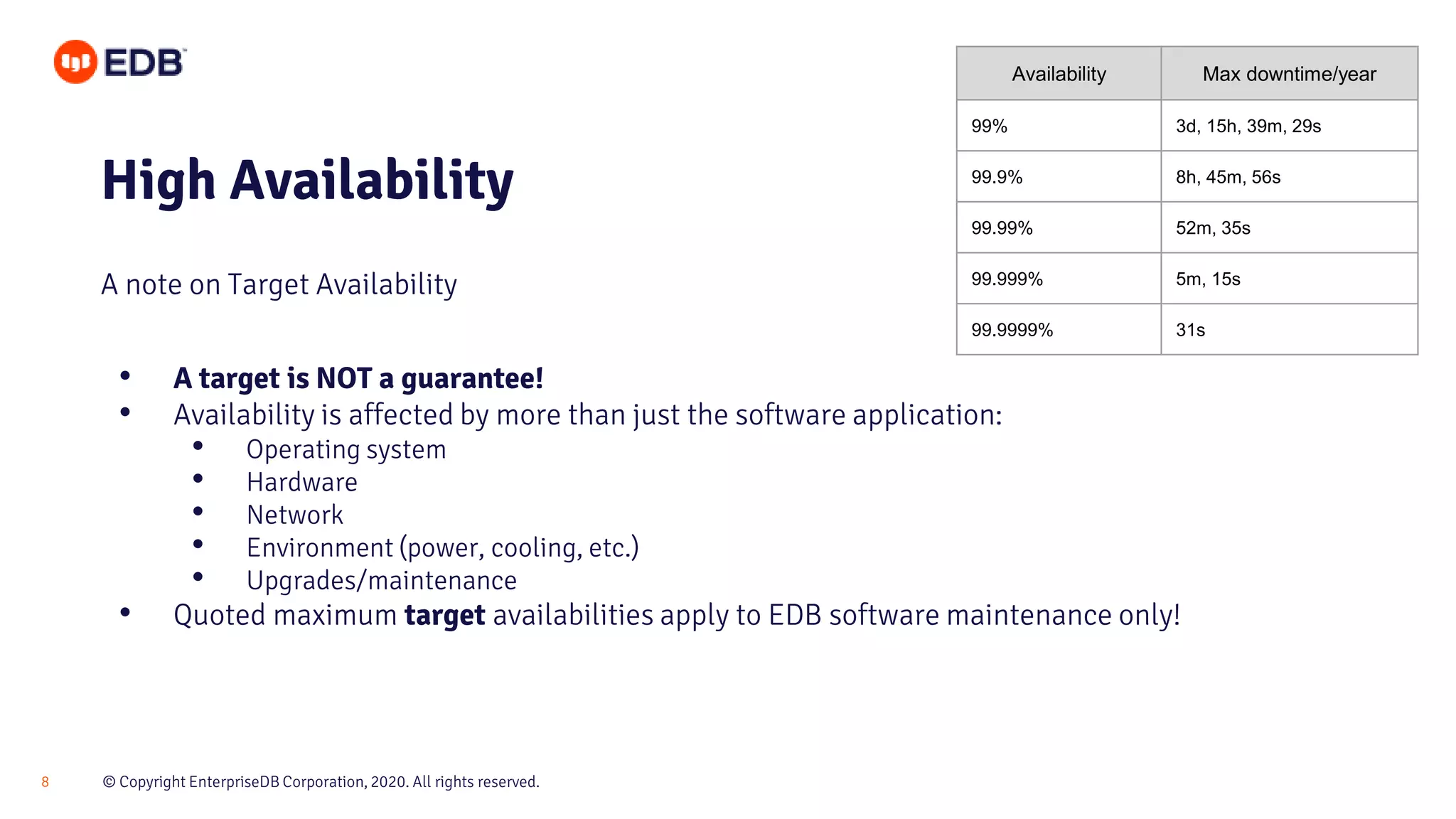

High Availability
A note on Target Availability
• A target is NOT a guarantee!
• Availability is affected by more than just the software application:
• Operating system
• Hardware
• Network
• Environment (power, cooling, etc.)
• Upgrades/maintenance
• Quoted maximum target availabilities apply to EDB software maintenance only!
Availability Max downtime/year
99% 3d, 15h, 39m, 29s
99.9% 8h, 45m, 56s
99.99% 52m, 35s
99.999% 5m, 15s
99.9999% 31s

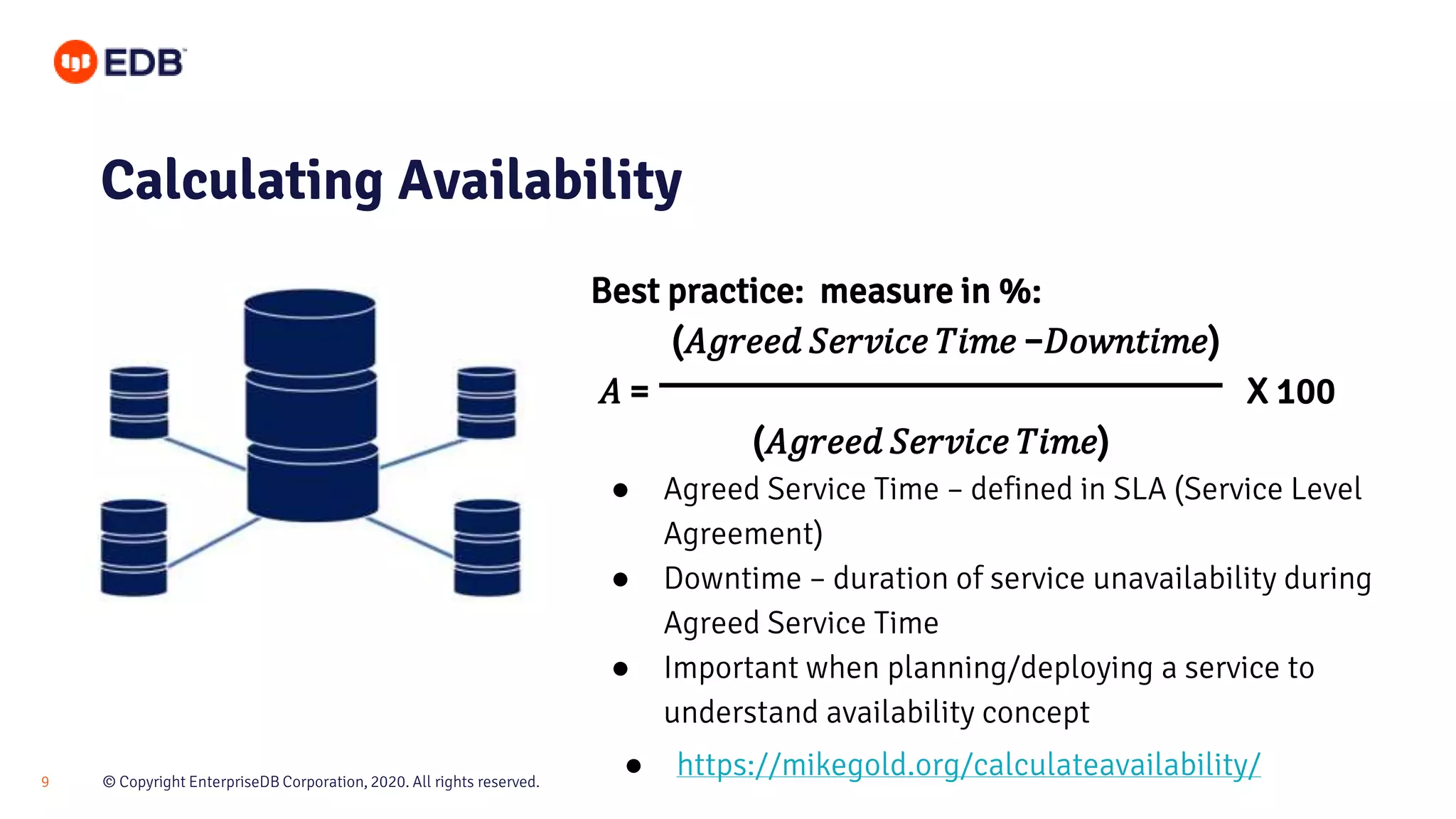

Calculating Availability
Best practice: measure in %:
(𝐴𝑔𝑟𝑒𝑒𝑑 𝑆𝑒𝑟𝑣𝑖𝑐𝑒 𝑇𝑖𝑚𝑒 −𝐷𝑜𝑤𝑛𝑡𝑖𝑚𝑒)
𝐴 = X 100
(𝐴𝑔𝑟𝑒𝑒𝑑 𝑆𝑒𝑟𝑣𝑖𝑐𝑒 𝑇𝑖𝑚𝑒)
● Agreed Service Time – defined in SLA (Service Level
Agreement)
● Downtime – duration of service unavailability during
Agreed Service Time
● Important when planning/deploying a service to
understand availability concept
● https://mikegold.org/calculateavailability/

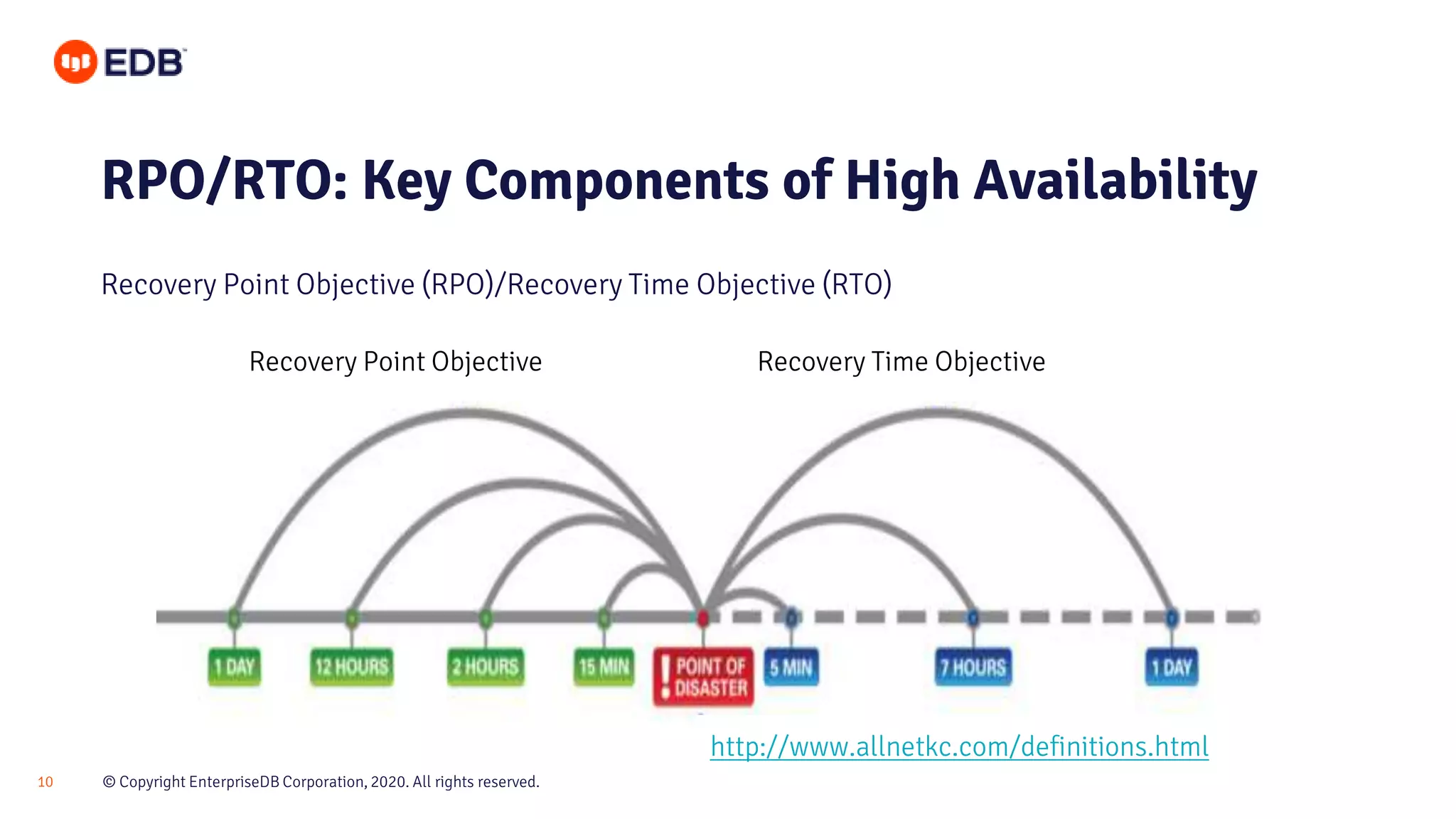

RPO/RTO: Key Components of High Availability
Recovery Point Objective (RPO)/Recovery Time Objective (RTO)
Recovery Point Objective Recovery Time Objective
http://www.allnetkc.com/definitions.html

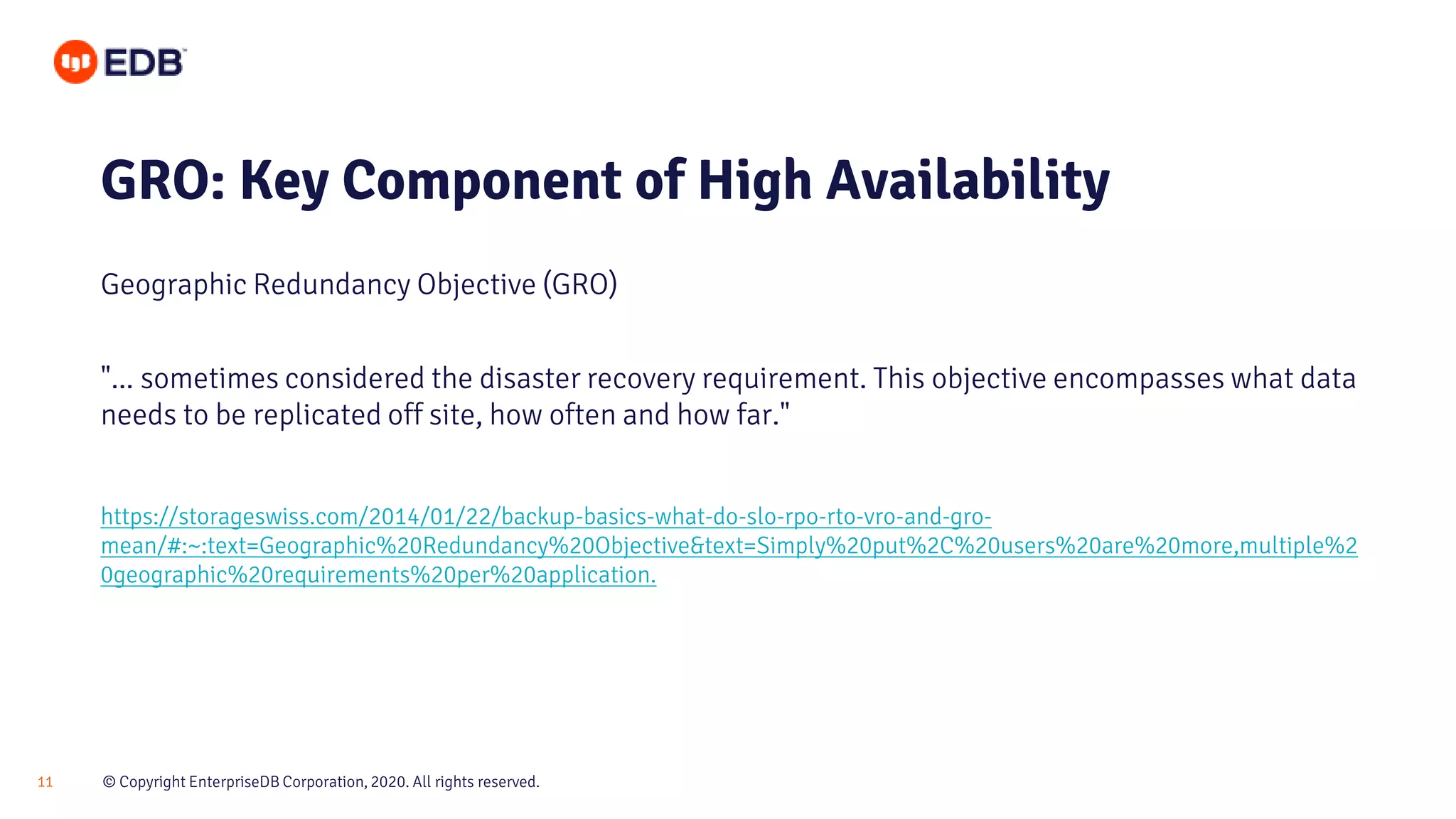

GRO: Key Component of High Availability
Geographic Redundancy Objective (GRO)
"... sometimes considered the disaster recovery requirement. This objective encompasses what data
needs to be replicated off site, how often and how far."
https://storageswiss.com/2014/01/22/backup-basics-what-do-slo-rpo-rto-vro-and-gro-
mean/#:~:text=Geographic%20Redundancy%20Objective&text=Simply%20put%2C%20users%20are%20more,multiple%2
0geographic%20requirements%20per%20application.

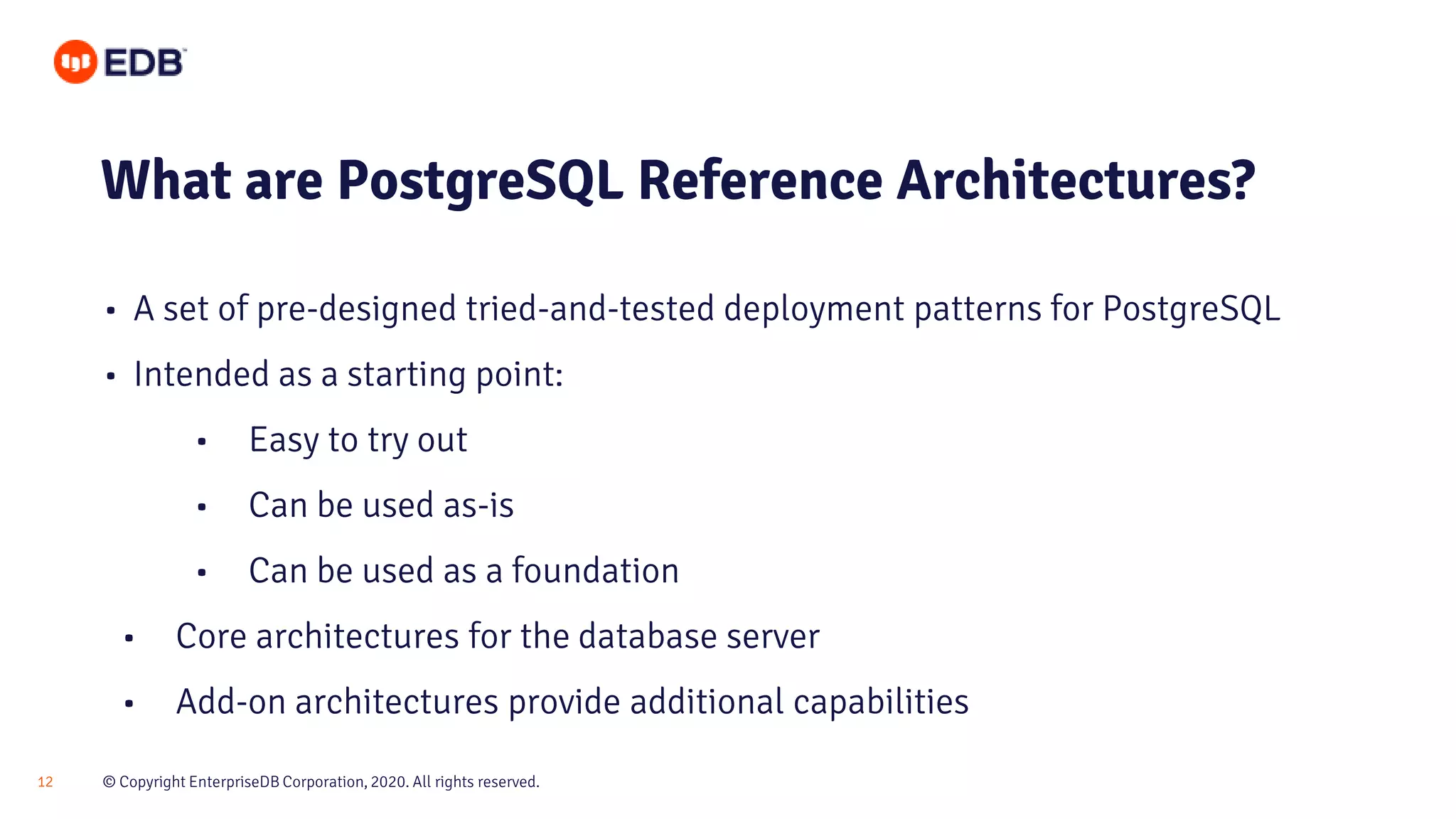

• A set of pre-designed tried-and-tested deployment patterns for PostgreSQL
• Intended as a starting point:
• Easy to try out
• Can be used as-is
• Can be used as a foundation
• Core architectures for the database server
• Add-on architectures provide additional capabilities
What are PostgreSQL Reference Architectures?

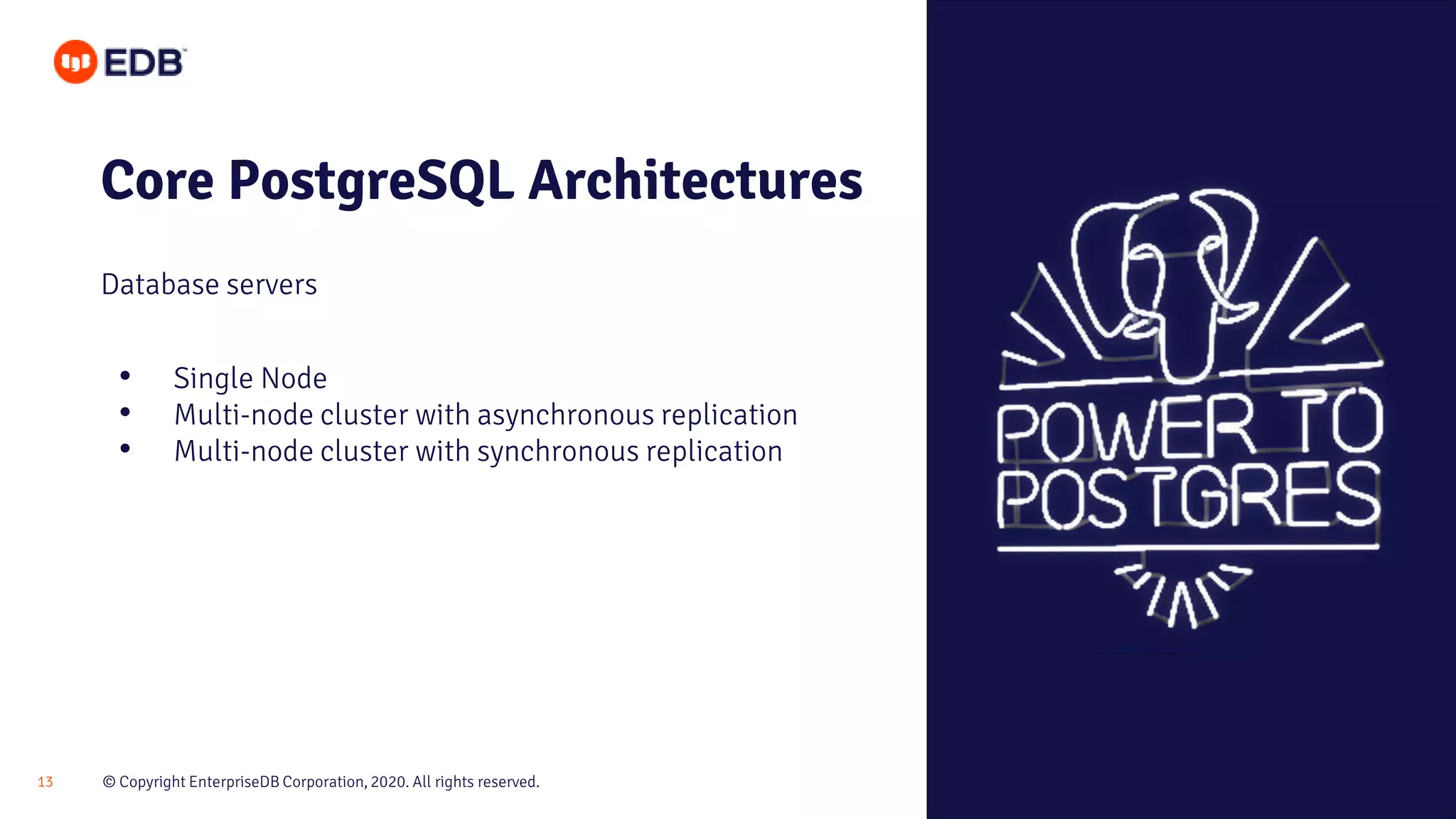

Core PostgreSQL Architectures
Database servers
• Single Node
• Multi-node cluster with asynchronous replication
• Multi-node cluster with synchronous replication

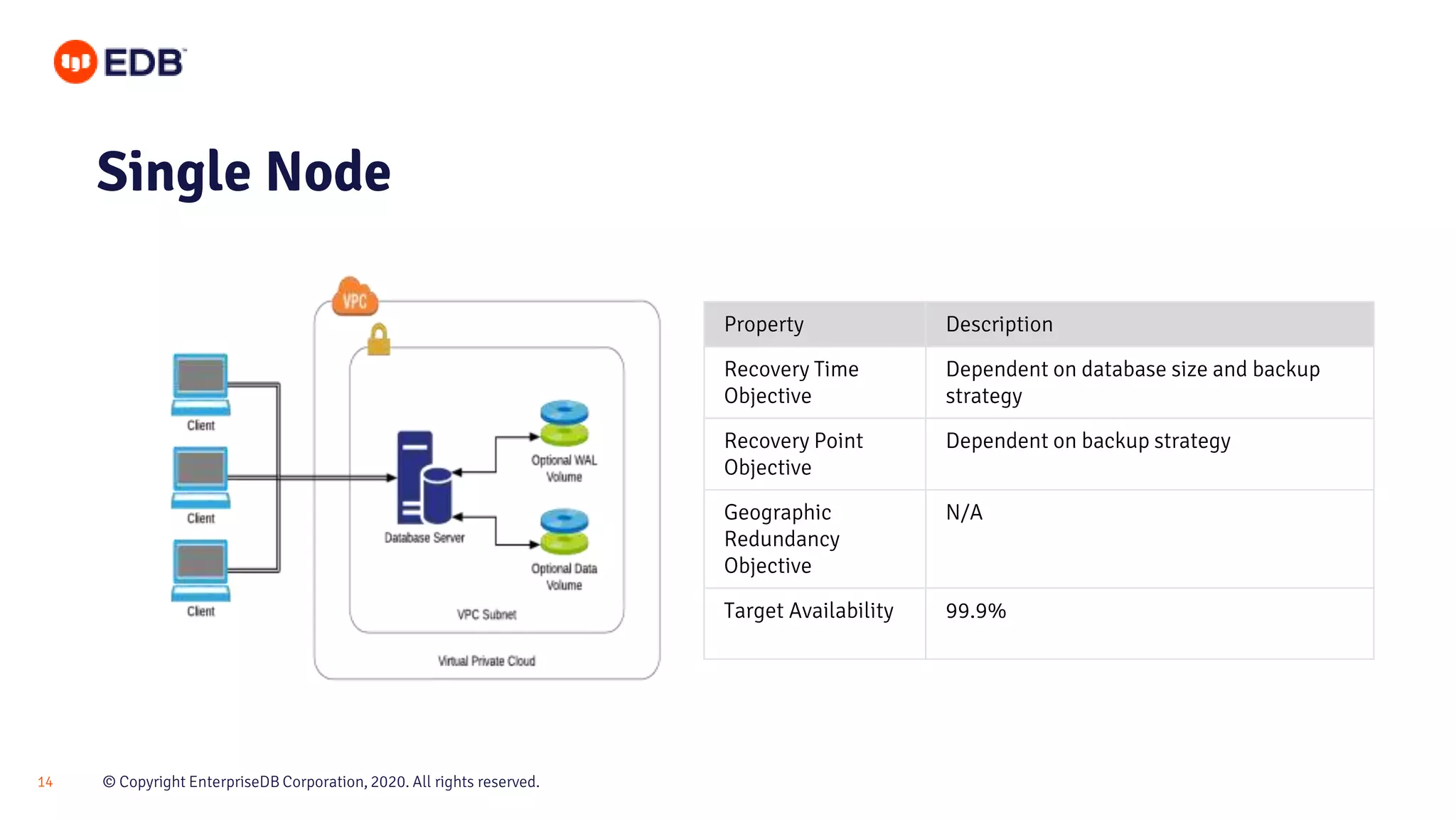

Single Node
Property Description
Recovery Time
Objective
Dependent on database size and backup
strategy
Recovery Point
Objective
Dependent on backup strategy
Geographic
Redundancy
Objective
N/A
Target Availability 99.9%

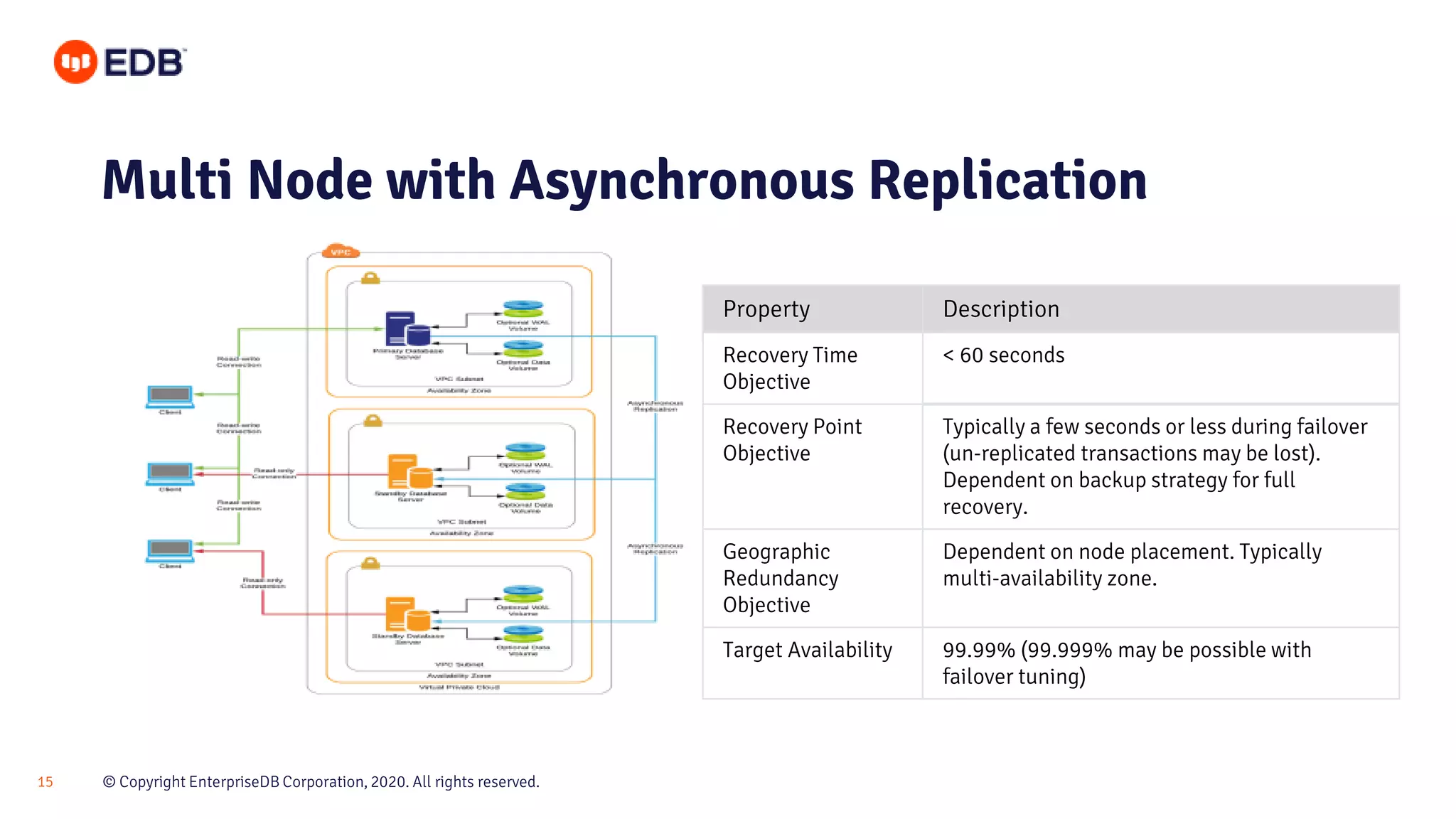

Multi Node with Asynchronous Replication
Recovery Time
Objective
< 60 seconds
Recovery Point
Objective
Typically a few seconds or less during failover
(un-replicated transactions may be lost).
Dependent on backup strategy for full
recovery.
Geographic
Redundancy
Objective
Dependent on node placement. Typically
multi-availability zone.
Target Availability 99.99% (99.999% may be possible with
failover tuning)

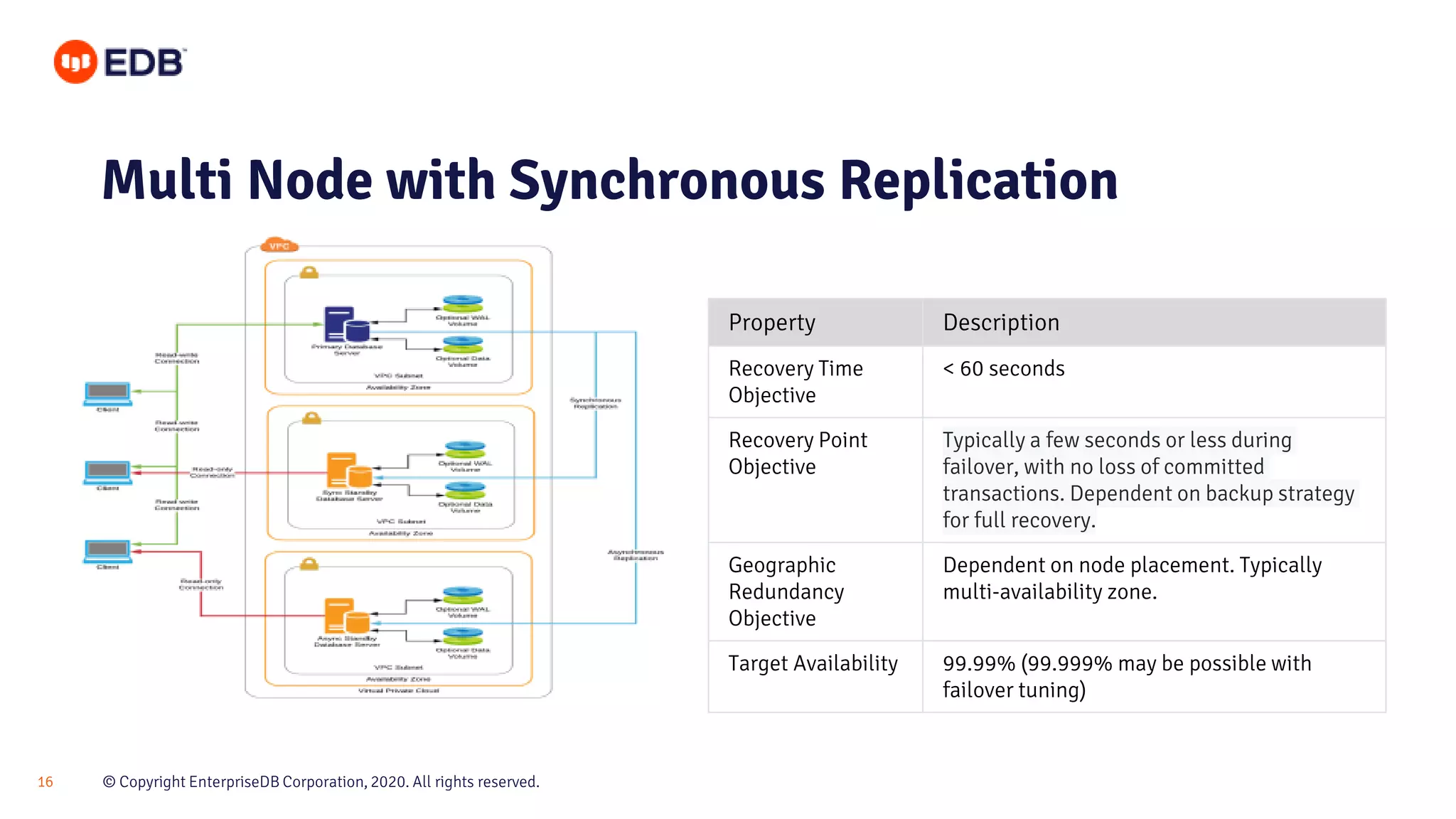

Multi Node with Synchronous Replication
Recovery Time
Objective
< 60 seconds
Recovery Point
Objective
Typically a few seconds or less during
failover, with no loss of committed
transactions. Dependent on backup strategy
for full recovery.
Geographic
Redundancy
Objective
Dependent on node placement. Typically
multi-availability zone.
Target Availability 99.99% (99.999% may be possible with
failover tuning)

Deployment Automation

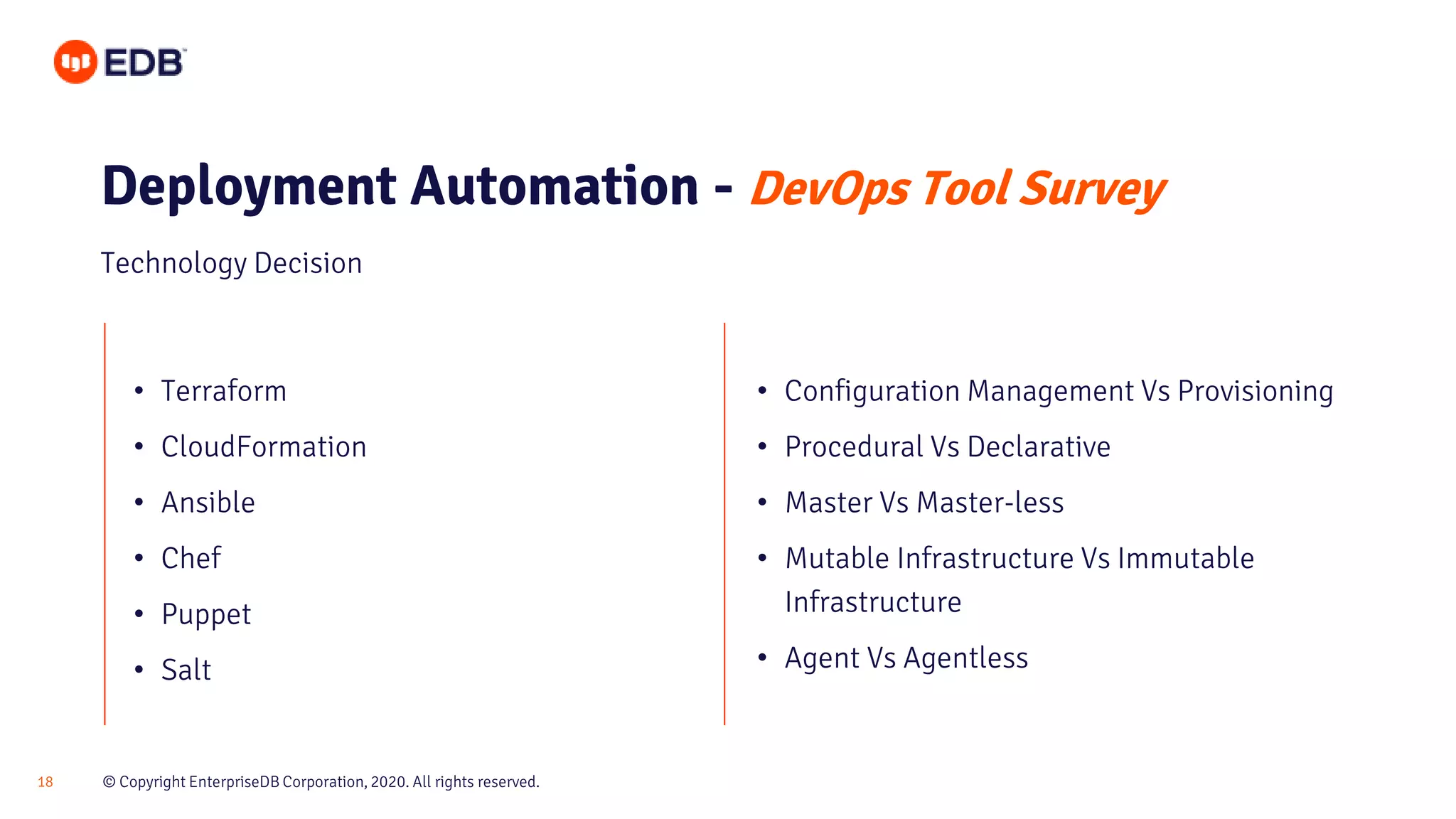

Deployment Automation - DevOps Tool Survey
Technology Decision
• Terraform
• CloudFormation
• Ansible
• Chef
• Puppet
• Salt
• Configuration Management Vs Provisioning
• Procedural Vs Declarative
• Master Vs Master-less
• Mutable Infrastructure Vs Immutable
Infrastructure
• Agent Vs Agentless

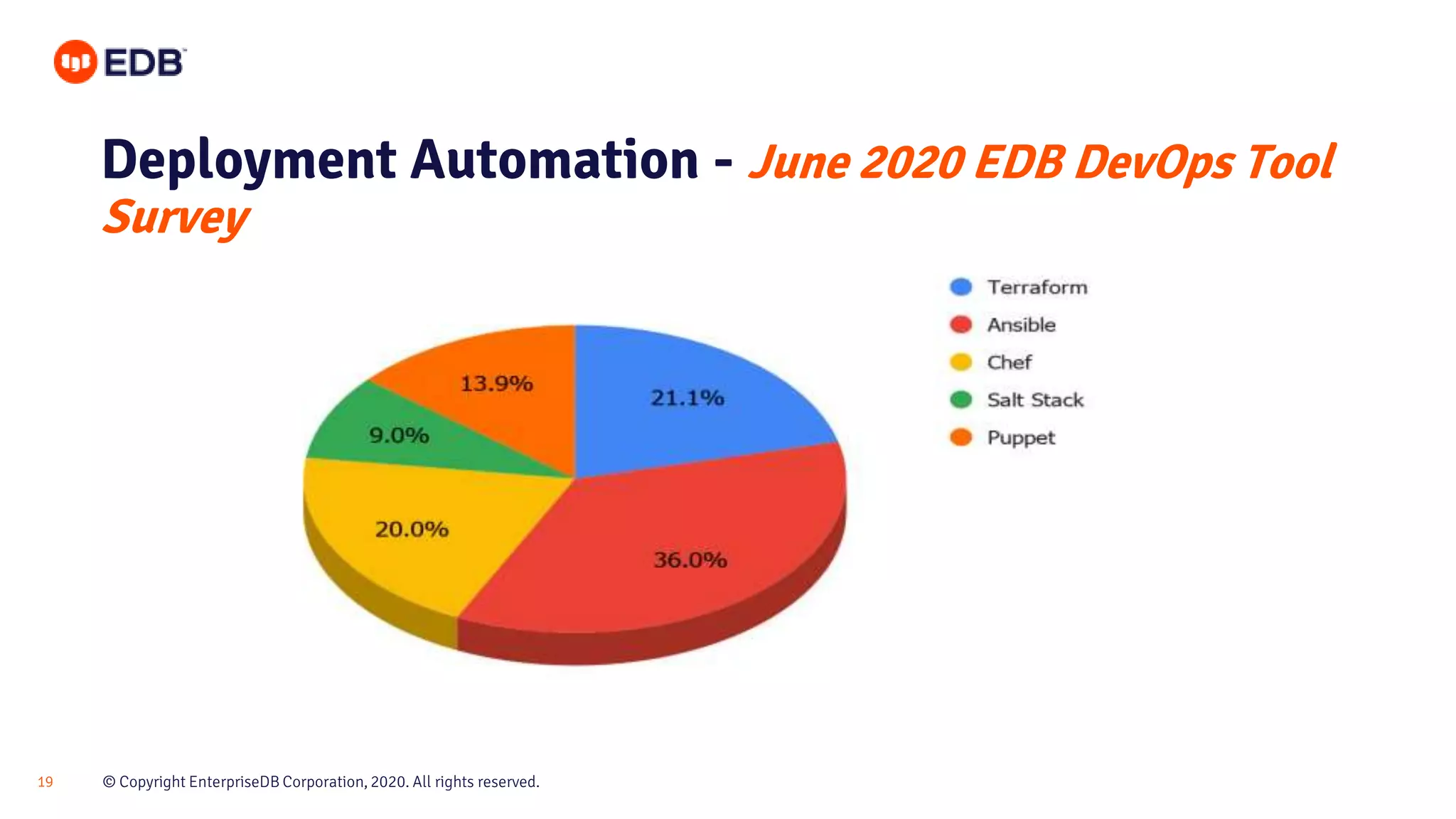

Deployment Automation - June 2020 EDB DevOps Tool
Survey

Deployment Automation - What is Ansible?
• Technology to automate applications and configure
infrastructure
• Four level of abstractions for configuration
○ Task - single action
○ Task list - list of actions
○ Role
■ List of actions (or list of lists) grouped by the same
'subject'
■ A way to group tasks together into one container
○ Playbook
■ list of plays, each operating on possibly different
hostgroup, applying several roles/tasks/task lists
(and special tasks like handlers)

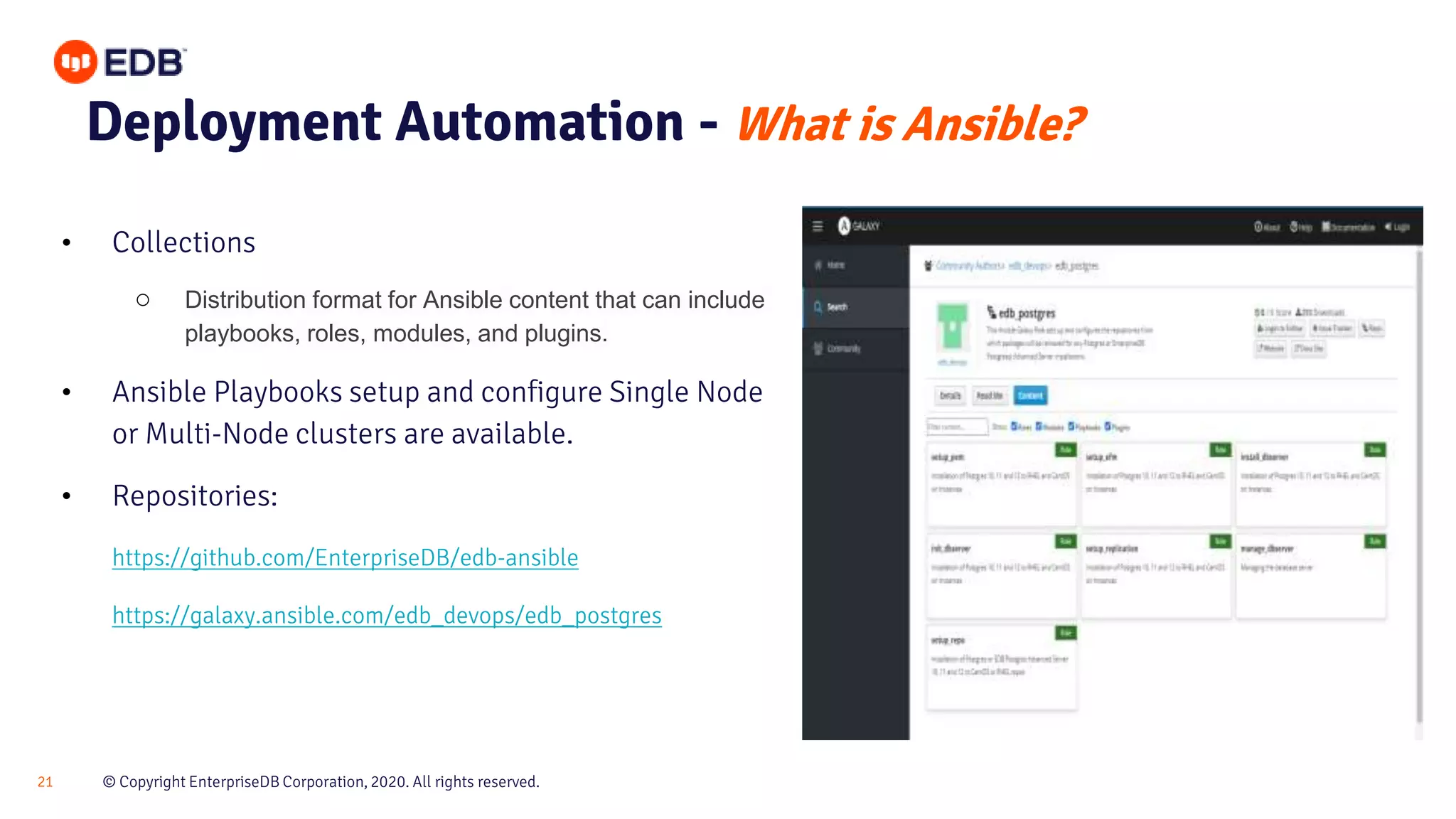

Deployment Automation - What is Ansible?
• Collections
○ Distribution format for Ansible content that can include
playbooks, roles, modules, and plugins.
• Ansible Playbooks setup and configure Single Node
or Multi-Node clusters are available.
• Repositories:
https://github.com/EnterpriseDB/edb-ansible
https://galaxy.ansible.com/edb_devops/edb_postgres

Deploy Reference Architecture with Single Command
• Deployment with ONE command
/usr/local/bin/ansible-playbook playbook.yml -u centos --private-key
~/id_rsa.pem
• Arguments:
○ playbook.yml
○ -u <server/vm user name>
○ --private-key <SSH Key>

Deployment Automation - playbook.yml
• os: Operating system version
• pg_version: Postgres version
• pg_type: EPAS/PG
○ EPAS: EDB Advanced Server
○ PostgreSQL
• yum_username
• ym_password

Deployment Automation - playbook.yml

Deployment Automation - Single Node hosts.yml

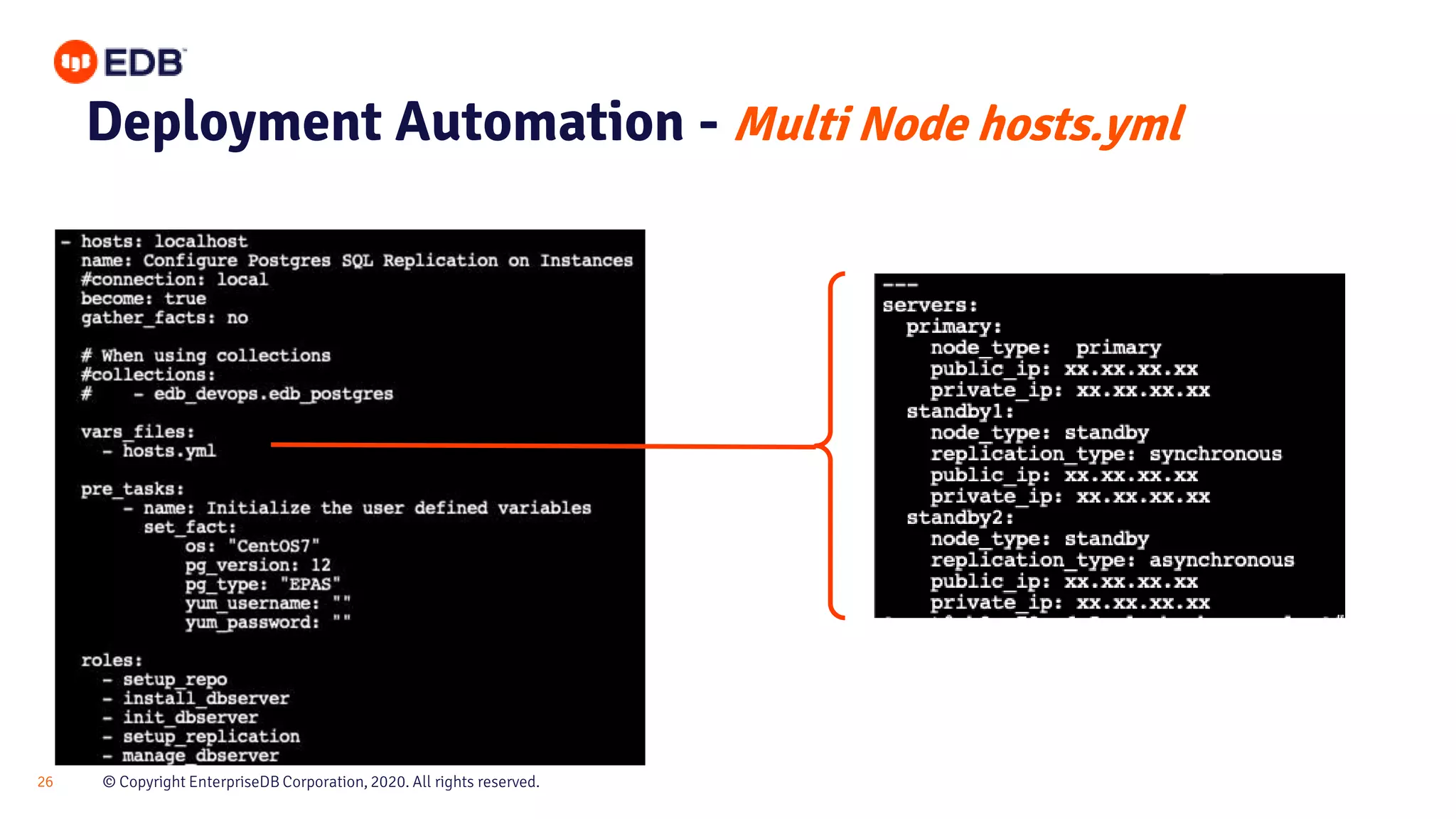

Deployment Automation - Multi Node hosts.yml

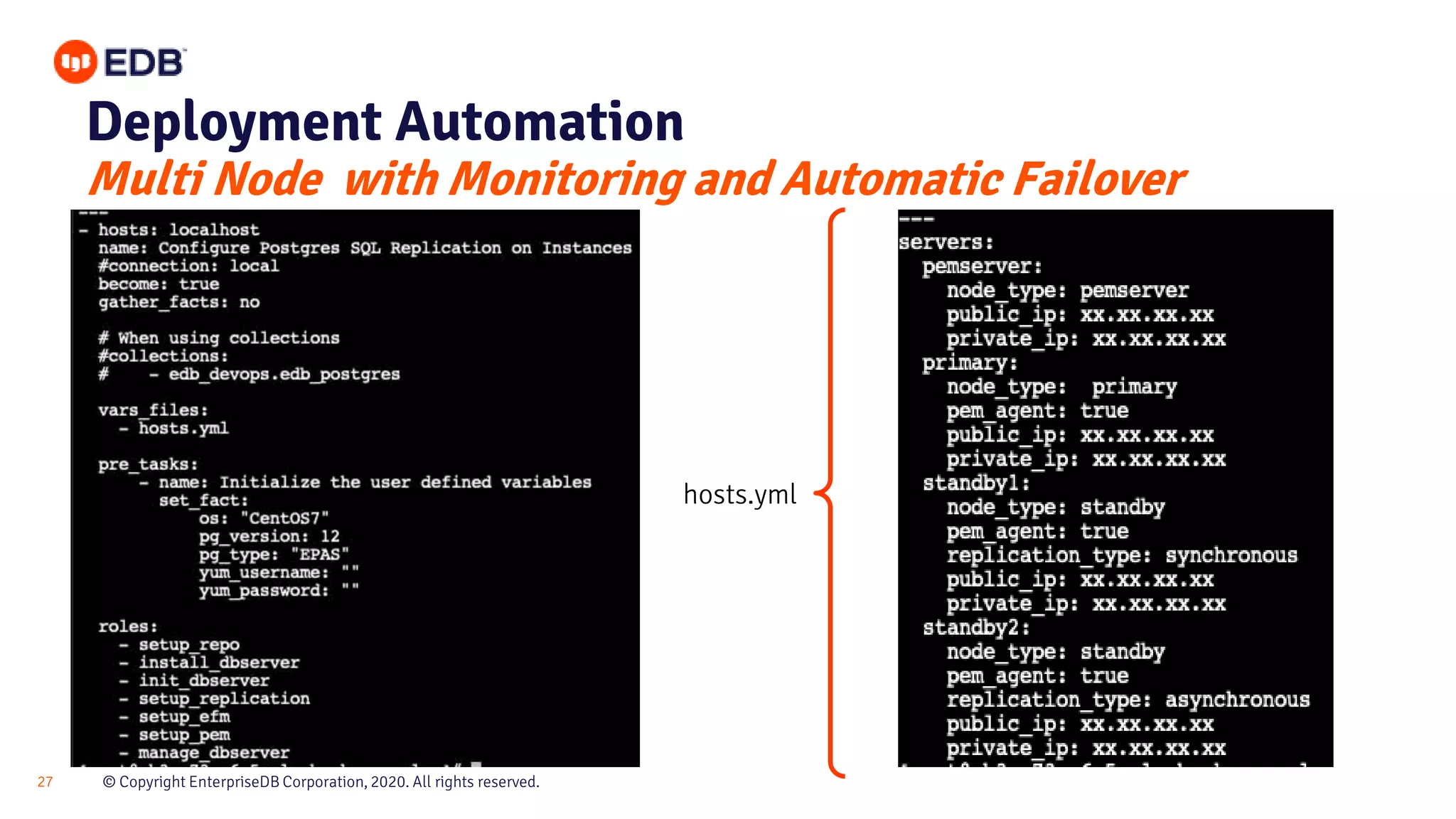

Deployment Automation
Multi Node with Monitoring and Automatic Failover
hosts.yml

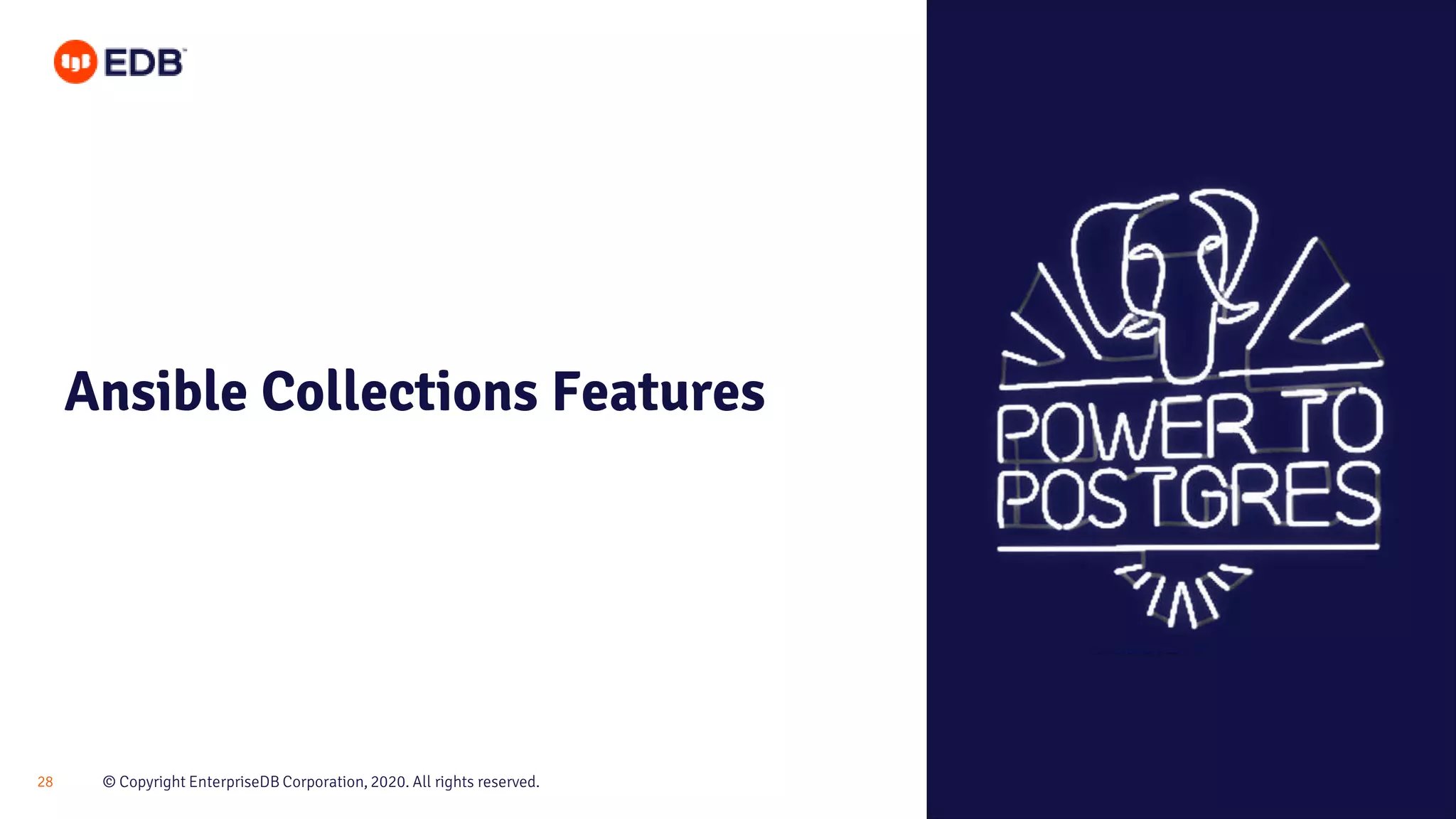

Ansible Collections Features

pg_users:
- name: repuser
pass: <password>
conn_limit: 10
state: present
- name: abc_user
state: absent
pg_grant_privileges:
- roles: "efm_user"
database: "edb"
privileges: execute
schema: pg_catalog
objects: pg_current_wal_lsn()
type: function
Manage database users and privileges
pg_grant_roles:
- role: pg_monitor
user: enterprisedb

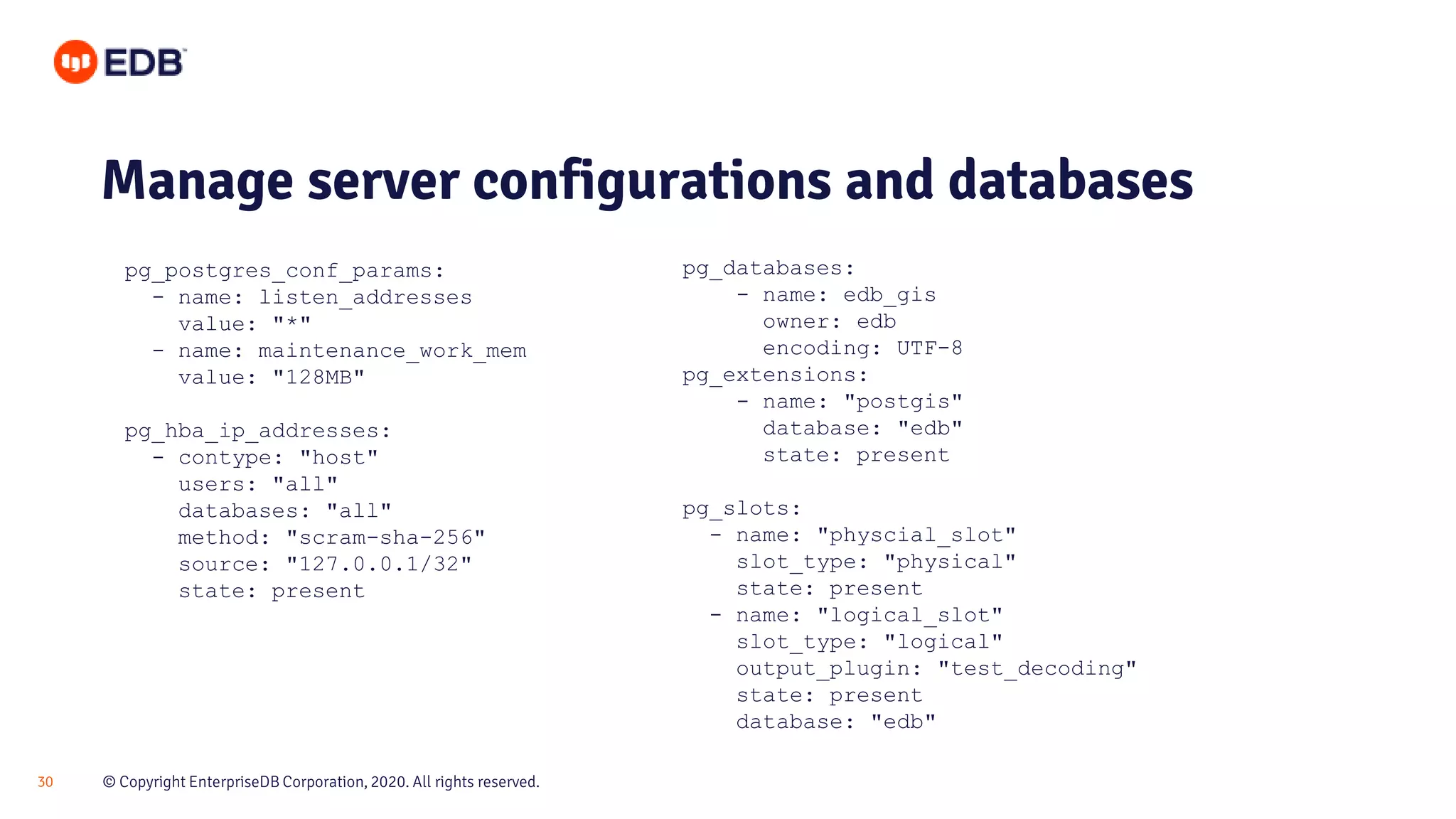

pg_postgres_conf_params:
- name: listen_addresses
value: "*"
- name: maintenance_work_mem
value: "128MB"
pg_hba_ip_addresses:
- contype: "host"
users: "all"
databases: "all"
method: "scram-sha-256"
source: "127.0.0.1/32"
state: present
Manage server configurations and databases
pg_databases:
- name: edb_gis
owner: edb
encoding: UTF-8
pg_extensions:
- name: "postgis"
database: "edb"
state: present
pg_slots:
- name: "physcial_slot"
slot_type: "physical"
state: present
- name: "logical_slot"
slot_type: "logical"
output_plugin: "test_decoding"
state: present
database: "edb"

pg_query:
- query: "UPDATE test SET id=2 WHERE id=1;"
db: "edb"
pg_copy_files:
- file: "/localdir/edb-sample.sql"
dest: "/usr/edb/as12/share/edb-sample.sql"
owner: "enterprisedb"
group: "enterprisedb"
pg_sql_scripts
- file_path: "/usr/edb/as12/share/edb-sample.sql"
db: edb
Execute query/SQL scripts and manage .pgpass
pg_pgpass_values:
- host: "*"
pg_port: 5444
database: edb
user: enterprisedb
password: <password>

Postgres Deployment Tools

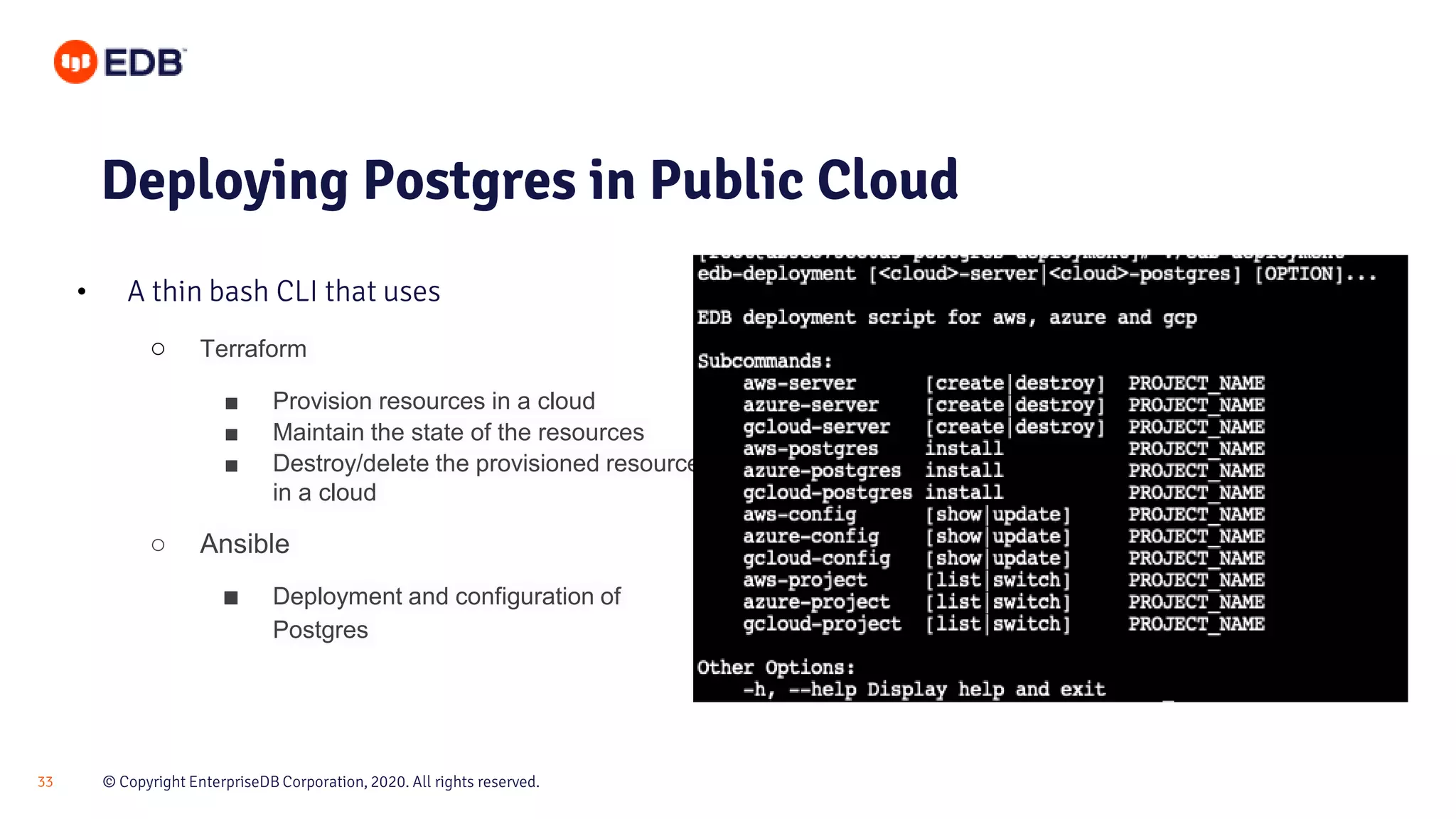

Deploying Postgres in Public Cloud
• A thin bash CLI that uses
○ Terraform
■ Provision resources in a cloud
■ Maintain the state of the resources
■ Destroy/delete the provisioned resources
in a cloud
○ Ansible
■ Deployment and configuration of
Postgres

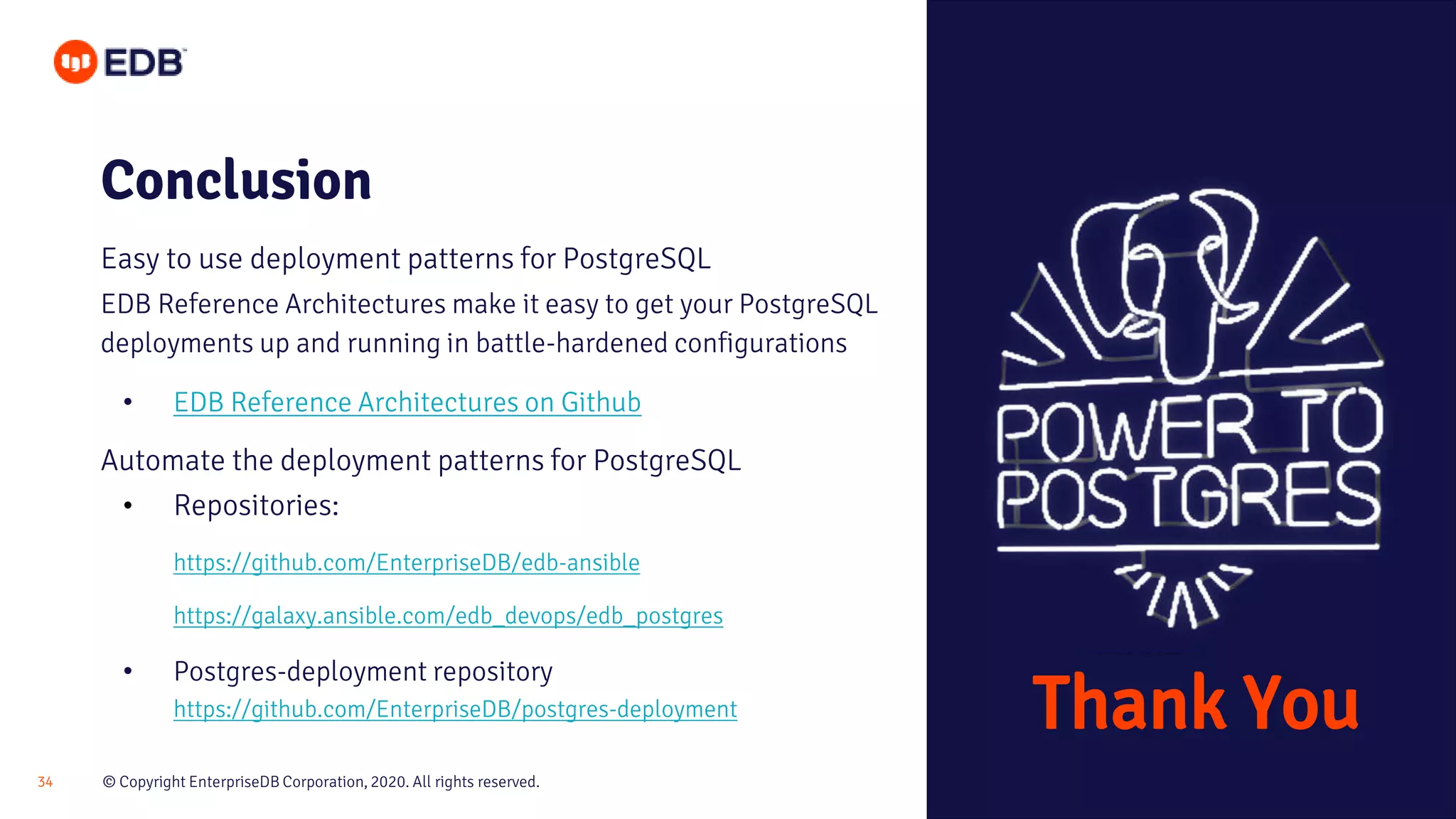

Conclusion
Easy to use deployment patterns for PostgreSQL
EDB Reference Architectures make it easy to get your PostgreSQL
deployments up and running in battle-hardened configurations
• EDB Reference Architectures on Github
Automate the deployment patterns for PostgreSQL
• Repositories:
https://github.com/EnterpriseDB/edb-ansible
https://galaxy.ansible.com/edb_devops/edb_postgres
• Postgres-deployment repository
https://github.com/EnterpriseDB/postgres-deployment Thank You
