- 1. www.cameronvetter.com 1 Augmented Reality Let’s MakeSome Holograms!
- 2. Goal of thisPresentation www.cameronvetter.com 2 Learn AR Terminology Build an Application Highlight UXD Challenges See Lots of Examples
- 3. www.cameronvetter.com About Me SeniorSoftware Architect www.cameronvetter.com @PoshPorcupine

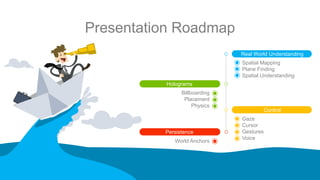

- 4. Presentation Roadmap www.cameronvetter.com 4 Holograms Persistence Control RealWorld Understanding Spatial Mapping Plane Finding Spatial Understanding Gaze Cursor Gestures Voice Billboarding Placement Physics World Anchors
- 5. Holographic Lens 1268 x720 Per Eye 3 Waveguide Lenses Per Eye Intel Atom CPU X5-Z8100 1.4 GHZ 2GB Ram Holographic Processing Unit Custom build Microsoft GPU Sensors 4 Environment Cameras 1 Depth Camera 1 Video Camera 4 Microphones 1 Light Sensor What is the HoloLens? www.cameronvetter.com 05
- 6. Development Tools www.cameronvetter.com 6 VisualStudio 2015 Update 3 Windows 10 SDK Unity 3d HoloLens Technical Preview HoloLens Emulator HoloToolkit / HoloToolkit-Unity
- 7.

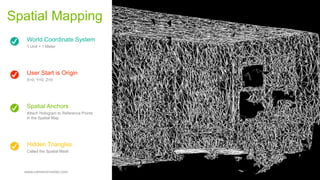

- 8. World Coordinate System 1Unit = 1 Meter User Start is Origin X=0, Y=0, Z=0 Hidden Triangles Called the Spatial Mesh Spatial Anchors Attach Hologram to Reference Points in the Spatial Map Spatial Mapping www.cameronvetter.com 08

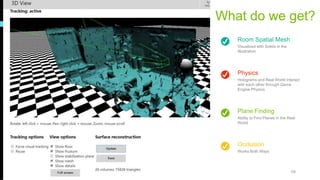

- 9. Room Spatial Mesh Visualizedwith Solids in the Illustration Physics Holograms and Real World interact with each other through Game Engine Physics Occlusion Works Both Ways Plane Finding Ability to Find Planes in the Real World What do we get? www.cameronvetter.com 09

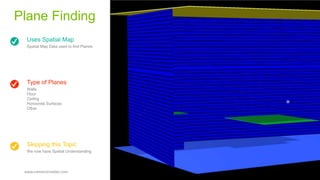

- 10. Uses Spatial Map SpatialMap Data used to find Planes Type of Planes Walls Floor Ceiling Horizontal Surfaces Other Skipping this Topic We now have Spatial Understanding Plane Finding www.cameronvetter.com 010

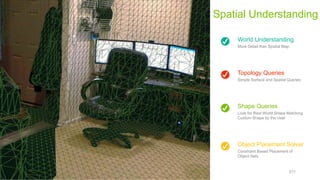

- 11. World Understanding More Detailthan Spatial Map Topology Queries Simple Surface and Spatial Queries Object Placement Solver Constraint Based Placement of Object Sets Shape Queries Look for Real World Shape Matching Custom Shape by the User Spatial Understanding www.cameronvetter.com 011
- 12.

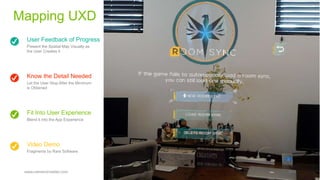

- 13. User Feedback ofProgress Present the Spatial Map Visually as the User Creates it Know the Detail Needed Let the User Stop After the Minimum is Obtained Video Demo Fragments by Rare Software Fit Into User Experience Blend it into the App Experience Mapping UXD www.cameronvetter.com 013
- 14.

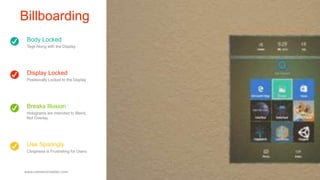

- 15. Body Locked Tags Alongwith the Display Display Locked Positionally Locked to the Display Use Sparingly Clinginess is Frustrating for Users Breaks Illusion Holograms are Intended to Blend, Not Overlay Billboarding www.cameronvetter.com 015
- 16. Relative to Origin Originis Starting Position, Not Current Position Relative to Real World Must take into Account, Real World Objects Spatial Understanding Used to Accurately Place Objects with Object Placement Solver Plane Finding Used to Quickly Find Ceiling, Tables, Walls, and Other Surfaces Placement www.cameronvetter.com 016
- 17. Tracks World State RealWorld Objects and Holograms Placement Types OnFloor, OnWall, OnCeiling, OnShape, OnEdge, OnFloorAndCeiling, RandomInAir, InMidAir, UnderFurnitureEdge Placement Constraint NearPoint, NearWall, AwayFromOtherObjects, AwayFromPoint Placement Rules AwayFromPosition, AwayFromWalls, AwayFromOtherObjects Object Placement Solver www.cameronvetter.com 017
- 18. Unity Engine Provided Adda RigidBody to Any Hologram to Make it Observe Game Engine Physics Spatial Map Collider Each Plane in the Spatial Mesh Receives a Unity Collider Not the Other Way Real World Objects are not Impacted by Holograms Real World Impact Holograms are Impacted by Real World Physics www.cameronvetter.com 018
- 19.

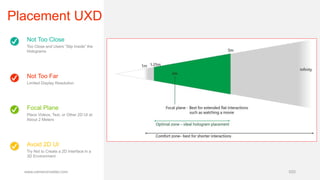

- 20. Not Too Close TooClose and Users “Slip Inside” the Holograms Not Too Far Limited Display Resolution Avoid 2D UI Try Not to Create a 2D Interface in a 3D Environment Focal Plane Place Videos, Text, or Other 2D UI at About 2 Meters Placement UXD www.cameronvetter.com 020
- 21. Typography Print Design isRelevant Specifically Billboard and Poster Design Mock In VR or AR 2D Prototypes Will Disappoint User Feedback AR Environment is New and Distracting, Give the User Clarity Be Strategic with Targets Don’t Place UI Where User will Accidently Click Designing UI www.cameronvetter.com 021 Source: James Hsu of Disney
- 22.

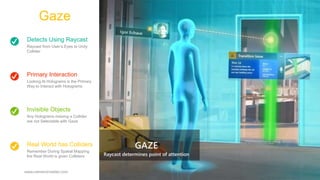

- 23. Detects Using Raycast Raycastfrom User’s Eyes to Unity Collider Primary Interaction Looking At Holograms is the Primary Way to Interact with Holograms Real World has Colliders Remember During Spatial Mapping the Real World is given Colliders Invisible Objects Any Holograms missing a Collider are not Selectable with Gaze Gaze www.cameronvetter.com 023

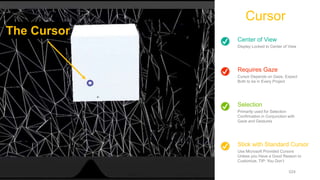

- 24. Center of View DisplayLocked to Center of View Requires Gaze Cursor Depends on Gaze, Expect Both to be in Every Project Stick with Standard Cursor Use Microsoft Provided Cursors Unless you Have a Good Reason to Customize, TIP: You Don’t Selection Primarily used for Selection Confirmation in Conjunction with Gaze and Gestures Cursor www.cameronvetter.com 024 The Cursor

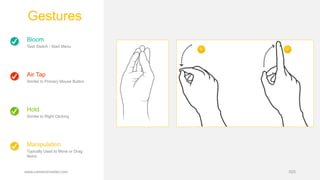

- 25. Bloom Task Switch /Start Menu Air Tap Similar to Primary Mouse Button Manipulation Typically Used to Move or Drag Items Hold Similar to Right Clicking Gestures www.cameronvetter.com 025
- 26. Auxiliary Controls The RealRight Click Use Windows 10 Speech Standard Engine Built into Windows System Level Commands Select == Air Tap Face Me Bigger Smaller Concise Commands Too Long is Hard to Remember Too Short is Hard to Differentiate Voice Input www.cameronvetter.com 026
- 27. Demos www.cameronvetter.com Gaze / CursorVoice Input
- 28. Real World Paradigms ASquare Work Area with a Distinct Front causes the User to Remain Stationary Use Physical Space Use the Whole Physical Space: Floor, Ceiling, Walls, Floating… Controls May be Blocked Use Ghosting to Show UI through Out of Frame Content Use Attention Directors: Spatial Sound, Light Rays, Thought Bubbles Interaction Design www.cameronvetter.com 028
- 29.

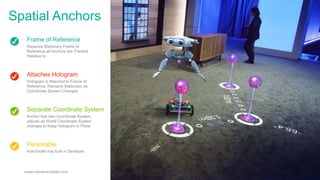

- 30. Frame of Reference RequiresStationary Frame of Reference all Anchors are Tracked Relative to Attaches Hologram Hologram is Attached to Frame of Reference, Remains Stationary as Coordinate System Changes Persistable HoloToolkit has built in Serializer Separate Coordinate System Anchor has own Coordinate System, adjusts as World Coordinate System changes to Keep Hologram in Place Spatial Anchors www.cameronvetter.com 030

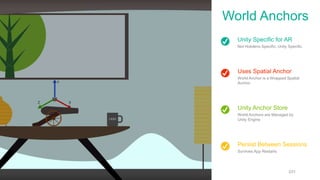

- 31. Unity Specific forAR Not Hololens Specific, Unity Specific Uses Spatial Anchor World Anchor is a Wrapped Spatial Anchor Persist Between Sessions Survives App Restarts Unity Anchor Store World Anchors are Managed by Unity Engine World Anchors www.cameronvetter.com 031
- 32. LIVE DEMO!!! www.cameronvetter.com 32 01 02 03 04 05 06 PlaceHolograms Map the Room Use A Gesture Shadows Voice Commands Physics

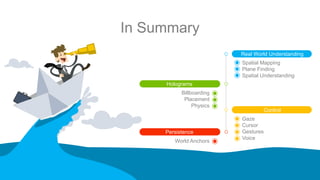

- 33. In Summary www.cameronvetter.com 33 Holograms Persistence Control RealWorld Understanding Spatial Mapping Plane Finding Spatial Understanding Gaze Cursor Gestures Voice Billboarding Placement Physics World Anchors
