This document provides an overview of developing mixed reality apps for HoloLens using Unity and Visual Studio. It discusses the HoloLens specifications and sensors, and demonstrates the development tools, building blocks, and key HoloLens features like gestures, spatial sound, spatial mapping and occlusion. The presentation aims to provide takeaways on leveraging Unity, Visual Studio, and HoloLens capabilities when building mixed reality applications.

1. DEVELOP YOUR MIXED REALITY APP FOR HOLOLENS
WITH UNITY AND VISUAL STUDIO
HOLOBASICS

2. “HoloLens Evangelist”
I am responsible for architecture related business for our project services
department at ETTU. I’m involved as architect at different companies like Jumbo
Maritime, PGGM, Gemeente Amersfoort and others
Alexander Meijers
ABOUT ME
 Solutions Architect for ETTU
 Founder of the Mixed Reality User Group
 MixUG: http://www.mixug.nl
 Email: a.meijers@ettu.nl or alexander@appzinside.com
 Twitter: @ameijers
 Blog: http://www.appzinside.com

3. 3INTRO ETTU
TODAY’S TALK
AGENDA
 Realities explained
 Microsoft HoloLens
Building blocks and tools
 Tools
 Gestures
 Sound
 Spatial Mapping & Occlusion
Slider
Content Ads

4. MIXED REALITY

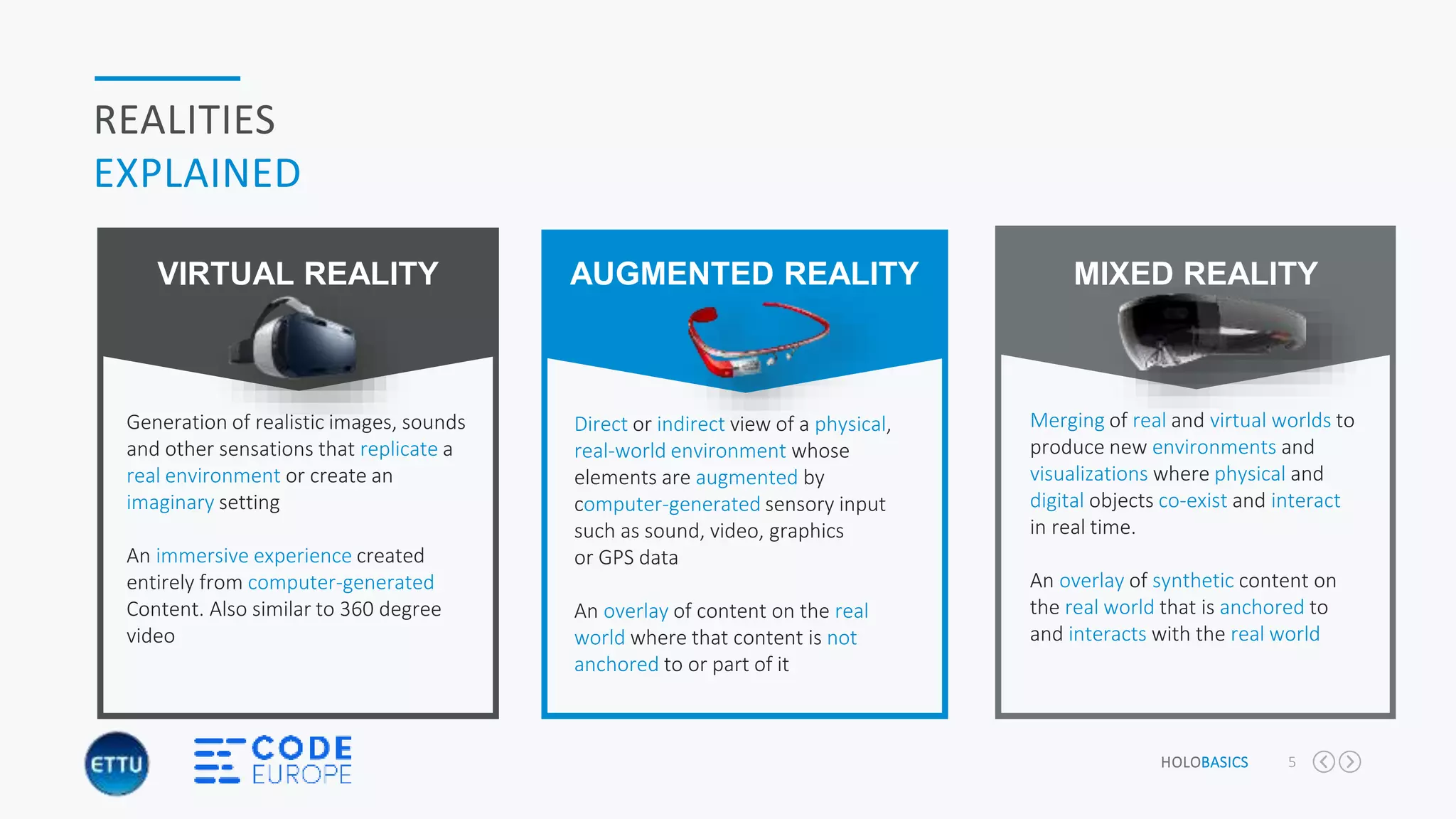

5. HOLOBASICS 5
REALITIES
EXPLAINED
Merging of real and virtual worlds to
produce new environments and
visualizations where physical and
digital objects co-exist and interact
in real time.
An overlay of synthetic content on
the real world that is anchored to
and interacts with the real world
MIXED REALITY
Direct or indirect view of a physical,
real-world environment whose
elements are augmented by
computer-generated sensory input
such as sound, video, graphics
or GPS data
An overlay of content on the real
world where that content is not
anchored to or part of it
AUGMENTED REALITY
Generation of realistic images, sounds
and other sensations that replicate a
real environment or create an
imaginary setting
An immersive experience created
entirely from computer-generated
Content. Also similar to 360 degree
video
VIRTUAL REALITY

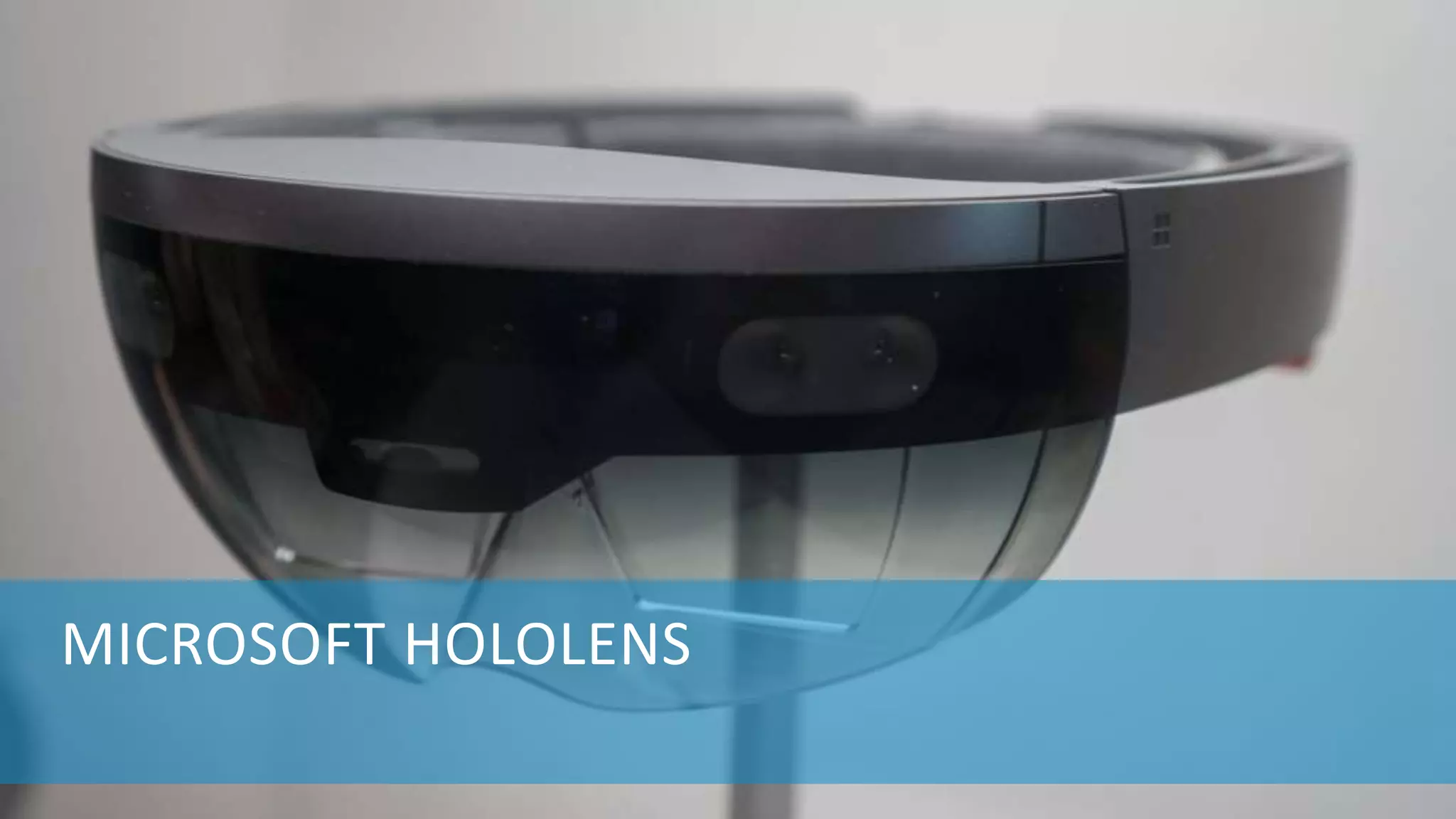

6. MICROSOFT HOLOLENS

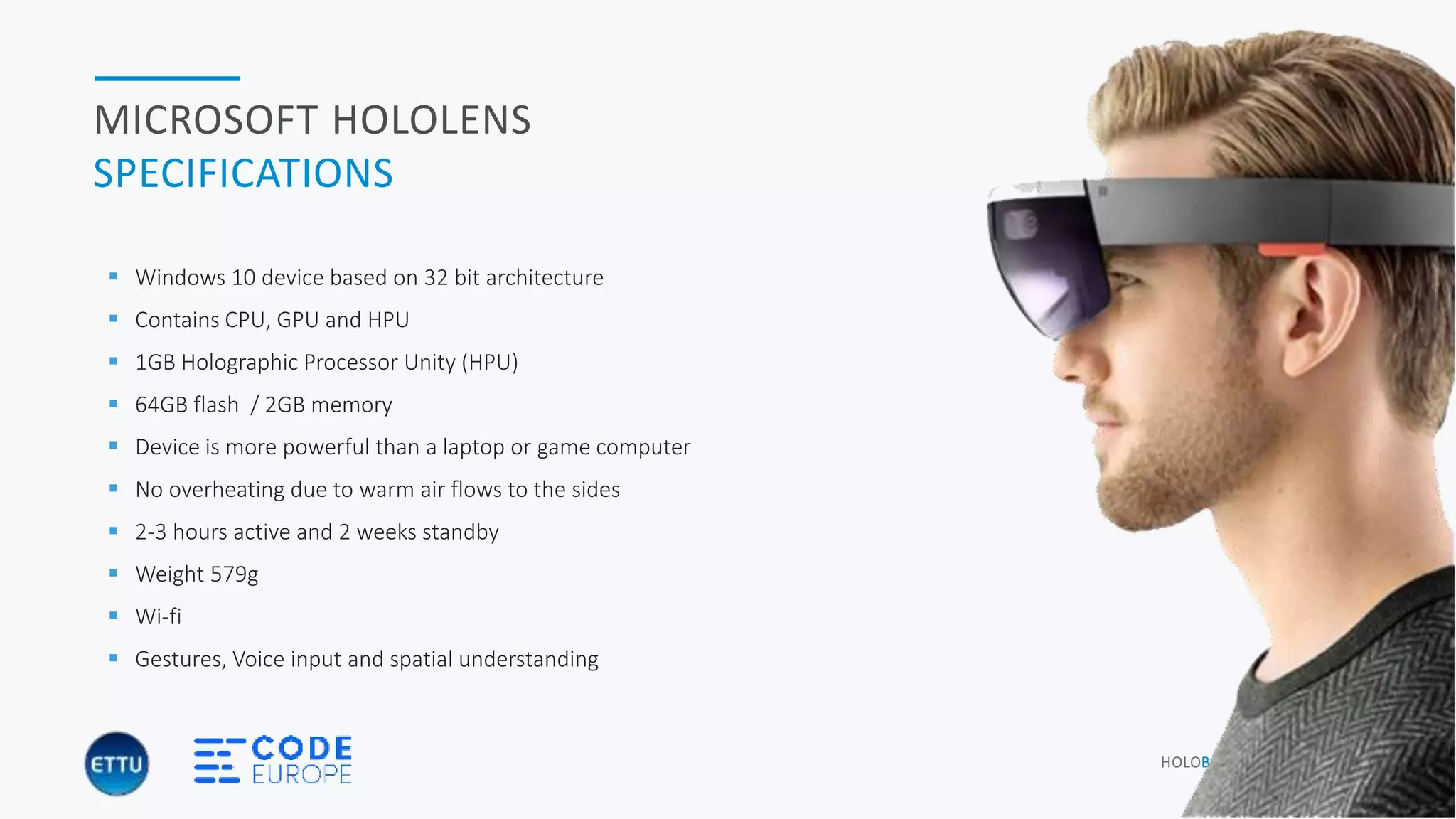

7. HOLOBASICS 7
MICROSOFT HOLOLENS
SPECIFICATIONS
 Windows 10 device based on 32 bit architecture
 Contains CPU, GPU and HPU
 1GB Holographic Processor Unity (HPU)
 64GB flash / 2GB memory
 Device is more powerful than a laptop or game computer
 No overheating due to warm air flows to the sides
 2-3 hours active and 2 weeks standby
 Weight 579g
 Wi-fi
 Gestures, Voice input and spatial understanding

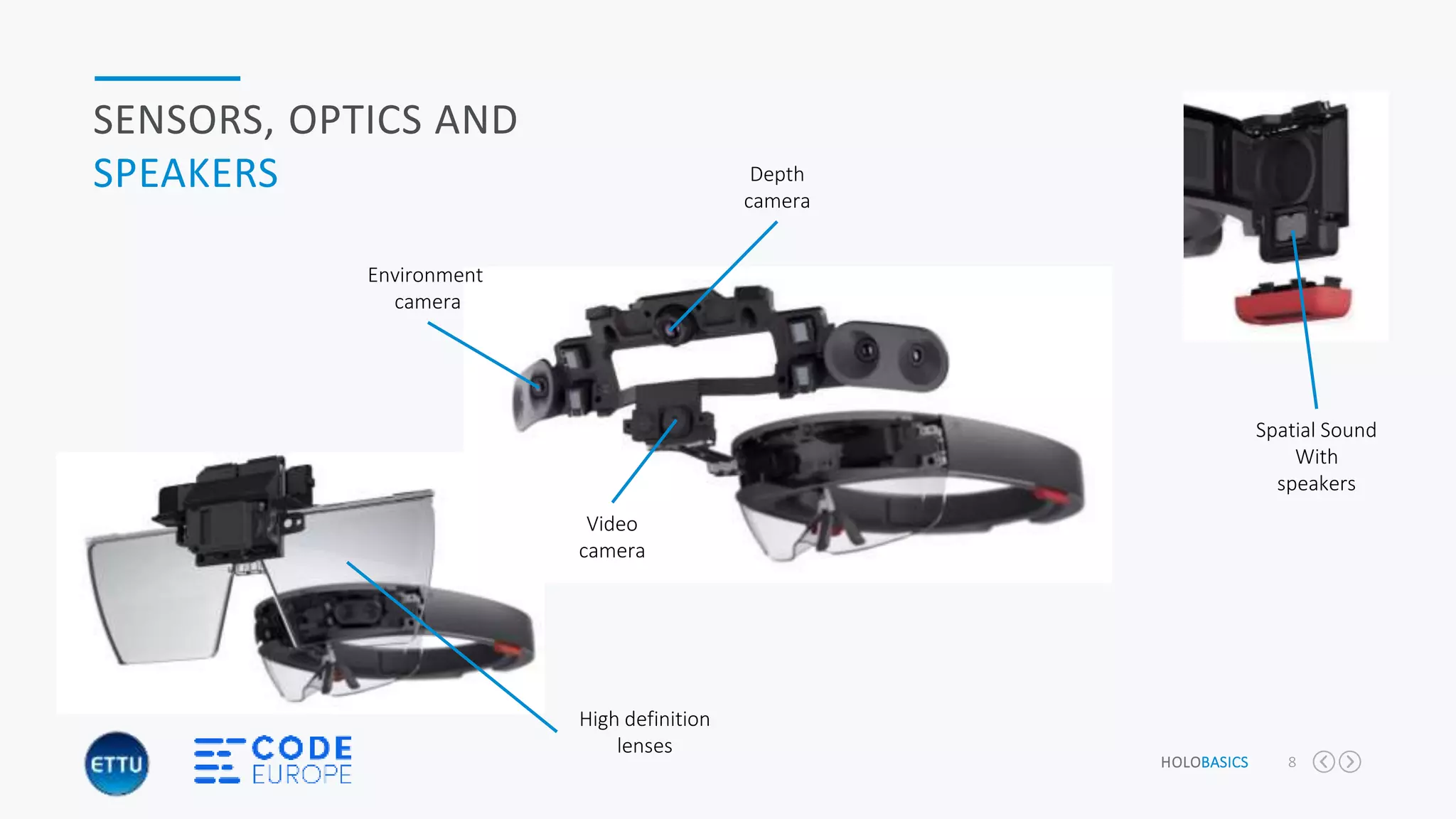

8. HOLOBASICS 8
SENSORS, OPTICS AND
SPEAKERS
Environment
camera
Depth
camera
Video
camera
Spatial Sound
With
speakers
High definition
lenses

9. HOLOBASICS 9
HOLOLENS EXAMPLES

10. “DEMONSTRATION OF SPATIAL DESIGN
CONCEPT APP”
“HoloBasics by Alexander Meijers”

11. BUILDING BLOCKS AND TOOLS

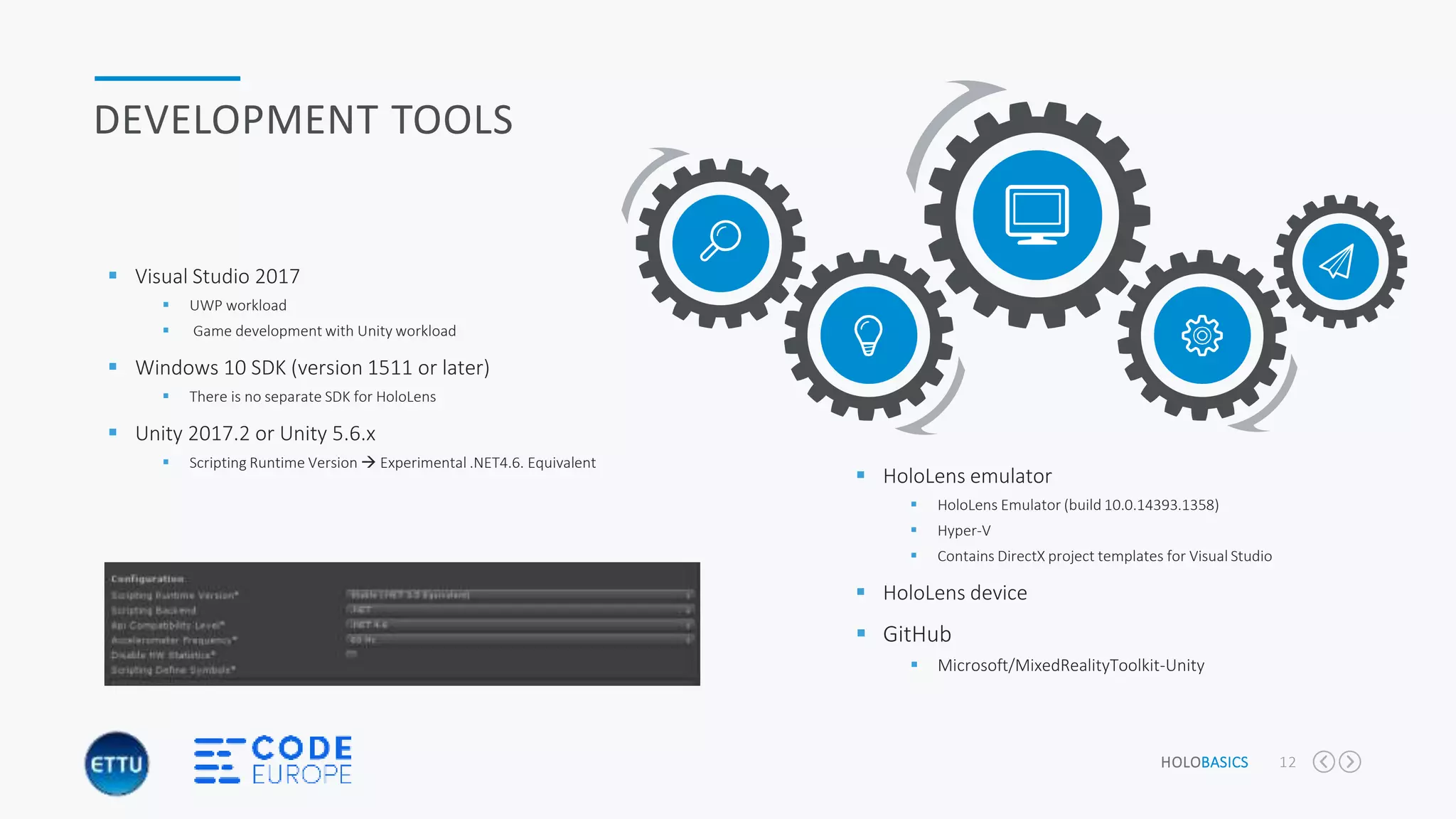

12. HOLOBASICS 12
DEVELOPMENT TOOLS
 Visual Studio 2017
 UWP workload
 Game development with Unity workload
 Windows 10 SDK (version 1511 or later)
 There is no separate SDK for HoloLens
 Unity 2017.2 or Unity 5.6.x
 Scripting Runtime Version  Experimental .NET4.6. Equivalent
 HoloLens emulator
 HoloLens Emulator (build 10.0.14393.1358)
 Hyper-V
 Contains DirectX project templates for Visual Studio
 HoloLens device
 GitHub
 Microsoft/MixedRealityToolkit-Unity

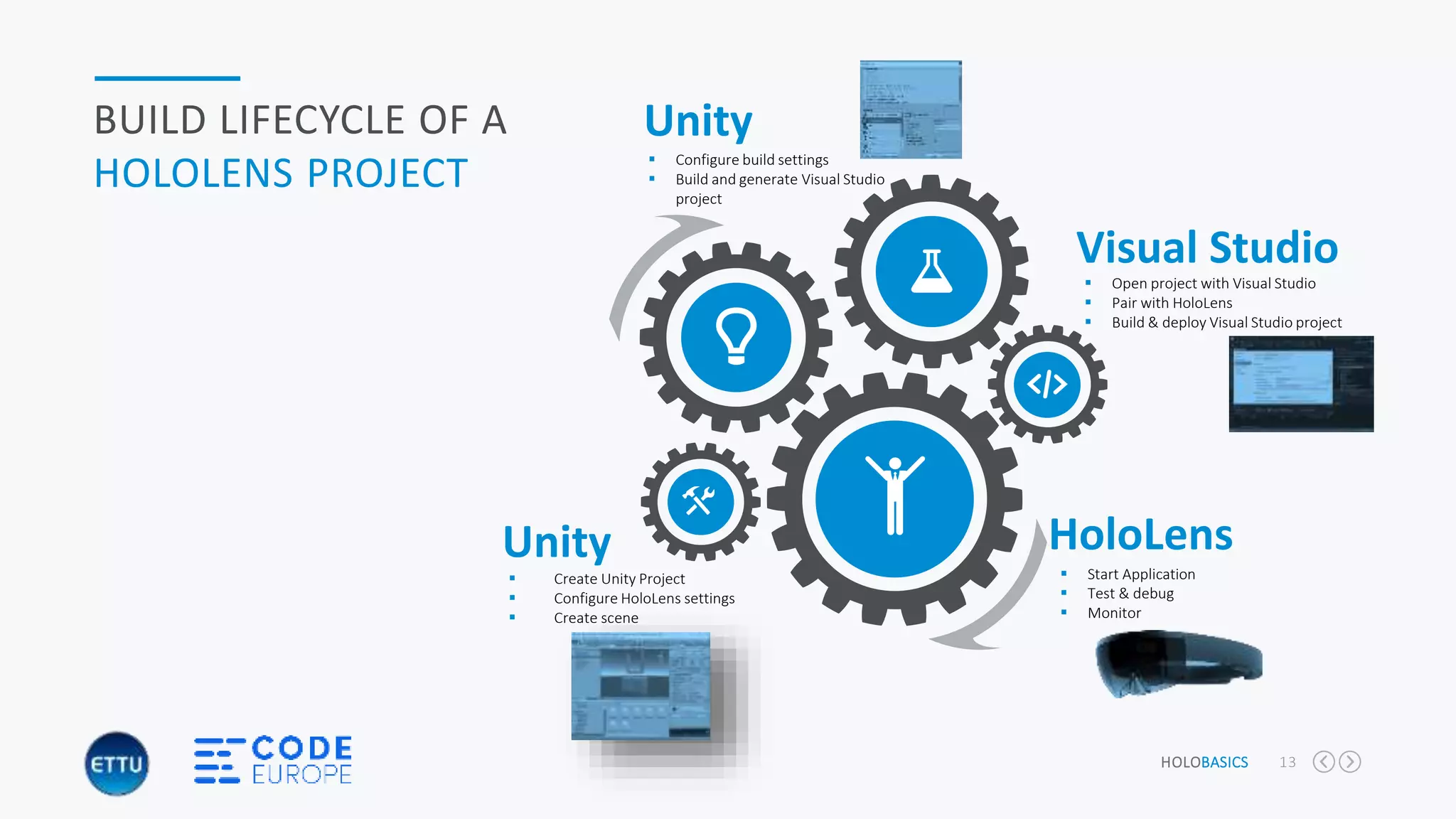

13. HOLOBASICS 13
BUILD LIFECYCLE OF A
HOLOLENS PROJECT
 Create Unity Project
 Configure HoloLens settings
 Create scene
Visual Studio
Unity HoloLens
 Configure build settings
 Build and generate Visual Studio
project
 Open project with Visual Studio
 Pair with HoloLens
 Build & deploy Visual Studio project
 Start Application
 Test & debug
 Monitor
Unity

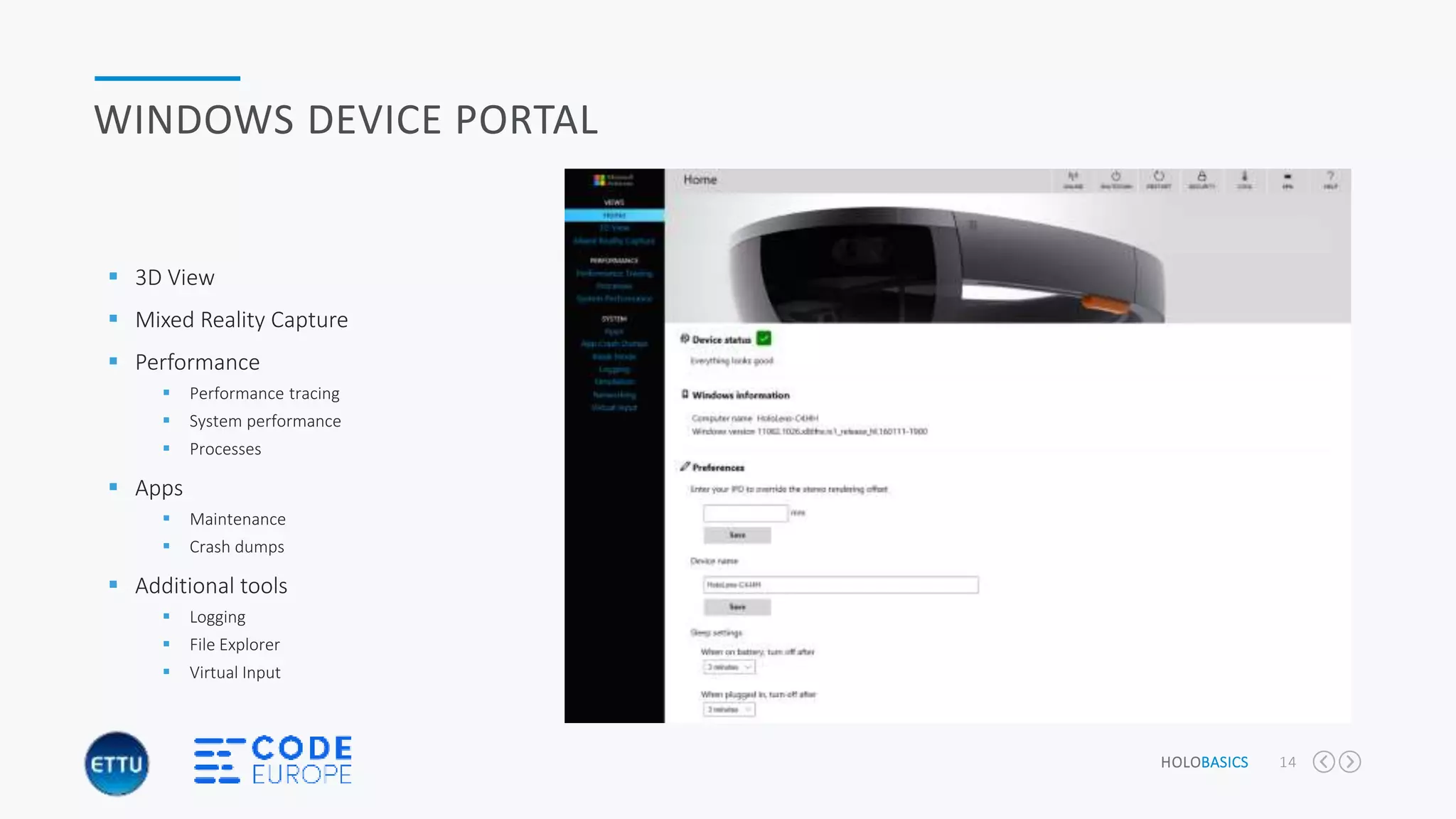

14. HOLOBASICS 14
WINDOWS DEVICE PORTAL
 3D View
 Mixed Reality Capture
 Performance
 Performance tracing
 System performance
 Processes
 Apps
 Maintenance
 Crash dumps
 Additional tools
 Logging
 File Explorer
 Virtual Input

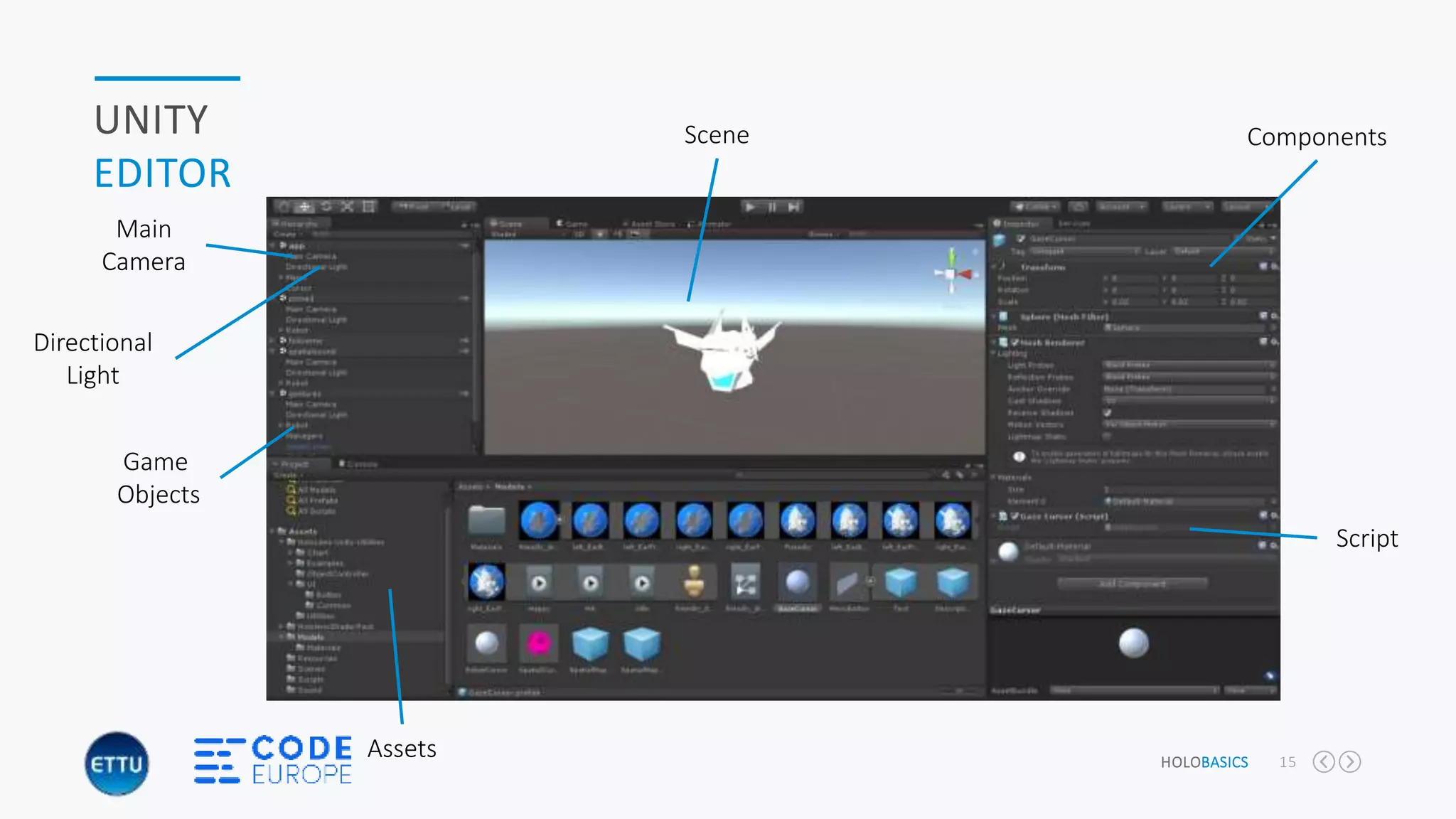

15. HOLOBASICS 15
UNITY
EDITOR
Main
Camera
Directional
Light
Game
Objects
Assets
Components
Script
Scene

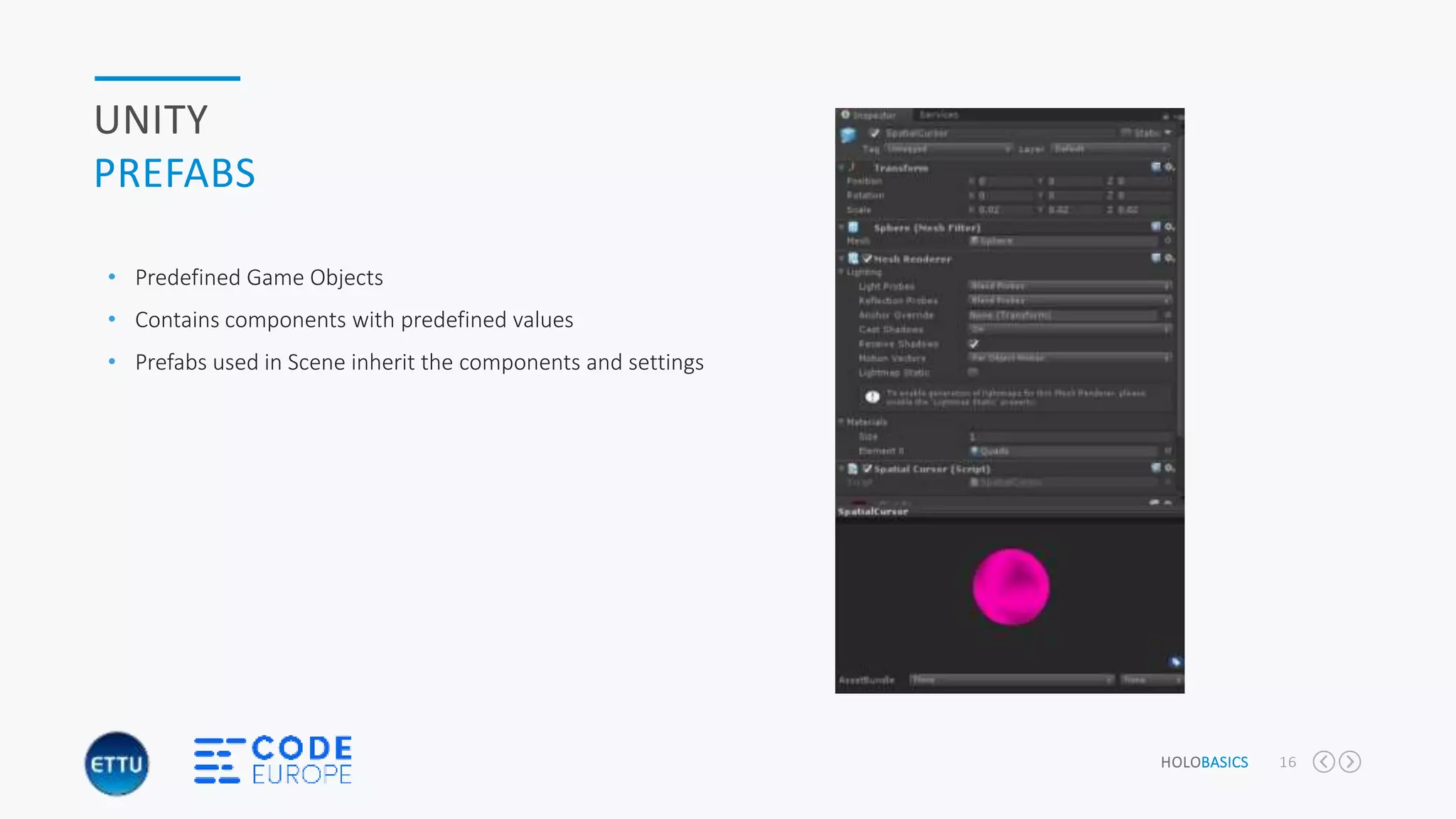

16. HOLOBASICS 16
UNITY
PREFABS
• Predefined Game Objects
• Contains components with predefined values
• Prefabs used in Scene inherit the components and settings

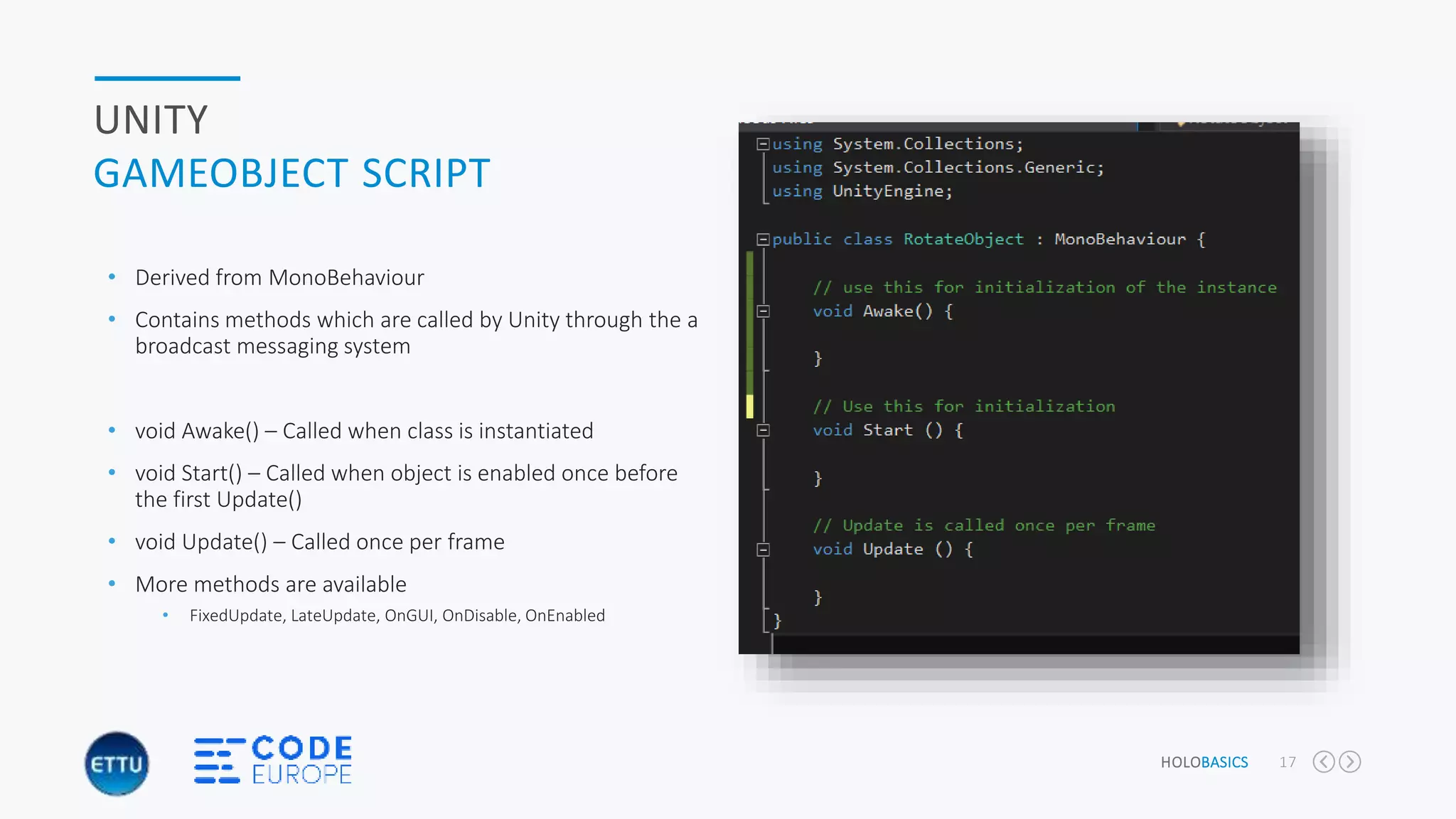

17. HOLOBASICS 17
UNITY
GAMEOBJECT SCRIPT
• Derived from MonoBehaviour
• Contains methods which are called by Unity through the a
broadcast messaging system
• void Awake() – Called when class is instantiated
• void Start() – Called when object is enabled once before
the first Update()
• void Update() – Called once per frame
• More methods are available
• FixedUpdate, LateUpdate, OnGUI, OnDisable, OnEnabled

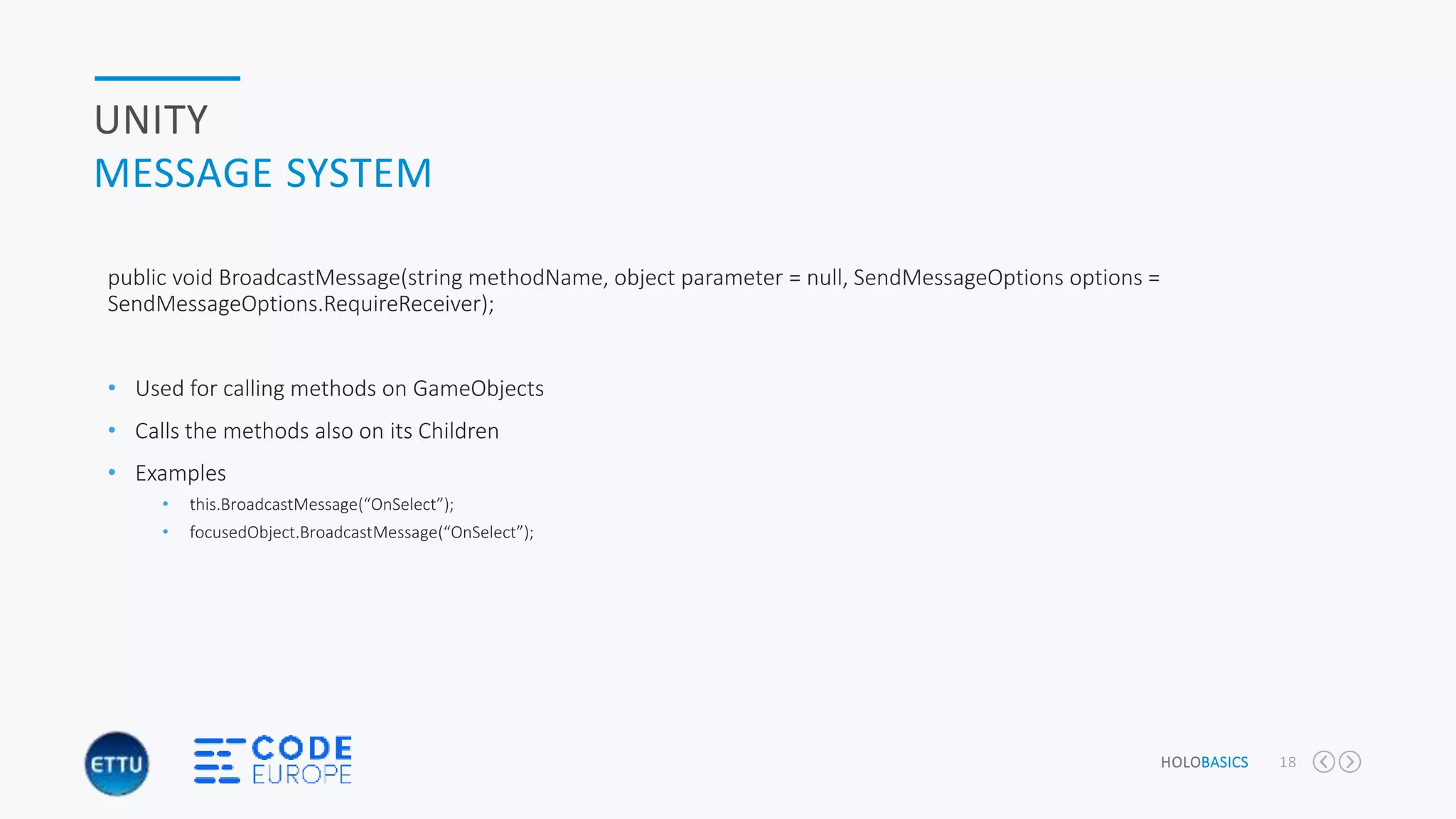

18. HOLOBASICS 18
UNITY
MESSAGE SYSTEM
public void BroadcastMessage(string methodName, object parameter = null, SendMessageOptions options =
SendMessageOptions.RequireReceiver);
• Used for calling methods on GameObjects
• Calls the methods also on its Children
• Examples
• this.BroadcastMessage(“OnSelect”);
• focusedObject.BroadcastMessage(“OnSelect”);

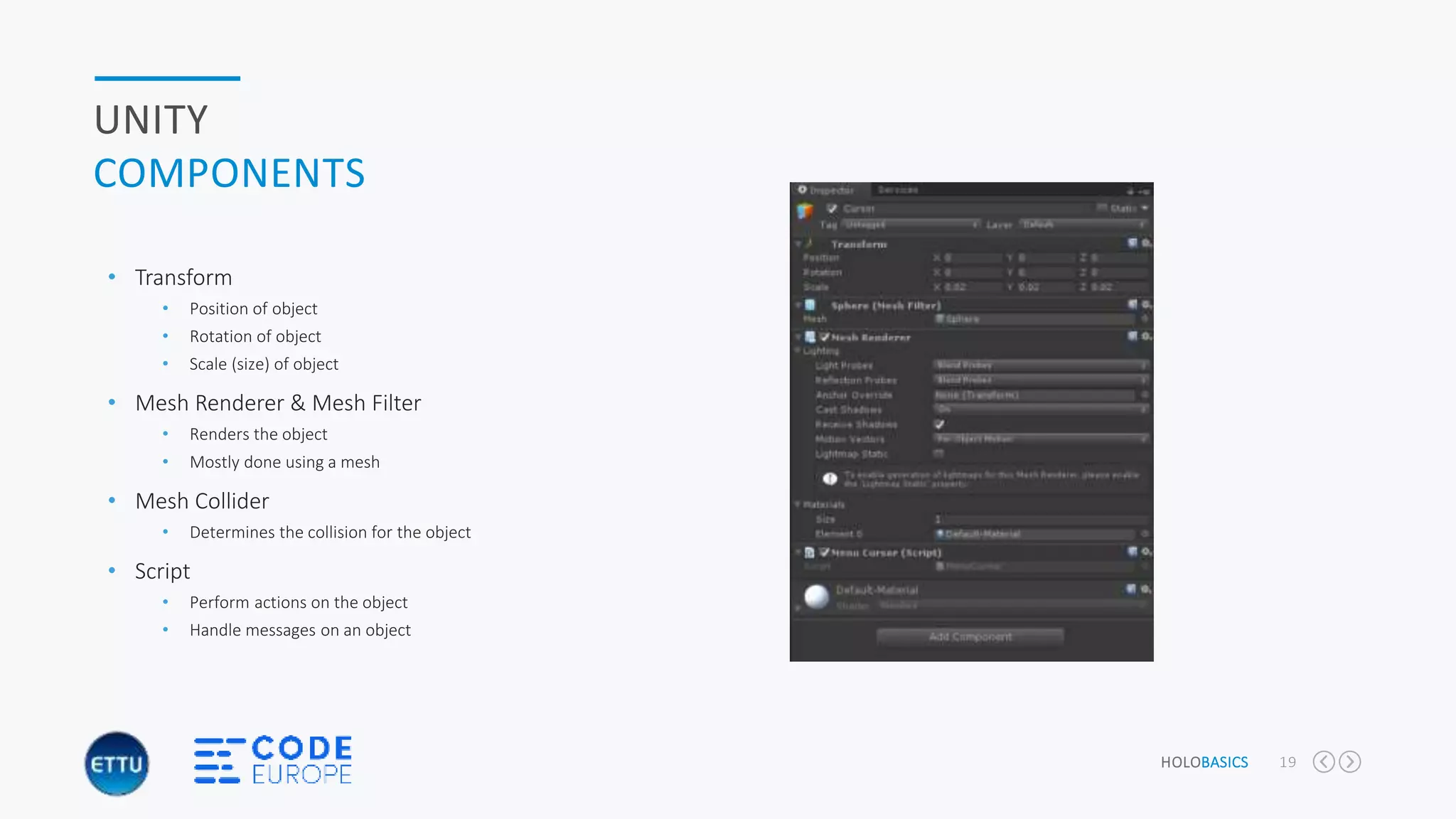

19. HOLOBASICS 19
UNITY
COMPONENTS
• Transform
• Position of object
• Rotation of object
• Scale (size) of object
• Mesh Renderer & Mesh Filter
• Renders the object
• Mostly done using a mesh
• Mesh Collider
• Determines the collision for the object
• Script
• Perform actions on the object
• Handle messages on an object

20. “</CODE>”
“HoloBasics by Alexander Meijers”

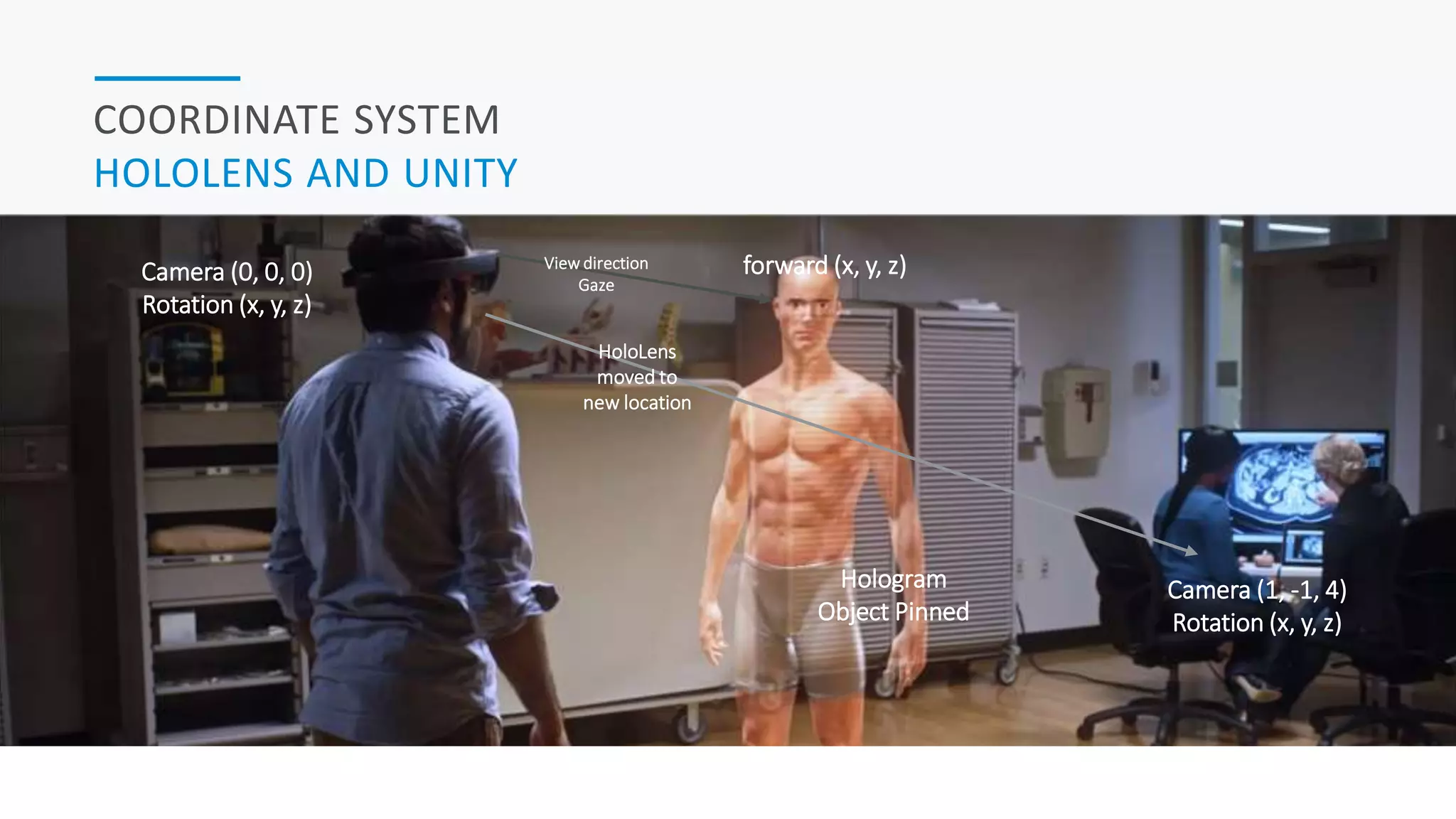

21. HOLOBASICS 21
COORDINATE SYSTEM
HOLOLENS AND UNITY
forward (x, y, z)Camera (0, 0, 0)
Rotation (x, y, z)
Camera (1, -1, 4)
Rotation (x, y, z)
Hologram
Object Pinned
HoloLens
moved to
new location
View direction
Gaze

22. GESTURES

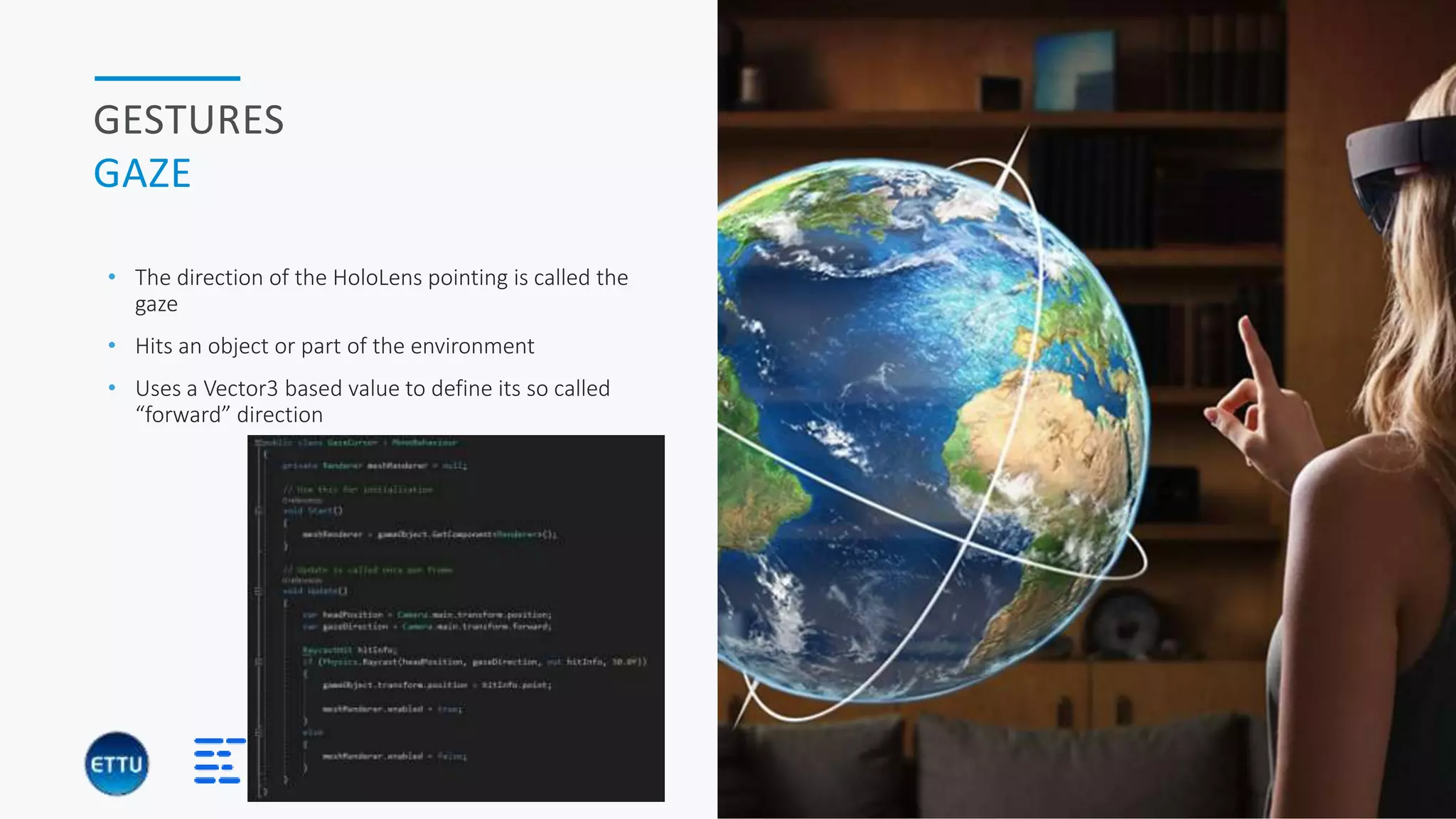

23. HOLOBASICS 23
GESTURES
GAZE
• The direction of the HoloLens pointing is called the
gaze
• Hits an object or part of the environment
• Uses a Vector3 based value to define its so called
“forward” direction

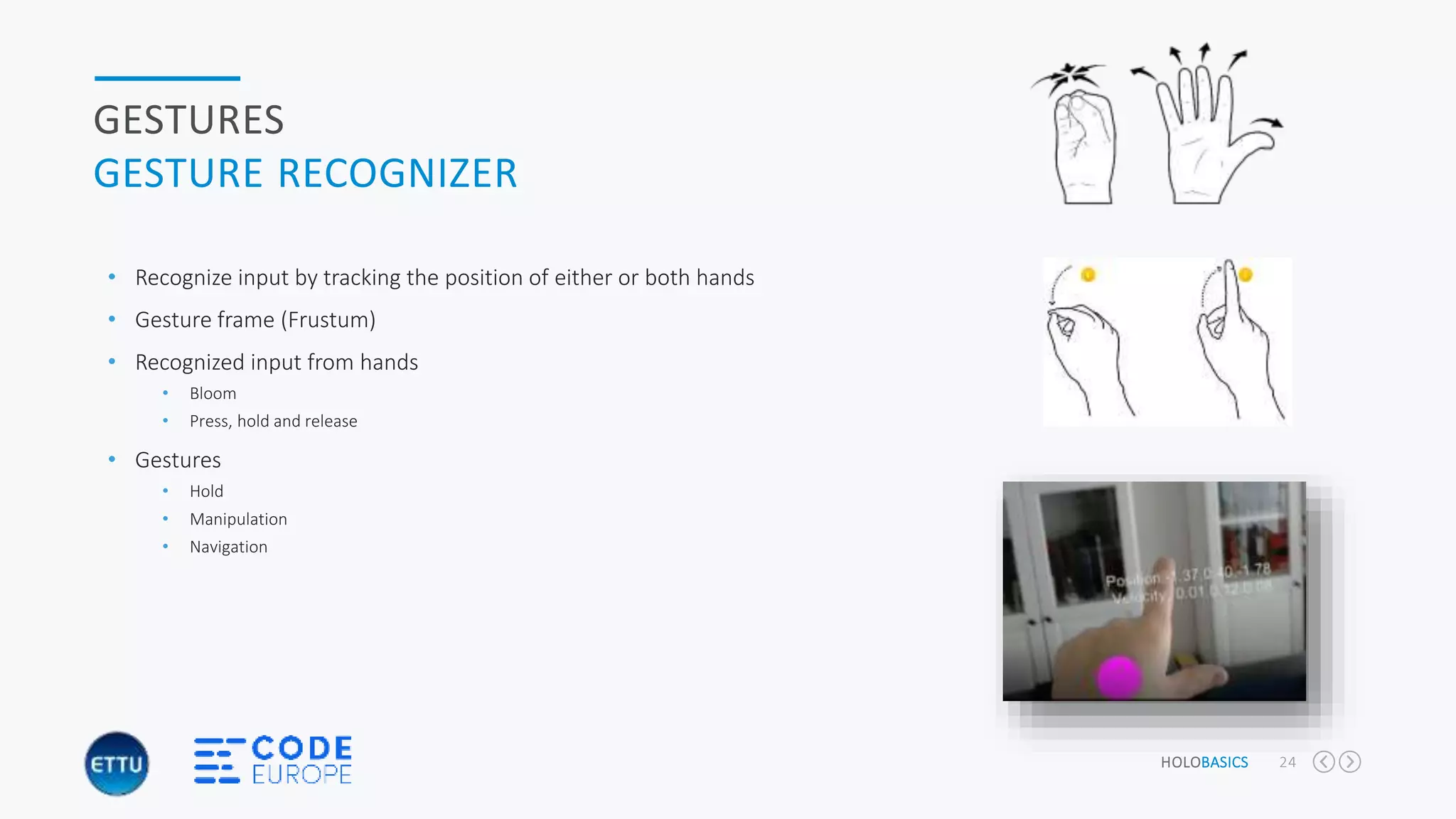

24. HOLOBASICS 24
GESTURES
GESTURE RECOGNIZER
• Recognize input by tracking the position of either or both hands
• Gesture frame (Frustum)
• Recognized input from hands
• Bloom
• Press, hold and release
• Gestures
• Hold
• Manipulation
• Navigation

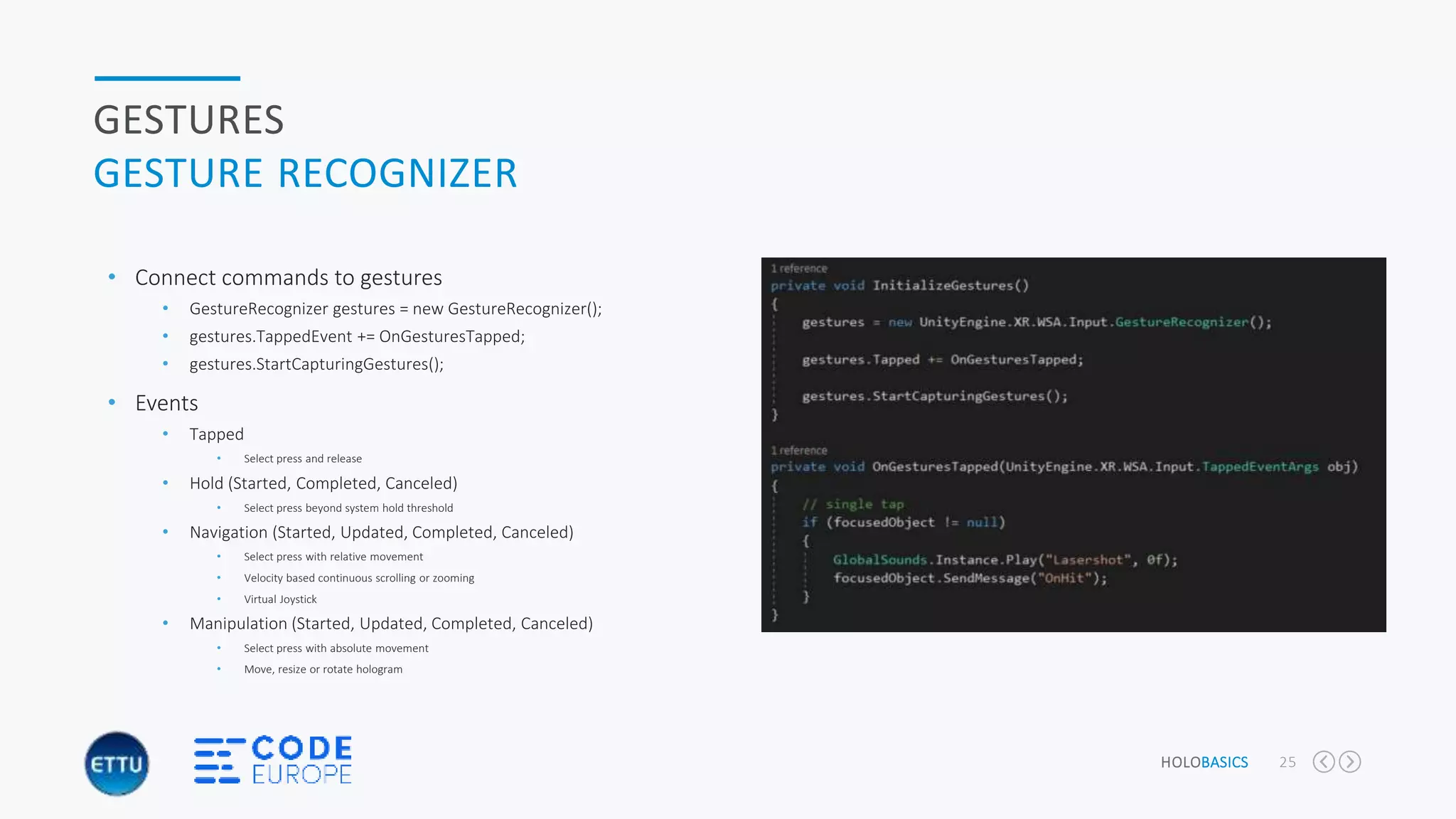

25. HOLOBASICS 25
GESTURES
GESTURE RECOGNIZER
• Connect commands to gestures
• GestureRecognizer gestures = new GestureRecognizer();
• gestures.TappedEvent += OnGesturesTapped;
• gestures.StartCapturingGestures();
• Events
• Tapped
• Select press and release
• Hold (Started, Completed, Canceled)
• Select press beyond system hold threshold
• Navigation (Started, Updated, Completed, Canceled)
• Select press with relative movement
• Velocity based continuous scrolling or zooming
• Virtual Joystick
• Manipulation (Started, Updated, Completed, Canceled)
• Select press with absolute movement
• Move, resize or rotate hologram

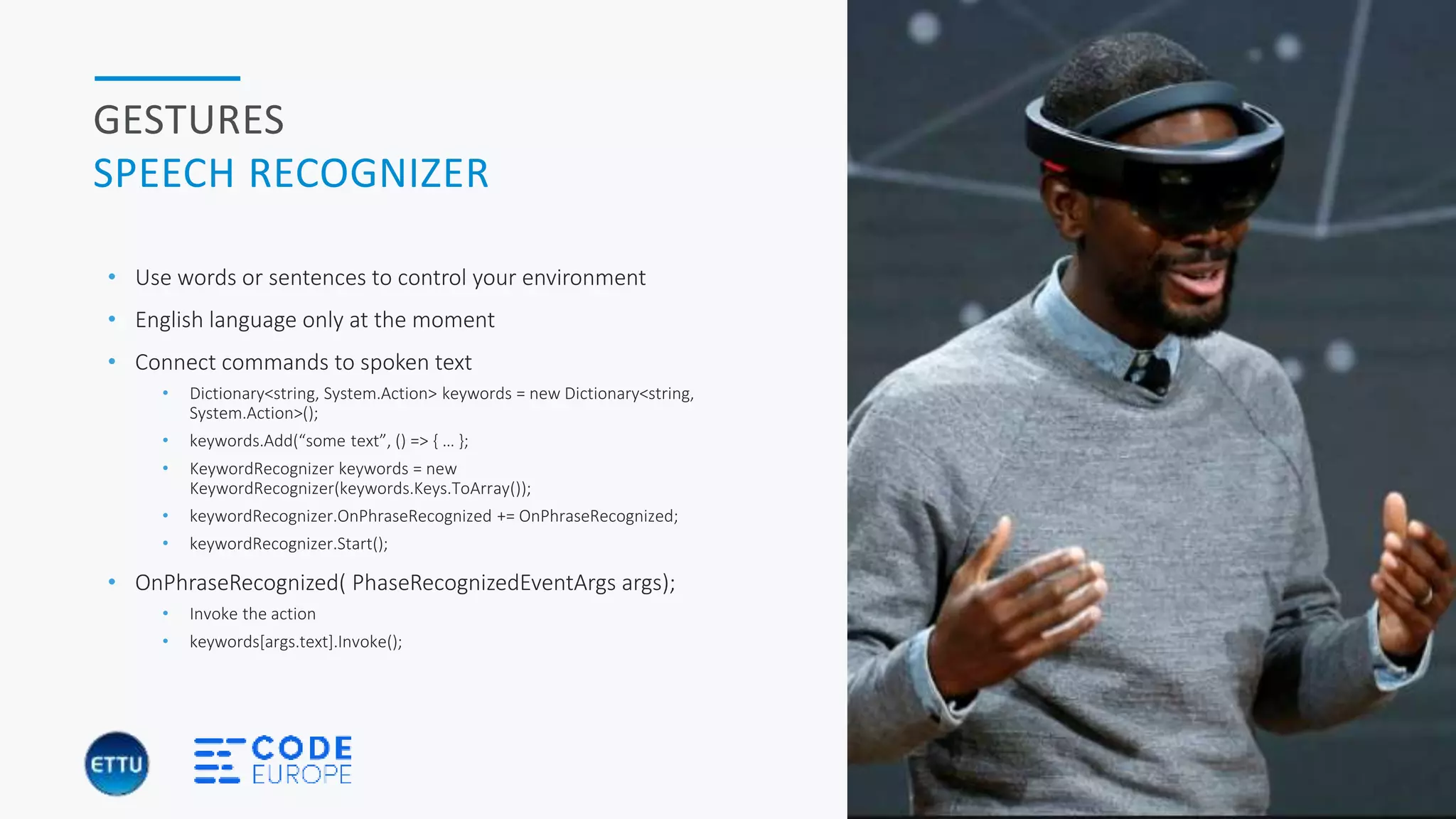

26. HOLOBASICS 26
GESTURES
SPEECH RECOGNIZER
• Use words or sentences to control your environment
• English language only at the moment
• Connect commands to spoken text
• Dictionary<string, System.Action> keywords = new Dictionary<string,
System.Action>();
• keywords.Add(“some text”, () => { … };
• KeywordRecognizer keywords = new
KeywordRecognizer(keywords.Keys.ToArray());
• keywordRecognizer.OnPhraseRecognized += OnPhraseRecognized;
• keywordRecognizer.Start();
• OnPhraseRecognized( PhaseRecognizedEventArgs args);
• Invoke the action
• keywords[args.text].Invoke();

27. “</CODE>”
“HoloBasics by Alexander Meijers”

28. SPATIAL SOUND

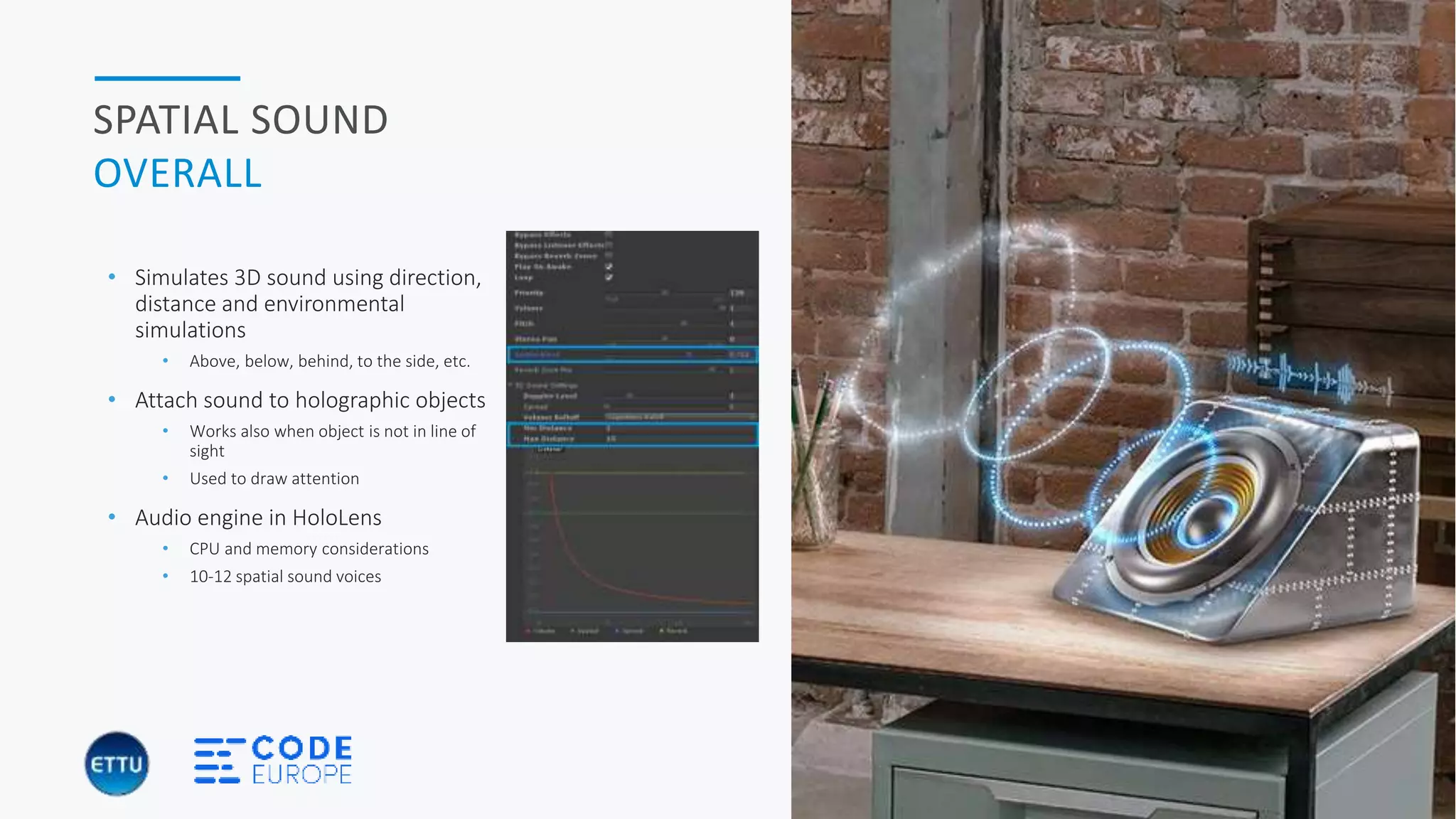

29. HOLOBASICS 29
SPATIAL SOUND
OVERALL
• Simulates 3D sound using direction,
distance and environmental
simulations
• Above, below, behind, to the side, etc.
• Attach sound to holographic objects
• Works also when object is not in line of
sight
• Used to draw attention
• Audio engine in HoloLens
• CPU and memory considerations
• 10-12 spatial sound voices

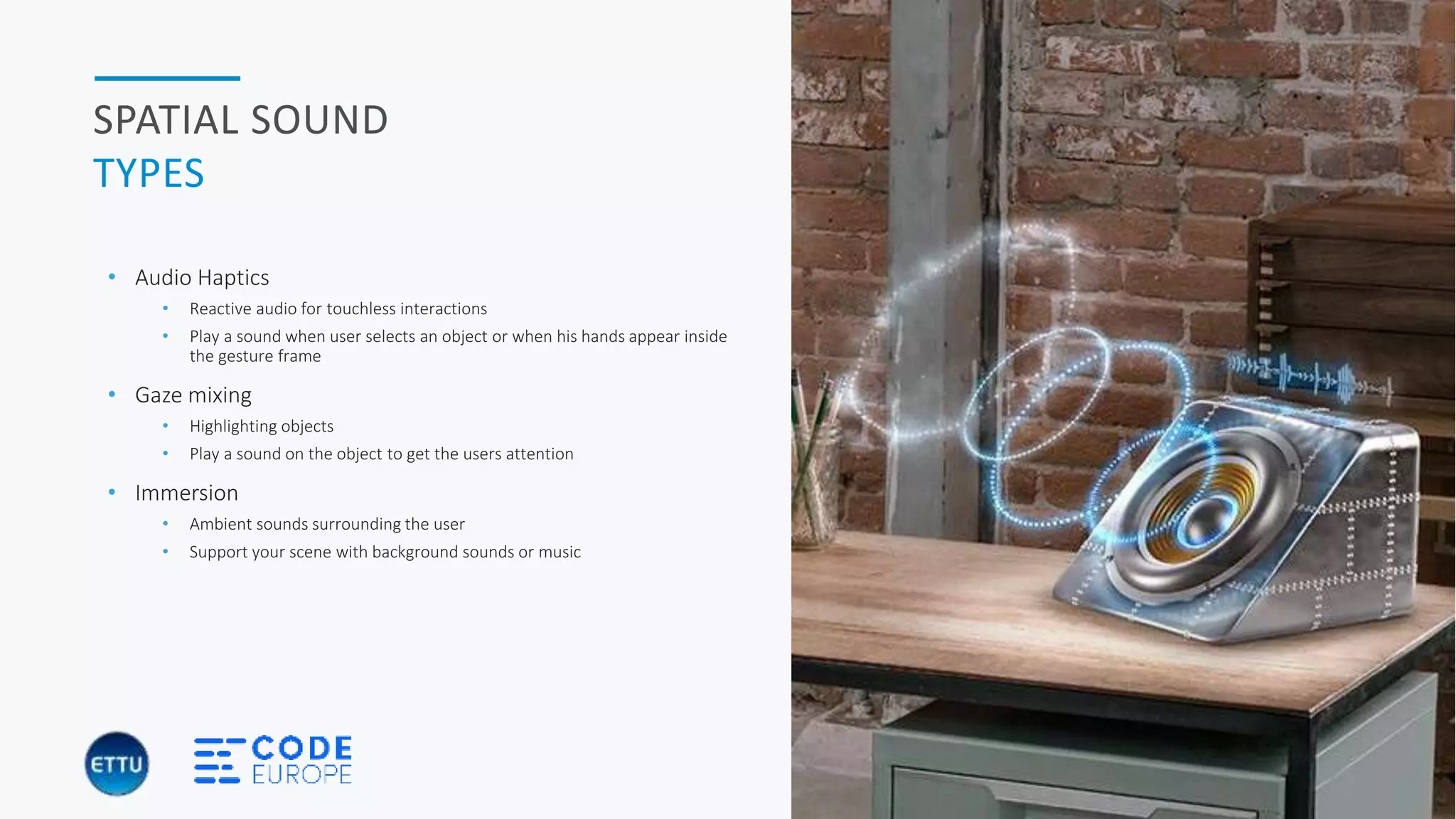

30. HOLOBASICS 30
SPATIAL SOUND
TYPES
• Audio Haptics
• Reactive audio for touchless interactions
• Play a sound when user selects an object or when his hands appear inside
the gesture frame
• Gaze mixing
• Highlighting objects
• Play a sound on the object to get the users attention
• Immersion
• Ambient sounds surrounding the user
• Support your scene with background sounds or music

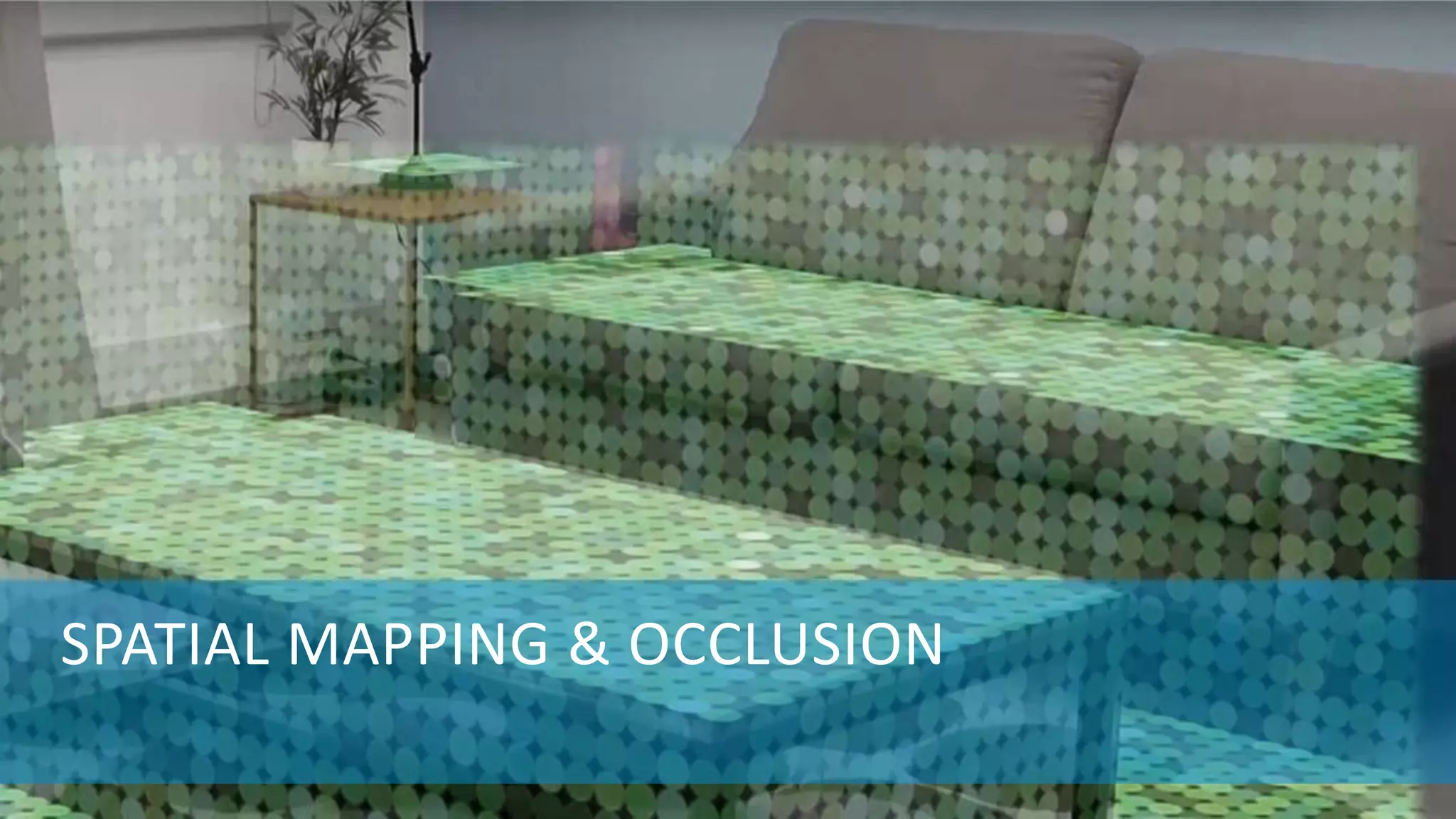

31. SPATIAL MAPPING & OCCLUSION

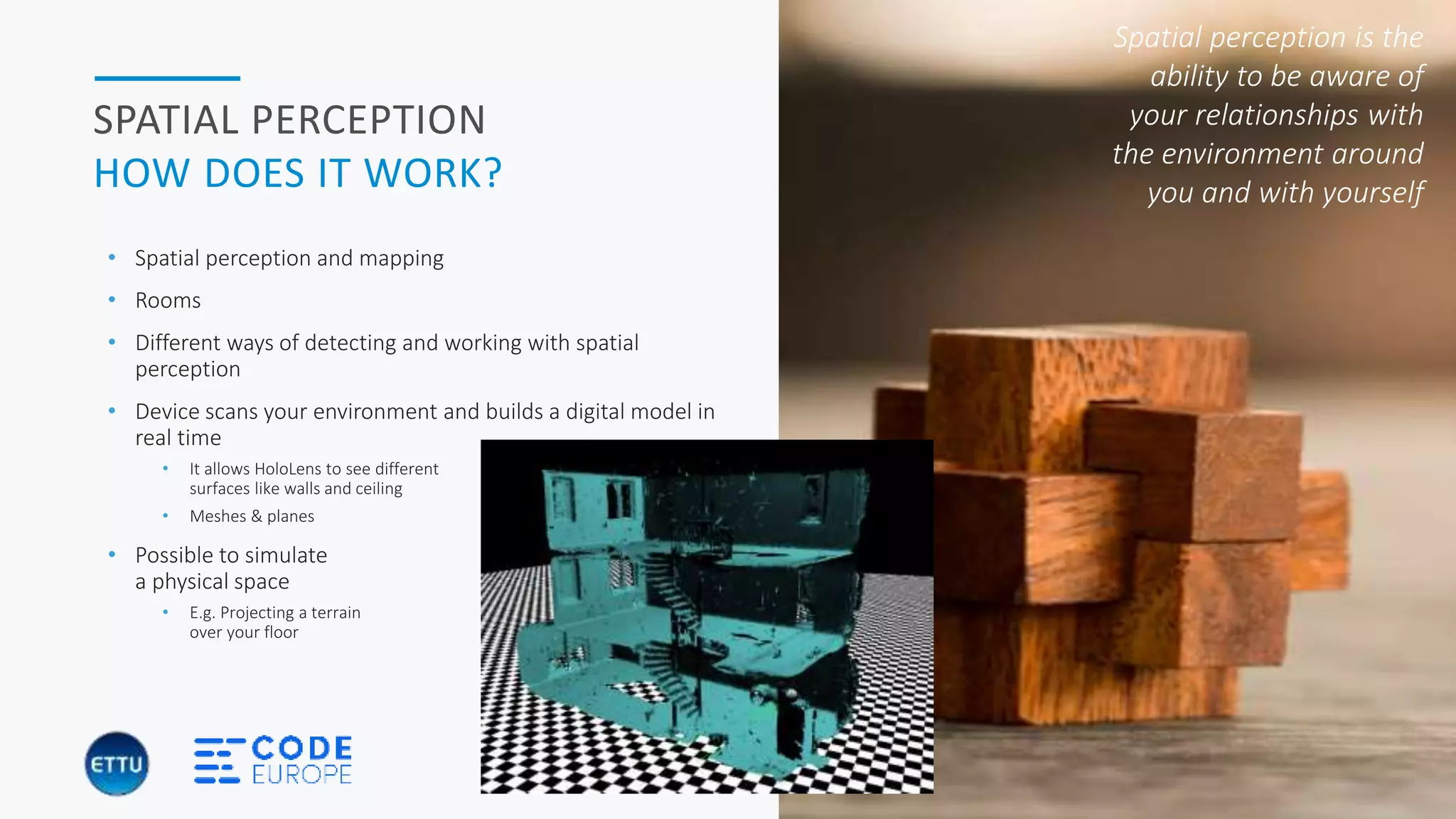

32. HOLOBASICS 32
SPATIAL PERCEPTION
HOW DOES IT WORK?
• Spatial perception and mapping
• Rooms
• Different ways of detecting and working with spatial
perception
• Device scans your environment and builds a digital model in
real time
• It allows HoloLens to see different
surfaces like walls and ceiling
• Meshes & planes
• Possible to simulate
a physical space
• E.g. Projecting a terrain
over your floor
Spatial perception is the
ability to be aware of
your relationships with
the environment around
you and with yourself

33. “DEMONSTRATION OF LIVE SPATIAL MAPPING
AND UNDERSTANDING BY HOLOLENS”
“HoloBasics by Alexander Meijers”

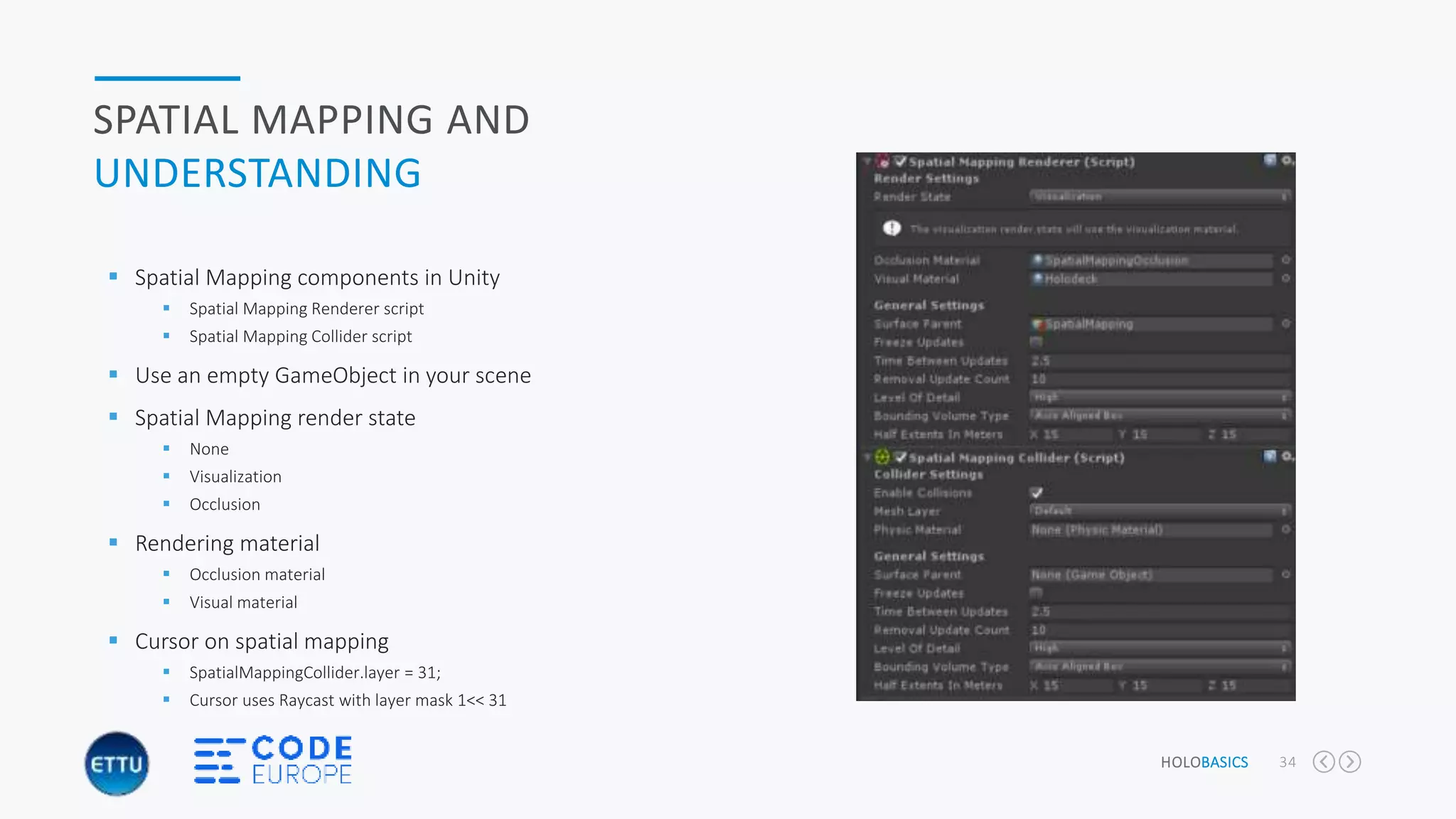

34. HOLOBASICS 34
SPATIAL MAPPING AND
UNDERSTANDING
 Spatial Mapping components in Unity
 Spatial Mapping Renderer script
 Spatial Mapping Collider script
 Use an empty GameObject in your scene
 Spatial Mapping render state
 None
 Visualization
 Occlusion
 Rendering material
 Occlusion material
 Visual material
 Cursor on spatial mapping
 SpatialMappingCollider.layer = 31;
 Cursor uses Raycast with layer mask 1<< 31

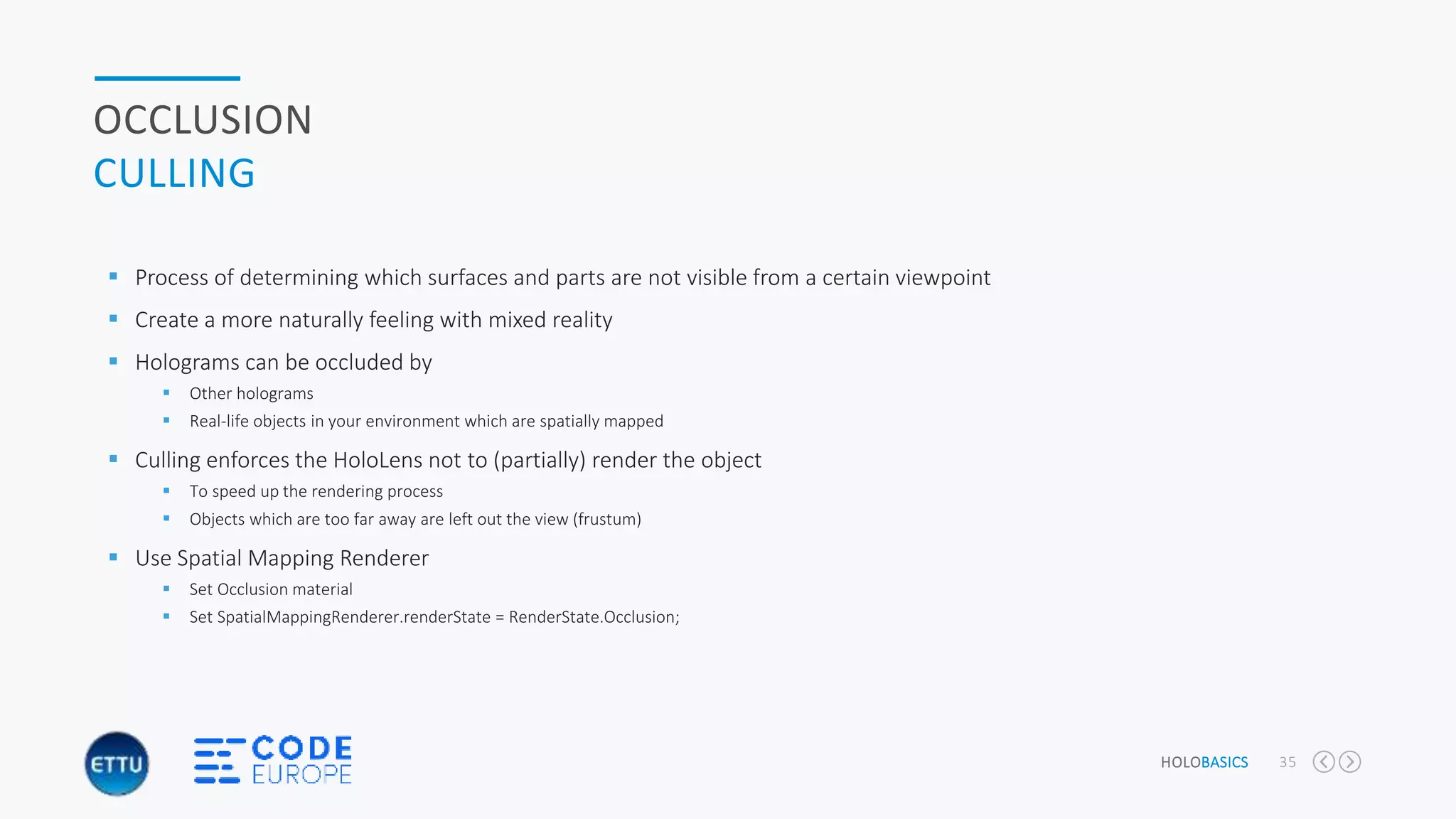

35. HOLOBASICS 35
OCCLUSION
CULLING
 Process of determining which surfaces and parts are not visible from a certain viewpoint
 Create a more naturally feeling with mixed reality
 Holograms can be occluded by
 Other holograms
 Real-life objects in your environment which are spatially mapped
 Culling enforces the HoloLens not to (partially) render the object
 To speed up the rendering process
 Objects which are too far away are left out the view (frustum)
 Use Spatial Mapping Renderer
 Set Occlusion material
 Set SpatialMappingRenderer.renderState = RenderState.Occlusion;

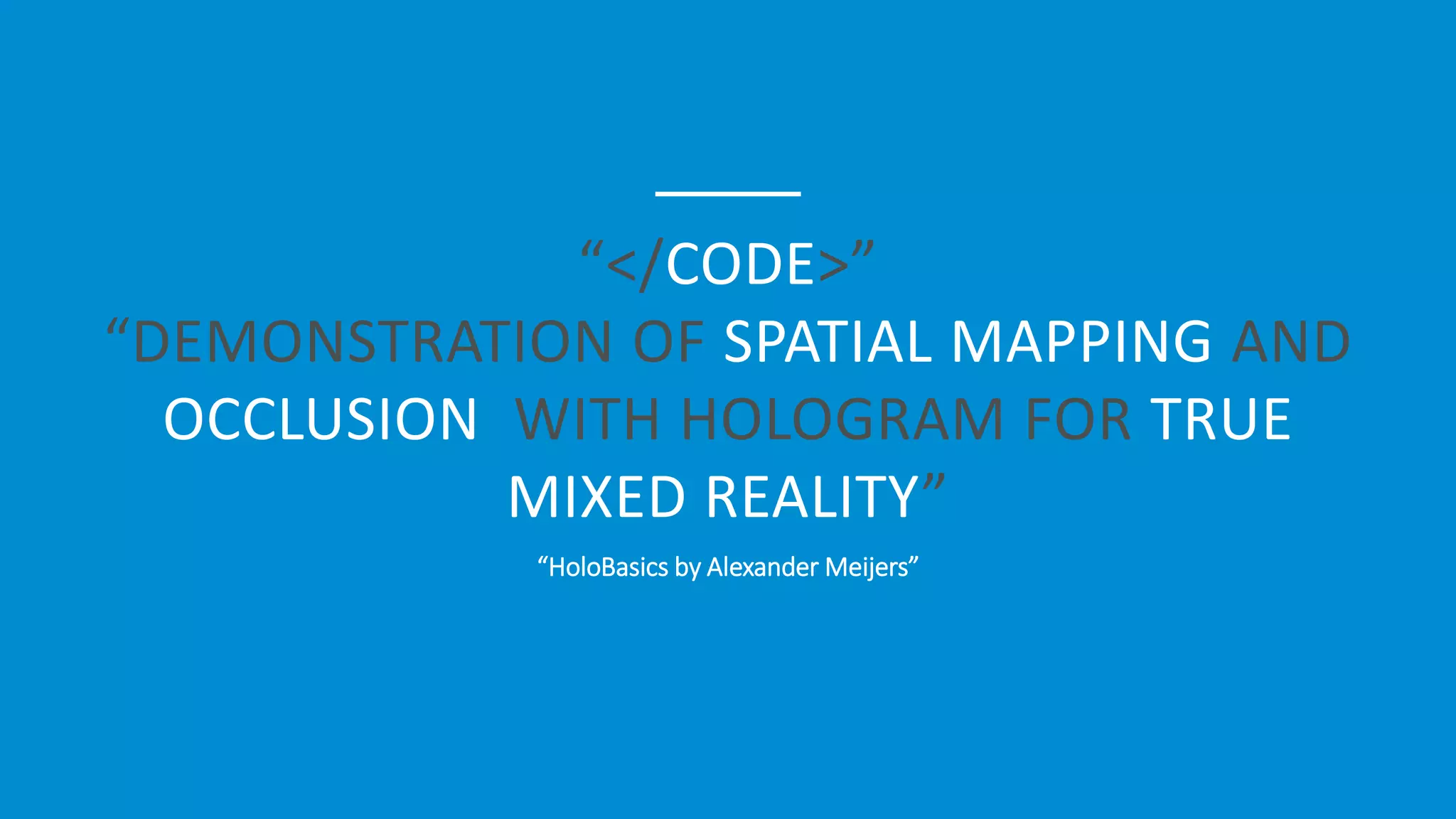

36. “</CODE>”
“DEMONSTRATION OF SPATIAL MAPPING AND
OCCLUSION WITH HOLOGRAM FOR TRUE
MIXED REALITY”
“HoloBasics by Alexander Meijers”

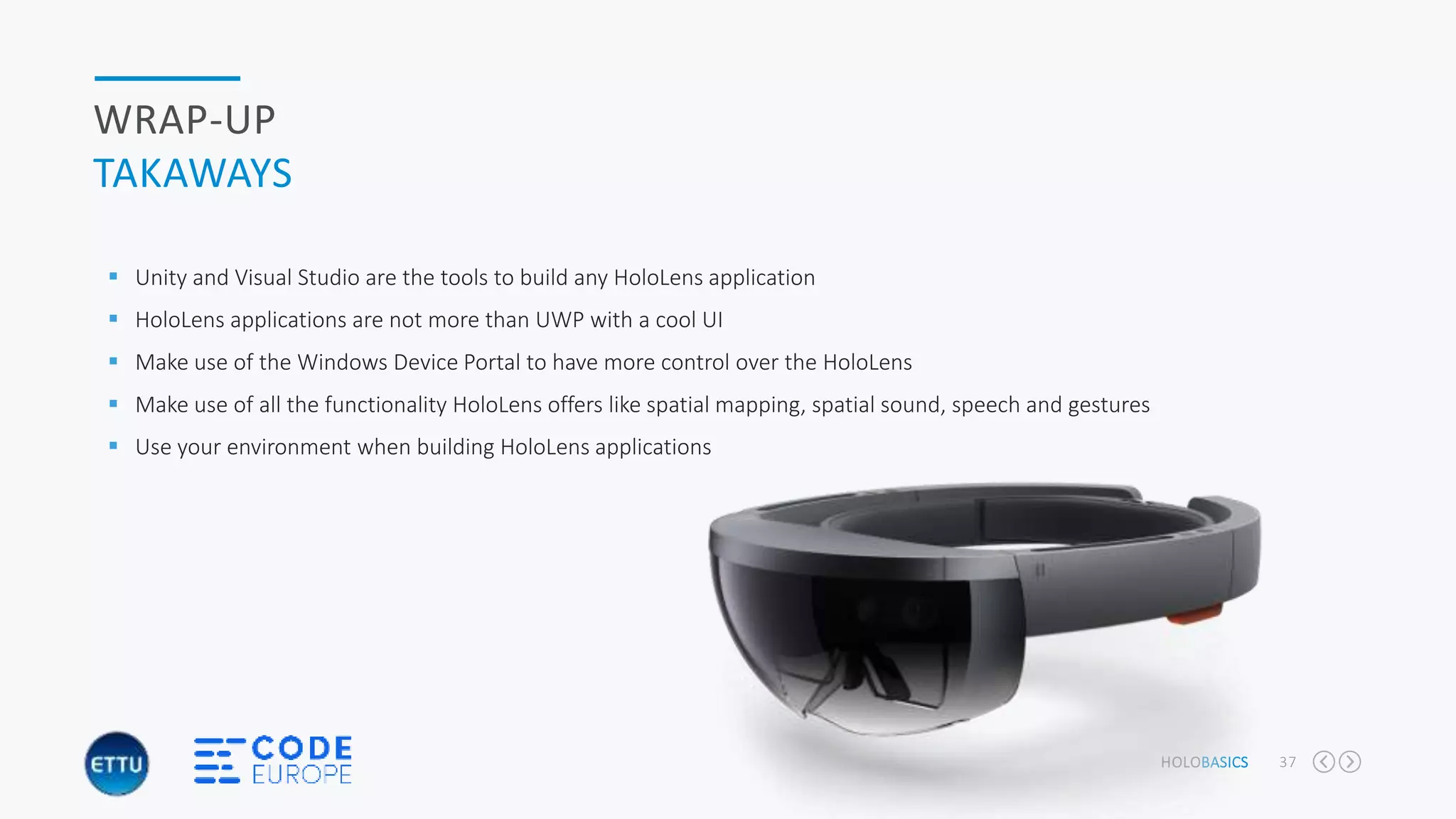

37. HOLOBASICS 37
WRAP-UP
TAKAWAYS
 Unity and Visual Studio are the tools to build any HoloLens application
 HoloLens applications are not more than UWP with a cool UI
 Make use of the Windows Device Portal to have more control over the HoloLens
 Make use of all the functionality HoloLens offers like spatial mapping, spatial sound, speech and gestures
 Use your environment when building HoloLens applications

38. THANKS FOR WATCHING!
HoloBasics code on gitHub - https://github.com/ameijers/HoloBasics
