1. Welcome
Group : V

2. OUR GROUP
Swapnil Saha 151-15-4939
Safayet Hossain 151-15-4938
Md. Shahadat Hoseen 151-15-5187
Fahmida Al Ikra 151-15-5076
Khurshida Jahan 151-15-5190

3. FLAGS resister
and
Their changes due to
of 8086

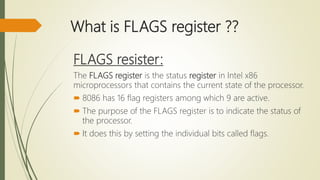

4. What is FLAGS register ??
FLAGS resister:
The FLAGS register is the status register in Intel x86
microprocessors that contains the current state of the processor.
 8086 has 16 flag registers among which 9 are active.
 The purpose of the FLAGS register is to indicate the status of
the processor.
 It does this by setting the individual bits called flags.

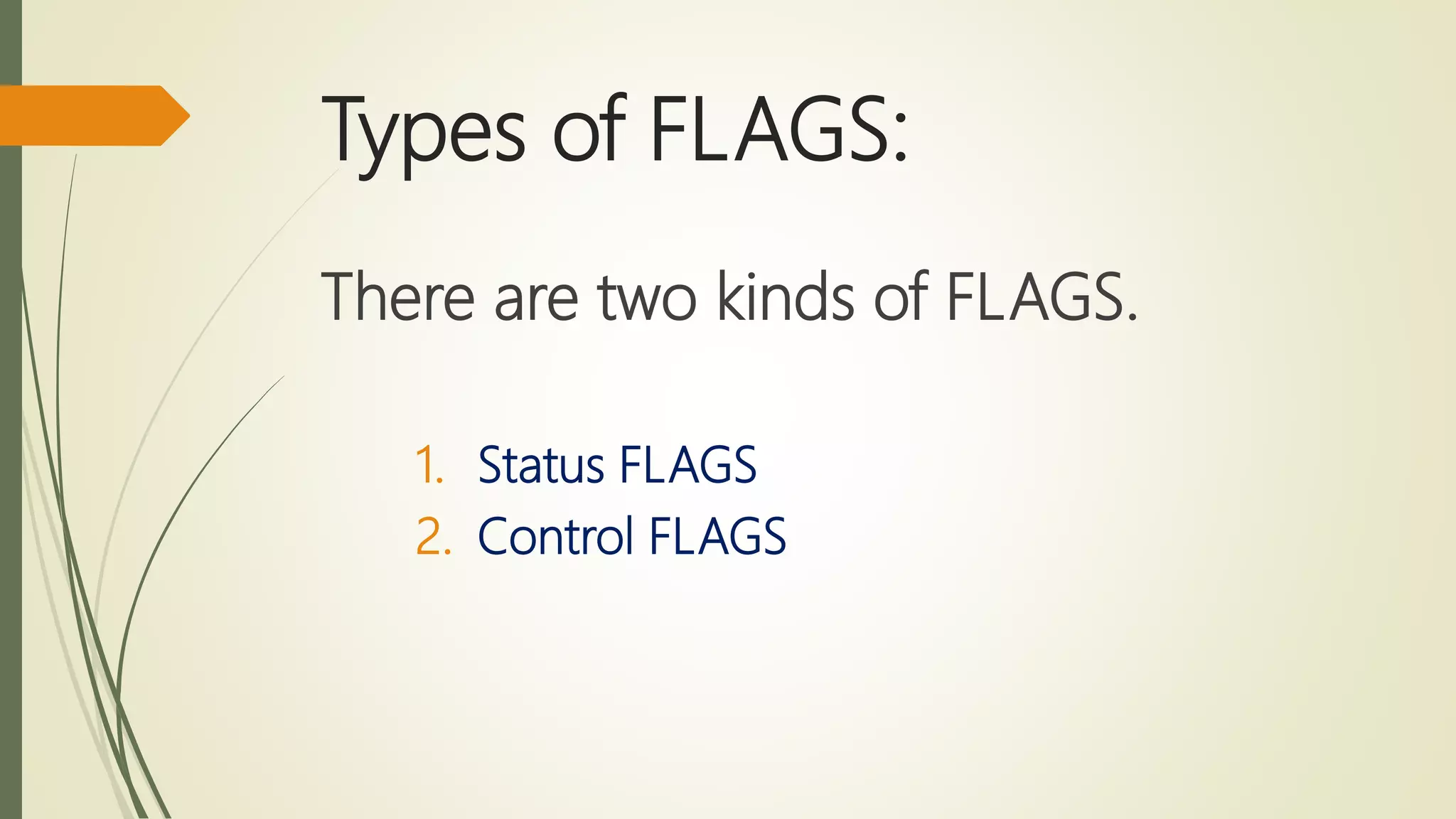

5. Types of FLAGS:
There are two kinds of FLAGS.
1. Status FLAGS
2. Control FLAGS

6. Types of FLAGS
Status FLAGS :
 Status FLAGS reflect the result of an operation executed by
the processor
Control FLAGS :
 The control FLAGS enable or disable certain operations of
the processor.

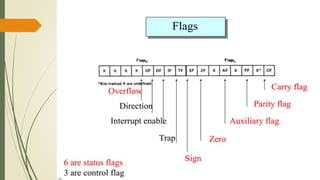

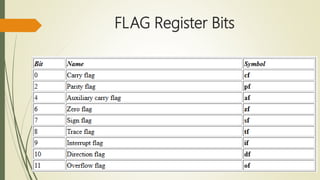

8. FLAG Register Bits

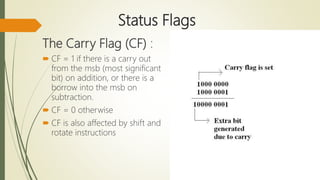

9. Status Flags
The Carry Flag (CF) :
 CF = 1 if there is a carry out
from the msb (most significant
bit) on addition, or there is a
borrow into the msb on
subtraction.
 CF = 0 otherwise
 CF is also affected by shift and
rotate instructions

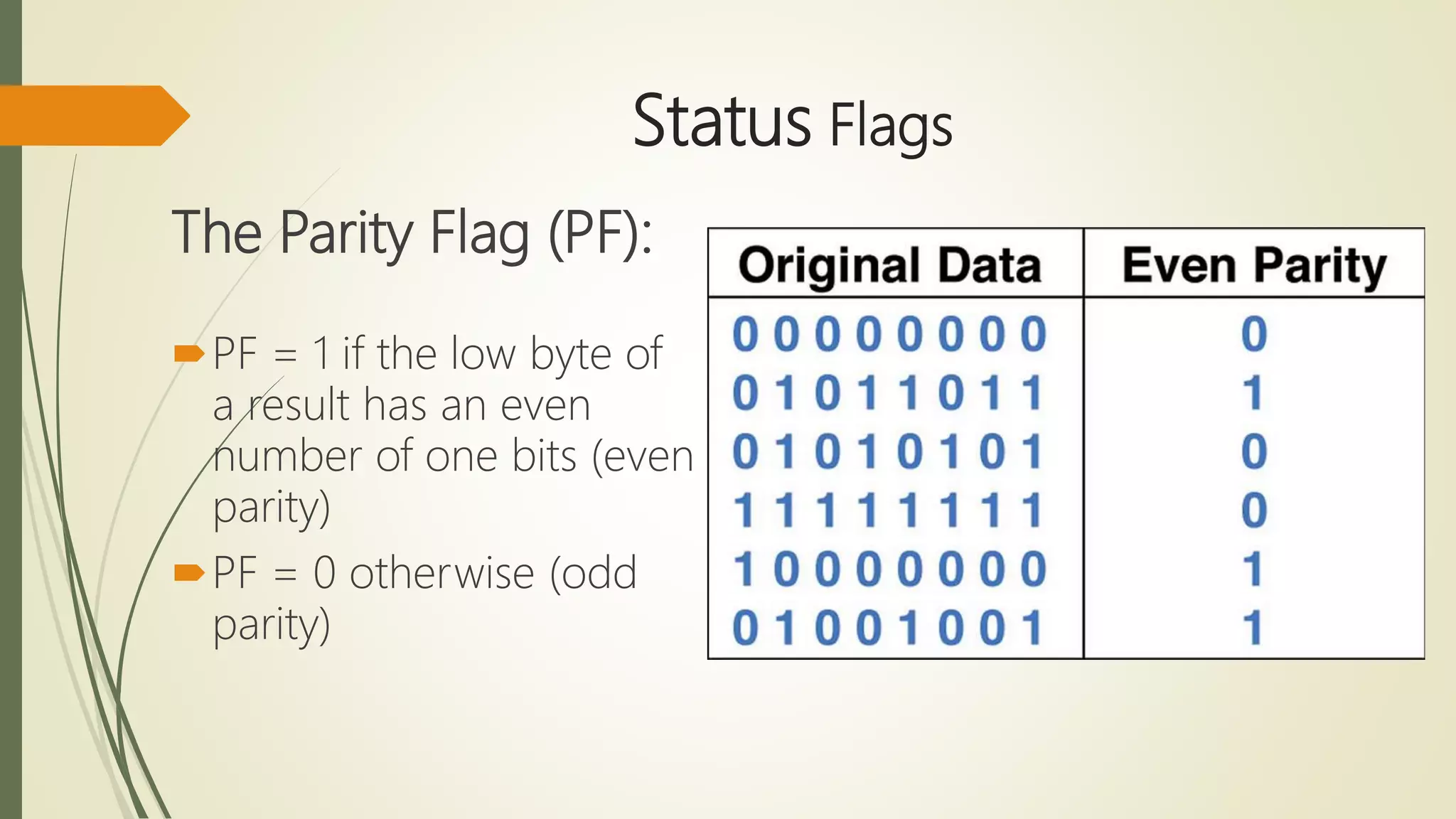

10. Status Flags

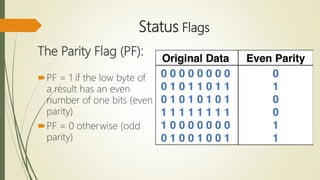

The Parity Flag (PF):
PF = 1 if the low byte of
a result has an even
number of one bits (even
parity)
PF = 0 otherwise (odd
parity)

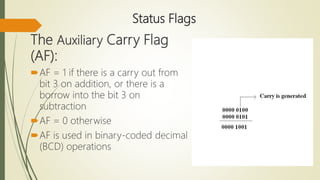

11. Status Flags
The Auxiliary Carry Flag
(AF):
AF = 1 if there is a carry out from
bit 3 on addition, or there is a
borrow into the bit 3 on
subtraction
AF = 0 otherwise
AF is used in binary-coded decimal
(BCD) operations

12. Status Flags
The Zero Flag (ZF) :
 ZF = 1 for a zero result
 ZF = 0 for a non-zero result
 In this example the result is not
zero. So ZF=0

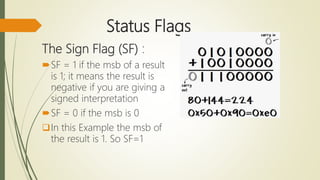

13. Status Flags
The Sign Flag (SF) :
SF = 1 if the msb of a result
is 1; it means the result is
negative if you are giving a
signed interpretation
SF = 0 if the msb is 0
In this Example the msb of
the result is 1. So SF=1

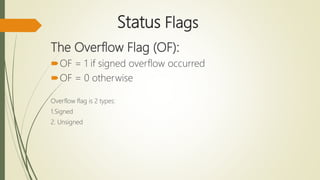

14. Status Flags
The Overflow Flag (OF):
OF = 1 if signed overflow occurred
OF = 0 otherwise
Overflow flag is 2 types:
1.Signed
2. Unsigned

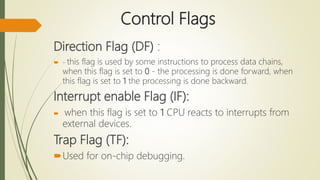

15. Control Flags
Direction Flag (DF) :
 - this flag is used by some instructions to process data chains,
when this flag is set to 0 - the processing is done forward, when
this flag is set to 1 the processing is done backward.
Interrupt enable Flag (IF):
 when this flag is set to 1 CPU reacts to interrupts from
external devices.
Trap Flag (TF):
Used for on-chip debugging.

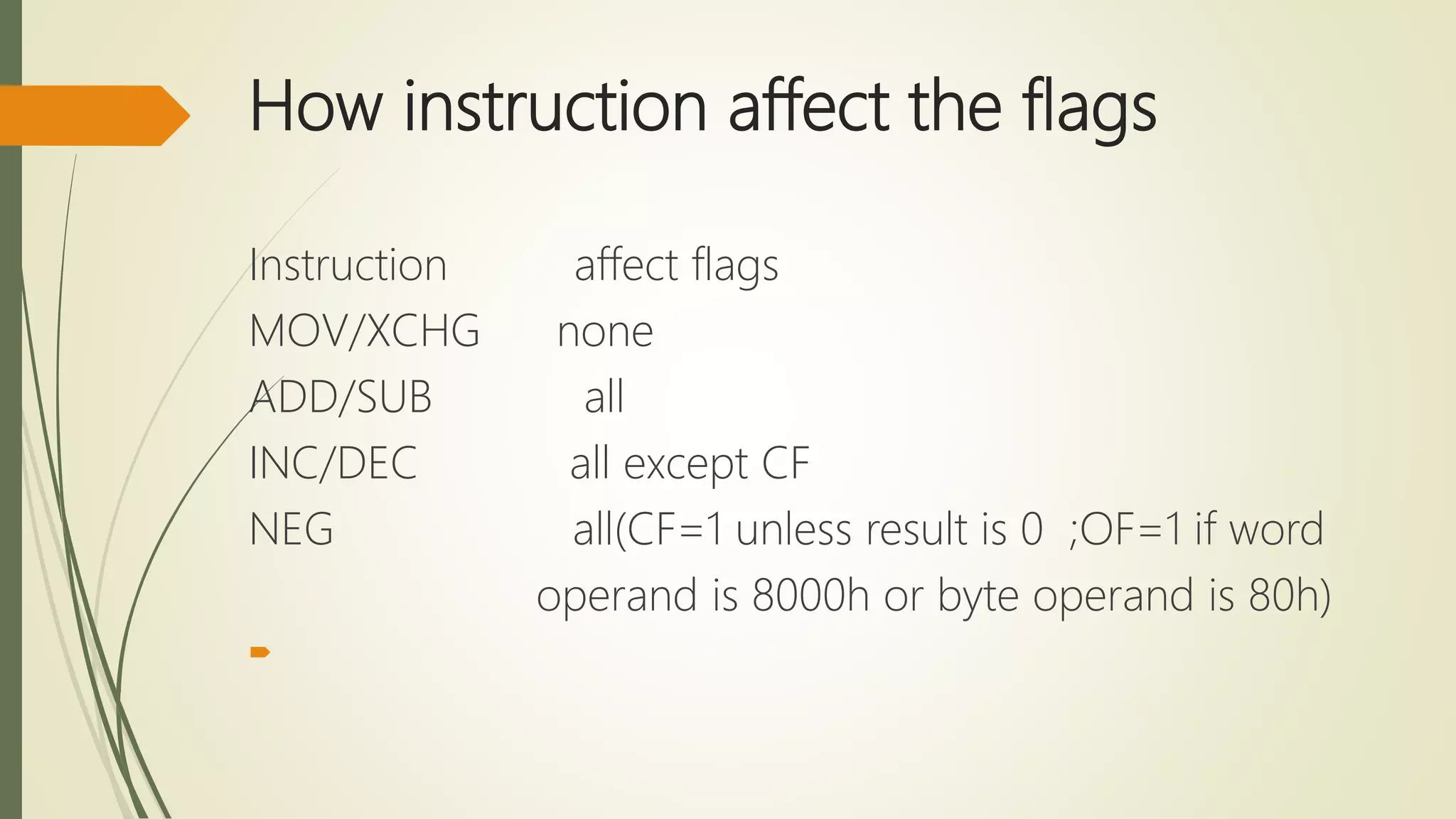

16. How instruction affect the flags
Instruction affect flags
MOV/XCHG none
ADD/SUB all
INC/DEC all except CF
NEG all(CF=1 unless result is 0 ;OF=1 if word
operand is 8000h or byte operand is 80h)


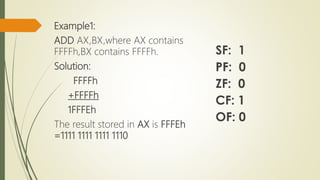

17. Example1:
ADD AX,BX,where AX contains
FFFFh,BX contains FFFFh.
Solution:
FFFFh
+FFFFh
1FFFEh
The result stored in AX is FFFEh
=1111 1111 1111 1110

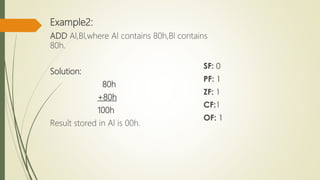

18. Example2:
ADD Al,Bl,where Al contains 80h,Bl contains
80h.
Solution:
80h
+80h
100h
Result stored in Al is 00h.

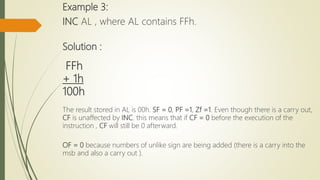

19. Example 3:
INC AL , where AL contains FFh.
Solution :
FFh
+ 1h
100h
The result stored in AL is 00h. SF = 0, PF =1, Zf =1. Even though there is a carry out,
CF is unaffected by INC. this means that if CF = 0 before the execution of the
instruction , CF will still be 0 afterward.
OF = 0 because numbers of unlike sign are being added (there is a carry into the
msb and also a carry out ).

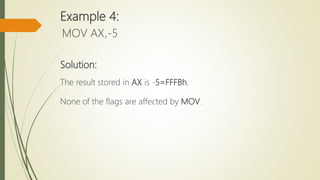

20. Example 4:
MOV AX,-5
Solution:
The result stored in AX is -5=FFFBh.
None of the flags are affected by MOV.

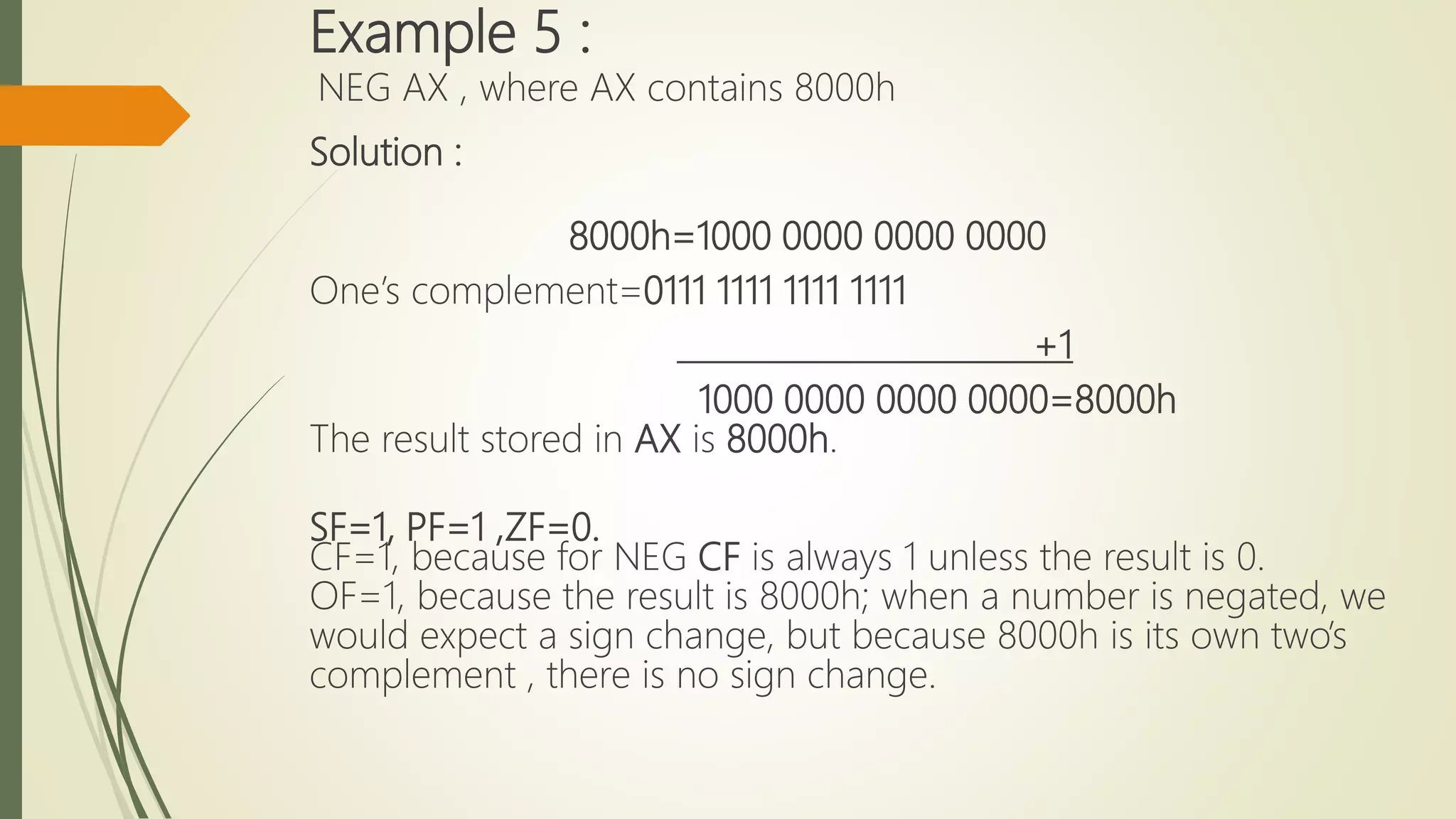

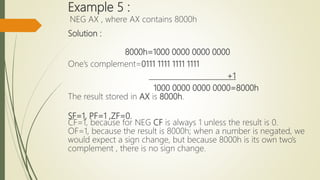

21. Example 5 :
NEG AX , where AX contains 8000h
Solution :
8000h=1000 0000 0000 0000
One’s complement=0111 1111 1111 1111
+1
1000 0000 0000 0000=8000h
The result stored in AX is 8000h.
SF=1, PF=1 ,ZF=0.
CF=1, because for NEG CF is always 1 unless the result is 0.
OF=1, because the result is 8000h; when a number is negated, we
would expect a sign change, but because 8000h is its own two’s
complement , there is no sign change.

22. Thanks
