Kubernetes and Docker are two of the top open source projects, and they’re built around abstractions and metadata. These two concepts are the key to architecting in the future. Come with me as I dig a little deeper into these concepts within k8s and Docker and provide some examples from my own work.

1. Architecting the Future
Abstractions and Metadata
Dan Barker @barkerd427
danbarker.codes

2. @barkerd427Wikimedia
“Abstraction is
selective ignorance.”
- Andrew Koenig

3. “All non-trivial
abstractions, to
some degree, are
leaky.”
- Joel Spolsky @barkerd427

4. The current data center is...challenging...
RHEL
7.4
Dev
RHEL
7.3
Test
RHEL
7.1
Prod
Dev Test Prod
RHEL
7.2
Prod
Admin Admin Admin Admin Admin Admin
Dev
RHEL
7.2
Dev
RHEL
7.1
Dev
RHEL
7.3
Dev
Ubuntu
Trusty
RHEL
7.4
Dev
RHEL
6.6
Dev
Ubuntu
Trusty
RHEL
7.3
Dev
RHEL
7.4
Dev
RHEL
7.2
Dev
Ubuntu
Trusty
RHEL
6.9
Dev
RHEL
7.1
Dev
RHEL
7.4
Dev
RHEL
7.1
Dev
RHEL
7.3
Dev
Ubuntu
Trusty
RHEL
6.9
Dev
RHEL
7.2
Dev
@barkerd427

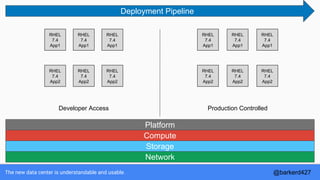

6. The new data center is understandable and usable.
Developer Access Production Controlled
Network
Storage
Compute
Platform
Deployment Pipeline
RHEL
7.4
App1
RHEL
7.4
App1
RHEL
7.4
App1
RHEL
7.4
App1
RHEL
7.4
App1
RHEL
7.4
App1
RHEL
7.4
App2
RHEL
7.4
App2
RHEL
7.4
App2
RHEL
7.4
App2
RHEL
7.4
App2
RHEL
7.4
App2
@barkerd427

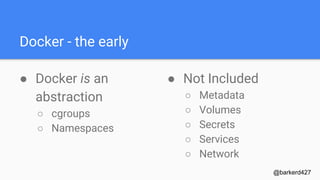

7. Docker - the early
● Docker is an
abstraction
○ cgroups
○ Namespaces
@barkerd427
● Not Included
○ Metadata
○ Volumes
○ Secrets
○ Services
○ Network

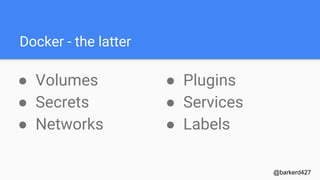

8. Docker - the latter
● Volumes
● Secrets
● Networks
@barkerd427
● Plugins
● Services
● Labels

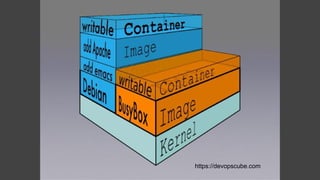

9. https://devopscube.com

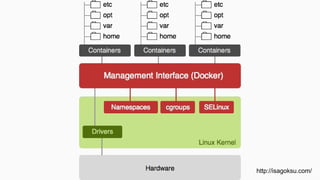

10. http://isagoksu.com/

11. Kubernetes (k8s)
● PersistentVolumes
● Services
● Pods
● Secrets
@barkerd427
● Ingress
● DaemonSets
● ReplicaSets
● Deployments

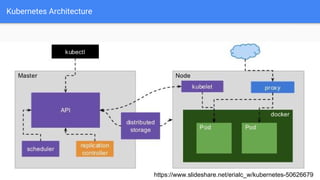

12. Kubernetes Architecture
https://www.slideshare.net/erialc_w/kubernetes-50626679

13. OpenShift
● Routes > Ingress
● DeploymentConfig
> Deployments
@barkerd427
● ImageStream
● BuildConfig

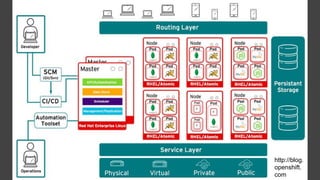

14. http://blog.
openshift.
com

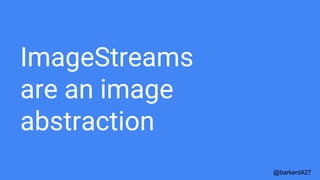

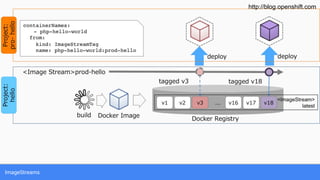

16. ImageStreams
are an image
abstraction
@barkerd427

17. ImageStreams
● Contains images from:
○ Integrated registry
○ Other ImageStreams
○ External registries
● Automatic event triggers
http://blog.openshift.com
@barkerd427

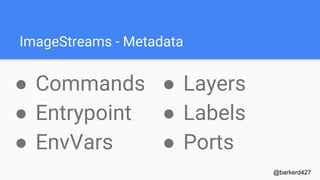

18. ImageStreams - Metadata
● Commands
● Entrypoint
● EnvVars
@barkerd427
● Layers
● Labels
● Ports

19. http://blog.openshift.com
ImageStreams

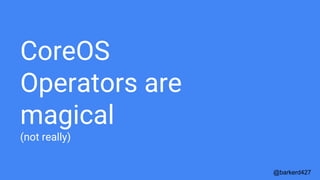

22. CoreOS
Operators are
magical
(not really)
@barkerd427

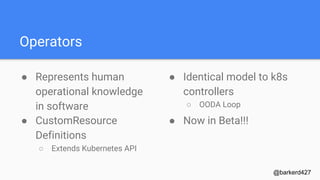

23. Operators
● Represents human
operational knowledge
in software
● Uses 3rd-party
resources
○ Controller of controllers and
resources
@barkerd427
● Identical model to k8s
controllers

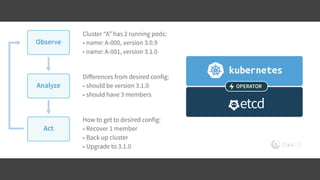

○ OODA Loop
● Not supported in
OpenShift
● CustomResource
Definitions
○ Extends Kubernetes API
● Now in Beta!!!

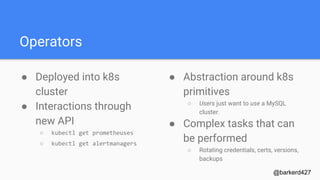

24. Operators
● Deployed into k8s
cluster
● Interactions through
new API
○ kubectl get prometheuses
○ kubectl get alertmanagers
@barkerd427
● Abstraction around k8s
primitives
○ Users just want to use a MySQL
cluster.
● Complex tasks that can
be performed
○ Rotating credentials, certs, versions,
backups

27. Istio is a bridge to
the future

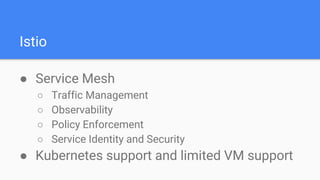

28. Istio
● Service Mesh
○ Traffic Management
○ Observability
○ Policy Enforcement
○ Service Identity and Security
● Kubernetes support and limited VM support

29. Deployment
Pipeline’s have
fallen behind
@barkerd427

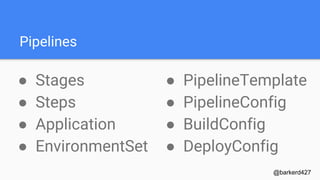

30. Pipelines
● Stages
● Steps
● Application
● EnvironmentSet
@barkerd427
● PipelineTemplate
● PipelineConfig
● BuildConfig
● DeployConfig

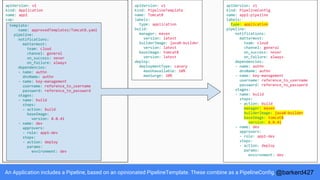

31. An Application includes a Pipeline, based on an opinionated PipelineTemplate. These combine as a PipelineConfig.
apiVersion: v1
kind: Application
name: app1
cap:
template:
name: approvedTemplates/Tomcat8.yaml
pipeline:
notifications:
mattermost:
team: cloud
channel: general
on_success: never
on_failure: always
dependencies:
- name: authn
dnsName: authn
- name: key-management
username: reference_to_username
password: reference_to_password
stages:
- name: build
steps:
- action: build
baseImage:
version: 8.0.41
- name: dev
approvers:
- role: app1-dev
steps:
- action: deploy
params:
environment: dev
apiVersion: v1
kind: PipelineTemplate
name: Tomcat8
labels:
type: application
build:
manager: maven
version: latest
builderImage: java8-builder
version: latest
baseImage: tomcat8
version: latest
deploy:
deploymentType: canary
maxUnavailable: 10%
maxSurge: 20%
apiVersion: v1
kind: PipelineConfig
name: app1-pipeline
labels:
type: application
pipeline:
notifications:
mattermost:
team: cloud
channel: general
on_success: never
on_failure: always
dependencies:
- name: authn
dnsName: authn
- name: key-management
username: reference_to_username
password: reference_to_password
stages:
- name: build
steps:
- action: build
manager: maven
builderImage: java8-builder
baseImage: tomcat8
version: 8.0.41
- name: dev
approvers:
- role: app1-dev
steps:
- action: deploy
params:
environment: dev
@barkerd427

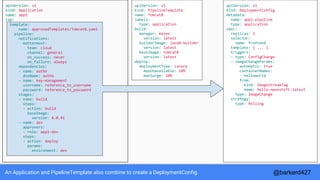

32. An Application and PipelineTemplate also combine to create a DeploymentConfig.
apiVersion: v1
kind: Application
name: app1
cap:
template:
name: approvedTemplates/Tomcat8.yaml
pipeline:
notifications:
mattermost:
team: cloud
channel: general
on_success: never
on_failure: always
dependencies:
- name: authn
dnsName: authn
- name: key-management
username: reference_to_username
password: reference_to_password
stages:
- name: build
steps:
- action: build
baseImage:
version: 8.0.41
- name: dev
approvers:
- role: app1-dev
steps:
- action: deploy
params:
environment: dev
apiVersion: v1
kind: PipelineTemplate
name: Tomcat8
labels:
type: application
build:
manager: maven
version: latest
builderImage: java8-builder
version: latest
baseImage: tomcat8
version: latest
deploy:
deploymentType: canary
maxUnavailable: 10%
maxSurge: 20%
apiVersion: v1
kind: DeploymentConfig
metadata:
name: app1-pipeline
type: application
spec:
replicas: 2
selector:
name: frontend
template: { ... }
triggers:
- type: ConfigChange
- imageChangeParams:
automatic: true
containerNames:
- helloworld
from:
kind: ImageStreamTag
name: hello-openshift:latest
type: ImageChange
strategy:
type: Rolling
@barkerd427

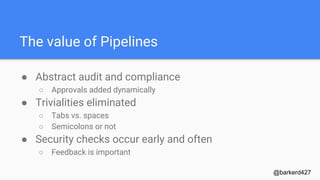

33. The value of Pipelines
● Abstract audit and compliance
○ Approvals added dynamically
● Trivialities eliminated
○ Tabs vs. spaces
○ Semicolons or not
● Security checks occur early and often
○ Feedback is important
@barkerd427

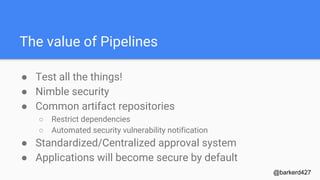

34. The value of Pipelines
● Test all the things!
● Nimble security
● Common artifact repositories
○ Restrict dependencies
○ Automated security vulnerability notification
● Standardized/Centralized approval system
● Applications will become secure by default
@barkerd427

36. Thanks!
Contact me:
Dan Barker
drbarker@dstsystems.com
dan@danbarker.codes
danbarker.codes
@barkerd427

37. Services make
your app usable
@barkerd427

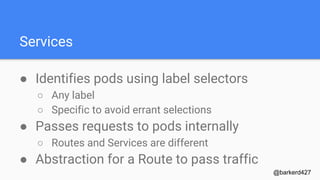

38. Services
● Identifies pods using label selectors
○ Any label
○ Specific to avoid errant selections
● Passes requests to pods internally
○ Routes and Services are different
● Abstraction for a Route to pass traffic
@barkerd427

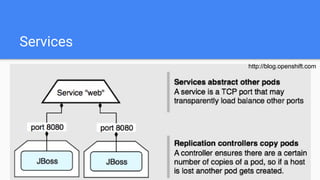

39. Services
http://blog.openshift.com

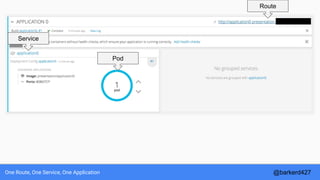

40. One Route, One Service, One Application
Route
Service
Pod
@barkerd427

41. The Route directs to the Service application0
➜ ~ oc export routes application0
apiVersion: v1
kind: Route
[...]
spec:
host: application0-presentation...
to:
kind: Service
name: application0
weight: 100
[...]
@barkerd427

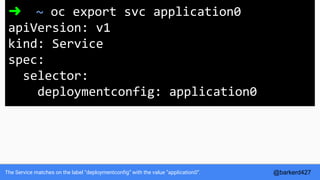

42. The Service matches on the label “deploymentconfig” with the value “application0”.
➜ ~ oc export svc application0
apiVersion: v1
kind: Service
spec:
selector:
deploymentconfig: application0
@barkerd427

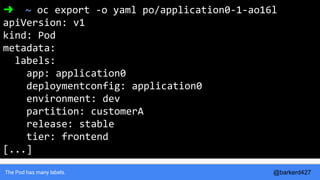

43. The Pod has many labels.
➜ ~ oc export -o yaml po/application0-1-ao16l
apiVersion: v1
kind: Pod
metadata:
labels:
app: application0
deploymentconfig: application0
environment: dev
partition: customerA
release: stable
tier: frontend
[...]
@barkerd427

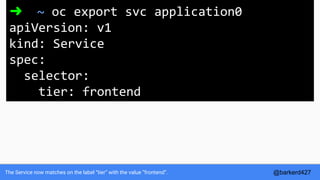

44. The Service now matches on the label “tier” with the value “frontend”.
➜ ~ oc export svc application0
apiVersion: v1
kind: Service
spec:
selector:
tier: frontend
@barkerd427

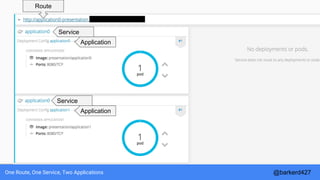

45. One Route, One Service, Two Applications
Route
Application
Application
Service
Service
@barkerd427

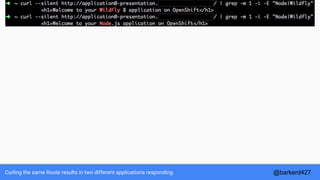

46. Curling the same Route results in two different applications responding. @barkerd427

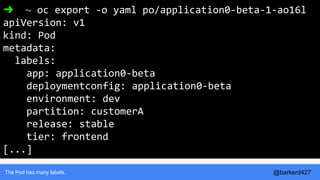

47. The Pod has many labels.
➜ ~ oc export -o yaml po/application0-beta-1-ao16l
apiVersion: v1
kind: Pod
metadata:
labels:
app: application0-beta
deploymentconfig: application0-beta
environment: dev
partition: customerA
release: stable
tier: frontend
[...]
@barkerd427

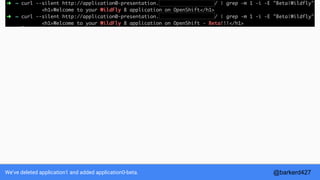

48. We’ve deleted application1 and added application0-beta. @barkerd427
