This document discusses implementing continuous delivery with enterprise middleware. It begins with introductions of the speakers and an overview of ThoughtWorks Studios and XebiaLabs. It then provides definitions and explanations of continuous delivery. The remainder of the document discusses approaches to continuous delivery in the enterprise including dealing with complex dependency trees, diverse deployment landscapes, and integration with release management. It provides an example continuous delivery pipeline for a Java EE application and how it can be optimized for an enterprise approach.

1. Implemen'ng
Con'nuous
Delivery
with
Enterprise
Middleware
Sriram
Narayan,
ThoughtWorks
Studios
Andrew
Phillips,
XebiaLabs

2. • Product principal at ThoughtWorks Studios
• Owner of Go’s deployment stream of work
• Ex-member of ThoughtWorks’ Tech Advisory Board
About Sriram

3. • VP Products for XebiaLabs
• Lots of enterprise software development on high-
performance systems
• Been on both sides of the “Dev…Ops” fence
• Active open source contributor and committer:
jclouds, Akka, Gradle and others
• Cloud, PaaS & JVM language fan (mainly Scala, Clojure)
• Regular meetup, conference etc. presenter
About Andrew

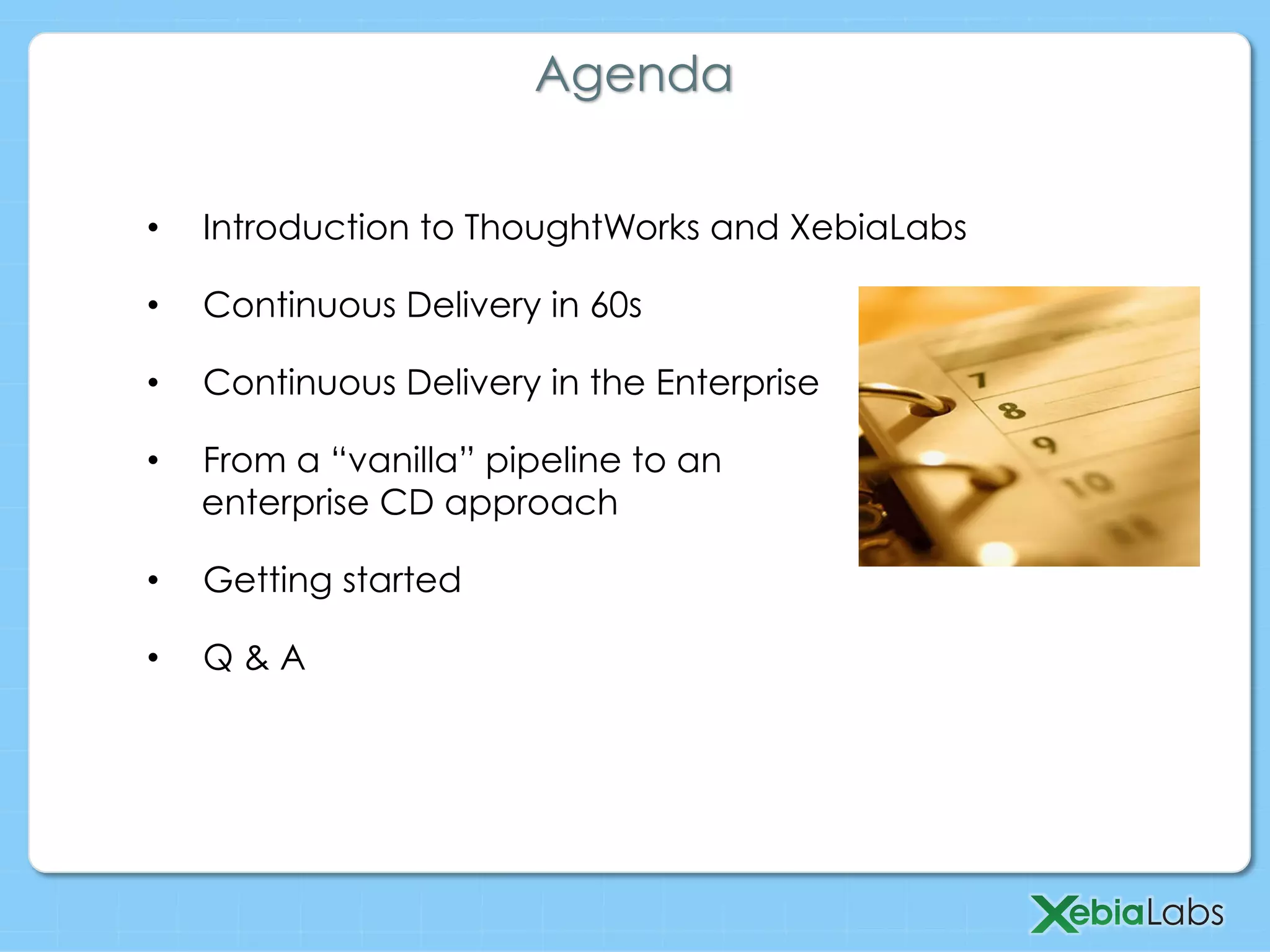

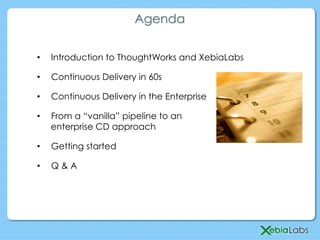

4. • Introduction to ThoughtWorks and XebiaLabs
• Continuous Delivery in 60s
• Continuous Delivery in the Enterprise
• From a “vanilla” pipeline to an
enterprise CD approach
• Getting started
• Q & A
Agenda

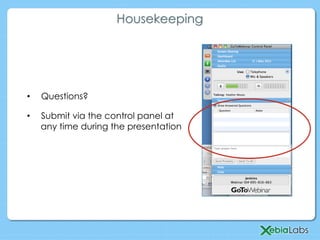

5. • Questions?
• Submit via the control panel at
any time during the presentation
Housekeeping

6. Deployit is our market-leading Application Release
Automation product.
o Headquartered in Boston, Massachusetts
o Global development and support offices in
US, EMEA and APAC
Benefits include:
o Reduce development applications costs
o Accelerate application time to market
o Bridge the gap between Development and Operations
About XebiaLabs

7. About ThoughtWorks Studios

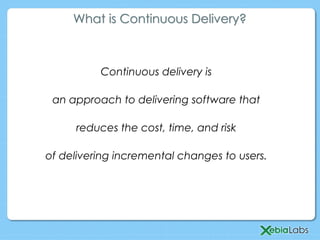

8. Continuous delivery is
an approach to delivering software that
reduces the cost, time, and risk
of delivering incremental changes to users.
What is Continuous Delivery?

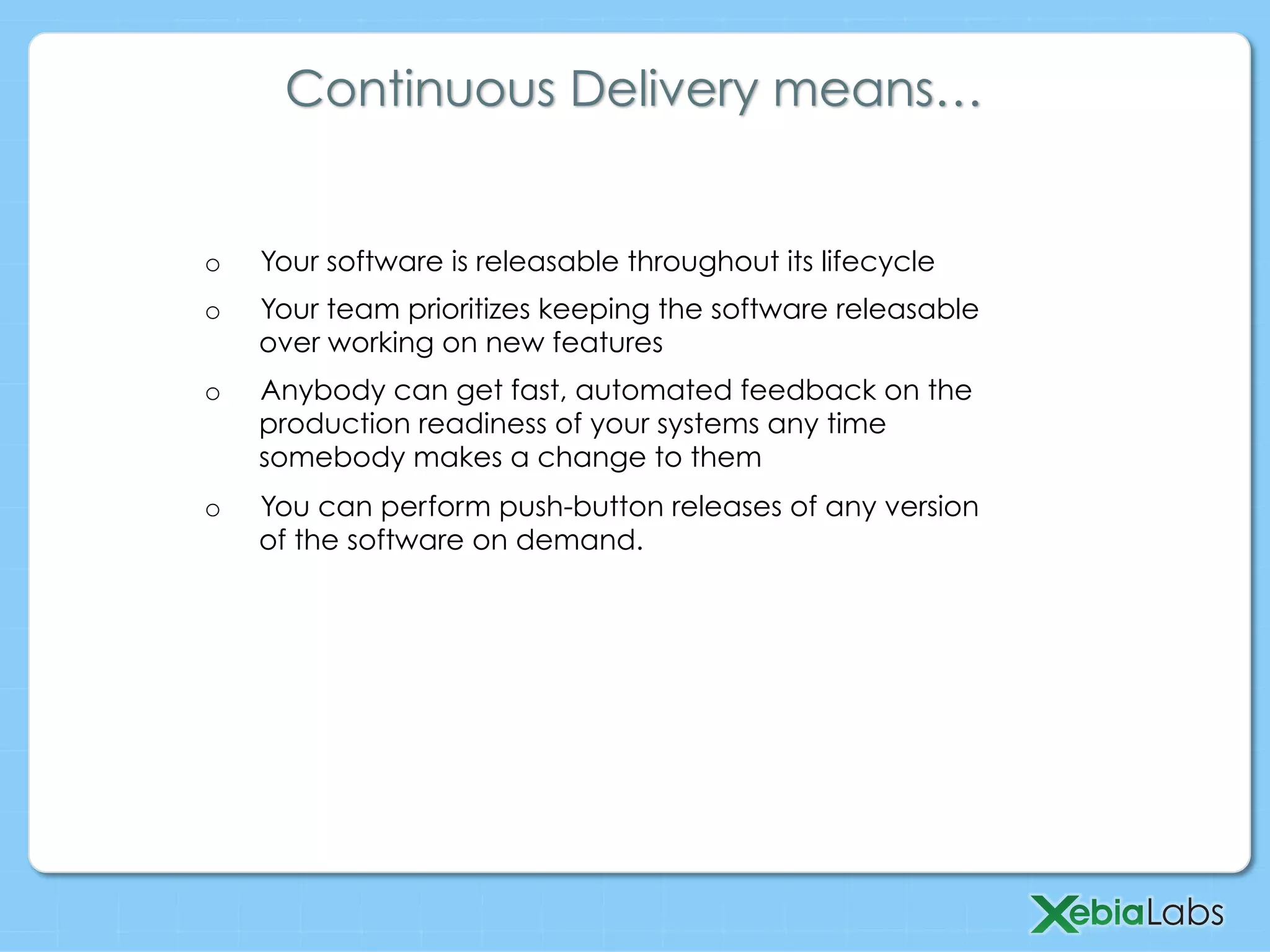

9. o Your software is releasable throughout its lifecycle
o Your team prioritizes keeping the software releasable
over working on new features
o Anybody can get fast, automated feedback on the
production readiness of your systems any time
somebody makes a change to them
o You can perform push-button releases of any version
of the software on demand.
Continuous Delivery means…

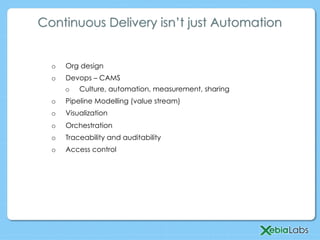

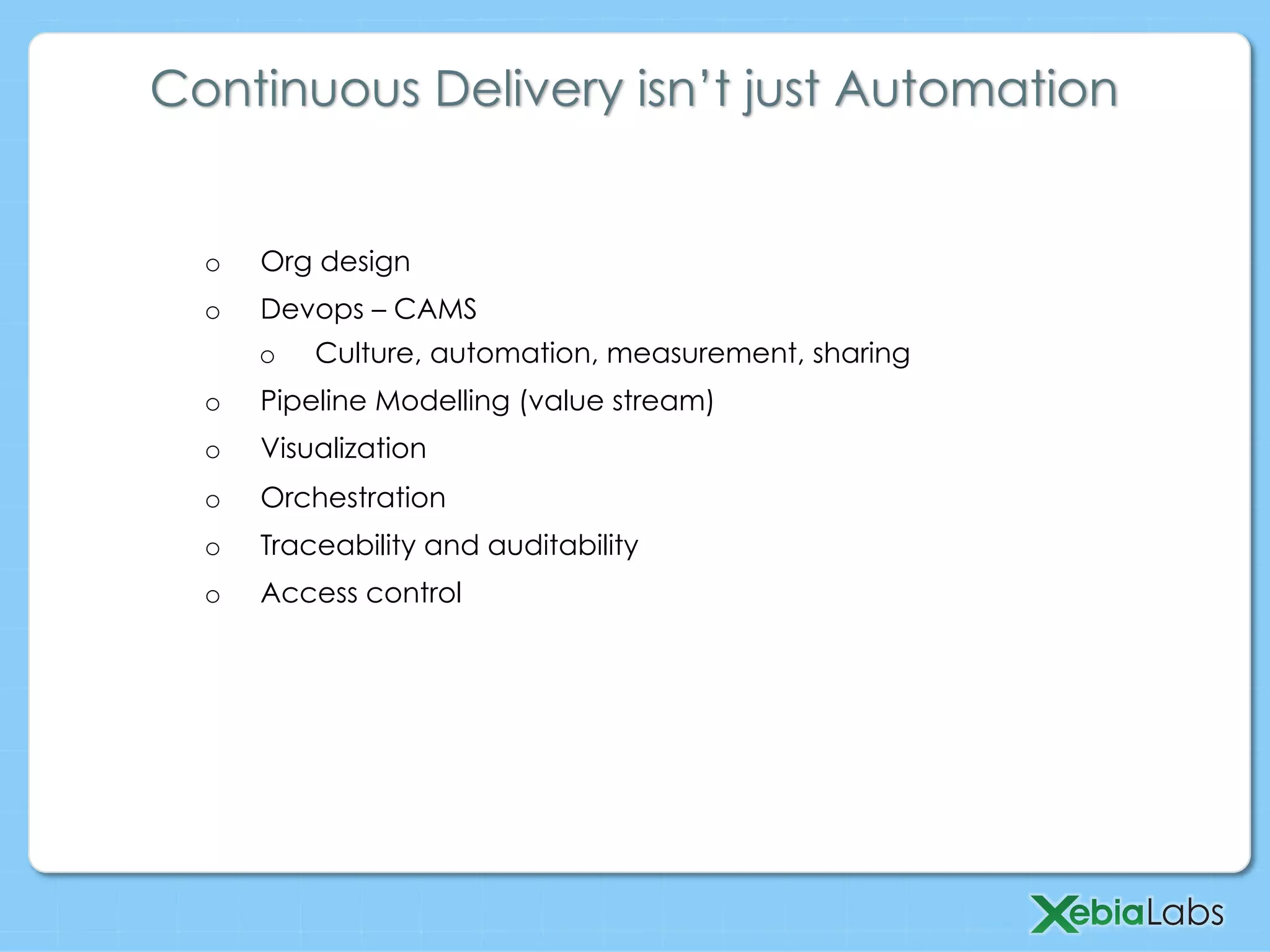

10. Continuous Delivery isn’t just Automation
o Org design
o Devops – CAMS
o Culture, automation, measurement, sharing
o Pipeline Modelling (value stream)
o Visualization
o Orchestration
o Traceability and auditability
o Access control

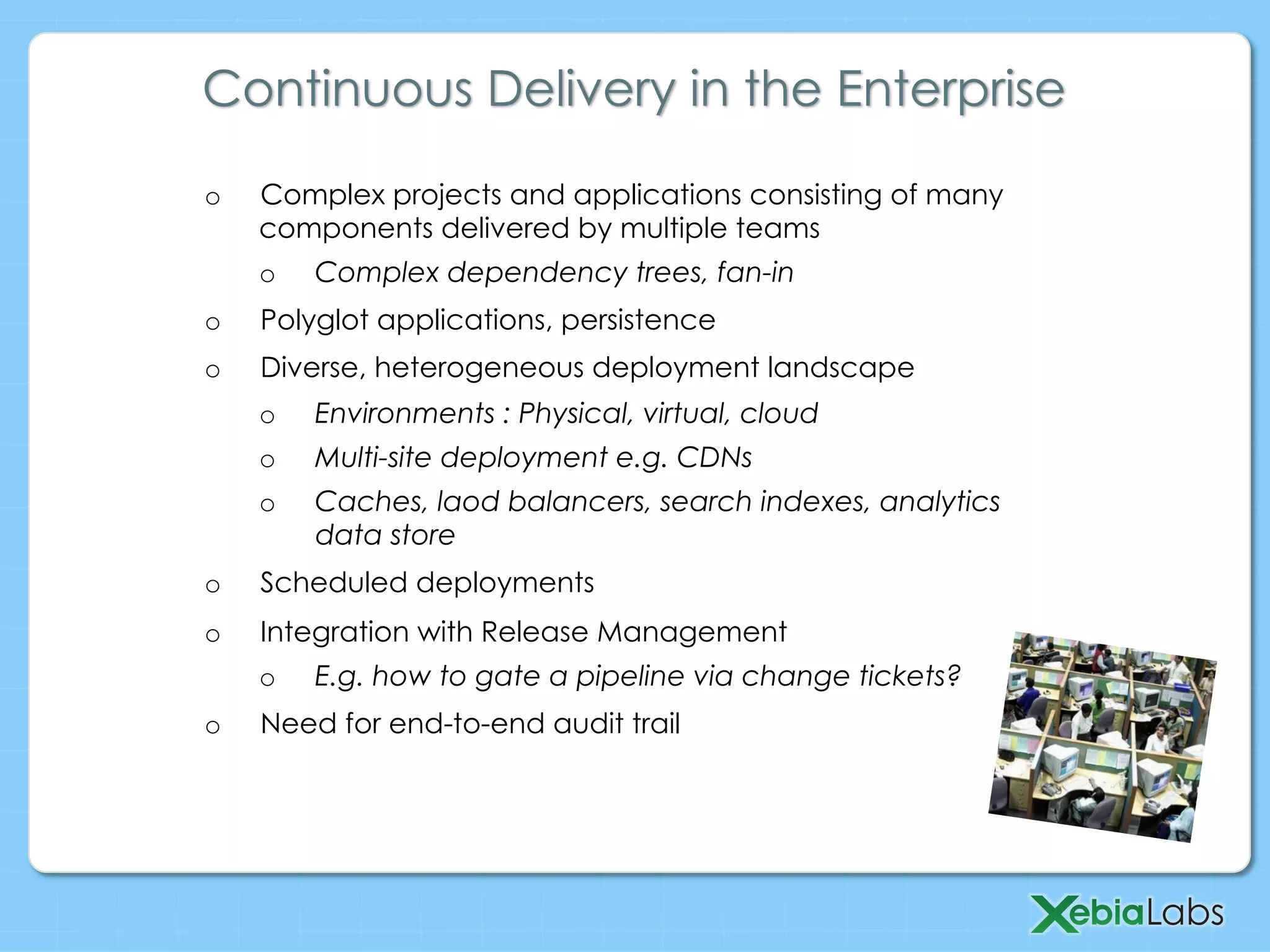

11. o Complex projects and applications consisting of many
components delivered by multiple teams
o Complex dependency trees, fan-in
o Polyglot applications, persistence
o Diverse, heterogeneous deployment landscape
o Environments : Physical, virtual, cloud
o Multi-site deployment e.g. CDNs
o Caches, laod balancers, search indexes, analytics
data store
o Scheduled deployments
o Integration with Release Management
o E.g. how to gate a pipeline via change tickets?
o Need for end-to-end audit trail
Continuous Delivery in the Enterprise

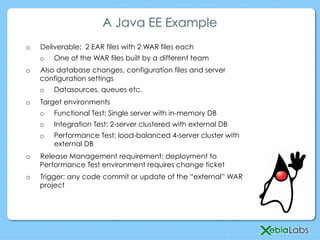

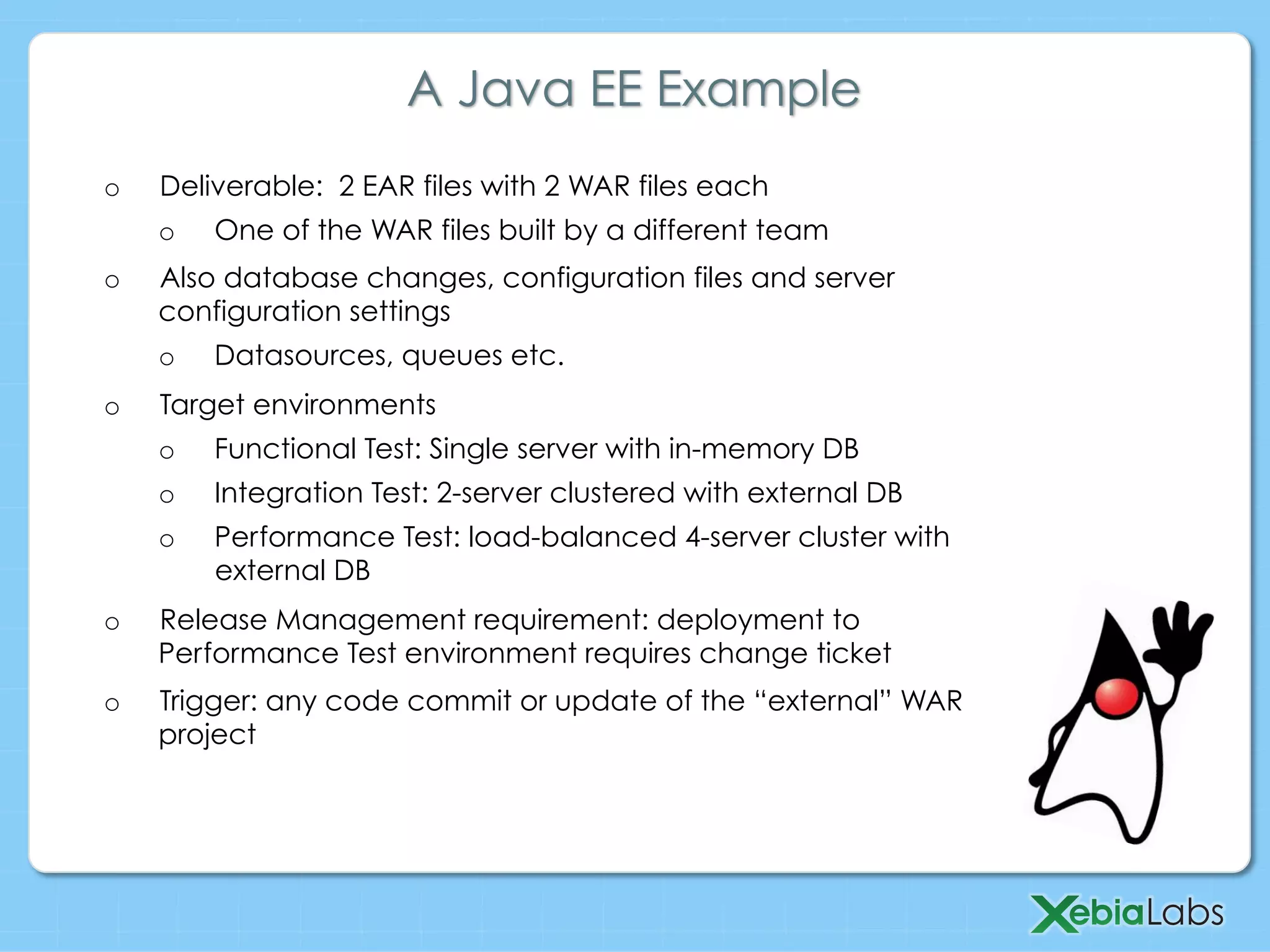

12. o Deliverable: 2 EAR files with 2 WAR files each
o One of the WAR files built by a different team
o Also database changes, configuration files and server
configuration settings
o Datasources, queues etc.
o Target environments
o Functional Test: Single server with in-memory DB
o Integration Test: 2-server clustered with external DB
o Performance Test: load-balanced 4-server cluster with
external DB
o Release Management requirement: deployment to
Performance Test environment requires change ticket
o Trigger: any code commit or update of the “external” WAR
project
A Java EE Example

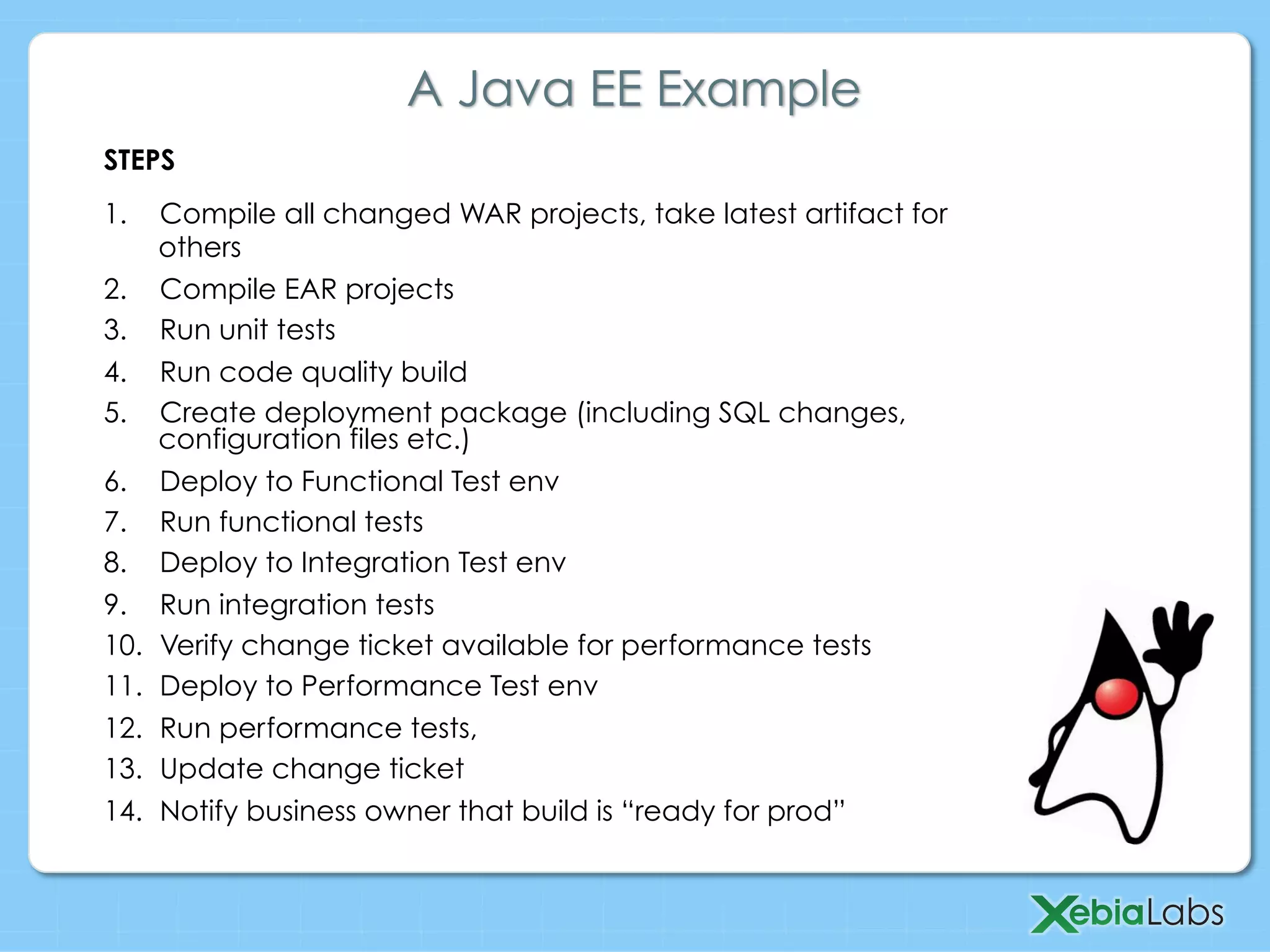

13. STEPS
1. Compile all changed WAR projects, take latest artifact for
others
2. Compile EAR projects
3. Run unit tests
4. Run code quality build
5. Create deployment package (including SQL changes,
configuration files etc.)
6. Deploy to Functional Test env
7. Run functional tests
8. Deploy to Integration Test env
9. Run integration tests
10. Verify change ticket available for performance tests
11. Deploy to Performance Test env
12. Run performance tests,
13. Update change ticket
14. Notify business owner that build is “ready for prod”
A Java EE Example

14. Build WAR1 Build WAR2 Build WAR3
Retrieve
WAR4
Build EAR1
Build EAR2
Code
quality
build1
Code
quality
build2
Package
Deploy to FT
env with
script
Run
functional
tests
Deploy to IT
env with
script
Run
integration
tests
Manually
verify ticket
Deploy to PT
env with
script
Run perf
tests
Manually
update
ticket
Send
notification
A Vanilla Pipeline

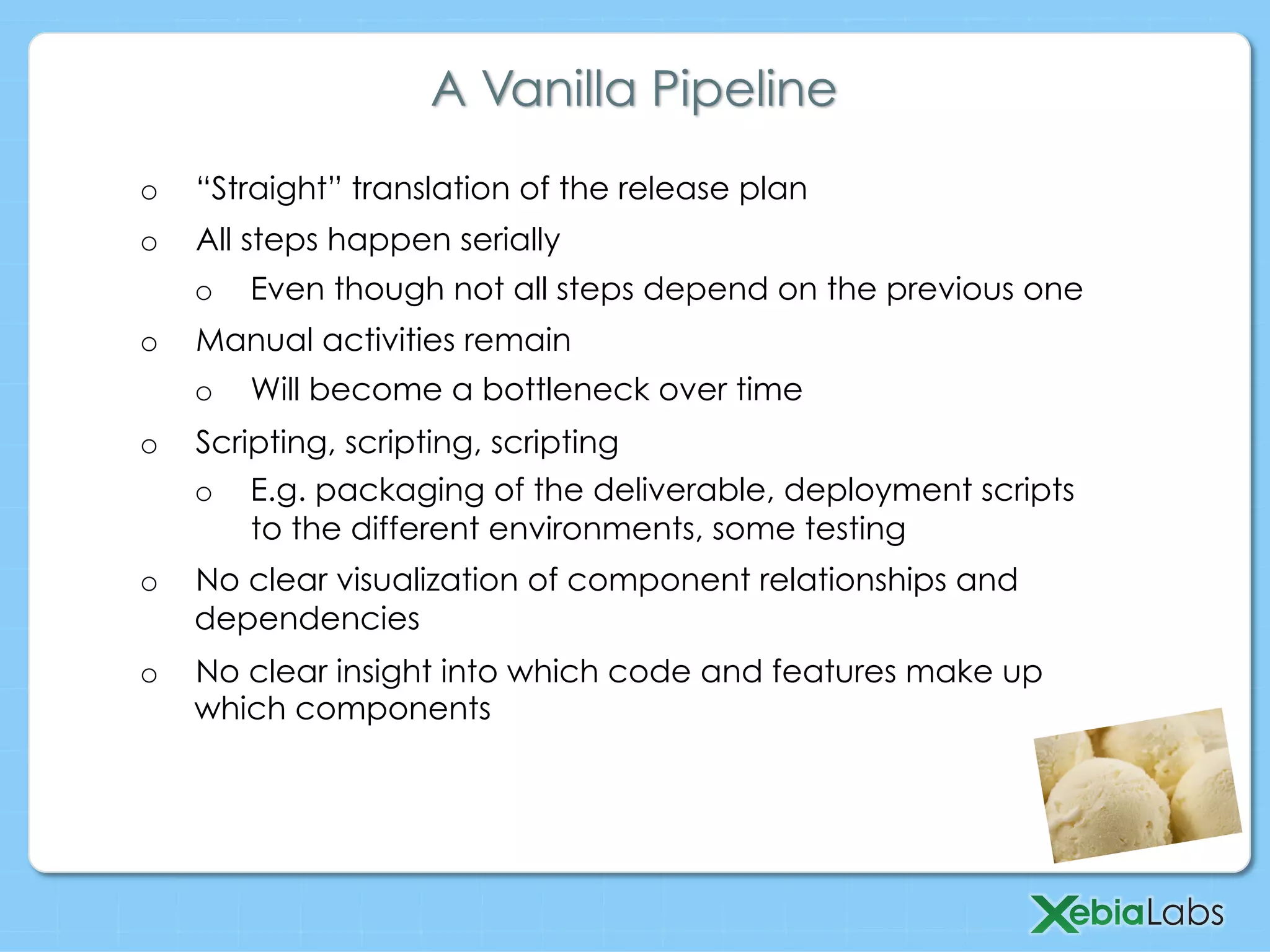

15. o “Straight” translation of the release plan
o All steps happen serially
o Even though not all steps depend on the previous one
o Manual activities remain
o Will become a bottleneck over time
o Scripting, scripting, scripting
o E.g. packaging of the deliverable, deployment scripts
to the different environments, some testing
o No clear visualization of component relationships and
dependencies
o No clear insight into which code and features make up
which components
A Vanilla Pipeline

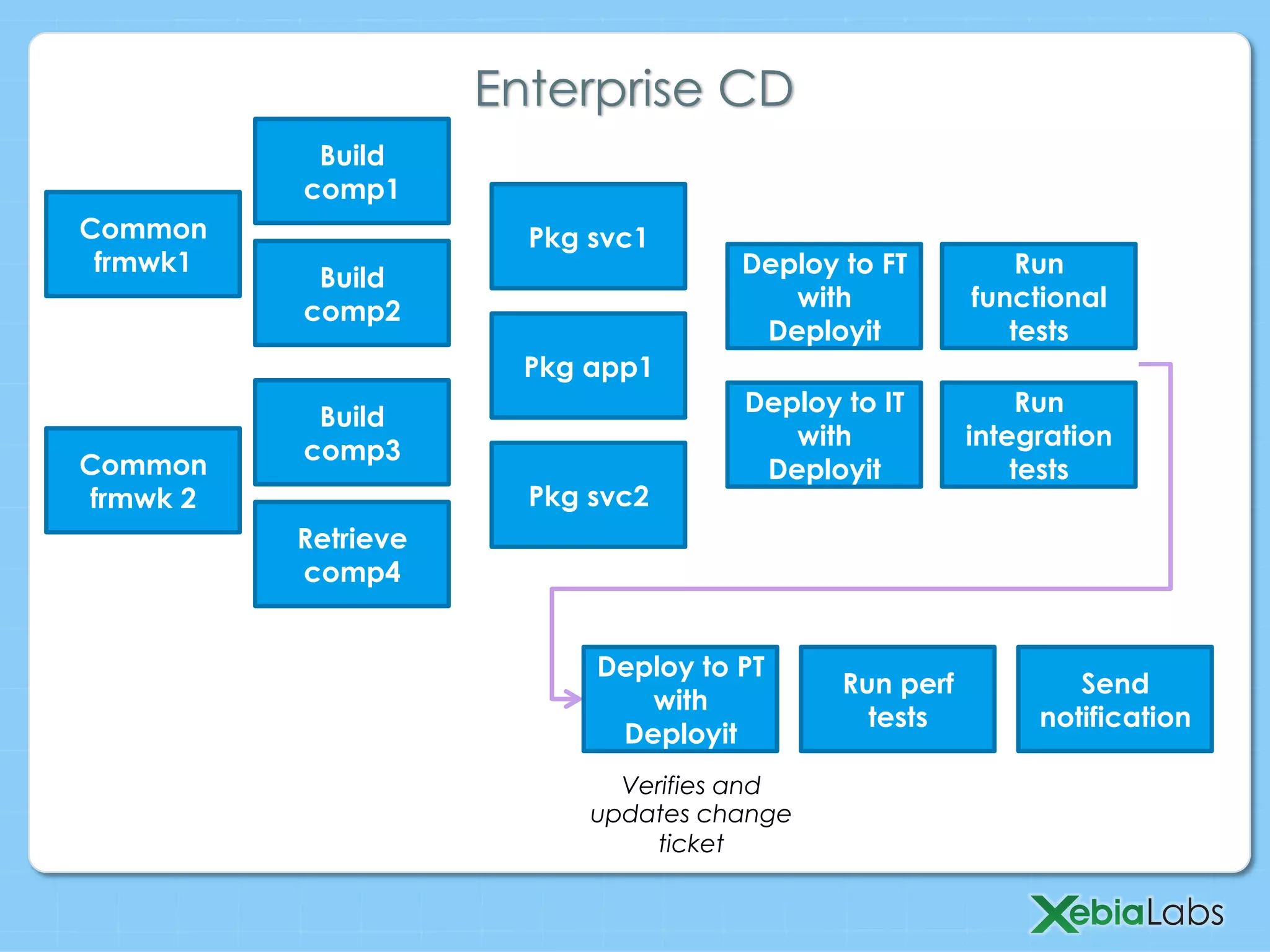

16. Build
comp1
Build
comp2
Build
comp3
Retrieve
comp4
Common
frmwk1
Common
frmwk 2
Pkg svc1
Pkg app1
Deploy to FT
with
Deployit
Run
functional
tests
Deploy to IT
with
Deployit
Run
integration
tests
Run perf
tests
Send
notification
Pkg svc2
Enterprise CD
Deploy to PT
with
Deployit
Verifies and
updates change
ticket

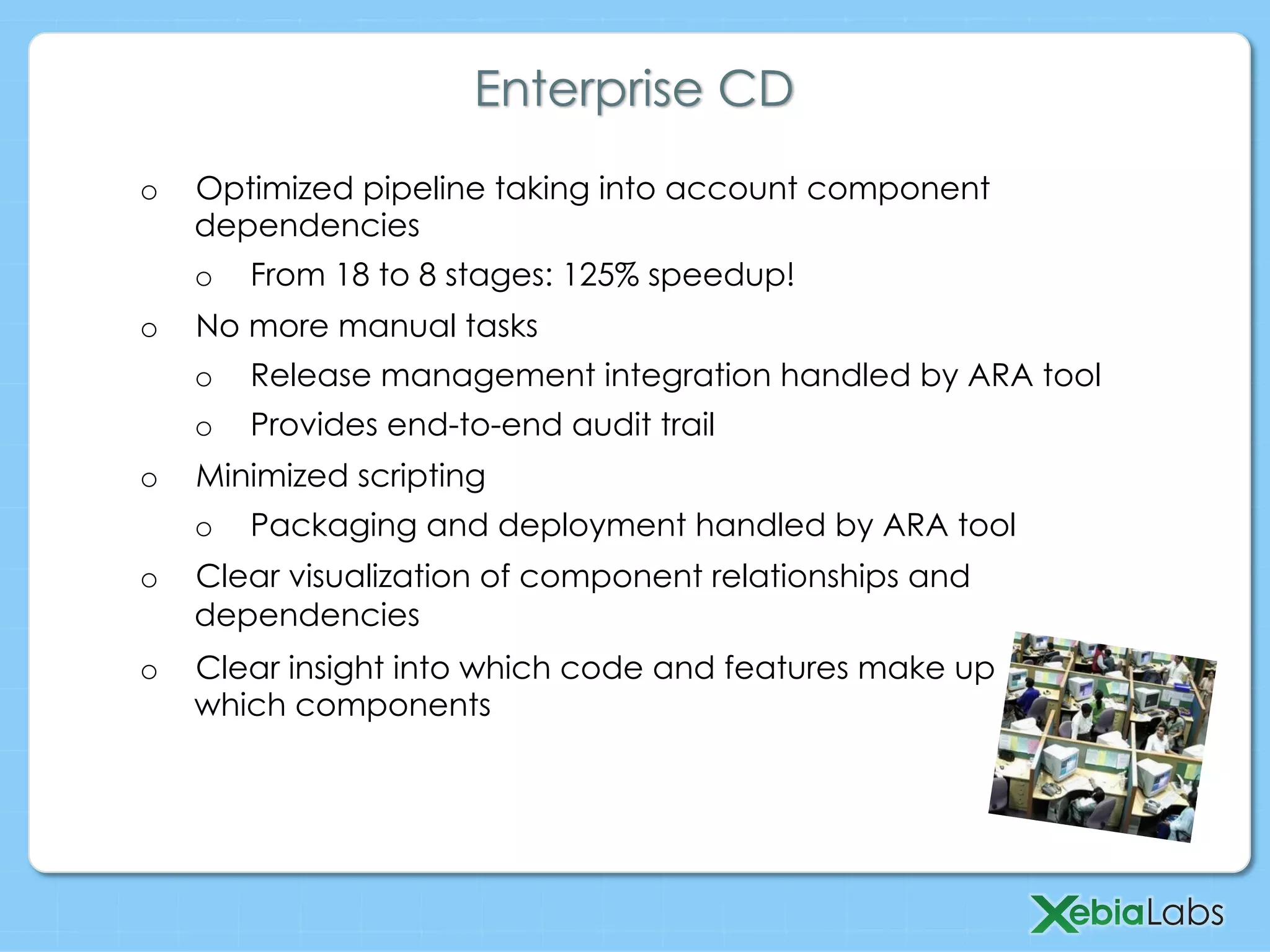

17. o Optimized pipeline taking into account component
dependencies
o From 18 to 8 stages: 125% speedup!
o No more manual tasks
o Release management integration handled by ARA tool
o Provides end-to-end audit trail
o Minimized scripting
o Packaging and deployment handled by ARA tool
o Clear visualization of component relationships and
dependencies
o Clear insight into which code and features make up
which components
Enterprise CD

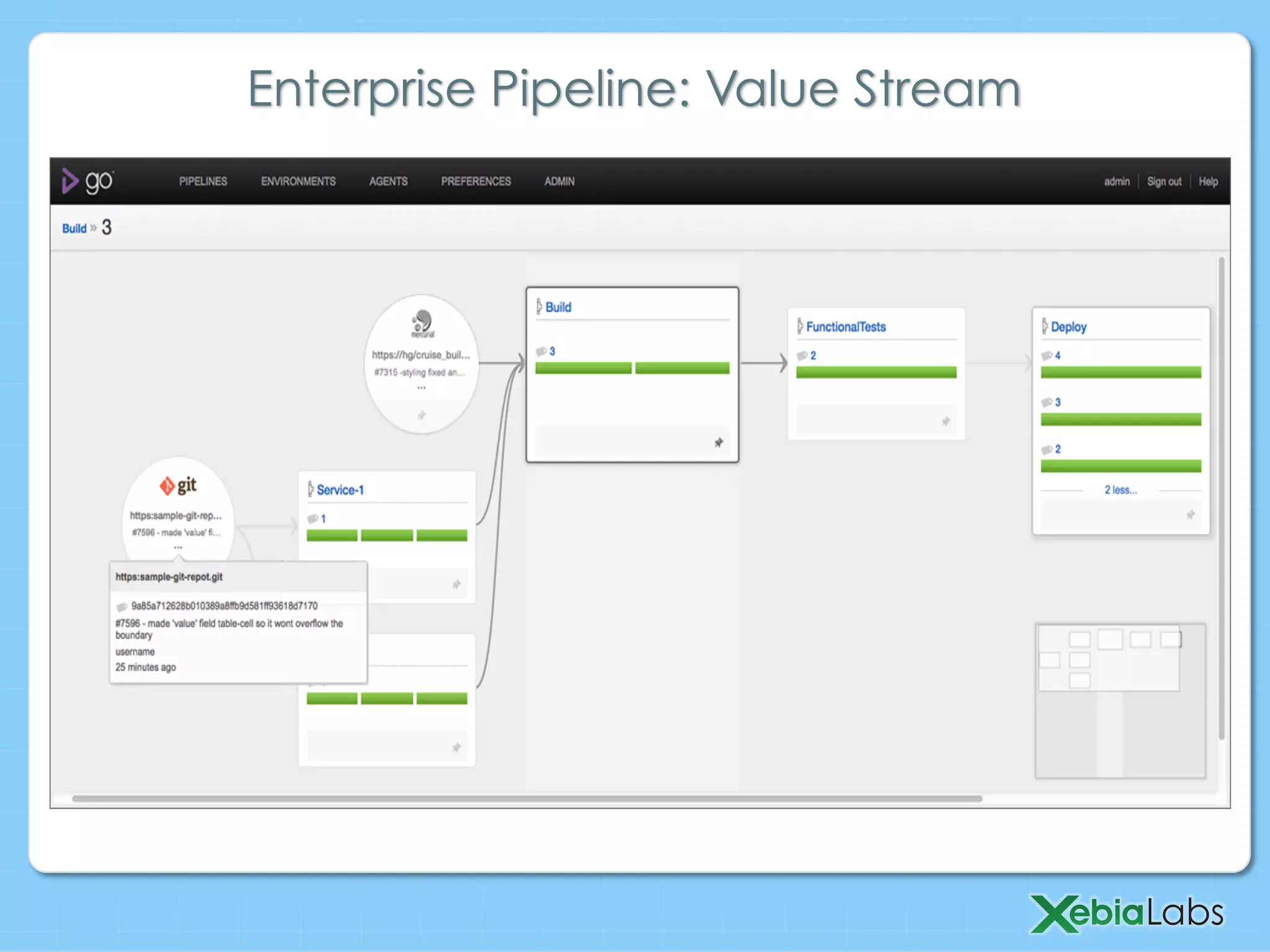

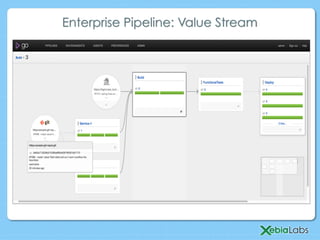

18. Enterprise Pipeline: Value Stream

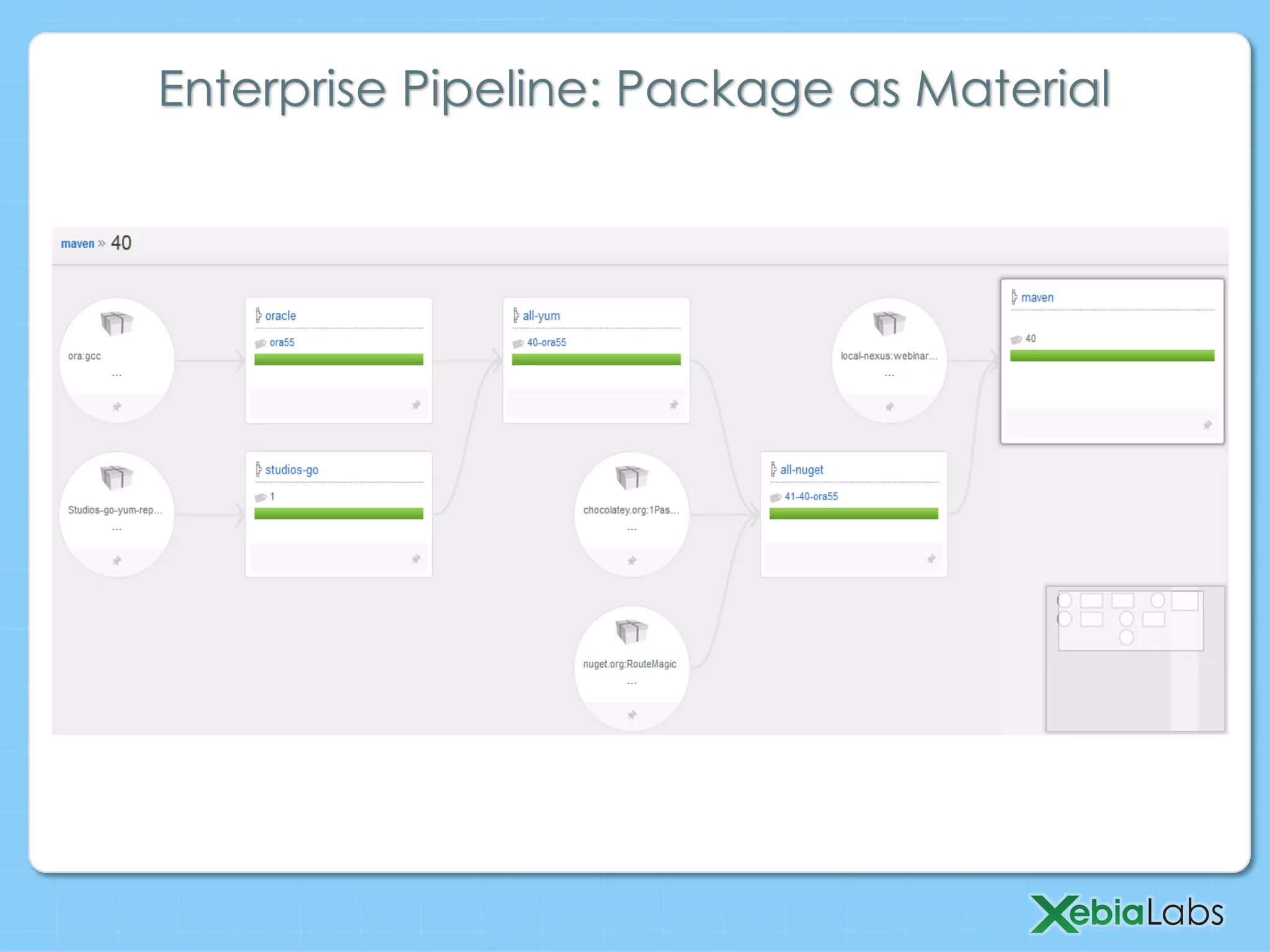

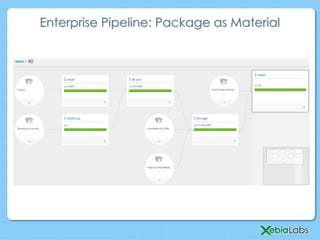

19. Enterprise Pipeline: Package as Material

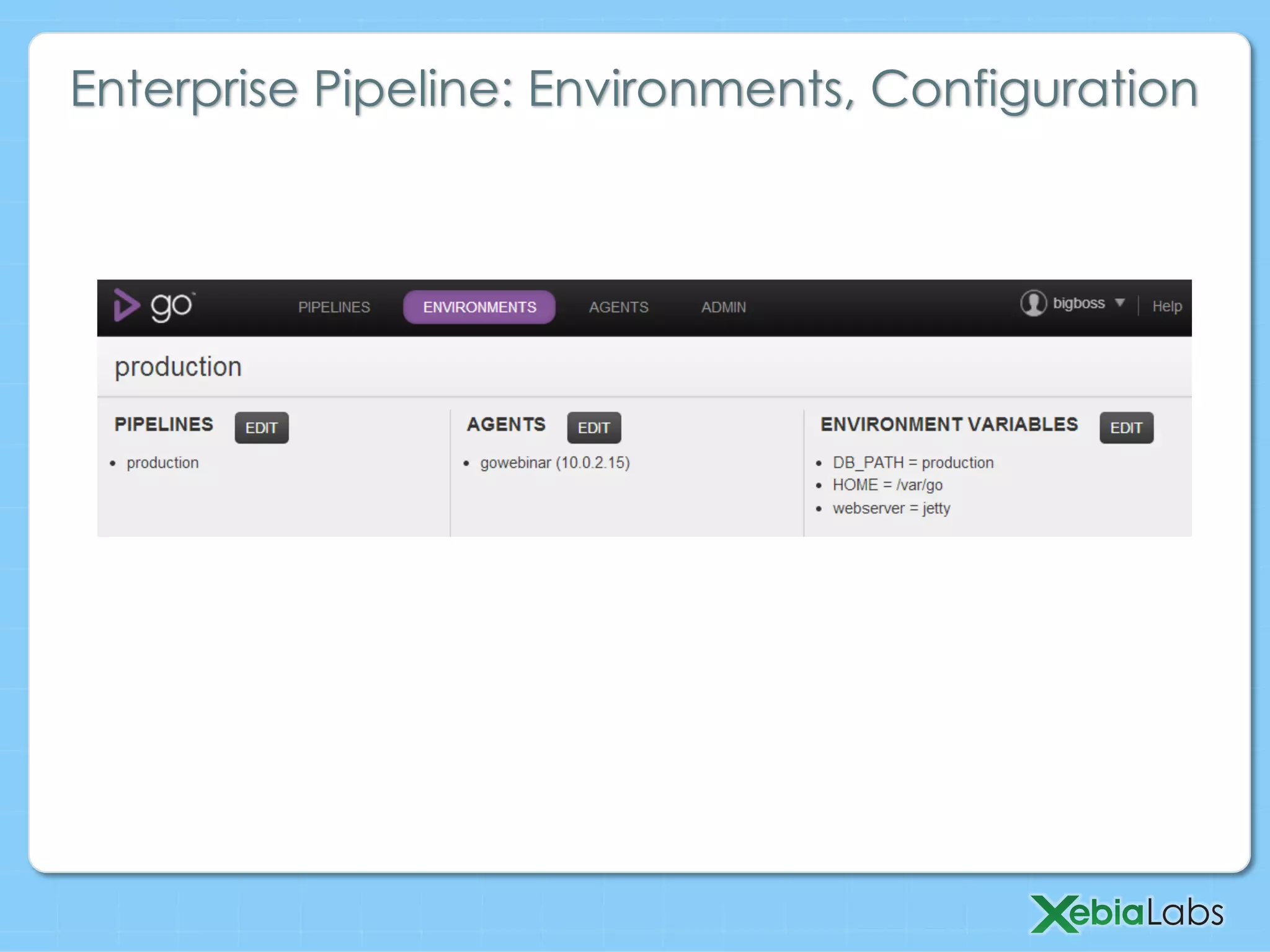

20. Enterprise Pipeline: Environments, Configuration

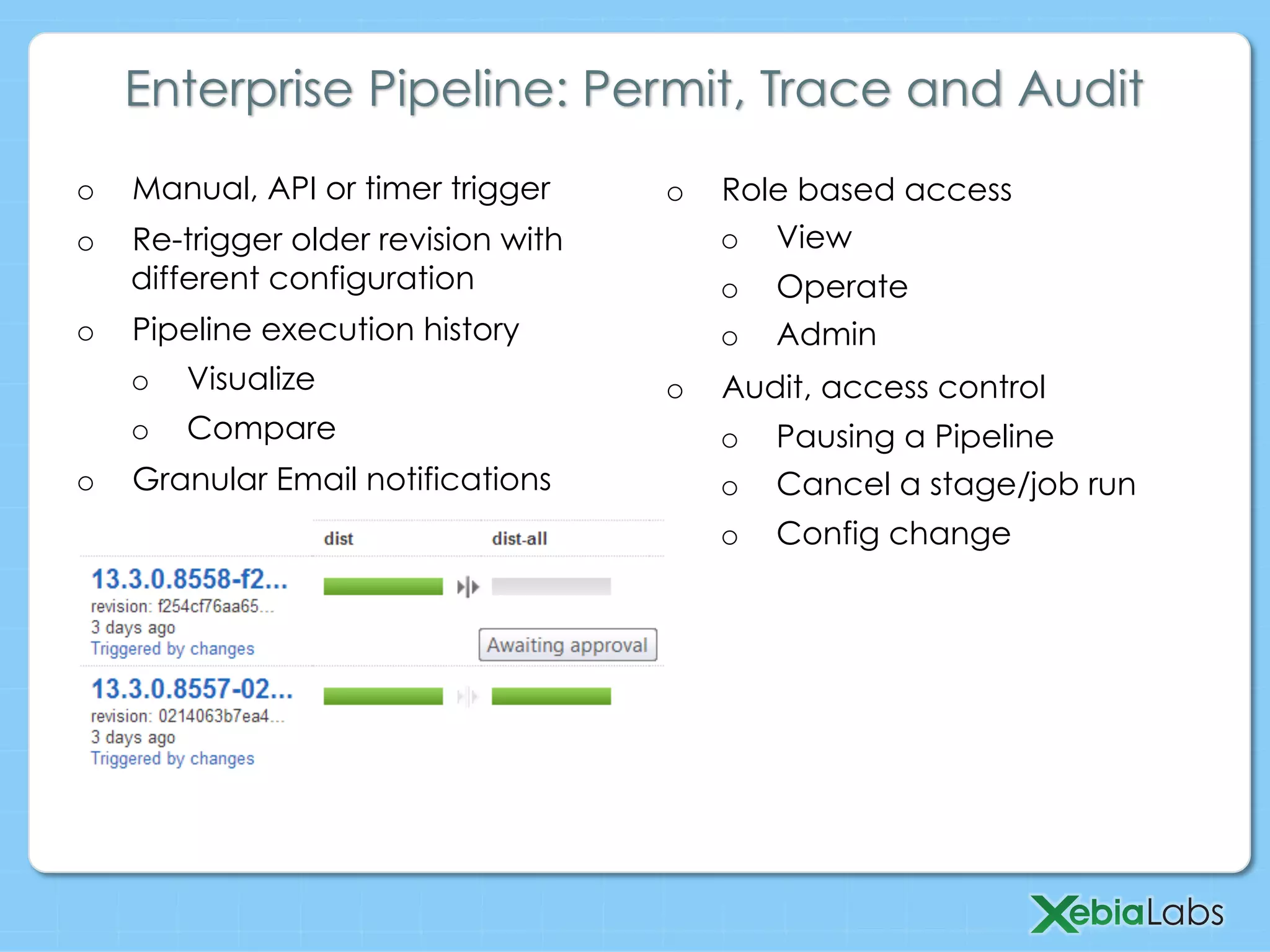

21. Enterprise Pipeline: Permit, Trace and Audit
o Manual, API or timer trigger
o Re-trigger older revision with
different configuration
o Pipeline execution history
o Visualize
o Compare
o Granular Email notifications
o Role based access
o View
o Operate
o Admin
o Audit, access control
o Pausing a Pipeline
o Cancel a stage/job run
o Config change

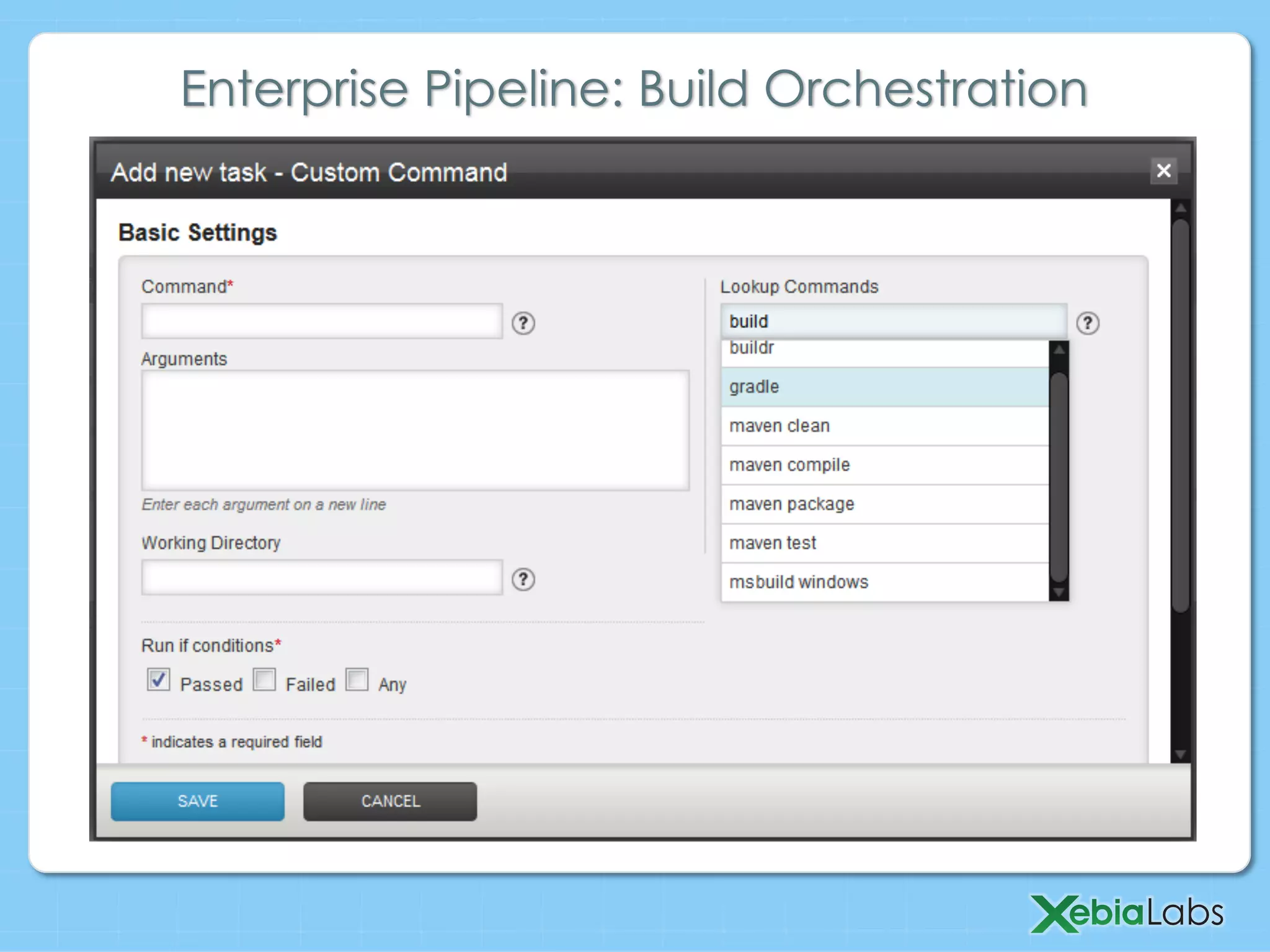

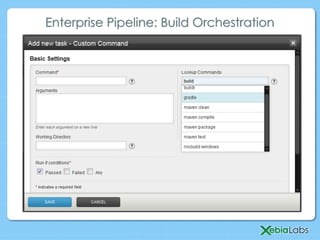

22. Enterprise Pipeline: Build Orchestration

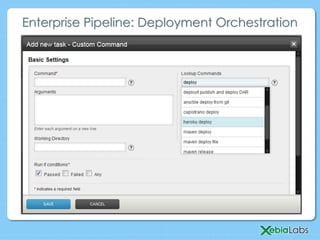

23. Enterprise Pipeline: Deployment Orchestration

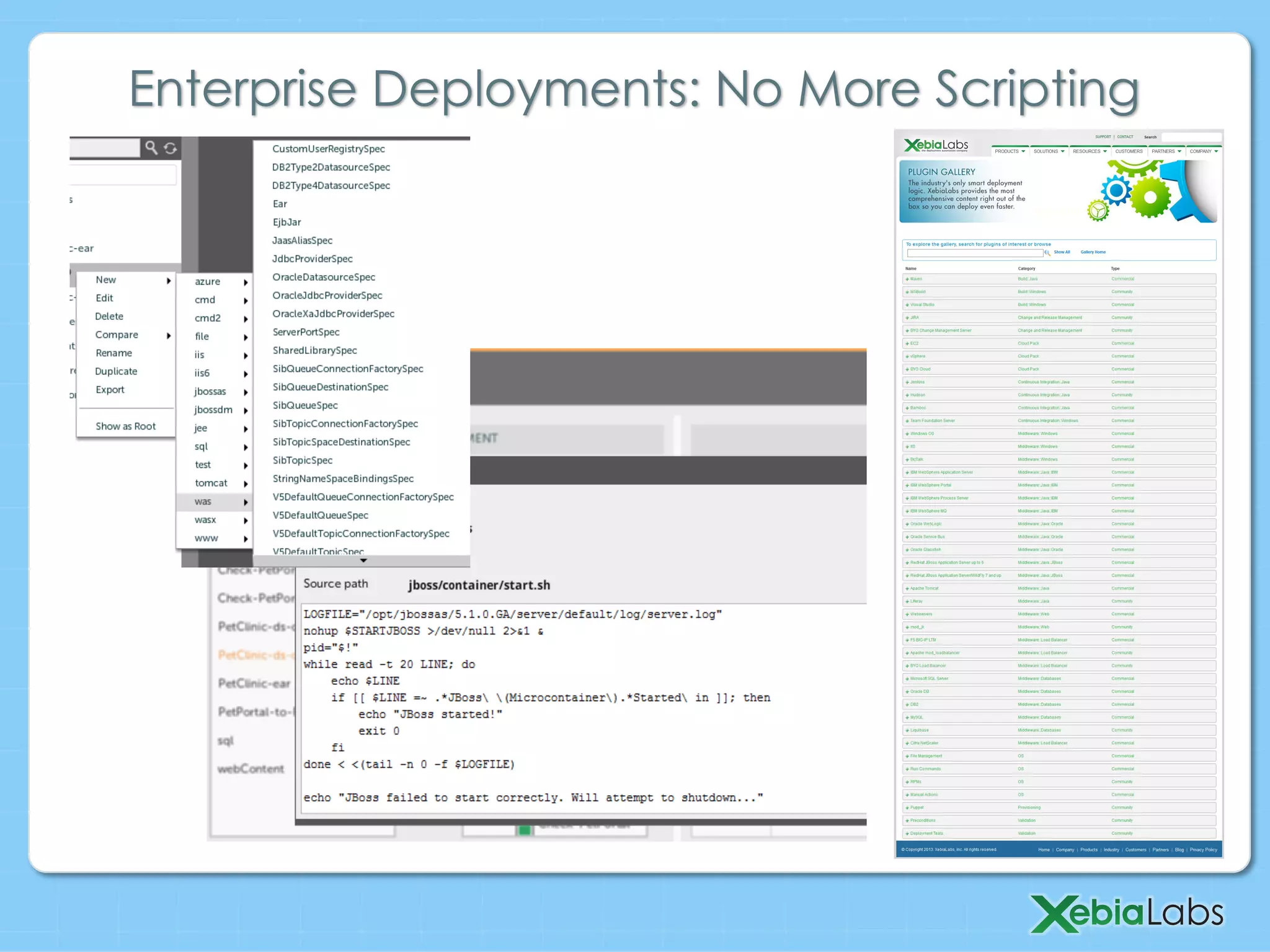

24. Enterprise Deployments: No More Scripting

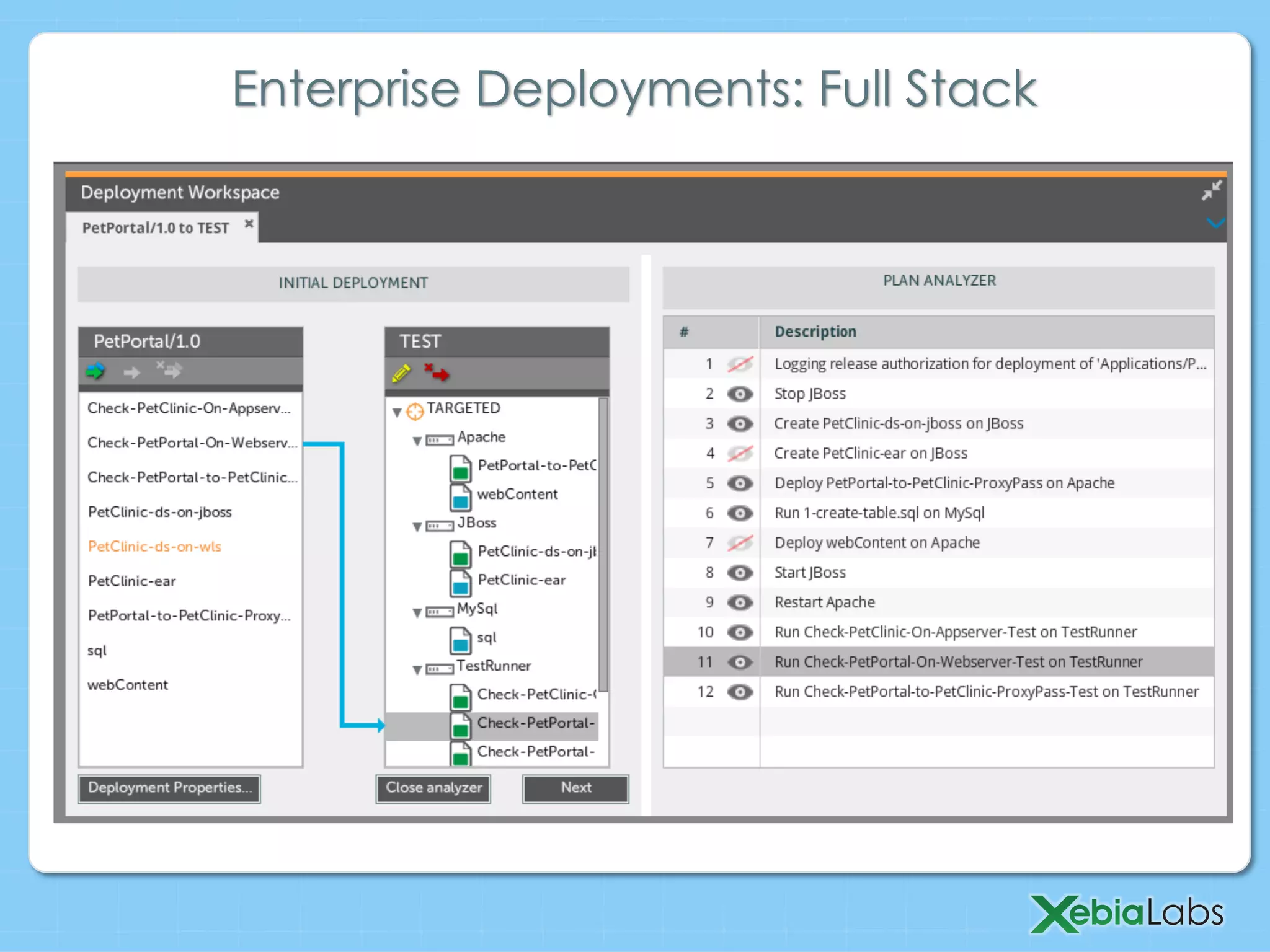

25. Enterprise Deployments: Full Stack

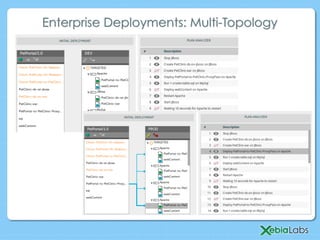

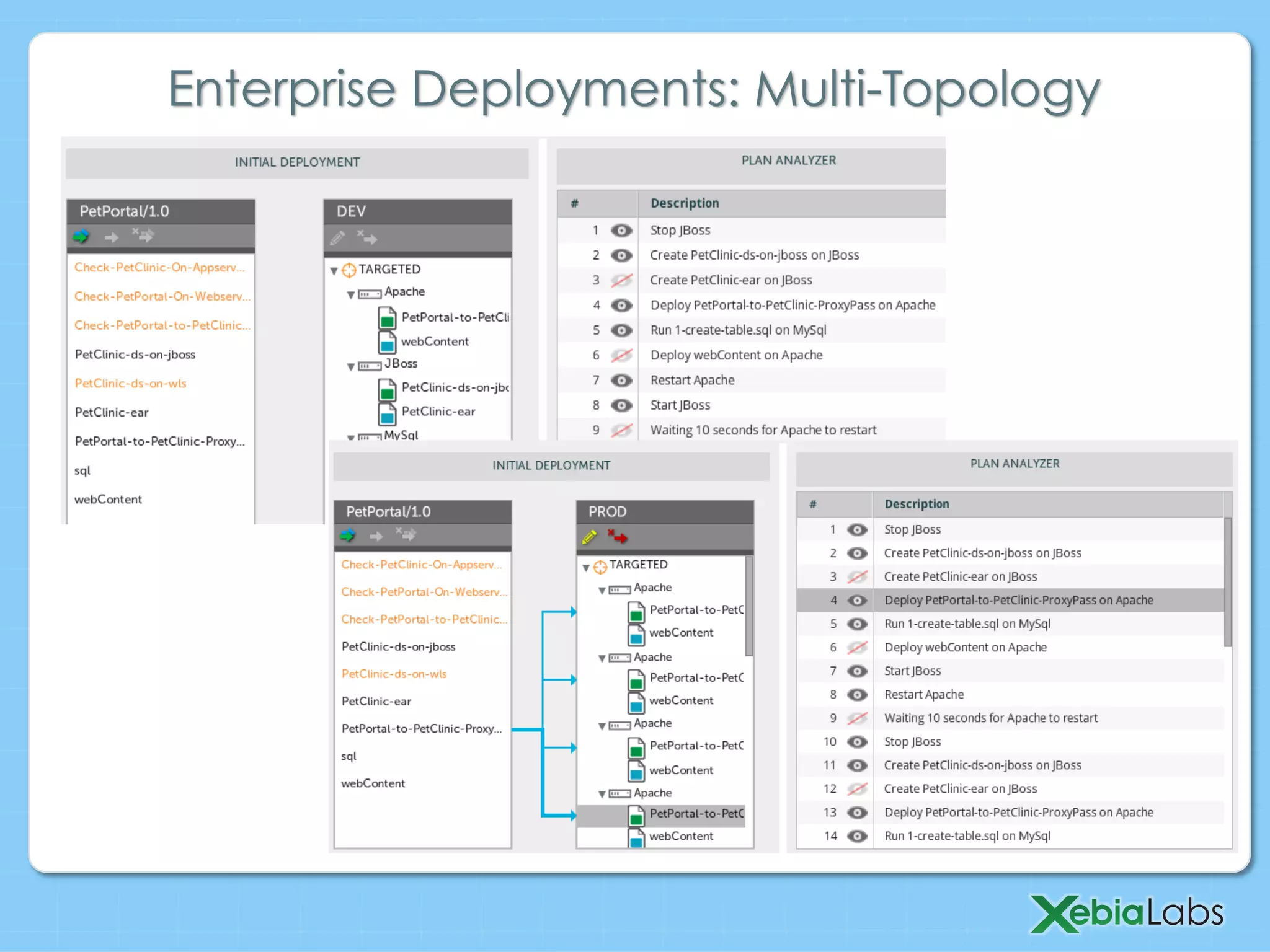

26. Enterprise Deployments: Multi-Topology

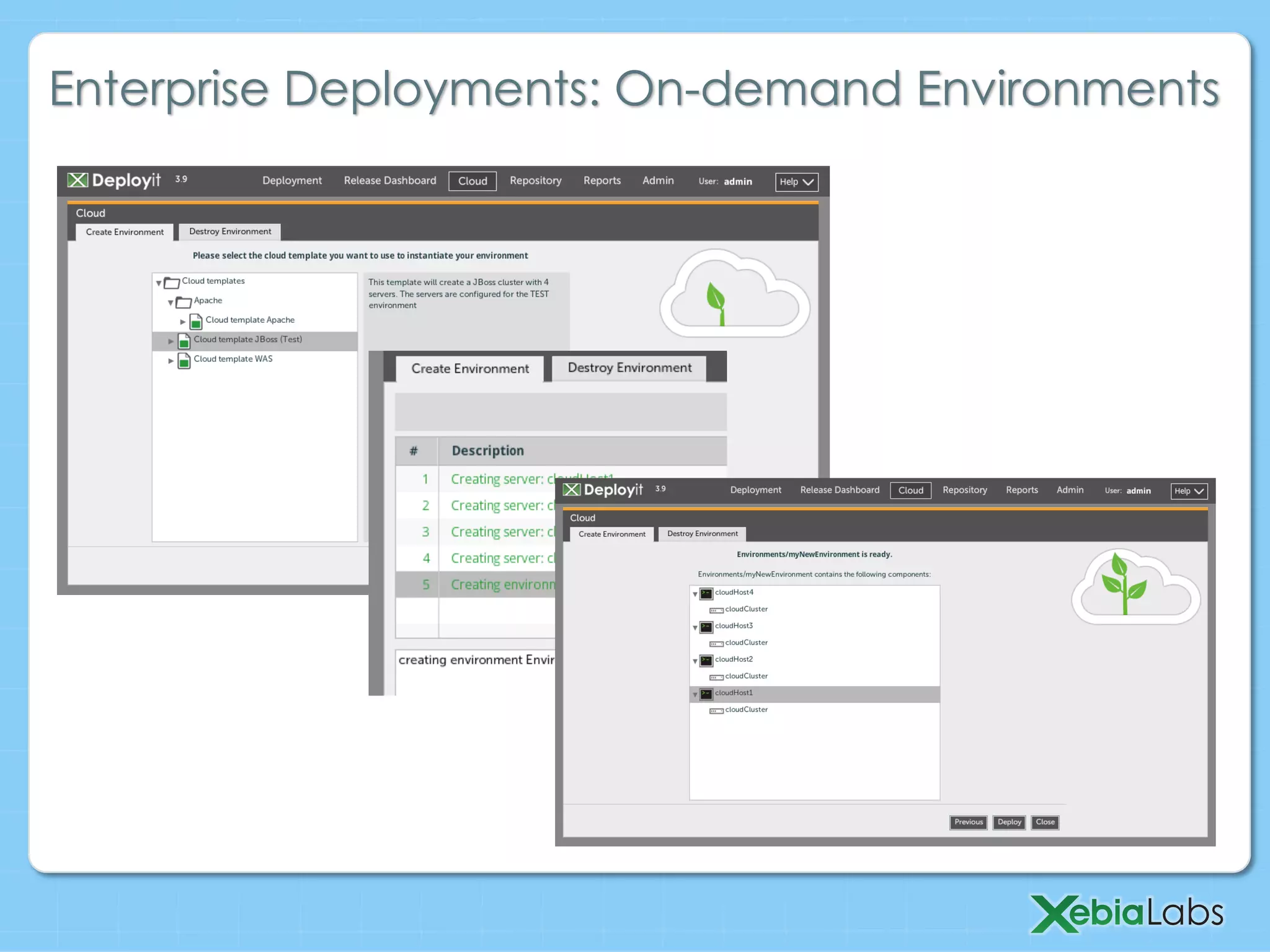

27. Enterprise Deployments: On-demand Environments

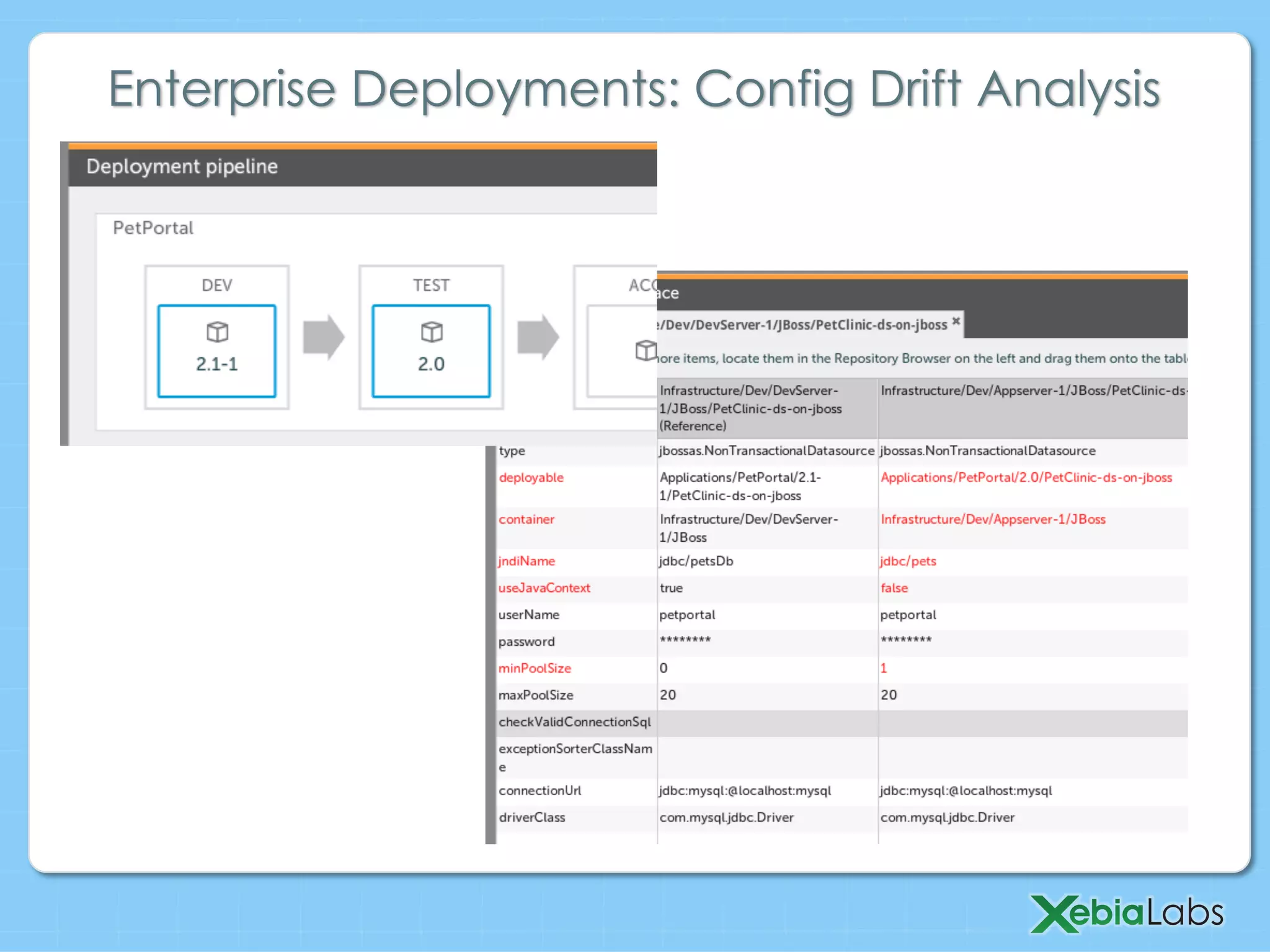

28. Enterprise Deployments: Config Drift Analysis

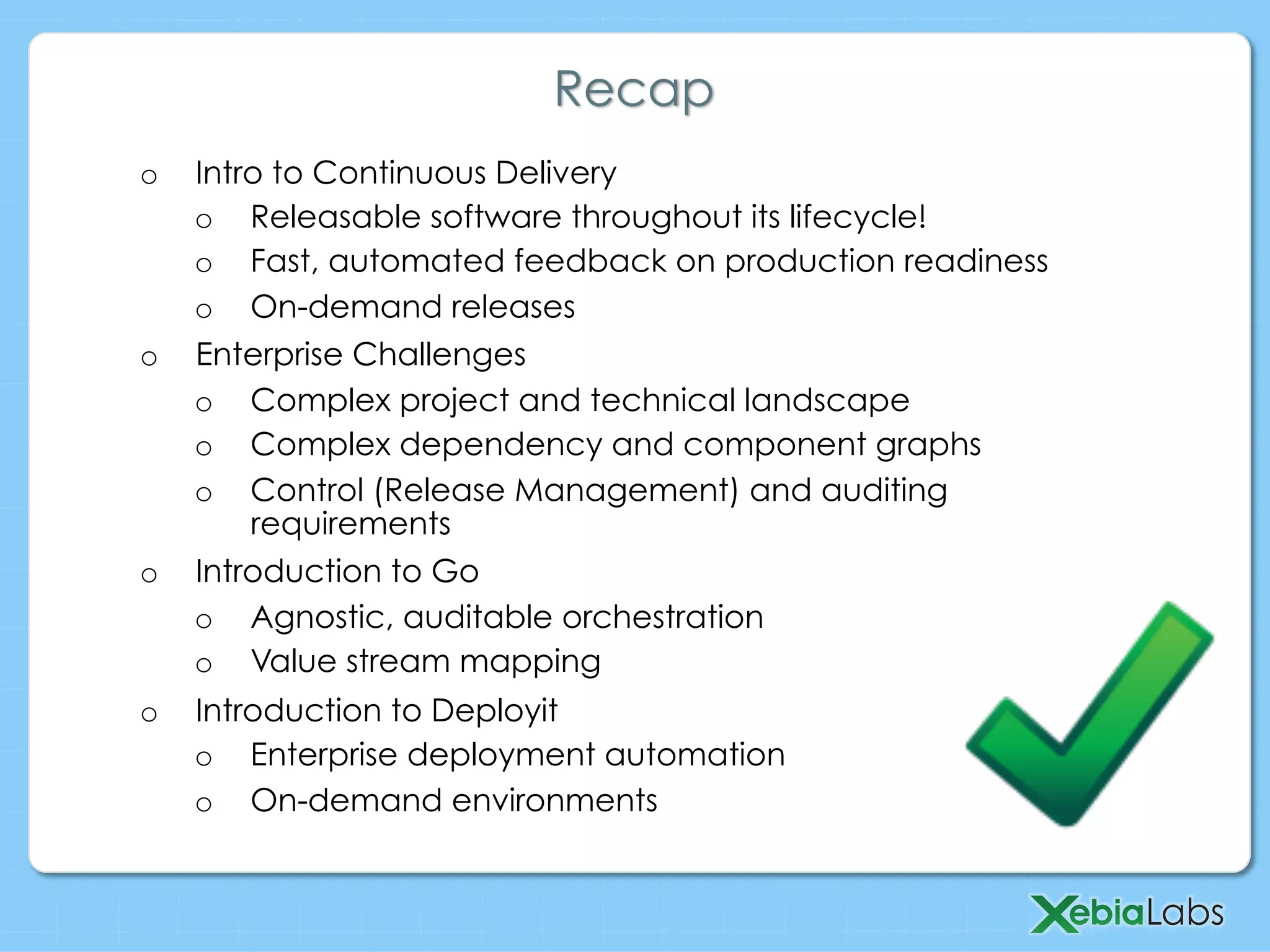

29. o Intro to Continuous Delivery
o Releasable software throughout its lifecycle!
o Fast, automated feedback on production readiness
o On-demand releases
o Enterprise Challenges
o Complex project and technical landscape
o Complex dependency and component graphs
o Control (Release Management) and auditing
requirements
o Introduction to Go
o Agnostic, auditable orchestration
o Value stream mapping
o Introduction to Deployit
o Enterprise deployment automation
o On-demand environments
Recap

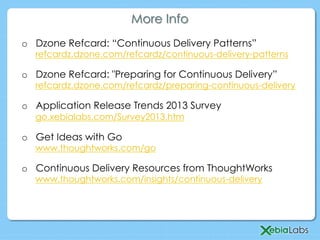

30. o Dzone Refcard: “Continuous Delivery Patterns”
refcardz.dzone.com/refcardz/continuous-delivery-patterns
o Dzone Refcard: "Preparing for Continuous Delivery”
refcardz.dzone.com/refcardz/preparing-continuous-delivery
o Application Release Trends 2013 Survey
go.xebialabs.com/Survey2013.htm
o Get Ideas with Go
www.thoughtworks.com/go
o Continuous Delivery Resources from ThoughtWorks
www.thoughtworks.com/insights/continuous-delivery
More Info

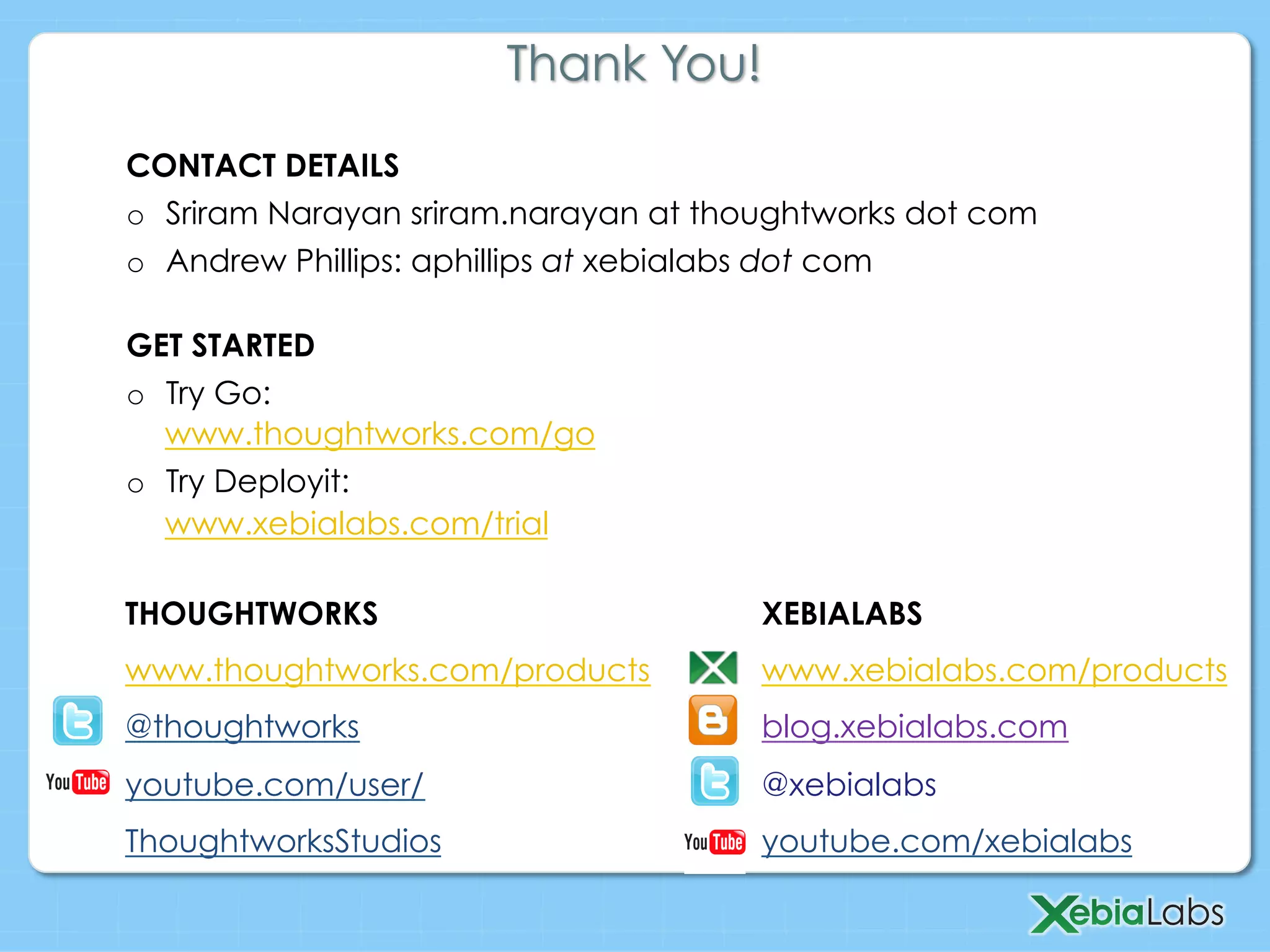

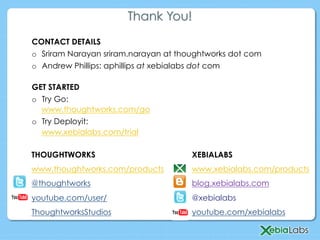

31. Thank You!
CONTACT DETAILS
o Sriram Narayan sriram.narayan at thoughtworks dot com
o Andrew Phillips: aphillips at xebialabs dot com
GET STARTED
o Try Go:
www.thoughtworks.com/go
o Try Deployit:
www.xebialabs.com/trial
XEBIALABS
www.xebialabs.com/products
blog.xebialabs.com
@xebialabs
youtube.com/xebialabs
THOUGHTWORKS
www.thoughtworks.com/products
@thoughtworks
youtube.com/user/
ThoughtworksStudios
