- 2. Architecting IoT Solutions withMicrosoft Azure
- 3.
- 5.
- 7.

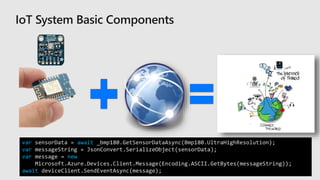

- 8. var sensorData =await _bmp180.GetSensorDataAsync(Bmp180.UltraHighResolution); var messageString = JsonConvert.SerializeObject(sensorData); var message = new Microsoft.Azure.Devices.Client.Message(Encoding.ASCII.GetBytes(messageString)); await deviceClient.SendEventAsync(message);

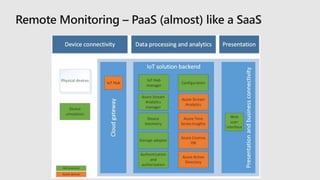

- 11. Solution PortalProvisioning API Identity& Registry Stores Stream Event Processor Analytics/ Machine Learning Data Visualization & Presentation Device State Store Gateway/Edg e Storage IP capable devices Existing IoT devices Low power devices PresentationDevice and Event Processing Data Transport Devices and Data Sources Azure IoT Hub Agent Agent Agent

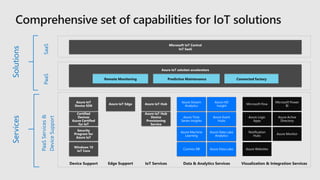

- 12. Azure Time Series Insights AzureMachine Learning Azure Stream Analytics Cosmos DB Azure Data Lake Azure Data Lake Analytics Azure HD Insight Azure Event Hubs Microsoft Flow Azure Logic Apps Notification Hubs Azure Websites Microsoft Power BI Azure Active Directory Azure IoT Hub Azure IoT Hub Device Provisioning Service Azure IoT Edge Azure Monitor PaaSServices& DeviceSupport Edge SupportDevice Support Azure IoT Device SDK Certified Devices Azure Certified for IoT Security Program for Azure IoT IoT Services Data & Analytics Services Visualization & Integration Services PaaSSaaS Microsoft IoT Central IoT SaaS Remote Monitoring Predictive Maintenance Connected factory Windows 10 IoT Core Azure IoT solution accelerators SolutionsServices

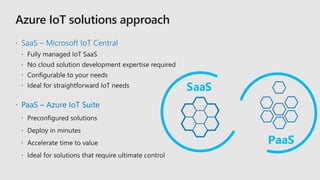

- 13. SaaS –Microsoft IoT Central PaaS – Azure IoT Suite

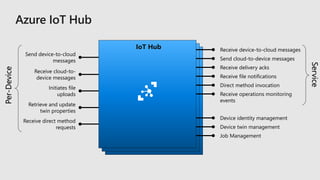

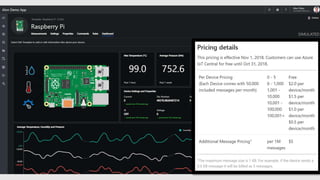

- 20. IoT HubIoT HubIoTHub Receive device-to-cloud messages Send cloud-to-device messages Receive delivery acks Receive file notifications Direct method invocation Receive operations monitoring events Device identity management Device twin management Job Management Send device-to-cloud messages Receive cloud-to- device messages Initiates file uploads Retrieve and update twin properties Receive direct method requests Service Per-Device

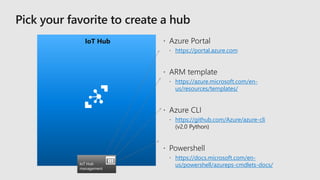

- 21.

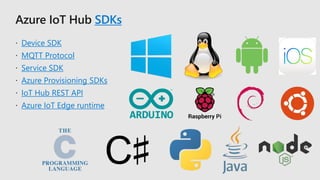

- 22. SDKs Device SDK MQTT Protocol ServiceSDK Azure Provisioning SDKs IoT Hub REST API Azure IoT Edge runtime

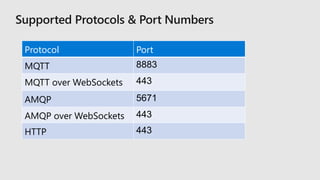

- 24. Protocol Port MQTT 8883 MQTTover WebSockets 443 AMQP 5671 AMQP over WebSockets 443 HTTP 443

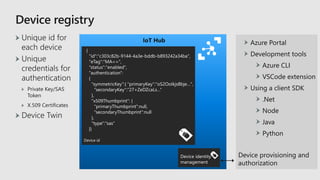

- 25. IoT Hub Device identity management Deviceprovisioning and authorization Azure Portal Development tools Azure CLI VSCode extension Using a client SDK .Net Node Java Python Device id { "id":"c303c82b-9144-4a3e-bddb-b893242a34ba", "eTag":"MA==", "status":"enabled", "authentication": { "symmetricKey":{ "primaryKey":"oS2OoIkjsBbje…", "secondaryKey":"27+ZeDZcaLs…“ }, "x509Thumbprint": { "primaryThumbprint":null, "secondaryThumbprint":null }, "type":"sas“ }}

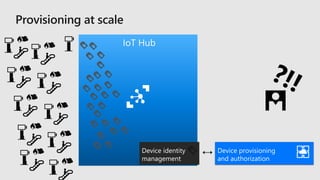

- 26. IoT Hub Device identity management Deviceprovisioning and authorization

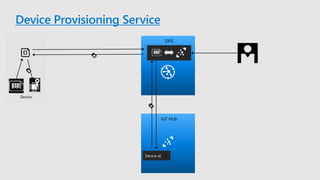

- 27. Device Provisioning Service DPS IoTHub Device id Device

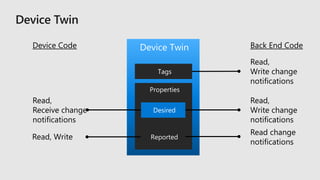

- 28. Device Twin Tags Properties Desired Reported Device CodeBack End Code Read, Receive change notifications Read, Write Read, Write change notifications Read, Write change notifications Read change notifications

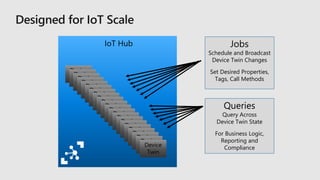

- 29. IoT Hub Device Twin Device Twin Device Twin Device Twin Device Twin Device Twin Device Twin Device Twin Device Twin Device Twin Device Twin Device Twin Device Twin Device Twin Device Twin Device Twin Device Twin Device Twin Device Twin Device Twin Jobs Schedule andBroadcast Device Twin Changes Set Desired Properties, Tags, Call Methods Queries Query Across Device Twin State For Business Logic, Reporting and Compliance

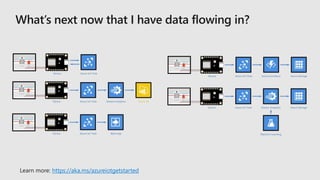

- 30.

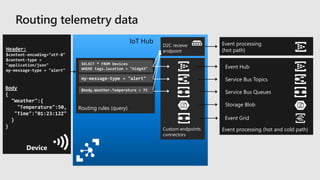

- 32. IoT Hub Device Routing rules(query) Body { "Weather":{ "Temperature":50, "Time":"01:23:12Z" } } SELECT * FROM Devices WHERE tags.location = "bldg43" my-message-type = "alert" D2C receive endpoint Event processing (hot path) Event processing (hot and cold path) Service Bus Topics Service Bus Queues Event Hub Storage Blob Custom endpoints connectors Header: $content-encoding="utf-8" $content-type = "application/json" my-message-type = "alert" $body.Weather.Temperature > 75 Event Grid

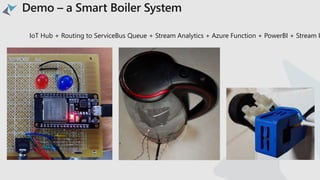

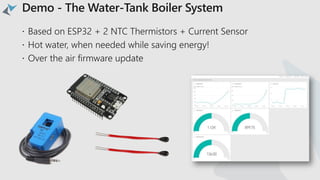

- 34. IoT Hub +Routing to ServiceBus Queue + Stream Analytics + Azure Function + PowerBI + Stream I

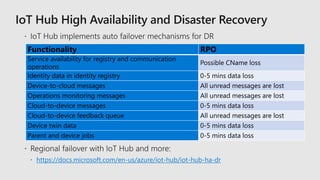

- 35. https://docs.microsoft.com/en-us/azure/iot-hub/iot-hub-ha-dr Functionality RPO Service availabilityfor registry and communication operations Possible CName loss Identity data in identity registry 0-5 mins data loss Device-to-cloud messages All unread messages are lost Operations monitoring messages All unread messages are lost Cloud-to-device messages 0-5 mins data loss Cloud-to-device feedback queue All unread messages are lost Device twin data 0-5 mins data loss Parent and device jobs 0-5 mins data loss

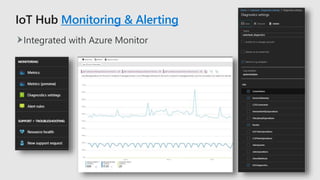

- 36. Monitoring & Alerting Integratedwith Azure Monitor

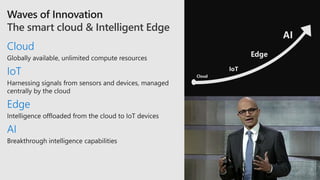

- 37. The smart cloud& Intelligent Edge Cloud IoT Edge AI

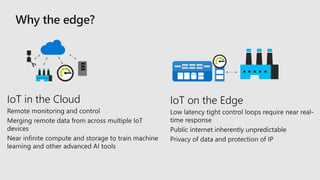

- 38. IoT in theCloud IoT on the Edge

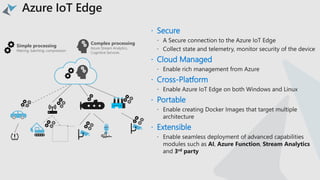

- 39. Secure CloudManaged Cross-Platform Portable Extensible Simple processing filtering, batching, compression Complex processing Azure Stream Analytics, Cognitive Services

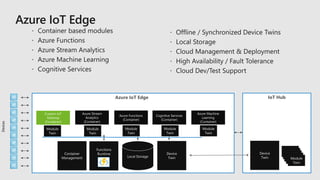

- 40. Azure IoT EdgeIoT Hub Devices Local Storage Custom IoT Gateway (Container) Functions RuntimeContainer Management Device Twin Device Twin Azure Stream Analytics (Container) Azure Functions (Container) Cognitive Services (Container) Azure Machine Learning (Container) Module Twin Module Twin Module Twin Module Twin Module Twin Module Twin Module Twin Module Twin Module Twin Module Twin

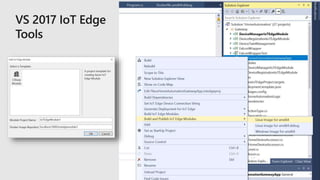

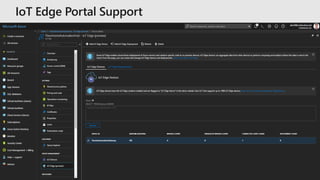

- 48.
- 49.

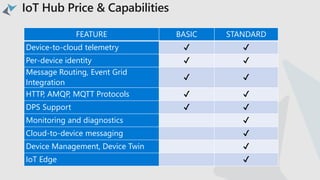

- 50. FEATURE BASIC STANDARD Device-to-cloudtelemetry ✔ ✔ Per-device identity ✔ ✔ Message Routing, Event Grid Integration ✔ ✔ HTTP, AMQP, MQTT Protocols ✔ ✔ DPS Support ✔ ✔ Monitoring and diagnostics ✔ Cloud-to-device messaging ✔ Device Management, Device Twin ✔ IoT Edge ✔
- 51. BASIC TIER PRICEPER UNIT (PER MONTH) TOTAL NUMBER OF MESSAGES/DAY PER UNIT MESSAGE METER SIZE MAX # OF UNITS B1 $10 400,000 4 KB 200 B2 $50 6,000,000 4 KB 200 B3 $500 300,000,000 4 KB 10 STANDARD TIER PRICE PER UNIT (PER MONTH) TOTAL NUMBER OF MESSAGES/DAY PER UNIT MESSAGE METER SIZE MAX # OF UNITS FREE FREE 8,000 0.5 KB 1 S1 $25 400,000 4 KB 200 S2 $250 6,000,000 4 KB 200 S3 $2,500 300,000,000 4 KB 10 Operation throttles & Other Limits: https://docs.microsoft.com/en-us/azure/iot-hub/iot-hub-devguide-quotas-throttling
- 52. TIER SUSTAINED THROUGHPUTSUSTAINED SEND RATE B1, S1 Up to 1111 KB/minute per unit (1.5 GB/day/unit) Average of 278 messages/minute per unit (400,000 messages/day per unit) B2, S2 Up to 16 MB/minute per unit (22.8 GB/day/unit) Average of 4,167 messages/minute per unit (6 million messages/day per unit) B3, S3 Up to 814 MB/minute per unit (1144.4 GB/day/unit) Average of 208,333 messages/minute per unit (300 million messages/day per unit)

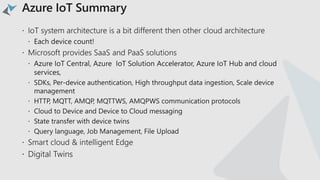

- 54. https://github.com/alonf/BasicGateController https://youtu.be/vq5AeLlsWx4 Introduction to theInternet of Things – From the Device to Microsoft Azure Cloud https://blogs.msdn.microsoft.com/microsoft_press/2015/04/27/from-the-mvps-introduction-to-the-internet-of-things- from-the-device-to-microsoft-azure-cloud/ Efficient IoT With Azure https://blogs.msdn.microsoft.com/mvpawardprogram/2016/11/15/efficient-iot-with-azure/ Secure Provisioning of IoT device using Azure IoT Hub device SDK https://blogs.msdn.microsoft.com/mvpawardprogram/2017/03/14/provisioning-of-iot-device/ http://www.thingiverse.com/thing:2253418 IoT SDKs https://docs.microsoft.com/en-us/azure/iot-hub/iot-hub-devguide-sdks GitHub https://github.com/Azure/azure-iot-sdks Azure IoT Accelerators https://azure.microsoft.com/en-us/features/iot-accelerators/ Azure IoT Hub https://azure.microsoft.com/en-us/services/iot-hub/
Editor's Notes
- #4 1868 On 9 December 1868,[7] the first non-electric gas-lit traffic lights were installed outside the Houses of Parliament in London its operational life was brief. It exploded on 2 January 1869 as a result of a leak in one of the gas lines underneath the pavement[12] and injured[2] the policeman who was operating it 1912 An electric traffic light was developed in 1912 by Laster Wire, a policeman in Salt Lake City, Utah who also used red-green lights 1914 Traffic Signal Company installed a traffic signal system on the corner of East 105th Street and Euclid Avenue in Cleveland, Ohio. It had two colours, red and green, and a buzzer, based on the design of James Hoge, to provide a warning for colour changes. The design by James Hoge[16] allowed police and fire stations to control the signals in case of emergency 1920: The first three colored light – Detroit (allowed four police officers to better control the intersection) הרמזור הראשון בישראל הותקן בעיר חיפה, בפינת הרחובות הרצל-בלפור, בשנת 1949 תקופת מהפכת התרבות בסין הוצע להחליף בין האור האדום לירוק, כך שהאור האדום ישמש לנסיעה, מכיוון שהצבע האדום היה צבעה של המהפכה והוא סימל, בעיני השלטון, את הקידמה. ראש ממשלת סין ג'ואו אנלאי הצליח למנוע שינוי זה, מחשש לפגיעה בבטיחות ולתאונות דרכים.
- #5 https://youtu.be/4CZc3erc_l4

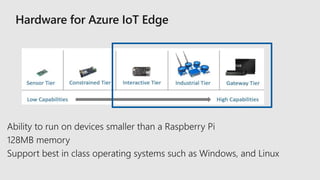

- #13 https://www.azureiotsolutions.com/Accelerators
- #14 Highlight PaaS Microsoft has built a portfolio that supports the needs of all customers, and enables everyone to access the benefits of digital transformation. Microsoft IoT Central is a fully managed SaaS solution that is best used when you need to get started quickly with minimal IoT experience. If your business is pursuing speed over customization, SaaS models could be the perfect fit for your IoT implementation needs. Organizations with fewer device models, more predictable scenarios, and limited IoT/IT capabilities can now reap the benefits of IoT through a SaaS approach. Those businesses that previously lacked the time, money, and expertise to develop connected products can now get started quickly with Microsoft IoT Central. We are leading the industry in providing a mature SaaS solution that meets common IoT implementation pain points. Azure IoT Suite is a customizable PaaS solution that is best used when you need a lot of control over your IoT solution. If your business is implementing IoT for connected operations, or have very particular customization requirements for your connected products, you can have the control you need with Azure IoT Suite. Organizations with a large number of devices or device models, and manufacturers seeking connected factory solutions are examples of companies that can create highly customizable IoT solutions tailored to their complex needs. In addition, Azure IoT Edge provides organization with the capacity to do local processing. When combined with a PaaS or SaaS solution, edge processing can offer faster calculations and reduce the cost of data sent to the cloud. For the remainder of this presentation, we’ll focus on Microsoft IoT Central, and the unique value that it is bringing by democratizing IoT. <click>

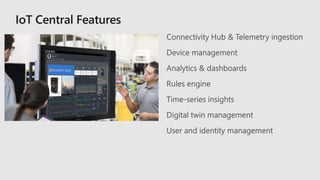

- #15 Connectivity Hub & Telemetry ingestion Connects a variety of devices to the cloud through an open platform Device management Enables understanding, control, and optimization of investments Analytics & dashboards Provide simple and consumable reports and visualizations for any platform Rules engine Real time data processing Time-series insights Identify trends among millions of IoT events Digital twin management Enables actionable insights through modeling and simulation User and identity management Delivers customized levels of permissions across users and protect from unauthorized access
