This is the presentation deck used during the event organized by Cloud Journey User Group on 06th March 2021 to know about the power of Microsoft Graph with focus on applications like Power Apps, Power Automate and dotnet core

1. CLOUD JOURNEY USER GROUP
SHARE TO CARE
How to use Microsoft Graph in your
Applications
MOHAMED ASHIQ FALEEL THIRUNAVUKARASU KANNAPPAN
Sanjiv Venkatram
https://www.linkedin.com/in/ashiqf/
@AshiqFaleel
ashiqf@gmail.com
https://ashiqf.com
https://www.linkedin.com/in/thirubaikm/
@thirubai
https://www.linkedin.com/in/Sanjiv-venkatram/
@VenkatramSanjiv
http://prudentia-consulting.com

2. Agenda
• Keynote from Sanjiv
• Overview of Microsoft Graph
• Authentication Flows
• Tools to call Microsoft Graph
• Demo - Dotnet Core using Graph SDK
• Demo - Power Automate using HTTP connector
• Demo - Power Apps & Power Automate using Custom Connector
• Overview of Graph Toolkit
• Demo – Graph Toolkit
• Q&A

3. Overview of Microsoft Graph
Users Groups Outlook Calendar SharePoint
Dynamics
365 Central
Intune
Teams Azure AD
OneDrive Planner
https://graph.microsoft.com
Your app
Gateway to data
Unified programmability
model
Single endpoint
Graph Connector:
Delivering external data
to the Microsoft cloud
into Microsoft Graph
services and applications
Data Connect: Delivery of
Microsoft Graph data to
popular Azure data
stores

4. Overview of Microsoft Graph - Contd
Accessing
Microsoft
Graph
Microsoft
Graph REST
API
Any platform and framework
Issue HTTP Requests and
process Responses
Microsoft
Graph
Native SDKs
Abstract layer for constructing,
submitting and processing REST
requests & responses
SDK for .NET, iOS, Android, Java,
PHP, Python, JavaScript, Node.js
etc
Pre-requisites
• Application in Microsoft
identity platform
• Establish trust
relationship between
the app and identity
provider
• Web
• Mobile/desktop app
• Web API

5. Overview of Microsoft Graph - Contd
• Filter, Search, Count, Orderby, delta, expand..
Advanced queries
• Combine multiple requests in one HTTP call using JSON batching
Batching
• If an overwhelming no of request occurs, throttling helps maintain
optimal performance
Throttling
• Webhook mechanism to deliver change notification to clients
• Supports various no. of resources like Outlook, user, group, teams
chatmessage, SP List item etc
Change Notifications

6. Types of permissions
Microsoft Identity defines two types of permissions
• Access API as signed-in user
• User can consent for their data or admin can
consent for all users
Delegated permissions
• Access API as daemon/without user interaction
• Only global admin can consent
Application permissions

7. Authentication Flows / Permission
Models
Delegated
Permissions
•Authorization Code
•Desktop/Mobile/Web Apps
•Device Code
•Desktop/Mobile Apps
•On behalf of
•Web APIs
•Username/password
•Desktop/mobile apps
•Integrated Windows Authentication (IWA)
•Azure AD Joined
•Desktop Apps
Application
Permissions
•Client Credentials
•Daemon Apps

8. Tools
• Graph Explorer
• Make requests and see responses against the Microsoft Graph
• https://developer.microsoft.com/en-us/graph/graph-explorer
• Postman
• Enables developers to test RESTful APIs
• https://www.postman.com/downloads
• https://docs.microsoft.com/en-us/graph/use-postman
• .NET Fiddle
• https://dotnetfiddle.net/
• JS Fiddle
• https://jsfiddle.net/
• Decode token
• https://jwt.ms

9. Demo - Dotnet Core Graph SDK & MSAL
Microsoft
Authentication
Library (MSAL)
Enables developers to acquire tokens
On behalf of user or on behalf of application
Maintains token cache and refreshes tokens when close to expire
Available for different platforms
NPM, Nuget
Graph SDK Simplifies graph calls
Application Permissions
• Client Credentials
Delegated Permissions
• On behalf of
• Device code flow

10. Demo – Graph in Power Automate using HTTP
connector
HTTP
Connector Premium
Application
Permissions Client Credentials
Delegated
Permissions UserName/Password

11. Demo – Graph in Power Apps & Power
Automate using Custom Connector
Custom
Connector
Premium
Delegated
Permissions
On behalf of

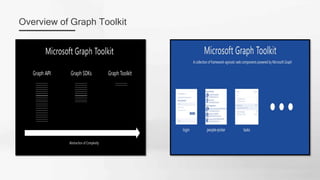

12. Overview of Graph Toolkit

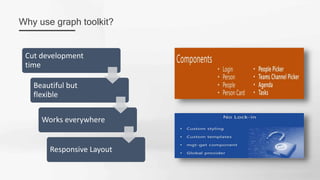

13. Why use graph toolkit?
Cut development
time
Beautiful but
flexible
Works everywhere
Responsive Layout

14. Demo – Graph Toolkit

15. References
https://docs.microsoft.com/en-us/learn/paths/m365-msgraph-associate/
Overview of MS Graph: https://docs.microsoft.com/en-us/graph/overview
Graph Auth Overview: https://docs.microsoft.com/en-us/graph/auth/
Microsoft Identity Platform: https://docs.microsoft.com/en-us/azure/active-directory/develop/v2-overview
MSAL: https://docs.microsoft.com/en-us/azure/active-directory/develop/msal-overview
Graph SDK: https://docs.microsoft.com/en-us/graph/sdks/sdks-overview
Authentication Flows: https://docs.microsoft.com/en-us/azure/active-directory/develop/msal-authentication-flows
Register an application: https://docs.microsoft.com/en-us/azure/active-directory/develop/quickstart-register-app
Consent of Application: https://docs.microsoft.com/en-us/azure/active-directory/develop/v2-permissions-and-
consent
https://docs.microsoft.com/en-us/azure/active-directory/develop/v2-oauth-ropc
Webhooks: https://docs.microsoft.com/en-us/graph/api/resources/webhooks?view=graph-rest-1.0
https://ashiqf.com/2020/11/01/teams-presence-light-with-raspberry-pi/
https://ashiqf.com/2020/10/25/tools-to-call-microsoft-graph-api-endpoints-as-a-user-and-application/
https://ashiqf.com/2019/12/15/get-attendees-details-of-a-meeting-event-using-power-automate-ms-flow/
https://ashiqf.com/2020/06/16/batch-sharepoint-requests-get-post-patch-delete-in-powerautomate-and-ms-graph/
Graph Toolkit Lab: https://aka.ms/mgtlap
Github repo Graph toolkit: https://aka.ms/mgt
Graph toolkit playground: https://mgt.dev
https://github.com/ashiqf

17. Thank you
https://www.meetup.com/cloudjourneyusergroup/
