The document provides an overview of an IoT solution including: - Countries where customers were located between 2000-2017. - Three options for device connectivity: direct, cloud gateways, and field gateways. - Key aspects of focusing on quick value creation versus robustness. - An overview of the Azure IoT landscape including services, solutions, and device support. - Concepts related to Azure IoT Hub including security, device twins, messaging, telemetry, and command/control.

2. Hello world
Customers Entities
2000 Belgium
2004 France
2013 Portugal
2016 Switzerland
2016 UK
2016 The Netherlands
2017 Malta

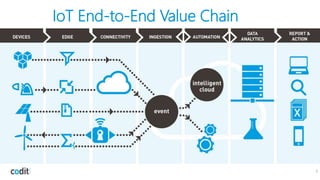

3. IoT End-to-End Value Chain
3

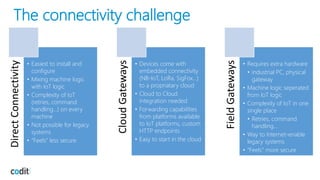

4. The connectivity challengeDirectConnectivity
• Easiest to install and
configure
• Mixing machine logic
with IoT logic
• Complexity of IoT
(retries, command
handling…) on every
machine
• Not possible for legacy
systems
• “Feels” less secure
CloudGateways
• Devices come with
embedded connectivity
(NB-IoT, LoRa, SigFox…)
to a propriatary cloud
• Cloud to Cloud
integration needed
• Forwarding capabilities
from platforms available
to IoT platforms, custom
HTTP endpoints
• Easy to start in the cloud
FieldGateways
• Requires extra hardware
• industrial PC, physical
gateway
• Machine logic seperated
from IoT logic
• Complexity of IoT in one
single place
• Retries, command
handling…
• Way to Internet-enable
legacy systems
• “Feels” more secure

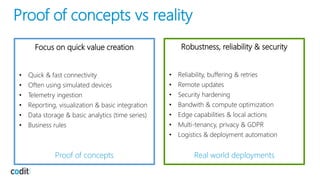

5. Focus on quick value creation
• Quick & fast connectivity
• Often using simulated devices
• Telemetry ingestion
• Reporting, visualization & basic integration
• Data storage & basic analytics (time series)
• Business rules
Proof of concepts
Robustness, reliability & security
• Reliability, buffering & retries
• Remote updates
• Security hardening
• Bandwith & compute optimization
• Edge capabilities & local actions
• Multi-tenancy, privacy & GDPR
• Logistics & deployment automation
Real world deployments

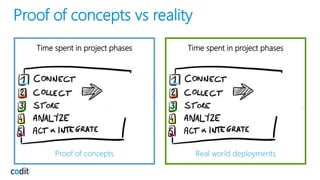

Proof of concepts vs reality

6. Time spent in project phases
Real world deployments
Proof of concepts vs reality
Time spent in project phases
Proof of concepts

7. The Azure IoT landscape
7

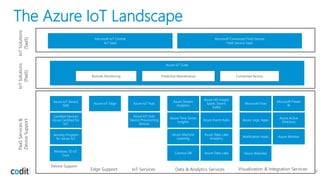

8. The Azure IoT Landscape
8
PaaSServices&
DeviceSupport
Azure IoT Edge
Edge Support
Azure IoT Hub
Azure IoT Hub
Device Provisioning
Service
IoT Services
Azure Time Series
Insights
Azure Machine
Learning
Azure Stream
Analytics
Cosmos DB Azure Data Lake
Azure Data Lake
Analytics
Azure HD Insight
Spark, Storm,
Kafka
Azure Event Hubs
Data & Analytics Services
Microsoft Flow
Azure Logic Apps
Notification Hubs
Azure Websites
Microsoft Power
BI
Azure Active
Directory
Azure Monitor
Visualization & Integration Services
IoTSolutions
(SaaS)
Microsoft IoT Central
IoT SaaS
Microsoft Connected Field Service
Field Service SaaS
Device Support
Azure IoT Device
SDK
Certified Devices
Azure Certified for
IoT
Security Program
for Azure IoT
Windows 10 IoT
Core
IoTSolutions
(PaaS)
Remote Monitoring Predictive Maintenance Connected factory
Azure IoT Suite

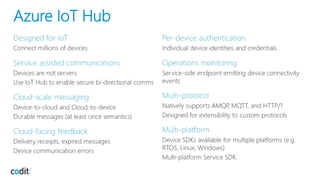

9. Azure IoT Hub

10. Azure IoT Hub
security
10

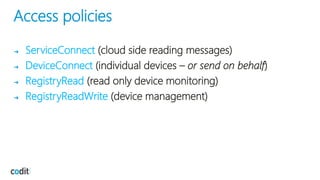

11. Access policies
➔ ServiceConnect (cloud side reading messages)
➔ DeviceConnect (individual devices – or send on behalf)
➔ RegistryRead (read only device monitoring)
➔ RegistryReadWrite (device management)

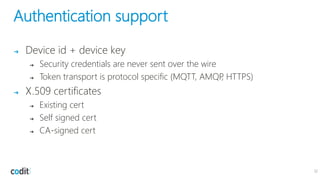

12. Authentication support
➔ Device id + device key
➔ Security credentials are never sent over the wire
➔ Token transport is protocol specific (MQTT, AMQP, HTTPS)
➔ X.509 certificates
➔ Existing cert
➔ Self signed cert
➔ CA-signed cert
12

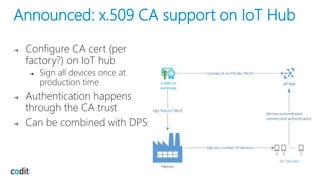

13. Announced: x.509 CA support on IoT Hub
➔ Configure CA cert (per
factory?) on IoT hub
➔ Sign all devices once at
production time
➔ Authentication happens
through the CA trust
➔ Can be combined with DPS

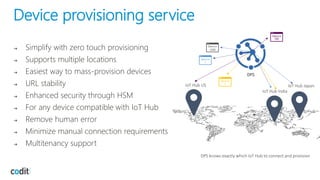

14. Device provisioning service
➔ Simplify with zero touch provisioning
➔ Supports multiple locations
➔ Easiest way to mass-provision devices
➔ URL stability
➔ Enhanced security through HSM
➔ For any device compatible with IoT Hub
➔ Remove human error
➔ Minimize manual connection requirements
➔ Multitenancy support
DPS knows exactly which IoT Hub to connect and provision
IoT Hub US IoT Hub Japan
IoT Hub India
DPS

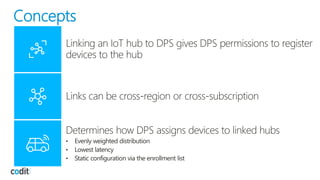

15. Concepts

16. Azure IoT Hub
endpoints & routes
16

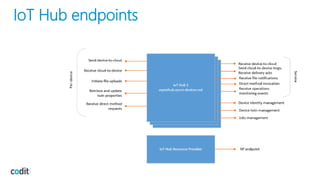

17. IoT Hub endpoints

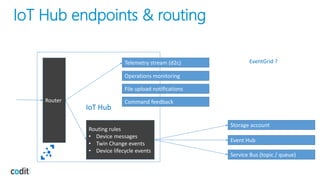

18. IoT Hub endpoints & routing
IoT Hub
Telemetry stream (d2c)
Operations monitoring
File upload notifications
Command feedback
Storage account
Event Hub
Service Bus (topic / queue)
Routing rules
• Device messages
• Twin Change events
• Device lifecycle events
Router
EventGrid ?

19. Azure IoT Hub
device twins
19

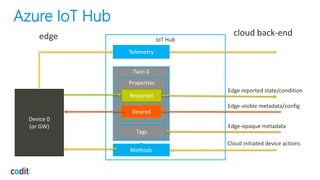

20. Azure IoT Hub
IoT Hub
Twin 0
Tags
Properties
Desired
Reported
Methods
Device 0
(or GW)
edge cloud back-end
Edge-visible metadata/config
Edge reported state/condition
…
Telemetry
Edge-opaque metadata
Cloud initiated device actions

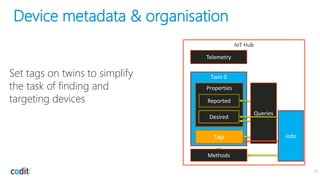

21. Device metadata & organisation
21
IoT Hub
Twin 0
Tags
Properties
Desired
Reported
Methods
…
Telemetry
Jobs
Queries
Set tags on twins to simplify
the task of finding and
targeting devices

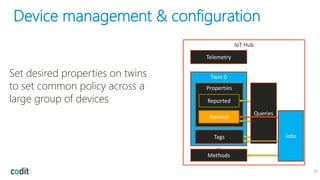

22. Device management & configuration
22
IoT Hub
Twin 0
Tags
Properties
Desired
Reported
Methods
…
Telemetry
Jobs
Queries
Set desired properties on twins
to set common policy across a
large group of devices

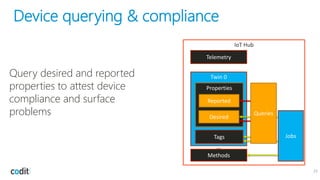

23. Device querying & compliance
23
IoT Hub
Twin 0
Tags
Properties
Desired
Reported
Methods
…
Telemetry
Jobs
Query desired and reported
properties to attest device
compliance and surface
problems Queries

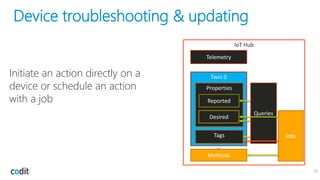

24. Device troubleshooting & updating
24
IoT Hub
Twin 0
Tags
Properties
Desired
Reported
Methods
…
Telemetry
Jobs
Queries
Initiate an action directly on a
device or schedule an action
with a job

25. Azure IoT Hub
messaging & telemetry
25

26. Device to cloud messaging
➔ Used for telemetry streams
➔ AMQP / MQTT / HTTPS
➔ Send to /devices/{deviceid}/messages/events
➔ Maximum 256 KB
➔ Body (opaque) + Properties (key-value)
➔ Partitioning per originating deviceid
➔ Process with EventProcessorHost (like Event Hub)
26

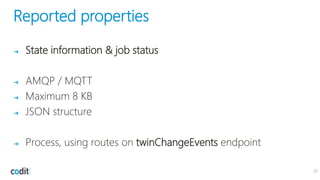

27. Reported properties
➔ State information & job status
➔ AMQP / MQTT
➔ Maximum 8 KB
➔ JSON structure
➔ Process, using routes on twinChangeEvents endpoint
27

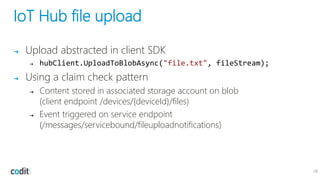

28. IoT Hub file upload
➔ Upload abstracted in client SDK
➔ hubClient.UploadToBlobAsync("file.txt", fileStream);
➔ Using a claim check pattern
➔ Content stored in associated storage account on blob
(client endpoint /devices/{deviceId}/files)
➔ Event triggered on service endpoint
(/messages/servicebound/fileuploadnotifications)
28

29. Azure IoT Hub
command & control
29

30. Cloud to device messaging
➔ Asynchronous operation: device can be online
➔ AMQP / MQTT / HTTPS
➔ Send to /devices/{deviceId}/messages/devicebound
➔ Maximum 64 KB
➔ Body (opaque) + Properties (key-value)
➔ Important to configure TTL (time to live)
➔ No support for jobs
➔ At least once guaranteed delivery (device can reject /
abandon)
30

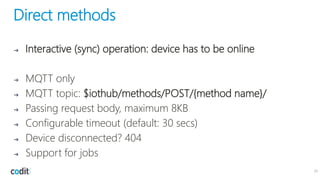

31. Direct methods
➔ Interactive (sync) operation: device has to be online
➔ MQTT only
➔ MQTT topic: $iothub/methods/POST/{method name}/
➔ Passing request body, maximum 8KB
➔ Configurable timeout (default: 30 secs)
➔ Device disconnected? 404
➔ Support for jobs
31

32. Desired properties
➔ Set configuration
➔ AMQP / MQTT
➔ Maximum 8 KB
➔ JSON structure
➔ Support for jobs
➔ Durable (persisted in twin).
32

33. Azure IoT Hub
Device Jobs
33

34. Device jobs
➔ Schedule updates or commands for selection of devices
➔ Selection: based on device query
➔ Actions:
➔ Update desired properties
➔ Update tags
➔ Invoke direct methods
➔ Query on job status, using job id
34

35. <demo>
Azure IoT Hub
35

36. :thank you
