This document discusses hybrid connectivity options for connecting on-premises resources to Azure, including Azure Relay, Service Bus, API Management, and networking. It provides an overview of WCF relays and hybrid connections in Azure Relay, messaging capabilities in Service Bus, and how API Management and networking options can enable hybrid scenarios with varying levels of required development and network configuration changes. Tables are included comparing features and requirements of the different options.

1. Hybrid Connectivity Options
with Azure
Connecting on-premises to cloud resources

2. WHO AM I?
WORK AT ASB AS INTEGRATION
SPECIALIST
FRESH MICROSOFT AZURE MVP
BORN IN SAO PAULO, BRAZIL
DIE HARD SPORT CLUB CORINTHIANS
PAULISTA FAN
@ALESSANDROMOURA
WWW.ALESSANDROMOURA.COM.BR

3. “THROUGH 2020, INTEGRATION
WORK WILL ACCOUNT FOR 50%
OF THE TIME AND COST OF
BUILDING A DIGITAL PLATFORM”

4. “BY 2022, AT LEAST 65% OF LARGE
ORGANIZATIONS WILL HAVE
IMPLEMENTED AN HYBRID
INTEGRATION PLATFORM TO POWER
THEIR DIGITAL TRANSFORMATION”
https://www.gartner.com/smarterwithgartner/use-a-hybrid-integration-approach-to-empower-
digital-transformation/

5. AZURE RELAY
• EXPOSE SERVICES FROM THE CORPORATE NETWORK TO THE PUBLIC CLOUD
• NO NEED TO OPEN FIREWALL PORTS OR MAKE INTRUSIVE CHANGES IN THE
CORPORATE NETWORK
• ONE-WAY, REQUEST/RESPONSE, PEER-TO-PEER COMMUNICATION
• FEATURES
• WCF RELAYS
• LEGACY RELAY THAT USES WCF TO ENABLE RPC
• HYBRID CONNECTIONS
• OPEN STANDARD WEB SOCKETS ENABLING MULTI-PLATFORM SCENARIOS

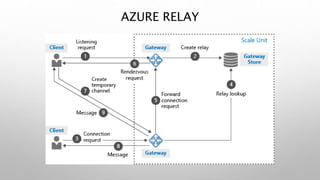

6. AZURE RELAY

7. WCF RELAY VS. HYBRID CONNECTIONS
Programming Model WCF Relay Hybrid
Connections
WCF X
.Net Core X
.Net Framework X X
Javascript/Node JS X
Standards-Based open
protocol
X
RPC programming models X

8. AZURE RELAY - DEMO
• WCF RELAY
• EXISTENT WCF WEB SERVICE TO BE EXPOSED TO THE PUBLIC CLOUD
• THE SERVICE IS EXPOSED AS IT WAS DEVELOPED, THE RELAY WORKS AS AN ENDPOINT
ONLY
• LEGACY WAY OF EXPOSING SERVICES
• HYBRID CONNECTIONS
• NEW SERVICES CREATED WITH HTTP OR WEBSOCKETS PROTOCOLS TO EXCHANGE
INFORMATION WITH THE PUBLIC CLOUD

9. SERVICE BUS
QUEUES
• ORDERED MESSAGE LOG
• TIMESTAMPED ON ARRIVAL
• STORED
• MULTIPLEXING WITH SESSIONS
• TWO MODES
• PULL – DELIVERS ON REQUEST
• FORWARD – DELIVERS TO A SINGLE
DESTINATION
Topics
• All features of Queues, plus
• Multiple, Independent
Subscriptions
• Named
• Rules with filter conditions on
message properties

10. ADVANCED HYBRID INTEGRATION
• ON-PREMISES DATA
GATEWAY FOR RICH DATA
AND APPLICATION
INTEGRATION
• AZURE API MANAGEMENT
FOR SOAP AND BACKEND
APIS
• SERVICE BUS FOR CROSS
PLATFORM SUPPORT
On-premises
Data Gateway
Gateway
Azure
Service
Bus relay
Gateway
Cloud
Service
Data
Sources
Logic
Apps
LOB
Systems
Logic
Apps
APIM
Virtual
network
or public
SOAP
web
services
Backend
APIs
Azure API
Management

11. API MANAGEMENT
Consume PublishMediate
Azure portalGatewayDeveloper portal
Abstract
Secure & protect
Manage lifecycle
Monitor & measure
Onboard developers
Monetize
Discover
Learn
Get access
Try
Get help
SDKs and samples

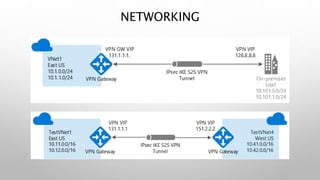

12. NETWORKING

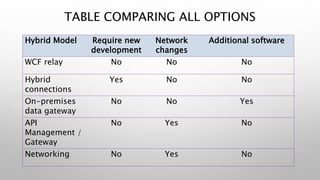

13. TABLE COMPARING ALL OPTIONS
Hybrid Model Require new
development
Network
changes
Additional software
WCF relay No No No
Hybrid
connections
Yes No No
On-premises
data gateway
No No Yes
API
Management /
Gateway
No Yes No
Networking No Yes No

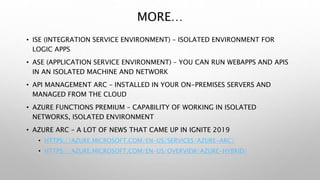

14. MORE…
• ISE (INTEGRATION SERVICE ENVIRONMENT) – ISOLATED ENVIRONMENT FOR
LOGIC APPS
• ASE (APPLICATION SERVICE ENVIRONMENT) – YOU CAN RUN WEBAPPS AND APIS
IN AN ISOLATED MACHINE AND NETWORK
• API MANAGEMENT ARC – INSTALLED IN YOUR ON-PREMISES SERVERS AND
MANAGED FROM THE CLOUD
• AZURE FUNCTIONS PREMIUM – CAPABILITY OF WORKING IN ISOLATED
NETWORKS, ISOLATED ENVIRONMENT
• AZURE ARC – A LOT OF NEWS THAT CAME UP IN IGNITE 2019
• HTTPS://AZURE.MICROSOFT.COM/EN-US/SERVICES/AZURE-ARC/
• HTTPS://AZURE.MICROSOFT.COM/EN-US/OVERVIEW/AZURE-HYBRID/

15. REFERENCE MATERIAL
• HTTPS://DOCS.MICROSOFT.COM/EN-US/AZURE/SERVICE-BUS-RELAY/SERVICE-BUS-DOTNET-
HYBRID-APP-USING-SERVICE-BUS-RELAY#DEPLOY-THE-PRODUCTSPORTAL-PROJECT-TO-AN-
AZURE-WEB-APP
• HTTPS://DOCS.MICROSOFT.COM/EN-US/AZURE/SERVICE-BUS-RELAY/RELAY-HYBRID-
CONNECTIONS-HTTP-REQUESTS-DOTNET-GET-STARTED
• HTTPS://DOCS.MICROSOFT.COM/EN-US/AZURE/SERVICE-BUS-MESSAGING/SERVICE-BUS-
DOTNET-GET-STARTED-WITH-QUEUES#RECEIVE-MESSAGES-FROM-THE-QUEUE
• HTTPS://DOCS.MICROSOFT.COM/EN-US/AZURE/LOGIC-APPS/LOGIC-APPS-GATEWAY-
CONNECTION
• HTTPS://DOCS.MICROSOFT.COM/EN-US/AZURE/LOGIC-APPS/LOGIC-APPS-GATEWAY-
CONNECTION
• HTTPS://DOCS.MICROSOFT.COM/EN-US/AZURE/VPN-GATEWAY/VPN-GATEWAY-HOWTO-
VNET-VNET-RESOURCE-MANAGER-PORTAL
• HTTPS://DOCS.MICROSOFT.COM/EN-US/AZURE/API-MANAGEMENT/API-MANAGEMENT-
USING-WITH-VNET#-ENABLE-VNET-CONNECTION
