ARCHES IN ROMAN ARCHITECTURE
The document discusses Roman architecture and their use of arches. It explains that the Romans built aqueducts to transport water into cities using arches as the supportive structure. The water was carried through the aqueducts in rectangular channels lined with concrete and the arches helped support the weight of the running water. The document also describes how arches are constructed using keystones at the top supported by semi-circular voussoirs and reinforced by buttresses.
More Related Content
Similar to ARCHES IN ROMAN ARCHITECTURE
ARCHES IN ROMAN ARCHITECTURE
- 1.
- 2. Arches • The Romansused arches to support the things they built. • They built victory arches, buildings and aqueducts.
- 3.
- 4. Aqueducts- a way tocarry water • There wasn’t enough water in the city of Rome. • The Romans brought water in from the surrounding countryside. • The water was brought in by tubes called aqueducts.

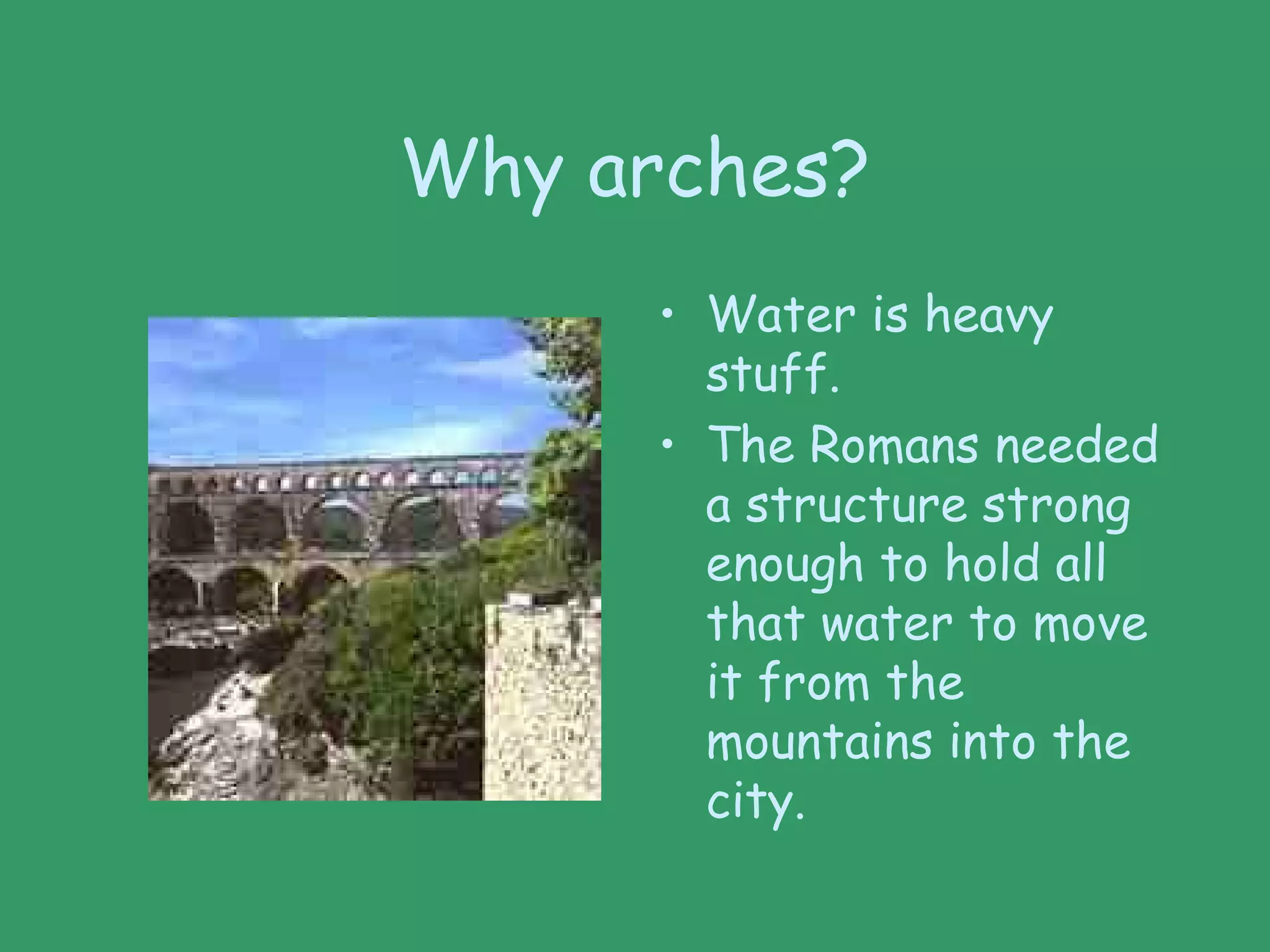

- 5. Why arches? • Wateris heavy stuff. • The Romans needed a structure strong enough to hold all that water to move it from the mountains into the city.
- 6. Where did thewater go? • The water was transported in concrete tunnels. • The tunnels were underground if possible. • Sometimes the tunnel had to go above ground.
- 7. How did theaqueduct work? • The water flowed in a tube on the top of the aqueduct called a water channel. • The arches supported the water channel.

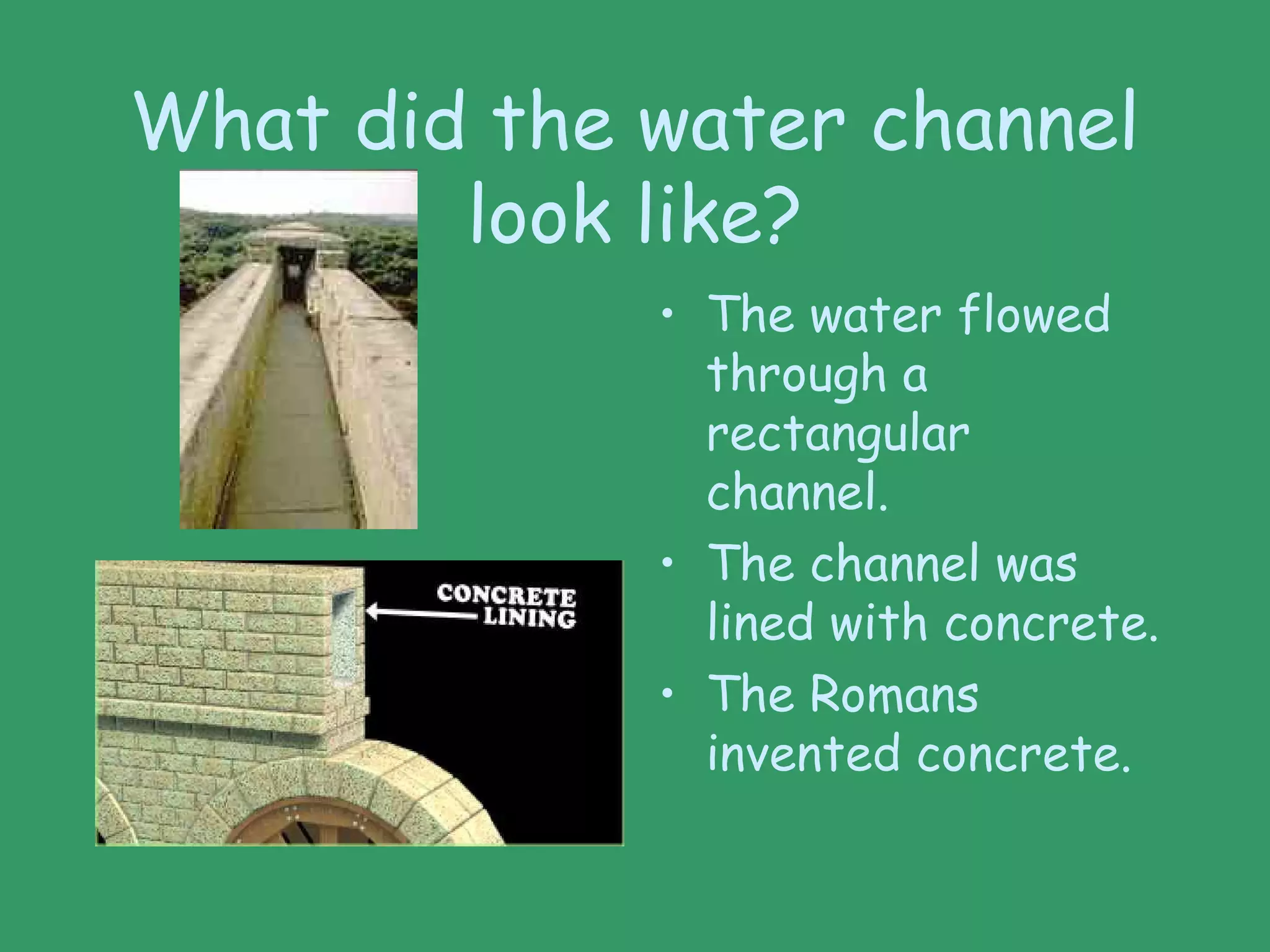

- 8. What did thewater channel look like? • The water flowed through a rectangular channel. • The channel was lined with concrete. • The Romans invented concrete.

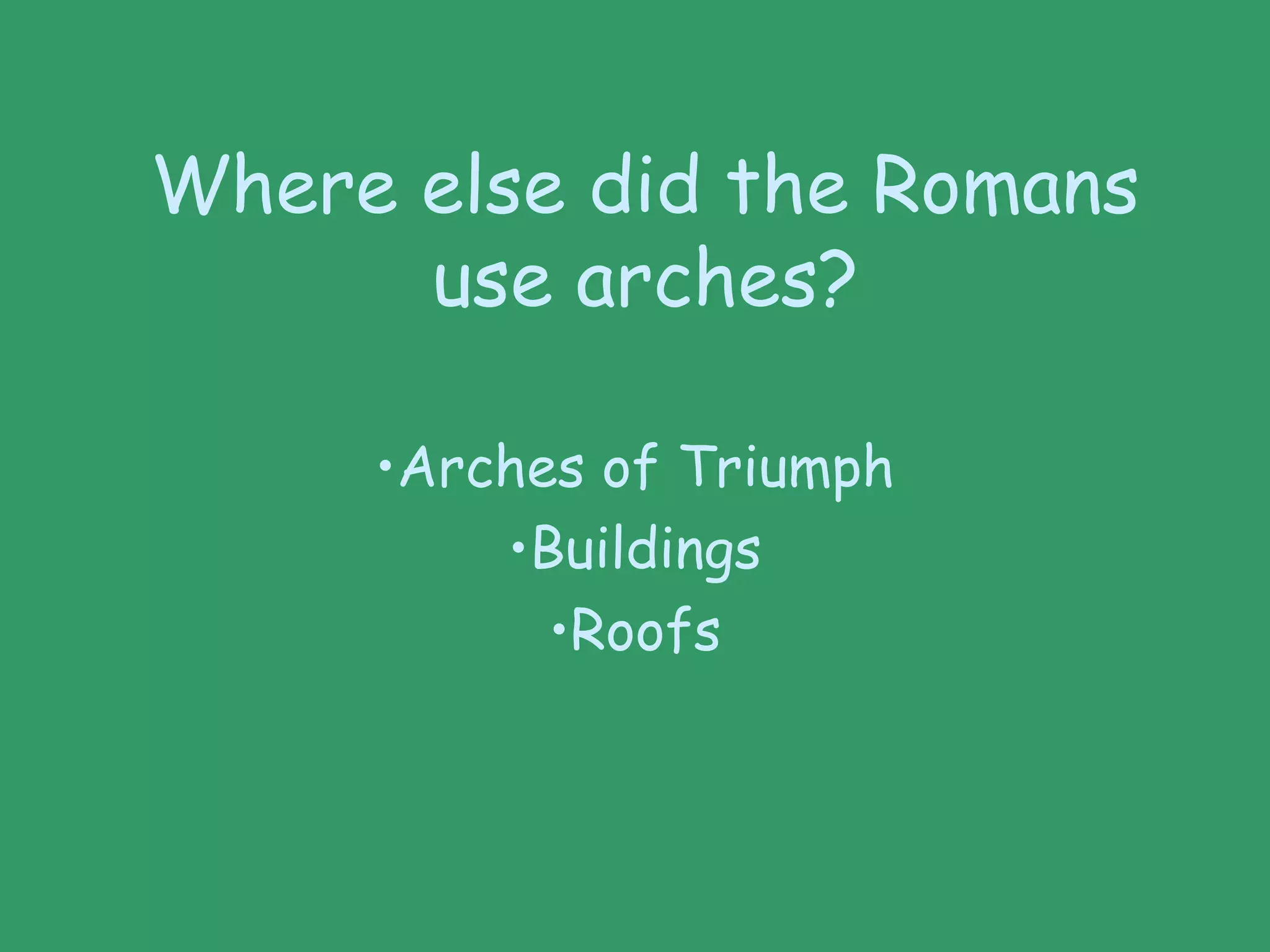

- 9. Where else didthe Romans use arches? •Arches of Triumph •Buildings •Roofs
- 10. Arches of Triumph- tocelebrate military success
- 11. The Coliseum- a placefor sports
- 12. The Coliseum- ablend of Greek and Roman architecture • The arches are supported by central columns. • The columns on the first floor are Doric. • The columns on the second floor are Ionic. • The columns on the third floor are Corinthian.
- 14. The Pantheon- a templeto all the gods
- 15. How does anarch work? Keystones • The keystone is the red stone at the top of the arch. • The keystone is what the weight rests on.
- 16. How does anarch work? Voussoirs • The semi-circular stones on either side of the keystone are the voussoirs. • The voussoirs bring the weight to the columns that go to the ground.

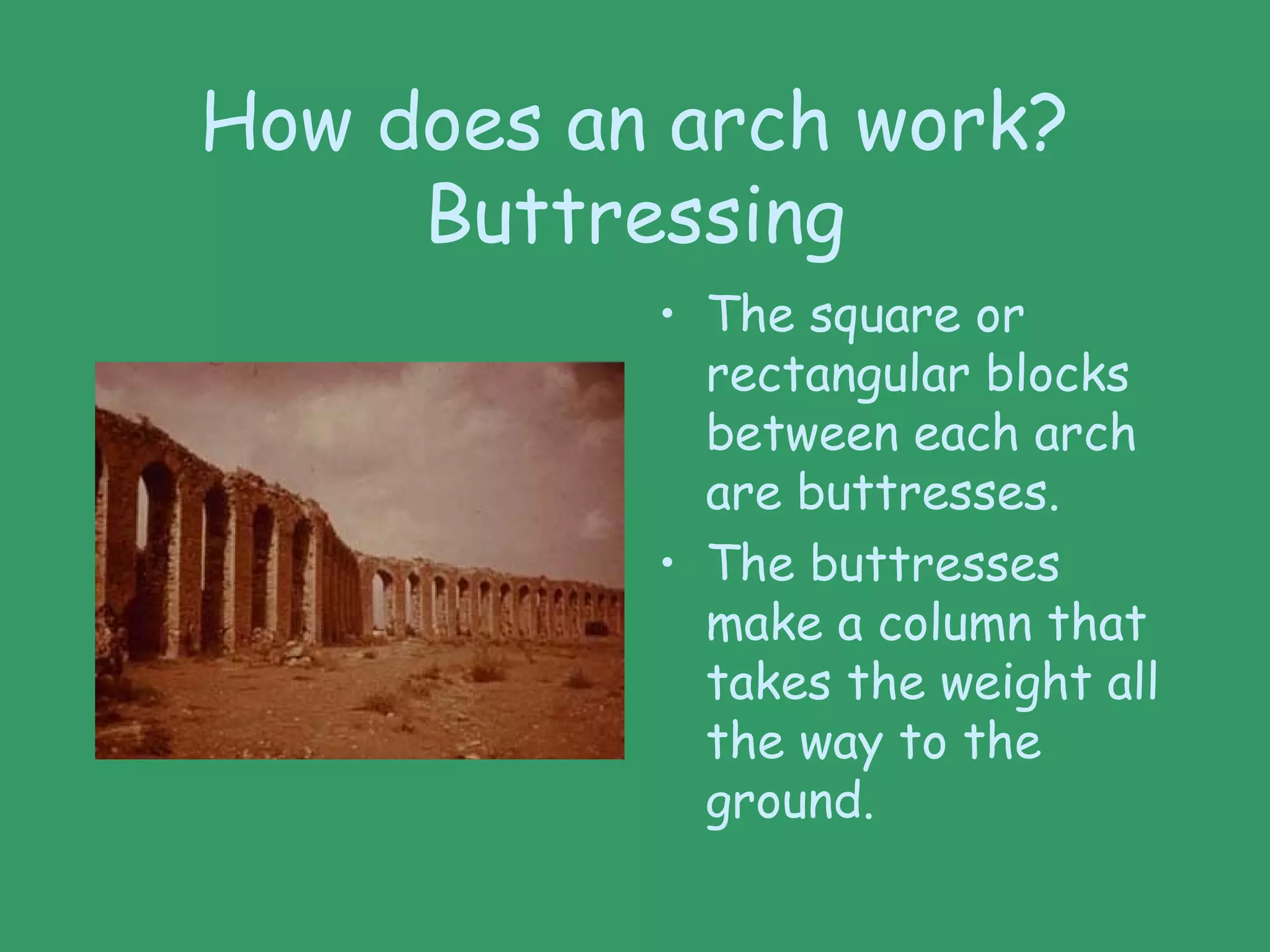

- 17. How does anarch work? Buttressing • The square or rectangular blocks between each arch are buttresses. • The buttresses make a column that takes the weight all the way to the ground.
- 18. Modern arches Hotel Roanoke USCapital Dominion Towers Office in Tyson’s Corner

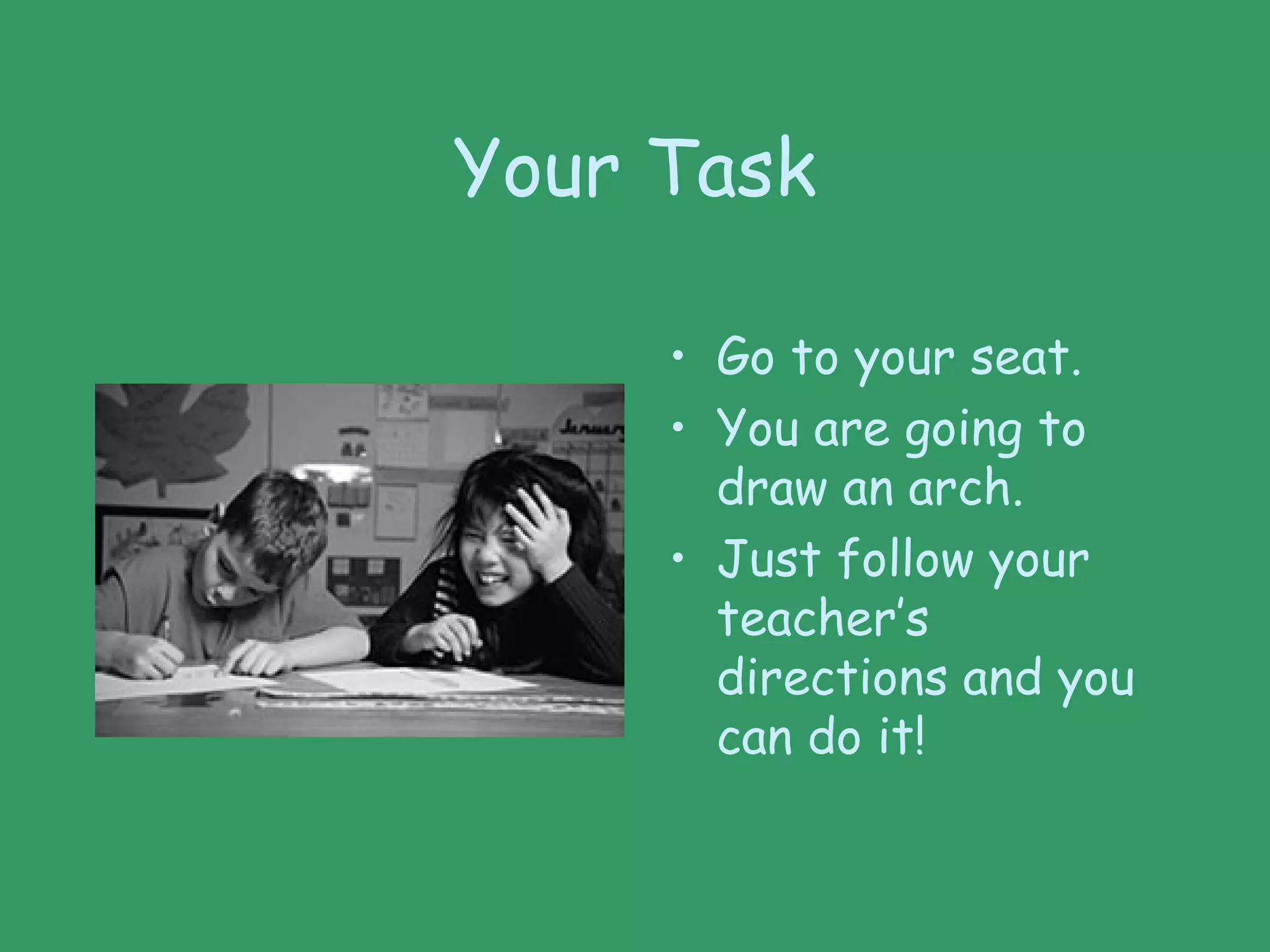

- 19. Your Task • Goto your seat. • You are going to draw an arch. • Just follow your teacher’s directions and you can do it!
- 20. First • Use theyogurt lid to draw a semi- circle.
- 21. Second • Add legsto your semi-circle. • Now you have an arch.
- 22. Third • Draw asmaller arch inside the first one.
- 23. Fourth • Draw aKeystone at the top of the arch.
- 24. Fifth • Now drawthe Voussoirs that hold the Keystone in place.

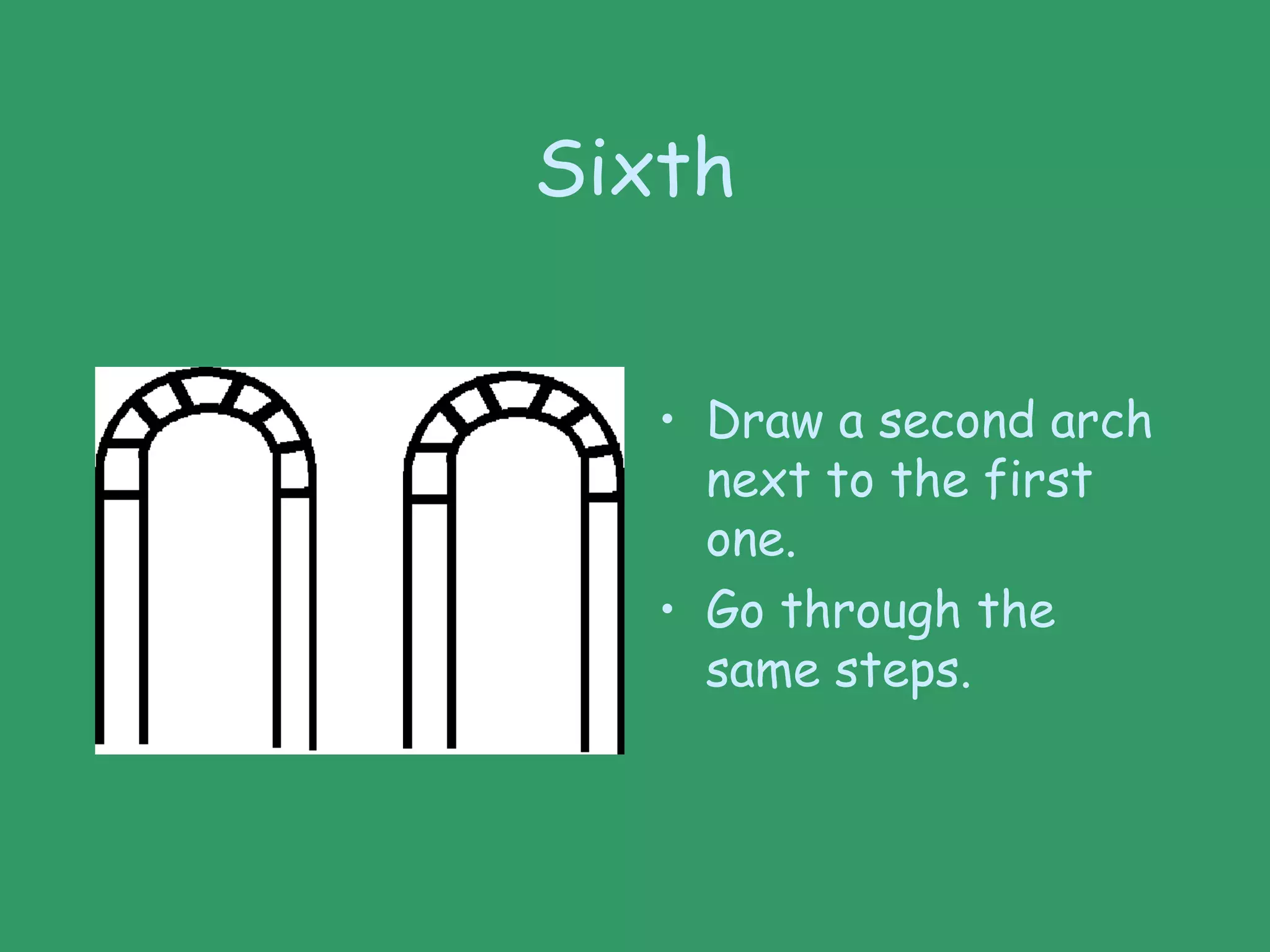

- 25. Sixth • Draw asecond arch next to the first one. • Go through the same steps.
- 26. Seventh • Connect thearches with buttresses. • You did it! • Success!
