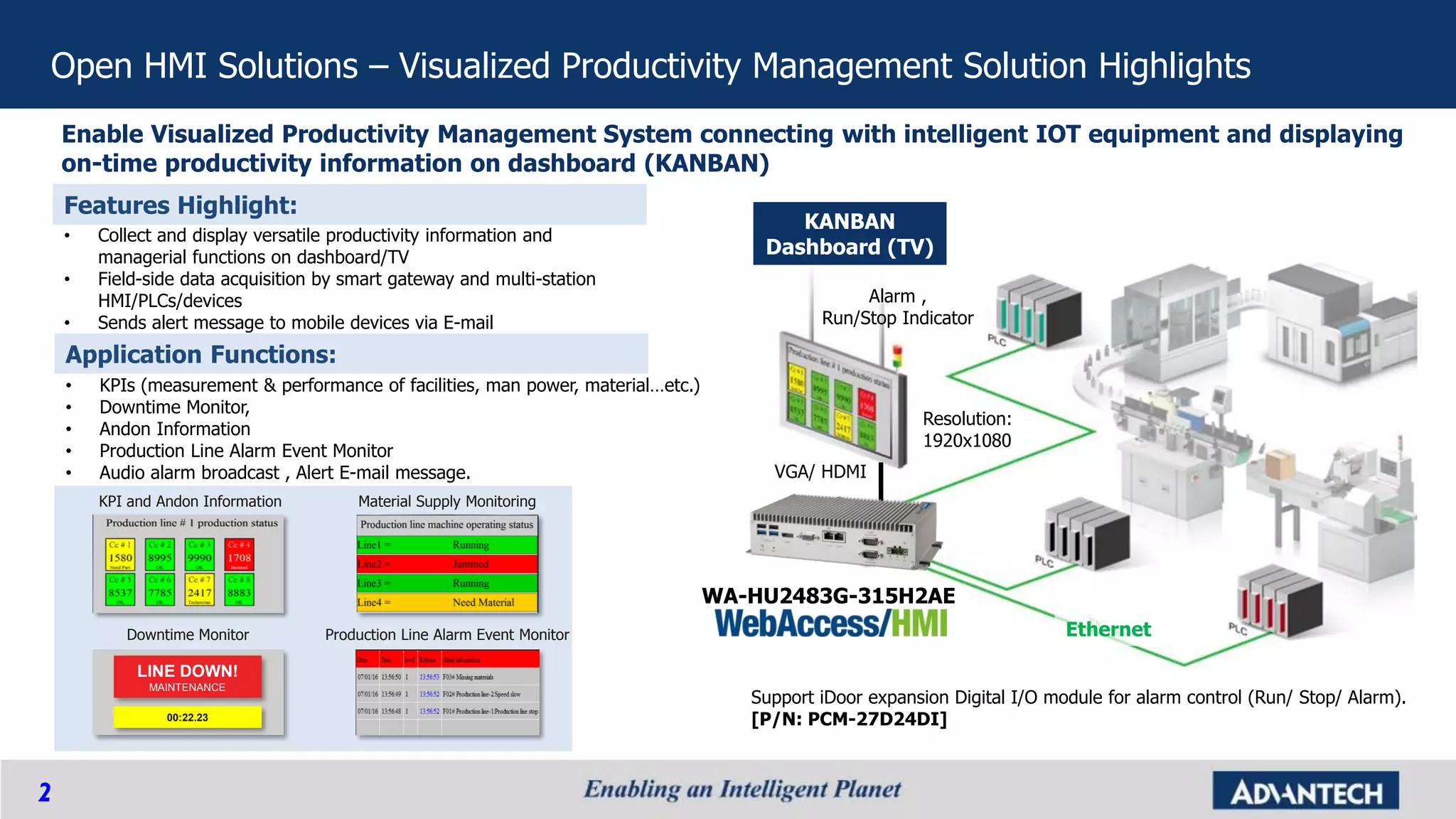

Open HMI Solutions – Visualized Productivity Management Solution Highlights
Enable Visualized Productivity Management System connecting with intelligent IOT equipment and displaying
on-time productivity information on dashboard (KANBAN)
• Collect and display versatile productivity information and
managerial functions on dashboard/TV
• Field-side data acquisition by smart gateway and multi-station
HMI/PLCs/devices
• Sends alert message to mobile devices via E-mail
Features Highlight:
VGA/ HDMI
Ethernet
Resolution:
1920x1080
Alarm ,
Run/Stop Indicator
Support iDoor expansion Digital I/O module for alarm control (Run/ Stop/ Alarm).
[P/N: PCM-27D24DI]
WA-HU2483G-315H2AE
KANBAN
Dashboard (TV)
• KPIs (measurement & performance of facilities, man power, material…etc.)
• Downtime Monitor,
• Andon Information
• Production Line Alarm Event Monitor
• Audio alarm broadcast , Alert E-mail message.
Application Functions:
Material Supply MonitoringKPI and Andon Information
Downtime Monitor Production Line Alarm Event Monitor
LINE DOWN!
MAINTENANCE
00:22.23

3. 3

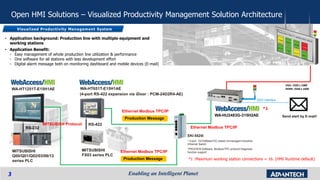

Open HMI Solutions – Visualized Productivity Management Solution Architecture
VGA: 1920 x 1080
HDMI: 2560 x 1600
WA-HU2483G-315H2AE
WA-HT1251T-E15H1AE
Ethernet Modbus TPC/IP
Production Message
MITSUBISHI
FX03 series PLC
(4-port RS-422 expansion via iDoor : PCM-24D2R4-AE)
MITSUBISHI
Q00/Q01/Q02/03/06/12
series PLC
RS-232
WA-HT651T-E15H1AE
RS-422
Ethernet Modbus TPC/IP
Production Message
EKI-5525I
* 5-port 10/100BaseT(X) based Unmanaged Industrial
Ethernet Switch
*PROVIEW Software, Modbus/TPC protocol Diagnosis
function support .
*1 :Maximum working station connections = 16. (HMI Runtime default)
*1
MITSUBISH Protocol
Ethernet Modbus TPC/IP
DI/O interface
• Application background: Production line with multiple equipment and
working stations
• Application Benefit:
- Easy management of whole production line utilization & performance
- One software for all stations with less development effort
- Digital alarm message both on monitoring dashboard and mobile devices (E-mail)
Visualized Productivity Management System
Send alert by E-mail!

4. 4

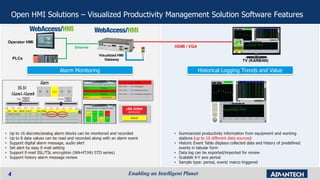

Open HMI Solutions – Visualized Productivity Management Solution Software Features
Historical Logging Trends and ValueAlarm Monitoring
• Summarized productivity information from equipment and working
stations (up to 16 different data sources)
• Historic Event Table displays collected data and history of predefined
events in tabular form
• Data log can be exported/imported for review
• Scalable X-Y axis period
• Sample type: period, event/ marco triggered
Operator HMI
TV (KANBAN)
Ethernet HDMI / VGA
• Up to 16 discrete/analog alarm blocks can be monitored and recorded
• Up to 8 data values can be read and recorded along with an alarm event
• Support digital alarm message, audio alert
• Set alert by easy E-mail setting
• Support E-mail SSL/TSL encryption (WA-HT/HU STD series)
• Support history alarm message review
PLCs
Visualized HMI
Gateway

5. 5
Open HMI Solutions Portfolio Map
Standard Operator HMI - x86 Panel 6.5” - 21”
Product
Series Lite Operator HMI - RISC Panel 7”/ 10” Visualized HMI Gateway
RISC Based/16:9 Wide Screen
Atom Processor
Palm Size
Core i3/ Atom Processor
Regular Size
WA-HT3070T-R15H0AE WA-HT3100T-R15H0AE
WA-HU2272G-J15H2AE
WA-HU2473G-J15H2AE
WA-HU2483G-315H2AE
x86 Based Fanless Design
x86 Based
4:3/16:9 Offering
WA-HT651T-E15H1AE
WA-HT1051W-E15H1AE
WA-HT1251T-E15H1AE
WA-HT1551T-E15H1AE
WA-HT1751T-E15H1AE
WA-HT2140W-G15H1AE
Full Range
CFast 32G
512MB
mSATA
32G
1500 tags
1500 tags
1500 tags

6. 6

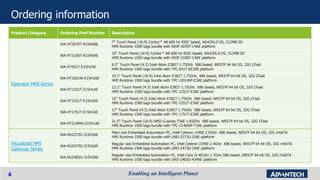

Ordering information
Product Category Ordering Part Number Description
Operator HMI Series
WA-HT3070T-R15H0AE
7" Touch Panel (16:9) Cortex™ A8 600 Hz RISC based, WinCE6.0 OS, 512MB SD
HMI Runtime 1500 tags bundle with WOP-3070T-C4AE platform
WA-HT3100T-R15H0AE
10" Touch Panel (16:9) Cortex™ A8 600 Hz RISC based, WinCE6.0 OS, 512MB SD
HMI Runtime 1500 tags bundle with WOP-3100T-C4AE platform
WA-HT651T-E15H1AE
6.5" Touch Panel (4:3) Intel Atom E3827 1.75GHz X86 based, WES7P 64 bit OS, 32G CFast
HMI Runtime 1500 tags bundle with TPC-651T-6E3AE platform
WA-HT1051W-E15H1AE
10.1" Touch Panel (16:9) Intel Atom E3827 1.75GHz X86 based, WES7P 64 bit OS, 32G CFast
HMI Runtime 1500 tags bundle with TPC-1051WP-E3AE platform
WA-HT1251T-E15H1AE
12.1" Touch Panel (4:3) Intel Atom E3827 1.75GHz X86 based, WES7P 64 bit OS, 32G CFast
HMI Runtime 1500 tags bundle with TPC-1251T-E3AE platform
WA-HT1551T-E15H1AE
15" Touch Panel (4:3) Intel Atom E3827 1.75GHz X86 based, WES7P 64 bit OS, 32G CFast
HMI Runtime 1500 tags bundle with TPC-1551T-E3AE platform
WA-HT1751T-E15H1AE
17" Touch Panel (4:3) Intel Atom E3827 1.75GHz X86 based, WES7P 64 bit OS, 32G CFast
HMI Runtime 1500 tags bundle with TPC-1751T-E3AE platform
WA-HT2140W-G15H1AE
21.5" Touch Panel (16:9) AMD G-series T56E 1.65GHz X86 based, WES7P 64 bit OS, 32G CFast
HMI Runtime 1500 tags bundle with TPC-2140WP-T3AE platform
Visualized HMI
Gateway Series
WA-HU2272G-J15H2AE
Palm size Embedded Automation PC, Intel Celeron J1900 2.0GHz X86 based, WES7P 64 bit OS, 32G mSATA
HMI Runtime 1500 tags bundle with UNO-2272G-J2AE platform
WA-HU2473G-J15H2AE
Regular size Embedded Automation PC, Intel Celeron J1900 2.4GHz X86 based, WES7P 64 bit OS, 32G mSATA
HMI Runtime 1500 tags bundle with UNO-2473G-J3AE platform
WA-HU2483G-315H2AE
Regular size Embedded Automation PC, Intel Core i3-4010U 1.7GHz X86 based, WES7P 64 bit OS, 32G mSATA
HMI Runtime 1500 tags bundle with UNO-2483G-434AE platform

7. 7

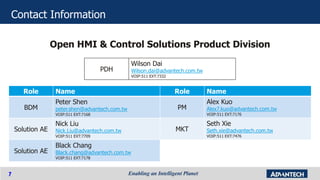

Contact Information
