2013 Advantech Master Catalog

Product Catalog 2013 - 2014

Automation Devices
and Computing
Intelligent Automation, Seamless Integration
Industry Solutions and Software
Industrial HMI, Monitors and Panel Computers
Industrial Communication
Embedded Automation Computers
Programmable Automation Controllers
Distributed I/O Modules
Data Acquisition and Control
Motion Control

www.advantech.com

Table of Contents
Table of Contents

Table of Contents

Star Product Highlights

Industrial Solution and Software
1 WebAccess+ Solutions

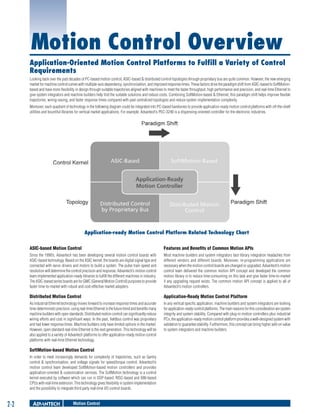

2 Motion Control

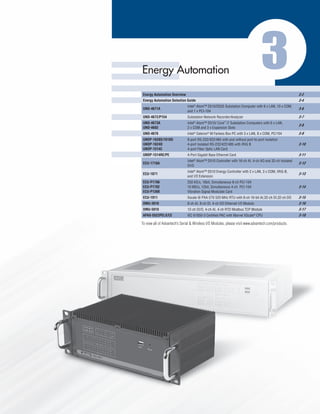

3 Energy Automation

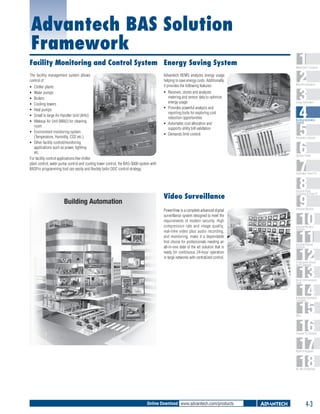

4 Building Automation Systems
5 Automation Software
Industrial HMI, Monitors and Panel Computers
6 Operator Panels
7 Automation Panel PCs
8 Industrial Panel Computers & Panel PC
9 Industrial Monitors

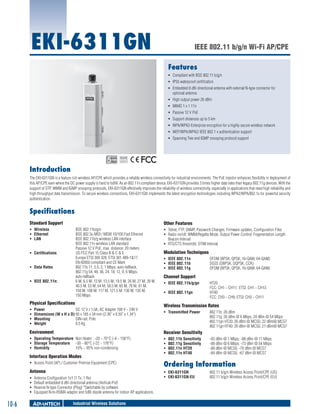

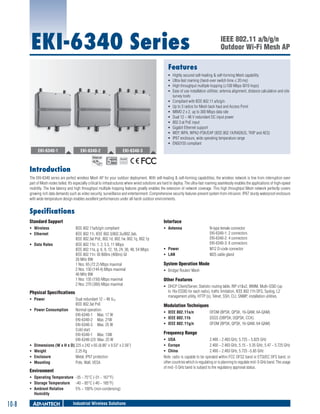

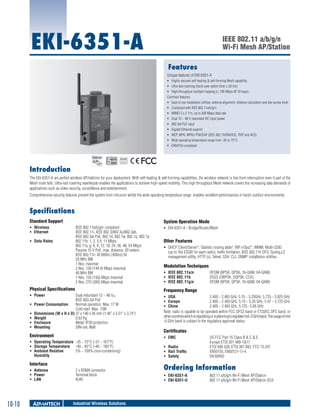

10 Industrial Wireless Solutions
11 Industrial Ethernet Solutions
12 Serial Device Servers and IP Gateways
13 Serial Communication Cards
Automation Controllers
14 Embedded Automation Computers
15 PACs
16 Compact PCI Systems
17 M2M I/O Modules
18 RS-485 I/O Modules
19 Ethernet I/O Modules
Data Acquisition and Comtrol
20 DAQ Boards
21 Signal Conditioning Modules and Terminal Boards

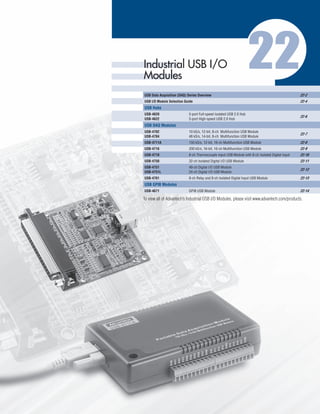

22 Industrial USB I/O Modules

Industrial HMI
Leading the Evolution of Intelligent Operator and Panel PCs
As a leading provider in human machine interfaces, Advantech’s
HMI products are designed for a wide ranges of applications
which can be applied in different industries. We provide an
integrated and comprehensive range of HMI products including
Intelligent Operator Panels (WebOP), Automation Panel PCs (TPC
and PPC ), Stationary Panel Computers (SPC) and Industrial
Monitors (FPM) for automation markets, near automation markets
and domain focused markets such as oil and gas and sunlight
readable requirements. In addition, we offer an integrated next
line I/O and control features with HMI/SCADA software which
allows efficient integration and opens a new era of automation.

1


Thin-client Panels

TPC-1840WP/2140WP

SPC-1840WP/2140WP

18.5” WXGA/21.5” Full HD TFT LCD MultiTouch Panel Computer with AMD dual-core
processor

18.5” WXGA/21.5” Full HD TFT LCD stationary 18.5” / 21.5” Industrial Monitor with
Multi-Touch Panel Computer with AMD dual- Projected Capacitive Touchscreen,
core processor
Direct-VGA and DVI Ports

• AMD dual-core T56E 1.65GHz with external APU,
advanced graphical performance
• 16:9 wide screen with PCT multi-touch
• Built-in intelligent and home key button used for intuitive UI
• Easy Maintenance of Cfast/HDD/Mini-PCIe components
by opening side cover
• ront LED indicator to show operating status
F

• AMD dual-core 1.65GHz processor with external APU,
advanced graphical performance
• 16:9 wide screen with PCT multi-touch
• Built-in intelligent and home key button used for intuitive UI
• Anti-scratch touch surface: 7H hardness
• All around IP65 with waterproof M12 connector
• Front LED indicator to show operating status

• 18.5” WXGA TFT LED LCD wide screen display
• True-flat multi touch screen with IP65 compliance
• Slim type design for panel mount / wall mount easy
installation
• Supports industrial 24VDC power input
• Supports panel, wall, desktop and VESA arm mounting

WebOP-3070T

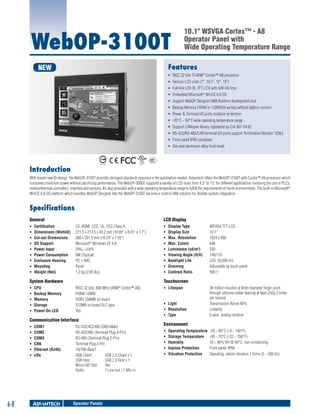

WebOP-3100T

WebOP-3150T

7” WVGA Cortex™-A8 Operator Panel with
Wide Operating Temperatures

10.1” WSVGA Cortex™-A8 Operator Panel
with Wide Operating Temperatures

15” XGA Cortex™-A8 Operator Panel with

• Microsoft® Windows CE 6.0
• Backup memory FRAM in 128KB(64 words) without
battery
• Power & Terminal I/O ports isolation protection
• -20ºC ~ 60ºC wide operating temperature
• Front panel flat-sealed with IP66 compliance

battery concern

battery concern

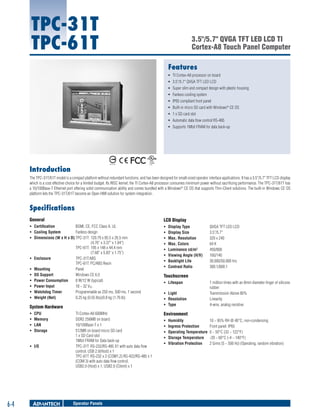

TPC-31T/ 61T

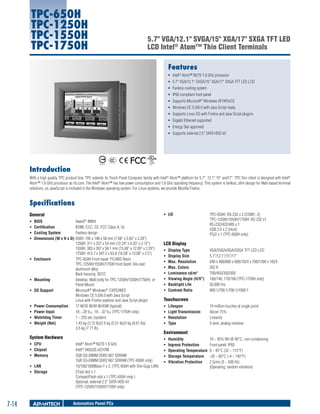

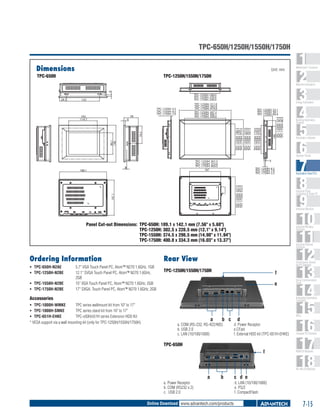

TPC-650H/1250H/1550H/1750H

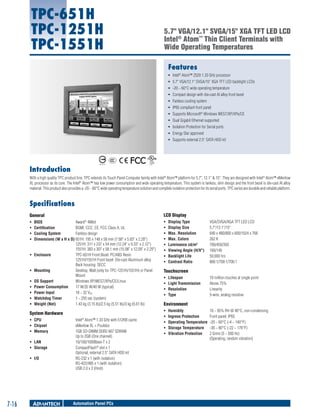

TPC-651H/1251H/1551H

3.5”/5.7” QVGA TI AM3517 600MHz
RISC- based Touch Panel Computers

5.7” VGA/12.1” SVGA/15” XGA/17” SXGA
TFT LED LCD Intel® Atom™ Thin Client
Terminals

5.7” VGA/12.1” SVGA/15” XGA TFT LED LCD
Intel® Atom™ Thin Client Terminals with Wide
Operating Temperatures

• Intel® Atom™ N270 1.6GHz processor
• IP65 compliant front panel
• Supports Microsoft® Windows XP/XPe/CE
• Energy Star approved
• Supports external 2.5” SATA HDD kit

• Intel® Atom™ Z520 1.33 GHz processor
• -20 ~ 60°C wide operating temperature
• Isolation protection for serial ports
• Energy Star approved
• Supports external 2.5” SATA HDD kit

• 1 x SD card slot for storage
• Front panel IP66 compliant
• Super slim and compact design with plastic housing
Fanless cooling system
• Automatic data flow control RS-485

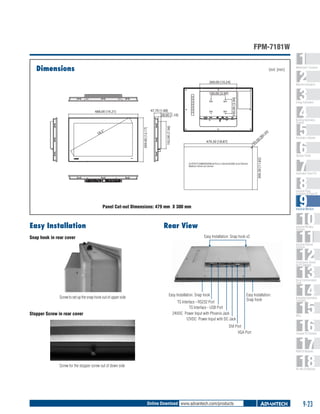

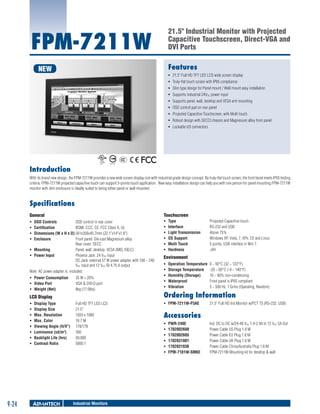

FPM-7181W/7211W

Operator Panels

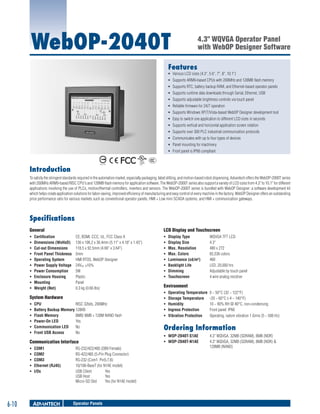

WebOP-2040T

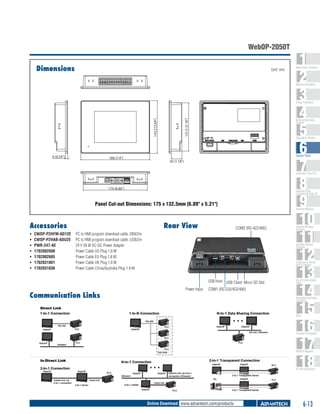

WebOP-2050T

WebOP-2070T

4.3” WQVGA Operator Panel

5.6” QVGA Operator Panel

7” WVGA Operator Panel

• 4.3” WQVGA 65,536 colors TFT LCD, ARM9-based CPUs
• 10W low power consumption
• Supports over 300 PLC communication protocols
• Flexible runtime download and maintenance

• 5.6” QVGA 65,536 colors TFT LCD, ARM9-based CPUs

• 7” WVGA 65,536 colors TFT LCD, ARM9-based CPUs

2

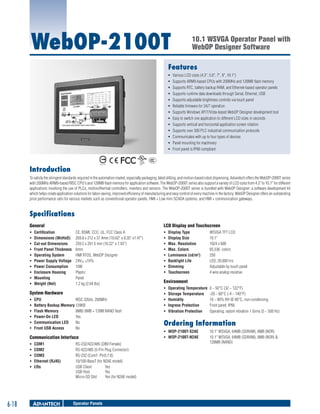

WebOP-2100T

WebOP-2121V

8” SVGA Operator Panel

10.1” WSVGA Operator Panel

12.1” SVGA Operator Panel

• 8” SVGA 65,536 colors TFT LCD, ARM9-based CPUs

• 10.1” WSVGA 65,536 colors TFT LCD, ARM9-based
CPUs

• 12.1” SVGA 65,536 colors TFT LCD, ARM9-based CPUs
• Communicates with up to four types of devices

TPC-1071HPB/1271HPB/
1571HPB/1771HPB

TPC-1071HCA/1271HCA/
1571HCA/1771HCA

TPC-671H

10.4”SVGA/ 12.1”SVGA/ 15”XGA/ 17”
SXGA TFT LED LCD Intel® Atom™ DualCore D525 Automation Control Panels

10.4”SVGA/ 12.1”SVGA/ 15”XGA/ 17”
SXGA TFT LED LCD Intel® Atom™ DualCore D525 Automation Control Panels

• Profibus Master and Slave Support
• Hilscher SYCON.net compatible
• Advantech design & manufacture profibus module
• More Reliable by complete platform validation & Service
• Capable of TPC-1071H/1271H/1571H/1771H series
features

• CIA certified CANopen module and platform
• High speed transmission up to 1Mbps
• Advantech design & manufacture CANopen module
• More Reliable by complete platform validation & Service
• Capable of TPC-1071H/1271H/1571H/1771H series
features

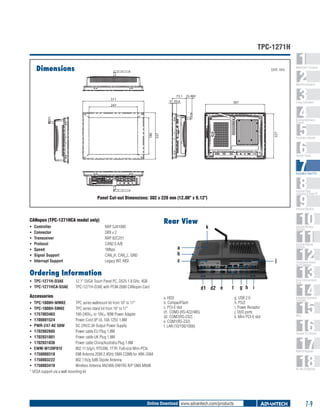

TPC-1071H/1271H

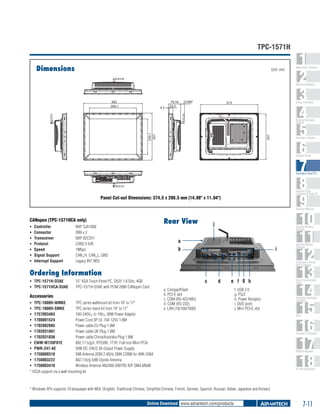

TPC-1571H

TPC-1771H

• DDR3 memory and multiple I/O support
• PCIe & Mini-PCIe expansion for Industrial wireless and
fieldbus control
• Built-in digital input/output module
• Serial port & DI/DO isolation protection
• Battery backup 1MB SRAM

fieldbus control

fieldbus control

Control Panels

10.4”/12.1” SVGA TFT LCD Intel® Atom™
Dual-Core D525 Automation Control Panels

15” XGA TFT LCD Intel® Atom™

6.5” VGA LED LCD Intel® Atom™ Z510
Automation Control Panels
• Mini-PCIe expansion for industrial wireless and Fieldbus
Control
• Serial port isolation protection
• Automatic data flow control RS-485
• Supports Microsoft® WES7/XP/WES/WinCE

17” SXGA TFT LED LCD Intel® Atom™


WebOP-2080T

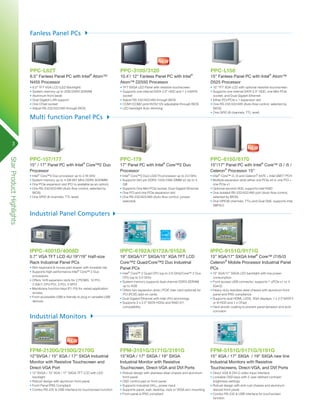

Fanless Panel PCs

PPC-L62T

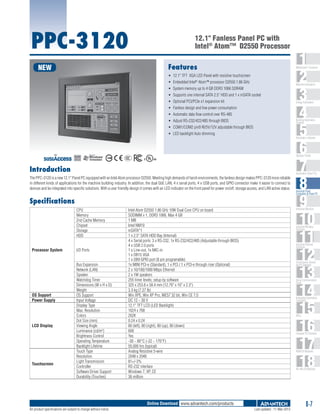

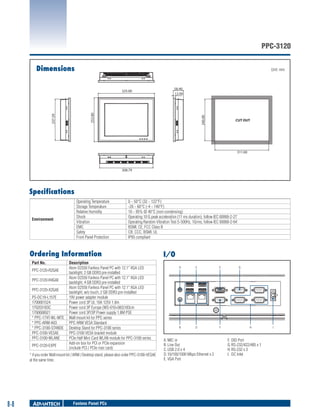

PPC-3100/3120

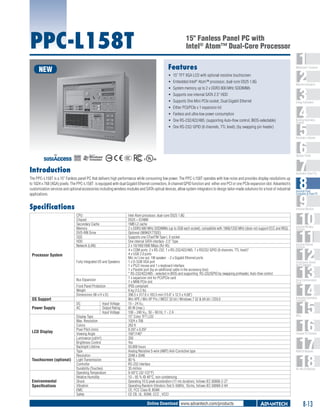

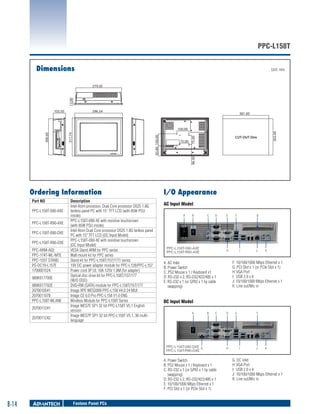

PPC-L158

• 6.5” TFT VGA LCD (LED Backlight)
• System memory up to 2GB DDR3 SDRAM
• Aluminum front bezel
• Dual Gigabit LAN support;
• One CFast socket
• Adjust RS-232/422/485 through BIOS

• TFT SVGA LED Panel with resistive touchscreen
• Supports one internal SATA 2.5” HDD and 1 x mSATA
socket
• Adjust RS-232/422/485 through BIOS
• COM1/COM2 pin9 RI/5V/12V adjustable through BIOS
• LED backlight Auto dimming

• 15” TFT XGA LCD with optional resistive touchscreen
• Supports one internal SATA 2.5” HDD, one Mini PCIe
socket, and Dual Gigabit Ethernet
• Either PCI/PCIe x 1 expansion slot
• One RS-232/422/485 (Auto-flow control, selected by
BIOS)
• One GPIO (8 channels, TTL level)

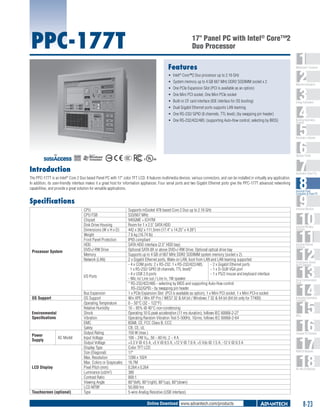

PPC-157/177

PPC-179

PPC-6150/6170

• Intel® Core™2 Duo processor up to 2.16 GHz
• System memory up to 4 GB 667 MHz DDR2 SODIMM
• One PCIe expansion slot (PCI is available as an option)
• One RS-232/422/485 (Auto-flow control, selected by
BIOS)
• One GPIO (8 channels, TTL level)

• Intel® Core™2 Duo LGA775 processor up to 3.0 GHz
• Supports 240-pin DDR3 1333/1066 DIMM x2 Up to 4
GB
• Supports One Mini PCIe socket, Dual Gigabit Ethernet
• One PCI and one PCIe expansion slot
• One RS-232/422/485 (Auto-flow control, jumperselected)

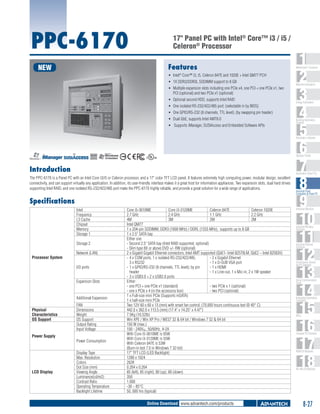

• Intel® Core™ i3, i5 and Celeron® 847E + Intel QM77 PCH
• Multiple expansion slots either one PCIe x4 or one PCI +
one PCIe x1
• Optional second HDD, supports Intel RAID
• One isolated RS-232/422/485 port (Auto-flow control,
selected by BIOS)
• One GPIO(8 channels, TTL) and Dual GbE, supports Intel
AMT8.0

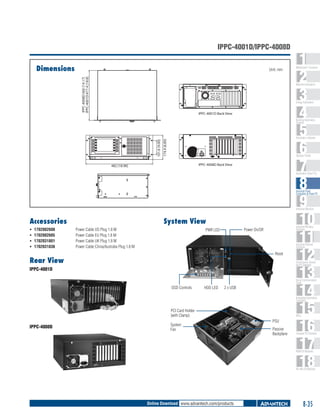

IPPC-4001D/4008D

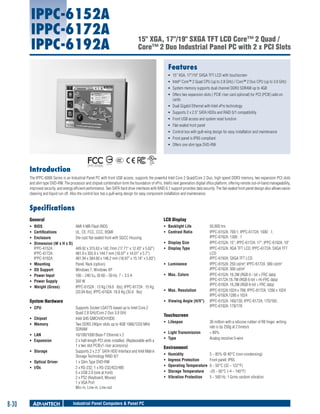

IPPC-6192A/6172A/6152A

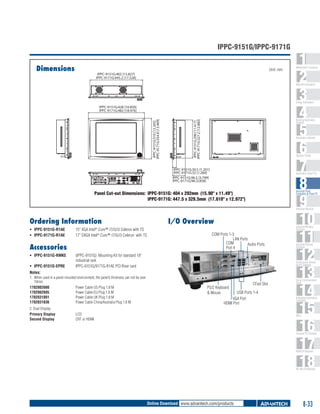

IPPC-9151G/9171G

5.7” VGA TFT LCD 4U 19”/19” Half-size
Rack Industrial Panel PCs

19” SXGA/17” SXGA/15” XGA TFT LCD
Core™2 Quad/Core™2 Duo Industrial
Panel PCs

15” XGA/17” SXGA Intel® Core™ i7/i5/i3
Celeron® Mobile Processor Industrial Panel
PCs

• Intel® Core™ 2 Quad CPU (up to 2.8 GHz)/Core™ 2 Duo
CPU (up to 3.0 GHz)
• System memory supports dual channel DDR3 SDRAM
up to 4GB
• Offers two expansion slots ( PCIE riser card optional) for
PCI (PCIE) add-on cards
• Dual Gigabit Ethernet with Intel vPro technology
• Supports 2 x 2.5” SATA HDDs and RAID 0/1
compatibility

• 15” XGA/17” SXGA LED backlight with low power
consumption
• Front access USB connector, supports 1 xPCIe x1 or 4
(Gen2)
• Heavy-duty stainless steel chassis with aluminum front
panel and IP65 compliance
• Supports dual HDMI, LVDS, VGA displays; 1 x 2.5”SATA II
or III HDD and 1 x CFast
• Hard anodic coating to prevent panel abrasion and acid
corrosion

FPM-2120G/2150G/2170G

FPM-3151G/3171G/3191G

FPM-5151G/5171G/5191G

12’’SVGA / 15” XGA / 17” SXGA Industrial
Monitor with Resistive Touchscreen and
Direct-VGA Port

15”XGA / 17” SXGA / 19” SXGA
Industrial Monitor with Resistive
Touchscreen, Direct-VGA and DVI Ports

15” XGA / 17” SXGA / 19” SXGA new line
Industrial Monitors with Resistive
Touchscreens, Direct-VGA, and DVI Ports

• 12’’SVGA / 15” XGA / 17” SXGA TFT LCD with LED
backlight
• Robust design with aluminum front panel
• Front Panel IP65 Compliant
• Combo RS-232 & USB interface for touchscreen function

• Robust design with stainless steel chassis and aluminum
front panel
• OSD control pad on front panel
• Supports industrial 24VDC power input
• Supports panel, wall, desktop, rack or VESA arm mounting
• Front panel is IP65 compliant

• Direct VGA & DVI-D video input interface
• Lockable OSD keys with 2 user-defined contrast/
brightness settings
• Robust design with anti-rust chassis and aluminum
diecast front panel
• Combo RS-232 & USB interface for touchscreen
function

6.5” Fanless Panel PC with Intel® Atom™
N455 Processor

10.4’/ 12” Fanless Panel PC with Intel®
Atom™ D2550 Processor

Multi function Panel PCs

15” Fanless Panel PC with Intel® Atom™
D525 Processor

3


15” / 17” Panel PC with Intel® Core™2 Duo
Processor

17” Panel PC with Intel® Core™2 Duo
Processor

15”/17” Panel PC with Intel® Core™ i3 / i5 /
Celeron® Processor 15”

Industrial Panel Computers

• Slim keyboard & mouse pad drawer with lockable clip
• Supports high performance Intel® Core™ 2 Duo
processors
• Offers 14/8 expansion slots for 2 PICMG, 10 PCI,
2 ISA/1 CPU PCI, 3 PCI, 4 SPCI
• Membrane function keys (F1~F5) for varied application
access
• Front accessible USB is friendly to plug-in versatile USB
devices

Industrial Monitors

Data Acquisition and Control
A Broad Selection of Form Factors to Satisfy All Your DAQ Needs
Advantech offers a wide range of industrial data acquisition and control
devices with various interfaces and functions. Based on PC technology,
from ISA to PCI Express, and signal conditioning to graphical software
tools, Advantech’s industrial I/O products are reliable, accurate, affordable,
and suitable for many industrial automation applications, such as test &
measurement, laboratory applications, machine automation, and production
testing. Moreover, its brand new I/O driver DAQNavi supports Windows 7
and 8, helping customers seamlessly integrate Advantech’s data acquisition
cards to latest platforms, improve performance, and reduce development
time.

4

PCIE-1730

PCIE-1752/1754/1756

PCIE-1760

32-ch TTL and 32-ch Isolated DI/O
PCI Express Card

64-ch Isolated Digital I/O PCI Express Card

8-ch Relay and 8-ch Isolated DI
PCI Express Card

• 16-ch TTL DI and 16-ch TTL DO with 5 V compatibility
• 16-ch isolated DI and 16-ch isolated DO with 24 V
compatibility
• High-voltage isolation on all isolated DI/O channels
(2,500 VDC)

PCI-1706/1714/1714L
PCIE-1744
Simultaneous Analog Input
PCI/PCI Express Card
• PCI-1706: 250 kS/s, 16-bit, 8-ch differential AI
PCI-1714L: 10 MS/s, 12-bit, 4-ch single-ended AI
PCI-1714: 30 MS/s, 12-bit, 4-ch single-ended AI
PCIE-1744: 30 MS/s, 12-bit, 4-ch single-ended AI
• Each channel has dedicated A/D converter

• PCIE-1752: 64-ch DO
PCIE-1754: 64-ch DI
PCIE-1756: 32-ch DI, 32-ch DO
• High-voltage isolation on all channels (2,500 VDC)
• Keep the output setting and value after system hot reset
• Interrupt handling capacity

• 8-ch isolated DI with programmable digital filter
• High-voltage isolation on input channels (2,500 VDC)
• 2-ch Form C and 6-ch Form A relay output
• 2-ch counter input and PWM output available

PCI-1712

PCI-1716

1 MS/s, 12-bit, 16-ch PCI Multifunction
Card

250 kS/s, 16-bit, 16-ch PCI Multifunction
Card

• 16-ch single-ended or 8-ch differential or a combination
of AI
• Onboards FIFO memory (1,024 samples)
• 2-ch AO with 12-bit resolution and 1 MS/s update rate
• 16-ch DI and 16-ch DO with 5V/TTL compatibility
• 3-ch counter with up to 10 MHz input frequency

• 16-ch single-ended or 8-ch differential or a combination
of AI
• Onboard FIFO memory (1,024 samples)
• 2-ch static AO with 16-bit resolution
• 16-ch DI and 16-ch DO with 5V/TTL compatibility
• Onboard programmable counter

USB Data Acquisition and Control Modules

USB-4702/4704

USB-4711A/4716

USB-4761

10 kS/s, 12-bit / 48 kS/s, 14-bit
8-ch Multifunction USB Modules

150 kS/s, 12-bit / 200 kS/s, 16-bit
16-ch Multifunction USB Module

8-ch Relay and 8-ch Isolated Digital Input
USB Module

• 8-ch DI, 8-ch DO, and one 32-bit counter
• USB-4702: DB37 connector; USB-4704: detachable
screw terminal
• Suitable for DIN-rail mounting (USB-4704)

• 8-ch DI, 8-ch DO, and one 32-bit counter
• Detachable screw terminal on module
• Suitable for DIN-rail mounting
• Lockable USB cable for secure connection

• 8-ch Form C type relay output
• High-voltage isolation on input channels (2,500 VDC)
• Wide input range (5 ~ 30 VDC)
• Interrupt handling capability
• One lockable USB cable for secure connection


PCI and PCI Express Data Acquisition and Control Cards

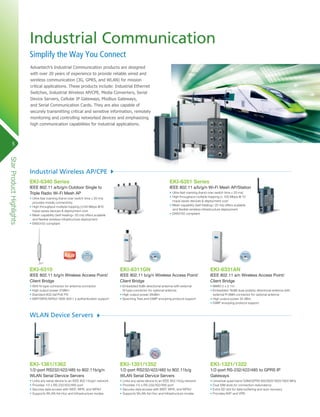

Simplify the Way You Connect
Advantech’s Industrial Communication products are designed
with over 20 years of experience to provide reliable wired and
wireless communication (3G, GPRS, and WLAN) for mission
critical applications. These products include: Industrial Ethernet
Switches, Industrial Wireless AP/CPE, Media Converters, Serial
Device Servers, Cellular IP Gateways, Modbus Gateways,
and Serial Communication Cards. They are also capable of
securely transmitting critical and sensitive information, remotely
monitoring and controlling networked devices and emphasizing
high communication capabilities for industrial applications.

5


Industrial Wireless AP/CPE
EKI-6340 Series

EKI-6351 Series

IEEE 802.11 a/b/g/n Outdoor Single to
Triple Radio Wi-Fi Mesh AP

IEEE 802.11 a/b/g/n Wi-Fi Mesh AP/Station
• Ultra-fast roaming (hand-over switch time ≤ 20 ms)
• High throughput multiple hopping (≥ 100 Mbps @ 10
hops) saves devices & deployment cost
• Mesh capability (self-healing< 20 ms) offers scalable
and flexible wireless infrastructure deployment
• EN50155 compliant

• Ultra-fast roaming (hand-over switch time ≤ 20 ms)
provides mobile connectivity
• High throughput multiple hopping (≥100 Mbps @10
hops) saves devices & deployment cost
• Mesh capability (self-healing< 20 ms) offers scalable
and flexible wireless infrastructure deployment
• EN50155 compliant

EKI-6310

EKI-6311GN

EKI-6331AN

IEEE 802.11 b/g/n Wireless Access Point/
Client Bridge

IEEE 802.11 b/g/n Wireless Access Point/
Client Bridge

IEEE 802.11 a/n Wireless Access Point/
Client Bridge

• With N-type connector for antenna connector
• High output power 27dBm
• Standard 802.3af PoE PD
• WEP/WPA/WPA2/ IEEE 802.1 x authentication support

• Embedded 8dBi directional antenna with external
N-type connector for optional antenna
• High output power 26dBm
• Spanning Tree and IGMP snooping protocol support

• MIMO 2 x 2 11n
• Embedded 16dBi dual-polarity directional antenna with
external R-SMA connector for optional antenna
• High output power 24 dBm
• IGMP snooping protocol support

EKI-1361/1362

EKI-1351/1352

EKI-1321/1322

1/2-port RS232/422/485 to 802.11b/g/n
WLAN Serial Dervice Servers

1/2-port RS232/422/485 to 802.11b/g
WLAN Serial Dervice Servers

1/2-port RS-232/422/485 to GPRS IP
Gateways

• Links any serial device to an IEEE 802.11b/g/n network
• Provides 1/2 x RS-232/422/485 port
• Secures data access with WEP, WPA, and WPA2
• Supports WLAN Ad-Hoc and Infrastructure modes

• Links any serial device to an IEEE 802.11b/g network
• Provides 1/2 x RS-232/422/485 port
• Secures data access with WEP, WPA, and WPA2
• Supports WLAN Ad-Hoc and Infrastructure modes

• Universal quad-band GSM/GPRS 850/900/1800/1900 MHz
• Dual SIM slots for connection redundancy
• Extra SD slot for data buffering and auto recovery
• Provides NAT and VPN

WLAN Device Servers

Industrial Ethernet Managed Switches

EKI-7758F

EKI-7656C

EKI-7659C

4G+4 SFP Gigabit Managed Redundant
Industrial Ethernet Switch

16+2G Combo Port Gigabit Managed
Redundant Industrial Ethernet Switch


• All Gigabit Ethernet ports for 4 cooper and 4 SFP
• SFP sockets for easy and flexible fiber expansion
• Redundancy: X-Ring Pro (recovery time < 20 ms)
• Dual 12-48 VDC power input and 1 relay output
• IPv6 support

• 16 Fast Ethernet ports, plus 2 Gigabit combo ports
• SFP socket for Easy and Flexible Fiber Expansion
• Redundancy: X-Ring Pro (recovery time < 20 ms)
• Dual 12 ~ 48 VDC power inputs and 1 relay output
• IPv6 support

• 8 Fast Ethernet ports, plus 2 Gigabit combo ports
• SFP socket for Easy and Flexible Fiber Expansion
• Redundancy: X-Ring Pro (recovery time < 20ms)
• Dual 12 ~ 48 VDC power input and 1 relay output
• IPv6 support

Industrial Ethernet Un-managed Switches
6

EKI-2526M/S

EKI-2541S/2541M

5-port/8-port Fast and Gigabit
Unmanaged Industrial Ethernet Switch

4+2 100FX Port Unmanaged Industrial
Ethernet Switch

10/100T(X) to Single-Mode SC Type
Fiber Optic Industrial Media Converter

• Supports full/half duplex flow control
• Super slim IP30 metal casing
• Provides 3,000 V surge (EFT) protection and 4,000 V
Ethernet ESD protection

• Supports MDI/MDI-X auto crossover
• Provides broadcast storm protection
• Provides flexible mounting: DIN-rail, panel mounting

• Supports store and forward transmission
• Supports MDI/MDI-X auto crossover
• Provides flexible mounting: DIN-rail & Panel Mounting

EKI-7659CPI

EKI-2726FHPI

EKI-2525PA

8+2G Port Gigabit Managed Industrial PoE
Switch w/Wide Temperature

4G+2 SFP W/ 4 IEEE 802.3at/af PoE
Industrial Wide Temperature Switch

5-port Industrial PoE Switch with
24/48 VDC Power Input

• 8 Fast Ethernet ports with PoE injector function, plus 2
Gigabit Copper/SFP combo ports
• IEEE802.3af compliant, provides 15.4Watts per port.
• Redundancy: X-Ring Pro (recovery time < 20ms)
• IPv6 support

• All Gigabit Ethernet ports for 4 Copper and 2 SFP
• IEEE802.3at/af compliant, provides 30Watts per port
• Dual 48 VDC power input and 1 relay output
• UL508 compliant
• Supports operating temperatures from -40 ~ 75°C

• 5 Fast Ethernet ports with 4 PoE ports with injector
function
• Supports 10/100Mbps Auto Negotiation
• Provides Slim size, DIN-rail/Wallmount with IP30 metal
mechanism

Serial Device Server

Modbus Gateways

EKI-1521/1522/1524

EKI-1221/1222/1224

EKI-1221D/1222D

1-port/2-port/4-port RS-232/422/485 Serial
Device Server

1-port/2-port/4-port Modbus Gateway

1-port/2-port Modbus Gateway with
Integrated Ethernet Cascading

Industrial PoE Switches

• 2 x 10/100 Mbps Ethernet ports for LAN redundancy
• Supports up to 921.6 kbps, and any baud rate setting
• Automatic RS-485 data flow control

• 2 x 10/100 Mbps Ethernet ports for LAN redundancy
• Supports up to 921.6 kbps, and any baud rate setting
• Automatic RS-485 data flow control

• 2 x 10/100 Mbps Ethernet ports for Daisy Chian
connectivity
• Supports Ethernet auto-bypass function
• Auto searching Modbus slave ID over configuration
utility


EKI-2728/2725/2528/2525

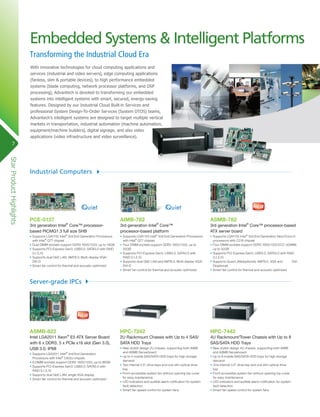

Embedded Systems & Intelligent Platforms
Transforming the Industrial Cloud Era
With innovative technologies for cloud computing applications and
services (industrial and video servers), edge computing applications
(fanless, slim & portable devices), to high performance embedded
systems (blade computing, network processor platforms, and DSP
processing), Advantech is devoted to transforming our embedded
systems into intelligent systems with smart, secured, energy-saving
features. Designed by our Industrial Cloud Built-in Services and
professional System Design-To-Order Services (System DTOS) teams,
Advantech’s intelligent systems are designed to target multiple vertical
markets in transportation, industrial automation (machine automation,
equipment/machine builders), digital signage, and also video
applications (video infrastructure and video surveillance).

7


Industrial Computers

PCE-5127

AIMB-782

ASMB-782

• Supports LGA1155 Intel® 3rd/2nd Generation Processors
with Intel® Q77 chipset
• Dual DIMM sockets support DDR3 1600/1333, up to 16GB
• Supports PCI-Express Gen3, USB3.0, SATA3.0 with RAID
0,1,5,10
• Supports dual GbE LAN, AMT8.0; Multi-display VGA/
DVI-D
• Smart fan control for thermal and acoustic optimized

with Intel® Q77 chipset,
• Four DIMM sockets support DDR3 1600/1333, up to
32GB
• Supports PCI-Express Gen3, USB3.0, SATA3.0 with
RAID 0,1,5,10
• Supports dual GbE LAN and AMT8.0; Multi-display VGA/
DVI-D

• Supports LGA1155 Intel® 3rd/2nd Generation Xeon/Core i3
processors with C216 chipset
• Four DIMM sockets support DDR3 1600/1333 ECC UDIMM,
up to 32GB
• Supports PCI-Express Gen3, USB3.0, SATA3.0 with RAID
0,1,5,10
• Supports Quad LANs(optional), AMT8.0, VGA and
DVID(optional)

HPC-7242

HPC-7442

2U Rackmount Chassis with Up to 4 SAS/
SATA HDD Trays

4U Rackmount/Tower Chassis with Up to 8
SAS/SATA HDD Trays

• New stylish design 2U chassis, supporting both AIMB
and ASMB Serverboard
• Up to 4 mobile SAS/SATA HDD trays for high storage
demand
• Two internal 2.5” drive bays and one slim optical drive
bay
• Front-accessible system fan without opening top cover
for easy maintenance
• LED indicators and audible alarm notification for system
fault detection
• Smart fan speed control for system fans

• New stylish design 4U chassis, supporting both AIMB
and ASMB Serverboard
• Up to 8 mobile SAS/SATA HDD trays for high storage
demand
• One internal 3.5” drive bay and one slim optical drive
bay
• Front-accessible system fan without opening top cover
for easy maintenance
• LED indicators and audible alarm notification for system
fault detection
• Smart fan speed control for system fans

3rd generation Intel® Core™ processorbased PICMG1.3 full size SHB

3rd generation Intel® Core™
processor-based platform

3rd generation Intel® Core™ processor-based
ATX server board

Server-grade IPCs

ASMB-822

Intel LGA2011 Xeon® E5 ATX Server Board
with 6 x DDR3, 5 x PCIe x16 slot (Gen 3.0),
USB 3.0, IPMI
• Supports LGA2011 Intel® 3rd/2nd Generation
Processors with Intel® C602J chipset,
• 6 DIMM sockets support DDR3 1600/1333, up to 96GB
• Supports PCI-Express Gen3, USB3.0; SATA3.0 with
RAID 0,1,5,10
• Supports dual GbE LAN; single VGA display

Industrial Computer

Video Capture & Encoder Cards

AiMC-3200

DVP-8012HAE

DVP-8042MAE

1-ch SDI/HDMI/DVI Full HD Video Capture
Card

4-ch HDMI Full HD Video Capture Card

Micro Computer, Intel® Core™ i7/i5/i3 CPU,
2 Expansion, 250W 80Plus PSU
with Intel® H61 chipset
• Dual DIMM sockets support DDR3 1600/1333, up to 8GB
• Supports dual GbE LAN; Multi-display VGA/DVI-D
• Max 2 PCI-E expansion slot
• All-in-one compact system (230x230x90 mm)

• 3G-SDI / HDMI / DVI-D / YPbPr input interface
• Real-time high quality 1080p60 raw data capture
• PCIe x4 host interface
• SDK with sample codes
• Windows & Linux support

Multimedia Processing Cards

• HDMI input interface
• Real-time high quality 1080p30/i60 raw data capture
• PCIe x4 host interface
• SDK with sample codes
• Windows & Linux support

Industrial Portable
Computer
8

DSPC-8662

PWS-770

Full-length PCI Express Card with 8 TI
8-core DSPs

8-ch 3G-SDI PCIe Video Acquisition Card
with SDK

10.4” Semi-rugged Tablet PC with IntelR
Atom™ N2600 Processor

• On-board 8 TI TMS320C6678 DSPs with PCIe Gen 3 x8
interface
• 8 TMS320C66x™ DSP Core Subsystems @ 1.0/1.25
GHz per DSP
• 2 GB DDR-1333 memory per DSP

• Powered by quad TI TMS320DM8168 SoC
• 8-channel SD-SDI / HD-SDI / 3G-SDI video + audio
inputs with H.264 encoding
• Up to 60 fps at Full HD (1080p) resolution per channel
• Dual Giga LAN ports; Multi-port Ethernet and PCIe
Express switch support

• Intel® Atom™ N2600 1.6 GHz CPU, Sunlight readable
touch panel
• Hot swap, high capacity Li-ion battery provides 8 hours of
operation
• Optional data capture modules: barcode scanner / MSR /
RFID

CompactPCI ® Platforms

MIC-3395

Network Appliance

MIC-3325

FWA-6510

• Support dual Core Intel® Atom™ D525 processor/single
core N455 processor
• Intel® I/O Controller Hub 8-Mobile (ICH8M)
• 2 GB DDR3 onboard up to 800 MT/s
• 2 COM ports, 2 GE LAN ports, 1 VGA, 1 PS/2, 3 USB
ports to the 8HP front

• Support dual Intel® Xeon® E5-2600 processors and
C604 series chipset
• DDR3 1333/1600 ECC registered memory, up to 384GB
• 4 NMC slots for a wide range of GbE and 10GbE NMCs
with or without bypass
• 1 PCIe x8 add-on card and 4 removable SAS/SATA
HDDs and SSDs

ARK-1122 Series

ARK-2150L

ARK-2120F

• Support VGA + HDMI individual dual display
• Support mSATA or 2.5” SATA drive bay
• Support up to 4 COM ports (2 x RS-232 & 2 x RS232/422/485) with auto-flow control
• Support up to 2 GbE LAN & 2 mini PCIe slots for 3G/
WiFi module expansion
• -20~60˚C wide temperature support and under 10W
system power consumption
• Optional VESA/DIN-Rail mounting kits for variety
mounting method

• DDR3 memory support up to 8 GB
• Support dual independent display: VGA + HDMI/
DisplayPort
• Supports Intel AMT8.0,
• -20~60˚C wide temperature support
• Supports 2 x GbE, 2 x USB 3.0, 4 x USB 2.0 and 4 x
COM ports
• Supports 2 x miniPCIe with SIM for communication
modules
• Lockable DC input jack

• Intel® Atom™ N2600 1.6 GHz/ D2550 1.8 GHz with
DDR3 memory support up to 4 GB
• Supports dual independent displays: VGA, HDMI or 48bit LVDS display.
• Supports 4 x RS-232/422/485 and 2 x RS-232, 2 x GbE,
6 x USB 2.0 and 8-bits DIO
• Mini PCIe expansion with SIM holder for communication
module

6U CompactPCI® 3rd Generation Intel®
Core™ i3/i5/i7 Processor Blade with ECC
Support
®

• Support 2nd and 3rd generation Intel Core™ i3/i5/
i7 processors and Intel® QM67 PCH with embedded
graphics (dual independent display)
• Up to 16 GB (DDR3 1066/1333/1600) ECC memory
(max. 8GB onboard, max. 8GB socket x 1)
• Optimized single-slot SBC with 2.5” SATA-III HDD/CFast
socket

3U CompactPCI® Intel® Atom™ Dual Core
D525/N455 Processor Blade

2U Intel® Xeon® E5-2600 Series Processorbased Network Application Platform

Fanless Embedded Box PCs

Intel® Atom™ N2600/N2800 Processor with
Palm-size

3rd Generation Intel® Core i3/i7 Processor
with multiple I/O

Intel® Atom™ N2600/D2550 with 3 GBE
and 6 COM


DSPC-8682

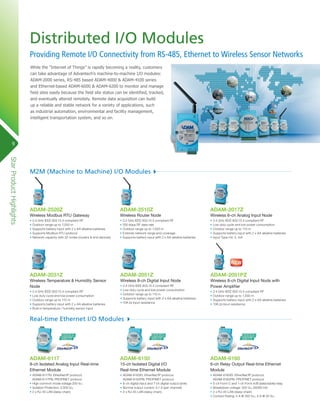

Providing Remote I/O Connectivity from RS-485, Ethernet to Wireless Sensor Networks
While the “Internet of Things” is rapidly becoming a reality, customers
can take advantage of Advantech’s machine-to-machine I/O modules:
ADAM-2000 series, RS-485 based ADAM-4000 & ADAM-4100 series
and Ethernet-based ADAM-6000 & ADAM-6200 to monitor and manage
field sites easily because the field site status can be identified, tracked,
and eventually altered remotely. Remote data acquisition can build
up a reliable and stable network for a variety of applications, such
as industrial automation, environmental and facility management,
intelligent transportation system, and so on.

9


M2M (Machine to Machine) I/O Modules

ADAM-2520Z

ADAM-2510Z

ADAM-2017Z

Wireless Modbus RTU Gateway

Wireless Router Node

Wireless 6-ch Analog Input Node

• 2.4 GHz IEEE 802.15.4 compliant RF
• Outdoor range up to 1,000 m
• Supports battery input with 2 x AA alkaline batteries
• Supports Modbus RTU protocol
• Network capacity with 32 nodes (routers & end devices)

• 250 kbps RF data rate
• Extends network range and coverage

• Low duty cycle and low power consumption
• Outdoor range up to 110 m
• lnput Type mV, V, mA

ADAM-2031Z

ADAM-2051Z

ADAM-2051PZ

Wireless Temperature & Humidity Sensor
Node

Wireless 8-ch Digital Input Node

Wireless 8-ch Digital Input Nods with
Power Amplifier

• Built-in temperature / humidity sensor input

• 10K Ω input resistance

• 10K Ω input resistance

Real-time Ethernet I/O Modules

ADAM-6117

ADAM-6150

ADAM-6160

8-ch Isolated Analog Input Real-time
Ethernet Module

15-ch Isolated Digital I/O
Real-time Ethernet Module

6-ch Relay Output Real-time Ethernet
Module

• ADAM-6117EI: EtherNet/IP protocol;
ADAM-6117PN: PROFINET protocol
• High common mode voltage 200 VDC
• Isolation Protection: 2,500 VDC
• 2 x RJ-45 LAN (daisy chain)

• 8-ch digital input and 7-ch digital output (sink)
• Normal output current: 0.1 A (per channel)

• 5-ch Form C and 1-ch Form A/B (selectable) relay
• Breakdown voltage: 500 VAC (50/60 Hz)
• Contact Rating: 5 A @ 250 VAC; 5 A @ 30 VDC

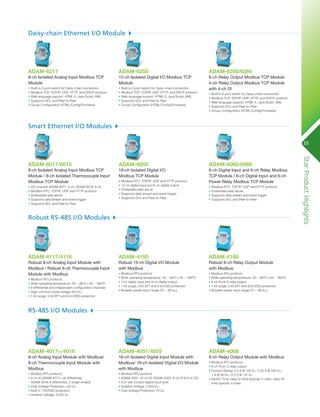

Daisy-chain Ethernet I/O Module

ADAM-6217

ADAM-6250

ADAM-6260/6266

8-ch Isolated Analog Input Modbus TCP
Module

15-ch Isolated Digital I/O Modbus TCP
Module

• Built-in 2-port switch for Daisy-chain connection
• Modbus TCP, TCP/IP, UDP, HTTP, and DHCP protocol
• Web language support: HTML 5, Java Script, XML
• Supports GCL and Peer-to-Peer
• Group Configuration (HTML/Config/Firmware)


6-ch Relay Output Modbus TCP Module
4-ch Relay Output Modbus TCP Module
with 4-ch DI

Smart Ethernet I/O Modules
10

ADAM-6050

ADAM-6060/6066

8-ch Isolated Analog Input Modbus TCP
Module / 8-ch Isolated Thermocouple Input
Modbus TCP Module

18-ch Isolated Digital I/O
Modbus TCP Module

6-ch Digital Input and 6-ch Relay Modbus
TCP Module / 6-ch Digital Input and 6-ch
Power Relay Modbus TCP Module

• DO channel: ADAM-6017: 2-ch; ADAM-6018: 8-ch
• Modbus RTU, TCP/IP, UDP and HTTP protocol
• Embedded web server
• Supports data stream and event trigger

• 12-ch digital input and 6-ch digital output


Robust RS-485 I/O Modules

ADAM-4117/4118

ADAM-4150

ADAM-4168

Robust 8-ch Analog Input Module with
Modbus / Robust 8-ch Thermocouple Input
Module with Modbus

Robust 15-ch Digital I/O Module
with Modbus

Robust 8-ch Relay Output Module
with Modbus

• Modbus RTU protocol
• Wide operating temperature -40 ~ 85ºC (-40 ~ 185ºF)
• 7-ch digital input and 8-ch digital output
• 1 kV surge, 3 kV EFT and 8 kV ESD protection
• Broader power input range (10 ~ 48 VDC)

• 8-ch Form A relay output
• Broader power input range (10 ~ 48 VDC)

ADAM-4017+/4018

ADAM-4051/4055

ADAM-4068

8-ch Analog Input Module with Modbus/
8-ch Thermocouple Input Module with
Modbus

16-ch Isolated Digital Input Module with
Modbus/ 16-ch Isolated Digital I/O Module
with Modbus

8-ch Relay Output Module with Modbus

• 8-ch AI (ADAM-4017+: all differential;
ADAM-4018: 6 differential, 2 single-ended)
• Over Voltage Protection: ±35 VDC
• Built-in TVS/ESD protection
• Isolation Voltage: 3,000 VDC

• ADAM-4051: 16-ch DI; ADAM-4055: 8-ch DI & 8-ch DO
• Dry/ wet contact digital input level
• Isolation Voltage: 2,500 VDC
• Over Voltage Protection: 70 VDC

• 8 differential and independent configuration channels
• High common mode voltage 200 VDC

RS-485 I/O Modules

• 8-ch From C relay output
• Contact Rating: 0.5 A @ 120 VAC; 0.25 A @ 240 VAC;
1 A @ 30 VDC; 0.3 A @ 110 VDC
• Switch Time: relay on time (typical): 3 msec, relay off
time (typical): 4 msec


ADAM-6017/6018

Open Embedded Controller
Open and Robust Computing Power for Automation Applications
As a leading industrial automation provider, Advantech is
dedicated to providing fanless, industrial-proven and applicationready control platforms. With a robust design, they include builtin industrial I/O functions, isolated chassis grounds, multiple
expansion solutions and multiple mounting methods. With its
commitment to provide application-ready platforms, Advantech
has introduced the Class I Division 2 certified UNO-1100H Series,
which extends use to hazardous applications, such as oil and gas
fields. The new UNO-3300G series is a powerful control platform
with IP65-rated protection within control cabinets for harsh and
semi-outdoor environments, such as chemical factories and
transportation.

11


DIN-rail Automation Computers

UNO-1170A/AE

Intel® AtomTM N270 DIN-rail PCs
with 2 x LAN, 3 x COM, and PC/104+
• DIN-rail mounting, small footprint, front accessible
• 2 x RS-232 and 1 x RS-232/422/485 port with
automatic flow control
• 3 x External and 1 x Internal USB for dongle & flash drive
• 512 KB battery-backup SRAM to keep critical data

UNO-1172A/AE

Intel® AtomTM D510 DIN-rail PCs
with 3 x GbE, 4 x USB, and System
Diagnostic
• System diagnosis function with event trigger
• 3 x GbE for both teaming function & up/down stream
networks
• Mini PCIe and PC/104+ expansion
• 1 MB battery-backup SRAM

UNO-1110/1110L
TI Cortex A8 DIN-rail PCs with 2 xLAN, 5 x
COM and DI/O
• TI Cortex A8 AM3505 600MHz CPU
• 2 x LAN, 1 x RS-485, 4 x RS-232/422/485
• 4 x DI and 2 x DO for event handling
• Dual Power Inputs and Wide Temperature (-10 ~ 70˚C)

Compact Embedded Controllers

UNO-2173A/AF

UNO-2174A

UNO-2178A

• Energy Star certified green product with only 15W
power consumption
• Intel® Atom™ N270 1.6 GHz CPU
• -20 ~ 70°C operating temperature range with IP40 rating
• Supports Mini PCIe cards for WLAN/3G solution

• Intel® Atom™ N450 1.66 GHz CPU
• 4 x COM, LPT 6 x USB, 2 x Mini PCIe with SIM card
support for WLAN/3G solution
• PCI-104 and PC/104+ expansion option

• Intel® Atom™ D510 1.66 GHz CPU
• 8 x COM, 6 x USB, 2 x Mini PCIe with SIM card support
for WLAN/3G solution
• PCI-104 and PC/104+ expansion option

UNO-2174G/GL

UNO-2184G

UNO-2184GP

• Intel® Celeron 847E/807UE processors
• 2 x RS-232 and 2 x RS-232/422/485 ports with automatic
flow control
• 4 x 10/100/1000Base-T Ethernet
• DVI-I/DP/HDMI for dual independent displays
• 2 x PCI-104 expansion option

• Intel® Core™ i7 2.2 GHz CPU and 4/8 GB DDR3 RAM
• 4 x GbE, DVI-I/DP/HDMI for dual independent displays
• 2 x Mini PCIe with SIM card support for WLAN/3G
solution
• 2 x PCI-104 expansion option

• Intel Core i7 3555LE 3.2GHz CPU
• 4 x PoE GbE with 15.4W of each port and 9K jumbo frame
feature
• Isolated 16 DI and 16 DO for event handling
• DVI / HDMI / DP with Dual Independent Display

Intel® AtomTM Automation Computers with
2 x GbE, 3 x COM, and Mini PCIe

Intel® Celeron 847/807UE Automation
Controller with HDMI/DVI/DP, 2 x Mini PCIe

Intel® Atom™ N450 Automation Controllers
with 4 x COM, 2 x Gbe, 6 x USB

Intel® Core™ i7 Automation Computer with
6 x USB, 4 x LAN, and 2 x Mini PCIe

Intel® Atom™ D510 Automation Controllers
with 8 x COM, 2 x Gbe, 6 x USB

Intel® Core i7™ 3555LE Automation
Controllers with 4 x PoE GbE and 16DI/16DO

Wallmount Automation Computers

UNO-3072A/3074A

UNO-3082/3084

• IEEE-1394 and GbE for vision
• Dual SATA HDD support RAID 0/1 and additional eSATA
• DI/DO and 512 KB battery-backup SRAM

• Intel® Core™ 2 Duo L7500 1.6 GHz CPU
• Dual DVI-I for triple displays and IEEE-1394 for vision
• Teaming function support on 2 x redundant GbE
• Dual SATA HDD support RAID 0/1 and additional eSATA

Intel® AtomTM Automation Computers
with 2/4 x PCI, 2 x GbE, RAID and FireWire

Intel® CoreTM 2 Duo Automation Computers
with Dual DVI, 2 x PCI / PCIe + 3 x PCI

UNO-3073GL/3075GL

Intel® Celeron 807UE 1GHz Automation
Controllers with 2 x GbE, 2 x COM and
3/5-slot Expansion
• 2 x GbE, 2 x COM, 8 x USB and Internal USB for dongle
• DVI-I / HDMI with dual independent display
• PCIe1x/2 x PCI and 2 x PCIe1x/3xPCI expansion options
• Dual 2.5” SATA HDD and dual CFast support
• Dual power inputs and relay power failure trigger

12

UNO-3083G

UNO-3085G

• PCIe16x / PCIe8x / PCIe1x / PCI 3/5-slot expansion
• Dual 2.5” SATA HDD with RAID 0/1 Support

• PCIe16x / PCIe8x / PCIe1x / PCI 3/5-slot expansion

• PCIe16x / PCIe8x / PCIe1x / PCI 5-slot expansion

UNO-1150GH

UNO-1172AH

Intel® Celeron 847E Dual-core 1.1GHz
Automation Controllers with 2 x GbE, 2 x
COM and 3/5-slot Expansion

Intel® Core i7- 2655LE Dual-core 2.9GHz
COM and 3-slot Expansion

Intel® Core i7- 2655LE Dual-core 2.9GHz

Industrial Certified Products

UNO-3381G

Intel® Core i7-2710QE Quad-core 2.1GHz
• Enclosure mount with IP65 seal-ring protection
• 2 x GbE, 2 x COM, 8 x USB
• 1 x PCI or 1 x PCIe16x expansion options
• Dual CFast / one SATA HDD / 2 x MiniPCIe

Class I, Division 2 Certified AMD Geode™
LX DIN-rail PC with 2 x LAN, 3 x COM

Intel® AtomTM D510 DIN-rail PC with Class I,
Division 2 Certification

• Class I, Division 2 certification
• Windows® CE 5.0/6.0, Windows XP Embedded, and
Linux ready solution
• One RS-232 and two RS-232/422/485 ports with

networks

PCM-2312

PCM-2680

512KB/2MB MRAM MiniPCIe Module

2-port CAN-bus MiniPCIe Module with
Isolation Protection

• 512KB/2MB Magnetoresistive RAM (MRAM) with native
non-nolatility to replace battery-backed SRAM
• Unlimited ready & write endurance
• MiniPCIe 1.2 standard to fit diverse embedded
applications
• Wide operating temperature range (-20 ~ 75˚C)
• Linux/Windows CE5/CE6/XP/7 Ready

• 2 x LAN 2.0 A/B, 1Mbps
• 2500VDC isolation
• CANOpen 301/302 Protocol Ready
• Linux/QNX 6.32,6.4.1,6.5.0/Windows CE5/CE6/XP/7
Ready


UNO-3073G/3075G

Programmable Automation Controller
The Generation of Programmable Automation Controller
Advantech’s Programmable Automation Controller is a PC-based
controller which leverages embedded computing technology
to achieve the same level of ruggedness as a PLC. With the
open architecture and scalable I/O Modules, the APAX series
is more flexible in order to implement various modern control
strategies. It also inherits an excellent communication capability
to collaborate with other industrial devices. Not only does it
have superb reliability, but the APAX series is also equipped with
DSP to handle the APAX bus to provide backup and redundancy
functionality to enhance the total availability.

13


Controllers

APAX-5522PE/5017PE
5040PE/5060PE

APAX-6572

PAC with Intel® Atom™ CPU
®

APAX-5620

PAC with XScale® CPU and CANBus Master

• High performance Intel Atom™ D510 CPU
• C/C++, .NET and KW SoftLogic programming
• Equipped with high-speed slots (PCI) for communication
module expansion.

• Compact controller with built-in CANBus Master
• C/C++, .NET and KW SoftLogic programming
• CompactFlash card slot for data logging

APAX-5071

APAX-5072

APAX-5073

PROFINET Communication Coupler

EtherNet/IP Communication Coupler

• Flexible I/O expansion to minimum used couplers
• Compliance to PROFINET International (PI) certification
• Easy to integrate with 3rd party PLCs

• Flexible I/O expansion to minimum used couplers
• Compliance to EtherNet/IP ODVA certification

PROFIBUS Communication Coupler

IEC 61850-3 Compliant PAC
• Flexible I/O expansion: up to 32 modules
• IEC 61850-3 compliant
• Time stamp function support

Couplers

• Flexible I/O expansion to minimum used
couplers
• Compliance to PROFIBUS International (PI) certification

I/O Modules

APAX-5013

APAX-5017H

APAX-5080

8-ch RTD Module

12-ch High Speed Analog Input Module

4/8-ch High Speed Counter Module

• Wire Burn-out Detection
• High Density Channel design, total 8 channels

• Voltage and current inputs including ±10 V and
4 ~ 20 mA
• Each channel can be configured with differnet input
type and range
• 1000 samples/second per channel

• 5 counter modes: Up, Up/Down, Pulse/Direction, A/B
phase, Frequency
• 4 DI channels for counter gate inputs
• 4 DO channels for alarm outputs

Automation Software
Shorten the Programming Time and Optimize the Performance at the Same Time
Advantech’s automation software lineup includes SCADA software, SoftLogic
programming tools, OPC Server, and other user-friendly programming tools
and utilities. Advantech’s WebAccess browser-based HMI/SCADA software
is a shining example, helping customers view, control, configure systems
remotely through the Internet and even through smart phones. Besides,
the innovative DiagAnywhere software assists users to achieve complex
remote maintenance tasks such as remote monitoring and control, remote
screen snapshots and recording, and file uploading & downloading. The
complete solutions that Advantech software and hardware products provide
empower automation professionals to develop integrated automation
system efficiently.

14

Advantech WebAccess

Advantech WebAccess Express

SUSIAccess

Browser-based HMI/SCADA Software

Automated Graphical Remote Control
Application Program

Remote Device Management Software

• View, control, configure systems through a web browser
• Redundant SCADA and COM ports
• Supports dynamic DNS and acts as OPC server & client
• Supports LonWorks LNS and BACnet IP
• Video and audio integration
• Google map integrated
• Global access alarms, data, email alarms

• Just one click to get real-time ADAM I/O devices data
from remote smart devices
• Auto-discover, auto-deliver, auto-deposit and auto display functions
• Free for up to 75 Advantech I/O device points

• Centralized and remote management
• Stay in sync with device health status
• Saving maintenance and energy cost
• Complete protection from cyber threats (powered by
McAfee Application Control technology)
• Simplicity of all backup and recovery (powered by
Acronis Backup and Recovery technology)

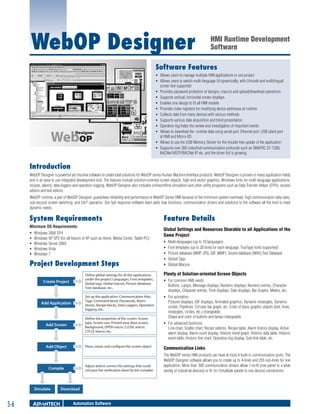

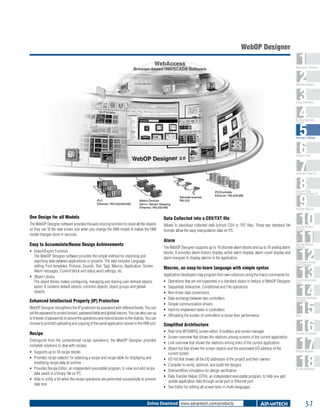

WebOP Designer/Express

KW MULTIPROG

DiagAnywhere

HMI Runtime Development Software

IEC-61131-3 SoftLogic Control Software

Remote Maintenance Software

• Manage multiple HMI applications in one project
• Provides password protection of designs, macros and
upload/download operations
• Index registers for modifying device addresses at runtime
• Collects data from many devices with various methods
• Supports over 300 industrial communication protocols

• Crossing-compiling: FBD, LD, and IL can be cross
compiled to each other
• Multi-user functionality shortens programming time
• Powerful debugging tools
• Advantech batch control FBs support
• Advantech auto-tuning PID FB support

• Remote screen snapshot & recording
• File transfer function
• Windows-based authentication
• Health check of CPU/memory/temperature/voltage
• Remote monitor up to 24 target devices
• Remote control shutdown and wake up

DAQNavi

Advantech Data Logger

OPC Server

Software Development Package for
Advantech DAQ Products

Data Logging Application Software

OPC Server for ADAM & Modbus Devices

• Online and offline monitor acquired signal
• Exports recorded data to txt, excel and TDMS file
for post analysis
• Flexible display with customized plot, title, cursor
and axis
• Shows alarm and event display

• Supports Microsoft Windows XP/2000
• Supports Advantech ASCII, Modbus RTU, and Modbus/
TCP protocol
• Compliant with the latest OPC Data Access 1.0, 2.04
and 3.0 standards
• Compliant with the latest OPC Alarm and Events 1.0 and
1.2 standards

• Rapid Application Design (RAD) helps developers to
build a program in the shortest time
• Thread-Safety design to ensure high reliability under
multi-thread environment
• Intuitive utility Navigator integrates configuration tools,
testing panel, manual, tutorial, and example codes


Automation Software

Machine Automation
Integrated Soft Computing to Enable Intelligent Machines
Supporting Advantech’s PCI-1245/1265/1245E/1285E series, SoftMotion is
an important core technology in the machine automation field. Advantech
independently developed its own SoftMotion control technology and uses the
FPGA (Field Programmable Gate Array) and DSP (Digital Signal Processing)
as the core-computing hardware platform. Meanwhile, based on the three
motion control architectures - centralized, distributed, embedded. Advantech’s
comprehensive product offering helps our customers to continuously progress
their technologies and optimize customer’s devices control to minimize their
programming needs.

15


Motion Control PCI Cards

PCI-1245/PCI-1245E

PCI-1265

PCI-1285E

DSP-based SoftMotion 4-axis Stepping
and Servo Motor Control PCI Cards

and Servo Motor Control PCI Card

and Servo Motor Control PCI Card

• T&S-curve speed profile, Jog move, point-to-point
motion, and 16 modes of home move
• Position/speed override, 2-axis linear interpolation, and
E-Gear
• 2-axis circular interpolation, 4-axis linear interpolation,
helical move, E-Cam, and trigger/latch(PCI-1245)

• T&S-curve speed profile, Jog move, point-to-point
motion, and 16 modes of home move
• Position/speed override and 6-axis linear interpolation,
2-axis circular interpolation
• Superimposed move, helical move, E-Cam, E-Gear, and
trigger/latch

• T&S-curve speed profile, programming acceleration and
deceleration
• Jog move, point-to-point motion, and 16 modes of
home move
• Position/speed override and 2-axis linear interpolation
• E-Gear & error check function

AMAX-1220

AMAX-1240

AMAX-1752/1754/1756

Economic 2-axis AMONet
Motion Slave Module

High-performanced 4-axis AMONet
Motion Slave Module

Compact 32-ch Isolated Digital Input /
Output Slave Module

• Maximum transmission (baud rate) can be up to 20Mbps
with master card
• Maximum pulse train output up to 6.5 MHz & equipped
with encoder input
• 2-axis point-to-point & linear interpolation
• Compact design & easy wiring by transfer cable to
Servo drives

• Maximum transmission (baud rate) can be up to 20Mbps
with master card
• Maximum pulse train output up to 6.5 MHz & equipped
with encoder input
• 2-axis point-to-point, linear & circular interpolation
• On-board DSP to carry application-level function library
support (ex: high-speed triggering)

• Maximum transmission (baud rate) can be up to 20 Mbps
with master card
• On-board terminal for direct wiring & LED indicators
• 2,500 VRMS isolation voltage
• Compact design for horizontal placement

AMONet Slave Modules

AMONet Master Solutions

Embedded Motion Controller

PCI-1202U

PCM-3202P

2-port AMONet RS-485 PCI Master Card

2-Port AMONet RS-485 PC/104+ Master
Module

• Up to 64 slave AMAX modules per ring
• Transmission (baud rate) can be up to 20Mbps
• Communication distance is up to 100 M @ 10Mbps
• Programmable digital input to notify events
• Easy installation with RJ45 phone jack and LED
diagnostic

• Up to 64 slave AMAX modules per ring
• Transmission (baud rate) can be up to 20Mbps
• Communication distance is up to 100 M @ 10Mbps
• Programmable digital input for event notification events

PEC-3240

Intel® Celeron® M 1.0 GHz 4-axis
Embedded Motion Controller with 32-ch
Digital I/O
• Onboard Intel® Celeron® M 1.0 GHz CPU
• 16-ch isolated DI and 16-ch isolated DO
• Independent 4-axis motion control

Building Automation
Increase Energy Efficiency with Open and Web-enabled Technologies
Advantech’s Building Automation Solutions offer browser-based
software and comprehensive hardware packages for a variety of
applications. Advantech WebAccess can be integrated with various
Direct Digital Controllers (DDC) and remote I/O modules, energy
data concentrators, and power meters. It enables engineers,
system integrators and equipment manufacturers to maintain and
upgrade their systems remotely. Advantech also offers multiple
energy consumption analytical charts for managers to analyze their
entire energy usage and adopt new energy management policies.
Furthermore, it supports free dynamic DNS services and web servers
to optimize energy management efficiency.

16

Advantech WebAccess

Advantech BEMS

Advantech BASPro


Building Energy Management Software

BAS-3000 DDC Programming Tool

• Global access alarms, data, e-mail alarms

• Browser-based energy management system
• Multiple charts to view energy consumption from
various perspectives
• Supports flexible report functions
• Various data analysis functions to generate energy
consumption patterns
• Advanced demand limit control

• Supports BACnet and Modbus modules
• Graphical programming environment
• Remote download and maintenance through Ethernet
• Scheduler and sequential control
• Auto-tuning PID and RAMP/SOAK control algorithm
• Supports building automation function block inside

BACnet DDC Controllers & Remote I/O Modules

BAS-3500BC

BAS-3018BC/3024BC

BAS-3050BC/3051BC

Web-enabled BACnet DDC Controller

8-ch UI/4-ch UI, 4-ch AO, 4-ch DO
BACnet MS/TP Remote I/O Modules

8-ch DI, 8-ch DO/16-ch DI BACnet MS/TP
Remote I/O Modules

• 24 VDC or 24 VAC input; 3000 VDC isolation protection
• Analog output supports 0 ~ 10V, 0 ~ 20 mA,
and 4 ~ 20 mA (BAS-3024BC)
• Supports PWM output (BAS-3024BC)
• Supports Master and Slave mode

• 24 VDC or 24 VAC input; 3000 VDC isolation protection
• Supports 1 kHz counter input and 1 kHz frequency
input (2 channels)
• Supports PWM output (2 channels) (BAS-3050BC)
• Supports Master and Slave mode

Energy Data Concentrator

Power Meter

Wireless I/O Module

BEMG-4221/4222

PME-1230

ADAM-2031Z

Energy Data Concentrator with 6 x USB, 4 x
COM/ 8 x COM, 128 Devices

3-phase Multi-function Power Meter

Wireless Temperature & Humidity Sensor
Node

• Standalone programmable BACnet controller
• Auto-tuning PID control
• Calendar schedule control
• Alarm and event notifications
• Provides MS/TP & Modbus/RTU to connect with remote I/O
devices
• Remote programming and maintenance through Ethernet

• Built-in Windows CE with Advantech WinCE WebAccess
• Web-sever function support customer with remote
configuration, remote operation, remote maintenance
• Combine Advantech BEMS and power meter for energy
saving solution

• 3-phase multi-function power meter for sub-metering
applications
• Multi-function power measurement for individual
current & voltage, KW, kwh, kvarh, PF and Kvar values
• Modbus RTU protocol over RS-485
• Local display

• 2.4-GHz IEEE 802.15.4 wireless protocol compliant
• More security with support Mesh network topology
• Built-in temperature / humidity sensor input
• Supports 2 x AA Alkaline batteries


WebAccess HMI/SCADA Software

Energy Automation
Ensure Reliable Energy Automation with IEC 61850-3 and IEEE 1618 Compliant Products
Advantech provides energy computers, controllers, and data acquisition
module with rugged, cableless designs for harsh environments in Smart
Substation and Green Energy applications. The UNO-4600 series are
compliant with the hardware requirements of IEC 61850-3, which defines
the international standards of network and system communications in
smart substation. Advantech also provides the ideal hardware (ECU-1000)
for transformer and GIS switches, IED (Intelligent Electronic Devices)
applications.

17


IEC 61850-3 Compliant Energy Computers

UNO-4671A

UNO-4673A

UNO-4683

IEC 61850-3 and IEEE 1613 Compliant for
Substation Automation Applications with
6 x LAN , and 10 x COM

IEC 61850-3 and IEEE 1613 Certified
Substation computer with 6 x LAN,
2 x COM,and 3 x Expansion Slots

IEC 61850-3 and IEEE 1613 Certified
Substation computer with 6 x LAN,
2 x COM,and 3 x Expansion Slots

• Intel® Atom™ D510 /D525 1.66GHz CPU
• 2 x RS-232 isolated ports, 4 x RS-422/485 isolated ports,
4 x RS-485 isolated ports
• Supports 1 x internal CF card and 1 x 2.5” SATA HDD

• Supports fiber optic,IRIG-B, LAN, and COM
• Supports PCI, Mini PCI,Mini PCIE, and PCI-104
expansions

• Intel® Core™ i7 2.0 GHz CPU
• Supports fiber optic,IRIG-B, LAN, and COM
• Supports PCI, Mini PCI,Mini PCIE, and PCI-104
expansions

ECU-1801A

ECU-1911

IEC-61850-3 and IEEE 1613 Compliant
Controller with 2 x LAN ,3 x COM , IRIG-B ,
and 2 x Expansion Slot

Xscale @ PXA-270 520 MHz RTU with
8-ch 16-bit AI,32-ch DI,32-ch DO

Energy Controllers

ECU-1710A

Intel® Atom™ D510 Controller with 16-ch
AI, 4-ch AO and 32-ch Isolated DI/O
• Intel® Atom™ D510 1.66GHz CPU
• 2 x RS-232 ports, 2 x USB ports
• Integrated PCI-1710UL & PCI-1720U modules
• 12-biit A/D converter,with up to 100kS/s sampling rate

• Intel® Atom™ D510 CPU
• 1 x RS-232 port/ 2 x RS-485 isolation ports
• 2 x 10/100Base-T RJ- 45 ports
• Windows® CE 6.0, WES 2009, and Linus ready solution

• Xscale @ PXA-270 520 MHz CPU
• 1 x RS-232 port, 3 x RS-485 isolated ports, 1 x VGA
• 2 x 10/100Base-T RJ-45 ports
• 8-ch 16-bit differential Analog Input
• 32-ch isolated Digital Input/Output

Energy Data Acquisition Cards

DMU-3010/5010

UNOP-1618D/1628D

UNOP-1514C/RE/PE

8-ch AI, 8-ch DI, 4-ch DO Ethernet I/O
Module

8-port Isolated RS-232/422/485 with/
without Port-to-port Isolation for
UNO-4673A/4683

4-Ports LAN cards for UNO-4673A/4683

• Industrial Modbus/TCP protocol
• Mixed I/O in the Module
• Supports online device auto-scan or manual configure
function
• Supports High/Low Alarm function
• Supports cable burn-out check

• 8 x COM
• Selectable RS-232/422/485 port
• Isolation 2500VDC(UNOP-1628D)
• Automation RS-485 data flow control

• LAN 100 Base-FX/1000 Base-T
• SC Type( 1514C)
• RJ45 Type (1514RE)
• SFP Type(1514PE)

+

WebAccess Solutions
Get into focused markets by WebAccess+ Solution Ready Packages
Integrated solutions, focused vertical markets, and strong partnership are
three essential factors to grasp business growth opportunities in the new era
of the Internet of Things. Advantech’s WebAccess+ Alliance is an innovative
cooperation platform with a base of the IoT solution software - WebAccess
- to link with hardware, partners’ strength and strategic co-marketing to
get into focused vertical markets, such as oil & gas management, building
automation, factory automation, and renewable energy management.
Furthermore, Advantech also provides several powerful WebAccess solution
ready packages to speed up your project implementation time and reduce
managerial resources.

18

Advantech WebAccess

Advantech WebAccess Options



Optional Modules for WebAccess

• Global access alarms, data, e-mail alarms

• Real Time Database (RTDB)
• Demand Control
• School Scheduler
• Alarm Management

Automated Graphical Remote Control
Application Program
• Just one click to get real-time ADAM I/O devices data
from remote smart devices
• Auto-discover, auto-deliver, auto-deposit and auto display functions
• Free for up to 75 Advantech I/O device points

WebAccess Solution Ready Packages

TPC-1771H-WA

UNO-2178A-WA

UNO-2184G-BEMS

17” Touch Panel Computer with 600/5,000
Tags WebAccess

Compact SCADA Server with 600/5,000
tags WebAccess

Building Energy Data Platform

• Built-in Windows 7 Embedded with Advantech
WebAccess 600/5,000 Tags
• 8 DI/O and backup SRAM support

• Built-in Windows 7 Embedded with Advantech
WebAccess 600/5,000 Tags
• Intel® Atom™ D510 1.67GHz CPU
• 2 x GbE, 8 x COM, 6 x USB 3.0 and 2 x Mini PCIe

WebAccess + Alliance

WebAccess + Alliance
For Building Collaborative Partner
Relationships

• Dedicate WA+ web-site
• Co-marketing with Advantech
• Technical summit for partners
• Dedicate solutions for vertical applications
• WebAccess Alliance Partner Program (WAPP)

• Built-in Windows 7 Embedded with Advantech BEMS
Software
• Intel® Core™ i7 CPU
• 6 x USB, 4 x LAN, and 2 x Mini PCIe
• Microsoft Windows Server 2008 R2
• Microsoft SQL Server 2008 Standard


Advantech WebAccess Software

Application Specialized Solutions
Meet Industry Standards to Fit Specific Application Needs
To meet a range of diverse requirements and certification needs,
Advantech provides application specialized solutions. Our industrial
certified products meet special requirements in a wide range of
demanding applications such as in Class I, Division 2 certification
for oil & gas, DNV certification for marine applications, EN50155
certification for railway automation and IEC 61850-3/IEEE 1613 for
power substation automation applications. In addition, we have
sunlight readable HMI products for outdoors application and wide
temperature offerings for harsh environments.

19


Class I, Division 2 (CID2) Certified Products for Oil & Gas Applications

FPM-8151H

UNO-1172AH

15” XGA Industrial Monitor with Resistive
Touchscreen and CID2 Certification

Intel® AtomTM D510 DIN-rail PC with
Class I, Division 2 Certification

• Direct VGA & DVI-D video input interfaces
• Lockable OSD keys with 2 user-defined contrast/
brightness settings
• Front bezel & rear cover with stainless steel material
• -20 ~ 60°C wide operating temperature range

networks
• -10 ~ 60°C operating temperature range with IP40
rating

ADAM-4000 Series
Robust RS-485 I/O Modules
• Wide operating temperature range -40 ~ 85ºC
(-40 ~ 185ºF)
• Broader power input range (10 ~ 48 VDC )

ADAM-6000 Series
Smart Ethernet I/O Modules

Managed/Unmanaged Ethernet Switches

Device Servers, and Modbus Gateway


• EKI-7758F
• EKI-2728/2725/2528/2525, EKI-2526M/S, and EKI2541S/2541M
• EKI-1521/1522/1524
• EKI-1221/1222/1224 and EKI-1221D/1222D

• EKI-7758F
• EKI-2728/2725/2528/2525, EKI-2526M/S, and EKI2541S/2541M
• EKI-1521/1522/1524
• EKI-1221/1222/1224 and EKI-1221D/1222D

IEC 61850-3/ IEEE 1613 Compliant Products for Power & Energy Applications

UNO-4672

Intel® Pentium® M/Celeron® M Automation
Computer with 6 x LAN, 10 x COM, 8 x DI,
8 x DO, PC/104+
• Onboard Celeron M 1 GHz or Pentium M 1.4 GHz
processor
• 2 x RS-232 and 8 x RS-232/422/485 isolated serial ports
with automatic flow control and 128KB FIFO
• 2 x 10/100/1000 Base-T (supports teaming function) and
4 x 10/100 Base-T
• Supports 2 x internal CF cards and 1 x 2.5” SATA HDD
• PC/104+ extension and 4 x USB 2.0 (1 x internal)

UNO-4671A/4673A/4683
IEC 61850-3/ IEEE 1613 Compliant
Automation Computers with 6 x LAN
• Intel® Atom™ D510 1.66 GHz CPU/ Intel® Core™ i7
620LE 2.0 GHz CPU
• Supports fiber optic, IRIG-B, LAN, and COM
• Supports PCI, Mini PCI, Mini PCIe, and PCI-104
expansions

APAX-5522PE/5017PE
5040PE/5060PE
IEC 61850-3 Compliant PAC
• Flexible I/O expansion: up to 32 modules
• IEC 61850-3 compliant
• Time stamp function support

EN50155 Certified Products for Railway Automation

TPC-8100TR

EKI-6558TI/ EKI 6559TMI

EKI-6528TI/6528TPI

10.4” EN50155 Railway Panel Computer

IP67 8-port M12 / + 2-port Fiber Optic
Managed Ethernet Switch with Wide
Temperature Range

EN50155 8-port M12 Unmanaged Switches
with Wide Temperature Range.

• 10.4” SVGA 800x600 with 400 nits LED LCD display
• Fanless with Dual core 1.6 GHz processor
• Alternative keypad control in front bezel
• Mother board / daughter board with coating for weather
proof
• All around IP65 with waterproof M12 connector

• Supports X-Ring function
• Provides Waterproof fiber optic connector, M12
connector
• TFTP firmware updates and system configure restore
and backup
• Provides 100Mbps LC type connector

• 4-port IEEE 802.3af compliant PoE and Ethernet combo
ports (EKI-6528TPI)
• Redundant power design and IP40 protection
• EN50155 certified for railway applications

DNV Certified Products for
Marine ECDIS Applications

IP66 Grade Protection for Demanding Applications

FPM-8192V/ FPM-8232V

IPPC-8151S

20

15” XGA TFT LCD Celeron® M Fanless
Industrial Panel PC with Stainless Steel

• DNV standard 2.4 certified and IEC-60945 & IACS-E10
approved
• 19” SXGA / 23” UXGA TFT LCD with transflective
technology for outdoor visibility
• Dimming knob controls backlight brightness from nearly
0% to 100%
• Front OSD control with PIP (picture in picture) function

• 15” XGA TFT LCD with chemical resistant touchscreen
• Supports Intel® Celeron® M 1 GHz/1 MB L2 processor
with 1 GB memory
• 316L stainless steel and food-safe sealing materials
• Robust and fanless design for reliable operation
• Anti-corrosive and chemical resistant touchscreen

WebOP-2000T Series
4.3” to 15” WQVGA Operator Panel
• 4.3” to 15” WQVGA 65,536 colors TFT LCD, ARM9-based
CPUs
• Communicates with up to four types of devices

Sunlight Readable Products for Outdoor Applications

Wide Temperature Products
for Harsh Environments

TPC-1251SR/1551SR

FPM-3151SR

EKI-2726FHPI

12.1” SVGA/15” XGA High Brightness LCD
Intel® Atom™ Touch Panel Computers

15” XGA High Brightness Industrial Monitor
w/ Resistive Touch screen Touchscreen,

4G+2 SFP W/ 4 IEEE 802.3at/af PoE
Industrial Wide Temperature Switch

• 12.1” SVGA / 15” XGA high brightness LED backlight
• Optical bonding enhances reflection rate of under 0.2%
• Energy Star certified

EKI-6558TI/ EKI-6559TMI

• 15” XGA high brightness LED backlight
• Direct-VGA and DVI port input interface
• Optical bonding enhances reflection rate of under 0.2%

UNO-2173A/AF

IP67 8-port M12 / + 2-port Fiber Optic
Managed Ethernet Switch with Wide
Operating Temperature

Intel® AtomTM N270 Automation
Computers with 2 x LAN, 3 x COM, and
Mini PCIe

• Supports X-Ring function
• Provides Waterproof fiber optic connector, M12 connector
• TFTP firmware updates and system configure restore and
backup
• Provides 100Mbps LC type connector

• Energy Star certified green product with only 15W power
consumption
• Supports Mini PCIe cards for WLAN/3G solution

• All Gigabit Ethernet ports for 4 Copper and 2 SFP
• IEEE802.3at/af compliant, provides 30Watts per port
• Dual 48 VDC power input and 1 relay output
• UL508 compliant
• Supports operating temperatures from -40 ~ 75°C

TPC-651H/1251H/1551H
5.7” VGA/12.1” SVGA/15” XGA TFT LCD
Intel® Atom™ Thin Client Computers
• 3.5” QVGA/5.7” QVGA LCD with TI AM3517 processor
• Intel® Atom™ Z520 1.33GHz processor
• COM port isolation design


19” SXGA / 23” UXGA Marine Grade
Monitors

WebAccess+ Solutions

1

WebAccess+ Solutions Introduction

1-2

Advantech WebAccess


1-5

Advantech WebAccess Options
Demand Control
Real-Time Database

WebAccess Demand Control Module
WebAccess Real-time Database Module

1-8

Alarm Management System
School Scheduler

WebAccess Alarm Management System Module
WebAccess School Scheduler Module

1-9

WA-TPC1771

17" Touch Panel Computer with 600/5,000 Tags WebAccess

1-10

WA-UNO2178

Intel® Atom™ D510 Compact SCADA Server with 600/5,000 Tags
WebAccess

1-12

To view all of Advantech’s WebAccess+ Solutions, please visit http://webaccess.advantech.com/.

Introduction
Get into Focused Markets with a WebAccess+ Solution Ready Package
Building an information sharing platform and improving the effectiveness of vertical markets’ development and management have become essential parts of an IoT solution. WebAccess,
as the core of Advantech’s IoT solution, is the first Browser/Client/Server based configurable SCADA software which builds up the foundation of IoT data management. With its open
architecture, vertical domain applications can easily be integrated.
In WebAccess+ solutions, WebAccess runs on a preconfigured Advantech solid hardware platform to collect field data from remote I/O devices and/or controllers via different
communication hardware. Using vertical related algorithms, it presents the data in a remote web browser with a domain focused template. With this totally integrated product solution,
vertical system integrators can take advantage of the fusion of the time proven Advantech hardware and leading edge WebAccess remote monitoring SCADA software to quickly deliver
a reliable project to customers. Users can also enjoy the convenient, fast, cost-effective solution for remote management, diagnose, and maintenance. Advantech provides several
powerful WebAccess Bundled Products to speed up your project implementation time and reduce managerial resources.

WebAccess+ Bundled Products
Advantech provides WebAccess Bundled Products, WA-TPC1771 and WA-UNO2178, all as SCADA Nodes. When purchasing these products, users will get a bundle of WebAccess
and Windows 7 Embedded built in to Advantech’s robust hardware platform. This allows users to configure the applications on the hardware platforms.
When the application is running on the SCADA Node, users can monitor and control the application locally or on another computer (client) through the network. The SCADA Node
hardware provided by Advantech can connect with Advantech BAS-3000 series, ADAM-2000 series, ADAM-4000 series, ADAM-5000 series, ADAM-6000 series and PLCs.

Comparisons of WebAccess Professional and WebAccess+ Product
Software Specification
I/O Tag Number
Internal Tag Number
Standard Features
Options

WebAccess Professional
WebAccess+ Product
75/300/600/1500/5000/20K/64K
600/5000
75/300/600/1500/5000/20K/64K
600/5000
Graphics, Data Trend, Alarm, Scheduler, Google Maps…etc
Real-Time Database, Demand Control, School Scheduler, Alarm Management System

WebAccess+ Focused Solutions
Integrated solutions, focused vertical markets, and partnerships are three essential factors to grasp business growth opportunities in the new era of the Internet of Things. Advantech’s
WebAccess+ Alliance is an innovative cooperation platform with a base of the IoT solution software – WebAccess - to link with hardware, partners’ strength and strategic co-marketing
to get into focused vertical markets, such as water, oil & gas, building automation, factory automation, and renewable energy. Advantech WebAccess+ Solutions focuses on water
treatment, building automation, oil & gas, facility automation and solar energy markets to provide solution packages to fulfill these market needs. The following is an introduction
to these solutions.

Solar Power Monitoring Solution
ƒƒ The software is based on B/S architecture and ensures all the system details can be
monitored on a unified platform. Customers can remotely manage and maintain all
the stations in the control center. Distributed architecture is convenient for a new
station’s access.

Application Scenarios
ƒƒ Monitoring of ground, rooftop, and integrated solar power stations.

Advantech SPMS consists of WebAccess vertical solution software and hardware for
data acquisition, communication, industrial server as a total solution. It accomplishes
data acquisition and analysis from sub-stations, remotely control and maintenance, thus,
fulfills effective management on devices.

System Features
ƒƒ One stop shopping - All software and hardware products are developed by
Advantech and make a seamless system which increases stability and reliability,
therefore reducing maintenance and operating costs as well as being easy to adjust.
Advantech offers 24/7 local services to ensure normal operation.
ƒƒ Advantech’s industrial data acquisition controller provides multiple interfaces, data
storage and forwarding mechanism, and remote management.

1-2


WebAccess+ Solutions Introduction
Building Energy Management Solution

Oil & Gas Solution

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels

Advantech’s BEMS energy management solution provides all the software and hardware
needed, including digital power meters, intelligent energy data collecting gateways,
industrial computers, energy management software (WebAccess/ BEMS ), and SQL
Server. These components integrate an energy management system in one single package.

Through data collection in the sensing layer and data communication in networking
layer, WebAccess plays the integration role. Advantech’s oil & gas solution helps oil
& gas companies establish IoT systems which cover all the production, transmission,
storage, and sales processes.

System Features

System Features

ƒƒ Intuitive, user friendly, and simple operation.

ƒƒ Real-time data collection and processing comes with analysis tools and data
storage.

ƒƒ Enables customers to make energy saving plans by comparison energy uses among
different buildings and projects.
ƒƒ EUI & PUE settings help customers detect energy wastage.
ƒƒ With a geographic information system, all the information is under surveillance and
control.


ƒƒ Remote access capabilities make it easier for remote maintenance and multi-seat
development. Suitable for oil & gas industry located in a wide range of areas.
ƒƒ An open platform for connecting applications and management software based on
B/S internet technology. Builds up a cost effective giant system rapidly and features
flexible expansion abilities for future development.


ƒƒ Single buildings: Commercials/Hospitals/Restaurants/Office buildings.

Automation Panel PCs

Industrial Panel
Computers & Panel PC

Industrial Monitors

Industrial Wireless
Solutions

ƒƒ WebAccess is utilized to collect and manage data transferred from RTU. Once the
data has been transferred to a certain data pool, WebAccess is able to create an
analysis tool and monitor the operating status of oil wells.

–– Franchised restaurants, shopping malls, furniture stores, shoe stores,
supermarkets, book stores, and convenience stores.
–– Financial groups, shopping centers, campuses, and telecommunication stations.

Industrial Ethernet
Solutions

ƒƒ For pipeline monitoring, the gateway software, WebAccess is running in each of the
gateway devices converting each system to a standard protocol and sending them
to a control center.

Serial Device Servers
and IP Gateways

ƒƒ Communicating with intelligent devices, WebAccess acts as remote control software
for monitoring and controlling devices in the field.

ƒƒ Building complex

Serial Communication
Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

Online Download webaccess.advantech.com

1-3

Introduction
Facility Monitoring and Control System

Water Treatment Solution

Advantech Facility Monitoring and Control System constructs an internal network in
the plant based on Client/Server structure with a monitoring host, data acquisition
controllers and software suites provided by Advantech, which realizes operational
simplicity, information security and high scalability. The software installed on the host
provides default screen images to facilitate system integrators to map out their applications
while programming software installed in the controllers provide logistic and arithmetic
calculations to fulfill control demands. To meet the requirements of the high-tech plants
for 24/7 operations, a redundant architecture is also provided: which will shift the job to a
backup system if the main system suffers a power outage or communication interruption.

Advantech Water Treatment System provides solutions for constructing control and
communication platforms with soft-and-hardware products including programmable
automation controllers (PAC), Ethernet switches, and HMI/SCADA software. The solutions
target water industry applications. The applications cover an extensive range from water
resource distribution systems, raw water collection and distribution systems, water supply
pumping systems, tap water monitoring control systems, booster pump stations monitoring
control systems, urban pipeline monitoring control systems, sewage pump station
monitoring control systems to sewage treatment monitoring control systems, and more.

System Features

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ Provides specialized programming tools with default screen images to save time for
engineering.
ƒƒ Preinstalled configuration software to save engineering time.
ƒƒ Realizes operational simplicity via Client/Server networking structure and remote
maintenance capability.
ƒƒ System scalability to accommodate factory expansion with optimal investment scale.
ƒƒ Supports thin clients and wireless LAN to enable mobility.
ƒƒ Expandable from a single host to a redundant system.
ƒƒ Able to integrate with CIM and MES via real time data interfaces.

ƒƒ Water system: raw water supply, ultra pure water supply, waste water treatment, and
reclamation.
ƒƒ Electric system: 220/110 KV high voltage power monitoring, emergent power
generator, dynamic/static uninterruptible power supply, electric bus, high voltage
switch gear, and low voltage power meter.
ƒƒ Gas system: toxic gases detection, gas cabinet operation, valve box operation, and
general gases.
ƒƒ HVAC system: clean room operation, acid exhaust, process cooling water, and
general air-conditioning.

1-4


System Features
Integrated with 3D graphics to provide understanding of geographical space.
DDNS functions to solve communication problems in a dynamic IP network.
Animated Adobe® Flash® presentation of water resource allocation.
SMS functions to provide real time facility alerts via mobile phones.
Incorporating video monitoring to enable remote overseeing over onsite situations.
Incorporated WebGIS to enable data lookups via geographic index.

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Water resource distribution system.
Raw water distribution system.
Large scale water supply pumping system.
SCADA system for tap water.
Booster pump station monitoring and control system.
Urban tap water pipeline monitoring control system.
City pipeline distribution optimization system.
Remote management system for city sewage pipelines.
Monitoring and control system for sewer pump stations.
SCADA system for large sewage plant.
Performance management for large sewage plant.

Advantech
WebAccess

Features
ƒƒ View, control and configure system remotely over an intranet or the Internet
using standard web browser
ƒƒ Mobile client support for iOS, Android and Windows mobile devices
ƒƒ Support for open standard programming: TCL, JavaScript and VB script
ƒƒ Open real-time data connectivity: OPC, Modbus, BACnet, DDE Server
ƒƒ Open offline data connectivity: SQL Server, Oracle, MySQL, Microsoft Access
database
ƒƒ Full LonWorks LNS and BACnet support
ƒƒ Distributed SCADA architecture with central database server
ƒƒ Redundant SCADA, ports and devices
ƒƒ Google Maps Integration
ƒƒ Remote access to alarms and data
ƒƒ SMS alarm notification, e-mail alarm, report and messages
ƒƒ Web-enabled video and audio
ƒƒ Multi-layer inter-operable SCADA nodes

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels

Introduction


Advantech WebAccess is a web browser-based software package for human-machine interfaces (HMI) and supervisory control and data acquisition (SCADA). All the features found in
conventional HMI and SCADA software including Animated Graphics Displays, Real-time Data, Control, Trends, Alarms and Logs, are available in an standard web browser. WebAccess
is built around the latest internet technologies. The basic components are:
1. SCADA Node: it communicates in real-time with automation equipment and controls the equipment via serial, Ethernet or proprietary communication via multiple built-in device
drivers. Not only does it run local controls and monitoring, but also provides real-time data to all remote clients.
2. Project Node: it is the development platform for WebAccess and is a web server for all clients to connect to the development project or remotely monitor and control the system.
All system configuration, project database files and graphics are stored here.
3. Client node: through the ActiveX control inside Microsoft Internet Explorer, it monitors and controls the SCADA Node. The client connects to the Project Node and get the
address of the SCADA Node, then communicates directly with the SCADA Node using proprietary communications over a TCP/IP connection. Data is displayed in real-time with
dynamically animated graphics along with real-time, historical trending and alarm information. Users can acknowledge alarms and change set-points, status and other data.
4. Mobile Client: the Mobile Client interface is intended for use with smart mobile devices, such as iOS, Android; and Windows mobile devices. In the mobile client users can
browse graphics, data-log trends, and tag information in real-time. Set value to tag or acknowledge alarms can also be supported via an intuitive interface.

Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

Feature Details
View and Control from a Remote Web Browser

Google Maps Integration

Using a standard web browser, users can view and control automation equipment used
in industrial, manufacturing, process and building automation systems. Field data and
alarms are delivered in real-time to remotely browse using animated graphics and sound.

WebAccess integrates real-time data on each geographical site with Google Maps. For
remote monitoring, users can intuitively view the current energy consumption on each
building, production rate on each field or traffic flow on the highway together with alarm
status. By right-clicking on Google Maps or entering the coordinate of the target, users
can create a marker for the target and associate 3 real-time site data with label to display.
Furthermore, a macro can also be defined for the action when user clicks on the marker
in real-time. It is very useful for building automation, oil and gas industry, public utility
or any remote monitoring application.

Powerful Remote Diagnose and Maintenance Functionality
The unique feature, which distinguishes WebAccess from the competition, is that all
engineering works, such as: database configuration, graphics drawing and system
management (download, start and restart remote nodes) is performed using a web
browser. If any troubleshooting is needed, no matter where the engineer is, he can use
the internet to operate the system remotely. This can significantly increase the efficiency
of maintenance operations and reduce maintenance costs.

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

Full Scalability
A scalable system architecture allows users to run the same database and graphics on
Windows CE, Embedded XP and Windows. When a system needs to be upgraded, just
download the database to a new machine and get online immediately. A WebAccess SCADA
node can be another SCADA node’s device with alarm and log synchronized option, so the
field's I/O data can be collected in local node and forwarded to regional data center then
further transferred to central management.

Online Download www.advantech.com/products

M2M I/O Modules

RS-485 I/O Modules

1-5

Advantech
WebAccess

Remote Monitoring and Health Check

Central Database Server

WebAccess provides the remote monitor function. This allows users to communicate
and exchange data with SNMP or DiagAnywhere Server. Users can check the health of
CPU, memory, temperature, and voltage on the target machine via the function. With
DiagAnywhere integration, users can bring up DiagAnywhere client connecting to the
target machine directly if there is any abnormal or suspicious data detected in WebAccess.

The Project Node is a centralized database server of configuration data. A copy of the
database and graphics of all SCADA nodes is kept on the Project Node. The historical
data is also stored in the database in project node.

Vector-based Graphics
Regardless of engineer and user computer resolution, WebAccess graphics can be built
at any resolution and displayed at any resolution. Vector-based graphics scale infinitely,
providing smaller file and data sizes for fast downloading and data updates.

Redundant SCADA, COM Ports and Devices
Advantech WebAccess assures continuous, reliable communication to automation
equipment. WebAccess Backup node activates when the primary node is down. WebAccess
device drivers communicate with backup ports or devices if the primary connection is lost
and automatically restores to the primary item when it becomes available.

WebAccess also has the options to allow users to define the aspect ratio, 16:9, 16:10 or 4:3,
to view their graphics to avoid distortion when displaying in certain aspect ratio display.

Historical and Real-Time Trending, Data Logging and Centralized
Logs

Wide Ranging Building Automation Support

12 Tags can be added to a Trend display without losing the history of the other tags.
Real-time data, alarms, and operator actions from all SCADA nodes can be logged to a
central ODBC database.

WebAccess supports all open systems in the building automation industry. LonWorks
devices can be accessed through LNS database, iLons and B-Track. BACnet MS/TP and IP
are also supported. Modbus protocol for most of power meters is also a standard driver of
WebAccess. In WebAccess Scheduler users can schedule on/off, temperature set points,
and messages based on time-of-day, day-of-week and holidays.

Open Data Connectivity

Scheduled Reports
A "Fill-in-the-blanks" reporting package gives average, maximum, minimum, last and
totals with summary for user-defined shifts, daily, and monthly reports. These reports can
be automatically generated and printed or sent to users by e-mail. Users can also query
reports from a remote browser anytime, anywhere.

Advantech WebAccess exchanges online data with 3rd party software in real-time by
supporting OPC UA/DA, DDE, Modbus and BACnet Server/Client. It supports SQL, Oracle,
MySQL, and MS Access for offline data sharing.

Event Log and Action

Data Transfer

Enhanced Security

The Data Transfer function is used to transfer data from one PLC or automation device
to another. Data value can be sent from one tag to another tag, regardless of the
communication medias or protocols, with a predefined period in the same equipment or
between different equipment.

Users can be assigned various privileges to restrict display and data access. WebAccess
uses the Area of Responsibility concept to restrict changes to data.

Distributed Architecture
SCADA nodes run independent of any other node. Each SCADA node communicates to
automation equipment using communication drivers supplied with Advantech WebAccess.

1-6


An event can trigger data before and after the event to be logged or scripts to be executed.

Ample Driver Support
WebAccess supports hundreds of devices. In addition to Advantech I/Os and controllers,
WebAccess also supports all major PLCs, controllers and I/Os, like Allen Bradley,
Siemens, LonWorks, Mitsubushi, Beckhoff, Yokogawa etc. WebAccess can easily
integrate all devices in one SCADA. For a complete listing of WebAccess drivers, refer to
WebAccess.advantech.com.

Gateway with WebAccess Installed
With open real-time data connectivity and hundreds of device drivers, WebAccess can
integrate all devices and a selected hardware platform with pre-installed WebAccess
becomes the perfect protocol gateway or data concentrator. With intuitive setup, WebAccess
converts field device data to Modbus, OPC DA, OPC UA or BACnet protocol, so other
software, such as ERP and MES can gain access without knowing the field device protocol.
WebAccess+ Solution Products, a bundle of WebAccess Professional 7.1 and Windows
7 Embedded built in to Advantech’s robust hardware platform, can be used as a high
performance, low cost data gateway solution.

Web-enabled Video Display
WebAccess allows operators and users to monitor equipment and facilities directly using
web-enabled full-motion video cameras, audio, and web cams. It also supports the use of
live video cameras that are IP-enabled via ActiveX control, Windows Media Player, JPEG
and other formats supported by Microsoft Internet Explorer 8.0 (or later). The video image
appears in the same display area as graphics, alarms and trends displays. Optionally,
WebAccess can launch the video in a pop-up window. WebAccess also supports push
button key macros to easily call up video cameras and WebAccess scripts can be used to
automatically rotate between multiple cameras and send Point-Tilt-Zoom (PTZ) commands.

Software Specifications
Advantech WebAccess Professional
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

I/O Tag
Internal Tag
Web Client
Alarm Log
Action Log

75/300/600/1500/5000/20K/64K
75/300/600/1500/5000/20K/64K
1024
5000
5000

Graphics
ƒƒ Number of Graphic Pages
Unlimited (limited by H/D size)
ƒƒ Variables per Graphic Pages 4000

Group Data
ƒƒ Datalog Trend Group 9999
ƒƒ Realtime Trend Group 9999

Recipes
ƒƒ Item per Unit
ƒƒ Recipes per Project
ƒƒ Unit per Recipe

999
999

Scheduler
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Holiday Group
Time Group
Circuit Group
Schedule Reservation

9999
9999
9999
9999

Web-enabled Integration
ƒƒ Video
ƒƒ Google Maps
ƒƒ Alarm Email/SMS

Yes
Yes
Yes

Open Connectivity
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Modbus Server
BACnet Server
ODBC and SQL Query
OPC DA/UA Server
DDE Server

Yes
Yes
Yes
Yes
Yes

Ordering Information
Professional Versions
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

WA-P71-U075E
WA-P71-U300E
WA-P71-U600E
WA-P71-U15HE
WA-P71-U50HE
WA-P71-U20KE
WA-P71-U64KE

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

WA-P71-X075E
WA-P71-X300E
WA-P71-X600E
WA-P71-X15HE
WA-P71-X50HE

Centralized logs on project Yes
SCADA/Port/Device
Redundancy Yes
Script language
TclScript/VBScript/JScript
Data Transfer
Yes
Scheduled Report
Yes

WebAccess Software License, 75 tags upgrade
WebAccess Software License, 1,500 tags upgrade

Options*
ƒƒ WA-P71-DCTRLE
ƒƒ WA-P71-SSCHLE
ƒƒ WA-P71-AMGNTE
ƒƒ WA-P71-DB50HE
ƒƒ WA-P71-DB64KE

WebAccess Professional Option: Demand Control
WebAccess Professional Option: School Scheduler
WebAccess Professional Option: Alarm Management
system
WebAccess Professional Option: RTDB 5,000
tags
tags

* Original serial number from WebAccess Professional version is required to purchase
WebAccess upgrade or options. The serial number can be found on the USB dongle.

ƒƒ WA-TPC1771-C600E
ƒƒ WA-TPC1771-C50HE
ƒƒ WA-TPC1771-E600E
ƒƒ WA-TPC1771-E50HE
ƒƒ WA-UNO2178-C600E
ƒƒ WA-UNO2178-C50HE
ƒƒ WA-UNO2178-E600E
ƒƒ WA-UNO2178-E50HE

17" Touch Panel Computer, WebAccess with 600 tags:
Simplified Chinese Edition
17" Touch Panel Computer, WebAccess with 5,000
tags: Simplified Chinese Edition
English Edition
tags: English Edition
Automation Computer, WebAccess with 600 tags:
Automation Computer, WebAccess with 5,000 tags:
English Edition

Minimum Requirements
ƒƒ Operating System
ƒƒ Hardware

ƒƒ Display Resolution
ƒƒ USB Port

Machine Automation

Energy Automation

Building Automation
Systems

Upgrade*

Others
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

WebAccess V7.1 Professional Software with 75 tags
WebAccess V7.1 Professional Software with 1,500 tags

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Windows XP, Windows 7, Windows 8 Professional,
Windows Server 2003 or later
Celeron or Athlon. Dual Core processors or higher
recommended.
1GB minimum; more recommended
30GB or more disk space
1024 x 768 or higher (recommended)
Lower resolutions also supported
USB port for License Hardkey on SCADA node


Automation Software

Operator Panels


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

1-7

Advantech WebAccess Options Demand Control
Real-Time Database

Demand Control

Real-Time Database

Features

Features

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Monitor power consumptions and project demand in next demand interval
S
hed the load if consumption approaches warning level
R
elease the load when the demand is satisfied
T
wo operating modes: Control and monitor only modes
6
Priority levels for shedding load group
S
upports minimum release time, minimum shed time and maximum shed time
S
liding Windows algorithm for projection

Super fast data access and storage
Supports redundancy for WebAccess
Fully integrated with WebAccess
Built-in with WebAccess, no extra installation required
Archive and delete obsolete data with automatic maintenance schedules
API for 3rd party programs to Read/ Write/ Modify

Introduction

Introduction

The Advantech WebAccess Demand Control feature helps users save money by limiting
the energy usage when the system's demand approaches a predefined warning level.
The WebAccess Demand Control System continuously monitors the system's power
consumption and projects the demand for the next demand interval. If the projected
demand approaches a predefined limit, usually the peak contract demand, the system
selectively turns off equipment like lights and fans, adjusts analog setpoint to reduce
the power consumption or prompts a text message to remind the user to save energy.

The Advantech WebAccess Real-Time Database (RTDB) feature allows WebAccess to
store and retrieve a large amount of data in real-time.

Feature Details

Unlike generic relational databases, WebAccess RTDB is designed to meet industrial high
speed and large quantity data access requirements.

Control Mode and Monitor Only Mode
In "Control Mode", the DC program sheds/reloads the load to manage the energy
consumption. "Monitor Only" mode evaluates the power consumption and simulates
the shed operation, but it does not send the control signal to the devices. Monitor mode
allows users to test and verify their system.

Define up to 99 Control Groups
In WebAccess Demand Control, users can define up to 99 control groups. In each group,
users can define control strategy to limit peak energy usage.

Release and Shed the Load
By monitoring total energy consumption readings from meters using a sliding-window
algorithm the DC program sheds loads as needed to ensure the projected demand does
not exceed a specified tariff target. The shedding process is based on user-defined
prioritized load groups.

Minimum Release Time
Minimum shed time and maximum shed time are applied to decide the shed and
procedure release.

System Requirements
ƒƒ OS

Microsoft® Windows® XP, XP Embedded, Windows 7,
Windows 7 Embedded, Windows 8 Desktop Mode, or
Windows CE
ƒƒ Software Requirements WebAccess V7.1 Professional

ƒƒ WA-P71-DCTRLE

1-8

WebAccess Professional Option Demand Control


Feature Details
High Speed and Large Quantity Data Access

Fully Integrated with WebAccess
With the fully integrated design, users do not need to learn how to operate the database.
Just by enabling the usage of RTDB in WebAccess configuration page, WebAccess SCADA
node can then take advantage of this high performance data base. Data from sensors,
I/O devices, and RTU or PLC registers are collected by WebAccess and stored to RTDB
in very high speed while other users can view or retrieve those data in WebAccess View
simultaneously.

Support Redundancy for WebAccess
With special data compression and access algorithms, WebAccess RTDB can serve data
at a rate of millions of records per second. WebAccess database maintenance features
automatically archive and delete obsolete data.

System Requirements
ƒƒ OS

Windows CE

ƒƒ WA-P71-DB50HE
ƒƒ WA-P71-DB64KE

WebAccess Professional Option RTDB 5,000
WebAccess Professional Option RTDB 64,000

Advantech WebAccess Options Alarm Management System
School Scheduler

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Alarm Management System

School Scheduler

Features

Features

ƒƒ Advanced alarm notification management

ƒƒ Set the Setpoints to control lights and equipments

ƒƒ Prioritized audio announcement

ƒƒ Classroom Time Periods of the day

ƒƒ Notification group by schedule

ƒƒ Holiday Schedules

ƒƒ Link multiple receiver group to alarm group

ƒƒ Reservation function to set the equipment

Operator Panels


Industrial Panel

Introduction

Introduction

Industrial Monitors

WebAccess advanced Alarm Management System (AMS) delivers alarm messages via
SMS, email or audio announcement to multiple receivers by predefined alarm group, user
group, time schedule and priority setting.

WebAccess School Scheduler provides on/off control and setpoint changes based on
time-of-day, day of week and the calendar. Users can control lights, temperature and
equipment for saving energy during school days. WebAccess School Scheduler allows
the definition of up to 17 periods per day and preserved function for setpoint.

Industrial Wireless
Solutions

Feature Details

Feature Details

Advanced Alarm Notification Management
In WebAccess Advanced AMS, the system administrator creates, defines, and groups
alarms by their characteristics. The administrator also defines users and specifies
notification methods, SMS or email information. Users are grouped into work group by
time schedule and associated with alarm groups.

"On/Off" and Setpoint Changes
The "On/Off" can schedule different periods to set the Setpoint, and the Setpoint will
follow the schedule setting for saving energy. The "On/Off" also has values specified for
each Tag to schedule the Setpoint.

Create Notification Group by Schedule

Flexible Periods of the day

When any tag goes into alarm state, AMS finds out the alarm group it belongs to and the
work group corresponding to shift schedule it associates with and notify users, whose
priority is lower than the alarm’s priority, in the work group with predefined SMS or Email.

The Time specifies the Start Time and Stop Time for each period of the day, up to 17
periods, 16 default periods and one undefined period. Users can follow the school time
schedule to set the Setpoint. WebAccess School Scheduler also has reserved function
to reserve schedule for Setpoint.

Prioritized Audio Announcement
It also checks the alarm with the highest priority, repeatedly plays audio announcement
until it is acknowledged.

System Requirements

Holiday Schedule

ƒƒ WA-P71-AMGNTE

WebAccess Professional Option Alarm management
system

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Holiday schedule is defined to handle exceptions to the 7 days per week schedule. The
Holiday is any unusual event or series of events. The Holiday Schedule can be defined,
redefined and assigned at any time, but usually is defined first to allow easy assignment
to the Time Schedules as the "exception" to the schedule.

ƒƒ OS

Windows CE

Industrial Ethernet
Solutions

System Requirements
ƒƒ OS

Windows CE

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

ƒƒ WA-P71-SSCHLE

WebAccess Professional Option School Scheduler


1-9

WA-TPC1771

17" Touch Panel Computer with
600/5,000 Tags WebAccess

Features

NEW

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Bundled with Advantech WebAccess, browser based HMI/SCADA software
Intel® Atom™ D525 1.8 GHz processor
17" SXGA TFT LED LCD
Compact design with die-cast Al front bezel
IP65 compliant front panel
PCIe and Mini PCIe expansion support
8 DI/O and backup SRAM support
Supports DDR3 SDRAM
Serial port isolation protection
Automatic data flow control RS-485
Gigabit Ethernet supported
Built-in Windows® 7 embedded
Supports external antenna for wireless communication

Introduction
Advantech WA-TPC1771 is a plug and play HMI/SCADA server. It is built on Advantech solid Touch Panel Computer platform with pre-installed WebAccess SCADA software and
pre-configured Windows 7 embedded and IIS environment. Just plug-in the power and network cable, the web enabled browser-based server is ready for user to start configuring
his SCADA system from his computer. This HMI/SCADA server enables users to view real-time graphics, alarms, trending and logs, and control the field devices locally with the
high quality 17” TFT LCD screen or via a web browser remotely on his desktop or notebook computer. The 1.8 GHz Intel® Atom™ D525 processor is the powerhouse of the server. It
provides excellent computing power and balanced with it low power consumption. The fan-less design and spindle-free storage make this SCADA server a durable and reliable platform.

WebAccess Version 7.1 Professional
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

I/O Tag Number
Internal Tag Number
Web Client
Alarm Logs
Action Logs
Graphics

600/5000
600/5000
1024
5000
5000
Unlimited Number of Graphic Pages,
Global Tag Source
ƒƒ Number of Data Logging Number of I/O Tags License x 2
ƒƒ Web-Enabled
Video and Google Maps
Integration
ƒƒ Others
SCADA Redundancy
TclScript / VBScript / Jscript Language
Data Transfer and Reporting
ODBC and SQL Query
Device Redundancy

Specifications

ƒƒ
ƒƒ
ƒƒ
ƒƒ

1-10

Operating System
BIOS
Certification
Cooling System
Enclosure
Mounting
Power Consumption
Power Input
Watchdog Timer

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

CPU
Chipset
Memory
LAN
Expansion Slots
Storage
I/O

Intel® Atom™ D525 1.8 GHz with 1MB cache
ICH8M
4GB SO-DIMM DDR3 SDRAM
10/100/1000Base-T x 2
Half-size PCI-E or full-size Mini PCI-E
2.5" SATA , 1TB 5400RPM
RS-232 x 2 (COM1, 2) with isolation
RS-422/485 x 1 (COM3) with isolation and auto data
flow control
USB 2.0 x 2 (Host)
PS/2 x 1
ƒƒ DI/DO & Backup SRAM 8 x DI/DO with isolation and backup 1MB SRAM

LCD Display
ƒƒ Display Type
ƒƒ Display Size
ƒƒ Max. Resolution

SXGA TFT LED LCD
17"
1280 x 1024

Touchscreen

General
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

System Hardware

Windows 7 Embedded
AMI 8Mbit
BSMI, CCC, CE, FCC Class A, UL
Fanless Design
Front bezel: Die-cast Aluminum alloy
Back housing: PC/ABS Resin
Desktop, Wall or Panel Mount
24 W (typical)
10~29 VDC
1 ~ 255 sec (system)


ƒƒ
ƒƒ
ƒƒ
ƒƒ

Lifespan
Light Transmission
Resolution
Type

36 million touches at single point
Above 75%
Linearity
5-wire, analog resistive

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity
10 ~ 95% RH @ 40°C, non-condensing
Ingress Protection
Front panel: NEMA4, IP65
Operating Temperature 0 ~ 50°C (32 ~ 122°F)
Storage Temperature -20 ~ 60°C (-4 ~ 140°F)
Vibration Protection
With HDD: 1 Grms (5 ~ 500 Hz)
(Operating, random vibration)

WA-TPC1771
Dimensions

Unit: mm
1.85 Max.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

414 ±0.50
340

10.5

399.20

84±1.50 25REF
7

Energy Automation

Building Automation
Systems

Max.
1.50
2.50

332.70

Ø3.30

1.3

30
90
210

272.50
347.50 ±0.50

1.3 1.2

8-M4x4L

4.5

1.3

Automation Software

1.1

240


7 TYP

120

Operator Panels

Industrial Panel

Panel Cut-out Dimensions: 400.8±1 x 334.3 ±1mm (16.03" x 13.37")

Industrial Monitors

ƒƒ WA-TPC1771-T600E
ƒƒ WA-TPC1771-T50HE

Rear View

17" Touch Panel Computer, 600 tags WebAccess with
Traditional Chinese
17" Touch Panel Computer, 5,000 tags WebAccess with
Traditional Chinese
Simplified Chinese
Simplified Chinese
English
English

Accessories
ƒƒ TPC-1000H-WMKE
TPC series wallmount kit from 10" to 17"
ƒƒ TPC-1000H-SMKE
TPC series stand kit from 10" to 17"
ƒƒ 1757003463
100-240VAC to 19VDC 90W Power Adapter
ƒƒ 1700001524
Power Cord 3P UL 10A 125V 1.8M
ƒƒ 1702002605
Power cable EU Plug 1.8M
ƒƒ 1702031801
Power cable UK Plug 1.8M
ƒƒ 1702031836
Power cable China/Australia Plug 1.8M
ƒƒ EWM-W139F01E
802.11 b/g/n, RT5390, 1T1R, Full-size Mini-PCIe
ƒƒ PWR-247-AE
50W DC 24V/2.3A Output Power Supply
ƒƒ 1750000318
EMI Antenna 2DBI 2.4GHz SMA CONN for ARK-3384
ƒƒ 1750003222
802.11b/g 5dBi Dipole Antenna
ƒƒ 1750003418
Wireless Antenna AN2400-5901RS R/P SMA.M9dB
* VESA support via a wall mounting kit

j

Industrial Wireless
Solutions

i
h

a

Industrial Ethernet
Solutions

and IP Gateways

b

c

d e f g

a. PCI-E slot
b. COM (RS-422/485)
c. COM (RS-232)
d. LAN (10/100/1000)
e. USB 2.0

f. PS/2
g. Power Receptor
h. DI/O ports
i. CompactFlash
j. Mini PCI-E slot

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


1-11

WA-UNO2178

Intel® Atom™ D510 Compact SCADA
Server with 600/5,000 Tags WebAccess
Features

NEW

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Bundled with Advantech WebAccess, browser based HMI/SCADA software
Onboard Intel Atom D510 processors
2 x 10/100/1000Base-T RJ-45 ports, 6 x USB 2.0 ports
Built-in Windows® 7 Embedded
Onboard system status LED indicators
Front-accessible CF slot
Supports Boot from LAN function
2 x Mini PCIe slots with 1 x SIM slot support
Fanless design with no internal cabling
Isolation between chassis and power ground
Supports wide operating temperatures from - 10 ~ 70°C
IP40 ingress protection
Supports plug-in cards (1 x PCI-104 and 1 x PC/104+) with additional
daughterboard expansion
ƒƒ Supports 8 x COM ports
ƒƒ Supports arbitrary baud rates

Introduction
Advantech WA-UNO2178 is a plug and play compact SCADA server. It is built on Advantech solid UNO platform with pre-installed WebAccess SCADA software and pre-configured
Windows 7 Embedded and IIS environment. Just plug in the power and network cable, the web enabled browser-based server is ready for user to start configuring his SCADA system
from his computer. This compact server enables users to view real-time graphics, alarms, trending and logs, and control the field devices via a web browser remotely on his desktop
or notebook computer. This compact SCADA server is powered by 1.66 GHz Intel® Atom™ D510 processor. It provides excellent computing power and balanced with Energy Star
certified low power consumption. It also equipped with dual Gigabit LAN ports, 6 USB 2.0 ports and 2 mini PCIe slots for WLAN cards and 1 SIM card slot. The fan-less design,
spindle-free storage, wide operating temperature environment and IP40 ingress protection make this SCADA server a durable and reliable platform.

WebAccess Version 7.1 Professional
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

I/O Tag Number
Internal Tag Number
Web Client
Alarm Logs
Action Logs
Graphics

600/5000
600/5000
1024
5000
5000
Unlimited Number of Graphic Pages,
Global Tag Source
ƒƒ Number of data logging Number of I/O Tags License x 2
ƒƒ Integration
ƒƒ Others
SCADA Redundancy
TclScript / VBScript / Jscript Language
Data Transfer and Reporting
ODBC and SQL Query
Device Redundancy

Specifications
General
ƒƒ Certification
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

1-12

Windows 7 Embedded
Energy Star, CE, FCC Class A, UL, CCC,
C-Tick Class A, BSMI
Dimensions (W x D x H) 255 x 152 x 59 mm (10" x 6.0" x 2.3")
Enclosure
Aluminum +SECC
Mounting
DIN-rail, Wallmount, VESA
Industrial Grounding Isolation between chassis and power ground
Power Consumption
16 W (Typical)
Power Requirements 9 ~ 36 VDC (e.g +24 V @ 1.5 A) (Min. 36 W), ATX
System Design


System Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

CPU
Memory
Indicators
Keyboard/Mouse
Storage
Display

ƒƒ Watchdog Timer

Intel Atom D510 Dual Core 1.66 GHz
2 GB DDR2 SDRAM built-in
LEDs for Power, CF, LAN (Active, Status), Serial (Tx, Rx)
1 x PS/2
2.5" SATA , 1TB 5400RPM
DB15 VGA connector
up to 2048 x 1536
1~255 sec (System)

I/O Interface
ƒƒ Serial Ports

ƒƒ LAN
ƒƒ USB Ports

2 x RS-232/485 (COM1-2),
2 x RS-232/422/485 w/ 128kB FIFO (COM A-B),
4 x RS-232/485 from DB25 print port (COM3-6)
2 x 10/100/1000Base-T RJ-45 ports (Built-in boot
ROM in flash BIOS)
6 x USB 2.0

ƒƒ WA-UNO2178-T600E
ƒƒ WA-UNO2178-T50HE

Automation Computer, 600 tags WebAccess with
Traditional Chinese
Automation Computer, 5,000 tags WebAccess with
Traditional Chinese
Simplified Chinese
Simplified Chinese
English
English

Motion Control

2

Motion Control Overview

2-2

SoftMotion Introduction

2-5

Common Motion API Introduction

2-12

Centralized Motion Control Solution Selection Guide

2-13

Distributed Motion Control Solution Selection Guide

2-14

Centralized Motion Control Solutions
PEC-3240

Intel® Celeron® M 1.0 GHz 4-axis Embedded Motion Controller with 32-ch
Digital I/O

2-15

PCI-1245
PCI-1265

DSP-based 4/6-axis Stepping and Servo Motor Control Universal PCI Card

2-16

PCI-1245E
PCI-1285E

Economic DSP-based 4/8-axis Stepping and Servo Motor Control
Universal PCI Card

2-17

PCI-1220U
PCI-1240U
PCM-3240

2-axis Stepping and Servo Motor Control Universal PCI Card
4-axis Stepping and Servo Motor Control Universal PCI Card
4-axis Stepping and Servo Motor Control PC/104 Card

2-18

PCI-1243U

4-axis Stepping Motor Control Universal PCI Card

2-19

Distributed Motion Control Solutions
PCI-1202U
PCM-3202P

2-port AMONet RS-485 PC/104+ Master Card

2-20

AMAX-1220
AMAX-1240

Open Frame Type 2/ 4-axis AMONet Motion Slave Modules

2-21

AMAX-1752
AMAX-1754
AMAX-1756

Open Frame Type 32-ch Isolated Digital Input/Output Slave Modules

2-22

AMAX-2240 Series

4-axis AMONet Motion Slave Modules

2-23

AMAX-2750SY Series

32-ch Isolated Digital Input/Output Slave Modules

2-24

DIN-rail Terminal Boards

2-25

Accessories
Accessories
Cable Accessory

To view all of Advantech’s Motion Control Solutions, please visit www.advantech.com/products.

2-26

Application-Oriented Motion Control Platforms to Fulfill a Variety of Control
Requirements
Looking back over the past decades of PC-based motion control, ASIC-based & distributed control topologies through proprietary bus are quite common. However, the new emerging
market for machine control comes with multiple-axis dependency, synchronization, and improved response times. These factors drive the paradigm shift from ASIC-based to SoftMotionbased and have more flexibility in design through suitable trajectories aligned with machines to meet the faster throughput, high performance and precision, and real-time Ethernet to
give system integrators and machine builders help find the suitable solutions and reduce costs. Combining SoftMotion-based & Ethernet, this paradigm shift helps improve flexible
trajectories, wiring-saving, and faster response times compared with past centralized topologies and reduce system implementation complexity.
Moreover, each quadrant of technology in the following diagram could be integrated into PC-based barebones to provide application-ready motion control platforms with off-the-shelf
utilities and bountiful libraries for vertical market applications. For example, Advantech’s PEC-3240 is a dispensing-oriented controller for the electronic industries.

Application-ready Motion Control Platform Related Technology Chart
ASIC-based Motion Control

Features and Benefits of Common Motion APIs

Since the 1990’s, Advantech has been developing several motion control boards with
ASIC-based technology. Based on the ASIC kernel, the boards are digital signal type and
connected with servo drivers and motors to build a system. The pulse train speed and
resolution will determine the control precision and response. Advantech’s motion control
team implemented application-ready libraries to fulfill the different machines in industry.
The ASIC-based series boards are for GMC (General Motion Control) purposes to provide
faster time-to-market with robust and cost-effective market adopters.

Most machine builders and system integrators face library integration headaches from
different vendors and different boards. Moreover, re-programming applications are
necessary when the motion control boards are changed or upgraded. Advantech’s motion
control team delivered the common motion API concept and developed the common
motion library is to reduce time-consuming on this task and give faster time-to-market
if any upgrading request exists. The common motion API concept is applied to all of
Advantech’s motion controllers.

Distributed Motion Control

Application-Ready Motion Control Platform

As industrial Ethernet technology moves forward to increase response times and accurate
time-deterministic precision, using real-time Ethernet is the future trend and benefits many
machine builders with open standards. Distributed motion control can significantly reduce
wiring efforts and cost in significant ways. In the past, fieldbus control was proprietary
and had lower response times. Machine builders only have limited options in the market.
However, open standard real-time Ethernet is the next generation. This technology will be
also applied to a variety of Advantech platforms to offer application-ready motion control
platforms with real-time Ethernet technology.

In any vertical specific application, machine builders and system integrators are looking
for application-ready control platforms. The main reasons for this consideration are system
integrity and system stability. Compared with plug-in motion controllers plus industrial
PCs, the application-ready motion control platform provides a well-designed system with
validation to guarantee stability. Furthermore, this concept can bring higher add-on value
to system integrators and machine builders.

SoftMotion-based Motion Control
In order to meet increasingly demands for complexity of trajectories, such as Gantry
control & synchronization, and voltage signals for speed/torque control, Advantech’s
motion control team developed SoftMotion-based motion controllers and provides
application-oriented & customization services. The SoftMotion technology is a control
kernel executed by software which can run in DSP-based, RISC-based and X86-based
CPUs with real-time extension. This technology gives flexibility in system implementation
and the possibility to integrate third party real-time I/O control boards.

2-2

Motion Control

Complete Application-Ready
Platforms for General Motion Control
Tasks
Advantech offers application-ready platforms that range from industrial workstations
and industrial-grade CPUs, to motion control, encoder input and isolated I/O cards
for general motion control (GMC) applications such as SMT/PCB, semiconductor and
LCD manufacturing machinery. Advantech provides a full-range of industrial computing
platforms that include high-brightness LCD displays, keypads, up to 20-slot backplanes
and redundant power supplies for machine builders.
Nowadays general motion applications are divided into two functions - centralized and
distributed motion control solutions. For centralized motion control, ASIC-based motion
controllers are entry level that allow customers to easily build their own motion machines.
As complicated and high performance applications are increasing, Advantech has recently
developed SoftMotion control modules which are DSP-based to help customers do
more tasks that ASIC-based motion modules can't do, such as gantry control, trajectory
planning, electrical-CAM and so on. Furthermore, in order to enhance performance
and stability, customized firmware in SoftMotion will be possible and can add secure
protection for authorization. Advantech provides 2, 4, and 6 axis motion modules to fulfill
the different motion applications.

AMONet - Advantech Distributed
Motion Control Solutions
Motion control is growing in complexity as the number of axes in newly developed
machines with motion control increases each year. Distance is also becoming an issue, as
motors are located further and further away from the host computer. AMONet (Advantech
Motion Network) was engineered to tackle the problems of increasing spending on
wiring and maintenance of these complex motion control systems, and it also gets rid
of distance limitations.
The first series of distributed motion control products from Advantech are called the
AMONet RS-485 Series. AMONet RS-485 products are categorized as Master cards or
Slave modules. While the Master card is kept in the host PC, the slave modules can be
distributed so that they are next to motor drivers on the factory floor. The communication
speed between the AMONet RS-485 slave modules can be up to 20 Mbps. This makes
it possible to scan 2048 I/O points within 1.04 ms (or 1024 I/O points in 0.56 ms).
Furthermore, an AMONet RS-485 master will update the I/O status automatically, and
map data into local memory. Software running on the host PC can then read the status
by simply reading the onboard memory, so no polling of slave modules is necessary.
Each port of a master card can control up to 2048 I/O connections or 256 motion axes,
so future extensions are easily implemented. The distance between a master card and its
slave modules can be up to 100 meters, and this distance is covered with a cost-effective
Cat 5 network cable. In addition to saving wiring costs, debugging and maintenance are
also simplified.
Another advantage of AMONet RS-485 is its compatibility with motor drivers from different
vendors. Advantech provides specially designed wiring boards for popular motion drivers
from vendors such as Panasonic, Mitsubishi and Yaskawa. This makes configuration
easier, as pin-to-pin cables can be used. Having a selection of motor vendors can also
be an advantage when sourcing of a certain motor is difficult.
Motion control and I/O functions with AMONet RS-485 use the same library. This unique
feature saves time, as programmers do not need to study both a motion library and an I/O
library. You can also connect to a manual pulse generator directly to adjust and calibrate
the system without having to write programs first.
AMONet makes machine building with motion control easier. The savings made on wiring
and programming effort, as well as the compatibility with a wide range of popular motors
have already led to many requests for AMONet products.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Wire-Saving/Long-Distance

Embedded Automation
Computers

System Architecture

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


2-3

A Broad Array of Products for Centralized Motion Control
Advantech’s full product offering can accommodate all your motion control needs. You can choose from 2-axis and 4-axis controllers, pulse-output or voltage-output, ISA-bus-based
or PCI-bus-based, and standard PC-based or embedded in a system. The functions of the motion cards also vary, from high-end 3-axis circular interpolation cards to low-cost
point-to-point motion devices. And if you cannot find a controller to meet your exact requirements for an embedded motion controller, Advantech is ready to build cost-effective
controllers to meet your criteria, whether it be adding digital I/O channels or changing connector styles, or perhaps changing CPU grade. With all the inherent costs, time and risks
involved, there’s no reason why you should design your own controller when you can instead rely on the expertise, cost-efficiency, experience and proven reliability of Advantech.

The Differences Between Centralized & Distributed Motion Control
Machine control system architectures generally fall into two categories - centralized or distributed. In a centralized system, all control loops including logic, trajectory generation,
and PID control, are executed on a single processor. In a distributed system, the trajectory generation and logic control executes in the central processor, but the PID control loop is
executed in the intelligent slave module. A distributed approach gives moreprocessing power, while it reduces overall wiring cost and system complexity.
The Distributed Motion Control Products are categorized in two groups - Master Cards and Slave Modules. Communication between master and slave is based on a custom-engineered
technology based on RS-485, which saves wires, transmits over long distances at high speeds, and has time-deterministic features.
The communication interface between master and host PC is based on memory mapping. Various functions can be chosen on the slave modules, and the industrial DIN-rail mountable
design makes it easy to distribute them in the field. The master card collects information from slave modules and publishes the data to its host PC, and vice versa.

Centralized Motion Control

Master Card

Slave Module

Slave Module

Slave Module

Slave Module

Motion Control Cards
Sensors and
Actuators

Sensors and
Actuators

Sensors and
Actuators

Sensors and
Actuators

Sensors and Actuators




SoftMotion-based Motion Control
Advantech develops DSP-based SoftMotion control cards which enable the simplified
utilization of complex motion manipulation involving JOG, PTP, linear and circular
interpolation, multiple axes synchronized motion, and etc. For highly flexible programming
features, it has the possibility to offer motion kernel customization. For high performance
FPGA, high execution rate DSP, and Dual-Port RAM (DPM) technology, SoftMotion
control cards can support faster encoding speeds, higher speed position comparison, and
trigger pulse outputs over cards which use ASIC motion IC. SoftMotion controllers can
provide programmable acceleration and deceleration to eliminate jerk and smooth velocity
profile. For each axis, individual unlimited point tables can realize seamless continuous
movements. These tables are also able to combine linear and arc segments. Based on
the Common motion API—DSP & FPGA architectures, Advantech provides customers
much easier programming environment and robust motion control.

Application-Ready Motion Control Platforms - PEC Series
Advantech provides embedded motion control platforms for embedded motion applications. PEC series is 1/8 the size compared with standard industrial computers, even with built-in
motion control and digital I/O, Analog input functionalities, greatly saving space and development time. Fanless, no internal cables, and diskless mechanisms allow PEC series to
operate under -10 ~ 65°C (14 ~149°F) without any heat issues. Due to its PC-based computing architecture integrated with motion control and digital I/O, PEC series can handle a wide
range of devices under test (DUT), such as touch panel profiles very quickly, greatly reducing development time. Its small size allows it to fit into space-constrained applications and its
anti-vibration capabilities allow PEC series to withstand vibration and noise interference during verification processes. To meet different demands for industrial automation, PEC series
provides a variety of motion control functions, such as 2/3-axis linear, 2-axis circular interpolation, continuous interpolation, T/S-curve speed profile and software limits. PEC series
features USB ports, COM (RS-232) ports, 10/100 Base-T LAN ports, and CompactFlash slots. These interfaces provide the capability to easily expand peripheral devices and modules.

Compact Size

2-4

Robust Design

Motion Control

Advanced Motion Control

Rich Interfaces

Advantech’s SoftMotion Introduction
SoftMotion is Advantech’s important core technology in the equipment automation field. Compared to ASIC motion control solutions, Advantech’s Machine Automation Team
independently developed its own SoftMotion control technology and uses the FPGA (Field Programmable Gate Array) and DSP (Digital Signal Processing) as the core-computing
hardware platform. Because of SoftMotion, which is developed into the software architecture, excludes the inherent limitations of ASIC specifications Advantech is able to offer the
expertise of professional motion control for our customers and provides custom firmware to optimize customer’s devices control as well as to minimize their needs for programming.
Through SoftMotion technology enhancements, Advantech offers critical technologies in EMA (Electronic Machine Automation) and TMA (Traditional Machine Automation) fields.
Meanwhile, based on the three motion control architectures (centralized, distributed and embedded), Advantech’s comprehensive product offering helps our customers to continuously
progress their technologies, so as to create a win-win opportunity.
Supporting Advantech’s PCI-1245/1265/1245E series, SoftMotion’s features are described below:

JOG Move

Handwheel Move

Manually control the axis to directly move within a fixed (predefined)
amount of position or continuously in the +/- direction along all axes
via external signals; with this feature, users can manually control
the movement while reducing CPU loading without consuming
system resource.

Use a handwheel to control a motor to rotate positively or negatively;
also, users can define parameters for or use external handwheels to
control axial movement.

no effective

for CW
A

EXOP+

n pulse

n pulse

for CCW
A
B

nP-

no effective
n pulse

n pulse

CCW out

Programmable Acceleration and Deceleration

Users can issue commands to configure movement profiles (initial
speed, acceleration, deceleration, maximum speed and acceleration
onset rate (or called jerk which is for S-–speed-curve movement))
and control a motor to move based on predefined speed curves such
as the trapezoidal curve or S-curve (second degree curve).

Programmable to define the rate of acceleration and deceleration
and configure acceleration curve profile (the initial speed, maximum
speed, acceleration, deceleration, Jerk) that best meets user needs.
Acceleration and deceleration rates can be set independently to
ensure the movement better & smooth!

Slow
Acceleration

Speed

Rapid
Deceleration

2/3
Time

Time

Symmetric S-Curve Acc
and Dec Profile

2

at

Asymmetric S-Curve Acc.
and Dec. Profile

V
P=100000

P=400000

P=50000

1

Manually dec.

Auto Dec.

Slow Dec.

Fast Acc.

Time

1/3

Initial Speed

1/3

Time

Embedded Automation
Computers

Homing
SoftMotion supports more than 10 homing modes to fit into the mechanical design.

ORG

-

STATUS2

ORG

EL/ORG

Off On Off

Off On Off

PACs

Compact PCI Systems

MODE2_Lmt: Limited to using EL only, movement (direction) à EL trigger à stop
Example: Positive direction; EL logic: trigger on high voltage level

+

Off On Off

STATUS1

Industrial Wireless
Solutions

Cards

1

Time

MODE1_Abs: Limited to using ORG only, movement (direction) à ORG trigger à stop
Example: Positive direction; ORG logic: trigger on a high voltage level

Industrial Monitors

and IP Gateways

2/3

p(t)

V
P=200000

Automation Software

Industrial Ethernet
Solutions

Asymmetric T-Curve Acc.
and Dec. Profile

Symmetric T-Curve Acc.
and Dec. Profile

Building Automation
Systems

Industrial Panel

n pulse

Trapezoidal & S-Curve Profile

V

Energy Automation


CW out

EXOP-

Machine Automation

Operator Panels

B

nP+

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


-

STATUS2

EL+

Off On Off

STATUS1

+

+

EL-

Off On Off

EL-

EL+

Off On Off

Off On Off


+

M2M I/O Modules

RS-485 I/O Modules

2-5

MODE3_Ref: Limited to using EZ only, movement (direction) à EZ trigger à stop
Example: Positive direction; EZ logic: trigger on high voltage level

MODE4_Abs_Ref: ORG + EZ, movement (direction) à ORG trigger à stop à movement (direction)

à EZ trigger à stop
Example: Positive direction; ORG logic: trigger on high voltage level; EZ logic: trigger on

high voltage level
-

-

EZ

+

EZ

STATUS1 Off On Off

ORG
Off On

STATUS1

Off On Off

-

ORG

EZ

+

EZ

STATUS2 Off On Off

STATUS2

STATUS3

-

-

EZ
Off On

STATUS2

ORG

-

Off

-

On

ORG
Off

EZ
Off On

STATUS3

+

STATUS1

STATUS2

EL-

ORG
Off

On

EL-

Off On

ORG
Off

On

STATUS3

EL-

Off On

ORG
Off

On

EL-

STATUS1

Off On

STATUS2

Off On

STATUS3

Off On

-

-

2-6

ORG
Off

EL-

On

-

On

Off

On

Off

On

ORG
Off

EL-

On

+

On

EL+
Off

Off

On

EL+

EZ

Motion Control

On
EL+

EZ

ORG
Off

Off On

+

EL+
Off

On Off

+

EL+
Off

EZ
Off On

On Off

EL+
Off

+

On Off

EL-

+

EL+

STATUS1 Off On

+

Off

Off

Off

On

EL-

On Off

STATUS1

STATUS2

Off On

STATUS3

Off On

-

+
Off

EL-

Off On

+
Off

Off

Off

On Off

MODE10_AbsSearch_NegRef: Search ORG+ negative EZ, movement (direction) à ORG search à
stop à movement (direction) à EZ trigger à stop
Example: Positive direction; ORG logic: trigger on high voltage level;

EL logic: trigger on high voltage level; EZ logic: trigger on high

voltage level

+
Off

+

EL+

STATUS2 Off On

On Off

EZ
Off

+

EZ

+

MODE9_AbsSearch_Ref: Search ORG+EZ only, movement (direction) à ORG search à stop
movement (direction) à EZ trigger à stop
Example: Positive direction; ORG logic: trigger on high voltage level;

EL logic: trigger on high voltage level
-

On Off

On Off

EL+
Off

Off

MODE8_LmtSearch : Limited to searching EL only, movement (direction) à EZ search à stop

-

+

EZ

On Off

EZ

STATUS3

On Off

EL+
Off

Off On

-

+

EL+
Off

On

On Off

Off

EZ

STATUS2

On Off

On

ORG
Off

-

MODE7_AbsSearch: limited to searching ORG only, movement (direction) à ORG à stop

EL logic: trigger on high voltage level

Off On

EZ

STATUS1

On Off

ORG
Off

ORG
Off

-

On Off

Off

MODE6_Lmt_Ref: EL + negative EZ, movement (direction) à EL trigger à stop à movement
(negative direction) à EZ trigger à stop
Example: Positive direction; EL logic: trigger on high voltage level; EZ logic: trigger on high

voltage level

+

ORG
Off

EZ

Off On

Off On

Off On Off

MODE5_Abs_NegRef: ORG + negative EZ, movement (direction) à ORG trigger à stop à

movement (negative direction) à EZ trigger à stop
Example: Positive direction; ORG logic: trigger on high voltage level; EZ logic: trigger

on high voltage level

STATUS1

Off On

+

EZ

-

On

Off

On

Off

On

EL-

Off

On

Off

Off

On

Off

Off

On

On

EL+

ORG

EZ

On

EL+

ORG

EZ

EL-

EL+

ORG

EZ
Off

Off

On

+
Off

+
Off

+
Off

MODE11_LmtSearch_Ref: Search EL+ negative EZ, movement (direction) à EL search à stop à
movement (negative direction) àEZ trigger à stop
Example: Positive direction; EL logic: trigger on high voltage level;

EZ logic: trigger on high voltage level

STATUS1

EL-

EZ

Off On

Off

On

+

EL+
Off

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

On Off

Energy Automation

STATUS2

EL-

EZ

Off On

Off

On

+

EL+
Off

On Off

Building Automation
Systems

Automation Software

Helical / Spiral Interpolation
Helical / spiral movement by interpolation defined by

Operator Panels

(1) center position
(2) terminal point on the circular route or points along the circular route


(3) terminal point on the circular route and Z axis movement.
To perform interpolation up to 2+1 axes for helical / spiral movement.
3-axis spiral interpolation (Center point specification/
CW direction/Z-axis movement)
Z axis

3-axis spiral interpolation (Center point specification/
CCW direction/Z-axis movement)

3-axis spiral interpolation (Pass point specification/
Z-axis movement)
Z axis

Z axis

The center
position can be
specified

Industrial Monitors
The center
position can be
specified

Y axis
X axis

Y axis

X axis
The interpolation speed is the tangential
velocity of arc

Y axis
X axis
The pass point on an arc can be specified

velocity of arc

velocity of arc

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

Multi-axis (Group) Motion
• Group settings: up to 3 group settings

Industrial Panel

• Linear interpolation: up to 6 axes

• Speed override is available

and IP Gateways

3-axis Linear Interpolation

Cards
3-axis linear interpolation
(Composite speed specification)

Z axis

Z axis

The composite speed
can be specified

The axis speed for
the axis to be a long
axis can be
specified

Y axis
X axis

Y axis
X axis

PACs

Compact PCI Systems

2-axis Linear Interpolation
Y axis

Embedded Automation
Computers

The composite speed
can be specified

X axis

(Long axis speed specification)
Y axis
The axis speed
for the axis to be
a long axis can
be specified.

M2M I/O Modules

RS-485 I/O Modules

X axis


2-7

2-axis Circular Interpolation
(Center point specification/CW direction)

(Pass point point specification)

(Center point specification/CCW direction)

Y axis

Y axis

The center position can be specified

Y axis

The pass point on a
arc can be specified

The center
position can
be specified
X axis

X axis

X axis

Backlash Compensation

Superimposed Move

In order to enhance ball screw repeatability precision, special
algorithms and commands can be adopted to eliminate these errors
and offset their inherited weakness in mechanism design.

Change the current state of motion by superimposing new commands
onto existing movement. E.g. the expected position and speed are
5,000 and 300. The state of motion is changed by superimposing
position 1,000 and speed 100.

The drection of last
calibration move was positive.

(+)

Point to point movement 5000
Superimposed movement 1000

Drive Gear

Driven Gear

Negative
backlash
distarice
(-)

Motion

Positive
backlash
distarice
is zero

Velocity

The drection of last
calibration move was negative.

400
300
200

Drive Gear

100

t

0

Distance
Driven Gear
Negative
backlash
distarice
is zero

6000
5000

Positive
backlash
distarice

t

0

Tangential Following

Position Window Output

The knife control of cutting machine is typical application. For Z
axis movement, a motor follows the X-Y movement and curve.
As shown below, the tangential direction of the circular movement
for the Z axis on this X-Y dimension will be adjusted instantly to
ensure that the radius between its movement and the circular trace
stays at 90 degrees.

The digital output voltage level within a certain position window can
be controlled by using commands.

Y
active
nactive
Lower switching
point

Upper switching
point

Lower switching
point

Upper switching
point

Position

active
nactive

X

2-8

Motion Control

Position

Position / Velocity Override

Simultaneously Start/Stop

Under certain conditions, users can use commands to set up and
change the position of a terminal point and movement speed to fulfill
certain purposes. The terminal points and movement speed can still
be changed on the fly.

Simultaneously start/stop can be achieved by issuing commands
to configure settings to trigger multiple axes and multiple cards
from external signal sources. Software control via commands is
also supported.
Trigger

DI(STA)

Position / Velocity Override

Time

X

Velocity

Position

V

Y

V

Time
Z

Building Automation
Systems

Time
U

Change Velocity
on the Fly

Time
V

Time

Automation Software
Time

Time

Machine Automation

Energy Automation
Time

Change Position
on the Fly

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


W
Time

Operator Panels

Trigger Function
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Single compare & trigger: trigger on a single position.
Table compare & trigger: multi position triggers during fixed intervals or variable intervals can be achieved via commands.
Linear compare & trigger: triggers on any position within 2D or 3D space can be achieved via commands.
Compare and toggle trigger: as shown in the bottom right figure, we can set to invert DO after triggers of a certain position – ex. high voltage level at the
first point after triggers for DO, low voltage level at the second point after triggers for DO, and high voltage level again at the third position and ends with a
low voltage level at the fourth point.

Single Compare & Trigger

Table Compare & Trigger


Industrial Panel

Industrial Monitors
Single compare

Px

Px

Industrial Wireless
Solutions

Time
programmble

DO Trigger

Time

Industrial Ethernet
Solutions

DO Trigger

and IP Gateways

Linear Compare & Trigger

Compare and Toggle Trigger

Cards

Y

Comparator Match
1

2

3

4

Pulse
X
DO Trigger

Embedded Automation
Computers

PACs

Toggle
Time

Compact PCI Systems

E-Gear
Multi-axial and absolutely synchronized controls can be achieved
through SoftMotion algorithms and parameter configurations. With
E-Gear, users can enforce configurations and controls over master
and slave gears through their relationship. This not only simplifies
the mechanism designs, but also saves mechanism space and
enforces absolute and synchronized controls.

E-Gear
G1:G2:G3:G4:G5 = X: Y: Z: U :V

M2M I/O Modules

G1
G5

RS-485 I/O Modules

G2

G3
G4


2-9

Velocity Motion

Multi-Axis Point to Point Motion

Via commands, users can control motors to operate continuously
under a defined speed.

Entering terminal points of axis with relative and absolute positions,
users can configure the motor to arrive at the final position
configured. With this feature, users can activate multi-axial control
and simultaneous start/stop on the same or different cards.

V

Simultaneous Start

Axis 0

Drive Speed

Axis 1
Axis 2
Axis 3

Position

t

E-Cam

100

500

Displacement

Displacement

The relationship of relative movement between master (shaft axis) and slave (follower axis) axes can be established from following tables and it can simulate
moves of the cam and provide multiple movement models based on the relationship.

0
-500
50

100

150

200

250

300 350
Degree

400

450

40
20
0

0

0.04
0.02
0
-0.02
-0.04

60

90

120

150

180
210
Degree

240

270

300

330

360

150

180
210
Degree

240

270

300

330

360

180
Degree

240

270

300

330

360

0
-1

50

100

150

200

250

300 350
Degree

400

450

0

500

0.04

30

60

90

120

0.01
Acc

0.02
0
-0.02
-0.04

0

-0.01
0

50

100

150

200

250

300 350 400
Degree

450

0

500

Path Table Motion

60

90

120

150

210

Y

X

Motion Control

30

Z

ƒƒ Supports up to 3 describing path table tables and each table
can be up to 10,000 points
ƒƒ Supports linear and circular interpolation commands
ƒƒ Supports start/stop motion list as descriptive commands for
movement control
ƒƒ Supports Pause/ Resume commands
ƒƒ Supports Auto Blending
ƒƒ Supports Z axis following movement

2-10

30

1

0

Acc

60

500

Velocity

Displacement

0

80

Look Ahead

Up to 3 Groups of Vectors Moving

By configuring customized parameter profiles (e.g. feed speed and
acceleration) users can use the forward looking preprocessing
module to enforce movement control and continuous small
segmented linear-wise trajectories processing procedures.

With SoftMotion algorithms designed to enhance DSP and FPGA
interaction, users can use the system to perform interpolated
movement: to simplify the design of machines for mechanism
designers.

Feed

With Look-Ahead Function

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation
F3

Building Automation
Systems

No delay
Without Look-Ahead
Function

Automation Software
F2

F1

Operator Panels
N10

N20

N30

40 50 60 70 80 90

Block sequence


Event Interrupt

Position Latch

Instantly notify users with event interruption alerts when specified
event occur. So, users can activate contingency procedures based
on event condition.

Record down the theoretical and actual motor positions when
corresponding sensors are triggered.

Industrial Panel

Industrial Monitors
10000 pulse
Vx

Create Thread

Error

Stop
PTP
C-Move
Alarm
.......

Event Trigger

Industrial Wireless
Solutions
Time

Latch

Industrial Ethernet
Solutions
Vy

and IP Gateways

Cards

Gantry Control
Ensure that the error deviation of absolute mutual parallel axes positions during active sessions remain within the predefined range via special algorithms to
achieve gantry controls.

Embedded Automation
Computers

PACs

X2

Axis Ready
Acm_Reset

Compact PCI Systems

Configuration (Option)
Acm_AxGearInAx/
Acm_AxGantryIn

Y

M2M I/O Modules

X1

Slave Axis:
Acm_AxStopDec
Acm_AxStopEmg

Slave Axis States:
Synchronous driving

N

Y
Master Axis
Single-Axis
Motion

RS-485 I/O Modules

Multi-Axes
Motion
N

Stop Gantry/E-Gear


2-11

Common Motion API
Introduction
Architecture and Features of Common Motion API
Advantech’s New Generation Motion Control Software
System integrators often encounter difficulties when an engineer may not be familiar with the different syntaxes during the integration of various motion control cards. And what
bother them the most is that when the system has to be upgraded, the problems often occur with rewriting the program as well as increasing the development time. To reduce these
difficulties, Advantech has introduced a unified interface - Common Motion API- which provides a single syntax and interface, regardless of the types of motion control card the
integrator chooses to use. The design can proceed under a single syntax interface to save development time and speed up the time to market. The ACM (Advantech Common Motion)
architecture defines a single interface which consists of three types of operation objects, including Device, Axis and Group and each object has its own Property, Method and State.

Features of Common Motion API
ƒƒ Provides complete debugging tool utility
- Hardware wiring testing
- Software functional testing
- Condition & status monitoring
ƒƒ Provides the dedicated APIs for different applications
ƒƒ Simplifies API calls process
ƒƒ Improves the integration
ƒƒ Supports scalable hardware
- Supports the existing hardware and future hardware development, such
as PCI-1245/1265
Through the above advantages and the lower learning threshold, integrators
can significantly reduce development time and follow-up maintenance work!

5 Compositions in Common Motion API
1. Easy-understanding Naming Rule
Property

Method

Event

ƒƒ FT_XXX: Feature Property

ƒƒ Acm_DevXXX(): Use ‘Device’ as a control unit

ƒƒ EVT_DevXXX

ƒƒ CFG_XXX: Configuration Property

ƒƒ Acm_AxXXX(): Use ‘Axis’ as a control unit

ƒƒ EVT_AxXXX

ƒƒ PAR_XXX: Parameter Property

ƒƒ Acm_GpXXX(): Use ‘Group’ as a control unit

ƒƒ EVT_GpXXX

3 Categories of Property

3 Categories of Method

3 Categories of Event

ƒƒ Feature Property

ƒƒ Use ‘Device’ as a control unit

ƒƒ EVT_DevXXX

ƒƒ Configuration Property

ƒƒ Use ‘Axis’ as a control unit

ƒƒ EVT_AxXXX

ƒƒ Parameter Property

ƒƒ Use ‘Group’ as a control unit

ƒƒ EVT_GpXXX

3. Clear Motion Control Unit

4. Simple Integer Type

5. Detailed Error Classification

ƒƒ Single-axis: Axis Object

ƒƒ U/I/F stands for different types of integers and the following
numbers stand for bits.

2. Object-oriented Interface

ƒƒ Multi-axis: Group Object
ƒƒ DI/O, AI/O: Device Object
Decice Disable
Acm_DevOpen()

Acm_DevClose()

Decice Object
Acm_AxOpen()

Acm_AxClose()

Axis Object
Acm_GpAddAxis()

Acm_GpRemAxis()

Group Object

2-12

Windows
Description
Data Type
U8
UCHAR
8-bit unsigned integer
U16
USHORT
U32
ULONG
U64
ULONGLONG 64-bit unsigned integer
I8
CHAR
8-bit signed integer
I16
SHORT
I32
INT
I64
LONGLONG 64-bit signed integer
F32
FLAOT
32-bit Floating point variable
F64
DOUBLE
64-bit Floating point variable
ƒƒ Example: U32 Acm_AxMoveRel (U32 AxisHandle, PF64
Distance)
New Type

Motion Control

No
1

Error Code
0

2

0x01000001
~0x01000fff

3

0x80000xxx

4

0x80001xxx

5

0x80002xxx

6

0x80003xxx

Classification Description
Success
Set up successfully
The parameter is
Warning
incorrect but do not
affect performance
Cannot execute
because the
Function Error
parameter is
incorrect
Cannot execute
Communication because of
Error
communication
errors
Cannot execute
Motion Error
because of motion
errors
Cannot execute
DAQ Error
because of data
acquisition errors

Centralized Motion Control
Solution Selection Guide
Centralized Motion Control Solutions

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


NEW

NEW

NEW

Machine Automation

Category
Bus

Advanced Functions

Axis

Model
Number of Axis
Linear Interpolation
2-axis Circle
Interpolation
Encoder Channels
Limit Switch Input
Channels
Home Input Channels
Emergency Stop
Input Channels
Slow Down Limit
Switches
General Purpose DI
Channels
Servo On Output
Channels
General Purpose DO
Channels
Analog Input
Channels
BoardID Switch
Position Compare
Event
Position Latch
Dimensions (mm)
Connector

Wiring Boards
Page

Motion Control
PCI

PC/104

Encoder
ISA
PCI-1245
PCI-1265
4/6


PCI

ISA

PCI-1285E

PCL-839+

PCI-1784U

PCL-833

8


3
-

-

-

PCM-3240

PCI-1220U

PCI-1240U

PCI-1243U

PCI-1245E

4


2


4


4
-

4








-

-





-

-

-

4

2

4

-

4

4/6

8

-

4

3

8

4

8

8

8

8/12

16

6

-

-

4

2

4

4

4

4/6

8

3

-

-

1

1

1

1

1

1

1

-

-

-

8

4

8

-

8

8/12

16

6

-

-

12

6

12

8

16

16/32

32

16

4

2

4

2

4

-

4

4/6

8

-

-

-

16

8

16

8

16

16/32

32

16

4

-

-

-

-

-

-

-/2

-

-

-

-















-



-







-

-





-

-

-

96 x 90

175 x 100

175 x 100

175 x 100

175 x 100

185 x 100

185 x 100

185 x 100

2 x 50-pin
IDC

50-pin SCSI

100-pin
SCSI

DB62

100-pin
SCSI

1 x DB37
2 x 20-pin

DB37

1 x DB25

ADAM3950
ADAM3952
2-18

ADAM3952
ADAM3955
2-18

ADAM3952
ADAM3955
2-18

ADAM3937

ADAM3925

online

online

ADAM3962
2-19

ADAM3952
ADAM3955
2-17



175 x 100
175 x 100
100-pin
SCSI
2 x 100-pin
50-pin SCSI
SCSI
20-pin IDC
ADAM3952
ADAMADAM3956
3955
2-16
2-17

ADAM3937
ADAM3920
online


Energy Automation

Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

Motion Axis

Model
CPU
Onboard RAM
Operating Systems
Number of Axis
2-axis Circle Interpolation
General Inputs
General Outputs
Analog Input Channel
Analog Output Channel
Isolated Digital Input Channel
Isolated Digital Output Channel
Isolated Counter Channel
Page

PEC-3240
Celeron M 1.0 GHz CPU
512 MB DDR SDRAM
Windows XP Embedded
4


12 (IN0 ~ 2 of each axis)
16 (OUT4 ~ 7 of each axis)
16
16
2-15


PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

2-13

Solution Selection Guide
AMONet Motion Master Cards

PCI-1202U
PCI

PCM-3202P
PC/104+

8

-

4

Advanced
Functions

Model
Bus
General Purpose DI
Channels
General Purpose DO
Channels
Remote Motion
Remote I/O
Dimensions (L x H)
Connectors
Digital I/O Slave Modules
Motion Slave Modules
Page

-





175 x 100 mm
96 x 90 mm
2 x RJ45
4 x 10-pin box header
AMAX-1752, AMAX-1754, AMAX-1756, AMAX-2752SY, AMAX-2754SY, AMAX-2756SY
AMAX-1220, AMAX-1240, AMAX-2241/PMA, AMAX-2242/J2S, AMAX-2243/YS2
2-20
2-20

AMONet Motion Slave Modules

AMAX-1220
2


2

AMAX-1240
4


4

AMAX-2241/PMA
4


4

4

8

8

8

8

2

4

4

4

4

1

1

1

1

1

4

Advanced
Functions

Model
Number of Axis
Axis
2-axis Circle Interpolation
Encoder Channels
Limit Switch Input
Channels
Home Input Channels
Emergency Stop Input
Channels
Slow Down Limit Switches
Servo On Output
Channels
BoardID Switch
Position Compare Event
Position Latch
Simultaneously Start/
Stop among Modules
Power Consumption
Dimensions (L x W x H)
Page

AMAX-2242/J2S
4


4

AMAX-2243/YS2
4


4

8

8

8

8

2

4

4

4

4


-





















-

-

-

2-23

5 W @ 24 V typical
125 x 47.6 x 151 mm
2-23

2-23

2 W @ 24 V typical
141 x 108 x 60 mm
2-21

2-21

Isolated Digital I/O Slave Modules

Model
Isolated Digital Input Channels
Isolated Digital Output Channels
Typical Power Consumption
Maximum Power Consumption
Dimensions (L x W x H)
Page

2-14

AMAX-1752
32
-

Motion Control

2-22

AMAX-1754
32
600 mW
2W
141 x 95 x 60 mm
2-22

AMAX-1756
16
16

AMAX-2752SY
32
-

2-22

2-24

AMAX-2754SY
32
1.2 W
5W
125 x 47.6 x 151 mm
2-24

AMAX-2756SY
16
16

2-24

Intel® Celeron® M 1.0 GHz 4-axis
with 32-ch Digital I/O

PEC-3240

Features
ƒƒ Onboard Celeron® M 1.0 GHz CPU
ƒƒ 2 x RS-232 ports
ƒƒ Two 10/100Base-T RJ45 ports
ƒƒ 2 x USB ports (one with lockable cable mechanism)
ƒƒ Independent 4-axis motion control
ƒƒ 32-ch isolated Digital I/O (16-ch inputs and 16-ch outputs)
ƒƒ 2/3-axis linear, 2-axis circular interpolation function
ƒƒ Continuous interpolation
ƒƒ Up to 4 Mpps output; up to 1 MHz encoder input
ƒƒ Two pulse output types: CW/CCW or pulse/direction
ƒƒ Two encoder pulse input types: A/B or CW/CCW

COMPLIANT
2002/95/EC

Introduction

Specifications
General
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ Channels
ƒƒ Input Voltage
ƒƒ Isolation Protection

Certifications
CE, FCC Class A
Power Consumption
24 W (Typical)
Power Requirements 10 ~ 30 VDC (e.g 24 V @ 2 A) (Min. 48 W), AT
Weight
2.4 kg (Typical)
OS Support
Windows XP Embedded, Windows 2000/XP

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Celeron M 1.0 GHz
512 MB DDR SDRAM
LEDs for Power, IDE and LAN (Active, Status)
1 x PS/2
SSD: 2 x internal type I/II CompactFlash® slot

Humidity
5 ~ 95% RH, non-condensing (IEC 68-2-3)
Operating Temperature -10 ~ 65°C (14 ~149°F) @ 5 ~ 85% RH
Shock Protection
IEC 68 2-27
CompactFlash: 50 G @ wall mount, half sine, 11 ms
ƒƒ Vibration Protection
IEC 68 2-64 (Random 1 Oct./min, 1hr/axis.)
CompactFlash: 2 Grms @ 5 ~ 500 Hz

2 x RS-232 with DB9 connectors
50 ~ 115.2 kbps
2 x 10/100Base-T RJ45 ports
2 x USB, EHCI, Rev. 2.0 compliant

4
2-axis linear, 3-axis linear, 2-axis circular
4 Mpps
±2, 147, 483, 646
CW/CCW or pulse/direction
T-Curve, S-Curve
PEL x 4, MEL x 4, ORG x 4, ALM x 4, INP x 4, CMP x 4
12 (IN0 ~ 2 of each axis)
16 (OUT4 ~ 7 of each axis)

Encoder Interface
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Input Type
Input Range
Max. Input Frequency

Quadrature (x1, x2, x4 A/B phase) or CW/CCW
5 ~ 25 V
1,000 VDC
1 MHz

16
Sink Type (NPN)
5~40 V max.
200 mA max. per channel
1,000 VDC

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Pulse Type Motion Control
Number of Axis
Interpolation
Max. Output Speed
Step Count Range
Pulse Output Type
Velocity Profiles
Local I/O
General Inputs
General Outputs

Channels
Output Type
Output Voltage
Sink Current

Environment

I/O Interface

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

16
Logic 0: 2 V max.; Logic 1: 5 V min. (24 V max.)
1,000 VDC

Isolated Digital Output

System Hardware

Serial Ports
Serial Port Speed
LAN
USB Ports

Building Automation
Systems

Automation Software

ƒƒ PEC-3240-AE

Celeron M 1 GHz 4-axis Motion Controller w/ DIO

PCL-10251-1E
PCL-10251-2E
PCL-10251-3E
PCL-10125-1E
PCL-10125-3E
ADAM-3955-AE
ADAM-3952-AE
ADAM-3925-AE

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Industrial Panel

Industrial Monitors

Isolated Digital Input

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Energy Automation


PEC-3240 is a standalone embedded motion controller that provides 4-axis motion and 32 isolated digital inputs/outputs. This controller also supports serial communication ports
and several other networking interfaces. The Windows XP Embedded OS offers a pre-configured image with optimized onboard device drivers. You can seamlessly integrate your
applications into Windows XP Embedded and speed up your system development with this application ready controller.

CPU
Memory
Indicators
Keyboard/Mouse
Storage

Machine Automation

Operator Panels

RoHS

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


100-pin SCSI to Two 50-pin SCSI Cable, 1m
DB25 Cable, 1m
DB25 Cable, 3m
50-pin DIN-rail SCSI 2-axis Motion Wiring Board
50-pin DIN-rail SCSI and Box Header Board
DB25 DIN-rail Wiring Board


M2M I/O Modules

RS-485 I/O Modules

2-15

PCI-1245
PCI-1265

DSP-based 4/6-axis
Stepping and Servo Motor
Control Universal PCI Card
Features

NEW

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

PCI-1245

PCI-1265

Encoder input is 10 MHz for 4xAB mode, 2.5 MHz for CW/CCW mode
Pulse output up to 5 Mpps
Memory buffer (10K points) for trajectory planning which is designed in DSP
Supports E-Gear, and helical interpolation
Supports E-CAM providing 256 points to describe the CAM profiles which
buffers located in DSP
Hardware emergency input
Watchdog timer
Position latch via ORG & index signal
Position compare triggering up to 100 KHz, and memory buffer is up to 100 K
points in DSP
Programmable interrupt
Supports gantry mode by semi-closed loop pulse train control
RDY/LTC-dedicated input channels & SVON/CMP/CAM-DO/ERC-dedicated
output channels are switchable for general input and output purposes

RoHS

COMPLIANT
2002/95/EC

Introduction
PCI-1245/1265 is a 4/6-axis universal PCI (supporting both 3.3 V and 5 V signal slot) stepping/pulse-type servo motor control card designed for applications which need to control
interpolation, synchronization among multiple axes, continuous contouring and high speed triggering to integrated machine vision solution. PCI-1245/1265 utilizes the highperformance DSP and FPGA to calculate the motion trajectories, synchronization timing control for multiple axes and input/output handling to offer functionality, such as up to 4-axis
linear interpolation for PCI-1245 and 6-axis linear interpolation for PCI-1265, 2- axis circular interpolation, helical interpolation, T/S-curve acceleration/deceleration rate and so on.
In addition, Advantech supplies a Common Motion API library, graphical utility and user-friendly examples to decrease programming load, helping users complete configuration
and diagnosis easily.

Specifications

General

ƒƒ Motor Driver Support
ƒƒ Number of Axes

ƒƒ Bus Type
ƒƒ Connectors

ƒƒ Interpolation
ƒƒ Max. Output Speed
ƒƒ Step Count Range
ƒƒ Pulse Output Type
ƒƒ Position Counters
ƒƒ Velocity Profiles
ƒƒ Local I/O
Machine Interfaces:
Servo Driver Interfaces:
Position Compare I/O:
General Digital I/O:

ƒƒ Analog Input:

Pulse-type servo/stepping
PCI-1245: 4
PCI-1265: 6
2 to 6-axis linear, 2-axis circular, X-Y plane with Z
thread helical interpolation
5 Mbps
±2, 147, 483, 646
Pulse/direction (1-pulse, 1-direction type) or
CW/CCW (2-pulse type)
Range of command and actual position
T-Curve, S-Curve
LMT+, LMT-, ORG
ALM, INP
CMP
PCI-1245: 16-ch DI, 16-ch DO
PCI-1265: 32-ch DI, 32-ch DO
(RDY/LTC pin can be switchable
to general-purpose input and CAM-DO/CMP/SVON/
ERC pin to general-purpose output)
2 (PCI-1265)

Encoder Interface
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Input Type
Counts per Enc. Cycle
Input Range

Quadrature (A/B phase) or up/down
x1, x2, x4 (A/B phase only)
5 ~ 15 V
2,500 VDC
10 MHz under 4xAB mode

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Universal PCI V2.2
PCI-1245: 1 x 100-pin SCSI female connector
PCI-1265: 1 x 100-pin SCSI female connector &

1 x 50-pin SCSI female connector
Dimensions (L x H)
175 x 100 mm (6.9" x 3.9")
Power Consumption
Typical: 5 V @ 850 mA
Max.: 5 V @ 1 A
Humidity

ƒƒ PCI-1245-AE
ƒƒ PCI-1265-AE

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ADAM-3955-AE
ADAM-3952-AE
ADAM-39100-AE
PCL-101100M-3E
PCL-10251-1E
PCL-10251-2E
PCL-10251-3E
PCL-10152-1E
PCL-10152-3E
PCL-10153PA5-2E

ƒƒ PCL-10153PA5LS-2E
ƒƒ PCL-10153YS5-2E
ƒƒ PCL-10153MJ3-2E

2-16

Motion Control

4-axis Stepping/Servo Control Universal PCI Card
6-axis Stepping/Servo Control Universal PCI Card
100-pin DIN-rail SCSI Wiring Board
100-pin SCSI Cable, 3 m
100-pin SCSI to Two 50-pin SCSI Cable, 1 m
50-pin SCSI Male-male Shielded Cable, 1m
50-pin SCSI Male-male Shielded Cable, 3m
50-pin Cable from ADAM-3955/ADAM-3956 to
Panasonic A4 and A5 Servo, 2 m
Panasonic MINAS A Servo, 2 m
Yaskawa Sigma V Servo, 2 m
Mitsubishi J3 Servo, 2 m

PCI-1245E
PCI-1285E

Economic DSP-based 4/8-axis
Stepping and Servo Motor
Features

NEW

ƒƒ Encoder input is 10 MHz for 4xAB mode, 2.5 MHz for CW/CCW mode
ƒƒ Pulse output up to 5 Mpps
ƒƒ Memory buffer for trajectory planning (circular trajectory and auto blending
are not supported)
ƒƒ Supports E-Gear
ƒƒ Hardware emergency input
ƒƒ Watchdog timer
ƒƒ Position latch via ORG & index signal
ƒƒ Programmable interrupt
ƒƒ RDY/LTC-dedicated input channels & SVON/CMP/CAM-DO/ERC-dedicated
output channels are switchable for general input and output purposes

PCI-1245E

PCI-1285E
COMPLIANT
2002/95/EC

Introduction

Specifications

ƒƒ Power Consumption

PCI-1245E: Typical: 5 V @ 850 mA

Max.: 5 V @ 1 A
PCI-1285E: Typical: 5 V @ 530 mA

3.3 V @ 160 mA

Max.: 5 V @ 500 mA

3.3 V @ 1 A
ƒƒ Humidity
ƒƒ Operating Temperature 0 ~ 60°C (32 ~ 140°F)
ƒƒ Storage Temperature -20 ~ 85°C (-4 ~ 185°F)


ƒƒ Max. Output Speed
ƒƒ Step Count Range
ƒƒ Pulse Output Type
ƒƒ Position Counters
ƒƒ Local I/O
Machine Interfaces:
General Digital I/O:

Pulse-type servo/stepping
PCI-1245E: 4
PCI-1285E: 8
PCI-1245E: 2-axis linear
PCI-1285E: 2-axis linear
5 Mbps
±2, 147, 483, 646
Pulse/direction (1-pulse, 1-direction type) or
CW/CCW (2-pulse type)
Range of command and actual position
T-Curve, S-Curve

ƒƒ PCI-1245E-AE
ƒƒ PCI-1285E-AE

LMT+, LMT-, ORG
ALM, INP
PCI-1245E: 16-ch DI, 16-ch DO
PCI-1285E: 32-ch DI, 32-ch DO

Input Type
Counts per Enc. Cycle
Input Range

ƒƒ ADAM-3955-AE
ƒƒ ADAM-3952-AE
ƒƒ ADAM-3956-AE

Quadrature (A/B phase) or up/down
x1, x2, x4 (A/B phase only)
5 ~ 10 V
2,500 VDC
10 MHz under 4xAB mode

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

General
ƒƒ Bus Type
ƒƒ Connectors
ƒƒ Dimensions (L x H)

Economic 4-axis Stepping/Servo Control Universal PCI
Card
Economic 8-axis Stepping/Servo Control Universal PCI
Card

Accessories

Encoder Interface
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Energy Automation

Building Automation
Systems

Automation Software


PCI-1245E/1285E is a 4/8-axis economic universal PCI (supporting both 3.3 V and 5 V signal slot) stepping/pulse-type servo motor control card designed for entry-level applications
which need to control linear interpolation, electronic gear, continuous contouring (circular trajectories and auto blending are excluded). PCI-1245E/1285E utilizes the high-performance
DSP and FPGA to calculate the motion trajectories, synchronization timing control for multiple axes and input/output handling to offer functionality, such as 2~8-axis linear interpolation,
E-Gear (only for PCI-1245E), T/S-curve acceleration/deceleration rate, speed override, 16 home modes and so on. In addition, Advantech supplies a Common Motion API library,
graphical utility and user-friendly examples to decrease programming load, helping users complete configuration and diagnosis easily.

ƒƒ Interpolation

Machine Automation

Operator Panels

RoHS

ƒƒ Number of Axis

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Universal PCI V2.2
PCI-1245E: 1 x 100-pin SCSI female connector
PCI-1285E: 2 x 100-pin mini-SCSI female connector
175 x 100 mm (6.9" x 3.9")

ƒƒ
ƒƒ
ƒƒ
ƒƒ

(for PCI-1285E)
ADAM-39100-AE
PCL-101100M-3E
PCL-10251-1E/2E/3E 100-pin SCSI to Two 50-pin SCSI Cable, 1 m/2m/3m
PCL-10152-1E/3E
50-pin SCSI Male-Male Shielded Cable, 1m/3m
PCL-101100SB-1E/2E/3E Mini-SCSI-100 Shielded Cable, 1m/2m/3m
(for PCI-1285E)
PCL-10153PA5-2E
Panasonic A4 and A5 Servo, 2 m
PCL-10153PA5LS-2E 50-pin Cable from ADAM-3955/ADAM-3956 to
Panasonic MINAS A Servo, 2 m
PCL-10153YS5-2E
Yaskawa Sigma V Servo, 2 m
PCL-10153MJ3-2E
Mitsubishi J3 Servo, 2 m


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

2-17

PCI-1220U
PCI-1240U
PCM-3240

PCI-1220U

2-axis Stepping and Servo Motor
Control PC/104 Card

PCI-1240U

RoHS

COMPLIANT
2002/95/EC

PCM-3240

RoHS

COMPLIANT
2002/95/EC

RoHS

COMPLIANT
2002/95/EC

Specifications

Specifications

Specifications




ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ Motor Driver Support Pulse-type servo/stepping
ƒƒ Number of Axis
4
ƒƒ Interpolation
2-axis linear, 3-axis linear,
2-axis circular
ƒƒ Max. Output Speed 4 Mpps
ƒƒ Step Count Range ±2, 147, 483, 646 (32-bit)
ƒƒ Pulse Output Type Pulse/direction (1-pulse,
1-direction type), or CW/
CCW (2-pulse type)
ƒƒ Position Counters Range of command, range
of actual position
T-Curve, S-Curve
ƒƒ Local I/O Interfaces PEL x 4, MEL x 4, ORG x 4
ALM x 4, RDY x 4,
SVON x 4, INP x 4
CMP x 4
General Input: 12
General Output: 16

Encoder Interface

ƒƒ Motor Driver Support Pulse-type servo/stepping
ƒƒ Number of Axis
4
ƒƒ Interpolation
2-axis linear, 3-axis linear,
2-axis circular
ƒƒ Max. Output Speed 4 Mpps
ƒƒ Step Count Range ±2, 147, 483, 646 (32-bit)
ƒƒ Pulse Output Type Pulse/direction (1-pulse,
1-direction type) or CW/
CCW (2-pulse type)
ƒƒ Position Counters Range of command and
actual position
T-Curve, S-Curve
ALM x 4, INP x 4
CMP x 4
General Input: 12
(IN0 ~ 2 of each axis)
General Output: 16
(OUT4 ~ 7 of each axis)

ƒƒ Input Type

Encoder Interface

Motor Driver Support Pulse-type servo/stepping
Number of Axis
2
Interpolation
2-axis linear, 2-axis circular
Max. Output Speed 4 Mpps
Step Count Range ± 2,147,483,646 (32 bits)
Pulse Output Type Pulse/direction (1-pulse,
1-direction type) orCW/
CCW (2-pulse type)
ƒƒ Position Counters Range of command and
actual position
T-Curve, S-Curve
ALM x 2, INP x 2
CMP x 2
General Input: 6
(X_IN0 ~ 2, Y_IN0~2)
General Output: 8
(X_OUT4 ~ 7, Y_OUT4~7)

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Quadrature (A/B phase) or
up/down
Counts /Enc. Cycle x1, x2, x4 (A/B phase only)
Input Range
0 ~ 2 VDC for low;
5 ~ 30 VDC for high
Isolation Protection 2,500 VDC
Max. Input Freq.
1 MHz

General
ƒƒ Bus Type
ƒƒ Certifications
ƒƒ Connectors
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Universal PCI V2.2
CE, FCC Class A
1 x 50-pin SCSI female
connector
Dimensions (L x H) 175 x 100 mm (6.9" x 3.9")
Power Consumption Typical: 5 V @ 850 mA
Max.: 5 V @ 1 A
Humidity
5 ~ 95% RH, noncondensing (IEC 68-2-3)
Operating Temp.
0 ~ 60°C (32 ~ 140°F)
Storage Temp.
-20 ~ 85°C (-4 ~ 185°F)

ƒƒ PCI-1220U-AE

2-18

2-axis Stepping and Servo
Motor Control Universal
PCI Card

Motion Control

ƒƒ Input Type
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Quadrature (A/B phase) or
up/down
Input Range
5 ~ 25 V
Max. Input Freq.
1 MHz

ƒƒ Bus Type
ƒƒ Certifications
ƒƒ Connectors

ƒƒ
ƒƒ
ƒƒ

Universal PCI V2.2
CE, FCC Class A
1 x 100-pin SCSI female
connector
Max.: 5 V @ 1 A
Humidity
Operating Temp.
0 ~ 60°C (32 ~ 140°F)
Storage Temp.
-20 ~ 85°C (-4 ~ 185°F)

ƒƒ PCI-1240U-B2E

ƒƒ Input Type
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Quadrature (A/B phase or
up/down)
Input Range
5 ~ 25 V
Max. Input Freq.
1 MHz

General

General

ƒƒ
ƒƒ

Encoder Interface

Motor Control Universal
PCI Card

ƒƒ Bus Type
ƒƒ Certifications
ƒƒ Connectors
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

PC/104
CE, FCC Class A
2 x IDC 50-pin male
connector
Max.: 5 V @ 1 A
Humidity
Operating Temp.
0 ~ 60°C (32 ~ 140°F)
Storage Temp.
-20 ~ 85°C (-4 ~ 185°F)

ƒƒ PCM-3240-AE

Motor Control PC/104
Card

PCI-1243U

4-axis Stepping Motor
Features

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ 4 axis stepping motor control
ƒƒ PCI universal bus
ƒƒ Up to 400 k pulse output rate
ƒƒ T-Curve acceleration/deceleration
ƒƒ Pulse/Dir and CW/CCW pulse output mode
ƒƒ Up 24-bit step count
ƒƒ Opto-Isolated Digital input and output
ƒƒ Up to 1,500 VRMS system isolation
ƒƒ BoardID switch

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels

RoHS

COMPLIANT
2002/95/EC

Introduction


PCI-1243U is a 4-axis stepping motor control card with universal PCI interface. Each axis can be controlled directly through the card's I/O registers. This board is economic solution
for stepping motor which provides 4 channels pulse train, T/S speed profile, on-the-fly velocity change and so on. The board is supplied with DLL library for Windows programmer
to write the program. With the DLL driver, you can easily link to VC++®, Visual Basic® or BCB.

Specifications

Industrial Monitors


General

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Motor Driver Support Stepping
Number of Axis
4
Max. Output Speed
400 kpps
Step Count Range
0 ~ 16, 777, 215
Pulse Output Type
Pulse/Direction, CW/CCW
Position Counters
±16, 777, 215
Home Modes
4
Velocity Profiles
T-Curve or S-Curve acceleration/deceleration
Local I/O Interfaces
PEL x 4, NEL x 4, RG x 4, SLD x 4, EMG x 1
General Input Channels 8
General Output Channels 8

Bus Type
Certifications
Connectors
Dimensions
Power Consumption

PCI V2.2
CE, FCC Class A
1 x DB-62 female
175 x 100 mm (6.9" x 3.9")
Typical: 5 V @ 340 mA
Max.: 5 V @ 500 mA
ƒƒ Storing Humidity
ƒƒ Storing Temperature -20 ~ 80°C (-4 ~ 170°F)



ƒƒ PCI-1243U-AE

ƒƒ Channels
ƒƒ Input Voltage

Accessories

8
Logic 0: 1 V
Logic 1: 12 V (24 V max.)
ƒƒ Isolation Protection 3,750 VRMS
ƒƒ Opto-Isolator Response 25 μs
ƒƒ Input Resistance
4.7 kW

ƒƒ PCL-10162-1E
ƒƒ PCL-10162-3E
ƒƒ ADAM-3962-AE

4-axis Stepping Motor Control Card

DB-62 Cable Assembly, 1 M
DB-62 Cable Assembly, 3 M
DB-62 Wiring Terminal with DIN-rail Mounting

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Industrial Panel

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

Channels
8
Output Type
Sink (NPN)
Isolation Protection 3,750 VRMS
Output Voltage
5 ~ 30 VDC
Sink Current
200 mA max./channel; 1.1 A max. total
Opto-Isolator Response 25 μs

M2M I/O Modules

RS-485 I/O Modules


2-19

PCI-1202U
PCM-3202P

PCI-1202U

2-port AMONet RS-485 PC/104+ Master Card

PCM-3202P

RoHS

COMPLIANT
2002/95/EC

Specifications

RoHS

COMPLIANT
2002/95/EC

Specifications

AMONet RS-485 Motion Control

AMONet RS-485 Motion Control

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

AMONet RS-485
Interface
Cable Type
Surge Protection
Transmission Speeds
Data Flow Control
Communication
Distance (Max.)
ƒƒ Slave Module

2 rings
Half duplex RS-485
CAT5 UTP/STP Ethernet cable and above
10 kV
2.5, 5, 10, and 20 Mbps
Automatic
100 m @ 20 Mbps w/32 slave modules
Digital I/O, Motion Control, Analog I/O

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Channels
Output Type
Output Voltage
Sink Current

General
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Bus Type
Certifications
Connectors
Dimensions (L x H)
Power Consumption
Humidity
Operating Temp.
Storage Temp.

8
Dry contact (need external voltage source)
2,500 VDC
2.4 kW @ 0.5 W

4
Open collector
2,500 VDC
10 ~ 30 VDC
1 ch: Max. 0.5 A
4 ch: Max. 1.1 A (total)
Universal PCI V2.2
CE, FCC Class A
2 x RJ45
175 x 100 mm (6.9" x 3.9")
5 VDC @ 0.5 A typical
0 ~ 60°C (32 ~ 140°F)
-20 ~ 85°C (-4 ~ 185°F)

ƒƒ PCI-1202U-AE

2-20

2 rings
Half duplex RS-485
CAT5 UTP/STP Ethernet cable
10 kV
2.5, 5, 10, and 20 Mbps
Automatic
Digital I/O, Motion Control, Analog I/O

General

Channels
Input Voltage
Input Resistance

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

AMONet RS-485
Interface
Cable Type
Surge Protection
Transmission Speeds
Data Flow Control
Communication
Distance (Max.)
ƒƒ Slave Module


Motion Control

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Bus Type
Certifications
Connectors
Dimensions (L x H)
Power Consumption
Humidity
Operating Temp.
Storing Temp.

PC/104+
CE, FCC Class A
96 x 90 mm (3.8" x 3.5")
5 VDC @ 0.5 A typical
0 ~ 60°C (32 ~ 140°F)
-20 ~ 85°C (-4 ~ 185°F)

ƒƒ PCM-3202P-AE

2-port PC/104+ AMONet RS-485 Master Card

AMAX-1220
AMAX-1240

Open Frame Type 2/ 4-axis
AMONet Motion Slave Modules
Features

NEW

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ End limit logic is switchable (high or low active)
ƒƒ BoardID is switchable
ƒƒ Easily visible LED indicators on board to do diagnosis
ƒƒ Direct wire to servo drive to save terminal board space while installation
ƒƒ Max. 6.5 MHz, 4-axis pulse output
ƒƒ 28 bits counter for incremental encoder
ƒƒ Horizontal installation for for servo or stepping motor driver
ƒƒ Suitable for DIN-rail mounting

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

AMAX-1220

AMAX-1240

Operator Panels

RoHS

COMPLIANT
2002/95/EC

Introduction


AMAX-1220 and AMAX-1240 have compact open frame designs for horizontal placement and an interface connector mounted on the board. With a transfer cable to servo drive, both
models can conveniently connect to Mitsubishi J3, Yaskwa Sigma V and Panasonic A4/A5.
The AMAX-1220 is an economic 2-axis AMONet slave module which supports motion functionality in point-to-point (PTP), linear & circular interpolation, simultaneously start/
stop among multiple slave modules, and brake signal to servo for emergence consideration. The AMAX-1240 is an advanced 4-axis AMONet slave module which not only supports
AMAX-1220 motion functionality, but also supports advanced features in position compare and triggering function. Both linear interval and table setups are supported.

Industrial Panel

Industrial Monitors

Specifications

General

Industrial Wireless
Solutions

ƒƒ Number of Axes

ƒƒ Bus Type
ƒƒ Certifications
ƒƒ Connectors

Industrial Ethernet
Solutions

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Pulse-type servo
AMAX-1220: 2
AMAX-1240: 4
Linear and circular
6.5 Mpps
±134, 217, 728
OUT/DIR, CW/CCW, A/B phase
±134, 217, 728
13
T-Curve, S-Curve

Interpolation
Max. Output Speed
Step Count Range
Pulse Output Type
Position Counter
Home Modes
Velocity Profiles
Local I/O
Machine Interfaces:
EL+/-, ORG and SD (Slow Down) for Each Axis
Servo Driver Interfaces: ALM, RDY, SVON, INP, Break for Each Axis
LTC, CMP for Each Axis(Only available for
AMAX-1240-AE)
Simultaneous Move Within
Multiple Modules:
CSTA/CSTP (Simultaneously Start/Stop) for

each model
General Purpose I/O:
AMAX-1220 supports 8xDI and 8xDO

Encoder Interface
ƒƒ Input Type
A/B phase, CW/CCW
ƒƒ Counts per Enc. Cycle x1, x2, x4 (AB phase only)
ƒƒ Input Range
Low: 0 ~ 0.5V
High: 3.5 ~ 7V
ƒƒ Isolation Protection 2,500 VRMS
ƒƒ Max. Input Frequency 2 MHz @ 5 V

ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ

AMONet RS-485
CE, FCC Class A
RJ-45 x 2 are for communication port
DB-26 connector by transfer cable to servo
drives. Other are screw terminal type connectors
Dimensions (L x W x H) 141 x 108 x 60 mm (5.6" x 4.3" x 2.4")
System Power
2 W @ 24 V typical
Consumption
Output Channel Power
Consumption
120W typical, 240W max.
Input Channel Power
Consumption
AMAX-1220: 8 W @ 24 V external power (max.)

AMAX-1240: 10 W @ 24 V external power (max.)
System Power Input 24 VDC within 200 mV ripple
Humidity

ƒƒ AMAX-1220-AE
ƒƒ AMAX-1240-AE

Economic 2-axis AMONet Motion Control Module
Advanced 4-axis AMONet Motion Control Module

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ

PCL-10153PA5-2E
PCL-10153PA5LS-2E
PCL-10153YS5-2E
PCL-10153MJ3-2E

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

50-pin Cable to Panasonic A4 and A5 Servo, 2 m
50-pin Cable to Panasonic MINAS A Servo, 2 m
50-pin Cable to Yaskawa Sigma V Servo, 2 m
50-pin Cable to Mitsubishi J3 Servo, 2 m


RS-485 I/O Modules

2-21

AMAX-1752
AMAX-1754
AMAX-1756

Open Frame Type 32-ch Isolated
Digital Input/Output Slave Modules
Features

NEW

ƒƒ Communication baud rate, 2.5Mbps, 5Mbps, 10Mbps and 20Mbps are
supported and switchable
ƒƒ Onboard screw terminal for direct wiring
ƒƒ 2,500 VRMS Isolation voltage
ƒƒ BoardID is switchable
ƒƒ Easily visible LED indicators on board to do diagnosis

AMAX-1752

AMAX-1754

AMAX-1756
RoHS

COMPLIANT
2002/95/EC

Introduction
The AMAX-1752, AMAX-1754 and AMAX-1756 are compact open frame designs for horizontal placement, on-board screw terminal for direct wiring and on-board easily-visible LED
indicators are for system diagnosis. All the digital I/O slave modules could be connected and distributed by standard LAN cables thereby saving wiring costs and maintenance. Three
models are introduced: 32-ch digital input (AMAX-1752), 32-ch digital output (AMAX-1754) and 16-ch digital input/output (AMAX-1756). According to maximum communication
baud rate, 2048 I/O points can be scanned and updated within 1.04 ms.

Specifications

General

ƒƒ Channels

ƒƒ Bus Type
ƒƒ Certifications
ƒƒ Connectors

ƒƒ
ƒƒ
ƒƒ
ƒƒ

AMAX-1752: 32
AMAX-1756: 16
Input Type
Dry contact
Isolation Protection 2,500 VRMS
Opto-Isolator Response 100 μs (max.)
Input Resistance
3.2kΩ

ƒƒ Channels
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Output Type
Output Voltage
Sink Current

AMAX-1754: 32
AMAX-1756: 16
Sink (NPN) (open collector Darlington transistors)
2,500 VRMS
10 ~ 30 VDC
1 ch: 500 mA (1 port)

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

AMONet RS-485
CE, FCC Class A
(1) RJ-45 x 2 are for communication port
(2) I/O points use screw terminal type connector
Dimensions
141 x 95 x 60 mm (5.6" x 3.7" x 2.4")
Power Consumption 600mW typical, 2 W max.
Power Input
24 VDC within 200 mA ripple
Power Supply for DIO 10 ~ 30 VDC (2A max)
Humidity

ƒƒ AMAX-1752-AE
ƒƒ AMAX-1754-AE
ƒƒ AMAX-1756-AE

2-22

Motion Control

Open Frame Type 32-ch Isolated Digital Input
AMONet Module
Open Frame Type 32-ch Isolated Digital Output
AMONet Module
Open Frame Type 16/16-ch Isolated Digital I/O
AMONet Module

AMAX-2240 Series

4-axis AMONet Motion
Slave Modules

Features

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ Max. 20 Mbps transfer rate
ƒƒ Max. 6.5 MHz, 4-axis pulse output
ƒƒ 28 bits counter for incremental encoder
ƒƒ 2 ~ 4-axis linear interpolation
ƒƒ 2-axis circular interpolation
ƒƒ T-Curve and S-Curve velocity profiles support
ƒƒ Change speed on-the-fly
ƒƒ Easy installation with RJ45 phone jack and LED diagnostic
ƒƒ Easy installation for servo or stepping motor driver

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

AMAX-2241

AMAX-2242

AMAX-2243

Operator Panels

RoHS

COMPLIANT
2002/95/EC

Introduction


AMAX-2240 series is used to increase the number of axes for an AMONet RS-485 decentralized motion control network. These extension slave modules connect serially by a simple
and affordable Cat.5 LAN cable, reducing the wiring between driver and controller. This is very suitable for highly integrated machine automation applications. Please select cable
20-pin SCSI and plug this cable into the motor driver and motion slave module.

Specifications

Industrial Monitors


General

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ Bus Type
ƒƒ Certifications
ƒƒ Connectors

Motor Driver Support
Number of Axis
Interpolation
Max. Output Speed
Step Count Range
Pulse Output Type
Position Counter
Home Modes
Velocity Profiles
Local I/O
Machine Interfaces:

Industrial Panel

Pulse-type servo
4
Linear and circular
6.5 Mpps
±134, 217, 728
OUT/DIR, CW/CCW, A/B phase
±134, 217, 728
13
T-Curve, S-Curve

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

AMONet RS-485
CE, FCC Class A
AMAX-2242/J2S: 2 x RJ45 and 8 x 20-pin SCSI
AMAX-2241/PMA & AMAX-2243/YS2: 4 x 50-pin SCSI
Dimensions (L x W x H) 125 x 47.6 x 151 mm (4.9" x 1.8" x 5.9")
Power Consumption
5 W @ 24 V typical
Power Input
24 VDC within 200 mV ripple
Humidity

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways


Encoder Interface
ƒƒ Input Type
A/B phase, CW/CCW
ƒƒ Counts per Enc. Cycle x1, x2, x4 (AB phase only)
ƒƒ Input Range
Compatible with TIA/EIA-422 differential line driver
I : ±20 mA, VOD : ±2 V/min
2,500 VRMS
ƒƒ Max. Input Frequency 2 MHz @ 5 V

Cards

ƒƒ AMAX-2241/PMA-AE
ƒƒ AMAX-2242/J2S-AE
ƒƒ AMAX-2243/YS2-AE

EL+ x 4, EL- x 4, ORG x 4, SD x 4
ALM x 4, RDY x 4, SVON x 4, INP x 4, ERC x 4
LTC x 4, CMP x 4

Embedded Automation
Computers

4-axis AMONet Motion Module for Panasonic MINAS A
4-axis AMONet Motion Module for Mitsubishi MR-J2S
4-axis AMONet Motion Module for Yaskawa Sigma-II

Accessories
ƒƒ PCL-10220M-2E
ƒƒ PCL-10150M-2E
ƒƒ ADAM-3940-AE

40-pin Wiring Board with LED

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


2-23

32-ch Isolated Digital
Input/Output Slave
Modules

AMAX-2750SY Series
Features
ƒƒ Max. 20 Mbps transfer rate
ƒƒ Onboard terminal for direct wiring

ƒƒ Easy installation with RJ45 phone jack and LED diagnostic
ƒƒ LED indicator for each IO channel (switch by SW4)
ƒƒ Selection of I/O-channel configuration (32-ch DI, 32-ch DO or 16/16-ch
Digital I/O)
ƒƒ 2,500 VRMS Isolation voltage

AMAX-2752SY

AMAX-2754SY

AMAX-2756SY
RoHS

COMPLIANT
2002/95/EC

Introduction
The AMAX-2750SY series consists of digital slave modules for AMONet RS-485 that extend the digital I/O capacity. All the digital I/O slave extension modules are connected serially
with a simple Cat.5 cable. This reduces wiring between driver and controller and is very suitable for highly integrated machine automation applications. High speed, scalability and
cost-effectiveness ensures a solid solution for machine builders. There are 3 main types of digital I/O slave modules, 32-ch digital input, 32-ch digital output, and 16/16-ch digital
input/output. With these slave modules, you can connect actuators/sensors directly with minimum hassle. You can access I/O points nearby or 100 meters away using simple and
low-cost wiring, and the high speed of AMONet RS-485 makes it possible to scan 2,048 I/O channels in 1.04 ms.

Specifications

General

ƒƒ Channels

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ

AMAX-2752SY: 32 (4 ports)
Input Type
Dry contact
2,500 VRMS
Opto-Isolator Response 18 μs
Input Resistance
1 kW @ 0.5 W

ƒƒ Channels
ƒƒ
ƒƒ
ƒƒ
ƒƒ

2-24

Output Type
Output Voltage
Sink Current

Sink (NPN) (open collector Darlington transistors)
2,500 VRMS
10 ~ 30 VDC
150 mA/ea. for multiple-channel usage,
total 1.1 A max. (1 port)

Motion Control

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Bus Type
AMONet RS-485
Certifications
CE, FCC Class A
Connectors
2 x RJ45 and 2 x 40-pin wiring board
Dimensions (L x W x H) 125 x 47.6 x 151 mm (4.9" x 1.8" x 5.9")
Power Consumption
AMAX-2752SY: 1.2 W typical, 5 W max.
Power Input
24 VDC within 200 mA ripple
Power Supply for DIO 10 ~ 30 VDC (Current < 2A)
Humidity

ƒƒ AMAX-2752SY-AE
ƒƒ AMAX-2754SY-AE
ƒƒ AMAX-2756SY-AE

32-ch Isolated Digital Input AMONet Module
32-ch Isolated Digital Output AMONet Module
16/16-ch Isolated Digital I/O AMONet Module

Accessories

DIN-rail Terminal Boards

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

ADAM-3940

ADAM-3952

ADAM-3955

40-pin Wiring Board with LED

50-pin SCSI and IDC DIN-rail Wiring Board

50-pin SCSI DIN-rail Motion Wiring Board

Features

Features

Features

ƒƒ DIN-rail wiring board



ƒƒ Dimensions (W x L x H): 160 x 50 x 43 mm
(6.3" x 2" x 1.7")

ƒƒ Dimensions (W x L x H): 77.5 x 179.5 x 41.5 mm
(3.1" x 7.1" x 1.6")

(4.12" x 4.8" x 1.8")

ƒƒ 40-pin box header connector

ƒƒ 50-pin SCSI and IDC connectors

ƒƒ DB-26 and connector

ƒƒ LED indicators

To Be Used With

ƒƒ LED indicators

To Be Used With

PCI-1220U, PCI-1240U, PCI-1245, PCI-1245E,
PCI-1265, PCM-3240, PEC-3240

To Be Used With

AMAX-2241, AMAX-2242, AMAX-2243

PCI-1220U, PCI-1240U, PCI-1245, PCI-1245E,
PCI-1265, PCM-3240, PEC-3240

Automation Software

Operator Panels


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

ADAM-3956

ADAM-39100

100-pin SCSI DIN-rail Motion Wiring Board


PACs

Compact PCI Systems

Features

Features


ƒƒ Low cost universal DIN-rail mounting screw terminal
module for industrial applications with 100-pin SCSI
female connector

(4.8" x 6.73" x 1.77")
ƒƒ DB-26 and connector
ƒƒ LED indicators
To Be Used With
PCI-1245, PCI-1245E, PCI-1265, PCI-1285E

(3.14" x 9.05" x 1.65")

M2M I/O Modules

RS-485 I/O Modules

To Be Used With
PCI-1240U, PCI-1245, PCI-1245E, PCI-1265, PCI-1285E


2-25

Cable Accessory

PCL-101100M

PCL-10220M

PCL-10162

100-pin SCSI Cable

20-pin SCSI Cable w/ 2 Connectors,
Ribbon Type

DB-62 Cable

PCL-10150M

PCL-10125

PCL-10251

50-Pin SCSI Cable, Ribbon Type

DB-25 Cable

100-pin to Two 50-pin SCSI Cable for
PCI-1240

PCL-10153PA5

PCL-10153MJ3

50-pin Cable to Yaskawa Sigma V Servo

50-pin Cable to Mitsubishi J3 Servo

PCL-10153PA5LS

PCL-10152

PCL-101100SB

50-pin Cable to Panasonic MINAS A Servo

2-26

PCL-10153YS5

50-pin Cable to Panasonic A4 and
A5 Servo

50-pin SCSI Cable

Mini-SCSI 100-pin Cable for PCI-1285E

Motion Control

Energy Automation

3
3-2

Energy Automation Overview

3-4

Energy Automation Selection Guide
UNO-4671A

Intel® Atom™ D510/D525 Substation Computer with 6 x LAN, 10 x COM,
and 1 x PCI-104

3-6

UNO-4672/P154

Substation Network Recorder/Analyzer

3-7

UNO-4673A
UNO-4683

Intel® Atom™ D510/ Core™ i7 Substation Computers with 6 x LAN,
2 x COM and 3 x Expansion Slots

3-8

UNO-4678

Intel Celeron M Fanless Box PC with 3 x LAN, 8 x COM, PC/104

3-9

UNOP-1628D/1618D
UNOP-1624D
UNOP-1514C

8-port RS-232/422/485 with and without port-to-port Isolation
4-port Isolated RS-232/422/485 with IRIG B
4-port Fiber Optic LAN Card

3-10

UNOP-1514RE/PE

4-Port Gigabit Base Ethernet Card

3-11

ECU-1710A

Intel® Atom™ D510 Controller with 16-ch AI, 4-ch AO and 32-ch Isolated
DI/O

3-12

ECU-1871

Intel® Atom™ D510 Energy Controller with 2 x LAN, 3 x COM, IRIG-B,
and I/O Extension

3-13

ECU-P1706
ECU-P1702
ECU-P1300

250 KS/s, 16bit, Simultaneous 8-ch PCI-104
10 MS/s, 12bit, Simultaneous 4-ch PCI-104
Vibration Signal Modulate Card

3-14

ECU-1911

Xscale @ PXA-270 520 MHz RTU with 8-ch 16-bit AI,32-ch DI,32-ch DO

3-15

DMU-3010

8-ch AI, 8-ch DI, 4-ch DO Ethernet I/O Module

3-16

DMU-5010

12-ch DI/O, 4-ch AI, 4-ch RTD Modbus TCP Module

3-17

APAX-5522PELX/CE

IEC 61850-3 Certified PAC with Marvel XScale® CPU

3-18

®

®

To view all of Advantech’s Serial & Wireless I/O Modules, please visit www.advantech.com/products.

Introduction
Advantech is dedicated to exploring new technologies for the power and energy industry. With an edge in the research and design of industrial products, Advantech provides rugged
and highly reliable system components that are not only environmentally friendly, but also power efficient with control technology enabled by intelligent software. Advantech's products
can be applied to various power and energy markets, including: renewable solar and wind power generation, nuclear simulation, substation automation systems, electrical car charging
station solutions, and building energy saving systems.
On the other hand, power & energy applications are becoming more and more critical as demand for electricity continues to increase worldwide. Additionally, new challenges are
arising due to the limitations of traditional power resources as we try to minimize the impact our power usage has on the environment. To that end, renewable energies, such as wind
and solar power are playing more significant roles in modern electricity grids. Furthermore, the modernization of legacy Transmission & Distribution (T&D) systems and providing
reliable T&D information for electric power management are becoming key goals for today’s power and energy applications. Thus, Advantech's power & energy solutions will focus
on renewable energy generation and substation automation system development.

Renewable Solar Energy and Wind Power Generation
Renewable solar and wind generation play important roles in high power and low carbon demand. With harsh environment factors, such as drastic day-night temperature differences,
dust/sand storms, vibration, heat and electrical noise, Advantech provides rugged, reliable and real-time communication, monitoring, tracking, testing and DAQ control solutions
for renewable energy applications.

Wind Power Generation Monitoring
Solution
Wind Power Turbine Gearbox Vibration Monitoring System

Central Control Center
UNO-4673A
IEC 61850 Energy Controller

The vibration signals of a wind turbine gearbox contain a wide range of data, which
can be used to detect defects within the gearbox. With an Energy Controller, vibration
signal modulation card and simultaneous analog input card, Advantech provides an
ideal solution for a Wind Power Turbine Gearbox Vibration Monitoring System. With a
redundant Ethernet communication port, the analysis of data can be transferred to the
remote management center in real time.

ECU-1871
Energy Controller

Wind Power Box-type Transformer Monitoring System
Box-type substations in a wind power turbine integrate the generated power into a power
grid. Like traditional substation monitoring systems, the status of the transformer must
be monitored in real time. Advantech Energy remote I/O monitors the status of the various
parts of the transformer i.e. oil temperatures, 3-phase voltage, current, active and in-active
power, and transfers the data to the remote control center via Ethernet.

ECU-P1706
Simultaneous
8-ch PCI-104 Card
DMU-3010
RTD Ethernet Module with Modbus

Wind Power Box-type
Transformer Monitoring System

Solar Tracking System
Advanced sun tracking systems and solar cells are vital in providing efficient solar powered
solutions. By detecting the strength of sunlight from different directions, sun tracking
systems determine the location of the strongest sunlight and direct the solar cells in that
direction. Accordingly, multi-axis motion control systems and robust controllers are
required to control the stepper motors of the sun tracking system and constantly adjust
the direction of the solar cells.
Advantech supplies ideal facilities for solar tracking systems, including embedded motion
controllers, rugged remote analog input modules and IEC 61850 controllers that are used
in control center for solar power applications.

Energy Automation

Wind Power Turbine
Vibration Monitoring System

Central Control Center

ADAM-4117
8-ch Analog
Input Module with
Modbus

PEC-3240
Embedded Solar
Tracking System

Sunlight Sensor
Balance Sensor

3-2

ECU-P1300
Vibration Signal
Modulate Card

2-dimensional
Stepper Motor
Control System

UNO-4673A
IEC 61850 Compliant
Substation Controller
EKI-7659CI
Industrial Ethernet
Switch

Smart Substation Automation
Station and Bay Level Application

Bay and Process Level Application

ƒƒ HMI/SCADA Application in Substations
Working status of devices within cabinet is controlled and monitored via HMI/SCADA,
besides information and event trigger collection, time synchronization, such as IRIG-B
function is also implemented in the automation controller.

ƒƒ Partial Discharge Detection & Analytic Device
In electrical engineering, partial discharge is a localized dielectric breakdown if a small
portion of a solid or fluid electrical insulation system under high voltage stress, which
does not bridge the gap between two conductors. Protracted partial discharge can erode
solid insulation and eventually lead to breakdown of insulation. Hence, a detection and
analytic device to monitor the partial discharge is essential.

ƒƒ Application Requirements
–– Reliable IEC 61850-3 platform
–– Redundancy

ƒƒ Cyber Security for Smart Grids
Communication within smart substations is based on network connection, and so
is connection between smart substations. Hence, the cyber security to ensure smart
substation maintenance becomes more critical than before. The UTM (Unified Threat
Management) is the key to preventing hacker attacks.
–– Fiber optic LAN

ƒƒ Network Recorder and Analyzer
A network recorder at substation operates in the same way as an aircraft flight recorder
and is critical for recording and analyzing network flow information. It is possible to record
and analyze data to discover the reason behind IED damage.

–– High-speed analog input for partial discharge detection

ƒƒ Vibration Detection & Analytic Device
The most common cause of power transformer failures in mechanical defect is excessive
vibration, which is formed by the combination of multiples of a frequency of 120 Hz.
The vibration generated from machine structures causes abnormal vibration, breakage
of machine and noise. The vibration level depends on the transformer construction and
design, and it is increased through fault current, phase to ground or phase to phase fault.
This electrical fault will change the transformer core or winding construction by mechanical
force produced. The effect of the fault can be found by measuring the vibration level before
and after several faults on low voltage side. Thus, a vibration analysis of the structure is
important to prevent this vibration.
–– High-speed analog input for partial discharge detection

–– High-speed computing & packet acquisition
–– Synchronized time stamp
–– RAID for storage

ƒƒ Data Gateway for IEC 61850
Within a substation, there are lots of devices using a wide variety of protocols. Status
and information of devices need to be monitored and controlled reliably; hence, a reliable
automation controller plays such an important data protocol gateway, communication
server and IED analyzer at a substation.
–– Isolated COM port
–– IRIG-B Time Sync. Receiver
–– Fiber optic LAN

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ Distribution Substation RTU Application
In substation automation systems, the RTU has interfaces towards protection and control
equipment, as well as metering devices and other automation products. Local and remote
monitoring and control can be easily achieved via the integrated RTU. The IEC 61850
client and server functionality of the RTU opens up an additional application area. It
allows the combination of traditional protocols, parallel wiring and the IEC 61850 station
bus. The hybrid solution provides the possibility to gradually upgrade the station to an
IEC 61850 architecture.
–– High isolation for I/O and communication
–– Powerful platform bundled with high density I/O

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


3-3

Energy Automation
Selection Guide
Engergy Computers & Controllers
NEW

NEW

NEW

NEW

NEW

Model Name

UNO-4671A

UNO-4672

UNO-4672/P154

UNO-4678

UNO-4673A/4683

ECU-1710A/
PEC-3710

ECU-1871

ECU-1911

Certification

CE, FCC, UL,
Electricity
IV level for
China,(Compatible
IEC 61850-3,
IEEE 1613)

CE, FCC, UL,
Electricity IV level
for China

CE, FCC ,
(Compatible IEC
61850-3,
IEEE 1613)

CE, FCC class
A,Electricity IV
level for China

IEC 61850-3,
IEEE 1613, CE,
FCC ,UL, Electricity
IV level for China

CE, FCC

China Electricity
Certificate IV level
(Compatible
IEC 61850-3
IEEE 1613)

CE, FCC

CPU

Intel Atom D510
1.66 GHz/D525
1.8 GHz

Intel Celeron M,
1.0 GHz
Intel Pentium M,
1.4 GHz

Intel Core Duo LV
L2400, 1.66GHz

Intel Celeron M,
1.0 GHz

Intel Atom D510,
1.6 GHz
Intel Core i7,
2.0 GHz

Intel Atom D510,
1.66 GHz

Xscale @ PXA-270
520MHz

RAM

2GB DDR2 SDRAM
4GB DDR3 SDRAM

1GB DDR
SDRAM

2GB DDR
SDRAM

512MB DDR
SDRAM

2GB DDR2
SDRAM

64MB SDRAM
32 MB Flash

-

512 KB

512 KB

-

1 MB

-

-

-

VGA
2 x Isolated
RS-232,
4 x Isolated
RS-422/485,
4 x Isolated RS-485

VGA

VGA

VGA

VGA/DVI-I

VGA

VGA

-

2 x Isolated
RS-232,
8 x Isolated
RS-232/422/485

2 x Isolated
RS-232,
8 x Isolated
RS-232/422/485

8 x Isolated
RS/232/422/485

2 x Isolated
RS-232/422/485

2 x Isolated RS-232

3 x 10/100Base-T
RJ-45 ports

2 x 10/100/1000,
4 x 10/100 Base-T
RJ-45

2 x 10/100Base-T
RJ-45

Battery-Backup
RAM
Display
Serial Ports

Smart LAN

-

-

USB Ports

Four (One internal)

Four (One internal)

2 x 10/100/1000
Base-T RJ-45
4 x 10/100
Base-T RJ-45
2 x 10/100 SC
Mutil-Mode
4 x 10/100 SC
Mutil-Mode
Four (One internal)

PC/104
Expansion

PCI-104

PCI-104

PCI-104

Ethernet Ports

Onboard I/O

Watchdog Timer
CompactFlash
Slots
2.5" HDD
Expansion
Operating
Systems
Mounting
Anti-Vibration
Anti-Shock
Operating
Temperature
Power
Consumption
Typical
Power
Requirement
Dimensions
(W x D x H)
Weight
Page

3-4

6 x 10/100Base-T
RJ-45/2 x
2x
10/100/1000Base-T 10/100/1000Base-T
and 4 x 10/100
4 x 10/100Base-T
Base-T RJ-45

Intel Atom D510,
1.66 GHz
AMD LX800,
500 MHz
1GB DDR2 SDRAM
2GB DDR2 SDRAM
512MB DDR
4GB DDR3 SDRAM
SDRAM

1 x Isolated
1 x isolated RS-232
RS-232.
3 x isolated RS-485
2 x Isolated RS-485

2 x 10/100/1000
Base-T RJ-45

2 x 10/100Base-T
RJ-45

-

-

-

-

-

Two (One internal)

Two

Four (one internal)

One

PC/104

Six (One internal)
3 x Domain I/O
Expansion
(only slot 1
supports PCIe)

-

PCIe-104&PCI-104

-

Yes

Yes

Yes

Yes

Yes

Yes

Support Expansion
IO:
ECU-P1706:
250Ks/S, 16bit,
Simultaneous 8-ch
PCI-104
ECU-P1702:
30Ms/S, 12bit,
Simultaneous 4-ch
PCIe-104
ECU-P1300:
Vibration Signal
Modulate Card"
Yes

One Internal

Two Internal

Two Internal

One Internal

One Internal

One Internal

One Internal

One Internal

1 x SATA

1 x SATA

1 x SATA

-

WES 2009,
Windows CE 6.0,
Linux

WES2009

WES 2007, WES 7,
WinCE 6.0, Linux

Windows CE 5.0

2U Rackmount
2 G w/CF,
1 G w/HDD
50 G w/CF,
20 G w/HDD
-20 ~ 70°C
(-4 ~ 158°F)

Wall
2 G w/CF,
1 G w/HDD
50 G w/CF,
20 G w/HDD
-20 ~ 80° C
(-4 ~ 176° F)

Wall & Rack Mount
2 G w/CF,
1 G w/HDD
50 G w/CF,
20 G w/HDD
-20 ~ 70° C
(-4 ~ 158° F)

-10 ~ 60°C
(14 ~ 140°F)

8-ch isolated DI
8-ch isolated DO

-

1 x SATA

-

-

-

16-ch AI/ 4-ch AO
16-ch isolated DI
16-ch isolated DO
1-ch isolated
counter

8-ch AI
32-ch isolated DI
32-ch isolated DO

Yes

1 x SATA

1 x SATA

-

2U Rackmount
2 G w/CF,
1 G w/HDD
30 G w/CF,
20 G w/HDD
-20 ~ 60°C
(-4 ~ 140°F)

Windows® XP
Embedded,
Windows CE 6.0,
Linux
2U Rackmount
2 Gw/CF
1 Gw/HDD
50 G w/CF,
20 G w/HDD
-20 ~ 60° C
(-4 ~ 140° F)

Windows® XP
Embedded,
Windows CE 6.0,
Linux
2U Rackmount
2 G w/CF,
1 G w/HDD
50 G w/CF,
20 G w/HDD
-20 ~ 60°C
(-4 ~ 140°F)

Windows® XP
Embedded,
Windows CE 6.0,
Linux
2U Rackmount
2 Gw/CF
1 Gw/HDD
50 G w/CF,
20 G w/HDD
-10 ~ 55°C
(14 ~ 131°F)

30 W

45 W

44 W

24 W

45 W

28 W

24 W

< 10 W

AC: 100 ~ 250 VAC,
DC: 106 ~ 250 VDC

AC: 100 ~ 250 VAC

DC: 9 ~ 36 VDC

AC: 100 ~ 240 VAC,
DC: 106 ~ 250 VDC

DC: 18 ~ 30 VDC

DC: 18 ~ 30 VDC

DC: 10 ~ 30 VDC

WES2009, WES7,
Windows CE 6.0
and Linux

Dual power input,
Power1/Power2:
AC: 100 ~ 240 VAC,
DC: 100 ~ 240 VDC
440 x 220 x 88 mm
(17.3" x 8.6" x 3.4")"
~5.5 kg
3-6

DIN-rail
1 Gw/CF
-

440 x 220 x 88 mm 440 x 220 x 88 mm 440 x 220 x 44 mm 440 x 220 x 88 mm 255 x 152 x 59 mm 220 x 150 x 89 mm 266 x 146 x 45 mm
(17.3" x 8.6" x 3.4") (17.3" x 8.6" x 3.4") (17.3" x 8.6" x 1.7") (17.3" x 8.6" x 3.4")
(10" x 6.0" x 2.3")
(8.7" x 5.9" x 3.5") (10.5" x 5.7" x 1.8")
~6.0 kg
~6.0 kg
~3.6 kg
~6.0 kg
~2.4 kg
~2.4 kg
~1.5 kg
Online
3-7
3-9
3-8
3-12
3-13
3-15

Energy Automation

Selection Guide
PAC Controller

NEW

APAX-5522PELX/
CE

System
Certification

IEC 61850-3/
IEEE 1613
XScale PXA270
520 MHz

CPU

Analog
Input

Storage

APAX-5017PE

Certification

IEC 61850-3/
IEEE 1613

Description

12-ch AI Module

AI Channels

USB Ports
Audio

-

Cooling System

Fanless

Power Input

18 ~ 30 VDC

Diagnostics LED

Power, Battery,
Run, Error

Real-time Clock

Yes

Watchdog Timer

Yes

Control Software

Analog
Input

C/C++ library and
.NET class library
for C and .NET
programming
environment
KW IEC 61131-3
SoftLogic
programming tool

Local Real-time I/O Modules
Digital I/O Points

Speed
COM 2

RS-232

COM 3

-

CAN Bus

Communication
(Serial)

-

Communication 2500 VDC (RS-485)

Isolation

Operating
Temperature
(when mounted
vertically)

-20 ~ 70°C

Storage
Temperature

-40 ~ 85°C

Relative
Humidity

0 ~ 95 %
(non-condensing)

Vibration
Protection

IEC 60068-2-64/
60068-2-6:
1 Grms @
5 ~ 500 Hz
(Random,
operating)
2 G @ 5 ~ 500 Hz
(Sine,
non-operating)

Shock
Protection

DMU-3010

Certification

Support Protocol

Modbus/TCP

12-ch Relay
Module

Channels

8

Description

24-ch DI
Module

Resolution

16 bit

DI Channels

24

-

10S/s

Sink or Source
Load

Sampling
Rate

-

0 ~ 10 V

Rated Input
Voltage

Voltage
Input

24 VDC

-

Input Voltage
Range
(signal "0")

Current
Input

0 ~ 20mA,
4 ~ 20mA

-5 ~ 5 VDC

-

RTD Input

PT-100,
PT-1000

Input Voltage
Range
(signal "1")

15 ~ 30 VDC
-15 ~ -30 VDC

-

Burn-out
Detection

Yes

Rated Input
Current

4.4 mA
(typical)

8

-

Input
Channels

Input Filter

3 ms

-

Output
Channels

4

-

Counter
Input

200 Hz

Frequency
Input

200 Hz

Pulse
Output

Yes

High/Low
Alarm
Settings

Yes

Digital
Input

±150 mV,
±500 mV, ±1 V,
±5 V, ±10 V
-

Over Voltage
Protection

Yes

-

DO Channels

-

12

-

Relay Form A
(SPST)

Rated Output
Voltage

-

250 VAC
30 VDC

Rated Output
Current
(signal "1")

-

5A

Output Type

-

Weight

170 g

Operating
Temperatrure

-40 ~ 85°C

Relative
Humidity
(noncondensing)

Weight

Isolation
between
channels
and
backplane

2500 VDC

5 ~ 95%

Page

online

*Each cahnnel can be configured with different
type and range
**Sampling rate value depends on used channel
number.
Example: Using 6 channels on APAX-5017,
sampling rate for each used channel will be 12/6
= 2 samples/second.

2500 VDC

Connectors

1 x RJ-45
(LAN)
4 x Plug-in
screw
terminal
block (I/O &
Power)
Power & DO

Watchdog Timer

Dimensions
(W x D x H)

120 x 120
x 44 mm
(4.72" x 4.72"
x 1.73")

Page

3-16

2500 VDC

Channel
Status LED

-40 ~ 70°C
(-40 ~
158°F)

2 W @ 24 VDC

Isolation
between
channels and
backplane

3 W @ 24
VDC

Operating
Temperature

Power
Consumption
(typical)

Yes

Power Consumption

Yes (per channel)

IEC 60068-2-27:
20 G @ wall mount

Environment

Page


-40 ~ 85°C

Relative
Humidity
(noncondensing)
General

Digital
Input
and
Output

195 g

-20 ~ 70°C
(when mounted vertically)

Storage
Temperature

2 W @ 24 VDC

Analog
Input

LED indicators

160 g

Operating
Temperatrure

5 ~ 95%

Power
Consumption
(typical)

General

Relay
Output

-20 ~ 70°C
(when mounted
vertically)

Storage
Temperature

10/100 Mbps
RS-232

±0.1 % of FSR
(Voltage)
±0.2 % of FSR
(Current)

Wire Burnout
Detection

1

COM 1

Model Name

IEC 61850-3/
IEEE 1613

Direct
Sensor Input

192 (max.)

LAN Ports

APAX-5060PE

Current Input

768 (max.)

Communication
(Ethernet)

Input
Accuracy

Voltage Input

32 (max.)*

Analog I/O points

16-bit (voltage)
14 ~ 15-bit
(current)

Fail Safe
Value
Page

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

IEC 61850-3/
IEEE 1613

12 (Total**)

Input
Resolution

-

Ethernet I/O
Module

APAX-5040PE

V, mV

Sampling
Rate
(Samples/
second)

-

NEW

Module Name

12

Input Type*

1 x CF slot

Local Display

NEW

Input Type

Module Name

Flash 32 MB,
SDRAM 64MB

Memory

Digital
Input/
Output

NEW

-

Yes

online

online

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

3-18

Compact PCI Systems

*APAX DI/O modules can use ID numbers 0 ~ 31, while AI/O
modules and counter modules can only use ID numbers 0 ~ 15

M2M I/O Modules

RS-485 I/O Modules


3-5

UNO-4671A

Intel® Atom™ D510/D525 Substation Computer
with 6 x LAN, 10 x COM, and 1 x PCI-104
Features

NEW

ƒƒ China Electricity Certificate IV level
ƒƒ EC 61850-3 and IEEE 1613 compliant for substation automation applications
I
ƒƒ nboard Intel Atom D510 1.66GHz/D525 1.8 GHz processor
O
ƒƒ upports wide range and dual power input
S
ƒƒ x RS-232 isolated ports, 4 x RS-422/485 isolated ports and 4 x RS-485
2
isolated ports
ƒƒ 6 x 10/100Base-T RJ-4 connector/2 x 10/100/1000Base-T and 4 x 10/100
Base-T RJ-45 connector
ƒƒ upports 1 x internal CF card and 1 x 2.5" SATA HDD
S
ƒƒ Fanless design
ƒƒ ES 2009, Windows XP, Windows CE 6.0, WES7 and Linux ready solution
W

RoHS

COMPLIANT
2002/95/EC

Introduction
UNO-4671A is compliant with Electricity Certificate IV level (especially for China) and IEC 61850-3 certification, which defines the international standards of network and system
communications in power substations. Featuring a fanless design with low power consumption and high performance Intel Atom D510/D525 processor, the UNO-4671A comes with
10 isolated serial ports, 6 x LAN, 4 x USB (Internal) and 1 x PCI-104 extension. With rich OS and driver support, such as WES 2009, Windows XP, Windows CE 6.0, WES7 and Linux,
users can integrate applications easily with a platform that can provide versatile functions to fulfill diverse requirements.

Specifications
General

I/O Interface

ƒƒ Certification

ƒƒ Serial Ports

ƒƒ

ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ

CE, FCC class A, CCC, Electricity IV level for China
(Compatible IEC 61850-3, IEEE 1613)
Dimensions (W x D x H) 2U (440 x 220 x 88 mm/17.3" x 8.6" x 3.4")
fits into standard 19 inch rack
Enclosure
SECC
Mounting
2U Rackmount
Power Consumption
30 W @ 24 V (Typical)
Power Requirements Supports dual power input (Optional)
Power 1: 100 ~ 240 VAC or 100 ~ 240 VDC
Power 2: 100 ~ 240 VAC or 100 ~ 240 VDC
Weight
< 5.5 kg
System Design
Fanless design
OS Support
WES 2009, Windows XP, Windows CE 6.0, WES7 and
Linux
Remote Management Built-in Advantech DiagAnywhere agent on Windows
CE/XPe/7

System Hardware
ƒƒ CPU
ƒƒ Memory
ƒƒ Indicators
ƒƒ Storage
ƒƒ Display
ƒƒ Reset Button
ƒƒ WatchDog Timer

3-6

Intel Atom D510 1.66 GHz/D525 1.8 GHz
2GB DDR2/4GB DDR3 SDRAM
LEDs for Power1&2, IDE, LAN (Active,Link) and Serial
(Tx, Rx)
1 x internal typeI/II CompactFlash® slot,
1 x Built-in 2.5" SATA HDD bracket
VGA , 1920 x 1024
Yes
Programmable 256 levels time interval, from 1 to 255
seconds for each tier

Energy Automation

ƒƒ

ƒƒ
ƒƒ

10 ports, 2 x RS-232, 4 x RS-422/485, 4 x RS-485
(Automatic RS-485 data flow control)
Communication Speed RS-232: 50 ~ 115.2 kps,
RS-422/485: 50 ~ 921600 bps
LAN
6 x 10/100 Base-T RJ-45 ports (For UNO-4671A-A33E)
2x 10/100/1000 Base-T RJ-45 ports and
4 x 10/100 Base-T RJ-45 ports (For UNO-4671A-A44BE)
USB Ports
4 x USB (include 1 x internal USB), UHCI, Rev. 2.0
compliant
Expansion
1 x PCI-104

Environment
ƒƒ Humidity
95% @ 40°C (non-condensing)
ƒƒ Operating Temperature IEC 60068-2-2 with 100% CPU/ I/O loading, 48 hrs -20
~ 60°C (-4 ~ 140°F)
ƒƒ Operating Humidity
20 ~ 95% (non-condensing)
ƒƒ Shock Protection
IEC 68 2-27 CompactFlash®: 30 G half sine, 11 ms
HDD: 20 G half sine, 11 ms
ƒƒ Vibration Protection IEC 68 2-64 (Random 1 Oct./min, 1hr/axis.)
CompactFlash: 2 Grms @ 5 ~ 500 Hz

ƒƒ UNO-4671A-A33E
ƒƒ UNO-4671A-A44BE
ƒƒ PCLS-DIAGAW10

Intel Atom D510 1.66 GHz, 2 GB RAM Automation
Computer
Intel Atom D525 1.8 GHz, 4GB RAM Automation
Computer
Advantech Remote Monitoring & Diagnosis Utility

UNO-4672/P154

Substation Network
Recorder/Analyzer

Features

NEW

ƒƒ IEC 61850-3 and IEEE 1613 compliant for substation automation applications
ƒƒ Intel Core Duo LV L2400 1.66 GHz SOM-4780
ƒƒ 4-ch Fiber Smart LAN for data acquisition
ƒƒ DSP LAN data manage and support online firmware update
ƒƒ 10 Mbyte for IEC 61850 standard MU (20 MU Module Data Acquisition)
ƒƒ 2-ch 10/100Base-F LAN, SC Multi-Mode 1300 nm
ƒƒ 1-ch Fiber IRIG interface, ST Multi-Mode 850 nm
ƒƒ 1-ch RS-485 IRIG interface
ƒƒ Fanless design with no internal cabling
ƒƒ Isolation power design with wide AC/DC input range
ƒƒ Isolation between chassis and power ground
ƒƒ One internal USB for dongle and flash drive

COMPLIANT
2002/95/EC

Introduction
As for data recording and analysis from a network, the UNO-P154 provides four smart LAN ports to collect high-density network packets that come with 32K byte FIFO to keep
data integrity, and two standard 10/100 Mbps fiber optic interfaces, which are used to respond to real-time data. IRIG time decode could more accurately record time information to
facilitate data analysis.

General

I/O Interface

ƒƒ Certification

ƒƒ Serial Ports

ƒƒ

ƒƒ

CE, FCC class A, UL, CCC, Electricity IV level for
China
Dimensions (W x D x H) 2U (440 x 220 x 88 mm/ 17.3" x 8.6" x 3.4")
Enclosure
SECC
Mounting
2U Rackmount
Power Consumption
44 W (Typical)
Power Requirements AC: 90 ~ 250 VAC (47 ~ 400 Hz), DC: 106 ~ 250 VDC
Weight
~6.0 kg
OS Support
Windows® XP Embedded, Windows CE 6.0, Linux
System Design
Fanless Design
CE/XPe
Intel Core Duo LV L2400 1.66 GHz
2 GB DRAM built-in
LEDs for Power, IDE, Diagnosis (programmable), LAN
(Active, Status) and Serial (Tx, Rx)
VGA, 1600 x 1200 @ 85 Hz
PC-104

IRIG Time Code
ƒƒ Channels
ƒƒ Accuracy
ƒƒ Transmission Distance

ƒƒ

ƒƒ

ƒƒ
ƒƒ

System Hardware

ƒƒ Display
ƒƒ PC/104 Slot
ƒƒ Watchdog Timer

Building Automation
Systems

Automation Software

Industrial Panel

Industrial Monitors

Specifications

ƒƒ Storage

Energy Automation


UNO-4672 features a fanless design with built-in isolated PSU and ten isolated serial communication ports and is even suitable for any harsh applications. The rear I/O connection
and LEDs on the front panel for all ports and modes highly simplify monitoring operation and maintenance.

ƒƒ CPU
ƒƒ Memory
ƒƒ Indicators

Machine Automation

Operator Panels

RoHS

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


1 ST Multi-mode, 1 Isolated RS-485
0.1us
ST Multi-mode
2.7 km
RS485
1.2 km

10 Ports, 2 x RS-232, 8 x RS-232/422/485
Communication Speed RS-232: 50 ~ 115.2 kbps, RS-422/485: 50 ~ 921.6
kbps (Max.)
LAN
2 x 10/100/1000Base-T RJ-45 ports, teaming function
supported
4 x 10/100Base-T RJ-45 ports
2 x 10/100 SC Multi-Mode
Smart LAN
4 x 10/100 SC Mutil-Mode
Data Sampling Rate 10 MBytes (max.)

20 MU (IEC 61850 standard)
Data Transfer Mode DMA
USB Ports
compliants
Expansion
1 x PCI-104

Environment
ƒƒ Humidity
ƒƒ Operating Temperature IEC 60068-2-1 with 100% CPU/ I/O loading, 48 hrs
-20 ~ 60°C (-4 ~ 140°F)
IEC 68 2-27 CompactFlash®: 50 G half sine, 11 ms
ƒƒ Vibration Protection IEC 68 2-64 (Random 1 Oct./min, 1hr/axis.)
CompactFlash®: 2 Grms @ 5 ~ 500 Hz,
HDD: 1 Grms @ 5 ~ 500 Hz

ƒƒ UNO-P154-AE
ƒƒ UNO-4672-D03E
ƒƒ UNO-4672I-D03E

4-ch Fiber Smart LAN network DAQ Card for UNO4672
Intel Core Duo LV L2400 1.66 GHz, 2 GB RAM
Automation Computer
Intel Core Duo LV L2400 1.66 GHz, 2 GB RAM
Automation Computer W/ 4-ch Smart lAN and IRIG-B


Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

3-7

UNO-4673A
UNO-4683

Intel® Atom™ D510/ Core™ i7 Substation
Computers with 6 x LAN, 2 x COM and
3 x Expansion Slots
Features

NEW

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

China Electricity Certificate IV level
IEC 61850-3 and IEEE 1613 certified for substation automation applications
Onboard Intel Atom 1.66 GHz / Core i7 2.0 GHz processor
2 x RS-232/422/485 isolated serial ports with automatic flow control and
128KB FIFO
2 x 10/100/1000Base-T (supports teaming function) and 4 x 10/100Base-T
Supports 1 x internal CF card and 1 x 2.5" SATA HDD
6 x USB 2.0 (1 x internal) and 3 x Domain I/O expansions
Rear wiring, rich system & I/O LED status indicators
Windows® CE 6.0, Windows XP Embedded SP2, and Linux ready solution
Isolation power design with wide AC / DC input range
One internal USB for dongle and flash drive

RoHS

COMPLIANT
2002/95/EC

Introduction
UNO-4673A and UNO-4683 are compliant with the hardware requirements of IEC 61850-3, which defines the international standards of network and system communications in power
substations. Featuring fanless designs with built-in isolated PSU and 3 expansion slots for I/O plug-in cards, the UNO-4673A and UNO-4683 are suitable for harsh environments.
The rear I/O connection and LEDs on front panel for all ports and modes highly simplify monitoring for operation and maintenance.

Specifications
General

I/O Interface

ƒƒ Certification

ƒƒ Serial Ports

ƒƒ

ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

IEC 61850-3, IEEE 1613, CE, FCC Class A, UL, CCC,
Electricity IV level for China
Dimensions (W x D x H) 2U (440 x 220 x 88 mm/ 17.3" x 8.6" x 3.4")
Enclosure
SECC + Aluminum
Mounting
2U Rackmount
Power Consumption
45 W (Typical)
Power Requirements AC: 100 ~ 240 VAC (47 ~ 63 Hz), DC: 106 ~ 250 VDC
Weight
~6.0 kg
OS Support
WES 2009, Windows CE 6.0, Linux
System Design
Fanless Design
CE/XPe

System Hardware
ƒƒ CPU
ƒƒ Memory
ƒƒ Indicators
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Intel Atom D510 1.66 GHz/Core i7 2.0 GHz
2 GB DDR2 SDRAM/4G DDR3 SDRAM built-in
LEDs for Power, IDE, Alarm for battery backup SRAM,
Diagnosis (programmable), LAN (Active, Status) and
Serial (Tx, Rx)
Keyboard/Mouse
2 x PS/2
Storage
Display
VGA , 1600 x 1200 @ 85 Hz / 1DVI-I,
1920 x 1080 @ 60HZ
Watchdog Timer
Programmable 7-tier event handler, from 1 to 255
Battery Backup SRAM 1 MB

ƒƒ
ƒƒ
ƒƒ
ƒƒ

2 Ports, 2 x RS-232/422/485
Communication Speed RS-232: 50 ~ 115.2 kbps, RS-422/485: 50 ~ 921.6
kbps (Max.)
LAN
2 x 10/100/1000Base-T RJ-45 ports,teaming function
supported
Audio
Line-out
USB Ports
compliant
Expansion
3 x Domain I/O expansions (Only slot 1 supports PCIe
resource)

Environment
ƒƒ Humidity
ƒƒ Operating Temperature IEC 60068-2-2 with 100% CPU/ I/O loading, 48 hrs
-20 ~ 70°C (optional for -40°C)
IEC 60068-2-27 CompactFlash®: 50 G half sine, 11 ms
ƒƒ Vibration Protection IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.)
HDD: 1 Grms @ 5 ~ 500 Hz

ƒƒ UNO-4673A-A33E
ƒƒ UNO-4683-D34E

Intel Atom 1.66 GHz, 2 GB RAM Automation Computer
Intel Core i7 2.0 GHz, 4 GB RAM Automation Computer

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

3-8

Energy Automation

UNOP-1000I-AE
UNOP-1000J-AE
UNOP-1514C-AE
UNOP-1618D-AE
UNOP-1628D-AE
UNOP-1624D-AE
PCLS-DIAGAW10

Expansion card for standard PCI and Mini PCI
Expansion card for standard PCI-104 and Mini PCIe
4-port Fiber Optic LAN card
8-port RS-232/422/485 w/EFT protection
8-port RS-232/422/485 w/Iso and EFT
4-port RS-232/422/485 w/Iso and EFT, 1-port IRIG-B

UNO-4678

Intel® Celeron® M Fanless Box PC with
3 x LAN, 8 x COM, PC/104
Features

NEW

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ Onboard Celeron® 1 GHz processor and 512 MB or 1024 MB RAM
ƒƒ Supports Lm sensor which can retrieve CPU and board temperature for
monitoring purposes
ƒƒ 8 x isolated RS-232/422/485 ports with automatic flow control
ƒƒ 3 x 10/100Base-T RJ-45 ports
ƒƒ Supports two USB and 1 x type I/II CF card
ƒƒ Windows® CE 5.0 and Windows XP Embedded ready solution
ƒƒ Windows 2000/XP driver ready and Linux driver support
ƒƒ Windows XP Embedded (SP2) ready platform with write protection (EWF)
ƒƒ Onboard system & I/O LED indicators

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels

RoHS

COMPLIANT
2002/95/EC

Introduction


UNO-4678 is high-performance Fanless Box PC, which supports a Celeron M 1 GHz CPU, and equipped with eight isolated serial communication ports. They inherit the glory from
the UNO family and includes the typical characteristics as it is fanless, robust, and reliable. Furthermore, in order to meet the diverse applications in industrial automation and control,
varied interfaces and 1U form factor are suitable for use, especially for rack mounting. Also, LEDs for all ports and modes on the front panel simplify the monitoring status for operation,
administration and maintenance. UNO-4678 is convenient and user-friendly platforms to fulfill a wide range of requirements.

Industrial Panel

Industrial Monitors

Specifications
General

Environment

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ Humidity
ƒƒ Operating Temperature -10 ~ 50°C (14 ~ 122°F)
IEC 68 2-27
CompactFlash®: 50 G @ wall mount, half sine, 11 ms
HDD: 20 G @ wall mount, half sine, 11 ms
HDD: 0.5 Grms @ 5 ~ 500 Hz

Certification
CE, FCC class A, CCC,Electricity IV level for China
Dimensions (W x D x H) 1U (440 x 220 x 44 mm/17.3" x 8.6" x 1.7")
Enclosure
SECC + Aluminum
Mounting
Rack mount
Power Consumption
24 W (Typical)
Power Requirements DC: 9 ~ 36 VDC
Weight
3.6 kg
OS Support
Windows® XP Embedded, Windows CE 6.0, Linux

System Hardware
ƒƒ CPU
ƒƒ Memory
ƒƒ Indicators
ƒƒ Keyboard/Mouse
ƒƒ Storage
ƒƒ Display

Celeron M 1.0 GHz
512 MB DDR SDRAM (UNO-4678-C11E) or
1024 MB DDR SDRAM (UNO-4678-C12E)
LEDs for Power, Power Input 1 & 2, Power fault, IDE,
LAN (Active, Status) and Serial (Tx, Rx)
1 x PS/2
1 x Built-in 2.5" IDE HDD bracket
VGA, 1600 x 1200 @ 85 Hz

ƒƒ UNO-4678-C11E
ƒƒ UNO-4678-C12E

Celeron M 1 GHz, 512 MB RAM Fanless Box PC
Celeron M 1 GHz, 1024 MB RAM Fanless Box PC

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

I/O Interface
ƒƒ Serial Ports
ƒƒ Serial Port Speed
ƒƒ LAN
ƒƒ USB Ports

8 Ports, 8 x RS/232/422/485
RS-232: 50 ~ 230.4 kbps
RS-422/485: 50 ~ 921.6 kbps (Max.)
2 x USB (include 1 x internal USB), EHCI, Rev. 2.0
compliant


M2M I/O Modules

RS-485 I/O Modules

3-9

UNOP-1628D/1618D
UNOP-1624D
UNOP-1514C
NEW

NEW

UNOP-1628D/1618D

RoHS

COMPLIANT
2002/95/EC

8-port RS-232/422/485 with and
without port-to-port Isolation
4-port Isolated RS-232/422/485
with IRIG B
4-port Fiber Optic LAN Card

NEW

UNOP-1624D

RoHS

COMPLIANT
2002/95/EC

UNOP-1514C

RoHS

COMPLIANT
2002/95/EC

Specifications

Specifications

Specifications

General

General

General

ƒƒ Connector
ƒƒ Dimensions
ƒƒ Certification

120-pin connector for UNO4673A/PCI
5.3" x 6.0" (136 x 150 mm)
5V ± 5% @ 620mA typical
3.3V ± 5% @ 75mA typical
CE/FCC

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

COM Ports
Data Bits
Stop Bits
Parity
Baud-rate (bps)

ƒƒ Data Signals

All COM ports use the same
IRQ assigned by PCI Bus
8 x RS-232/422/485 ports
5, 6, 7, 8
1, 1.5, 2
None, Even, Odd
RS-232: 50 ~ 115.2 kbps
RS-422/485: 50 ~ 921.6 kbps
(max.)
TxD, RxD, RTS, CTS,
RI,DSR,DTR,DCD,GND for
RS-232
Data+, Data-, GND for RS-485
Tx+, Tx-, Rx+, Rx- for RS-422

Protection

2500 VDC (UNOP-1628D)

Environment
ƒƒ Operating Temp.
ƒƒ Storage Humidity

ƒƒ UNOP-1628D-AE

ƒƒ Certification
ƒƒ IRQ

ƒƒ COM Ports
ƒƒ Baud rate (bps)
ƒƒ Data Signals

8-port RS-232/422/485 for
UNO-4673A
8-port Iso.
RS-232/422/485 for
UNO-4673A

All COM ports use the same
IRQ assigned by PCI Bus
4 x RS-232/422/485 ports
RS-232: 50 ~ 115.2 kbps
RS-422/485: 50 ~ 921.6 kbps
(Max.)
TxD, RxD, RTS, CTS, RI,
DSR, DTR, DCD, GND for
RS-232Data+, Data-, GND for
RS-485Tx+, Tx-, Rx+, Rx- for
RS-422

IRIG Time Code Input
ƒƒ IRIG Interface

ƒƒ ST Multi-Mode
ƒƒ Input Signal
ƒƒ Supported Formats

-20 ~ 70°C (-4 ~158°F)
10 ~ 90% RH
non-condensing (refer to IEC
60068-2-3)
5 ~ 95% RH non-condensing
(refer to IEC 60068-2-3)

ƒƒ UNOP-1618D-AE

ƒƒ Dimensions

120-pin connector for
UNO-4673A/PCI
5.3" x 6.0" (136 x 150 mm)
5V ± 5% @ 500mA typical.
3.3V ± 5% @ 180mA typical.
CE/FCC

Communication

Communication
ƒƒ IRQ

ƒƒ Connector

Male 9-pole D-Sub connector
(COM4 or IRIG-B)
Fiber connector
Female BNC
RS-422 input signal isolated by
optocoupler Optical signal @
820nm; TTL
IRIG-B according to IRIG
STANDARD 200-04, 200-98

ƒƒ IRIG Interface
ƒƒ Output Signal

Male 9-pole D-Sub connector
(COM4 or IRIG-B)
Female BNC
RS-422 output signal; TTL

IRIG Time Code Decoding
ƒƒ Message syntax

YYYYQQQHHMMSS
(yr, d, h, min, sec)
ƒƒ Resolution of the time 1s
ƒƒ Status info
1 status LED for indication

Protection


2500 VDC
-20 ~ 70°C (-4 ~158°F)

ƒƒ UNOP-1624D-AE

Energy Automation

ƒƒ Dimensions
ƒƒ Certification

4-port Iso.
RS-232/422/485 and IRIG B for
UNO-4673A

120-pin connector for UNO4673A/PCI
5.3" x 6.0" (136 x 150 mm)
5V ± 5% @ 2000 (at least) mA
CE/FCC

Fiber Optic LAN
ƒƒ Standard
ƒƒ Transmission

IEEE 802.3, 802.3u, 802.3x
LAN 100Base-FX
Up to 2 km

ƒƒ Wavelength
ƒƒ Transmission Speed

1300 nm
Up to 100 Mbps

Distance

Interface
ƒƒ Connectors
ƒƒ LED Indicators

4 x SC type Multi-mode
Fiber Optic connector
Active, Link (100Base-FX)
Max. 10W

Environment

IRIG Time Code Output

Environment

3-10

ƒƒ Connector

-20 ~ 70°C (-4 ~158°F)
10 ~ 90% RH noncondensing
5 ~ 95% RH
non-condensing

ƒƒ UNOP-1514C-AE

4-port Fiber Optic LAN Card for
UNO-4673A

UNOP-1514RE/PE

4-Port Gigabit Base
Ethernet Card

Features

NEW

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ Intel® 82580 4-Port Gigabit Ethernet Controller
ƒƒ 4-Port RJ45 or SFP pluggable modules LAN
ƒƒ FP socket for easy and flexible fiber expansion
S
ƒƒ EEE 1588 Precision Time Protocol support
I
ƒƒ 20 Pin Connector for UNO-4673A/83 Series (PCI-Express X 1 compliant)
1

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels

Introduction


The UNOP-1514RE/UNOP-1514PE is a PCI express communication card which can support 4 independent 10/100/1000Base Ethernet ports. The Gigabit Ethernet card provides the
high performance with a 10/100/1000 Base Ethernet LAN Controller(Intel @82580),which is perfect for use in industrial applications and smart substations. It provides an excellent
solution and can be connected to a high speed Local Area Network with a data transfer rate of up to 1000Mbps over a group of 4 twisted pair copper wires to a maximum distance of
100 meters. Therefore, it can be easily plugged into any existing network with CAT-5 cabeling or an SFP Module .

Industrial Panel

Specifications


General

ƒƒ UNOP-1514RE-AE
ƒƒ UNOP-1514PE-AE

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Connector
Bus Interface
Dimensions
Power Consumption
Certification

20-pin connector for UNO-4673A/83 series PCIe
PCI Express® x 1 compliant
5.3" X 6.0" (136 x 150 mm)
5V ±5% @ 400mA typical
CE/FCC

UNOP-1514PE
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Connector

Ports

Compatibility
Speed

SFP
4
IEEE 802.3 Ethernet interface
1000M bps

4-port RJ45 Gigabit Base Ethernet Card
4-port SFP Gigabit Base Ethernet Card

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

SFP-GTX/RJ45
SFP-GSX/LC
SFP-GLX/LC-10
SFP-GLX/LC-20
SFP-GLX/LC-40

1000Base RJ45 SFP module
1000Base-SX Multi-mode SFP module
1000Base-LX Single-mode SFP module (10 km)

Connector

Ports

Compatibility
Speed


Industrial Ethernet
Solutions

and IP Gateways

RJ45
4
IEEE 802.3 Ethernet interface
10/100/1000M bps

Embedded Automation
Computers

-20 ~ 70°C (-4 ~158°F)

Compact PCI Systems

PACs

Environment

Industrial Wireless
Solutions

Cards

UNOP-1514RE
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Industrial Monitors

M2M I/O Modules

RS-485 I/O Modules


3-11

ECU-1710A

Intel® Atom™ D510 Controller with 16-ch AI,
4-ch AO and 32-ch Isolated DI/O
Features

NEW

ƒƒ Onboard Intel Atom D510 1.66 GHz processor
ƒƒ 2 x RS-232 ports
ƒƒ 2 x USB ports
ƒƒ Integrated PCI-1710UL & PCI-1720U modules
ƒƒ 16-ch single-ended or 8-ch differential or a combination of Analog Input
ƒƒ 12-bit A/D converter, with up to 100kS/s sampling rate
ƒƒ 4-ch 12-bit Analog Output
ƒƒ 16-ch Isolated Digital Input/Digital Output
ƒƒ 1-ch Isolated Counter

RoHS

COMPLIANT
2002/95/EC

Introduction
ECU-1710A is a standalone automation controller with integrated PCI-1710UL and PCI-1720U to provide 16-ch Analog Input, 4-ch Analog Output, 16-ch Isolated Digital Input and
16-ch Isolated Digital Output. This controller also supports serial communication ports and several other networking interfaces. You can seamlessly integrate your applications into
the ECU-1710A and speed up your system development with these application ready controllers.

Specifications
General
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Power Consumption
28 W (Typical)
Weight
2.4 kg (Typical)
OS Support
WES 2009

System Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

CPU
Memory
Indicators
Keyboard/Mouse
Storage

ƒƒ Excitation Voltage
Intel Atom D510 1.66 GHz/ 512 KB L2 Cache
1GB DDRII 667MHZ
LEDs for Power, IDE and LAN (Active, Status)
1 x PS/2

I/O Interface
ƒƒ Serial Ports
ƒƒ LAN
ƒƒ USB Ports

2 Ports, 2 x RS-232

Analog Input
ƒƒ Channels
16 single-ended/ 8 differential
ƒƒ Resolution
12 bits
ƒƒ Max. Sampling Rate 100 kS/s
ƒƒ FIFO Size
4,096 samples
ƒƒ Overvoltage Protection 30 Vp-p
ƒƒ Input Impedance
>18M ohm
ƒƒ Sampling Mode
Delay to Start, Delay to Stop,None
ƒƒ Input Range
(V)
Unipolar
N/A
0 ~ 10
0 ~ 5 0 ~ 2.5
Bipolar
±10
±5
±2.5
±1.25
Accuracy (% of FSR ±1LSB) 0.1
0.1
0.2
0.2

Analog Output
ƒƒ Channels
ƒƒ Resolution

3-12

ƒƒ Output Range
Unipolar (V)
Bipolar (V)
Current Loop (mA)
ƒƒ Driving Capability
ƒƒ Accuracy

4
12 bits

Energy Automation

(Software programmable)
0 ~ 5, 0 ~ 10
±5, ±10
0 ~ 20, 4 ~ 20
5 mA
Relative: ±1 LSB; Differential
Non-Linearity: ±1 LSB (monotonic)
48 V (max.)

Digital Input /Output / Counter
ƒƒ DI Channels
ƒƒ DI Input Voltage
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

16
Logic 0: 2 V max.
Logic 1: 5 V min. (30 V max.)
DO Channels
16
DO Output Type
Sink Type (NPN)
DO Output Voltage
5 ~ 40 VDC
DO Sink Current
300 mA max. per channel
Counter Channels
1
Counter Resolution
16 bits
Counter Input Voltage Logic 0: 2 V max.
Logic 1: 5 V min. (30 V max.)
Counter Max. Input
1 MHz
Frequency
1,000 VDC

Environment
ƒƒ Humidity
5 ~ 95% RH, non-condensing (IEC-60068-2-3)
ƒƒ Operating Temperature -10 ~ 60°C (14 ~140°F) @ 5 ~ 85% RH
ƒƒ Storage Temperature -20 ~ 80°C (-4 ~176°F)
0 ~ 1.25
±0.625
0.4

ƒƒ ECU-1710A-A32E
ƒƒ PEC-3710-AE

Intel Atom D510 1.66 GHz controller with AI/O and DI/O
AMD LX800 500 MHZ controller with AI/O and DI/O

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ

PCL-10137-1
PCL-10125-1
ADAM-3925
ADAM-3937

DB37 Cable, 1m
DB25 Cable, 1m

Intel® Atom™ D510 Energy Controller
with 2 x LAN, 3 x COM, IRIG-B, and
I/O Extension

ECU-1871

Features

NEW

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ China Electricity Certificate IV level
ƒƒ IEC 61850-3 and IEEE-1613 compliant for substation application
ƒƒ uilt-in Time Synchronize IRIG-B
B
ƒƒ upport more Smart-Substation application I/O extension
S
ƒƒ nboard Intel Atom D510 1.66 GHz CPU
O
ƒƒ x RS-232 port/ 2 x RS-485 isolation ports
1
ƒƒ 2 x 10/100/1000Base-T RJ-45 ports
ƒƒ Windows® CE 6.0, WES 2009, WES 7, and Linux ready solution
ƒƒ upport PCIe-104 & PCI-104 extension
S

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels

RoHS

COMPLIANT
2002/95/EC

Introduction


ECU-1871 is compliant with Electricity Certificate IV Level (especially for China) and IEC 61850-3 certification. Featuring a fanless design with low power consumption and high
performance Intel Atom D510 processor, the ECU-1871 comes with 2 x Ethernet, 1 x RS-232, and 2 x isolation RS-485 ports. The ECU-1871 supports two extension interface, PCI-104
& PCIe-104, and users can easily order other Energy I/O boards to integrate into the ECU-1871 and speed up your system development with an energy controller.

Specifications

Industrial Monitors

General

Time Synchronization Interface

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ Type
ƒƒ Channel
ƒƒ Support Format

Dimensions (W x D x H) 220 x 150 x 89 mm (8.7"x 5.9"x 3.5")
Power Consumption
24 W (Typical)
Weight
2.4 kg (Typical)
Mounting
2U Rack-mount & Wall-mount
OS Support
WES 2009, WES 7, WinCE 6.0, Linux
System Design
Fanless with no internal cabling

ƒƒ Input Signal
ƒƒ Message Syntax
ƒƒ Resolution of Time

ƒƒ CPU
ƒƒ Memory
ƒƒ Indicators
ƒƒ Storage

ƒƒ PCI-104/PCIe-104

Intel Atom D510 1.66 GHz/ 512 KB L2 Cache
2G DDRII 667 MHz
LEDs for Power, HDD,IRIG,COM(Tx Rx) and LAN
(Active Statue)
SSD: 1 x type I/II CompactFlash® slot
HDD: 1 x integrated 2.5" SATA HDD bracket
VGA, 1600 x 1200 @ 85 Hz
Supports +3.3/ +5 V power

Communication Interface
ƒƒ Serial Ports
ƒƒ Serial Ports Speed
ƒƒ LAN
ƒƒ USB Ports

IRIG-B
1
IRIG-B00X according to IRIG STANDARD
04, 200-98
ST Multi-mode, 1 Isolation RS-485 (Optional)
QQQHHMMSS(year, day, hour, minute & second)
1s

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

Environment

System Hardware

ƒƒ Display
ƒƒ Watchdog Timer

Industrial Panel

3 Ports, 1 x RS-232, 2 x RS-485
RS-232
50 ~ 115.2 kbps
RS-485
50 ~921.6 kbps
2 x 10/100/1000Base-T RJ-45 ports
4 x USB (include 1×internal USB), EHCI, Rev. 2.0
compliant

and IP Gateways

ƒƒ Humidity
ƒƒ Operating Temperature -20 ~ 70°C (-4 ~158°F) @ 5 ~ 85% RH

Cards

ƒƒ ECU-1871

Intel Atom Energy Controller with 2 x LAN, 3 x COM,
IRIG-B and I/O Extension

PACs

Accessories
ƒƒ ECU-P1706-AE
ƒƒ ECU-P1300-AE
ƒƒ ECU-P1702-LAE

Embedded Automation
Computers

250 KS/s, 16 bit, Simultaneous 8-ch Analog input
PCI-104 Card
Vibration Signal Modulate, Vibration Sensor Driver,
8-order Low-pass Filter
10 MS/s, 14bit, Simultaneous 4-ch Analog input
PCI-104 Card

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


3-13

ECU-P1706
ECU-P1702
ECU-P1300

250 KS/s, 16bit, Simultaneous 8-ch Analog
input PCI-104
10 MS/s, 12bit, Simultaneous 4-ch Analog
input PCI-104
Vibration Signal Modulate Card

Features

NEW

ƒƒ Designed for Smart-Grid Applications
ƒƒ ECU-P1706 focuses on the Vibration/ Substation Signal Analytics
(Wind-Power / Smart Substations)
ƒƒ ECU-P1702 focuses on the Partial Discharge Detection and Analytical Devices
(Smart Substations)
ƒƒ ECU-P1300 focuses on Vibration Applications
(Wind-power / Smart Substations)
ƒƒ Easy to install to ECU-1871 Energy Controller

ECU-P1706

ECU-P1702

ECU-P1300

Specifications

Specifications

Specifications

General

General

General

ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ Power Consumption Typical: 5V @ 850mA;
3.3V @ 500mA
ƒƒ Bus Type
PCI-104
ƒƒ I/O Connector
BNC
ƒƒ Operating
-20 ~ 70°C (-4 ~158°F)
temperature
@ 5 ~ 85% RH
ƒƒ Storage Humidity 5 ~ 95% RH,
non-condensing
(IEC 60068-2-3)

ƒƒ Power Consumption Typical: 5V @ 400mA;
12V @ 100mA
ƒƒ Operating
-20 ~ 70°C (-4 ~158°F)
temperature
@ 5 ~ 85% RH
5 ~ 95% RH,
non-condensing
(IEC 60068-2-3)

Power Consumption Typical: 5V @ 850mA
Bus Type
PCI-104
I/O Connector
Plug-in Terminal Block
Operating
-20 ~ 70°C (-4 ~158°F)
temperature
@ 5 ~ 85% RH
5 ~ 95% RH,
non-condensing
(IEC 60068-2-3)

Analog Input
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Channels
8 differential
Resolution
16 bits
Max. Sampling Rate 250 KS/s
FIFO Size
8K samples
Overvoltage
30 VP-P
Protection
Input Impedance
187 Mohm
Sampling Mode
Software, onboard
programmable pacer and
external (TTL Level)
Trigger mode
Post-trigger, Pre-trigger,
Delay-trigger, About-trigger
Trigger Source
Analog Trigger, External
Trigger
Input Range
(V. Software Programmable)

Bipolar
Accuracy
% of FSR±1LSB

±10

±5

±2.5

±1.25

0.04

0.04

0.06

ƒƒ
ƒƒ

ƒƒ
ƒƒ

ƒƒ Channels
ƒƒ Resolution
ƒƒ Mode

2
32 bits
In: Event counting,
Frequency In, PWM In
ƒƒ Compatibility
Isolated 24VDC
ƒƒ Max. Input Frequency 1 MHz
ƒƒ Max. Output Frequency 1 MHz

3-14

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

0.08

Timer Counter

ƒƒ ECU-P1706-AE

Analog Input

250 KS/s, 16bit,
Simultaneous 8-ch
PCI-104

Energy Automation

ƒƒ

Channels
4 signal end
Resolution
12 bits
Max. Sampling Rate 10 MS/s
FIFO Size
32768 samples
Overvoltage
14 VP-P
Protection
Input Impedance
50 ohm/1M ohm/Hi Z
switch selectable /100pf
Sampling Mode
Software, onboard
programmable pacer and
external (TTL Level)
Trigger mode
Post-trigger, Pre-trigger,
Delay-trigger, About-trigger
Trigger Source
Analog Trigger, External
Trigger
Input Range
±5, ±2.5, ±1, ±0.5

ƒƒ ECU-P1702-LAE

10 MS/s,, 12bit,
Simultaneous
4-ch PCI-104

Vibration Modulate
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Channels
Input Range
Output Range
Input Coupling
Sensor Current
Supply
Precision
Drive Ability
Sensor Signal Gain
Signal Gain
Analog Filter

ƒƒ Filter Adjustable

8
±5V
±10V
AC
4mA Constant Current
Output 24V compliant
0.1%
0 ~ 5K
1
1
8th order Lowpass Bessel
Filters
0.1 Hz ~ 25KHz Adjustable
by Software Program

ƒƒ ECU-P1300-AE

Vibration Signal Modulate
Card

ECU-1911

Xscale @ PXA-270 520 MHz RTU
with 8-ch 16-bit AI,32-ch DI,32-ch DO
Features

NEW

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ Onboard Xscale @ PXA-270 520 MHz CPU
ƒƒ 1 x RS-232 port
ƒƒ 3 x RS-485 isolated ports
ƒƒ -ch 16-bit differential Analog Input
8
ƒƒ 2-ch isolated Digital Input
3
ƒƒ 2-ch isolated Digital Output
3
ƒƒ uilt-in Window CE 5.0
B

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels

Introduction


ECU-1911 focuses on RTU monitor application. The ECU-1911 is also a standalone RTU that provides a 16-bit 8-ch A/D converter, 32-ch Relay and 32-ch Digital Input. This
controller also supports four serial communication ports and two networking interfaces. You can seamlessly integrate your applications into the ECU-1911 and speed up your system
development with this application ready RTU.

Specifications

Industrial Monitors

General

Analog Input

ƒƒ Power Consumption <10 W (Typical)
ƒƒ Power Requirements 24 VDC (Typical) (10 VDC Min ~ 30 VDC Max)
ƒƒ OS Support
Windows CE 5.0

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

System Hardware
ƒƒ CPU
ƒƒ Memory
ƒƒ Storage

Xscale @ PXA-270 520MHz
Onboard 64 MB SDRAM/ 32 MB Flash
1 x type I/II Compact Flash slot

ƒƒ Isolation
ƒƒ Connector

ƒƒ Drift
32
Sink
Logic 0: 0 ~ 10 V
Logic 1: 19 ~ 30 V
3000 VDC
Terminal Block (#14 ~ 22 AWG)

Channels
I/O Type
Contact Rating
Isolation
Connector

8 differential
16 bits
10 Hz/sec (total)
700 kΩ
0 ~ 150 mV, 0 ~ 500 mV, 0 ~ 1 V, 0 ~ 5 V, 0 ~ 10 V,
0 ~ 15 V, ±150 mV, ±500mV, ±1 V, ±5 V, ±10 V,
±15 V, ±20 mA, 4 ~ 20 mA
Voltage : ± 0.1 %
Current : ± 0.2 %
±25 ppm/° C

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Environment

Cards

ƒƒ Humidity
5 ~ 95% @ 40°C (non-condensing)
ƒƒ Operating Temperature -20 ~ 70°C (-4 ~158°F) @ 5 ~ 85% RH

Embedded Automation
Computers

I/O Interface

Digital Output
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Channels
Resolution
Sampling rate
Input Impedance
Input Range

ƒƒ Accuray

Digital Input
ƒƒ Channels
ƒƒ I/O Type
ƒƒ Wet Contact

Industrial Panel

ƒƒ Serial Ports
32
Power Relay Form A
AC: 5A @ 250 V; DC: 30 V @ 5 A (Resistive Load)
500 VDC
Terminal Block (#14 ~ 22 AWG)

ƒƒ LAN
ƒƒ USB Port

4 Ports, 1 x RS-232, 3 x RS-485
(Automatic RS-485 data flow)
1 x USB, OpenHCI, Rev. 1.1 compliant

ƒƒ ECU-1911-R0CAE

Xscale @ PXA-270 520 MHz RTU with 8-ch 16-bit
Analog Input, 32-ch Digital Input, and 32-ch Digital
Output

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


3-15

DMU-3010

8-ch AI, 8-ch DI, 4-ch DO
Ethernet I/O Module
Features
ƒƒ Industrial Modbus/TCP protocol
ƒƒ Mixed I/O in the Module
ƒƒ Advantech Domain Focused Configuration Tool
ƒƒ Remote maintenance through Ethernet
ƒƒ Supports online device auto-scan or manual configure function
ƒƒ Auto push data to specification target function
ƒƒ Supports High/Low Alarm function
ƒƒ Supports cable burn-out check
ƒƒ Supports pulse/ accumulator input

RoHS

COMPLIANT
2002/95/EC

Introduction
DMU-3010 is an Ethernet I/O module that supports the Modbus TCP protocol, and delivers various onboard I/Os including analog input, digital input, and digital output, providing flexible
options to satisfy versatile application requirements. It also features the powerful Advantech Domain Focused Configuration Tool for engineers to quickly develop their applications.

Specifications
General
ƒƒ Dimensions (W x H x D) 120 x 120 x 44 mm (4.72" x 4.72" x 1.73")
ƒƒ LAN
10/100Base-T
ƒƒ Connector
1 x RJ-45 (LAN)
4 x Plug-in screw terminal block (I/O & Power)
ƒƒ Watchdog
System (1.6 sec)
ƒƒ Supported Protocols Modbus/TCP
ƒƒ Power Input
10 ~ 30 VDC
ƒƒ Power Consumption 3 W @ 24 VDC

Analog Input
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Channels
Input Type
Voltage Range
Current Range
RTD Type

ƒƒ Input Impedance
ƒƒ Accuracy
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

3-16

Span Drift
Zero Drift
Resolution
Sampling Rate
CMR @ 50/60 Hz
NMR @ 50/60 Hz

8
V, mA*1, RTD*2
0 ~ 10 V
0 ~ 20 mA, 4 ~ 20 mA
Pt 100 (3-wire): -50 ~ 150°C

0 ~ 100°C

0 ~ 200°C

0 ~ 400°C

-50 ~ 200°C
Pt 1000 (3-wire): -40 ~ 160°C
IEC RTD 100 ohms (=0.0385)
JIS RTD 100 ohms (=0.0392)
2 MΩ (voltage)
±0.1%, (voltage); ±0.2% (current); ±0.5°C (RTD); or
Better
±25 ppm/°C
±6 μV/°C
16-bit
10 samples/second
90 dB
60 dB

Energy Automation

ƒƒ Over Voltage Protection 35 VDC
±
ƒƒ Built-in TVS/ESD Protection
ƒƒ Isolation Protection 2500 VDC
Channels 0~7 support V, mA
Channel 4~7 also support RTD input

Digital Input
ƒƒ Channels
ƒƒ Dry Contact

8
Logic level 0: Open
Logic level 1: Close to Ground
ƒƒ Supports 200 Hz pulse/accumulator input
ƒƒ Isolation Protection 2500 VDC

Digital Output
ƒƒ Channels

ƒƒ
ƒƒ
ƒƒ
ƒƒ

4
Open Collector to 30V
30mA max load.
Power Dissipation
300 mW for each channel
PWM Period
20 ms ~ 3600 sec
PWM Minimum Duty On 2 ms
Isolation Protection 2500 VDC

Environment
ƒƒ Humidity
5 ~ 95% RH
ƒƒ Operation Temperature -40 ~ 70°C (-40 ~ 158°F)

ƒƒ DMU-3010-AE

8-ch AI,8-ch DI,4-ch DO Ethernet IO Module

DMU-5010

12-ch DI/O, 4-ch AI, 4-ch
RTD Modbus TCP Module
Features

NEW

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ Ethernet-based I/O
ƒƒ ixed I/O in single module
M
ƒƒ ctive I/O message by data stream
A
ƒƒ ndustrial Modbus/TCP protocol
I
ƒƒ asily update firmware through Ethernet
E
ƒƒ upport burn-out detection
S
ƒƒ upport Ethernet Daisy Chain
S
ƒƒ ide operating temperature range
W
ƒƒ igh anti-interference performance
H

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels

RoHS

COMPLIANT
2002/95/EC

Introduction


DMU-5010 is an Ethernet I/O module that supports Modbus TCP protocol and Ethernet daisy chain. DMU-5010 delivers various onboard I/Os including analog input, digital input,
and digital output, providing flexible options to satisfy versatile application requirements. With high anti-interference performance, DMU-5010 is suitable for harsh environment
applications. You can easily configure the module by the Advantech Domain Focused Configuration Tool.

Specifications

Industrial Panel

Industrial Monitors

General
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ Protection

Enclosure
Mounting
Dimensions (WxHxD)
LAN
Connector

ƒƒ Watchdog
ƒƒ Supported Protocols
ƒƒ Power Input

SECC
DIN-rail,Wallmount

43 x 125 x 105 mm (1.69" x 4.92" x 4.13")
10/100Base-T

1x40 Plug-in screw terminal block (#14~22

AWG)(Power and I/O)

2 x RJ-45(LAN)

System (1.6 second) and Communication
(programmable)
Modbus/TCP
Unregulated10-30VDC w/power reversal
protection

7.2W@ 24VDC

Analog Input
ƒƒ Channels
ƒƒ Input Type
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

8

mV, V, mA(Ch0-Ch3), mV, V, mA, RTD(Ch4-
Ch7)
Input Range

0~5V,0~10V, 0~15V, ±5V, ±10V, ±15V, ±20mA,

0~20mA, 4~20mA
RTD Types & Temp Range
Pt 100 (2-wire and 3-wire):

-50 ~150°C

0 ~ 100°C

0 ~ 200°C

0 ~ 400°C

-200 ~ 200°C

IEC RTD 100 ohms ( =0.0385 )

JIS RTD 100 ohms ( =0.0392 )

Pt-1000(2-wire and 3-wire): -40°C ~160°C
Input Impedance

Voltage: >10MΩ; Current:120Ω
Accuracy

±0.1%, (voltage); ±0.2% (current); ±0.2°C

(RTD) or better
Span Drift

±68 ppm/°C
Zero Drift

±6 µV/°C
Resolution
16-bit
Sampling Rate

10 samples/second
Burn-out Detection

4~20mA and RTD

Energy Automation

50/60 Hz Noise rejection
2,500 VDC Isolation
±30VDC Overvoltage

Digital Input /Output
ƒƒ Channels:

8-ch DI
4-ch DI/DO shared (DIO0~DIO3 can be set as DI/DO
by Utillity)

Digital Input
ƒƒ Input Level

Dry contact:
Logic level 0 (Off): open

Logic level 1 (On): close to GND
Wet contact:
Logic level 0 (Off): +10V to +30V

Logic level 1(On): +3V max
Note: The Digital Input Level 0 and 1 status can be
inverted by utility
ƒƒ Supports 200Hz Frequency/counter input
2 channels max
Counter (32 bit) 200Hz
Frequency 0.1Hz~200Hz
ƒƒ Supports Digital Noise filter
ƒƒ Isolation Protection 2500VDC

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Digital Output
ƒƒ Output
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Industrial Wireless
Solutions

Open Collector to 30V
30mA max load.
Power Dissipation
300mW for each channel
PWM Period

2ms~3600sec
PWM Minimum Duty On 0.2ms
2500 VDC

Environment
ƒƒ Humidity
5-95% RH
ƒƒ Operation Temperature -20 ~ 70°C (-4 ~ 158°F)

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

ƒƒ DMU-5010-AE

8-ch DI. 4-ch DO, 8-ch AI, 4-ch RTD Modbus TCP
Module


3-17

APAX-5522PELX/CE

IEC 61850-3 Certified PAC
with Marvel XScale® CPU

Features

NEW

ƒƒ IEC 61850-3 and IEEE-1613 certified for substation automation application
ƒƒ XScale PXA270 520 MHz processor
ƒƒ Wide temperature support (-20 ~ 70°C)
ƒƒ Supports up to 32 APAX I/O modules
ƒƒ Time-stamp function support
ƒƒ WinCE/Linux OS support
ƒƒ 2 x LAN ports support
ƒƒ 2 x RS-232 ports support (DCD, RTS, RX, TX, GND)
ƒƒ AutomationX aX5 S/W support

RoHS

COMPLIANT
2002/95/EC

Introduction
IEC 61850-3 standards specify a number of “hardened” characteristics that network products should meet to withstand the potentially electromagnetically harsh substation environment:
such as immunity to electrical surge, electrostatic discharges and other phenomena that would cause non-hardened devices to fail. The APAX-5000PE series modules are IEC 61850-3
compliant and can be used in power & energy applications e.g. smart substation for good protection features and also support automationX aX5 software.

Specifications
General

I/O Expansion

ƒƒ Certification
CE, FCC class A
Dielectric Strengh and Impulse Tests: IEC60255-5:2000
EMC Immunity: Electronic Discharge: IEC 61000-4-2:2001,level3
Radiated RF Immunity: IEC 61000-4-3:2002, 10 V/m

IEEE C37.90.2-1995, 35 V/m
Fast Transient, Burst Immunity: IEC 61000-4-4:1995 + A1:2001, 4kV @ 2.5KHz
Surge Immunity: IEC 61000-4-5:2001, 2kV line to line, 4kV line to earth
Conducted RF Immunity: IEC 61000-4-6:2004, 10 Vrms
Magnetic Field Immunity: IEC 61000-4-8:2001, 1000 A/m for 3 seconds, 100 A/m
for 1 minute
DOMF: IEC 61000-4-10:2001, 30 A/m @ 100KHz and 1 MHz
EMC Emissions
Conducted Emissions: EN 55011: 2002, Class A
Radiated Emissions: EN 55011: 2002, Class A
ƒƒ Dimensions (W x H x D) 30 x 139 x 100 mm
ƒƒ Enclosure
ABS+PC
ƒƒ Weight
180 g
ƒƒ Connectors
DB-9
2 W @ 5 VDC (typical)

ƒƒ Connected I/O Modules 32 (max.)*
ƒƒ Digital Signals
768 (max.)
ƒƒ Analog Signals
192 (max.)

System Hardware

ƒƒ APAX-5522PECE

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

CPU
Intel XScale PXA270 520 MHz
Memory Flash
32 M bytes, SDRAM 64 M bytes
Battery Backup Memory 256 KB file system, 256 KB direct access
Real-time Clock
Yes
Watchdog Timer
Yes
Storage
1 x Type II CompactFlash card slot

Software
ƒƒ OS Support
ƒƒ Control Software

3-18

Linux Kernel 2.6 & WinCE 5.0
VS .Net Library/ automationX aX5 runtime

Energy Automation

Communication (Ethernet)
ƒƒ LAN

2 x RJ-45 Port, 10/100 Mbps

Communication (Serial)
ƒƒ Medium

2 x Isolated RS-232 (GND, TxD, RxD, RTS, DCD)

Environment
ƒƒ Operating Temperature -20 ~ 70°C (mounted vertically)
ƒƒ Storage Temperature -40 ~ 85°C
ƒƒ Relative Humidity

ƒƒ APAX-5522PELX

ƒƒ APAX-5002L

IEC 61850-3 Compliant PAC with Marvel XScale CPU,
Linux
IEC 61850-3 Compliant PAC with Marvel XScale CPU,
WinCE
2-slot Backplane Module

Accessories
ƒƒ APAX-5002L
ƒƒ APAX-5350

2-slot Backplane Module
APAX Power Filter for APAX PE modules

Building Automation
Systems

4

Empower BA Systems with Open and Web-enabled Technologies

4-2

Advantech BAS Solution Framework

4-3

Selection Guide

4-4

Advantech BEMS

Building Energy Management System

4-7

BASPro


4-8

BAS-3512
BAS-3520

12-ch Web-enabled DDC Controller

4-9

BAS-3018
BAS-3024

8-ch UI Expansion Module
4-ch UI, 4-ch AO, 4-ch DO Expansion Module

4-10

BAS-3050
BAS-3051

8-ch DI, 8-ch DO Expansion Module
16-ch DI Expansion Module

4-11

BAS-3060

8-ch DO Relay Expansion Module

4-12

BAS-3500BC


4-13

BAS-3018BC
BAS-3024BC

8-ch UI BACnet MS/TP Remote I/O Module
4-ch UI, 4-ch AO, 4-ch DO BACnet MS/TP Remote I/O Module

4-14

BAS-3050BC
BAS-3051BC

8-ch DI, 8-ch DO BACnet MS/TP Remote I/O Module
16-ch DI BACnet MS/TP Remote I/O Module

4-15

BEMG-4110

Energy Data Concentrator with 4 x COM, 1 x LAN

4-16

BEMG-4221/4222

Energy Data Concentrator with 6 x USB, 4 x COM/ 8 x COM, 128 Devices

4-17

1-phase/ 3-phase Multifunction Power Meter

4-18

DDC & I/O Modules


Power Meter
PME1210/1230 (New)

To view all of Advantech’s Building Automation Systems, please visit www.advantech.com/products.

Empower BA Systems with Open and
Web-enabled Technologies
System Overview
Advantech provides building automation solutions for the i-Energy, i-Security, i-Facility, i-Management sectors with energy-saving solutions, video surveillance systems, HVAC and
lighting systems, building for control and monitoring systems in this domain-focused market.
Advantech's BAS web-enabled system adopts open building networking standards - Modbus and BACnet. It also features the powerful BASPro programming tool with BA domain
function blocks, such as AHU control, HVAC, sequential control, PID control, alarm, and schedule functions that are convenient for engineers to quickly develop specific applications.
Advantech Building Energy Management System software (BEMS) also receives and analyzes energy consumption patterns to enact peak-shaving, thus saving high utility rate charges.
Advantech provides a wide range of methods to expand, upgrade, and optimize your facility systems with an intelligent building solution that make buildings more comfortable, safe,
energy-saving and less costly to operate.

Advantech Web-enabled BAS System Architecture

Web Browser Client to View and Control
WebAccess SCADA software allows users to view, access and control their equipment
through Microsoft's Internet Explorer web browser.

automation equipment using communication driver supplied with WebAccess.

The project node is a centralized database server of configuration database and
configurable process database through ODBC interface.

Advantech Web-enable DDC BAS-3000 family controllers are powerful in the industry.
They provide stand-alone operation, running DDC control programs, schedules, and
issuing their own alarms and events. In addition, engineers can remotely upload and
download DDC programs as well as service and maintenance.

Web-enabled HMI
Advantech's WebView-1200 series is a web-based HMI and SCADA platform. All of the
features are available through a browser, including animated graphic displays, trends,
alarms, schedules and more.


Scheduler
The Scheduler provides control and changes set point status based on time and date.
The Scheduler is also used in process control and manufacturing applications. All these
schedule configurations can be modified remotely through the internet.

Energy Management
Advantech BEMS is a browser-based energy profiling tool designed to help manage
building automation applications. Users can trend and analyze energy data depending
on the combination of values and reports selected, identify correlations between building
energy consumption patterns and equipment usage to develop improved processes and
profiles.

4-2

Modbus/BACnet Web-enabled DDC
Controllers

Building Automation Systems

Advantech BEMG-4000 series featuring pre-installed and pre-tested WinCE WebAccess
helps customers reduce costs and time in selecting products, whilst setting up an IIS and
system that also guarantees product quality. For energy saving, we provide data transfer
from Advantech's power meter or 3rd party meter to Advantech's BEMS to help customers
easily to plan and manage their energy strategy.

Power Meter
To complete the energy saving solution, Advantech provides PME-1000 series power
meters for sub-metering applications, ranging from power distribution, small motor
control to lighting load circuit. The measurement data can be viewed directly from local
display, and also can be transmitted through a RS-485 port using the Modbus protocol.

Advantech BAS Solution
Framework
Facility Monitoring and Control System Energy Saving System
The facility management system allows
control of :
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Chiller plants
Water pumps
Boilers
Cooling towers
Heat pumps
Small to large Air Handler Unit (AHU)
Makeup Air Unit (MAU) for cleaning
room
ƒƒ Environment monitoring system
(Temperature, Humidity, CO2 etc.)
ƒƒ Other facility control/monitoring
applications such as power, lighting
etc.
For facility control applications like chiller
plant control, water pump control and cooling tower control, the BAS-3000 system with
BASPro programming tool can easily and flexibly tailor DDC control strategy.

Advantech BEMS analyzes energy usage
helping to save energy costs. Additionally,
it provides the following features:
ƒƒ Receives, stores and analyzes
metering and sensor data to optimize
energy usage
ƒƒ Provides powerful analysis and
reporting tools for exploring cost
reduction opportunities
ƒƒ Automates cost allocation and
supports utility bill validation
ƒƒ Demands limit control

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels


Video Surveillance
PowerView is a complete advanced digital
surveillance system designed to meet the
requirements of modern security. High
compression rate and image quality,
real-time video plus audio recording,
and monitoring, make it a dependable
first choice for professionals needing an
all-in-one state of the art solution that is
ready for continuous 24-hour operation
in large networks with centralized control.

Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


4-3

Selection Guide
Direct Digital Controller: BAS-3000 Family

Model Name

BAS-3500BC

BAS-3512

BAS-3520

Description

Ethernet-based, Standalone
Programmable BACnet DDC Controller



Protocol

BACnet MS/TP, BACnet IP

Modbus/TCP, Modbus/RTU


Power

24VDC, 24VAC; 3W @ 24VDC


Yes

Watchdog Timer

Yes

Yes

LCM Module Support

No

Yes

Yes

Programming Tool Support

BASPro

BASPro

BASPro

Expansion

N/A

3 local I/O expansion modules

3 local I/O expansion modules

Communication Ports

4 Ports
COM1: RS-485 BACnet MS/TP
COM2: RS-485 BACnet MS/TP
COM3: RS-485 Modbus RTU Master
COM4: RS-485 A Bus Extension
(Advantech product use)

RS-485 Modbus RTU Master


Number of Inputs

-

-

4

SignalType

-

-

0~10 V; 0~20 mA, 4~20 mA

Direct Sensor Input

-

-

Pt-100 RTD, Pt-1000 RTD, Thermistor
3K, 10K

Number of Inputs

-

-

4

Signal Type

-

-

0~10 V; 0~20 mA, 4~20 mA

Number of Inputs

-

Universal Input

Analog Output

Digital Input
Digital Output

Dry Contact

8
Logic High: Close
Logic Low: Open

-

4

4

-10 ~ 60°C (14 ~ 140°F)

-10 ~ 60°C (14 ~ 140°F)

-10 ~ 60°C (14 ~ 140°F)

Number of Outputs


8
Logic High: Close
Logic Low: Open

Storage Temperature

-20 ~ 80°C (-4 ~ 176°F)

-20 ~ 80°C (-4 ~ 176°F)

20 ~ 95% (Non-condensing)



Storage Humidity




Page

4-4

-20 ~ 80°C (-4 ~ 176°F)

Operating Humidity

4-13

4-9

4-9


Selection Guide
BACnet Remote I/O Modules

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Model Name

BAS-3018BC

BAS-3024BC

BAS-3050BC

BAS-3051BC

Description

8-ch UI BACnet Remote
Module

4-ch UI, 4-ch AO, 4-ch DO
BACnet Remote Module

8-ch DI, 8-ch DO BACnet
Remote Module

16-ch DI BACnet Remote
Module

Protocol

BACnet MS/TP Server

BACnet MS/TP Server

BACnet MS/TP Server

BACnet MS/TP Server

Power





Number of Inputs

8

4

-

-

Signal Type

0~10 V; 0~20 mA, 4~20 mA

0~10 V; 0~20 mA, 4~20 mA

-

-

Direct Sensor Input

RTD, Pt-100/1000,
Thermistor 3K, 10K

RTD, Pt-100/1000,
Thermistor 3K, 10K

-

-

Number of Outputs

-

4

-

-

Signal Type

-

0~10 V; 0~20 mA, 4~20 mA

-

-

Universal Input

Analog Output

Operator Panels

Number of Inputs

-

-

8

16

-

4

8

-

Rated Load Voltage

-

10-35VDC, 1A (Per Channel)

10-35VDC, 1A (Per Channel)

-

PWM Period (min)/
Pulse Width (min)

-

1 sec. / 0.1 sec.

1 sec. / 0.1 sec.

-

Dimensions (W x H x D)

120 x 120 x 44 mm

120 x 120 x 44 mm

120 x 120 x 44 mm

120 x 120 x 44 mm

Watchdog Timer

Yes

Yes

Yes

Yes

Digital Output

Building Automation
Systems

Automation Software

Number of Outputs

Digital Input

Energy Automation


BACnet Certification

Yes

Yes

Yes

Yes

Page

4-14

4-14

4-15

4-15

Modbus I/O Modules

Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

Model Name

BAS-3018

BAS-3024

BAS-3050

BAS-3051

BAS-3060

Description

8-ch UI Expansion
Module

4-ch UI, 4-ch AO, 4-ch
DO Expansion I/O
Module

8-ch DI, 8-ch DO
Expansion I/O Module

16-ch DI Expansion I/O
Module

8-ch DO Relay
Expansion I/O Module

Communication

Modbus RTU

Modbus RTU

Modbus RTU

Modbus RTU

Modbus RTU

Power

24VDC, 24VAC;
3W @ 24VDC

24VDC, 24VAC;
4W @ 24VDC

24VDC, 24VAC;
3W @ 24VDC

24VDC, 24VAC;
3W @ 24VDC

24VDC, 24VAC;
3W @ 24VDC

Number of Inputs/
Res.

8 / 16-bit

4 / 16-bit

-

-

-

Signal Type

0~10 V; 0~20 mA,
4~20 mA

0~10 V; 0~20 mA,
4~20 mA

-

-

-

Direct Sensor Input

RTD, Pt-100/1000,
Thermistor 3K, 10K

RTD, Pt-100/1000,
Thermistor 3K, 10K

-

-

-

Number of
Outputs/ Res.

-

4 / 12-bit

-

-

-

Signal Type

-

0~10 V; 0~20 mA,
4~20 mA

-

-

-

Number of Inputs

-

-

8

16

-

Number of Outputs

-

4

8

-

8

Rated Load Voltage

-

10-35VDC, 1A
(Per Channel)

10-35VDC, 1A
(Per Channel)

-

AC: 5A @ 250V;
DC: 5A @ 30V

PWM Period (min)/
Pulse Width (min)

-

1 sec. / 0.1 sec.

1 sec. / 0.1 sec.

-

1 sec. / 0.1 sec.


120 x 120 x 44 mm

120 x 120 x 44 mm

120 x 120 x 44 mm

120 x 120 x 44 mm

120 x 120 x 44 mm

Watchdog Timer

Yes

Yes

Yes

Yes

Yes

Page

4-10

4-10

4-11

4-11

and IP Gateways

4-12

Universal Input

Analog Output
Digital Input

Digital Output

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems


M2M I/O Modules

RS-485 I/O Modules

4-5

Selection Guide
Energy Data Concentrators

Model
Description
CPU
Memory
Display
Serial Ports
Communications

USB Ports
Network (LAN)
CompactFlash
Printer Ports
Watchdog Timer
Power Input Range
Power Consumption

Dimensions (W x D x H)
Operating System
Web Clients
Number of devices connected
Configure/ service
Certification
Ingress Protection (Front Panel)
Protocols for meters
Web functions with host
Page

BEMG-4110
BEMG-4221
BEMG-4222
Building Energy Data Concentrator with
Building Energy Data Concentrator
Building Energy Data Concentrator
4 COM, 1 LAN
with 4 COM, 2 LAN
with 8 COM, 2 LAN
AMD Geode LX800 500MHz
Atom N450, 1.67 GHz
Atom Dual Core D510, 1.67GHz
256 MB DDR SDRAM
2G DDR2 SRAM
2G DDR2 SRAM
VGA
VGA
VGA
2 x RS232/485,
2 x RS232/485,
6 x RS232/485,
2 x RS232/422/485
2 x RS232/422/485
2 x RS232/422/485
2
6
6
1 × 10/100Base-T
2 × 10/100/1000Base-T
2 × 10/100/1000Base-T
1G Compact Flash
1G Compact Flash
1G Compact Flash
1
Yes
Yes
Yes
10~48 VDC
9~36 VDC
9~36 VDC
15W
12W
16W
-10 ~ 55°C (14 ~ 131°F)
-10 ~ 70°C (14 ~ 158°F)
-10 ~ 70°C (14 ~ 158°F)
188.8 x 106.5 x 35.5 mm (7.5" x 4.2"
255 x 152 x 50 mm
255 x 152 x 59 mm
x 1.4")
(10" x 6.0" x 2.0")
(10" x 6.0" x 2.3")
WinCE 5.0
WinCE 5.0
WinCE 5.0
2
2
2
64
128
128
Web configure & service
CE, FCC Class A,CCC
IEC 60068-2-2,
IEC 60068-2-2,
IEC 60068-2-2,
IEC68 2-6
IEC 60068-2-64
IEC 60068-2-64
DL/T645-1997, CJ/T188-2004, GB/T19582-2008, Modbus
Command Received, Alarm reporting, Data encapsulation, Data store and forward, DNS supporting
4-16
4-17
4-17

Power Meters

Model
Description
Power Supply
Power Consumption
Bus
Protocol
Communication
Interface
Baud Rate
Meter ID
Phase/Wire
Voltage
Phase Voltage
Measurement
Accuracy
Resolution
Current
Measurement
Current
(Std. 5A CT)
Accuracy
Power
Resolution
Measurement
Accuracy
(Total)
Display Resolution
Energy
Measurement
Record Resolution
(Total)
kWh Accuracy
Operating Humidity
Communication
Reliability
Surge Test
EFT Test
Page

4-6

PME-1130
3-Phase KW & KWH Energy Meter
110 VAC: 93 to 126 VAC
220 VAC: 187 to 253 VAC
5VA
Photo-isolated RS-485
Modbus/RTU (format: 8/N/1)

PME-1210
1-Phase Multifunction Power Meter
110 VAC: 93 to 126 VAC
220 VAC: 187 to 253 VAC
5VA
1200/2400/4800/9600
0 ~ 254
1P2W
80 ~ 350 VAC
±0.5% full scale
1 mA
5 mA ~ 5 A
±0.5% full scale
1W (per phase)

PME-1230
3-Phase Multifunction Power Meter
110 VAC: 93 to 126 VAC
220 VAC: 187 to 253 VAC
5VA

1% full scale

1% full scale

1% full scale

online

0.1 kWh (Range 0 ~ 9,999,999.9kWh)
0.01 kWh (Range 0 ~ 9,999,999.99kWh)
1% with PF 0.5 ~ 1.0
-10 ~ 70°C (14 ~ 158°F)
IEC61000-4-4 1kV
IEC61000-4-5 4kV
IEC61000-4-4 1kV
110 x 50 x 115 mm
4-18

4-18

0 ~ 254
5 mA ~ 5 A
1W (per phase)


0 ~ 254
1P3W/3P3W/3P4W
80 ~ 350 VAC
±0.5% full scale
1 mA
5 mA ~ 5 A
±0.5% full scale
1W (per phase)

Advantech BEMS

Building Energy Management
System

Features
ƒƒ Browser-based energy management system
ƒƒ Rich charts to view energy consumption from various perspectives
ƒƒ Supports flexible report functions
ƒƒ Various data analysis functions to generate energy consumption patterns
ƒƒ Advanced demand limit control
ƒƒ Geographic Information System (GIS) for energy management across multiple
buildings

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels

Introduction


Advantech BEMS is a set of advanced Web-based energy management system aiming at helping customers with energy consumption management. This system can collect energy
consumption data of different classifications and sub-items. Customers can create energy management projects and groups to manage these data according to their requirements.
Various charts and its statistical analysis function can help customers to find out an optimized energy-saving strategy.

Specifications

Industrial Panel

Industrial Monitors

Energy Profile

Cost Profile

Each management group provides energy consumption profile on a hourly, daily, monthly
and yearly basis, and thus helping customers to know its own energy consumption situation
and finding out the abnormal value. All kinds of related energy consumption indicators,
such as Energy Use Intensity (EUI) provide data support to energy consumption statistic
and energy audit. Some reference functions, such as temperature and humidity help to
analyze the correlation between consumption data and environment data.

Each management group provides cost profile on a daily, monthly and yearly basis. It
calculates the cost based on the data in the energy table and rate structure in order to
manage the energy cost. Customers can set an energy consumption benchmark. Set the
budget based on the deviation from the actual cost will contribute to the decreasing of
the risk in the process of purchasing.

Energy Ranking

Energy consumption cost ranking during different time periods helps to find out the max./
min. energy efficiency device units.

Energy consumption ranking during different time periods helps to find out the energy
efficiency device units.

Energy Comparison
Energy comparison between different energy management groups during different time
periods.

Average Daily Profile
Average daily profile per 15 minutes on each day. It helps customers to know its energy
consumption pattern and find out the peak requirement more than expected; therefore
customers can refer to it when signing the contract with power company.

Deviation Report

Cost Ranking

Statistical Report
Statistics report (Y/M/D) with classification and sub-items allows customers to view clearly
the energy consumption and helps them to make a reasonable allocation and use of energy.

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards


Embedded Automation
Computers

ƒƒ WebAccess-70-AE
WebAccess V7.0 software suit package
ƒƒ 968W0070A0
WebAccess BEMS control file
Note: Users need to have WebAccess HMI/SCADA and its control file, and purchase
BEMS Software including WebAccess-70-AE and 968W0070A0

PACs

Deviation between energy consumption value and set value during different time periods
on any day. The red value represents the increment trend of energy consumption.

Compact PCI Systems

M2M I/O Modules

Max/Min Value Analysis
Max/Min value during different time periods helps to analyze the relations between energy
consumption and time.

RS-485 I/O Modules

Primary Energy Profile
Converts energy consumption to heat (MJ), standard coal, crude oil and coal as well as
other primary energy consumption value and their relative CO2 emission value.


4-7

BASPro

Features
ƒƒ Graphical programming environment
ƒƒ Supports remote download and maintenance by Ethernet
ƒƒ Pre-defined function blocks to save development time
ƒƒ Scheduler and sequential control
ƒƒ BA HVAC calculation
ƒƒ Auto-tuning PID and RAMP/SOAK control algorithm
ƒƒ Local alarms and event notifications

Introduction
BASPro is a programming software package suitable for building automation application, perfectly integrating with BAS-3500 Series DDC Controller (Direct Digital Controller). BASPro
features rich function blocks like mathematical calculation, data conversion, logic operation, alarm, event and timer, and control algorithm (PID, Ramp, ON/OFF switch control).
Moreover, BASPro also provides many BA domain function blocks, such as scheduler, HVAC calculation and sequential control, which are commonly used in building applications.
Developers can benefit from saving development time by the function blocks. Engineers can develop applications on their computer. After the application program is complete, it can
be downloaded to the BAS-3500 series through Ethernet. Then BAS-3500 series becomes a standalone controller since it can execute the program by itself. Besides, BASPro delivers
simulation function that you can observe the program execution situation before the program is downloaded to the BAS-3500 series.

Features
Graphical Programming Environment
BASPro features completely graphical programming environment, it makes the engineers
easily develop their function and control logic in various applications.

Supports Remote Download and Maintenance
BASPro supports Ethernet communication, which can deliver remotely downloading and
uploading control logic programs. Users also can maintain their device by remote control.

Powerful and Flexible Function Blocks
There can be up to 30 control pages per controller, each page supports up to 50 function
blocks (max.4 PID blocks per page, total 16 PID per controller). BASPro delivers plenty
of built-in function blocks, integrating many control and calculation functions into one
simple block. Developers don't need to write program code for the control function blocks
by themselves, and simply uses these function blocks to complete their applications. It
helps greatly decreasing the development time. Below are some lists of the function blocks:
ƒƒ Mathematical Calculation
Addition, subtraction, multiplication, division, exponentiation, square root
operation, logarithm operation, natural logarithm operation, absolute operation,
maximum number, minimum number, scale conversion.
ƒƒ Logic Operation
Boolean calculation (such as AND, OR, NOT, NAND, NOR, XOR, ...), value
comparison, trigger function, etc.
ƒƒ Timer/Counter
Create time delay, count event, timing measurement, pulse, etc.
ƒƒ Data Conversion
Conversion for various data type, such as convert float type data to integer data
type, convert boolean data to numeric data, combine byte to word, unpack byte to
bit, etc.

4-8


ƒƒ Control and Alarm
PID control, Ramp/Soak, ON/OFF switch control, alarm setting (H, L, HH, LL alarm),
etc.
ƒƒ Broadcast Variable Function
Sharing broadcast variable provides simple and efficient way to make the DDC
quickly share data between devices in the same network.
ƒƒ Schedule
Provide schedule function to implement multiple purpose scheduling task controls
with the very friendly configuration edit page, such as Holiday, Weekly and Device
group. We also provide campus schedule control using in campus.
ƒƒ Sequential Control
Provide the multiple stage control function for 4 or 8 stage control units. It will
turn on or turn off the unit device according to PV, SP, deadband and control
mode parameters. The sequential order includes first in last out, first in first out,
depending on the time length of operation, etc.
ƒƒ HVAC Function
We support HVAC function include Dew Point, Vapor Pressure, Wet Bulb, and
Enthalpy Calculation, also include calculation of absolute humidity and AHU
function block.
ƒƒ BA Domain Focus Function
BA Domain function module is provided for the specific control equipment, such
as pumps, solenoid valves, fans, dampers, air handling units. Engineers can make
system integration with different devices not only simplifies the design work, but
also reduce the workload of the project.
Note: This software is only available as a bundle with BAS-3512, BAS-3520, and
BAS-3500BC.

BAS-3512
BAS-3520

Features

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ Standalone programmable controller
ƒƒ BASPro programming software provides BA domain function (scheduler,
HVAC calculation, sequence…)
ƒƒ Auto-tuning PID control
ƒƒ Calendar schedule control
ƒƒ Alarm and event notifications
ƒƒ Provides RS-485 to connect with remote I/O devices
ƒƒ Up to 3 local I/O expansion modules
ƒƒ Remote programming and maintenance through Ethernet
ƒƒ LCM display (optional)

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

BAS-3512

BAS-3520

Operator Panels

RoHS

COMPLIANT
2002/95/EC

Introduction


BAS-3512/3520 is a standalone programmable controller specially designed for building automation (BA) applications. Designed as a typical DDC (Direct Digital Controller),
BAS-3512/3520 delivers various of onboard I/O including universal input, analog output, digital input and digital output, providing flexible options to satisfy versatile application
requirements. It also features powerful BASPro programming tool for engineers to quickly develop their application. BASPro delivers many function blocks suitable for BA application,
such as scheduler, HVAC calculation, sequential control, PID control, alarm, and event. Its compact size makes it an ideal solution to fulfill BA installation environment. The I/O
expansion modules (BAS-3018, BAS-3024, BAS-3050, BAS-3051 and BAS-3060) provide more I/O points and make the system a scalable solution.

Specifications

Analog Output (BAS-3520 only)

General
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Dimensions (W x H x D) 176 x 120 x 44 mm (6.93" x 4.72" x 1.73")
Enclosure
ABS + PC
Power Input
24 VDC/24 VAC
Power Consumption
10 W @ 24 VDC
Real-time Clock
Yes
Watchdog Timer
Yes
I/O Isolation Protection 3,000 VDC

Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ

CPU
Flash Memory
RAM
Battery Backup SRAM

32-bit CPU 312 MHz
32 MB
64 MB SDRAM
512 KB

Communication
ƒƒ LAN
ƒƒ RS-485
ƒƒ Communication
Protocol

1 x 10/100Base-T (RJ-45)
1 (isolated)

Universal Input (BAS-3520 only)
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Channels
4
Resolution
16-bit
Sample Rate
10 Hz (Total)
Accuracy
±0.1% of FSR (Voltage, Current)
Type and Range
Analog Input
0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA, Pt-100 RTD,

Pt-1000 RTD, Thermistor (3 k, 10 k)
Digital Input
Logic High: Close
(Dry Contact)
Logic Low: Open
ƒƒ Over Voltage Protection ±35 V
ƒƒ Span Drift
±25 ppm/°C
ƒƒ Zero Drift
±6 μV/°C

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Channels
Resolution
Accuracy
Range

4
12-bit
±0.1% of FSR
0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA

Digital Input
ƒƒ Channels
ƒƒ Dry Contact

8
Logic High: Close
Logic Low: Open
ƒƒ Supports 1 kHz Counter Input (2 channels)
ƒƒ Supports 1 kHz Frequency Input (2 channels)

Digital Output
ƒƒ Channels
4 (Source Type)
ƒƒ Vcc
10 ~ 35 VDC, Current: 1 A (per channel)
ƒƒ PWM output (2 channels)
Minimum Period
1 second (for PWM output)
Minimum Pulse Width
0.1 second (for PWM output)

LCM Operation Unit (Optional)

Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

ƒƒ 2 line x 8 char, backlit LCD
ƒƒ 5 button keypad
ƒƒ Hot swap capable

PACs

Environment

Compact PCI Systems

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Operating Temperature -10 ~ 60°C (14 ~ 140°F) (with airflow)
Operating Humidity
Storage Humidity

ƒƒ BAS-3512-AE
ƒƒ BAS-3520-AE
ƒƒ BAS-3595-AE

M2M I/O Modules

RS-485 I/O Modules

LCM operation unit (Optional)


4-9

BAS-3018
BAS-3024

Features
ƒƒ 24 VDC or 24 VAC input
ƒƒ Universal input supports 0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA, RTD, Thermistor
(3K, 10K), and digital input
ƒƒ Analog output supports 0 ~ 10 V, 0 ~ 20 mA, and 4 ~ 20 mA (BAS-3024 only)
ƒƒ Supports PWM output (BAS-3024 only)
ƒƒ Supports Modbus /RTU Protocol

BAS-3018

BAS-3024
RoHS

COMPLIANT
2002/95/EC

Introduction
BAS-3018/BAS-3024 expansion I/O modules can be stacked on the DDC controller, or can serve as remote standalone I/O modules through an RS-485 network. These expansion
I/O modules add both scalability and flexibility to Advantech BAS-3000 solutions. Like the DDC, I/O expansion modules can be programmed using the BASPro programming tool.

Specifications
General

Protection

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ Isolation Voltage

Enclosure
ABS + PC
Power Input
24 VDC/24 VAC
Power Consumption
3 W @ 24 VDC (BAS-3018)/4 W @ 24 VDC (BAS-3024)
Watchdog Timer
Yes
Communication
Local Bus (Connect to BAS-3520/3512/3520C)
RS-485 (Standalone as Remote IO Device)
ƒƒ Supported Protocols Modbus/RTU

Universal Input
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Channels
Resolution
Sample Rate
Accuracy
Type and Range

8 (BAS-3018)/4 (BAS-3024)
16-bit
10 Hz (Total)
Analog Input: 0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA,
Pt-100/1000, RTD, Thermistor (3 k, 10 k)
Digital Input Logic High: Close
(Dry Contact) Logic Low: Open

Analog Output (BAS-3024 only)
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Channels
Resolution
Accuracy
Range

4
12-bit
± 0.1% of FSR
0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA

Digital Output (BAS-3024 only)
ƒƒ Channels
4 (Source Type)
ƒƒ Vcc
ƒƒ PWM Output (2 channels)
Minimum Period
Minimum Pulse Width

4-10


3,000 VDC

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Operating Temperature -10 ~ 60°C (14 ~ 140°F)
Operating Humidity
Storage Humidity

ƒƒ BAS-3018-AE
ƒƒ BAS-3024-AE


BAS-3050
BAS-3051

Features

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ 3000 VDC isolation protection
ƒƒ Supports 1 kHz counter input and 1 kHz frequency input (2 channels)
ƒƒ Supports PWM output (2 channels) (BAS-3050 only)

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

BAS-3050

BAS-3051

Operator Panels

RoHS

COMPLIANT
2002/95/EC

Introduction


BAS-3050/BAS-3051 expansion I/O modules can be stacked on the DDC controller, or can serve as remote standalone I/O modules through an RS-485 network. These expansion
I/O modules add both scalability and flexibility to Advantech BAS-3000 solutions. Like the DDC, I/O expansion modules can be programmed using the BASPro programming tool.

Industrial Panel

Specifications
General
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ


Industrial Monitors

Protection

Enclosure
ABS + PC
Power Input
24 VDC/24 VAC
Power Consumption
3 W @ 24 VDC
Watchdog Timer
Yes
Communication

Digital Input
ƒƒ Channels
ƒƒ Dry Contact

8 (BAS-3050)/16 (BAS-3051)
Logic High
Close
Logic Low
Open
Support 1 kHz Counter Input (2 channels)
Support 1 kHz Frequency Input (2 channels)

3,000 VDC

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Operating Humidity
Storage Humidity

ƒƒ BAS-3050-AE
ƒƒ BAS-3051-AE


Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

Digital Output (BAS-3050 only)
ƒƒ Channels
8 (Source Type)
ƒƒ Vcc
ƒƒ Supports PWM Output (2 channels)
Minimum Period
Minimum Pulse Width

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


4-11

BAS-3060

Features
ƒƒ Power relay output

RoHS

COMPLIANT
2002/95/EC

Introduction
BAS-3060 expansion I/O modules can be stacked on the DDC controller, or can serve as remote standalone I/O modules through an RS-485 network. These expansion I/O modules
add both scalability and flexibility to Advantech BAS-3000 solutions. Like the DDC, I/O expansion modules can be programmed using the BASPro programming tool.

Specifications
General

Protection

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ


Enclosure
ABS + PC
Power Input
24 VDC/24 VAC
Power Consumption
3 W @ 24 VDC
Watchdog Timer
Yes
Communication

Digital Output (Relay Output)
ƒƒ Channels
8
ƒƒ Digital Output (Relay) Isolation Voltage: 500 VDC
Universal Input Isolation Voltage: 3000 VDC
ƒƒ Breakdown Voltage
1000 VAC (50/60 Hz)
ƒƒ Contact Rating
AC: 5 A @ 250 V
(Resistive)
DC: 5 A @ 30 V
ƒƒ Initial Insulation
1G ohm min @ 500 VDC
Resistance
ƒƒ Relay Off Time
5.6 ms
(Typical)
ƒƒ Relay On Time
5 ms
(Typical)
ƒƒ Maximum Operating 6 operations/min (@ related load)
Speed

4-12


500 VDC

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Operating Humidity
Storage Humidity

ƒƒ BAS-3060-AE


BAS-3500BC

Features

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ Standalone programmable controller
ƒƒ omprehensive management and system functions (alarm management, time
C
scheduling, remote management, access protection etc.)
ƒƒ eliable and remote programming software (BASPro) provides BA domain
R
function (scheduler, HVAC calculation, sequence…)
ƒƒ upports BACnet IP for uplink and BACNet MS/TP for remote I/O
S
ƒƒ uto-tuning PID control
A
ƒƒ alendar schedule control
C

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels

RoHS

COMPLIANT
2002/95/EC

Introduction


The BAS-3500BC is an Ethernet-based, standalone programmable controller specially designed for the BACnet standard building automation (BA) applications. As a native BACnet®
Building Controller (B-ASC), BAS-3500BC integrates into any 3rd-party BACnet® system with low and predictable effort. It supports BACNet MS/TP, also features powerful BASPro
programming tool for engineers to quickly develop their application. BASPro tool delivers many function blocks suitable for BA application, such as scheduler, HVAC, sequential
control, PID control, alarm, and event. Its compact size makes it an ideal solution to fulfill BA installation environment. The I/O expansion modules (BAS-3018BC, BAS-3024BC,
BAS-3050BC, BAS-3051BC) provide more I/O points and make the system a scalable solution.

Industrial Monitors

Specifications
General

Environment

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Certification
CE, FCC,BTL
Mounting
DIN-rail, wall mount
Dimensions (W x H x D) 176 x 110 x 39.2mm (6.93" x 4.33" x 1.54")
Power Input

24VDC/24VAC
Power Consumption 3W@24VDC
Real-time Clock
Yes
Watchdog Timer
Yes

Storage Temperature
Operating Humidity

Storage Humidity

-10 ~ 60°C (14 ~ 140°F)
-20 ~ 80°C (-4 ~ 176°F)

ƒƒ BAS-3500BC-AE


Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ

CPU

F
lash Memory

RAM

B
attery Backup SRAM

LAN
COM1
COM1
COM3
COM4

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

32-bit CPU 312 MHZ
32MB
64M SDRAM
512KB

Embedded Automation
Computers

Communication
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Industrial Panel

1 x 10/100Base-T (RJ-45) BACNet/IP server
RS-485 BACnet MS/TP
RS-485 BACnet MS/TP
RS-485 A Bus Extension (AdvanTech product use)

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


4-13

BAS-3018BC
BAS-3024BC

4-ch UI, 4-ch AO, 4-ch DO BACnet MS/TP
Remote I/O Module
Features
ƒƒ Universal input supports 0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA, RTD, Thermistor
(3K, 10K), and digital input (Dry contact)
ƒƒ Analog output supports 0 ~ 10 V, 0 ~ 20 mA, and 4 ~ 20 mA
(BAS-3024BC only)
ƒƒ Supports PWM output (BAS-3024BC only)
ƒƒ BACnet MS/TP Server
ƒƒ Supports Master and Slave mode

BAS-3018BC

BAS-3024BC
RoHS

COMPLIANT
2002/95/EC

Introduction
BAS-3018BC/BAS-3024BC can serve as BACnet MS/TP remote I/O modules through an RS-485 network to be integrated with worldclass BACnet DDC Controller such as Johnson
Controls, Honeywell etc.

Specifications
General

Protection

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Enclosure
ABS + PC
Power Input
24 VDC/24 VAC
Power Consumption
3 W @ 24 VDC (BAS-3018BC)/
4 W @ 24 VDC (BAS-3024)
ƒƒ Watchdog Timer
Yes
ƒƒ Communication
RS-485


Universal Input

ƒƒ Objects

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Channels
Resolution
Sample Rate
Accuracy
Type and Range

8 (BAS-3018BC)/4 (BAS-3024BC)
16-bit
10 Hz (Total)
Analog Input: 0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA,
Pt-100/1000, RTD, Thermistor (3 k, 10 k)
Digital Input Logic High: Close
(Dry Contact) Logic Low: Open

Analog Output (BAS-3024BC only)
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Channels
Resolution
Accuracy
Range

4
12-bit
± 0.1% of FSR
0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA

Digital Output (BAS-3024BC only)
ƒƒ Channels
4 (Source Type)
ƒƒ Vcc
ƒƒ PWM Output (2 channels)
Minimum Period
Minimum Pulse Width

4-14


3,000 VDC

BACnet Profile
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Protocol
Mode
Device Profile
Interoperability

BACnet MS/TP Server
Master and Slave
BACnet Smart Sensor (B-SS)
DS-RP-B,DS-WP-B,DS-RPM-B,DS-WPM-B Building
Blocks
AI, AO, BO and Device

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Operating Humidity
Storage Humidity

ƒƒ BAS-3018BC-AE
ƒƒ BAS-3024BC-AE

4-ch UI, 4-ch AO, 4-ch DO BACnet MS/TP Remote I/O
Module

BAS-3050BC
BAS-3051BC

8-ch DI, 8-ch DO BACnet MS/TP
Remote I/O Module
16-ch DI BACnet MS/TP Remote I/O
Module
Features

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ Supports 1 kHz counter input and 1 kHz frequency input (2 channels)
ƒƒ Supports PWM output (2 channels) (BAS-3050BC only)
ƒƒ BACnet MS/TP Server

Machine Automation

Energy Automation

ƒƒ Supports Master and Slave mode

Building Automation
Systems

Automation Software

BAS-3050BC

BAS-3051BC

Operator Panels

RoHS

COMPLIANT
2002/95/EC

Introduction


BAS-3050BC/BAS-3051BC can serve as BACnet MS/TP remote I/O modules through an RS-485 network to be integrated with worldclass BACnet DDC Controllers such as Johnson
Controls, Honeywell etc.

Industrial Panel

Specifications
General
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Industrial Monitors

BACnet Profile

Enclosure
ABS + PC
Power Input
24 VDC/24 VAC
Power Consumption
3 W @ 24 VDC
Watchdog Timer
Yes
Communication
RS-485

ƒƒ Objects

BACnet MS/TP Server
Master and Slave
BACnet Smart Sensor (B-SS)
DS-RP-B,DS-WP-B,DS-RPM-B,DS-WPM-B Building
Blocks
BI, BO, and Device

Environment

Digital Input
ƒƒ Channels
ƒƒ Dry Contact

Protocol
Mode
Device Profile
Interoperability

8 (BAS-3050BC)/16 (BAS-3051BC)
Logic High:
Close
Logic Low:
Open
Support 1 kHz Counter Input (2 channels)
Support 1 kHz Frequency Input (2 channels)

Digital Output (BAS-3050BC only)
ƒƒ Channels
8 (Source Type)
ƒƒ Vcc
ƒƒ Supports PWM Output (2 channels)
Minimum Period
Minimum Pulse Width

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Operating Humidity
Storage Humidity

ƒƒ BAS-3050BC-AE
ƒƒ BAS-3051BC-AE

8-ch DI, 8-ch DO BACnet MS/TP Remote I/O Module
16-ch DI BACnet MS/TP Remote I/O Module

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Protection

Industrial Wireless
Solutions

Compact PCI Systems

3,000 VDC

M2M I/O Modules

RS-485 I/O Modules


4-15

BEMG-4110

with 4 x COM, 1 x LAN
Features
ƒƒ 2 x RS-232/485, 2 x RS-232/422/485 with automatic flow control
ƒƒ 1 x 10/100Base-T RJ-45 port and 2 x USB 2.0 ports
ƒƒ Built-in Windows® CE with Advantech WinCE WebAccess Energy Data
Concentrator
ƒƒ Supports various protocol drivers to communicate with different devices
ƒƒ Multi-thread communication, fast response time
ƒƒ Configured through web browser
ƒƒ Easy to diagnose and maintain, which helps to reduce maintenance costs

RoHS

COMPLIANT
2002/95/EC

Introduction
Advantech's BEMG-4110 is a fanless Energy Data Concentrator featuring an AMD Geode LX800 500MHz and rich interfaces (such as serial, USB and LAN). Installed with Advantech
WinCE WebAccess, BEMG-4110 is a browser-based Energy Data Concentrator, whose Web Server function increases flexibility and convenience, making it easy to configure and
maintain the system via Internet. With built-in driver, BEMG-4110 can connect with a variety of automation equipment and devices, and get data from them.

Specifications
General


ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Windows CE 5.0
Advantech WinCE WebAccess Energy Data Concentrator:
ƒƒ I/O Tag Number
600
ƒƒ Internal Tag Number 600
ƒƒ Web Client
2
ƒƒ Number of I/O Devices 64 (max)

Certification
CE, FCC Class A, CCC
Dimensions (W x D x H) 188.8 x 106.5 x 35.5 mm (7.5" x 4.2" x 1.4")
Enclosure
Aluminum
Mounting
Wallmount, DIN-rail
Power Consumption
15 W (typical)
Power Requirements 10 ~ 48 VDC (e.g +24 V @ 1 A) (Min. 24 W), AT
Weight
0.8 kg
System Design
CE/XPe

System Hardware
ƒƒ CPU
ƒƒ Memory
ƒƒ Indicators

ƒƒ Keyboard/Mouse
ƒƒ Storage
ƒƒ Display
ƒƒ Watchdog Timer

Onboard 256 MB DDR SDRAM
LEDs for power, IDE, diagnosis (programmable) and
LAN (Active, Status)
Buzzer for diagnosis (programmable)
1 x PS/2
HDD: expansion kit for 2.5" IDE HDD (Option)
DB15 VGA connector, 1024 x 768 @ 60 Hz
Programmable 256 levels timer interval, from 1 to 255
sec

I/O Interface
ƒƒ Serial Ports

ƒƒ USB Ports
ƒƒ LAN

4-16

2 x RS-232/485, 2 x RS-232/422/485
- Automatic RS-485 data flow control
- RS-422/485 surge protection up to 2,000 VDC
RS-232: 50 ~ 230.4 kbps;
RS-422/485: 50 ~ 921.6 kbps (Max.)
2 x USB ports, EHCI, Rev. 2.0 compliant
1 x 10/100Base-T RJ-45 port


Environment
ƒƒ Humidity
95 % @ 40°C (non-condensing)
ƒƒ Ingress Protection
IP40
ƒƒ Operating Temperature (IEC 60068-2-2, 100% CPU/ I/O loading)
-10 ~ 55°C (14 ~ 131°F)
IEC 68 2-27
CompactFlash®: 20 G @ DIN, half sine, 11 ms,
50 G @ Wall/Panel, half sine, 11 ms
IEC 68 2-6
CompactFlash®: 2 Grms @ sine, 5 ~ 500 Hz,
1 Oct./min, 1hr/axis.
HDD: 1 Grms @ sine, 12 ~ 300 Hz, 1 Oct./min,
1 hr/axis.

ƒƒ BEMG-4110-AE

Energy Data Concentrator with 4 x COM, 1 x LAN

BEMG-4221/4222

with 6 x USB, 4 x COM/
8 x COM, 128 Devices

Features

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ Onboard Intel® Atom™ N450/D510 1.67GHz processors
ƒƒ 2 x 10/100/1000 Base-T RJ-45 port, 6 x USB 2.0 ports
ƒƒ 2 x Mini PCIe slot with 1 x SIM slot support
ƒƒ Supports wide operating temperatures from -10 ~ 70°C
ƒƒ Supports 8 x COM ports (BEMG-4222)
ƒƒ Built-in Windows® CE with WebAccess Energy Data Concentrator
ƒƒ Configured through web browser
ƒƒ Supports various protocol drivers to communicate with different devices
ƒƒ Support data transfer to Advantech BEMS

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

BEMG-4221

BEMG-4222

Operator Panels

Introduction


The BEMG-4221 and BEMG-4222 are powerful data concentrators bundled with SCADA software - WebAccess. With Intel Atom N450/D510 1.67GHz CPUs, Gigabit Ethernet ports,
rich I/O, and 2 x Mini PCIe socket. Both products have Energy Star certification, IP40 anti-dust ingress protection and wide operating temperatures (-10 ~ 70°C), providing high
performance and high versatility with low power consumption.
WebAccess communicates with automation equipment used in manufacturing facilities, industrial plants and building automation systems. The software acquire, display, monitor and
store real-time data and allows operators to change set-points, equipment status and other parameters in end-device.

Industrial Monitors

Specifications
General

I/O Interface

ƒƒ Certification

ƒƒ Serial Ports

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Dimensions (W x D x H) BEMG-4221: 255 x 152 x 50 mm (10' x 6.0' x 2.0")
BEMG-4222: 255 x 152 x 59 mm (10' x 6.0' x 2.3")
Enclosure
Aluminum +SECC
Mounting
Industrial Grounding
Power Consumption
BEMG-4221: 12W (Typical)
BEMG-4222: 16W (Typical)
Power Requirements
9 ~ 36 VDC (e.g +24 V @ 1.5 A) (Min. 36 W), ATX
Power Suspend Mode S3, S4
Weight
2.5 kg
System Design

ƒƒ LAN
ƒƒ USB Ports
ƒƒ Audio

System Hardware
ƒƒ CPU
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Memory
Indicators
Keyboard/Mouse
Storage

ƒƒ Display
ƒƒ Watchdog Timer
ƒƒ Printer Port

Industrial Panel

BEMG-4221: Intel® Atom™ N450 1.67GHz
BEMG-4222: Intel® Atom™ D510 Dual Core 1.67GHz
1 x PS/2
CF: 1 x front-accessible type I/II CompactFlash® slot
HDD: 1 x built-in 2.5" SATA HDD/SSD bracket
DB15 VGA connector
BEMG-4221 supports:1400 x 1050
BEMG-4222 supports: up to 2048 x 1536
Programmable 256 levels timer interval, from 1 to 255 sec
1 x Printer port (BEMG-4222)

BEMG-4221: 2 x RS-232/485 (COM1-2),

2 x RS-232/422/485 w/ 128kB FIFO

(COM A-B)
BEMG-4222: 2 x RS-232/485 (COM1-2),

2 x RS-232/422/485 w/ 128kB FIFO

(COM A-B),

4 x RS-232/485 from DB25 print port
(COM3-6)
50-115.2 kbps (COM 1-6 in RS-232/485 mode)
50-115.2 kbps (COM A/B in RS-232 mode)
50-921.6 kbps (COM A/B in RS-422/485 mode)
2 x 10/100/1000 Base-T RJ-45 port
(Built-in boot ROM in flash BIOS)
6 x USB 2.0
Line in, Line out, Mic in (5.1 channel HD audio)

Environment
ƒƒ Humidity
ƒƒ Operating Temperature IEC 60068-2-2 with 100% CPU/ I/O loading

-10 ~ 70°C (14 ~ 158°F)
IP40
IEC 60068-2-27
IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.)
HDD: 1 Grms @ 5 ~ 500 Hz

ƒƒ BEMG-4221-P21C-AE
ƒƒ BEMG-4222-P31C-AE

Energy Data Concentrator, Atom N450 1.67GHz, 2GB RAM
Energy Data Concentrator, Atom D510 1.67GHz, 2GB RAM

UNO-FPM21-AE
968EMW0021
1700001854
1750003222
PCLS-DIAGAW10

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Industrial Wireless
Solutions

UNO-2000 series VESA mount kit
Mini PCIe card for WLAN
SMA/I-PEX cable 11CM
5dBi Dipole Antenna


4-17

PME-1210/1230

1-phase Multifunction Power Meter

Features

NEW

ƒƒ Small size with 100mm depth
ƒƒ Panel cut 92 x 46 mm
ƒƒ Multi-function power measurement
ƒƒ Modbus RTU protocol over RS485

PME-1210

PME-1230
RoHS

COMPLIANT
2002/95/EC

Introduction
The PME-1210 and PME-1230 are multi-function power meter for sub-metering applications, ranging from power distribution, small motor control to lighting load circuit. It measures
individual current & voltage, KW, kwh, kvarh, PF and kVAR values. The measurement data can be viewed directly from local display, and also can be transmitted through a RS-485
using the Modbus protocol.

Specifications
Front Panel Interface

Voltage Measurement
ƒƒ Phase/Wire
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Phase Voltage
Line Voltage
Resolution/Accuracy
Permanent Overload
Transient Voltage

1P3W or 3P3W-2CT or 3P3W-3CT or 3P4W
(PME-1230 only)
80 to 350 VAC
138 to 600 VAC
0.1 V/0.5% full scale
450 VAC
2 x Vin (1sec)

Current Measurement (Std. 5A CT)
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Range
Resolution
Starting Current
Permanent Overload
Transient current
Accuracy

5 mA ~ 5 A
1 mA
5 mA
10 A
20 x Iin (1sec)
0.5% full scale

Power Measurement (total)
ƒƒ Resolution
ƒƒ Accuracy

1W (per phase)
1% full scale

Energy Measurement (total)
ƒƒ Record Resolution
ƒƒ kWh Accuracy

0.1 kWh (Range from 0 to 9,999,999.9kWh)
0.01 kWh (Range from 0 to 9,999,999.99kWh)
1% with PF 0.5 ~ 1.0

Frequency Measurement
ƒƒ Range
ƒƒ Resolution/Accuracy

45.0 to 65.0 Hz
0.1 Hz

PF Measurement
ƒƒ Range
ƒƒ Resolution
ƒƒ Accuracy

0.000 to 1.000
0.001 (polarized)
1% (PF 0.5 ~ 1.0)

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Display
Indicators
Mode
Setting

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Bus
Protocol
Baud Rate
Meter ID


RS-485, Photo Isolated
1200/2400/4800/9600
0 ~ 254

Reliability
ƒƒ Communication
ƒƒ Surge Test
ƒƒ EFT Test

IEC61000-4-4 1kV
IEC61000-4-5 4kV
IEC61000-4-4 1kV

AC Insulation
ƒƒ Aux. Power
ƒƒ Current Input

4.0kV
4.0kV

Power Supply
ƒƒ AC 110V
ƒƒ AC 220V

93 ~ 126 VAC
187 ~ 253 VAC

Physical
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Operating Temperature -10 ~ 70°C
Operating Humidity
0 ~ 90% RH (Non-condensing)
Storage Humidity
Weight
425g (Std. 5A CT)
Panel Cut
92 x 46 mm
Dimensions (W x H x D) 110 x 50 x 115 mm

ƒƒ PME-1210-AE
ƒƒ PME-1230-AE

4-18

6 digit 7 segment LED
8 LED
Display and Setting
3 Function Key, ID address, Baud Rate, PT Ratio,
CT Ratio, Phase/Wire.


Automation Software

5

Advantech WebAccess


5-2


Automated Graphical Remote Control Application Program

5-5

WebOP Designer

HMI Runtime Development Software

5-6

KW MULTIPROG®

IEC 61131-3 SoftLogic Control Software

5-8

ADAMView
OPC Server

HMI Software for Data Acquisition

5-9

DAQNavi

Software Development Package for Advantech DAQ Products

5-10

To view all of Advantech’s Automation Software, please visit www.advantech.com/products.

Advantech
WebAccess

Features
ƒƒ View, control and configure system remotely over an intranet or the Internet
using standard web browser
ƒƒ Mobile client support for iOS, Android and Windows mobile devices
ƒƒ Support for open standard programming: TCL, JavaScript and VB script
ƒƒ Open real-time data connectivity: OPC, Modbus, BACnet, DDE Server
ƒƒ Open offline data connectivity: SQL Server, Oracle, MySQL, Microsoft Access
database
ƒƒ Full LonWorks LNS and BACnet support
ƒƒ Distributed SCADA architecture with central database server
ƒƒ Redundant SCADA, ports and devices
ƒƒ Google Maps Integration
ƒƒ Remote access to alarms and data
ƒƒ SMS alarm notification, e-mail alarm, report and messages
ƒƒ Web-enabled video and audio
ƒƒ Multi-layer inter-operable SCADA nodes

Introduction
Advantech WebAccess is a web browser-based software package for human-machine interfaces (HMI) and supervisory control and data acquisition (SCADA). All the features found in
conventional HMI and SCADA software including Animated Graphics Displays, Real-time Data, Control, Trends, Alarms and Logs, are available in an standard web browser. WebAccess
is built around the latest internet technologies. The basic components are:
1. SCADA Node: it communicates in real-time with automation equipment and controls the equipment via serial, Ethernet or proprietary communication via multiple built-in device
drivers. Not only does it run local controls and monitoring, but also provides real-time data to all remote clients.
2. Project Node: it is the development platform for WebAccess and is a web server for all clients to connect to the development project or remotely monitor and control the system.
All system configuration, project database files and graphics are stored here.
3. Client node: through the ActiveX control inside Microsoft Internet Explorer, it monitors and controls the SCADA Node. The client connects to the Project Node and get the
address of the SCADA Node, then communicates directly with the SCADA Node using proprietary communications over a TCP/IP connection. Data is displayed in real-time with
dynamically animated graphics along with real-time, historical trending and alarm information. Users can acknowledge alarms and change set-points, status and other data.
4. Mobile Client: the Mobile Client interface is intended for use with smart mobile devices, such as iOS, Android; and Windows mobile devices. In the mobile client users can
browse graphics, data-log trends, and tag information in real-time. Set value to tag or acknowledge alarms can also be supported via an intuitive interface.

Feature Details
View and Control from a Remote Web Browser

Google Maps Integration

Using a standard web browser, users can view and control automation equipment used
in industrial, manufacturing, process and building automation systems. Field data and
alarms are delivered in real-time to remotely browse using animated graphics and sound.

WebAccess integrates real-time data on each geographical site with Google Maps. For
remote monitoring, users can intuitively view the current energy consumption on each
building, production rate on each field or traffic flow on the highway together with alarm
status. By right-clicking on Google Maps or entering the coordinate of the target, users
can create a marker for the target and associate 3 real-time site data with label to display.
Furthermore, a macro can also be defined for the action when user clicks on the marker
in real-time. It is very useful for building automation, oil and gas industry, public utility
or any remote monitoring application.

Powerful Remote Diagnose and Maintenance Functionality
The unique feature, which distinguishes WebAccess from the competition, is that all
engineering works, such as: database configuration, graphics drawing and system
management (download, start and restart remote nodes) is performed using a web
browser. If any troubleshooting is needed, no matter where the engineer is, he can use
the internet to operate the system remotely. This can significantly increase the efficiency
of maintenance operations and reduce maintenance costs.

Full Scalability
A scalable system architecture allows users to run the same database and graphics on
Windows CE, Embedded XP and Windows. When a system needs to be upgraded, just
download the database to a new machine and get online immediately. A WebAccess SCADA
node can be another SCADA node’s device with alarm and log synchronized option, so the
field's I/O data can be collected in local node and forwarded to regional data center then
further transferred to central management.

5-2

Automation Software

Advantech WebAccess

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels


Remote Monitoring and Health Check


WebAccess provides the remote monitor function. This allows users to communicate
and exchange data with SNMP or DiagAnywhere Server. Users can check the health of
CPU, memory, temperature, and voltage on the target machine via the function. With
DiagAnywhere integration, users can bring up DiagAnywhere client connecting to the
target machine directly if there is any abnormal or suspicious data detected in WebAccess.

The Project Node is a centralized database server of configuration data. A copy of the
database and graphics of all SCADA nodes is kept on the Project Node. The historical
data is also stored in the database in project node.

Vector-based Graphics
Regardless of engineer and user computer resolution, WebAccess graphics can be built
at any resolution and displayed at any resolution. Vector-based graphics scale infinitely,
providing smaller file and data sizes for fast downloading and data updates.

Redundant SCADA, COM Ports and Devices
Advantech WebAccess assures continuous, reliable communication to automation
equipment. WebAccess Backup node activates when the primary node is down. WebAccess
device drivers communicate with backup ports or devices if the primary connection is lost
and automatically restores to the primary item when it becomes available.

WebAccess also has the options to allow users to define the aspect ratio, 16:9, 16:10 or 4:3,
to view their graphics to avoid distortion when displaying in certain aspect ratio display.

Historical and Real-Time Trending, Data Logging and Centralized
Logs

Wide Ranging Building Automation Support

12 Tags can be added to a Trend display without losing the history of the other tags.
Real-time data, alarms, and operator actions from all SCADA nodes can be logged to a
central ODBC database.

WebAccess supports all open systems in the building automation industry. LonWorks
devices can be accessed through LNS database, iLons and B-Track. BACnet MS/TP and IP
are also supported. Modbus protocol for most of power meters is also a standard driver of
WebAccess. In WebAccess Scheduler users can schedule on/off, temperature set points,
and messages based on time-of-day, day-of-week and holidays.

Open Data Connectivity

Scheduled Reports
A "Fill-in-the-blanks" reporting package gives average, maximum, minimum, last and
totals with summary for user-defined shifts, daily, and monthly reports. These reports can
be automatically generated and printed or sent to users by e-mail. Users can also query
reports from a remote browser anytime, anywhere.

Advantech WebAccess exchanges online data with 3rd party software in real-time by
supporting OPC UA/DA, DDE, Modbus and BACnet Server/Client. It supports SQL, Oracle,
MySQL, and MS Access for offline data sharing.

Event Log and Action

Data Transfer

Enhanced Security

The Data Transfer function is used to transfer data from one PLC or automation device
to another. Data value can be sent from one tag to another tag, regardless of the
communication medias or protocols, with a predefined period in the same equipment or
between different equipment.

Users can be assigned various privileges to restrict display and data access. WebAccess
uses the Area of Responsibility concept to restrict changes to data.

automation equipment using communication drivers supplied with Advantech WebAccess.

An event can trigger data before and after the event to be logged or scripts to be executed.

Ample Driver Support
WebAccess supports hundreds of devices. In addition to Advantech I/Os and controllers,
WebAccess also supports all major PLCs, controllers and I/Os, like Allen Bradley,
Siemens, LonWorks, Mitsubushi, Beckhoff, Yokogawa etc. WebAccess can easily
integrate all devices in one SCADA. For a complete listing of WebAccess drivers, refer to
WebAccess.advantech.com.


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

5-3

Advantech
WebAccess
Gateway with WebAccess Installed
With open real-time data connectivity and hundreds of device drivers, WebAccess can
integrate all devices and a selected hardware platform with pre-installed WebAccess
becomes the perfect protocol gateway or data concentrator. With intuitive setup, WebAccess
converts field device data to Modbus, OPC DA, OPC UA or BACnet protocol, so other
software, such as ERP and MES can gain access without knowing the field device protocol.
WebAccess+ Solution Products, a bundle of WebAccess Professional 7.1 and Windows
7 Embedded built in to Advantech’s robust hardware platform, can be used as a high
performance, low cost data gateway solution.

Web-enabled Video Display
WebAccess allows operators and users to monitor equipment and facilities directly using
web-enabled full-motion video cameras, audio, and web cams. It also supports the use of
live video cameras that are IP-enabled via ActiveX control, Windows Media Player, JPEG
and other formats supported by Microsoft Internet Explorer 8.0 (or later). The video image
appears in the same display area as graphics, alarms and trends displays. Optionally,
WebAccess can launch the video in a pop-up window. WebAccess also supports push
button key macros to easily call up video cameras and WebAccess scripts can be used to
automatically rotate between multiple cameras and send Point-Tilt-Zoom (PTZ) commands.

Advantech WebAccess Professional
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

I/O Tag
Internal Tag
Web Client
Alarm Log
Action Log

75/300/600/1500/5000/20K/64K
75/300/600/1500/5000/20K/64K
1024
5000
5000

Graphics
ƒƒ Number of Graphic Pages
ƒƒ Variables per Graphic Pages 4000

Group Data
ƒƒ Datalog Trend Group 9999
ƒƒ Realtime Trend Group 9999

Recipes
ƒƒ Item per Unit
ƒƒ Recipes per Project
ƒƒ Unit per Recipe

999
999

Scheduler
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Holiday Group
Time Group
Circuit Group
Schedule Reservation

9999
9999
9999
9999

Web-enabled Integration
ƒƒ Video
ƒƒ Google Maps
ƒƒ Alarm Email/SMS

Yes
Yes
Yes

Open Connectivity
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Modbus Server
BACnet Server
ODBC and SQL Query
OPC DA/UA Server
DDE Server

Yes
Yes
Yes
Yes
Yes

Professional Versions
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

WA-P71-U075E
WA-P71-U300E
WA-P71-U600E
WA-P71-U15HE
WA-P71-U50HE
WA-P71-U20KE
WA-P71-U64KE

Upgrade*
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

WA-P71-X075E
WA-P71-X300E
WA-P71-X600E
WA-P71-X15HE
WA-P71-X50HE

5-4

Centralized logs on project Yes
SCADA/Port/Device
Redundancy Yes
Script language
TclScript/VBScript/JScript
Data Transfer
Yes
Scheduled Report
Yes

Automation Software


Options*
ƒƒ WA-P71-DCTRLE
ƒƒ WA-P71-SSCHLE
ƒƒ WA-P71-AMGNTE
ƒƒ WA-P71-DB50HE
ƒƒ WA-P71-DB64KE

WebAccess Professional Option: Demand Control
WebAccess Professional Option: School Scheduler
WebAccess Professional Option: Alarm Management
system
tags
tags

* Original serial number from WebAccess Professional version is required to purchase
WebAccess upgrade or options. The serial number can be found on the USB dongle.


tags: Simplified Chinese Edition
English Edition
tags: English Edition
English Edition

Minimum Requirements
ƒƒ Hardware

Others
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ


ƒƒ USB Port

Windows XP, Windows 7, Windows 8 Professional,
Windows Server 2003 or later
Celeron or Athlon. Dual Core processors or higher
recommended.
1GB minimum; more recommended
30GB or more disk space
1024 x 768 or higher (recommended)
Lower resolutions also supported
USB port for License Hardkey on SCADA node

Advantech
WebAccess Express

Automated Graphical Remote
Control Application Program

Features

NEW

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ Supports ADAM-4000/6000 series
ƒƒ Historical and real-time trend

Machine Automation

ƒƒ Auto-detects modules in the system
ƒƒ HTML historical data export
ƒƒ Supports one web browser client

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels

Introduction


Advantech WebAccess Express is an automated graphical remote control application program. It automatically discovers all the ADAM modules on the network and serial ports,
generates a database and brings real-time data online with prebuilt monitoring graphics. Users can easily get real-time ADAM I/O devices data from remote smart devices with just
one click. And what's more it's free with 75 ADAM I/O points.

Feature Details
Auto-discover and Deliver Technology

Auto-deposit Functionality

Using state of the art auto-discover technology, WebAccess Express detects all the
available communication ports on the machine and discover all the online serial ADAM
devices. From Ethernet ports, WebAccess Express also finds all the online ADAM-6000
devices. Automation technology does not stop here, monitoring database is generated
from the information gathered from discovered devices. WebAccess Express data engine
automatically start to poll real-time data from all the devices.

All the analog data are automatically deposited to a historical data log. Users can view
data in the Data Log Trend group page, each group contains an ADAM module. The data
in the trend page can be exported to HTML and then exported to Excel for further analysis.
The trend can also be viewed in the mobile device application.

Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Auto-display over Internet and on Smart Mobile Devices
All real-time data is delivered to the computer and displayed in preconfigured graphics,
which are systematically organized by the comport and device for easy monitoring. By
double clicking the analog output or digital output point, a dialog box pops up letting
users change the analog value or toggle the digital output. Analog data can also be viewed
in trend pages. If an IIS server is installed, the data can also be viewed from remote
computers or from a mobile device. Search for “WebAccess mobile” from App Store for
iPhone, iPad or from Google Play for Andriod devices.

WebAccess Express Support List
ADAM-4000 Series

ADAM-6000 Series

ADAM-4015
ADAM-4015T
ADAM-4017+
ADAM-4018+
ADAM-4019+
ADAM-4024
ADAM-4051

ADAM-6015
ADAM-6017
ADAM-6018
ADAM-6022
ADAM-6024
ADAM-6050
ADAM-6051

ADAM-4055
ADAM-4068
ADAM-4069
ADAM-4117
ADAM-4118
ADAM-4150
ADAM-4168

ADAM-6052
ADAM-6060
ADAM-6066

WebAccess Express Download Linkage
http://webaccess.advantech.com/downloads.php


Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

5-5

WebOP Designer

HMI Runtime Development
Software

Software Features
ƒƒ Allows users to manage multiple HMI applications in one project
ƒƒ Allows users to switch multi-language UI dynamically, with Unicode and multilingual
screen text supported
ƒƒ Provides password protection of designs, macros and upload/download operations
ƒƒ Supports vertical, horizontal screen displays
ƒƒ Enables one design to fit all HMI models
ƒƒ Provides index registers for modifying device addresses at runtime
ƒƒ Collects data from many devices with various methods
ƒƒ Supports various data acquisition and trend presentation
ƒƒ Operation log helps the review and investigation of important events
ƒƒ Allows to download the runtime data using serial port, Ethernet port, USB client port
at HMI and Micro-SD
ƒƒ Allows to use the USB Memory Sticker for the trouble-free update of the application
ƒƒ Supports over 300 industrial communication protocols such as SIMATIC S7-1200,
BACNet MSTP/BACNet IP etc. and the driver list is growing

Introduction
WebOP Designer is powerful yet intuitive software to create total solutions for WebOP series Human Machine Interface products. WebOP Designer is proven in many application fields
and is an easy to use integrated development tool. The features include solution-oriented screen objects, high-end vector graphics, Windows fonts for multi-language applications,
recipes, alarms, data loggers and operation logging. WebOP Designer also includes online/offline simulation and other utility programs such as Data Transfer Helper (DTH); recipes
editors and text editors.
WebOP runtime, a part of WebOP Designer, guarantees reliability and performance of WebOP Series HMI because of the minimum system overhead, high communication data rates,
sub-second screen switching, and 24/7 operation. Our fast response software team adds new functions, communication drivers and solutions to the software all the time to meet
dynamic needs.

System Requirements
Minimum OS Requirements:
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Windows 2000 SP4
Windows XP SP2 (for all flavors of XP such as Home, Media Center, Tablet PC)
Windows Server 2003
Windows Vista
Windows 7

Project Development Steps
Create Project

Define global settings for all the applications
under the project: Languages, Font templates,
Global tags, Global macros, Picture database,
Text database, etc..

Add Application

Set up the application: Communication links,
Tags, Command block, Passwords, Alarm
blocks, Recipe blocks, Data Loggers, Operation
logging, etc..

Add Screen

Define the properties of the screen: Screen
type, Screen size, Printed area, Base screen,
Background, OPEN macro, CLOSE macro,
CYCLE macro, etc..

Add Object

Place, resize, and configure the screen object

Adjust and/or correct the settings that could
not pass the verification done by the compiler.

Compile

Simulate

5-6

Download

Automation Software

Feature Details
Global Settings and Resources Sharable to all Applications of the
Same Project
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Multi-languages (up to 10 languages)
Font templates (up to 20 fonts for each language, TrueType fonts supported)
Picture database (BMP, JPG, GIF, WMF), Sound database (WAV),Text Database
Global Tags
Global Macros

Plenty of Solution-oriented Screen Objects
ƒƒ For common HMI needs:
Buttons, Lamps, Message displays, Numeric displays, Numeric entries, Character
displays, Character entries, Time displays, Date displays, Bar Graphs, Meters, etc.
ƒƒ For animation:
Pictures displays, GIF displays, Animated graphics, Dynamic rectangles, Dynamic
circles, Pipelines, Circular bar graph, etc. Color of basic graphic objects (text, lines,
rectangles, circles, etc.) changeable.
Shape and color of buttons and lamps changeable.
ƒƒ For advanced functions:
Line chart, Scatter chart, Recipe selector, Recipe table, Alarm history display, Active
alarm display, Alarm count display, Historic trend graph, Historic data table, Historic
event table, Historic line chart, Operation log display, Sub-link table, etc.

Communication Links
The WebOP series HMI products can have at most 4 built-in communication ports. The
WebOP Designer software allows you to create up to 4-links and 255 sub-links for one
application. More than 300 communication drivers allow 1-to-N (one panel to a wide
variety of industrial devices) or N -to-1(multiple panels to one device) connections.

WebOP Designer

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel

Industrial Monitors

One Design for all Models

Data Collected into a CSV/TXT file

The WebOP Designer software provides the auto resizing function to resize all the objects
so they can fit the new screen size when you change the HMI model. It makes the HMI
model changes done in seconds.

Allows to save/load collected data to/from CSV or TXT files. Those two standard file
formats allow the easy manipulation data on PC.

Alarm

Easy to Accumulate/Reuse Design Achievements
ƒƒ Import/Export Function
The WebOP Designer software provides the simple method for importing and
exporting data between applications or projects. The data includes Language
setting, Font templates, Pictures, Sounds, Text, Tags, Macros, Application, Screen,
Alarm messages, Control block and status word settings, etc.
ƒƒ Object Library
The object library makes configuring, managing and sharing user-defined objects
easier. It contains default objects, common objects, object groups and global
objects.

Enhanced Intellectual Property (IP) Protection
WebOP Designer strengthens the IP protection by password with different levels. You can
set the password to protect project, password table and global macros. You can also use up
to 9 levels of passwords to secure the operations and restrict access to the objects. You can
choose to prohibit uploading and copying of the panel application stored in the HMI unit.

Recipe
Distinguish from the conventional recipe operations, the WebOP Designer provides
complete solutions to deal with recipes:
ƒƒ Supports up to 16 recipe blocks
ƒƒ Provides recipe selector for selecting a recipe and recipe table for displaying and
modifying recipe data at runtime
ƒƒ Provides Recipe Editor, an independent executable program, to view and edit recipe
data saved in a binary file on PC
ƒƒ Able to notify a bit when the recipe operations are performed successfully to prevent
data loss

The WebOP Designer supports up to 16 discrete alarm blocks and up to 16 analog alarm
blocks. It provides alarm history display, active alarm display, alarm count display and
alarm marquee to display alarms in the application.

Macros, an easy-to-learn language with simple syntax
Application developers may program their own solutions using the macro commands for:
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Operations that are not supported in a standard object or feature of WebOP Designer
Sequential, Interactive, Conditional and File operations
Non-linear data conversions
Data exchange between two controllers
Simple communication drivers
Hard-to-implement tasks in controllers
Offloading the burden of controllers to boost their performance

Simplified Architecture
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Real time WYSIWYG screen editor, 8 toolbars and screen manager
Screen overview that shows the relations among screens of the current application
Link overview that shows the relations among links of the current application
Object list that shows the screen objects and the associated I/O address of the
current screen
I/O list that shows all the I/O addresses of the project and their owners
Compiler to verify, optimize, and build the designs
Online/offline simulation for design verification
Data Transfer Helper (DTH), an independent executable program, to help you get/
update application data through serial port or Ethernet port
Text Editor for editing all screen texts in multi-languages


Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

5-7

KW MULTIPROG

®

IEC 61131-3 SoftLogic
Control Software

Features
ƒƒ IEC 61131-3 programming languages
ƒƒ Intuitive programming with a clear project structure
ƒƒ Cross-compiling: FBD, LD and IL can be cross-compiled to each other
ƒƒ Multi user functionality shortens programming time
ƒƒ Management of distributed controls
ƒƒ Network variables: Easy and powerful configuration of distributed
communication
ƒƒ Powerful debugging tools: Online changes, PLC simulation, overwriting &
forcing, breakpoints, watch windows & recipes, logic analyzer, and cross
reference
ƒƒ Online program download
ƒƒ Download Change Function
ƒƒ Advantech FBs Support (Auto-Tuning PID, Batch Control)

Introduction
Advantech's Programmable Automation Controllers (PAC) leverage KW-Software's Multiprog and ProConOS as a single development tool with the SoftLogic control kernel. Requiring
only a one-time design, users can easily leverage the control know-how into different control platforms to meet versatile automation projects needs. KW SoftLogic also creates single
tagging database and HMI Software, such as WebAccess and other 3rd party SCADA software, all the features can help users to save the visible and invisible cost.
Multiprog supports all IEC 61131-3 programming languages. Depending on the task to be handled, your experience and company standards, you may choose one of the five standardized
programming languages. The use of Multiprog offers you many advantages. Our long-term experience in the automation industry guarantees you a sophisticated software product.

Specifications
Hardware Requirements

IEC 61131-3 Programming Languages

System RAM

Windows XP : 512 MB
Windows Vista : 1 GB
Windows 7 : 1 GB

Hard Disk

1 GB free memory space

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

VGA Monitor Color Settings Resolution

True color
1024 x 768


RS-232 interface

Optional

ƒƒ MPROG-PRO535E

Mouse

Recommendded

Device
IBM compatible PC with Pentium Processor

Advantech Hardware Supported
ƒƒ APAX-6000 Series
ƒƒ APAX-5000 Series
ƒƒ ADAM-55X0KW Series

Software Requirements
ƒƒ
ƒƒ
ƒƒ
ƒƒ

5-8

Microsoft Windows 7
Microsoft Windows Vista ( SP2 )
Microsoft Windows XP (SP3)
Microsoft Internet Explorer 6.0 or higher

Automation Software

Recommended
Pentium 4, 2 GHz or above

Instruction List (IL)
Structured Text (ST)
Function Block Diagram (FBD)
Ladder Diagram (LD)
Sequential Function Chart (SFC)
All programming languages can be mixed within one project

KW Multiprog Pro v5.35
(128k bytes I/O, Win7 32-bit support)

ADAMView
OPC Server

HMI Software for Data Acquisition

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels

Introduction

Introduction

We have noticed that many users apply the ADAM Data Acquisition modules in small base
projects. Because the cost ran higher than system hardware, Human Machine Interface
software was not suitable for these projects. ADAMView, the ADAM Data Acquisition
software, is especially designed for low-volume ADAM projects. It provides a 150
physical points database, ADAM Drivers, for all monitoring and control functions. In
brief, ADAMView is a cost-effective and simple SCADA software for the ADAM I/O series.

The Industrial Automation Group of Advantech introduces a standardized interface for
industrial device servers, the OPC (OLE for process control) Server. An OPC server
provides devices, such as an I/O device, to communicate with a wide range of HMI/SCADA
software packages residing on a host. Any software system with OPC client capabilities
can access the Advantech OPC server drivers.

Feature Details

ƒƒ Supports Advantech ASCII, MODBUS/RTU, and MODBUS/TCP protocol.
ƒƒ Compliant with the latest OPC Data Access 1.0, 2.04 and 3.0 standards.
- Compliant with the latest OPC Alarm and Events 1.0 and 1.2 standards.
- Built-in OPC tag simulation and value conversion.
- Wizards to create OPC Server tags about ADAM series quickly.
ƒƒ Compatible with OPC client compliant application software.
ƒƒ Provides OPC custom interface.
ƒƒ Online configuration capability; add new signals and tags during runtime.
ƒƒ Tag Multiplier let you create tags quickly.
ƒƒ OPC DA and AE Client for rapid testing of your OPC data connections.

ƒƒ Complete Software Package
ƒƒ Graphical Panel Configuration
ƒƒ Modularized and Prioritized Task Design
ƒƒ BasicScript Scripting Language to Customize Your Applications
ƒƒ Easy Connection with ADAM I/O Series

Specifications
System Requirements
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

CPU Intel® Pentium® 200 MHz or higher
RAM
64 MB Minimum
Disk Space
20 MB Minimum
Display
VGA Resolution or Higher
Microsoft Compatible Mouse
OS Microsoft® Windows® 98, Windows NT 4.0 SP4 or
above, Windows 2000, Window XP

Supported Hardware
ƒƒ ADAM-4000 Modbus/RTU and ADAM-6000 Modbus/TCP Modules

ƒƒ PCLS-ADAMVIEW32


Key Features of the OPC Servers

Specifications

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Supported Hardware
ƒƒ All ADAM-4000 series modules

ƒƒ PCLS-OPC/ADM30
ƒƒ PCLS-OPC/MTP30
ƒƒ PCLS-OPC/RTU30

Industrial Panel

OPC Server for ADAM ASCII protocol
OPC Server for Modbus/TCP protocol
OPC Server for Modbus/RTU protocol

ADAMView Data Acquisition Software

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


5-9

DAQNavi

Software Development Package for
Advantech DAQ Products
Features
ƒƒ Supports multiple operating systems including Windows (32-bit and 64-bit),
Linux
ƒƒ Supports common-used development environment including Visual C/C++,
Borland C Builder, Visual Basic .NET, Visual C#, Delphi, Java, VB, LabVIEW
ƒƒ Supports Advantech PCI Express, PCI, PC/104, PCI-104, USB DAQ devices
ƒƒ Integrated utility environment (Advantech Navigator) for device functionality
testing without programming
ƒƒ Able to generate a simulator device in utility to program and run application
without real hardware device
ƒƒ Pre-defined scenario application examples with source code to shorten
programming learning and development time
ƒƒ Express VI and Polymorphic VIs for both beginner and advanced
programming in LabVIEW environment
ƒƒ Complete documentations and tutorials for hardware specifications, wiring,
example code and SDK programming

Introduction
DAQNavi is a completed software package, for programmers to develop their application programs using Advantech DAQ boards or devices. This integrated software package includes
drivers, SDK, tutorial and utility. With the user-friendly design, even the beginner can quickly get familiar with how to utilize DAQ hardware and write programs through the intuitive
"Advantech Navigator" utility environment. Many example codes for different development environment dramatically decrease users’ programming time and effort.
You can go to http://www.advantech.com/daqnavi for more information about Advantech DAQNavi.

Feature Details
Multiple Operating System Support

C++, Delphi, ActiveX and Java Support

DAQNavi supports many popular operating systems (OS) used in automation applications.
For different OSs, API functions will be the same, so users can simply install the driver
without modifying their program again when migrating between two different OSs.

DAQNavi also offers C++ Class Library (for VC++ and Borland C++ Builder) and ActiveX
(for Visual Basic, Delphi and BCB) for Native programming environment with the same
calling interface as .NET Class Library. With DAQNavi Java Class Library, user can
develop Java program to across different platforms (including Windows and Linux) by
means of Java engine.

DAQNavi supports latest Windows 7/Vista/XP and Windows CE (both 32-bit and 64-bit).
Besides Windows operating system, Linux is famous for its openness and flexibility.
DAQNavi software package also supports Linux OS distributions including Ubuntu,
Fedora, Debian and, Susi. For other distributions, contact with Advantech local branch
or dealer in your area, for more information.

.NET Support
DAQNavi offers a series of .NET Component objects, that you can benefit from platformunified feature with the latest .NET technology. Users can simply drag and drop the .NET
Components within .NET programming environment, such as Microsoft Visual C# and VB
.NET. An intuitive window (called "DAQNavi Wizard") will pop-up, and user can perform
all configurations by sequence. Then, related source code will be generated automatically.
Programmers also can choose writing code manually with the .NET Component, to have
a more flexible object calling. With Advantech CSCL technology, engineers can do the
similar programming in Native environment such as Visual C++.

LabVIEW Support
LabVIEW is one popular graphical development environment used for measurement and
automation. For LabVIEW user, DAQNavi offer two options for programming: Express VI
and Polymorphic VI. DAQNavi Express VI for LabVIEW helps user quickly complete his
LabVIEW without extra wiring. When the user drags the Express VI on LabVIEW Block
Diagram, a pop-up intuitive wizard window will appear and user can perform hardware
parameter configurations. After that, the programming is done. So it is similar to the
.NET control used in Microsoft Visual Studio environment, suitable for programming
beginners. As for the Polymorphic VI, users can use several VIs and wiring to build
more complex program.

5-10

Automation Software

Support Modules
DAQNavi supports all Advantech PCI Express, PCI, PC-104, and PCI-104 cards, as well
as all USB DAQ devices.

Intuitive Utility
DAQNavi delivers one integrated easy-to-use and powerful utility, called Advantech
Navigator. Within the Navigator, engineers can quickly start configuration and function
testing for all Advantech DAQ devices, without any programming. Related user manuals
are also displayed in the same environment. Besides, to help shorten development
time, Advantech offers a series of DAQ applications examples (called "scenarios" in the
Advantech Navigator). So programmers can refer to its source code and develop their
own application based on it, as well as the wiring information. Without a DAQ device at
hand, engineers can generate a simulated device and use that device for programming and
testing. Except device testing, Navigator also offers complete documentation to describe
how to use DAQNavi SDK to program in various development environments. Moreover,
a video tutorial for how to create an application program in a different development
environment is available.

Operator Panels

6
6-2

Selection Guide
TPC-31T
TPC-61T

3.5"/5.7" QVGA TFT LED LCD TI Cortex-A8 Touch Panel Computer

6-4

WebOP-3070T

7" WVGA Cortex™ - A8 Operator Panel with Wide Operating Temperature
Range

6-6

WebOP-3100T

10.1" WSVGA Cortex™ - A8 Operator Panel with Wide Operating
Temperature Range

6-8

WebOP-2040T

4.3" WQVGA Operator Panel with WebOP Designer Software

6-10

WebOP-2050T

5.6" QVGA Operator Panel with WebOP Designer Software

6-12

WebOP-2070T

7" WVGA Operator Panel with WebOP Designer Software

6-14

WebOP-2080T

8" SVGA Operator Panel with WebOP Designer Software

6-16

WebOP-2100T

10.1 WSVGA Operator Panel with WebOP Designer Software

6-18

WebOP-2121V

12.1" SVGA Operator Panel with WebOP Designer Software

6-20

Supported PLC Controllers

Communication Port (COM)

6-22

Supported PLC Controllers

Communication Port (Ethernet)

6-24

To view all of Advantech’s Operator Panels, please visit www.advantech.com/products.

Selection Guide
NEW

NEW

Model

TPC-31T

TPC-61T

WOP-3070T

WOP-3100T


TPC-31T-E3AE

TPC-61T-E3AE

WOP-3070T-C4AE

WOP-3100T-C4AE

CPU

RISC 32 bits, 600 MHz
(ARM® Cortex™-A8)




Backup Memory

FRAM 128KB

FRAM 128KB

FRAM 128KB

FRAM 128KB

Working Memory

DDR2 256M Bytes

DDR2 256M Bytes

DDR2 256M Bytes

DDR2 256M Bytes

Storage

512MB on board SLC type




Operating System

Microsoft® Windows CE 6.0
WebOP Designer 2.0

WebOP Designer 2.0


WebOP Designer 2.0

QVGA TFT LCD

QVGA TFT LCD

WVGA(16:9) TFT LCD

WSVGA(16:9) TFT LCD

Type

Display

Size

3.5"

5.7"

7"

10.1"

Max. Resolution

320 x 240

320 x 240

800 x 480

1024 x 600
65,536 colors

Max. Colors

65,536 colors

65,536 colors

65,536 colors

Luminance (cd/m2)

450

800

500

550

Viewing Angle (H/V°)

160/140

160/140

140/120

140/110

Backlight Life (hr)

LED, 30,000

LED, 50,000

LED, 50,000

LED, 50,000

4 wires Analog resistive


5 wire Analog Resistive

5 wire Analog Resistive

No

No

Yes

Yes

Communication LED

No

No

No

No

Front USB Access

No

No

No

No

COM1

RS-232/RS-485 (DB9)

RS-232 (DB9)

RS-232/RS-422/RS-485 (DB9)

RS-232/RS-422/RS-485 (DB9)

COM2

-

RS-232 (DB9)

RS-422/RS-485
(Terminal 4pin+Ground)

RS-422/RS-485
(Terminal 4pin+Ground)

COM3

-

RS-422/RS-485 (DB9)

RS-485 (Termianl 2pin)

RS-485 (Termianl 2pin)

Communication
Interface

Touchscreen
Power-On LED

-

-

Termianl 2pin

Termianl 2pin

10/100-BaseT

10/100-BaseT

10/100-BaseT

10/100-BaseT

USB Client

-

USB 2.0

USB 2.0

USB 2.0

USB Host

USB 2.0

USB 2.0

USB 2.0

USB 2.0

Micro-SD Slot

-

-

Yes

Yes

SD Slot

Yes

Yes

-

-

Audio

-

-

1 Lin out / 1 Mic in

1 Lin out / 1 Mic in

Power Isolation

-

-

Yes

Yes

I/O Isolation

I/Os

CAN
Ethernet (RJ45)

-

-

Yes

Yes

18 ~ 32 VDC

18 ~ 32 VDC

24 VDC ± 10%

24 VDC ± 10%

Power Supply Voltage
Power Consumption

8W

12W

7W

9W

Dimensions W x H x D (mm)

120.79 x 85.5 x 26.5 mm
(4.76" x 3.37" x 1.04")

195 x 148 x 44.4 mm
(7.68" x 5.83" x 1.75")

203.4 x 150 x 43.7 mm
(8.01" x 5.91" x 1.72")

271.5 x 213.5 x 43.2 mm
(10.69" x 8.41" x 1.7")

Cut-out Dimensions W x H (mm)

115 x 79.5 mm
(4.6" x 3.18")

189 x 142 mm
(7.56" x 5.68")

192 x 138.5 mm
(7.56"" x 5.45")

259.5 x 201.5 mm
(10.22"" x 7.93")

Front Panel thickness (mm)

6 mm

6 mm

6 mm

6 mm

Enclosure

PC + ABS

PC + ABS

Die-cast aluminum alloy front bezel

Die-cast aluminum alloy front bezel

Net Weight

0.25 kg (0.55 lbs)

0.8 kg (1.76 lb)

1 Kg (2.20 lbs)

1.2 Kg (2.65 lbs)


0 ~ 50°C
(32 ~ 122°F)

0 ~ 50°C
(32 ~ 122°F)

-20 ~ 60°C
(-4 ~ 140°F)

-20 ~ 60°C
(-4 ~ 140°F)

Storage Temperature

-20 ~ 60°C
(-4 ~ 140°F)

-20 ~ 60°C
(-4 ~ 140°F)

-30 ~ 70°C
(-22 ~ 158°F)

-30 ~ 70°C
(-22 ~ 158°F)

Humidity

10% ~ 90% RH @ 40°C,
non-condensing

10% ~ 90% RH @ 40°C,
non-condensing

10% ~ 90% RH @ 40°C,
non-condensing

10% ~ 90% RH @ 40°C,
non-condensing

Ingress Protection

Front panel: IP65

Front panel: IP66

Front panel: IP66

CE / FCC / BSMI / UL

CE / FCC / BSMI / UL

CE / FCC / BSMI / CCC / UL


Page

6-2

Front panel: IP65

Certification Approval

6-4

6-4

6-6

6-8

Operator Panels
Intelligent Operator Panels

Selection Guide

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation
WOP-2040T
WOP-2040TS1AE

WOP-2050T

WOP-2040TN1AE

RISC 32bits, 200MHz

WOP-2050T-S1AE
RISC 32bits, 200MHz

WOP-2070T
WOP-2070TS2AE

WOP-2080T

WOP-2070TN2AE

RISC 32bits, 200MHz

WOP-2080TS2AE

WOP-2100T

WOP-2080TN2AE

RISC 32bits, 200MHz

WOP-2100TS2AE

WOP-2121V

WOP-2100TN2AE

RISC 32bits, 200MHz

WOP-2121V-N4AE
RISC 32bits, 200MHz

128KB

128KB

128KB

128KB

128KB

128KB

32 MB SDRAM

32 MB SDRAM

64 MB SDRAM

64 MB SDRAM

64 MB SDRAM

64 MB SDRAM

8MB NOR Flash 8MB NOR Flash

8MB NOR Flash

128M NAND
Flash

-

128M NAND Flash

8MB NOR Flash 8MB NOR Flash 8MB NOR Flash 8MB NOR Flash 8MB NOR Flash 8MB NOR Flash
128M NAND
Flash

-

128M NAND
Flash

-

128M NAND
Flash

-

16M
-

HMI RTOS, WebOP Designer 2.0

HMI RTOS, WebOP
Designer 2.0




HMI RTOS, WebOP
Designer 2.0

WQVGA(16:9) TFT LCD

Similar QVGA TFT
LCD

WVGA(16:9) TFT LCD

SVGA TFT LCD

Similar WSVGA TFT LCD

SVGA TFT LCD

4.3"

5.6"

7"

8"

10.1"

12.1"

480 x 272

320 x 234

800 x 480

800 x 600

1024 x 600

800 x 600

65,536 colors

65,536 colors

65,536 colors

65,536 colors

65,536 colors

65,536 colors

400

330

300

250

250

350

100/95

130/110

140/130

140/130

140/110

130/110

LED, 20,000

LED, 20,000

LED, 20,000

LED, 30,000

LED, 20,000

CCFL, 30,000


4 wires Analog
resistive




8 wires Analog
resistive

Yes

Yes

Yes

Yes

Yes

Yes

No

COM1, COM2 and
COM3

No

No

No

No

No

No

No

No

No

No

RS232/422/485
(DB9)

RS232/422/485
(DB9)

RS232/422/485
(DB9)

RS232/422/485
(DB9)

RS232/422/485
(DB9)

RS232/422/485
(DB9)

RS422/485
(Termianl 5pin)

RS422/485
(Termianl 5pin)

RS422/485
(Termianl 5pin)

RS422/485
(Termianl 5pin)

RS422/485
(Termianl 5pin)

RS422/485
(Termianl 5pin)

RS232
(COM1: Pin5; 7; 8)

RS232
(COM1: Pin5; 7; 8)

RS232
(COM1: Pin5; 7; 8)

RS232
(COM1: Pin5; 7; 8)

RS232
(COM1: Pin5; 7; 8)

RS-232
(Termianl 6pin)

-

-

-

10/100-BaseT
Yes

-

Yes

Yes
-

-

Yes

-

Yes

Yes
Yes

10/100-BaseT

-

Yes

Yes
-

10/100-BaseT

Yes

Yes
Yes

-

10/100-BaseT

-

Yes
Yes

-

10/100-BaseT
Yes

Yes

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

24 VDC ± 10%

24 VDC ± 10%

24 VDC ± 10%

24 VDC ± 10%

24 VDC ± 10%

24 VDC ± 10%

5W

10W

10W

10W

10W

25W

130 x 106.2 x 36.4 mm
(5.11" x 4.18" x 1.43")

188 x 143.3 x 30 mm
(7.4" x 5.64" x 1.18")

188 x 143.3 x 30 mm
(7.4" x 5.64" x 1.18")

231.5 x 174.6 x 37 mm
(9.11" x 6.87" x 1.46")

269.8 x 212 x 37.4 mm
(10.62" x 8.35" x1.47")

315 x 241 x 54.5 mm
(12.4" x 9.48" x
2.14")

118.5 x 92.5 mm
(4.66" x 3.64")

175 x 132.5 mm
(6.89" x 5.21")

175 x 132.5 mm
(6.89" x 5.21")

221 x 164 mm
(8.70" x 6.46")

259.5 x 201.5 mm
(10.22" x 7.93")

301.5 x 228 mm
(11.87" x 8.97")

5 mm

6 mm

6 mm

6 mm

6 mm

6 mm

PC + ABS

PC + ABS

PC + ABS

PC + ABS

PC + ABS

PC + ABS

0.3 kg
(0.66 lbs)

0.51 kg
(1.12 lbs)

0.6 kg
(1.32 lbs)

0.93 kg
(2.05 lbs)

1.2 kg
(2.64 lbs)

1.55 kg
(3.41 lbs)

0 ~ 50°C
(32 ~ 122°F)

0 ~ 50°C
(32 ~ 122°F)

0 ~ 50°C
(32 ~ 122°F)

0 ~ 50°C
(32 ~ 122°F)

0 ~ 50°C
(32 ~ 122°F)

0 ~ 50°C
(32 ~ 122°F)

-20 ~ 60°C
(-4 ~ 140°F)

-20 ~ 60°C
(-4 ~ 140°F)

-20 ~ 60°C
(-4 ~ 140°F)

-20 ~ 60°C
(-4 ~ 140°F)

-20 ~ 60°C
(-4 ~ 140°F)

-20 ~ 60°C
(-4 ~ 140°F)

10% ~ 90% RH @ 40°C,
non-condensing

10% ~ 90% RH @
40°C,
non-condensing

10% ~ 90% RH @ 40°C,
non-condensing

10% ~ 90% RH @ 40°C,
non-condensing

10% ~ 90% RH @ 40°C,
non-condensing

10 ~ 95% RH @
40°C,
non-condensing

Front panel: IP66

Front panel: IP66

Front panel: IP66

Front panel: IP66

Front panel: IP66

CE / FCC / BSMI /
CCC / UL




6-12

6-14

6-16

6-18

Operator Panels


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

CE / FCC / BSMI /
CCC / UL

6-10

Automation Software

Front panel: IP65


Building Automation
Systems

6-20


6-3

TPC-31T
TPC-61T

3.5"/5.7" QVGA TFT LED LCD TI
Cortex-A8 Touch Panel Computer
Features
ƒƒ TI Cortex-A8 processor on board
ƒƒ 3.5"/5.7" QVGA TFT LED LCD
ƒƒ Super slim and compact design with plastic housing
ƒƒ Fanless cooling system
ƒƒ IP65 compliant front panel
ƒƒ Built-in micro SD card with Windows® CE OS
ƒƒ 1 x SD card slot
ƒƒ Automatic data flow control RS-485
ƒƒ Supports 1Mbit FRAM for data back-up

Introduction
The TPC-31T/61T model is a compact platform without redundant functions, and has been designed for small-sized operator interface applications. It has a 3.5"/5.7" TFT LCD display
which is a cost effective choice for a limited budget. Its RISC kernel, the TI Cortex-A8 processor consumes minimum power without sacrificing performance. The TPC-31T/61T has
a 10/100Base-T Ethernet port offering solid communication ability and comes bundled with a Windows® CE OS that supports Thin-Client solutions. The built-in Windows CE OS
platform lets the TPC-31T/61T become an Open HMI solution for system integration.

Specifications
General

LCD Display

ƒƒ Certification
BSMI, CE, FCC Class A, UL
ƒƒ Cooling System
Fanless design
ƒƒ Dimensions (W x H x D) TPC-31T: 120.79 x 85.5 x 26.5 mm

(4.76" x 3.37" x 1.04")
TPC-61T: 195 x 148 x 44.4 mm

(7.68" x 5.83" x 1.75")
ƒƒ Enclosure
TPC-31T:ABS
TPC-61T: PC/ABS Resin
ƒƒ Mounting
Panel
ƒƒ OS Support
Windows CE 6.0
8 W/12 W (typical)
ƒƒ Power Input
18 ~ 32 VDC
ƒƒ Watchdog Timer
Programmable as 250 ms, 500 ms, 1 second
ƒƒ Weight (Net)
0.25 kg (0.55 lbs)/0.8 kg (1.76 lb)

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

System Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ

CPU
Memory
LAN
Storage

ƒƒ I/O

6-4

TI Cortex-A8 600MHz
DDR2 256MB on board
10/100Base-T x 1
512MB on board micro SD card
1 x SD Card slot
1Mbit FRAM for Data back-up
TPC-31T: RS-232/RS-485 X1 with auto data flow
control, USB 2.0(Host) x 1
TPC-61T: RS-232 x 2 (COM1,2) RS-422/RS-485 x 1
(COM 3) with auto data flow control,
USB2.0 (Host) x 1, USB2.0 (Client) x 1

Operator Panels

Display Type
Display Size
Max. Resolution
Max. Colors
Luminance cd/m2
Viewing Angle (H/V)
Backlight Life
Contrast Ratio

QVGA TFT LED LCD
3.5"/5.7"
320 x 240
64 K
450/800
160/140
30,000/50,000 hrs
300:1/800:1

Touchscreen
ƒƒ Lifespan
ƒƒ Light
ƒƒ Resolution
ƒƒ Type

1 million times with an 8mm diameter finger of silicone
rubber
Transmission Above 80%
Linearity

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity
Ingress Protection
Front panel: IP65
2 Grms (5 ~ 500 Hz) (Operating, random vibration)

TPC-31T/61T
Dimensions

Unit: mm

TPC-31T

TPC-61T

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

120.8
72.7

5

44.4

195
116.4

26.5

6

54.3
85.5

87.6
148

Energy Automation

Building Automation
Systems

Automation Software

188.1

Operator Panels


78.6

141.1

114.10

Industrial Panel

Panel Cut-out Dimensions: TPC-31T: 115 x 79.5 mm (4.6" x 3.18")

TPC-61T: 189 x 142 mm (7.56" x 5.68")


Rear View

ƒƒ TPC-31T-E3AE

Industrial Monitors

TPC-31T

ƒƒ TPC-61T-E3AE
ƒƒ PWR-247-AE

3.5" QVGA Touch Panel PC, TI AM3517 600 MHz,
256 MB with WinCE 6.0
5.7" QVGA Touch Panel PC TI AM3517 600 MHz,
256 MB with WinCE 6.0
24 V 50 W AC-DC Power Adapter

Industrial Wireless
Solutions

Power Receptor

Industrial Ethernet
Solutions

and IP Gateways

LAN (10/100)

TPC-61T

Cards

COM (RS-232/485)
SD Slot USB 2.0 (Host)

Embedded Automation
Computers

USB 2.0
(Client)
COM 2
(RS-232)
COM 1
(RS-232)
Fuse (1A)

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

LAN(10/100)

Power Switch
COM3
(RS-422/485)


Power Receptor

6-5

WebOP-3070T

7" WVGA Cortex™ - A8
Operator Panel with
Wide Operating Temperature Range

Features

NEW

ƒƒ RISC 32 bits TI ARM® Cortex™-A8 processor
ƒƒ arious LCD sizes (7", 10.1", 12", 15")
V
ƒƒ ull line LED BL TFT LCD with 50K life time
F
ƒƒ Embedded Microsoft® WinCE 6.0 OS
ƒƒ upport WebOP Designer HMI Runtime development tool
S
ƒƒ ackup Memory FRAM in 128KB(64 words) without battery concern
B
ƒƒ ower & Terminal I/O ports isolation protection
P
ƒƒ 20°C ~ 60°C wide operating temperature range
ƒƒ upport CANopen library registered by CiA 301 V4.02
S
ƒƒ S-422/RS-485/CAN terminal I/O ports support Termination Resistor 120Ω
R
ƒƒ ront panel IP66 compliant
F
ƒƒ ie-cast aluminum alloy front bezel
D

Introduction
With brand-new ID design, the WebOP-3070T provides stringent standards required in the automation market. Advantech offers the WebOP-3070T with Cortex™-A8 processor which
consumes minimum power without sacrificing performance. The WebOP-3000T supports a variety of LCD sizes from 4.3” to 15” for different applications involving the use of PLCs,
motion/thermal controllers, inverters and sensors. It’s also provided with a wide operating temperature range to fulfill the requirements of harsh environments. The built-in Microsoft®
WinCE 6.0 OS platform which bundles WebOP Designer lets the WebOP-3070T becomes a control HMI solution for flexible system integration.

Specifications
LCD Display

General
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Certification
Dimensions (WxHxD)
Cut-out Dimensions
OS Support
Power Input
Power Consumption
Enclosure Housing
Mounting
Weight (Net)

CE, BSMI, CCC, UL, FCC Class A
203.4 x 150 x 43.7 mm (8.01" x 5.91" x 1.72")
192 x 138.5 mm (7.56" x 5.45")
24VDC ±10%
7W (Typical)
PC + ABS
Panel
1 Kg (2.20 lbs)

CPU
Backup Memory
Memory
Storage
Power-On LED

RISC 32 bits, 600 MHz (ARM® Cortex™-A8)
FRAM 128KB
DDR2 256MB on board
Yes

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

6-6

COM1
COM2
COM3
CAN
Ethernet (RJ45)
I/Os

Display Type
Display Size
Max. Resolution
Max. Colors
Luminance (cd/m2)
Viewing Angle (H/V)
Backlight Life
Dimming
Contrast Ratio

WVGA TFT LCD
7"
800 x 480
64K
500
140/120
LED, 50,000 hrs
Adjustable by touch panel
700:1

Touchscreen

System Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

RS-232/422/485 (DB9 Male)
RS-422/485 (Terminal Plug 4-Pin)
RS-485 (Terminal Plug 2-Pin)
Terminal Plug 2-Pin
10/100-BaseT
USB Client
USB 2.0 Client x 1
USB Host
USB 2.0 Host x 1
Micro-SD Slot
Yes
Audio
1 Line-out / 1 Mic-in

Operator Panels

ƒƒ Lifespan

ƒƒ Light
ƒƒ Resolution
ƒƒ Type

36 million touches at 8mm-diameter finger point
through silicone rubber bearing at least 250g 2 times
per second.
Linearity

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Operating Temperature -20 ~ 60°C (-4 ~ 140°F)
Humidity
Ingress Protection
Front panel: IP66
Vibration Protection Operating, radom vibration 1 Grms (5 ~ 500 Hz)

WebOP-3070T
Dimensions

Unit: mm

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

203.4
154

Energy Automation

42.5
6

191.4

93.1
150

138

Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel

Panel Cut Out Dimensions: 192 x 138.5 mm (7.56" x 5.45")

Industrial Monitors

ƒƒ WOP-3070T-C4AE

Rear View

Industrial Wireless
Solutions

7" WVGA, Cortex™-A8, 256MB DDR, WinCE 6.0

USB Host

Mic In / Audio Out

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

PWR-247-AE
1702002600
1702002605
1702031801
1702031836

Industrial Ethernet
Solutions

Power Cable US Plug 1.8 M
Power Cable EU Plug 1.8 M
Power Cable UK Plug 1.8 M
Power Cable China/Australia Plug 1.8 M

and IP Gateways

Cards

Base View

Embedded Automation
Computers

PACs

Isolation Power Input

Isolation Terminal I/O Ports

Compact PCI Systems

M2M I/O Modules

Ethernet
USB Client
COM1 (RS-232/422/485) Micro SD Slot


RS-485 I/O Modules

6-7

WebOP-3100T

10.1" WSVGA Cortex™ - A8
Operator Panel with

Features

NEW

ƒƒ RISC 32 bits TI ARM® Cortex™-A8 processor
ƒƒ arious LCD sizes (7", 10.1", 12", 15")
V
ƒƒ ull line LED BL TFT LCD with 50K life time
F
ƒƒ Embedded Microsoft® WinCE 6.0 OS
ƒƒ upport WebOP Designer HMI Runtime development tool
S
ƒƒ ackup Memory FRAM in 128KB(64 words) without battery concern
B
ƒƒ ower & Terminal I/O ports isolation protection
P
ƒƒ 20°C ~ 60°C wide operating temperature range
ƒƒ upport CANopen library registered by CiA 301 V4.02
S
ƒƒ S-422/RS-485/CAN terminal I/O ports support Termination Resistor 120Ω
R
ƒƒ ront panel IP66 compliant
F
ƒƒ ie-cast aluminum alloy front bezel
D

Introduction
With brand-new ID design, the WebOP-3100T provides stringent standards required in the automation market. Advantech offers the WebOP-3100T with Cortex™-A8 processor which
consumes minimum power without sacrificing performance. The WebOP-3000T supports a variety of LCD sizes from 4.3” to 15” for different applications involving the use of PLCs,
motion/thermal controllers, inverters and sensors. It’s also provided with a wide operating temperature range to fulfill the requirements of harsh environments. The built-in Microsoft®
WinCE 6.0 OS platform which bundles WebOP Designer lets the WebOP-3100T become a control HMI solution for flexible system integration.

Specifications
LCD Display

General
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Certification
Dimensions (WxHxD)
Cut-out Dimensions
OS Support
Power Input
Power Consumption
Enclosure Housing
Mounting
Weight (Net)

271.5 x 213.5 x 43.2 mm (10.69" x 8.41" x 1.7")
260 x 201.5 mm (10.24" x 7.93")
24VDC ±10%
9W (Typical)
PC + ABS
Panel
1.2 kg (2.65 lbs)

CPU
Backup Memory
Memory
Storage
Power-On LED

RISC 32 bits, 600 MHz (ARM® Cortex™-A8)
FRAM 128KB
DDR2 256MB on board
Yes

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

6-8

COM1
COM2
COM3
CAN
Ethernet (RJ45)
I/Os

Display Type
Display Size
Max. Resolution
Max. Colors
Luminance (cd/m2)
Viewing Angle (H/V)
Backlight Life
Dimming
Contrast Ratio

WSVGA TFT LCD
10.1"
1024 x 600
64K
550
140/110
LED, 50,000 hrs
500:1

Touchscreen

System Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

RS-232/422/485 (DB9 Male)
RS-422/485 (Terminal Plug 4-Pin)
RS-485 (Terminal Plug 2-Pin)
Terminal Plug 2-Pin
10/100-BaseT
USB Client
USB 2.0 Client x 1
USB Host
USB 2.0 Host x 1
Micro-SD Slot
Yes
Audio
1 Line-out / 1 Mic-in

Operator Panels

ƒƒ Lifespan

ƒƒ Light
ƒƒ Resolution
ƒƒ Type

36 million touches at 8mm-diameter finger point
through silicone rubber bearing at least 250g 2 times
per second.
Linearity

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity
Ingress Protection
Front panel: IP66

WebOP-3100T
Dimensions

Unit: mm

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

271.5
224.4

42.6
6

Energy Automation

258.5

200.5

126.8
213.5

Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel

Panel Cut-out Dimensions: 260 x 201.5 mm (10.24" x 7.93")

Industrial Monitors

ƒƒ WOP-3100T-C4AE

Rear View

Industrial Wireless
Solutions

10.1" WSVGA, Cortex™-A8, 256MB DDR, WinCE 6.0

USB Host Mic In / Audio Out

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

PWR-247-AE
1702002600
1702002605
1702031801
1702031836

Industrial Ethernet
Solutions


and IP Gateways

Cards

Base View

Embedded Automation
Computers

PACs

Isolation Power Input


Compact PCI Systems

M2M I/O Modules

Ethernet
USB Client
COM1 (RS-232/422/485) Micro SD Slot


RS-485 I/O Modules

6-9

WebOP-2040T

4.3" WQVGA Operator Panel
with WebOP Designer Software

Features

ƒƒ Various LCD sizes (4.3", 5.6", 7", 8", 10.1")
ƒƒ Supports ARM9-based CPUs with 200MHz and 128MB flash memory
ƒƒ Supports RTC, battery backup RAM, and Ethernet-based operator panels
ƒƒ Supports runtime data downloads through Serial, Ethernet, USB
ƒƒ Supports adjustable brightness controls via touch panel
ƒƒ Reliable firmware for 24/7 operation
ƒƒ Supports Windows XP/7/Vista-based WebOP Designer development tool
ƒƒ Easy to switch one application to different LCD sizes in seconds
ƒƒ Supports vertical and horizontal application screen rotation
ƒƒ Supports over 300 PLC industrial communication protocols
ƒƒ Communicates with up to four types of devices
ƒƒ Panel mounting for machinery
ƒƒ Front panel is IP66 compliant

Introduction
To satisfy the stringent standards required in the automation market, especially packaging, label slitting, and motion-based robot dispensing, Advantech offers the WebOP-2000T series
with 200MHz ARM9-based RISC CPU's and 128MB flash memory for application software. The WebOP-2000T series also support a variety of LCD sizes from 4.3" to 10.1" for different
applications involving the use of PLCs, motion/thermal controllers, inverters and sensors. The WebOP-2000T series is bundled with WebOP Designer: a software development kit
which helps create application solutions for labor-saving, improved efficiency of manufacturing and easy control of every machine in the factory. WebOP Designer offers an outstanding
price performance ratio for various markets such as conventional operator panels, HMI + Low mini SCADA systems, and HMI + communication gateways.

Specifications
LCD Display and Touchscreen

General
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Certification
Dimensions (WxHxD)
Cut-out Dimensions
Front Panel Thickness
Operating System
Power Consumption
Enclosure Housing
Mounting
Weight (Net)

130 x 106.2 x 36.4mm (5.11" x 4.18" x 1.43")
118.5 x 92.5mm (4.66" x 3.64")
5mm
HMI RTOS, WebOP Designer
24VDC ±10%
5W
Plastic
Panel
0.3 kg (0.66 lbs)

System Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

CPU
RISC 32bits, 200MHz
Battery Backup Memory 128KB
Flash Memory
8MB/ 8MB + 128M NAND flash
Power-On LED
Yes
Communication LED No
Front USB Access
No

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

6-10

COM1
COM2
COM3
Ethernet (RJ45)
I/Os

RS-232/422/485 (DB9 Female)
RS-422/485 (5-Pin Plug Connector)
RS-232 (Com1: Pin5;7;8)
10/100-BaseT (for N1AE model)
USB Client
Yes
USB Host
Yes
Micro-SD Slot
Yes (for N1AE model)

Operator Panels

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Display Type
Display Size
Max. Resolution
Max. Colors
Luminance (cd/m2)
Backlight Life
Dimming
Touchscreen

WQVGA TFT LCD
4.3"
480 x 272
65,536 colors
400
LED, 20,000 hrs
4 wire analog resistive

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity
Ingress Protection
Front panel: IP66

ƒƒ WOP-2040T-S1AE
ƒƒ WOP-2040T-N1AE

4.3" WQVGA, 32MB (SDRAM), 8MB (NOR)
4.3" WQVGA, 32MB (SDRAM), 8MB (NOR) &
128MB (NAND)

WebOP-2040T
Dimensions

Unit: mm

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

5 (0.2")

130 (5.11")

Building Automation
Systems

92 (3.62")

106.2 (4.18")

Energy Automation

Automation Software

36.4 (1.43")

Operator Panels


118 (4.65")

Industrial Panel

Panel Cut-out Dimensions: 118.5 x 92.5 mm (4.66" x 3.64")

Industrial Monitors

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

CWOP-P2HFM-AD12E PC to HMI program download cable, DB9/2m
CWOP-P2HAB-ADU2E PC to HMI program download cable, USB/2m
PWR-247-AE

1702002600
1702002605
1702031801
1702031836

Rear View

Industrial Wireless
Solutions

Ethernet

COM1
(RS-232/422/485)
USB Client
USB Host

Micro SD Slot

Industrial Ethernet
Solutions

and IP Gateways

Cards

Communication Links

Power Input COM2 (RS-422/485)

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


6-11

WebOP-2050T

5.6" QVGA Operator Panel with
WebOP Designer Software

Features
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Various LCD sizes (4.3", 5.6", 7", 8", 10.1")
Supports ARM9-based CPUs with 200MHz and 128MB flash memory
Supports RTC, battery backup RAM, and Ethernet-based operator panels
Supports runtime data downloads through Serial, Ethernet, USB
Supports adjustable brightness controls via touch panel
Reliable firmware for 24/7 operation
Supports Windows XP/7/Vista-based WebOP Designer development tool
Easy to switch one application to different LCD sizes in seconds
Supports vertical and horizontal application screen rotation
Supports over 300 PLC industrial communication protocols
Communicates with up to four types of devices
Panel mounting for machinery
Front panel is IP66 compliant

Introduction

Specifications

General
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Certification
Dimensions (WxHxD)
Cut-out Dimensions
Operating System
Power Consumption
Enclosure Housing
Mounting
Weight (Net)

188 x 143.3 x 30 mm (7.4" x 5.64" x 1.18")
175 x 132.5 mm (6.89" x 5.21")
6mm
24VDC ±10%
10W
Plastic
Panel
0.51 kg (1.12 lbs)

System Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

CPU
RISC 32bits, 200MHz
Flash Memory
8MB + 128M NAND flash
Power-On LED
Yes
Front USB Access
No

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

6-12

COM1
COM2
COM3
Ethernet (RJ45)
I/Os

RS-232/422/485 (DB9 Female)
RS-232 (Com1: Pin5;7;8)
None
USB Client
Yes
USB Host
Yes
Micro-SD Slot
Yes

Operator Panels

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Display Type
Display Size
Max. Resolution
Max. Colors
Luminance (cd/m2)
Backlight Life
Dimming
Touchscreen

QVGA TFT LCD
5.6"
320 x 234
65,536 colors
330
LED, 20,000 hrs

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity
Ingress Protection
Front panel:IP66

ƒƒ WOP-2050T-S1AE

5.6" QVGA, 32 MB (SDRAM), 8MB (NOR) &
128MB (NAND)

WebOP-2050T
Dimensions

Unit: mm

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

143,3 (5.64")

131.5 (5.18")

Energy Automation

6 (0.24")

188 (7.4")

Building Automation
Systems

Automation Software

Operator Panels

30 (1.18")


174 (6.86")

Industrial Panel

Panel Cut-out Dimensions: 175 x 132.5mm (6.89" x 5.21")

Industrial Monitors

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Rear View

COM2 (RS-422/485)

PWR-247-AE

1702002600
1702002605
1702031801
1702031836

Industrial Ethernet
Solutions

and IP Gateways

USB Host USB Client Micro SD Slot

Communication Links

Industrial Wireless
Solutions

Power Input

COM1 (RS-232/422/485)

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


6-13

WebOP-2070T

7" WVGA Operator Panel with

Features
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ


Introduction

Specifications

General
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Certification
Dimensions (WxHxD)
Cut-out Dimensions
Operating System
Power Consumption
Enclosure Housing
Mounting
Weight (Net)

188 x 143.3 x 30 mm (7.4" x 5.64" x 1.18")
175 x 132.5 mm (6.89" x 5.21")
6mm
24VDC ±10%
10W
Plastic
Panel
0.6 kg (1.32 lbs)

System Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

CPU
Flash Memory
Power-On LED
Yes
Front USB Access
No

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

6-14

COM1
COM2
COM3
Ethernet (RJ45)
I/Os

RS-232/422/485 (DB9 Female)
RS-232 (Com1: Pin5;7;8)
USB Client
Yes
USB Host
Yes
Micro-SD Slot

Operator Panels

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Display Type
Display Size
Max. Resolution
Max. Colors
Luminance (cd/m2)
Backlight Life
Dimming
Touchscreen

WVGA TFT LCD
7"
800 x 480
65,536 colors
300
LED, 20,000 hrs

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity
Ingress Protection
Front panel: IP66

ƒƒ WOP-2070T-S2AE
ƒƒ WOP-2070T-N2AE

7" WVGA, 64MB (SDRAM), 8MB (NOR)
7" WVGA, 64MB (SDRAM), 8MB (NOR) &
128MB (NAND)

WebOP-2070T
Dimensions

Unit: mm

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

131.5 (5.18")

143.3 (5.64")
6 (0.24")

188 (7.4")

Building Automation
Systems

Automation Software

Operator Panels

30 (1.18")


174 (6.86")

Industrial Panel

Panel Cut Out Dimensions: 175 x 132.5mm (6.89" x 5.21")

Industrial Monitors

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Rear View

USB Host COM2 (RS-422/485)

PWR-247-AE

1702002600
1702002605
1702031801
1702031836

Industrial Ethernet
Solutions

and IP Gateways

Ethernet

Communication Links

Industrial Wireless
Solutions

USB Client Micro SD Slot

Power Input COM1 (RS-232/422/485)

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


6-15

WebOP-2080T

8" SVGA Operator Panel with

Features
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ


Introduction

Specifications

General
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Certification
Dimensions (WxHxD)
Cut-out Dimensions
Operating System
Power Consumption
Enclosure Housing
Mounting
Weight (Net)

231.5 x 174.6 x 37 mm (9.11" x 6.87" x 1.46")
221 x 164 mm (8.70" x 6.46")
6 mm
24VDC ±10%
10W
Plastic
Panel
0.93 kg (2.05 lbs)

System Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

CPU
RISC 32bits, 200MHz
Flash Memory
Power-On LED
Yes
Front USB Access
No

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

6-16

COM1
COM2
COM3
Ethernet (RJ45)
I/Os

RS-232/422/485 (DB9 Female)
RS-232 (Com1: Pin5;7;8)
USB Client
Yes
USB Host
Yes
Micro-SD Slot

Operator Panels

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Display Type
Display Size
Max. Resolution
Max. Colors
Luminance (cd/m2)
Backlight Life
Dimming
Touchscreen

SVGA TFT LCD
8"
800 x 600
65,536 colors
250
LED, 30,000 hrs

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity
Ingress Protection
Front panel: IP66

ƒƒ WOP-2080T-S2AE
ƒƒ WOP-2080T-N2AE

8" SVGA, 64MB (SDRAM), 8MB (NOR)
8" SVGA, 64MB (SDRAM), 8MB (NOR) &
128MB (NAND)

WebOP-2080T
Dimensions

Unit: mm

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

163 (6.42")

174.5(6.87")

Energy Automation

Building Automation
Systems

Automation Software

231.5 (9.11")

6 (0.24")

Operator Panels

37 (1.46")


220 (8.67")

Industrial Panel

Panel Cut-out Dimensions: 221 x 164 mm (8.70" x 6.46")

Industrial Monitors

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Rear View

USB Host
COM2 (RS-422/485)

PWR-247-AE

1702002600
1702002605
1702031801
1702031836

Industrial Ethernet
Solutions

and IP Gateways

USB Client Micro SD Slot

Communication Links

Industrial Wireless
Solutions

Ethernet

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


6-17

WebOP-2100T

10.1 WSVGA Operator Panel with

Features
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ


Introduction

Specifications

General
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Certification
Dimensions (WxHxD)
Cut-out Dimensions
Operating System
Power Consumption
Enclosure Housing
Mounting
Weight (Net)

269.8 x 212 x 37.4mm (10.62" x 8.35" x1.47")
259.5 x 201.5 mm (10.22" x 7.93")
6mm
24VDC ±10%
10W
Plastic
Panel
1.2 kg (2.64 lbs)

System Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

CPU
RISC 32bits, 200MHz
Flash Memory
Power-On LED
Yes
Front USB Access
No

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

6-18

COM1
COM2
COM3
Ethernet (RJ45)
I/Os

RS-232/422/485 (DB9 Female)
RS-232 (Com1: Pin5;7;8)
USB Client
Yes
USB Host
Yes
Micro-SD Slot

Operator Panels

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Display Type
Display Size
Max. Resolution
Max. Colors
Luminance (cd/m2)
Backlight Life
Dimming
Touchscreen

WSVGA TFT LCD
10.1"
1024 x 600
65,536 colors
250
LED, 20,000 hrs

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity
Ingress Protection
Front panel: IP66

ƒƒ WOP-2100T-S2AE
ƒƒ WOP-2100T-N2AE

10.1" WSVGA, 64MB (SDRAM), 8MB (NOR)
10.1" WSVGA, 64MB (SDRAM), 8MB (NOR) &
128MB (NAND)

WebOP-2100T
Dimensions

Unit: mm

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Building Automation
Systems

200.4 (7.9")

212 (8.35")

Energy Automation

Automation Software

Operator Panels

6 (0.24")

269.8 (10.62")

37.4 (1.47")


258.4 (10.18")

Industrial Panel


Industrial Monitors

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

PWR-247-AE

1702002600
1702002605
1702031801
1702031836

Communication Links

Rear View

USB Host
COM2 (RS-422/485)

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Ethernet USB Client Micro SD Slot

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


6-19

WebOP-2121V

12.1" SVGA Operator Panel with

Features
ƒƒ Various LCD sizes (3.5", 5.7", 7", 8", 10.4", 12.1")
ƒƒ Supports ARM9-based CPUs with 70~200MHz and 4~16MB flash memory
ƒƒ Supports RTC, battery backup RAM, and Ethernet-based operator panels
ƒƒ Supports runtime data downloads through Serial, Ethernet, USB
ƒƒ Supports adjustable brightness controls via touch panel
ƒƒ Reliable firmware for 24/7 operation
ƒƒ Supports Windows XP/7/Vista-based WebOP Designer development tool
ƒƒ Easy to switch one application to different LCD sizes in seconds
ƒƒ Supports vertical and horizontal application screen rotation
ƒƒ Supports over 300 PLC industrial communication protocols
ƒƒ Communicates with up to four types of devices
ƒƒ Panel mounting for machinery

Introduction
To satisfy the stringent standards required in the automation market, especially packaging, label slitting, and motion-based robot dispensing, Advantech offers the WebOP-2000V series
which are designed with ARM9-based RISC CPU with 70~200MHz and 4~16MB flash memory for application software. The WebOP-2000V series also support a variety of LCD size
from 3.5" to 12.1" for different applications involving the use of PLCs, motion/thermal controllers, inverters and sensors. WebOP Designer is a software development kit which helps
create application solutions for labor-saving, improved efficiency of manufacturing and easy control of every machine in the factory. The WebOP-2000V series is bundled with WebOP
Designer offering an outstanding price performance ratio for various markets such as conventional operator panels, HMI + Low mini SCADA systems, and HMI + communication gateways.

Specifications

General
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Certification
Dimensions (WxHxD)
Cut-out Dimensions
Operating System
Power Consumption
Enclosure Housing
Mounting
Weight (Net)

315 x 241 x 54.5 mm (12.4" x 9.48" x 2.14")
301.5 x 228 mm (11.87" x 8.97")
6mm
24VDC ±10%
25W
Plastic
Panel
1.55 kg (3.41 lbs)

System Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

CPU
RISC 32bits, 200MHz
Flash Memory
16MB
Power-On LED
Yes
Communication LED COM1, COM2 and COM3
Front USB Access
No

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

6-20

COM1
COM2
COM3
Ethernet (RJ45)
I/Os

RS-232/422/485 (DB9 Female)
RS-232/422/485 (DB9 Male & 5-Pin Plug Connector)
RS-232 (6-Pin Plug Connector)
10/100-BaseT
USB Client
No
USB Host
Yes
Micro-SD Slot
No

Operator Panels

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Display Type
Display Size
Max. Resolution
Max. Colors
Luminance (cd/m2)
Backlight Life
Dimming
Touchscreen

SVGA TFT LCD
12.1"
800 x 600
65,536 colors
350
CCFL, 30,000

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity
Ingress Protection
Front panel: IP65
Operating, radom vibration 1 Grms (5 ~ 500 Hz)

ƒƒ WOP-2121V-N4AE

12.1" SVGA, 16MB, RS-232/422/485, Ethernet

WebOP-2121V
Dimensions

Unit: mm

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

227 (8.94")

241 (9.49")

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels

315 (12.4")

7 (0.27")

47.5 (1.87")


301 (11.85")

Industrial Panel

Panel Cut-out Dimensions: 301.5 x 228 mm (11.87" x 8.97")

Industrial Monitors

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

CWOP-P2HFM-AD12E
CWOP-P2HAB-ADU2E
PWR-247-AE
1702002600
1702002605
1702031801
1702031836

Rear View

Industrial Wireless
Solutions

PC to HMI program download cable, DB9/2m
PC to HMI program download cable, USB/2m

Industrial Ethernet
Solutions


COM3 (RS-232)
and IP Gateways
COM2
(DB9 : RS-232)
(Terminal : RS-422/485) Serial Communication
COM 1
(RS-232/422/485)

Communication Links

Ethernet
Power Input

USB

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


6-21

Supported PLC
Controllers
Brand
A&D Company Ltd.
ABIDO Automation Co., Ltd.

Model
AD-4401 Weighing Indicator
ACR420 984 Device/Slave (RTU)
MS/AP/AS Series Inverter (RTU)
ADLEE POWERTRONIC CO., LTD.
BL/D305 Series (RTU)
Null PLC
ADAM (Modbus RTU)
Advantech
ADAM-4000 (ASCII)
AIGO Technologies Corporation
SE500 Series (Modbus RTU)
Micrologix 1000/1500
SLC 5/03, 5/04
Allen Bradley
DH-485 (COM)
PLC-5
SLC 5/03, 5/04 (CRC)
ARICO Technology
FC Type(Modbus)
Modbus Master (RTU)
Modbus Device/Slave (RTU)
Astraada HMI
Modicon Device/Slave (RTU, Quantum)
Modbus Master (RTU; Non-volatile slave data)
Automation Technology Co., Ltd.
BLDC NLV/KLV Series
Banner Engineering Int'l Inc.
BSP01 Series
Bosch Rexroth Group
Convo CVF-MN3 (RS485 Model)
CAPAC
TC
CHINO Corporation
DB1000 Digital Indicating Controller (ASCII)
NF0 Controllers
FCT Controllers
CMZ Sistemi Elettronici
SD Drivers
SDS Drivers
MDM Drivers
CTB Technologies Corporation
IMS Servo Controller
Danfoss Group
VLT 2800 Series (FC Protocol)
Modbus RTU (COM port)
DEIF A/S
WSS/WSS-L
DVP-ES/SS/EP/EH
DVP-ES/SS/EP/EH (No block read)
VFD-M Inverter (ASCII)
VFD-B Inverter (ASCII)
Delta Corporation
DTC1000/2000 Temperature (ASCII)
ASDA-A Servo Controller (ASCII)
ASDA-B Servo Controller (ASCII)
ASDA-A2 Servo Controller (ASCII)
DRS2000 Series Inverter
Dirise Electric Technology Co.,Ltd.
DRS2800 M Series Inverter
EC Series (RTU)
Emerson Network Power
EV1000 Series Variable Speed Driver
Epson Corporate
Epson LQ Matrix Printer
Eura EF1S/1N
Eura EF2N
Eura Inverter (Modbus RTU)
Eura Inverter ( Modbus ASCII )
Eura EF200-CPU202(Modbus RTU)
Eura EF200-CPU202XP/CPU204(Modbus RTU)
Eura EF200-CPU204XP/CPU206(Modbus RTU)
Eura Drivers Electric Corp.
Eura Servo Drive ( Modbus RTU )
Eura Servo Drive ( Modbus ASCII )
Eura HFR1000 ( Modbus RTU )
Eura HFR1000 ( Modbus ASCII )
Eura HFR2000 ( Modbus RTU )
Eura HFR2000 ( Modbus ASCII )
Fatek Automation Corp.
FATEK FBs/FBe
Festo Corporation
FPC/FEC Series
NB Series
PXR Series Temperature (RTU)
Fuji Electric Corporation
FRENIC-VP (RTU)
FRENIC5000G11/P11 (Fuji)
FRENIC-Mini/Eco/Multi/Mega(RTU)
FVK Automation Co., Ltd.
F Series Inverter
90 Series SNP
VersaMax Series (SNP)
GE Corporation
90 and RX3i Series (SNP)
90 Series CCM
SE5000
Gigarise Technology Co., Ltd.
GA400 Temperature (RTU)
GOFAST Corporation
NC Series
Haiwell Technology Co., Ltd
HW Series (RTU)
Hanbell Precise Machinery
Air Screw Compressor
Co., Ltd.

6-22

Operator Panels

Driver
CAD401
C2C032
CAPINV
CAPIPM
C00000
C2C031
CM4000
C87001
C10001
C10002
C10003
C10005
C10006
Carfc01
C2C021
C2C031
C2C081
C2C121
CAK200
C51011
C49001
CCAP01
CCDB1k
CCMZ051
CCMZ151
CCMZ251
CCMZ351
CCMZ451
CAA001
CDAVLT
C2C082
CDEI01
C16001
C16001
C16011
C16021
C16031
C16041
C16051
C16061
C15101
CFDSR01
C81001
C81011
CEPSON0
C2B001
C2B041
C5A003
C5A004
C5A005
C5A006
C5A007
C5A007
C5A007
C5A00A
C5A00B
C5A00C
C5A00D
C5A00E
C5A00F
C1A001
C1C001
C1D001
C1D011
C1D021
C1D031
C1D051
CFDSR01
C1E001
C1E001
C1E001
C1E011
C87002
C90012
C42001
CHW001
CHANASC

Communication Port (COM)
Brand
Hitachi Industrial Equipment
Systems Co., Ltd

Hitech
HOLIP ELECTRONIC
TECHNOLOGY CO., LTD
Honeywell
Hunjoen Electronic Co., Ltd.
HUST Automation Inc.
Idec Corporation
IECCO
Inovance Control Technology
Co., Ltd.
Integrated Flow Systems
Invt Auto-Control Technology
JETTER
Joint Peer Systec Corp.

Keyence Corp.
Kinco Automation Ltd.
Klockner Moeller Corporation
Koyo Electric Corp.
Lenze Drive Systems GmbH

LG Industrial Systems

LG System
Liyan Electric Industrial Ltd.
Lust Antriebstechnik GmbH
Matsushita Electric Works
Maxtech
Maxthermo
Mean Well Enterprises Co., Ltd.
Megmeet
Micro Trend Corporation
MIKOM ELECTRICAL
TECHNOLOGY
Mirle Automation Corporation

Mitsubishi Electric Corp.

Model
SJ200 Inverter
H/EH Series
EHV Series (Procedure 1)
H-252C
AD Series Servo Drives
Computer as Slave (COM)
Computer as Master (COM)
Computer as Slave V2 (COM)
Computer as Master V2 (COM)

Driver
C1F001
C1F020
C1F021
C1F022
CHA04LS
C02001
C02011
C02021
C02031

HLP-C+/CP

CHLP01

BACnet/MSTP
BACnet
Modbus Device/Slave (RTU, 255)
Modbus Device/Slave (RTU, 255, NoBlock)
H_Tech PID CONTROLLER
CNC Controller
FC Series
Sinus Penta Inverter (RTU)
H2u (CPU Port)
MD Series Inverter (RTU)
MD Series Inverter (RTU-1)
IS Servo (RTU)
iPurge Source Controller
IVC Series
NANO Series
JetControl 24x Series
IRIS Series
JUPITER Series
PDAN Series
PDS Series
KV Series
KV-1000
KV-L20V
KV-3000
Kinco ED Series
PS4-201-MM1
SUCONET K
K Sequence Series
Direct Logic Series
Direct 06 Series (K Sequence)
Direct 06 Series (DirectNET)
93xx Servo Controllers (LECOM A/B)
Master-K Series CNet
K120S CPU Port
Master-K Loader
GLOFA GM Series CNet
XBM-DR16S
GLOFA GM Loader
XEC/XGI CNet
XGT/XGK (CPU)
XGL-C22A
LGA Series(as Slave)
LGA Series (as Master)
EX Series (CPU Port)
LustBus ServoC/CDE Series
LustBus CDD Series
FP Series Computer Link
VF0C Series Inverter
VF100 Series Inverter
MC2 PID Controller
MC 5738 (RTU)
PRETA
MC Series (RTU)
UTC Servo Controller

cbacmst
cbacnet
CHON01
CHON01
Chtech1
CHCNC01
C22001
Ciecco
C2B041
C2C051
C2C051
C2C051
CIF001
C81003
C24001
C24011
C2C031
C2C031
C2C031
C2C031
C25001
C25011
C25021
C25031
CKIN01
C26001
CSUK01
C27001
C27011
C27021
C27031
CLZ001
C28001
C28011
C28011
C28021
C28031
C28041
C28051
C28061
C28071
CLGLGA
CLGLGB
C2B141
Clust1
Clust1
C29001
C29011
C29011
C85001
C86001
CMSMTN
C81002
C91001

MX Series PLC

CMIK01

nDX Controller
Melsec-FX (CPU Port)
Melsec-Q/QnA (Link Port)
Melsec-Q00/01 (CPU Port)
Melsec-Q02H (CPU Port)
Melsec-Q02 (CPU Port)
Melsec-Q02U (CPU Port)
Melsec-Q00J (CPU Port)
Melsec-FX2n (CPU Port)
Melsec-FX3U (CPU Port)
Melsec-FX3U (Link Port)
Melsec-AnN/AnS (Link Port)

C2A001
C2B001
C2B011
C2B012
C2B021
C2B022
C2B191
C2B031
C2B041
C2B051
C2B052
C2B061

Communication Ports (COM)
Brand



Mitutoyo Corporation

Modicon Corp.

MTC
Muscle Corporation Inc.
MyTech
Newtop Co., Ltd.

Omron Corporation

Pan-Globe Corp.
Panasonic Corporation

PanelMaster

Parker Hannifin
Parker Hannifin S.p.A.

Model
FX2n-10GM/20GM
Melsec-A1S/A2S (CPU Port)
FR-E500 Series (485)
Melsec-A3N/A1SH (CPU Port)
Melsec-AnA/AnU (Link Port)
Servo Amplifier MR-J2S-A
Servo Amplifier MR-J3-A
Servo Amplifier MR-J4-A
Melsec-A2A/A2AS (CPU Port)
GOT-F900 Emulator (1:1 Format 1 & 2)
EV Linear Gage Counter (ASCII)
Modicon 984 Master (RTU)
Modicon 984 Master (RTU; Little Memory)
Modicon 984 Device/Slave (RTU)
Modbus Master (ASCII)
Modbus Master (ASCII; Little Memory)
Modbus Device/Slave (ASCII)
Modicon Device/Slave (RTU, Quantum)
TSX Premium (Uni-Telway)
TSX Quantum (Uni-Telway)
Twido (Modbus RTU)
Modbus Master (ASCII; Non-volatile slave data)
MTC96 Controller (Modbus ASCII)
Cool Muscle CM1-17L30
VL-CX: Melsec-FX2n (CPU Port)
PSTC (Temperature Controller)
PSBD (Bushless Driver)
PSSD (Stepping Driver)
PSMC (Motion Controller)
PSNC (Embedded NC)
Sysmac C Series Host Link
Sysmac CV Series Host Link
Sysmac CS/CJ Series Host Link
Sysmac CS/CJ Series (FINS)
Sysmac CP Series (FINS)
E5CN Temperature (CompoWay/F)
E5CN Temperature (Modbus RTU)
EJ1 Temperature (CompoWay/F)
KM100 (CompoWay/F)
3G3MV Inverter (RTU)
E9 Temperature Series
E904 Temperature (RTU)
HT Series Temperature Controller
FP Series
MINAS A4 Series
Null PLC
N-to-1 Master (COM)
Multi-drop Client (COM)
General Device (COM)
2-to-1 Server (COM)
2-to-1 Transparent Server (COM)
2-to-1 Transparent Server for Modbus Device/
Slave (RTU)
2-to-1 Transparent Server for Omron Sysmac C
Series Host Link
2-to-1 Client (COM)
Serial Gateway Server
Data Sharer (RS485)
Modbus Master (RTU)
Modbus Master (RTU; Little Memory)
Modbus Device/Slave (RTU)
Modbus Device/Slave (Word order in bigendian)
Modbus Device/Slave (RTU; No block read)
Modbus Device/Slave (RTU, 30Words)
Modbus Device/Slave (ASCII)
Modbus Device/Slave (ASCII; No block read)
Barcode Scanner
Epson Matrix Printer
PC Series PLC Module
Compax3
HID Series (X4 RS232 Port)
SLVDN Series (X1 RS422/485 Port)

Driver
C2B071
C2B081
C2B091
C2B0A1
C2B151
C2B161
C2B162
C2B163
C2B171
C2B181
C2B182
C2B183
C2B191
C2B201
C2B191
CMITDEV
C2C021
C2C022
C2C031
C2C061
C2C062
C2C071
C2C081
C2C0A1
C2C0B1
C2C0C1
C2C121
C2C161
C93001
CCM117L
CN2B41
C2C051
C2C051
C2C051
C2C051
C2C051
C2D001
C2D011
C2D021
C2D022
C2D021
C2D041
C2D051
C2D061
C2D071
C2D081
C90001
C90011
C90021
C29001
CPANA4
C00000
C01001
C01011
C01051
C01061
C01062
C01063
C01064
C01071
C010C1
C01S01
C2C041
C2C042
C2C043
C2C051
C2C052
C2C051
C2C051
C2C093
C2C093
cbcode
CEPSON0
C1A001
C32001
Cpark1
Cpark2

Brand
PORIS
RICH Electric Co., LTD.
RKC Instrument Inc.
Saia Burgess
Samwon Technology
Schneider Electric
Sharp Corporation
Shenzhen Sine Electric Co., Ltd
Shenzhen Step Servo Ltd.
Shenzhen V&T Technologies
Co.,Ltd
Shihlin Electric&Engineering
Corp.
SHIMAX CO., LTD.

Model
XC Modbus RTU
EI-500 Series (RTU)
EI-9001 Series (RTU)
MA900/CB900 Series (RTU)
CD/CH Series (ASCII)
PCD Series (S-Bus PGU)
PCD Series (S-Bus, Data Mode)
NOVA Series (RTU)
NOVA Series
ATV31 Inverter (RTU)
Lexium 23 Servo Controller (ASCII)
JW10/20 Series
EM303A
Kinco Servo Controller

Driver
C2C031
CEI500
CEI9001
C82001
C82002
C31001
C31003
C88001
C88002
C2C051
C16041
CSJW10
CSIN01
C50001

V5-H

CVTT01

SH Inverter

CSSH01

MAC3 Series (RTU)
CPT-20A MODBUS DEVICE/SLAVE (ASCII)
Shinko Technos Co., Ltd.
JCS-33A-R/M (Shinko Protocol)
JCS-33A-R/M (Modbus ASCII)
Simatic S7-200 (PPI; 1-to-1)
Simatic S7-200 (PPI; Network)
Simatic S7-300 (MPI Port)
Siemens AG
Simatic S7-300 (PC Adaptor)
Simatic S5 3964R
Simatic S5
TP03 Series (Modbus RTU)
Taian Automation Co.,Ltd.
TP02 Series
TAIE FY100/900 Series (RTU)
Taiwan Instrument & Control
TAIE FY100/900 Series (TAIE)
Co., Ltd.
FY series DIGITAL PID CONTROLLER
TSDA Series AC Servo
TP03 Series (Modbus RTU)
Teco Electric & Machinery Co.,Ltd.
TP02 Series
TSTA Series AC Servo
TESHOW ELECTRONIC.
MY90V/MY40V Series (RTU)
Texas Instruments Incorporated
TI505
XC Series Controller (RTU)
Thinget Electronic Co., Ltd.
IPC-03 Series (RTU)
TTX-700 (Modbus RTU)
TOHO Electronics Inc.
TTM-000 Series (TOHO Protocol)
TTM-200 Series (TOHO Protocol)
TOKY ELECRTICAL
DW8-CD18B
Tokyo Keiso
UCM-04A
Toshiba Schneider Inverter
TOSVERT VF Series(Modbus RTU)
Corporation
Unitronics
Vision 120 Series (Modbus RTU)
Vertex Technology Co,. Ltd
VT26/30 Series Controllers (RTU)
Vigor Corporation
M/VB Series
Null PLC
N-to-1 Master (COM)
Vware
Multi-drop Client (COM)
General Device (COM)
Data Sharer (RS485)
Wanfeng Electric
WF Series
Hospital System
YABOS
Dentists
YAMAHA MOTOR CO., LTD.
Single-axis Robot Controller ERCD
SDC35/36 Temperature (RTU)
SDC35/36 Temperature (ASCII)
MA500 FA Controller (ECL Host)
Yamatake Corporation
DMC10 Controller (RTU)
DMC10 Controller (ASCII)
MX30
MX50
S- II SGDM/H Series AC Servo
MP Series Controller (Memobus)
Yaskawa Corporation
V7 inverter (Memobus)
NS600 Servo Controller
YPV Servo Controller
YE-LI ELECTRIC & MACHINERY
Co., Ltd.
YJD Servo Controller
Yokogawa Electric Corporation
FA-M3 Series (CPU Port)
AI-7048 (AiBus)
Yudian Automation Technology
AI518/708/808/518P/708P/808P Controller
Ltd.
(AIbus)
Zhuhai Motion Control Motor
BP Series PSDA driver (RTU)
Co., Ltd.


CSHI01
CSCCT1
CSJCS01
CSJCS11
C39001
C39011
C39021
C39031
C39041
C39051
C51011
C51021
CFY001
CFY002
CTAIEFY
C51001
C51011
C51021
C51031
CMY901
CTI505
C89001
C83001
C3D001
C3D002
C3D003
CTDW80
CTK001
C84001
C4A001
CVVT26
C42001
C00000
C01001
C01011
C01051
C01S01
C42001
CYHS01
CYHS02
CYAERCD
C44001
C44011
C44021
C44031
C44041
CYaMX30
CYaMX50
C45001
C45011
C45021
C45031
cyeli1
cyeli2
C46001
C47001

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

C47011
C2CBP1

6-23

Supported PLC
Controllers
Brand
Advantech
Allen Bradley

Astraada HMI
CMZ Sistemi Elettronici
DEIF A/S
EasyIO
Fatek Automation Corp.
Festo Corporation
GE Corporation
Hitachi Industrial Equipment Systems Co., Ltd
Honeywell
JETTER
Keyence Corp.
Lenze Drive Systems GmbH
LG Industrial Systems
Mirle Automation Corporation

Modicon Corp.
Omron Corporation

PanelMaster

PORIS
Saia Burgess
Siemens AG
TPM
Vware
WAGO Kontakttechnik GmbH & Co. KG
Yaskawa Corporation
Yokogawa Electric Corporation

Model
ADAM-6000 (ModBus TCP/IP)
MicroLogix 1000/1500 via 1761-NET-ENI
CompactLogix/ControlLogix Ethernet/IP Tag
ModBus Master (TCP/IP)
ModBus Device/Slave (TCP/IP)
ModBus Master (TCP/IP; Type 2)
ModBus Device/Slave (TCP/IP; Type 2)
FCT Controllers(TCP/IP; Type 2)
TCP/IP Modbus (Ethernet port)
EasyIO-30 (RTU)
Fatek FBs/FBe (TCP)
FPC/FEC EasyIP
SRTP Ethernet
SRTP Ethernet (Micro)
EH/EHV Series (Ethernet; TCP)
EH/EHV Series (Ethernet; UDP)
BACnet/IP
JetControl 24x Series (Ethernet)
KV-5000
E94AYCEN GCI(TCP/IP) Protocol
XGT/XGK (CPU)
Fama SoftPLC Ethernet
Q Ethernet
Q Ethernet (ASCII code)
ModBus Master (TCP/IP)
ModBus Master (TCP/IP; Type 2)
ModBus Device/Slave (TCP/IP; Type 2)
Sysmac CS/CJ Series FINS/TCP
N-to-1 Master (Ethernet)
N-to-1 Slave (Ethernet)
N-to-1 Client (Ethernet)
TCP/IP Gateway Server
Data Sharer (UDP)
Ping
Modbus Device/Slave (TCP/IP)
Internal Memory Server
Internal Memory
XC ModBus TCP
PCD Series (Ether-S-Bus)
Simatic S7-300 Ethernet Module (CP343)
SIMATIC S7 (Ethernet)
EPC-1000
N-to-1 Master (Ethernet)
N-to-1 Slave (Ethernet)
WAGO-I/O-SYSTEM 750
Extended MEMOBUS
FA-M3 Series (UDP)
FA-M3 Series (TCP)

Communication Port (Ethernet)
Driver
CM6M00
C10E01
C10E21
C2C001
C2C011
C2C101
C2C111
Cmz111
C2C112
C2C211
C1A011
C1C002
C1E101
C1E102
C1F006
C1F007
cbacip
C24012
C25041
CLZ003
C28081
C19E01
C2C011
C2BE11
C2BE12
C2C001
C2C011
C2C101
C2C111
C2DE01
C01021
C01031
C01091
C010B1
C01E01
C0Ping
C2C211
C2C301
C2C311
C2C011
C31007
C39E01
C39E02
CTEPC0
C01021
C01031
CWAGO1
C45012
C45013
C46002
C46003

Note:
* The listing brand names are in alphabetical order.
* Driver Programs may be updated at any time, please contact with your Advantech representative at any time to confirm latest information.

Key Features:
* High-performance discrete drive to support high data acquisition.
* The Communication speed of Simatic S7-300 (MPI port) can reach 187.5 kbps without adapter.

6-24

Operator Panels

7

Automation Panels
Touch Panel Computer Selection Guide

7-2

TPC-671H

6.5" VGA LED LCD Intel® Atom™ Z510 Touch Panel Computer

7-4

TPC-1071H
TPC-1071HCA

10.4"SVGA TFT LED LCD Intel® Atom™ Dual-Core D525 Touch Panel Computer

7-6

TPC-1271H
TPC-1271HCA

12.1" SVGA TFT LED LCD Intel® Atom™ Dual-Core D525 Touch Panel Computer

7-8

TPC-1571H
TPC-1571HCA

15" XGA TFT LED LCD Intel® Atom™ Dual-Core D525 Touch Panel Computer

7-10

TPC-1771H
TPC-1771HCA

17" SXGA TFT LED LCD Intel® Atom™ Dual-Core D525 Touch Panel Computer

7-12

TPC-650H
TPC-1250H
TPC-1550H
TPC-1750H

5.7" VGA/12.1" SVGA/15" XGA/17" SXGA TFT LED LCD Intel® Atom™ Thin Client
Terminals

7-14

TPC-651H
TPC-1251H
TPC-1551H

5.7" VGA/12.1" SVGA/15" XGA TFT LED LCD Intel® Atom™ Thin Client Terminals
with Wide Operating Temperatures

7-16

TPC-1840WP

18.5" WXGA TFT LCD Multi-Touch Panel Computer with AMD Dual-core
processor

7-18

TPC-2140WP

21.5" Full HD TFT LCD Touch Panel Computer with AMD Dual-core processor

7-20

SPC-1840WP

18.5" WXGA TFT LCD stationary Multi-Touch Panel Computer with AMD
dual-core processor

7-22

SPC-2140WP

21.5" Full HD TFT LCD stationary Multi-Touch Panel Computer with AMD
dual-core processor

7-24

TPC-1251SR
TPC-1551SR

12.1" SVGA / 15" XGA High Brightness LCD Intel Atom Touch Panel
Computers

7-26

FPM-3151SR

15" XGA High Brightness Industrial Monitor w/ Resistive Touchscreen,
Direct-VGA, DVI and Wide Operating Temperatures

7-28

TPC-8100TR

10.4" EN50155 Railway Panel Computer

7-30

®

™

TPC Installation Accessories

To view all of Advantech’s Automation Panel PCs, please visit http://www.advantech.com/

7-32

Touch Panel Computer
Selection Guide
NEW

NEW

NEW

NEW

Model

TPC-671H

TPC-1071H/HCA

TPC-1271H/HCA

TPC-1571H/HCA

TPC-1771H/HCA

TPC651H/1251H/1551H

CPU

Intel® Atom™ Z510
1.1GHz

Intel® Atom™ D525
1.8 GHz

1.8 GHz

1.8 GHz

1.8 GHz

1.33 GHz

Memory

1GB SO-DIMM DDR2
SDRAM

4GB SO-DIMM DDR3
SDRAM

4GB SO-DIMM DDR3
SDRAM

4GB SO-DIMM DDR3
SDRAM

4GB SO-DIMM DDR3
SDRAM

1GB SO-DIMM DDR2
SDRAM

VGA TFT LED LCD

SVGA TFT LED LCD

SVGA TFT LED LCD

XGA TFT LED LCD

SXGA TFT LED LCD

VGA/SVGA/XGA TFT
LED LCD

Display Type

Display

Display Size

6.5"

10.4"

12.1"

15"

17"

5.7"/12.1"/15"

Max. Resolution

640x480

800x600

800x600

1024x768

1280x1024

640 x 480/800 x
600/1024 x 768

Max. Colors

262 K

262 K

262 K

262 K

262 K

262K

Luminance cd/m2

700 nits

400 nits

450 nits

350 nits

350 nits

700/450/350 nits

Viewing Angle
(H/V°)

160/140

120/100

160/140

160/140

170/160

160/140

Backlight
MTBF(hrs)

50000 hrs

50,000 hrs

50000 hrs

50000 hrs

50000 hrs

50000 hrs

Resistive

Resistive

Resistive

Resistive

Resistive

Resistive

Touchscreen
HDD

N/A

2.5" SATA HDD x 1

2.5" SATA HDD x 1

2.5" SATA HDD x 1

2.5" SATA HDD x 1

2.5" SATA x 1 Bundled
with Extension HDD Kit
(Optional)

Network(LAN)

10/100/1000Base-T x 1

10/100/1000Base-T x 2

10/100/1000Base-T x 2

10/100/1000Base-T x 2

10/100/1000Base-T x 2

10/100/1000Base-T x 2

I/O ports

RS-232 x 1
RS-422/485 x 1 with
isolation
USB 2.0 x 2 (Host)

RS-232 x 2 with
isolation
RS-422/485 x 1 with
isolation
USB 2.0 x 2 (Host)
PS/2 x 1
1MB Battery-backed
SRAM

RS-232 x 2 with
isolation
RS-422/485 x 1 with
isolation
USB 2.0 x 2 (Host)
PS/2 x 1
1MB Battery-backed
SRAM

RS-232 x 2 with
isolation
RS-422/485 x 1 with
isolation
USB 2.0 x 2 (Host)
PS/2 x 1
1MB Battery-backed
SRAM

RS-232 x 2 with
isolation
RS-422/485 x 1 with
isolation
USB 2.0 x 2 (Host)
PS/2 x 1
1MB Battery-backed
SRAM

CompactFlash

CompactFlash® slot x 1






Mini PCI-E x 1

Mini PCI-E x 1
PCI-E x 1

Mini PCI-E x 1
PCI-E x 1

Mini PCI-E x 1
PCI-E x 1

Mini PCI-E x 1
PCI-E x 1

N/A

N/A

16-channel Digital I/O
with isolation

with isolation

with isolation

with isolation

N/A


N/A

CANopen port x 2 for
TPC-1071HCA only

TPC-1271HCA only

TPC-1571HCA only

TPC-1771HCA only

N/A

Power Input Voltage

18~32V VDC

10~29V VDC

10~29V VDC

10~29V VDC

10~29V VDC

18~32V VDC

Expansion Slots
Digital Input / Output

RS-232 x 1
RS-422/485 x 1
USB 2.0 x 2

Dimensions

287 x 227 x 72.3 mm
(11.26" x 8.94" x 2.76")

311 x 237 x 71.6 mm
(12.24" x 9.33" x 2.82")

383 x 307 x 78.5 mm
(15.08" x 12.09" x 3.09")

414 x 347.5 x 84 mm
(16.3" x 13.68" x 3.31")

Weight

0.95 kg(2.1 lbs)

3.5 kg (7.72 lbs)

4.57 kg (10.07 lbs)

5.5 kg (12.13 lbs)

6 kg (13.23 lbs)

1.43 kg (3.15 lbs)/
2.5 kg (5.51 lbs)/
3 kg (6.61 lbs)

Front cover

Front bezel: PC/ABS
Resin

Front bezel: Die-cast
Aluminum alloy

Aluminum alloy

Aluminum alloy

Aluminum alloy

Front bezel: PC + ABS
(TPC-651H)/Die-cast
Aluminum Alloy

Operating temperature

0 ~ 50°C
(32 ~ 122°F)

0 ~ 50°C
(32 ~ 122°F)

0 ~ 50°C
(32 ~ 122°F)

0 ~ 50°C
(32 ~ 122°F)

0 ~ 50°C
(32 ~ 122°F)

-20 ~ 60°C
(-4 ~ 140°F)

Ingress Protection
(Front Panel)

IP65

IP65

IP65

IP65

IP65

IP65

Certification

CE, BSMI, CCC, UL,
FCC

CE, BSMI, CCC, UL,
FCC

CE, BSMI, CCC, UL,
FCC

CE, BSMI, CCC, UL,
FCC

CE, BSMI, CCC, UL,
FCC

BSMI, CCC, CE, FCC,
UL

Operating System

Microsoft® WES7/WES
2009/XPE/CE 6.0/
CE5.0 /Linux / Android

Microsoft® Windows 7/
WES7/WES 2009/XPE/
CE 6.0/Linux / Android

WES7/WES 2009/XPE/

WES7/WES 2009/XPE/

WES7/WES 2009/XPE/

WES7/WES 2009/XPE/
CE 5.0/CE 6.0/Linux /
Android

Page

7-2

195 x 148 x 44.5 mm
(7.68" x 5.83" x 1.75")

195 x 148 x 58 mm
(7.68" x 5.83"" x 2.28")
311 x 237 x 54 mm
(12.24" x 9.33" x 2.12")
383 x 307 x 58.1 mm
(15.08" x 12.09" x
2.29")

7-4

7-6

7-8

7-10

7-12

7-16


Selection Guide
NEW

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


NEW

Machine Automation

Energy Automation

TPC-1840WP/2140WP

SPC-1840WP/2140WP

TPC-650H

TPC1250H/1550H/1750H

TPC-1251SR/1551SR

FPM-3151SR

TPC-8100TR

AMD G-series T56E
1.65GHz

AMD G-series T56N
1.65GHz

Intel® Atom™ N270
1.6 GHz

Intel® Atom™ N270
1.6 GHz

1.33 GHz

N/A

Intel® Cedar Trail Dual
core processor
1.6 GHz

4GB SO-DIMM DDR3
SDRAM

4GB SO-DIMM DDR3
SDRAM

1GB SO-DIMM DDR2
SDRAM

2GB SO-DIMM DDR2
SDRAM

1GB SO-DIMM DDR2
SDRAM

N/A

4GB SO-DIMM DDR3
SDRAM

WXGA/Full HD TFT
LED LCD

WXGA/Full HD TFT
LED LCD

VGA TFT LED LCD

SVGA/XGA/SXGA TFT
LED LCD

SVGA/XGA TFT LED
LCD

XGA TFT LED LCD

SVGA TFT LED LCD

18.5" / 21.5"

18.5" / 21.5"

5.7"

12.1"/15"/17"

12.1"/15"

15"

10.4"

1366 x 768/ 1920 x
1080

1366 x 768/ 1920 x
1080

640 x 480

800 x 600/1024 x
768/1280 x 1024

800 x 600/1024 x 768

1024 x 768

800 x 600
262K

16.7M

16.7M

262 K

262 K

262K

16.2M

300 nits

300 nits

700 nits

450/350/350 nits

1000/1000 nits

1000

400

170/160, 178/178

170/160, 178/178

160/140

160/140, 160/140,
170/160

110/160, 120/140

125 / 140

160 / 140

50000 hrs

50000 hrs

50000 hrs

50000 hrs

50000 hrs

50000hrs

50000hrs

Projected capacitive


Resistive

Resistive

Resistive

Resistive

Resistive

(Optional)

N/A

N/A

10/100/1000Base-T x 2

N/A

10/100/1000Base-T x 2

Touch interface:
RS-232 x1 , USB x1
VGA x 1
DVI-D x 1
Phoenix Jack: 24 VDC
DC Jack: 12 VDC

2 x RS-232,M12
2 x422/485,M12
2 x 100/1000 Base, M12
1 x Audio, M12
1 x Power connector,
M12

2.5" SATA HDD x 1

2.5" SATA HDD x 1

N/A

(Optional)

10/100/1000Base-T x 2

10/100/1000Base-T x 2

10/100/1000Base-T x 1

10/100/1000Base-T x 2

RS-232 x 3
RS-422 / 485 x1
USB 2.0 x 2
HDMI x 1
Mic in x 1, Line out x 1

RS-232 x 1
USB 2.0 x 1
24 VDC connector x 1

RS-232 x 2
USB 2.0 x 2
PS/2 x 1

CFast slot x 1

N/A

Mini PCI-E x 1

RS-232 x 1
RS-422/485 x 1
USB 2.0 x 2

RS-232 x 1
RS-422/485 x 1
USB 2.0 x 2


CFast slot x 1


N/A

Built in 16G CFast card

Mini PCI-E x 1

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

18~32V VDC

24V VDC

18~28V VDC

18 ~ 28V VDC,
18 ~ 32V VDC
(TPC-1750H)

18~32V VDC

DC Jack: 12 VDC

110V VDC

311 x 237 x 54 mm
(12.24" x 9.33" x 2.12")
383 x 307 x 58.1 mm
(15.08" x 12.09" x
2.29")

422 x 310 x 70 mm
(16.61" x 12.2" x 2.76")

345 x 227 x 85 mm
(13.6" x 8.9" x 3.4")

2.5 kg (5.51 lbs)/
3 kg (6.61 lbs)

7.73 kg (17.04 lbs)

5 kg (11 lbs)

488.1 x 309.1 x 56.7
(19.2" x 12.2" x 2.2")
580.7 x 355.3 x 56.7
(22.8" x 14" x 2.2")

488 x 309 x 65 mm
(19.2" x 21.2" x 2.6")
558.4 x 349.8 x 65
mm (21.98" x 13.77"
x 2.56")

195 x 148 x 58 mm
(7.68" x 5.83" x 2.28")

311 x 237 x 54 mm
(12.24" x 9.33" x 2.12")
383 x 307 x 58.1 mm
(15.08" x 12.09" x 2.29")
413.7 x 347.2 x 63.8 mm
(16.28" x 13.68" x 2.5")

7kg (15.44 lbs)/
8 kg (17.64 lbs)

8 kg (17.64 lbs)/
9 kg (19.8 lbs)

1.43 kg (3.15 lbs)

2.5 kg (5.51 lbs)/
3 kg (6.61 lbs)/
3.5 kg (7.71 lbs)

Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Magnesium alloy

Aluminum alloy

Front bezel: PC+ABS

Aluminum alloy

Front bezel: PC + ABS
(TPC-651H)/Die-cast
Aluminum Alloy

Front panel: Aluminum
Rear cover: Stainless
steel chassis

Aluminium alloy
Back housing: Die-cast
Aluminium alloy

0 ~ 50°C
(32 ~ 122°F)

0 ~ 50°C
(32 ~ 122°F)

0 ~ 45° C
(32 ~ 113° F)

0 ~ 45° C
(32 ~ 113° F)

-20 ~ 60°C
(-4 ~ 140°F)

-20 ~ 60° C
(-4 ~ 140° F)

-30 ~ 70°C
(-22 ~ 158°F)

IP65

IP65

IP65

IP65

IP65

IP 65

All round IP 65

BSMI, CCC, CE, FCC,
UL

BSMI, CCC, CE, FCC,
UL

BSMI, CCC, CE, FCC,
UL

BSMI, CCC, CE, FCC,
UL

CCC, CE, FCC, UL

CE, FCC , CCC, UL

CE,FCC,CCC,EN50155
Compliance

WES7P/XP/WES2009/
Linux

WES7P/XP/WES2009/
Linux

WES7/WES 2009/XPE/
Android

WES7/WES 2009/XPE/
Android

WES7/WES 2009/XPE/
Android

Windows 2000, XP,
Vista, 7, XPe, CE and
Linux

WES 7/ WES 2009 /
Windows CE 7.0 / Linux

7-18 / 7-20

7-22 / 7-24

7-14

7-14

7-26

7-28

Embedded Automation
Computers

PACs

7-30


Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

7-3

TPC-671H

6.5" VGA LED LCD Intel® Atom™
Z510 Touch Panel Computer
Features
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Intel® Atom™ Z510 1.1GHz processor
6.5" VGA TFT LED LCD
Super slim and compact design with PC/ABS Resin housing
IP65 approved front panel
Full-size Mini PCIe expansion support
Gigabit Ethernet supported
Supports Microsoft® WES7/WES 2009/XPE/WinCE

Introduction
With a high quality TFT LCD display, the TPC-671H is designed with the Intel® Atom™ Z510 processor as its core. The Intel® Atom™ has low power consumption and 1.1 GHz
operating frequency. This system is fanless although the kernel is powerful. In addition, spindle-free storage makes the TPC-671H a durable and reliable platform. Supports Mini-PCIe
expansion to bundle with IoT-Rready and Communication module to meet more applications in outdoor and iTerminal Gateway.

Specifications
General

LCD Display

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ

BIOS
Award® 4Mbit
Certification
Cooling System
Fanless design
Dimensions (W x H x D) 195 x 148 x 44.5 mm (7.68" x 5.83" x 1.75")
Enclosure
PC/ABS Resin
Mounting
Panel Mount
OS Support
Microsoft® WES7/WES 2009/XPE/CE 6.0/CE5.0 /Linux
/ Android
Power Consumption
6.6W (Typical), 9W (Full load)
Power Input
18~32 VDC
Watchdog Timer
Weight (Net)
0.95 kg (2.1 lbs)

System Hardware
ƒƒ CPU
ƒƒ Chipset
ƒƒ Memory
ƒƒ
ƒƒ
ƒƒ
ƒƒ

7-4

LAN
Expansion Slots
Storage
I/O

Intel® Atom™ Z510 1.1GHz with 512KB cache
US15WP
1GB SO-DIMM DDR2 SDRAM, up to 2GB (one
channel)
10/100/1000Base-T x 1
Full-size Mini PCI-E
RS-232 x 1(COM1)
flow control
USB 2.0 x 2 (Host)


Display Type
Display Size
Max. Resolution
Max. Colors
Luminance cd/m2
Backlight Life
Contrast Ratio

VGA TFT LED LCD
6.5"
640 x 480
262 K
700
160/140
50,000 hrs
600:1

Touchscreen
ƒƒ Lifespan
ƒƒ Light Transmission
ƒƒ Resolution
ƒƒ Type

36 million touches at single point (finger hitting rate by
250g at 2 times per second)
Above 75%
Linearity

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity
Ingress Protection
Front panel: IP65
2 Grms (5 ~ 500 Hz)

TPC-671H
Dimensions

Unit: mm

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

195.0

44.50

133.1

Energy Automation

188.1

6.0

100.0
148.0

141.1

Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel

Panel Cut-out Dimensions: 188.4 x 141.4mm (7.54" x 5.66")

Industrial Monitors

Rear View

ƒƒ TPC-671H-Z2AE

Industrial Wireless
Solutions

6.5" VGA Touch Panel, Z510 1.1GHz, 1GB

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

1757003463
1700001524
PWR-247-AE 50W
1702002605
1702031801
1702031836
EWM-W139F01E
1750000318
1750003222
1750003418

Industrial Ethernet
Solutions

DC 24V/2.3A Output Power Supply

f

and IP Gateways

g

Cards

Embedded Automation
Computers

a

b c

d

a. COM (RS-422/485)
b. COM(RS-232)
c. USB 2.0
d. LAN (10/100/1000)

e
e. Power Receptor
f. Compact Flash
g. Mini PCI-E slot

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

* Windows XPe supports 10 lanquaqes with MUI. (English, Traditional Chinese, Simplifed Chinese, French, German, Spanish, Russian, Italian, Japanese and Korean)


7-5

TPC-1071H
TPC-1071HCA

10.4"SVGA TFT LED LCD Intel® Atom™
Dual-Core D525 Touch Panel Computer
Features

NEW

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

10.4" SVGA TFT LED LCD
Compact design with die-cast Al alloy front bezel
Supports 4 GB DDR3 SDRAM
Integrated 16-channel Digital I/O with isolation
1 MB Battery-backed SRAM
Supports Microsoft® WES7/XP/WES/WinCE
Supports field-bus communication for PLC connectivity

Introduction
The TPC-1071H features a fanless low power consuming Intel® Atom™ Dual Core 1.8GHz processor 4GB DDR3 SDRAM and Resistive touch screen, and multiple I/O ports 2 x
RS-232 with isolation, 1 x RS-422/485 with isolation. For data storage the fanless TPC devices also include: 1 x Compact Flash Slot and 1 x 2.5" SATA HDD. To expand function, this
model provides PCIe and mini-PCIe expansion slots, an integrated 16-channel Digital I/O with isolation and 1MB Battery-backed SRAM.
The TPC-1071HCA comes complete with a CANopen card already installed. This CIA certified control ready platform assures total interoperability between all CANopen devices. The
value added control ready platforms have total support for IEC-61131-3 Softlogic Control software as well as HMI/SCADA software and Advantech WebOP design and WebAccess
control and monitoring software.

Specifications
General

LCD Display

ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

BIOS
AMI 8Mbit
Certification
Cooling System
Fanless design
Dimensions (W x H x D) 287.0 ±0.5x 227.0±0.5 x 72.3±1.0 mm
(11.26" x 8.94" x 2.76")
Enclosure
Mounting
OS Support
Microsoft® Windows 7/WES7/WES 2009/XPE/CE 6.0/
Linux / Android
Power Consumption
17W
Power Input
10~29 VDC
Watchdog Timer
Weight (Net)
TPC-1071H: 3.5 kg (7.72 lbs)

System Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

CPU
Chipset
Memory
LAN
Expansion Slots
Storage

ICH8M
10/100/1000Base-T x 2
2.5" SATA HDD x 1 (Optional)
ƒƒ I/O
flow control
USB 2.0 x 2 (Host)
PS/2 x 1
ƒƒ DI/DO & backup SRAM 8 x DI/DO with isolation and backup 1MB SRAM

7-6


Display Type
Display Size
Max. Resolution
Max. Colors
Luminance cd/m2
Backlight Life
Contrast Ratio

SVGA TFT LED LCD
10.4"
800 x 600
262 K
400
120/100
50,000 hrs
400:1

Touchscreen
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Lifespan
Light Transmission
Resolution
Type

Above 75%
Linearity

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity
Ingress Protection
Front panel: IP65

TPC-1071H
Dimensions

Unit: mm

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

287
214

72.3 25 REF

Energy Automation

278.50

3

160.1
227

218.50

Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel

Panel Cut-out Dimensions: 279.5±0.5x219.5±0.5mm (11.18" x 8.76")

Industrial Monitors

Rear View

CANopen (TPC-1071HCA model only)
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Controller
Connector
Transceiver
Protocol
Speed
Signal Support
Interrupt Support

NXP SJA1000
DB9 x 2
TJA1042
CAN2.0 A/B
1Mbps
CAN_H, CAN_L, GND
Legacy INT, MSI

k

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

a
b
c

j

ƒƒ TPC-1071H-D3AE
ƒƒ TPC-1071HCA-D3AE

Cards

10.4" SVGA Touch Panel PC, D525 1.8 GHz, 4GB
TPC-1071H-D3AE with PCM-2680 CANopen Card

Accessories
ƒƒ TPC-1000H-WMKE
ƒƒ TPC-1000H-SMKE
ƒƒ 1757003463
ƒƒ 1700001524
ƒƒ PWR-247-AE 50W
ƒƒ 1702002605
ƒƒ 1702031801
ƒƒ 1702031836
ƒƒ EWM-W139F01E
ƒƒ 1750000318
ƒƒ 1750003222
ƒƒ 1750003418

and IP Gateways

d1 d2 e

f

a. HDD
b. CompactFlash
c. PCI-E slot
d1. COM3 (RS-422/485)
d2. COM2(RS-232)
e. COM1(RS-232)
f. LAN (10/100/1000)


g h i
g. USB 2.0
h. PS/2
i. Power Receptor
j. DI/O ports
k. Mini PCI-E slot

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

7-7

TPC-1271H
TPC-1271HCA

12.1" SVGA TFT LED LCD Intel® Atom™
Features

NEW

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

12.1" SVGA TFT LED LCD

Introduction

Specifications
General

LCD Display

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

BIOS
AMI 8Mbit
Certification
Cooling System
Fanless design
Enclosure
Mounting
OS Support
Linux / Android
Power Consumption
20W (typical)
Power Input
10~29 VDC
Watchdog Timer
Weight (Net)
4.57 kg (10.07 lbs)

System Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

CPU
Chipset
Memory
LAN
Expansion Slots
Storage

ICH8M
10/100/1000Base-T x 2
ƒƒ I/O
flow control
USB 2.0 x 2 (Host)
PS/2 x 1

7-8


Display Type
Display Size
Max. Resolution
Max. Colors
Luminance cd/m2
Backlight Life
Contrast Ratio

SVGA TFT LED LCD
12.1"
800 x 600
262 K
450
160/140
50,000 hrs
700:1

Touchscreen
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Lifespan
Light Transmission
Resolution
Type

Above 75%
Linearity

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity
Ingress Protection
Front panel: IP65

TPC-1271H
Dimensions

Unit: mm

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

73.1 25 REF
3 20.6

311
247

Energy Automation

301

227

237

186

Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel


Industrial Monitors

Rear View

CANopen (TPC-1271HCA model only)
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Controller
Connector
Transceiver
Protocol
Speed
Signal Support
Interrupt Support

NXP SJA1000
DB9 x 2
NXP 82C251
CAN2.0 A/B
1Mbps
CAN_H, CAN_L, GND
Legacy INT, MSI

k

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

a
b
c

j

ƒƒ TPC-1271H-D3AE

12.1" SVGA Touch Panel PC, D525 1.8 GHz, 4GB

Accessories
ƒƒ TPC-1000H-WMKE
ƒƒ TPC-1000H-SMKE
ƒƒ 1757003463
ƒƒ 1700001524
ƒƒ PWR-247-AE 50W
ƒƒ 1702002605
ƒƒ 1702031801
ƒƒ 1702031836
ƒƒ EWM-W139F01E
ƒƒ 1750000318
ƒƒ 1750003222
ƒƒ 1750003418

d1 d2 e

f

a. HDD
b. CompactFlash
c. PCI-E slot
d1. COM3 (RS-422/485)
d2. COM2(RS-232)
e. COM1(RS-232)
f. LAN (10/100/1000)


g h i
g. USB 2.0
h. PS/2
i. Power Receptor
j. DI/O ports
k. Mini PCI-E slot

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

7-9

TPC-1571H
TPC-1571HCA

15" XGA TFT LED LCD Intel® Atom™
Features

NEW

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

15" XGA TFT LED LCD

Introduction

Specifications
General

LCD Display

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

BIOS
AMI 8Mbit
Certification
Cooling System
Fanless design
Enclosure
Mounting
OS Support
Linux / Android
Power Consumption
21 W (typical)
Power Input
10~29 VDC
Watchdog Timer
Weight (Net)
5.5 kg (12.13 lbs)

System Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

CPU
Chipset
Memory
LAN
Expansion Slots
Storage

ICH8M
10/100/1000Base-T x 2
ƒƒ I/O
flow control
USB 2.0 x 2 (Host)
PS/2 x 1

7-10


Display Type
Display Size
Max. Resolution
Max. Colors
Luminance cd/m2
Backlight Life
Contrast Ratio

XGA TFT LED LCD
15"

1024 x 768

262 K
350
160/140

50,000 hrs
700:1

Touchscreen
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Lifespan
Light Transmission
Resolution
Type


Above 75%
Linearity


Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity

Ingress Protection

Storage Temperature

Front panel: IP65
0 ~ 50°C (32 ~ 122°F)
-20 ~ 60°C (-4 ~ 140°F)

TPC-1571H
Dimensions

Unit: mm

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

383
306.1

4.5

78.50
24.5

25 REF

Energy Automation

373

297

230.1
307

Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel


Industrial Monitors

Rear View

CANopen (TPC-1571HCA only)
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Controller
Connector
Transceiver
Protocol
Speed
Signal Support
Interrupt Support

NXP SJA1000
DB9 x 2
NXP 82C251
CAN2.0 A/B
1Mbps
CAN_H, CAN_L, GND
Legacy INT, MSI

j

Industrial Wireless
Solutions

a
i

b

and IP Gateways

ƒƒ TPC-1571H-D3AE

Industrial Ethernet
Solutions

15" XGA Touch Panel PC, D525 1.8 GHz, 4GB

Accessories
ƒƒ TPC-1000H-WMKE
ƒƒ TPC-1000H-SMKE
ƒƒ 1757003463
ƒƒ 1700001524
ƒƒ 1702002605
ƒƒ 1702031801
ƒƒ 1702031836
ƒƒ EWM-W139F01E
ƒƒ PWR-247-AE
ƒƒ 1750000318
ƒƒ 1750003222
ƒƒ 1750003418

c

d

e f g h

a. CompactFlash
b. PCI-E slot
c. COM (RS-422/485)
d. COM (RS-232)
e. LAN (10/100/1000)

f. USB 2.0
g. PS/2
h. Power Receptor
i. DI/O ports
j. Mini PCI-E slot

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules



7-11

TPC-1771H
TPC-1771HCA

17" SXGA TFT LED LCD Intel® Atom™
Features

NEW

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

17" SXGA TFT LED LCD

Introduction

Specifications
General

LCD Display

ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

BIOS
AMI 8Mbit
Certification
Cooling System
Fanless design
Dimensions (W x H x D) 414±1 x 347.5±1 x 84±1.5 mm
(16.3" x 13.68" x 3.31")
Enclosure
Mounting
OS Support
Linux /Android
Power Consumption
24 W (typical)
Power Input
10~29 VDC
Watchdog Timer
Weight (Net)
6 kg (13.23 lbs)

System Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

SXGA TFT LED LCD
17"

1280 x 1024

262 K
350
170°/160°

50,000 hrs
1000:1

Touchscreen
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Lifespan
Light Transmission
Resolution
Type


Above 75%
Linearity


Environment

CPU
Chipset
Memory
LAN
Expansion Slots
Storage

ICH8M
10/100/1000Base-T x 2
ƒƒ I/O
flow control
USB 2.0 x 2 (Host)
PS/2 x 1

7-12

Display Type
Display Size
Max. Resolution
Max. Colors
Luminance cd/m2
Backlight Life
Contrast Ratio


ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity

Ingress Protection

Storage Temperature

Front panel: IP65
0 ~ 50°C (32 ~ 122°F)
-20 ~ 60°C (-4 ~ 140°F)

TPC-1771H
Dimensions

Unit: mm
Max.1.85

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

84±1.50
7

399.20

25REF

4.5

Building Automation
Systems
1.3

30
90
210

1.50
2.50

1.2

272.50
347.50±0.50

1.3

8-M4x4L

Energy Automation
1.3

Max. Ø3.30

332.70

414±0.50
340

10.5

Automation Software

1.1

Operator Panels

240
7TYP

120


Industrial Panel

Panel Cut-out Dimensions: 400.8±1 x 334.3 ±1mm (16.03" x 13.37")

Industrial Monitors

Rear View

CANopen (TPC-1771HCA only)
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Controller
Connector
Transceiver
Protocol
Speed
Signal Support
Interrupt Support

NXP SJA1000
DB9 x 2
NXP 82C251
CAN2.0 A/B
1Mbps
CAN_H, CAN_L, GND
Legacy INT, MSI

j

Industrial Wireless
Solutions

a
b

i

and IP Gateways

ƒƒ TPC-1771H-D3AE

Industrial Ethernet
Solutions

17" SXGA Touch Panel PC, D525 1.8 GHz, 4GB

Accessories
ƒƒ TPC-1000H-WMKE
ƒƒ TPC-1000H-SMKE
ƒƒ 1757003463
ƒƒ 1700001524
ƒƒ 1702002605
ƒƒ 1702031801
ƒƒ 1702031836
ƒƒ EWM-W139F01E
ƒƒ PWR-247-AE
ƒƒ 1750000318
ƒƒ 1750003222
ƒƒ 1750003418

c

d

e

a. CompactFlash
b. PCI-E slot
c. COM (RS-422/485)
d. COM (RS-232)
e. LAN (10/100/1000)

f g h
f. USB 2.0
g. PS/2
h. Power Receptor
i. DI/O ports
j. Mini PCI-E slot

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules



7-13

TPC-650H
TPC-1250H
TPC-1550H
TPC-1750H

5.7" VGA/12.1" SVGA/15" XGA/17" SXGA TFT LED
LCD Intel® Atom™ Thin Client Terminals
Features
ƒƒ Intel® Atom™ N270 1.6 GHz processor
ƒƒ 5.7" VGA/12.1" SVGA/15" XGA/17" SXGA TFT LED LCD
ƒƒ Supports Microsoft® Windows XP/XPe/CE
ƒƒ Windows CE 5.0/6.0 with Java Script ready
ƒƒ Supports Linux OS with Firefox and Java Script plugins
ƒƒ Gigabit Ethernet supported
ƒƒ Energy Star approved
ƒƒ Supports external 2.5" SATA HDD kit

Introduction
With a high quality TPC product line, TPC extends its Touch Panel Computer family with Intel® Atom™ platform for 5.7", 12.1",15" and17". TPC thin client is designed with Intel®
Atom™ 1.6 GHz processor as its core. The Intel® Atom™ has low power consumption and 1.6 GHz operating frequency. This system is fanless, slim design for Web-based terminal
solutions, so JavaScript is included in the Windows operating system. For Linux systems, we provide Mozilla Firefox.

Specifications
General
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ

ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ I/O

BIOS
Award® 4Mbit
Certification
Cooling System
Fanless design
Dimensions (W x H x D) 650H: 195 x 148 x 58 mm (7.68" x 5.83" x 2.28")
1250H: 311 x 237 x 54 mm (12.24" x 9.33" x 2.12")
1550H: 383 x 307 x 58.1 mm (15.08" x 12.09" x 2.29")
1750H: 413.7 x 347.2 x 63.8 (16.28" x 13.68" x 2.5")
Enclosure
TPC-650H Front bezel: PC/ABS Resin
TPC-1250H/1550H/1750H front bezel: Die-cast
aluminum alloy
Back housing: SECC
Mounting
Desktop, Wall (only for TPC-1250H/1550H/1750H) or
Panel Mount
OS Support
Microsoft® Windows® 7/XPE/WES
Windows CE 5.0/6.0 with Java Script
Linux with Firefox explorer and Java Script plugin
Power Consumption
17 W/35 W/40 W/43W (typical)
Power Input
18 ~ 28 VDC, 18 ~ 32 VDC (TPC-1750H only)
Watchdog Timer
Weight (Net)
1.43 kg (3.15 lb)/2.5 kg (5.51 lb)/3 kg (6.61 lb)/
3.5 kg (7.71 lb)

System Hardware
ƒƒ CPU
ƒƒ Chipset
ƒƒ Memory
ƒƒ LAN
ƒƒ Storage

7-14

Intel® Atom™ N270 1.6 GHz
Intel® 945GSE+ICH7M
2GB SO-DIMM DDR2 667 SDRAM
1GB SO-DIMM DDR2 667 SDRAM (TPC-650H only)
10/100/1000Base-T x 2, (TPC-650H with One Giga LAN)
CFast slot x 1
CompactFlash slot x 1 (TPC-650H only )
Optional, external 2.5" SATA HDD kit
(TPC-1250H/1550H/1750H only)


TPC-650H: RS-232 x 2 (COM1, 2)
TPC-1250H/1550H/1750H: RS-232 x1,
RS-232/422/485 x 1
USB 2.0 x 2 (Host)
PS/2 x 1 (TPC-650H only)

LCD Display
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Display Type
Display Size
Max. Resolution
Max. Colors
Luminance cd/m2
Backlight Life
Contrast Ratio

VGA/SVGA/XGA/SXGA TFT LED LCD
5.7"/12.1"/15"/17"
640 x 480/800 x 600/1024 x 768/1280 x 1024
262 K
700/450/350/350
160/140; 170/160 (TPC-1750H only)
50,000 hrs
800:1/700:1/700:1/1000:1

Touchscreen
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Lifespan
Light Transmission
Resolution
Type

Above 75%
Linearity

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity
Ingress Protection
Front panel: IP65
2 Grms (5 ~ 500 Hz)

TPC-650H/1250H/1550H/1750H
Dimensions

Unit: mm

TPC-650H

TPC-1250H/1550H/1750H

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


6

TPC-1250H: 180.0
TPC-1250H: 180.0
TPC-1550H: 230.0
TPC-1550H: 230.0
TPC-1750H: 240.0
TPC-1750H: 240.0

86.1
148
86.1
148

70.5

TPC-1250H: 53.153.1
TPC-1250H:
TPC-1550H: 58.158.1
TPC-1550H:
TPC-1750H: 64.464.4
TPC-1750H:

TPC-1250H: 186.3
TPC-1550H: 230.1
TPC-1750H: 272.5
TPC-1250H: 186.3
TPC-1550H: 230.1
TPC-1250H: 237.0
TPC-1750H: 272.5
TPC-1550H: 307.0
TPC-1750H: 347.5
TPC-1250H: 237.0
TPC-1550H: 307.0
TPC-1750H: 170.0
TPC-1250H: 347.5
TPC-1550H: 236.0
TPC-1750H: 210.0
TPC-1250H: 170.0
TPC-1550H: 236.0
TPC-1750H: 210.0

58 58
6 6

195195
114.7
114.7

Energy Automation

TPC-1250H: 311.0
TPC-1250H: 311.0
TPC-1550H: 383.0
TPC-1550H: 383.0
TPC-1750H: 414.0
TPC-1750H: 414.0
TPC-1250H: 247.2
TPC-1250H: 247.2
TPC-1550H: 306.1
TPC-1550H: 306.1
TPC-1750H: 340.0
TPC-1750H: 340.0

TPC-1250H:
TPC-1250H: 3.5 3.5
TPC-1550H:
TPC-1550H: 4.5 4.5
TPC-1750H:
TPC-1750H: 7.0 7.0

140
TPC-1250H: 33.4
140
TPC-1550H: 76.4
TPC-1750H: 86.9
TPC-1250H: 33.4
TPC-1550H: 76.4
TPC-1750H: 86.9

132132

70.5

28.128.1

6

Machine Automation

Building Automation
Systems

Automation Software

Operator Panels

TPC-1250H: 6.5 6.5
TPC-1250H:
TPC-1550H: 7.0 7.0
TPC-1550H:
TPC-1750H: 5.5 5.5
TPC-1750H:

141.1

141.1

6

4


TPC-1250H: 227.5
TPC-1550H: 297.0
TPC-1750H: 333.5
TPC-1250H: 227.5
TPC-1550H: 297.0
TPC-1750H: 333.5

6

188.1
188.1

4

TPC-1250H: 301.5
TPC-1250H: 301.5
TPC-1550H: 373.0
TPC-1550H: 373.0
TPC-1750H: 400.0
TPC-1750H: 400.0
187187

Industrial Panel

Industrial Monitors

Panel Cut-out Dimensions: TPC-650H: 189.1 x 142.1 mm (7.56" x 5.68")

TPC-1250H: 302.5 x 228.5 mm (12.1" x 9.14")

TPC-1550H: 374.5 x 298.5 mm (14.98" x 11.94")

TPC-1750H: 400.8 x 334.3 mm (16.03" x 13.37")


Industrial Ethernet
Solutions

Rear View

ƒƒ TPC-650H-N2AE
ƒƒ TPC-1250H-N2BE

Industrial Wireless
Solutions

TPC-1250H/1550H/1750H

ƒƒ TPC-1550H-N2BE
ƒƒ TPC-1750H-N2BE

5.7" VGA Touch Panel PC, Atom™ N270 1.6GHz, 1GB
12.1" SVGA Touch Panel PC, Atom™ N270 1.6GHz,
2GB
15" XGA Touch Panel PC, Atom™ N270 1.6GHz, 2GB
17" SXGA, Touch Panel PC, Atom™ N270 1.6GHz, 2GB

and IP Gateways

f
e

Accessories
ƒƒ TPC-1000H-WMKE
ƒƒ TPC-1000H-SMKE
ƒƒ TPC-651H-EHKE
TPC-x50H/x51H series Extension HDD Kit
* VESA support via a wall mounting kit (only for TPC-1250H/1550H/1750H)

Cards

Embedded Automation
Computers

a

b c

a. COM (RS-232, RS-422/485)
b. USB 2.0
c. LAN (10/100/1000)

PACs

d

d. Power Receptor
e.CFast
f. External HDD kit (TPC-651H-EHKE)

TPC-650H

f

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

a

b

a. Power Receptor
b. COM (RS232 x 2)
c. USB 2.0


c d e
d. LAN (10/100/1000)
e. PS/2
f. CompactFlash

7-15

TPC-651H
TPC-1251H
TPC-1551H

5.7" VGA/12.1" SVGA/15" XGA TFT LED LCD
Intel® Atom™ Thin Client Terminals with
Features
ƒƒ Intel® Atom™ Z520 1.33 GHz processor
ƒƒ 5.7" VGA/12.1" SVGA/15" XGA TFT LED backlight LCDs
ƒƒ -20 ~ 60°C wide operating temperature
ƒƒ Compact design with die-cast Al alloy front bezel
ƒƒ Supports Microsoft® Windows WES7/XP/XPe/CE
ƒƒ Dual Gigabit Ethernet supported
ƒƒ Isolation Protection for Serial ports
ƒƒ Energy Star approved
ƒƒ Supports external 2.5" SATA HDD kit

Introduction
With a high quality TPC product line, TPC extends its Touch Panel Computer family with Intel® Atom™ platform for 5.7", 12.1" & 15". They are designed with Intel® Atom™ eMenlow
XL processor as its core. The Intel® Atom™ has low power consumption and wide operating temperature. This system is fanless, slim design and the front bezel is die-cast Al alloy
material. This product also provides a -20 ~ 60°C wide operating temperature solution and complete isolation protection for its serial ports. TPC series are durable and reliable platform.

Specifications
General

LCD Display

ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

BIOS
Award® 4Mbit
Certification
Cooling System
Fanless design
Dimensions (W x H x D) 651H: 195 x 148 x 58 mm (7.68" x 5.83" x 2.28")
1251H: 311 x 237 x 54 mm (12.24" x 9.33" x 2.12")
1551H: 383 x 307 x 58.1 mm (15.08" x 12.09" x 2.29")
Enclosure
TPC-651H Front Bezel: PC/ABS Resin
1251H/1551H Front bezel: Die-cast Aluminum alloy
Back housing: SECC
Mounting
Desktop, Wall (only for TPC-1251H/1551H) or Panel
Mount
OS Support
Windows XP/WES7/XPe/CE/Linux
Power Consumption
17 W/35 W/40 W (typical)
Power Input
18 ~ 32 VDC
Watchdog Timer
Weight (Net)
1.43 kg (3.15 lb)/2.5 kg (5.51 lb)/3 kg (6.61 lb)

System Hardware
ƒƒ CPU
ƒƒ Chipset
ƒƒ Memory
ƒƒ LAN
ƒƒ Storage
ƒƒ I/O

7-16

Intel Atom™ 1.33 GHz with 512KB cache
eMenlow XL + Poulsbo
Up to 2GB (One channel)
10/100/1000Base-T x 2
Optional, external 2.5" SATA HDD kit
RS-232 x 1 (with isolation)
RS-422/485 x 1 (with isolation)
USB 2.0 x 2 (Host)
®


Display Type
Display Size
Max. Resolution
Max. Colors
Luminance cd/m2
Backlight Life
Contrast Ratio

VGA/SVGA/XGA TFT LED LCD
5.7"/12.1"/15"
640 x 480/800 x 600/1024 x 768
262 K
700/450/350
160/140
50,000 hrs
800:1/700:1/700:1

Touchscreen
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Lifespan
Light Transmission
Resolution
Type

Above 75%
Linearity

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity
Ingress Protection
Front panel: IP65
2 Grms (5 ~ 500 Hz)

TPC-651H/1251H/1551H
Dimensions

Unit: mm

Automation Software

TPC-1250H: 6.5
TPC-1250H: 6.5
TPC-1550H: 7.0
TPC-1550H: 7.0

TPC-1251H: 227.5
TPC-1551H: 297.0

141.1

Energy Automation

Building Automation
Systems

4

4

TPC-1251H: 301.5
TPC-1251H: 301.5
TPC-1551H: 373.0
TPC-1551H: 373.0
187
187

6

TPC-1250H: 33.4
TPC-1550H: 76.4

TPC-1250H: 53.1
TPC-1250H: 53.1
TPC-1550H: 58.1
TPC-1550H: 58.1

140

70.5

86.1
148

86.1
148

6

188.1

141.1

188.1

TPC-1250H: 311.0
TPC-1250H: 311.0
TPC-1550H: 383.0
TPC-1250H: 3.5 TPC-1550H: 383.0
TPC-1250H: 3.5
TPC-1550H: 4.5 TPC-1250H: 247.2
TPC-1550H: 4.5
TPC-1250H: 247.2
TPC-1550H: 306.1
TPC-1550H: 306.1

140
TPC-1250H: 170.0
TPC-1550H: 236.0
TPC-1250H: 33.4
TPC-1550H: 76.4

57.4
6

57.4
6

Operator Panels

TPC-1251H: 227.5
TPC-1551H: 297.0

195
114.7

TPC-1250H: 186.3
TPC-1250H: 170.0
TPC-1550H: 230.1
TPC-1550H: 236.0
TPC-1250H: 237.0
TPC-1550H: 307.0

132

195
114.7

Machine Automation

TPC-1250H: 186.3
TPC-1550H: 230.1
TPC-1250H: 237.0
TPC-1550H: 307.0

28.1
132

TPC-1250H: 180.0
TPC-1250H: 180.0
TPC-1550H: 230.0
TPC-1550H: 230.0

70.5

28.1

6

TPC-1251H/1551H
6

TPC-651H

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18



Panel Cut-out Dimensions: TPC-651H: 189.1 x 142.1 mm (7.56" x 5.68")

TPC-1251H: 302.5 x 228.5 mm (12.1" x 9.14")

TPC-1551H: 374.5 x 298.5 mm (14.98" x 11.94")

Industrial Panel

Industrial Monitors


Rear View

ƒƒ TPC-651H-Z2AE
ƒƒ TPC-1251H-Z2AE
ƒƒ TPC-1551H-Z2AE

TPC-1251H/1551H

5.7" VGA Touch Panel PC, Atom 1.33GHz, 1GB
12.1" SVGA Touch Panel PC, Atom 1.33GHz, 1GB
15" XGA Touch Panel PC, Atom 1.33GHz, 1GB

Industrial Wireless
Solutions

f
e

Accessories
ƒƒ TPC-1000H-WMKE
ƒƒ TPC-1000H-SMKE
ƒƒ TPC-651H-EHKE
TPC-651H/1251H/1551H Extension HDD Kit
ƒƒ PWR-247-AE
ƒƒ 1702002600
Power Cord 3P UL/CSA(USA) 125V 10A 1.83M
* VESA support via a wall mounting kit (only for TPC-1251H/1551H)

Industrial Ethernet
Solutions

and IP Gateways

Cards

a

b

c

d

Embedded Automation
Computers

TPC-651H

e

PACs

Compact PCI Systems

M2M I/O Modules

a

b

a. COM (RS-232, RS-422/485)
b. USB 2.0
c. LAN (10/100/1000)


c

d

RS-485 I/O Modules

d. Power Receptor
e.CompactFlash
f. External HDD kit (TPC-651H-EHKE)

7-17

18.5" WXGA TFT LCD Multi-Touch
Panel Computer with AMD
Dual-core processor

TPC-1840WP

Features

NEW

ƒƒ 18.5" WXGA TFT LED LCD display
ƒƒ AMD dual-core T56E 1.65GHz with independent GPU, advanced graphical
performance
ƒƒ 16:9 wide screen with PCT multi-touch
ƒƒ Built-in function and home key button used for intuitive UI
ƒƒ Anti-scratch surface: 7H hardness
ƒƒ Easy Maintenance of Cfast/HDD/Mini-PCIe components by opening side cover
ƒƒ Support Mini-PCIe expansion slot
ƒƒ Support HDMI for second display application
ƒƒ HD Audio supports for alarm application
ƒƒ Front LED indicator to show operating status
ƒƒ IP65 compliant true flat screen
ƒƒ Compact design with Die-cast Magnesium alloy front bezel
ƒƒ Winner of the 2013 iF product design award

Introduction
With brand-new ID design, the TPC-1840WP provides a high resolution 18.5" display and PCT multi-touch in 16:9 wide format. By embedding an AMD T56E 1.65GHz processor
with independent GPU, the TPC-1840WP can support advanced graphical performance in more complex applications. Built-in function and home key button for greater user usability
and operating safety. The TPC-1840WP also supports a mini-PCIe slot for communication function expansion. The opening side cover is designed for easy maintenance of Cfast/
HDD/Mini-PCIe components.

Specifications
General

LCD Display

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

BIOS
AMI 32Mbit
Certification
Cooling System
Fanless design
Dimensions (W x H x D) 488.1 x 309.1 x 56.7 (19.2" x 12.2" x 2.2")
Enclosure
Front bezel: Die-cast Magnesium alloy
Mounting
Panel Mount
OS Support
Microsoft® Win8/WES7P/XP/WES2009/Linux
Power Consumption
35 W Typical
Power Input
18 ~ 32 VDC
Watchdog Timer
Weight (Net)
7kg (15.44 lbs)

CPU
Chipset
Memory
LAN
Expansion Slots
Storage

ƒƒ I/O

7-18

WXGA TFT LED LCD
18.5"
1366 x 768
16.7 M
300
170/160
50,000 hrs

Touchscreen
ƒƒ Resolution
ƒƒ Type

≥88%
4096*4096 dot

Environment

System Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Display Type
Display Size
Max. Resolution
Max. Colors
Luminance cd/m2
Backlight Life

AMD G-series T56E 1.65GHz
AMD A50M FCH
10/100/1000Base-T x 2
Full-sized Mini PCI-E x 1
CFast slot x 1
2.5" SATA HDD x 1(optional)
RS-232 x 3
RS-422 / 485 x1
USB 2.0 x 2(Host)
HDMI x 1


ƒƒ Humidity
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Note: Tested for 48hrs
Ingress Protection
Front panel: IP65

TPC-1840WP
Dimensions

Unit: mm [inch]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


298.7 [11.76]

Machine Automation

488 [19.21]

Energy Automation

56.7 [2.23]
37.1 [1.46]

411.6 [16.20]

Building Automation
Systems

7 [0.28]
2 [0.08]

479.30 [18.87]

Wall thickness

.5"

18

300.30 [11.82]

309 [12.17]

232.2 [9.14]

477 [18.81]

Automation Software

Operator Panels

Panel Cut-Out Dimension


R5

[0.2

0]

Industrial Panel

Panel Cut-out Dimensions: 479.3mm (18.9")±1mm x 300.3mm (11.8")±0.7mm

Industrial Monitors

ƒƒ TPC-1840WP-T3AE

Rear View

i

18.5" WXGA Multi-Touch Panel PC, AMD T56E, 4GB

Industrial Wireless
Solutions

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

1757003463
1700001524
PWR-247-AE
1702002605
1702031801
1702031836

Industrial Ethernet
Solutions


and IP Gateways

Cards

a

b

c d e

a. COM 1 & 2 (RS-232)
b. Audio (Line out, Mic in)
c. HDMI
d. USB 2.0
e. LAN (10/100/1000)

f

g g
1

2

h

f. Power Receptor
g1.COM3 (RS-232)
g2.COM4 (RS-422/485)
h. Mini PCI-E slot
i. 2.5" SATA HDD Housing

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


7-19

21.5" Full HD TFT LCD Touch
Panel Computer with AMD
Dual-core processor

TPC-2140WP

Features

NEW

ƒƒ 21.5" Full HD TFT LED LCD display
ƒƒ AMD dual-core T56E 1.65GHz with independent GPU, advanced graphical
performance
ƒƒ Anti-scratch surface: 7H hardness
ƒƒ Easy Maintenance of Cfast/HDD/Mini-PCIe components by opening side cover
ƒƒ Support HDMI for second display application
ƒƒ HD Audio supports for alarm application
ƒƒ IP65 compliant true flat screen
ƒƒ Compact design with Die-cast Magnesium alloy front bezel

Introduction
With a brand-new ID design, the TPC-2140WP provides a high resolution 21.5" display and PCT multi-touch in 16:9 wide format. By embedding an AMD T56E 1.65GHz processor
with independent GPU, the TPC-2140WP can support advanced graphical performance in more complex applications. Built-in function and home key button for greater user usability
and operating safety. The TPC-2140WP also supports a mini-PCIe slot for communication function expansion. The opening side cover is designed for easy maintenance of Cfast/
HDD/Mini-PCIe components.

Specifications
General

LCD Display

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

BIOS
AMI 32Mbit
Certification
Cooling System
Fanless design
Dimensions (W x H x D) 558.4 x 349.8 x 56.7 (22" x 13.8" x 2.2")
Enclosure
Front bezel: Die-cast Magnesium alloy
Mounting
Panel Mount
OS Support
Power Consumption
35 W Typical
Power Input
18 ~ 32 VDC
Watchdog Timer
Weight (Net)
8.5 kg (18.74 lbs)

CPU
Chipset
Memory
LAN
Expansion Slots
Storage

ƒƒ I/O

7-20

Full HD TFT LED LCD
21.5"
1920 x 1080
16.7 M
300
178/178
50,000 hrs

Touchscreen
ƒƒ Resolution
ƒƒ Type

≥88%
4096*4096 dot

Environment

System Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Display Type
Display Size
Max. Resolution
Max. Colors
Luminance cd/m2
Backlight Life

AMD G-series T56E 1.65GHz
AMD A50M FCH
10/100/1000Base-T x 2
Full-sized Mini PCI-E x 1
CFast slot x 1
2.5" SATA HDD x 1(optional)
RS-232 x 3
RS-422 / 485 x 1
USB 2.0 x 2(Host)
HDMI x 1


ƒƒ Humidity
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Ingress Protection
Front panel: IP65

TPC-2140WP
Dimensions

Unit: mm [inch]
558.40 [21.98]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


349.80 [13.77]

Machine Automation

56.7 [2.23]
37.1 [1.46]
7 [0.28]

Building Automation
Systems

2 [0.08]

550.30 [21.67]

Wall thickness

Automation Software

.5"

21

341.80 [13.46]

349.80 [13.77]

269.70 [10.62]

558.40 [21.98]
478.20 [18.83]

Energy Automation

Operator Panels

Panel Cut-Out Dimension

R5


[0

.2

0]

Industrial Panel

Panel Cut-out Dimensions: 550.3mm (21.7")±1mm x 341.8 (13.5")mm±0.7mm

Industrial Monitors

ƒƒ TPC-2140WP-T3AE

Rear View

i

21.5" full-HD Multi-Touch Panel PC, AMD T56E, 4GB

Industrial Wireless
Solutions

Accessory
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

1757003463
1700001524
PWR-247-AE
1702002605
1702031801
1702031836

Industrial Ethernet
Solutions


and IP Gateways

Cards

a

b

c d e

a. COM 1 & 2 (RS-232)
b. Audio (Line out, Mic in)
c. HDMI
d. USB 2.0
e. LAN (10/100/1000)

f

g g
1

2

h

f. Power Receptor
g1.COM3 (RS-232)
g2.COM4 (RS-422/485)
h. Mini PCI-E slot
i. 2.5" SATA HDD Housing

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


7-21

18.5" WXGA TFT LCD stationary
Multi-Touch Panel Computer
with AMD dual-core processor

SPC-1840WP

Features

NEW

ƒƒ 18.5" WXGA TFT LED LCD display
ƒƒ AMD dual-core 1.65GHz processor with independent GPU, advanced
graphical performance
ƒƒ Anti-scratch touch surface: 7H hardness
ƒƒ All around IP65 with waterproof M12 connector

Introduction
With brand-new ID design, the SPC-1840WP series provide high resolution 18.5" display and PCT multi-touch in 16:9 wide format. By embedding an AMD T56N 1.65GHz processor
with independent GPU, the SPC-1840WP can support advanced graphical performance in more complex applications. Built-in function and home key button for greater user usability
and operating safety. The SPC-1840WP also supports Mini-PCIe slot for communication function expansion. Moreover, the SPC-1840WP includes an all around waterproof design
with M12 connectors. With this vertical I/O connector, cable routing can be an easy job in stationary / VESA Arm applications.

Specifications
General

LCD Display

ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Certification
Cooling System
Fanless design
Dimensions (W x H x D) 488 x 309 x 65mm (19.2" x 21.2" x 2.6")
Enclosure
Front bezel: Die-cast Aluminium alloy
Back housing: Die-cast Aluminium alloy
Mounting
VESA Arm
OS Support
Power Consumption
35 W Typical
Power Input
24 VDC
Weight (Net)
8 kg (17.64 lbs)

System Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ

CPU
Chipset
Memory
LAN

ƒƒ Expansion Slots
ƒƒ Storage
ƒƒ I/O

7-22

AMD G-series T56N 1.65GHz
AMD A50M FCH
10/100/1000Base-T x 2 (connection:M12 A-coding,
8-pin female)
Full-sized Mini PCI-E x 1 (optional)
2.5" SATA HDD
RS-232 x1 (connection:M12 A-coding, 8-pin male)
USB 2.0 x1 (connection:M12 A-coding, 8-pin female)
24 VDC power input (connection:M12 A-coding, 5-pin
male)


Display Type
Display Size
Max. Resolution
Max. Colors
Luminance cd/m2
Backlight Life

WXGA TFT LED LCD
18.5"
1366 x 768
16.7 M
300
170/160
50,000 hrs

Touchscreen
ƒƒ Resolution
ƒƒ Type

≥88%
4096*4096 dot

Environment
ƒƒ Humidity
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Ingress Protection
All around IP65

SPC-1840WP
Dimensions

Unit: mm

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

65.00 [2.56]
39.75 [1.56]

488 [19.21]

Building Automation
Systems

100.00 [3.94]

309 [12.17]

1

M4

100.00
[3.94]

M4

"
8.5

M4

M4

Automation Software

Operator Panels


Industrial Panel

Industrial Monitors

ƒƒ SPC-1840WP-T3AE

Rear View

Industrial Wireless
Solutions

18.5" WXGA stationary Multi-Touch Panel PC, 4GB

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

PWR-247-AE
1702002605
1702031801
1702031836
EWM-W139F01E
1750000318
1750003222
1750003418

Industrial Ethernet
Solutions


and IP Gateways

Cards

Embedded Automation
Computers

a b c d e
a. USB 2.0 with M12 connector
b. COM (RS-232) with M12 connector
c. LAN 1 with M12 connector

d. LAN 2 with M12 connector
e. 24 VDC input with M12 connector

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


7-23

21.5" Full HD TFT LCD stationary
Multi-Touch Panel Computer with
AMD dual-core processor

SPC-2140WP

Features

NEW

ƒƒ 21.5" Full HD TFT LED LCD display
ƒƒ AMD dual-core 1.65GHz processor with independent GPU, advanced
graphical performance
ƒƒ Anti-scratch touch surface: 7H hardness

Introduction
With brand-new ID design, the SPC-2140WP series provide high resolution 21.5" display and PCT multi-touch in 16:9 wide format. By embedding an AMD T56N 1.65GHz processor
with independent GPU, the SPC-2140WP can support advanced graphical performance in more complex applications. Built-in function and home key button for greater user usability
and operating safety. The SPC-2140WP also supporst Mini-PCIe slot for communication function expansion. Moreover, the SPC-2140WP includes an all around waterproof design
with M12 connectors. With this vertical I/O connector, cable routing can be an easy job in stationary / VESA Arm applications.

Specifications
General

LCD Display

ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Certification
Cooling System
Fanless design
Dimensions (W x H x D) 558.4 x 349.8 x 65 mm (21.98” x 13.77” x 2.56”)
Enclosure
Mounting
VESA Arm
OS Support
Power Consumption
35 W Typical
Power Input
24 VDC
Weight (Net)
9 kg (19.8 lbs)

System Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ

CPU
Chipset
Memory
LAN

ƒƒ Storage
ƒƒ I/O

7-24

AMD G-series T56N 1.65GHz
AMD A50M FCH
10/100/1000Base-T x 2 (connection:M12 A-coding,
8-pin female)
Full-sized Mini PCI-E x 1 (optional)
2.5" SATA HDD
RS-232 x1 (connection:M12 A-coding, 8-pin male)
USB 2.0 x1 (connection:M12 A-coding, 8-pin female)
24 VDC power input (connection:M12 A-coding, 5-pin
male)


Display Type
Display Size
Max. Resolution
Max. Colors
Luminance cd/m2
Backlight Life

Full HD TFT LED LCD
21.5"
1920 x 1080
16.7 M
300
178/178
50,000 hrs

Touchscreen
ƒƒ Resolution
ƒƒ Type

≥88%
4096*4096 dot

Environment
ƒƒ Humidity
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Ingress Protection
All around IP65

SPC-2140WP
Dimensions

Unit: mm

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

65.00 [2.56]
39.75
[1.56]

558.4 [21.98]

Energy Automation

100.00 [3.94]
M4

2

100.00
[3.94]

349.8 [13.77]

M4

”
1.5

M4

M4

Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel

Panel Cut Dimensions: 558.4 x 349.8 x 65 mm (21.98" x 13.77" x 2.56")

Industrial Monitors

ƒƒ SPC-2140WP-T3AE

Rear View

Industrial Wireless
Solutions

21.5" full-HD stationary Multi-Touch Panel PC, 4GB

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

PWR-247-AE
1702002605
1702031801
1702031836
EWM-W139F01E
1750000318
1750003222
1750003418

Industrial Ethernet
Solutions


and IP Gateways

Cards

Embedded Automation
Computers

a b c d e
a. USB 2.0 with M12 connector
b. COM (RS-232) with M12 connector
c. LAN 1 with M12 connector

d. LAN 2 with M12 connector
e. 24 VDC input with M12 connector

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


7-25

TPC-1251SR
TPC-1551SR

12.1" SVGA / 15" XGA High Brightness LCD
Intel® Atom™ Touch Panel Computers
Features
ƒƒ Intel® Atom™ processor (up to 1.33 GHz)
ƒƒ 12.1" SVGA / 15" XGA High Brightness LED backlight
ƒƒ -20 ~ 60°C wide operating temperature range
ƒƒ Compact design with die-cast Al alloy front bezel
ƒƒ Supports Microsoft® Windows WES7/XP/XPe/CE
ƒƒ Dual Gigabit Ethernet supported
ƒƒ Isolation Protection for Serial ports
ƒƒ Energy Star approval

Introduction
For sunlight readable applications, the TPC extends its Touch Panel Computer range with a high brightness and optical bonding solution. The LCD display provides a 1000 nits
solution. Optical bonding enhances its readability by providing a reflection rate of under 0.2%. The TPC-1251SR/1551SR making it perfect for outdoor applications.

Specifications
General

LCD Display

ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

BIOS
Award® 4 MB
Certification
Cooling System
Fanless design
Dimensions (W x H x D) 1251SR: 311 x 237 x 54 mm (12.24" x 9.33" x 2.12")
1551SR: 383 x 307 x 58.1 mm (15.08" x 12.09"x2.29")
Enclosure
1251H /1551H Front bezel: Die-cast Aluminum alloy
Back housing: SECC
Mounting
OS Support
Windows XP/WES7/XPe/CE/Linux
Power Consumption
35 W / 40 W (typical)
Power Input
18 ~ 32 VDC
Watchdog Timer
Weight (Net)
2.5 kg (5.51 lb) / 3 kg (5.51 lb)

System Hardware
ƒƒ CPU
ƒƒ Chipset
ƒƒ Memory

ƒƒ Storage
ƒƒ I/O

7-26

Intel Atom 1.33 GHz with 512KB cache
eMenlow XL + Poulsbo
LAN 10/100/1000Base-T x 2
RS-232 x 1 (with isolation)
RS-422/485 x 1 (with isolation)
USB 2.0 x 2 (Host)


Display Type
Display Size
Max. Resolution
Max. Colors
Luminance cd/m2
Backlight Life
Contrast Ratio

SVGA / XGA TFT LED LCD
12.1" / 15"
800 x 600 / 1024 x 768
262 K
1000
110/160, 120/140
50,000 hrs
600:1 / 1100:1

Touchscreen
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Lifespan
Light Transmission
Resolution
Type

Above 75%
Linearity

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity
Ingress Protection
Front panel: IP65
2 Grms (5 ~ 500 Hz)

TPC-1251SR/1551SR
Dimensions

53.1

140.0

186.3
237.0

Building Automation
Systems

4

4

6.5

301.5
187.0

7

373.0
187

33.6

Energy Automation

140

236.0

230.1
307.0

311.0
247.2

3.0

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

180.0

58.5

170.0

230.0
383.0
306.1

76.4

4.5

Unit: mm

Automation Software

297.0

227.5

Operator Panels


Industrial Panel

Panel Cut-out Dimensions: TPC-1251SR: 302.5 x 228.5 mm

TPC-1551SR: 374.5 x 298.5 mm

Industrial Monitors

ƒƒ TPC-1251SR-Z2AE
ƒƒ TPC-1551SR-Z2AE

Rear View

12.1" Sunlight Readable Touch Panel PC, Atom
1.33GHz, 1GB
15" Sunlight Readable Touch Panel PC, Atom 1.33GHz,
1GB

Industrial Wireless
Solutions

TPC-1251SR/1551SR

Industrial Ethernet
Solutions

Accessories
ƒƒ TPC-1570H-SMKE
TPC-1551SR Desktop Stand
ƒƒ TPC-1250H-SMKE
TPC-1251SR Desktop Stand
ƒƒ TPC-1570H-WMKE
TPC-1551SR Wallmount Kit
ƒƒ TPC-1250H-WMKE
TPC-1251SR Wallmount Kit
ƒƒ TPC-651H-EHKE
TPC-651H/1251H/1551H Extension HDD Kit
ƒƒ PWR-247-AE
ƒƒ 1702002600
Power Cord 3P UL/CSA(USA) 125V 10A 1.83M
* Stand and Wall mount kits not compatible with HDD extension kit.

and IP Gateways

Cards

a

b

c

d

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


7-27

FPM-3151SR

15" XGA High Brightness Industrial Monitor
w/ Resistive Touchscreen, Direct-VGA, DVI
and Wide Operating Temperatures
Features
ƒƒ 15" XGA 1000 nits LED backlight
ƒƒ Robust anodized coated aluminum front bezel and stainless steel rear cover
ƒƒ Supports wide operating temperatures
ƒƒ Increase reliability by enhanced 5-wire resistive touch sensor
ƒƒ Anti-reflective screen with tempered glass
ƒƒ Full enclosure ground isolation protection
ƒƒ Supports VGA/DVI input, dual touch interfaces and two power inputs
ƒƒ Front lockable OSD membrane keys with user-defined brightness setting
ƒƒ Supports panel, VESA, wall and desktop stand mounting

Introduction
For sunlight readable applications, the FPM-3151SR provides high brightness and optical bonding solution. The LCD display is up to 1000 nits. Optical bonding enhances its
readability by providing a reflection rate of under 0.2%.FPM-3151SR makes it perfect for outdoor applications.

Specifications
General

Touchscreen

ƒƒ Button Controls

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Sensor
Driver
Type
Interface
Lifespan

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Light Transmission
OS Support
Power Consumption
Touch Resolution

ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ

OSD control pad on front panel with lockable function
Two user-defined contrast/brightness settings
Certification
CE, FCC Class A, CCC, UL, Energy Star
Enclosure
Front panel: Aluminum with hard anodizing coating
Rear cover : Stainless steel
Ground Isolation Protection
Mounting
Panel, wall, desktop, VESA arm, or 19" rackmount with
optional mounting kit
Power Input
Phoenix Jack: 24 VDC input
DC Jack: external 57 W power adapter, with
100 ~ 240 VAC input and 12 VDC @ 4.75 A output
Power Consumption
12W
Video Port
VGA & DVI-D Port
Weight (Net)
7.73 kg (17.04 lbs)

LCD Display
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

7-28

Display Type
Backlight Type
Display Size
Max. Resolution
Max. Color
Luminance (cd/m2)
Backlight Life (hrs)
Contrast Ratio

XGA TFT LCD
LED
15"
1024 x 768
16.2M (RGB 8-bits) or 262k colors (RGB 6-bits)
125/140
1000
50,000
600:1


AMT
Penmount 6000
5-wire resistive with enhanced ITO film
USB & RS-232 (Combo)
36 million with a silicone rubber R8 finger,
writing rate is by 250g at 2 times/s
> 80%
Windows 2000, XP, Vista, 7, XPe, CE and Linux
+5 V @ 100 mA
Linearity

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Operation Temperature -20 ~ 60°C (-4 ~ 140°F)
Humidity (Storage)
10 ~ 95% non-condensing
Waterproof
Shock
11ms, 10G (Non Operating, Half Sine Wave)
Vibration
5 ~ 500 Hz, 1 Grms (Operating, Random)

ƒƒ FPM-3151SR-R3AE

15" XGA Ind. Monitor w/ Sunlight Readable Display

FPM-3151SR
Dimensions
36.00
[1.42]
60.00 [2.36]

Unit: mm

Machine Automation

70.00 [2.76]
10.00
[0.39]

422.00 [16.61]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


390.00 [15.35]
100.00 [3.94]
75.00 [2.95]

Energy Automation

M3

Building Automation
Systems
M4 Depth=8mm

310.00 [12.20]

M3

M3

M4 Depth=8mm

M4 Depth=8mm
M4 Depth=8mm

M3

M3

M4 Depth=8mm
M4 Depth=8mm

M4 Depth=8mm
M4 Depth=8mm

75.00 [2.95]
100.00 [3.94]
290.00 [11.42]

M3

Automation Software

Operator Panels
M3

M3



Industrial Panel

Industrial Monitors

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

FPM-3151G-RMKE
1702002600
1702002605
1702031801
1702031836

Rack Mount (FPM-3151G-RMKE)
Mounting kit for 19" industrial rack

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

I/O View

24 VDC Input
100 ~ 240 VAC Power Adapter

Cards

VGA Port

Embedded Automation
Computers

PACs

DVI-D

Compact PCI Systems

M2M I/O Modules

Touch Screen (RS-232)
Touch Screen (USB)

RS-485 I/O Modules


7-29

TPC-8100TR

10.4" EN50155 Railway Panel Computer
Features

NEW

ƒƒ 10.4" SVGA 800x600 with 400 nits LED LCD display
ƒƒ Fanless with Dual core 1.6 GHz processor
ƒƒ 5H Hardness resistive touch
ƒƒ Alternative keypad control in front bezel
ƒƒ Mother board / Daughter board with coating for weather proof
ƒƒ Optical bonding for weather proofing
ƒƒ Ruggedized enclosure with Die-cast Aluminium alloy
ƒƒ Wide operating temperature: -30 ~ 70°C
ƒƒ EN50155 Compliance for railway application

Introduction
Advantech HMI TPC-8100TR for transportation is used to keep the train driver informed about status regarding the train functionalities. Its design deployed in environments with an
extended temperature range ( –30 to +70°C) and compliance with the EMC, shock and vibration test requirements of European standard EN 50155 for railway applications.
The TPC-8100TR 10,4" TFT display is with ruggedized touch panel and optical bonding for weather-prove. All round IP65 and M12 connector is a perfect choice for Human Machine
Interfaces (HMI) in railway environments. Internal board are all with Conformal Coating protection for anti-moist. TPC-8100TR include comprehensive feature set with two Ethernets,
serial interfaces, USB ports, build-in CFast device.
Railway power module design support 10 ms interruption (EN50155, S2) , EMI EN55022 CLASS A filter, Over/Short current protection for its railway application.

Specifications
General

LCD Display

ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Certification
CE,FCC,CCC,EN50155 Compliance
Cooling System
Fanless design
Dimensions (W x H x D) 345x227x85mm (13.6"x8.9"x3.4")
Enclosure
Mounting
Panel Mount / VESA Mount
OS Support
WES 7/ WES 2009 / Windows CE 7.0 / Linux
Power Consumption
35 W Typical
Power Input
110 VDC
Weight (Net)
5 kg (11 lbs)

System Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

7-30

CPU
Chipset
Memory
Storage
I/O

Intel Cedar Trail Dual core processor 1.6G
Intel Atom N2600
Built in 16G CFast card
2 x RS-232 (connection: M12 A-coding, 8-pin male)
2 x422/485 (with isolation, connection: M12 A-coding,
8-pin male)
2 x USB2.0 (connection: M12 A-coding, 8-pin female)
2 x 100/1000 Base (connection: M12 A-coding, 8-pin
female)
1x Audio (with External Buzzer,Line out, connection:
M12 A-coding, 8-pin male)
1x Power connector (connection: M12 A-coding, 5-pin
male)


ƒƒ
ƒƒ
ƒƒ
ƒƒ

Display Type
SVGA TFT LED LCD
Display Size
10.4"
Max. Resolution
800x600
Max. Colors
262 K
Luminance cd/m2
400
Viewing Angle (H/V°) 160/140
Backlight Life
50,000 hrs
Contrast Ratio
700:1
Environment
Humidity
Ingress Protection
All around IP65
IEC 61373 Railway– Shock and Vibration

TPC-8100TR

Dimensions

Unit: mm
281.05 [11.06]
100.00 [3.94]

Machine Automation

Building Automation
Systems

M4 SCREW

22.50 [0.89]

Ø14.50 [0.57]

205.00 [8.07]
160.00 [6.30]

Automation Software

Operator Panels

Panel Cut-out Dimension

3.00 [0.12]


22.50 [0.89]

Ø14.50 [0.57]
Ø9.00 [0.35]

33.50 [1.32]

227.00 [8.94]
160.00 [6.30]

.4"

10

Energy Automation

204.05 [8.03]

100.00 [3.94]

85.00 [3.35]
77.00 [3.03]
6.00 [0.24]

Ø9

.0

0

[Ø

0.

35

]

M4 SCREW

345.00 [13.58]
320.00 [12.60]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


19.00 [0.75]
19.00 [0.75]

282.00 [11.10]
320.00 [12.60]

Industrial Panel

Industrial Monitors

ƒƒ TPC-8100TR-N3AE

Rear View

Industrial Wireless
Solutions

10.4" EN50155 Panel PC,4GB

Industrial Ethernet
Solutions

and IP Gateways

e

Cards

Embedded Automation
Computers

PACs

a

b

c

a. USB 2.0 x2
b. COM x 4
c. LAN x2
Note: Wi-Fi/GPS/GSM (optional by request)

d
d. Power x1
e. Audio x1

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


7-31

TPC Installation Accessories
Introduction
Advantech's Touch Panel Computers have been designed to be slim and compact so they can be installed into all kinds of environments. They can be wallmounted, panel mounted
or simply placed on a desktop with an stand. Standard mounting holes and features make a wide range of mounting options available.

ƒƒ
ƒƒ
ƒƒ
ƒƒ

TPC-1000H-WMKE
TPC-1000H-SMKE
TPC-651H-EHKE
PWR-247-AE

TPC-651H/1251H/1551H extension HDD kit
24 V 50 W AC-DC power adapter

Wallmount kit

Stand Kit

PWR-247-AE

1702002600

1702002605

1702031801



1700001524

170203183C

170203180A




ƒƒ 1702002600, 1702301801, 1702002605, 1702031836 are for PWR-247-AE

7-32



1702031836

Power Cable China/Australia
Plug 1.8 M

Industrial Panel Computers
& Panel PC

8

Fanless Panel PC Selection Guide

8-2

PPC-L62T

6.5" Fanless Panel PC with Intel® Atom™ N455 Processor

8-3

PPC-3100

10.4" Fanless Panel PC with Intel® Atom™ D2550 Processor

8-5

PPC-3120

12.1" Fanless Panel PC with Intel® Atom™ D2550 Processor

8-7

PPC-L128T

12.1" Fanless Panel PC with Intel® Atom™ N270 Processor

8-9

PPC-L157T

15" Fanless Panel PC with Intel® Atom™ N270 Processor

8-11

PPC-L158T

15" Fanless Panel PC with Intel® Atom™ Dual-Core Processor

8-13

Multi-functional Panel PCs Selection Guide

8-15

PPC-125T

12" Panel PC with Intel® Core™2 Duo Processor

8-17

PPC-157T


8-19

PPC-6150

15" Panel PC with Intel® Core™ i3 / i5 / Celeron® Processor

8-21

PPC-177T


8-23

PPC-179T


8-25

PPC-6170

17" Panel PC with Intel® Core™ i3 / i5 / Celeron® Processor

8-27

Industrial Panel Computer Selection Guide

8-29

IPPC-6152A
IPPC-6172A
IPPC-6192A

15" XGA, 17"/19" SXGA TFT LCD Core™ 2 Quad / Core™ 2 Duo Industrial
Panel PC with 2 x PCI Slots

8-30

IPPC-9151G
IPPC-9171

15" XGA/17" SXGA LED backlight TFT LCD Intel® Core™ i7/i5/i3 Celeron®
Mobile Processor Industrial Panel PC with 1 x PCIe Slot

8-32

IPPC-4001D
IPPC-4008D

5.7" VGA TFT LCD 4U 19"/19" Half-sized Rack Industrial Panel PC with 14/8
8-34
Expansion Slots & Keyboard Drawer

8-36

IPPC Accessories
ITM-5112

12" SVGA Industrial LED Monitor with Full-Flat Resistive Touchscreen

8-37

ITM-5115

15" XGA Industrial LED Monitor with Full-Flat Resistive Touchscreen

8-39

ITM-5117

17" SXGA Industrial LED Monitor with Full-Flat Resistive Touchscreen

8-41

To view all of Advantech’s Automation Panel PCs, please visit www.advantech.com/products.

Fanless Panel PC
Selection Guide
NEW

NEW

NEW

Selection Guide
Model Name

PPC-L62T
PCM-8205
Intel Atom N455
(1.66 GHz)

CPU Board
Processor

SSD/Type
Size/Type
Max. Resolution
Max. Colors
Pixel Pitch (mm)
Brightness (cd/m2)
Viewing Angle
Brightness Control
Simultaneous Mode
Backlight MTBF

VGA

Chipset
HDD/Type

DVD-ROM, DVD+/- RW Drive
Option

204-pin SODIMM x 1
512 KB

204-pin SODIMM x 1
1MB

Supports one CFast
socket

Module Type
2nd Cache Memory

Display

Fanless Panel Computer
PPC-L128T
PPC-3120
PCM-8201
PCM-8206
Intel Atom N270
Intel Atom Dual core
1.6 GHz
D2550 (1.86 GHz)

Support 1 x internal
mSATA

6.5" TFT LCD, LED
Backlight
640 x 480
262 K
0.207 x 0.207
700
160°/140°
Yes
Yes
50,000 hrs
Intel N455 + Intel
ICH8M
Optional 1 x 2.5"
drive bay

10.4" TFT LCD, LED
backlight
800 x 600
262 k
0.264 x 0.264
400
160°/140°
Yes
Yes
30,000 hrs

-

200-pin SODIMM x1
512 KB
Supports one
CompactFlash Type
II, socket

-

Optional

4 x Serial ports:
3 Serial Ports:
3 x RS-232,
RS-232 x 2,
1x RS-232/422/485
RS-232/422/485 x 1;
(Adjustable through
1 GPIO port
BIOS)
1 VGA Port; PS/2
4 x USB ports
Mouse and Keyboard,
1 x Line-out, 1x
Line-in/ Line-out/
MIC-in
Mic-in
1 x DB15 VGA
Built-in 1W x 2
1 x DB9 GPIO port (8
speakers, USB 2.0
pin programable)
ports x 4

Bus Expansion

1 x miniPCIe

1 x miniPCIe

Network (LAN)

2 x 10/100/1000
Mbps (RJ-45)

2 x 10/100/1000
Mbps (RJ-45)

Optional 1 x
expansion slot for
PCI/PCIe card
1 x MINI PCIe slot
2 x 10/100/1000
Mbps (RJ-45)

Input Voltage

15 ~ 24 VDC

12~30 VDC

12 ~ 24 VDC

Technology
Light Transmission

Resistive
81%
Windows CE, XPE,
XP, WIN 7
36 million
255 Level

Resistive
81%
Windows XPE, WES7,
WEC7
36 million
255 Level

Resistive
80%
Windows XPE/XP Pro,
Vista, WES7, CD6.0
35 million
255 Level

OS Support

Durability (Touches)
Watchdog Timer

0 ~ 50°C (32 ~ 122°F) 0 ~ 50°C (32 ~ 122°F)

Working Temperature

IP65 compliant
CE. FCC Class B,
BSMI, CCC, UL

Front Panel Protection
Certification
Weight
Page

8-2

202 x 148 x 49 mm
(7.9" x 5.82" x 1.92")
1.5 kg (3.3lb)
8-3

Support 1 x internal
mSATA

200-pin SODIMM x1
512 KB
Supports one
CompactFlash Type
II, socket

12.1" Color TFT LCD,
15" Color TFT LCD
LED backlight
1024 x 768
1024 x 768
1024 x 768
262 K
262 K
262 K
0.240 x 0.240
0.240 x 0.240
0.297 x 0.297
450/600
600
350
160°/160°
160°/160°
160°/130°
Yes
Yes
Yes
Yes
Yes
Yes
50,000 hours
50,000 hours
50,000 hours
Intel 945GSE + Intel
Intel 945GSE + Intel
Intel D2550 Integrated
Intel D2550 Integrated
ICH7M
ICH7M
1 x 2.5" internal SATA 1 x 2.5" internal SATA 1 x 2.5" internal SATA 1 x 2.5" internal SATA
drive bay
drive bay
drive bay
drive bay

2 x COM ports, 2 x
GbE LAN, 4 x USB,
Audio line out

Touchscreen

204-pin SODIMM x 1
1MB

12.1" Color TFT LCD

I/O Ports

Power

PPC-L157T
PCM-8201
Intel Atom N270 1.6
GHz

512 MB ~ 2 GB DDR3 Maximum 4GB DDR3
Maximum 4GB DDR3
DDR2 533 Up to 2 GB
DDR2 533 Up to 2 GB
SDRAM
1066
1066

Size

Memory

PPC-3100
PCM-8206
D2550 (1.86 GHz)

0-45°C (32-113°F)

IP65 Ccompliant
IP65 compliant
CE. FCC Class B, UL, CE. FCC Class B, UL,
BSMI, CCC
BSMI, CCC, CB, VCCI
275 x 220 x 68 mm
340.5 x 269.3 x 70.5
(10.83" x 8.74" x
mm
2.68")
(13.41" x 10.6 x 2.78")
3.0 kg (6.6lb)
3.63 kg (7.98 Ib)
8-5
8-9

Industrial Panel Computers & Panel PC

-

Optional

PPC-L158T
PCM-8204
D525 1.8G
DDR3 800 MHz up
to 4 GB
(2 GB each socket)
204-pin SODIMM x 2
1 MB
Supports one CFast
Type II, socket
15" Color TFT LCD,
LED backlight
1024 x 768
262 K
0.297 x 0.297
350
160°/130°
Yes
Yes
50,000 hours
Intel D525 + Intel
ICH8M
1 x 2.5" internal SATA
drive bay
Optional

4 x COM ports:
2 x RS-232,
4 x Serial ports:
3 Serial Ports:
1 x RS-232/422/485,
3 x RS-232,
RS-232 x 2,
1 x RS232/ GPIO
1x RS-232/422/485
RS-232/422/485 x 1;
(8 channels, TTL
(Adjustable through
1 GPIO port
level)
BIOS)
1 VGA Port ; PS/2
4 x USB 2.0 ports
4 x USB ports
Mouse and Keyboard,
Mic in/ Line out,
1 x Line-out,
Line-in/ Line-out/
1W speaker 1x MIC-in
Mic-in
2 x Gigabit Ethernet
1 x DB15 VGA
Built-in 1W x 2
ports
1 x DB9 GPIO port
speakers, USB 2.0
1 x D-SUB VGA port
(8 pin programable)
ports x 4
1 x PS/2 mouse and
1 x keyboard interface
Optional 1 x
Optional 1 x
1 x expansion slot for
expansion slot for
expansion slot for
PCI/PCIe card
PCI/PCIe card
PCI/PCIe card
1 x MINI PCIe slot
1 x miniPCIe slot
1 x MINI PCIe slot
2 x 10/100/1000
2 x 10/100/1000
2 x 10/100/1000
Mbps (RJ-45)
Mbps (RJ-45)
Mbps (RJ-45)
AC Model: 100W
12 ~ 24 VDC, 15 ~ 24
100 ~ 250 VAC/
12 ~ 30 VDC
VDC with
50 ~ 60 Hz
battery pack
DC Model: 90W
15 ~ 24 VDC
Resistive
Resistive
Resistive
80%
80%
80%
Windows XPE, WES7, Windows XPE/XP Pro, Windows XPE/XP Pro,
WEC7
Vista, WES7
Vista, WES7, CE6.0
35 million
35 million
35 million
255 Level
255 Level
255 Level
0 ~ 50°C (32-122°F); 0 ~ 50°C (32-122°F);
0 ~ 50°C (32 ~ 122°F)
0 ~ 35°C with battery 0 ~ 35°C with battery
IP65 compliant
IP65 compliant
IP65 compliant
CE. FCC Class B, UL, CE. FCC Class B, UL, CE. FCC Class B, UL,
BSMI, CCC,
BSMI, CCC, CB, VCCI BSMI, CCC, CB, VCCI
325 x 253.8 x 58.4
396.5 x 317.6 x 74.8
396.5 x 317.6 x 74.8
mm
mm
mm
(12.79" x 10" x 2.3")
(15.6" x 12.5" x 2.95") (15.6" x 12.5" x 2.95")
3.0 kg (6.6lb)
6 kg (13.2 Ib)
6 kg (13.2 Ib)
8-7
8-11
8-13

PPC-L62T

6.5" Fanless Panel PC with
Intel® Atom™ N455 Processor
Features
ƒƒ 6.5" TFT VGA LCD (LED Backlight)
ƒƒ Intel® Atom™ N455 CPU on board
ƒƒ System memory up to 2GB DDR3 SDRAM
ƒƒ One CFast socket
ƒƒ Fanless design and compact size
ƒƒ Aluminum front bezel
ƒƒ Dual Gigabit LAN support
ƒƒ Adjust RS-232/422/485 through BIOS
ƒƒ Automatic data flow control over RS-485

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

C

UL
®

Operator Panels
US

Introduction


The PPC-L62T is a 6.5" industrial-grade Panel PC for compact applications for machine builders. The PPC-L62T is highly reliable because of its fanless design. The IP65 compliant
alumimum front bezel provides excellent protection especially in harsh environments (water and dust). The Dual Gigabit LAN provides reliable communication between mechine
and control unit and the teaming function enhances fault tolerance and load balancing. PPC-L62T supports the most popular operating systems, such as Microsoft Windows XP, XP
Embedded and Windows CE 6.0.

Industrial Panel

Specifications

Industrial Monitors

Processor system

OS Support
Power Supply

LCD Display

Touchscreen

CPU
Memory
2nd Cache Memory
Chipset
SSD
HDD
I/O Ports
Bus Expansion
Network (LAN)
Watchdog Timer
Weight
OS Support
Input Voltage
Display Type
Max. Resolution
Colors
Dot Size (mm)
Viewing Angle
Luminance
Brightness Control
Backlight Lifetime
Touch Type
Resolution
Light Transmission
Controller
Software Driver Supports

Intel Atom N455 1.66GHz Single Core CPU on board
SO-DIMM x 1, DDR3 667, Max 2GB
512 KB
Intel ICH8M
CFast*1
1 x 2.5" external SATA HDD module (Optional)
2 x Serial ports: RS-232x1;RS-232/422/485 x1; 4 x USB; 1 x Line-out
1x MINI PCIe
2 x 10/100/1000Mbps Ethernet
255 timer levels; setup by software
202 x 148 x 49 mm (7.9" x 5.82" x 1.92")
1.5 kg ( 3.30 lb)
Win XPE, Win XP Pro, WES7 32 bit, Win CE 6.0
15-24VDC
6.5" TFT LCD (LED Backlight)
640 x 480
262K
0.207 x 0.207
80 (left), 80 (right), 70 (up), 70 (down)
700
Yes (by BIOS)
-30 ~ 85°C (-22 ~ 185°F)
50, 000 hrs
Analog Resistive 5 wires
2048 x 2048
81%
RS232 interface
Windows 7, XP, CE
36 millions

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


8-3

PPC-L62T
Dimensions

Unit: mm
186.00

136.50

189.00

49.00
9.50
7.00

148.00

133.50

202.00

CUT-OUT Dim

Specifications

Environment

Storage Temperature
Relative Humidity
Shock
Vibration
EMC
Safety

0 ~ 50°C (32 ~ 122°F)
-20 ~ 60°C (-4 ~ 140°F)
Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Operating Random Vibration Test 5~500Hz, 1Grms, follow IEC 60068-2-64
BSMI, CE, FCC Class B
CB, CCC, BSMI, UL
IP65 compliant

Part No.
PPC-L62T-R80-AXE
PPC-L62T-080-AXE

Description
Fanless Atom N455 PPC w/6.5" LCD+Res T/S+2LAN
Fanless Atom N455 PPC w/6.5" LCD+2LAN (w/o T/S)

I/O Appearance
A

B

F

Accessories
Part No.
PS-DC19-L157E
1700001524
170203183C
1700008921
PPC-L62T-HDD-EXPE
PPC-L62T-WLANE
2070011145
PPC-ARM-A03
PPC-174T-WL-MTE
2070011174
2070011418
2070011441
2070011675

8-4

Description
19 VDC power adapter module for PPC-L128/ PPC-L157T
POWER Cord 3P UL 10A 125V 180cm
POWER Code 3P Europe (WS-010+083)183cm
POWER CORD 3P/3P POWER SUPPLY 1.8M PSE
HDD kit for PPC-L62T
Wireless LAN Module for PPC-L62T
Image WES09 PPC-L62T V4.0 24 multi-languages with
SUSI Access
PPC ARM VESA Standard
Wall mount kit for PPC series
Image CE6.0 Pro PPC-L62T V1.0 (ENG) with SUSI
Image CE6.0 Pro PPC-L62T V1.0 (JPN) with SUSI
Image CE6.0 Pro PPC-L62T V1.0 (Traditional Chinese)
with SUSI
Image WES7E PPC-L62T V5.1.4 (ENG/JPN/Simplified
Chinese/Traditional Chinese), 4 languages with SUSI
Access

Fanless Panel PCs

C

A. Serial Port(RS-232/422/485)
B. USB 2.0 x 4
C. 10/100/1000 Ethernet x 2

D

E

D. Audio Line-out
E. Serial Port(RS-232)
F. DC inlet

PPC-3100

Intel® Atom™ D2550 Processor
Features

NEW

ƒƒ 10.4" TFT SVGA LED Panel with resistive touchscreen
ƒƒ Embedded Intel® Atom™ processor D2550 1.86 GHz
ƒƒ System memory up to 4 GB DDR3 1066 SDRAM
ƒƒ Supports one internal SATA 2.5" HDD and 1 x mSATA socket
ƒƒ Fanless design and low power consumption
ƒƒ COM1/COM2 pin9 RI/5V/12V adjustable through BIOS
ƒƒ LED backlight Auto dimming

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

C

UL
®

Operator Panels
US

Introduction


PPC-3100 is a new 10.4" Panel PC equipped with an Intel Atom processor D2550. Meeting high demands of harsh environments, the fanless design makes PPC-3100 more reliable
in different kinds of applications for the machine building industry. In addition, the dual GbE LAN, 4 x serial ports, 4 x USB ports, and GPIO connector make it easier to connect to
devices and be integrated into specific solutions. With a user friendly design it comes with an LED indicator on the front panel for power on/off, storage access, and LAN active status.

Specifications
CPU
Memory
2nd Cache Memory
Chipset
Storage
HDD
Processor System

OS Support
Power Supply

LCD Display

Touchscreen

I/O Ports
Bus Expansion
Network (LAN)
Speaker
Watchdog Timer
Weight
OS Support
Input Voltage
Display Type
Max. Resolution
Colors
Dot Size (mm)
Viewing Angle
Luminance(cd/m2)
Brightness Control
Backlight Lifetime
Touch Type
Resolution
Light Transmission
Controller
Software Driver Support

Intel Atom D2550 1.86 GHz 10W Dual Core CPU on board
SODIMM x 1, DDR3 1066, Max 4 GB, 2 GB DDR3 pre-installed
1 MB
Intel NM10
mSATA*1
1 x 2.5" SATA HDD Bay (Internal)
4 x Serial ports: 3 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS)
4 x USB 2.0 ports
1 x Line-out, 1x MIC-in
1 x DB15 VGA
1 x DB9 GPIO port (8 pin programable)
1x MINI PCIe
2 x 10/100/1000 Mbps Ethernet
2 x 1W speakers
275 x 220 x 64.3 mm (10.83" x 8.74" x 2.53")
2.5 kg (5.51 lb)
DC 12 ~ 30 V
800 x 600
262K
0.264 x 0.264
400
Yes
-20 ~ 70°C (-4 ~ 158°F)
30, 000 hrs (typical)
Analog Resistive 5-wire
2048 x 2048
81+/-3%
RS-232 interface
Windows 7, XP, CE
36 million


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

8-5

PPC-3100
Dimensions

Unit: mm

262.86

220.00

207.86

211.00

266.00

64.30
4.50
21.50

275.00

CUT OUT

Specifications

Environment

Storage Temperature
Relative Humidity
Shock
Vibration
EMC
Safety

0 ~ 50°C (32 ~ 122°F)
-20 ~ 60°C (-4 ~ 140°F)
CB, CCC, BSMI, UL
IP65 compliant

Part No.
PPC-3100-R2GAE
PPC-3100-R4GAE
PPC-3100-X2GAE
PS-DC19-L157E
1700001524
170203183C
1700008921
* PPC-174T-WL-MTE
* PPC-ARM-A03
PPC-3100-VESAE
PPC-3100-WLANE
2070011747
2070011748

Description
Atom D2550 Fanless Panel PC with 10.4" SVGA LED
backlight, 2 GB DDR3 pre-installed
backlight, w/o touch, 2 GB DDR3 pre-installed
19V power adapter module
Power cord 3P UL 10A 125V 1.8m
Power cord 3P Europe (WS-010+083)183cm
Power cord 3P/3P Power supply 1.8M PSE
PPC-3100 VESA bracket
PCIe Half Mini Card WLAN module for PPC-3100 series
Image XPE WES2009 PPC-3100 V4.3.1 24
multi-languages with SUSI Access
Image WES7E PPC-3100 V5.1.3.1 (ENG/JPN/Simplified
Access

* if you order Wall mount kit or ARM, please also order PPC-3100-VESAE at the same time.

8-6

Fanless Panel PCs

I/O
A

B

C

J

I

H

A. MIC in
B. 4 x USB
C. VGA
D. RS-232/422/485
E. Power S/W

D

E

G

F. DC-in
G. 3 x RS-232
H. GPIO
I. 2 x GbE
J. LINE out

F

PPC-3120

Intel® Atom™ D2550 Processor
Features

NEW

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ 12.1" TFT XGA LED Panel with resistive touchscreen
ƒƒ Embedded Intel® Atom™ processor D2550 1.86 GHz

Machine Automation

ƒƒ System memory up to 4 GB DDR3 1066 SDRAM
ƒƒ Supports one internal SATA 2.5" HDD and 1 x mSATA socket
ƒƒ Optional PCI/PCIe x1 expansion kit

Energy Automation

ƒƒ Fanless design and low power consumption

Building Automation
Systems

ƒƒ COM1/COM2 pin9 RI/5V/12V adjustable through BIOS
ƒƒ LED backlight Auto dimming

Automation Software

C

UL
®

Operator Panels
US

Introduction


The PPC-3120 is a new 12.1" Panel PC equipped with an Intel Atom processor D2550. Meeting high demands of harsh environments, the fanless design makes PPC-3120 more reliable
in different kinds of applications for the machine building industry. In addition, the dual GbE LAN, 4 x serial ports, 4 x USB ports, and GPIO connector make it easier to connect to
devices and be integrated into specific solutions. With a user friendly design it comes with an LED indicator on the front panel for power on/off, storage access, and LAN active status.

Specifications
CPU
Memory
2nd Cache Memory
Chipset
Storage
HDD
Processor System

OS Support
Power Supply

LCD Display

Touchscreen

I/O Ports
Bus Expansion
Network (LAN)
Speaker
Watchdog Timer
Weight
OS Support
Input Voltage
Display Type
Max. Resolution
Colors
Dot Size (mm)
Viewing Angle
Luminance (cd/m2)
Brightness Control
Backlight Lifetime
Touch Type
Resolution
Light Transmission
Controller

Industrial Monitors

Intel Atom D2550 1.86 GHz 10W Dual Core CPU on board
SODIMM x 1, DDR3 1066, Max 4 GB
1 MB
Intel NM10
mSATA*1
1 x 2.5" SATA HDD Bay (Internal)
4 x Serial ports: 3 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS)
4 x USB 2.0 ports
1 x Line-out, 1x MIC-in
1 x DB15 VGA
1 x DB9 GPIO port (8 pin programable)
1x MINI PCI-e (Standard), 1 x PCI / 1 x PCI-e through riser (Optional)
2 x 1W speakers
325 x 253.8 x 58.4 mm (12.79" x 10" x 2.3")
3.3 kg (7.27 lb)
DC 12 ~ 30 V
1024 x 768
262K
0.24 x 0.24
600
Yes
-30 ~ 80°C (-22 ~ 176°F)
50,000 hrs (typical)
2048 x 2048
81+/-3%
RS-232 interface
Windows 7, XP, CE
36 million

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

All product specifications are subject to change without notice

Industrial Panel

Last updated : 11-Mar-2013

8-7

PPC-3120
Dimensions

Unit: mm

58.40
12.00

240.00

237.59

253.80

325.00

CUT OUT

311.00

308.79

Specifications

Environment

Storage Temperature
Relative Humidity
Shock
Vibration
EMC
Safety

0 ~ 50°C (32 ~ 122°F)
-20 ~ 60°C (-4 ~ 140°F)
CB, CCC, BSMI, UL
IP65 compliant

Part No.
PPC-3120-R2GAE
PPC-3120-R4GAE
PPC-3120-X2GAE
PS-DC19-L157E
1700001524
170203183C
1700008921
* PPC-174T-WL-MTE
* PPC-ARM-A03
* PPC-3100-STANDE
PPC-3100-VESAE
PPC-3100-WLANE
PPC-3120-EXPE

Description
Atom D2550 Fanless Panel PC with 12.1" XGA LED
backlight, w/o touch, 2 GB DDR3 pre-installed
19V power adapter module
Power cord 3P UL 10A 125V 1.8m
Power cord 3P Europe (WS-010+083)183cm
Power cord 3P/3P Power supply 1.8M PSE
Desktop Stand for PPC-3100 series
PPC-3100 VESA bracket module
PCIe Half Mini Card WLAN module for PPC-3100 series
Add-on box for PCI or PCIe expansion
(include PCI / PCIe riser card)

* if you order Wall mount kit / ARM / Desktop stand, please also order PPC-3100-VESAE
at the same time.

8-8

Fanless Panel PCs

I/O
A

C

E

B

D

F

A. MIC in
B. Line Out
C. USB 2.0 x 4
D. 10/100/1000 Mbps Ethernet x 2
E. VGA Port

G

H

F. DIO Port
G. RS-232/422/485 x 1
H. RS-232 x 3
I. DC Inlet

I

PPC-L128T

Features

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ 12.1" TFT XGA LCD with optional resistive touchscreen
ƒƒ Embedded Intel® Atom™ processor N270 1.6 GHz
ƒƒ Supports up to 2 GB DDR2 SDRAM
ƒƒ Supports one internal SATA 2.5" HDD
ƒƒ Support 4 USB 2.0 ports, Dual Gigabit Ethernet
ƒƒ Optional PCI/PCIe x 1 expansion kit
ƒƒ Fanless and ultra-low power consumption
ƒƒ Automatic data flow control over RS-485 (COM2)

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

C

UL
®

Operator Panels
US

Introduction


The PPC-L128T is 12.1" Fanless panel PC that delivers high performance while consuming low power. The PPC-L128T operates with low noise and provides display resolutions
up to 1024 x 768 (XGA) pixels. The PPC-L128T is equipped with dual Gigabit Ethernet connectors supporting either failover or LAN teaming. Advantech’s customization services
and optional accessories including wireless modules, battery packs, and SATA optical devices, allowing system integrators to design tailor-made solutions for a host of industrial
applications. And PPC-L128T optionally supports a sunlight readable display, making it suitable for outdoor use.

Industrial Panel

Specifications

Industrial Monitors

Processor System

CPU
CPU Front Side Bus
Chipset
Secondary Cache
Memory
DVD+/-RW
SSD
HDD
Network (LAN)
Fully Integrated I/O and Speakers
Bus Expansion

OS Support
Power Supply

LCD Display

Touchscreen (optional)

Environmental
Specifications

Weight

Display Type
Max. Resolution
Colors
Pixel Pitch (mm)
Viewing Angle
Luminance (cd/m2)
Brightness Control
Backlight Lifetime
Type
Resolution
Light Transmission
Controller
Relative Humidity
Shock
Vibration
EMC
Safety

Intel Atom Processor N270 1.6 GHz
533 MHz
Intel 945GSE + Intel ICH7M
512 KB L2 Cache
200-pin DDR2 533 SODIMM x1 Up to 2 GB
Optional (989KL128T00E)
Supports one CompactFlash Type II, socket
One internal SATA interface- 2.5" Type
2 x 10/100/1000 Mbps (RJ-45)
3 Serial Ports: RS-232 x 2, RS-232/422/485 x 1; 1 GPIO port
1 VGA Port ; PS/2 Mouse and Keyboard
Line-in/ Line-out/ Mic-in
Built-in 1W x 2 speakers, USB 2.0 ports x 4
1 x expansion slot for PCI/PCIe card
1 x MINI PCIe slot
IP65 compliant
3.63 kg (7.98 Ib)
340.5 x 269.3 x 70.5 mm (13.41" x 10.6 x 2.78")
Win XPE, Win XP Pro, WES7 32 bit, CE 6.0 for R81 only
12 ~ 24 VDC

PPC-L128T-R80 series

PPC-L128T-R81 series

12.1" Color TFT LCD
12.1" Color TFT LCD (LED backlight)
1024 x 768
1024 x 768
262 K
262 K
0.240 x 0.240
0.240 x 0.240
160°/160°
160°/160°
450
600
N/A
Yes (by BIOS)
50,000 hours
50,000 hours
Analog Resistive 5 wires (ELO)
Analog Resistive 5 wires (AMT), Anti-Corrosive type
2048 x 2048
2048 x 2048
80 %
80 %
USB Interface
RS232 Interface (COM4)
35 million
35 million
0-45°C (32-113°F)
10 ~ 95 % @ 40°C, non-condensing
Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27
CE, FCC Class B, BSMI
CE CB, UL, BSMI, CCC , VCCI


Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

8-9

PPC-L128T
Dimensions

Unit: mm
308.01

10

60.5
316
180

238.5

236.81

269.3

M4 Tap.

160
244.8

340.5

cutout

309.5
M4 Tap. is only for front mount.

Part NO

Description
Intel Atom processor N270 1.6 GHz Fanless panel PC with
PPC-L128T-081-XE
12.1” TFT LCD (LED backlight)
PPC-L128T-081-XE with resistive touchscreen
PPC-L128T-R81-XE
(LED backlight)
Intel Atom processor N270 1.6 GHz fanless panel PC with
PPC-L128T-080-XE
12.1" TFT LCD
PPC-L128T-R80-XE PPC-L128T-080-XE with resistive touchscreen
PPC-L128T-R80-WXE PPC-L128T-080-XE with resistive touchscreen (White)
PPC-L128T w1G Memory/ Windows XPE XPE on 160G
PPC-L128T-RXPE0E
HDD
PPC-ARM-A03
VESA Stand ARM for PPC series
PPC-174T-WL-MTE Wall mount kit for PPC series
PPC-L126 STAND
Stand desktop stand for PPC-L126T/PPC-L127T
PPC-L128-EXPE
PCI/PCIe expansion kit for PPC-L128
PS-DC19-L157E
19V DC power adapter module for PPC-L128/PPC-L157
1700001524
Power cord 3P UL 10A 125V 1.8M
170203183C
POWER Code 3P Europe (WS-010+083)183cm
1700008921
POWER CORD 3P/3P POWER SUPPLY 1.8M PSE
989KL128T00E
Slim type DVD-RW Module for PPC-L128
989KL128T02E
Wireless LAN module for PPC-L128T
XPE WES2009 PPC-L128T V4.0 24 multi-languages with
2070008770
SUSI Access (R80)
2070010364
CE 6.0 Pro PPC-L128T V1.3 (ENG) with SUSI (R81)
XPE WES2009 PPC-L128T V4.0 24 multi-languages with
2070010549
SUSI Access (R81)
WES7P SP1 x86 PPC-L128T V5.1 (ENG/JPN/Simplified
2070010816
Chinese/Traditional Chinese), 4 languages with SUSI Access
(R81)
WES7E SP1 x86 PPC-L128T V5.1 (ENG) with SUSI Access
2070010817
(R81)

8-10

Fanless Panel PCs

I/O Appearance
A

B

C

D

E

I

J K

L

M

A. Main power switch
B. USB 2.0 x 3
C. Ethernet jack
D. USB 2.0
E. PS/2 mouse and keyboard
F. PCI/PCIe expansion slot cover
G. GPIO port
H. DC inlet

F

G

N

H

O

I. Line-in jack
J. Line-out jack
K. Mic-in jack
L. Ethernet jack
M. VGA port
N. Serial ports
O. Battery door cover

PPC-L157T

15" Fanless Panel PC with
Features
ƒƒ 15" TFT XGA LCD with optional resistive touchscreen
ƒƒ Embedded Intel® Atom™ processor N270 1.6 GHz
ƒƒ System memory up to 2 GB DDR2 SDRAM
ƒƒ Supports six USB 2.0 ports (4 external/ 2 internal), Dual Gigabit Ethernet
ƒƒ Optional PCI/PCIe x 1 expansion kit
ƒƒ Optional smart battery module
ƒƒ Automatic data flow control over RS-485 (COM2)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

C

UL
®

Operator Panels
US

Introduction


The PPC-L157T is a 15" Fanless panel PC that delivers high performance while consuming low power. The PPC-L157T operates with low noise and provides display resolutions up
to 1024 x 768 (XGA) pixels. The PPC-L157T is equipped with dual Gigabit Ethernet connectors supporting either failover or LAN teaming. Advantech’s customization services and
optional accessories including wireless modules, battery packs, and SATA optical devices, allow system integrators to design tailor-made solutions to a host of industrial applications.

Specifications

Processor System

CPU
CPU Front Side Bus
Chipset
Secondary Cache
Memory
DVD+/-RW
SSD
HDD
Network (LAN)
Fully Integrated I/O and
Speakers
Bus Expansion

OS Support
Power Supply

LCD Display


Environmental
Specifications

Weight
Display Type
Max. Resolution
Colors
Pixel Pitch (mm)
Viewing Angle
Luminance (cd/m2)
Backlight Lifetime
Type
Resolution
Light Transmission
Controller
Relative Humidity
Shock
Vibration
EMC
Safety

Intel Atom Processor N270 1.6 GHz
533 MHz
Intel 945GSE + Intel ICH7M
512 KB L2 Cache
200-pin DDR2 533 MHz SODIMM x1 Up to 2 GB, Compatible with 667 MHz
989KL15702E
Supports one CompactFlash Type II, socket
2 x 10/100/1000 Mbps (RJ-45)
3 Serial Ports: RS-232 x 2, RS-232/422/485 x 1; 1 GPIO port
1 VGA Port ; PS/2 Mouse and Keyboard
Line-in/ Line-out/ Mic-in
Built-in 1W x 2 speakers, USB 2.0 ports x 4
1 x MINI PCIe slot
IP65 compliant
6 kg (13.2 Ib)
396.5 x 317.6 x 74.8 (15.6" x 12.5" x 2.95")
Win XPE / Win XP Pro / WES7 32 bit / Windows 7 32bit
12 -24 Vdc, 15-24 VDC with battery pack
15" Color TFT LCD (CCFL backlight for R80, LED backlight for R81)
1024 x 768
262 K
0.297 x 0.297
160°/130°
350
50,000 hours
Analog Resistive 5 wires (ELO) (for R80)
Analog Resistive 5 wires (AMT), Anti-Corrosive type (for R81)
2048 x 2048
2048 x 2048
80 %
80 %
USB Interface
RS232 Interface (COM4)
35 million
35 million
0-50°C (32-122°F); 0-35°C with battery pack
Operating Random Vibration Test 5~500Hz, 1Grms, follows IEC 60068-2-64


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

8-11

PPC-L157T
Dimensions

Unit: mm
379.4

381.0

62.8

302.0

317.6

12.0

300.5

396.5

74.8

Cutout Dimensions

Part NO
PPC-L157T-080-XE
PPC-L157T-R80-XE
PPC-L157T-RXPE0E
PPC-ARM-A03
PPC-174T-WL-MTE
PPC-L157-STANDE
PPC-L157-EXPE
PS-DC19-L157E
1760001580
1700001524
989KL15700E
989KL15702E
PPC-L157T-R81-XE
2070009824
2070011575

Description
15" TFT LCD
PPC-L157T with 1G memory/Windows XPE on 160G HDD
Stand desktop stand for PPC-L157T
PCI/PCIe expansion kit for PPC-L157
Battery PACK 11.1V 4.4AH 3S2P
(only for PPC-L157T-R81-XE)
Power cord 3P UL 10A 125V 1.8M
Wireless Module for PPC-L157T Series
Slim type DVD-RW Module for PPC-L157T Series
15” TFT LCD and AMT Anti-Corrosive touchscreen
(LED backlight)
XPE WES2009 for PPC-L157T V4.0 24MUI (for R80)
XPE WES2009 V4.0, 24 multi-languages with SUSI Access
(for R81)

I/O Appearance
A

C

B

H

I

J

D

E

K

L

M

A. Main power switch
B. USB 2.0 x 3
C. Ethernet jack
D. USB 2.0
E. PS/2 mouse and keyboard
F. PCI/PCI-E expansion slot cover
G. GPIO port

8-12

Fanless Panel PCs

F

H. DC inlet
I. Line-in jack
J. Line-out jack
K. Mic-in jack
L. Ethernet jack
M. VGA port
N. Serial ports

G

N

PPC-L158T

15" Fanless Panel PC with
Intel® Atom™ Dual-Core Processor
Features

NEW

ƒƒ 15" TFT XGA LCD with optional resistive touchscreen
ƒƒ Embedded Intel® Atom™ processor, dual-core D525 1.8G
ƒƒ System memory up to 2 x DDR3 800 MHz SODIMMs
ƒƒ Supports One Mini PCIe socket, Dual Gigabit Ethernet
ƒƒ Either PCI/PCIe x 1 expansion kit
ƒƒ One RS-232/422/485; (supporting Auto-flow control, BIOS-selectable)
ƒƒ One RS-232/ GPIO (8 channels, TTL level); (by swapping pin header)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

C

UL
®

Operator Panels
US

Introduction


The PPC-L158T is a 15" Fanless panel PC that delivers high performance while consuming low power. The PPC-L158T operates with low noise and provides display resolutions up
to 1024 x 768 (XGA) pixels. The PPC-L158T is equipped with dual Gigabit Ethernet connectors, 8-channel GPIO function and either one PCI or one PCIe expansion slot. Advantech’s
customization services and optional accessories including wireless modules and SATA optical devices, allow system integrators to design tailor-made solutions for a host of industrial
applications.

Industrial Panel

Specifications

Industrial Monitors

CPU
Chipset
Secondary Cache
Memory
DVD-RW Drive
SSD
HDD
Network (LAN)

Processor System
Fully Integrated I/O and Speakers

Bus Expansion

OS Support
Power Supply

LCD Display


Environmental
Specifications

Weight
DC
AC

Input Voltage
Output Rating
Input Voltage

Display Type
Max. Resolution
Colors
Pixel Pitch (mm)
Viewing Angle
Luminance (cd/m2)
Brightness Control
Backlight Lifetime
Type
Resolution
Light Transmission
Controller
Relative Humidity
Shock
Vibration
EMC
Safety

Intel Atom processor, dual-core D525 1.8G
D525 + ICH8M
1MB L2 cache
2 x DDR3 800 MHz SODIMMs (up to 2GB each socket), compatible with 1066/1333 MHz (does not support ECC and REG)
Optional (989K017702E)
Supports one CFastTM Type I, II socket
2 x 10/100/1000 Mbps (RJ-45)
4 x COM ports: 2 x RS-232, 1 x RS-232/422/485, 1 x RS232/ GPIO (8 channels, TTL level)*
4 x USB 2.0 ports
Mic in/ Line out, 1W speaker - 2 x Gigabit Ethernet ports
1 x D-SUB VGA port
1 x PS/2 mouse and 1 x keyboard interface
1 x Parallel port (by an additional cable in the accessory box)
* RS-232/422/485 - selected in BIOS and supporting RS-232/GPIO by swapping pinheader, Auto-flow control
1 x MINI PCIe slot
IP65 compliant
6 kg (13.2 Ib)
396.5 x 317.6 x 103.5 mm (15.6" x 12.5 x 4.08")
Win XPE / Win XP Pro / WES7 32 bit / Windows 7 32 & 64 bit / CE6.0
15 ~ 24 VDC
85 W (max.)
100 ~ 240 VAC, 50 ~ 60 Hz, 1 ~ 2 A
15" Color TFT LCD
1024 x 768
262 K
0.297 x 0.297
160°/140°
350
Yes
50,000 hours
Analog Resistive 5-wire (AMT) Anti-Corrective type
2048 x 2048
80 %
RS-232 interface
35 million
0-50°C (32-122°F)


Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

8-13

PPC-L158T
Dimensions

Unit: mm

12.00

379.50

396.34

103.50

381.00

302.00

CUT-OUT Dim

75.00

75.00

96.30

83.80 100.00

317.74

300.60

100.00

Part NO
PPC-L158T-090-AXE
PPC-L158T-R90-AXE
PPC-L158T-090-DXE
PPC-L158T-R90-DXE
PPC-ARM-A03
PPC-174T-WL-MTE
PPC-155T STAND
PS-DC19-L157E
1700001524
989K017700E
989K017702E
2070010541
2070011078
PPC-L158T-WLANE
2070011241
2070011242

Description
Intel Atom processor, Dual Core processor D525 1.8G
fanless panel PC with 15" TFT LCD (with 85W PSU
inside)
(with 85W PSU inside)
Intel Atom Dual Core processor D525 1.8G fanless panel
PC with 15" TFT LCD (DC Input Model)
(DC Input Model)
Stand kit for PPC-L158T/157/177/ series
Power cord 3P UL 10A 125V 1.8M (for adapter)
Optical disc drive kit for PPC-L158T/157/177
(W/O ODD)
DVD-RW (SATA) module for PPC-L158T/157/177
Image XPE WES2009 PPC-L158 V4.0 24 MUI
Image CE 6.0 Pro PPC-L158 V1.0 ENG
Wireless Module for PPC-L158T Series
Image WES7E SP1 32 bit PPC-L158T V5.1 English
version
Image WES7P SP1 32 bit PPC-L158T V5.1, 36 multilanguage

I/O Appearance
AC Input Model
A

B

C

D

PPC-L158T-090-AXE
PPC-L158T-R90-AXE

G

I

J

K

F: 10/100/1000 Mbps Ethernet x 1
G: PCI Slot x 1 (or PCIe Slot x 1)
H: VGA Port
I: USB 2.0 x 4
J: 10/100/1000 Mbps Ethernet x 1
K: Line out/Mic in

A: AC Inlet
B: Power Switch
C: PS2 Mouse x 1 / Keyboard x1
D: RS-232 x 2, RS-232/422/485 x 1
E: RS-232 x 1 (or GPIO x 1 by cable
swapping)

DC Input Model
A

B

C

A: Power Switch
B: PS2 Mouse x 1 / Keyboard x 1
C: RS-232 x 1 (or GPIO x 1 by cable
swapping)
D: RS-232 x 2, RS-232/422/485 x 1
E: 10/100/1000 Mbps Ethernet x 1
F: PCI Slot x 1 (or PCIe Slot x 1)

Fanless Panel PCs

F

H

PPC-L158T-090-DXE G
PPC-L158T-R90-DXE

8-14

E

D

H

E

F

I

J

K

G: DC inlet
H: VGA Port
I: USB 2.0 x 4
J: 10/100/1000 Mbps Ethernet x 1
K: Line out/Mic in

Multi-functional Panel PCs
Selection Guide
NEW

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Selection Guide

Energy Automation

Multi-functional Panel Computer

Model Name

PPC-125T

2 x Gigabit Ethernet ports, Wake on
LAN, boot from LAN and LAN teaming
supported
150 W
100 ~ 240 VAC, 50 ~ 60 Hz, 2 ~ 4 A

100 ~ 240 VAC, 50/60Hz, 4 ~ 2 A

Technology
Light Transmission

supported
150 W
AC Model: 150 W
Input voltage: 100 ~ 240 VAC, 50 ~ 60 Hz,
2~4A
Resistive
80% (Resistive)

PPC-6150
MIO-5290
PCM-8207
3rd Gen Core i CPU
Celeron 847E 1.1 GHz
Core i3-3120ME 2.4 GHz
DDR3 (1600 MHz) / DDRL (1333 MHz),
supports up to 8 GB
1 x 204-pin SODIMM
2MB/3MB
1 x 2.5" SATA bay
Either one
- Second 2.5" SATA bay (Intel RAID
supported, optional)
- Slim type 8X or above DVD +/- RW
(optional)
15" TFT LCD (LED Backlight)
1024 x 768
262K
0.297 x 0.297
350
80°(left), 80°(right),
70°(up), 70°(down)
Yes
Yes
50,000 hrs
Intel 3rd Gen Core i CPU+QM77
Optional 1 x Slim type optical drive bay
(optional SATA optional drive)
Yes
4 x COM ports,
1 x isolated RS-232/422/485,
3 x RS232
1 x GPIO/RS-232 (8 channels, TTL level);
by pin header
3 x USB3.0 + 2 x USB2.0 ports
1 x D-SUB VGA port
1 x HDMI
1 x Line-out, 1 x Mic-in,
2 x 1W speaker
Either:
- one PCI + one PCIe x1 (standard)
- one x PCIe x 4 (in the accessory box)
- two PCIe x 1 (optional)
- two PCI (optional)
2 x Gigabit Gigabit Ethernet connectors,
Intel AMT supported (GbE1: Intel
82579LM, GbE2: Intel 82583V)
150W

PCM-8200

Resistive
80% (Resistive)

OS Support

Windows XPE/XP Pro, Vista

Window XP/XPE/Vista

35 million (Resistive)
255 level
0 ~ 50°C (32 ~ 122°F)
IP65 compliant
CE, FCC, BSMI, CCC, UL, CB
376 x 285.55 x 100.95 mm
(14.80" x 11.24" x 3.97")
5.8 kg (12.77 lb)
8-17

255 level
0 ~ 50°C (32 ~ 122°F)
IP65 compliant
BSMI, CE, FCC Class B, CCC
420 x 223.3 x 130.5 mm
(16.54" x 12.72" x 5.12")
6 kg (13.22lb)
8-19

Resistive
80% (Resistive)
Win XPE / Win XP Pro / WES7 32 & 64 bit /
Windows 7 32 & 64 bit
255 level
0 ~ 50°C (32 ~ 122°F)
IP65 compliant
CE, FCC, BSMI, CCC, UL
395.5 x 316.8 x 105.5 mm
(15.6" x 12.5" x 4.15")
6.5 Kg (14.32lb)
8-21

CPU Board

PPC-157T
PCM-8200

Socket 478 Supports Intel Core 2 Duo
processor up to 2.16 GHz

Processor

Supports Socket 478 based Core 2 Duo
up to 2.16 GHz

200-pin SODIMM x 2
On-die 512 KB ~ 4 M

Supports up to 4 GB of 667 MHz DDR2
system memory
SODIMM (socket x 2)
On-die 512 KB ~ 4 M

Supports 1 x internal CompactFlash Type
ll socket,
2.5" SATA HDD drive

Supports 1 x internal CompactFlash Type
ll socket,
2.5" SATA HDD drive

Size/Type
Max. Resolution
Max. Colors
Pixel Pitch (mm)
Brightness (cd/m2)

12.1"
1024 x 768
262 K
0.240 x 0.240
450

Viewing Angle

80°(left), 80°(right), 80°(up), 80°(down)

Brightness Control
Simultaneous Mode
Backlight MTBF
Chipset

Yes
Yes
50,000 hrs
945GME
Optional extenal module for 1 x slim type
optical drive (optional SATA optical drive)
Yes

15" Color TFT LCD
1024 x 768
262K
0.297 x 0.297
350
70°(up), 60°(down)
Yes
Yes
50,000 hrs
945GME
Yes

4 x COM ports (3 x RS-232, 1 x RS232/422/485)
6 x USB V2.0 ports, 1 x PS/2 mouse &
K/B,
Mic-in/Line-in/ Line-out, 1 W speakers,
2 x Gigabit Ethernet ports, 1 D-SUB VGA
port

4 x COM ports (3 x RS-232, 1 x RS232/422/485),
4 x USB 2.0 ports, 1 x PS/2 mouse and
keyboard interface, MIC in/Line in/Line out
port, 1W speaker,
2 x Gigabit Ethernet ports, 1 x D-SUB
VGA port

1 x PCI-e Expansion Slot or 1 x PCI slot
(Both are available as options)
1 x Mini PCI Socket, 1 x Mini PCI-e socket

1 x PCI-e Expansion Slot (PCI is available
as option)
1 x Mini PCI Socket
1 x Mini PCI-e socket

Size

Memory

Module Type
L2 Cache Memory

Storage/Type

Display

VGA

CD-ROM/Combo Drive
DVD-ROM, DVD+/- RW Drive Option

I/O Ports

Bus Expansion

Network (LAN)
Output Rating
Power

Touchscreen

Input Voltage

Watchdog Timer
Working Temperature
Certification
Weight
Page

512 MB ~ 4 GB DDR2 SDRAM


Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

8-15

Selection Guide
NEW

Selection Guide
PPC-177T

CPU Board

Processor

Size

Memory

Module Type
L2 Cache Memory

Storage/Type

Size/Type
Max. Resolution
Max. Colors
Pixel Pitch (mm)
Brightness (cd/m2)

Display

Viewing Angle
Brightness Control
Simultaneous Mode
Backlight MTBF
Chipset

VGA

CD-ROM/Combo Drive
DVD-ROM, DVD+/- RW Drive Option

I/O Ports

Bus Expansion

Network (LAN)
Power

Touchscreen

Output Rating
Input Voltage
Technology
Light Transmission
OS Support

Watchdog Timer
Working Temperature
Certification
Weight
Page

8-16

Multi-functional Panel Computer
PPC-179T

PCM-8200

Model Name

PCM-8203

PPC-6170
MIO-5290
PCM-8207
3rd Gen Core i CPU
Supports Socket 478 based Core 2 Duo
LGA775 Socket-based Intel Core 2 Duo
up to 2.16 GHz
Processor up to 3.0 GHz
DDR3 (1600 MHz) / DDRL (1333 MHz),
system memory
system memory
supports up to 8 GB
SODIMM (socket x 2)
240-pin DIMM x 2
1 x 204-pin SODIMM
On-die 512 KB ~ 4 M
On-die 512 KB ~ 4 M
2MB/3MB
1 x 2.5" SATA bay
Either one
Supports 1 x internal CompactFlash Type Supports 1 x internal CFast Type II socket,
- Second 2.5" SATA bay (Intel RAID
ll socket, 2.5" SATA HDD drive
1 2.5" SATA HDD drive
supported, optional)
- Slim type 8X or above DVD +/- RW
(optional)
17" Color TFT LCD
17" TFT LCD
1280 x 1024
1280 x 1024
1280 x 1024
16.7M
16.7 M
262K
0.264 x 0.264
0.264 x 0.264
0.264 x 0.264
380
380
350
80°(up), 80°(down)
80°(up), 80°(down)
80°(up), 80°(down)
Yes
Yes
Yes
Yes
Yes
Yes
50,000 hrs
50,000 hrs
50,000 hrs
945GME
Intel Q45
Intel 3rd Gen Core i CPU+QM77
Optional SATA slim type optical drive
Yes
Yes
YES
4 x COM ports,
1 x isolated RS-232/422/485,
4 x COM ports
3 x RS232
(3 x RS-232, 1 x RS-232/422/485)
3 x serial ports: 2 x RS-232,
1 x GPIO/RS-232 (8 channels, TTL level);
4 x USB 2.0 ports, 1 x PS/2 mouse and
1 x RS-232/422/485, 6 x USB2.0 ports,
by pin header
keyboard interface, Mic-in/Line-in/
Mic-in, Line-in, Line-out,
3 x USB3.0 + 2 x USB2.0 ports
Line-out port, 1 W speakers,
1 x D-SUB VGA port, 2 x Gigabit Ethernet
2 x Gigabit Ethernet ports,
ports
1 x D-SUB VGA port
1 x D-SUB VGA port
1 x HDMI
1 x Line-out, 1 x Mic-in, 2 x 1W speaker
Either:
1 x PCI-e Expansion Slot
(PCI is available as option)
1 x PCI + 1 x PCI-E through riser,
1 x Mini PCI Socket
1 x Mini PCIe
1 x Mini PCI-e socket
2 x Gigabit Gigabit Ethernet connectors,
Intel AMT supported (GbE1: Intel
supported
82579LM, GbE2: Intel 82583V)
150 W
220 W
150W
100 ~ 240 VAC, 50 ~ 60 Hz, 2 ~ 4 A
100 ~ 240 VAC @ 50 ~ 60 Hz
100 ~ 240 VAC, 50/60Hz, 4 ~ 2 A
Resistive
Resistive
Resistive
80% (Resistive)
80% (Resistive)
80% (Resistive)
Win XPE / Win XP Pro / WES7 32 & 64 bit /
Windows XPE/XP Pro, Vista, WES7
Windows XPE/XP Pro, Vista, WES7
Windows 7 32 & 64 bit
255 level
62 level, 1 ~ 62 seconds
255 level
0 ~ 50°C (32 ~ 122°F)
0 ~ 45°C (32 ~ 113°F)
0 ~ 50°C (32 ~ 122°F)
IP65 compliant
IP65 compliant
IP65 compliant
BSMI, VCCI, UL, CE, FCC, Class B, CCC
442 x 362 x 111.5 mm
446 x 382 x 149.3 mm
442.0 x 362.0 x 113.5 mm
(17.4" x 14.25" x 4.39")
(17.56" x 15.04" x 5.88")
(17.4" x 14.25" x 4.47")
7.6 kg (16.74 lb)
11.0 kg (27.94 lb)
7.5Kg (16.52lb)
8-23
8-25
8-27


PPC-125T

12" Panel PC with Intel® Core™2
Duo Processor
Features
ƒƒ 12.1" TFT XGA (1024 x 768) LCD Panel
ƒƒ Intel® Core™2 Duo processor up to 2.16 GHz
ƒƒ System memory up to 4 GB (DDR2 200-pin SODIMM socket x 2)
ƒƒ 1 x PCI slot or 1 x PCIe slot (both optional)
ƒƒ One Mini PCIe slot
ƒƒ Built-in CF card interface (IDE interface for OS booting)
ƒƒ Two Gigabit Ethernet ports, support LAN teaming
ƒƒ One RS-232/422/485; (supporting Auto-flow control, selecting by BIOS)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

C

UL
®

Operator Panels
US

Introduction


The PPC-125T is an Intel Core 2 Duo based Panel PC with 12.1" color TFT LCD. It features multimedia devices, various connectors, and can be installed in virtually any application.
In addition, its user-friendly interface makes it a great host for information appliances. Four serial COM supports auto-flow control PPC-125T advanced networking capabilities, and
provides a great solution for versatile applications.

Specifications

Processor System

CPU
CPU FSB
Chipset
Disk Drive Housing
Weight
HDD
DVD+/-RW Drive
Memory
Network (LAN)

I/O Ports

OS Support
Environmental
Specifications

Power
Supply

AC Model

LCD Display


Bus Expansion
OS Support
Relative Humidity
Shock
Vibration
EMC
Safety
Output Rating
Input Voltage
Output Voltage
Display Type
Size (Diagonal)
Max. Resolution
Max. Colors or Grayscales
Pixel Pitch (mm)
Luminance (cd/m2)
Contrast Ratio
Viewing Angle
LCD MTBF
Type

Supports mSocket 478 based Core 2 Duo up to 2.16 GHz
533/667 MHz
945GME + ICH7M
Room for 1 x 2.5" SATA HDD
376 x 285.55 x 100.95 mm (14.80" x 11.24" x 3.97")
IP65 compliant
5.6 kg (12.33 lb)
SATA HDD interface (2.5" HDD bay)
Optional external module with SATA DVD-RW Drive
Socket x 2, supports up to 4 GB DDR2 SDRAM 200pin SODIMM
2 x Gigabit Ethernet ports, support both wake on LAN and boot from LAN functions.
- 4 x COM ports: 3 x RS-232, 1 x RS-232/422/485
- 6 x USB 2.0 ports
- 1 x PS/2 mouse and keyboard interface
- MIC in / Line in / Line out port, 1 W speakers
- 2 x Gigabit Ethernet ports
- 1 x D-SUB VGA port
PCI riser card & PCIe riser card are available as options, 1 x Mini PCI socket, 1 x Mini PCIe socket
Win XPE, Win XP Pro, WES7 with 32 bit, WES7 with 64 bit (only for T7400 CPU)
0 ~ 50°C (32 ~ 122°F)
10 ~ 95% @ 40°C non-condensing
CB, CE, UL
150 W (max.)
100 ~ 240 VAC, 50 ~ 60 Hz, 2 ~ 4 A
+3.3 V @ 4.5 A, +5 V @ 8.5 A, +12 V @ 7.0 A, +5 Vsb @ 1.5 A, -12 V @ 0.3 A
Color TFT LCD
12.1"
1024 x 768
262 K
0.240 x 0.240
450
700 : 1
-30 ~ +70°C
50,000 hrs
5-wire Analog Resistive (USB interface)


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

8-17

PPC-125T
Dimensions

Unit: mm

Cut out

274.5

97.96

365

100.95

285.55

37.600

Part No.
PPC-125T-BAREE
PPC-125T-BARE-TE
PPC-125-STANDE
PPC-174T-WL-MTE
PPC-ARM-A03
989K012500E
989K012502E
989K012503E
1702002605
1702002600
2070006629
2070006569
2070011330

Feature Details

Description
12.1" Core 2 Duo Panel PC without T/S
12.1" Core 2 Duo Panel PC with Resi. T/S
Stand kit for PPC-125 series
PCI-e riser card with rear add-on box with 1 x Slim SATA
ODD bay
DVD-RW Drive Module for PPC-125 with 1 x PCI-e slot
PCI riser card with rear add-on box with 1 x Slim SATA
ODD bay
POWER CABLE 90D 220V EUROPEAN 250V/6A 1.8M
Power Cable UL/CSA (USA) 180D 125V10A 1.83M
XPE FP2007 PPC-125T V3.01 (ENG/JPN/Simplified
Access
Image XPE FP2007 PPC-125T V3.01 ENG
IMG XPE WES09 PPC-125T V4.0 24 multi-languages with
SUSI Access

I/O Appearance
KB/MS
VGA
Power switch
Audio Jacks
USB
COM

2

1
3

COM4

8-18

LAN

PCI Card slot

AC Inlet


Protection
To meet the requirements of a public environment, the front panel PPC-125T complies with
the IP65 protection standard. Furthermore, the watchdog timer and power management
features make the system secure and stable. The onboard hardware monitoring feature
provides an automatic protection function, which prevents the CPU from becoming
overheated.

Expansion
To extend functionality, the PPC-125T is designed with either one expansion slot for PCI
card or PCIe card and six USB 2.0 (Univeral Serial Bus) ports. With these expansion
capabilities, the PPC-125T not only functions as an HMI, but also as a computing center
on which to build your applications.

PPC-157T

Duo Processor
Features
ƒƒ System memory up to 4 GB 667 MHz DDR2 SODIMM socket x 2
ƒƒ One PCIe Expansion Slot (PCI is available as an option)
ƒƒ One Mini PCI socket, One Mini PCIe socket
ƒƒ Dual Gigabit Ethernet ports supporting LAN teaming

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

C

UL
®

Operator Panels
US

Introduction


The PPC-157T is an Intel Core 2 Duo based Panel PC with 15" color TFT LCD. It features multimedia devices, various connectors, and can be installed in virtually any application.
In addition, its user-friendly interface makes it a great host for information appliances. Four serial ports and two Gigabit Ethernet ports give the PPC-157T advanced networking
capabilities, and provide a great solution for versatile applications.

Specifications

Processor System

CPU
CPU FSB
Chipset
Disk Drive Housing
Weight
HDD
DVD+/-RW Drive
Memory
Network (LAN)
I/O Ports

OS Support
Environmental
Specifications

Power
Supply

AC Model

LCD Display


Bus Expansion
OS support
Relative Humidity
Shock
Vibration
EMC
Safety
Output Rating
Input Voltage
Output Voltage
Display Type
Size (Diagonal)
Max. Resolution
Pixel Pitch (mm)
Luminance (cd/m2)
Contrast Ratio
Viewing Angle
LCD MTBF
Type

533/667 MHz
945GME + ICH7M
396.5 x 317.6 x 103.5 mm (15.6" x 12.5 x 4.08")
6 kg (13.22lb)
IP65 compliant
Optional SATA 8X or above DVD+/-RW Drive, Optional optical drive bay
Supports up to 4 GB of 667 MHz DDR2 SODIMM system memory (socket x 2)
2 x Gigabit Ethernet ports, Wake on LAN, boot from LAN and LAN teaming supported
- 4 x COM ports: 2 x RS-232, 1 x RS-232/422/485,
1 x RS-232/ GPIO (8 channels, TTL level)*
- 4 x USB 2.0 ports
- Mic in/ Line out / Line in, 1W speaker
* RS-232/422/485 - selecting by BIOS and supporting Auto-flow control,
RS-232/GPIO - by swapping pin header
1 x PCI-e Expansion Slot (PCI is available as an option), 1 x Mini PCI socket, 1 x Mini PCI-e socket
Win XPE / Win XP Pro / WES7 32 & 64 bit / Windows 7 32 & 64 bit (64 bit only for T7400)
0 ~ 50°C (32 ~ 122°F)
CB, CE, UL
150 W (max.)
100 ~ 240 VAC, 50 ~ 60 Hz, 2 ~ 4 A
+3.3 V @ 4.5 A, +5 V @ 8.5 A, +12 V @ 7.0 A, +5 Vsb @ 1.5 A, -12 V @ 0.3 A
Color TFT LCD
15"
1024 x 768
262K
0.297 x 0.297
350
400:1
50,000 hrs


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

8-19

PPC-157T
Dimensions

Unit: mm

12

379.5

103.5

302

300.5

Part No.
PPC-157T-BAREE
PPC-157T-BARE-TE
PPC-155T STAND
PPC-ARM-A03
PPC-174T-WL-MTE
1702002605
1702002600
989K017700E
989K017702E
989K070601E
2070011562

I/O Appearance
A

J

G

A: Line in/Line out/Mic in
B: PS2 Mouse & Keyboard
C: USB 2.0 x 4
D: VGA Port
E: Power Switch

8-20

B

C

H

D

CUT-OUT Dim.

Feature Details

Description
15" C2D Based PPC without T/S
15" C2D Based PPC with Resistive T/S
Stand kit for PPC-155/157/175/177 series
Power cord 90D 220V EUROPEAN 250V/6A, 1.8M
Power cord UL/CSA (USA) 180D 125V/10A 1.83M
Optical disc drive kit for PPC-157/177 (W/O ODD)
DVD-RW (SATA) module for PPC-157/177
PCI riser card for PPC-157/177
802.11 b/g/n RT5390 1T1R Full Size Mini PCIe for
PPC-L158/157/177 Series
XPE WES2009 V4.3, 24 multi-language with SUSI Access

PPC-L158T-WLANE

381

317.6

396.5

E

F

I

F: AC Inlet
G: PCI Slot x 1
H: 10/100/1000 Base-T Ethernet x 2
I: RS-232 x 3 (including RS232/422/485 x 1, COM2)
J: RS-232/GPIO (by swapping pin header)


Protection
overheated.

Expansion
To extend functionality, the PPC-157T is designed with one PCI-e expansion Slot (PCI is
available as option) and Four USB 2.0 (Univeral Serial Bus) ports. With these expansion

PPC-6150

15" Panel PC with Intel® Core™ i3 / i5 /
Celeron® Processor
Features

NEW

ƒƒ Intel® Core™ i3, i5, Celeron 847E and 1020E + Intel QM77 PCH
ƒƒ 1X DDR3/DDR3L SODIMM support to 8 GB
ƒƒ Multiple expansion slots including one PCIe x4, one PCI + one PCIe x1, two
PCI (optional) and two PCIe x1 (optional)
ƒƒ Optional second HDD, supports Intel RAID
ƒƒ One isolated RS-232/422/485 port; (selectable in by BIOS)
ƒƒ One GPIO/RS-232 (8 channels, TTL level); (by swapping pin header)
ƒƒ Dual GbE, supports Intel AMT8.0
ƒƒ Supports iManager, SUSIAccess and Embedded Software APIs

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

C

UL
®

US

Introduction


The PPC-6150 is a Panel PC with an Intel Core i3/i5 or Celeron processor, and a 15" color TFT LCD panel. It features extremely high computing power, modular design, excellent
connectivity, and can support virtually any application. In addition, its user-friendly interface makes it a great host for information appliances. Two expansion slots, dual hard drives
supporting Intel RAID, and one isolated RS-232/422/485 port make the PPC-6150 highly reliable, and provide a great solution for a wide range of applications.

Specifications
Intel
Frequency
L3 Cache
Chipset
Memory
Storage 1
Storage 2
Processor System

Network (LAN)
I/O ports
Expansion Slots

Additional Expansion
Physical
Characteristics
OS Support

Power Supply

LCD Display

Operator Panels

FAN
Dimensions
Weight
OS Support
Output Rating
Input Voltage
Power Consumption
Display Type
Max. Resolution
Colors
Dot Size (mm)
Viewing Angle
Luminance(cd/m2)
Contrast Ratio
Backlight Lifetime

Core i5-3610ME
Core i3-3120ME
Celeron 847E
Celeron 1020E
2.7 GHz
2.4 GHz
1.1 GHz
2.2 GHz
4M
3M
2M
2M
Intel QM77
1 x 204-pin SODIMM, DDR3 (1600 MHz) / DDRL (1333 MHz), supports up to 8 GB
1 x 2.5" SATA bay
Either one
- Second 2.5" SATA bay (Intel RAID supported, optional)
- Slim type 8X or above DVD +/- RW (optional)
2 x Gigabit Gigabit Ethernet connectors, Intel AMT supported (GbE1- Intel 82579LM, GbE2 – Intel 82583V)
- 4 x COM ports, 1 x isolated RS-232/422/485,
- 2 x Gigabit Ethernet
3 x RS232
- 1 x GPIO/RS-232 (8 channels, TTL level); by pin
- 1 x HDMI
header
- 1 x Line-out, 1 x Mic-in, 2 x 1W speaker
- 3 x USB3.0 + 2 x USB2.0 ports
Either:
1 x Full-size mini PCIe (Supports mSATA)
1 x half-size mini PCIe
Two 12V 60 x 60 x 13 (mm) with smart fan control, (70,000 hours continuous test @ 40° C)
395.5 x 316.8 x 105.5 (mm) (15.6" x 12.5" x 4.15")
6.5 Kg (14.32lb)
Win XPE / Win XP Pro / WES7 32 & 64 bit / Windows 7 32 & 64 bit
150 W (max.)
100 - 240VAC, 50/60Hz, 4-2A
With Core i5-3610ME is 61W
With Celeron 847E is 48W
(Burn-in test 7.0 in Windows 7 32-bit)
1024 x 768
262K
0.297 x 0.297
350
700
-30 ~ 85°C


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

8-21

PPC-6150
Dimensions

Unit: mm

12.0

23.5

379.0

381

395.5

105.5

Max. depth for VESA mounting screws is 7.5 (mm)

75.0
96.3

CUT
OUT

302

100.0
83.8

316.8

300.0

100.0
75.0

Specifications (Cont.)
Touchscreen

Environment

Touch Type
Resolution
Light Transmission
Controller
Storage Temperature
Relative Humidity
Shock
Vibration
EMC
Safety

2048 x 2048
81+/-3%
RS-232 interface (COM5), USB interface is available as an option
Windows 7, XP
36 million
0 ~ 50°C (32 ~ 122°F)
-20 ~ 60°C (-4 ~ 140°F)
BSMI, CE, FCC Class A
CB, CCC, BSMI, UL
IP65 compliant

Part No.
PPC-6150-Ri5AE
PPC-6150-Ri3AE
PPC-6150-RC8AE
PPC-6150-WLANE
PPC-6150-PCIE
PPC-6150-PCIEE
PPC-6150-HDDE
PPC-6150-DVDE
PPC-174T-WL-MTE
PPC-ARM-A03
PPC-155T STAND
1702002605
1702002600
2070011757
2070011758
PPC-6150-RC10AE

8-22

Description
Intel Core i5-3610ME (2.7G) Panel PC with 15" XGA LED
backlight and 5-wire resistive T/S, w/o memory
Intel Celeron 847E (1.1G) Panel PC with 15" XGA LED
WiFi Module with Intel 6205 support 802.11 abgn, 2T2R
Riser card support two PCI slots for PPC-6150/PPC-6170
Riser card support two PCIe x1 slots for PPC-6150/
PPC-6170
Kit to install the second 2.5" SATA HDD for PPC-6150/
PPC-6170, w/o HDD
Module with 8X SATA DVD-RW for PPC-6150/PPC-6170
Stand kit for PPC-6150/PPC-6170
Power cord UL/CSA(USA) 180D 125V/10A 1.83M
WES 7 32-bit (ENG/JPN/Simplified Chinese/Traditional
Chinese), 4 languages with SUSI Access


I/O Placement
A

B

C

D

K

A: AC Inlet
B: Power Switch
C: USB 3.0 x 2, USB 2.0 x 2
D: HDMI
E: VGA
F: Gigabit Ethernet x 2

E

F

L

G

K

J

I

H

G: 2 Expansion slots
H: Line out/ Mic in
I: USB 3.0 x 1
J: GPIO / RS-232 (by swapping pin header)
K: RS-232 x 3
L: Isolated RS-232/422/485 (selecting by BIOS)

PPC-177T

Duo Processor
Features
ƒƒ System memory up to 4 GB 667 MHz DDR2 SODIMM socket x 2
ƒƒ One PCIe Expansion Slot (PCI is available as an option)
ƒƒ One Mini PCI socket, One Mini PCIe socket
ƒƒ Dual Gigabit Ethernet ports supports LAN teaming

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

C

UL
®

Operator Panels
US

Introduction


The PPC-177T is an Intel® Core 2 Duo based Panel PC with 17" color TFT LCD. It features multimedia devices, various connectors, and can be installed in virtually any application.
In addition, its user-friendly interface makes it a great host for information appliances. Four serial ports and two Gigabit Ethernet ports give the PPC-177T advanced networking
capabilities, and provide a great solution for versatile applications.

Specifications

Processor System

CPU
CPU FSB
Chipset
Disk Drive Housing
Weight
HDD
DVD+/-RW Drive
Memory
Network (LAN)

I/O Ports

OS Support
Environmental
Specifications

Power
Supply

AC Model

LCD Display


Bus Expansion
OS Support
Relative Humidity
Shock
Vibration
EMC
Safety
Output Rating
Input Voltage
Output Voltage
Display Type
Size (Diagonal)
Max. Resolution
Pixel Pitch (mm)
Luminance (cd/m2)
Contrast Ratio
Viewing Angle
LCD MTBF
Type

533/667 MHz
945GME + ICH7M
442 x 362 x 111.5mm (17.4" x 14.25" x 4.39")
7.6 kg (16.74 lb)
IP65 compliant
Optional SATA 8X or above DVD+/-RW Drive, Optional optical drive bay
Supports up to 4 GB of 667 MHz DDR2 SODIMM system memory (socket x 2)
2 x Gigabit Ethernet ports, Wake on LAN, boot from LAN and LAN teaming supported
- 4 x COM ports: 2 x RS-232, 1 x RS-232/422/485,
1 x RS-232/ GPIO (8 channels, TTL level)*
- 4 x USB 2.0 ports
- Mic in/ Line out / Line in, 1W speaker
* RS-232/422/485 - selecting by BIOS and supporting Auto-flow control
RS-232/GPIO - by swapping pin header
1 x PCIe Expansion Slot (PCI is available as option), 1 x Mini PCI socket, 1 x Mini PCI-e socket
Win XPE / Win XP Pro / WES7 32 & 64 bit / Windows 7 32 & 64 bit (64 bit only for T7400)
0 ~ 50°C (32 ~ 122°F)
CB, CE, UL
150 W (max.)
100 ~ 240 VAC, 50 ~ 60 Hz, 2 ~ 4 A
+3.3 V @ 4.5 A, +5 V @ 8.5 A, +12 V @ 7.0 A, +5 Vsb @ 1.5 A, -12 V @ 0.3 A
Color TFT LCD
17"
1280 x 1024
16.7M
0.264 x 0.264
380
800:1
50,000 hrs


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

8-23

PPC-177T
Dimensions

Unit: mm
425.14

12

347

Part No.
PPC-177T-BAREE
PPC-177T-BARE-TE
PPC-155T STAND
PPC-ARM-A03
PPC-174T-WL-MTE
PPC-175 RACK-MT
1702002605
1702002600
989K017700E
989K017702E
989K070601E
2070011804

I/O Appearance
A

J

B

G

A: Line in/Line out/Mic in
B: PS2 Mouse & Keyboard
C: USB 2.0 x 4
D: VGA Port
E: Power Switch

8-24

C

H

D

CUT-OUT Dim.

Feature Details

Description
17" Core 2 Duo Based Panel PC without T/S
17" Core 2 Duo Based Panel PC with Resistive T/S
Stand kit for PPC-155/157/175/177 series
Rack mount kit for PPC-175/177 series
Power cord UL/CSA (USA) 180D 125V/10A 1.83M
Optical disc drive kit for PPC-177T (W/O ODD)
DVD-RW (SATA) module for PPC-177T
PCI riser card for PPC-177T
802.11 b/g/n RT5390 1T1R Full Size Mini PCIe for
PPC-L158/157/177 Series
XPE WES2009 V4.3, 24 multi-language with SUSI Access

PPC-L158T-WLANE

427

442

362

345.14

99.5

E

F

I

F: AC Inlet
G: PCI Slot x 1
H: 10/100/1000 Base-T Ethernet x 2
I: RS-232 x 3 (including RS232/422/485 x 1, COM2)
J: RS-232/GPIO (by swapping pin header)


Protection
overheated.

Expansion
To extend functionality, the PPC-177T is designed with one PCI-e expansion Slot (PCI is
available as option) and Four USB 2.0 (Univeral Serial Bus) ports. With these expansion

PPC-179T

17" Panel PC with
Intel® Core™2 Duo Processor
Features
ƒƒ 17" TFT SXGA LCD
ƒƒ Intel® Core™2 Duo LGA775 Socket-based processor up to 3.0 GHz
ƒƒ Supports 240-pin DDR3 1333/1066 DIMM x2 Up to 4 GB
ƒƒ Rugged die-cast aluminum housing with removable plastic front bezel
ƒƒ Supports One Mini PCIe socket, Dual Gigabit Ethernet
ƒƒ One PCI and one PCIe expansion slot
ƒƒ One RS-232/422/485; (supporting Auto-flow control, jumper-selected)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

C

UL
®

Operator Panels
US

Introduction


PPC-179T is a top performing and highly expandable panel PC. Equipped with a 17" Color TFT LCD, it features high performance, multimedia devices, connectors, and 2 expansion
sockets (PCI and PCIe) for high expansion capacity. Because of its multifunctional design, the PPC-179T meets demands from multimedia applications and interactive kiosks that
require big displays and powerful computing performance.

Specifications

Processor System

CPU
Weight
HDD
DVD+/-RW Drive
Memory
Network (LAN)
I/O ports

Environmental
Specifications

Touchscreen (Optional)

LCD Display

Power Supply

Bus Expansion
Relative Humidity
Shock
Vibration
EMC
Safety
Types
Resolution
Light Transmission
Controller
Power Consumption
Display Type
Size (Diagonal)
Max. Resolution
Pixel Pitch (mm)
Luminance (cd/m2)
Contrast Ratio
Viewing Angle
LCD MTBF
Output Rating
Input Voltage
Output Voltage

Supports LGA775 Socket-based Intel Core 2 Duo Processor up to 3.0 GHz
446 x 382 x 149 mm (17.56" x 15.04" x 5.87")
10 kg (22 lb)
IP65 compliant
One internal SATA interface - 2.5" Type
Equipped with one slim 8x SATA DVD +/- RW (BLACK)
Supports 240-pin DDR3 1333/1066 DIMM x2 Up to 4 GB (only supports 64X8 and 128X8, not for 256X8)
2 x 10/100/1000 Mbps (RJ-45)
- 4 x serial ports: 3 x RS-232, 1 x RS-232/422/485
- 6 x USB2.0 ports
- Mic-in, Line-in, Line-out, 1W speaker
1 x PCI + 1 x PCIe (standard) , 2 x PCI (in the accessory box), 1 x Mini PCI-e socket
0 ~ 45°C (32 ~ 113°F)
10 ~ 95% @ 40°C, non-condensing
BSMI, VCCI, CE, FCC Class B, CCC
CB, CE, UL
Analog Resistive
2048 x 2048
75%
RS-232 interface, (COM6)
+5 V @ 200 mA
Color TFT LCD
17"
1280 x 1024
16.7M
0.264 x 0.264
380
1000:1
50,000 hrs
220W (max.)
100 ~ 240 VAC @ 50 ~ 60Hz
+3.3 V @ 14.0A, +5 V @ 16.0A, +12 V @ 16 A + 10 A, -12 V @ 0.8 A, +5 Vsb @ 2.5 A


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

8-25

PPC-179T
401.39

Unit: mm

11.80

Dimensions

445.51

214.00

100.00

Feature Details

Description
Panel PC with 17" TFT LCD display
(resolution: 1280 x 1024)
PPC-179T with resistive touchscreen
19" Rack Mounting kit for PPC-174 (9U)
Power Cable UL/CSA (USA) 180D 125V10A 1.83M
Power Cable 90D 220V EUROPEAN 250V/6A 1.8M
XPE WES2009 V4.0, 24 multi-languages

PPC-179T-BAREE
PPC-179T-BARE-TE
PPC-174T-WL-MTE
PPC-174 RACK-MT
1702002600
1702002605
2070010804

B

C

D

E

A. AC inlet
B. Power switch
C. PCI expansion x 1, PCIe expansion x 1
D. RS232 x 3, RS232/422/485 x 1

8-26

Protection
The PPC-179T is robust enough to withstand harsh environments on factory floors and
in an external environment. The die-cast housing also acts as a heat sink to prevent the
system from overheating.

Networking
Four serial ports and dual 10/100/1000 Mbps Ethernet port give the PPC-179T advanced
networking capabilities and provide the best solution for versatile applications.

Expansion
To extend its functionality, the PPC-179T is designed with two expansion slots for one
PCI and one PCIe card, one Mini PCIe slot, six USB 2.0 (Universal Serial Bus) ports, four
COM ports. With these expansion capabilities, the PPC-179T not only functions as an
HMI, but also as a computing center around which to build your application.

I/O Appearance
A

355.50

CUT-OUT Dim

Part No.

403.50

381.80

353.27

149.30

F

G

H

E. VGA port
F. USB2.0 x 6
G. 10/100/1000 Mbps Ethernet x 2
H. Line-in/Line-out/Mic-in


PPC-6170

17" Panel PC with Intel® Core™ i3 / i5 /
Celeron® Processor
Features

NEW

ƒƒ Intel® Core™ i3, i5, Celeron 847E and 1020E + Intel QM77 PCH
ƒƒ 1X DDR3/DDR3L SODIMM support to 8 GB
ƒƒ Multiple expansion slots including one PCIe x4, one PCI + one PCIe x1, two
PCI (optional) and two PCIe x1 (optional)
ƒƒ Optional second HDD, supports Intel RAID
ƒƒ One isolated RS-232/422/485 port; (selectable in by BIOS)
ƒƒ One GPIO/RS-232 (8 channels, TTL level); (by swapping pin header)
ƒƒ Dual GbE, supports Intel AMT8.0
ƒƒ Supports iManager, SUSIAccess and Embedded Software APIs

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

C

UL
®

US

Introduction


The PPC-6170 is a Panel PC with an Intel Core i3/i5 or Celeron processor, and a 17" color TFT LCD panel. It features extremely high computing power, modular design, excellent
connectivity, and can support virtually any application. In addition, its user-friendly interface makes it a great host for information appliances. Two expansion slots, dual hard drives
supporting Intel RAID, and one isolated RS-232/422/485 port make the PPC-6170 highly reliable, and provide a great solution for a wide range of applications.

Specifications
Intel
Frequency
L3 Cache
Chipset
Memory
Storage 1
Storage 2
Processor System

Network (LAN)
I/O ports
Expansion Slots

Additional Expansion
Physical
Characteristics
OS Support

Power Supply

LCD Display

Operator Panels

FAN
Dimensions
Weight
OS Support
Output Rating
Input Voltage
Power Consumption
Display Type
Max. Resolution
Colors
Dot Size (mm)
Viewing Angle
Luminance(cd/m2)
Contrast Ratio
Backlight Lifetime

Core i5-3610ME
Core i3-3120ME
Celeron 847E
Celeron 1020E
2.7 GHz
2.4 GHz
1.1 GHz
2.2 GHz
4M
3M
2M
2M
Intel QM77
1 x 204-pin SODIMM, DDR3 (1600 MHz) / DDRL (1333 MHz), supports up to 8 GB
1 x 2.5" SATA bay
Either one
- Second 2.5" SATA bay (Intel RAID supported, optional)
- Slim type 8X or above DVD +/- RW (optional)
2 x Gigabit Gigabit Ethernet connectors, Intel AMT supported (GbE1- Intel 82579LM, GbE2 – Intel 82583V)
- 4 x COM ports, 1 x isolated RS-232/422/485,
- 2 x Gigabit Ethernet
3 x RS232
- 1 x GPIO/RS-232 (8 channels, TTL level); by pin
- 1 x HDMI
header
- 1 x Line-out, 1 x Mic-in, 2 x 1W speaker
- 3 x USB3.0 + 2 x USB2.0 ports
Either:
1 x Full-size mini PCIe (Supports mSATA)
1 x half-size mini PCIe
Two 12V 60 x 60 x 13 (mm) with smart fan control, (70,000 hours continuous test @ 40° C)
442.0 x 362.0 x 113.5 (mm) (17.4" x 14.25" x 4.47")
7.5Kg (16.52lb)
Win XPE / Win XP Pro / WES7 32 & 64 bit / Windows 7 32 & 64 bit
150 W (max.)
100 - 240VAC, 50/60Hz, 4-2A
With Celeron 847E is 53W
(Burn-in test 7.0 in Windows 7 32-bit)
1280 x 1024
262K
0.264 x 0.264
350
1,000
-30 ~ 85°C


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

8-27

PPC-6170
Dimensions

Unit: mm

12.0

31.5

425.1
377.8

442.0

113.5

427

Max. depth for VESA mounting screws is 7.5 (mm)

75.0
118.5

347

100.0
106.0

362.0

298.9

345.1

100.0
75.0
CUT
OUT

Specifications (Cont.)
Touchscreen

Environment

Touch Type
Resolution
Light Transmission
Controller
Storage Temperature
Relative Humidity
Shock
Vibration
EMC
Safety

2048 x 2048
81+/-3%
RS-232 interface (COM5), USB interface is available as an option
Windows 7, XP
36 million
0 ~ 50°C (32 ~ 122°F)
-20 ~ 60°C (-4 ~ 140°F)
BSMI, CE, FCC Class A
CB, CCC, BSMI, UL
IP65 compliant

Part No.
PPC-6170-Ri5AE
PPC-6170-Ri3AE
PPC-6170-RC8AE
PPC-6150-WLANE
PPC-6150-PCIE
PPC-6150-PCIEE
PPC-6150-HDDE
PPC-6150-DVDE
PPC-174T-WL-MTE
PPC-ARM-A03
PPC-155T STAND
1702002605
1702002600
2070011780
2070011779
PPC-6170-RC10AE

8-28

Description
WiFi Module with Intel 6205 support 802.11 abgn, 2T2R
Riser card support two PCI slots for PPC-6150/PPC-6170
Riser card support two PCIe x1 slots for PPC-6150/
PPC-6170
Kit to install the second 2.5" SATA HDD for PPC-6150/
PPC-6170, w/o HDD
Module with 8X SATA DVD-RW for PPC-6150/PPC-6170
Stand kit for PPC-6150/PPC-6170
Power cord UL/CSA(USA) 180D 125V/10A 1.83M


I/O Placement
A

B

C

D

L

A: AC Inlet
B: Power Switch
C: USB 3.0 x 2, USB 2.0 x 2
D: HDMI
E: VGA
F: Cable clip x 2
G: Gigabit Ethernet x 2

E F

M

G

H

L

K

J

I

H: 2 Expansion slots
I: Line out / Mic in
J: USB 3.0 x 1
K: GPIO / RS-232 (by swapping pin header)
L: RS232 x 3
M: Isolated RS-232/422/485 (selecting by
BIOS)

Industrial Panel Computer
Selection Guide

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation
Model

IPPC-9171G

IPPC-6152A

IPPC-6172A

IPPC-6192A

IPPC-4001D/4008D

CPU

Socket μFC- PGA988
Intel® Core™ i7,
i5,i3, Celeron Mobile
Processor

Socket LGA775 Core™
2 Quad/Core™ 2 Duo
up to 3GHz

up to 3GHz

up to 3GHz

Optional CPU Card

Memory

Up to 8GB DDR3
SODIMM
1333MHz/1066MHz

Up to 8GB DDR3
SODIMM
1333MHz/1066MHz

Up to 4GB DDR3
SDRAM
1333MHz/1066MHz

Up to 4GB DDR3
SDRAM
1333MHz/1066MHz

Up to 4GB DDR3
SDRAM
1333MHz/1066MHz

Optional CPU Card

Display Type

XGA LED LCD

SXGA LED LCD

XGA TFT LCD

SXGA TFT LCD

SXGA TFT LCD

VGA LED LCD

Display Size

15"

17"

15"

17"

19"

5.7"

Max.
Resolution

Display

IPPC-9151G
Socket μFC- PGA988
Intel® Core™ i7, i5,
i3, Celeron Mobile
Processor

1024 x 768

1280 x 1024

1024 x 768

1280 x 1024

1280 x 1024

640 x 480

Max. Colors

16.2M/256K colors

16.7M colors
(RGB 6-bits +
Hi-FRC data)

16.2 M
(RGB 6-bit +
FRC data)

16.7 M

16.2M
(RGB 6-bit + FRC data)

262 K (RGB 6-bit)

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels

Luminance
cd/m2

350

380

250

380

300

700

Viewing Angle
(H/V°)

160/140

170/160

160/130

170/160

178/178

160/140

Backlight
MTBF (hrs)

50000 hrs

50000 hrs

50000 hrs

50000 hrs

50000 hrs

50000 hrs


Touchscreen

Resistive

Resistive

Resistive

Resistive

Resistive

Resistive

Network(LAN)

2 x 10/100/1000Bast-T

2 x 10/100/1000Bast-T

2 x 10/100/1000Bast-T

2 x 10/100/1000Bast-T

2 x 10/100/1000Bast-T

-

I/O ports

4 xRS-232,
1 x VGA,
1 x HDMI,5 x USB 2.0
(one at front),
1 x CFast slot,
1 x keyboard and 1 x
mouse, Mic-in, Lineout, Line-in

4 xRS-232,
1 x VGA,1 x HDMI,
5 x USB 2.0
(one at front),
1 x CFast slot,
1 x keyboard and 1 x
mouse, Mic-in, Lineout, Line-in

2 x RS-232,
1 x RS-232/422/485,
1 x VGA port,
2 x PS2 (Keyboard,
Mouse), 5 x USB 2.0
(one at front)
Mic-in, Line-in, Line-out

2 x RS-232,
1 x RS-232/422/485,
1 x VGA port,
2 x PS2 (Keyboard,
Mouse), 5 x USB 2.0
(one at front)

2 x RS-232,
1 x RS-232/422/485,
1 x VGA port,
2 x PS2 (Keyboard,
Mouse), 5 x USB 2.0
(one at front)

Optional CPU Card,
1 x USB port at front

Industrial Monitors

HDD (Optional)

1 x 2.5" SATA

1 x 2.5" SATA

2 x 2.5" SATA

2 x 2.5" SATA

2 x 2.5" SATA

-

Optical Drive

-

-

1 x SATA Slim Type

1 x SATA Slim Type

1 x SATA Slim Type

3 x 5.25" CD-ROM Bay
(Optional)

Industrial Wireless
Solutions

CompactFlash Slots

1 x CFast slot

1 x CFast slot

-

-

-

-

Expansion Slots

1 x PCIe x1 or x4 (PCI
optional)

1 x PCIe x1 or x4 (PCI
optional)

2 x PCI/PCI-E

4001D: 2 x PICMG,
10 x PCI, 2 x ISA
4008D: 8 x PCI

®

®

2 x PCI/PCI-E

2 x PCI/PCI-E

Built in Keyboard/Mouse

-

-

-

-

-

Drawer

Power Input Voltage

100~240 VAC

100~240 VAC

100 ~ 240 VAC

100 ~ 240 VAC

100 ~ 240 VAC

100 ~ 240 VAC

Front cover

Aluminum

Aluminum

Die-cast flat-sealed



Aluminum

Operating temperature

0 ~ 50°C
(32 ~ 122°F)

0 ~ 50°C
(32 ~ 122°F)

0 ~ 50°C
(32 ~ 122°F)

0 ~ 50°C
(32 ~ 122°F)

0 ~ 50°C
(32 ~ 122°F)

0 ~ 50°C
(32 ~ 122°F)

Storage Temperature

-20 ~ 60°C
(-4 ~ 140°F)

-20 ~ 60°C
(-4 ~ 140°F)

-20 ~ 60°C
(-4 ~ 140°F)

-20 ~ 60°C
(-4 ~ 140°F)

-20 ~ 60°C
(-4 ~ 140°F)

-20 ~ 60°C
(-4 ~ 140°F)

Ingress Protection
(Front Panel)

IP65

IP65

IP65

IP65

IP65

IP65

Certification

BSMI, CCC, CE,
FCC, UL

BSMI, CCC, CE,
FCC, UL

BSMI, CCC, CE,
FCC, UL

BSMI, CCC, CE,
FCC, UL

BSMI, CCC, CE,
FCC, UL

BSMI, CCC, CE,
FCC, UL

Operating System

Windows 7/XP

Windows 7/XP

Windows 7/XP

Windows 7/XP

Windows 7/XP

Optional CPU Card

482 x 356 x 143 mm
(19" x 14" x 5.6")

481.94 x 384.60 x
148.2 mm
(18.97" x 15.14" x 5.83")

4001D:
482 x 175 x 487 mm
(19" x 6.9" x 19.1")
4008D:
482 x 174 x 360 mm
(19" x 7" x 14.2")

Dimensions

428 x 310 x 96.5 mm
(16.4" x 12.2" x 3.8")

482 x 354.8 x 98 mm
(19"x14"x 4")

450 x 316 x 143 mm
(17.7" x 12.4" x 5.6")

Weight

10.52 Kg
(23.19 lbs)

14 Kg
(30.86 lbs)

13 Kg
(28.6 lbs)

15 Kg
(33.04 lb)

16.6 Kg
(35.6 lbs)

19.99 kg (44 lbs)/
18 kg (39.7 lb)

Page

8-32

8-32

8-30

8-30

8-30

8-34

Industrial Panel

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


8-29

IPPC-6152A
IPPC-6172A
IPPC-6192A

15" XGA, 17"/19" SXGA TFT LCD Core™ 2 Quad /
Core™ 2 Duo Industrial Panel PC with 2 x PCI Slots
Features
ƒƒ 15" XGA, 17"/19" SXGA TFT LCD with touchscreen
ƒƒ Intel® Core™ 2 Quad CPU (up to 2.8 GHz) / Core™ 2 Duo CPU (up to 3.0 GHz)
ƒƒ System memory supports dual channel DDR3 SDRAM up to 4GB
ƒƒ Offers two expansion slots ( PCIE riser card optional) for PCI (PCIE) add-on
cards
ƒƒ Dual Gigabit Ethernet with Intel vPro technology
ƒƒ Supports 2 x 2.5" SATA HDDs and RAID 0/1 compatibility
ƒƒ Front USB access and system reset function
ƒƒ Flat-sealed front panel
ƒƒ Control box with gull-wing design for easy installation and maintenance
ƒƒ Offers one slim type DVD-RW

(IPPC-6192A)

Introduction

The IPPC-6000 Series is an Industrial Panel PC with front USB access, supports the powerful Intel Core 2 Quad/Core 2 Duo, high speed DDR3 memory, two expansion PCI slots
and slim type DVD-RW. The processor and chipset combination form the foundation of vPro, Intel’s next generation digital office platform, offering remote out-of-band manageability,
improved security, and energy efficient performance. Two SATA hard drive interfaces with RAID 0,1 support provides data security. The flat-sealed front panel design also allows easier
cleaning and liquid run off. Also the control box has a gull-wing design for easy component installation and maintenance.

Specifications
LCD Display

General
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

BIOS
Certifications
Enclosure
Dimension (W x H x D)
IPPC-6152A :
IPPC-6172A :
IPPC-6192A :
Mounting
OS Support
Power Input
Power Supply
Weight (Gross)

AMI 4 MB Flash BIOS
UL, CE, FCC, CCC, BSMI
Die-cast flat-sealed front with SGCC Housing
449.92 x 315.63 x 142.7mm (17.71" x 12.43" x 5.62")
481.9 x 355.9 x 144.7 mm (18.97" x 14.01" x 5.7")
481.94 x 384.60 x 148.2 mm (18.97" x 15.14" x 5.83")
Panel, Rack (option)
Windows 7, Windows XP
100 ~ 240 VAC @ 60 ~ 50 Hz, 7 ~ 3.5 A
350 W
IPPC-6152A : 13 Kg (18.6 Ibs); IPPC-6172A : 15 Kg
(33.04 Ibs); IPPC-6192A :16.6 Kg (35.6 Ibs)

System Hardware
ƒƒ CPU
ƒƒ Chipset
ƒƒ Memory
ƒƒ LAN
ƒƒ Expansion
ƒƒ Storage
ƒƒ Optical Driver
ƒƒ I/Os

8-30

ƒƒ Backlight Life
ƒƒ Contrast Ratio
ƒƒ Display Size
ƒƒ Display Type

ƒƒ Luminance
ƒƒ Max. Colors

ƒƒ Max. Resolution
ƒƒ Viewing Angle (H/V°)

Supports Socket LGA775 based up to Intel Core 2
Quad 2.8 GHz/Core 2 Duo 3.0 GHz
Intel Q45 GMCH/ICH10D0
Two DDR3 240pin slots up to 4GB 1066/1333 MHz
SDRAM
10/100/1000 Base-T Ethernet x 2
2 x half-length PCI slots installed. (Replaceable with a
1 x two slot PCIEx1 riser accessory)
Supports 2 x 2.5" SATA HDD Interface and Intel Matrix
Storage Technology RAID 0/1
1 x Slim Type DVD-RW
2 x RS-232, 1 x RS-232/422/485
5 x USB 2.0 (one at front)
2 x PS2 (Keyboard, Mouse)
1 x VGA Port


50,000 hrs
IPPC-6152A: 700:1; IPPC-6172A: 1000 : 1;
IPPC-6192A: 1300 : 1
IPPC-6152A: 15"; IPPC-6172A: 17"; IPPC-6192A: 19"
IPPC-6152A: XGA TFT LCD; IPPC-6172A: SXGA TFT
LCD
IPPC-6192A: SXGA TFT LCD
IPPC-6152A: 250 cd/m²; IPPC-6172A :380 cd/m²
IPPC-6192A: 300 cd/m²
IPPC-6152A: 16.2M (RGB 6 - bit + FRC data)
IPPC-6172A:16.7M (RGB 6-bit + Hi-FRC data)
IPPC-6192A: 16.2M (RGB 6-bit + FRC data)
IPPC-6152A:1024 x 768; IPPC-6172A: 1280 x 1024
IPPC-6192A:1280 x 1024
IPPC-6152A: 160/130; IPPC-6172A: 170/160;
IPPC-6192A: 178/178

Touchscreen
ƒƒ Lifespan
ƒƒ Type

36 million with a silicone rubber of R8 finger, writing
rate is by 250g at 2 times/s
> 80%
Analog resistive 5-wire

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity
Ingress Protection
Front panel: IP65
5 ~ 500 Hz, 1 Grms random vibration

IPPC-6152A/IPPC-6172A/IPPC-6192A
Dimensions

Unit: mm

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

IPPC-6152A: 6.00 [0.24]
IPPC-6172A: 6.00 [0.24]
IPPC-6192A: 7.00 [0.28]

Energy Automation

IPPC-6152A: 422.00 [16.61]
IPPC-6172A: 450.97 [17.75]
IPPC-6192A: 445.92 [17.56]
362.00 [14.3]

97.00 [3.8]

285.00 [11.2]

IPPC-6152A: 315.63 [12.43]
IPPC-6172A: 355.87 [14.01]
IPPC-6192A: 384.60 [15.14]

15.20 [0.6]

IPPC-6152A: 291.00 [11.46]
IPPC-6172A: 335.97 [13.23]
IPPC-6192A: 334.52 [13.17]

IPPC-6152A: 449.92 [17.71]
IPPC-6172A: 481.93 [18.97]
IPPC-6192A: 481.93 [18.97]

Building Automation
Systems

Automation Software

Operator Panels


Panel Cut-out Dimensions: IPPC-6152A: 424mm x 293mm (16.69" x 11.54")
IPPC-6172A: 454mm x 338mm (17.87" x 13.31")
IPPC-6192A: 454 x 338 mm (17.87" x 13.31")

Industrial Panel

Industrial Monitors


Accessories

ƒƒ IPPC-6152A-R1AE

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

15'' Core 2 Quad/Core 2 Duo Industrial Panel PC
17" Core 2 Quad/Core 2 Duo Industrial Panel PC
19" Core 2 Quad/Core 2 Duo Industrial Panel PC

Front Accessible USB Port

IPPC-6152A-RMKE
IPPC-6172A-RMKE
IPPC-6192A-RMKE
1702002600
1702002605
1702031801
1702031836

IPPC-6152A/IPPC-6152F Rack Mount Kit
IPPC-6172A/IPPC-6172F Rack Mount Kit
IPPC-6192A Rack Mount Kit

Note: A PCIE riser card is included in accessory box of IPPC-6152A/6172A/6192A-R1AE

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

I/O View
Gigabit Lan
RS-232/422/485
Slim DVD Driver
Power Switch

Embedded Automation
Computers

PACs

Reset Button
USB

Compact PCI Systems

Audio Ports
Keyboard/Mouse
RS-232 USB Ports
PCI Slot
VGA Port

M2M I/O Modules

RS-485 I/O Modules


8-31

IPPC-9151G
IPPC-9171G

15" XGA/17" SXGA LED backlight TFT
LCD Intel® Core™ i7/i5/i3 Celeron®
Mobile Processor Industrial Panel PC
with 1 x PCIe Slot
Features

NEW

ƒƒ Intel® Core™ i7/i5/i3 Celeron® μFC-PGA988 processor with Intel® QM67
chipset
ƒƒ 15" XGA/17" SXGA LED backlight LCD with low power consumption
ƒƒ Front access USB connector
ƒƒ Supports 1 xPCIe x1 or 4 (Gen2) (PCI optional)
ƒƒ Heavy-duty stainless steel chassis with aluminum front panel
ƒƒ Strengthened glass protects the front panel from shock damage and s IP65
compliant
ƒƒ Supports dual display of HDMI, LVDS, VGA
ƒƒ Supports 1 x 2.5" SATA II or SATA III HDD and 1 x CFast
ƒƒ Hard anodic coating to prevent panel abrasion and acid corrosion
ƒƒ Supports embedded software APLs and Utilities

Introduction
IPPC-9151G/IPPC-9171G is a fully functional computer system with front USB access, with Intel® mobile Core i7-2710QE 2.1GHz/Core i5-2510E 2.5 GHz/Core i3-2330E 2.2 GHz
/Celeron® B810 1.6 GHz processors up to 6 MB L3 cache and DDR3 SO-DIMM 1066/1333 up to 8 GB and a resolution up to 1024 x 768 to meet the demands of today's high-end
industrial software. The IPPC-9151G/IPPC-9171G is a rugged unit with an aluminum panel,15"/17" TFT LCD with LED backlight, a stainless steel structure and a Pcie slot. The IPPC9151G/9171G is rugged enough to handle the toughest industrial operating environments. With optional mounting accessories, from panels to racks, it can be mounted anywhere.

Specifications
General

LCD Display

ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ LCD Display Type

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

BIOS
AMI EFI 64 Mbit SPI
Certification
BSMI, CCC, CE, FCC, UL
Cooling System
2 x 10.1 CFM fans w/50,000 hrs MTBF
IPPC-9151G:
428 x 310 x 96.5 mm (16.35" x 12.2" x 3.79")
IPPC-9171G:
482 x 354.8 x 98 mm (18.98" x 13.97" x 3.86")
Disk Drive Bay
Supports 1 x 2.5" SATA II or SATA III HDD
Enclosure
Stainless steel back case, 10 mm aluminum front panel
Mounting
Panel, rack
Power Input
100~240 VAC @ 4A 50~60hz
Power Supply
180 W, MTBF: 100,000 hrs
Weight (Gross)
IPPC-9151G: 10.52 Kg (23.19 Ibs)
IPPC-9171G: 14 Kg (30.86 lbs)

System Hardware
ƒƒ CPU

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Chipset
Audio Ports
Expansion Slots
PS/2
LAN
Memory

ƒƒ Cfast
ƒƒ I/Os

8-32

Supports uFC-PGA988 Intel® mobile Core i7-2710QE
2.1 GHz/Core i5-2510E 2.5 GHz/Core i3-2330E
2.2 GHz/Celeron® B810 1. 6GHz processor
Intel® 6 series chipset (QM67)
Mic-in, Line-out, Line-in
Supports 1 x PCIe x1 or x4 (PCI optional)
1 x keyboard and 1 x mouse
2 x 10/100/1000 Mbps
2 x 204 pin DDR3 1066/1333 SODIMM sockets
supports up to 8GB (2 x 4GB)
1 x CFast slot
1 x VGA; 1 x HDMI; 5 x USB 2.0 (one at front);
4 xRS-232


ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

IPPC-9151G: XGA TFT LCD with LED Backlight
IPPC-9171G: SXGA TFT LCD with LED Backlight
Display Size
IPPC-9151G: 15"; IPPC-9171G: 17"
Max. Resolution
IPPC-9151G: 1024 x 768; IPPC-9171G: 1280 x 1024
Max. Colors
IPPC-9151G: 16.2M or 256K Color
IPPC-9171G: 16.7M colors (RGB 6-bits +Hi-FRC data)
Viewing Angle (H/V°) IPPC-9151G: 160/140; IPPC-9171G: 170/160
Luminance
IPPC-9151G: 350 cd/m²; IPPC-9171G: 380 cd/m²
Backlight Life
50,000hrs
Contrast Ratio
IPPC-9151G: 700:1; IPPC-9171G: 400:1

Touchscreen
ƒƒ Lifespan
ƒƒ Type

> 80%
Analog resistive (5-wire)

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity
Ingress Protection
Front panel: IP65


5 ~ 500 Hz, 1 GRMS random vibration

IPPC-9151G/IPPC-9171G
Dimensions

Unit: mm

IPPC-9151G:402 [15.827]
IPPC-9171G:445.2 [17.528]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

IPPC-9151G:290 [11.417]
IPPC-9171G:327.2 [12.882]

IPPC-9151G:310 [12.205]
IPPC-9171G:354.8 [13.969]

IPPC-9151G:428 [16.850]
IPPC-9171G:482 [18.976]

Automation Software

Operator Panels

IPPC-9151G:30.5 [1.201]
IPPC-9171G:32 [1.260]
IPPC-9151G:96.5 [3.799]
IPPC-9171G:98 [3.858]


Industrial Panel

Panel Cut-out Dimensions: IPPC-9151G: 404 x 292mm (15.90" x 11.49")

IPPC-9171G: 447.5 x 329.5mm (17.618" x 12.972")

Industrial Monitors

ƒƒ IPPC-9151G-R1AE
ƒƒ IPPC-9171G-R1AE

15" XGA Intel Core™ i7/i5/i3 Celeron with TS
7" SXGA Intel® Core™ i7/i5/i3 Celeron with TS
1

Accessories
ƒƒ IPPC-9151G-RMKE
ƒƒ IPPC-9151G-EPRE

I/O Overview

Industrial Wireless
Solutions

®

COM Ports 1-3
LAN Ports
COM
Audio Ports
Port 4

(IPPC-9151G) Mounting Kit for standard 19"
industrial rack
IPPC-9151G/9171G-R1AE PCI Riser card

and IP Gateways

Notes:
1. When used in a panel mounted environment, the panel’s thickness can not be over
10mm.
1702002600
1702002605
1702031801
1702031836


2. Dual Display
Primary Display
Second Display

Industrial Ethernet
Solutions

LCD
CRT or HDMI

PS/2 Keyboard
& Mouse

CFast Slot

USB Ports 1-4
VGA Port
HDMI Port

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


8-33

IPPC-4001D
IPPC-4008D

5.7" VGA TFT LCD 4U 19"/19" Half-sized
Rack Industrial Panel PC with 14/8
Expansion Slots & Keyboard Drawer
Features
ƒƒ 4U height 19" rackmount/19" half-sized chassis with 5.7" VGA TFT display
ƒƒ Slim keyboard & mouse pad drawer with lockable clip
ƒƒ Supports high performance Intel Core 2 Duo processors (and up)
ƒƒ Offers 14/8 expansion slots for 2 PCIMG,10 PCI, 2 ISA/8 PCI
ƒƒ Lockable front door prevents unauthorized access
ƒƒ Membrane function keys (F1~F5) for varied application access
ƒƒ Handy screen function for Industrial Automation Controller and Monitoring
ƒƒ Front accessible USB is friendly to plug-in versatile USB devices
ƒƒ All-in-one IPC system for saving cost/space from IPC with LCD/keyboard
ƒƒ Telecom/Power Station portal and platform for test & measurement equipment
ƒƒ Suitable for Automatic Testing Equipment and Production Line Testers

(IPPC-4008D)

Introduction

IPPC-4000 series is a 4U 19" rackmount/19" half-sized rackmount Industrial Panel PC with 5.7" VGA TFT LCD display, passive backplane and ISA/PCI/PICMG or 8 PCI expansion
slots. Designed to be an all-in-one and cost-effective solution for traditional IPC users, IPPC-4000D series includes a slim type 85 key keyboard and touch pad drawer making input
troublefree, and a 5.7”TFT LCD screen is perfect for information displays like: charts, trends, a control panel, simple programming, production data or field monitoring records. A
wide range of standard computing peripherals from the Advantech IPC family can be integrated into the unit to meet different application development requirements in mission-critical
environments.

Specifications
General

Environment

ƒƒ Button Control

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Membrane Key 5 Function Keys (F1 to F5),
5 Cursor Keys (Up, Down, Left, Right, Enter)
Certification
Dimensions (W x H x D) IPPC-4001D: 482 x 174.9 x 486.7 mm (18.97" x 6.88"
x19.16")

IPPC-4008D: 482 x 174 x 360 mm (19" x 7" x 14.2")
Keyboard Drawer
Integrated 88-Key (US) slim type keyboard w/touch pad
Mounting
19" Rack
Power Input
100 ~ 240 VAC @ 50~ 60 Hz full range 10A
Power Supply
Watt: 300 W, MTBF: 100,000 hrs
Weight
IPPC-4001D: 19.99 kg (44 lbs);
IPPC-4008D: 18 kg (39.6 lbs)

System Hardware
ƒƒ Passive Backplane
ƒƒ Slots
ƒƒ Backplane Size

ƒƒ PCI Bridge
ƒƒ PCI Slot

ƒƒ Storage

IPPC-4001D: PCA-6114P10; IPPC-4008D: PCA-6108P8
IPPC-4001D: 2 PICMG, 10 PCI, 2 ISA;
IPPC-4008D: 8 PCI
IPPC-4001D: 315 x 260 mm (12.4" x 10.24")
IPPC-4008D: 182 x 185 mm
Pericom PI7C8150MA
IPPC-4001D: Primary 3 slots,Secondary 7 slots
IPPC-4008D: 1 CPU PCI, 3 PCI, 4 SPCI
3 x 5.25" disk drive bay

Humidity
5 ~ 85% RH @ 40°C (non-condensing)
Ingress Protection
Front panel IP65
5 ~ 500 Hz, 1 GRMS random vibration (operating)

ƒƒ IPPC-4001D-B0AE
ƒƒ IPPC-4008D-B0AE

5.7" VGA 4U 19" IPPC, 300W, 2 PICMG, 10 PCI, 2 ISA
5.7" VGA 4U 19" Half-sized IPPC, 300W, 8 PCI

CPU Card Suggestions
Part No

PCA-6194G2-00A1E

Intel Core2 Duo
(1066/800/533 MHz FSB)

PCA-6190VG-00A2E

Intel Pentium 4
(533/800 MHz FSB)

PCA-6187VG-00A2E

Intel Pentium 4
(400/533/800 MHz FSB)

PCA-6008VG-06A1E

Intel Pentium M/Celeron M
(533 MHz FSB)

PCI-7020VG-00A1E

IPPC-4001D

CPU Grade

Intel Core 2 Duo
(1066/800/533 MHz FSB)

LCD Display
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

8-34

Backlight Life
Contrast Ratio
Display Size
Display Type
Luminance
Max. Colors
Max. Resolution
OSD Control

50,000 hrs (LED Backlight)
800:1
5.7"
VGA TFT LCD
700 cd/m2
262 K (RGB 6-bit)
640 x 480
ON/OFF, Brightness down, up
160/140


IPPC-4008D

PCI-6886F-00A2E
PCI-7031N-S6A1E

Socket-M Intel Core 2 Duo
(667/533 MHz FSB)
Onboard Intel Atom N450
CPU and IGB onboard
DDR2 667 Memory (only
for N SKU)

Description
LGA775 Core 2 Duo/
Pentium D/Pentium 4/
Celeron D Processor
Card with IPMI/VGA/Dual
GbE LAN (FSB 1066/800
MHz)
LGA775 Pentium 4/
Celeron Processor Card
with VGA/LAN/
Socket 478 Pentium
4/Celeron D/Celeron
Processor Card with
VGA/LAN
Socket 479 Pentium M/
Celeron M Processor
Card with VGA/ DVI/ Dual
GbE LAN
LGA775 Intel Core 2 Duo
PCI Half-size SBC with
VGA/GbE LAN/SATA/DVI
and SSD (FSB 1066MHz)
PCI Socket479 SlotPC w/
LAN/VGA
PCI Half-Sized SBC with
onboard DDR2 Memory/
VGA/LAN/SATA/FDD/USB/
COM/LPT/LVDS/CF

IPPC-4001D/IPPC-4008D
Dimensions
IPPC-4008D:360 [14.17]
IPPC-4001D:477.4 [18.8]

Unit: mm

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

IPPC-4001D Back View

Automation Software

174.9 [6.89]

101.6 [4.00]

Building Automation
Systems

Operator Panels

IPPC-4008D Back View

482 [18.98]


Industrial Panel

Industrial Monitors

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ

1702002600
1702002605
1702031801
1702031836

System View

Industrial Wireless
Solutions

Power On/Off

PWR LED

Industrial Ethernet
Solutions

Reset

Rear View

and IP Gateways

IPPC-4001D

Cards

OSD Controls

HDD LED

2 x USB

Embedded Automation
Computers

PCI Card Holder
(with Clamp)

IPPC-4008D

System
Fan

PACs

PSU
Passive
Backplane

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


8-35

IPPC Accessories
IPPC-6192A-RMKE

IPPC-6172A-RMKE

IPPC-6192A/FPM-5191G Rack
Mount Kit

Mount Kit

IPPC-6152A-RMKE

1702002600

Mount Kit


1702002605

1702031836


Power Cable China/Australia
Plug 1.8 M

1702031801

8-36


ITM-5112

12" SVGA Industrial LED Monitor with
Full-Flat Resistive Touchscreen

NEW

Features
ƒƒ 12.1" SVGA LED backlight panel provides 20 ~ 30% power savings
ƒƒ -20 ~ +60°C wide range operating temperature
ƒƒ Easy-clean 5-wire resistive plane touch
ƒƒ Combo RS-232 & USB interface for touchscreen function
ƒƒ VGA & DVI interface
ƒƒ Simple, elegant design with IP54 front panel protection
ƒƒ Peripheral connectors in frame rail design
ƒƒ Supports panel, wall, desktop, and swing-arm VESA mounting

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

C

UL
®

Operator Panels
US

Introduction


ITM-5112 is a 12" LED TFT-LCD touchscreen monitor specifically designed for industrial applications. It's a stable, rugged display with VGA & DVI interface. The simple, yet elegant
flat plane design provides for easy cleaning, and the Box PC-plus-monitor option offers added flexibility.

Industrial Panel

Specifications

Display

Touchscreen

Environment

Size
Resolution
Viewing Angle
Brightness
Color Support
Contrast Ratio
Response Time
Lamp Life (hrs)
Touchscreen Type
Surface Hardness
Durability
Storage Temperature
Humidity
Shock
Front panel
I/O

System

OSD
Power
EMC Compliance
Safety

12.1" LED backlight panel
800 x 600 (SVGA)
-80°~80°(H), -60°~80°(V)
450 (cd/m2)
16.7M / 262K colors
800
12 [msec]
60,000 hrs
5-Wire resistive touch window
3H
10 million touches
-20 ~ 60°C (-4 ~ 140°F)
-30 ~ 70°C (-22 ~ 158°F)
10G peak acceleration (11 ms duration)
IP54
M series VGA x 1; DVI-D x 1; 12 VDC Jack x 1; USB x1; RS-232 x 1

(USB & RS-232 are reserved for the connection to enable touch usage only)
M series Keys: Menu, Up, Down, Enter, Monitor Power on/off

Menu Functions: Brightness, Volume, Contrast, Clock Phase, Horizontal Position,

Vertical Position, Sharpness
60 W power adapter, with AC 100 ~ 240 V input and DC +12 V @ 5 A output
CE/FCC/CCC/BSMI
CB/UL/CCC/BSMI

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


8-37

ITM-5112
Dimensions

Unit: mm [inches]

M Series

47.80 [1.88]

19
[0.75]

13.80 [0.54]
Panel mount thickness

Packing List
Part Number
1700091800
1962055040
1930002205
1700021332-01
1960051804N001
-

ITM-5112R-CA1E

8-38

11.10 [0.44]

VESA mount screw type
M4, max depth=5mm

75 [2.95]
100 [3.94]

226 ±1 [8.90 ±0.04]

302 ±1 [11.89 ±0.04]

CUT OUT

Optional Items
Description
*1 x D-SUB 9P(M)/D-SUB 9P(F) 1.8 meter
8 x panel-mount clamper
8 x panel-mount clamper screw M4_30L
*1 x VGA cable 15P(M) 1.8 meter
1 x cable clamp
1 x CD-ROM for ITM series

*VGA/D-SUB cables are only included in ITM-5112R M series.
Note: Package contents are subject to change without prior notice

Model Name
ITM-5112R-MA1E

5.06 [0.20]

300 [11.81]
11.10 [0.44]

75 [2.95]
100 [3.94]
224 [8.82]

234.11 [9.22]

186 [7.32]

247.60 [9.75]

28.80
[1.13]

229.06 [9.02]
152.64 [6.01]
140.14 [5.52]
65.14 [2.56]
52.64 [2.07]

322.20 [12.69]

28.20
[1.11]

5.06 [0.20]

47.20
[1.86]

Description
12" SVGA LED Full-Flat Touch Monitor
12" Industrial Touch Computer with Intel Atom D525 Dual
Core 1.8 GHz Processor


Part Number
1702002600
1700000596
1700018705
96STANDKIT-ITM
1757003934
1700000243
1700002215

Description
Power cord 3P (USA)
Power cord 3P (China)
Power cord 3P (EU)
Stand kit
Adapter AC100-240V 60W +12V/5A DPS-60PB A
DVI cable 2.0 meter
USB-A(M)/USB-A(M) 1.8 meter

ITM-5115

15" XGA Industrial LED Monitor with

NEW

Features

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ 15" XGA LED backlight panel provides 20 ~ 30% power savings
ƒƒ -20 ~ +60°C wide range operating temperature

Machine Automation

Energy Automation

ƒƒ Optional ARK-1500-series Box PC in rear AD box for all-in-one, total solution

Building Automation
Systems

Automation Software

C

UL
®

Operator Panels
US

Introduction


ITM-5115 is a 15" LED TFT-LCD touchscreen monitor specifically designed for industrial applications. It's a stable, rugged display with VGA & DVI outputs. The simple, yet elegant

Industrial Panel

Specifications
Model

Display

Touchscreen

Environment

Size
Resolution
Viewing Angle
Brightness
Color Support
Contrast Ratio
Response Time
Lamp Life (hrs)
Touchscreen Type
Surface Hardness
Durability
Storage Temperature
Humidity
Shock
Front Panel
I/O

System

OSD

Power
EMC Compliance
Safety

ITM-5115R-M
ITM-5115R-L
15" LED backlight panel
1024 x 768 (XGA)
1024 x 768 (XGA)
80°/80°/80°/60°
80°/80°/80°/60°
400 (cd/m2)
400 (cd/m2)
16.2 M / 262 K colors
16.2 M / 262 K colors
700
700
8 [msec]
8 [msec]
50,000 hrs
50,000 hrs
3H
36 million touches
10 million touches
-20 ~ 60°C (-4 ~ 140°F)
-20 ~ 60°C (-4 ~ 140°F)
-30 ~ 70°C (-22 ~ 158°F)
-30 ~ 70°C (-22 ~ 158°F)
10 G peak acceleration (11 ms duration)
IP54
VGA x 1; DVI-D x 1;
I-Panel link x 1; USB x 1;
12 VDC Jack x 1; USB x1;
RS-232 x 1 (USB & RS-232 are
RS-232 x 1 (USB & RS-232 are
reserved for the connection to PC
reserved for the connection to
usage)
enable touch usage only)
Keys: Menu, Up, Down, Enter,
Keys: Brightness Up, Brightness
Monitor Power on/off
Down, Monitor Power on/off, PC
Menu Functions: Brightness,
Power on/off
Volume, Contrast, Clock Phase,
Horizontal Position, Vertical
Position, Sharpness
DC Jack, external 60 W power
I-Panel Link, 12 VDC input
adapter, with AC 100 ~ 240 V input
and DC +12 V @ 5 A output
CE/FCC/CCC/BSMI
CB/UL/CCC/BSMI

ITM-5115R-E
15" TFT-LCD panel
1024 x 768 (XGA)
85°/85°/80°/80°
250 (cd/m2)
16.2 M / 262 K colors
700
8 [msec]
50,000 hrs

10 million touches
0 ~ 50°C (32 ~ 122°F)
-20 ~ 60°C (-4 ~ 140°F)

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

VGA x 1; 12 - 24 V Phoenix
jack x 1; USB x1; RS-232 x 1
(USB & RS-232 are reserved for
the connection to enable touch
usage only)
Keys: Menu, Up, Down, Enter,
Monitor Power on/off
Menu Functions: Brightness,
Volume, Contrast, Clock Phase,
Horizontal Position, Vertical
Position, Sharpness
Phoenix Jack, 12 - 24 VDC input

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


8-39

ITM-5115
Dimensions

Unit: mm [inches]

L Series


306 [12.05]

M4, max depth=5mm

75
[2.95]

47 [1.85]

75
[2.95]
100 [3.94]
306 [12.05]

Cut Out Dimensions

14.80 [0.58]

26 [1.02]

panel mount thickness

306 [12.05]

47 [1.85]
+2
+ 0.08
310 -1 12.20 - 0.04

M4, max depth=5 mm

75 [2.95]
100 [3.94]
256 [10.08]

280 [11.02]

231.10 [9.10]

307.10 [12.09]

47 [1.85]

Optional Items
Description
1 x D-SUB 9P(M)/D-SUB 9P(F) 1.8 meter
*1 x VGA cable 15P(M) 1.8 M
*1 x I-Panel Link cable 3.0 M
1 x cable clamp

* I-Panel Link cable is only included in ITM-5115R L series.
* VGA/D-SUB cables are only included in ITM-5115R M series & E series

Model Name
ITM-5115R-MA1E
ITM-5115R-PA1E
ITM-5115R-LA1E
ITM-5115R-CA1E
ITM-5115R-EA1E

CUT OUT

75 [2.95]
100 [3.94]
306 [12.05]

Packing List
Part Number
1700091800
1962055040
1930002205
1700151801
1700019110
1960051804N001
-

+2
+ 0.08
260 - 1 10.24 - 0.04

56.90 [2.24]

400 [15.75]

280 [11.02]
268 [10.55]
182.09 [7.17]
169.59 [6.68]
12 [0.47]

53.90 [2.12]
26 [1.02]

Description
15" XGA LED Full-Flat Touch Monitor
15" XGA LED Touch Monitor with 164-pin golden
finger docking connector to ARK-1503
15" XGA LED Touch Monitor connected with 36-pin LVDS
cable (3 M) to ARK-1503
15" Industrial Touch Computer with Intel® Atom™ D510
Dual Core 1.66 GHz Processor
15" XGA Full-Flat Touch Monitor


Part Number
96STANDKIT-ITM
1700000243
1700002215
1757003934
1702002600
1700000596
1700018705
1757003659
1700001947
1700001948
1700001949

Description
Stand kit
DVI cable 2.0 M
*Adapter AC100-240V 60W +12V/5A DPS-60PB A
*Power cord 3P (USA)
*Power cord 3P (China)
*Power cord 3P (EU)
**AC to DC Adapter, DC 19 V/3.42 A 65 W, with
Phoenix power plug
**Power cord 2P (USA)
**Power cord 2P (EU)
**Power cord 2P (UK)

*12V (60W/5A) Power adapter & 3P power cords are for ITM-5115R-M Series
**19V (65W/3.42A) Power adapter & 2P power cords are for ITM-5115R-E Series

256 [3.94]

47 [1.85]

17.60 [0.69]

75
[2.95]
100 [3.94]
306 [12.05]

M4, max depth=5mm

E Series

8-40

231.10 [9.10]

256 [3.94]

75
[2.95]

307.10 [12.09]

17.60 [0.69]


51.67 [2.03]

400 [15.75]

47 [1.85]

272.73 [10.74]
186.81 [7.35]
174.31 [6.86]

231.10 [9.10]

289.45 [11.40]

307.10 [12.09]

306 [12.05]

100 [3.94]

47 [1.85]

51.67 [2.03]

100 [3.94]

400 [15.75]

272.73 [10.74]
186.81 [7.35]
174.31 [6.86]

48.70 [1.92]
48.67 [1.92]

289.45 [11.40]

M Series

ITM-5117

17" SXGA Industrial LED Monitor with

NEW

Features
ƒƒ 17" SXGA LED backlight panel provides 20 ~ 30% power savings
ƒƒ -20°~ +60°C wide range operating temperature

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

C

UL
®

Operator Panels
US

Introduction


ITM-5117 is a 17" LED TFT-LCD touchscreen monitor specifically designed for industrial applications. It's a stable, rugged display with VGA & DVI interface. The simple, yet elegant

Industrial Panel

Specifications

Display

Touchscreen

Environment

Size
Resolution
Viewing Angle
Brightness
Color Support
Contrast Ratio
Response Time
Lamp Life (hrs)
Touchscreen Type
Surface Hardness
Durability
Storage Temperature
Humidity
Shock
Front Panel
I/O

System

OSD
Power
EMC Compliance
Safety

1280 x 1024 (SXGA)
85°/85°/85°/85°
350 (cd/m2)
16.7M / 262K colors
1000
30 [msec]
50,000 hrs
3H
36 million touches
-20 ~ 60°C (-4 ~ 140°F)
-30 ~ 70°C (-22 ~ 158°F)
10G peak acceleration (11 ms duration)
IP54
VGA x 1; DVI-D x 1; 12 VDC Jack x 1; USB x1; RS-232 x 1
(USB & RS-232 are reserved for the connection to enable touch usage only)
Keys: Menu, Up, Down, Enter, Monitor Power on/off
Menu Functions: Brightness, Volume, Contrast, Clock Phase, Horizontal Position, Vertical Position,
Sharpness
60 W power adapter, with AC 100 ~ 240 V input and DC +12 V @ 5 A output
CE/FCC/CCC/BSMI
CB/UL/CCC/BSMI

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


8-41

ITM-5117
Dimensions

Unit: mm [inches]

260±2 [10.24±0.08]

310±2 [12.20±0.08]

ENT.
DOWN

POWER
LED
POWER
BUTTON

53.90 [2.12]
26 [1.02]

UP/AUTO
MENU

33.70
[1.33]

433 [17.05]

CUT OUT

433 [17.05]
306 [12.05]

63.50
[2.50]

75 [2.95]
100 [3.94]
323.40 [12.73]

256 [10.08]
14.80 [0.58]

Panel mounting thickess

33.70
[1.33]

272.4 [10.72]

323.40 [12.73]

339 [13.35]

63.50
[2.50]

VESA mounting screw type
M4, max depth=5mm

75 [2.95]
100 [3.94]

USB COM VGA DVI-D DC-12V

Packing List
Part Number
1700091800
1962055040
1930002205
1700021332-01
1960051804N001
-

Optional Items
Description
*1 x D-SUB 9P(M)/D-SUB 9P(F) 1.8 meter
*1 x VGA cable 15P(M) 1.8 meter
1 x cable clamp


Model Name
ITM-5117R-MA1E

8-42

Description
17" SXGA LED Full-Flat Touch Monitor


Part Number
1702002600
1700000596
1700018705
96STANDKIT-ITM
1757003934
1700000243
1700002215

Description
Power cord 3P (USA)
Power cord 3P (China)
Power cord 3P (EU)
Stand kit
Adapter AC100-240V 60W +12V/5A DPS-60PB A
DVI cable 2.0 meter

Industrial Monitors

9

Industrial Monitor Selection Guide

9-2

Industrial Grade Monitors
FPM-2120G

12''SVGA Industrial Monitor with Resistive Touchscreen and Direct-VGA Port

9-4

FPM-2150G

15" XGA Industrial Monitor with Resistive Touchscreen and Direct-VGA Port

9-6

FPM-2170G

17" SXGA Industrial Monitor with Resistive Touchscreen and Direct-VGA Port

9-8

FPM-3121G

12.1" SVGA Industrial Monitor with Resistive Touchscreen, Direct-VGA, DVI and
Wide Operating Temperature

9-10

FPM-3151G

15" XGA Industrial Monitor with Resistive Touchscreen, Direct-VGA, DVI Ports,
and Wide Operating Temperature

9-12

FPM-3171G

17" SXGA Industrial Monitor with Resistive Touchscreen, Direct-VGA and DVI
Ports , and Wide Operating Temperature Range

9-14

FPM-3191G

19" SXGA Industrial Monitor with Resistive Touchscreen, Direct-VGA and DVI
Ports

9-16

FPM-5151G
FPM-5171G
FPM-5191G

15" XGA/17" SXGA/19" SXGA Industrial Monitors with Resistive Touchscreens,
Direct-VGA, and DVI Ports

9-18

FPM-5152G
FPM-5172G
FPM-5192G

15" XGA / 17" SXGA / 19" SXGA Industrial Monitors with Resistive
Touchscreens, Lockable Display Port

9-20

FPM-7181W

18.5" Industrial Monitor with Projected Capacitive Touchscreen, Direct-VGA and
DVI Ports

9-22

FPM-7211W

21.5" Industrial Monitor with Projected Capacitive Touchscreen, Direct-VGA and
DVI Ports

9-24

Accessories
FPM Accessories

To view all of Advantech’s Industrial Monitors, please visit www.advantech.com/products.

9-26

Industrial Monitor
Selection Guide
NEW

Model

FPM-3121G/3151G

SVGA/XGA/SXGA TFT LCD

SVGA/XGA TFT LCD

Display Size

12.1" /15" /17"

12.1" /15"

Max. Resolution
Display

FPM-2120G/2150G/2170G

Display Type

800 x 600 /
1024 x 768/
1280 x 1024

800 x 600 /
1024 x 768

16.2M

16.2M

450/400/350

450/350


140/160, 160/140, 160/170

160 / 140

Backlight MTBF(hrs)

50000hrs

50000hrs

Video Port

VGA

VGA & DVI-D

Touchscreen
(optional)

Resistive

Resistive

OSD
(onscreen display)

No

Yes

Power Adapter
(Voltage,AC)

100 ~ 240 VAC

100 ~ 240 VAC

DC Power Input
(voltage)

N/A

24 VDC

Ingress Protection
(Front Panel)

IP65

IP65

Enclosure

Front panel: Aluminum with coating,
Rear cover: SECC coating chassis

Rear cover: Stainless steel chassis

Mounting


Panel, VESA arm, or wall & desktop mount &
19" rackmount (3151G)


0 ~ 50°C
(32 ~ 122°F)

-20 ~ 60°C
(-4 ~ 140°F)

Storage Temperature

-20 ~ 60°C
(-4 ~ 140°F)

-20 ~ 60°C
(-4 ~ 140°F)

Dimensions

311 x 237 x 40 mm (12" x 9.3" x 1.6")
383 x 307 x 48 mm (15" x 12" x 1.9")
413 x 347 x 52 mm (16.3" x 13.6" x 2")

312 x 224 x 60 mm (12.2" x 9.6" x 2.3")
422 x 310 x 70 mm (16.6" x 12.2" x 2.7")

Weight

2120G:4kg
(8.82 lbs)
2150G:4.5 kg
(9.9 lbs)
2170G:5.60 kg (12.34 lbs)

3121G:4.07 kg (8.975 lbs)
3151G:7.73 kg (17.04 lbs)

Certification

CE, FCC , BSMI, CCC, UL

CE, FCC , BSMI, CCC, UL

Page

9-2

Max. Colors
Luminance cd/m2

9-4 / 9-6 / 9-8

9-10 / 9-12

Industrial Monitors

Selection Guide

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


NEW

Machine Automation

Energy Automation

FPM-3171G/3191G

FPM-5151G/5171G/5191G

FPM-5152G/5172G/5192G

FPM-7181W/7211W

SXGA TFT LCD

XGA/SXGA/SXGA TFT LCD

XGA/SXGA/SXGA TFT LCD

WXGA/Full HD TFT LED LCD

17"/19"

15"/17"/19"

15"/17"/19"

18.5" / 21.5"

1280 x 1024

1024 x 768

1024 x 768

1366 x 768/
1920 x 1080

16.2 M

16.2 M/16.7M/16.2M

16.2 M/16.7M/16.2M

16.7M

350/300

250/300/300

250/300/300

300
170/160, 178/178

170/160

140/120, 170/160, 170/160

140/120, 160/160, 178/178

50000hrs

50000hrs

50000hrs

50000hrs

VGA & DVI-D

VGA & DVI-D

Display port

VGA & DVI-D

Resistive

Resistive

Resistive

Projected Capacitive

Yes

Yes

Yes

Yes

100 ~ 240 VAC

Adapter Optional

N/A

100 ~ 240 VAC

24 VDC

24 VDC

24 VDC

24 VDC

IP65

IP65

IP65

IP65


Front panel: Aluminum and
flat-sealed
Rear cover: Anti-rust coating

Front panel: Aluminum and
flat-sealed

Front panel: Die-cast Magnesium alloy
Rear cover: SECC

Panel, wall, desktop, VESA arm & 19"
rackmount

Panel, wall, VESA arm, or stand, 19"
rackmount & optional mounting kit

Panel, wall, VESA arm, or stand, 19"
rackmount & optional mounting kit

Panel, wall, desktop, VESA arm

FPM-3171G:
-20 ~ 60°C
(-4 ~ 140°F)
FPM-3191G:
0 ~ 50°C
(32 ~ 122°F)

0 ~ 50°C
(32 ~ 122°F)

0 ~ 50°C
(32 ~ 122°F)

0 ~ 50°C
(32 ~ 122°F)

Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

FPM-3171G:
-20 ~ 60°C
(-4 ~ 140°F)
FPM-3191G:
-30 ~ 60°C
(-22 ~ 140°F)

-20 ~ 60°C
(-4 ~ 140°F)

482 x 355 x 64 mm (18.9" x 13.9" x
2.5")
482 x 399 x 67 mm (18.9" x 15.7" x
2.6")

450 x 315 x 52 mm (17.7" x 12.4" x 2")/
482 x 356 x 58 mm (18.9" x 14" x 2.3")/
482 x 385 x 58 mm (18.9" x 15.1" x
2.3")

450 x 316 x 53 mm (17.7" x 12.4" x 2")/
482 x 356 x 58 mm (18.9" x 14" x 2.3")/
482 x 385 x 58 mm (18.9" x 15.1" x
2.3")

488 x 309 x 45.7 mm (19.2" x 21.2" x
1.8")
561 x 356 x 45.7 mm (22.1" x 14" x
1.8")

3171G:9.25 kg (20.39 lbs)
3191G:10.65 kg (23.46 Ibs)

6 kg (13.22 lbs)
8 kg (17.63 lbs)
10 kg (22.04 lbs)

6 kg (13.22 lbs)
8 kg (17.63 lbs)
10 kg (22.04 lbs)

6kg (13.2lbs)
8kg (17.6lbs)





9-14 / 9-16

9-18

9-20

9-22 / 9-24

-20 ~ 60°C
(-4 ~ 140°F)

-20 ~ 60°C
(-4 ~ 140°F)

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


9-3

FPM-2120G

12''SVGA Industrial Monitor with
Resistive Touchscreen and Direct-VGA Port
Features

NEW

ƒƒ 12'' SVGA TFT LCD with LED backlight
ƒƒ Robust design with aluminum front panel
ƒƒ Supports Panel, Wall, Desktop, Rack or VESA arm mounting

Introduction
FPM-2120G are industrial-grade 12'' TFT LCD with LED backlightflat panel monitor with an Al-Mg front panel, a modern appearance, and one of the most competitive prices for 12''
LCD with LED backlight monitor on the market. The FPM-2120G are also extremely light and thin, and provides many industrial-grade features such as a stainless steel chassis,
VESA mounting flexibility, and more. The FPM-2120G are especially suitable for industrial PCs such as IPC-610 or IPC-6806. This combination leads to an extremely reliable and
tough system, ready to operate in a wide variety of industrial applications.

Specifications
General


ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ Interface
ƒƒ Lifespan

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Button Controls
OSD (Onscreen Display) control pad on rear cover
Certification
Dimensions (W x H x D) 311mm x 237mm x 40.63mm(12.24'' x 9.33'' x 1.60'')
Enclosure
Mounting
Power Input
External 60 W power adapter, with AC 100 V ~ 240 V
input and DC +12 V @ 5 A output
Video Port
VGA
Weight (Net)
4kg (8.82 lbs)

LCD Display
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

9-4

Display Type
Display Size
Max. Resolution
Max. Color
Viewing Angle (H/V)°
Luminance (cd/m2)
Contrast Ratio

SVGA TFT LCD with LED backlight
12''
800 x 600
16.2M
160°(V),140°(H)
450
50,000
700:1

Industrial Monitors

ƒƒ OS Support

Combo RS-232 & USB interface
36 millions times with a silicone rubber of R8 finger,
hitting rate is calculated as being 250g at 2 times per
second
Windows® XP/Vista/Win7/CE & Linux

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Operation Temperature 0 ~ 50°C (32 ~ 122°F)
Humidity (Storage)
Waterproof
Front Panel IP65 Compliant
Vibration

ƒƒ FPM-2120G-X0AE
ƒƒ FPM-2120G-R3AE

12'' SVGA Industrial LED Monitor
12'' SVGA Industrial LED Monitor w/Resistive TS
(RS-232 and USB interfaces)

FPM-2120G
Dimensions

Unit: [mm]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

3 [0.12]

301.30 [11.86]

Energy Automation

100 [3.94]
75 [2.95]

40.63 [1.06]

311 [12.24]

227.30 [8.95]

100 [3.94]
75 [2.95]

164.10 [6.46]

237 [9.33]

Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel

Panel Cut-out Dimensions: FPM-2120G 303.3 x 229.3 mm (11.94" x 9.03")

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

FPM-2120G-SMKE
FPM-2120G-RMKE
1702002605
1702031801
1702031836

Industrial Monitors

I/O View

Industrial Wireless
Solutions

FPM-2120G/2150G/2170G Stand Kit
FPM-2120G Rack-Mount Kit

Industrial Ethernet
Solutions

and IP Gateways

Touch Screen (USB)

VGA Port


Front View


Rear View
VESA Mount

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

OSD Control Keys

Wallmount


9-5

FPM-2150G

15" XGA Industrial Monitor with Resistive
Touchscreen and Direct-VGA Port

Features

NEW

ƒƒ 15'' XGA TFT LCD with LED backlight

Introduction
FPM-2150G is an industrial-grade 15" TFT LCD flat panel monitor with an Al-Mg front panel, a modern appearance, and one of the most competitive prices for 15" LCD monitors
on the market. The FPM-2150G is also extremely light and thin, and provides many industrial-grade features such as a stainless steel chassis, VESA mounting flexibility, and more.
The FPM-2150G is especially suitable for industrial PCs such as IPC-610 or IPC-6806. This combination leads to an extremely reliable and tough system, ready to operate in a wide
variety of industrial applications.

Specifications
General


ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ Interface
ƒƒ Lifespan

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Button Controls
Certification
Dimensions (W x H x D) 383 x 307 x 48 mm (15" x 12" x 1.9")
Enclosure
Mounting
Panel, wall, desktop, VESA arm, or rackmount with
Power Input
Video Port
VGA
Weight (Net)
4.5 kg (9.9 lbs)

LCD Display
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

9-6

Display Type
Display Size
Max. Resolution
Max. Color
Luminance (cd/m2)
Contrast Ratio

XGA TFT LCD with LED backlight
15"
1024 x 768
16.2M
160, 140
400
50,000
700 : 1

Industrial Monitors

ƒƒ OS Support

second

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity (Storage)
Waterproof
Front Panel IP65
Vibration

ƒƒ FPM-2150G-X0AE
ƒƒ FPM-2150G-R3AE

15" XGA Industrial LED Monitor
15" XGA Industrial LED Monitor w/Resistive TS
(RS-232 and USB interfaces)

FPM-2150G
Dimensions

Unit: [mm]

372.60 [14.67]
308.26 [12.14]
270.59 [10.65]

Machine Automation

Energy Automation

15.00 [0.59]

130.00 [5.12]
100.00 [3.94]
75.00
[2.95]

Building Automation
Systems

121.70 [4.79]

100.00 [3.94]
75.00
[2.95]

0

7.2

37

307.00 [12.09]

0]

214.10 [8.43]
296.60 [11.68]

48.13 [1.89]
18.50 [0.73]
4.50 [0.18]

383.00 [15.08]

.1
[15

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Automation Software

Operator Panels


Industrial Panel


Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

FPM-2150G-R1MKE
FPM-2120G-SMKE
1702002600
1702002605
1702031801
1702031836

Industrial Monitors

I/O View

Industrial Wireless
Solutions


Industrial Ethernet
Solutions

and IP Gateways

Cards

Touch Screen (USB)

VGA Port

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


9-7

FPM-2170G

17" SXGA Industrial Monitor with
Resistive Touchscreen and Direct-VGA Port
Features

NEW

ƒƒ 17'' SXGA TFT LCD with LED backlight

Introduction
FPM-2170G are industrial-grade 17'' TFT LCD with LED backlightflat panel monitor with an Al-Mg front panel, a modern appearance, and one of the most competitive prices for 17''
LCD with LED backlight monitor on the market. The FPM-2170G are also extremely light and thin, and provides many industrial-grade features such as a stainless steel chassis,
VESA mounting flexibility, and more. The FPM-2170G are especially suitable for industrial PCs such as IPC-610 or IPC-6806. This combination leads to an extremely reliable and
tough system, ready to operate in a wide variety of industrial applications.

Specifications
General


ƒƒ Certification
ƒƒ Dimensions (W x H x D) 413.72mm x 347.22mm x 52.13mm(16.29'' x 13.67 x
2.05'')
ƒƒ Enclosure
ƒƒ Mounting
ƒƒ Power Input
ƒƒ Video Port
VGA
ƒƒ Weight (Net)
5.60 kg (12.34 lbs)

ƒƒ Interface
ƒƒ Lifespan

LCD Display


ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

9-8

Display Type
Display Size
Max. Resolution
Max. Color
Luminance (cd/m2)
Contrast Ratio

SXGA TFT LCD with LED backlight
17''
1280 x 1024
16.7M
170°(V),160°(H)
350
50,000
1000:1

Industrial Monitors

ƒƒ OS Support

second

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity (Storage)
Waterproof
Front Panel IP65 Compliant
Vibration

ƒƒ FPM-2170G-X0AE
ƒƒ FPM-2170G-R3AE

17" XGA Industrial LED Monitor
17" XGA Industrial LED Monitor w/Resistive TS (RS232 and USB interfaces)

FPM-2170G
Dimensions

Unit: [mm]
398.92 [15.71]
308.26 [12.41]

Machine Automation

269.17 [10.60]

Energy Automation

121.70 [4.79]

Building Automation
Systems

100 [3.94]
75 [2.95]

52.91 [2.08]
214.10 [8.43]

332.42 [13.09]

1

2.9

43

347.22 [13.67]

]

.04

130 [5.12]
100 [3.94]
75 [2.95]

52.13 [2.05]
33 [1.30]
5.50 [0.22]

413.72 [16.29]

7
[1

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Automation Software

Operator Panels


Industrial Panel

Panel Cut-out Dimensions: 400.92x334.42mm (15.78"x13.17")

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

FPM-2170G-RMKE
FPM-2120G-SMKE
1702002600
1702002605
1702031801
1702031836

Industrial Monitors

I/O View

Industrial Wireless
Solutions


Industrial Ethernet
Solutions

and IP Gateways

Touch Screen (USB)

VGA Port


Front View

Rear View


VESA Mount

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

OSD Control Keys

Wallmount


9-9

12.1" SVGA Industrial Monitor with
Resistive Touchscreen, Direct-VGA,
DVI and Wide Operating Temperature

FPM-3121G

Features
ƒƒ 12.1" SVGA LED backlight LCD with low power consumption
ƒƒ Energy Star certification

Introduction
The FPM-3121G is a particularly rugged and reliable 12.1” SVGA wide temperature industrial monitor for a variety of industry applications. Equipped with a hard anodized coating,
stainless steel chassis, and -20 to 60°C operating temperature, it can satisfy demands in a wide range of harsh industrial applications. This model also features enhanced 5-wire
resistive touch and system ground isolation protection to enhance the reliability. Lockable OSD keys on front panel with 2 user-defined contrast/brightness settings.

Specifications
General



ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Sensor
Driver
Type
Interface
Lifespan

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Light Transmission
OS Support
Power Consumption
Touch Resolution

ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ

ƒƒ

OSD control pad on front side with lockable function
Certification
CE, FCC Class A, BSMI, CCC, UL, Energy Star
Dimension (W x H x D) 3312 x 224 x 60.5 mm (12.28" x 9.61" x 2.36")
Enclosure
Front panel: Aluminum with hard anodized coating
Mounting
Panel, VESA arm, or wall & desktop mount with
Power Input
100 ~ 240 VAC input and +12 VDC @ 4.75 A output
Power Consumption
9W

ƒƒ Video Port
ƒƒ Weight (Net)

VGA & DVI-D Port
4.07 kg (8.975 lbs)

LCD Display
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

9-10

Display Type
Backlight Type
Display Size
Max. Resolution
Max. Color
Luminance (cd/m2)
Operation Life (hrs)
Contrast Ratio

SVGA TFT LCD
LED
12.1"
800 x 600
16.2M (RGB 8-bit) or 262k colors (RGB 6-bit)
160 / 140
450
50,000
700:1

Industrial Monitors

AMT
Penmount 6000
5-wire Resistive with enhanced ITO film
> 80%
+5 V @ 100 mA
Linearity

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity (Storage)
Waterproof
Shock
Vibration

ƒƒ FPM-3121G-X0AE
ƒƒ FPM-3121G-R3AE

12.1" SVGA Ind. Monitor with Wide Temp
12.1" SVGA Ind. Monitor w/ Wide Temp, Resistive TS

FPM-3121G
Dimensions

Unit: [mm]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

60.00 [2.36]
6.60
[0.26]

312.00 [12.28]

301.50 [11.87]
100.00 [3.94]
75.00 [2.95]

Energy Automation

M4 Depth=8mm

M4 Depth=8mm

244.00 [9.61]

M4 Depth=8mm

M4 Depth=8mm
M4 Depth=8mm

M4 Depth=8mm
M4 Depth=8mm

75.00 [2.95]
100.00 [3.94]
227.50 [8.96]

M4 Depth=8mm

Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel


Industrial Monitors

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

FPM-2150G-SMKE
1700001524
170203180A
170203183C
1702031836

Industrial Wireless
Solutions

Mounting kit for desktop stand & wall

Industrial Ethernet
Solutions

and IP Gateways

I/O View

Mounting Method

Cards

Wall Mount
VESA Mount
(75/100 mm)

Power Adapter Mount

Embedded Automation
Computers

PACs

Compact PCI Systems

Touchscreen
(RS-232)

24 VDC Input

Touchscreen
(USB)

Desktop Stand Kit

DVI-D

100 ~ 240VAC
Power Adapter

VGA Port

M2M I/O Modules

RS-485 I/O Modules


9-11

15" XGA Industrial Monitor with Resistive
Touchscreen, Direct-VGA, DVI Ports, and
Wide Operating Temperature

FPM-3151G

Features
ƒƒ 15" XGA LED backlight LCD with low power consumption

Introduction
The FPM-3151G is a particularly rugged and reliable 15” XGA wide temperature industrial monitor for a variety of industry applications. Equipped with a hard anodized coating, stainless
steel chassis, and -20 to 60°C operating temperature, it can satisfy demands in a wide range of harsh industrial applications. This model also features enhanced 5-wire resistive touch
and system ground isolation protection to enhance the reliability. FPM-3151G also provides lockable OSD keys on the front panel with two user-defined contrast/brightness settings.

Specifications
General



ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Sensor
Driver
Type
Interface
Lifespan

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Light Transmission
OS Support
Power Consumption
Touch Resolution

ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ

OSD control pad on front panel with lockable function
Certification
CE, FCC Class A, BSMI, CCC, UL, Energy Star
Dimension (W x H x D) 422 x 310 x 70 mm (16.61" x 12.2" x 2.76")
Enclosure
Front panel: Aluminum with hard anodizing coating
Rear cover : Stainless steel
Mounting
Power Input
100 ~ 240 VAC input and 12 VDC @ 4.75 A output
Power Consumption
12W
Video Port
VGA & DVI-D Port
Weight (Net)
7.73 kg (17.04 lbs)

LCD Display
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

9-12

Display Type
Backlight Type
Display Size
Max. Resolution
Max. Color
Luminance (cd/m2)
Contrast Ratio

XGA TFT LCD
LED
15"
1024 x 768
16.2M (RGB 8-bits) or 262k colors (RGB 6-bits)
160/140
350
50,000
700:1

Industrial Monitors

AMT
Penmount 6000
5-wire resistive with enhanced ITO film
36 million with a silicone rubber R8 finger,
> 80%
+5 V @ 100 mA
Linearity

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity (Storage)
Waterproof
Shock
Vibration

ƒƒ FPM-3151G-X0AE
ƒƒ FPM-3151G-R3AE
ƒƒ FPM-3151SR-R3AE

15" XGA Ind. Monitor with Wide Temp
15" XGA Ind. Monitor w/ Wide Temp, Resistive TS
15" XGA Ind. Monitor w/ Sunlight Readable Display

FPM-3151G
Dimensions
36.00
[1.42]
60.00 [2.36]

Unit: [mm]

Machine Automation

70.00 [2.76]
10.00
[0.39]

422.00 [16.61]

Energy Automation

390.00 [15.35]
100.00 [3.94]
75.00 [2.95]

Building Automation
Systems

M3

310.00 [12.20]

M4 Depth=8mm

M3

M4 Depth=8mm

M4 Depth=8mm

M4 Depth=8mm

M4 Depth=8mm

M4 Depth=8mm

M3

M3

M4 Depth=8mm

M3

M4 Depth=8mm

75.00 [2.95]
100.00 [3.94]
290.00 [11.42]

M3

M3

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


M3

Automation Software

Operator Panels


Industrial Panel


Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

FPM-3151G-RMKE
1702002600
1702002605
1702031801
1702031836

Rack Mount (FPM-3151G-RMKE)
Mounting kit for 19" industrial rack

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

I/O View

Cards

24 VDC Input
VGA Port

Embedded Automation
Computers

PACs

DVI-D

Compact PCI Systems

M2M I/O Modules


RS-485 I/O Modules

Touch Screen (USB)


9-13

8U Rackmount 17" SXGA Industrial
Monitor with Resistive Touchscreen,
Direct-VGA and DVI Ports, and Wide
Operating Temperature Range

FPM-3171G

Features
ƒƒ 17''SXGA TFT LCD with LED backlight
ƒƒ Robust design with stainless steel chassis and aluminum front panel
ƒƒ OSD control pad on front panel
ƒƒ Supports industrial 24VDC power input
ƒƒ Supports panel, wall, desktop, rack or VESA arm mounting
ƒƒ Supports 8U pre-drill Rackmount mounting hole

Introduction
FPM-3171G is a 17''color TFT LCD flat panel monitor specifically designed for industrial applications. With a viewing size as large as 17", it presents an simple display area as well
as vivid and sharp images for your HMI. It features direct VGA signal transmission. You can thus upgrade the displays without making changes to the existing system. The onscreen
display function also makes it easy to adjust the images on the screen. The whole chassis is designed in stainless steel and the front panel is made of aluminum with front panel
IP65 compliance.

Specifications
General


OSD (Onscreen Display) control pad on front panel
ƒƒ Certification
ƒƒ Dimensions (W x H x D) 482mm x 354.8mm x 63.9mm(18.98'' x 13.97'' x
2.54'')
ƒƒ Enclosure
Front panel: Aluminum with coating
*Mounting holes on rear cover are designed for PWR-246E DC Source

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ Mounting
ƒƒ Power Input

Panel, wall, desktop, VESA arm & 19" rackmount
DC Jack: external 57 W power adapter, with 100 ~ 240
VAC input and 12 VDC @ 4.75 A output
Note: AC power adapter is included.
ƒƒ Video Port
ƒƒ Weight (Net)

35 W + 20%
VGA & DVI-D port
9.25 kg (20.39 Ibs)

LCD Display
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

9-14

Display Type
Display Size
Max. Resolution
Max. Color
Luminance (cd/m2)
Contrast Ratio

'SXGA TFT LCD with LED backlight
17''
1280 x 1024
16.2 M
170/160
350
50,000
1000:1

Industrial Monitors

Type
Interface
Lifespan
Light Transmission
OS Support
Power Consumption
Touch Resolution

5-wire Resistive
RS-232 and USB
35 million touches at a single point
80% ±5
Windows XP, Vista, 7, XPe, CE and Linux
+5 V @ 100 mA
Linearity

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity (Storage)
95% @ 60°C . non-condensing
Waterproof
Vibration

FPM-3171G
Dimensions

Unit: [mm]
Diameters of the rackmount holes:
Vertical: 6.5 mm
Horizontal: 9 mm

445.20 (17.52”)
151.00
(5.94”)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

135.60 (5.33”)

100.00 (3.94”)

75.00
(2.95”)

Automation Software

276.20 (10.87”)

43

76.20
(3.00”)

2.9

327.20 (12.88”)

”)

.04

17
1(

279.40 (11.00”)

7.00
(0.27”)

75.00 (2.95”)

465.00 (18.31”)

354.80 (13.97”)

37.50
(1.47”)

100.00 (3.94”)

12.00 (0.47”)

224.00 (8.82”)
63.50 (2.50”)

482.00 (18.98”)

Operator Panels


Industrial Panel

Panel Cut-out Dimensions: FPM-3171G: 447.5 x 329.5 mm[17.6" x 12.98"]

ƒƒ FPM-3171G-X0AE
ƒƒ FPM-3171G-R3AE

I/O View

17" SXGA WT Ind. Monitor with VGA, DVI
17"SVGA WT Ind. Monitor w/Resistive TS (Combo)

PWR-246E
1702002600
1702002605
1702031801
1702031836

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Industrial Monitors

Ind. DC to DC w/24-48 VDC 1.4-2.9A In 12 VDC 5A Out

VGA Port
DVI-D
DC-Jack 12VDC for
Power Adapter
T/S USB Port
T/S RS-232 Port

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


9-15

9U Rackmount 19" SXGA Industrial
Monitor with Resistive Touchscreen,

FPM-3191G

Features
ƒƒ 19" SXGA TFT LCD with LED backlight
ƒƒ Robust design with stainless steel chassis and aluminum front panel
ƒƒ OSD control pad on front panel
ƒƒ Supports industrial 24 VDC power input
ƒƒ Supports 9U pre-drill Rackmount mounting hole

Introduction
FPM-3191G is a 19'' color TFT LCD flat panel monitor specifically designed for industrial applications. With a viewing size as large as 19", it presents an simple display area as well
as vivid and sharp images for your HMI. It features direct VGA signal transmission. You can thus upgrade the displays without making changes to the existing system. The onscreen
display function also makes it easy to adjust the images on the screen. The whole chassis is designed in stainless steel and the front panel is made of aluminum with front panel
IP65 compliance.

Specifications
General


ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Button Controls
OSD (Onscreen Display) control pad on front panel
Certification
Dimensions (W x H x D) 482mm x 399mm x 67 mm (19" x 15.7" x 2.64")
Enclosure
Front panel: Aluminum with coating
*Mounting holes on rear cover are designed for PWR-246E DC Source
ƒƒ Mounting
ƒƒ Power Input

Panel, wall, desktop, VESA arm & 19" rackmount
ƒƒ Video Port
ƒƒ Weight (Net)

35 W + 20%
VGA & DVI-D port
10.65 kg (23.46 Ibs)

LCD Display
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

9-16

Display Type
Display Size
Max. Resolution
Max. Color
Luminance (cd/m2)
Contrast Ratio

SXGA TFT LCD with LED backlight
19''
1280 x 1024
16.2 M
170/160
350
50,000
1000:1

Industrial Monitors

Type
Interface
Lifespan
Light Transmission
OS Support
Power Consumption
Touch Resolution

5-wire Resistive
RS-232 and USB
35 million touches at a single point
80% ±5
+5 V @ 100 mA
Linearity

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity (Storage)
Waterproof
Vibration

FPM-3191G
Dimensions

Unit: [mm]
Diameters of the rackmount holes:
Vertical: 6.5 mm
Horizontal: 9 mm
67.00 [2.64]

482.00 [18.98]

8.00
[0.31]

439.00 [17.28]

75.00 [2.95]

374.40 [14.74]

100.00 [3.94]

M4
M4

Building Automation
Systems

75.00 [2.95]

M4
M4

399.20 [15.72]

M4
M4

Machine Automation

Energy Automation

100.00 [3.94]

M4
M4

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Automation Software

Operator Panels


Industrial Panel

Panel Cut-out Dimensions: 444mm [17.48"] X 376.4 mm [14.82"]

ƒƒ FPM-3191G-X0AE
ƒƒ FPM-3191G-R3AE

Mounting with DC Source

19" SXGA Ind. Monitor with VGA, DVI
19" SXGA Ind. Monitor w/ Resistive TS(Combo)

PWR-246E
1702002600
1702002605
1702031801
1702031836

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Industrial Monitors


and IP Gateways

Cards

I/O View

Embedded Automation
Computers

PACs

VGA Port
DVI-D
DC-Jack 12VDC for
Power Adapter
T/S USB Port
T/S RS-232 Port


Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

9-17

FPM-5151G
FPM-5171G
FPM-5191G

15" XGA/17" SXGA/19" SXGA
Touchscreens, Direct-VGA, and DVI Ports
Features
ƒƒ 15" XGA or 17" / 19" SXGA TFT LCD LED backlight
ƒƒ Direct VGA & DVI-D input interface
ƒƒ Lockable OSD keys with 2 user-defined contrast/brightness settings
ƒƒ Robust design with anti-rust chassis and aluminum die-cast front panel
ƒƒ Front accessible USB connector
ƒƒ Combo RS-232 & USB interface for touchscreen function (optional)
ƒƒ Supports industrial 10-30 VDC power input with Phoenix jack

Introduction
The FPM-5000G series provides 15", 17" and 19" color TFT LCD with LED backlight flat panel monitors specifically designed for industrial applications. With a viewing size from 15" to
19", they present ample display areas as well as vivid and sharp images. It features Direct-VGA & DVI-D signal transmission, which allows VGA control cards to be used in your system.
The onscreen display allows users to adjust the images on the screen with two user-defined settings. The front access USB connector provides easy access the controller, and the industrial
10-30 VDC wide range power support makes this product an excellent option for Factory and Machine Automation display solutions.

Specifications
General
ƒƒ Certification
ƒƒ Dimensions (WxHxD)

ƒƒ Enclosure
ƒƒ Mounting
ƒƒ Power Input

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Power Consumption
USB
Video Port
Weight (Net)

OSD control pad on rear side with lockable function
5151G: 449.92 x 315.63 x 50.5 mm (17.71" x 12.43" x 2")
5171G: 481.9 x 355.9 x 55 mm (18.97" x 14.01" x 2.17")
5191G: 481.93 x 384.6 x 59 mm (18.97" x 15.14" x 2.32")
Front panel: Aluminum and flat-sealed
Panel, wall, desktop, VESA arm, or 19" rackmount
Phoenix Jack - 10 ~ 30 VDC input
Optional external 57 W power adapter, with AC
100 V ~ 240 V input and DC +12 V @ 4.7A output
18 W + 20%/31 W + 20%/32 W + 20%
Front USB access for extension
VGA & DVI-D
6 kg (13.22 lbs)/8 kg (17.63 lbs)/10 kg (22.04 lbs)

LCD Display
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

9-18

Display Type
Display Size
Max. Resolution
Max. Color
Luminance (cd/m2)
Contrast Ratio

XGA/SXGA/SXGA TFT LCDs
15"/17"/19"
1024 x 768/1280 x 1024/1280 x 1024
16.2M
160/130, 170/160, 170/160
400/350/350
50,000
700:1 / 800:1 / 1000:1

Industrial Monitors

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Sensor
Driver
Type
Interface
Lifespan

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Light Transmission
OS Support
Power Consumption
Touch Resolution

AMT
Penmount 6000
5-wire Resistive
RS-232 & USB
10/10/36 million with a silicone rubber of R8 finger,
> 80%
+5 V @ 100 mA
Linearity

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity (Storage)
Waterproof
Vibration

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

FPM-5191G-X0BE
FPM-5191G-R3BE
FPM-5171G-X0BE
FPM-5171G-R3BE
FPM-5151G-X0BE
FPM-5151G-R3BE

19''SXGA Ind. Monitor
19''SXGA Ind. Monitor w/Resistive TS(RS-232,USB)
17''SXGA Ind. Monitor
17''SXGA Ind. Monitor w/Resistive TS(RS-232,USB)
15''XGA Ind. Monitor
15''XGA Ind. Monitor w/Resistive TS(RS-232,USB)

FPM-5151G/FPM-5171G/FPM-5191G
Dimensions

Unit: [mm]
FPM-5151G: 422.40 [16.63]
FPM-5171G: 449.97 [17.72]
FPM-5191G: 445.92 [17.56]

FPM-5151G: 3.00 [0.12]
FPM-5171G: 6.00 [0.24]
FPM-5191G: 7.00 [0.28]

100.00 [3.94]
75.00 [2.95]

Energy Automation

M4

M4

M4

M4

M4

75.00 [2.95]

M4
M4

100.00 [3.94]
FPM-5151G: 291.40 [11.47]
FPM-5171G: 334.97 [13.19]
FPM-5191G: 334.44 [13.17]

M4

256.40 [10.09]

FPM-5151G: 315.63 [12.43]
FPM-5171G: 355.87 [14.01]
FPM-5191G: 384.60 [15.14]

Machine Automation

257.50 [10.14]

FPM-5151G: 50.50 [2.00]
FPM-5171G: 55.00 [2.17]
FPM-5191G: 59.00 [2.32]

FPM-5151G: 449.92 [17.71]
FPM-5171G: 481.93 [18.97]
FPM-5191G: 481.93 [18.97]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Building Automation
Systems

Automation Software

Operator Panels


Panel Cut-out Dimensions: FPM-5151G: 424 X 293 mm
FPM-5171G: 454 X 338 mm
FPM-5191G: 454 X 338 mm

Panel Cut-out Dimensions: FPM-5151G: 424 x 293 mm (16.69" x 11.54")

FPM-5171G: 454 x 338 mm (17.87" x 13.31")

FPM-5191G: 454 x 338 mm (17.87" x 13.31")

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

FPM-5151G-SMKE
FPM-5191G-SMKE
IPPC-6152A-RMKE
IPPC-6172A-RMKE
IPPC-6192A-RMKE
1702002600
1702002605
1702031801
1702031836
1757003822

FPM-5151G/5171G Stand Kit
FPM-5191G Stand Kit
IPPC-6152A/FPM-5151G Rack Mount Kit
ADAPTER 100-240V57W12V4.75A W/O PFC
SPU63-105 L5
Note: VESA mounting screw length: M4x6mm

I/O View

10-30 VDC Power Input
with Phoenix Jack
VGA Port
12V Power Input
TS Interface - USB Port
with DIN-rail

TS Interface RS-232 Port

Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Panel Mount T/S Interface Switch DVI-D port

Back View

VESA Mount


Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

LCD OSD Control Keys

Wallmount


9-19

FPM-5152G
FPM-5172G
FPM-5192G

15" XGA / 17" SXGA / 19" SXGA
Touchscreens, Lockable Display Port
Features
ƒƒ 15" XGA or 17" / 19" SXGA TFT LCD LED backlight
ƒƒ Lockable display port input interface
ƒƒ Lockable OSD keys with 2 user-defined contrast/brightness settings
ƒƒ Robust design with anti-rust chassis and aluminum die-cast front panel
ƒƒ Front accessible USB connector
ƒƒ USB interface for touchscreen function
ƒƒ Supports industrial 18-32VDC power input with Phoenix jack

Introduction
The FPM-5000G series provides 15", 17" and 19" color TFT LCD with LED backlight flat panel monitors specifically designed for industrial applications. With a viewing size from
15" to 19", they present ample display areas as well as vivid and sharp images. It features display port signal transmission and onscreen display allows users to adjust the images
on the screen. The front access USB connector provides easy access the controller, and the industrial 18-32VDC wide range power support makes this product an excellent option for
Factory and Machine Automation display solutions.

Specifications
General
ƒƒ Certification
ƒƒ Dimensions (WxHxD)

ƒƒ Enclosure
ƒƒ Mounting
ƒƒ Power Input

ƒƒ USB
ƒƒ Video Port
ƒƒ Weight (Net)

Touchscreen
OSD control pad on rear side with lockable function
BSMI, CCC, CE, FCC Class B, UL
5152G: 449.92 x 315.63 x 50.5 mm (17.71" x 12.43" x 2")
5172G: 481.9 x 355.9 x 55 mm (18.97" x 14.01" x 2.17")
5192G: 481.93 x 384.6 x 59 mm (18.97" x 15.14" x 2.32")
Front panel: Aluminum and flat-sealed
Panel, wall, desktop, VESA arm, or 19" rackmount
Phoenix Jack 18 ~ 32VDC input
Optional external 48 W power adapter, with AC 100 V
~240 V input and DC18-32 V @max3.3A output
Front USB access for extension
Lockable display port
6 kg (13.22 lbs) / 8 kg (17.63 lbs) / 10 kg (22.04 lbs)

LCD Display
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

9-20

Display Type
Display Size
Max. Resolution
Max. Color
Luminance (cd/m2)
Contrast Ratio

XGA/ SXGA/ SXGA TFT LCD LED backlight
15"/ 17"/ 19"
1024 x 768 / 1280 x 1024 / 1280 x 1024
16.2M / 16.7M / 16.7M
140°(V),120°(H); 140°(V),140°(H); 150°(V),140°(H)
350
50,000
700:1/1000:1 /1000:1

Industrial Monitors

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Sensor
Driver
Type
Interface
Light Transmission
OS Support
Touch Resolution

AMT
Penmount 6000
5-wire Resistive
USB
> 80%
Linearity

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity (Storage)
Waterproof
Vibration

ƒƒ FPM-5192G-R2AE
ƒƒ FPM-5172G-R2AE
ƒƒ FPM-5152G-R2AE

19'' SXGA Ind. DP Monitor w/Resistive TS (USB)
17'' SXGA Ind. DP Monitor w/Resistive TS (USB)
15'' XGA Ind. DP Monitor w/Resistive TS (USB)

FPM-5152G / FPM-5172G / FPM-5192G
Dimensions

Unit: [mm]

257.50 [10.14]

FPM-5152G: 50.50 [2.00]
FPM-5172G: 55.00 [2.17]
FPM-5192G: 59.00 [2.32]

100.00 [3.94]

Energy Automation

75.00 [2.95]

M4
M4

M4

M4

75.00 [2.95]
100.00 [3.94]

M4

M4

M4

M4

FPM-5152G: 291.40 [11.47]
FPM-5172G: 334.97 [13.19]
FPM-5192G: 334.44 [13.17]

Building Automation
Systems

256.40 [10.09]

FPM-5152G: 315.63 [12.43]
FPM-5172G: 355.87 [14.01]
FPM-5192G: 384.60 [15.14]

FPM-5152G: 449.92 [17.71]
FPM-5172G: 481.93 [18.97]
FPM-5192G: 481.93 [18.97]

Machine Automation

FPM-5152G: 422.40 [16.63]
FPM-5172G: 449.97 [17.72]
FPM-5192G: 445.92 [17.56]

FPM-5152G: 6.00 [0.24]
FPM-5172G: 6.00 [0.24]
FPM-5192G: 7.00 [0.28]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Automation Software

Operator Panels


Industrial Panel

Panel Cut-out Dimensions: FPM-5152G: 424 x 293 (16.69" x 11.54")

FPM-5172G: 454 x 338 (17.87" x 13.31")

FPM-5192G: 454 x 338 (17.87" x 13.31")

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

I/O View

FPM-5151G-SMKE
FPM-5191G-SMKE
IPPC-6152A-RMKE
IPPC-6172A-RMKE
IPPC-6192A-RMKE
1757002321
Note:

Industrial Monitors

FPM-5151G/5171G Stand Kit
FPM-5191G Stand Kit
ADAPTER 100-240V 63W 24V 2.62A IPU63-108
SINPRO
VESA mounting screw length: M4x10mm

Industrial Wireless
Solutions

18-32 VDC Power Input
with Phoenix Jack

Display Port
TS Interface USB Port

Industrial Ethernet
Solutions

and IP Gateways

Cards

Panel Mount


Back View

Panel Mount

Embedded Automation
Computers

VESA Mount

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

LCD OSD Control Keys

Wallmount


9-21

18.5" Industrial Monitor with Projected
Capacitive Touchscreen, Direct-VGA and
DVI Ports

FPM-7181W

Features

NEW

ƒƒ 18.5” WXGA TFT LED LCD wide screen display
ƒƒ Truly-flat touch screen with IP65 compliance
ƒƒ Slim type design for Panel mount / Wall mount easy installation
ƒƒ Supports panel, wall, desktop and VESA arm mounting
ƒƒ OSD control pad on rear panel
ƒƒ Projected Capacitive Touchscreen, with Multi touch.
ƒƒ Robust design with SECC chassis and Magnesium alloy front panel
ƒƒ Lockable I/O connectors

Introduction
With its brand new design, the FPM-7181W provides a new wide screen display size with industrial grade design concept. By truly-flat touch screen, the front bezel meets IP65 testing
criteria. FPM-7181W projected capacitive touch can support 4-points touch application. New easy installation design can help you with one person for panel mounting.FPM-7181W
monitor with slim enclosure is ideally suited to being either panel or wall mounted.

Specifications

Touchscreen

General
ƒƒ
ƒƒ
ƒƒ
ƒƒ

OSD Controls
OSD control in rear cover
Certification
Dimensions (W x H x D) 488 x 309 x 47.7mm (19.2" x 21.2" x 1.8")
Enclosure
Rear cover: SECC
ƒƒ Mounting
Panel, wall, desktop, VESA (MIS,100,C)
ƒƒ Power Input
ƒƒ Video Port
ƒƒ Weight (Net)

35 W + 20%
VGA & DVI-D port
6kg (13.2lbs)

LCD Display
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

9-22

Display Type
Display Size
Max. Resolution
Max. Color
Luminance (cd/m2)
Contrast Ratio

WXGA TFT LED LCD
18.5''
1366 x 768
16.2 M
170/160
300
50,000
1000:1

Industrial Monitors

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Type
Interface
Light Transmission
OS Support
Multi Touch
Hardness

Projected capacitive touch
RS-232 and USB
Above 75%
4 points, USB interface in Win 7.
7H

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity (Storage)
Waterproof
Vibration

ƒƒ FPM-7181W-P3AE

18.5" WXGA Ind Monitor w/PCT TS (RS-232, USB)

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

PWR-246E
1702002600
1702002605
1702031801
1702031836
FPM-7181W-SMKE

FPM-7181W Mounting kit for desktop & wall

FPM-7181W
Dimensions

Unit: [mm]
260.00 [10.24]

Machine Automation

M4

47.70 [1.88]
28.00 [1.10]

488.00 [19.21]

M4

M4

100.00 [3.94]

100.00 [3.94]
M4

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Energy Automation

192.00 [7.56]

.5"

18

309.00 [12.17]

Building Automation
Systems

0]

0.2

R
0[

.0

479.30 [18.87]

R5

Automation Software

CUTOUT DIMENSION:(479.3±1.0mm)X(300.3±0.70mm)
Radius=5mm at corner

300.30 [11.82]

Operator Panels


Industrial Panel

Panel Cut-out Dimensions: 479 mm X 300 mm

Easy Installation
Snap hook in rear cover

Industrial Monitors

Rear View

Industrial Wireless
Solutions

Easy Installation: Snap hook x2

Industrial Ethernet
Solutions

and IP Gateways

Cards

Screw to set up the snap hook out of upper side

Stopper Screw in rear cover

Easy Installation: Snap hook
TS Interface - RS232 Port
24VDC Power Input with Phoenix Jack
12VDC Power Input with DC Jack

Easy Installation:
Snap hook

DVI Port
VGA Port

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

Screw for the stopper screw out of down side

RS-485 I/O Modules


9-23

21.5" Industrial Monitor with Projected
Capacitive Touchscreen, Direct-VGA and
DVI Ports

FPM-7211W

Features

NEW

ƒƒ 21.5" Full HD TFT LED LCD wide screen display
ƒƒ Truly-flat touch screen with IP65 compliance
ƒƒ Slim type design for Panel mount / Wall mount easy installation
ƒƒ Supports panel, wall, desktop and VESA arm mounting
ƒƒ OSD control pad on rear panel
ƒƒ Projected Capacitive Touchscreen, with Multi touch.
ƒƒ Robust design with SECCl chassis and Magnesium alloy front panel
ƒƒ Lockable I/O connectors

Introduction
With its brand new design, the FPM-7211W provides a new wide screen display size with industrial grade design concept. By truly-flat touch screen, the front bezel meets IP65 testing
criteria. FPM-7211W projected capacitive touch can support 5-points touch application. New easy installation design can help you with one person for panel mounting.FPM-7211W
monitor with slim enclosure is ideally suited to being either panel or wall mounted.

Specifications

Touchscreen

General
ƒƒ
ƒƒ
ƒƒ
ƒƒ

OSD Controls
OSD control in rear cover
Certification
Dimensions (W x H x D) 561x356x45.7mm (22.1"x14"x1.8")
Enclosure
Rear cover: SECC
ƒƒ Mounting
Panel, wall, desktop, VESA (MIS,100,C)
ƒƒ Power Input
ƒƒ Video Port
ƒƒ Weight (Net)

35 W + 20%
VGA & DVI-D port
8kg (17.6lbs)

LCD Display
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

9-24

Display Type
Display Size
Max. Resolution
Max. Color
Luminance (cd/m2)
Contrast Ratio

Full HD TFT LED LCD
21.5''
1920 x 1080
16.7 M
178/178
300
50,000
5000:1

Industrial Monitors

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Type
Interface
Light Transmission
OS Support
Multi Touch
Hardness

Projected Capacitive touch
RS-232 and USB
Above 75%
5 points, USB interface in Win 7.
>6H

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Humidity (Storage)
Waterproof
Vibration

ƒƒ FPM-7211W-P3AE

21.5" Full HD Ind Monitor w/PCT TS (RS-232, USB)

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

PWR-246E
1702002600
1702002605
1702031801
1702031836
FPM-7181W-SMKE

FPM-7211W Mounting kit for desktop & wall

FPM-7211W
Dimensions

Unit: [mm]
260.00 [10.24]

Machine Automation

349.8 [13.77]

M4

Energy Automation

Building Automation
Systems

192.00 [7.56]

"

M4

M4

.5
21

M4

47.70 [1.88]
28.00
[1.10]

100.00 [3.94]

100.00 [3.94]

558.4 [21.98]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


0]

0.2

R
0[

.0

550.30 [21.67]

R5

Automation Software

341.80 [13.46]

Operator Panels

CUTOUT DIMENSION:(550.3±1.0mm)X(341.8±0.70mm)
Radius=5mm at corner


Industrial Panel

Panel Cut-out Dimensions: 550.5 x 345.2 mm

Easy Installation
Snap hook in rear cover

Industrial Monitors

Rear View

Industrial Wireless
Solutions

Easy Installation: Snap hook x2

Industrial Ethernet
Solutions

and IP Gateways

Cards

Screw to set up the snap hook out of upper side

Stopper Screw in rear cover

Easy Installation: Snap hook
TS Interface - RS232 Port
24VDC Power Input with Phoenix Jack
12VDC Power Input with DC Jack

Easy Installation:
Snap hook

DVI Port
VGA Port

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

Screw for the stopper screw out of down side

RS-485 I/O Modules


9-25

FPM Accessories

FPM-5191G-SMKE

FPM-5151G-SMKE

IPPC-6192A-RMKE

IPPC-6172A-RMKE

IPPC-6152A-RMKE

FPM-2150G-RMKE



FPM-3151G-RMKE

FPM-3060G-VMKE


FPM-3060G VESA-Mount Kit

PWR-246E

Ind. DC to DC w/24-48 VDC 1.4-2.9A Input 12 VDC
5A Output

1757003822

1702031801

1702002600

FPM-5191G Stand Kit


Adapter AC 90-264V 57W SPU63-105


1702031836

1702002605


9-26

FPM-5151G / FPM-5171G Stand Kit

Industrial Monitors




Industrial Wireless
Solutions

10

Industrial Wireless Product Selection Guide

10-2

Industrial Wireless Introduction

10-3

Wireless Access Points/CPE
EKI-6310GN (New)

IEEE 802.11 b/g/n Wireless Access Point/Client Bridge

10-5

EKI-6311GN

IEEE 802.11 b/g/n Wi-Fi AP/CPE

10-6

EKI-6331AN

IEEE 802.11 a/n Wi-Fi AP/CPE

10-7

EKI-6340 Series

IEEE 802.11 a/b/g/n Outdoor Wi-Fi Mesh AP

10-8

EKI-6351-A

IEEE 802.11 a/b/g/n Wi-Fi Mesh AP/Station

10-10

Accessories
Accessories

10-11

To view all of Advantech’s Industrial Ethernet Solutions, please visit www.advantech.com/products.

Industrial Wireless Product
Selection Guide
Wireless Access Point/CPE

Model Name
Description

EKI-6310GN

EKI-6311GN

IEEE802.11 b/g/n IEEE 802.11 b/g/n
WiFi AP/CPE
Wi-Fi AP/CPE

EKI-6331AN

EKI-6340-1

EKI-6340-2

EKI-6340-3

EKI-6351-A

IEEE 802.11 a/n
Wi-Fi AP/CPE

IEEE 802.11
a/b/g/n Outdoor
Single-Radio
Wi-Fi Mesh AP

IEEE 802.11
a/b/g/n Outdoor
Dual-Radio
Wi-Fi Mesh AP

IEEE 802.11
a/b/g/n Outdoor
Triple-Radio
Wi-Fi Mesh AP

IEEE 802.11
a/b/g/n Wi-Fi
Mesh
AP/Station

Interface

802.11b/g/n

802.11b/g/n

802.11a/n

802.11 a/b/g/n

802.11 a/b/g/n

802.11 a/b/g/n

802.11 a/b/g/n

100Base-TX

v

v

v

v

v

v

v

1000Base-TX

-

-

-

v

v

v

v

Radio Number

1

1

1

1

2

3

1

MIMO
RF

IEEE Standard

1T1R

1T1R

2T2R

2T2R

2T2R

2T2R

2T2R

Transmit Output
Power

*

*

*

*

*

*

*

Power
Mechanism

*

*

*

*

*

-

-

v

v

v

v

Mobility/Roaming

-

-

-

v

v

v

v

Multi-Hopping

-

-

-

v

v

v

v

AP/CPE

v

v

v

v

v

v

v

802.3af

Passive 12 V

Passive 15 V

802.3at

802.3at

802.3at

802.3at

Power Input
Votage

-

12 VDC

15 VDC

Redundant DC
Power Input

-

-

-

v

v

v

-

-

-

-

-

v

Wall Mount

-

-

-

v

v

v

v

VESA Mount

-

-

-

v

v

v

-

Pole Mount

v

v

v

v

v

v

-

IP Grade
Operating
Temperature

*

-

DIN-rail Mount

Certifications

*

Mesh

PoE

Operating
Mode

Receive Sensitivity

IP66

IP55

IP55

IP67

IP67

IP67

IP30

-20 ~ 70°C
(-4 ~ 158°F)

v

v

v

-

-

-

-

-35 ~ 75°C
(-31 ~ 167°F)

-

-

-

v

v

v

v

FCC

v

v

v

v

v

v

v

CE

v

v

v

v

v

v

v

EN50155

-

-

-

v

v

v

v

10-5

10-6

10-7

10-8

10-8

10-8

10-10

Page

*Note: Transmit Output Power & Receive Sensitivity are specified on data sheet.

10-2

Industrial Wireless Solutions

12 ~ 48 VDC
v

v

Introduction

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels


Introduction to Industrial IEEE 802.11 Wireless
In the past, Wireless deployment has been limited by security
concerns, the cost of deployment, inadequate management
solutions, lack of standards, and availability of innovative solutions.
Rapid advances in wireless local area network (WLAN) technology in
recent years, along with the widespread adoption of the technology
in the industrial and enterprise space, have eliminated many of these
roadblocks. WLAN is not a wholesale replacement for broadband,
but it is a fast and cost-effective way to construct backhaul
broadband transmissions. Wireless communication provides an
easier way to connect devices, particularly those in dispersed
locations or harsh environments. Today, a new wave of opportunity
exists for industrial industries to improve margins through the use
of wireless technology.

Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

802.11 Standard Evolution
The IEEE 802.11 standard specifies a way to use radio frequency (RF)
technology to send Ethernet packets over the air. Wireless LAN is
based on the IEEE 802.11 standard and is referred to as Wi-Fi. The
802.11b standard, which operates in the 2.4 GHz frequency band at
11 Mbps, was the first commercially successful WLAN technology.

Embedded Automation
Computers

PACs

As wireless technology evolved, a higher transmission rate of 54
Mbps was achieved with 802.11g, which uses the 2.4 GHz band,
and 802.11a, which uses the 5 GHz frequency band with same
transmission rate of 54 Mbps. To extend the wireless communication
distance and bandwidth, IEEE 802.11n has added more specifications
in the MIMO standard and dual-band support. The transmission rate
of 802.11n is up to 600Mbps. 802.11n offers a suite of advanced
new features that increase effective data throughput, extended
wireless coverage, and creates more reliable networks. Choosing
the right WLAN technology is an important factor in determining
the performance of your wireless network and overall return on
investment.

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


10-3

Introduction
Wireless Architecture
AP-CPE mode
EKI-6300 series products can perform as Access Points (AP) or Customer Premises
Equipment (CPE). When it plays as AP, it’s connected to a wired network via the Ethernet
port and accepted connections from wireless clients and passes data upwards to a network
wirelessly. In CPE mode, it receives a wireless signal over last mile application, helping
WISPs deliver wireless broadband Internet service to residents and business customers.
In CPE mode, it does not accept wireless associations from wireless clients.

Fast Roaming
Advantech Wi-Fi Mesh provides the ability to roam seamlessly, potentially at very high
speeds, throughout the Advantech wireless mesh infrastructure. The mesh infrastructure
has the roaming capabilities needed to allow clients to move from wireless mesh router
AP to AP in less than 20 milliseconds. Fast roaming maintains a continuous connection,
which is critical for latency-sensitive applications such as voice and video.
By incorporating information about the cost of multi-paths, roaming facilitates direct and
rapid handoff of RF communications from one AP to another across the wireless mesh.
This design yields a more efficient network traffic flow and makes it possible to support
applications that require seamless, real-time roaming.

WDS mode
A Wireless Distribution System (WDS) provides an easy way for APs to communicate
wirelessly with each other. In this mode, it can support single or multiple WDS links and
no wireless clients can be associated with it.

Self-Forming and Self-Healing
The wireless infrastructure always maintains the best connection path to the destination.
So, the overall wireless network ensures the best performance even if some of the nodes
are dead. When any error in one of wireless AP, it will build another redundant path to
ensure communication reliability.

AP-Repeater mode
EKI-6300 series products can be used as a CPE to receive wireless signals over the last
mile, helping WISPs deliver wireless broadband Internet service to new residential and
business customers. And it can be used as an AP to accept wireless connections from
client devices in this mode.

High Bandwidth after Multi-hopping

Industrial Wi-Fi Mesh Network
Wireless mesh networks allow devices to be interconnected without any wires and with
the security and reliability of a wired network. They solve a wide range of communication
challenges across different environments and offer practical and cost-effective solutions,
making them well suited for public safety, emergency response, oil rigs, video surveillance,
large scale events and transportation hubs.
The ability to be rapidly installed without reliance upon a fixed infrastructure makes
wireless mesh networks ideal for temporary deployments. Wireless mesh networks are
also low maintenance. They automatically select the best path through the network, and
operate reliably even if a mesh node or RF link fails.
Using wireless mesh networks won’t incur monthly fees paid to a service provider for
leased lines or broadband Internet.

10-4


Issues with throughput, quality and security in a wireless mesh network have largely been
resolved, but scalable capacity remains an obstacle with some vendor solutions. Many
wireless solutions simply cannot scale without compromising performance or availability
across multiple hops in a wireless infrastructure. And in always-on, mission-critical
communications environments, that’s simply not acceptable.
Advantech’s enhancements deliver industry-leading performance and scalability and with
a 100 Mbps transmission rate and sustained performance across 10 hops.

EKI-6310GN

IEEE 802.11 b/g/n Wireless
Access Point/Client Bridge
Features

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ Compliant with IEEE802.11b/g/n
ƒƒ IP66 waterproof certification
ƒƒ High output power 27dBm
ƒƒ Standard PoE (802.3af) support
ƒƒ Support distances up to 5Km
ƒƒ Support wireless data encyption with 64/128 bits WEP/WPA/WPA2/TKIP with
IEEE 802.1X-Enterprise encryption for a highly secure wireless network
ƒƒ WEP/WPA/WPA2/ IEEE 802.1 x authentication support
ƒƒ Support WPS by software

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels

RoHS

COMPLIANT
2002/95/EC

Introduction


The EKI-6310GN is a feature rich wireless AP/ CPE which provides a reliable wireless connectivity for industrial environments. The stanard PoE input enhances flexibility in deployment
of this AP/ CPE even where the DC power supply is hard to fulfill. As an 802.11n compliant device, EKI-6310GN provides 3 times higher data rates than legacy 802.11g devices. With
the support of STP, WMM and IGMP snooping protocols, EKI-6310GN effectively improves the reliability of wireless connectivity, especially in applications that need high reliability
and high throughput data transmission. To secure wireless connections, EKI-6310GN implements the latest encryption technologies including WEP/WPA/WPA2/802.1x for powerful
security authentication.

Industrial Monitors

Specifications
Communications

Other Features

Standard Support

ƒƒ Telnet, FTP, SNMP, Password Changes, Firmware updates, Configuration Files
ƒƒ Output Power Control, Bandwidth Control, Distance Adjustment, Site survey
ƒƒ Radius (802.1x)

ƒƒ Wireless
ƒƒ Ethernet
ƒƒ LAN

ƒƒ Data Rates

ƒƒ 802.11n

IEEE802.11b/g/n
IEEE802.3u MDI / MDIX 10/100 Fast Ethernet
IEEE802.11b/g wireless LAN interface IEEE
802.11n wireless LAN standard
Standard PoE 802.3af
802.11b 11, 5.5, 2, 1 Mbps, auto-fallback,
802.11g 54, 48, 36, 24, 18, 12, 9, 6 Mbps,
auto-fallback
6M, 6.5M, 13M, 13.5M, 19.5M, 26M, 27M, 39M,
40.5M, 53M, 54M, 58.5M, 65M, 78M, 81M, 104M,
108M, 117M, 121.5M, 130M, 135M, 150Mbps

Modulation Techniques
ƒƒ 802.11n
ƒƒ 802.11b
ƒƒ 802.11g

Non Heater : -20 ~ 70°C (-4 ~ 158°F)
-30 ~ 80°C (-22 ~ 176°F)
10% ~ 95% non-condensing

Interface Operation Modes
ƒƒ Access Point (AP) / Customer Premise Equipment (CPE)

Antenna

OFDM(BPSK, QPSK, 16-QAM, 64-QAM)
DSSS (DBPSK, DQPSK, CCK)
OFDM (BPSK, QPSK, 16-QAM, 64-QAM)

Channel Support
ƒƒ 802.11b/g/gn
ƒƒ 802.11gn

Environment
ƒƒ Storage Temperature
ƒƒ Humidity

Industrial Panel

UHT20
FCC: CH1 ~ CH11; ETSI: CH1 ~ CH13
HT40

Wireless Transmission Rates
ƒƒ Transmitted Power

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

27dBm

PACs

-95dBm @ 11Mbps
-92dBm @ 54Mbps
-90dBm @ HT20

Compact PCI Systems

Receiver Sensitivity
ƒƒ 802.11b Sensitivity
ƒƒ 802.11g Sensitivity
ƒƒ 802.11n Sensitivity

Industrial Wireless
Solutions

M2M I/O Modules

ƒƒ Antenna Configuration 1x1 ( 1 Tx, 1 Rx)
ƒƒ Reserve N-type Connector (Plug)

RS-485 I/O Modules


10-5

EKI-6311GN

IEEE 802.11 b/g/n Wi-Fi AP/CPE
Features
ƒƒ Compliant with IEEE 802.11 b/g/n
ƒƒ Embedded 8 dBi directional antenna with external N-type connector for
optional antenna
ƒƒ High output power 26 dBm
ƒƒ MIMO 1 x 1 11n
ƒƒ Passive 12 V PoE
ƒƒ Support distances up to 5 km
ƒƒ WPA/WPA2-Enterprise encryption for a highly secure wireless network
ƒƒ Spanning Tree and IGMP snooping protocol support

RoHS

COMPLIANT
2002/95/EC

Introduction
The EKI-6311GN is a feature rich wireless AP/CPE which provides a reliable wireless connectivity for industrial environments. The PoE injector enhances flexibility in deployment of
this AP/CPE even where the DC power supply is hard to fulfill. As an 802.11n compliant device, EKI-6311GN provides 3 times higher data rates than legacy 802.11g devices. With the
support of STP, WMM and IGMP snooping protocols, EKI-6311GN effectively improves the reliability of wireless connectivity, especially in applications that need high reliability and
high throughput data transmission. To secure wireless connections, EKI-6311GN implements the latest encryption technologies including WPA2/WPA/802.1x for powerful security
authentication.

Specifications
Standard Support

Other Features

ƒƒ Wireless
ƒƒ Ethernet
ƒƒ LAN

IEEE 802.11b/g/n
IEEE 802.3u MDI / MDIX 10/100 Fast Ethernet
IEEE 802.11b/g wireless LAN interface
IEEE 802.11n wireless LAN standard
Passive 12 V PoE, max. distance: 20 meters
US FCC Part 15 Class B & C & E
Europe ETSI 300 328, ETSI 301 489-1&17,
EN 60950 compliant and CE Mark
802.11b 11, 5.5, 2, 1 Mbps, auto-fallback,
802.11g 54, 48, 36, 24, 18, 12, 9, 6 Mbps,
auto-fallback
6 M, 6.5 M, 13 M, 13.5 M, 19.5 M, 26 M, 27 M, 39 M,
40.5 M, 53 M, 54 M, 58.5 M, 65 M, 78 M, 81 M,
104 M, 108 M, 117 M, 121.5 M, 130 M, 135 M,
150 Mbps

ƒƒ Certifications
ƒƒ Data Rates
ƒƒ IEEE 802.11n:

Physical Specifications
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Power
DC 12 V / 1.0A; AC Adapter 100 V ~ 240 V
Mounting
DIN-rail, Pole
Weight
0.5 Kg

ƒƒ Telnet, FTP, SNMP, Password Changes, Firmware updates, Configuration Files
ƒƒ Radio on/off, WMM/Regatta Mode, Output Power Control, Fragmentation Length,
Beacon Interval
ƒƒ RTS/CTS threshold, DTIM Interval

ƒƒ IEEE 802.11n
ƒƒ IEEE 802.11b
ƒƒ IEEE 802.11g

Channel Support
ƒƒ IEEE 802.11b/g/gn
ƒƒ IEEE 802.11gn

HT20
HT40

ƒƒ Transmitted Power

Environment

ƒƒ
ƒƒ
ƒƒ
ƒƒ

802.11b: 26 dBm
802.11g: 26 dBm @ 6 Mbps, 24 dBm @ 54 Mbps
802.11gn HT20: 26 dBm @ MCS0, 22 dBm@ MCS7
802.11gn HT40: 26 dBm @ MCS0, 21 dBm@ MCS7


ƒƒ Operating Temperature Non Heater : -20 ~ 70°C (-4 ~ 158°F)
ƒƒ Humidity


Antenna
ƒƒ
ƒƒ
ƒƒ
ƒƒ

10-6


Antenna Configuration 1x1 (1 Tx, 1 Rx)
Default embedded 8 dBi directional antenna (Vertical-Pol)
Reserve N-type Connector (Plug) *Switchable by software
Equipped N-to-RSMA adaptor and 5dBi dipole antenna for indoor AP applications.


802.11b Sensitivity
802.11g Sensitivity
802.11n HT20
802.11n HT40

-93 dBm @ 1 Mbps; -88 dBm @ 11 Mbps
-89 dBm @ 6 Mbps; -73 dBm @ 54 Mbps
-88 dBm @ MCS0; -70 dBm @ MCS7
-84 dBm @ MCS0; -67 dBm @ MCS7

ƒƒ EKI-6311GN
ƒƒ EKI-6311GN-EU

802.11 b/g/n Wireless Access Point/CPE (US)
802.11 b/g/n Wireless Access Point/CPE (EU)

EKI-6331AN

IEEE 802.11 a/n Wi-Fi AP/CPE
Features

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ Compliant with IEEE 802.11 a/n
ƒƒ MIMO 2 x 2 11n
ƒƒ Embedded 16 dBi dual-polarity directional antenna with external R-SMA
connector for optional antenna
ƒƒ High output power 24 dBm
ƒƒ Passive 15 V PoE
ƒƒ Supports distances up to 10 km
ƒƒ IGMP snooping protocol support

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels

RoHS

COMPLIANT
2002/95/EC

Introduction


The EKI-6331AN is a feature rich wireless AP/CPE which provides a reliable 5GHz wireless connectivity for industrial environments. The PoE injector enhances flexibility in deployment
of this AP/CPE even where the DC power supply is hard to fulfill. As an 802.11n compliant device, EKI-6331AN provides 3 times higher data rates than legacy 802.11a devices.
With MIMO 2 x 2 technology, EKI-6331AN provides both robust wireless connectivity as well as high throughput rate in wireless transmission. With the support of WMM and IGMP
snooping protocols, EKI-6331AN effectively improves the reliability of wireless connectivity, especially in applications that need high reliability and high throughput data transmission.
To secure wireless connections, EKI-6331AN implements the latest encryption technologies including WPA2/WPA/802.1x for powerful security authentication.

Specifications

Industrial Monitors

Standard Support
ƒƒ Wireless
ƒƒ Ethernet
ƒƒ LAN
ƒƒ Certification

ƒƒ Data Rates

Other Features
IEEE 802.11 a/n
IEEE 802.3u MDI / MDIX 10/100 Fast Ethernet
IEEE 802.11a wireless LAN interface
IEEE 802.11n wireless LAN standard
Passive 15 V PoE
US FCC Part 15
ETSI 301 489-1&17,
EN 60950 compliant and CE Mark
EN 301 893 (5470-5725MHz DFS)
EN 302 502 (5725-5850 MHz DFS)
IEEE 802.11a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps,
auto-fallback
IEEE 802.11n: 6 M, 6.5 M, 13 M, 13.5 M, 19.5 M,
26 M, 27 M, 39 M, 40.5 M, 53 M, 54 M, 58.5 M,
65 M, 78 M, 81 M, 104 M, 108 M, 117 M, 121.5 M,
130 M, 135 M, 150 Mbps, up to 300 Mbps

Power
15 VDC @ 0.8A; AC Adapter 100 V ~ 240 V
Mounting
Pole
Weight
0.5 Kg

Environment
ƒƒ Humidity

ƒƒ Management
ƒƒ Security
ƒƒ Wireless

Telnet, FTP, SNMP, Web UI
Open System , Shared Key, 802.1X only, WPA,
WPA2, WPA-PSK (TKIP)
Radio on/off, WMM/Regatta Mode, Output
Power Control, Fragmentation Length, Beacon
Interval, RTS/CTS threshold, DTIM Interval

ƒƒ IEEE 802.11n
ƒƒ IEEE 802.11a


ƒƒ FCC
ƒƒ CE

-20 ~ 70°C (-4 ~ 158°F)
-30 ~ 80°C (-22 ~ 176°F)

5725-5850 MHz
5470-5725 MHz, 5725-5850 MHz

6-24 Mbps: 24 dBm
54 Mbps: 21 dBm
ƒƒ IEEE 802.11n
HT20 - MCS0: 23 dBm

MCS15: 20 dBm
HT40 - MCS0: 23 dBm

MCS15: 19 dBm
ƒƒ Note: bandedge exclusive (Controllable for different country regulations)

ƒƒ IEEE 802.11a
ƒƒ IEEE 802.11n


Antenna
ƒƒ Antenna Configuration 2 x 2 (2T2R)
ƒƒ Default embedded 14~16 dBi (Dual-polarity)
ƒƒ Reverse SMA Connectors (configured by software)

54 Mbps: -76 dBm
HT20 - MCS15: -70 dBm
HT40 - MCS15: -66 dBm

ƒƒ EKI-6331AN
ƒƒ EKI-6331AN-EU

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Channel Support

ƒƒ IEEE 802.11a

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Industrial Panel

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

IEEE 802.11 a/n Wireless AP/CPE
IEEE 802.11 a/n Wireless AP/CPE (EU)


10-7

EKI-6340 Series

IEEE 802.11 a/b/g/n
Outdoor Wi-Fi Mesh AP

Features
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

EKI-6340-1

EKI-6340-2

Highly secured self-healing & self-forming Mesh capability
Ultra-fast roaming (hand-over switch time ≤ 20 ms)
High throughput multiple hopping (≥100 Mbps @10 hops)
Ease of use installation utilities: antenna alignment, distance calculation and site
survey tools
Compliant with IEEE 802.11 a/b/g/n
Up to 3 radios for Mesh back haul and Access Point
MIMO 2 x 2, up to 300 Mbps data rate
Dual 12 ~ 48 V redundant DC input power
802.3 at PoE input
Gigabit Ethernet support
WEP, WPA, WPA2-PSK/EAP (IEEE 802.1X/RADIUS, TKIP and AES)
IP67 enclosure, wide operating temperature range
EN50155 compliant

EKI-6340-3
RoHS

COMPLIANT
2002/95/EC

Introduction
The EKI-6340 series are perfect wireless Mesh AP for your outdoor deployment. With self-healing & self-forming capabilities, the wireless network is free from interruption even
part of Mesh nodes failed. It’s especially critical to infrastructures where wired solutions are hard to deploy. The ultra-fast roaming seamlessly enables the applications of high-speed
mobility. The low latency and high throughput multiple hopping features greatly enables the extension of network coverage. This high throughput Mesh network perfectly covers
growing rich data demands such as video security, surveillance and entertainment. Comprehensive security features prevent system from intrusion. IP67 sturdy waterproof enclosure
with wide-temperature design enables excellent performances under all harsh outdoor environments.

Specifications
Standard Support

Interface

ƒƒ Wireless
ƒƒ Ethernet

IEEE 802.11a/b/g/n compliant
IEEE 802.11i, IEEE 802.3/802.3u/802.3ab,
IEEE 802.3at PoE, 802.1d, 802.1w, 802.1q, 802.1p
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11a, g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n: @ 800ns (400ns) GI
20 MHz BW
1 Nss: 65 (72.2) Mbps maximal
40 MHz BW
1 Nss: 135 (150) Mbps maximal

ƒƒ Data Rates

ƒƒ Power
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Dual redundant 12 ~ 48 VDC
IEEE 802.3at PoE
Power Consumption
Normal operation:
EKI-6340-1 Max. 17 W
EKI-6340-2 Max. 21W
EKI-6340-3 Max. 25 W
Cold start:
EKI-6340-1 Max. 13W
EKI-6340-2/3 Max. 25 W
Dimensions (W x H x D) 225 x 242 x 65 (8.86" x 9.53" x 2.56")
Weight
2.25 Kg
Enclosure
Metal, IP67 protection
Mounting
Pole, Wall, VESA

Environment
ƒƒ Operating Temperature -35 ~ 75°C (-31 ~ 167°F)
ƒƒ Ambient Relative
5% ~ 100% (non-condensing)
Humidity

10-8


ƒƒ Antenna

ƒƒ Power
ƒƒ LAN

N-type female connector
EKI-6340-1: 2 connectors
M12 D-code connector
M25 cable gland

System Operation Mode
ƒƒ Bridge/ Router/ Mesh

Other Features
ƒƒ DHCP Client/Server, Statistic routing table, RIP v1&v2, WMM, Multi-SSID (up
to 16x ESSID for each radio), traffic limitation, IEEE 802.11h DFS, Syslog, L2
management utility, HTTP (s), Telnet, SSH, CLI, SNMP, installation utilities.

ƒƒ IEEE 802.11a/n
ƒƒ IEEE 802.11b
ƒƒ IEEE 802.11g/n


Frequency Range
ƒƒ USA
2.400 ~ 2.483 GHz, 5.725 ~ 5.825 GHz
ƒƒ Europe
2.400 ~ 2.483 GHz, 5.15 ~ 5.35 GHz, 5.47 ~ 5.725 GHz
ƒƒ China
2.400 ~ 2.483 GHz, 5.725 ~5.85 GHz
Note: radio is capable to be operated within FCC DFS2 band or ETSI/EC DFS band, or
other countries which is regulating or is planning to regulate mid -5 GHz band. The usage
of mid -5 GHz band is subject to the regulatory approval status.

EKI-6340 Series
Certificates
ƒƒ EMC

US FCC Part 15 Class B & C & E, Europe ETSI 301
489-1&17

ƒƒ Radio
ƒƒ Rail Traffic
ƒƒ Safety

ETSI 300 328, ETSI 301 893, FCC 15.247
EN50155, EN50121-1/-4
EN 60950

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

EKI-6340-1A
EKI-6340-2A
EKI-6340-3A
EKI-6340-1U
EKI-6340-2U
EKI-6340-3U

802.11 a/b/g/n Outdoor Single Radio Mesh AP
802.11 a/b/g/n Outdoor Dual Radio Mesh AP
802.11 a/b/g/n Outdoor Triple Radio Mesh AP
802.11 a/b/g/n Outdoor Single Radio Mesh AP (EU)
802.11 a/b/g/n Outdoor Dual Radio Mesh AP (EU)
802.11 a/b/g/n Outdoor Triple Radio Mesh AP (EU)

Transmit Power Settings (Typical Composite Power) Tolerance: +2/-2 dB
802.11a

802.11n 2.4GHz/
HT20

802.11n 2.4GHz/
HT40

+22 dBm @ 6, 9, 12,
18, 24 Mbps

+20 dBm @ MCS 0/8

+20 dBm @ MCS 0/8

+18 dBm @ MCS 0/8

+17 dBm @ MCS 0/8

802.11b

+19 dBm @ 6, 9, 12, 18,
24 Mbps

+19 dBm

802.11g

802.11n 5GHz/HT20

802.11n 5GHz/HT40

+18 dBm @ 36 Mbps

-

+21 dBm @ 36 Mbps

+20 dBm @ MCS 1/9

+20 dBm @ MCS 1/9

+18 dBm @ MCS 1/9

+17 dBm @ MCS 1/9

+17 dBm @ 48 Mbps

-

+20 dBm @ 48 Mbps

+20 dBm @ MCS 2/10

+20 dBm @ MCS 2/10

+18 dBm @ MCS 2/10

+17 dBm @ MCS 2/10

+15 dBm @ 54 Mbps

-

+18 dBm @ 54 Mbps

+20 dBm @ MCS 3/11

+20 dBm @ MCS 3/11

+18 dBm @ MCS 3/11

+17 dBm @ MCS 3/11

-

-

-

+20 dBm @ MCS 4/12

+19 dBm @ MCS 4/12

+18 dBm @ MCS 4/12

+17 dBm @ MCS 4/12

-

-

-

+20 dBm @ MCS 5/13

+19 dBm @ MCS 5/13

+18 dBm @ MCS 5/13

+17 dBm @ MCS 5/13

-

-

-

+18 dBm @ MCS 6/14

+17 dBm @ MCS 6/14

+17 dBm @ MCS 6/14

+16 dBm @ MCS 6/14

-

-

-

+16 dBm @ MCS 7/15

+15 dBm @ MCS 7/15

+13 dBm @ MCS 7/15

+12 dBm @ MCS 7/15

Data Rate
802.11a

IEEE Spec
(1 Rx dBm)

Typical/Maximum
(2 Rx dBm)

-80

-93/-89

-79
-77

18M

IEEE Spec
(1 Rx dBm)

Data Rate
802.11a/n HT40

Typical/Maximum
(2 Rx dBm)

MCS0

-77

-89/-85

-93/-89

MCS1

-74

-88/-84

-92/-88

MCS2

-72

-85/-81

-75

-90/-86

MCS3

-69

-82/-78

24M

-72

-86/-82

MCS4

-65

-80/-76

36M

-68

-83/-79

MCS5

-61

-76/-72

48M

-64

-79/-75

MCS6

-60

-74/-70

54M

-63

-77/-73

MCS7

-59

-72/-68

5.5M

-79

-94/-90

MCS0

-81

-94/-90

11M

-75

-90/-86

MCS1

-78

-93/-89

6M

-81

-94/-90

MCS2

-76

-91/-87

9M

-80

-94/-90

MCS3

-73

-87/-83

12M

-78

-93/-89

MCS4

-69

-84/-80

18M

-76

-92/-88

MCS5

-65

-79/-75

24M

-73

-89/-85

MCS6

-64

-78/-74

36M

-69

-85/-81

MCS7

-63

-76/-72

54M
802.11a/n HT20

6M
12M

802.11g

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel

9M

802.11b

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


-64

-79/-75

MCS0

-78

-89/-85

MCS0

-80

-93/-89

MCS1

-75

-89/-85

MCS1

-77

-91/-87

MCS2

-73

-88/-84

MCS2

-75

-88/-84

MCS3

-70

-84/-80

MCS3

-72

-85/-81

MCS4

-66

-81/-77

MCS4

-68

-82/-78

MCS5

-62

-77/-73

MCS5

-64

-78/-74

MCS6

-61

-76/-72

MCS6

-63

-77/-73

MCS7

-60

-73/-70

MCS7

-62

-75/-71

802.11b/g/n HT20

802.11b/g/n HT40

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


10-9

EKI-6351-A

IEEE 802.11 a/b/g/n
Wi-Fi Mesh AP/Station
Features
Unique features of EKI-6351-A
ƒƒ Highly secured self-healing & self-forming Mesh capability
ƒƒ Ultra-fast roaming (hand-over switch time ≤ 20 ms)
ƒƒ High throughput multiple hopping (≥ 100 Mbps @ 10 hops)
Common features:
ƒƒ Ease of use installation utilities: antenna alignment, distance calculation and site survey tools
ƒƒ Compliant with IEEE 802.11a/b/g/n
ƒƒ MIMO 2 x 2 11n, up to 300 Mbps data rate
ƒƒ Dual 12 ~ 48 V redundant DC input power
ƒƒ 802.3at PoE input
ƒƒ Gigabit Ethernet support
ƒƒ WEP, WPA, WPA2-PSK/EAP (IEEE 802.1X/RADIUS, TKIP and AES)
ƒƒ Wide operating temperature range from -35 to 75°C
ƒƒ EN50155 compliant

RoHS

COMPLIANT
2002/95/EC

Introduction
The EKI-6351-A are perfect wireless AP/stations for your deployment. With self-healing & self-forming capabilities, the wireless network is free from interruption even if part of the
Mesh node fails. Ultra-fast roaming seamlessly enables the applications to achieve high-speed mobility. This high throughput Mesh network covers the increasing data demands of
applications such as video security, surveillance and entertainment.
Comprehensive security features prevent the system from intrusion whilst the wide operating temperature range enables excellent performances in harsh outdoor environments.

Specifications
Standard Support

System Operation Mode

ƒƒ Wireless
ƒƒ Ethernet

IEEE 802.11a/b/g/n compliant
IEEE 802.11i, IEEE 802.3/802.3u/802.3ab,
IEEE 802.3at PoE, 802.1d, 802.1w, 802.1q, 802.1p
802.11b: 1, 2, 5.5, 11 Mbps
802.11a, g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Passive 15 V PoE, max. distance: 20 meters
IEEE 802.11n: @ 800ns (400ns) GI
20 MHz BW
1 Nss: maximal
40 MHz BW

ƒƒ Data Rates

ƒƒ Power
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Dual redundant 12 ~ 48 VDC
IEEE 803.2at PoE
Power Consumption
Normal operation: Max. 17 W
Cold start: Max. 13W
Weight
0.63 Kg
Enclosure
Metal, IP30 protection
Mounting
DIN-rail, Wall

Environment
ƒƒ Ambient Relative
5% ~ 100% (non-condensing)
Humidity

Interface
ƒƒ Antenna
ƒƒ Power
ƒƒ LAN

10-10

2 x RSMA connector
Terminal block
RJ45


ƒƒ EKI-6351-A - Bridge/Router/Mesh

Other Features
ƒƒ DHCP Client/Server*, Statistic routing table*, RIP v1&v2*, WMM, Multi-SSID
(up to 16x ESSID for each radio), traffic limitation, IEEE 802.11h DFS, Syslog,L2
management utility, HTTP (s), Telnet, SSH, CLI, SNMP, installation utilities.

ƒƒ IEEE 802.11a/n
ƒƒ IEEE 802.11b
ƒƒ IEEE 802.11g/n


Frequency Range
ƒƒ USA
2.400 ~ 2.483 GHz, 5.15 ~ 5.25GHz, 5.725 ~ 5.825 GHz
ƒƒ Europe
2.400 ~ 2.483 GHz, 5.15 ~ 5.35 GHz, 5.47 ~ 5.725 GHz
ƒƒ China
2.400 ~ 2.483 GHz, 5.725 ~5.85 GHz
Note: radio is capable to be operated within FCC DFS2 band or ETSI/EC DFS band, or
other countries which is regulating or is planning to regulate mid -5 GHz band. The usage of mid
-5 GHz band is subject to the regulatory approval status.

Certificates
ƒƒ EMC
ƒƒ Radio
ƒƒ Rail Traffic
ƒƒ Safety

US FCC Part 15 Class B & C & E,
Europe ETSI 301 489-1&17
ETSI 300 328, ETSI 301 893, FCC 15.247
EN50155, EN50121-1/-4
EN 60950

ƒƒ EKI-6351-A
ƒƒ EKI-6351-U

802.11 a/b/g/n Wi-Fi Mesh AP/Station
802.11 a/b/g/n Wi-Fi Mesh AP/Station (EU)

Accessories

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Advantech P/N

ANT-1208-G2E

ANT-2209-G2E

ANT-2216-G2E

ANT-3215-G2E

ANT-1208-G5E

ANT-2218-G5E

ANT-3213-G5E

Frequency Range

2.4-2.5G

2.4-2.5G

2.4-2.5G

2.3-2.7G

4.9-5.35G

4.9-5.9G

4.9-5.9G

Antenna Type

Omni

Patch

Patch

Sector

Omni

Patch

Sector

Antenna Gain

8 dBi

9.5 dBi

16 dBi

15 dBi

8 dBi

18 dBi

13.5 dBi

Description

8 dBi 2.4G Omni
Antennna

9.5 dBi 2.4G Patch
Antenna

16 dBi 2.4G Patch
Antenna

15 dBi 2.4G Sector
Antenna

8dBi 5G Omni
Antennna

18 dBi 5G Patch
Antenna

13.5 dBi 5G Sector
Antenna

Impedance

50 Ohm

50 Ohm

50 Ohm

50 Ohm

50 Ohm

50 Ohm

50 Ohm

Polarization

Linear, vertical

Linear, vertical

Linear, vertical

Linear, vertical

Linear, vertical

Linear, vertical

Linear, vertical

HPBW/Vertical

360/15

50/50

25/25

90/8

360/12

23/19

120/6

V.S.W.R.

2.0:1 (Max.)

1.5:1 (Max.)

1.5:1 (Max.)

2.0:1 (Max.)

2.0:1 (Max.)

2.0:1 (Max.)

2.0:1 (Max.)

Power Handling

20 W (cw)

20 W (cw)

20 W (cw)

50 W (cw)

20 W (cw)

5 W (cw)

10 W (cw)

Connector

N-Jack

N-Jack

N-Jack

N-Jack

N-Jack

N-Jack

N-Jack

Operating temp.

-40 to +80

-40 to +80

-40 to +80

-40 to +80

-40 to +80

-40 to +80

-40 to +80

IP rating

IP55

N/A

IP57

IP55

IP55

IP55

IP55

Weight

0.34 kg

0.14 kg

1.5 kg

1 kg

0.28 kg

0.825 kg

0.55 kg

Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

Advantech P/N

ANT-1205DG25E

ANT-1210DG25E

ANT-2215DG25E

ANT-3215DG25E

ANT-2216MG2E

ANT-2216MG5E

ANT-3214MG2E

ANT-3215MG5E

Frequency Range

2.4-5G; 5.15.9G

2.4-5G; 5.15.9G

2.4-5G; 5.15.9G

2.4-5G; 4.95.9G

2.3-2.7GHz

5.1-5.9G

2.4-2.5G

5.1-5.9G

Antenna Type

Omni

Omni

Patch

Sector

Patch

Patch

Sector

Sector

Antenna Gain

4/7 dBi

8/10 dBi

13.5/15.5 dBi

12/15 dBi

16 dBi

16 dBi

14 dBi

15 dBi

Description

4/7dBi DualBand Omni
Antennna

8/10dBi DualBand Omni
Antennna

13.5/15.5dBi
Dual-Band
Patch Antennna

12/15dBi DualBand Sector
Antennna

16dBi 2.4G
MIMO Patch
Antennna

16dBi 5G MIMO
Patch Antennna

14dBi 2.4G
MIMO Sector
Antennna

15dBi 5G MIMO
Sector Antennna

50 Ohm

50 Ohm

50 Ohm

50 Ohm

50 Ohm

50 Ohm

50 Ohm

50 Ohm

Linear, vertical

Linear, vertical

Linear, vertical

Impedance
Polarization

Linear, vertical

Linear, vertical

Linear, vertical

Linear, vertical

Linear, vertical/
horizontal

HPBW/Vertical

360/30

360/13

30/30

70/18

25/25

19/21

90/13

90/8

V.S.W.R.

2.0:1 (Max.)

2.0:1 (Max.)

2.0:1 (Max.)

2.0:1 (Max.)

2.0:1 (Max.)

2.0:1 (Max.)

2.0:1 (Max.)

2.0:1 (Max.)

Power Handling

2 W (cw)

5 W (cw)

10 W (cw)

10 W (cw)

6 W (cw)

6 W (cw)

10 W (cw)

6 W (cw)

Connector

N-Plug

N-Jack

N-Jack

N-Jack

N-Jack

N-Jack

N-Jack

N-Jack

Operating temp.

-40 to +70

-40 to +80

-40 to +80

-40 to +80

-40 to +80

-40 to +80

-40 to +80

-40 to +80

IP rating

N/A

IP67

IP55

IP55

IP67

IP55

IP55

0.07 kg

0.394 kg

0.4 kg

0.462 kg

1.1 kg

0.8 kg

0.8 kg

Cards

Embedded Automation
Computers

PACs

IP55

Weight

and IP Gateways

1.4 kg


Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

10-11

Accessories

Advantech P/N

ANT-5130-AE

ANT-5210-AE

ANT-5230-AE

ANT-5260-AE

ANT-5290-AE

Description

1.5M N-Plug to
SMA-Plug cable

3M N-Plug to
SMA-Plug cable

1M N-Plug to
N-Plug cable

3M N-Plug to
N-Plug cable

6M N-Plug to
N-Plug cable

9M N-Plug to
N-Plug cable

Cable Type

ULA-168

ULA-168

ULA400

ULA400

ULA400

ULA400

VSWR

1.5 : 1 Max.@ DC ~
3.0 GHz
2.0 : 1 Max.@ 3.0 ~
6.0 GHz

1.5 : 1 Max.@ DC ~
3.0 GHz
2.0 : 1 Max.@ 3.0 ~
6.0 GHz

1.5 : 1 Max.@ DC ~
6.0 GHz

1.5 : 1 Max.@ DC ~
6.0 GHz

1.5 : 1 Max.@ DC ~
6.0 GHz

1.5 : 1 Max.@ DC ~
6.0 GHz

Insertion loss

2.0 dB Max.@ DC ~
3.0 GHz
2.5 dB Max.@ 3.0 ~
6.0 GHz

3.5 dB Max.@ DC ~
3.0 GHz
4 dB Max.@ 3.0 ~
6.0 GHz

0.7 dB Max.@ DC ~
3 GHz
1.0 dB Max.@ 3 ~
6.0 GHz

1.1 dB Max.@ DC ~
3 GHz
1.6 dB Max.@ 3 ~
6.0 GHz

1.8 dB Max.@ DC ~
3 GHz
2.7 dB Max.@ 3 ~
6.0 GHz

3.0 dB (Max.) @ DC
~ 3 GHz
4.0 dB (Max.) @ 3 ~
6 GHz

Connector Type

N-plug to RP
SMA-plug

N-plug to RP
SMA-plug

N-plug to N-plug

N-plug to N-plug

N-plug to N-plug

N-plug to N-plug

Cable Length

1.5M

3M

1M

3M

6M

9M

Advantech P/N

ANT-5501-AE

ANT-5502-AE

ANT-5601-AE

Description

1KV Aurge Arrestor N-Jack to N-Jack

1KV Aurge Arrestor N-Plug to N-Jack

Bulkhead adapter N-Jack to N-Jack

Surge Protection

1KV

1KV

N/A

VSWR

1.25: 1 Max @ DC ~ 4GHz
1.45: 1 Max @ 4 ~ 6GHz

1.3: 1 Max @ DC ~ 4GHz
1.5: 1 Max @ 4 ~ 6GHz

1.2: 1 Max @ DC ~ 3GHz
1.4: 1 Max @ 3 ~ 6GHz

Insertion loss

0.8 dB

0.8 dB

N/A

Connector Type

10-12

ANT-5115-AE

N Jack to N Jack

N plug to N Jack

N-jack to N-jack


Industrial Ethernet
Solutions

11

Industrial Ethernet Product Selection Guide

11-2

EN50155 Ethernet Switches
EKI-6558TI
EKI-6559TMI
EKI-6528TI
EKI-6528TPI

EN50155 IP67 8-port M12 Managed Ethernet Switch with Wide Temperature
EN50155 IP67 8-port M12 + 2-port Fiber Optic Managed Ethernet Switch with
Wide Temperature
EN50155 8-port M12 Unmanaged Switch with Wide Temperature
N50155 8-port M12 Unmanaged PoE Switch with Wide Temperature

11-10
11-11

PoE Switch
EKI-7659CPI
EKI-2726FHPI (New)
EKI-2525P
EKI-2526PI
EKI-2525PA
EKI-2528PAI
EKI-2701HPI (New)

8+2G Port Gigabit Managed Redundant Industrial PoE Switch with Wide
Temperature
4G+2 SFP W/ 4 IEEE 802.3 High Power PoE Industrial Wide Temperature Switch
5-port Industrial PoE Switch
6-port Industrial PoE Switch with Wide Temperature
5-port Industrial PoE Switch with 24/48 VDC Power Input
8-port Industrial PoE Switch with 24/48 VDC Power Input and Wide Temperature
IEEE 802.3af/at Gigabit PoE+ Injector with Wide Temperature

11-12
11-13
11-14
11-15
11-16

Managed Ethernet Switch
EKI-4654R
EKI-7758F
EKI-7656C/CI
EKI-7659C/CI
EKI-7657C
EKI-7654C
EKI-7559SI/MI
EKI-7554SI/MI
EKI-2748FI
EKI-2748CI
EKI-2548I

24 FE + 2 SFP (Mini-GBIC) Managed Redundant Ethernet Switch
4G+4 SFP Gigabit Managed Redundant Industrial Ethernet Switch
16+2G Combo Port Gigabit Managed Redundant Industrial Ethernet Switch
7+3G Combo Port Gigabit Managed Redundant Industrial Ethernet Switch with
2 x DI/O
8+2 SC Type Fiber Optic Managed Industrial Ethernet Switch with Wide
Temperature
4+2 SC Type Fiber Optic Managed Industrial Ethernet Switch with Wide
Temperature
4Gx+4SFP Managed Ethernet Switch with Wide Temperature
6Gx+2 Combo Managed Ethernet Switch with Wide Temperature
8Tx Managed Ethernet Switch with Wide Temperature

11-17
11-18
11-19
11-20
11-21
11-22
11-23

11-24
11-25

Unmanaged Ethernet Switch
EKI-4524I
EKI-4524RI
EKI-7626C/CI
EKI-7629C/CI
EKI-7526I
EKI-7529MI/ST
EKI-2725
EKI-2728
EKI-3725 (New)
EKI-3728 (New)
EKI-2525/I
EKI-2528/I
EKI-3525 (New)
EKI-3528 (New)
EKI-2525M
EKI-2526M/S

24-port Ethernet Unmanaged Switch with Wide Temperature
24+2 SFP Port Unmanaged Industrial Ethernet Switch with Wide Temperature
16+2G Combo Port Gigabit Unmanaged Industrial Ethernet Switch
8+2G Combo Port Gigabit Unmanaged Industrial Ethernet Switch
16-port Unmanaged Industrial Ethernet Switch with Wide Temperature Range
8+2 Multi-Mode Fiber Optic Industrial Unmanaged Ethernet Switch with Wide
Temperature
5-port Gigabit Unmanaged Industrial Ethernet Switch
5-port Unmanaged Industrial Ethernet Switch
5-port 10/100Mbps Unmanaged Industrial Ethernet Switch
8-port 10/100Mbps Unmanaged Industrial Ethernet Switch
4+1 100FX Port Multi-Mode Unmanaged Industrial Ethernet Switch
4+2 100FX Port Unmanaged Industrial Ethernet Switch

11-26
11-27
11-28
11-29
11-30
11-31
11-32
11-34
11-35
11-36

Media Converter
EKI-2541M/MI
EKI-2541S/SI
EKI-3541M (New)
EKI-3541S (New)
EKI-2741 Series

10/100T (X) to Multi-Mode SC Type Fiber Optic Industrial Media Converter
10/100T (X) to Single-Mode SC Type Fiber Optic Industrial Media Converter
10/100T (X) to Multi-Mode SC Type Fiber Optic Industrial Media Converter
10/100T (X) to Single-Mode SC Type Fiber Optic Industrial Media Converter
10/100/1000T (X) to Fiber Optic Gigabit Industrial Media Converters

11-37
11-38
11-39

Accessories
Accessories (New)

SFP Transceiver Modules

11-40

To view all of Advantech’s Industrial Ethernet Solutions, please visit www.advantech.com/products.

Industrial Ethernet Product
Selection Guide
EN50155 Ethernet Switches

Model Name

EKI-6558TI

EKI-6528TI

EKI-6528TPI

EN50155 IP67 8-port M12
Managed Ethernet Switch
with Wide Temperature

Description

EKI-6559TMI
EN50155 IP67 8-port M12 +
2-port Fiber Optic Managed
Ethernet Switch with Wide
Temperature

EN50155 8-port M12
Unmanaged Switch with
Wide Temperature

EN50155 8-port PoE M12
Unmanaged Switch with Wide
Temperature

8

10

8

8

8

8

8

8

100BaseFX
Interface

Ports Number
10/100Base-T (X)

-

2

-

-

10/100/1000Base-T (X)

-

-

-

-

1000Base-SX/LX/LHX/
XD/ZX/EZX

-

-

-

-

-

-

4

-

-

-

-

-

-

-

-

Console

V

V

-

-

Redundancy

V

V

-

-

Diagnostics

V

V

-

-

VLAN

V

V

-

-

Configuration

V

V

-

-

SNMP

V

V

-

-

Security

V

V

-

-

Traffic Control

V

V

-

-

2 x Unregulated
12 ~ 48 VDC

Network Management

-

DI/DO

Power

PoE (10/100 Mbps)
PoE (10/100/1000 Mbps)

V

V

12 ~ 48 VDC

24 ~ 48 VDC

2 x Unregulated
100 ~ 240 VDC

-

-

-

-

2 x Unregulated
100 ~ 240 VAC

-

-

-

-

V

-

-

-

-

V

V
V

Wall Mount

V

V

V

Rack Mount

-

-

-

-

IP Level

IP67

IP67

IP40

IP40

ESD (Ethernet)

V

V

V

V

Surge
(EFT for power)

V

V

V

V

Power Reverse

V

V

V

V

-10 ~ 60°C
(14 ~ 140°F)

-

-

-

-

-40 ~ 75°C
(-40 ~ 158°F)

V

V

V

V

Certification

Operating
Temperature

Mechanism

V

Protection

Relay Output
DIN-rail Mount

-40 ~ 85°C
(-40 ~ 185°F)

-

-

-

-

CE

V

V

V

V

FCC

V

V

V

V

UL/cUL 60950-1

-

-

V

V

Class I, Division 2

-

-

-

-

UL 508

V

V

-

-

11-10

11-10

11-11

11-11

Page

11-2

Industrial Ethernet Solutions

Selection Guide
PoE Switches

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


NEW

Machine Automation

Energy Automation

Model Name

EKI-7659CPI

EKI-2726FHPI

EKI-2525P

EKI-2526PI

Description

8+2G Port Gigabit Managed
Redundant Industrial PoE
Switch with Wide Temperature

4G+2 SFP W/ 4 IEEE 802.3
High Power PoE Industrial
Wide Temperature Switch

5-port
Industrial PoE Switch


10

6

5

6

-

-

1

2

100BaseFX

-

-

-

-

10/100/1000Base-T (X)

-

4

-

-

1000Base-SX/LX/LHX/
XD/ZX/EZX

2

2

-

-

PoE (10/100 Mbps)

8

4 (PoE+, 30W)

4

4

M12 Connector
(10/100 Mbps)

-

-

-

-

DI/DO

Interface

Ports Number
10/100Base-T (X)

-

-

-

-

Network Management

Console

V

-

-

-

Redundancy

V

-

-

-

Diagnostics

V

-

-

-

VLAN

V

-

-

-

Configuration

V

-

-

-

SNMP

V

-

-

-

V

-

-

-

V

-

-

-

2 x Unregulated
48 VDC
Power

Security
Traffic Control

48 VDC

48 VDC

48 VDC

48 VDC

2x Unregulated
100 ~ 240 VDC

-

-

-

-

2 x Unregulated
100 ~ 240 VAC

-

-

-

-

Certification

Operating
Temperature

Protection

Mechanism

Relay Output

V

V

V

V

DIN-rail Mount

V

V

V

V
V

Wall Mount

V

V

V

Rack Mount

-

-

-

-

IP30

V

V

V

V

ESD (Ethernet)

V

V

V

V

Surge (EFT for power)

V

V

V

V

Power Reverse

V

V

V

V

-10 ~ 60°C
(14 ~ 140°F)

-

-

V

-

-40 ~ 75°C
(-40 ~ 167°F)

V

V

-

V

-40 ~ 85°C
(-40 ~ 185°F)

-

-

-

-

CE

V

V

V

V

FCC

V

V

V

V

UL/cUL 60950-1

V

-

V

V

Class I, Division 2

-

-

-

-

UL 508
Page

-

V

-

-

11-12

11-13

11-14

11-14


Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

11-3

Selection Guide
NEW

Model Name

EKI-2525PA

EKI-2701HPI

EKI-2701PSI

with 24/48 VDC Power Input

Description

EKI-2528PAI
with 24/48 VDC Power Input
and Wide Temperature

Industrial PoE+ Injector with
Wide Temperature

Industrial PoE Splitter with
Wide Temperature

8

2

2

1

4

-

-

-

-

-

-

10/100/1000Base-T (X)

-

-

1

1

1000Base-SX/LX/LHX/
XD/ZX/EZX

-

-

-

-

PoE (10/100 Mbps)

4

4

1 (10/100/1000 Mbps)

1 (10/100/1000 Mbps)

M12 Connector
(10/100 Mbps)

-

-

-

-

DI/DO

-

-

-

-

Console
Network Management

5

100BaseFX
Interface

Ports Number
10/100Base-T (X)

-

-

-

-

Redundancy

-

-

-

-

Diagnostics

-

-

-

-

VLAN

-

-

-

-

Configuration

-

-

-

-

SNMP

-

-

-

-

-

-

-

-

-

-

-

2 x Unregulated
Power

Security
Traffic Control

24/48 VDC

24/48 VDC

24/48 VDC

44~57 VDC

2x Unregulated
100 ~ 240 VDC

-

-

-

-

2 x Unregulated
100 ~ 240 VAC

-

-

-

-

Certification

Operating
Temperature

Protection

Mechanism

Relay Output

V

V

V

-

DIN-rail Mount

V

V

V

V
V

Wall Mount

V

V

V

Rack Mount

-

-

-

-

IP30

V

V

V

V

ESD (Ethernet)

V

V

V

V


V

V

V

V

Power Reverse

V

V

V

V

-10 ~ 60°C
(14 ~ 140°F)

V

-

-

-

-40 ~ 75°C
(-40 ~ 167°F)

-

V

V

V

-40 ~ 85°C
(-40 ~ 185°F)

-

-

-

-

CE

V

V

V

V

FCC

V

V

V

V

UL/cUL 60950-1

-

-

V

V
-

Class I, Division 2

-

-

-

UL 508

V

V

-

-

11-15

11-15

11-16

online

Page

11-4


Selection Guide

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Managed Ethernet Switches

Machine Automation

Energy Automation

EKI-7758F

EKI-7656C/CI

EKI-7659C/CI

EKI-7657C

EKI-7654C

24 FE + 2 SFP
Gigabit Managed
Redundant
Industrial Ethernet
Switch

4G+4SFP
Gigabit Managed
Redundant
Industrial Ethernet
Switch

16+2G Combo Port
Gigabit Managed
Redundant
Industrial Ethernet
Switch

8+2G Combo Port
Gigabit Managed
Redundant
Industrial Ethernet
Switch

7+3G Combo Port
Gigabit Managed
Redundant
Industrial Ethernet
Switch with 2 x
DI/O

4+2G Combo Port
Gigabit Managed
Redundant
Industrial Ethernet
Switch

Ports Number

26

8

18

10

10

6

10/100Base-T (X)

24

-

16

8

7

4

100BaseFX

-

-

-

-

-

-

10/100/1000Base-T (X)

-

4

2

2

3

2

1000Base-SX/LX/LHX/
XD/ZX/EZX

2

4

2

2

3

2

PoE (10/100 Mbps)

-

-

-

-

-

-

PoE (10/100/1000 Mbps)

-

-

-

-

-

-

DI/DO

-

-

-

-

2

-

Console
Network Management

EKI-4654R

Description

Interface

Model Name

V

V

V

V

V

V

Redundancy

V

V

V

V

V

V

Diagnostics

V

V

V

V

V

V

VLAN

V

V

V

V

V

V

Configuration

V

V

V

V

V

V

SNMP

V

V

V

V

V

V

Security

V

V

V

V

V

V

V

V

V

V

V

V

V

V

V

2 x Unregulated
100 ~ 240 VDC

V

-

-

-

-

-

2 x Unregulated
100 ~ 240 VAC

V

-

-

-

-

-

Relay Output

Power

V

-

V

V

V

V

V

V

-

V

V

V

V

V

Wall Mount

-

V

V

V

V

V

Rack Mount

V

-

-

-

-

-

DIN-rail Mount

IP30

V

V

V

V

V

V

ESD (Ethernet)

V

V

V

V

V

V


V

V

V

V

V

V

Power Reverse

V

V

V

V

V

V

-10 ~ 60°C
(14 ~ 140°F)

-

V

V

V

V

V

-40 ~ 75°C
(-40 ~ 158°F)

-

-

V (EKI-7656CI)

V (EKI-7659CI)

-

-

-40 ~ 85°C
(-40 ~ 185°F)

V

-

-

-

-

-

Certification

Operating
Temperature

Mechanism

V

Protection

Traffic Control
2 x Unregulated
12 ~ 48 VDC

Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

CE

V

V

V

V

V

V

FCC

V

V

V

V

V

V

UL/cUL 60950-1

V

V

V

V

V

V

Class I, Division 2

-

V

V

-

V

-

UL 508

-

-

-

-

-

-

11-17

11-18

11-19

11-20

11-21

11-22

Page


M2M I/O Modules

RS-485 I/O Modules

11-5

Selection Guide
Managed Ethernet Switches

Model Name

EKI-7559SI/MI

EKI-7554SI/MI

EKI-2748FI/CI

8+2 SC Type Fiber Optic
4+2 SC Type Fiber Optic
Managed Redundant Industrial Managed Redundant Industrial 8Gx Managed Ethernet Switch
Temperature
Temperature

Description

EKI-2548I
8Tx Managed Ethernet Switch
with
Wide Temperature

6

8

8

8

4

-

8

2

2

-

-

10/100/1000Base-T (X)

-

-

4/6

-

1000Base-SX/LX/LHX/
XD/ZX/EZX

-

-

4/2

-

PoE (10/100 Mbps)

-

-

-

-

PoE (10/100/1000 Mbps)

-

-

-

-

DI/DO

-

-

-

-

Console
Network Management

10

100BaseFX
Interface

Ports Number
10/100Base-T (X)

V

V

V

-

Redundancy

V

V

V

V

Diagnostics

V

V

V

V

VLAN

V

V

V

V

Configuration

V

V

V

V

SNMP

V

V

V

V

Security

V

V

V

V

Power

Traffic Control

V

V

V

V

2 x Unregulated
12 ~ 48 VDC

V

V

V

V

2 x Unregulated
100 ~ 240 VDC

-

-

-

-

-

-

-

V

V

V

V

V

V

V

V

Wall Mount

V

V

V

V

DIN-rail Mount
Rack Mount

-

-

-

-

IP30

V

V

V

V

ESD (Ethernet)

V

V

V

V

Certification

Operating
Temperature

Mechanism

-

Relay Output

Protection

2 x Unregulated
100 ~ 240 VDC


V

V

V

V

Power Reverse

V

V

V

V

-10 ~ 60°C
(14 ~ 140°F)

-

-

-

-

-40 ~ 75°C
(-40 ~ 167°F)

V

V

V

V

-40 ~ 85°C
(-40 ~ 185°F)

-

-

-

-

CE

V

V

V

V

FCC

V

V

V

V

UL/cUL 60950-1

V

V

-

-

Class I, Division 2

V

-

V

V

UL 508
Page

11-6

-

-

V

V

11-23

11-23

11-24

11-25


Selection Guide
Unmanaged Ethernet Switches

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Model Name

EKI-4524I/RI

EKI-7626C/CI

EKI-7629C/CI

EKI-7526I

EKI-7529MI/ST

EKI-2725
EKI-2728/I

Description

24+2 SPF Port
Unmanaged
Industrial Ethernet
Switch with Wide
Temperature

16+2G Combo Port
Gigabit Unmanaged
Industrial Ethernet
Switch

8+2G Combo Port
Gigabit Unmanaged
Industrial Ethernet
Switch

16+2 SC Type Fiber
Optic Unmanaged
Industrial Ethernet
Switch with Wide
Temperature

8+2 Multi-mode
Fiber Optic
Unmanaged
Industrial Ethernet
Switch with Wide
Temperature

5/8-port Gigabit
Unmanaged
Industrial Ethernet
Switch

24/26

18

10

16

10

5/8

10/100Base-T (X)

24

16

8

16

8

-

100BaseFX

0/2

-

-

-

2

-

10/100/1000Base-T (X)

-

2

2

-

-

5/8

1000Base-SX/LX/LHX/
XD/ZX/EZX

-

2

2

-

-

-

PoE (10/100 Mbps)

-

-

-

-

-

-

PoE
(10/100/1000 Mbps)

-

-

-

-

-

-

DI/DO

-

-

-

-

-

-

Interface

Ports Number

Network Management

Console

-

-

-

-

-

-

Redundancy

-

-

-

-

-

-

Diagnostics

-

-

-

-

-

-

VLAN

-

-

-

-

-

-

Configuration

-

-

-

-

-

-

SNMP

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

2 x Unregulated
12 ~ 48 VDC
Power

-

-

V

V

V

V

V

1 x Unregulated
100 ~ 240 VDC

V

-

-

-

-

-

1 x Unregulated
100 ~ 240 VAC

V

-

-

-

-

-

V

V

V

V

V

V

DIN-rail Mount

-

V

V

V

V

V

Wall Mount

-

V

V

V

V

V

Rack Mount

V

-

-

-

-

-

IP30

V

V

V

V

V

V

ESD (Ethernet)

V

V

V

V

V

V

Surge
(EFT for power)

V

V

V

V

V

V

Power Reverse

V

V

V

V

V

V

-10 ~ 60°C
(14 ~ 140°F)

-

V

V

-

-

V

-40 ~ 75°C
(-40 ~ 167°F)

V

V (EKI-7626CI)

V (EKI-7629CI)

V

V

V (EKI-2728I)

Certification

Operating
Temperature

Relay Output
Mechanism

-

Protection

Security
Traffic Control

-40 ~ 85°C
(-40 ~ 185°F)

-

-

-

-

-

-

CE

V

V

V

V

V

V

FCC

V

V

V

V

V

V

UL/cUL 60950-1

-

V

V

-

-

V

Class I, Division 2

-

-

-

-

-

-/V

UL 508

-

-

-

V

V

11-27

11-28

11-29

11-30

Automation Software

Operator Panels


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

-

11-26

Building Automation
Systems

11-31

Page


RS-485 I/O Modules

11-7

Selection Guide
NEW

NEW

Model Name

EKI-3725/3728

EKI-2728MI

EKI-2525/I
EKI-2528/I

EKI-3525/3528

EKI-2525M

EKI-2526M/S

Description

5/8-port Gigabit
Unmanaged
Industrial Ethernet
Switch

6Gx+2 Multimode Unmanaged
Ethernet Switch
with Wide
Temperature

5/8-port
Unmanaged
Industrial Ethernet
Switch

5-port 10/100Mbps
Unmanaged
Industrial Ethernet
Switch

4+1 100FX Port
Multi-mode
Unmanaged
Industrial Ethernet
Switch

4+2 100FX Port
Multi-mode/
Single-mode
Industrial Ethernet
Switch

5

6

5/8

4

4

-

-

-

-

1

2

10/100/1000Base-T (X)

5/8

6

-

-

-

-

1000Base-SX/LX/LHX/
XD/ZX/EZX

-

2

-

-

-

-

PoE (10/100 Mbps)

-

-

-

-

-

-

-

-

-

-

-

-

DI/DO

-

-

-

-

-

-

Console

-

-

-

-

-

-

Redundancy

-

-

-

-

-

-

Diagnostics

-

-

-

-

-

-

VLAN

-

-

-

-

-

-

Configuration

-

-

-

-

-

-

SNMP

-

-

-

-

-

-

Security

-

-

-

-

-

-

Traffic Control

-

-

-

-

-

-

2 x Unregulated
12 ~ 48 VDC

Network Management

5/8

5/8

PoE (10/100/1000 Mbps)

Power

5/8

-

V

V

V

V

V

V

2 x Unregulated
100 ~ 240 VDC

-

-

-

-

-

-

2 x Unregulated
100 ~ 240 VAC

-

-

-

-

-

-

V

V

V

V

V

V

DIN-rail Mount

V

V

V

V

V

V

Wall Mount

V

V

V

V

V

V

Rack Mount

-

-

-

-

-

-

IP Level

IP40

IP30

IP30

IP40

IP30

IP30

ESD (Ethernet)

V

V

V

V

V

V

Surge
(EFT for power)

V

V

V

V

V

V

Power Reverse

V

V

V

V

V

V

-10 ~ 60°C
(14 ~ 140°F)

V

-

V

V

V

V

-40 ~ 75°C
(-40 ~ 167°F)

-

V

V
(EKI-2525I/
EKI-2528I)

-

-

-

Certification

Operating
Temperature

Relay Output
Mechanism

8

-

Protection

5/8

100BaseFX
Interface

Ports Number
10/100Base-T (X)

-40 ~ 85°C
(-40 ~ 185°F)

-

-

-

-

-

-

CE

V

V

V

V

V

V

FCC

V

V

V

V

V

V

UL/cUL 60950-1

V

-

V

V

V

V

Class I, Division 2

-

V

V

-

V

V

UL 508

-

V

-

-

-

-

11-32

online

11-34

11-35

11-36

11-36

Page

11-8


Selection Guide
Media Converters

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


NEW

Machine Automation

Energy Automation

Model Name

EKI-2541M/S

EKI-3541M/S

EKI-2741F/SX/LX

Description

10/100TX to Multi-mode / Single-mode
SC Type Fiber Optic Industrial Media
Converters

10/100TX to Multi-mode / Single-mode
SC Type Fiber Optic
Industrial Media Converters

10/100/1000TX to Fiber Optic Gigabit
Industrial Media Converters

2

2

2

1

1

-

100BaseFX
Interface

Ports Number
10/100Base-T (X)

1

1

-

10/100/1000Base-T (X)

-

-

1

1000Base-SX/LX/LHX/XD/
ZX/EZX

-

-

1

PoE (10/100 Mbps)

-

-

-

PoE (10/100/1000 Mbps)

-

-

-

DI/DO

-

-

-

Network Management

Console

-

-

-

Redundancy

-

-

-

Diagnostics

-

-

-

VLAN

-

-

-

Configuration

-

-

-

SNMP

-

-

-

-

-

-

-

-

-

2 x Unregulated
12 ~ 48 VDC
Power

Security
Traffic Control

V

V

V

2 x Unregulated
100 ~ 240 VDC

-

-

-

2 x Unregulated
100 ~ 240 VAC

-

-

-

V

V

V

V

V

Wall Mount

V

V

V

Rack Mount

-

-

-

IP Level

IP30

IP40

IP30

ESD (Ethernet)

V

V

V


V

V

V

Power Reverse

V

V

V

-10 ~ 60°C
(14 ~ 140°F)

V

V

V

-40 ~ 75°C
(-40 ~ 167°F)

V
(EKI-2541MI/EKI-2541SI)

-

-

Certification

Operating
Temperature

Mechanism

V

Protection

Relay Output
DIN-rail Mount

-40 ~ 85°C
(-40 ~ 185°F)

-

-

-

CE

V

V

V

FCC

V

V

V

UL/cUL 60950-1

V

V

V

Class I, Division 2

V

-

V

UL 508

-

-

-

11-37

11-38

11-39

Page

Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


11-9

EKI-6558TI
EKI-6559TMI

EN50155 IP67 8-port M12 Managed
Ethernet Switch with Wide Temperature
EN50155 IP67 8-port M12 + 2-port Fiber
Optic Managed Ethernet Switch with
Wide Temperature

Features
ƒƒ EN50155 certified
ƒƒ Supports X-Ring Pro function (ultra high-speed recovery time < 20 ms)
ƒƒ Wide redundant power design
ƒƒ Provides M12 connector with IP67 protection
ƒƒ Provides Waterproof fiber optic connector
ƒƒ TFTP firmware updates and system configure restore and backup
ƒƒ Dual 12 ~ 48 VDC power input and 1 relay output
ƒƒ Supports wide operating temperature -40 ~ 75°C
ƒƒ Provides 100 Mbps LC type connector

EKI-6558TI

EKI-6559TMI
RoHS

COMPLIANT
2002/95/EC

Introduction
EKI-6558TI and EKI-6559TMI are EN50155 certified IP67 wide temperature industrial switches which are especially designed for railway industry and harsh environments. M12
connectors secure highly reliable connectivity for industrial communication applications. EN50155 certification ensures the use of railway application. EKI-6559TMI also provides
two additional fiber optic ports to extend communication range. Both EKI-6558TI and EKI-6559TMI provide Advantech's X-Ring Pro protocol, which enables users to establish a
redundant Ethernet network with ultra high-speed recovery (less than 20 ms). They also support advanced network standards to optimize network performance, reduce maintenance
cost, and secure network safety.

Specifications
Communications
ƒƒ Standard
ƒƒ LAN

Power
IEEE 802.3, 802.3u, 802.3x, 802.3ad, 802.1D, 802.1w,
802.1p, 802.1Q, 802.1X
10/100Base-T (X), 100Base-FX
Up to 100 Mbps

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

M12, 4-pole D-coded, Female x 8
LC type waterproof x 2, Multi-mode (EKI-6559TMI)
M12, 8-pole A-coded, Female x 1

Protection

Interface
ƒƒ Ethernet
ƒƒ Fiber Optic
ƒƒ Console

Network Management
ƒƒ Configuration
ƒƒ VLAN
ƒƒ Redundancy
ƒƒ Security
ƒƒ Traffic Control

ƒƒ Diagnostics

Web browser, Telnet, Serial console, TFTP, SNMPv1/
v2c/v3, Port Speed/Duplex Configuration, IPv6
IEEE 802.1Q, GVRP, Port-based VLAN
Advantech X-Ring Pro (Recovery time < 20 ms at
250 pcs full loading ring structure), Dual Homing,
Dual Ring, Couple Ring, 802.1w/D RSTP/STP
IP Access security, port security, DHCP Server, Port
and IP Binding, 802.1X Port Access Control, SSL
IGMP Snooping/Query for multicast group
management, Port Trunking, Static/802.3ad, LACP Rate
limit and storm control, IEEE 802.1p QoS CoS/TOS/
DSCP priority queuing, IEEE 802.3x flow control
Port Mirroring, Real-time traffic statistic, MAC Address
Table, SNTP, Syslog, Email Alert, SNMP Trap, RMON

Mechanism
ƒƒ Enclosure
IP67, aluminum shell with solid mounting kits
ƒƒ Dimensions (W x H x D) 193 x 176 x 62.5 mm (7.59" x 6.93" x 2.46")
ƒƒ Mounting
Wall

Power Consumption
Power Input
Power Connector
P-Fail Output
P-Fail Connector

ƒƒ Power Reverse

Max. 8.1 W
12 ~ 48 VDC, redundant dual inputs
M12, 5-pole A-coded, male x 1
1A @ 24 VDC
Present

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Operating Humidity
Storage Humidity
MTBF
388,201 hours (EKI-6558TI)
320,420 hours (EKI-6559TMI)

Certifications
ƒƒ Safety
ƒƒ EMI
ƒƒ EMS

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Shock
Freefall
Vibration
Railway

UL 508
FCC Part 15 Subpart B Class A, EN 55022 Class A
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
IEC 61373
IEC 60068-2-32
IEC 61373
EN50155, EN 50121-3-2, EN 50121-4

ƒƒ EKI-6558TI
ƒƒ EKI-6559TMI

11-10


EN50155 8-port M12 Managed Ethernet Switch
EN50155 8-port M12+ 2-port FX Managed Ethernet
Switch

EKI-6528TI
EKI-6528TPI

EN50155 8-port M12 Unmanaged
EN50155 8-port M12 Unmanaged
PoE Switch with Wide Temperature

Features

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ Auto Bypass between Port 1 and Port 2
ƒƒ EN50155 certified
ƒƒ ide redundant power design
W
ƒƒ -port 10/100 Mbps M12 type connector with IP40 protection
8
ƒƒ -port PoE type M12 (EKI-6528TPI)
4
ƒƒ Dual redundant power input
ƒƒ upports wide operating temperature -40 ~ 75°C
S

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

EKI-6528TI

EKI-6528TPI

Operator Panels

RoHS

COMPLIANT
2002/95/EC

Introduction


EKI-6528TI and EKI-6528TPI are EN50155 certified industrial switches with IP40 protection and wide temperature support designed for railway applications. EKI-6528TPI provides four
PoE ports that support IEEE 802.3af and can provide up to 15.4 watts of power per port. M12 connectors ensure highly reliable connectivity for industrial communication applications.
With IP40 compact metal housings, these switches are protected against dusty environments and are a good fit for many industrial applications. Under no-power condition, 'Auto Bypass'
function ensures the Ethernet signal connection through internal circuitry. This feature provides non-stop communication to rolling stocks even no power exists in some of the carriages.

Industrial Panel

Specifications

Industrial Monitors

Environment

Communications
ƒƒ Standard

ƒƒ LAN

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3af
10/100Base-T (X)
Up to 100 Mbps

Interface
ƒƒ Ethernet

Operating Humidity
Storage Humidity
MTBF
391,307 hours (EKI-6528TI)
348,384 hours (EKI-6528TPI)

ƒƒ Safety
ƒƒ EMI
ƒƒ EMS

Mechanism
ƒƒ Enclosure
IP40 protected metal shell
ƒƒ Mounting
DIN-rail, Wall

Power
ƒƒ Power Input
ƒƒ Power Connector
ƒƒ P-Fail Output
ƒƒ P-Fail Connector

Max. 3.36 W (EKI-6528TI)
Max. 72 W (EKI-6528TPI)
24 ~ 48 VDC, redundant dual inputs (for EKI-6528TPI)
12 ~ 48 VDC, redundant dual inputs (for EKI-6528TI)
M12, 5-pole A-coded, male x 1
1A @ 24 VDC

Protection
ƒƒ Power Reverse
ƒƒ Overload Current

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Shock
Freefall
Vibration
Railway

UL 60950-1
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
IEC 61373
IEC 60068-2-32
IEC 61373
EN50155, EN 50121-3-2, EN 50121-4

ƒƒ EKI-6528TI
ƒƒ EKI-6528TPI

Industrial Ethernet
Solutions

and IP Gateways

Certifications

M12, 4-pole D-coded, Female x 8

Industrial Wireless
Solutions

EN50155 8-port M12 Unmanaged Ethernet Switch
EN50155 8-port M12 Unmanaged PoE Switch

Present
Present

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


11-11

8+2G Port Gigabit Managed
Redundant Industrial PoE Switch

EKI-7659CPI

Features
ƒƒ 2 Gigabit Copper/SFP combo ports, plus 8 PoE injector ports
ƒƒ SFP socket for Easy and Flexible Fiber Expansion
ƒƒ Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms),
RSTP/STP (802.1w/1D)
ƒƒ Management: Web, Telnet, Serial Console, SNMP
ƒƒ Control: VLAN/GVRP, QoS, IGMP Snooping/Query, LACP, Rate Limit
ƒƒ Security: IP/MAC and port binding, DHCP Server, IP access list, 802.1X, SSL
SNMPv3
ƒƒ Diagnostic: Port Statistic, Port Mirroring, RMON, Trap, Email Alert, Syslog
ƒƒ Dual 48 VDC power input and 1 relay output
ƒƒ Supports wide operating temperatures -40 ~ 75°C

RoHS

COMPLIANT
2002/95/EC

Introduction
EKI-7659CPI supports 8 Power over Ethernet (PoE) ports and 2 Gigabit combo ports. The PoE device helps realize a centralized power supply solution and provides up to 15.4 watts of
power per port. To create reliability in your network, the EKI-7659CPI comes equipped with a proprietary redundant network protocol -- X-Ring Pro that was developed by Advantech,
which provides users with an easy way to establish a redundant Ethernet network with ultra high-speed recovery time less than 20 ms. Furthermore, EKI-7659CPI also supports many
advanced network standards to optimize network performance, ease maintenance issues, and secure network safety.

Specifications
Communications

Mechanism

ƒƒ Standard

ƒƒ Enclosure
IP30, metal shell with solid mounting kits
ƒƒ Mounting
DIN-rail, Wall

IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.3ad, 802.3ab,
802.3af, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1X
ƒƒ LAN
10/100/1000Base-T (X), Optional 100Base-FX,
1000Base-SX/LX/LHX/XD/ZX/EZX
ƒƒ Transmission Distance Ethernet: Up to 100 m (4- wire Cat.5e, Cat.6 RJ45
cable suggested for Gigabit port)
SFP: Up to 110 km (depends on SFP)
ƒƒ Transmission Speed Ethernet: 10/100 Mbps Auto-Negotiation
Gigabit Copper: 10/100/1000 Mbps, Auto-Negotiation
Gigabit Fiber: Up to 1000 Mbps

ƒƒ LED Indicators

ƒƒ Console

8 x RJ45 (Ethernet)
2 x RJ45/SFP (mini-GBIC) combo ports
6-pin removable screw terminal (Power&Relay)
System: PWR, PWR1, PWR2, R.M., P-Fail
10/100T (X): Link/Activity, Duplex/Collision
Gigabit Copper: Link/Activity, Speed (1000 Mbps)
SFP: Link/Activity
RS-232 (RJ45)

Network Management
ƒƒ Configuration
ƒƒ VLAN
ƒƒ Redundancy
ƒƒ Security

ƒƒ Diagnostics

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Power Consumption
Power Input
Power Output
Fault Output

Advantech X-Ring Pro (Recovery time < 20 ms at 250
pcs full loading ring structure), Dual Homing, Dual
Ring, Couple Ring, 802.1w/D RSTP/STP
Table, SNTP, Syslog, E-Mail Alert, SNMP Trap, RMON

ƒƒ Power Reverse


Present
Present

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Operating Humidity
Storage Humidity
MTBF
190,200 hours

Certifications
ƒƒ Safety
ƒƒ EMI
ƒƒ EMS

ƒƒ Shock
ƒƒ Freefall
ƒƒ Vibration

UL 60950-1, CAN/CSA-C22.2 No.60950
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6

ƒƒ EKI-7659CPI

11-12

116 W (Full load PoE)
48 VDC, redundant dual power input
15.4W at 48V (per PoE port)
1 Relay Output

Protection

Interface
ƒƒ Connectors

Power

8FE + 2G Combo Port Managed PoE Ethernet Switch
w/Wide Temp

4G+2 SFP W/ 4 IEEE 802.3
High Power PoE Industrial
Wide Temperature Switch

EKI-2726FHPI
Features

NEW

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ All Gigabit Ethernet ports for 4 Copper and 2 SFP
ƒƒ Back-plane (Switching Fabric): 12Gbps
ƒƒ Embedded 4 ports PoE inject function
ƒƒ Provide 30W at 55V power output
ƒƒ Redundant Power Design

Machine Automation

Energy Automation

ƒƒ IP30 Chassis Design
ƒƒ Supports operating temperatures from -40 ~ 75°C

Building Automation
Systems

Automation Software

Operator Panels

RoHS

COMPLIANT
2002/95/EC

Introduction


The EKI-2726 FHPI switch has 4 x 10/100/1000BASE-T Ethernet ports with PoE+ function and 2 x SFP sockets, it has been designed to work within a wide operating temperature
range.This cost-effective solution, meets the high reliability requirements and demands of industrial applications. The equipment also meets the IEEE 802.3 at standard and can
provide 30Watts output per PoE port.

Specifications

Industrial Monitors

Communications

Environment

ƒƒ Standard

ƒƒ
ƒƒ
ƒƒ
ƒƒ

IEEE 802.3, 802.3u, 802.3x, 802.3af/at,

802.3ab, 802.3z
ƒƒ LAN
10/100/1000Base-T
Ethernet: Up to 100 m

Copper: 10/100/1000 Mbps, Auto-Negotiation


ƒƒ LED Indicators

-40 ~ 75°C(-40 ~ 167°F)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Operating Humidity

MTBF
339,740

ƒƒ Safety

10/100/1000T(X): RJ-45*4
SFP: Gigabit Base *2
System: P1, P2, P-Fail,
Per port: Link/Activity, Speed, PoE (1 to 4 ports)

ƒƒ Shock
ƒƒ Freefall

UL/cUL508

Class I, Division 2, Groups A, B, C and D
(pending)

FCC Part 15 Subpart B Class A, EN 55022

Class A

EN 61000-4-2

EN 61000-4-3

EN 61000-4-4

EN 61000-4-5

EN 61000-4-6

EN 61000-4-8

IEC 60068-2-27

IEC 60068-2-32

ƒƒ EMI
ƒƒ EMS

Power
ƒƒ Power Input
ƒƒ Fault Output

5.5 watts @48VDC (Ethernet only)
48 VDC (44VDC to 57 VDC ), redundant dual inputs
1 Relay Output

Mechanism
ƒƒ Dimensions (W x H x D)
ƒƒ Enclosure

ƒƒ Mounting

59.6 x 152 x 105 mm (2.35" x 5.98" x 4.13")
IP30, Metal shell with solid mounting kits
DIN-rail, Wall

IEC 60068-2-6

ƒƒ EKI-2726FHPI

4G+2 SFP Unmanaged Gigabit Switch with 4-port
PoE+(IEEE 802.3af/at)

Protection
ƒƒ Power Reverse

Present
Present


Industrial Wireless
Solutions

Industrial Ethernet
Solutions

Certifications

ƒƒ Vibration

Interface
ƒƒ Connectors

Industrial Panel

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


11-13

EKI-2525P
EKI-2526PI

6-port Industrial PoE Switch with Wide Temperature
Features
ƒƒ Provides 5/6 Fast Ethernet ports with 4 PoE ports with injector function
ƒƒ Supports 10/100 Mbps Auto Negotiation
ƒƒ Provides broadcast storm protection
ƒƒ Supports Ethernet ESD protection
ƒƒ Provides Slim size, DIN-rail/Wall mount with IP30 metal mechanism
ƒƒ Supports Redundant 48 VDC power input and P-Fail relay
ƒƒ Supports operating temperatures from -10 to 60°C (EKI-2525P)
ƒƒ Supports wide operating temperature -40 ~ 75°C (EKI-2526PI)

EKI-2525P

EKI-2526PI
RoHS

COMPLIANT
2002/95/EC

Introduction
The EKI-2525P is a 5-port unmanaged PoE (Power-over-Ethernet) Industrial Ethernet switch and EKI-2526PI is a 6-port unmanaged PoE Industrial Ethernet switch, they support
4 PoE ports which are classified as power source equipments (PSE). The PoE devoces makes centralized power supply come true and provides up to 15.4 watts of power per port.
Advantech EKI PoE devices can be used to power IEEE 802.3af compliant powered devices (PD) by Ethernet cable and eliminates the need for additional power wiring. Advantech EKI
PoE devices come equipped with all the standard features of the EKI family. Furthermore, it offers a 48 VDC redundant power input design (EKI-2525P/EKI-2526PI), and is secured
with a double protection mechanism; Power Polarity Reverse Protect and an Overload Current Resettable Fuse. Advantech EKI PoE devices come with compact metal housing that
rates IP30 to help against from dusty industrial environments.

Specifications
Communications

Protection

ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ Reverse Polarity
ƒƒ Overload current

Standard
IEEE 802.3, 802.3u, 802.3x, 802.3af
LAN
10/100Base-T (X)
Transmission Distance Ethernet: Up to 100 m (EKI-2525P/EKI-2526PI)
Transmission Speed Up to 100 Mbps

Fiber Optics (EKI-252SPI)
ƒƒ Single-mode

1310 nm
Tx Power: -8/-15 dBm
Rx Sensitivity: -34 dBm
Parameters: 9/125 um

Interface
ƒƒ Connectors

ƒƒ LED Indicators

PoE Ports: 4 (Ports 1 ~ 4)
Ethernet x1 (EKI-2525P)
Ethernet x2 (EKI-2526PI)
6-pin removable screw terminal (power & relay)
P1, P2, P-Fail
10/100TX: Link/Activity, Duplex/Collision

Environment
ƒƒ Operating Temperature -10 ~ 60°C (14 ~ 140°F) (EKI-2525P)

-40 ~ 75°C (-40 ~ 167°F) (EKI-2526PI)
ƒƒ MTBF
440,132 hours

Certifications
ƒƒ Safety
ƒƒ EMI
ƒƒ EMS

Power
ƒƒ Power Input
ƒƒ Power Output
ƒƒ Fault Output

EKI-2525P: 65 W (Full load PoE)
EKI-2526PI: 62.6 W (Full load PoE)
48 VDC (EKI-2525P/EKI-2526PI), redundant dual inputs
15.4 W at 48 V (per PoE port)
1 Relay Output

Mechanism
(EKI-2525P)
48.6 x 140 x 95 mm (1.91" x 5.51" x 3.74")
(EKI-2525P)
ƒƒ Enclosure
ƒƒ Mounting
DIN-rail, Wall

11-14


Present
Present

ƒƒ Shock
ƒƒ Freefall
ƒƒ Vibration

UL 60950-1, CAN/CSA-C22.2 No.60950
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6

ƒƒ EKI-2525P
ƒƒ EKI-2526PI

5-port Switch with 4 port-PoE
6-port Switch with 4 port-PoE

EKI-2525PA
EKI-2528PAI

5-port Industrial PoE Switch with 24/48 VDC
Power Input
8-port Industrial PoE Switch with 24/48 VDC
Power Input and Wide Temperature
Features

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ Provides 5/8 Fast Ethernet ports with 4 PoE ports with injector function
ƒƒ Supports 10/100 Mbps Auto Negotiation
ƒƒ Supports Ethernet ESD protection
ƒƒ Provides power line EFT protection
ƒƒ Provides slim size, DIN-rail/Wall mount with IP30 metal mechanism
ƒƒ Supports Redundant 24/48 VDC power input and P-Fail Relay
ƒƒ Supports operating temperatures from -10 to 60°C (EKI-2525PA)
ƒƒ Supports wide operating temperature -40 ~ 75°C (EKI-2528PAI)

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

EKI-2525PA

EKI-2528PAI

Operator Panels
RoHS

COMPLIANT
2002/95/EC

Introduction


The EKI-2525PA and EKI-2528PAI are a 5/8-port unmanaged PoE (Power-over-Ethernet) Industrial Ethernet switches that supports 4 PoE ports which are classified as power source
equipment (PSE). These PoE devices make centralized power supply possible and provide up to 15.4 watts of power per port. Advantech EKI PoE devices can be used to power IEEE
802.3af compliant powered devices (PD) through Ethernet cable and eliminate the need for additional power wiring. Advantech EKI PoE devices come equipped with all the standard
features of the EKI family. Furthermore, they offer a 24/48 VDC redundant power input design and is secured with a double protection mechanism; Power Polarity Reverse Protect and
an Overload Current Resettable Fuse. Advantech EKI PoE devices come with compact metal housing that rates IP30 to help against from dusty industrial environments.

Industrial Monitors

Specifications
Communications

Environment

ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ Operating Temperature -10 ~ 60°C (14 ~ 140°F) (EKI-2525PA)
Wide temp. model
-40 ~ 75°C (-40 ~ 167°F) (EKI-2528PAI)
ƒƒ MTBF
440,132 hours

Standard
IEEE 802.3, 802.3u, 802.3x, 802.3af
LAN
10/100Base-T (X)
Transmission Distance Up to 100 m

Interface
ƒƒ Connectors

ƒƒ LED Indicators

PoE Ports: 4 (Ports 1 ~ 4)
Ethernet ports: 1 (Port 5 ~ Port 8), EKI-2525PA
Ethernet ports: 4 (Port 5 ~ Port 8), EKI-2528PAI
P1, P2, P-Fail

Certifications
ƒƒ Safety
ƒƒ EMI
ƒƒ EMS

Power
ƒƒ Power Input
ƒƒ Power Output
ƒƒ Fault Output

EKI-2525PA: 62.5 W (Full load PoE)
EKI-2528PAI: 65 W (Full load PoE)
24/48 VDC, redundant dual inputs
15.4 W at 48 V (per PoE port)
1 Relay Output

Mechanism
ƒƒ Dimensions (W x H x D) 48.6 x 140 x 95 mm (1.91" x 5.51" x 3.74")
ƒƒ Enclosure
ƒƒ Mounting
DIN-rail, Wall

Protection

Industrial Panel

ƒƒ Shock
ƒƒ Freefall
ƒƒ Vibration

UL508
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6

ƒƒ EKI-2528PAI

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

ƒƒ EKI-2525PA

Industrial Wireless
Solutions

5-port Switch with 4 port-PoE and 24/48 VDC Power
Input
8-port Switch with 4 port-PoE and 24/48 VDC Power
Input (Wide Temp)

Present
Present


M2M I/O Modules

RS-485 I/O Modules

11-15

EKI-2701HPI

IEEE 802.3af/at Gigabit PoE+ Injector
Features

NEW

ƒƒ Supports 10/100/1000Base-T (X) for PoE+ OUT and Data IN
ƒƒ IEEE 802.3af/at compliant, supports a full 30 watt output
ƒƒ Power input (24 ~ 48 VDC), inject 30 W for each port
ƒƒ Provides slim size and DIN-rail/Wall mount with IP30 metal mechanism
ƒƒ Supports operating temperatures from -40 to 75°C

RoHS

COMPLIANT
2002/95/EC

Introduction
With the technology of PoE (Power over Ethernet), we can transfer both data and electrical power to Ethernet-enabled devices using a standard CAT5 cable. EKI-2701HPI is compliant
IEEE 802.3af/at and inject 30W for PD device. This product can operate in a wide range of Temp. between -40 to 75°C and support wide power input range between 24 to 48 VDC .

Specifications
Communications

Certifications

ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ Safety
ƒƒ EMI
ƒƒ EMS

Standard
IEEE 802.3, 802.3u, 802.3x, 802.3af/at, 802.3ab
LAN
10/100/1000Base-T (X)
Transmission Speed up to 1000 Mbps

Interface
ƒƒ Connectors

ƒƒ LED Indicators

PoE OUT: RJ45
DATA IN: RJ45
6-pin removable screw terminal
PWR1, PWR2, PoE status, Link/Activity

Power
ƒƒ Power Input
ƒƒ Power Output

Max. 33.36 W @ 24 VDC (Full load PoE)
24 ~ 48 VDC, redundant dual power inputs
30 W @ 24 VDC

Mechanism
ƒƒ Enclosure
ƒƒ Mounting
DIN-rail, Wall

Protection
ƒƒ Reverse

Present
Present

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

11-16

Operating Humidity
Storage Humidity
MTBF
1,419,817 hours


ƒƒ Shock
ƒƒ Freefall
ƒƒ Vibration

UL508
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6

ƒƒ EKI-2701HPI

PoE+ Injector, support a full 30 W output

EKI-4654R

24 FE + 2 SFP (Mini-GBIC) Managed
Redundant Ethernet Switch
Features

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ 1U 19" rack mount
ƒƒ 2 x 1000Base SFP ports, plus 24 Fast Ethernet ports
ƒƒ Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/ STP
(802.1w/1D)
ƒƒ Fully integrated, dual-redundant power supply: 2 x 100 ~ 240 VAC/100 ~ 240 VDC
ƒƒ Fanless design
ƒƒ Front panel LEDs simplify the monitoring and management
ƒƒ Rear-end wiring with LED indicator
ƒƒ Wide operating temperature from -40 ~ 85°C

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels
RoHS

COMPLIANT
2002/95/EC

Introduction


The EKI-4654R supports 24 Fast Ethernet ports and 2 x 1000Base SFP slots for different SFP modules for various application. EKI-4654R has long range voltage redundancy power
input which provides convenient and uninterrupted power supply. EKI-4654R also supports many advanced network standards to optimize performance, ease maintenance issues
and secure network safety.

Specifications

Industrial Monitors

Communications

Mechanism

ƒƒ Standard

ƒƒ Enclosure
ƒƒ Dimensions (W x H x D) 440 x 44 x 280 mm
ƒƒ Mounting
1U 19" Rack mount

IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.1D, 802.1w,
802.1p, 802.1Q, 802.1X, 802.3ad
ƒƒ LAN
10/100Base-T(X), Optional 1000Base-SX/LX/LHX/XD/
ZX/EZX
ƒƒ Transmission Distance Ethernet: Up to 100m (4- wire Cat.5e)
ƒƒ Transmission Speed Ethernet: 10/100Mbps Auto-Negotiation
Copper:10/100 Mbps, Auto-Negotiation
Fiber: Up to 1000 Mbps

Interface
ƒƒ Connectors
ƒƒ LED Indicators

ƒƒ Console

24 x 10/100 Base-TX + 2 x SFP(mini-GBIC) ports
System: PWR, PWR1, PWR2, PWR3, R.M., P-Fail
10/100 T(X): Link/Activity, Duplex/CollisionGigabit
Copper: Link/Activity, Speed
SFP: Link/Activity
RS-232 (RJ-45)

Network Management
ƒƒ Configuration
ƒƒ VLAN
ƒƒ Redundancy
ƒƒ Security

ƒƒ Diagnostics

Industrial Panel

Web browser, Telnet, Serial console, TFTP, SNMP v1/
v2c/v3, Port Speed/Duplex Configuration
and IP Binding, 802.1X Port Access Control

Power
ƒƒ Power Input
ƒƒ Fault Output

Max. 36 W
2 x 100 ~ 240 VAC/100 ~ 240 VDC (Redundancy)
1 Relay Output
Present
3.15 A @ 110 V (Fuse)

Cards

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Operating Humidity
Storage Humidity
MTBF
284,409 hours

ƒƒ Shock
ƒƒ Freefall
ƒƒ Vibration

UL 60950-1, CAN/CSA-C22.2 No.60950
U.S.A.: FCC Part 15 CISPR 22
EU: EN55011, EN61000-6-4, EN55022 Class A,
EN61000-3-2/3, EN55024, IEC61000-4-2/3/4/5/6/8,
EN61000-6-2/4
IEC60068-2-27
IEC60068-2-32
IEC60068-2-6

ƒƒ EKI-4654R

Embedded Automation
Computers

PACs

Certifications
ƒƒ Safety
ƒƒ EMC

Industrial Ethernet
Solutions

and IP Gateways

Protection
ƒƒ Power Reverse
ƒƒ Overload

Industrial Wireless
Solutions

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

24+2 SFP Managed Redundant Ethernet Switch


11-17

EKI-7758F

4G+4 SFP Gigabit Managed Redundant
Features
ƒƒ All Gigabit Ethernet ports for 4 Copper and 4 SFP
ƒƒ SFP sockets for easy and flexible fiber expansion
ƒƒ Diagnostic: Port statistic, Port Mirroring, RMON, Trap, Email Alert, Syslog

RoHS

COMPLIANT
2002/95/EC

Introduction
EKI-7758F supports 8 Gigabit ports with 4 x Ethernet and 4 x SFP. To create reliability in your network, the EKI-7758F comes equipped with a proprietary redundant network protocol
-- X-Ring that was developed by Advantech, which provides users with an easy way to establish a redundant Ethernet network with ultra high-speed recovery time less than 20 ms.
Furthermore, EKI-7758F also supports many advanced network standards to optimize network performance, ease maintenance issues, and secure network safety.

Specifications
Communications

Mechanism

ƒƒ Standard

ƒƒ Enclosure
ƒƒ Mounting
DIN-rail, Wall

IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.1D, 802.1w,
802.1p, 802.1Q, 802.1X, 802.3ad, 802.3ab
ƒƒ LAN
100Base-T (X), 10/1000Base-T, Optional 100Base-FX,
ƒƒ Transmission Distance Ethernet : Up to 100 m (4- wire Cat.5e, Cat.6 RJ45
ƒƒ Transmission Speed Gigabit Copper:10/100/1000 Mbps, Auto-Negotiation
SFP: Up to 1000 Mbps

Interface
ƒƒ Connectors
ƒƒ LED Indicators
ƒƒ Console

4 x RJ45 (Ethernet)
4 x SFP (mini-GBIC) ports
6-pin removable screw terminal (Power & Relay)
System: PWR, R.M., PWR1, PWR2, P-Fail
Gigabit Copper: Link/Activity, Speed
SFP: Link/Activity
RS-232 (RJ45)

Network Management
ƒƒ Configuration
ƒƒ VLAN
ƒƒ Redundancy
ƒƒ Security

ƒƒ Diagnostics

Web browser, Telnet, Serial consloe, TFTP,
SNMPv1/v2c/v3, Port Speed/Duplex Configuration,
IPv6

Power
ƒƒ Power Input
ƒƒ Fault Output

Protection
ƒƒ Power Reverse


Present
Present

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Operating Humidity
Storage Humidity
MTBF
289,777 hours

Certifications
ƒƒ Safety
ƒƒ EMI
ƒƒ EMS

ƒƒ Shock
ƒƒ Freefall
ƒƒ Vibration

UL 60950-1, CAN/CSA-C22.2 No.60950
Class I, Division 2
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6

ƒƒ EKI-7758F

11-18

Max. 17 W
1 Relay Output

4G+4 SFP Managed Gigabit Ethernet Switch

EKI-7656C/CI


Features

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ 2 Gigabit Copper/SFP combo ports, plus 16 Fast Ethernet ports
ƒƒ Control: VLAN/GVRP, QOS, IGMP Snooping/Query, LACP, Rate Limit
ƒƒ Security: IP/MAC and port binding, DHCP Server, IP access list, 802.1X, SSL,
SNMPv3
ƒƒ Dual 12 ~ 48 VDC power inputs and 1 relay output
ƒƒ Supports wide operating temperatures from -40 to 75°C (EKI-7656CI)

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels
RoHS

COMPLIANT
2002/95/EC

Introduction


EKI-7656C supports 16 Fast Ethernet ports and 2 Gigabit combo ports. To create reliability in your network, the EKI-7656C comes equipped with a proprietary redundant network
protocol -- X-Ring Pro that was developed by Advantech, which provides users with an easy way to establish a redundant Ethernet network with ultra high-speed recovery time
less than 20 ms. Furthermore, EKI-7656C also supports many advanced network standards to optimize network performance, ease maintenance issues, and secure network safety.

Specifications

Mechanism

Communications
ƒƒ Standard

IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.1D, 802.1w,
802.1p, 802.1Q, 802.1X, 802.3ad, 802.3ab
ƒƒ LAN
Gigabit Copper: 10/100/1000 Mbps, Auto-Negotiation,

Interface
ƒƒ Connectors
ƒƒ LED Indicators

ƒƒ Console

16 x RJ45 (Ethernet)
6-pin removable screw terminal (Power&Relay)
Ethernet: Link/Activity, Duplex/Collision
SFP: Link/Activity
RS-232 (RJ45)

Network Management
ƒƒ Diagnostics
ƒƒ VLAN
ƒƒ Configuration
ƒƒ Redundancy
ƒƒ Security

Web browser, Telnet, Serial consloe, TFTP,
IPv6

Industrial Panel

ƒƒ Enclosure
ƒƒ Mounting
DIN-rail, Wall

Industrial Monitors

Power

Industrial Wireless
Solutions

ƒƒ Power Input
ƒƒ Fault Output

Max. 10.7 W
12 ~ 48 VDC, redundant dual inpuds
1 Relay Output

Protection
ƒƒ Power Reverse

Present
Present

Environment
-40 ~ 75°C (-40 ~ 167°F) (EKI-7656CI)
ƒƒ MTBF
295,000 hours

Certifications
ƒƒ Safety
ƒƒ EMI
ƒƒ EMS

ƒƒ Shock
ƒƒ Freefall
ƒƒ Vibration

UL 60950-1, CAN/CSA-C22.2 No.60950
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6

ƒƒ EKI-7656C
ƒƒ EKI-7656CI

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

16FE + 2G Combo Port Managed Ethernet Switch
w/ Wide Temp


11-19

EKI-7659C/CI


Features
SNMPv3

RoHS

COMPLIANT
2002/95/EC

Introduction
EKI-7659C support 8 Fast Ethernet ports and 2 Gigabit combo ports. To create reliability in your network, the EKI-7659C comes equipped with a proprietary redundant network protocol
-- X-Ring Pro that was developed by Advantech, which provides users with an easy way to establish a redundant Ethernet network with ultra high-speed recovery time less than 20
ms. Furthermore, EKI-7659C also supports many advanced network standards to optimize network performance, ease maintenance issues, and secure network safety.

Specifications

Mechanism

Communications
ƒƒ Standard

IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.1D, 802.1w,
802.1p, 802.1Q, 802.1X, 802.3ad, 802.3ab
ƒƒ LAN

ƒƒ LED Indicators

ƒƒ Console

8 x RJ45 (Ethernet)
SFP: Link/Activity
RS-232 (RJ45)

Network Management
ƒƒ Configuration
ƒƒ VLAN
ƒƒ Redundancy
ƒƒ Security

ƒƒ Diagnostics

11-20

Power
ƒƒ Power Input
ƒƒ Fault Output

Max. 10.7 W
1 Relay Output

Protection
ƒƒ Power Reverse

Present
Present

Environment

Interface
ƒƒ Connectors

ƒƒ Enclosure
ƒƒ Mounting
DIN-rail, Wall




-40 ~ 75°C (-40 ~ 167°F) (EKI-7659CI)
ƒƒ MTBF
284,409 hours

Certifications
ƒƒ Safety
ƒƒ EMI
ƒƒ EMS

ƒƒ Shock
ƒƒ Freefall
ƒƒ Vibration

UL 60950-1, CAN/CSA-C22.2 No.60950
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6

ƒƒ EKI-7659C
ƒƒ EKI-7659CI

w/ Wide Temp

7+3G Combo Port Gigabit
Managed Redundant Industrial
Ethernet Switch with 2 x DI/O

EKI-7657C
Features

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ 2 Digital Inputs and 2 Digital Outputs for Events and Alarms in the Network
SNMPv3
ƒƒ Operating temperature from -10 to 60°C

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels
RoHS

COMPLIANT
2002/95/EC

Introduction


EKI-7657C supports 7 Fast Ethernet ports and 3 Gigabit combo ports with 2 x Digital Input and Digital Output ports. To create reliability in your network, the EKI-7657C comes
equipped with a proprietary redundant network protocol -- X-Ring Pro that was developed by Advantech, which provides users with an easy way to establish a redundant Ethernet
network with ultra high-speed recovery time less than 20 ms. Furthermore, EKI-7657C also supports many advanced network standards to optimize network performance, ease
maintenance issues, and secure network safety.

Industrial Panel

Specifications

Industrial Monitors

Communications

Mechanism

ƒƒ Standard

IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.1D, 802.1w,
802.1p, 802.1Q, 802.1X, 802.3ad, 802.3ab
ƒƒ LAN

ƒƒ Enclosure
ƒƒ Mounting
DIN-rail, Wall

Interface

ƒƒ Power Reverse

ƒƒ Connectors
ƒƒ
ƒƒ LED Indicators

ƒƒ Console

7 x RJ45 (Ethernet)
1 x 6-pin removable terminal (Power & Relay)
1 x 6-pin removable terminal (DI/DO)
SFP: Link/Activity
RS-232 (RJ45)

Network Management
ƒƒ Configuration
ƒƒ VLAN
ƒƒ Redundancy
ƒƒ Security

ƒƒ Diagnostics

Web browser, Telnet, Serial console, TFTP,
IPv6

Power
ƒƒ Power Input
ƒƒ Fault Output

Max. 10.7 W
1 Relay Output
Present
Present

Cards

Environment
Operating Humidity
Storage Humidity
MTBF
284,409 hours

ƒƒ Shock
ƒƒ Freefall
ƒƒ Vibration

Embedded Automation
Computers

PACs

Certifications
ƒƒ Safety
ƒƒ EMI
ƒƒ EMS

Industrial Ethernet
Solutions

and IP Gateways

Protection

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Industrial Wireless
Solutions

UL 60950-1, CAN/CSA-C22.2 No.60950
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

ƒƒ EKI-7657C

w/ 2 x DI/DO


11-21

EKI-7654C

Features
ƒƒ Full/half duplex mode flow control
ƒƒ MDI/MDI-X auto crossover
ƒƒ Control: VLAN/GVRP, QOS, IGMP Snooping/ Query, LACP, Rate
ƒƒ Limit Security: IP/MAC and port binding, DHCP Server, IP access list, 802.1X,
SSL, SNMPv3 Diagnostic: Port Statistic, Port Mirroring, RMON, SNMP Trap,
SMTP, Syslog, SSL

RoHS

COMPLIANT
2002/95/EC

Introduction
EKI-7654C supports 4 Fast Ethernet ports and 2 Gigabit combo ports. To create reliability in your network, the EKI-7654C comes equipped with a proprietary redundant network
protocol -- X-Ring Pro that was developed by Advantech, which provides users with an easy way to establish a redundant Ethernet network with ultra high-speed recovery time
less than 20 ms. Furthermore, EKI-7654C also supports many advanced network standards to optimize network performance, ease maintenance issues, and secure network safety.

Specifications
Communications

Mechanism

ƒƒ Standard

ƒƒ Enclosure
ƒƒ Mounting
DIN-rail, Wall

IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.1D, 802.1w,
802.1p, 802.1Q, 802.1X, 802.3ad, 802.3ab
ƒƒ LAN
100Base-TX, 10/1000Base-T, Optional 100Base-FX,

Interface
ƒƒ Connectors
ƒƒ LED Indicators

ƒƒ Console

4 x RJ45 (Ethernet) 2 x RJ45/SFP (mini-GBIC) combo
ports 6-pin removable screw terminal (Power & Relay)
SFP: Link/Activity
RS-232 (RJ45)

Network Management
ƒƒ Configuration
ƒƒ VLAN
ƒƒ Redundancy
ƒƒ Security

ƒƒ Diagnostics

Power
ƒƒ Power Input
ƒƒ Fault Output

Protection
ƒƒ Power Reverse

Present
Present

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Operating Humidity
Storage Humidity
MTBF
284,409 hours

Certifications

ƒƒ Safety
ƒƒ EMI
ƒƒ EMS

ƒƒ Shock
ƒƒ Freefall
ƒƒ Vibration


UL 60950-1, CAN/CSA-C22.2 No.60950
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6

ƒƒ EKI-7654C

11-22

Max. 10.7 W
1 Relay Output


EKI-7559SI/MI
EKI-7554SI/MI

8+2 SC Type Fiber Optic Managed Industrial
4+2 SC Type Fiber Optic Managed Industrial

Features
ƒƒ 2 x SC type fiber ports, plus 4 Fast Ethernet ports. (EKI-7554SI/MI)
ƒƒ 2 x SC type fiber ports, plus 8 Fast Ethernet ports. (EKI-7559SI/MI)
ƒƒ Redundancy: X-Ring Pro (high-speed recovery time < 20 ms), RSTP/STP
(802.1w/1D)
ƒƒ Security: IP/MAC, port binding, DHCP Server, IP access list, 802.1X, SSL,
SNMPv3

EKI-7559SI/MI

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


EKI-7554SI/MI

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels
RoHS

COMPLIANT
2002/95/EC

Introduction


Both EKI-7554SI/MI and EKI-7559SI/MI support 2 SC type Fiber ports, EKI-7554SI/MI 4 Fast Ethernet ports and EKI-7559SI/MI can support up to 8 Fast Ethernet ports. To create
reliability in your network, the EKI-7554SI/MI come equipped with a proprietary redundant network protocol -- X-Ring Pro that was developed by Advantech, which provides users
with an easy way to establish a redundant Ethernet network with ultra high-speed recovery time less than 20 ms. Furthermore, EKI-7554SI/MI also supports many advanced network
standards to optimize network performance, ease maintenance issues, and secure network safety.

Industrial Panel

Specifications

Industrial Monitors

Power

Communications
ƒƒ Standard

IEEE 802.3, 802.3u, 802.3x, 802.3ad, 802.1D, 802.1w,
802.1p, 802.1Q, 802.1X
ƒƒ LAN
ƒƒ Transmission Distance Ethernet : Up to 100 m
Multi-mode Fiber: Up to 2 km (EKI-7554MI)
Single-mode Fiber: Up to 30 km (EKI-7554SI)
ƒƒ Transmission Speed Up to 100 Mbps

ƒƒ LED Indicators
ƒƒ Console

4 x RJ45 ports (EKI-7554SI/MI)
8 x RJ45 ports (EKI-7559SI/MI)
2 x SC type fiber optic connectors
RS-232 (RJ45)

ƒƒ VLAN
ƒƒ Redundancy
ƒƒ Security

ƒƒ Diagnostics

ƒƒ Power Reverse

Present
Present

Environment
Operating Humidity
Storage Humidity
MTBF
262,230 hours (EKI-7554SI/MI)
264,964 hours (EKI-7559SI/MI)

Certifications
ƒƒ Safety

Network Management
ƒƒ Configuration

Protection

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Interface
ƒƒ Connectors

ƒƒ Power Input
ƒƒ Fault Output

Max. 7.7 W (EKI-7554SI/MI)
Max. 8.4 W (EKI-7559SI/MI)
1 Relay Output


ƒƒ EMI
ƒƒ EMS

ƒƒ Shock
ƒƒ Freefall
ƒƒ Vibration

UL 60950-1, CAN/CSA-C22.2 No.60950
Class I, Division 2 (EKI-7559MI/SI)
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6

ƒƒ EKI-7554SI

Mechanism

ƒƒ EKI-7554MI

ƒƒ Enclosure
ƒƒ Mounting
DIN-rail, Wall

ƒƒ EKI-7559SI
ƒƒ EKI-7559MI

4FE + 2-port Single-mode Fiber Managed Ethernet
Switch w/Wide Temp
4FE + 2-port Multi-mode Fiber Managed Ethernet
Switch w/Wide Temp
8FE + 2-port Single-mode Fiber Managed Ethernet
Switch w/Wide Temp
8FE + 2-port Multi-mode Fiber Managed Ethernet
Switch w/Wide Temp


Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

11-23

EKI-2748FI
EKI-2748CI

4Gx+4SFP Managed Ethernet Switch
6Gx+2 Combo Managed Ethernet Switch
Features
ƒƒ All Gigabit Ethernet ports for Copper and SFP/Combo interfaces
ƒƒ SFP sockets for easy and flexible fiber expansion
ƒƒ Management: Web, Telnet, Serial Console, SNMP v1/v2c/v3
ƒƒ Diagnostic: Port statistic, Port Mirroring, RMON, Trap, Email Alert, Syslog

EKI-2748FI

EKI-2748CI
RoHS

COMPLIANT
2002/95/EC

Introduction
EKI-2748FI and EKI-2748CI supports Gigabit with Ethernet and SFP/Combo ports. To enhance reliability in industrial communication network, it equipped with Advantech owned
redundant network protocol -- X-Ring Pro, which provides users with an easy way to establish a redundant Ethernet network with ultra high-speed recovery time less than 20 ms.
Furthermore, EKI-2748FI and EKI-2748CI also support advanced network standards to optimize network performance, reduce maintenance cost, and secure network safety.

Specifications
Communications
ƒƒ Standard
ƒƒ LAN

Power
IEEE 802.3, 802.3u, 802.3x, 802.3z, 802.1d, 802.1w,
802.1p, 802.1Q, 802.1X, 802.3ad, 802.3ab
100Base-T (X), 10/1000Base-T, Optional 100Base-FX,
Gigabit Copper:10/100/1000 Mbps, Auto-Negotiation

Interface
ƒƒ Connectors

ƒƒ LED Indicators
ƒƒ Console

RJ45 x 4; SFP Combo: 100/1000 SFP *4 (EKI-2748FI)
RJ45 x 6; SFP Combo: RJ45 x 2;
100/1000 Mini-GBIC x 2 (EKI-2748CI)
Console port : RJ45 x 1
System: PWR1, PWR2, P-Fail, R-Master
Gigabit Copper: Link/Activity, Speed
SFP: Link/Activity
RS-232 (RJ45)

Network Management
ƒƒ Configuration
ƒƒ VLAN
ƒƒ Redundancy
ƒƒ Security

ƒƒ Diagnostics

SNMP v1/v2c/v3, Web, Telnet, CLI, IPv6
Ring, Couple Ring, IEEE 802.1w/d RSTP/STP
Table, SNTP, Syslog, E-Mail Alert, SNMP Trap, RMON,
DMI

Mechanism
ƒƒ Enclosure
ƒƒ Mounting
DIN-rail, Wall

11-24


ƒƒ Power Input
ƒƒ Fault Output

Max. 12.21 W (EKI-2748FI)
Max. 15.12 W (EKI-2748CI)
12 ~ 48 VDC, 24 VAC (18 ~ 30 VAC)
1 Relay Output

Protection
ƒƒ Power Reverse

Present
Present

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Operating Humidity
Storage Humidity
MTBF
248,507 hours (EKI-2748CI)
289,385 hours (EKI-2748FI)

Certifications
ƒƒ Safety
ƒƒ EMI
ƒƒ EMS

ƒƒ Shock
ƒƒ Freefall
ƒƒ Vibration

UL 508
Class I, Division 2
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6

ƒƒ EKI-2748FI
ƒƒ EKI-2748CI

6Gx + 2G Combo Port Managed Ethernet Switch
w/ Wide Temp
4Gx + 3G SFP Managed Ethernet Switch w/ Wide Temp

EKI-2548I

8Tx Managed Ethernet Switch with
Wide Temperature
Features

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ All Fast Ethernet ports for 8 Copper (EKI-2548I)
ƒƒ Redundancy: Advantech X-Ring Pro, Dual Homing, Couple Ring, and RSTP/
STP (802.1w/1d)
ƒƒ Configuration: SNMP v1/v2c, Web
ƒƒ Backplane (Switching Fabric): 1.6 Gbps
ƒƒ DIP switch for configure port alarm and enable Ring master

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels
RoHS

COMPLIANT
2002/95/EC

Introduction


EKI-2548I is a cost effective managed industrial Ethernet switch which supports Fast Ethernet. To enhance reliability in industrial communication network, it equipped with Advantech
owned redundant network protocol -- X-Ring Pro, which provides users with an easy way to establish a redundant Ethernet network with ultra high-speed recovery time less than
20 ms. Furthermore, EKI-2548I also supports advanced network standards to optimize network performance, reduce maintenance cost, and secure network safety.

Specifications

Industrial Monitors

Communications

Protection

ƒƒ Standard

ƒƒ Power Reverse

IEEE 802.3, 802.3u, 802.3x, 802.1d, 802.1w, 802.1p,
802.1Q
ƒƒ LAN
10/100Base-TX
ƒƒ Transmission Distance Ethernet : Up to 100 m

Interface
ƒƒ Connectors
ƒƒ LED Indicators
ƒƒ Reset Button

8 x RJ45 ports
System: PWR1, PWR2, P-Fail, R-Master
Ethernet port: Link/Activity, Speed
Fiber port: Link/Activity
Reset and restore to factory default

ƒƒ Security
ƒƒ Diagnostics

ƒƒ Enclosure
ƒƒ Mounting
DIN-rail, Wall

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Operating Humidity
Storage Humidity
MTBF
215,266 hours

ƒƒ Safety

SNMP v1/v2c, Web
IEEE 802.1Q, Port based VLAN
Advantech X-Ring Pro, Dual Homing, Couple Ring, IEEE
802.1d STP, and IEEE 802.1w RSTP
IP access security
IGMP Snooping/Query for multicast group management,
rate limit and storm control
Port Mirroring, SNTP, Syslog, SNMP Trap, Email Alert

Mechanism

Present
Present

Certifications

Network Management
ƒƒ Configuration
ƒƒ VLAN
ƒƒ Redundancy

ƒƒ EMI
ƒƒ EMS

ƒƒ Shock
ƒƒ Freefall
ƒƒ Vibration

UL 508
Class I, Division 2
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6

ƒƒ EKI-2548I

8Tx Managed Ethernet Switch w/Wide Temp

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

Power
ƒƒ Power Input
ƒƒ Fault Output

Industrial Panel

Max. 7.6 W
12 ~ 48 VDC, 24 VAC (18 ~ 30 VAC)
1 Relay Output, 1A @ 24 VDC

RS-485 I/O Modules


11-25

EKI-4524I
EKI-4524RI

24-port Ethernet Unmanaged Switch with Wide
Temperature
24+2 SFP Port Unmanaged Industrial Ethernet
Features
ƒƒ Backplane (Switching Fabric): 4.8 Gbps
ƒƒ Provides 8K MAC address
ƒƒ Supports 100 ~ 240 VAC/ VDC power input and power relay alarm
ƒƒ Front panel LEDs simplify the monitoring and management
ƒƒ Rear-end wiring with LED indicator (EKI-4524RI)
ƒƒ Wide operating temperature -40 ~ 75°C
ƒƒ 1U 19" Rack mount design

EKI-4524I

EKI-4524RI
RoHS

COMPLIANT
2002/95/EC

Introduction
EKI-4524I/4524RI are designed for power automation systems and supports 24 Fast Ethernet ports and 2 x 100Base SFP slots for different SFP modules in any application. EKI4524I/4524RI has wide range voltage power input which provides convenient and uninterrupted power supply. EKI-4524RI has two sides (Front and Rear) LED indicator to show the
link status conveniently. It also provides relay output for an event alarm. Quick notification and fast response time can shorten service procedures and reduce data loss in the field.

Specifications
Communications

Protection

ƒƒ Standard
IEEE 802.3, 802.3u, 802.3x
ƒƒ LAN
10/100Base-TX
ƒƒ Transmission Distance Ethernet: Up to 100 m

ƒƒ Power Reverse

Interface
ƒƒ Connectors
ƒƒ LED Indicators

2 x SFP (mini-GBIC) ports (EKI-4524RI)
System: PWR
Copper: Link/Activity, Speed
SFP: Link/Activity

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Operating Humidity
Storage Humidity

Certifications
ƒƒ EMI
ƒƒ EMS

Mechanism
ƒƒ Enclosure
(EKI-4524RI)
440 x 44 x 224 mm (17.31" x 1.73" x 8.81")
(EKI-4524I)
ƒƒ Mounting
1U 19" Rack mount

Power
ƒƒ Power Input
ƒƒ Fault Output

11-26

100 ~ 240 VAC 50/60 Hz
100 ~ 240 VDC
1 Relay Output (20 mA @ 250 VDC)


Present

ƒƒ Shock
ƒƒ Freefall
ƒƒ Vibration

FCC Part 15 Subpart B Class A
EN 61000-4-2, Level 4
EN 61000-4-3, Level 3
EN 61000-4-4, Level 4
EN 61000-4-5, Level 3
EN 61000-4-6, Level 3
EN 61000-4-8, Level 4
EN 61000-4-11
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6

ƒƒ EKI-4524I
ƒƒ EKI-4524RI

24FE Ethernet Switch w/ Wide Temp
24FE+2 FX-SFP Port Ethernet Switch w/ Wide Temp

EKI-7626C/CI

16+2G Combo Port Gigabit Unmanaged

Features

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ Provides 2 Gigabit Copper/SFP combo port plus 16 Fast Ethernet ports
(EKI-7626C/CI)
ƒƒ Supports Auto Negotiation and Auto MDI/MDI-X
ƒƒ Provides flexible mounting: DIN-rail and Wall mount
ƒƒ Supports Dual 12 ~ 48 VDC power input and 1 relay output

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels

RoHS

COMPLIANT
2002/95/EC

Introduction


Aside from 2 Gigabit fiber optic/copper combo ports, the EKI-7626C/CI comes equipped with 16 x 10/100Base-T (X) fast Ethernet ports. Traditional RJ45 ports can be used for
up-linking wide-band paths in short distances (< 100 m), or the appropriate replaceable SFP module can be used for the application of wideband uploading and long distance
transmissions to flexibly fit field requests. The long MTBF (Mean Time Between Failures) ensures low operation and maintenance cost. EKI-7626C/CI includes a switch controller that
can automatically sense transmission speeds (10/100 Mbps) The RJ45 interface can also be auto-detected, so MDI or MDI-X is automatically selected and a cross-over cable is not
required. All Ethernet ports have memory buffers that support the store-and-forward mechanism, which assures that data can be transmitted properly

Industrial Monitors

Specifications
Communications

Protection

ƒƒ Standard
ƒƒ LAN


IEEE 802.3, 802.3ab, 802.3u, 802.3x, 802.3z
Gigabit Fiber: Up to 110 km (depending on SFP)

Interface
ƒƒ Connectors

ƒƒ LED Indicators

16 x RJ45 (Ethernet) with 2 x RJ45/SFP (mini-GBIC)
combo ports (EKI-7626C/CI)
System: PWR1, PWR2, P-Fail
Gigabit SFP: Link/Activity

Max. 6.5 W
1 Relay Output

Mechanism
ƒƒ Enclosure
ƒƒ Mounting
DIN-rail, Wall

Present
Present

Environment

Certifications
ƒƒ Safety
ƒƒ EMI
ƒƒ EMS

ƒƒ Shock
ƒƒ Freefall
ƒƒ Vibration

UL 60950-1, CAN/CSA-C22.2 No.60950
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6

ƒƒ EKI-7626C
ƒƒ EKI-7626CI

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

Wide Temp. Model
-40 ~ 75°C (-40 ~ 167°F)
ƒƒ MTBF
295,000 hours

Power
ƒƒ Power Input
ƒƒ Fault Output

Industrial Panel

16+2G Combo Port Unmanaged Ethernet Switch
w/ Wide Temp


and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

11-27

EKI-7629C/CI

8+2G Combo Port Gigabit Unmanaged

Features
ƒƒ Provides 2 Gigabit Copper/SFP combo port plus 8 Fast Ethernet ports
(EKI-7629C/CI)

RoHS

COMPLIANT
2002/95/EC

Introduction
Aside from 2 Gigabit fiber optic/copper combo ports, the EKI-7629C/CI comes equipped with 8 x 10/100Base-TX fast Ethernet ports. Traditional RJ45 ports can be used for up-linking
wide-band paths in short distances (< 100 m), or the appropriate replaceable SFP module can be used for the application of wideband uploading and long distance transmissions to
flexibly fit field requests. The long MTBF (Mean Time Between Failures) ensures low operation and maintenance cost. EKI-7629C/CI includes a switch controller that can automatically
sense transmission speeds (10/100 Mbps) The RJ45 interface can also be auto-detected, so MDI or MDI-X is automatically selected and a cross-over cable is not required. All Ethernet
ports have memory buffers that support the store-and-forward mechanism, which assures that data can be transmitted properly

Specifications
Communications

Protection

ƒƒ Standard
ƒƒ LAN


IEEE 802.3, 802.3ab, 802.3u, 802.3x, 802.3z
Gigabit Fiber: Up to 110 km (depending on SFP)

Interface
ƒƒ Connectors

ƒƒ LED Indicators

8 x RJ45 (Ethernet) with 2 x RJ45/SFP (mini-GBIC)
combo ports (EKI-7629C/CI)
Gigabit SFP: Link/Activity

Environment
Wide Temp. Model
-40 ~ 75°C (-40 ~ 167°F)
ƒƒ MTBF
295,000 hours

Certifications
ƒƒ Safety
ƒƒ EMI
ƒƒ EMS

Power
ƒƒ Power Input
ƒƒ Fault Output

Max. 6.5 W
1 Relay Output

Mechanism
ƒƒ Enclosure
ƒƒ Mounting
DIN-rail, Wall

11-28


Present
Present

ƒƒ Shock
ƒƒ Freefall
ƒƒ Vibration

UL 60950-1, CAN/CSA-C22.2 No.60950
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6

ƒƒ EKI-7629C
ƒƒ EKI-7629CI

w/ Wide Temp

EKI-7526I

with Wide Temperature Range
Features

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ Provides 16 10/100 Mbps Ethernet ports with RJ45 connector
ƒƒ Supports wide operating temperature -40~75°C

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels

RoHS

COMPLIANT
2002/95/EC

Introduction


EKI-7526I are cost effective unmanaged industrial Ethernet switches which support 16 x 10/100Base-TX fast Ethernet ports.. The long MTBF (Mean Time Between Failures) ensures
low operation and maintenance costs. All Ethernet ports have memory buffers that support the store-and-forward mechanism, which assures that data can be transmitted properly.
EKI-7526I supports advanced network standards to optimize network performance, reduce maintenance costs, and secure network safety..

Specifications

Industrial Monitors

Communications

Environment

ƒƒ Standard
IEEE 802.3, 802.3u, 802.3x
ƒƒ LAN
10/100Base-T (X), Optional 100Base-FX
ƒƒ Transmission Distance Ethernet: Up to 100 m (4- wire Cat.5e
Multi-mode Fiber: Up to 2 km
ƒƒ Transmission Speed Ethernet:10/100 Mbps Auto-Negotiation

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Interface

Certifications

ƒƒ Connectors
ƒƒ LED Indicators


Operating Humidity
Storage Humidity
MTBF
237,130 hours

ƒƒ Safety
ƒƒ EMI
ƒƒ EMS

Power
ƒƒ Power Input
ƒƒ Fault Output

Max. 8.9 W
1 Relay Output

Mechanism
ƒƒ Enclosure
ƒƒ Mounting
DIN-rail, Wall

Protection

Industrial Panel

ƒƒ Shock
ƒƒ Freefall
ƒƒ Vibration

UL 508
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6

ƒƒ EKI-7526I

16FE Unmanaged Ethernet Switch w/Wide Temp

Present
Present

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


11-29

EKI-7529MI/ST

8+2 Multi-Mode Fiber Optic
Industrial Unmanaged Ethernet

Features
ƒƒ Provides ST type fiber optic ports plus 8 Fast Ethernet ports
ƒƒ Enable or disable broadcast storm protection through a simple dip switch
ƒƒ Supports wide operating temperatures -40 ~ 75°C

RoHS

COMPLIANT
2002/95/EC

Introduction
EKI-7529MI/ST come equipped with 8 x 10/100Base-TX fast Ethernet ports. Traditional ST fiber optic ports can be used for uplinking and long distance transmissions to flexibly
fit field requests. The RJ45 interface can also be auto-detected, so MDI or MDI-X is automatically selected and a cross-over cable is not required. All Ethernet ports have memory
buffers that support the store-and-forward mechanism, which assures that data can be transmitted properly. Furthermore, the power line of EKI-7529MI/ST supports Surge and EFT
protection which secure equipment against unregulated voltage and make systems safer and more reliable.

Specifications
Communications

Protection

ƒƒ Standard
IEEE 802.3, 802.3u, 802.3x
ƒƒ LAN
10/100Base-T (X), Optional 100Base-FX
Multi-mode Fiber: Up to 2 km


Transmission Speed
ƒƒ Ethernet:

Port 1~ 2: 10 Mbps
Port 3~ 8: 10/100 Mbps Auto-Negotiation

Interface
ƒƒ Connectors

ƒƒ LED Indicators
ƒƒ Dip Switch
ƒƒ

8 x RJ45 (Ethernet) with 2 x ST-type fiber optic
connectors
DIP1 (Port 1 and 2): ON: 10M Full Force/

OFF: 10M Full Auto-Negation
DIP2: ON: Broadcast Storm filter enable/

OFF:Broadcast Storm filter Disable

Power
ƒƒ Power Input
ƒƒ Fault Output

Max. 6.7W
1 Relay Output

ƒƒ Enclosure
ƒƒ Mounting
DIN-rail, Wall

11-30

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Operating Humidity
Storage Humidity
MTBF
289,329 hours

Certifications
ƒƒ Safety
ƒƒ EMI
ƒƒ EMS

ƒƒ Shock
ƒƒ Freefall
ƒƒ Vibration


UL 508
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6

ƒƒ EKI-7529MI/ST

Mechanism

Present

8 + 2-port Multi-mode Fiber Ethernet Switch w/ ST and
Wide Temp

EKI-2725
EKI-2728

5-port Gigabit Unmanaged Industrial
Ethernet Switch
Ethernet Switch
Features

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ Provides 5/8 Gigabit Ethernet ports with Auto MDI/MDI-X
ƒƒ Supports 10/100/1000 Mbps Auto Negotiation
ƒƒ Supports jumbo frame transmission up to 9kbytes
ƒƒ Provides Slim size, DIN-rail with IP30 metal mechanism
ƒƒ Supports Redundant 12 ~ 48 VDC power input and P-Fail Relay

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

EKI-2725

EKI-2728

Operator Panels

RoHS

COMPLIANT
2002/95/EC

Introduction


The EKI-2725/2728 supports Gigabit Ethernet. The power is a +12 ~ 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protect
and an Overload Current Resetable Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. As the power supply turns normal,
EKI-2725/2728 will automatically get back to normal operation state. Each port of EKI-2725/2728 has 2 LED’s to show the link status transmission speed and collision status. It also
provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status
by checking the LED, and have troubleshooting easy and quick. EKI-2725/2728 comes with compact metal housing that rates IP30 to help against from dusty industrial environments.

Industrial Monitors

Specifications
Communications

Environment

ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Standard
IEEE 802.3, 802.3u, 802.3x, 802.3ab
LAN
100Base-TX, 10/1000Base-T
Transmission Distance Up to 100 m (4-wire Cat.5e, Cat.6 RJ45 cable)

Interface
ƒƒ Connectors
ƒƒ LED Indicators

5 x RJ45 (EKI-2725) or 8 x RJ45 (EKI-2728)
P1, P2, P-Fail
10/100/1000T (X): Link/Activity, Duplex/Collision

Power
ƒƒ Power Input
ƒƒ Fault Output

Operating Humidity
Storage Humidity
MTBF
627,958 hours

ƒƒ Safety
ƒƒ EMI
ƒƒ EMS

ƒƒ Enclosure
ƒƒ Mounting
DIN-rail, Wall

Protection
Present
Present

ƒƒ Shock
ƒƒ Freefall
ƒƒ Vibration

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Certifications

Max. 4.6W
1 Relay Output

Mechanism

ƒƒ Power Reverse

Industrial Panel

UL 60950-1, CAN/CSA-C22.2 No.60950
Class I, Division 2 (EKI-2728)
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

ƒƒ EKI-2725
ƒƒ EKI-2728

5-port Gigabit Unmanaged Ethernet Switch
8-port Gigabit Unmanaged Ethernet Switch

M2M I/O Modules

RS-485 I/O Modules


11-31

EKI-3725
EKI-3728

Ethernet Switch
Ethernet Switch
Features

NEW

ƒƒ Supports IEEE 802.3az, Energy Efficient Ethernet standard
-Automatically powers down ports that have no link
-Budgets power output for different Ethernet cable length
ƒƒ Support IEEE 802.1p QoS- VIP port setting
-Ensures time sensitive data gets delivered efficiently, even during bursts of
high data traffic.
-Ensures video streaming through switch with high priority.
ƒƒ Supports 9,216 Byte Jumbo Frames
ƒƒ Supports redundant 12 ~ 48 VDC power input and P-Fail relay
ƒƒ In Loop detection

EKI-3725

EKI-3728
RoHS

COMPLIANT
2002/95/EC

Introduction
The EKI-3725/3728 are a new generation products with green Ethernet design. They feature green solutions that automatically adjust power consumption by detecting the link status
and cable length. Designed with 1/2 "VIP" ports to get optimal bandwidth for media traffics through VIP ports users can experience better performance of multimedia streaming
preferred through prioritized bandwidth setting. The devices come with compact metal and plastic housing that is IP40 rated to protect against dusty industrial environments. The wide
power input power (8.4 to 52.4 VDC) is dedicated to operate in areas of unstable power and rugged environments. It also provides an event alarm and in the event of a power failure
and connection loop, the intergrated LED will activate the alarm to notify administrators.

Specifications
Communications

Protection

ƒƒ
ƒƒ
ƒƒ
ƒƒ


Standard
IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3az, 802.3ab
LAN
10/100/1000Base-T(X)

Interface
ƒƒ Connectors
ƒƒ LED Indicators

8 x RJ45 (EKI-3728) or 5 x RJ45 (EKI-3725)
P1, P2, P-Fail, Loop detection
10/100T (X): Link/Activity, Speed

Switch Properties
ƒƒ MAC Table Size
ƒƒ Packet Buffer Size
ƒƒ Switch Fabric Speed
ƒƒ Jumbo Frame

2K (EKI-3725)
8K (EKI-3728)
1M bit
10Gbps (EKI-3725)
16Gbps (EKI-3728)
9,216 byte

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Operating Humidity
Storage Humidity
MTBF
1,478,582 hours (EKI-3728)
1,545,555 hours (EKI-3725)

Certifications
ƒƒ Safety
ƒƒ EMI
ƒƒ EMS

Power
ƒƒ Power Input
ƒƒ Fault Output

EKI-3725: Max. 2.7 W
EKI-3728: Max. 4.5W
1 Relay Output

Mechanism
ƒƒ Dimensions (W x H x D) 28.5 x 120 x 85.3 mm (1.02" x 4.73" x 3.35") - EKI-3725
44.5 x 120 x 85.3 mm (1.75" x 4.73" x 3.35") - EKI-3728
ƒƒ Enclosure
IP40, plastic and metal shell with solid mounting kits
ƒƒ Mounting
DIN-rail, Wall

11-32


Present
Present

ƒƒ Shock
ƒƒ Freefall
ƒƒ Vibration

UL 60950-1, CAN/CSA-C22.2 No.60950
FCC Part 15 Subpart B Class A, EN 55011/55022
Class A
EN 61000-4-2 (Level 3)
EN 61000-4-3 (Level 3)
EN 61000-4-4 (Level 4)
EN 61000-4-5 (Level 3)
EN 61000-4-6 (Level 3)
EN 61000-4-8 (Level 4)
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6

ƒƒ EKI-3725
ƒƒ EKI-3728


EKI-3725/3728
5 Port Mounting Dimensions

85.30 [3.36]

28.5 [1.12]

94.26 [3.71]
85.30 [3.36]

28.5 [1.12]

Applied for
the type of
top hat rail
EN 5002235x7.5mm.
Applied for
the type of
top hat rail
EN 5002235x7.5mm.

9.80 [0.39]

36.3 [1.43]

120 [4.72]
120 [4.72]
130 [5.12]
130 [5.12]

40 [1.57]

44.5 [1.75]

44.5 [1.75]

7.60 [0.30]
7.60 [0.30]
8.60 [0.34]
8.60 [0.34]
40.60 [1.60]
40.60 [1.60]
9.80 [0.39]

85.30 [3.36]
94.26 [3.71]
85.30 [3.36]
DIN-rail Mounting
94.26 [3.71]

DIN-rail Mounting
DIN-rail Mounting

85.3 [3.36]

9.80 [0.39]

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels

Industrial Panel

99.3 [3.91]
85.3 [3.36]

Industrial Monitors

Wall Mounting

Applied for
the type of
top hat rail
EN 5002235x7.5mm.
Applied for
the type of
top hat rail
EN 5002235x7.5mm.

Machine Automation


99.3 [3.91]

44.55 [1.75]
44.55 [1.75]
74.30 [2.93]
74.30 [2.93]

40 [1.57]

40 [1.57]

94.3 [3.71]
Wall Mounting
Wall Mounting

DIN-rail Mounting

36.3 [1.43]

36.3 [1.43]

94.3 [3.71]
9.80 [0.39]

94.26 Mounting
DIN-rail [3.71]
DIN-rail Mounting

8 Port Mounting Dimensions

40 [1.57]

Ø5
Ø3 [Ø0.0 Ø5 [
2] Ø0.
.5
Ø3
0
[Ø
0.1 .5 [Ø 2] 7.6 [0.30]
4]
0.1
3.5 [0.14]
7.6 [0.30]
4]
3.5 [0.14]
8.6 [0.34]
90 [3.54]
8.6 [0.34]
90 [3.54]
31.48 [1.24]
31.48 [1.24]

120 [4.72]
120 [4.72]
120.3 [4.74]
120.3 [4.74]
130 [5.12]
130 [5.12]

40 [1.57]

36.3 [1.43]

Industrial Wireless
Solutions

Ø5
.0
Ø3 0 [Ø Ø5.0
.50 0.2Ø3 0 [Ø
0] .
[Ø
50 0.20 7.60 [0.30]
]
0.1
3.50 [0.14]
[Ø
7.60 [0.30]
4]
0.1
3.50 [0.14]
90 [3.54]
48.60 [0.34]
]
90 [3.54]
8.60 [0.34]
47.48 [1.87]
47.48 [1.87]

36.3 [1.43]

7.6 [0.30]
7.6 [0.30]
8.6 [0.34]
8.6 [0.34]
24.6 [0.97]
24.6 [0.97]

40 [1.57]

44.55 [1.75]
44.55 [1.75]
74.30 [2.93]
74.30 [2.93]

36.3 [1.43]

Unit: mm [inch]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Unit: mm [inch]

36.30 [1.43]
40 [1.57]
36.30 [1.43]
40 [1.57]

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

85.30 [3.36]
94.30 [3.71]
99.30 [3.91]
85.30 [3.36]
94.30 [3.71]
Wall Mounting
99.30 [3.91]

M2M I/O Modules

RS-485 I/O Modules

Wall Mounting
Wall Mounting


11-33

EKI-2525/I
EKI-2528/I

Features
ƒƒ Provides 5/8 Fast Ethernet ports with Auto MDI/MDI-X
ƒƒ Supports 10/100 Mbps Auto-Negotiation
ƒƒ Provides compact size with DIN-rail/Wall mount, and IP30 metal mechanism
ƒƒ Supports wide operating temperatures from -40 to 75°C (EKI-2525I/EKI-2528I)

EKI-2525

EKI-2528
RoHS

COMPLIANT
2002/95/EC

Introduction
The EKI-2525/2528 supports a Fast Ethernet solution. The power is a +12 ~ 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse
Protect and an Overload Current Resetable Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. As the power supply turns
normal, EKI-2525/2528 will automatically get back to work. Each port of EKI-2525/2528 has 2 LED’s to show the link status transmission speed and collision status. It also provides
a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by
checking the LED, and have troubleshooting easy and quick. EKI-2525/2528 comes with compact metal housing that rates IP30 to help against from dusty industrial environments.

Specifications
Communications

Environment

ƒƒ
ƒƒ
ƒƒ
ƒƒ

-40 ~ 75°C (-40 ~ 167°F), (EKI-2525I and EKI-2528I)
ƒƒ MTBF
689,000 hours (EKI-2528)
412,590 hours (EKI-2525)

Standard
IEEE 802.3, 802.3u, 802.3x
LAN
10/100Base-T (X)

Interface
ƒƒ Connectors
ƒƒ LED Indicators

8 x RJ45 (EKI-2528) or 5 x RJ45 (EKI-2525)
P1, P2, P-Fail

Power
ƒƒ Power Input
ƒƒ Fault Output

EKI-2528: Max. 5 W
EKI-2525: Max. 3 W
1 Relay Output

Certifications
ƒƒ Safety
ƒƒ EMI
ƒƒ EMS

Mechanism

UL 60950-1, CAN/CSA-C22.2 No.60950
Class I, Division 2
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6

ƒƒ Enclosure
ƒƒ Mounting
DIN-rail, Wall

ƒƒ Shock
ƒƒ Freefall
ƒƒ Vibration

Protection



11-34

Present
Present


ƒƒ
ƒƒ
ƒƒ
ƒƒ

EKI-2525
EKI-2525I
EKI-2528
EKI-2528I

5-port Ethernet Switch
5-port Ethernet Switch w/ Wide Temp
8-port Ethernet Switch
8-port Ethernet Switch w/ Wide Temp

EKI-3525
EKI-3528

5-port 10/100Mbps Unmanaged Industrial
Ethernet Switch
8-port 10/100Mbps Unmanaged Industrial
Ethernet Switch
Features

NEW

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ Supports IEEE 802.3az, Energy Efficient Ethernet standard
-Automatically powers down ports that have no link
-Budgets power output for different Ethernet cable length
ƒƒ Support IEEE 802.1p QoS- VIP port setting
-Ensures time sensitive data gets delivered efficiently, even during bursts of
high data traffic. -Ensures video streaming through switch with high priority.
ƒƒ In Loop detection

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

EKI-3525

EKI-3528

Operator Panels

RoHS

COMPLIANT
2002/95/EC

Introduction


The EKI-3525/3528 are a new generation products with green Ethernet design. They feature green solutions that automatically adjust power consumption by detecting the link status
and cable length. Designed with 1/2 "VIP" ports to get optimal bandwidth for media traffics through VIP ports users can experience better performance of multimedia streaming
preferred through prioritized bandwidth setting. The devices come with compact metal and plastic housing that is IP40 rated to protect against dusty industrial environments. The wide
power input power (8.4 to 52.4 VDC) is dedicated to operate in areas of unstable power and rugged environments. It also provides an event alarm and in the event of a power failure
and connection loop, the intergrated LED will activate the alarm to notify administrators.

Industrial Monitors

Specifications
Communications

Protection

ƒƒ
ƒƒ
ƒƒ
ƒƒ


Standard
IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3az
LAN
10/100Base-T (X)

ƒƒ LED Indicators

ƒƒ Switch Fabric Speed

8 x RJ45 (EKI-3528) or 5 x RJ45 (EKI-3525)
P1, P2, P-Fail, Loop detection
10/100T (X): Link/Activity, Speed

Industrial Ethernet
Solutions

and IP Gateways

Operating Humidity
Storage Humidity
MTBF
1,516,457 hours (EKI-3528)
1,567,102 hours (EKI-3525)

Certifications

2K
384K bit (EKI-3525)
768K bit (EKI-3528)
1.0Gbps (EKI-3525)
1.6Gbps (EKI-3528)

ƒƒ Safety
ƒƒ EMI
ƒƒ EMS

Power
ƒƒ Power Input
ƒƒ Fault Output

EKI-3525: Max. 2.4 W
EKI-3528: Max. 2.5 W
1 Relay Output

ƒƒ Shock
ƒƒ Freefall
ƒƒ Vibration

Mechanism
ƒƒ Dimensions (W x H x D) 28.5 x 120 x 85.3 mm (1.02" x 4.73" x 3.35") - EKI-3525
44.5 x 120 x 85.3 mm (1.75" x 4.73" x 3.35") - EKI-3528
ƒƒ Enclosure
ƒƒ Mounting
DIN-rail, Wall

UL 60950-1, CAN/CSA-C22.2 No.60950
FCC Part 15 Subpart B Class A, EN 55011/ 55022
Class A
EN 61000-4-2 (Level 3)
EN 61000-4-3 (Level 3)
EN 61000-4-4 (Level 4)
EN 61000-4-5 (Level 3)
EN 61000-4-6 (Level 3)
EN 61000-4-8 (Level 4)
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6

ƒƒ EKI-3525
ƒƒ EKI-3528


Industrial Wireless
Solutions

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Switch Properties
ƒƒ MAC Table Size
ƒƒ Packet Buffer Size

Present
Present

Environment

Interface
ƒƒ Connectors

Industrial Panel

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

5-port 10/100Mbps Unmanaged Industrial Ethernet
Switch
8-port 10/100Mbps Unmanaged Industrial Ethernet
Switch


11-35

EKI-2525M
EKI-2526M/S

4+1 100FX Port Multi-Mode Unmanaged
4+2 100FX Port Unmanaged Industrial
Ethernet Switch

Features
ƒƒ Provides 4 x 10/100 Mbps Ethernet ports with RJ45 connector
ƒƒ Provides 1 x 100 Mbps Multi-mode SC type fiber optic port (EKI-2525M)
ƒƒ Provides 2 x 100 Mbps Multi-mode SC type fiber optic port (EKI-2526M)
ƒƒ Provides 2 x 100 Mbps Single-mode SC type fiber optic port (EKI-2526S)
ƒƒ Supports full/half duplex flow control
ƒƒ Supports MDI/MDI-X auto crossover
ƒƒ Provides redundant 12 ~ 48 VDC power input

EKI-2525M

EKI-2526M/S
RoHS

COMPLIANT
2002/95/EC

Introduction
EKI-2525M/2526M/2526S are industrial-grade Ethernet switches that enable you to expand your industrial network fast and cost-effectively. The EKI-2525M/2526M/2526S have four
10/100 Mbps Ethernet ports, and additionally the EKI-2525M/2526M provides one or two multi-mode fiber-optic ports, while the EKI-2526S provides two single-mode fiber-optic
ports. Using fiber-optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 30 km) transmissions.
EKI-2525M/2526M/2526S have industrial-grade designs, assuring high reliability and stability in harsh environments, making it a robust bridge between enterprise fiber-optic
backbones and Ethernet devices. EKI-2525M/2526M/2526S includes a switch controller that can automatically sense transmission speeds. The RJ45 interface can also be autodetected,
so MDI or MDI-X is automatically selected and a crossover cable is not required. All the Ethernet ports have memory buffers that support the store and forward mechanism, assuring
all data is transmitted properly.

Specifications

Mechanism

Communications
ƒƒ Standard
IEEE 802.3, 802.3u, 802.3x
ƒƒ LAN
Multi-mode Fiber: Up to 2 km (EKI-2525M/2526M)
Single-mode Fiber: Up to 30 km (EKI-2526S)
ƒƒ Optical Fiber Wavelength:1310nm
Multi-Mode
(EKI-2525M/EKI-2526M) Tx Power: -14/-20 dBm


Parameters: 50/125 um, 62.5/125 um
Single-Mode (EKI-2526S) Wavelength: 1310 nm




ƒƒ LED Indicators

4 x RJ45 ports
1 x SC type fiber connector (EKI-2525M) or
2 x SC type fiber connector (EKI-2526M/S)
P1, P2, P-Fail

Power
ƒƒ Power Input
ƒƒ Fault Output

11-36

Protection
ƒƒ Reverse Polarity Present
ƒƒ Overload Current Present

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Operating Humidity
Storage Humidity
MTBF
610,453 hours

Certification
ƒƒ Safety
ƒƒ EMI
ƒƒ EMs

Interface
ƒƒ Connectors

ƒƒ Enclosure
ƒƒ Mounting
DIN-rail, Wall

EKI-2525M: Max. 5 W
EKI-2526M: Max. 6.41 W
EKI-2526S: Max. 6.45 W
1 Relay Output


ƒƒ Shock

ƒƒ Freefall

ƒƒ Vibration

UL 60950-1, CAN/CSA-C22.2 No.60950, Class I,
Division 2
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4
EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
IEC60068-2-27
IEC60068-2-32
IEC60068-2-6

ƒƒ
ƒƒ
ƒƒ
ƒƒ

EKI-2525M
EKI-2526M
EKI-2526S
EKI-2526S-ST

ƒƒ EKI-2526M-ST

5-port Ethernet Switch w/ 1-port 100FX Multi-mode
4-port Ethernet Switch w/ 2-port 100FX Single-mode
4-port Ethernet Switch w/ 2-port 100FX Single-mode
(ST type connector)
(ST type connector)

EKI-2541M/MI
EKI-2541S/SI

10/100T (X) to Multi-Mode SC Type
10/100T (X) to Single-Mode SC Type
Features

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ Provides 1 x 10/100 Mbps Ethernet port with RJ45 connector
ƒƒ Provides 1 x 100 Mbps Multi-mode/Single-mode SC type fiber port
ƒƒ Provides internal jumper for Link Fault Pass-through (LFP) setting
ƒƒ Supports store and forward transmission
ƒƒ Supports Auto-Negotiation
ƒƒ Supports redundant 12-48 VDC power input
ƒƒ Provides flexible mounting: DIN-rail and Panel mount
ƒƒ Supports wide operating temperatures from -40 to 75°C (EKI-2541MI/SI)

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

EKI-2541M

EKI-2541S

Operator Panels

RoHS

COMPLIANT
2002/95/EC

Introduction


EKI-2541M/2541S is designed to convert Ethernet networks to fiber networks by transparently converting Ethernet signals to optic signals. The advantages of fiber optics are wide
bandwidth, EMI immunity and long-distance transmissions.Therefore, EKI-2541M/2541S is an ideal solution for “fiber to building” applications at central offices or local sites.
EKI-2541M/2541S supports MDI/MDIX auto detection, so you don’t need to use crossover wires. Furthermore, the EKI-2541M/2541S can work normally from -10 to 60°C and
accepts a wide voltage range from 12 ~ 48 VDC. Besides, it also provides 3,000 VDC surge (EFT) protection against over-voltage, so it is suitable for harsh operating environments.

Industrial Panel

Link Fault Pass-Through (LFP)
EKI-2541M/2541S is an enhanced Ethernet to fiber-optic converter. Aside from its standard features, the versatile EKI-2541M/2541S also has the LFP (Link Fault Pass-through) feature.
When one side of the link fails, the other side continues transmitting packets, and waiting for a response that never arrives from the disconnected side. Use the internal jumper to enable
the LFP function, then EKI-2541M/2541S will force the link to shut down as soon as noticed that the other link has failed, giving the application software a chance to react to the situation.

Industrial Wireless
Solutions

Specifications
Communications

Protection

ƒƒ Standard
IEEE 802.3, 802.3u, 802.3x
ƒƒ LAN

ƒƒ Power Reverse

ƒƒ Optical Fiber
Multi-mode
(EKI-2541M/MI)

Single-mode
(EKI-2541S/SI)

Fiber: Multi-mode: up to 2 km
Fiber: Single-mode: up to 30 km
Up to 100 Mbps

Wavelength: 1310 nm
Parameters: 50/125 um,62.5/125 um
Wavelength: 1310 nm

Interface
ƒƒ Connectors

ƒƒ LED Indicators

ƒƒ DIP Switch

1 x RJ45
1 x SC type fiber connector
6-pin removable screw terminal (power)
P1, P2, P-Fail
Ethernet: 10/100 m, LNK/ACT
Fiber: HDX/FDX, LNK/ACT
Port/Power Alarm, LFP
Fiber: HDX/FDX, Converter/Switch

Power
ƒƒ Power Input

Industrial Monitors

Max. 2.7 W

Mechanism

Present
Present

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Wide Temp. model
Storage Temperature
Operating Humidity
Storage Humidity
MTBF

-10 ~ 60°C (14 ~ 140°F)
-40 ~ 75°C (-40 ~ 167°F)
-40 ~ 85°C (-40 ~ 185°F)
577,175 hours

Certifications
ƒƒ Safety
ƒƒ EMI
ƒƒ EMS

ƒƒ Shock
ƒƒ Freefall
ƒƒ Vibration

UL 60950-1, CAN/CSA-C22.2 No.60950
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6

ƒƒ
ƒƒ
ƒƒ
ƒƒ

EKI-2541M
EKI-2541MI
EKI-2541S
EKI-2541SI

Ethernet to Multi-mode Fiber Converter
Ethernet to Multi-mode Fiber Converter w/ Wide Temp.
Ethernet to Single-mode Fiber Converter
Ethernet to Single-mode Fiber Converter w/ Wide Temp.

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

ƒƒ Mounting
DIN-rail, Wall
ƒƒ Enclosure
IP30, Metal shell with solid mounting


11-37

EKI-3541M
EKI-3541S

10/100T (X) to Multi-Mode SC Type
10/100T (X) to Single-Mode SC Type
Features

NEW

ƒƒ Provides 1 x 10/100 Mbps Ethernet port with RJ45 connector
ƒƒ Provides 1 x 100 Mbps Multi-mode/Single-mode SC type fiber port
ƒƒ Supports Link Fault Pass-through (LFP) function
ƒƒ Supports store and forward transmission
ƒƒ Supports redundant 12-48 VDC power input

EKI-3541S

EKI-3541M
RoHS

COMPLIANT
2002/95/EC

Introduction

EKI-3541M/3541S is designed to convert Ethernet networks to fiber networks by transparently converting Ethernet signals to optic signals. The advantages of fiber optics are wide
bandwidth, EMI immunity and long-distance transmissions.Therefore, EKI-3541M/3541S is an ideal solution for “fiber to building” applications at central offices or local sites.
EKI-3541M/3541S supports MDI/MDIX auto detection, so you don’t need to use crossover wires. Furthermore, the EKI-3541M/3541S can work normally from -10 to 60°C and
accepts a wide voltage range from 8.4 ~ 52.4 VDC. Besides, it also provides 4,000 VDC surge (EFT) protection against over-voltage, so it is suitable for harsh operating environments.
Link Fault Pass-Through (LFP)
EKI-3541M/3541S is an enhanced Ethernet to fiber-optic converter. Aside from its standard features, the versatile EKI-3541M/3541S also has the LFP (Link Fault Pass-through) feature.
When one side of the link fails, the other side continues transmitting packets, and waiting for a response that never arrives from the disconnected side. Use the internal jumper to enable
the LFP function, then EKI-3541M/3541S will force the link to shut down as soon as noticed that the other link has failed, giving the application software a chance to react to the situation.

Specifications

Mechanism

Communications
ƒƒ Standard
IEEE 802.3, 802.3u, 802.3x
ƒƒ LAN
Fiber: Multi-mode: up to 2 km
Fiber: Single-mode: up to 30 km
ƒƒ Optical Fiber

Multi-mode
Wavelength: 1310 nm
(EKI-3541M)


Parameters: 50/125 um,62.5/125 um
Single-mode
Wavelength: 1310 nm
(EKI-3541S)



Interface
ƒƒ Connectors
ƒƒ LED Indicators
ƒƒ DIP Switch

Protection
ƒƒ Power Reverse

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Operating Humidity
Storage Humidity
MTBF
597,488 hours (EKI-3541M and EKI-3541S)

Certifications
ƒƒ Safety
ƒƒ EMI

UL 60950-1, CAN/CSA-C22.2 No.60950
FCC Part 15 Subpart B Class A, EN 55011/55022
Class A
EN 61000-4-2 (Level 3)
EN 61000-4-3 (Level 3)
EN 61000-4-4 (Level 4)
EN 61000-4-5 (Level 3)
EN 61000-4-6 (Level 3)
EN 61000-4-8 (Level 4)
IEC 60068-2-27
IEC 60068-2-32

ƒƒ EMS

Max. 2.4 W


ƒƒ Shock
ƒƒ Freefall

ƒƒ EKI-3541M
ƒƒ EKI-3541S

11-38

Present
Present

1 x RJ45
1 x SC type fiber connector
6-pin removable screw terminal (power)
P1, P2, P-Fail
LFP, LNK/ACT (FX), FDX/COL (FX)
T(X):Speed and HDX/FDX, LFP
Fiber: HDX/FDX, T(X):Auto-Negociation

Power
ƒƒ Power Input

ƒƒ Dimensions (W x H x D) 28.5 x 120 x 85.3 mm (1.02" x 4.73" x 3.35")
ƒƒ Mounting
DIN-rail, Wall
ƒƒ Enclosure


10/100T (X) to Multi-Mode SC Type Fiber Optic
Industrial Media Converter
10/100T (X) to Single-Mode SC Type Fiber Optic
Industrial Media Converter

EKI-2741 Series

10/100/1000T (X) to Fiber
Optic Gigabit Industrial Media
Converters

Features

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ Provides 1 x 1000 Mbps Ethernet port with RJ45 connector
ƒƒ Provides 1 x 1000 Mbps fiber port with SC or SFP (mini-GBIC) type
connector for 1000Base-SX/LX device
ƒƒ Provides DIP switch for full/half duplex setting
ƒƒ Supports redundant 12 ~ 48 VDC power input
ƒƒ Provides Link Fault Pass-through (LFP)
ƒƒ Jumbo Frame: 9K bytes

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

EKI-2741F

EKI-2741LX

EKI-2741SX

Operator Panels

RoHS

COMPLIANT
2002/95/EC

Introduction


EKI-2741 is designed to convert Gigabit Ethernet networks to Gigabit fiber networks by transparently converting Ethernet signals to optic signals. Therefore, EKI-2741 is an ideal solution
for “fiber to building” applications at central offices or local sites. EKI-2741 supports MDI/MDIX auto detection, so you don’t need to use crossover wires. Furthermore, the EKI-2741
accepts a wide voltage range from 12 ~ 48 VDC. Besides, it also provides 3,000 VDC surge (EFT) protection against over-voltage, so it is suitable for harsh operating environments.
EKI-2741 is an enhanced gigabit Ethernet to fiber optic converter. Aside from its standard features, the versatile EKI-2741 also has the LFP (Link Fault Pass-through) feature. When
one side of the link fails, the other side continues transmitting packets, and waiting for a response that never arrives from the disconnected side. EKI-2741 will force the link to shut
down as soon as noticed that the other link has failed, giving the application software a chance to react to the situation.

Specifications

Mechanism

Communications
ƒƒ Standard
ƒƒ LAN

ƒƒ Optical Fiber
Multi-mode
(EKI-2741SX)

Single-mode
(EKI-2741LX/LXI)

IEEE 802.3, 802.3u, 802.3ab, 802.3x, IEEE 802.3z
10/100/1000Base-T (X), 1000Base-SX or 1000Base-LX
Ethernet: Up to 100 m
Fiber:
Multi-mode: Up to 550 m
Single-mode: Up to 10 km (EKI-2741LX) or up to
110 km (EKI-2741F)
SFP: Up to 110 km (EKI-2741F)
Up to 1000 Mbps
Wavelength: 850 nm
Tx Power: -4/-9.5 dBm
Parameters: 50/125 um, 62.5/125 um
Wavelength: 1310 nm
Tx Power: -3/-9.5 dBm

Interface
ƒƒ Connectors

ƒƒ LED Indicators
ƒƒ DIP Switch

1 x RJ45
1 x SC type fiber connector (EKI-2741SX/LX) or
1 x SFP type fiber connector (EKI-2741F)
P1, P2, P-Fail
Fiber: LNK/ACT
Ethernet: 1000M, LNK/ACT
Port Alarm, LFP

Power
ƒƒ Power Input

5.28 W (EKI-2741F)
5.18 W (EKI-2741SX)
5.30 W (EKI-2741LX)

Industrial Panel

Industrial Monitors

ƒƒ Enclosure
ƒƒ Mounting
DIN-rail, Wall

Industrial Wireless
Solutions

Protection

Industrial Ethernet
Solutions

ƒƒ Power Reverse

Present
Present

and IP Gateways

Environment
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Wide Temp Model
Storage Temperature
Operating Humidity
Storage Humidity
MTBF

-40 ~ 75°C (-40 ~ 167°F)
-40 ~ 85°C (-40 ~ 185°F)
515,600 hours (EKI-2741F)
525,300 hours (EKI-2741SX/LX)

Certifications
ƒƒ Safety
ƒƒ EMI
ƒƒ EMS

ƒƒ Shock
ƒƒ Freefall
ƒƒ Vibration

UL 60950-1, CAN/CSA-C22.2 No.60950
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6

ƒƒ EKI-2741F
ƒƒ EKI-2741SX
ƒƒ EKI-2741LX

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

Giga Ethernet to SFP Fiber Converter
Giga Ethernet to 1000Base-SX Fiber Converter
Giga Ethernet to 1000Base-LX Fiber Converter


11-39

Accessories

SFP Transceiver Modules
Features
ƒƒ Industry standard small form pluggable (SFP) package
ƒƒ Immovable lock design
ƒƒ Hot pluggable
ƒƒ Duplex LC connector
ƒƒ Full duplex speeds support
ƒƒ TTL signal detect indicator
ƒƒ 3.3 VDC power supply
ƒƒ Industry leading EMI performance for high port density
ƒƒ Class 1 laser product complies with EN 60825-1
ƒƒ RoHS compliant

RoHS

COMPLIANT
2002/95/EC

Introduction
Advantech's Small Form-factor Pluggable (SFP) transceiver family is available with a variety of different types, allowing users to select the appropriate transceiver for each link to provide
the required optical reach over the available optical fiber type. Advantech's SFP transceiver immovable lock design can fix SFP module into the switch firmly. Besides Advantech's
SFP transceiver's compact design provides high port density and compliant with Fast Ethernet and IEEE 802.3z Gigabit Ethernet Standards. Advantech's SFP transceivers ensure your
networks operate with maximum performance, reliability, and flexibility.

Specifications
Category
100Base-FX

Distance
M.M. (2km)
M.M. (2km)
S.M. (30km)
S.M. (30km)
SX (550m)
LX (10 km)
LX (20 km)

1000Base

LX (40 km)
XD (50km)
ZX (70km)
EZX (110km)

1000Base

RJ45 (100m)

Model Name
SFP-FXM/LC-AE
SFP-FXM/LCI-AE
SFP-FXS/LC-30E
SFP-FXS/LCI-30E
SFP-GSX/LC-AE
SFP-GSX/LCI-AE
SFP-GLX/LC-10E
SFP-GLX/LCI-10E
SFP-GLX/LC-20E
SFP-GLX/LCI-20E
SFP-GLX/LC-40E
SFP-GLX/LCI-40E
SFP-GXD/LC-50E
SFP-GXD/LCI-50E
SFP-GZX/LC-70E
SFP-GZX/LCI-70E
SFP-GZX/LC-110E
SFP-GZX/LCI-110E
SFP-GTX/RJ45-AE

Wavelength

TX Power

RX Sens

Voltage

1310 nm

-14dBm ~ -20dBm

-31dBm (Min)

3.3V

1310 nm

-8 dBm ~ -15dBm

-34dBm (Min)

3.3V

850 nm

-4 dBm ~ -9.5dBm

-18dBm (Min)

3.3V

1310 nm

-3 dBm ~ -9.5dBm

-20dBm (Min)

3.3V

1310 nm

-2 dBm ~ -8dBm

-23dBm (Min)

3.3V

1310 nm

+1 dBm ~ -4dBm

-24dBm (Min)

3.3V

1550 nm

+1 dBm ~ -4dBm

-24dBm (Min)

3.3V

1550 nm

+5 dBm ~ 0dBm

-24dBm (Min)

3.3V

1550 nm

+5 dBm ~ 0dBm

-30dBm (Min)

3.3V
3.3V

Operating Temp
0 to 70° C
(-40 to 85° F)
0 to 70° C
(-40 to 85° F)
0 to 70° C
(-20 to 85° F)
0 to 70° C
(-40 to 85° F)
0 to 70° C
(-40 to 85° F)
0 to 70° C
(-40 to 85° F)
0 to 70° C
(-40 to 85° F)
0 to 70° C
(-40 to 85° F)
0 to 70° C
(-40 to 85° F)
0 to 70° C

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

11-40


SFP-FXM/LC
SFP-FXS/LC-30E
SFP-GSX/LC
SFP-GLX/LC-10E
SFP-GLX/LC-20E
SFP-GLX/LC-40E
SFP-GXD/LC-50E
SFP-GZX/LC-70E
SFP-GTX/RJ45

100Base-FX Multi-mode SFP module
100Base-FX Single-mode SFP module
1000Base-SX Multi-mode SFP module
1000Base-XD Single-mode SFP module (50 km)
1000Base-ZX Single-mode SFP module (70 km)
1000Base RJ45 SFP module

and IP Gateways

12
12-2

Selection Guide

Cellular IP Gateways
Cellular IP Gateways Introduction

12-5

EKI-1321 (New)
EKI-1322 (New)

12-6

1-port RS-232/422/485 to GPRS IP Gateway
2-port RS-232/422/485 to GPRS IP Gateway

Wireless Serial Device Servers
EKI-1361 (New)
EKI-1362 (New)

1-port RS-232/422/485 to 802.11b/g/n WLAN Serial Device Server
2-port RS-232/422/485 to 802.11b/g/n WLAN Serial Device Server

12-8

Dual Ethernet Serial Device Servers
EKI-1521
EKI-1522
EKI-1524

1-port RS-232/422/485 Serial Device Server

12-9

EKI-1528
EKI-1526


12-10

EKI-1221
EKI-1222
EKI-1224

1-port Modbus Gateway

12-11

EKI-1221D
EKI-1222D

1-port Modbus Gateway with Integrated Ethernet Cascading
2-port Modbus Gateway with Integrated Ethernet Cascading

12-12

Modbus Gateways

To view all of Advantech’s Serial Device Servers, please visit www.advantech.com/products.

Selection Guide
Cellular IP Gateways (iGateways)
NEW

NEW

Model Name

EKI-1321

EKI-1322

Product Description

1-port RS-232/422/485 to
GPRS IP Gateway

2-port RS-232/422/485 to
GPRS IP Gateway

Cellular Interface

GSM/GPRS

GSM/GPRS

Quad-band Options

850/900/1800/1900 MHz

850/900/1800/1900 MHz

Antenna Connector Type

SMA female

SMA female

No. of Antenna connector

1

1

No. of Serial Ports

1

2

No. of Ethernet Ports

1

1

Ethernet Interface

10/100 Mbps

10/100 Mbps

Baud Rate

50 bps ~ 921.6 kbps

50 bps ~ 921.6 kbps

Operation Mode /
Software Feature

Virtual COM, Reverse Virtual COM, TCP Server, TCP Client, UDP,
SMS Tunnel Mode

Virtual COM, Reverse Virtual COM, TCP Server, TCP Client, UDP,
SMS Tunnel Mode

Utility

Windows 2000/XP/Vista/7, Web Console

Windows 2000/XP/Vista/7, Web Console

Page

12-6

12-6

Wireless Serial Device Servers
NEW

NEW

Model Name

EKI-1361

EKI-1362

EKI-1351

EKI-1352

Product Description

1-port
RS-232/422/485 to 802.11b/g/n
WLAN Serial Device Server

2-port
RS-232/422/485 to 802.11b/g/n

1-port
RS-232/422/485 to 802.11b/g

2-port
RS-232/422/485 to 802.11b/g

No. of Ethernet Port

1

1

-

-

No. of Serial Port

1

2

1

2

Ethernet Interface

10/100/1000 Mbps

10/100/1000 Mbps

-

-

WLAN

802.11b/g/n

802.11b/g/n

802.11b/g

802.11b/g

Antenna Connector
Type

RP-SMA (female)

RP-SMA (female)

RP-SMA (female)

RP-SMA (female)

No. of Antenna
connector

2

2

1

1

RS-232/422/485

Serial Type
Connector

Ethernet

RJ45

RJ45

-

-

Serial

DB9 Male

DB9 Male

DB9 Male

DB9 Male

Baud Rate

50 bps ~ 921.6 kbps, any baud rate setting

Operating Mode

Virtual COM, TCP Server, TCP Client, UDP, Peer to Peer, AT Command

Driver

32-bit/64-bit Windows 2000/XP/Vista/7, Windows Server 2003/2008, Windows CE 5.0, and Linux
CE, FCC, KCC, TELEC

Certifications
Page

12-2

12-8

Serial Device Servers and IP Gateways

Class I Division 2 Groups ABCD T4, UL/cUL 60950-1, FCC, CE

12-8

online

online

Selection Guide
Dual Ethernet Serial Device Servers

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Model Name
Product Description
No. of Serial Port
Ethernet Interface
Serial Type
Ethernet
Connector
Serial
Baud Rate
Operating Mode
Driver
Certifications
Page

EKI-1521

EKI-1522

EKI-1524

EKI-1528

EKI-1526

2-port
4-port
8-port
16-port
RS-232/422/485 Serial
RS-232/422/485 Serial
RS-232/422/485 Serial
RS-232/422/485 Serial
Device Server
Device Server
Device Server
Device Server
2
2
2
2
2
4
8
16
10/100 Mbps
10/100 Mbps
10/100 Mbps
10/100 Mbps
RS-232/422/485
RS-232/422/485
RS-232/422/485
RS-232/422/485
RJ45
RJ45
RJ45
RJ45
DB9 Male
DB9 Male
RJ45
RJ45
Virtual COM, TCP Server, TCP Client, UDP, Peer to Peer, AT Command, and RFC2217 modes
Class I Division 2 Groups ABCD T4, UL/cUL 60950-1, FCC, CE
FCC, CE
12-9
12-9
12-9
12-10
12-10

1-port
RS-232/422/485 Serial
Device Server
2
1
10/100 Mbps
RS-232/422/485
RJ45
DB9 Male

Single Ethernet Serial Device Server

Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel

Industrial Monitors

Model Name
Product Description
No. of Serial Port
Ethernet Interface
Serial Type
Ethernet
Connector
Serial
Baud Rate
Operating Mode
Driver
Certifications
Page

ADAM-4571
1-port
RS-232/422/485 Serial Device
Server
1
1
10/100 Mbps
RS-232/422/485
RJ45
DB9 Male

ADAM-4571L

ADAM-4570

ADAM-4570L

2-port
2-port RS-232
RS-232/422/485 Serial Device
Server
1
1
1
1
2
2
10/100 Mbps
10/100 Mbps
10/100 Mbps
RS-232
RS-232/422/485
RS-232
RJ45
RJ45
RJ45
DB9 Male
RJ48
RJ48
Virtual COM, TCP Server, TCP Client, UDP, Peer to Peer, and AT Command modes
FCC, CE
online
online
online
online
1-port RS-232

Accessories

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

Model Name
Length
Connector
Type
Qty
Communication
Interfaces
Connector
Type
Qty
Where Used
Page

OPT1-DB9
-

OPT1A
1m

OPT1D
30 cm

OPT1I
1m

OPT1J
30 cm

DB9 Female

RJ48

RJ48

RJ45

RJ45

1

1

1

1

1

Terminal

DB9 Male

DB9 Male

DB9 Male

DB9 Male

1
EKI-1000 Series,
ADAM-4570 Series
online

1
ADAM-4570,
ADAM-4570L
online

1
ADAM-4570,
ADAM-4570L
online

1
EKI-1526,
EKI-1528
online

1
EKI-1526,
EKI-1528
online


M2M I/O Modules

RS-485 I/O Modules

12-3

Selection Guide
Modbus Gateways

Model Name

EKI-1221

EKI-1222

EKI-1224

EKI-1221D

EKI-1222D

ADAM-4572

2-port Modbus
Gateway with
Integrated
Cascading
Ethernet

1-port Modbus
Gateway

Product Description

1-port Modbus
Gateway

2-port Modbus
Gateway

4-port Modbus
Gateway

1-port Modbus
Gateway with
Integrated
Cascading
Ethernet

No. of Ethernet Ports

2

2

2

2

2

1

No. of Serial Ports

1

2

4

1

2

1

Ethernet Interface

10/100 Mbps

Serial Type

RS-232/422/485, software selectable
DB9 Male

Connector Type
Dual Ethernet Redundancy

Ethernet Feature

Screw Terminal
Daisy-Chain Connectivity

-

Windows Configuration Utility, Web-Browser Console

Configuation

Windows Utility

Modbus RTU Master, Modbus RTU Slave, Modbus ASCII Master, and Modbus ASCII Slave modes

Operating Mode

50 bps ~ 921.6 kbps

Baud Rate

Class I Division 2 Groups ABCD T4, FCC, CE

Certifications
12-13

Page

12-13

12-13

FCC, CE

12-14

12-14

online

Serial to USB Converters

Model Name

ADAM-4561

ADAM-4562

USB-4604B

USB-4604BM
4-port RS-232/422/485 to
USB Converter with ESD
Surge Protection
USB 1.1/2.0

Product Description

1-port Isolated USB to
RS-232/422/485 Converter

1-port Isolated USB to
RS-232 Converter

4-port RS-232 to USB
Converter with ESD Surge
Protection

Interface

USB 1.1

USB 1.1

USB 1.1/2.0

Serial Port

1

1

4

4

Baud Rate

50 ~ 115.2 kbps

75 ~ 115.2 kbps

50 ~ 921.6 kbps

50 ~ 921.6 kbps

RS-232/422/485

RS-232

RS-232

RS-232/422/485

USB

Type B

Type B

Type B

Type B

Serial

Screw Terminal

DB9

DB9

DB9

Isolation

3,000 VDC (RS-232/422/485)

2,500 VDC

-

-

Surge

-

-

2,500 VDC

2,500 VDC

Driver

Windows 2000/XP

Windows 2000/XP

Windows 2000/XP/Vista/7,
CE5.0/6.0, Linux

Windows 2000/XP/Vista/7,
CE5.0/6.0, Linux

Page

online

online

online

online

Serial Type
Connector
Protection

12-4


Cellular IP Gateways
Introduction

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels


IoT (Internet of Things) architecture is divided into four layers: sensor, network, service and application. As the internet greatly increased people-to-people interactions, the IoT greatly
increases people-to-object and object-to-object interactions. The network layer represents access to all object data via wireless networks and the internet coverage in a real-time data
stream. The Intelligent Cellular IP Gateways in the network layer of IoT architecture link all the objects, devices and transmit sensor information through reliable wired and wireless
communication (3G, GPRS, Wi-Fi, Zigbee) networks. The goal and objective is to build up "ubiquitous networks connected to all objects".

Key Features

Application

ƒƒ Compact and simple
ƒƒ Extremely versatile gateway features

Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

ƒƒ Dual SIM slots for connection redundancy
ƒƒ Extra SD slot for data buffering and auto recovery
ƒƒ Provides NAT with VPN

Industrial Ethernet
Solutions

ƒƒ Universal quad-band GSM/GPRS 850/900/1800/1900 MHz

and IP Gateways

Product Portfolio

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

EKI-1321
EKI-1322

M2M I/O Modules

1/2-port RS-232/422/485 to GPRS IP Gateways

RS-485 I/O Modules


12-5

EKI-1321
EKI-1322

1-port RS-232/422/485 to GPRS
IP Gateway
2-port RS-232/422/485 to GPRS
IP Gateway
Features

NEW

ƒƒ Universal quad-band GSM/GPRS 850/900/1800/1900 MHz
ƒƒ Dual SIM for telecom redundancy
ƒƒ SD slot with extra SD card for data buffering
ƒƒ Connect Ethernet and Serial Devices over VPN
ƒƒ Various operation modes: COM port redirector, RVCOM, TCP, UDP, SMS
tunnel, and pair connection
ƒƒ Any baud rate setting for easy configuration
ƒƒ Built-in 15 KV ESD protection for all serial signals
ƒƒ 1.5 KV isolation protection (EKI-1321)
ƒƒ 2 digital inputs (EKI-1321)
ƒƒ Multiple configuration methods: Windows utility, Telnet, and Web console

EKI-1321

EKI-1322

ƒƒ Supports 32-bit/64-bit Windows 2000/XP/Vista/7, Windows Server 2003/2008,
Windows CE 5.0, and Linux

RoHS

COMPLIANT
2002/95/EC

Introduction
EKI-1321 and EKI-1322 are cellular gateways that can transparently bring RS-232/422/485 or Ethernet devices to a cellular network. They allow nearly any device with serial or Ethernet
ports to connect and share a cellular network with easy and simple configuration. EKI-1321 and EKI-1322 GPRS IP Gateway's are compact, and can be DIN-rail or wall mounted
and with both front panel and side panel LED displays for easy identification. They come with dual DC power input from 12 to 48 VDC and have 2 KV EFT/Surge protection to prevent
damage from various type of power resources. The serial ports are also protected by 15 KV ESD line protection to keep your system safe from unexpected electrical discharges. Both
models support dual SIM slots to support GPRS signal redundancy to switch to an available channel automatically while the existing one is disconnected, and SD card slot for data
buffering to prevent loss of serial data while the communication is interrupted.

Specifications
LAN Interface

Relay Output

ƒƒ Ethernet
ƒƒ Connector
ƒƒ Protection

10/100 Mbps, auto MDI/MDIX
RJ45
1.5 KV built-in magnetic isolation protection

Cellular Interface
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Standards
GSM/GPRS
Band Option
Quad-band 850/900 and 1800/1900 MHz
GPRS Multi-Slot
Class 10
GPRS Terminal Device Class B
GPRS Coding Schemes CS1 ~ CS4
Tx Power
1 W for GSM 1800/1900, 2 W for EGSM 850/900
No. of SIM
2
SIM Control
3V

ƒƒ Channel
ƒƒ Contact Rating

ƒƒ Relay off Time(Typ.)
ƒƒ Relay on Time(Typ.)

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Port Connector
Data Bits
Stop Bits
Parity
Baud Rates
Serial Signals

ƒƒ Protection

EKI-1321: 1, 2 KV isolation protection
EKI-1322: 2
DB9 male
5, 6, 7, 8
1, 1.5, 2
None, Odd, Even, Space, Mark
75 bps to 921.6 kbps, any baud rate setting
RS-232: TxD, RxD, CTS, RTS, DTR, DSR, DCD, RI,
GND
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485: Data+, Data-, GND
15 KV ESD for all signals

ƒƒ Channel

ƒƒ Input Level


2
Logic level 0: 1 V Maximum
Logic level 1: 3 ~ 30 V

General
ƒƒ LED Indicators

ƒƒ Reboot Trigger

System: Power, System Status
GPRS: Quality, GPRS ready
Serial: Tx, Rx
Built-in WDT (watchdog timer)

Software
ƒƒ Driver Support

ƒƒ Utility Software
ƒƒ Operating Modes

ƒƒ Configuration
ƒƒ Protocols
ƒƒ Router/Firewall

12-6

1
0.5 A @ 120 VAC
0.25 A @ 240 VAC
2 A @ 30 VDC
4 ms
3 ms

Digital Input (EKI-1321)

Serial Communications
ƒƒ Port Type
ƒƒ No. of Ports

32-bit/64-bit Windows 2000/XP/Vista/7,
Windows Server 2003/2008, Windows CE 5.0, and
Linux
Advantech Serial Device Server Configuration Utility
Virtual COM, Reverse Virtual COM, TCP/UDP server
mode, TCP/UDP client mode, Pair connection mode
(Serial Tunnel), RFC2217, SMS Tunnel, IP Gateway
w/ VPN
Windows utility, Telnet console, Web Browser
ICMP, TCP/IP, UDP, DHCP Client, Telnet, DNS, SNMP,
HTTP, HTTPS, SMTP, SNTP, ARP, SSL
NAT, port forwarding

EKI-1321
EKI-1322
Dimensions

Unit: mm

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

120

Building Automation
Systems

74.30

Automation Software

Operator Panels


85

27

93.90
102.88

Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions


Mechanics
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Enclosure
Metal with solid mounting hardware
Mounting
DIN-rail, Wall
Weight
0.49 Kg

ƒƒ EKI-1321
ƒƒ EKI-1322
ƒƒ OPT1-DB9

1-port GPRS IP Gateway
2-port GPRS IP Gateway
D-Sub 9 to Terminal Converter

Power Requirements
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Power Input
Power Connector
Power Consumption
Power EFT/Surge Prot.

Terminal block
EKI-1321: 8W, EKI-1322: 8.5W
2 KV

Embedded Automation
Computers

5 ~ 95% RH

PACs

Regulatory Approvals

ƒƒ RF

and IP Gateways

Cards

Environment

ƒƒ EMC

Industrial Ethernet
Solutions

Compact PCI Systems

CE: EN55022/EN55024, Class A
FCC: FCC part 15 subpart B, Class A
FCC Part22H/Part24E, EN301 489-1, EN301 489-7,
EN301 511

M2M I/O Modules

RS-485 I/O Modules


12-7

EKI-1361
EKI-1362

1-port RS-232/422/485 to 802.11b/g/n WLAN
2-port RS-232/422/485 to 802.11b/g/n WLAN
Features

NEW

ƒƒ Link any serial device to an IEEE 802.11b/g/n network
ƒƒ Support 802.11n MIMO 2T2R
ƒƒ WLAN transmision rate up to 300 Mbps
ƒƒ Supports secure access with WEP, WPA/WPA2-Personal, WPA/WPA2ƒƒ Enterprise
ƒƒ Provides COM port redirection, TCP, UDP, and pair connection modes
ƒƒ Supports up to 921.6 kbps, and any baud rate setting
ƒƒ Provides Web-based configuration and Windows utility
ƒƒ Allows a max. of 5 hosts to access one serial port
ƒƒ Allows a max. of 4 hosts to be accessed as TCP client mode

EKI-1361

EKI-1362
RoHS

COMPLIANT
2002/95/EC

Introduction
EKI-1361 and EKI-1362 are wireless serial device servers that bring RS-232/422/485 to wireless LAN or LAN. They allow nearly any device with serial ports to connect and share an
WLAN network. EKI-1361 and EKI-1362 provide a quick, simple and cost-effective way to bring the advantages of remote management and data accessibility to thousands of devices
that cannot connect to a network.
With EKI-1361 and EKI-1362, your existing serial devices can be used with the most popular operating systems on the market. There is no need to write special drivers for specific
operating systems. Moreover, you can make serial devices communicate with other devices peer-to-peer, without any intermediate host PCs and software programming. That saves
a lot of cost and effort. In addition, you can actively request data or issue commands from the RS-232/422/485 side or wireless LAN side. This data can be sent bilaterally. Thus, the
EKI-1361 and EKI-1362 are especially suitable for remote monitoring environments such as security systems, factory automaton, SCADA, transportation and more.

Specifications

ƒƒ Configuration
ƒƒ Protocols

Ethernet Communications
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

IEEE 802.11b/g/n
Up to 300Mbps
Infrastructure, Ad-hoc
Reverse SMA
2 (support 2T2R)
Open space 100 m
WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise

Mechanics

EKI-1361: 1
EKI-1362: 2
DB9 male
5, 6, 7, 8
1, 1.5, 2
RS-232: TxD, RxD, CTS, RTS, DTR, DSR, DCD, RI, GND

Compatibility
Speed
Network Mode
Antenna Connector
No. of Antenna
Free Space Range
Wireless Security

ƒƒ Reboot Trigger

ƒƒ Enclosure
ƒƒ Mounting

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Port Connector
Data Bits
Stop Bits
Parity
Baud Rate
Serial Signals

ƒƒ Protection

Software
ƒƒ Driver Support
ƒƒ Operation Modes

12-8

Plastic and metal shell with solid mounting kits
DIN-rail, Wall

General
ƒƒ LED Indicators

ƒƒ Port Type
ƒƒ No. of Ports

ICMP, TCP/IP, UDP, DHCP Client, Telnet, DNS, SNMP,
HTTP, SMTP, SNTP, ARP

WLAN: Quality, Link/Active
LAN: Link/Active
Serial: Tx, Rx

Power Requirements
ƒƒ Power Input

Terminal block
EKI-1361: 8W
EKI-1362: 9W

Environment
5 ~ 95% RH

32-bit/64-bit Windows 2000/XP/Vista/7, Windows
Server 2003/2008, Windows CE 5.0, and Linux
COM port redirection mode (Virtual COM)
TCP/UDP server (polling) mode
TCP/UDP client (event handling) mode
Pair connection without AP (peer to peer) mode


ƒƒ EMC

CE, FCC Part 15 Subpart B (Class B)

ƒƒ EKI-1361
ƒƒ EKI-1362
ƒƒ OPT1-DB9

1-port 802.11b/g/n WLAN Serial Device Server
2-port 802.11b/g/n WLAN Serial Device Server
D-Sub9 to Terminal Converter

EKI-1521
EKI-1522
EKI-1524


Features
ƒƒ Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
ƒƒ Provides COM port redirection (Virtual COM), TCP and UDP operation modes
ƒƒ Allows a max. of 5 hosts to access one serial port
ƒƒ Allows a max. of 16 hosts to be accessed as TCP client mode
ƒƒ Provides rich configuration methods including Windows utility, Telnet console,
and Web Browser
ƒƒ Automatic RS-485 data flow control
ƒƒ Class I, Division 2 certification

EKI-1521

EKI-1522

EKI-1524
COMPLIANT
2002/95/EC

Introduction

Specifications

Mechanics
ƒƒ Dimensions (W x H x D) EKI-1521/1522: 37 x 140 x 95 mm (1.46" x 5.51" x 3.74")
EKI-1524: 55 x 140 x 95 mm (2.17" x 5.51" x 3.74")
ƒƒ Enclosure
ƒƒ Mounting
DIN-rail, Wall
ƒƒ Weight
EKI-1521: 0.592 Kg
EKI-1522: 0.6 Kg
EKI-1524: 0.668 Kg

IEEE 802.3, IEEE 802.3u
10/100 Mbps
2
8-pin RJ45
Built-in 1.5 KV magnetic isolation

General

ƒƒ Port Type
ƒƒ No. of Ports
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Port Connector
Data Bits
Stop Bits
Parity
Flow Control
Baud Rate
Serial Signals

ƒƒ Protection

Software

ƒƒ Driver Support

ƒƒ Configuration
ƒƒ Protocols
ƒƒ Management

Energy Automation

Building Automation
Systems

Automation Software


EKI-1521, EKI-1522 and EKI-1524 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability.
EKI-1521, EKI-1522 and EKI-1524 are serial device servers that connect RS-232/422/485 serial devices, such as PLC, meters, sensors, and barcode reader to an IP-based Ethernet
LAN. They allow nearly any device with serial ports to connect and share an Ethernet network. EKI-1521, EKI-1522 and EKI-1524 provide various operations: COM port redirection
(Virtual COMport), TCP Server, TCP Client and UDP mode. With COM port redirection mode, standard serial operation calls are transparently redirected to the EKI-1521, EKI-1522
and EKI-1524, guaranteeing compatibility with legacy serial devices and enabling backward compatibility with existing software. With TCP server, TCP client, and UDP modes, EKI1521, EKI-1522 and EKI-1524 ensure the compatibility of network software that uses a standard network API. Moreover, you can make serial devices communicate with other devices
peer-to-peer, without any intermediate host PCs and software programming.

Compatibility
Speed
No. of Ports
Port Connector
Protection

Machine Automation

Operator Panels

RoHS

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ LED Indicators
EKI-1521: 1
EKI-1522: 2
EKI-1524: 4
DB9 male
5, 6, 7, 8
1, 1.5, 2
XON/XOFF, RTS/CTS, DTR/DSR
Built-in 15 KV ESD for all signals
Pair connection (peer to peer) mode
ICMP, IP, TCP, UDP, BOOTP, DHCP, Auto IP, Telnet,
SNMP, HTTP, DNS, SMTP, ARP, NTP
SNMP MIB-II

ƒƒ Reboot Trigger

LAN: Speed, Link/Active
Serial: Tx, Rx

Power Requirements
ƒƒ Power Input

Environment

Terminal block
EKI-1521: 2 W
EKI-1522: 2.5 W
EKI-1524: 4 W

5 ~ 95% RH

ƒƒ EMC
ƒƒ Safety
ƒƒ MTBF
ƒƒ Hazardous Location

CE, FCC Part 15 Subpart B (Class A)
UL/cUL 60950-1
EKI-1521: 1,102,913 hours
EKI-1522: 1,000,154 hours
EKI-1524: 862,230 hours
Class I, Division 2

ƒƒ
ƒƒ
ƒƒ
ƒƒ

EKI-1521
EKI-1522
EKI-1524
OPT1-DB9

Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules



12-9

EKI-1528
EKI-1526

Features
ƒƒ 8 or 16-port RS-232/422/485 serial communication
ƒƒ Provides COM port redirection (Virtual COM), TCP and UDP operation modes
ƒƒ Provides rich configuration methods: Windows utility, Telnet console, Web
Browser, and serial console
ƒƒ SNMP MIB-II for network management
ƒƒ Built-in buzzer for easy location
ƒƒ Standard 1U rackmount size
ƒƒ Rear wiring

EKI-1528

EKI-1526
RoHS

COMPLIANT
2002/95/EC

Introduction
EKI-1528 and EKI-1526 are industrial-grade network-based serial device servers for connecting up to 8 or 16 serial RS-232/422/485 devices, such as CNCs, PLCs, scales and
scanners, directly to a TCP/IP network. The EKI-1528 and EKI-1526 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee
Ethernet network reliability. The EKI-1528 and EKI-1526 provide a simple and cost-effective way to bring the advantages of remote management and data accessibility to thousand of
devices that can't connect to an Ethernet network. The EKI-1528 and EKI-1526 offer rich ways to configure through Windows utility, Web Browser, serial console or Telnet console,
these methods make it easy manage many EKI-1528 and EKI-1526 or serial devices on your network.

Specifications
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Compatibility
Speed
No. of Ports
Port Connector
Protection

IEEE 802.3, IEEE 802.3u
10/100 Mbps, auto MDI/MDIX
2
8-pin RJ45

ƒƒ Port Type
ƒƒ No. of Ports
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Port Connector
Data Bits
Stop Bits
Parity
Flow Control
Baud Rate

ƒƒ Serial Signals
ƒƒ Protection

EKI-1528: 8
EKI-1526: 16
8-pin RJ45
5, 6, 7, 8
1, 1.5, 2
16 ports up to 230.4 kbps simultaneously
RS-232: TxD, RxD, CTS, RTS, DTR, DSR, DCD, GND

Software
ƒƒ Driver Support

ƒƒ Configuration

12-10

Pair connection (peer to peer) mode
RFC2217 mode
Windows utility, Telnet console, Web Browser, serial
console


ƒƒ Protocols
ƒƒ Management

ICMP, IP, TCP, UDP, BOOTP, DHCP, Auto IP, Telnet,
SNMP, HTTP, DNS, SMTP, ARP, HTTPS, SSL, SSH,
NTP
SNMP MIB-II

Mechanics
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Enclosure
SECC chassis
Mounting
Rack
Weight
EKI-1528: 2.53 Kg
EKI-1526: 2.58 Kg

General
ƒƒ LED Indicators
ƒƒ Alert Tools
ƒƒ Reboot Trigger

Serial: Tx, Rx
Built-in buzzer and RTC (real time clock)
Built-in WDT and push button for hardware reboot

Power Requirements
ƒƒ Power Input

100 ~ 240 VAC, 47 ~ 63 Hz
EKI-1528: 8 W
EKI-1526: 10 W

Environment
5 ~ 95% RH

ƒƒ EMC
ƒƒ MTBF

EKI-1528: 249,812 hours
EKI-1526: 227,175 hours

EKI-1221
EKI-1222
EKI-1224


Features
ƒƒ Integration of Modbus TCP and Modbus RTU/ASCII networks
ƒƒ Supports up to 16 connections and 32 requests simultaneously
ƒƒ Easy-managing Advantech Serial Device Server Configuration Utility for
Windows 2000/XP/Vista/7
ƒƒ Auto searching slave ID over configuration utility
ƒƒ Software selectable RS-232/422/485 communication
ƒƒ Mounts on DIN-rail and Wall mount

EKI-1221

EKI-1222

EKI-1224
COMPLIANT
2002/95/EC

Introduction

Specifications

ƒƒ LED Indicators

IEEE 802.3, IEEE 802.3u
10/100 Mbps
2
8-pin RJ45

ƒƒ Reboot Trigger

Port Connector
Data Bits
Stop Bits
Parity
Flow Control
Baud Rate
Serial Signals

ƒƒ Protection

EKI-1221: 1
EKI-1222: 2
EKI-1224: 4
DB9 male
7, 8
1, 2

Software
ƒƒ OS Support
ƒƒ Configuration
ƒƒ Protocols

Serial: Tx, Rx

Mechanics


ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Building Automation
Systems

Automation Software

32-bit/64-bit Windows 2000/XP/Vista/7 and Windows
Server 2003/2008
Modbus RTU Master/Slave mode
Modbus ASCII Master/Slave mode
Windows Utility, Web Browser
Modbus RTU, Modbus TCP, Modbus ASCII

ƒƒ Dimensions (W x H x D) EKI-1221/1222: 37 x 140 x 95 mm (1.46" x 5.51" x 3.74")
EKI-1224: 55 x 140 x 95 mm (2.17" x 5.51" x 3.74")
ƒƒ Enclosure
ƒƒ Mounting
DIN-rail, Wall
ƒƒ Weight
EKI-1221: 0.592 Kg
EKI-1222: 0.6 Kg
EKI-1224: 0.668 Kg

Power Requirements
ƒƒ Power Input

Terminal block
EKI-1221: 2 W
EKI-1222: 2.5 W
EKI-1224: 4 W

5 ~ 95% RH

UL/cUL 60950-1
Class I, Division 2

ƒƒ
ƒƒ
ƒƒ
ƒƒ

EKI-1221
EKI-1222
EKI-1224
OPT1-DB9

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Environment

ƒƒ EMC
ƒƒ Safety

Industrial Panel

Industrial Monitors

General


ƒƒ Port Type
ƒƒ No. of Ports

Energy Automation


The EKI-1200 series Modbus gateways are bi-directional gateways for integrating new and existing Modbus/RTU and Modbus/ASCII serial devices to newer TCP/IP networked-based
devices. The EKI-1221/1222/1224 feature two independent Ethernet ports and MAC addresses to provide a redundant networking mechanism to guarantee Ethernet networking
reliability. They provide a simple and cost-effective way to bring the advantage of remote management and data accessibility to thousand of devices that can not connect to a network.
The EKI-1221/1222/1224 provide a feature that can allow users to select master or slave operation mode for each serial port. They not only allow an Ethernet master to control serial
slaves, but also allow serial masters to control Ethernet slaves.

Compatibility
Speed
No. of Ports
Port Connector
Protection

Machine Automation

Operator Panels

RoHS

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules



12-11

EKI-1221D
EKI-1222D

1-port Modbus Gateway with
2-port Modbus Gateway with
Features
ƒƒ Provides 2 x 10/100 Mbps Ethernet ports for Daisy Chian connectivity
ƒƒ Integration of Modbus TCP and Modbus RTU/ASCII networks
ƒƒ Supports Ethernet auto-bypass function
ƒƒ Master mode supports 32 TCP slaves at the same time
ƒƒ Slave mode supports up to 16 TCP masters
ƒƒ Supports mapping Modbus slave ID option
ƒƒ Auto searching Modbus slave ID over configuration utility
ƒƒ Mounts on DIN-rail and Wall mount
ƒƒ Class I, Division 2 certification

EKI-1221D

EKI-1222D
RoHS

COMPLIANT
2002/95/EC

Introduction
The EKI-1200 series Modbus gateways are bi-directional gateways for integrating new and existing Modbus/RTU and Modbus/ASCII serial devices to newer TCP/IP networked-based
devices. The EKI-1221D/1222D feature two Ethernet ports with one IP address for easier network wiring. One port can be used to connect to the network, and the other port can be used
to connect to another Ethernet device or another EKI-1221D/1222D. They provide a simple and cost-effective way to bring the advantage of remote management and data accessibility
to thousand of devices that can not connect to a network. The EKI-1221D/1222D provide a feature that can allow users to select master or slave operation mode for each serial port.
They not only allow an Ethernet master to control serial slaves, but also allow serial masters to control Ethernet slaves.

Specifications

General

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ LED Indicators

Compatibility
Speed
No. of Ports
Port Connector
Protection

IEEE 802.3, IEEE 802.3u
10/100 Mbps
2
8-pin RJ45

ƒƒ Port Type
ƒƒ No. of Ports
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Port Connector
Data Bits
Stop Bits
Parity
Flow Control
Baud Rate
Serial Signals

ƒƒ Protection

EKI-1221D: 1
EKI-1222D: 2
DB9 male
7, 8
1, 2

Software
ƒƒ OS Support
ƒƒ Configuration
ƒƒ Protocols

32-bit/64-bit Windows 2000/XP/Vista/7 and Windows
Server 2003/2008 (x86 and x64)
Modbus RTU Master/Slave mode
Modbus ASCII Master/Slave mode
Windows Utility, Web Browser
Modbus RTU, Modbus TCP, Modbus ASCII

ƒƒ Reboot Trigger

Serial: Tx, Rx

Mechanics
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Enclosure
Mounting
DIN-rail, Wall
Weight
EKI-1221D: 0.58 Kg
EKI-1222D: 0.588 Kg

Power Requirements
ƒƒ Power Input

Terminal block
EKI-1221D: 2 W
EKI-1222D: 2.5 W

Environment
5 ~ 95% RH

ƒƒ EMC

EN 55022, EN 55011, EN 61000-6-4, IEC 61000-42/3/4/5/6/8, FCC 47 CFR Part 15 Subpart B (Class A)
Class I, Division 2

ƒƒ EKI-1221D
1-port Modbus Gateway with Ethernet Cascading
ƒƒ EKI-1222D
2-port Modbus Gateway with Ethernet Cascading
* All items include 1 pc OPT1-DB9 D-Sub9 to Terminal Converter

12-12


Cards

13

Serial Communication Card Selection Guide

13-2

PCI & Universal Communication Cards
PCI-1602UP

2-port RS-422/485 Low-Profile Universal PCI Communication Card with
2-port RS-232 Low-Profile Universal PCI Communication Card with

13-4

2-port RS-422/485 Universal PCI Communication Card
2-port RS-422/485 Universal PCI Communication Card with Isolation
Protection
2-port RS-232/Current-loop Universal PCI Communication Card with

13-5

PCI-1610
PCI-1612

4-port RS-232 Universal PCI Communication Card
4-port RS-232/422/485 Universal PCI Communication Card

13-6

PCI-1620
PCI-1622

8-port RS-232 Universal PCI Communication Card

13-7

PCI-1604UP
PCI-1601
PCI-1602
PCI-1603

PCI Express Communication Cards
PCIE-1620 (New)
PCIE-1622 (New)

8-port RS-232 PCI Express Communication Card
8-port RS-232/422/485 PCI Express Communication Card

13-8

PCIE-1672PC (New)

2-port 10/100/1000 BaseT(X) 802.3af (PoE) Compliant Ethernet ports, PCI
Express Communication Card
4-port 10/100/1000 BaseT(X) 802.3af (PoE) Compliant Ethernet ports, PCI

13-9

PCIE-1674PC (New)

CAN Communication Cards
PCI-1682U

2-port CAN-bus Universal PCI Communication Card with CANopen Support 13-10

PCL-841
PCI-1680U
PCM-3680/I

2-port CAN-bus ISA Card with Isolation Protection
2-port CAN-bus Universal PCI Card with Isolation Protection
2-port CAN-bus PC/104 / PCI-104 Module with Isolation Protection

13-11

PC/104 & PCI-104 Communication Modules
PCM-3610
PCM-3612
PCM-3614

2-port RS-232/422/485 PC/104 Module with Isolation Protection
2-port RS-422/485 PC/104 Module
4-port RS-422/485 High-speed PC/104 Module

13-12

PCM-3618
PCM-3640/3641
PCM-3660

4-port RS-232 High-speed PC/104 Module
Jumperless Ethernet PC/104 Module

13-13

PCM-3614I/3618I
PCM-3641I

4/8-port RS-232/422/485 PCI-104 Module
4-port RS-232 PCI-104 Module

13-14

To view all of Advantech’s Serial Communication Cards, please visit www.advantech.com/products.

Serial Communication Card
Selection Guide
Serial Communication Cards

Universal Low-Profile PCI

Bus

Universal PCI

Model Name

PCI-1602UP

PCI-1604UP

PCI-1601

PCI-1602

PCI-1603

PCI-1610

PCI-1610C

Number of Ports

2

2

2

2

2

4

4

Current Loop

-

-

-

-

V

-

-

RS-232

-

V

-

-

V

V

V

RS-422

V

-

V

V

-

-

-

RS-485

V

-

V

V

-

-

-

CAN

-

-

-

-

-

-

-

Communication
Interfaces

32-bit/64-bit Windows 2000/XP/Vista/7, Windows CE 5.0/6.0, Linux, and QNX

Driver

15KV

ESD

Protection

2,500 VDC

2,500 VDC

-

2,500 VDC

2,500 VDC

-

2,500 VDC

Cable Connector Type

DB9 Male

DB9 Male

-

-

-

DB9 Male

DB9 Male

Page

13-4

13-4

13-5

13-5

13-5

13-6

13-6

Isolation

Universal PCI

Bus
Model Name

PCI-1612

PCI-1612C

PCI-1620

PCI-1622

PCI-1622C

Number of Ports

4

4

8

8

8

Current Loop

-

-

-

-

-

RS-232

V

V

V

-

-

RS-422

V

V

-

V

V

RS-485

V

V

-

V

V

CAN

-

-

-

-

-

Communication
Interfaces


Driver

15KV

ESD

Protection

-

2,500 VDC

-

-


DB9 Male

DB9 Male

-

-

-

Page

13-6

13-6

13-7

13-7

13-7

Isolation

NEW

NEW

NEW

NEW

PCI Express

Bus

2,500 VDC

CAN-bus Universal PCI

CAN-bus ISA

Model Name

PCIE-1620

PCIE-1622

PCIE-1672P

PCIE-1674P

PCI-1682U

PCI-1680U

PCL-841

Number of Ports

8

8

2

4

2

2

2

Ethernet

-

-

V

V

-

-

-

RS-232

V

V

-

-

-

-

-

RS-422

-

V

-

-

-

-

-

RS-485

-

V

-

-

-

-

-

CAN

-

-

-

-

V

V

V

ESD

15KV

15KV

8KV

8KV

-

-

-

Isolation

-

-

2,250 VDC

2,250 VDC

1,000 VDC

1,000 VDC

1,000 VDC

Communication
Interfaces


Driver
Protection


13-2

-

-

-

-

-

-

-

Page

13-8

13-8

13-9

13-9

13-10

13-11

13-11


Selection Guide
PC/104 Communication Modules

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

PC/104

Bus
Model Name

PCM-3680

PCM-3660

PCM-3610

PCM-3612

PCM-3614

PCM-3618

PCM-3640/3641

Ports

2

2

2

2

4

8

4

Ethernet

-

V

-

-

-

-

-

RS-232

-

-

V

-

-

-

V

RS-422

-

-

V

V

V

V

-

RS-485

-

-

V

V

V

V

-

CAN

V

-

-

-

-

-

-

EFT

-

-

-

-

1,000 VDC

1,000 VDC

-

Isolation

2,500 VDC

-

2,500 VDC

-

-

-

-


-

-

-

-

-

-

-

Page

13-11

13-13

13-12

13-12

13-12

13-13

13-13

Communication
Interfaces

Protection

Building Automation
Systems

Automation Software

Operator Panels


PCI-104 Communication Modules

Industrial Panel

Industrial Monitors

PCI-104

Bus
Model Name

PCM-3680I

PCM-3614I

PCM-3618I

PCM-3641I

Ports

2

4

8

4

Industrial Wireless
Solutions

Current Loop

-

-

-

-

RS-232

-

V

V

V

RS-422

-

V

V

-

RS-485

-

V

V

-

CAN

V

-

-

-

EFT

-

1,000 VDC

1,000 VDC

1,000 VDC

Isolation

2,500 VDC

-

-

-

Communication
Interfaces

Protection

Industrial Ethernet
Solutions


-

-

-

-

Page

13-11

13-14

13-14

13-14

Accessories

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Model Name

1700018791

OPT4A

OPT8C

OPT8H

OPT8J

30 cm

30 cm

1m

1m

1m

Connector
Type

DB37 Male

DB37 Male

DB62 Male

DB62 Male

DB78

Length

Qty

1

1

1

1

1

Connector
Type

DB25 Male

DB9 Male

DB25 Male

DB9 Male

DB9 Male

Qty

4

4

8

8

8

Where Used

PCI-1610,
PCI-1610C,
PCI-1612,
PCI-1612C

PCI-1610,
PCI-1610C,
PCI-1612,
PCI-1612C

PCI-1620,
PCIE-1620,
PCIE-1622

PCI-1620,
PCIE-1620,
PCIE-1622

PCI-1622,
PCI-1622C

Page

online

online

online

online

Compact PCI Systems

online

Communication
Interfaces


M2M I/O Modules

RS-485 I/O Modules

13-3

PCI-1602UP
PCI-1604UP

2-port RS-422/485 Low-Profile Universal PCI
Communication Card with Isolation Protection
2-port RS-232 Low-Profile Universal PCI
Communication Card with Isolation Protection
Features
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

PCI-1602UP

PCI-1604UP

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

PCI bus 2.2 compliant
Speeds up to 921.6 kbps
2-port RS-422/485 (PCI-1602UP); 2-port RS-232 (PCI-1604UP)
I/O address automatically assigned by PCI Plug & Play
OS support: Windows 2000/XP/Vista/7, Windows CE 5.0/6.0, Linux
2,500 VDC EFT Protection
2,500 VDC Isolation protection for RS-422/485 (PCI-1602UP) or RS-232
(PCI-1604UP)
Interrupt status register for increased performance
Space reserved for termination resistors (PCI-1602UP)
Automatic RS-485 data flow control (PCI-1602UP)
Powerful and easy-to-use utility (ICOM Tools)
Universal and low-profile PCI (Supports 3.3 V or 5 V PCI bus signal)

RoHS

COMPLIANT
2002/95/EC

Introduction
These RS-232/422/485 PCI communication cards are compatible with the PCI 2.2 bus specification for universal connectivity and low-profile PCI cards. The PCI-1604UP provides
two independent RS-232 ports, while the PCI-1602UP has two RS-422/485 ports. To improve system performance, all cards allow transmission rates up to 921.6 kbps. To increase
reliability, the cards offer EFT protection, protecting your system from abrupt high voltages up to 2,500 VDC. High-performance OXuPC1952 and OXuPC1954 UARTs with 128-byte
FIFO, reduces the CPU load, making the cards especially suitable for multitasking environments.
The cards follow the Low Profile PCI MD1 standard. This standard has the same protocol and electronic definition as standard PCI, but the low-profile PCI standard is smaller. Thus,
the cards are suitable for embedded systems, and size-constrained environments. Moreover, all cards are equipped with an universal PCI connector, which allows support for traditional
systems with 5 V signaling or newer systems with 3.3 V signaling.

Specifications
General
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Bus Type
Certifications
Connectors
Dimensions (L x W)
Power Consumption

Software
Universal PCI V 2.2
CE, FCC class A
1 x Female DB25
119.91 x 64.41 mm (4.7" x 2.5") (low-profile MD1)
5 V @ 400 mA (Max.)

Communications
ƒƒ Communication
Controller
ƒƒ Data Bits
ƒƒ Data Signals

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

FIFO
Flow Control
IRQ
Parity
Speed
Stop Bits

OXuPC1952
5, 6, 7, 8
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI,
GND
RS-422: Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-,
GND
128 bytes
CTS/RTS, Xon/Xoff
Assigned by Plug & Play
None, Even, Odd, Mark and Space
50 bps ~ 921.6 kbps
1, 1.5, 2

Protection
ƒƒ ESD Protection
ƒƒ EFT Protection

13-4

15 KV
2,500 VDC
2,000 VDC


ƒƒ Bundled Software
ƒƒ OS Support

ICOM Tools
Windows 2000/XP/Vista/7, Windows CE 5.0/6.0,
Linux, and QNX

Environment
5 ~ 95 % RH, non-condensing (refer to IEC 68-2-3)
ƒƒ Operating Temperature 0 ~ 65°C (refer to IEC 68-2-1, 2) (32 ~ 149°F)

ƒƒ PCI-1602UP
ƒƒ PCI-1604UP

2-port RS-422/485 Low-Profile Uni PCI Comm Card
w/Iso
2-port RS-232 Low-Profile Uni PCI Comm Card w/Iso

Note: PCI-1602UP and PCI-1604UP include one DB25 to 2 x DB9 cable

PCI-1601
PCI-1602
PCI-1603

with Isolation Protection
2-port RS-232/Current-loop Universal PCI Communication
Card with Isolation Protection

Features

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ PCI bus 2.2 compliant
ƒƒ Supports serial speed up to 921.6 kbps, and any baud rate setting
ƒƒ 2-port RS-422/485 interface (PCI-1601/PCI-1602)
ƒƒ 2 independent RS-232 or Current-loop serial ports (PCI-1603)
ƒƒ I/O address automatically assigned by PCI Plug & Play
ƒƒ OS supported: Windows 2K/XP/Vista/7, Windows CE 5.0/6.0, Linux, and QNX
ƒƒ Interrupt status register for increased performance

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

PCI-1601

PCI-1603

PCI-1602

Operator Panels

RoHS

COMPLIANT

Introduction

2002/95/EC

The PCI-1601 and PCI-1602 are two RS-422/485 PCI communication cards that are compatible with the PCI 2.2 bus specification. Both cards provide EFT protected RS-422/485 ports,
and come with features such as: high transmission speed of 921.6 kbps, optional isolation protection, windows utility software and more. The cards also come with high-performance
OXuPCI952 UART with a 128-byte FIFO to reduce CPU load. This makes the PCI-1601 and PCI-1602 especially suitable for multitasking environments.


The PCI-1603 offers a versatile range of high-speed interfacing options. You can switch its ports between the popular RS-232 or noise-resistant current-loop. The card utilizes
OXuPCI952 UART with 128-byte FIFO buffer for faster and more reliable communication, especially under multi-tasking environments such as Windows operating systems. The card
utilizes OXuPCI952 UART that buffers data into packets before sending it to the bus. This drastically reduces CPU load and avoids data loss when the system is busy and cannot
process an interrupt quickly. These FIFO buffers make the PCI-1603 especially suitable for high speed serial I/O under Windows.

Industrial Panel

Specifications
General
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ OS Support

Universal PCI v2.2
CE, FCC class A
2 x Male DB9
123 x 92 mm (4.8" x 3.6")
300 mA @ +5V

Baud-rate
Current Value
Mode
Signal Driver/Receiver
Signals
Transmission Distance

ƒƒ Humidity (Operating)
5 ~ 95 % RH, non-condensing
-25 ~ 85°C (-13 ~ 185°F)

50 ~ 57600 bps
20 mA (Standard)
Asynchronous, full duplex
6N136
TxD+, TxD-, RxD+, RxD1,000 m (RS-422/485 mode only)

ƒƒ EMC

Communications
ƒƒ Communications
Controller
ƒƒ Data Bits
ƒƒ Data Signals

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

FIFO
Flow Control
IRQ
Parity
Speed

ƒƒ Stop Bits

OXuPCI952
5, 6, 7, 8
RS-422: Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-, GND
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
128 bytes
RTS/CTS. Xon/Xoff
230.4 kbps (PCI-1601B, PCI-1602 and PCI-1603 in
Current-loop mode only)
1, 1.5, 2

Protection
ƒƒ ESD Protection
ƒƒ EFT Protection
Model Name
PCI-1601A
PCI-1601B
PCI-1602
PCI-1603

ICOM Tools
Windows CE 5.0/6.0, Linux, and QNX

Environment

Current-loop Interface (PCI-1603)
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Industrial Wireless
Solutions

Software

Bus Type
Certification
Connectors
Dimensions (L x W)
Power Consumption

EN 55011: 2009 + A1:2010, Group 1, Class A
EN 55022: 2010, Class A
EN 61000-6-4: 2007
EN 55024: 2010
EN 61000-6-2: 2005
IEC 61000-4-2: 2008
IEC 61000-4-3: 2006 +A1: 2007 +A2: 2010
IEC 61000-4-4: 2010
IEC 61000-4-6: 2008
IEC 61000-4-8: 2009
FCC 47 CFR Part 15 Subpart B (Class B),
IC ICES-003 (2004)

ƒƒ
ƒƒ
ƒƒ
ƒƒ

PCI-1601A
PCI-1601B
PCI-1602
PCI-1603

2-port RS-422/485 PCI Comm. Card
2-port RS-422/485 PCI Comm. Card w/Surge
2-port RS-422/485 PCI Comm. Card w/Surge+Iso
2-port RS-232/Current Loop PCI Comm. Card
w/Surge+Iso

8 kV (air), 4 kV (contact)
1,000 V
Surge Protection
1000 VDC
1000 VDC
1000 VDC

Industrial Monitors

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

2500 VDC
2500 VDC


13-5

PCI-1610
PCI-1612

4-port RS-232 Universal PCI
Communication Card
4-port RS-232/422/485 Universal
PCI Communication Card
Features
ƒƒ 4-port RS-232 (PCI-1610), 4-port RS-232/422/485 (PCI-1612)
ƒƒ OXuPCI954 UART with 128-byte FIFO standard
ƒƒ OS supported: Windows 2000/XP/Vista/7, Windows CE 5.0/6.0, Linux,
and QNX
ƒƒ Powerful and easy to use utility (ICOM Tools)
ƒƒ Universal PCI, supports 3.3 V or 5 V PCI bus signal
ƒƒ 1,000 VDC surge protection
ƒƒ 2,500 VDC isolation protection (PCI-1610C and PCI-1612C only)

PCI-1610

PCI-1612
RoHS

COMPLIANT
2002/95/EC

Introduction
The PCI-1610 is a four port RS-232, and PCI-1612 is a four port RS-232/422/485 PCI communication card that are compatible with the PCI 2.2 bus specification, and offer
transmission speeds up to 921.6 kbps. They also support any baud rate setting, for example 500 kbps is acceptable. The PCI-1610 and PCI-1612 also come with high-performance
OXuPCI954 UART with 128-byte FIFO to reduce CPU load. These components make your system more stable and reliable. Thus, the PCI-1610 and PCI-1612 are especially suitable
for multitasking environments.
Both the PCI-1610 and PCI-1612 have an universal PCI connector that is compatible with both the latest 3.3 V signaling systems and the traditional 5V signaling system. This gives high
compatibility and allows usage in diverse systems. To further increase reliability, the cards can protect your system from abrupt high voltages up to 2,000 voltage thanks to EFT protection
technology. PCI-1610C and PCI-1612C also provide 2,500 voltage optical isolation to protect your PC and equipment against damages from ground loops in harsh environments.

Specifications

Software
ƒƒ OS Support

General
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Bus Type
Certification
Connectors
Dimensions (L x W)
Power Consumption

Universal PCI v2.2
CE, FCC class A
1 x Female DB37
185 x 100 mm (7.3" x 3.9")
180 mA @ +5 V

Communications
ƒƒ Communication
Controller
ƒƒ Data Bits
ƒƒ Data Signals

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

FIFO
Flow Control
IRQ
Parity
Stop Bits
Speed

Model Name
PCI-1610A
PCI-1610B
PCI-1610C
PCI-1612A
PCI-1612B
PCI-1612C

13-6

5 ~ 95% RH, non-condensing
ƒƒ EMC

5, 6, 7, 8
GND (PCI-1610, PCI-1612)
RS-422: Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS(PCI-1612)
RS-485: Data+, Data- (PCI-1612)
128 bytes
RTS/CTS, Xon/Xoff
1, 1.5, 2
230.4 kbps (PCI-1610B/C and PCI-1612B/C only)
15KV
2,000 V
Surge Protection
1000 VDC
1000 VDC
1000 VDC
1000 VDC

Environment


OXuPCI954

Protection
ƒƒ ESD Protection
ƒƒ EFT Protection

ICOM Tools
Windows CE 5.0/6.0, Linux, and QNX

2500 VDC
2500 VDC


EN 55011: 2009 + A1:2010, Group 1, Class A
EN 55022: 2010, Class A
EN 61000-6-4: 2007
EN 55024: 2010
EN 61000-6-2: 2005
IEC 61000-4-2: 2008
IEC 61000-4-3: 2006 +A1: 2007 +A2: 2010
IEC 61000-4-4: 2010
IEC 61000-4-6: 2008
IEC 61000-4-8: 2009
FCC 47 CFR Part 15 Subpart B (Class B),
IC ICES-003

ƒƒ PCI-1610A
4-port RS-232 PCI Comm. Card
ƒƒ PCI-1610B
4-port RS-232 PCI Comm. Card w/Surge
ƒƒ PCI-1610C
4-port RS-232 PCI Comm. Card w/Surge+Iso
ƒƒ PCI-1612A
4-port RS-232/422/485 PCI Comm. Card
ƒƒ PCI-1612B
4-port RS-232/422/485 PCI Comm. Card w/Surge
ƒƒ PCI-1612C
4-port RS-232/422/485 PCI Comm. Card w/Surge+Iso
Note: this series includes cable OPT4A.

Accessories
ƒƒ OPT4A
ƒƒ 1700018791

DB37 x1 to DB9 x4 Cable, 30cm
DB37 x1 to DB25 x4 Cable, 30cm

PCI-1620
PCI-1622

8-port RS-232 Universal PCI
Communication Card
8-port RS-422/485 Universal PCI
Communication Card
Features
ƒƒ 8-port RS-232, or 8-port RS-422/485
ƒƒ OXuPC1954 UARTs with 128-byte FIFOs standard
ƒƒ OS supported: Windows 2000/XP/Vista/7, Windows CE 5.0/6.0, Linux,
and QNX
ƒƒ Space reserved for termination resistors
ƒƒ Powerful and easy to use utility (ICOM Tools)
ƒƒ Universal PCI, supports 3.3 V or 5 V PCI bus signal

PCI-1620

ƒƒ 1,000 VDC surge protection and 2,500 VDC isolation protection (PCI-1622C only)

PCI-1622
COMPLIANT
2002/95/EC

The PCI-1620 is an eight port RS-232, and PCI-1622 is an eight port RS-422/485 PCI communication card that are compatible with the PCI 2.2 bus specification, and offer
transmission speeds up to 921.6 kbps.They also support any baud rate setting, for example 500 kbps is acceptable. PCI-1620 and PCI-1622 also come with high-performance
OXuPC1954 UART with 128- byte FIFO to reduce CPU load. These components make your system more stable and reliable. Thus, the PCI-1620 and PCI-1622 are especially suitable
for multitasking environments.
The PCI-1620 and PCI-1622 have an universal PCI connector that is compatible with both the latest 3.3 V signaling systems and the traditional 5V signaling system. This gives high
compatibility and allows usage in diverse systems. To further increase reliability, the PCI-1620 and PCI-1622 offer EFT protection technology, protecting your system from electrical
surges up to 2,500 volts. The PCI-1622C also provides 2,500 voltage optical isolation to protect your PC and equipment against damages from ground loops in harsh environments.

Specifications
Universal PCI v2.2
CE, FCC class A
PCI-1620: 1 x Female DB62
PCI-1622: 1 x Female DB78
185 x 100 mm (7.3" x 3.9")
600 mA @ +5 V

ƒƒ OS Support

OXuPC1954


5, 6, 7, 8
GND (PCI-1620)
RS-422: Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS(PCI-1622)
RS-485: Data+, Data- (PCI-1622)
128 bytes
RTS/CTS, Xon/Xoff
None, Even, Odd
230.4 kbps (PCI-1620B and PCI-1622B/C only)
1, 1.5, 2

ƒƒ Dimensions (L x W)

ƒƒ EMC

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

FIFO
Flow Control
IRQ
Parity
Speed

ƒƒ Stop Bits

Protection
ƒƒ ESD Protection
ƒƒ EFT Protection
Model Name
PCI-1620A
PCI-1620B
PCI-1622A
PCI-1622B
PCI-1622C

15KV
2,500KV
Surge Protection
1000 VDC
1000 VDC
1000 VDC

ICOM Tools
Windows 2000/XP/Vista/7, Windows CE 5.0/6.0, Linux
and QNX

Environment
5 ~ 95% RH, non-condensing

Communications
ƒƒ Communication
Controller
ƒƒ Data Bits
ƒƒ Data Signals

Energy Automation

Building Automation
Systems

Automation Software

EN 55022, EN 61000-3-2, EN 61000-3-3, EN 55044
including (IEC 61000-4-2/3/4/5/6/8/11), FCC Part 15
Subpart B

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

PCI-1620A
PCI-1620B
PCI-1622A
PCI-1622B
PCI-1622C

8-port RS-232 PCI Comm. Card
8-port RS-232 PCI Comm. Card w/Surge
8-port RS-422/485 PCI Comm. Card
8-port RS-422/485 PCI Comm. Card w/Surge
8-port RS-422/485 PCI Comm. Card w/Surge+Iso

Accessories
ƒƒ OPT8C
ƒƒ OPT8H
ƒƒ OPT8J


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Software

General
ƒƒ Bus Type
ƒƒ Certification
ƒƒ Connectors

Machine Automation

Operator Panels

RoHS

Introduction

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


DB62 x1 to DB25 x8 Cable, 1m

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

2500 VDC


13-7

PCIE-1620
PCIE-1622

8-port RS-232 PCI Express Communication Card
8-port RS-232/422/485 PCI Express
Communication Card
Features

NEW

ƒƒ PCI Express x1 compliant
ƒƒ Speeds up to 921.6 kbps for extremely fast data transmission
ƒƒ Supports any baud rate setting
ƒƒ 8 x RS-232 or RS- 232/422/485 ports
ƒƒ Operating systems supported: Windows 2000/XP/Vista/7, and Linux 2.4/2.6
ƒƒ OXPCIe958 UART with 128-byte FIFOs standard

PCIE-1620

PCIE-1622
RoHS

COMPLIANT
2002/95/EC

Introduction
PCIE-1620 is an 8-port RS-232, and PCIE-1622 is an 8-port RS-232/422/485 PCI Express communication cards that are compatible with the PCI Express x 1 specification. The
cards provide eight EFT protected RS-232/422/485 ports up to 2,500 VDC, and have many functions such as high transmission speed of 921.6 kbps; either eight independent RS-232
ports or eight independent RS-232/422/485 ports which comes with high-performance PCIe958 UARTs with 128-byte FIFO to reduce CPU load. Thus, the PCIE-1620/ PCIE-1622
are especially suitable for making your system reliable in multitasking environments.

Specifications
Software

General
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Bus Type
Certification
Connectors
Dimensions (L x W)
Power Consumption

PCI Express® x1 compliant
CE, FCC class A
1x Female DB62
185 x 100 mm (7.3" x 3.9")
260 mA @ +3.3 V

Communications
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Comm. Controller
Data Bits
Data Signals
FIFO
Flow Control
Parity
Speed

ƒƒ Stop Bits

OxPCIe958
5, 6, 7, 8
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
128 bytes
RTS/CTS, Xon/Xoff
None, Odd, Even, Mark and Space
50 bps ~ 921.6 kbps and any other baud rate setting
230.4 kbps (PCIE-1620B and PCIE-1622B only)
1, 1.5, 2

Protection
ƒƒ ESD Protection
ƒƒ EFT Protection
Model Name
PCIE-1620A
PCIE-1620B
PCIE-1622A
PCIE-1622B

13-8

15 KV
2,500 KV
Surge Protection
1000 VDC
1000 VDC


ƒƒ OS Support

ICOM Tools
Windows 2000/XP/Vista/7 and Linux

Environment
5 ~ 95 % RH, non-condensing

ƒƒ
ƒƒ
ƒƒ
ƒƒ

PCIE-1620A
PCIE-1620B
PCIE-1622A
PCIE-1622B

8-port RS-232 PCI Express Comm. Card
8-port RS-232 PCI Express Comm. Card w/Surge
8-port RS-232/422/485 PCI Express Comm. Card
8-port RS-232/422/485 PCI Express Comm. Card
w/ Surge

Accessories
ƒƒ OPT8C
ƒƒ OPT8H

DB62 x1 to DB9 x8 Cable , 1m

2-port 10/100/1000 BaseT(X) 802.3af
(PoE) Compliant Ethernet ports, PCI

PCIE-1672PC
PCIE-1674PC

4-port 10/100/1000 BaseT(X) 802.3af
(PoE) Compliant Ethernet ports, PCI

Features

NEW

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ Intel® GbE Mac Controller
ƒƒ PCI Express® x4 compliant
ƒƒ Supports 2 or 4 Gigabit Ethernet MAC Controller and PHY ports
ƒƒ Supports 12 VDC AT/ATX input power boost up to 15.4 watts at 48 VDC per
PoE port
ƒƒ Supports PoE (Power over Ethernet), IEEE 802.3af compliant
ƒƒ Powered Device (PD) auto detection and classification
ƒƒ Supports IEEE 802.3u Auto-Negotiation
ƒƒ 2.25 KV isolation protection on LAN ports and power

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

PCIE-1672PC

PCIE-1674PC

Operator Panels

RoHS

COMPLIANT
2002/95/EC

Introduction


The PCIE-1672PC/PCIE-1674PC PoE (Power over Ethernet) PCIE series is PCI express communication card which supports 2 or 4 independent 10/100/1000BaseT(X) 802.3af (PoE)
compliant Ethernet ports. With 12 VDC AT/ATX power input, the PCIE-1672PC/PCIE-1674PC can boost then provides up to 15.4 watts at 48 VDC power to maximum 2 or 4 x PoE ports
on each module. It allows power to be supplied to connected devices, such as PoE-based GigE cameras in machine vision inspection systems, without the need to use separate PoE
injectors for those applications. With its 2.25 KV isolation protection, and overload current/voltage protection on LAN ports, the PCIE-1672PC/PCIE-1674PC is ideally designed for
scientific research instrumentations, Medical Research Instrumentations, Gigabit Ethernet surveillance IP cameras in intelligent transportation systems, which can also benefit from
a scalable Gigabit backbone construction with Power-over-Ethernet support.

Industrial Panel

Industrial Monitors

Specifications
Environment

Industrial Wireless
Solutions

IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x,
IEEE802.3af
10/100/1000 Mbps
2 or 4 Gigabit Ethernet Media Access Control (MAC)
and physical layer (PHY) ports.
8-pin RJ45
Built-in 2.25KV isolation protection on LAN ports and
power, ESD 8KV, EFT 2KV

5 ~ 95% RH

Industrial Ethernet
Solutions

PCI Express® x4 compliant

ƒƒ PCIE-1672PC
2-port PoE ports PCI Express Comm Card
ƒƒ PCIE-1674PC
4-port PoE ports PCI Express Comm Card
Note: this series includes cable 170304015K.

ƒƒ Compatibility
ƒƒ Speed
ƒƒ No. of Ports
ƒƒ Port Connector
ƒƒ Protection
ƒƒ Bus Interface

Power Requirements
ƒƒ Input Voltage
Protection
ƒƒ Connection
ƒƒ Output PoE Power
PCIE-1672PC
PCIE-1674PC

12 VDC, AT/ATX System power input
Present
AT/ATX Power Jack
48 VDC PoE Power output
Supports 2 PoE ports up to 15.4 W at 48 VDC
Supports 4 PoE ports up to 15.4 W at 48 VDC

General
ƒƒ Dimensions (L x W)

185 x 110 mm (7.3" x 3.9")


Accessories
ƒƒ 170304015K

2P x2-4.2/B4P-5.08x 2 Cable, 15 CM

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


13-9

PCI-1682U

2-port CAN-bus Universal PCI Communication
Card with CANopen Support
Features
ƒƒ Operates two separate CAN networks at the same time
ƒƒ High speed transmission up to 1 Mbps
ƒƒ 16 MHz CAN controller frequency
ƒƒ Optical isolation protection of 1000 VDC ensures system reliability
ƒƒ I/O address automatically assigned by PCI PnP
ƒƒ LED indicated transmit/receive status on each port
ƒƒ Windows® DLL library and examples included
ƒƒ Supports Windows 2000/XP/Vista/7, Linux and QNX CAN driver
ƒƒ Supports CANopen protocol

RoHS

COMPLIANT
2002/95/EC

Introduction
The PCI-1682U is a special purpose communication card that offers the connectivity of the Controller Area Network (CAN) to your PC. With its built-in CAN controllers, the PCI-1682U
provides bus arbitration and error detection with an automatic transmission repeat function. This drastically reduces the chance of data loss and ensures system reliability. The onboard
CAN controllers are located at different positions in the memory, and you can run both CAN controllers independently at the same time. Besides, the PCI-1682U has a universal PCI
connector, which is compatible with both new 3.3 V signaling systems and traditional 5 V signaling systems. With high-compatibility, the PCI-1682U can be used in diverse systems.

Controller Area Network (CAN)
The CAN is a serial bus system especially suitable for networking “intelligent” I/O devices as well as sensors and actuators within a machine or plant. Characterized by its multi-master
protocol, real-time capability, error correction, high noise immunity, and the existence of many different silicon components, the CAN serial bus system, originally developed by
Bosch™ for use in automobiles, is increasingly being used in industrial automation.

Direct Memory Mapping Enables Direct Access to the CAN Controller
The PCI-1682U is assigned a memory address. This is the simplest method of integrating a board in a PC and provides the quickest access since the board is treated by the PC as
being standard RAM.

Advantech CANopen Protocol Library
Advantech CANopen Protocol Library (acoapi) provides a C application programming interface (API) for accessing the CANopen network protocol stack of nodes. It is easy to use,
configure, start and monitor the CANopen devices careless CAN bus, developer just focused on CANopen application functionality.

Specifications
General
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Card Interface
Certifications
Connectors
Dimensions
Ports
Power Consumption

Environment
Universal PCI V 2.2
CE, FCC class A
2 x DB9-M
175 x 105 mm (6.9" x 4.1")
2
5 V @ 400 mA (Typical)

CAN Controller
CAN Transceiver
Protocol
Signal Support
Speed
Termination Resistor

NXP SJA1000
PCA82C250
CAN 2.0 A/B
CAN_H, CAN_L, GND
1 Mbps
120 ohm (selected by jumper)

Software
ƒƒ CAN bus Driver
ƒƒ CANopen Software

13-10

Operating Humidity
5 ~ 95% RH
Storage Humidity
0 ~ 95% RH

ƒƒ EMC

Communication
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Windows 2000/XP/Vista/7 (x86 and x64),
Windows CE 5.0/6.0, Linux, QNX
Windows 2000/XP/Vista/7 (x86 and x64),
Windows CE 5.0/6.0


EN55011, EN55022, EN61000-6-4, EN55024,
EN61000-6-2, IEC 61000-4-2/3/4/6/8, FCC Part 15
Subpart B (Class B)

Protection

1,000 VDC

ƒƒ PCI-1682U

2-port CAN-bus Uni PCI Comm Card w/CANopen

PCL-841
PCI-1680U
PCM-3680/I

2-port CAN-bus ISA Card with Isolation Protection
2-port CAN-bus Universal PCI Card with Isolation Protection
2-port CAN-bus PC/104 / PCI-104 Module with Isolation
Protection

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

PCL-841

PCI-1680U

RoHS

COMPLIANT
2002/95/EC

PCM-3680I

RoHS

COMPLIANT
2002/95/EC

RoHS

COMPLIANT
2002/95/EC

Automation Software

Features

Features

Features

ƒƒ Operates two separate CAN networks simultaneously



ƒƒ High speed transmission up to 500 kbps

ƒƒ High speed transmission up to 1 Mbps

ƒƒ Optical isolation protection of 1000 VDC

ƒƒ Optical isolation protection of 1000 VDC

ƒƒ Windows DLL library and examples included

ƒƒ Windows DLL library and examples included

ƒƒ Wide IRQ selection for each port: IRQ 3, 4, 5, 6, 7, 9,
10, 11, 12, 15

ƒƒ I/O address automatically assigned by PCI PnP

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ Supports 32-bit/64-bit Windows 2000/XP/Vista/7
and Linux

ƒƒ Supports 32-bit/64-bit Windows 2000/XP/Vista/7
and Linux

High speed transmission up to 1 Mbps
16 MHz CAN controller frequency
Optical isolation protection ensures system reliability
LEDs indicate Transmit/Receive status on each port
Supports wide operating temperature
Supports 32/64-bit WinXP/Vista/Win7 and Linux
Supports WinCE 5.0/6.0

Specifications

Specifications

Specifications

General

General

General

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ Card Interface

Card Interface
ISA
Certifications
CE, FCC
Connectors
2 x DB9-M
Dimensions
185 x 100 mm (7.3" x 3.9")
Ports
2
Power Consumption 5 V @ 400 mA typical

Card Interface
Universal PCI
Certifications
CE, FCC
Connectors
2 x DB9-M
Dimensions
185 x 100 mm (7.3" x 3.9")
Ports
2
Power Consumption 5 V @ 400 mA typical

Communications

Communications

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

SJA-1000
82C250
CAN2.0 A/B
500 kbps
3, 4, 5, 6, 7, 9, 10, 11, 12,
or 15
ƒƒ Memory Segment Base Address
From C800H to EF00H
ƒƒ Signal Support
CAN_H, CAN_L

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

CAN Controller
CAN Transceiver
Protocol
Speed
IRQ

CAN Controller
CAN Transceiver
Protocol
Speed
CAN Frequency
Signal Support

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

PCM-3680: PC/104
PCM-3680I: PCI-104
Certifications
CE, FCC
Connectors
2 x DB9-M with cable
Dimensions
90 x 96 mm (3.6" x 3.8")
Ports
2
Power Consumption 5 V @ 400 mA

ƒƒ
ƒƒ
ƒƒ
ƒƒ

CAN Controller
CAN Transceiver
Protocol
Speed

ƒƒ CAN Frequency
ƒƒ Signal Support

SJA-1000
82C250
CAN2.0 A/B
Up to 1 Mbps
programmable transfer rate
16 MHz
CAN_H, CAN_L

Protection

Protection

ƒƒ Isolation Protection 1,000 VDC


Protection

Environment

Environment



Environment



0 ~ 50°C (32 ~ 122°F)

ƒƒ PCL-841

ƒƒ PCI-1680U

0 ~ 65°C (32 ~ 149°F)

2-port CAN Uni-PCI
COMM Card w/Iso


-40 ~ 85°C (-40 ~ 185°F)

ƒƒ PCM-3680
ƒƒ PCM-3680I

2-port CAN-bus ISA
Comm. Card w/ Iso


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Communications
SJA-1000
82C250
CAN2.0 A/B
1 Mbps
16 MHz
CAN_H, CAN_L

Operator Panels

Dual-port Iso CAN-bus
PC/104 Module
Dual-port Iso CAN-bus
PCI-104 Module

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


13-11

PCM-3610
PCM-3612
PCM-3614

PCM-3610

2-port RS-232/422/485 PC/104 Module
with Isolation Protection
2-port RS-422/485 PC/104 Module

PCM-3612

RoHS

COMPLIANT
2002/95/EC

PCM-3614

RoHS

COMPLIANT
2002/95/EC

RoHS

COMPLIANT
2002/95/EC

Features

Features

Features

ƒƒ High speed transmission rate

ƒƒ Long distance communication



ƒƒ Jumper selectable interrupt level

ƒƒ Jumper selectable interrupt level

ƒƒ Supports Windows 2000/XP/Vista/7


ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ Supports WinCE 4.2, 5.0


ƒƒ Powerful and easy-to-use utility (ICOM Tools)


Specifications

Specifications

Specifications

General

General

General

ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Card Interface
Certifications
Connectors
Ports
Power Consumption

PC/104
CE, FCC
2 x DB9-M
2
+5V @ 400mA (Typical)

Communications
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Channel 1
Channel 2
Character Length
IRQ
Parity
Speed
Stop Bit

RS-232, 422, or 485
RS-422, or RS-485
5, 6, 7, or 8 bits
3, 4, 5, 6, 7, 9
Even, Odd, or None
50 bps ~ 115.2 kbps
1, 1.5, or 2

Protection

Environment
ƒƒ Operating Humidity 0 ~ 90 % RH
ƒƒ Operating
0 ~ 65°C (32 ~ 149°F)
Temperature

ƒƒ PCM-3610

Card Interface
Certifications
Connectors
Indicators

PC/104
CE, FCC
2 x DB9-M
Red LED for TX
Green LED for RX
ƒƒ Ports
2
ƒƒ Power Consumption +5V @ 400mA (Typical)

Communications
ƒƒ Channel 1 and 2
ƒƒ Character Length
ƒƒ IRQ
ƒƒ Parity
ƒƒ Speed
ƒƒ Stop Bit

RS-422, or RS-485
5,6,7, or 8 bits
3, 4, 5, 6, 7, 9, 10, 11, 12
or 15
Even, Odd, or None
50 bps ~ 115.2 kbps
1, 1.5, or 2

Environment

Automatic RS-485 data flow control
Shared IRQ settings for each ports
LED indicators: TX, RX
Standard PC ports: COM1, COM2, COM3, COM4
compatible

Card Interface
Certifications
Connectors
Ports
Power Consumption

Communications
ƒƒ Data Bits
ƒƒ I/O Address Range
ƒƒ IRQ
ƒƒ Parity
ƒƒ Data Signals

ƒƒ Speed
ƒƒ Stop Bits

5, 6, 7, 8
0 x 000 ~ 0 x 3F8
3, 4, 5, 6, 7, 9, 10, 11, 12,
or 15
Even, Odd, or None
RS-422: TxD+, TxD-, RxD+,
RxD-, CTS+, CTS-, RTS+
and RTSRS-485: DATA+, DATA-,
CTS+, CTS50 bps ~ 921.6 kbps
1, 1.5, 2

ƒƒ Operating
0 ~ 65°C (32 ~ 149°F)
Temperature

Protection


ƒƒ Operating
0 ~ 65°C (32 ~ 149°F)
Temperature

ƒƒ PCM-3612

Isolated RS-232/422/485
Module

Dual Port RS-422/485
Module

ƒƒ EFT Protection
1,000 VDC
ƒƒ Termination Resistor 120 Ω

Environment

ƒƒ PCM-3614

13-12

PC/104
CE, FCC
4 x DB9-M
4
+5V @ 450mA (Typical)


4-port RS-422/485
High-speed Module

PCM-3618
PCM-3640/3641
PCM-3660

8-port RS-422/485 High-speed
PC/104 Module
4-port RS-232 High-speed
PC/104 Module
Jumperless Ethernet PC/104 Module

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

PCM-3618

PCM-3641

RoHS

COMPLIANT
2002/95/EC

RoHS

COMPLIANT
2002/95/EC

PCM-3660

RoHS

COMPLIANT
2002/95/EC

Automation Software

Features

Features

Features


ƒƒ Transmission speeds up to 460 kbps (PCM-3641)
ƒƒ Shared IRQ settings for each of 4 RS-232 ports
(PCM-3641)
ƒƒ Standard PC ports: COM1, COM2, COM3, COM4
compatible
ƒƒ Supports WinCE 5.0/6.0

ƒƒ Automatically detects 8-bit or 16-bit

Specifications

Specifications

Specifications

General

General

General

ƒƒ Shared IRQ settings for each ports
ƒƒ LED indicators: TX, RX

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Card Interface
Certifications
Connectors
Ports
Power Consumption

PC/104
CE, FCC
8 x DB9-M
8
+5V @ 650 mA

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Card Interface
Certifications
Connectors
Ports
Power Consumption

Communications
ƒƒ Data Bits
ƒƒ IRQ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ

5, 6, 7, 8
0 x 000 ~ 0 x 3F8
3, 4, 5, 6, 7, 9, 10, 11, 12,
15
Parity
None, Even and Odd
Data Signals
RS-422: TxD+, TxD-, RxD+,
RxD-, CTS+, CTS-, RTS+
and RTSRS-485: DATA+, DATA-,
CTS+, CTSSpeed
50 bps ~ 921.6 kbps
Stop Bits
1, 1.5, 2
Termination Resistor 120 W

ƒƒ EFT Protection

1,000 VDC

Environment
ƒƒ Operating
0 ~ 65°C (32 ~ 149°F)
Temperature
(IEC-68-1-1, 2)

ƒƒ PCM-3618

Communications
ƒƒ Data Bits
ƒƒ Data Signals
ƒƒ IRQ
ƒƒ Parity
ƒƒ Speed

ƒƒ Stop Bits

Protection

8-port RS-422/485
High-Speed Module

PC/104
CE, FCC
4 x DB9-M
4
+5V @ 200 mA (Typical)
+5V @ 250 mA (Max)
5, 6, 7, 8
RS-232: TxD, RxD, RTS,
CTS, DTR, DSR, DCD, RI,
GND
0 x 0200 ~ 0 x 03F8
3, 4, 5, 6, 7, 9, 10, 11, 12,
15
None, Even and Odd
50 bps ~ 460.3 kbps
(PCM-3641)
50 bps ~ 115.2 kbps
(PCM-3640)
1, 1.5, 2

ƒƒ AUI connector supports external MAUs
ƒƒ Onboard 32 KB buffer for multi-packages


Industrial Panel

ƒƒ Boot ROM Address C0000, C8000, D0000, or
D8000H
ƒƒ Card Interface
PC/104
ƒƒ Certifications
CE, FCC
ƒƒ Connectors
1 x PC/104 stackthrough
1 x 10Base-T (RJ-45)
1 x 16-pin insulation
displacement connector
for AU1
ƒƒ Power Consumption +5V @ 400 mA max

ƒƒ Data Bus
ƒƒ I/O Address

ƒƒ IRQ
ƒƒ Standard

ƒƒ PCM-3640
ƒƒ PCM-3641

4-port RS-232 Module
4-port RS-232 High-speed
Module

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Communications

Environment
ƒƒ Operating
0 ~ 65°C (32 ~ 149°F)
Temperature
(IEC-68-1-1, 2)

Operator Panels

8-bit, 16-bit,
or auto-sending
200, 220, 240, 260, 280,
2A0, 2C0, 300, 320, 340,
380, 3A0
3,4,5,9, 10, 11, 12 or 15
IEEE 802.3 10 Mbps
CSMA/CD 10Base-T
Transceiver

Environment
ƒƒ Operating Humidity 10 ~ 90% RH
ƒƒ Operating
0 ~ 70°C (32 ~ 158°F)
Temperature
ƒƒ Storage Temperature -15 ~ 80°C (5 ~ 176°F)

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

ƒƒ PCM-3660


Jumperless Ethernet
Module

13-13

PCM-3614I/3618I
PCM-3641I

PCM-3614I

4/8-port RS-232/422/485
PCI-104 Module
4-port RS-232 PCI-104
Module

PCM-3641I

RoHS

COMPLIANT
2002/95/EC

RoHS

COMPLIANT
2002/95/EC

Features

Features

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ Transmission speeds up to 460 kbps

Shared IRQ settings for each port
LED indicators: TX, RX
Standard PC ports: COM1, COM2, COM3, COM4 compatible
Supports Windows 2000/XP/Vista/7 and Linux
Supports WinCE 5.0/6.0
Powerful and easy-to-use utility (ICOM Tools)

ƒƒ Shared IRQ settings for each port
ƒƒ Standard PC ports: COM1, COM2, COM3, COM4 compatible
ƒƒ Supports Windows 2000/XP/Vista/7 and Linux

Specifications

Specifications

General

General

ƒƒ Card Interface
ƒƒ Connectors
ƒƒ Ports

PCI-104
PCM-3614I: 1 x 40-pin box header
PCM-3618I: 2 x 40-pin box header
PCM-3614I: 4
PCM-3618I: 8
+5V @ 450 mA

Communications
ƒƒ Data Bits
ƒƒ Data Signals

ƒƒ
ƒƒ
ƒƒ
ƒƒ

IRQ
Parity
Speed
Stop Bits

5, 6, 7, 8
RS-422: TxD+, TxD-, RxD+, RxD-, CTS+, CTS-, RTS+,
RTSRS-485: DATA+, DATA-, GND
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
3, 4, 5, 6, 7, 9, 10, 11, 12, 15
None, Even and Odd
50 bps ~ 921.6 kbps
1, 1.5, 2

Protection
ƒƒ EFT Protection
ƒƒ Termination Resistor

1,000 VDC
120 Ω

Environment
0 ~ 90 % RH

ƒƒ PCM-3614I
ƒƒ PCM-3618I

13-14

4-port RS-232/422/485 PCI-104 Module
8-port RS-232/422/485 PCI-104 Module


ƒƒ
ƒƒ
ƒƒ
ƒƒ

Card Interface
Connectors
Ports
Power Consumption

PCI-104
4
+5V @ 250 mA (max.)

Communications
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Data Bits
Data Signals
IRQ
Parity
Speed
Stop Bits

5, 6, 7, 8
TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
3, 4, 5, 6, 7, 9, 10, 11, 12, 15
None, Even and Odd
50 bps ~ 460.3 kbps
1, 1.5, 2

Protection
ƒƒ EFT Protection
ƒƒ Termination Resistor

1,000 VDC
120 W

Environment
0 ~ 90 % RH
ƒƒ Operating Temperature -40 ~ 85°C(-40 ~ 185°F)
ƒƒ Storage Temperature -40 ~ 85°C(-40 ~ 185°F)

ƒƒ PCM-3641I

4-port RS-232 PCI-104 Module

Embedded Automation
Computers

14

Embedded Automation Computer Overview
Embedded OS Introduction and Driver Support
Embedded Automation Computer Selection Guide

14-2
14-3
14-4

Din-rail Automation Computer
UNO-1110
UNO-1150G/GE
UNO-1170A/AE
UNO-1172A/AE

TI Cortex AM3505 DIN-rail PC with 2 x LAN, 5 x COM, 4 x USB
™
AMD Geode LX800 DIN-rail PCs with 2 x LAN, 3 x COM, PCI-104
Intel® Atom™ N270 DIN-rail PCs with 2 x LAN, 3 x COM, 4 x USB, PC/104+
™
Intel® Atom D510 DIN-rail PCs with 3 x LAN, 2 x COM, VGA, Mini PCIe,
PC/104+

14-8
14-9
14-10
14-11

High-performance Automation Computers with PC/104+ Expansion
UNO-2050G
UNO-2053GL
UNO-2059GL
UNO-2173A/AF
UNO-2174A/2178A
UNO-2174G/GL
UNO-2184G
UNO-2170

AMD Geode™ LX Automation Computer with 2 x LAN, 4 x COM, 8 x DI, 8 x DO
AMD Geode™ GX Automation Computer with 2 x LAN, 2 x COM, Audio, PC Card
AMD Geode™ LX Automation Computer with 4 x COM, LAN
Intel® Atom™ N270 Automation Computers with 2 x LAN, 3 x COM, Mini PCIe
Intel® Atom™ N450/ D510 Automation Computers with 6 x USB, 8 x COM,
2 x Mini PCIe
Intel® Celeron® Automation Computers with 4 x GbE, 2 x Mini PCIe, DVI/DP/HDMI
Intel® Core™ i7 Automation Computer with 4 x GbE, 2 x Mini PCIe, DVI/DP/HDMI
Intel® Celeron® M Automation Computer with 2 x LAN, 4 x COM, PC/104

14-12
14-13
14-14
14-15
14-16
14-17
14-18

Wallmount Automation Computers with PCI/PCIe Expansion
UNO-3000G Series
UNO-3072LA
UNO-3072A
UNO-3074A
UNO-3082
UNO-3084

Intel Core i7/Celeron 800 series Automation Computers with 3/5 PCI(e)
expansion slots, 2 Mini PCIe slots and 2 CFast sockets
Intel® Atom™ N270 Automation Computer with 2 x PCI, 2 x GbE, DVI
Intel® Atom™ D510 Automation Computer with 2 x PCI, 2 x GbE, and FireWire
Intel® Atom™ D510 Automation Computer with 4 x PCI, 2 x GbE, and FireWire
Intel® Core™ 2 Duo Automation Computer with Dual DVI, 2 x PCI and FireWire
Intel® Core™ 2 Duo Automation Computer with Dual DVI, 1 x PCIe, 3 x PCI and
FireWire

14-19
14-20
14-21
14-22

Domain certified UNO
Class I, Division 2 Certification Overview
Class I, Division 2 Certified 486SX-grade SoC DIN-rail PC with 1 x LAN,
UNO-1140FH
8 x Isolated COM
UNO-1150GH
Class I, Division 2 Certified AMD Geode™ LX DIN-rail PC with 2 x LAN, 3 x COM
UNO-1150GHE
Class I, Division 2 Certified AMD Geode™ LX DIN-rail PC with 2 x LAN,
3 x COM, PCI-104
Class I, Division 2 Certified Intel® Atom™ D510 DIN-rail PC with 3 x LAN,
UNO-1172AH
2 x COM, VGA, Mini PCIe

14-23
14-24
14-25
14-26

Accessories
Accessories

14-27

To view all of Advantech’s Embedded Automation Computers, please visit www.advantech.com/products.

Embedded Automation
Computer Overview
Introduction


Advantech’s Embedded Automation Computers are designed to fulfill the needs of mission
critical automation applications. Their embedded design, industrial automation features
and advanced computer technology deliver robustness, reliability and flexibility to satisfy
customers who are looking for a rugged & compact computing platform with an industrial
design and built-in I/O for diverse automation applications.
Leveraging field-approved and worldwide accepted real-time OS technology, Advantech
provides Windows CE, Windows XP Embedded and Embedded Linux ready solutions
and supports several standard networking interfaces, such as Ethernet, RS-232/422/485,
onboard I/O lines, CANbus and more. Because of their open architecture, great expansion
capability and reliable fanless, cable-less and diskless design, Advantech’s Embedded
Automation Computers are ideal platforms to implement diverse custom applications
in power and energy, transportation, machine automation, factory automation, building
automation, facility monitoring system, and environment monitoring vertical markets.

For the extremely low temperature environment, ex. -40°C, we can also offer the optional
module to sense the temperature and control the system heating and booting sequence.

Non-volatile Memory
To keep critical data alive when system power is lost, Advantech's Embedded Automation
Computers are equipped with onboard battery-backup memory. Onboard battery supplies
power to keep memory operating all the time. In addition, we also provide the new
FeRAM technology in a Mini PCIe card form factor. FeRAM have similar behavior of
SRAM, but without the need a battery to keep the data, it can support up to 100 trillion
read/writes times.

Hardware Switchable AT/ATX Power Mode

Features
Fanless Design
Advantech's Embedded Automation Computers are robust computers without rotating
parts, such as a CPU fan, system fan, power supply fan or HDD. This concept significantly
increases reliability, extends MTTR, and extremely reduces maintenance efforts. Therefore,
you don’t need to worry about a CPU cooler or HDD failure issue anymore, even in dusty
environments.
For applications that require mass storage, we also provide dual HDD with built-in RAID
1 feature that ensures data well kept once one of HDDs is failed during operation.

No Internal Cabling
Unlike general Box PC designs where cables are used for wiring between connectors and
CPU boards, connectors on Advantech's Embedded Automation Computers are soldered
directly on the PCB. Therefore, there is no internal cabling inside the chassis. This makes
Advantech's Embedded Automation Computers much more reliable than general Box
PC’s in harsh environments.

Energy Star
Advantech's Embedded Automation Computers have been certified by Energy Star,
recognizing their extreme low power consumption and high energy utilization. To build
a low-carbon society everyone needs to do their best.

Industrial-grade Power Design
Advantech's Embedded Automation Computers are designed to accept wide DC power
input (ex. 9 ~ 36 VDC) in factory floors. In addition, they also feature power reversal
protection that prevents system damage when power inputs are reversed.

Grounding Isolation Between Chassis and System
By adapting the feedback of industrial field site, Advantech's Embedded Automation
Computers provide an isolated ground between the system and field. This feature can
increase the stability to the entire system structure and is also important for constructing
larger systems.

Industrial-grade RS-232/422/485 Design
Advantech's Embedded Automation Computers provide professional serial communication
ports. They not only have patented RS-485 auto-flow control technology, but also have the
enhanced drivers under the embedded Windows system which provides better capabilities
than traditional drivers and support any -baud-rate function for the Oxford UARTs.

14-2

This series supports wide operating temperature up to 75°C through selecting low-voltage
CPU and industrial-grade components as well as associated thermal design that meets
critical industrial-grade applications.


AT and ATX are two kinds of power management modes. AT features PC on/off capability,
which can be controlled through an external power line. On the other hand, ATX features
the capability of turning on/off PCs through Hardware/Software triggering signal, such
as Wake on LAN. In Advantech's Embedded Automation Computers, these modes are
hardware-based,which serves as a more reliable method.

Plug-and-Display VGA Port
The VGA port in Advantech's Embedded Automation Computers is designed to be ready
for display anytime, even when the VGA monitor is not attached while booting up.

Wide Form Factor Selections to Fit Application Environments
These Embedded Automation Computers provide different form factors to fulfill the
requirements and scenario of different automation applications. Simply classification:
UNO-2000/2100 series are for MES (Manufacturing Execution System)/Thin Client
Markets; UNO-1000/3000 series are for Machine Automation/ Facility Automation;
UNO-4600 series are for Power and Energy Markets.

Mini PCIe Card Slot Enables Wireless and Fieldbus Communication
New Embedded Automation Computers are equipped with one or more Mini PCIe
card slots, which can easily adopt the popular wireless modules, such as Wifi, mobile
networking (GSM/GPRS/3G) and GPS modules. For industrial automation applications,
this is also an easy and compact interface to integrate fieldbus cards.

Embedded OS Introduction
and Driver Support
Supports Many Operating Systems
Advantech’s Embedded Automation Computers not only support the popular Windows
operating system, but also provide embedded operating system solutions offering a
pre-configured image with optimized onboard device drivers. Advantech's Embedded
Automation Computers provide the following most popular embedded operating systems:
ƒƒ Windows CE 5.0
ƒƒ Windows CE 6.0 R3
ƒƒ Window Embedded Compact 7 (WEC 7)
ƒƒ Windows Embedded Standard (WES 2009, WES7)
ƒƒ Advantech Embedded Linux
These operating systems fulfill the toughest requirements of complete functionality, high
reliability, minimized cost and low power consumption. These Embedded Automation
Computers quickly prove themselves to be application-ready platforms that save time
and energy in launching projects.

Real-Time Windows CE Meets Time-Critical Demands
Microsoft Windows CE (now officially known as Windows Embedded Compact and
previously also known as Windows Embedded CE, WinCE) is a robust, compact and
highly efficient real-time operating system that can quickly satisfies any customized
high-performance embedded applications. It also provides enterprise-scale protection
with demanding network security mechanisms, including Kerberos Security Protocol,
Extensible Authentication Protocol, Secure Sockets Layer (SSL) and so on. Furthermore,
Windows CE supports the network standard, IPv6 and IPv4. Windows CE possesses robust
core OS services and complete networking services to offer users an ideal embedded
development platform.
Windows Embedded Compact (WEC 7) is the seventh major release of Windows Embedded
CE operation system. WEC 7 works on dual core CPUs in symmetric multiprocessing mode
and the networking now support NDIS 6.1. WEC 7 includes .NET Compact Framework 3.5,
Silverlight for Windows Embedded, Internet Explorer with integrated Adobe Flash v10.1.
Advantech CE image is optimized for X86, ARM devices that have small image footprint,
boot fast features and robust platforms for industrial application.

WinCE Powered by Wonderware Offers Flexible HMI
WinCE 6.0 R3 version for the UNO series meets Wonderware’s HMI Software’s system
requirement. With the HMI software support, these computers can work as HMI or control
nodes. With the provided VESA mounting kit they can be integrated with panel monitors,
such as FPM series. With support for touch screen controllers under WinCE, users can
operate the systems through touch. Without the monitor, they can also be a control node
for programmed control logic.

Windows Embedded Standard
Windows Embedded Standard (WES 2009) is the updated version of Windows XP
Embedded (XPe) which is a componentized version, and based on Windows XP
Professional binaries and features. It includes the latest multimedia (Windows Media
Player 11, DirectX 9.0c), browsing (Internet Explorer 8.0) technologies, security, Remote
Desktop Protocol 6.1, Enhanced Write Filter (EWF) and File Based Write Filter (FBWF).
You can seamlessly integrate specific applications into WES with minimum effort.
Windows Embedded Standard 7, is based on Windows 7, includes Windows Media
Player 12, DirectX 11, Internet Explorer 8.0, Remote Desktop Protocol 7.1, Silverlight
5, and EWF with Hibernate Once Resume Many (HORM), FBWF, etc. It is available in
IA-32 and x64 versions

Open Source Embedded Linux Offers a Cost-effective Alternative
Embedded Linux is a famous, UNIX compatible, open source embedded operating
system which ports the Linux kernel to a specific CPU and board installed into the
embedded device. Advantech offers Embedded Linux installation CD for the X86-based
UNO series products and the Embedded Linux offer Fedora Core 8 , Fedora Core 13
kernels and optimized root file systems. In the Embedded Linux, it features read-only file
system, real-time kernel, on-line update, X Windows, PDF viewer (XPDF), FTP (GFTP),
IPv6, browser support Java (Firefox), VNC server, Web server, fast boot and software
management (RedHat Package Manager). Advantech also offers Embedded Linux image
for RISC-based UNO, series products.

Driver Packages Provided for QNX and Popular Linux Distributions
Customers can install QNX and standard Linux distributions on the series Embedded
Automation Computers, Advantech provides device drivers for the following self-design
hardware and IO:
ƒƒ Serial COM ports driver
ƒƒ CANbus driver

ƒƒ Watchdog Timer, Multi-level Watchdog
ƒƒ NVRAM (Non-Volatile RAM) driver
ƒƒ Digital IO driver
To follow the GNU's open source code policy, Advantech provides Linux driver source
codes or binary for compiling and installing popular Linux distributions as well as QNX
6.3.2, 6.4.1 and 6.5. Customers can easily get it in the companion DVD and on the
Advantech web site.

Standard Windows Support up to Windows 8
Advantech's Embedded Automation Computers provide necessary drivers on the
companion DVD for users to install popular Windows operating systems, such as Window
2000, Windows XP Pro, Windows 7, even the latest Windows 8. For the self-design
hardware or IO, Advantech provides the Windows drivers 32/64 bit which is the standard
driver architecture of Windows.

Software Drivers & Utilities
Advantech’s Embedded Automation Computers provide more value to automation users.
By accumulating years of field-experience and collecting customer’s feedback, we had
developed several convenient and high-efficient driver/utility which would highly facilitate
users to manage the Embedded Automation Computers.

DiagAnywhere for Cluster Management
Users usually need to manage a cluster of the UNO series units on the field site. Advantech
DiagAnywhere provides the following functions for users to manage them easily:
ƒƒ Remote monitoring, control, shutdown and wakeup
ƒƒ Screen capture and recording
ƒƒ File transferring
Every Advantech series' Windows-based embedded system, such as WinCE, WES and
XPe comes bundled with DiagAnywhere. Users only need one client-end utility installed
on the PC or laptop then they can do the remote monitor and diagnosis easily.

Non-volatile Memory, Useful Buffer for Controller Application
In some control applications, users need quick and reliable buffers for data transferring.
The UNO series provide the Non-Volatile memory (NVRAM). With the driver support,
users can use memory easily just like a local drive. It can also be used as a quick buffer;
not only with high read/write efficiency, but it also can reduce the accessing frequency
of CompactFlash.

EWF/FBWF Protects the System
In the provided WES and XPe image of the Advantech Automation series platforms, we
provide a friendly utility which has clear interface to guide users active/inactive the EWF
(Enhanced Write Filter) and FBWF (File-Based Write Filter) functions step by step. EWF
and FBWF are the features provided by Microsoft. They are used to protect the WES or XPe
from damage. While EWF/FBWF are active, it redirects all disk/files writes to a protected
drive, to RAM or a separate disk, the protected drive or files would never be written, and
everything would be back to the original configuration after booting. Empowered by the
provided utility, users can utilize the EWF/FBWF easily.

System Utilities for Status-Monitoring and Availability
Users in industrial fields usually need to monitor the system status. Advantech automation
series device provide the LMsensor driver/utility for users to monitor the system health,
such like the Temperature of CPU/Board and Voltage of system power source .Advantech
provide the Watchdog Timer (WDT) driver/utility to increase the availability of the system.
WDT would reset the system or send alarm while the system is stuck on some accident
events. Advantech also provides Multi-level Watchdog that able to trigger many kinds
of events for system monitoring, it will reset the system in last level. Those functions,
including brightness control, LMsensor and Watchdog/Multi-level WDT, user can call
APIs to integrate into their applications.

Enhanced COM Port Driver Meets the Industrial Requirements
In the WinCE of the UNO series, we developed enhanced COM port driver which is more
time-efficient than standard driver. It can not only increase the communication efficiency
but also reduce the CPU loading. In addition, the WDM driver of COM port with Oxford
UART supports the function of any-baud-rate. This function is able to support any baud
rate users want for specific applications and prevent data loss.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

Driver/Utility Support for Fieldbus and Domain I/O
As a domain-focused automation computer provider, Advantech provides a series of
value-added software to fulfill the demand of the fieldbus and domain I/O, including
EtherCAT Master, CANOpen, Modbus OPC Server and IRIG-B.


14-3

Embedded Automation
Computer Selection Guide
NEW

Model Name

UNO-1019

UNO-1110

UNO-1140

UNO-1150G/1150GE

UNO-1170A/1170AE

UNO-1172A/1172AE

CPU

XScale PXA 255,
200 MHz

TI Cortex A8 AM3505,
600 MHz

EVA-X4150 SoC
486SX grade,
150 MHz

AMD Geode LX800,
500 MHz

Intel Atom N270,
1.6 GHz

Intel Atom D510,
1.66 GHz

Onboard RAM

64 MB SDRAM

256 MB DDR2 SDRAM

64 MB SDRAM

256 MB DDR SDRAM

1 GB DDR2 SDRAM

2 GB DDR2 SDRAM

Battery-Backup
SRAM

-

-

-

-

512 KB

1 MB

Display

-

VGA

VGA

VGA

VGA

VGA

-

-

-

Yes

Yes

Yes, 5.1 channel HD
Audio

Serial Ports

2 x RS-232
2 x RS-232/422/485

4 x RS-232/422/485
(2 x Isolation)
1 x RS-485

UNO-1140:
4 x RS-232/485

2 x RS-232 (one pin
header reserved)
2 x RS-232/422/485

2 x RS-232
1 x RS-232/422/485

2 x RS-232/422/485
2 x RS-232
(pin header)

Ethernet Ports

2 x 10/100Base-T

2 x 10/100Base-T

1 x 10/100Base-T

2 x 10/100Base-T

2 x 10/100Base-T

3x
10/100/1000Base-T

USB Ports

-

Four

Two

Two

Four (One internal)

Four

PC Card Slots

-

-

-

-

-

-

-

-

1 x LPT (pin header
reserved for project)

-

-

2 x PCI-104
(UNO-1150GE)

2 x PC/104+
(UNO-1170AE)

2 x PC/104+
UNO-1172AE)

1 x Mini PCI
(UNO-1150GE)

1 x Mini PCI
(UNO-1170AE)

1 x Mini PCIe
(UNO-1172A)/
1 x Mini PCIe + 1 x Mini
PCI (UNO-1172AE)

Audio

Printer Ports

-

PC/104
Expansion

-

-

(Project reserved
PC/104)

PCIe/PCI
Expansion

-

1 x Mini PCIe
(w/ USB signal only)

-

Onboard I/O

2 -ch DI, 2-ch DO

4-ch DI, 2-ch DO

-

-

-

2-ch DI, 6-ch DO

Watchdog Timer

Yes

Yes

Yes

Yes

Yes

Yes

CompactFlash
Slots

One external

-

One internal

One internal

One internal

One internal

-

1 x SATA (UNO1150GE)

1 x SATA

1 x SATA

Windows XP
Embedded,
Windows CE 5.0 &
6.0,
Windows XP,
Linux, QNX

Windows XP
Embedded,
Windows CE 5.0 &
6.0,
Windows XP,
Windows 7, Linux,
QNX

Windows XP
Embedded,
Windows CE 5.0 &
6.0,
Windows XP,
Windows 7
Linux, QNX

2.5" HDD
Expansion

-

-

Operating
Systems

Windows CE 5.0

Windows CE 6.0,
Linux

UNO-1140: WinCE 5.0
& 6.0, Linux, DOS

Mounting

Din-rail/Wall

DIN-rail/Wall

DIN-rail/Wall

DIN-rail/Wall

DIN-rail/Wall

DIN-rail/Wall

Anti-Vibration

-

-

5 G w/CF

2 G w/CF, 1 G w/HDD

2 G w/CF, 1G w/HDD

2 G w/CF, 1 G w/HDD

Anti-Shock

-

-

50 G w/CF

50 G w/CF, 20 G w/
HDD

50 G w/CF, 20 G w/
HDD

50 G w/CF, 20 G w/
HDD

Power Input
Range*

10 ~ 30 VDC

10 ~ 30 VDC

9 ~ 36 VDC

10 ~ 36 VDC

10 ~ 36 VDC

10 ~ 36 VDC

Operating
Temperature

0 ~ 70°C @
5 ~ 85 % RH

-10 ~ 70°C @
5 ~ 85% RH

-20 ~ 75°C
(-4 ~ 167°F)

-10 ~ 60°C
(14 ~ 140°F)

-10 ~ 60°C
(14 ~ 140°F)

-10 ~ 65°C
(14 ~ 149°F)

Power
Consumption
Typical

8.5 W

Min. 8.5 W

10 W

15 W

24 W

24 W

Power
Requirement

Min. 13 W

Min. 13 W

24 W, +24 V @ 1 A
power input

24W, +24V @ 1 A
power input

48 W, +24 V @ 2 A
power input

48 W, +24V @ 2A
power input

Dimensions
(W x D x H)

46 x 126 x 162 mm
(1.8" x 5 " x 6.4")

48 x 127 x 152 mm
(1.9" x 5" x 6")

71 x 139 x 152 mm
(2.8" x 5.5" x 6")

71 x 139 x 152 mm
(2.8" x 5.5" x 6")/
96.5 x 139 x 152 mm
(3.8" x 5.5" x 6")

85.5 x 139 x 152 mm
(3.4" x 5.5" x 6")/
111 x 139 x 152 mm
(4.4" x 5.5" x 6")

85.5 x 139 x 152 mm
(3.4" x 5.5" x 6")/
111 x 139 x 152 mm
(4.4" x 5.5" x 6")

Weight

0.4 kg

0.45 kg

1.0 kg

1.6 kg / 2.0 kg

1.6 kg / 2.0 kg

1.6 kg / 2.0 kg

Page

online

14-8

online

14-9

14-10

14-11

* All power input ranges represent the minimum and maximum values recommended for these devices.

14-4


Selection Guide

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Model Name
CPU

UNO-2050G

UNO-2053GL

LX800, 500 MHz

UNO-2059GL

UNO-2172

LX800, 500 MHz

LX800, 500 MHz

UNO-2170
Intel Celeron M,
600 MHz
Intel Celeron M,
1.0 GHz

Intel Celeron M,
1.5 GHz
Intel Pentium M,
1.6 GHz
1 GB DDR2 SDRAM
512 KB

Onboard RAM

256 MB DDR SDRAM

256 MB/512 MB DDR
SDRAM

Battery-Backup
SRAM

-

512 KB
VGA

Display

DVI-I

Audio

-

Yes

-

-

Yes

Serial Ports

2 x RS-232
2 x isolated
RS-232/422/485

2 x RS-232

2 x RS-232/485
2 x RS-232/422/485

2 x RS-232
2 x RS-232/422/485

2 x RS-232
2 x RS-232/422/485

Ethernet Ports

2 x 10/100Base-T

2 x 10/100Base-T

1 x 10/100Base-T

2 x 10/100Base-T

2 x 10/100/
1000Base-T

USB Ports

-

Two

Two

Two

Two

PC Card Slots

-

-

-

One

-

Printer Ports

-

-

-

One

-

PC/104 Expansion

-

-

-

PC/104

PCI-104

PCIe/PCI Expansion

-

-

-

-

-

Onboard I/O

8-ch isolated DI
8-ch isolated DO

-

-

-

-

Yes

Watchdog Timer

Yes

One internal

CompactFlash Slots

One internal

IDE (Optional)

2.5" HDD Expansion

1 x SATA

Windows 2000/XP/7,
WES7, WES-2009,
XPe, CE 5.0 & 6.0,
Linux, QNX

Windows 2000/XP, WES-2009, CE 5.0 & 6.0, Linux, QNX

Operating Systems

1 x SATA

DIN-rail/Wall/VESA

Mounting
Anti-Vibration

2 G w/CF, 1 G w/HDD

2 G w/CF
0.5 G w/HDD

2 G w/CF, 1 G w/HDD

Anti-Shock

20 G w/CF @ DIN-rail
50 G w/CF @ Wall/Panel

50 G w/CF
20 G w/HDD

50 G w/CF
20 G w/HDD

9 ~ 36 VDC

9 ~ 36 VDC

9 ~ 36 VDC

Power Input Range*

10 ~ 48 VDC

Operating
Temperature

-10 ~ 55°C (14 ~ 131°F)

-20 ~ 50°C
(-4 ~ 122°F)

-20 ~ 50°C
(-4 ~ 122°F)

Power Consumption
Typical

15 W

24 W

45 W

Power Requirement

24 W, +24 V @ 1 A power input

48W, +24V @ 2A power
input

48 W, +24 V @ 2 A power
input

188.8 x 106.5 x 35.5 mm (7.5" x 4.2" x 1.4")

255 x 152 x 50 mm
(10" x 6.0" x 2.0")

255 x 152 x 69 mm
(10" x 6.0" x 2.7")

1.6 kg

3.0 kg

14-18

online

Dimensions
(W x D x H)

0.8 kg

Weight
Page

14-12

14-13

14-14



Energy Automation

Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

14-5

Embedded Automation
Computer Selection Guide
NEW

Model Name

CPU

UNO-2173A/AF

UNO-2174A/2178A

UNO-2182

UNO-2174G/GL
UNO-2184G

Intel Atom N270, 1.6 GHz

Intel Atom D510, 1.66 GHz

Intel Core 2 Duo, 1.5 GHz

UNO-2174G/GL:
Intel Celeron 847/807UE,
1.1/1.0 GHz
UNO-2184G:
Intel Core i7-2655LE,
2.2 GHz
4 GB/8 GB DDR3 SDRAM

Onboard RAM


2 GB DDR2 SDRAM

2 GB DDR2 SDRAM

Battery-Backup RAM

(1 MB reserved for project)

-

512 KB

-

Display

VGA

VGA

DVI-I

DVI-I/HDMI/DP

Audio

UNO-2173A: N/A
UNO-2173AF: Yes, 5.1 channel
HD audio

Yes, 5.1 channel HD Audio

Yes

Yes, 5.1 channel HD Audio

Serial Ports

UNO-2173A: 2 x RS-232
UNO-2173AF: 2 x RS-232,
1 x RS-422/485

UNO-2174A: 2 x RS-232/485
2 x RS-232/422/485
UNO-2178A: 6 x RS-232/485
2 x RS-232/422/485

2 x RS-232
2 x RS-232/422/485

2 x RS-232
2 x RS-232/422/485

Ethernet Ports

UNO-2173A:
1 x 10/100/1000Base-T
UNO-2173AF:
2 x 10/100/1000Base-T

2 x 10/100/1000Base-T

2 x 10/100/1000Base-T

4 x 10/100/1000Base-T

USB Ports

UNO-2173A : Two
UNO-2173AF : Four

Six

Two

Six

PC Card Slots

-

-

-

-

Printer Ports

(Pin-head reserved for project )

One (UNO-2174A)

-

-

PC/104 Expansion

-

PC/104+
PCI-104 (optional)

PCI-104

PCI-104 (optional)

PCIe/PCI Expansion

1 x Mini PCIe

2 x Mini PCIe with
1 x SIM slot

-

2 x Mini PCIe with
1 x SIM slot

Onboard I/O

-

-

-

-

Watchdog Timer

Yes

Yes

Yes

Yes

CompactFlash Slots

One external

One external

One internal

One external

2.5" HDD Expansion

1 x SATA

1 x SATA

1 x SATA

2 x SATA(optional)

Operating Systems

Windows 2000/XP, WES7,
WES-2009, XPe,
CE 5.0 & 6.0, Linux, QNX

Windows XP/7, WES7,
WES-2009, CE 6.0, Linux, QNX

Windows 2000/XP/7, WES7,
WES-2009, XPe, CE 5.0 & 6.0,
Linux, QNX

Windows XP/7, WES7,
WES-2009, Linux

Mounting

DIN-rail/Wall/VESA

DIN-rail/Wall/VESA

DIN-rail/Wall/VESA

DIN-rail/Wall/VESA

Anti-Vibration

5 G w/CF, 1 G w/HDD

2 G w/CF, 1 G w/HDD

2 G w/CF, 1 G w/HDD

2 G w/CF, 1 G w/HDD

Anti-Shock

50 G w/CF
20 G w/HDD

50 G w/CF, 20 G w/HDD



Power Input Range*

9 ~ 36 VDC

9 ~ 36 VDC

9 ~ 36 VDC

9 ~ 36 VDC

Operating
Temperature

-20 ~ 70°C (-4 ~ 158°F)

-10 ~ 70°C (14 ~ 158°F)

-20 ~ 60°C (-4 ~ 140°F)

-10 ~ 60°C (14 ~ 140°F)

Power Consumption
Typical

15 W

UNO-2174A: 12 W
UNO-2178A: 16 W

35 W

UNO-2174G/GL: 30 W/ 20 W
UNO-2184G: 40 W

Power Requirement

36 W, +24 V @ 1.5 A power input

36 W, +24 V @ 1.5 A
power input


72 W, +24 V @ 3 A
power input

Dimensions
(W x D x H)

255 x 152 x 59 mm
(10" x 6.0" x 2.3")

UNO-2174A:
255 x 152 x 50 mm
(10" x 6.0" x 2.0")
UNO-2178A:
255 x 152 x 59 mm
(10" x 6.0" x 2.3")

255 x 152 x 69 mm
(10" x 6.0" x 2.7")

255 x 152 x 69 mm
(10" x 6.0" x 2.7")

Weight

2.5 kg

2.5 kg

3.0 kg

3.0 kg

Page

14-15

14-16

online

14-17


14-6


Selection Guide

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Model Name

UNO-3072LA

UNO-3072A/3074A

UNO-3082/3084

CPU


Intel Atom D510, 1.66 GHz

Intel Core 2 Duo L7500, 1.6 GHz

Onboard RAM


2 GB DDR2 SDRAM


DVI-I
Yes, 5.1 channel HD Audio line out
2 x RS-232/422/485
2 x RS-232 (pin header)

512 KB
VGA
2 x RS-232/422/485

512 KB
Dual DVI-I support up to 3 display
2 x RS-232/422/485

2 x 10/100/1000 Base-T,
support teaming function

2 x 10/100/1000 Base-T,

2 x 10/100/1000 Base-T,

Printer Ports
PC/104 Expansion

Five (One internal),
two extra on pin header
(Pin-head reserved for project)
-

-

-

PCIe/PCI Expansion

2 x PCI

2 x PCI (UNO-3072A)/
4 x PCI (UNO-3074A)

2 x PCI (UNO-3082)/
3 x PCI + 1 x PCIe (UNO-3084)

Onboard I/O

-

Watchdog Timer

Yes
One internal
One external

Power Input Range*

Windows XP Embedded, WES
Windows CE 6.0
Windows XP, Windows 7
Wall/Stand/Panel
2 G w/CF, 1 G w/HDD
50 G w/CF
20 G w/HDD
9 ~ 36 VDC
-10 ~ 60°C (14 ~ 140°F)

4-ch isolated DI
4-ch isolated DO
Dual type B IEEE 1394
Yes
One internal
One external
2 x SATA, support RAID 0/1,
1 x eSATA
WES, Windows XP Embedded,
Windows Vista/XP, Windows 7,
Windows CE 6.0, Linux
Wall/Stand/Panel
2 G w/CF, 1 G w/HDD
50G w/CF
20G w/HDD
9 ~ 36 VDC
-10 ~ 60°C (14 ~ 140°F)

4-ch isolated DI
4-ch isolated DO
Dual type B IEEE 1394
Yes
One internal
One external
2 x SATA, support RAID 0/1,
1 x eSATA
Windows XP Embedded, WES
Windows CE 6.0
Windows XP, Windows 7
Wall/Stand/Panel
2 G w/CF, 1 G w/HDD
50 G w/CF
20 G w/HDD
9 ~ 36 VDC
-10 ~ 55°C (14 ~ 131°F)

Power Consumption Typical

20 W

25 W

40 W

Power Requirement

48 W, +24 V @ 1.5 A power input

Battery-Backup RAM
Display
Audio
Serial Ports
Ethernet Ports
USB Ports

CompactFlash Slots
2.5" HDD Expansion
Operating Systems
Mounting
Anti-Vibration
Anti-Shock

Dimensions
(W x D x H)

1 x SATA, 1 x eSATA

140 x 238 x 177 mm
(5.5" x 9.3" x 7.0")

72 W, +24 V @ 3 A
power input
UNO-3072A:
140 x 238 x 177 mm
(5.5" x 9.3" x 7.0")
UNO-3074A:
181 x 238 x 177 mm
(7.5" x 9.3" x 7.0")

UNO-3000G
UNO-3073GL:
Intel Celeron 807UE 1GHz
UNO-3073G:
Intel Celeron 847 1.1GHz
UNO-3083G/3085G :
Intel Core i7 -2655LE 2.2 GHz
UNO-3073GL:
4GB DDR3 SDRAM built-in
UNO-3073G:
UNO-3083G/3085G:
1 x DVI-I, 1 x HDMI
Mic in, Line Out
2 x RS-232/422/485
2 x RS-232 (optional)
2 x 10/100/1000 Base-T
RJ-45 ports
Supports AMT
(UNO-3083G/3085G only)
Nine (One Internal)
UNO-3073G/UNO-3073GL/3083G:
3 slots
3085G: 5 slots
Yes
2 x SATA, support RAID 0/1
(except UNO-3073GL)
Windows XP,Windows7/8, WES7,
WES-2009, Linus
Wall/Stand/Panel
50 G w/CF
20 G w/HDD
-10 ~ 60°C (14 ~ 140°F)
UNO-3073GL: 25W (Typical)
UNO-3073G: 35W (Typical)
UNO-3083G/3085G: 45W (Typical)


12 V ±20%, 24 V±20%

UNO-3082:
157 x 238 x 177 mm
(6.2" x 9.3" x 7.0")
UNO 3084:
195 x 238 x 177mm
(7.6" x 9.3" x 7.0")

UNO-3083G/3073G/GL:
148 x 238 x 177 mm
(5.8" x 9.3" x 7.0")
UNO-3085G:
193 x 238 x 177 mm
(7.6" x 9.3" x 7.0")
UNO-3083G/3073G/GL: 4.5 kg
UNO-3085G: 5.0 kg
14-19

Weight

4.5 kg

4.5 kg / 5.0 kg

4.5 kg / 5.0 kg

Page

14-20

14-21

14-22


Energy Automation

Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


14-7

UNO-1110

TI Cortex AM3505 DIN-rail PC with
2 x LAN, 5 x COM, 4 x USB
Features

NEW

ƒƒ TI Cortex A8 AM3505 600 MHz processor
ƒƒ 256 MB DDR2 on board
ƒƒ 4 x RS-232/422/485, 1 x RS-485 serial ports
ƒƒ Dual 10/100 Mbps Ethernet
ƒƒ 2 x SD card slots
ƒƒ Windows® CE 6.0 Ready Platform and optional uClinux OS support
ƒƒ Included Advantech DaigAnywhere for easy remote configuration & diagnosis
ƒƒ DIN-rail and Wallmounting Options
ƒƒ Onboard system & LED indicators
ƒƒ Supports Microsoft .NET compact framework 3.5
ƒƒ Fanless and no internal cabling design
ƒƒ System/Field ground isolation
RoHS

COMPLIANT
2002/95/EC

Introduction
Advantech’s UNO-1110 series are RISC-grade embedded platforms that offer up to 2 LAN ports, 5 serial ports and 2 SD card slots. The UNO-1110 series also come with Windows
CE 6.0/Linux OS, offering an integrated image. Additionally, the UNO-1110 series operate at temperatures between -10 ~ 70°C, and their small size and lightweight design allows it
to be installed in tight industrial environments. The UNO-1110 series are excellent communication gateways for converting communication protocols, I/O control, and data storage
in the industrial field.

Specifications
General

I/O Interface

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Certification
CE, FCC Class A, UL, CCC
Dimensions (W x H x D) 50 x 154 x 127 mm (1.9" x 6.1" x 5")
Enclosure
Aluminium with solid mounting hardware
Mounting
DIN-rail, Wallmount
Power Consumption 8.5 W (min.)
Power Input
10 ~ 30 VDC (13 W), AT, ground isolation, dual power
inputs.
ƒƒ Weight
0.45 kg
ƒƒ System Design

ƒƒ Serial Ports

System Hardware

ƒƒ Digital Output

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Environment

CPU
Memory*
Display
Indicators

TI Cortex A8 AM3505 600 MHz
Onboard 256 MB DDR2
DB15 VGA connector, up to 1024 x 768
Power, Serial (Tx, Rx), SD
4 x DI, 2 x DO
4 x programmable LED
ƒƒ Storage
2 x SD card slots (one for boot and another for data
storage)
ƒƒ Other
Realtime clock, Watchdog timer
ƒƒ SIM
1 x card slot (reserved for project and will only have 1 x
SD card slot left)
*Note: up to 512MB DDR2 (reserved for project)

System Software
WinCE 6.0/ Linux
ƒƒ Remote Management Built-in Advantech DiagAnywhere agent on WinCE

14-8


ƒƒ LAN
ƒƒ USB
ƒƒ Digital Input

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

4 x RS-232/422/485, 1 x RS-485
Automatic RS-485 data flow control, DIP Switch
configuration
RS-232: 300 ~ 115.2 kbps
RS-422/485: 300 ~ 115.2 kbps (Max)
4 x USB 2.0
4 x Digital Inputs (UNO-1110 only)
Dry contact

Logic level 0: Open

Logic level 1: Close
2 x Digital Outputs
Open Collect to 30 V
200 mA max Load, power dissipation 450mW

Ingress Protection
IP40
Operating Humidity
Storage Humidity
Shock Protection
Half-sine wave, 30G, 11ms
Random 1Grms

ƒƒ UNO-1110-R11AE
ƒƒ PCLS-DIAGAW10
ƒƒ SQF-ISDS1-1G-ETE

TI Cortex AM3505 600MHz DIN-rail PC UNO-1110
1GB SLC SD Card (-40 ~ 85°C)

UNO-1150G/GE

™
AMD Geode LX800 DIN-rail PCs
with 2 x LAN, 3 x COM, PCI-104

Features
ƒƒ Onboard AMD Geode LX800 500 MHz processor
ƒƒ 2 x RS-232 (one pin header reserved) and 2 x RS-232/422/485 ports with
ƒƒ 2 x USB, audio and internal CompactFlash®
ƒƒ Compact size, small foot print, saves space and front accessible for easy
wiring
ƒƒ DIN-rail design for easy installation in field cabinet
ƒƒ Wide operating temperature range
ƒƒ Windows® CE 5.0/6.0, Windows XP Embedded, and Linux ready solution
ƒƒ Onboard system & I/O LED indicators
ƒƒ Fanless desing with no intemal cabling

UNO-1150G


UNO-1150GE
COMPLIANT
2002/95/EC

Introduction

Specifications

I/O Interface
ƒƒ Serial Ports

General
ƒƒ Certification
ƒƒ Dimensions (W x H x D) UNO-1150G: 71 x 152 x 139 mm (2.8" x 6.0" x 5.5")
UNO-1150GE: 96.5 x 152 x 139 mm (3.8" x 6.0" x 5.5")
ƒƒ Enclosure
Aluminum + SECC
ƒƒ Mounting
DIN-rail, Wallmount
15 W (Typical)
ƒƒ Power Requirement
10 ~ 36 VDC (e.g +24 V @ 1 A) (Min. 24 W), AT
ƒƒ Weight
UNO-1150G: 1.6 kg
UNO-1150GE: 2.0 kg
ƒƒ OS Support
WES Windows XP Embedded, Windows 2000 & XP,
Windows CE 5.0/6.0, Linux
ƒƒ System Design
ƒƒ Remote Management Built-in Advantech DiagAnywhere agent on Windows
CE / XPe

System Hardware

ƒƒ PC/104 Slot
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Mini PCI
Display
Audio
Watchdog Timer

Energy Automation

Building Automation
Systems

Automation Software


The UNO-1150G/GE are DIN-rail mounted PCs that provide several serial communication ports and Ethernet interfaces. Their compact size, small footprint and front-accessibility allow
easy installation in field cabinets and help to save spaces. With rich OS and driver supports, such as Windows XP Embedded, WinCE 6.0 and embedded Linux, users can integrate
applications easily with a platform that can provide versatile functions to fulfill diverse requirements.

ƒƒ Keyboard/Mouse
ƒƒ Storage

Machine Automation

Operator Panels

RoHS

ƒƒ CPU
ƒƒ Memory
ƒƒ Indicators

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


AMD Geode LX800 500 MHz
LEDs for Power, IDE, LAN (Active, Status) and Serial
(Tx, Rx)
Buzzer for Diagnosis (programmable)
1 x PS/2
HDD: 2.5" SATA HDD bracket (UNO-1150GE)
2 x PCI-104 slots, supports 3.3 V & +5 V
(Only for UNO-1150GE, one PCI-104 left while using
HDD)
1 x Mini PCI (UNO-1150GE)
DB15 VGA connector, supports up to 1024 x 768 @ 60 Hz
Line in, Line out
Programmable 256 level timer interval, from 1 to 255 sec

2 x RS-232 (one pin header reserved),
2 x RS-232/422/485 with DB9 connectors,
automatic RS-485 data flow control
RS-232/422/485 ports support hardware 128 byte FIFO
RS-232 port: 50 ~ 115.2 kbps
RS-232/422/485 port: RS-232, 300 ~ 115.2 kbps
RS-232/422/485 port: RS-422/485, 300 ~ 921.6 kbps
(Max)
ƒƒ LAN
ƒƒ USB
ƒƒ Printer Port*
1 x Printer Port pin header
*Note: This function is optional for project requirement.

Environment
IP40
-10 ~ 60°C (14 ~ 140°F)
IEC 60068-2-27
(UNO-1150GE)
CompactFlash®: 2 Grms @ 5 ~ 500 Hz
HDD: 1Grms@ 5 ~ 500 Hz (UNO-1150GE)

ƒƒ UNO-1150G-G30E
ƒƒ UNO-1150GE-G30E

AMD Geode LX800 500 MHz, 256 MB DIN-rail PC
AMD Geode LX800 500 MHz, 256 MB DIN-rail PC
w/PCI-104

Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

Accessories
ƒƒ UNO-FPM11-BE
ƒƒ PCLS-DIAGAW10

UNO-1100 Series VESA Mount kit


14-9

UNO-1170A/AE

Intel® Atom™ N270 DIN-rail
PCs with 2 x LAN, 3 x COM,
4 x USB, PC/104+

Features
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

UNO-1170A

Onboard Intel Atom N270 1.6 GHz processor
Onboard 512 KB battery-backup SRAM
Onboard system & I/O LED indicators
2 x RS-232 and 1 x RS-232/422/485 ports with automatic flow control
3 x external USB and 1 x internal USB for dongle and flash drive
PC/104+ expansion slots option
DIN-rail design for easy installation in field cabinet
Windows® CE 6.0, Windows WES 2009, and Linux ready solution
Supports boot from LAN function

UNO-1170AE
RoHS

COMPLIANT
2002/95/EC

Introduction
The UNO-1170A/AE are DIN-rail PCs that provide several serial communication ports and Ethernet interfaces. With their compact size, small footprint, and front accessibility, the
UNO-1170A/AE are convenient for wiring and easy to install in field cabinets. With rich OS and driver supports, such as Windows WES 2009, WinCE 6.0, and even embedded Linux,
the UNO-1170A/AE are application-ready platforms that provide versatile functionality.

Specifications
General

I/O Interface

ƒƒ Certification
ƒƒ Dimensions (W x H x D) UNO-1170A: 85.5 x 152 x 139 mm (3.4" x 6.0" x 5.5")
UNO-1170AE: 111 x 152 x 139 mm (4.4" x 6.0" x 5.5")
ƒƒ Enclosure
Aluminum + SECC
ƒƒ Mounting
DIN-rail, Wallmount
24 W (Typical)
10 ~ 36 VDC (e.g +24 V @ 2 A) (Min. 48 W), AT
ƒƒ Weight
UNO-1170A: 1.6 kg
UNO-1170AE: 2.0 kg
ƒƒ OS Support
Windows WES 2009, Windows XP, Windows 7,
ƒƒ System Design
CE / WES 2009

ƒƒ Serial Ports

System Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ

CPU
Memory
Battery Backup SRAM
Indicators

ƒƒ Keyboard/Mouse
ƒƒ Storage
ƒƒ PC/104 Slot

ƒƒ
ƒƒ
ƒƒ
ƒƒ

14-10

Mini PCI
Display
Audio
Watchdog Timer

Intel Atom N270 1.6 GHz
1 GB DDR2 SDRAM Built-in
512 KB
LEDs for Power, IDE, LAN (Active, Status), Serial
(Tx, Rx), Alarm for battery backup SRAM and diagnosis
(programmable)
1 x PS/2
SSD: 1 x internal type I/II CompactFlash slot
HDD: one 2.5" SATA HDD bracket
1 x PC/104+ slot, supports up to 2 x PC/104+ cards
(3.3V & 5V)
(Only for UNO-1170AE, one PC/104+ left while using
HDD)
1 x Mini PCI (UNO-1170AE)
Line in, Line out
Programmable 256 level timer interval, from 1 to 255 sec


ƒƒ LAN
ƒƒ USB

2 x RS-232, 1 x RS-232/422/485 with DB9 connectors,
automatic RS-485 data flow control
1 x pin header RS-232
RS-232: 50 ~ 115.2 kbps
RS-422/485: 50 ~ 921.6 kbps (Max)
2 x 10/100Base-T RJ-45 ports (Built-in boot ROM in
flash BIOS)
4 x USB, EHCI, Rev. 2.0 compliant (1 is for USB dongle
inside chassis)

Environment
-10 ~ 60°C (14 ~ 140°F)
IP40
IEC 60068-2-27
(UNO-1170AE)
HDD: 1 Grms @ 5 ~ 500 Hz (UNO-1170AE)

ƒƒ UNO-1170A-A12E
ƒƒ UNO-1170AE-A12E

Intel Atom N270 1.6 GHz, 1 GB RAM DIN-rail PC
Intel Atom N270 1.6 GHz, 1 GB RAM, DIN-rail PC
w/ PC/104+

Accessories
ƒƒ UNO-FPM11-BE
ƒƒ PCLS-DIAGAW10


UNO-1172A/AE

™
Intel® Atom D510 DIN-rail PCs
with 3 x LAN, 2 x COM, VGA,
Mini PCIe, PC/104+

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

Features
ƒƒ
ƒƒ
ƒƒ
ƒƒ

UNO-1172A


Machine Automation

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

UNO-1172AE

Onboard Intel Atom D510 1.66 GHz processor
Onboard 1 MB battery-backup SRAM
System diagnosis through LED and digital output, remote power control
through digital input
2 x RS-232/422/485 ports with automatic flow control
3 x 10/100/1000Base-T RJ-45 ports with teaming function support
4 x external USB
PC/104+ expansion slots option
1 x Mini PCIe slot for WLAN card and Fieldbus card
Windows® 7, Windows CE, XP Embedded and Linux support

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels

RoHS

COMPLIANT
2002/95/EC

Introduction


The UNO-1172A/AE are Intel Atom DIN-rail PCs with innovative system diagnostic features. The system diagnosis and remote power control through digital input lines enable users
to control and monitor system status remotely. They also provide alarm notices including over temperature, over voltage, battery power fail, power status on both system onboard
LED and digital output. Three Gigabit Ethernet interfaces with teaming function support allow users to uplink two ports with data transmit fault tolerance and downlink one port to field
devices. Their compact size, small foot print, front accessible I/Os allow convenient wiring and easy installation in field cabinets as well.

Industrial Panel

Specifications

Industrial Monitors

General

I/O Interface

ƒƒ Certification
ƒƒ Dimensions (W x H x D) UNO-1172A: 85.5 x 152 x 139 mm (3.4" x 6.0" x 5.5")

ƒƒ Serial Ports

ƒƒ
ƒƒ
ƒƒ
ƒƒ


Enclosure
Mounting
Power Consumption
Power Requirement

ƒƒ Weight
ƒƒ OS Support
ƒƒ System Design
ƒƒ Remote Management

UNO-1172AE: 111 x 152 x 139 mm (4.4" x 6.0" x 5.5")
Aluminum + SECC
DIN-rail, Wallmount
24 W (Typical)
10 ~ 36 VDC (e.g +24 V @ 2 A) (Min. 48 W), AT/ATX
power mode by Jumper selection and BIOS AT simulation
(support system reboot automatically after power recovery)
UNO-1172A: 1.6 kg
UNO-1172AE: 2.0 kg
WES Windows XP Embedded, Windows XP & Windows 7,
Built-in Advantech DiagAnywhere agent on Windows CE /
XPe

CPU
Memory
Battery Backup SRAM
Indicators

ƒƒ Keyboard/Mouse
ƒƒ Storage
ƒƒ PC/104 Slot
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Mini PCI
Display
Audio
Watchdog Timer

ƒƒ Mini PCIe

ƒƒ USB
ƒƒ Digital Input
ƒƒ Digital Output
ƒƒ System Diagnoses

Environment

System Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ LAN

2 x RS-232/422/485 with DB9 connectors, automatic
RS-485 data flow control
2 x RS-232 (Optional, pin header)
RS-232: 50 ~ 115.2 kbps
RS-422/485: 50 ~ 115.2 kbps (Max)
3 x 10/100/1000Base-T RJ-45 ports (supports Wake on
LAN, built-in boot ROM)
2-ch. wet/dry contact, 70 VDC over-voltage protection, 0 ~
50 VDC input range and Interrupt handling
6-ch DO- 200 mA max/channel sink current
- Keep output status after system hot reset
- 5 ~ 40 VDC output range and 10 kHz speed
Remote monitoring: over system temperature, over voltage,
battery power fail, power status
Remote control: Power On/Off, Reset

Intel Atom D510 1.66 GHz
1 MB
System:LEDs for Power, CF, LAN (Active, Status), Serial
(Tx, Rx), Diagnosis /Alarm: over system temperature, over
voltage, alarm for battery backup SRAM, alarm for RTC
battery,Programmable(while disable Serial Tx&Rx), Buzzer
for Diagnosis (programmable)
1 x PS/2
2 x PC/104+ slot, supports 3.3 V & +5 V
(Only for UNO-1172AE, one PC/104+ with HDD)
1 x Mini PCI (UNO-1172AE)
5.1 channel HD Audio, Mic in, Line in, Line out
Programmable 7-tier event handler, from 1 to 255 seconds
for each tier
1 x Mini PCIe

IP40
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Storage Temperature
Operating Humidity
Storage Humidity
Shock Protection


-10 ~ 65°C (14~ 149°F)
-20 ~ 80°C (-4 ~ 176°F)
IEC 60068-2-27
CompactFlash: 2 Grms @ 5 ~ 500 Hz,
HDD: 1 Grms @ 5 ~ 500 Hz

ƒƒ UNO-1172A-A33E
ƒƒ UNO-1172AE-A33E

Intel Atom D510 1.66 GHz, 2 GB RAM DIN-rail PC
Intel Atom D510 1.66 GHz, 2 GB RAM DIN-rail PC
w/ PC/104+

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

Accessories
ƒƒ UNO-FPM11-BE
ƒƒ PCLS-DIAGAW10

UNO-1100 Series VESA Mount Kit


14-11

UNO-2050G

AMD Geode™ LX Automation Computer
with 2 x LAN, 4 x COM, 8 x DI, 8 x DO
Features
ƒƒ Onboard AMD Geode GX533 (400 MHz) CPU
ƒƒ Two RS-232 and two isolated RS-232/422/485 with automatic flow control
ƒƒ Two 10/100 Base-T RJ-45 ports
ƒƒ 8-ch Isolated DI and 8-ch Isolated DO with counter and timer
ƒƒ Windows® CE 5.0 & 6.0, Windows XP Embedded SP2, and Linux ready
solution

RoHS

COMPLIANT
2002/95/EC

Introduction
The UNO-2050G is an X86-grade platform with dual LAN and 16-channel isolated digital I/O and timer/counter. In addition, it also provides two RS-232 and two isolated RS-232/422/485
communication ports with RS-485 automatic flow control functionality. Therefore, the UNO-2050G is an ideal solution for embedded controllers.
The UNO-2050G is available with a pre-configured Windows CE image with optimized onboard device drivers. Microsoft Windows CE is a compact, highly efficient, real-time operating
system designed for embedded systems without mechanical HDD limitations. To expand storage capability, the UNO-2050G allows the addition of an external 2.5" HDD using
Advantech’s HDD expansion kit. It can be used for large data backup requirements and popular OS installations such as Microsoft Windows and Linux OS. Significant anti-vibration
(1G w/HDD) is maintained even with the mechanical HDD inside. The UNO-2050G is the perfect embedded application ready platform that can shorten development time and offer a
rich networking interface to fulfill diverse application requirements.

Specifications
ƒƒ Digital Outputs

General
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Certification
Enclosure
Mounting
Industrial Groundin
Power Consumption
Power Requirements
Weight
OS Support

ƒƒ System Design

CE, FCC class A, UL, CCC
188.8 x 106.5 x 35.5 mm (7.5" x 4.2" x 1.4")
Aluminum
Wallmount, DIN-rail
15 W (Typical)
9 ~ 36 VDC (e.g +24 V @ 1 A) (Min. 24 W), AT
0.8 kg
Windows CE 5.0 & 6.0, Linux, QNX
Built-in Advantech DiagAnywhere agent on Windows CE /
XPe

System Hardware
ƒƒ CPU
ƒƒ Memory
ƒƒ Indicators
ƒƒ Keyboard/Mouse
ƒƒ Storage
ƒƒ Display
ƒƒ Watchdog Timer

AMD Geode GX533 (400 MHz)
LEDs for Power, IDE, Diagnosis (programmable) and LAN
(Active, Status)
1 x PS/2
HDD: expansion kit for 2.5" IDE HDD (Optional)

ƒƒ Digital Inputs

14-12


Environment
ƒƒ Humidity

2 x 16-bit: counter source: DI6 & DI7, Pulse output: DO6 &
DO7. Can be cascaded as one 32-bit counter/timer, Down
counting, preset counting value, interrupt
handling, Timer time base: 100/10/1 kHz,100 Hz
8 ch. wet contact 2,000 VDC isolation, 2,000 VDC ESD
protection, 70 VDC over-voltage protection
0 ~ 50 VDC input range and 10 kHz speed; Interrupt
handling


-10 ~ 55°(14 ~ 131°F)
IEC 68 2-27
CompactFlash: 20 G @ DIN, half sine, 11 ms,
IEC 68 2-6
CompactFlash: 2 Grms @ sine, 5 ~ 500 Hz,
HDD: 1 Grms @ sine, 12 ~ 300 Hz, 1 Oct./min, 1hr/axis.

ƒƒ UNO-2050G-G30E

I/O Interface
ƒƒ Counter/Timer

ƒƒ LAN
ƒƒ Serial Ports

8 ch. 2,000 VDC isolation and 200 mA max/channel sink
current. Keeps output status after system hot reset.
5 ~ 40 VDC output range and 10 kHz speed
2 x 10/100Base-T with RJ-45 port
2 x standard RS-232 (COM1/COM2)
2 x isolated RS-232/422/485 (COM3/COM4)
RS-232/422/485 (COM3/COM4) with 2000 VDC
EFT protection & 2000 VDC isolation
RS-232: 50 ~ 115.2 kbps (COM1/COM2)
50 ~ 230.4 kbps (COM3/COM4)
RS-422/485: 50 ~ 921.6 kbps (Max.)

LX800 500MHz, 256 MB RAM Automation Computer

Accessories
ƒƒ UNO-HD20-AE
ƒƒ UNO-FPM21-AE
ƒƒ PCLS-DIAGAW10

UNO-2000 HDD expansion kit

UNO-2053GL

AMD Geode™ GX Automation Computer
with 2 x LAN, 2 x COM, Audio, PC Card
Features

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ Onboard AMD Geode GX533 (400 MHz) CPU
ƒƒ Two standard RS-232 and one DB-15 VGA connector
ƒƒ Two 10/100Base-T RJ-45 ports
ƒƒ Two USB and one type I/II PC card slot
ƒƒ Audio with Mic in, Line in, Line out
solution

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels

RoHS

COMPLIANT
2002/95/EC

Introduction


The UNO-2053GL is a X86-grade platform that offers dual LAN and dual USB interfaces to fulfill user’s diverse communication needs. In addition, it also offers two RS-232 communication
ports on board. Therefore, UNO-2053GL is an ideal solution for data gateway applications. UNO-2053GL is available with a pre-configured Windows CE image with optimized onboard
device drivers. Microsoft Windows CE is a compact, highly efficient, real-time operating system designed for embedded systems without mechanical HDD limitations. To expand
storage capability, the UNO-2053GL allows the addition of an external 2.5" HDD using Advantech’s UNO HDD expansion kit. It can be used for large data backup requirements and
popular OS installations such as Microsoft Windows and Linux OS. Significant anti-vibration is maintained even with the mechanical HDD inside.
The UNO-2053GL is a perfect embedded application-ready platform that can shorten your development time and offer a rich networking interface to fulfill diverse requirements.

Specifications
I/O Interface

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ

Certification
Enclosure
Aluminum
Mounting
Wallmount, DIN-rail
Industrial
Grounding Isolation between chassis and power
ground
Power Consumption 15 W (Typical)
Weight
0.8 kg
OS Support
Windows CE 5.0 & 6.0, Linux
System Design
CE / XPe

System Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

CPU
Memory
Indicators
Keyboard/Mouse
Storage

ƒƒ Display
ƒƒ Audio
ƒƒ Watchdog Timer

Industrial Monitors

Industrial Wireless
Solutions

General

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Industrial Panel

LX800 500MHz
LEDs for power, IDE and LAN (Active, Status)
1 x PS/2
Mic in, Line in, Line out
sec

LAN
Serial Ports
Serial Port Speed
USB Ports

2 x standard RS-232
RS-232: 50 ~ 115.2 kbps
2 x USB ports, EHCI. Rev. 2.0 compliant

Environment
ƒƒ Humidity
IP40
-10 ~ 55°C (14 ~ 131°F)
IEC 68 2-27
ƒƒ Vibration Protection IEC 68 2-6
CompactFlash: 2 Grms @ sine, 5 ~ 500 Hz,
1O ct./min, 1hr/axis
HDD: 1 Grms @ sine, 12 ~ 300 Hz, 1O ct./min, 1hr/axis

ƒƒ UNO-2053GL-G30E


and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

Accessories
ƒƒ UNO-HD20-AE
ƒƒ UNO-FPM21-AE
ƒƒ PCLS-DIAGAW10

Industrial Ethernet
Solutions



RS-485 I/O Modules

14-13

UNO-2059GL

AMD Geode™ LX Automation Computer
with 4 x COM, LAN
Features
ƒƒ Onboard AMD Geode GX533 LX800 500MHz CPU
ƒƒ 2 x RS-232/485, 2 x RS-232/422/485 with automatic flow control
ƒƒ 1 x 10/100Base-T RJ-45 port and 2 x USB 2.0 ports
ƒƒ One programmable diagnostic LED and buzzer
solution

RoHS

COMPLIANT
2002/95/EC

Introduction
Advantech’s UNO-2059GL is an X86-grade platform that offers USB interfaces to fulfill I/O device expansion needs. In addition, it also offers two RS-232/485 and two RS-232/422/485
communication ports with automatic flow control functionality. The UNO-2059GL is an ideal compact solution for large computing and communication requirements.
The UNO-2059GL is available with a pre-configured Windows CE image with optimized onboard device drivers. Microsoft Windows CE is a compact, highly efficient, real-time
operating system designed for embedded systems without mechanical HDD limitations. To expand storage capability, the UNO-2059GL allows the addition of an external 2.5" HDD
using Advantech’s HDD expansion kit. It can be used for large data backup requirements and popular OS installations such as Microsoft Windows and Linux OS. Significant antivibration (1G w/HDD) is maintained even with the mechanical HDD inside.

Specifications
General

I/O Interface

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ Serial Ports

Certification
CE, FCC class A
Enclosure
Aluminum
Mounting
Wallmount, DIN-rail
Power Consumption 15 W (typical)
Weight
0.8 kg
OS Support
ƒƒ System Design
CE / XPe

System Hardware
ƒƒ CPU
ƒƒ Memory
ƒƒ Indicators

ƒƒ Keyboard/Mouse
ƒƒ Storage
ƒƒ Display
ƒƒ Watchdog Timer

14-14

LEDs for power, IDE, diagnosis (programmable) and
LAN (Active, Status)
Buzzer for diagnosis (programmable)
1 x PS/2
sec


ƒƒ USB Ports
ƒƒ LAN

2 x RS-232/485, 2 x RS-232/422/485
- Automatic RS-485 data flow control
- RS-422/485 surge protection up to 2,000 VDC
RS-232: 50 ~ 230.4 kbps;
RS-422/485: 50 ~ 921.6 kbps (Max.)
2 x USB ports, EHCI, Rev. 2.0 compliant

Environment
ƒƒ Humidity
IP40
-10 ~ 55°C (14 ~ 131°F)
IEC 68 2-27
ƒƒ Vibration Protection IEC 68 2-6
CompactFlash®: 2 Grms @ sine, 5 ~ 500 Hz,
HDD: 1 Grms @ sine, 12 ~ 300 Hz, 1 Oct./min,
1 hr/axis.

ƒƒ UNO-2059GL-G30E


Accessories
ƒƒ UNO-HD20-AE
ƒƒ UNO-FPM21-AE
ƒƒ PCLS-DIAGAW10


UNO-2173A/AF

Intel® Atom™ N270 Automation
Computers with 2 x LAN,
3 x COM, Mini PCIe

Features
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


2 x 10/100/1000Base-T RJ-45 port
4 x USB 2.0 ports
Windows® CE 5.0 & 6.0, Windows WES2009, WES7, and Linux ready solution
1 x Mini PCIe slot for WLAN card
Supports wide operating temperatures from -20 ~ 70°C
Windows 7 and Moblin supported

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels

RoHS

COMPLIANT
2002/95/EC

Introduction


The UNO-2173A/AF are Embedded Automation Computers equipped with Intel Atom N270 1.6 GHz CPUs, Gigabit Ethernet ports, rich I/O, and 1 x Mini PCIe socket. They also feature
WLAN, 3G expansion and compatibility with Windows 7. Both products have Energy Star certification, IP40 anti-dust ingress protection and wide operating temperatures (-20 ~ 70°C),
providing high performance and high versatility with low power consumption. The UNO-2173A/AF are economic new computing platforms for manufacturing executing systems,
facility automation, in-vehicle, and industrial thin client applications.

Industrial Panel

Specifications

Industrial Monitors

General

Environment

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Certification
Energy Star, CE, FCC class A, UL, CCC
Enclosure
Aluminum +SECC
Mounting
Power Consumption
15 W (Typical)
Power Requirements 9 ~ 36 VDC (e.g +24 V @ 1.5 A) (Min. 36 W), ATX
Weight
2.5 kg
OS Support
Windows WES 2009, Windows XP, Windows 7,
Windows CE 5.0 & 6.0, Linux, QNX, WES7
ƒƒ System Design
CE / WES 2009 / WES 7

System Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

CPU
Memory
Indicators
Keyboard/Mouse
Storage

ƒƒ Display
ƒƒ Watchdog Timer
ƒƒ Expansion Slot

1 GB, 2 GB DDR2 SDRAM built-in
1 x PS/2
CF: 1 x front-accessible type I/II CompactFlash® slot
HDD: 1 x built-in 2.5" SATA HDD/SSD bracket
LVDS with backlight control (UNO-2173AF)
sec
1 x Mini PCIe

I/O Interface
ƒƒ Serial Ports
ƒƒ LAN
ƒƒ USB Ports
ƒƒ Audio

UNO-2173A: 2 x RS-232
UNO-2173AF: 2 x RS-232, 1 x RS-422/485
50 ~ 115.2 kbps
2 x 10/100/1000Base-T RJ-45 ports (Built-in boot
ROM in flash BIOS) (One LAN port in UNO-2173A)
4 x USB 2.0 (2 ports on UNO-2173A)
5.1 channel HD audio (Only for UNO-2173AF)

Humidity
Operating Temperature IEC 60068-2-2 with 100% CPU/ I/O loading

-20 ~ 70°C (-4 ~ 158°F)
Ingress Protection
IP40
Shock Protection
IEC 60068-2-27
HDD: 1 Grms @ 5 ~ 500 Hz

Reserved Functions
ƒƒ Battery Backup SRAM* 1 MB
ƒƒ Printer Port*
1 x printer port pin head
ƒƒ USB*
1 x internal pin head
*Note: This function is optional for project request

ƒƒ UNO-2173A-A12E
ƒƒ UNO-2173A-A13E
ƒƒ UNO-2173AF-A12E
ƒƒ UNO-2173AF-A13E

Intel Atom N270 1.6 GHz, 1 GB RAM Computer
w/ front I/O
w/ front I/O

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

UNO-FPM21-AE
EWM-W138H01E
1960032715N040
1960032715N020
1750006043
1750002842
PCLS-DIAGAW10

Rear panel of UNO-2173A for Antenna
Rear panel of UNO-2173AF for Antenna
SMA/I-PEX cable 15CM
Wireless Antenna


Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

14-15

UNO-2174A/2178A

Intel® Atom™ N450/ D510
Automation Computers
with 6 x USB, 8 x COM,
2 x Mini PCIe

Features
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

UNO-2178A

Onboard Intel Atom N450/D510 processors
2 x 10/100/1000Base-T RJ-45 ports, 6 x USB 2.0 ports
Windows® CE 6.0, WES 2009, WES 7 and Linux ready solution
2 x Mini PCIe slots with 1 x SIM slot support
Supports wide operating temperatures from - 10 ~ 70°C
Windows 7 32 & 64-bit supported
Supports plug-in cards (1 x PCI-104 and 1 x PC/104+) with additional
daughterboard expansion
ƒƒ Supports 8 x COM ports (UNO-2178A)
ƒƒ Supports arbitrary baud rates

UNO-2174A
RoHS

COMPLIANT
2002/95/EC

Introduction
The UNO-2174A and UNO-2178A are Embedded Automation Computers equipped with Intel Atom N450/D510 CPUs, Gigabit Ethernet ports, rich I/O, and 2 x Mini PCIe socket. They
also feature WLAN, 3G expansion and compatibility with Windows 7. Both products have Energy Star certification, IP40 anti-dust ingress protection and wide operating temperatures
(-10 ~ 70°C), providing high performance and high versatility with low power consumption. The UNO-2174A and UNO-2178A are economic new computing platforms for manufacturing
executing systems, facility automation, and industrial thin client applications. With an additional daughterboard, the UNO-2174A and UNO-2178A support 1 x PC/104+ and
1 x PCI-104 plug-in cards for further expansion.

Specifications

I/O Interface
ƒƒ Serial Ports

General
ƒƒ Certification
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Dimensions (W x D x H) UNO-2174A: 255 x 152 x 50 mm (10" x 6.0" x 2.0")
UNO-2178A: 255 x 152 x 59 mm (10" x 6.0" x 2.3")
Enclosure
Aluminum +SECC
Mounting
Power Consumption
UNO-2174A: 12 W (Typical)
UNO-2178A: 16 W (Typical)
Power Requirements
9 ~ 36 VDC (e.g +24 V @ 1.5 A) (Min. 36 W), ATX
Power Suspend Mode S3, S4
Weight
2.5 kg
OS Support
Windows XP/7, WES7, WES-2009, CE 6.0, Linux, QNX
System Design
Remote Management
Built-in Advantech DiagAnywhere agent on Windows CE,
WES2009, WES7

System Hardware
ƒƒ CPU
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Memory
Indicators
Keyboard/Mouse
Storage

ƒƒ Display
ƒƒ Watchdog Timer
ƒƒ Expansion
ƒƒ Printer Port

UNO-2178A: Intel Atom D510 Dual Core 1.66 GHz
UNO-2174A: Intel Atom N450 1.6 GHz
1 x PS/2
CF: 1 x rear type I/II CompactFlash® slot
HDD: 1 x built-in 2.5" SATA HDD/SSD bracket (Not
available when PCI-104 expansion is being used)
DB15 VGA connector, UNO-2174A supports
up to 1400 x 1050, UNO-2178A supports
up to 2048 x 1536
2 x Mini PCIe
1 x SIM card slot
1 x Printer port (UNO-2174A)

Daughterboard (Additional purchase required)
ƒƒ Expansion Slot

14-16

PC/104+ and PCI-104 support (+5 & 3.3V power)
(HDD slot is not available when PCI-104 slot is being used)
2 x Mini PCIe card slots and 1 x SIM card slot



ƒƒ LAN
ƒƒ USB Ports
ƒƒ Audio

UNO-2174A: 2 x RS-232/485 (COM1-2),

2 x RS-232/422/485 w/ 128kB FIFO

(COM A-B)
UNO-2178A: 2 x RS-232/485 (COM1-2),

2 x RS-232/422/485 w/ 128kB FIFO

(COM A-B),

4 x RS-232/485 from DB25 print port
(COM3-6)
50-115.2 kbps (COM 1-6 in RS-232/485 mode)
50-115.2 kbps (COM A/B in RS-232 mode, 921.6kbps
peak performance)
50-921.6 kbps (COM A/B in RS-422/485 mode)
2 x 10/100/1000Base-T RJ-45 ports (Built-in boot ROM in
flash BIOS)
6 x USB 2.0
Line in, Line out, Mic in (5.1 channel HD audio)

Environment
ƒƒ Humidity
ƒƒ Operating Temperature IEC 60068-2-2 with 100% CPU/ I/O loading

-10 ~ 70°C (14 ~ 158°F)
IP40
IEC 60068-2-27
HDD: 1 Grms @ 5 ~ 500 Hz

ƒƒ UNO-2174A-A23E
ƒƒ UNO-2178A-A33E
ƒƒ UNO-2174A-A33E

Intel Atom N450 1.6 GHz, 2 GB RAM Automation Computer
Intel Atom D510 1.66 GHz, 2 GB RAM Automation
Computer
Automation Computer, Atom D510 1.67GHz, 2GB RAM

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

UNO-FPM21-AE
EWM-W138H01E
1750006043
1750002842
PCLS-DIAGAW10
UNO-PCM23-AE

Wi-Fi cable 15CM
Antenna for Wi-Fi
1 x PCI-104 and 1 x PC/104+ Expansion board

UNO-2174G/GL
UNO-2184G

Intel® Celeron® Automation Computers
with 4 x GbE, 2 x Mini PCIe, DVI/DP/HDMI
Intel® Core™ i7 Automation Computer
with 4 x GbE, 2 x Mini PCIe, DVI/DP/HDMI
Features

NEW

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ Onboard Intel Celeron 847E 1.1GHz/807UE 1.0GHz/Core i7-2655LE 2.2GHz/
i7-3555LE 2.5GHz processors
ƒƒ 2 x RS-232 and 2 x RS-232/422/485 ports with automatic flow control
ƒƒ 4 x 10/100/1000Base-T Ethernet
ƒƒ DVI-I, DP, HDMI support 2 x independent displays
ƒƒ Audio with Mic in, Line in, Line out
ƒƒ 6 x USB ports
ƒƒ Supports 2 x PCI-104 plug-in card with daughterboard expansion
ƒƒ Windows® WES 2009, WES 7 ready solution
ƒƒ External accessible CFast slot
ƒƒ Onboard system status LED indicators
ƒƒ Supports wake on LAN and boot from LAN function
ƒƒ Supports Power eSATA
ƒƒ IP40 ingress protection

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels

Introduction


The UNO-2184G/2174G/GL are high-performance Intel 3rd generation Core i7-3555LE/Intel 2nd generation core i7-2655LE/847E/807UE grade controllers that support PCI-104 with
daughterboard expansion, 3 x display, 6 x USB, and 2 x Mini PCIe socket. They also feature WLAN, 3G expansion and compatibility with Windows 7. The 4 x Gigabit LANs on the
UNO-2184G support teaming function with fault tolerance, link aggregation, and load balance features. The UNO-2184G/2174G/GL are high end computing platforms designed to
support applications with tremendous data volume and 3D content.

Industrial Panel

Specifications

Industrial Monitors


General
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Certification
Enclosure
Mounting
Power Consumption

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Power Requirements
Weight
OS Support
System Design
Remote Management

CE, UL, CCC, FCC, C-Tick, BSMI
255 x 152 x 69 mm (10" x 6.0" x 2.7")
Aluminum
UNO-2174G/GL: 30 W/ 20 W (Typical)
UNO-2184G: 40 W (Typical)
9 ~ 36 VDC (e.g +24V @ 3A) (Min. 72W), AT/ATX
3.0 kg
Windows XP/7, WES7, WES-2009, Linux
Fanless with no internal cabling (except COM3/COM4)
Built-in Advantech DiagAnywhere agent on WES2009 /
WES7

System Hardware
ƒƒ CPU

ƒƒ Memory
ƒƒ Indicators
ƒƒ Keyboard/Mouse
ƒƒ PC/104 Slot
ƒƒ Storage
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Display
Audio
Watchdog Timer
Mini PCIe Expansion

UNO-2174G: Intel Celeron 847E 1.1GHz
UNO-2174GL: Intel Celeron 807UE 1.0GHz
UNO-2184G: Intel Core i7-3555LE 2.5GHz/i7-2655LE
2.2GHz
UNO-2174G/GL: 4 GB DDR3 SDRAM built-in
UNO-2184G: 4 GB/8 GB DDR3 SDRAM built-in
LEDs for Power, battery, LAN (Active, Status) and Serial
(Tx, Rx)
1 x PS/2
PCI-104 slot, supports +5 & 3.3V power
CF: 1 x CFast slot
HDD: One built-in 2.5" SATA HDD bracket
(Optional 2 x HDD Bracket Kit)
1 x DVI-I, 1 x HDMI, 1 x DP (2 x independent displays)
Mic in, Line in, Line out
2 x Mini PCIe slots with 1 x SIM card

Daughterboard (Additional purchase required)
ƒƒ Expansion Slot

PCI-104 support (+5 & 3.3V power)

I/O Interfaces
ƒƒ Serial Ports

2 x RS-232, 2 x RS-232/422/485 with DB9
connectors; automatic RS-485 data flow control

ƒƒ LAN
ƒƒ USB Ports

RS-232: 50 ~ 115.2 kbps
RS-422/485: 50 ~ 115.2 kbps (Max.)
4 x 10/100/1000Base-T RJ-45 ports
Supports AMT (UNO-2184G only), wake on LAN and
built-in boot ROM in flash BIOS
6 x USB (only UNO-2184G-D64E supports 2 x USB3.0)

Industrial Ethernet
Solutions

Environment
ƒƒ Humidity
ƒƒ Operating Temperature -10 ~ 60°C (14 ~ 140°F) @ 5 ~ 85% RH. (with air flow)
IEC 60068-2-27

HDD: 1 Grms @ 5 ~ 500 Hz


and IP Gateways

Cards

Intel Core i7-2655LE 2.2 GHz, 4 GB RAM Automation
Computer
Intel Core i7-2655LE 2.2 GHz, 8 GB RAM Automation
Computer
Intel Core i7-3555LE 2.5GHz, 4 GB RAM Automation
Computer
Intel Celeron 847 1.1 GHz, 4 GB RAM Automation
Computer
Intel Celeron 807UE 1.0 GHz, 4 GB RAM Automation
Computer

Embedded Automation
Computers

UNO-FPM21-AE
EWM-W138H01E
1750006043

1750002842

PCLS-DIAGAW10
UNO-PCM24-AE

Wi-Fi cable 15CM
Antenna for Wi-Fi
2 x PCI-104 expansion board

M2M I/O Modules

9656EWMG00E
UNO-2184HD-AE

Half size to full size Mini PCIe bracket
2 x HDD Bracket accessory kit for UNO-2184G/2174G

ƒƒ UNO-2184G-D44E
ƒƒ UNO-2184G-D45E
ƒƒ UNO-2184G-D64E
ƒƒ UNO-2174G-C54E
ƒƒ UNO-2174GL-C44E

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Industrial Wireless
Solutions


PACs

Compact PCI Systems

RS-485 I/O Modules

14-17

UNO-2170

Intel® Celeron® M Automation Computer
with 2 x LAN, 4 x COM, PC/104
Features
ƒƒ Onboard Celeron® M 600 MHz or Celeron M 1.0 GHz
ƒƒ Onboard 512 KB battery-backup SRAM
ƒƒ Two RS-232 and two RS-232/422/485 ports with automatic flow control
ƒƒ Two 10/100Base-T RJ-45 ports
ƒƒ Two USB and one type I/II PC card
ƒƒ PC/104 expansion slots
ƒƒ Windows® CE 5.0 & 6.0, Windows XP Embedded, and Linux ready solution
ƒƒ Onboard system status LED indicators
ƒƒ Supports Boot from LAN function

RoHS

COMPLIANT
2002/95/EC

Introduction
The UNO-2170 is an Automation Computer that supports PC/104 expansion, serial communication ports and several other networking interfaces. UNO-2170 supports Windows XP
Embedded OS and Windows CE 5.0 & 6.0, which offers a pre-configured image with optimized onboard device drivers. Windows XP Embedded delivers the power of the Windows
operating system in componentized form. You can seamlessly integrate your applications into Windows XP Embedded and speed up your system development with an application
ready platform that can provide a rich networking interface to fulfill diverse requirements.

Specifications
General

ƒƒ Watchdog Timer

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Certification
Enclosure
Aluminum
Mounting
Wallmount
Power Consumption
24 W (Typical)
Weight
1.6 kg
OS Support
WES Windows XP Embedded, Windows 2000/XP,
ƒƒ System Design
CE / XPe

System Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ

CPU
Memory
Battery Backup SRAM
Indicators

ƒƒ Keyboard/Mouse
ƒƒ PC Card

ƒƒ PC/104 Slot
ƒƒ Printer Port
ƒƒ Storage
ƒƒ Display

14-18

Celeron M 600 MHz, Celeron M 1.0 GHz
256 MB/512 MB DDR SDRAM built-in
512 KB
LEDs for Power, IDE, Alarm for battery backup SRAM,
LAN (Active, Status) and Serial (Tx, Rx)
1 x PS/2
1 x PC Card slot, supports CardBus (Card-32) Card
and 16-bit (PCMCIA 2.1/JEIDA4.2) card
Supports +5, +3.3 and +12 V @ 120 mA working
power
2 x PC/104 slots (optional). Supports +5 V power
1 x printer port
HDD: Built-in one 2.5" SATA HDD bracket


sec

I/O Interface
ƒƒ Serial Ports
ƒƒ LAN
ƒƒ USB Ports

2 x RS-232, 2 x RS-232/422/485 with DB9 connectors
RS-232: 50 ~ 115.2 kbps
RS-422/485: 50 ~ 921.6 kbps (Max.)
2 x 10/100 Base-T RJ-45 ports (Built-in boot ROM in
flash BIOS)

Environment
ƒƒ Humidity
-20 ~ 50°C (-4 ~ 122°F) @ 5 ~ 85% RH.
IEC 68 2-27
HDD: 0.5 Grms @ 5 ~ 500 Hz

ƒƒ UNO-2170-C00BE
ƒƒ UNO-2170-C11BE

Celeron M 600 MHz Automation Computer
Celeron M 1 GHz Automation Computer

Accessories
ƒƒ UNO-PCM21-AE
ƒƒ UNO-FPM21-AE
ƒƒ PCLS-DIAGAW10

2 x PC/104 expansion kit for UNO-2170

UNO-3000G Series

Intel Core i7/Celeron 800 series
Automation Computers with 3/5
PCI(e) expansion slots, 2 Mini
PCIe slots and 2 CFast sockets

Features

NEW

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


ƒƒ Onboard Intel Celeron 847/807UE/Core i7-2655LE, 1.1 GHz/1.0 GHz/2.2 GHz
processors
ƒƒ 2 x RS-232/422/485 ports with automatic flow control and 2 x RS-232 pin
head reserved
ƒƒ 2 x 10/100/1000Base-T Ethernet
ƒƒ DVI-I, HDMI support 2 x independent displays
ƒƒ Audio with Mic in, Line out
ƒƒ 9 x USB2.0 ports (1 x internal USB for dongle and flash drive)
ƒƒ Windows® WES 2009, WES 7/8 ready solution
ƒƒ Dual power input for power redundancy
ƒƒ Onboard system diagnosis LED indicators
ƒƒ Supports wake on LAN and boot from LAN function
ƒƒ Front accessible dual HDD/SSD with onboard RAID 0/1 support

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels

RoHS

COMPLIANT
2002/95/EC

Introduction


The UNO-3000G series are configured with high-performance Intel® 2nd generation Core i7/Celeron 800 series processors and Couger Point-M QM67/ HM65 PCH, which supports
2 displays, 8 USB ports, 2 Mini PCIe sockets, 2 CFast Sockets and up to 5 expansion slots. They also feature two power inputs for redundancy and relay function for alarm handling,
furthermore, two friendly front accessible HDD/ SSD bays to support RAID 0/1. Two Gigabit LANs on the UNO-3000G series support teaming function with fault tolerance, link
aggregation and load balance features. The built-in intelligent BIOS to diagnose system status immediately via relay function or LED indication.

Industrial Panel

Specifications

Industrial Monitors

General

I/O Interface

ƒƒ Certification
CE, UL, CCC, FCC, BSMI
ƒƒ Dimensions (W x D x H) UNO-3083G/3073G/GL: 148 x 238 x 177 mm (5.8" x 9.3" x 7.0")

ƒƒ Serial Ports

ƒƒ Enclosure
ƒƒ Mounting
ƒƒ Power Requirements
ƒƒ Weight
ƒƒ OS Support
ƒƒ System Design

UNO-3085G: 193 x 238 x 177 mm (7.6" x 9.3" x 7.0")
Aluminium
Wallmount, Stand mount, Panel mount
UNO-3073GL: 25W (Typical)
UNO-3073G: 35W (Typical)
UNO-3083G/3085G: 45W (Typical)
12V ±20%/ 24V ±20% (e.g +24 V @ 5 A), AT/ATX power
Jumper selection and BIOS AT simulation (support system
reboot automatically after power recovery)
UNO-3083G/3073G/3073GL: 4.5kg
UNO-3085G: 5.0kg
Windows XP, Windows7/8, WES7, WES-2009, Linux
Fanless with no internal cabling (except COM1/COM2)
Built-in Advantech DiagAnywhere agent on WES2009/WES7

ƒƒ LAN
ƒƒ USB Ports

Environment
ƒƒ Humidity
ƒƒ Operating Temperature

System Hardware
ƒƒ CPU
ƒƒ Memory

ƒƒ Indicators
ƒƒ Storage

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

CF
HDD

Display
Audio
Watchdog Timer
Mini PCIe Expansion
PCI(e) Expansion

ƒƒ PCI Slot Power

UNO-3073GL: Intel Celeron 807UE 1.0GHz
UNO-3073G: Intel Celeron 847E 1.1GHz
UNO-3083G/3085G: Intel Core i7-2655LE 2.2GHz
UNO-3073GL/3073G: 4G DDR3 SDRAM burn-in
UNO-3083G/3085G: 4G DDR3 SDRAM burin-in
(UNO-3073G/3083G/3085G can support up to 16G RAM by
project)
LEDs for Power, Battery, LAN(Active, Status), Serial
communication(Tx, Rx) and User Defined
2 x CFast slot
Two built-in 2.5" SATA HDD brackets with RAID 0/1
(except UNO-3073GL)
1 x DVI-I, 1 x HDMI (2 x independent displays)
Mic in, Line Out
2 x Mini PCIe slots with 2 x SIM cards
UNO-3083G/3073G: 1x PCIex16 slot and 2x PCI slots
UNO-3085G: 2x PCIex8 slots and 3x PCI slots
UNO-3073GL: 1x PCIex1 slot and 2x PCI slots
12 V @ 3 A, -12 V @ 0.8 A, +5 V @ 6 A, +3.3 V @ 6 A (total
combined power consumption on the PCI slots should be less
than 40W)

RS-485 data flow control, 2 x RS-232 (optional)
RS-232: 50 ~ 115.2 kbps
RS-422/485: 50 ~ 115.2 kbps (Max.)
2 x 10/100/1000Base-T RJ-45 ports
Supports AMT (UNO-3083G/3085G only), wake on LAN and
built-in boot ROM in flash BIOS
9 x USB 2.0 (one internal)

-10 ~ 60°C (14 ~ 140°F) @ 5 ~ 85% RH. (with air flow)
IEC 60068-2-27
HDD: 0.5Grms@5~500Hz

ƒƒ UNO-3083G-D44E
ƒƒ UNO-3085G-D44E
ƒƒ UNO-3073G-C54E
ƒƒ UNO-3073GL-C44E

Intel Core i7-2655LE 2.2 GHz, 4 GB RAM, 1 x PCIex16 +
2 x PCI expansion slots
Intel Core i7-2655LE 2.2 GHz, 4 GB RAM, 2 x PCIex8 +
Intel Celeron 847 1.1 GHz, 4 GB RAM, 1 x PCIex16 +
Intel Celeron 807UE 1.0 GHz, 4 GB RAM, 1 x PCIex1 +

Optional Expansion Type by Project Support
Model
UNO-3083G
UNO-3085G
UNO-3073G
UNO-3073G
(same dimension with UNO-3085G)
UNO-3073GL
UNO-3073GL
(same dimension with UNO-3085G)

Optional Expansion Type
2x PCIex8 slots and 1x PCI slot
1x PCIex16 slot and 4x PCI slots
1x PCIex16 slot and 4x PCI slots
2x PCIex8 slots and 3x PCI slots

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

2x PCIx1 slots and 3x PCI slots


14-19

UNO-3072LA

Intel® Atom™ N270 Automation
Computer with 2 x PCI, 2 x GbE, DVI
Features
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

2 x PCI slots for versatile applications
Windows® WES 2009, WES 7 ready solution and Embedded Linux
Supports wake on LAN and boot from LAN function
Supports audio Line-out function
Fanless design with no internal cables
AT/ATX power mode by jumper selection
Front-accessible I/O design
Wide operating temperature from -10 ~ 60°C
One internal USB for dongle and flash drive

RoHS

COMPLIANT
2002/95/EC

Introduction
The UNO-3072LA is an Atom-based Embedded Automation Computer with two PCI slots that provides excellent power consumption capabilities. The Gigabit LAN supports the
teaming function with fault tolerance, link aggregation, and load balancing. Different from general industrial PCs, the UNO-3072LA is more compact and reliable with a fanless and
cableless design. It is designed with an open platform which can fulfill any demanding requirement from the industrial field, and it is an ideal solution for industrial automation and
control. The UNO-3072LA supports Windows XP Embedded OS, which offers a pre-configured image with optimized onboard device drivers. Windows XP Embedded delivers the
power of Windows operating system in componentized form.

Specifications
General

I/O Interface

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ Clock
ƒƒ LAN

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Certification
Enclosure
Aluminum + SECC
Mounting
Wallmount, Stand, Panel
Power Consumption
20 W (Typical)
Power Requirement
9 ~ 36 VDC (e.g +24 V @ 2 A) (Min. 48W), ATX, AT/
ATX power mode by Jumper selection and BIOS AT
simulation (support system reboot automatically after
power recovery)
Weight
4.5 kg
OS Support
WES, Windows XP Embedded, Windows Vista/XP,
Windows 7, Windows CE 6.0, Linux, QNX
System Design
CE/XPe

System Hardware
ƒƒ CPU
ƒƒ Memory
ƒƒ PCI Slot Power
ƒƒ Indicators
ƒƒ Audio
ƒƒ Storage
CF:

HDD:

ƒƒ Display
ƒƒ Watchdog Timer

14-20

1 GB/2 GB DDRII SDRAM built-in
2 x PCI V2.2 slots (Note: The heat dissipation from the
PCI cards may affect thermal performance)
12 V @ 2A, -12V @ 0.5 A, +5 V @ 4 A, +3.3 V @ 4 A
(total combined power consumption on the PCI slots
should be less than 20W)
LEDs for Power, Standby, HDD, Rx/Tx for COM ports
(can be used as programmable LED)
AC 97, Line Out
1 x internal type I/ II CompactFlash slot
1 x external type I/ II CompactFlash slot
Built-in one 2.5" SATA HDD/SSD bracket
1x external SATA 2.0
Single DVI-I display (DVI-D + VGA independent)
Programmable 256 level timer interval, from 1~255 sec


ƒƒ Serial Ports
ƒƒ Serial Speed
ƒƒ USB Ports
ƒƒ Optional I/O

Battery-backup RTC for time and date
2 x 10/100/1000Base-T RJ-45 ports (Intel 82574L,
supports Wake on LAN, Teaming, built-in boot ROM,
and IEEE1588 hardware support)
RS-485 data flow control, 2 x RS-232 (optional)
RS-232 Speed: 50 bps ~ 115.2 kbps,
RS-422/485 Speed: 300 bps ~ 921.6 kbps (Max)
5 x USB 2.0 (one internal), 2 x USB 2.0 pin header
PS/2 KB/MS, 2 x COM-232, 2 x USB 2.0, LPT

Environment
-10 ~ 60°C (14 ~ 140°F)
-20 ~70°C (-4 ~ 158°F ) (Optional and no PCI card)
ƒƒ Humidity
IEC 60068-2-27
IIEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.)
HDD: 1 Grms @ 5 ~ 500 Hz

ƒƒ UNO-3072LA-A12E
ƒƒ UNO-3072LA-A13E

Intel Atom N270 1.6 GHz, 1 GB RAM Automation
Computer
Intel Atom N270 1.6 GHz, 2 GB RAM Automation
Computer

Accessories
ƒƒ
ƒƒ
ƒƒ
ƒƒ

PCLS-DIAGAW10
9663308401E
9663308402E
9663308403E

USB x 2 for UNO-3000 Series
LPT x 1 for UNO-3000 Series
RS232 COM port x 2 and PS2 x 1 for UNO-3000 Series

UNO-3072A
UNO-3074A

Intel® Atom™ D510 Automation Computer
with 2 x PCI, 2 x GbE, and FireWire
Intel® Atom™ D510 Automation Computer
with 4 x PCI, 2 x GbE, and FireWire
Features
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

UNO-3072A

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Onboard Intel Atom D510 1.66 GHz processor
Dual IEEE-1394 for vision inspection devices
Onboard 512KB Battery- backup SRAM
Up to four PCI expansions
4-ch isolated DI, 4-ch isolated DO
Dual SSD/HDD with onboard RAID 0/1 support
1 x internal USB for dongle and flash drive

UNO-3074A

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels

RoHS

COMPLIANT
2002/95/EC

Introduction


The UNO-3072A and UNO-3074A are Dual Core Atom-based Embedded Automation Computers with up to four PCI slots that provide an excellent performance to power consumption
ratio. They are also equipped with two IEEE 1394b bilingual interfaces which allow users to connect their own devices for machine vision. Critical data can be saved on the battery
backup SRAM. They also support two HDD bays with RAID 0/1. The design with an open platform can fulfill demanding requirements from the industrial field, especially for machine
vision or motion controllers.

Industrial Panel

Specifications

ƒƒ Serial Speed
ƒƒ
ƒƒ
ƒƒ
ƒƒ

USB Ports
IEEE 1394 (Firewire)
Optional I/O
Digital Input
Wet contact:
Dry contact:
isolation and ESD protect
Opto-Isolator Response:
ƒƒ Digital Output

General
ƒƒ Certification
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Enclosure
Mounting
Power Consumption
Power Requirement

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Weight
OS Support
System Design
Remote Management

UNO-3072A: 140 x 238 x 177 mm (5.5" x 9.3" x 7.0")
UNO-3074A: 181 x 238 x 177 mm (7.5" x 9.3" x 7.0")
Aluminum + SECC
25 W (Typical, no add-on card)
9 ~ 36 VDC (e.g +24 V @ 3A), ATX, AT/ATX power Jumper
selection and BIOS AT simulation (support system reboot
automatically after power recovery)
UNO-3072A: 4.5 kg / UNO-3074A: 5.0 kg
WES2009, Windows Vista/XP, Windows 7, Linux, QNX
Built-in Advantech DiagAnywhere agent on Windows CE/
WES2009

Timer/Counter
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

System Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ

CPU
Memory
Battery Backup SRAM
Expansion Slots

2 GB DDRII SDRAM built-in
512 KB
UNO-3072A: 2 x PCI V2.2 slots
UNO-3074A: 4 x PCI V2.2 slots
PCI Slot Power
12 V @ 3 A, -12 V @ 0.8 A, +5 V @ 6 A,
+3.3 V @ 6 A (total combined power consumption on the PCI
slots should be less than 40W)
Indicators
LEDs for Power, Standby, HDD, SRAM battery, Rx/Tx for COM
ports
Audio
AC 97, Line Out
Storage
CF: 1 x internal type I/ II CompactFlash slot


HDD: Two built-in 2.5" SATA HDD brackets with

support for RAID 0 and RAID 1

One external SATA 2.0 (does not support hot swap)
Display
Watchdog Timer

ƒƒ Serial Ports

Counter Source
DI1 & DI3
Pulse Output
DO2 & DO3
Can be cascaded as one 32-bit counter/timer
Down counting, preset counting value
Timer Time Base
100 kHz, 10 kHz, 1 kHz, 100 Hz

Environment
ƒƒ Humidity

(IEC 60068-2-2, 100% CPU/ I/O loading)
-10 ~ 60°C (14 ~ 140°F)
-20 ~ 80°C (-4 ~ 176°F)
IEC 60068-2-27
HDD: 1 Grms @ 5 ~ 500 Hz

ƒƒ UNO-3072A-A33E
ƒƒ UNO-3074A-A33E

Intel Atom D510 1.66 GHz, 2 GB RAM Automation Computer
w/ 2 x PCI
Intel Atom D510 1.66 GHz, 2 GB RAM Automation Computer
w/ 4 x PCI

Accessories

I/O Interface
ƒƒ LAN

2 x type B (Bilingual)
PS/2 KB/MS, 2 x COM-232, 2 x USB 2.0, LPT
4-ch. contact DI0 ~ DI3
Logic 0: -3 ~ 3 VDC; Logic 1: ±10 ~ 50 VDC
Logic 0: open; Logic 1: close to GND
1500 VDC,, 50~70 VDC over voltage protection
25µs- Interrupt capable channel: DI0 ~ DI3
4 ch. DO0 ~ DO3
1,500 VDC isolation, 200 mA max/channel sink current
Keeps output status after system hot reset
Open collector to 40V (200mA maximum sink current load) and
3 kHz speed

2 x 10/100/1000Base-T RJ-45 ports (Intel 82574L, supports
Wake on LAN, Teaming, built-in boot ROM, and IEEE1588
hardware support)
2 x RS-232/422/485 with DB9 connectors, automatic RS-485
data flow control, 2 x RS-232 (optional)

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

PCLS-DIAGAW10
1960048293N000
1960045707N010
9663308401E
9663308402E
9663308403E

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

Top cover of UNO-3082 with venting hole
USB x 2 for UNO 3000 Series
LPT x 1 for UNO 3000 Series
RS232 COM port x 2 and PS2 x 1 for UNO 3000 Series


14-21

UNO-3082
UNO-3084

Intel® Core™ 2 Duo Automation Computer
with Dual DVI, 2 x PCI and FireWire
Intel® Core™ 2 Duo Automation Computer
with Dual DVI, 1 x PCIe, 3 x PCI and FireWire
Features

UNO-3082

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

UNO-3084

Onboard Intel Core 2 Duo L7500 1.6 GHz processor
Dual DVI-I to support up to 3 displays
Dual IEEE-1394 for vision inspection devices
Onboard 512KB Battery- backup SRAM
Up to three PCI and one PCIe expansion
4-ch isolated DI, 4-ch isolated DO
Dual SSD/HDD with onboard RAID 0/1 support
1 x internal USB for dongle and flash drive

RoHS

COMPLIANT
2002/95/EC

Introduction
The UNO-3082 and UNO-3084 are high performance Core 2 Duo Embedded Automation Computers with up to four expansion slots for PCI express or PCI support. The Gigabit LAN
on the UNO-3082/3084 supports Teaming function with fault tolerance, link aggregation, and load balance features. They are also equipped with two IEEE 1394b bilingual interfaces
which allow users to connect their own devices for machine vision application. Critical data can be saved on the battery backup SRAM. They also support two HDD bays with RAID 0/1.

Specifications

ƒƒ
ƒƒ
ƒƒ
ƒƒ

General
ƒƒ Certification
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Enclosure
Mounting
Power Consumption
Power Requirement

ƒƒ Weight
ƒƒ OS Support
ƒƒ System Design

UNO-3082: 157 x 238 x 177 mm (6.2" x 9.3" x 7.0")
UNO-3084: 195 x 238 x 177 mm (7.6" x 9.3" x 7.0")
Aluminum + SECC
40 W (Typical, no add-on card)
9 ~ 36 VDC (e.g +24 V @ 5 A), ATX, AT/ATX power Jumper
selection and BIOS AT simulation (support system reboot
automatically after power recovery)
UNO-3082: 4.5 kg / UNO-3084: 5.0 kg
WES, Windows XP Embedded, Windows Vista/XP,
Windows 7, Linux, QNX
Built-in Advantech DiagAnywhere agent on Windows CE/XPe

System Hardware
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

ƒƒ
ƒƒ

Intel Core 2 Duo L7500 1.6 GHz
2 GB/4 GB DDRII SDRAM built-in
512 KB
UNO-3082: 2 x PCI V2.2 slots
UNO-3084: 1 x PCIe plus 3 x PCI v2.2 slots
PCI Slot Power
12 V @ 3 A, -12 V @ 0.8 A, +5 V @ 6 A,
+3.3 V @ 6 A (total combined power consumption on the PCI
slots should be less than 40W)
Indicators
LEDs for Power, Standby, HDD, SRAM battery, Rx/Tx for COM
ports
Audio
AC 97, Line Out
Storage
CF: 1 x internal type I/ II CompactFlash slot


HDD: Two built-in 2.5" SATA HDD brackets with

support for RAID 0 and RAID 1

One external SATA 2.0 (does not support hot swap)
Display
Dual DVI-D independent,
or DVI-D + Dual VGA cloned displays
Watchdog Timer

ƒƒ Serial Speed

14-22

Timer/Counter
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Counter Source
DI1 & DI3
Pulse Output
DO2 & DO3
Can be cascaded as one 32-bit counter/timer
Down counting, preset counting value
Timer Time Base
100 kHz, 10 kHz, 1 kHz, 100 Hz

ƒƒ Humidity

(IEC 60068-2-2, 100% CPU/ I/O loading)
-10 ~ 55°C (14 ~ 131°F)
-20 ~ 80°C (-4 ~ 176°F)
IEC 60068-2-27
HDD: 1 Grms @ 5 ~ 500 Hz

ƒƒ UNO-3082-D23E
ƒƒ UNO-3084-D23E
ƒƒ UNO-3082-D24E
ƒƒ UNO-3084-D24E

Intel Core 2 Duo, 2 G RAM, 2 x PCI Automation Computer
Intel Core 2 Duo, 2 G RAM, 3 x PCI+/ 1 x PCIe Automation
Computer
Intel Core 2 Duo, 4 G RAM, 2 x PCI Automation Computer
Intel Core 2 Duo, 4 G RAM, 3 x PCI+/ 1 x PCIe Automation
Computer

Accessories

I/O Interface

ƒƒ Serial Ports

2 x type B (Bilingual)
PS/2 KB/MS, 2 x COM-232 (with packing), 2 x USB 2.0, LPT
4-ch. contact DI0 ~ DI3
Logic 0: -3 ~ 3 VDC; Logic 1: ±10 ~ 50 VDC
Logic 0: open; Logic 1: close to GND
1500 VDC,, 50~70 VDC over voltage protection
25µs- Interrupt capable channel: DI0 ~ DI3
4 ch. DO0 ~ DO3
1,500 VDC isolation, 200 mA max/channel sink current
Keeps output status after system hot reset
Open collector to 40V (200mA maximum sink current load) and
3 kHz speed

Environment

CPU
Memory
Battery Backup SRAM
Expansion Slots

ƒƒ LAN

USB Ports
IEEE 1394 (Firewire)
Optional I/O
Digital Input
Wet contact:
Dry contact:
isolation and ESD protect
Opto-Isolator Response:
ƒƒ Digital Output

2 x 10/100/1000Base-T RJ-45 ports (Intel 82574L, supports
Wake on LAN, Teaming, built-in boot ROM, and IEEE1588
hardware support)
2 x RS-232/422/485 with DB9 connectors, automatic RS-485 data
flow control, 2 x RS-232 (optional)


ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

PCLS-DIAGAW10
1960048293N000
1960045707N010
9663308401E
9663308402E
9663308403E

USB x 2 for UNO-3000 Series
LPT x 1 for UNO-3000 Series
RS232 COM port x 2 and PS2 x 1 for UNO-3000 Series

Class I, Division 2 Certification
Overview
Introduction
Advantech has designed a series of products which have passed Class I, Division 2 (CID2), Groups A, B, C, D certification. These products include: Human Machine Interface, Industrial
Communication, Embedded Automation Computers, and Data Acquisition modules. Furthermore, Advantech's CID2 certified product solutions have been engineered to meet the
demanding requirements of various hazardous applications such as oil field drilling, pump station monitoring, chemical plants, pharmaceutical factories, oil pipeline monitoring,
tank storage monitoring, and fuel station management.

Certification Definition - Class I, Division 1 & 2
Hazardous locations are areas where potential hazards (e.g. fires, explosions, etc.) may exist under normal or abnormal conditions because of the presence of flammable gases or
vapors, flammable liquids, combustible dusts or ignitable fibers. According to the NEC (National Electrical Code), there are three types of hazardous locations categorized by Class
I (gases, vapors, and liquids), Class II (dusts), and Class III (fibers and flyings). Division 1 means normally explosive and hazardous and Division 2 means not normally present in
an explosive concentration but may accidentally exist.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel

Class I is directly related to the oil and gas market applications, such as petroleum refineries, gasoline storage, dispensing areas and utility gas plants. According to the ignition
temperature of the substance, its explosion pressure, and other flammable characteristics, the gases and vapors of Class I locations are broken into four groups by the Codes: A, B, C,
and D. Temperature classes also exist to designate the permissible surface temperature of electrical equipment which allows them to operate normally in the surrounding atmosphere.

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

C1D2 Certified Industrial Controller
Features

Compact PCI Systems

Designed for Control Cabinets

Flexible Expansion

The UNO-1100H series feature a compact size, DIN-rail mounting, and front-accessible
I/O that make installation within a control cabinet very easy.

With Mini PCI, PCI-104 and PC/104+, the UNO-1100H series enable users to easily
integrate wireless connections and Fieldbus I/O modules in a single package.

Battery-backup SRAM

M2M I/O Modules

RS-485 I/O Modules

The onboard battery-backup SRAM saves runtime process data in the even of a power
failure. In addition, the SRAM can act as a data buffer that helps to reduce CF access
time and extend product lifetime.


14-23

Class I, Division 2 Certified
486SX-grade SoC DIN-rail PC
with 1 x LAN, 8 x Isolated COM

UNO-1140FH
Features

ƒƒ UL listed for Hazardous Locations: Class I, Division 2
ƒƒ Onboard Advantech EVA-X4150 486SX SoC
ƒƒ 4 x isolated RS-232/485 and 4 x isolated RS-485 ports with automatic flow
control
ƒƒ Industrial-grade serial port design without data loss
ƒƒ 1 x 10/100Base-T RJ-45, 2 x USB 2.0, and 1 x internal CompactFlash®
ƒƒ Compact size, small footprint, saves space
ƒƒ Front-accessible I/O and DIN-rail design for easy installation in control cabinet
ƒƒ Wide operating temperature range up to 60°C
ƒƒ Windows® CE 5.0, DOS, and Linux ready solution
ƒƒ Grounding isolation between chassis and system
ƒƒ IP40 ingress protection
RoHS

COMPLIANT
2002/95/EC

Introduction
In hazardous locations, devices are under potential danger from flammable gases, combustible dust, or ignitable fibers, creating the potential for fire and explosions. The UNO-1140FH
is designed to be safely operated in these locations and is UL listed for Hazardous Locations with Class I, Division 2, group A, B, C, D & T4A certification. The UNO-1140FH is also
DIN-rail mountable, providing several serial communication ports and Ethernet interfaces. With a compact size, small footprint and front accessible I/Os, the UNO-1140FH is convenient
for the control cabinet. The wide operation temperature and industrial serial port design makes the UNO-1140FH a perfect communication gateway. With OS and driver support on
WinCE, Linux, users can integrate applications easily with an application ready platform that can provide a versatile function to fulfill diverse requirements.

Specifications
General

Environment

ƒƒ Certification
ƒƒ Hazardous Locations US: ANSI/ISA 12.12.01-2007 cUL: CSA 22.2 No.
213 M1987, Class I, Division 2, Groups A,B,C,D,
Hazardous Location, Temperature code: T4A, Ambient
Temperature Range: -10°C ≤ Tamb ≤ 60°C
ƒƒ Dimensions (W x H x D) 71 x 152 x 139 mm (2.8” x 6” x 5”)
ƒƒ Enclosure
Aluminum + SECC
ƒƒ Mounting
DIN-rail, Wallmount
ƒƒ Industrial Grounding Isolation between chassis and power ground
10 W (Typical)
10 ~ 30 VDC (e.g +24 V @ 1 A) (Min. 24 W), AT
ƒƒ Weight
1.0 kg
ƒƒ OS Support
DOS, Windows CE 5.0/6.0, Linux
ƒƒ System Design
CE

IP40
ƒƒ Operating Temperature IEC 60068 - 2-2 (with 100% CPU/ I/O loading)
-10 ~ 60°C (14 ~ 140°F)
IEC 60068 - 2-27
IEC 60068 - 2-64 (Random 1 Oct./min, 1hr/axis.)

System Hardware
ƒƒ CPU
ƒƒ Memory
ƒƒ Indicators
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Keyboard/Mouse
Storage
Display
Watchdog Timer

Advantech EVA-X4150 SoC,486SX grade, 150MHz
Onboard 64 MB Industrial grade SDRAM
LEDs for Power, CF, LAN (Active, Status) and Serial
(Tx, Rx)
1 x PS/2
CF: 1 x internal type I/II CompactFlash® slot
sec

I/O Interface
ƒƒ Serial Ports

COM1 ~ COM4

COM5 ~ COM 8
ƒƒ Serial Port Protection
ƒƒ LAN
ƒƒ USB


RS-232: 50 ~ 115.2 kbps
RS-485: 50 ~ 115.2 kbps
RS-485: 300 ~ 921.6 kbps (max)
500VDC Isolation Protection
2000VDC EFT Protection
2 x USB, USB 2.0 compliant

ƒƒ UNO-1140FH-V10E

CID2 EVA SoC DIN-rail PC w/ 64 MB RAM and 8 x iso.
COM

Accessories
ƒƒ UNO-FPM11-BE
ƒƒ PCLS-DIAGAW10

14-24

4 x isolated RS-232/485 with DB9
connectors, 4 x isolated RS-485 with screw terminal,


UNO-1150GH
UNO-1150GHE

Class I, Division 2 Certified AMD Geode™ LX
DIN-rail PC with 2 x LAN, 3 x COM
Class I, Division 2 Certified AMD Geode™ LX
DIN-rail PC with 2 x LAN, 3 x COM, PCI-104
Features

NEW

ƒƒ UL listed for Hazardous Locations: Class 1, Division 2
ƒƒ Onboard AMD Geode LX800 (500 MHz) CPU
ƒƒ One RS-232 and two RS-232/422/485 ports with automatic flow control.
ƒƒ Two 10/100 Base-T RJ-45 ports
ƒƒ Two USB, audio and internal CompactFlash®
ƒƒ Compact size, small foot print, saves space and front accessible for easy wiring
ƒƒ DIN-rail design for easy installation in field cabinet
ƒƒ Wide operating temperature range
ƒƒ Windows® CE 5.0/6.0, Windows XP Embedded, and Linux ready solution
ƒƒ Fanless desing with no intemal cabling

UNO-1150GH

UNO-1150GHE
COMPLIANT
2002/95/EC

Introduction
In hazardous locations, devices are under potential danger from flammable gases, combustible dust, or ignitable fibers, creating the potential for fire and explosions. The UNO-1150GH
and UNO-1150GHE are designed to be safely operated in these locations and are UL listed for Hazardous Locations with Class I, Division 2, groups A, B, C, D & T3A certification.
The UNO-1150GH and UNO-1150GHE are DIN-rail mounted and provide several serial communication ports and Ethernet interfaces with a compact size to save space. They are also
front accessible for easy installation in field cabinets.

Specifications

I/O Interface
ƒƒ Serial Ports

General
ƒƒ Certification
ƒƒ Hazardous Locations

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

US: ANSI/ISA 12.12.01-2007 cUL: CSA 22.2 No. 213
M1987, Class I, Division 2, Groups A,B,C,D,
Hazardous Location, Temperature code: T3A, Ambient
Temperature Range: -10°C ≤ Tamb ≤ 60°C
Dimensions (W x H x D) UNO-1150GH: 71 x 152 x 139 mm (2.8" x 6" x 5.5")
UNO-1150GHE: 96.5 x 152 x 139 mm (3.8" x 6" x 5.5")
Enclosure
Aluminum + SECC
Mounting
DIN-rail, Wallmount
Power Consumption
15 W (Typical)
Power Requirement
9 (Min.) ~ 36 (Max.) VDC (e.g +24 V @ 1 A) (Min. 24
W), AT
Weight
UNO-1150GH: 1.6 kg
UNO-1150GHE: 2.0 kg
OS Support
Windows CE 5.0/6.0, Linux QNX
System Design
CE / XPe

System Hardware
ƒƒ CPU
ƒƒ Memory Onboard
ƒƒ Indicators
ƒƒ Keyboard/Mouse
ƒƒ Storage
ƒƒ PC/104 Slot
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Mini PCI
Display
Audio
Watchdog Timer

Machine Automation

Energy Automation

Building Automation
Systems

Automation Software

Operator Panels

RoHS

ƒƒ

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


AMD Geode LX 800 (500MHz)
256 MB DDR SDRAM
LEDs for Power, IDE, LAN (Active, Status) and Serial
(Tx, Rx)
1 x PS/2
HDD: 2.5" SATA HDD bracket (UNO-1150GHE)
2x PCI-104 slot, supports 3.3 V & +5 V
(Only UNO-11150GHE, one PCI-104 while using HDD)
1x MiniPCI (UNO-1150GHE only)
Line in, Line out
Programmable 256 level timer interval, 1 to 255 sec

2 x RS-232 (one pin header reserved),
2 x RS-232/422/485 with DB9 connectors, Automatic
RS-485 data flow control RS-232/422/485 ports
support hardware 128 byte FIFO
RS-232 port: 50 ~ 115.2 kbps
RS-232/422/485 port: RS-232, 300 ~ 115.2 kbps
RS-232/422/485 port: RS-422/485, 300 ~ 921.6 kbps
(Max)
ƒƒ LAN
2 x 10/100 Base-T RJ-45 ports
ƒƒ USB
ƒƒ Printer Port
1 x Printer Port pin head
*Note: This function is optional for project request

Environment
IP40
-10 ~ 60°C (14 ~ 140°F)
ƒƒ Shock Protectio
IEC 60068- 2-27
(Only for UNO-1150GHE)
IEC 60068- 2-64 (Random 1 Oct./min, 1hr/axis.)
HDD: 1Grms@ 5 ~ 500 Hz (UNO-1150GHE)

ƒƒ UNO-1150GH-G30E
ƒƒ UNO-1150GHE-G30E

CID2 LX800 500 MHz, 256 MB DIN-rail PC
CID2 LX800 500 MHz, 256 MB DIN-rail PC w/PCI-104

Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

Accessories
ƒƒ UNO-FPM11-BE
ƒƒ PCLS-DIAGAW10
ƒƒ UNO-ANT11-AE


UNO-1100 Series VESA Mount kit
Antenna kit for UNO-1100 Series


14-25

Class I, Division 2 Certified Intel®
Atom™ D510 DIN-rail PC with 3 x LAN,
2 x COM, VGA, Mini PCIe

UNO-1172AH

Features

NEW

ƒƒ UL listed for Hazardous Locations: Class I, Division 2
ƒƒ Onboard Intel Atom D510 1.66 GHz
ƒƒ Onboard 1 MB battery-backup SRAM
ƒƒ System diagnosis through led and digital output, remote power control
through digital input
ƒƒ 2 x RS-232/422/485 ports with automatic flow control
ƒƒ 3 x 10/100/1000Base-T RJ-45 ports with teaming function support
ƒƒ 4 x external USB
ƒƒ PC/104+ expansion slots option
ƒƒ 1 x Mini PCIe slot for WLAN card and Fieldbus card
ƒƒ Windows 7, Windows CE, XP Embedded and Linux support
RoHS

COMPLIANT
2002/95/EC

Introduction
In hazardous locations, devices are under potential danger from flammable gases, combustible dust, or ignitable fibers, creating the potential for fire and explosions. The UNO-1172AH
is designed to be safely operated in these locations and are UL listed for Hazardous Locations with Class I, Division 2, groups A, B, C, D & T5 certification. The UNO-1172AH is
an Intel Atom DIN-rail PC which features an innovative system diagnosis feature for automation applications. It provides alarms for over temperature, over voltage, battery power
fail, power status on both system onboard LED and Digital output. It also includes remote power control through digital input. These system diagnosis features enable control and
monitoring of system status remotely. Three Gigabit Ethernet interfaces with teaming function support allow users to uplink two ports with data transmission fault tolerance and
downlink one port to field device.

Specifications
General

I/O Interface

ƒƒ Certification
ƒƒ Hazardous Locations

US: ANSI/ISA 12.12.01-2007 cUL: CSA 22.2 No. 213
M1987, Class I, Division 2, Groups A,B,C,D, Hazardous
Location, Temperature code: T5, Ambient Temperature
Range: -10°C ≤ Tamb ≤ 60°C
ƒƒ Dimensions (W x H x D) UNO-1172AH: 85 x 152 x 139 mm (3.4" x 6"x 5.5")
ƒƒ Enclosure
Aluminum + SECC
ƒƒ Mounting
DIN-rail, Wallmount
24 W (Typical)
10 ~ 36 VDC (e.g +24 V @ 2 A) (Min. 48 W), AT/ATX
power mode by Jumper selection and BIOS AT simulation
(support system reboot automatically after power recovery)
ƒƒ Weight
1.6 kg
ƒƒ OS Support
WES Windows XP Embedded, Windows XP & Windows 7,
ƒƒ System Design
ƒƒ Remote Management Built-in Advantech DiagAnywhere agent on Windows CE /
XPe

ƒƒ Serial Ports

System Hardware

IP40

ƒƒ
ƒƒ
ƒƒ
ƒƒ

CPU
Memory
Battery Backup SRAM
Indicators

ƒƒ Keyboard/Mouse
ƒƒ Storage
ƒƒ
ƒƒ
ƒƒ
ƒƒ

Display
Audio
Watchdog Timer
Mini PCIe

1 MB
System:LEDs for Power, CF, LAN (Active, Status), Serial
(Tx, Rx), Diagnosis /Alarm: over system temperature, over
voltage, alarm for battery backup SRAM, alarm for RTC
battery,Programmable(while disable Serial Tx&Rx), Buzzer
for Diagnosis (programmable)
1 x PS/2
5.1 channel HD Audio, Mic in, Line in, Line out
1 x PCI express mini card slot

ƒƒ LAN
ƒƒ USB
ƒƒ Digital Input
ƒƒ Digital Output

ƒƒ System Diagnoses

2 x RS-232/422/485 with DB9 connectors, automatic RS485 data flow control
2 x RS-232 (Optional, pin header)
RS-232: 50 ~ 115.2 kbps
RS-422/485: 50 ~ 115.2 kbps (Max)
3 x 10/100/1000Base-T RJ-45 ports (supports Wake on
LAN and built-in boot ROM)
2-ch. wet/dry contact, 70 VDC over-voltage protection,
0 ~ 50 VDC input range and Interrupt handling
6-ch DO
- 200 mA max/channel sink current
- Keep output status after system hot reset
- 5 ~ 40 VDC output range and 10 kHz speed
Remote monitoring: over system temperature, over voltage,
battery power fail, power status
Remote control: Power On/Off, Reset

Environment

ƒƒ
ƒƒ
ƒƒ
ƒƒ

Storage Temperature
Operating Humidity
Storage Humidity
Shock Protection


-10 ~ 60°C (14 ~ 140°F)
-20 ~ 80°C (-4 ~ 176°F)
IEC 60068- 2-27
IEC 60068- 2-64 (Random 1 Oct./min, 1hr/axis.)
HDD: 1 Grms @ 5 ~ 500 Hz

ƒƒ UNO-1172AH-A33E

CID2 Intel Atom D510 1.66 GHz, 2 GB RAM DIN-rail PC

Accessories
ƒƒ UNO-FPM11-BE
ƒƒ PCLS-DIAGAW10

14-26


UNO-1100 Series VESA Mount Kit

Accessories
UNO-1000 Series Accessories

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


UNO-FPM11
UNO-1100 Series VESA Mounting Kit

Machine Automation

Features
ƒƒ Dimensions: 270 x 162 x 11 mm (W x H x D) (Only extension kit)
ƒƒ Supports VESA 75 and 100 monitor

Supported Models
ƒƒ UNO: All UNO-1100 series
ƒƒ FPM : All FPM 12", 15", 17", 19" models

Energy Automation

Building Automation
Systems


Automation Software

ƒƒ UNO-FPM11-BE

UNO-2000/2100 Series Accessories

Operator Panels


Industrial Panel

UNO-DIN21

UNO-FPM21

UNO-HD20

UNO-2100 Series DIN-rail Kit

UNO-2000 Series VESA Mounting Kit

UNO-2000 HDD Expansion Kit

Features

Features

Features

ƒƒ Supports DIN-rail mounting (EN50022, 35 x 7.5 mm)

ƒƒ Dimensions: 270 x 162 x 11 mm (W x H x D)
(Only extension kit)
ƒƒ Supports VESA 75 and 100 monitor

ƒƒ Dimensions: 188.8 x 106.5 x 21.0 mm (W x D x H)

Supported Models

ƒƒ All UNO-2000 series
(except UNO-2184G/2174G/2174GL)

Supported Models
ƒƒ All UNO-2100 series

ƒƒ UNO-DIN21-BE

ƒƒ UNO: All UNO-2000 and 2100 series
ƒƒ FPM : All FPM 12", 15", 17", 19" models


Supported Models

ƒƒ UNO-HD20-AE

ƒƒ UNO-FPM21-AE

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

UNO-PCM22

UNO-PCM23

UNO-PCM24

2 x PC/104 Expansion Kit for UNO-2100 Series

1 x PCI-104, 1 x PC/104+ Expansion Kit for
UNO-2174A/2178A

2 x PCI-104 Expansion Kit for UNO-2184G/2174G

Features
ƒƒ Supports two PC/104 modules

Supported Models
ƒƒ UNO-2171, UNO-2172, UNO-2176, UNO-2182

ƒƒ UNO-PCM22-AE

Features
ƒƒ Supports one PC/104+ and one PCI-104 modules

Supported Models
ƒƒ UNO-2174A, UNO-2178A


Features
(Whole System)
ƒƒ Supports two PCI-104 modules

Supported Models
ƒƒ UNO-2184G/2174G

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules

ƒƒ UNO-PCM24-AE

ƒƒ UNO-PCM23-AE


14-27

Accessories
UNO-3000 Series Accessories

UNO-PM80

UNO-SM80

UNO-WM80

Supported Models

Supported Models

Supported Models

ƒƒ UNO-3072LA, UNO-3072A, UNO-3074A,
UNO-3082, UNO-3084

UNO-3082, UNO-3084

UNO-3082, UNO-3084




ƒƒ UNO-PM80-AE

ƒƒ UNO-SM80-AE

ƒƒ UNO-WM80-AE

Expansion Kit USB x 2 for UNO-3000 Series
Supported Models

Expansion Kit LPT x 1 for UNO-3000 Series
Supported Models

UNO-3082, UNO-3084

UNO-3082, UNO-3084

Expansion Kit RS232 COM port x 2 and
PS2 x 1 for UNO-3000 Series
Supported Models



ƒƒ 9663308401E

ƒƒ 9663308402E

Panel Mounting Kit for UNO-3082/3084

Stand Mounting Kit for UNO-3082/3084

Wall Mounting Kit for UNO-3082/3084/3072LA

UNO-3082, UNO-3084

ƒƒ 9663308403E

Power Adapter and Power Cord Solutions
Industrial Grade Power Adapter

(Note: do not support on UNO-2184G/2174G/2174GL and UNO-3000 series)

Commercial Grade Power Adapter

Features

ƒƒ Input voltage: 100 ~ 240 VAC, 50 ~ 60 Hz

ƒƒ Output Voltage: 24 VDC

ƒƒ Output Voltage: 19 VDC

ƒƒ Operating Temperature: -20 ~ 70°C

ƒƒ Operating Temperature: 0 ~ 40°C



ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

14-28

Features

ƒƒ Input voltage: 90 ~ 264 VAC, 47 ~ 63 Hz

ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ
ƒƒ

1702002600
1702031801
1702002605
1702031836
1757002321

Power cable US Plug 1.8 M
Power cable UK Plug 1.8 M
Power cable EU Plug 1.8 M
Power cable China/Australia Plug 1.8 M
63W AC to DC UNO series power adapter


1700001524
170203180A
170203183C
1757002682
1757002161
PWR-244-AE

Power cable 3-pin US type 1.8 M
Power cable 3-pin UK type 1.8 M
Power cable 3-pin EU type 1.8 M
65W AC to DC power adapter

Programmable

15

APAX-5000 Series

PAC Overview
SoftLogic Control Software
PC-based Programming Software
Batch Control Solution
APAX Series Overview
APAX System Architecture
APAX Controller Selection Guide
APAX I/O Module Selection Guide
APAX Communication and Motion Module Selection Guide
APAX-6572
Intel® Atom™ D510 1.66 GHz, 2 GB RAM Controller with 3 x LAN, 2 x COM, VGA
APAX-5090P
4-port RS-232/422/485 Communication Module
APAX-5095P
2-port CANopen Communication Module
APAX-5520CE/KW
PAC with Marvel XScale® CPU
APAX-5620CE/KW
PAC with Marvel XScale® CPU and CAN
APAX-5522PELX/CE
IEC 61850-3 Certified PAC with Marvel XScale® CPU
APAX-5343/E
Power Supply for APAX-5570 Series/ APAX Expansion Modules
APAX-5001/5002/5002L 1-slot/2-slot Backplane Modules
APAX-5070
Modbus/TCP Communication Coupler
APAX-5072
EtherNet/IP Communication Coupler
APAX-5071
PROFINET Communication Coupler
APAX-5073
PROFIBUS Communication Coupler
APAX-5013
8-ch RTD Module
APAX-5017
12-ch Analog Input Module
APAX-5018
12-ch Thermocouple Input Module
APAX-5017H
12-ch High Speed Analog Input Module
APAX-5028
8-ch Analog Output Module
APAX-5040
24-ch Digital Input Module
APAX-5045
24-ch Digital Input/Output Module
APAX-5046
24-ch Digital Output Module
APAX-5060
12-ch Relay Output Module
APAX-5080
4/8-ch High/Low Speed Counter Module
APAX Controller Support table

15-2
15-4
15-5
15-6
15-7
15-8
15-10
15-11
15-12
15-14
15-15

ADAM-5000 Series
Distributed I/O Systems & PC-based Controllers
ADAM-5000 Controller Selection Guide
ADAM-5000 I/O Module Selection Guide
ADAM-5000 Controller Selection Guide
ADAM-5000 Controller Support Table
ADAM-5000 Remote I/O System Support Table
ADAM-5560CE
7-slot PC-based Controller with Intel® Atom™ CPU
ADAM-5560KW
7-slot Micro PAC with Intel® Atom™ CPU
ADAM-5510 Series
4/8 slots PC-based Controller
ADAM-5000/485
4-slot Distributed DA&C System for RS-485
ADAM-5000E
8-slot Distributed DA&C System for RS-485
ADAM-5000L/TCP
4-slot Distributed DA&C System for Ethernet
ADAM-5000/TCP
8-slot Distributed DA&C System for Ethernet
ADAM-5013
3-ch RTD Input Module
ADAM-5017
8-ch Analog Input Module
ADAM-5017P
8-ch Analog Input Module with Independent Input Range
ADAM-5017UH
8-ch Ultra High Speed Analog Input Module
ADAM-5018
7-ch Thermocouple Input Module
ADAM-5018P
7-ch Thermocouple Input Module with Independent Input Range
ADAM-5024
4-ch Analog Output Module
ADAM-5050
16-ch Universal Digital I/O Module
ADAM-5051/D/S
16-ch Digital Input Module
ADAM-5052
8-ch Isolated Digital Input Module
ADAM-5053S
32-ch Isolated Digital Input Module
ADAM-5055S
16-ch Isolated Digital I/O Module with LED
ADAM-5056/D/S
16-ch Digital Output Module
ADAM-5056SO
16-ch Source-type Isolated Digital Output Module with LED
ADAM-5057S
32-ch Isolated Digital Output Module
ADAM-5060
6-ch Relay Output Module
ADAM-5069
8-ch Power Relay Output Module with LED
ADAM-5080
4-ch Counter/Frequency Module
ADAM-5081
4-ch High Speed Counter/Frequency Module
ADAM-5090/5091
4-port RS-232 Module
ADAM-5095
2-port CAN Module with Isolation Protection

15-27
15-29
15-30
15-31
15-33
15-34

ADAM-5000 Series

To view all of Advantech’s Programmable Automation Controllers & I/O Modules, please visit www.advantech.com/products.

15-16
15-17
15-18
15-19
15-20
15-21
15-22
15-23
15-24
15-25
15-26

15-35
15-36
15-37
15-38
15-39
15-40
15-41
15-42
15-43
15-44
15-45
15-46

PAC Overview
Introduction
Advantech offers PAC solutions designed for industrial automation applications which combine the openness and flexibility of PCs with the reliability of traditional automation
controllers, such as PLCs. Advantech’s offerings include the APAX series, ADAM-5000 series, and Embedded Automation Computers, utilizing sophisticated thermal designs to ensure
the system stability. APAX controllers support Windows CE, Windows XP Embedded and Windows 7 operating systems. Advantech’s PACs are ideal platforms to implement in diverse
applications, such as power/energy, transportation, machine automation, factory automation, building automation, facility management system, environment monitoring, and more.

Real-time PACs: APAX Series


APAX series are Ethernet-enabled controllers allowing users to deploy I/O modules in
flexible expansion combinations, like direct stack or daisy-chain. The control performance
and functionality are not only better than PLCs, but also better than most PC-based
controllers. Features including versatile CPU modules, I/O modules designed as reliable
as PLC I/Os, high density I/Os with LEDs, hot swap and stackable functionality are
delivered. Both C/C++ and .NET library, and IEC 61131-3 languages are provided as
programming tools.

Advantech’s Embedded Automation Computers are designed to fulfill the needs of mission
critical automation applications. Their embedded design, industrial automation features
and advanced computer technology deliver robustness, reliability and flexibility to satisfy
customers who are looking for a rugged and compact computing platform. They support
various interfaces to integrate with other devices, such as Ethernet, RS-232/422/485,
onboard I/O, extension PC card slots, CAN-bus and more. Through standard Ethernet
networking, these computers can link to Advantech remote I/O solutions, such as APAX5000 high density I/O (through APAX-5070 Modbus/TCP coupler module) or ADAM-6000
series compact modules, to get data and perform control tasks.

Data Acquisition PACs: ADAM-5000 Series
ADAM-5000 series are modularized I/Os to be inserted on backplanes with fixed
slot numbers. Leveraging Advantech’s rich experience in industrial data acquisition
applications, ADAM-5000 offers a compact control system. Inheriting the reliability and
robustness of a PLC system, ADAM-5000 offers the openness and flexibility of a PC,
including computing power, networking and storage capability. Both C/C++ and .NET
libraries and IEC 61131-3 languages are provided as programming tools.

15-2

Programmable Automation Controllers

Real-time I/O Control Suitable for Multiple Domain Applications
Currently most PC-based controllers face one major challenge, especially DIN-rail PAC
systems, which is real-time I/O control. Performance is severely hampered when I/O points
increase because the access time also increases, which impacts control precision as well.
Food and beverage companies face shorter production runs on a wide range of products
for different vendors, while automotive companies are dealing with changes in customer
preference, aggressive competition and rising fuel costs. These industries require a mix
of discrete, batch, process and motion control solution. In the past, these applications
forced engineers to use multiple controllers: a PLC for discrete control, a motion controller
for multi-axis control, and a distributed control system or loop controller for process
applications, which has proven time consuming and costly. Advantech PACs feature the
ability to handle all these tasks with a single control system.
The result is shortened development time through reusable programming tools, lower
maintenance costs through reduced parts, better information sharing among applications,
and fewer personnel support throughout the plant.

Advantech PACs feature a PC-based architecture, delivering significant networking benefits
for manufacturers by USB, RS-232, RS-422/485 and Ethernet interfaces. Users can connect
to field devices through serial or USB interface to satisfy any kind of application. The
Ethernet interface allows users to effectively manage I/O control and information flow
throughout the manufacturing and IT enterprise. Leveraging the high computing power
of Advantech PACs also allows networks to communicate seamlessly on the factory floor
with other common sets of IT capabilities like video, data and telephones. Easy access
to such information is critical to making decisions about the capacity of an enterprise.

Advantech PACs not only provide excellent real-time I/O control, but also another key
benefit for automation applications, information processing. With the ability to perform
field operations, data exchanges and valuable information collection, this series is able
to execute efficient decision-making. Information processing includes data logging and
analysis with storage devices like SD or CF cards, recipe management for batch control,
and database exchanges through SQL and OPC. Furthermore, implementing HMI software
enables local operation.
This improves control system networking tremendously, allowing the network to share a
common protocol at the device level, control level, and information level. It provides the
ability to move information from the device level to executives at the enterprise resource
planning (ERP) level without new protocols or drivers.

Machine Automation

Energy Automation

Scalability
In the past, many PLCs required users to learn different programming software and specify
networks depending on the size and complexity of the application. Advantech PACs allow
users to more closely match the controller to application needs without compromising
functionality or learning a new control system. Such scalability reduces the headaches
and high costs associated with system redesign, lack of program re-use, and re-training.

Software

Information Processing and Networking Capabilities

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18


Advantech PACs support software to satisfy both PC-based and PLC-based programmers.
Leveraging IEC 61131-3 SoftLogic programming environment, PLC programmers can
take PLC operations to the next level in many areas, such as communication, information
processing, enterprise level database integration, and user interface development.
For PC-based programmers, Advantech offers an open platform solution, with C/C++
and .NET libraries for I/O control and communication functionality. They can satisfy
programmers familiar with high level programming languages like Microsoft Visual
Studio .NET. In addition, several convenient utilities are offered to save development time.

Building Automation
Systems

Automation Software

Operator Panels


Industrial Panel

Industrial Monitors

Industrial Wireless
Solutions

Industrial Ethernet
Solutions

and IP Gateways

Cards

Embedded Automation
Computers

PACs

Compact PCI Systems

M2M I/O Modules

RS-485 I/O Modules


15-3

SoftLogic Software
For tradition PLC platforms, the development environment will vary by PLC supplier and they cannot be compatible with each other. PAC platforms has a trend to adapt the International
standard IEC 61131-3, established to standardize the multiple languages, sets of instructions and different concepts existing in the field of automation systems. Therefore, these
programming languages which comply with the IEC 61131-3 standard, usually named as SoftLogic software, make users able to leverage PLC-world typical programming interface.
But they can also benefit from a portability of all platforms, reducing learning costs for building automation systems.

Advantech SoftLogic Software: KW MultiProg and ProConOS
Advantech delivers KW-Software’s MultiProg development environment and ProConOS runtime kernel for various control platforms, including ADAM-5510 series, ADAM-5550 series
and APAX series controllers. KW MultiProg supports all IEC-61131-3 programming language as following:
ƒƒ Instruction List (IL)

ƒƒ Structured Text (ST)

ƒƒ Sequential Function Chart (SFC)

ƒƒ Function Block Diagram (FBD)

ƒƒ Ladder Diagram (LD)

ƒƒ Graphic Editor
Programmers can work with SFC, FBD, and LD programming languages. The editor
supports mixing of SFC, FBD, and LD in a single worksheet. The fully graphical editor
allows completely free placements of objects. The Edit Wizard helps you when inserting
and replacing code elements in worksheets. You can insert keywords and statements,
operators, functions and function blocks with the help of the Edit Wizard. In addition, the
Wizard simplifies the declaration of own data types.

ƒƒ Multi-User Feature
The Multi-User feature provides safe access to project source files while several users
are working on the same project at the same time. In order to provide a safe and fast
development environment for multiple users, the project is saved as server project on a
server PC in the network

2013 Advantech Master Catalog
