The document presents solutions for traditional factories to adapt to Industry 4.0 through digital manufacturing and smart beverage process management, enhancing productivity and safety. It details features such as real-time monitoring, digital recipe management, material freshness monitoring, and different HMI product options. Additionally, it includes product specifications, ordering information, and contact details for further engagement.

1. 1

2. 2
Make Your Traditional Factory Catch the Trend of Industry 4.0 !
• Digital Manufacturing Information: Improve reproducibility with numerical data
 Real time production monitoring, machine status diagnosis
• Simply, Functional HMI Screen for Operator: Lower the risk of manual mistakes
 Digital recipe management, alarm for abnormal behaviors
• Trackable on Each Process: Guarantee the highest food quality and safety
 History of process quality, product ID record

3. 3
Smart Beverage Process Management:
Optimize Traditional Production Line by WebAccess/HMI System
• Material Freshness Monitoring:
PH value
• Storage condition:
Temperature / CO2
• Smart Recipe/Order
management
• Process schedule:
preheat/filling/blending
• Sensors/Counters:
Digital process information
• Yield Analysis
• History Trend
• Error report
• Product Tag for Traceability:
RFID/Barcode/QR code
Material
Preparation
Mixing &
Filling Process
Labeling
Quality
Control
Packaging
OEE 35% Productivity Risks of Manual OperationTraditional Advanced

4. 4

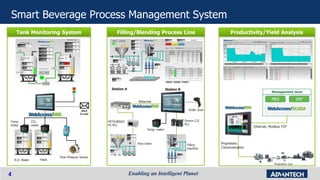

Smart Beverage Process Management System
CO2
meter
Temp.
meter
Tank Monitoring System
R.O. Water Yeast
Flow Pressure Sensor
Alert
E-mail
Filling/Blending Process Line
Omron CJ2
PLC
MITSUBISHI
FX PLC
Temp. meter
Filling
machine
Flow Valve
Station A Station B
Ethernet
Order Scan
Productivity/Yield Analysis
MES ERP
Management level
Production Line
Ethernet, Modbus TCP
Proprietary
Communication

5. 5
Stainless Steel HMI Solution for Food & Beverages Industry!

6. 6

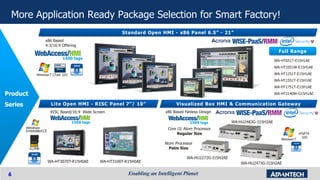

More Application Ready Package Selection for Smart Factory!
Standard Open HMI - x86 Panel 6.5” - 21”
Product
Series Lite Open HMI - RISC Panel 7”/ 10” Visualized Box HMI & Communication Gateway
RISC Based/16:9 Wide Screen
Atom Processor
Palm Size
Core i3/ Atom Processor
Regular Size
WA-HT3070T-R15H0AE WA-HT3100T-R15H0AE
WA-HU2272G-J15H2AE
WA-HU2473G-J15H2AE
WA-HU2483G-315H2AE
x86 Based Fanless Design
x86 Based
4:3/16:9 Offering
WA-HT651T-E15H1AE
WA-HT1051W-E15H1AE
WA-HT1251T-E15H1AE
WA-HT1551T-E15H1AE
WA-HT1751T-E15H1AE
WA-HT2140W-G15H1AE
Full Range
CFast 32G
512MB
mSATA
32G
1500 tags
1500 tags
1500 tags

7. 7
Ordering information
Product Category Ordering Part Number Description
Operator HMI Series
WA-HT3070T-R15H0AE
7" Touch Panel (16:9) Cortex™ A8 600 Hz RISC based, WinCE6.0 OS, 512MB SD
HMI Runtime 1500 tags bundle with WOP-3070T-C4AE platform
WA-HT3100T-R15H0AE
10" Touch Panel (16:9) Cortex™ A8 600 Hz RISC based, WinCE6.0 OS, 512MB SD
HMI Runtime 1500 tags bundle with WOP-3100T-C4AE platform
WA-HT651T-E15H1AE
6.5" Touch Panel (4:3) Intel Atom E3827 1.75GHz X86 based, WES7P 64 bit OS, 32G CFast
HMI Runtime 1500 tags bundle with TPC-651T-6E3AE platform
WA-HT1051W-E15H1AE
10.1" Touch Panel (16:9) Intel Atom E3827 1.75GHz X86 based, WES7P 64 bit OS, 32G CFast
HMI Runtime 1500 tags bundle with TPC-1051WP-E3AE platform
WA-HT1251T-E15H1AE
12.1" Touch Panel (4:3) Intel Atom E3827 1.75GHz X86 based, WES7P 64 bit OS, 32G CFast
HMI Runtime 1500 tags bundle with TPC-1251T-E3AE platform
WA-HT1551T-E15H1AE
15" Touch Panel (4:3) Intel Atom E3827 1.75GHz X86 based, WES7P 64 bit OS, 32G CFast
HMI Runtime 1500 tags bundle with TPC-1551T-E3AE platform
WA-HT1751T-E15H1AE
17" Touch Panel (4:3) Intel Atom E3827 1.75GHz X86 based, WES7P 64 bit OS, 32G CFast
HMI Runtime 1500 tags bundle with TPC-1751T-E3AE platform
WA-HT2140W-G15H1AE
21.5" Touch Panel (16:9) AMD G-series T56E 1.65GHz X86 based, WES7P 64 bit OS, 32G CFast
HMI Runtime 1500 tags bundle with TPC-2140WP-T3AE platform
Visualized HMI
Gateway Series
WA-HU2272G-J15H2AE
Palm size Embedded Automation PC, Intel Celeron J1900 2.0GHz X86 based, WES7P 64 bit OS, 32G mSATA
HMI Runtime 1500 tags bundle with UNO-2272G-J2AE platform
WA-HU2473G-J15H2AE
Regular size Embedded Automation PC, Intel Celeron J1900 2.4GHz X86 based, WES7P 64 bit OS, 32G mSATA
HMI Runtime 1500 tags bundle with UNO-2473G-J3AE platform
WA-HU2483G-315H2AE
Regular size Embedded Automation PC, Intel Core i3-4010U 1.7GHz X86 based, WES7P 64 bit OS, 32G mSATA
HMI Runtime 1500 tags bundle with UNO-2483G-434AE platform

8. 8

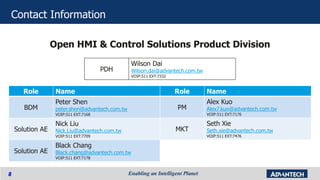

Contact Information
Open HMI & Control Solutions Product Division
Role Name
BDM
Peter Shen
peter.shen@advantech.com.tw
VOIP:511 EXT:7168
Solution AE
Nick Liu
Nick.Liu@advantech.com.tw
VOIP:511 EXT:7709
Solution AE
Black Chang
Black.chang@advantech.com.tw
VOIP:511 EXT:7178
Role Name
PM
Alex Kuo
Alex7.kuo@advantech.com.tw
VOIP:511 EXT:7176
MKT
Seth Xie
Seth.xie@advantech.com.tw
VOIP:511 EXT:7476
PDH
Wilson Dai
Wilson.dai@advantech.com.tw
VOIP:511 EXT:7332
