Alibaba builds the data infrastructure with Apache Hadoop YARN since 2013, and till now it manages more than 10k nodes. In Alibaba, Hadoop YARN serves various systems such as search, advertising, and recommendation etc. It runs not just batch jobs, also streaming, machine learning, OLAP, and even online services that directly impact Alibaba’s user experience. To extend YARN’s ability to support such complex scenarios, we have done and leveraged a lot of YARN 3.x improvements. In this talk, you will find what are these improvements and how they helped to solve difficult problems in large production clusters. This includes: 1. Highly improved performance with Capacity Scheduler’s async scheduling framework 2. Better placement decisions with node attributes, placement constraints 3. Better resource utilization with opportunistic containers 4. Introduce a load balancer to balance resource utilization 5. Generic resource types scheduling/isolation to manage new resources such as GPU and FPGA In the presentation, we will further introduce how we build the entire ecosystem on top of YARN and how we keep evolving YARN’s ability to tackle the challenges brought by continuously increasing data and business in Alibaba. Speakers Weiwei Yang, Alibaba, Staff Software Engineer Ren Chunde, Alibaba Group, Senior Engineer

1. Apache YARN 3.x in Alibaba
Weiwei Yang, Chunde Ren
1

2. Agenda
1 Apache YARN Ecosystem in Alibaba
2 Omni Scheduler
3 Resource Extension & Isolation
4 Future Plans
2

3. Apache YARN Ecosystem in Alibaba
Part I
3

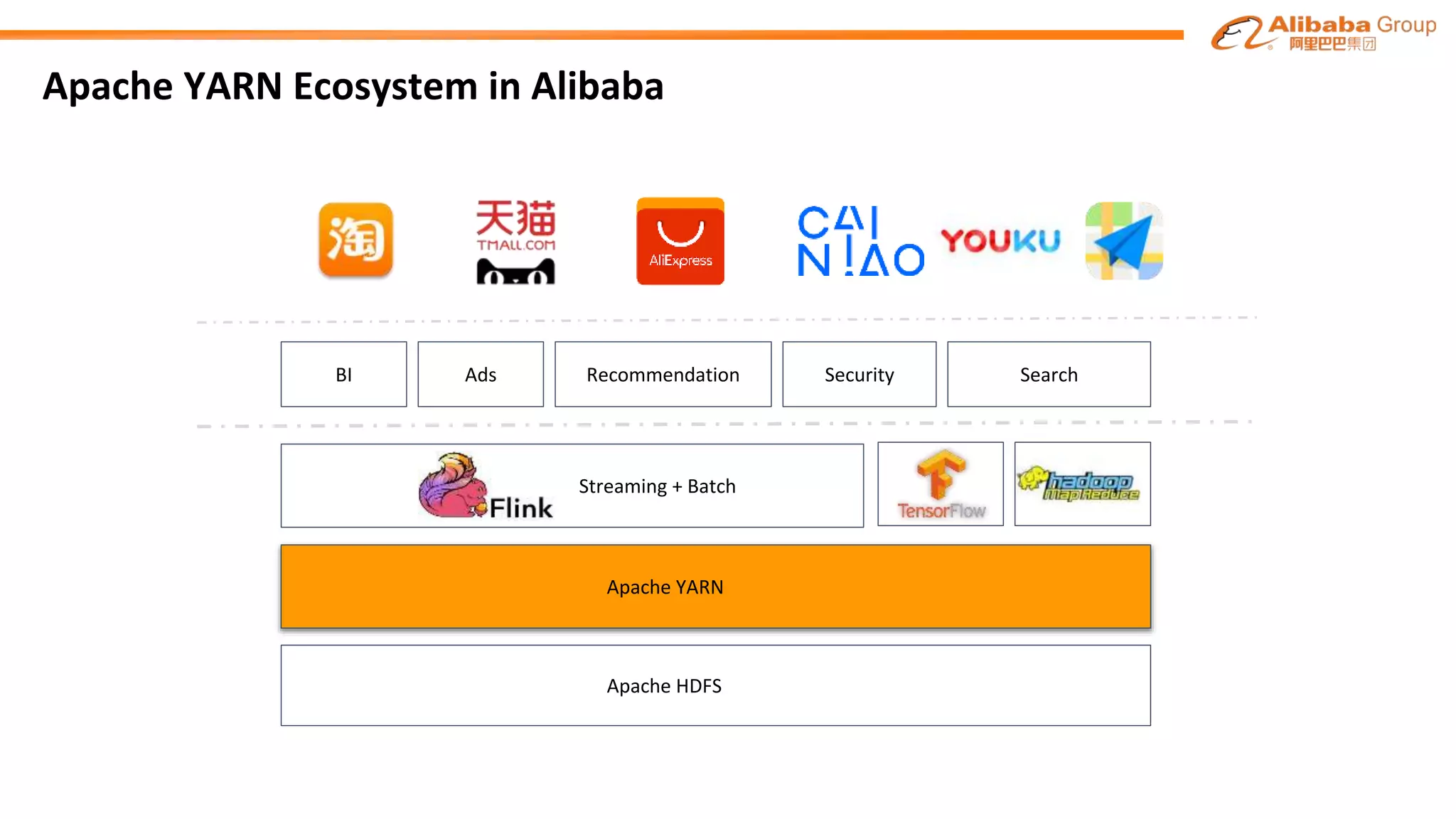

4. Apache YARN Ecosystem in Alibaba
Apache YARN
BI Recommendation Security Search
Apache HDFS
Ads
Streaming + Batch

5. Challenges
5
Service SLAUtilization

6. Omni Scheduler
Part II
6

7. Motivation
7
Existing Capacity/Fair Scheduler:
● Not ready to support resource over-subscription
● Not able to make overall good decisions
● Limitations to support online service
● Absent of dynamic scheduling ability

8. Resource (Enhanced Resource Protocol)
Placement Constraints
Guaranteed/Opportunistic

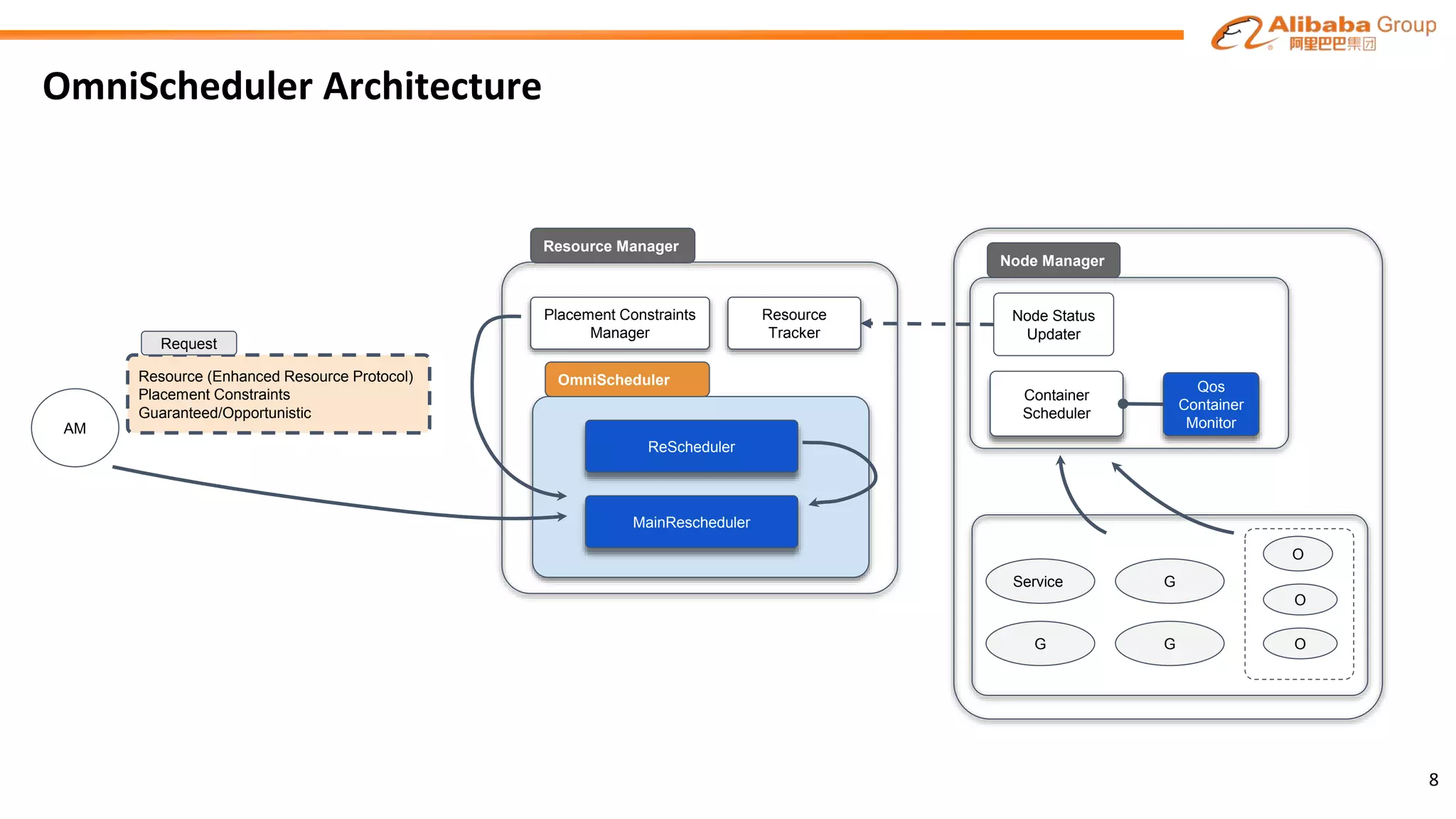

OmniScheduler Architecture
8
Resource
Tracker
Node Status
Updater
Node Manager
Resource Manager
AM
MainRescheduler
Placement Constraints
Manager
Qos
Container
Monitor
Container
Scheduler
Service G
G
O
O
OG
ReScheduler
Request
OmniScheduler

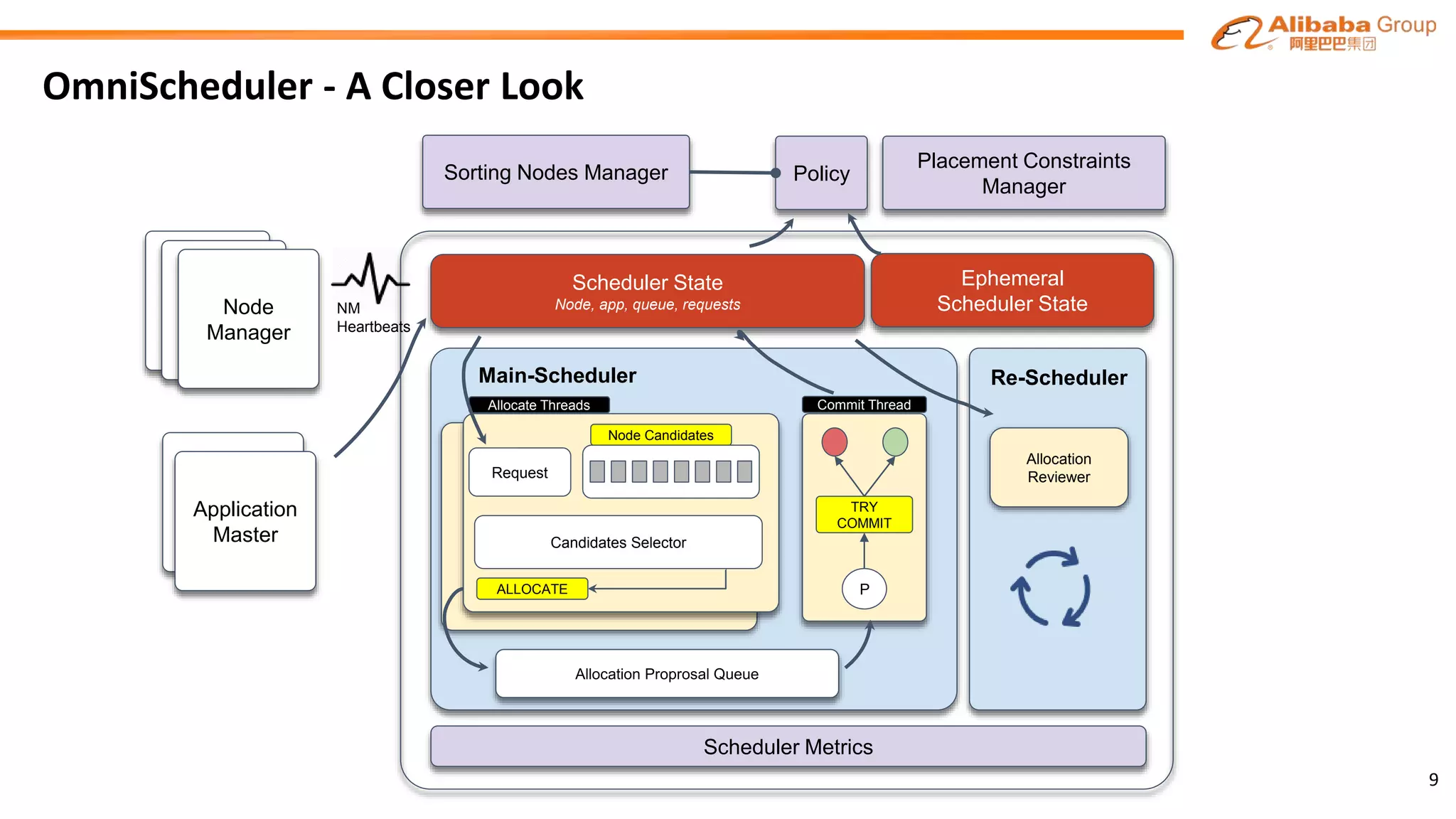

9. OmniScheduler - A Closer Look
9
Sorting Nodes Manager
Scheduler State
Node, app, queue, requests
Ephemeral
Scheduler StateNM
Heartbeats
Allocate Threads Commit Thread
Policy
Scheduler Metrics
Request
Node Candidates
Candidates Selector
ALLOCATE
TRY
COMMIT
Main-Scheduler
Node
Manager
Node
Manager
Application
MasterApplication
Master
Placement Constraints
Manager
P
Re-Scheduler
Allocation
Reviewer

10. 10

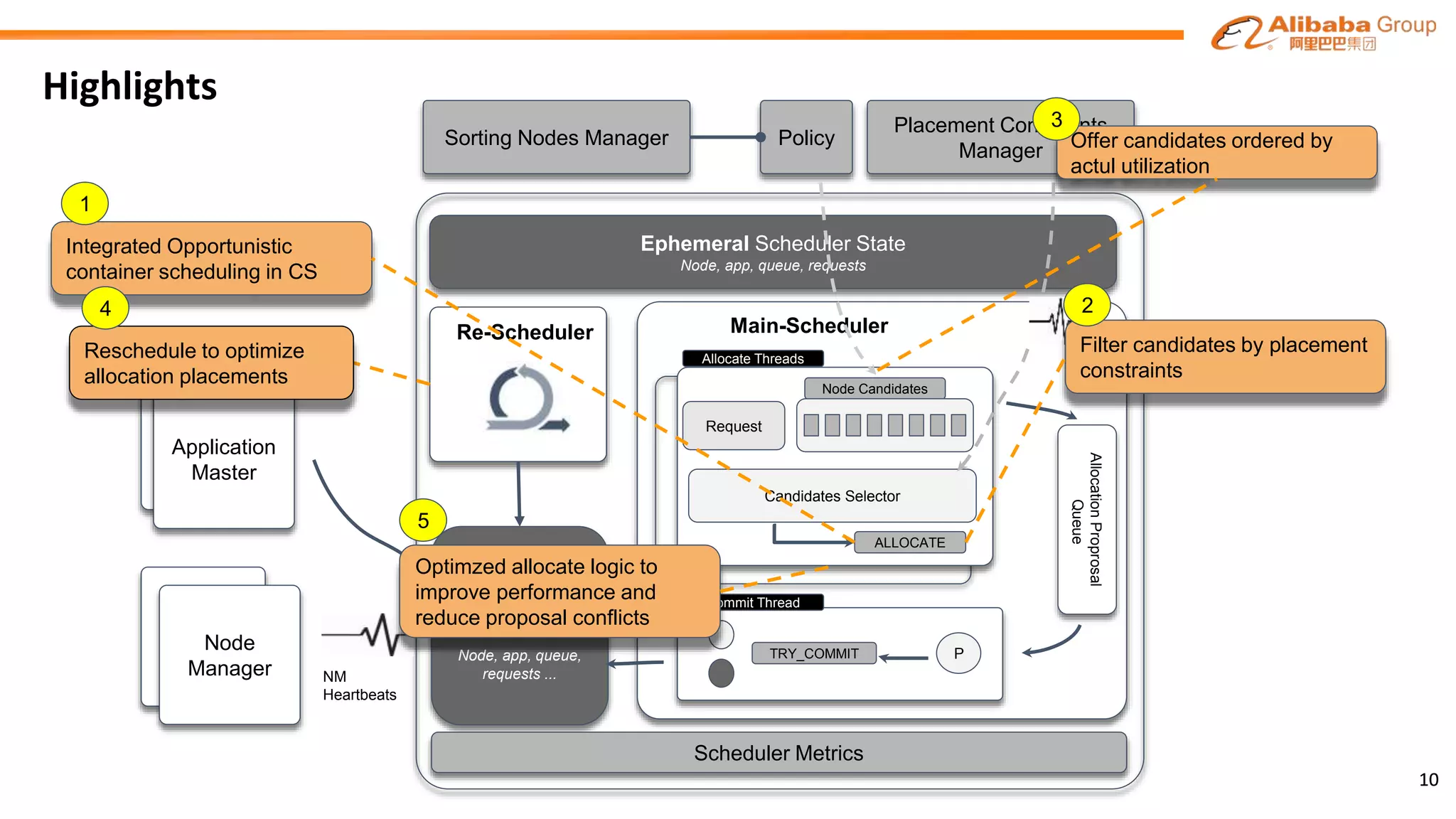

Highlights
10
Sorting Nodes Manager
Scheduler
State
Node, app, queue,
requests ...
Ephemeral Scheduler State
Node, app, queue, requests
AllocationProprosal
Queue
NM
Heartbeats
Allocate Threads
Commit Thread
P
Policy
Scheduler Metrics
Request
Node Candidates
Candidates Selector
ALLOCATE
TRY_COMMIT
Main-SchedulerRe-Scheduler
Node
ManagerNode
Manager
Application
MasterApplication
Master
Placement Constraints
Manager
Integrated Opportunistic
container scheduling in CS
1
Filter candidates by placement
constraints
2
Offer candidates ordered by
actul utilization
3
Reschedule to optimize
allocation placements
4
Optimzed allocate logic to
improve performance and
reduce proposal conflicts
5

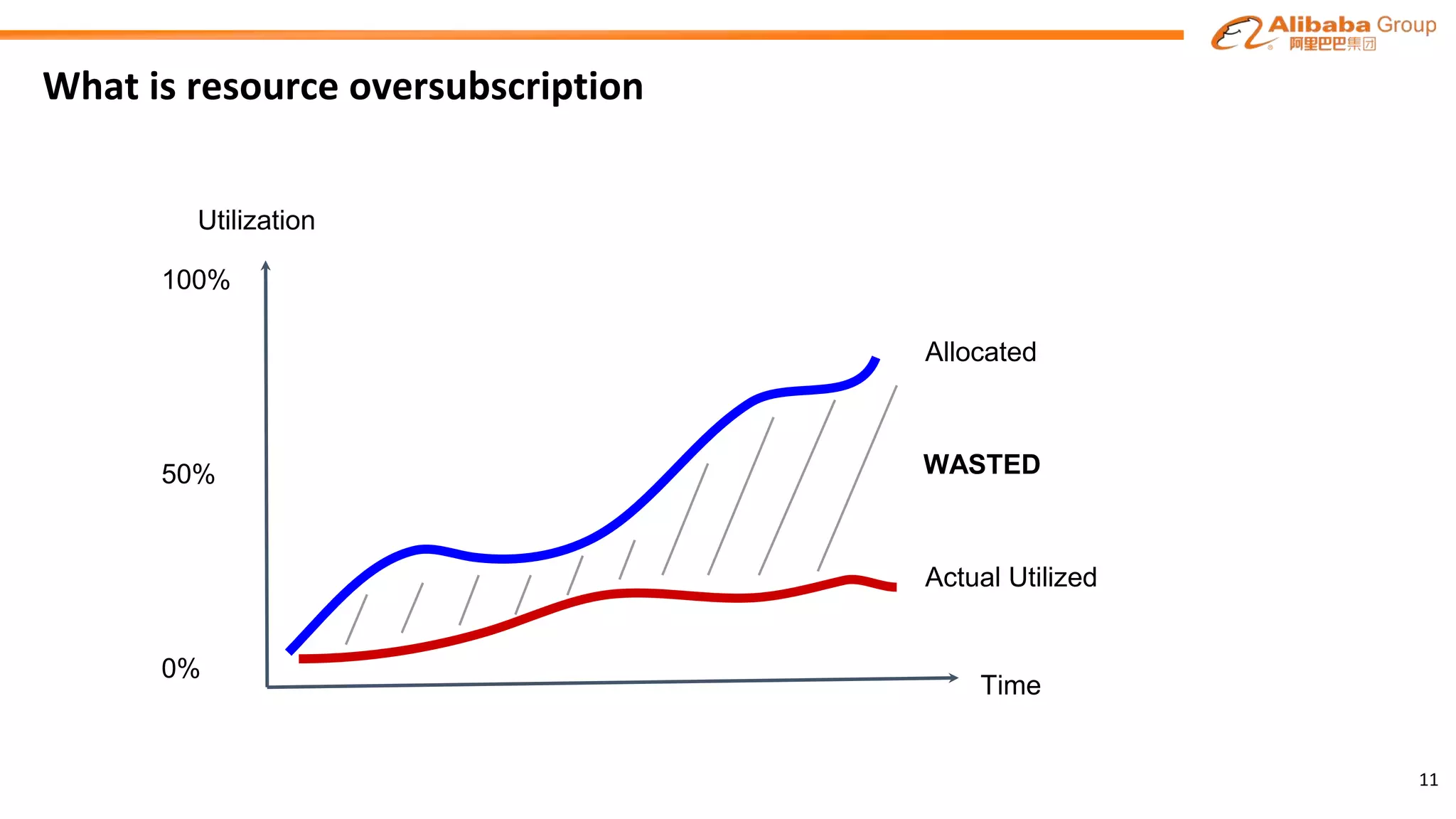

11. What is resource oversubscription
11
100%
50%
0%
Actual Utilized
Allocated
Time
Utilization
WASTED

12. 12

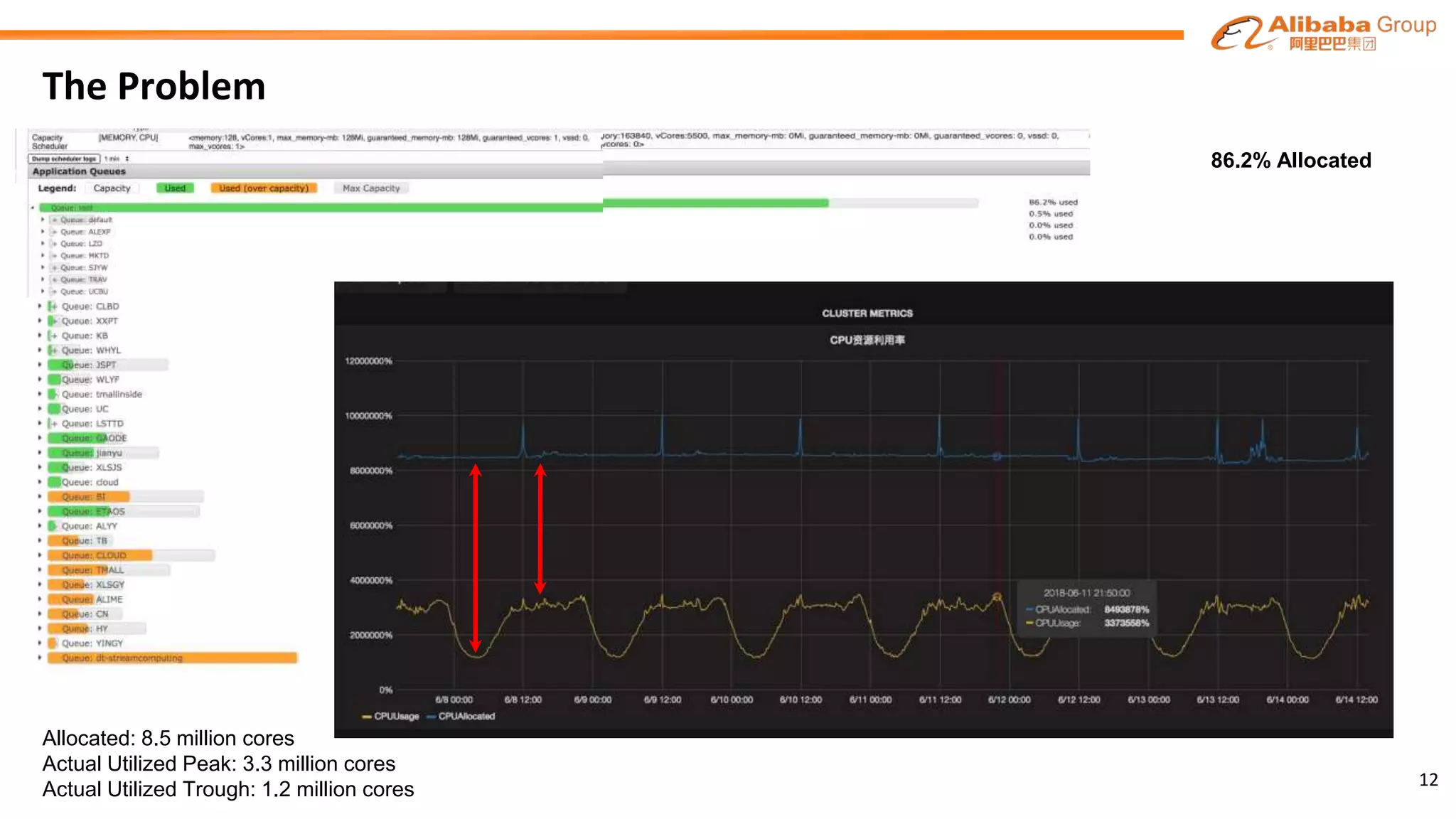

The Problem
Allocated: 8.5 million cores
Actual Utilized Peak: 3.3 million cores
Actual Utilized Trough: 1.2 million cores
86.2% Allocated

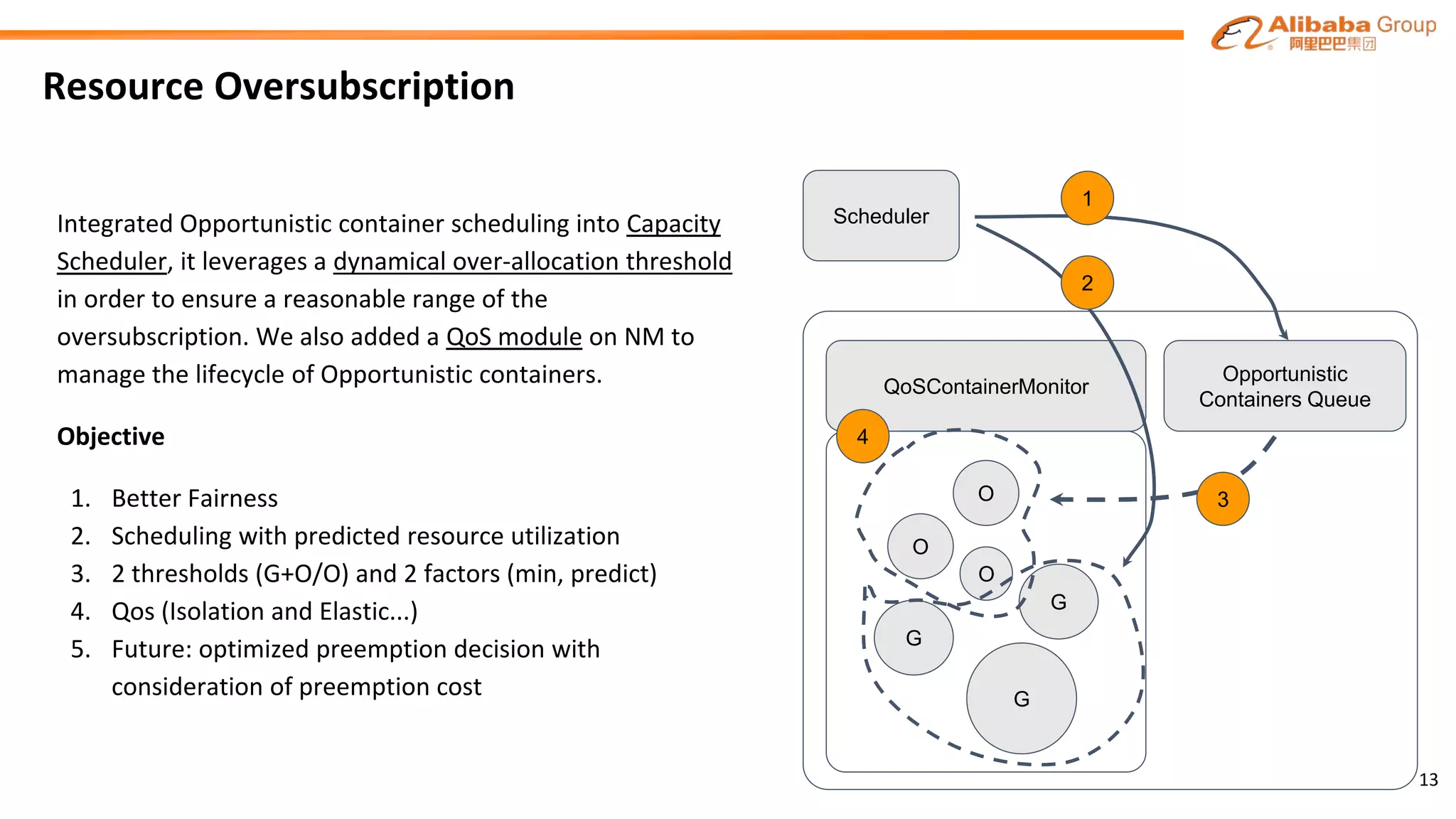

13. Resource Oversubscription
Integrated Opportunistic container scheduling into Capacity
Scheduler, it leverages a dynamical over-allocation threshold
in order to ensure a reasonable range of the
oversubscription. We also added a QoS module on NM to
manage the lifecycle of Opportunistic containers.
Objective
1. Better Fairness
2. Scheduling with predicted resource utilization
3. 2 thresholds (G+O/O) and 2 factors (min, predict)
4. Qos (Isolation and Elastic...)
5. Future: optimized preemption decision with
consideration of preemption cost
Scheduler
QoSContainerMonitor
G
G
O
O
O
Opportunistic
Containers Queue
G
1
2
3
4
13

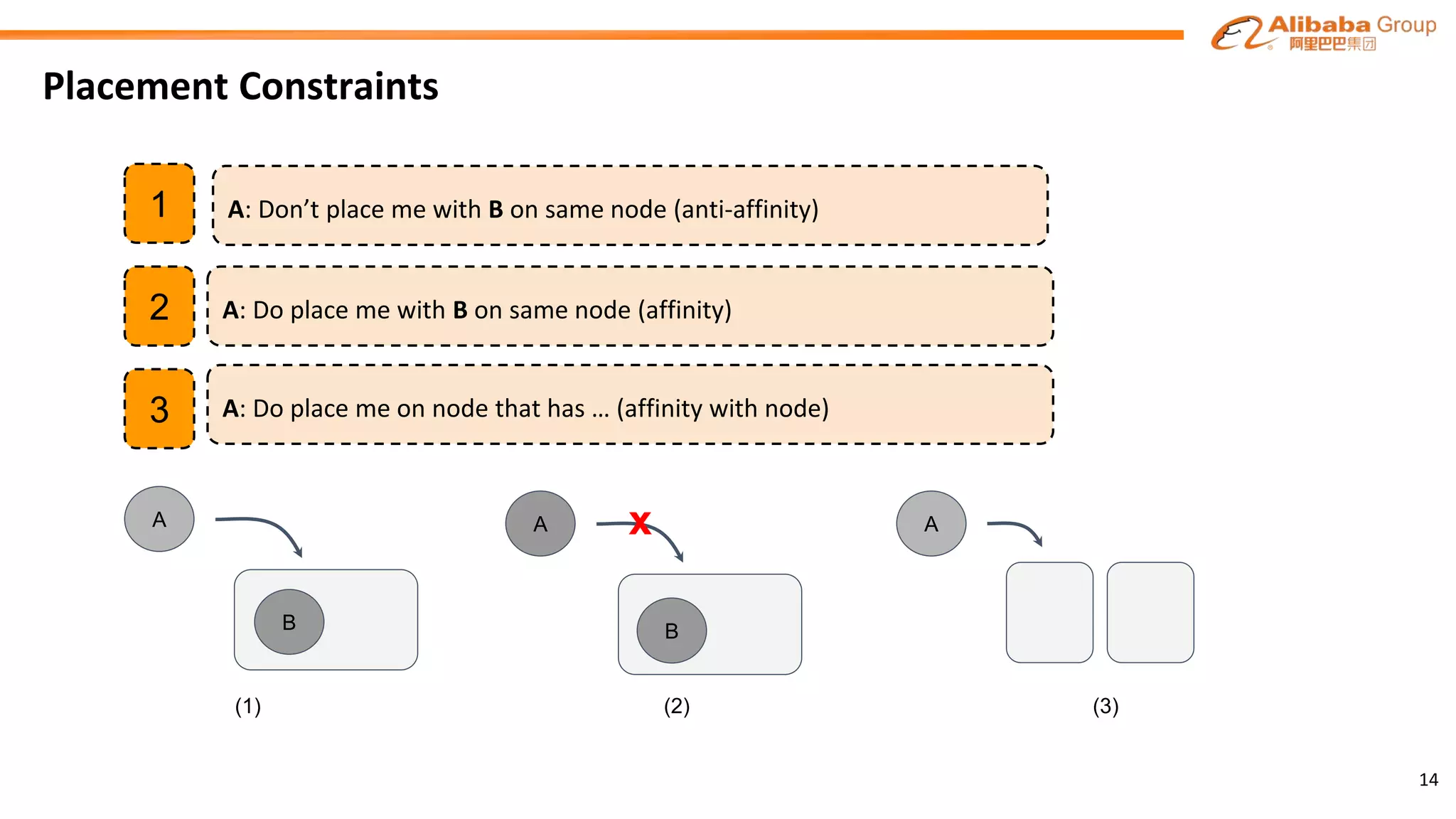

14. Placement Constraints
14
A
B
A
B
x A
A: Don’t place me with B on same node (anti-affinity)
A: Do place me with B on same node (affinity)
A: Do place me on node that has … (affinity with node)
1
2
3
(1) (2) (3)

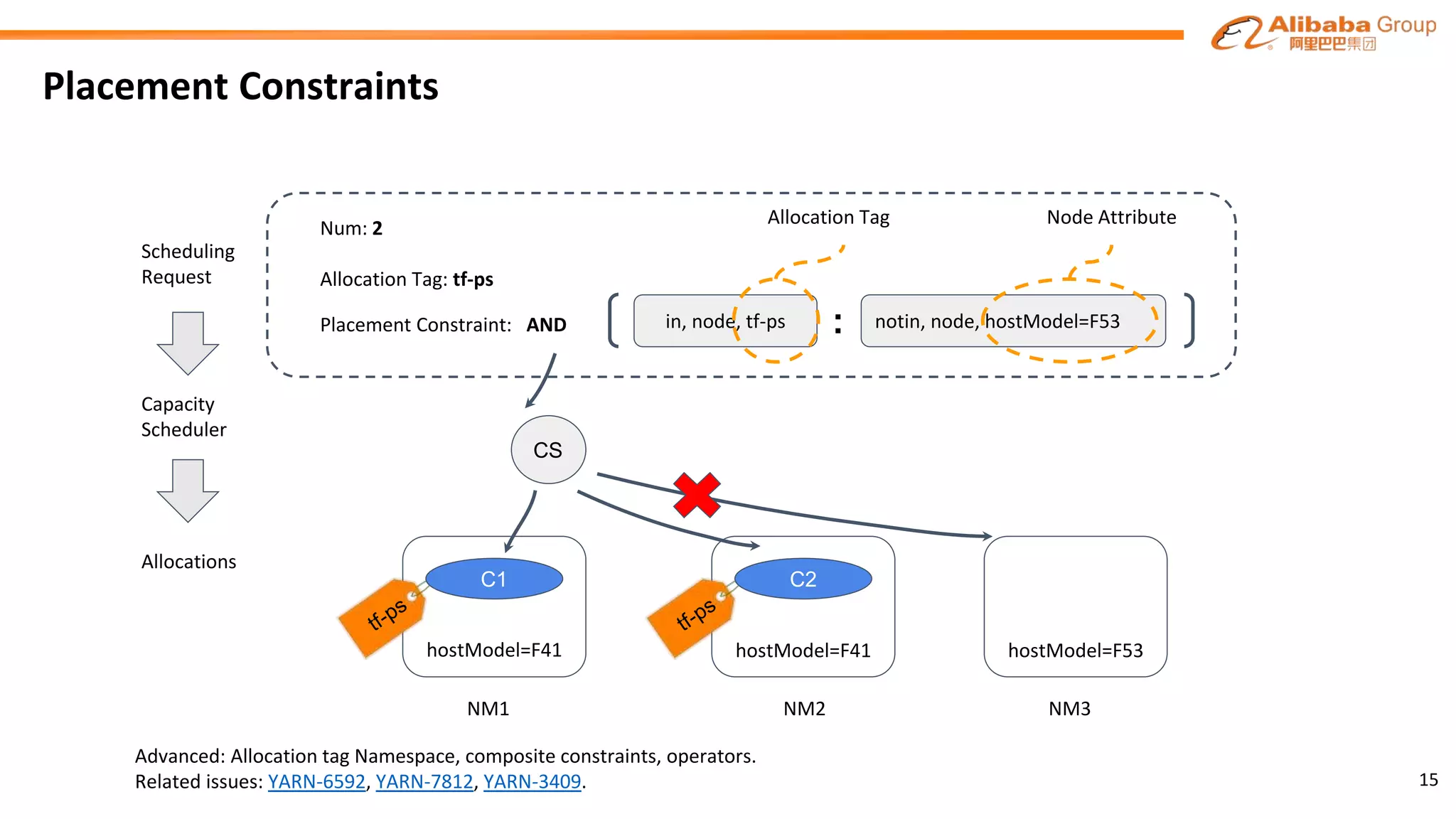

15. Placement Constraints
in, node, tf-ps notin, node, hostModel=F53
C1 C2
hostModel=F41 hostModel=F41 hostModel=F53
Placement Constraint: AND :
Num: 2
Allocation Tag: tf-ps
NM1 NM2 NM3
Scheduling
Request
Capacity
Scheduler
Allocations
CS
Allocation Tag Node Attribute
15
Advanced: Allocation tag Namespace, composite constraints, operators.
Related issues: YARN-6592, YARN-7812, YARN-3409.

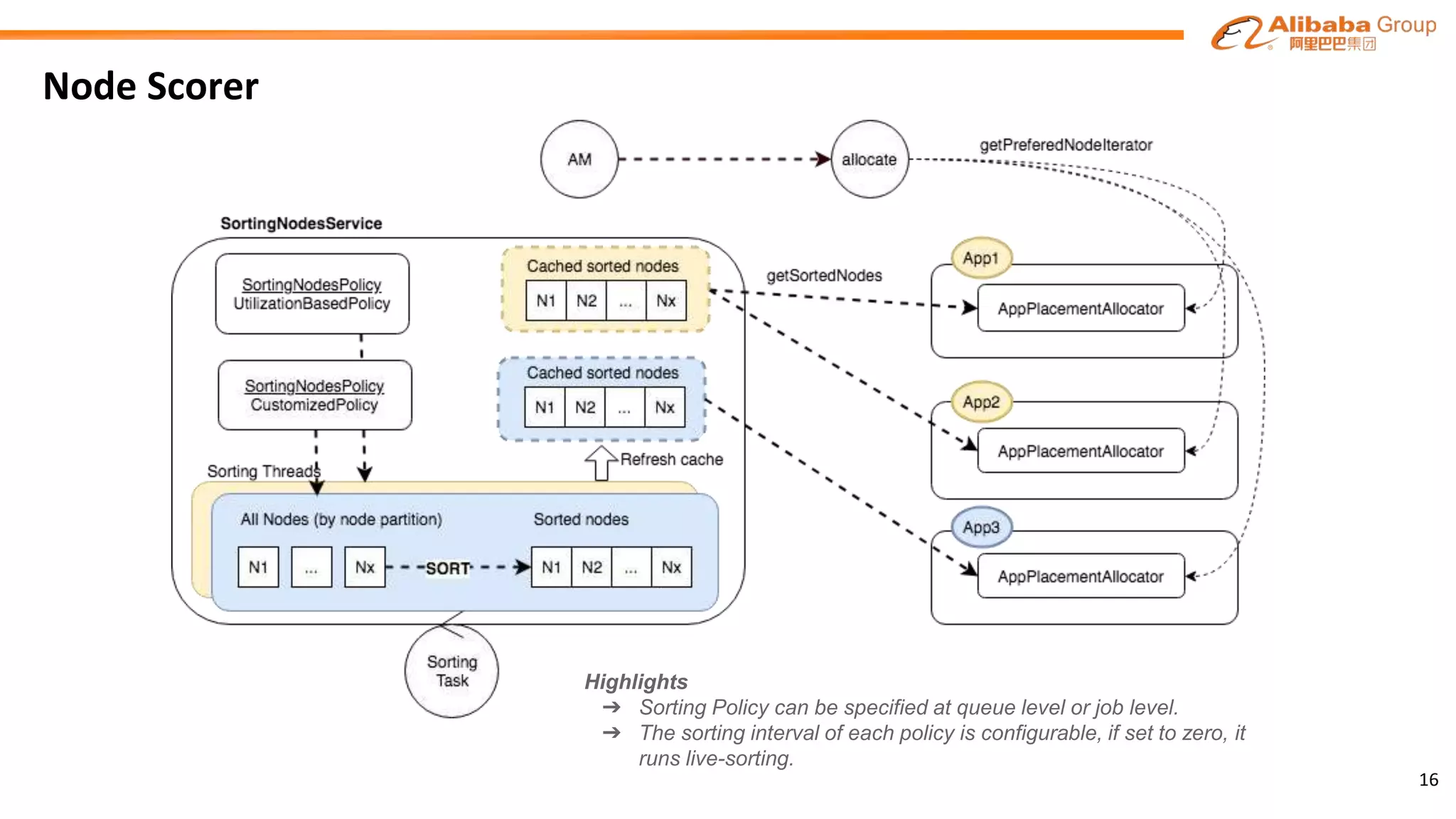

16. Node Scorer
Highlights
➔ Sorting Policy can be specified at queue level or job level.
➔ The sorting interval of each policy is configurable, if set to zero, it
runs live-sorting.
16

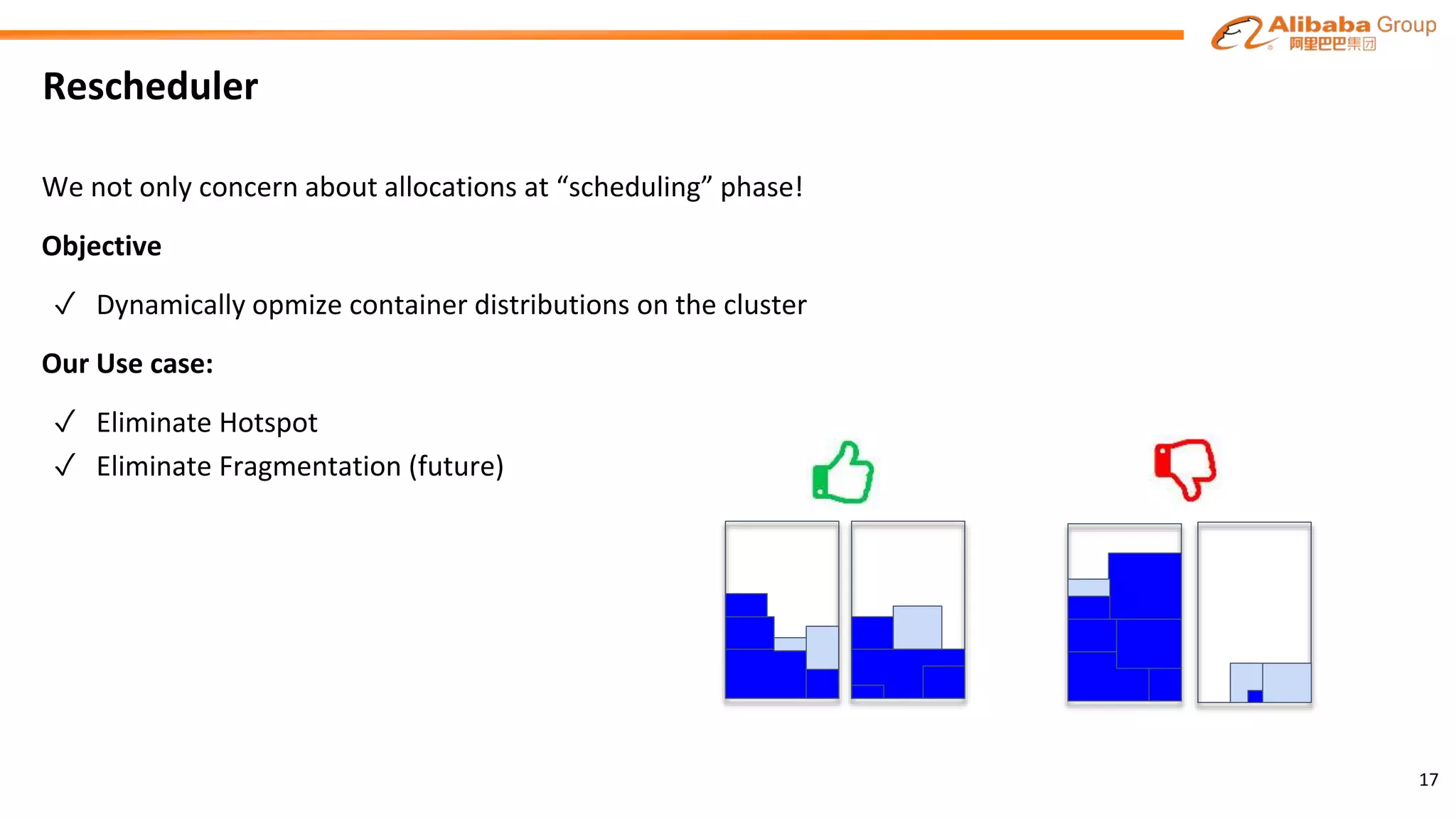

17. Rescheduler
We not only concern about allocations at “scheduling” phase!
Objective
✓ Dynamically opmize container distributions on the cluster
Our Use case:
✓ Eliminate Hotspot
✓ Eliminate Fragmentation (future)
17

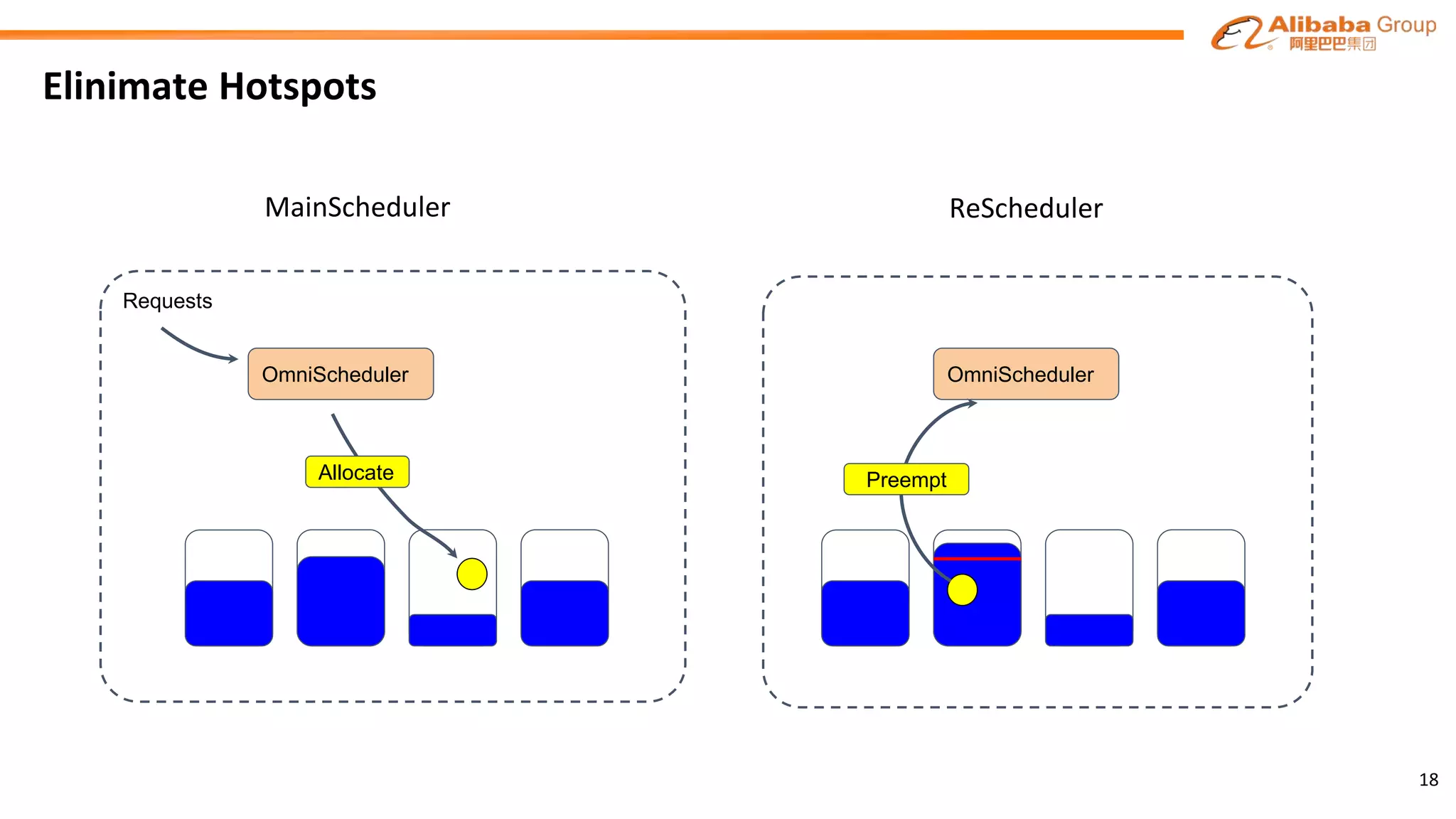

18. Elinimate Hotspots
18
OmniScheduler OmniScheduler
Requests
Allocate Preempt
MainScheduler ReScheduler

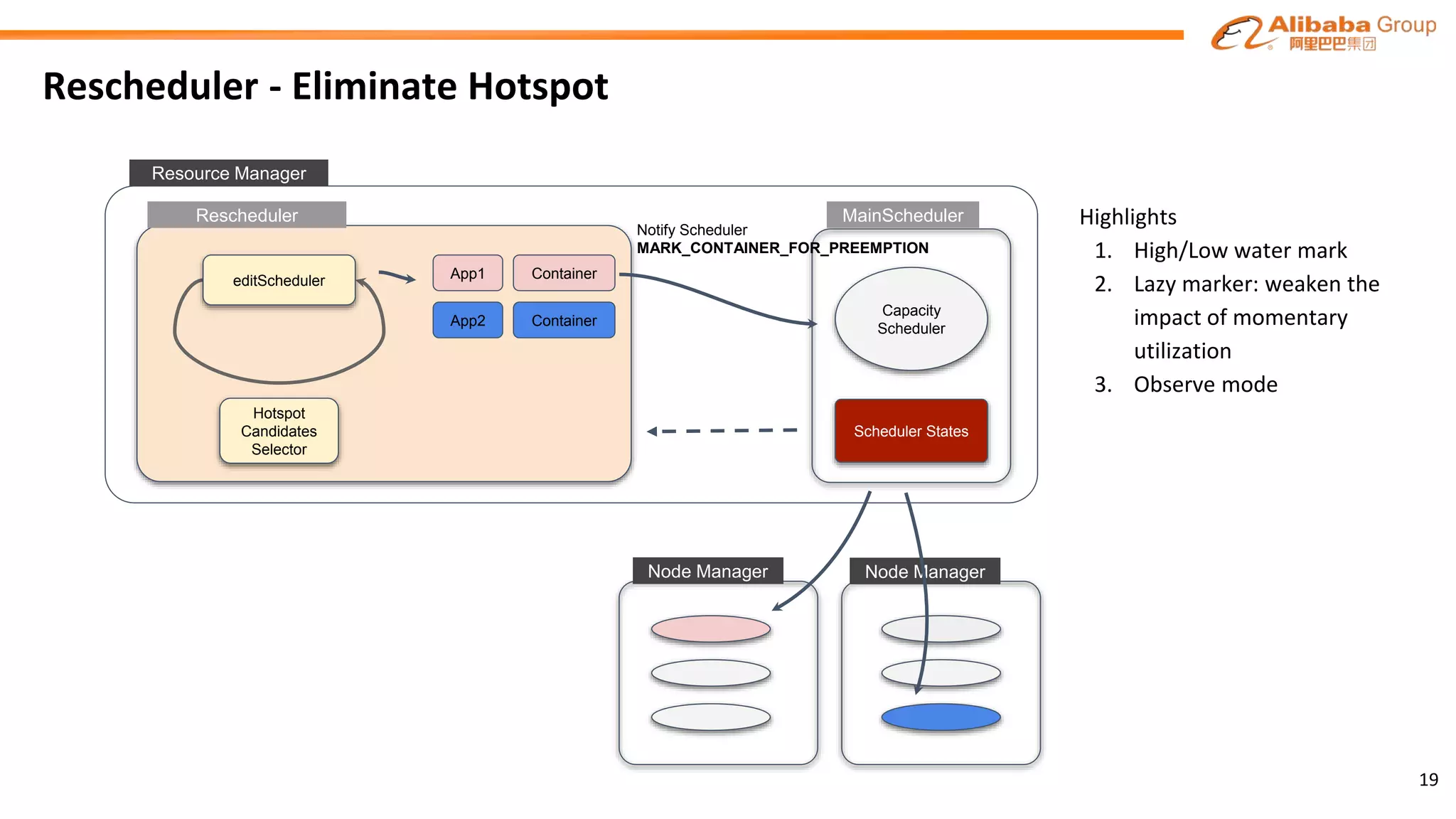

19. Rescheduler - Eliminate Hotspot
19
Hotspot
Candidates
Selector
Rescheduler
App1 Container
App2 Container
Capacity
Scheduler
editScheduler
Scheduler States
Notify Scheduler
MARK_CONTAINER_FOR_PREEMPTION
Node Manager
Resource Manager
Node Manager
MainScheduler Highlights
1. High/Low water mark
2. Lazy marker: weaken the
impact of momentary
utilization
3. Observe mode

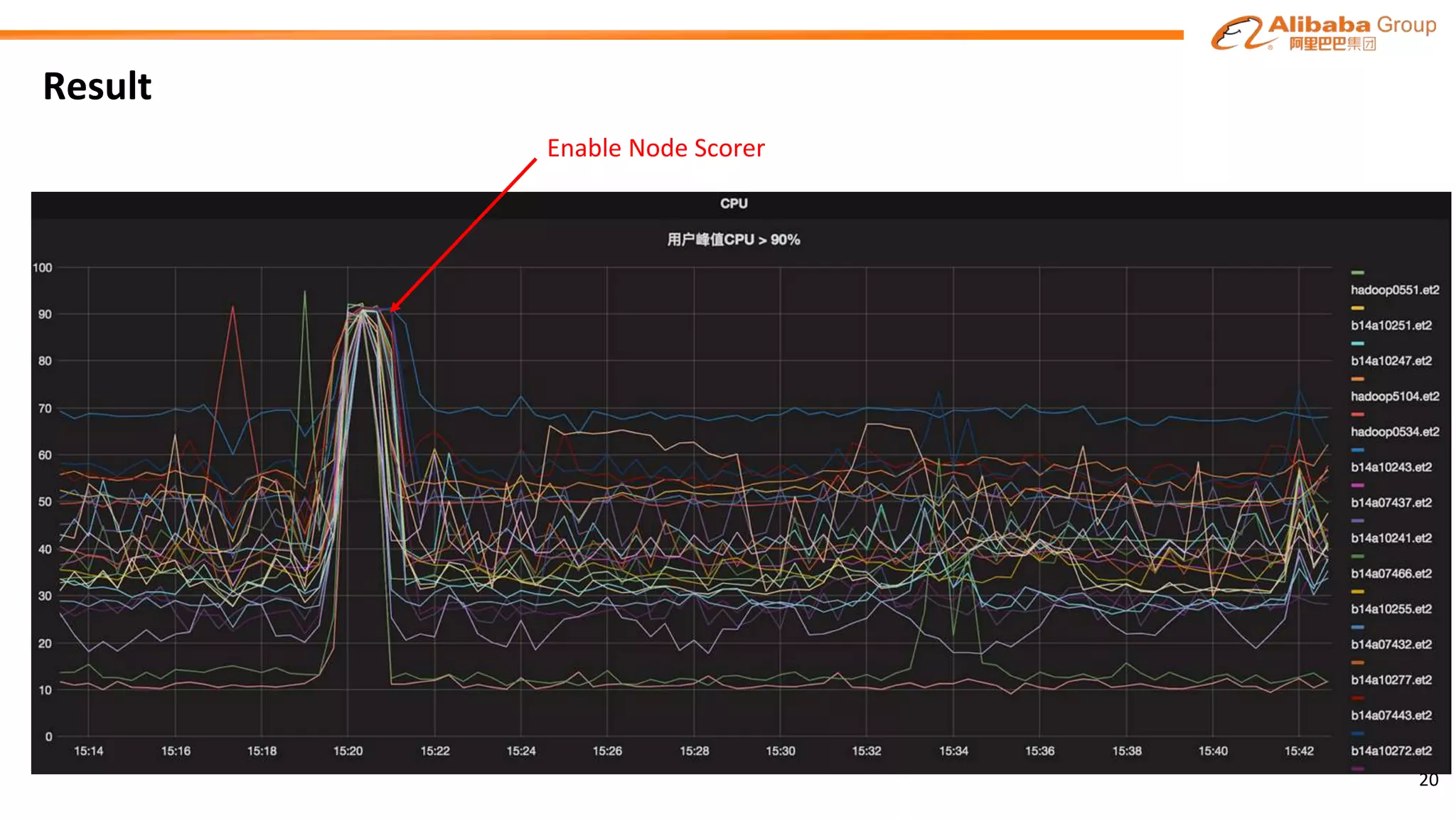

20. Result
Enable Node Scorer
20

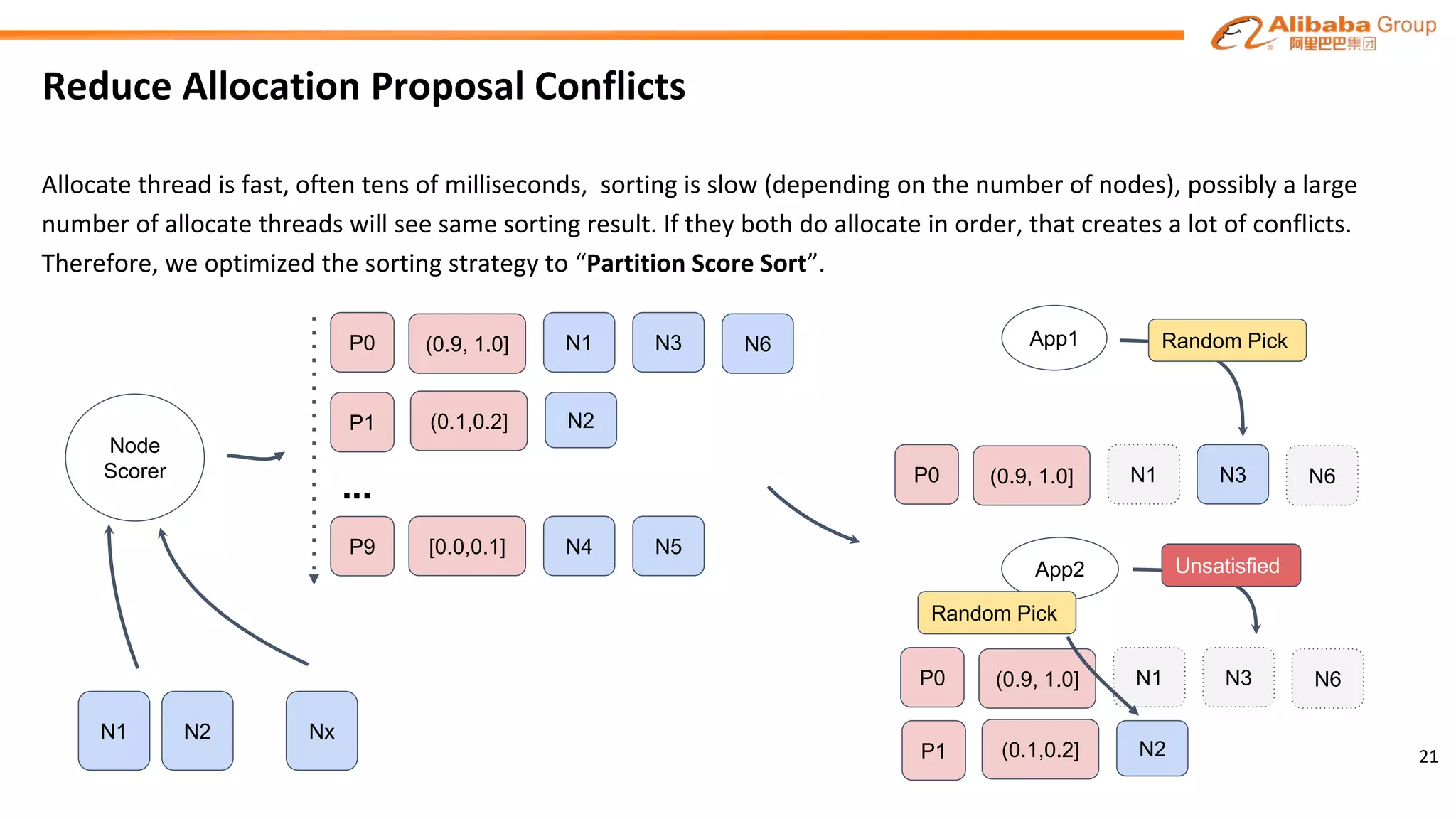

21. Reduce Allocation Proposal Conflicts
Allocate thread is fast, often tens of milliseconds, sorting is slow (depending on the number of nodes), possibly a large
number of allocate threads will see same sorting result. If they both do allocate in order, that creates a lot of conflicts.
Therefore, we optimized the sorting strategy to “Partition Score Sort”.
N1
[0.0,0.1]
Nx
Node
Scorer
(0.1,0.2]
(0.9, 1.0] N1 N3
N2
N4 N5
N6
N2
App1
App2
P1
P9
P0
... (0.9, 1.0] N1 N3 N6P0
Random Pick
(0.9, 1.0] N1 N3 N6P0
(0.1,0.2] N2P1
Unsatisfied
Random Pick
21

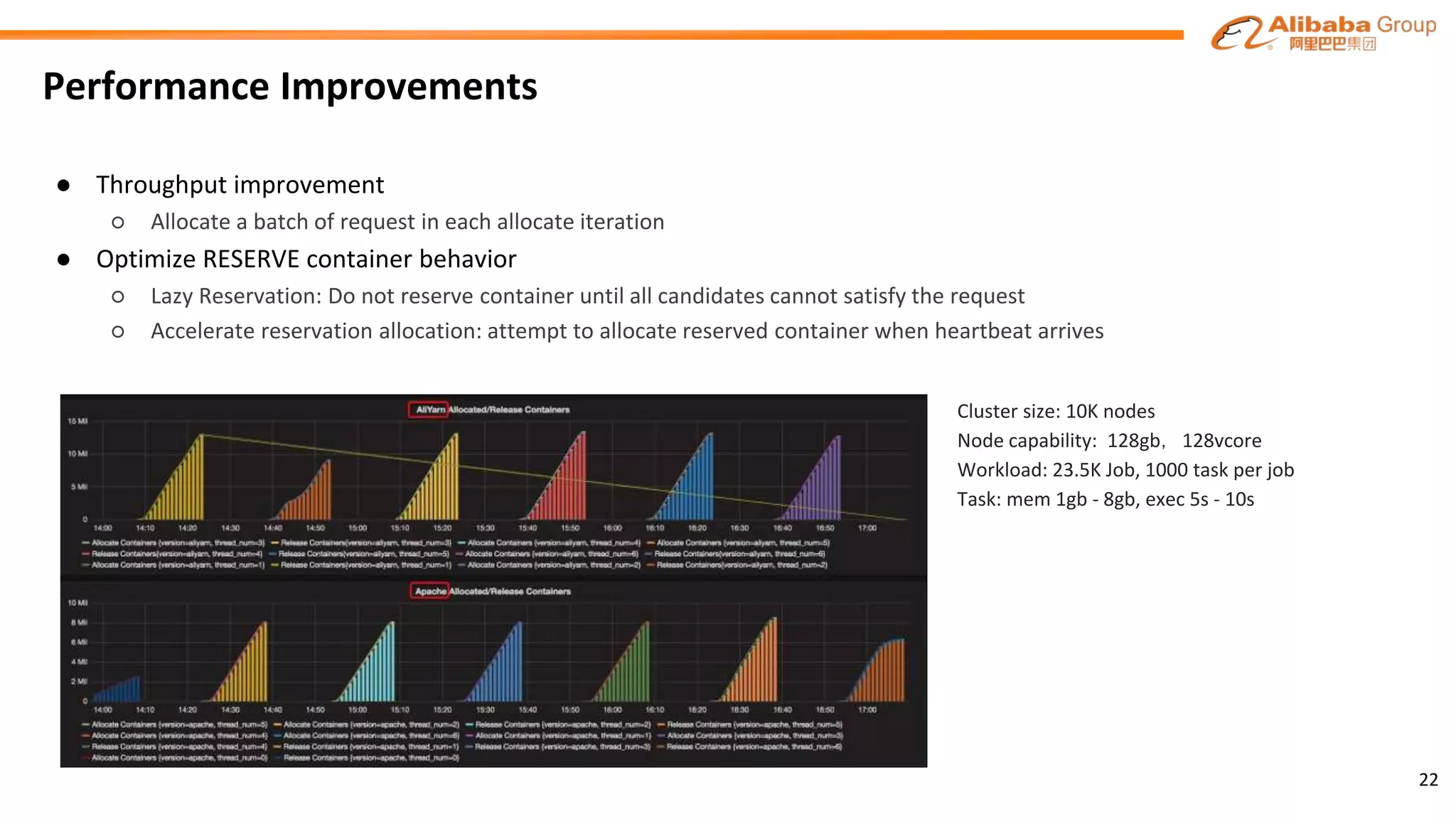

22. Performance Improvements
● Throughput improvement
○ Allocate a batch of request in each allocate iteration
● Optimize RESERVE container behavior
○ Lazy Reservation: Do not reserve container until all candidates cannot satisfy the request
○ Accelerate reservation allocation: attempt to allocate reserved container when heartbeat arrives
22
Cluster size: 10K nodes
Node capability: 128gb，128vcore
Workload: 23.5K Job, 1000 task per job
Task: mem 1gb - 8gb, exec 5s - 10s

23. Improvements for Online Service
Part III
23

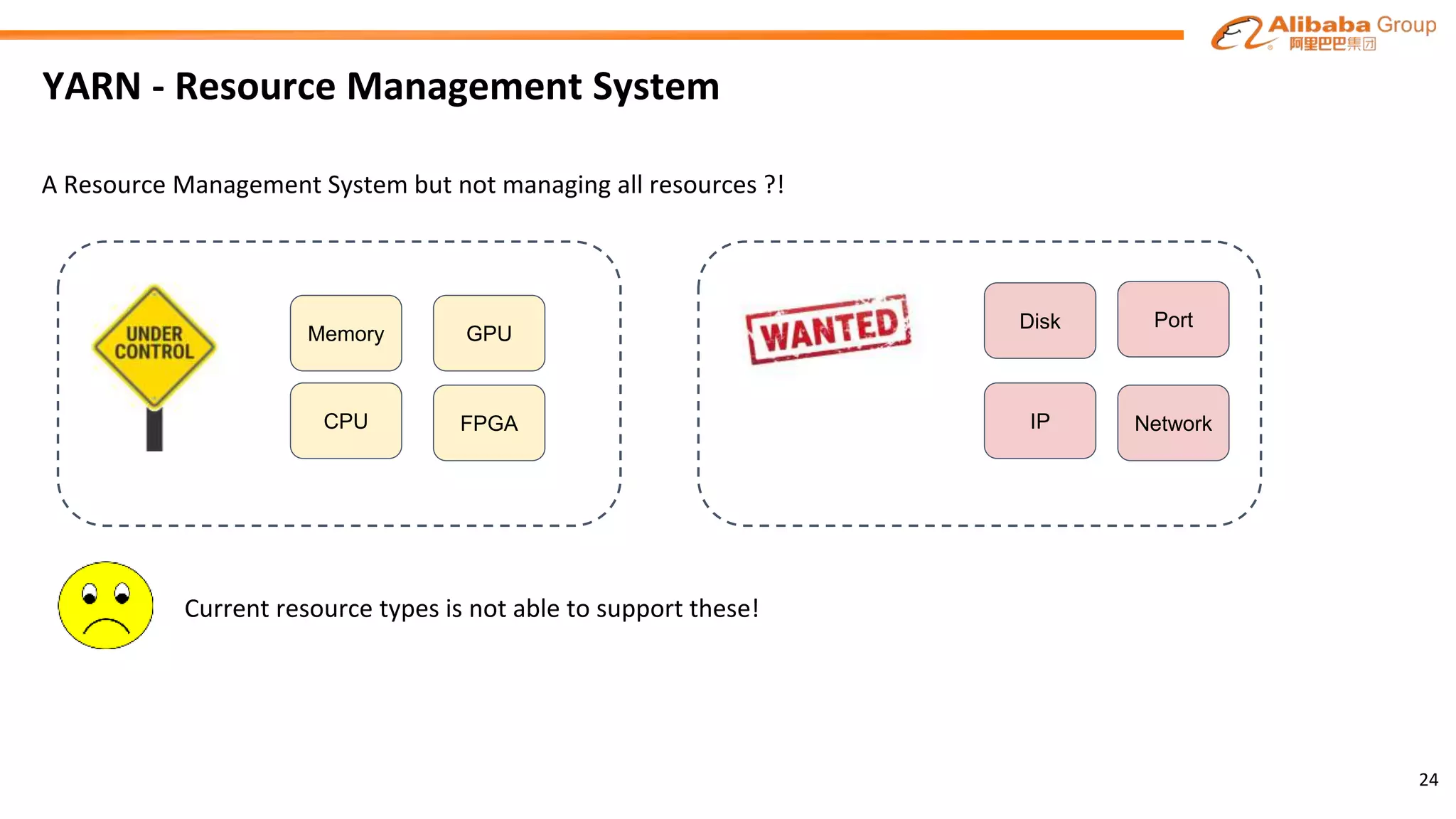

24. YARN - Resource Management System
A Resource Management System but not managing all resources ?!
24
CPU
GPU
FPGA
Memory
IP
Disk Port
Network
Current resource types is not able to support these!

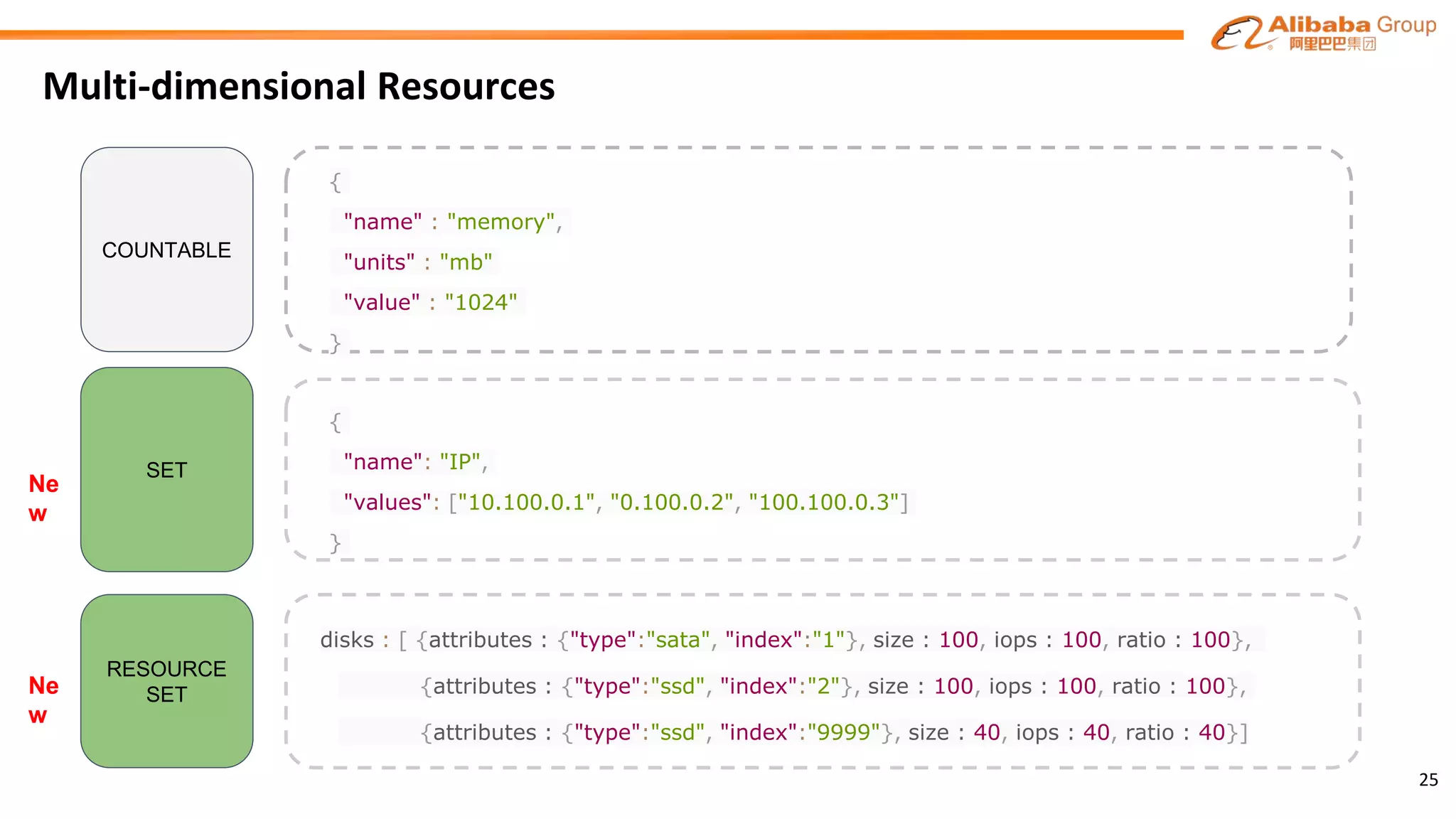

25. Multi-dimensional Resources
COUNTABLE
SET
RESOURCE
SET
disks : [ {attributes : {"type":"sata", "index":"1"}, size : 100, iops : 100, ratio : 100},
{attributes : {"type":"ssd", "index":"2"}, size : 100, iops : 100, ratio : 100},
{attributes : {"type":"ssd", "index":"9999"}, size : 40, iops : 40, ratio : 40}]
{
"name": "IP",
"values": ["10.100.0.1", "0.100.0.2", "100.100.0.3"]
}
{
"name" : "memory",
"units" : "mb"
"value" : "1024"
}
Ne
w
Ne
w
25

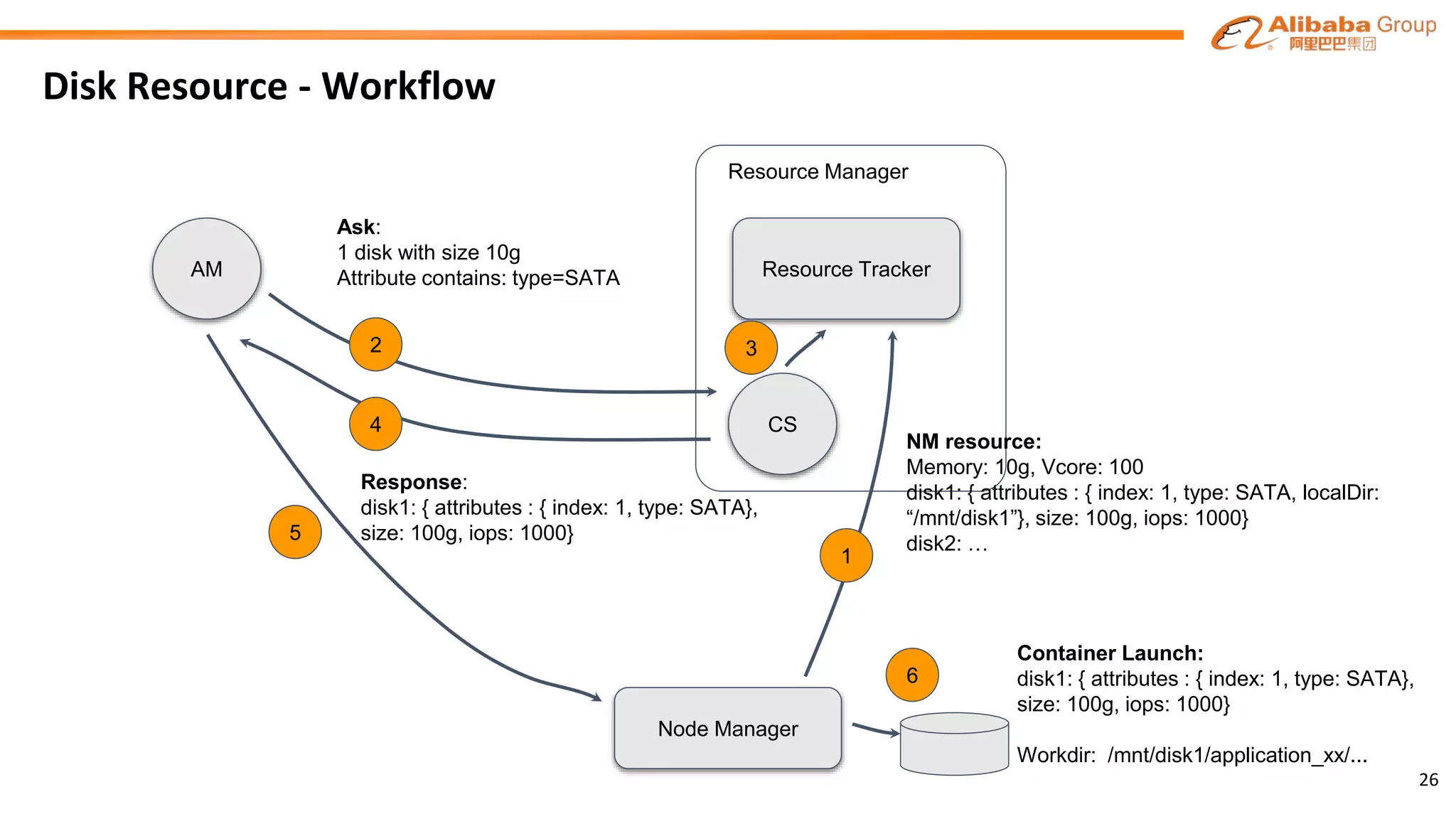

26. Disk Resource - Workflow
AM Resource Tracker
Node Manager
CS
Resource Manager
1
2 3
4
5
6
26
Ask:
1 disk with size 10g
Attribute contains: type=SATA
NM resource:
Memory: 10g, Vcore: 100
disk1: { attributes : { index: 1, type: SATA, localDir:
“/mnt/disk1”}, size: 100g, iops: 1000}
disk2: …
Response:
disk1: { attributes : { index: 1, type: SATA},
size: 100g, iops: 1000}
Container Launch:
disk1: { attributes : { index: 1, type: SATA},
size: 100g, iops: 1000}
Workdir: /mnt/disk1/application_xx/...

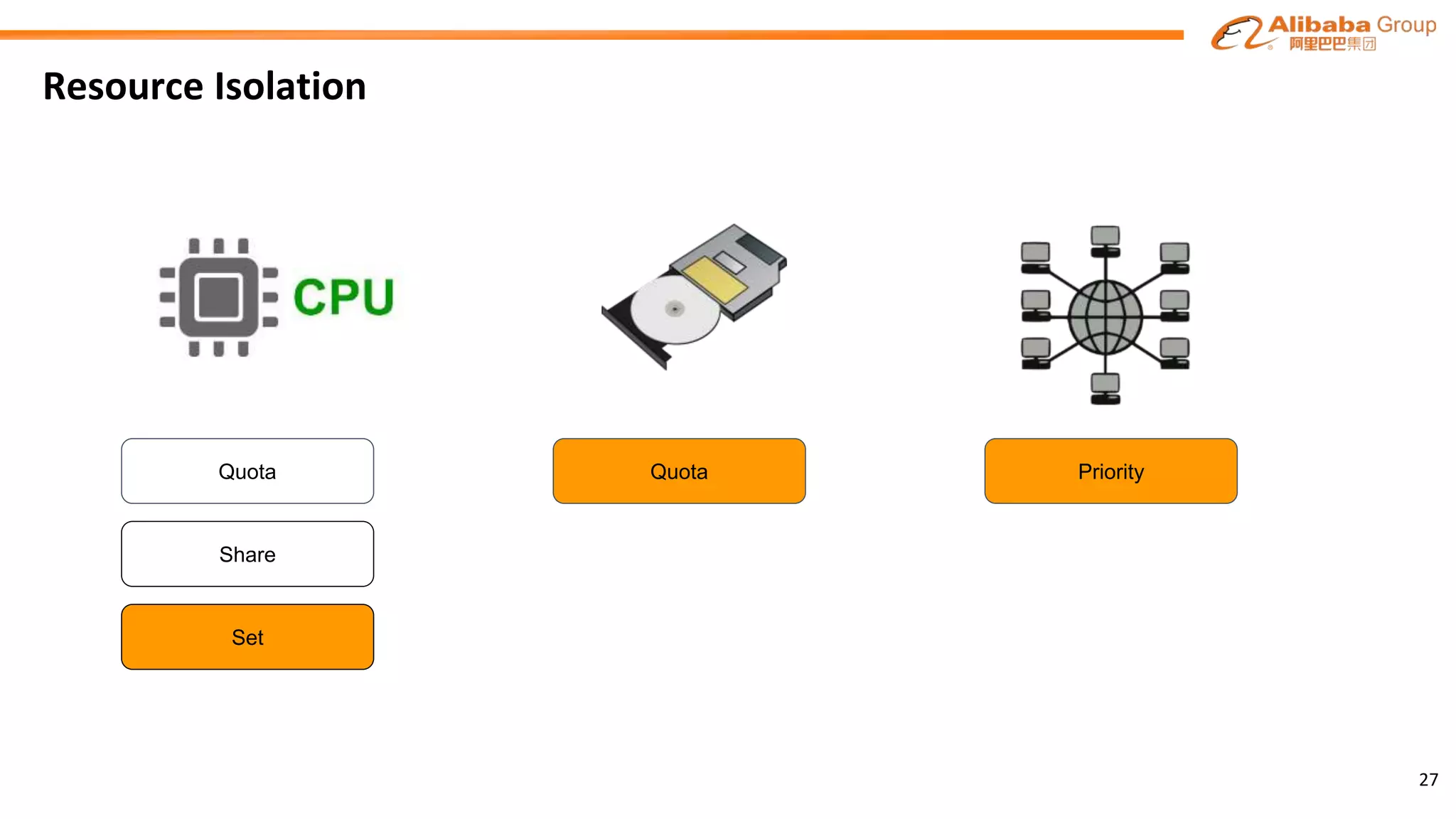

27. Resource Isolation
27
Quota
Set
Share
Quota Priority

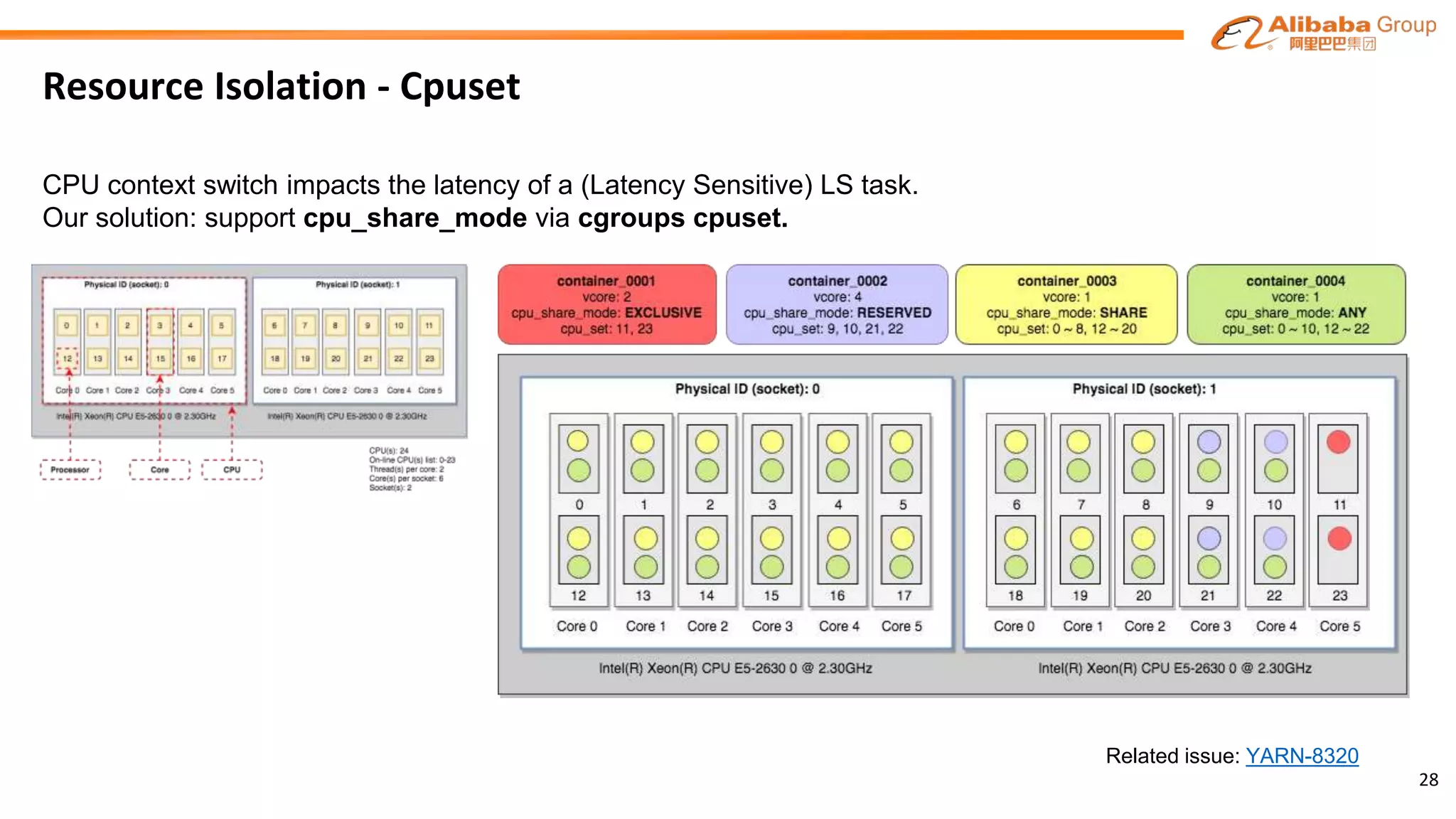

28. Resource Isolation - Cpuset
28
Related issue: YARN-8320
CPU context switch impacts the latency of a (Latency Sensitive) LS task.
Our solution: support cpu_share_mode via cgroups cpuset.

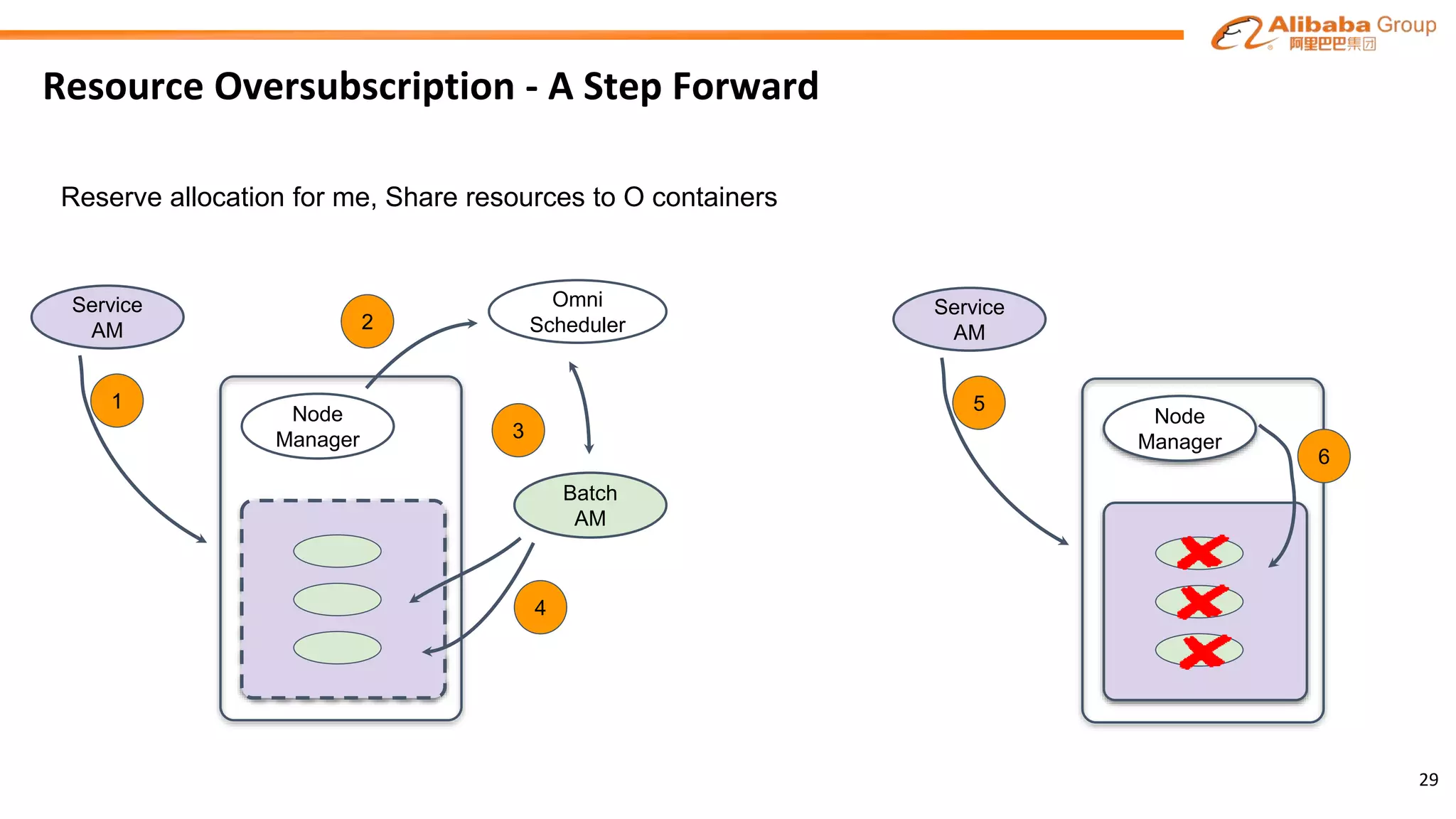

29. Resource Oversubscription - A Step Forward
29
Reserve allocation for me, Share resources to O containers
Node
Manager
Service
AM
1
Omni
Scheduler
Batch
AM
2
3
4
Node
Manager
Service
AM
5
6

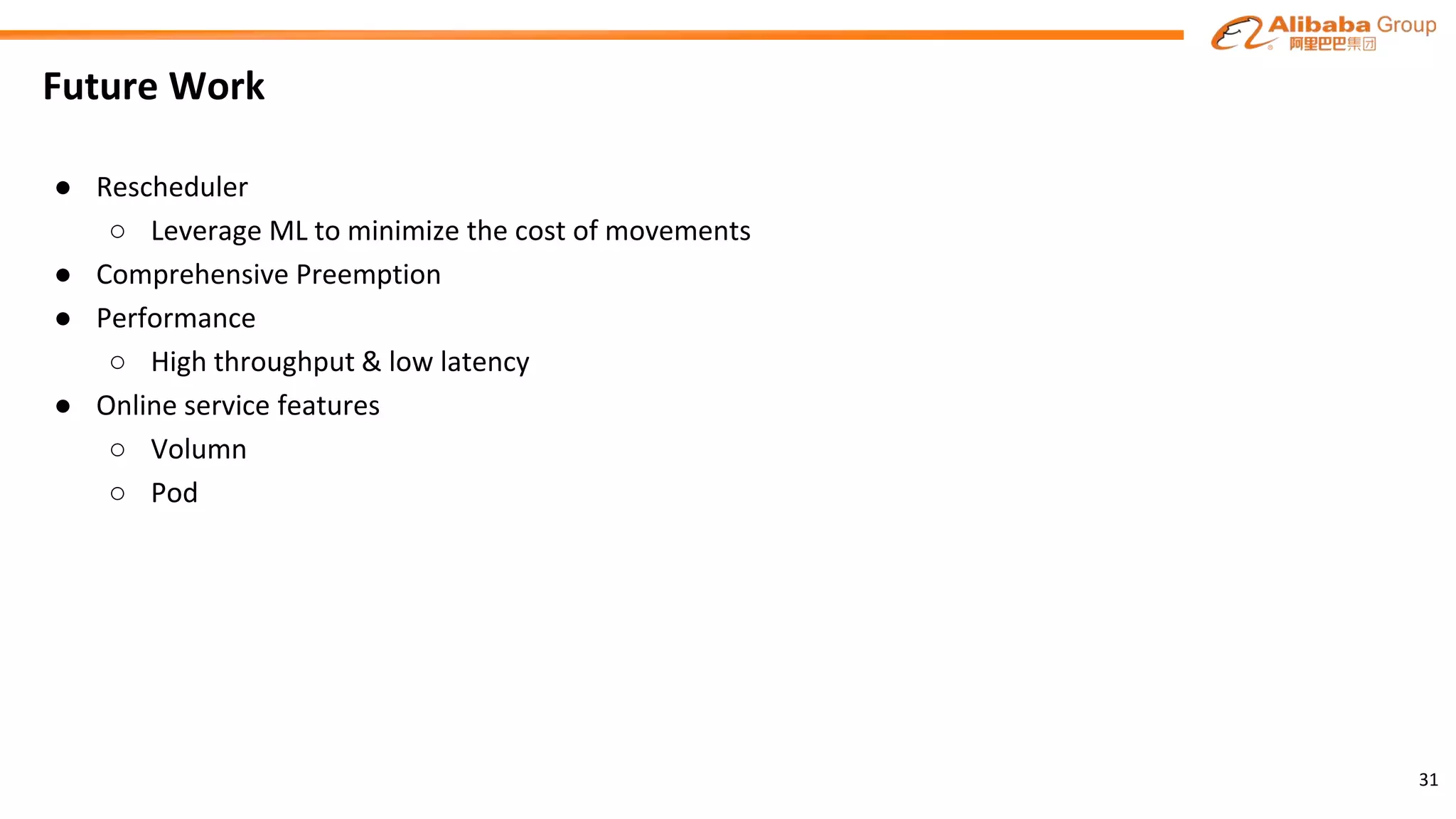

30. Future Work
Part IV
30

31. Future Work
● Rescheduler
○ Leverage ML to minimize the cost of movements
● Comprehensive Preemption
● Performance
○ High throughput & low latency
● Online service features
○ Volumn
○ Pod
31
