Drizzle is a low latency execution engine for Apache Spark that is targeted at stream processing and iterative workloads. Currently, Spark uses a BSP computation model, and notifies the scheduler at the end of each task. Invoking the scheduler at the end of each task adds overheads and results in decreased throughput and increased latency. In Drizzle, we introduce group scheduling, where multiple batches (or a group) of computation are scheduled at once. This helps decouple the granularity of task execution from scheduling and amortize the costs of task serialization and launch. Our experiments on a 128 node EC2 cluster show that Drizzle can achieve end-to-end streaming latencies of less than 100ms and can get up to 3.5x lower latency than Spark Streaming. Compared to Apache Flink, a record-at-a-time streaming system, we show that Drizzle can recover around 4x faster from failures and that Drizzle has up to 13x lower latency during recovery.

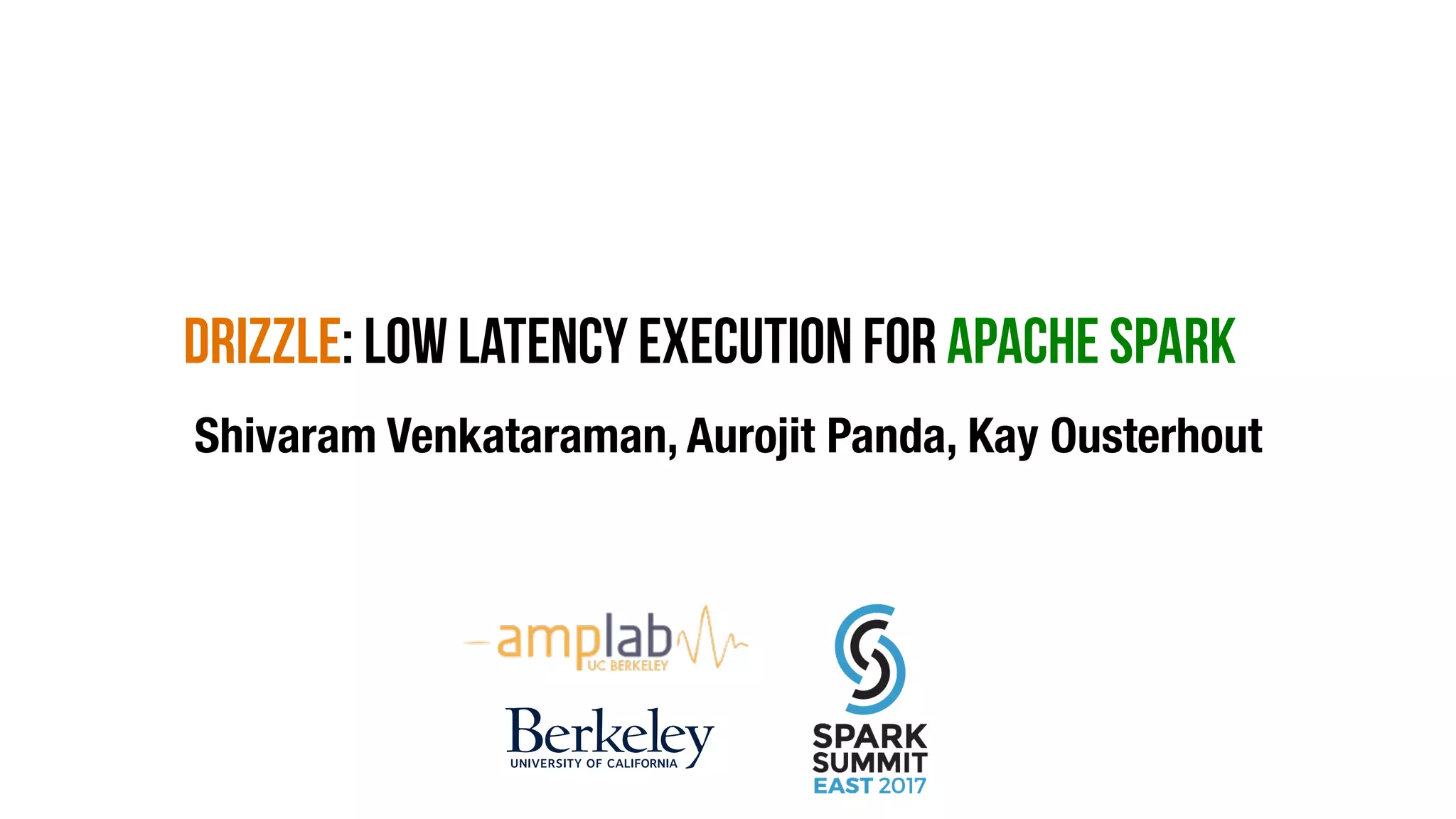

1. DRIZZLE: Low latency execution for apache spark
Shivaram Venkataraman, Aurojit Panda, Kay Ousterhout

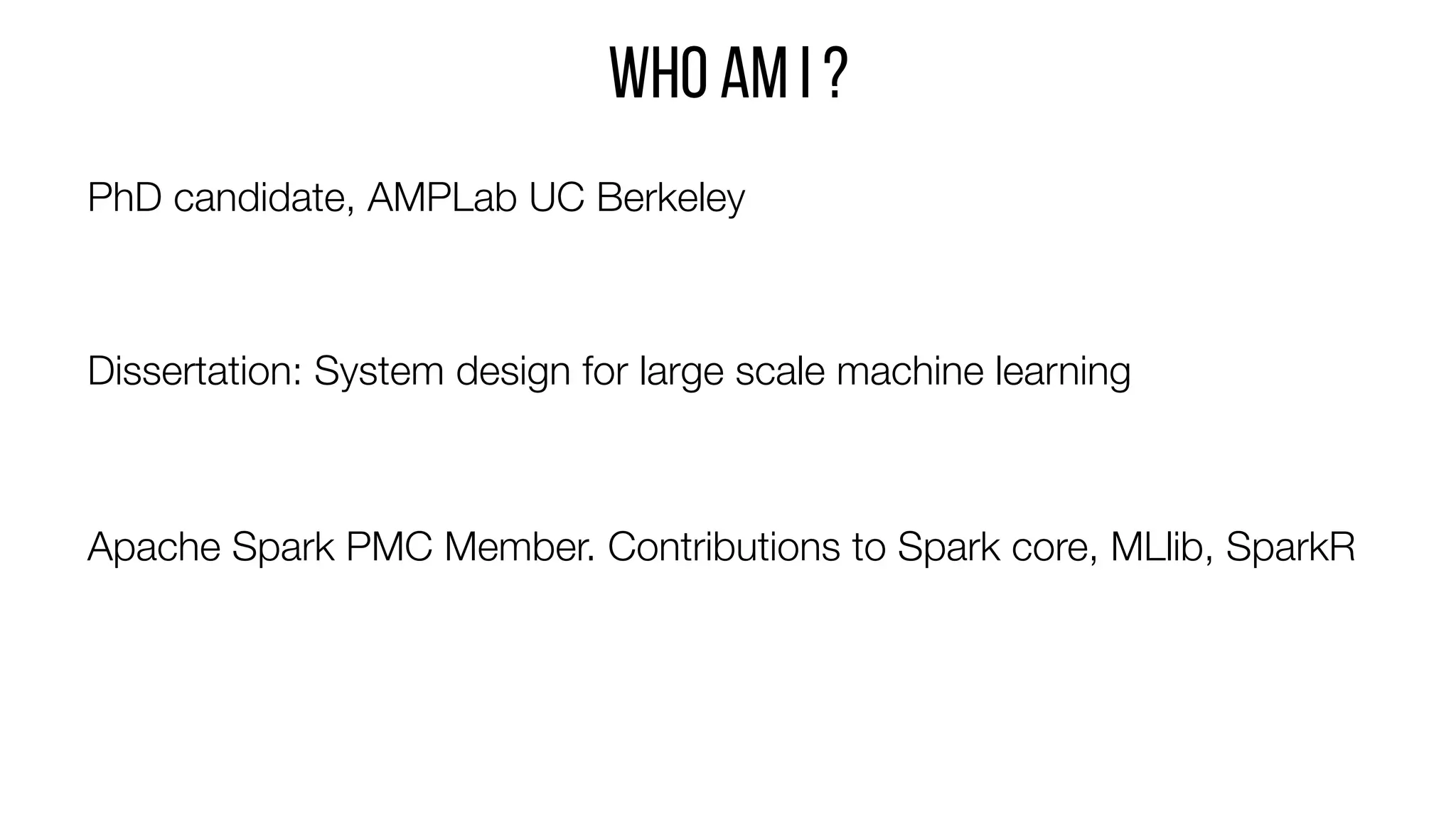

2. Who am I ?
PhD candidate, AMPLab UC Berkeley
Dissertation: System design for large scale machine learning
Apache Spark PMC Member. Contributions to Spark core, MLlib, SparkR

3. Low latency: SPARK STREAMING
“Delivering low latency, high throughput, and stability
simultaneously:* Right now, our own tests indicate you
can get at most two of these characteristics out of Spark
Streaming at the same time.”
From https://goo.gl/wGCrtE
“How to choose right DStream batch interval”
From https://goo.gl/6UX0FW
“Getting the best performance out of a Spark Streaming application on
a cluster requires a bit of tuning…Reducing the processing time of each
batch of data by efficiently using cluster resources. Setting the right batch
size such that the batches of data can be processed as fast as they are
received….” From spark.apache.org/docs/latest/streaming-programming-guide

4. Large Scale Stream Processing Goals

5. State
Low Latency
High Throughput
LARGE SCALE STREAM PROCESSING: PERFORMANCE

6. LARGE SCALE STREAM PROCESSING: ADAPTABLE
Straggler Mitigation
Fault Tolerance
Elasticity
Query Optimization

7. Execution Models

8. Computation models: RECORD-AT-A-TIME
Long-lived operators
Distributed Checkpoints
(Chandy-Lamport)
Naiad
Task
Control Message
Driver
Network Transfer
Streaming DBs:
Borealis, Flux etc
Mutable State
Google
MillWheel

9. Centralized task
scheduling
Lineage, Parallel
Recovery
Microsoft Dryad
Computation models: batch processing
Task
Control Message
Driver
S
H
U
F
F
L
E
Network Transfer
Micro-Batch
Adaptable: Elasticity,
Straggler Mitigation
Google FlumeJava

10. Sync checkpoints,
Lineage for partial results
Fault tolerance
Straggler Mitigation
Elasticity
RECORD-AT-A-TIMEBatch processing
Micro-batch
boundaries
~1 seconds
Checkpoint, restart
(stateful operators)
Chandy-Lamport checkpoints,
Process pairs
~10 millisecondsLatency
Query Optimization

11. Can we achieve low latency with Apache Spark ?

12. DESIGN INSIGHT
Fine-grained execution
with
Coarse-grained scheduling
Data Processing
Coordination

13. DRIZZLE
S
H
U
F
F
L
E
Micro-Batch
Group Scheduling
Pre-Scheduling Shuffles

14. BACKGROUND: STREAMING On SPARK
Scheduler

15. DAG scheduling
Assign tasks to hosts using
(a) locality preferences
(b) straggler mitigation
(c) fair sharing etc.
Tasks
Host1
Host2
Driver
Host1
Host2
Serialize &
Launch
Host
Metadata
Scheduler

16. SCALING BATCH COMPUTATION
Cluster: 4 core, r3.xlarge machines Workload: Sum of 10k numbers per-core
Median-task time breakdown
0
50
100
150
200
250
4
8
16
32
64
128
Time(ms)
Machines
Compute + Data Transfer
Task Fetch
Scheduler Delay

17. DAG scheduling
Assign tasks to hosts using
(a) locality preferences
(b) straggler mitigation
(c) fair sharing etc.
Tasks
Host1
Host2
Driver
Host1
Host2
Serialize &
Launch
Host
Metadata
Scheduler
Same DAG structure
for many iterations
Can reuse scheduling decisions

18. GROUP scheduling
Schedule a group
of iterations at once
Fault tolerance, scheduling
at group boundaries
1 stage in each iteration
group = 2

19. How much does this help ?
1
10
100
1000
4
8
16
32
64
128
Time/Iter(ms)
Machines
Apache Spark
Drizzle-10
Drizzle-50
Drizzle-100
Workload: Sum of 10k numbers per-core
Single Stage Job, 100 iterations – Varying Drizzle group size

20. DRIZZLE
S
H
U
F
F
L
E
Micro-Batch
Group Scheduling
Pre-Scheduling Shuffles

21. coordinating shuffles: Existing systems
Task
Control Message
Data Message
Driver
Intermediate Data
Driver sends metadata
Tasks pull data

22. coordinating shuffles: PRE-SCHEDULING
Pre-schedule down-stream
tasks on executors
Trigger tasks once
dependencies are met
Task
Control Message
Data Message
Driver
Intermediate Data
Pre-scheduled task

23. 0
50
100
150
200
250
300
4
8
16
32
64
128
Time/Iter(ms)
Machines
Baseline
Only Pre-Scheduling
Drizzle-10
Drizzle-100
Micro-benchmark: 2-stages
100 iterations – Breakdown of pre-scheduling, group-scheduling

24. EXTENSIONS
Group size auto tuning
Query optimization
Iterative ML algorithms
Fault tolerance

25. EXTENSIONS
Group size auto tuning
Query optimization
Iterative ML algorithms
Fault tolerance

26. group=1 à Batch processing
GROUP scheduling trade-offs
Higher overhead
Smaller window for fault tolerance
group=N à Parallel operators
Lower overhead
Larger window for fault tolerance

27. GROUP scheduling – AUTO TUNING
Goal : Smallest group such that overhead is between fixed threshold
Tuning algorithm
- Measure scheduler delay, execution time per group
- If overhead > threshold, multiplicatively increase group size
- If overhead < threshold, additively decrease group size
Similar to AIMD schemes used in TCP congestion control

28. QUERY OPTIMIZATION
Intra-Batch Inter-Batch
Predicate Push Down
Vectorization
...
Operator Selection
Data Layout
...
…

29. MLLIB ALGORITHMS
Iterative patterns à
Gradient Descent
PCA
…
Similar structure to streaming !
Model stored, updated as shared state
Parameter server integration
State

30. EVALUATION
Yahoo! Streaming Benchmark
Experiments
- Latency
- Throughput
- Fault tolerance
Comparing Spark 2.0, Flink 1.1.1, Drizzle
Amazon EC2 r3.xlarge instances

31. 0
0.2
0.4
0.6
0.8
1
0
500
1000
1500
2000
2500
3000
Event Latency (ms)
Spark
Drizzle
Flink
Streaming BENCHMARK - performance
Yahoo Streaming Benchmark: 20M JSON Ad-events / second, 128 machines
Event Latency: Difference between window end, processing end

32. Optimize execution of each micro-batch by pushing down aggregation
INTRA-BATCH QUERY optimization
Yahoo Streaming Benchmark: 20M JSON Ad-events / second, 128 machines
0
0.2
0.4
0.6
0.8
1
0
500
1000
1500
2000
2500
3000
Event Latency (ms)
Spark
Drizzle
Flink
Drizzle-Optimized

33. Weak-scaling throughput
Yahoo Streaming Benchmark: 150,000 events/sec per machine
Weak scaling from 4 to 128 machines (600k to 19.2M events/s)
0
400
800
1200
1600
4
8
16
32
48
64
96
128
MedianEventLatency(ms)
Machines
Spark
Flink
Drizzle
Drizzle-Optimized

34. FAULT TOLERANCE
0
5000
10000
15000
20000
150
200
250
300
350
Latency(ms)
Time (seconds)
Drizzle
Spark
Flink
Inject machine failure at 240 seconds

35. OPEN SOURCE UPDATE
Spark Scheduler Improvements
- SPARK-18890, SPARK-18836, SPARK-19485
- Addresses serialization, RPC bottlenecks etc.
Design discussion to integrate Drizzle: SPARK-19487
Open source code at: https://github.com/amplab/drizzle-spark

36. conclusion
Low latency during execution and while adapting
Drizzle: Decouple execution from centralized scheduling
Amortize overheads using group scheduling, pre-scheduling
Shivaram Venkataraman
shivaram@cs.berkeley.edu
Source Code: https://github.com/amplab/drizzle-spark
