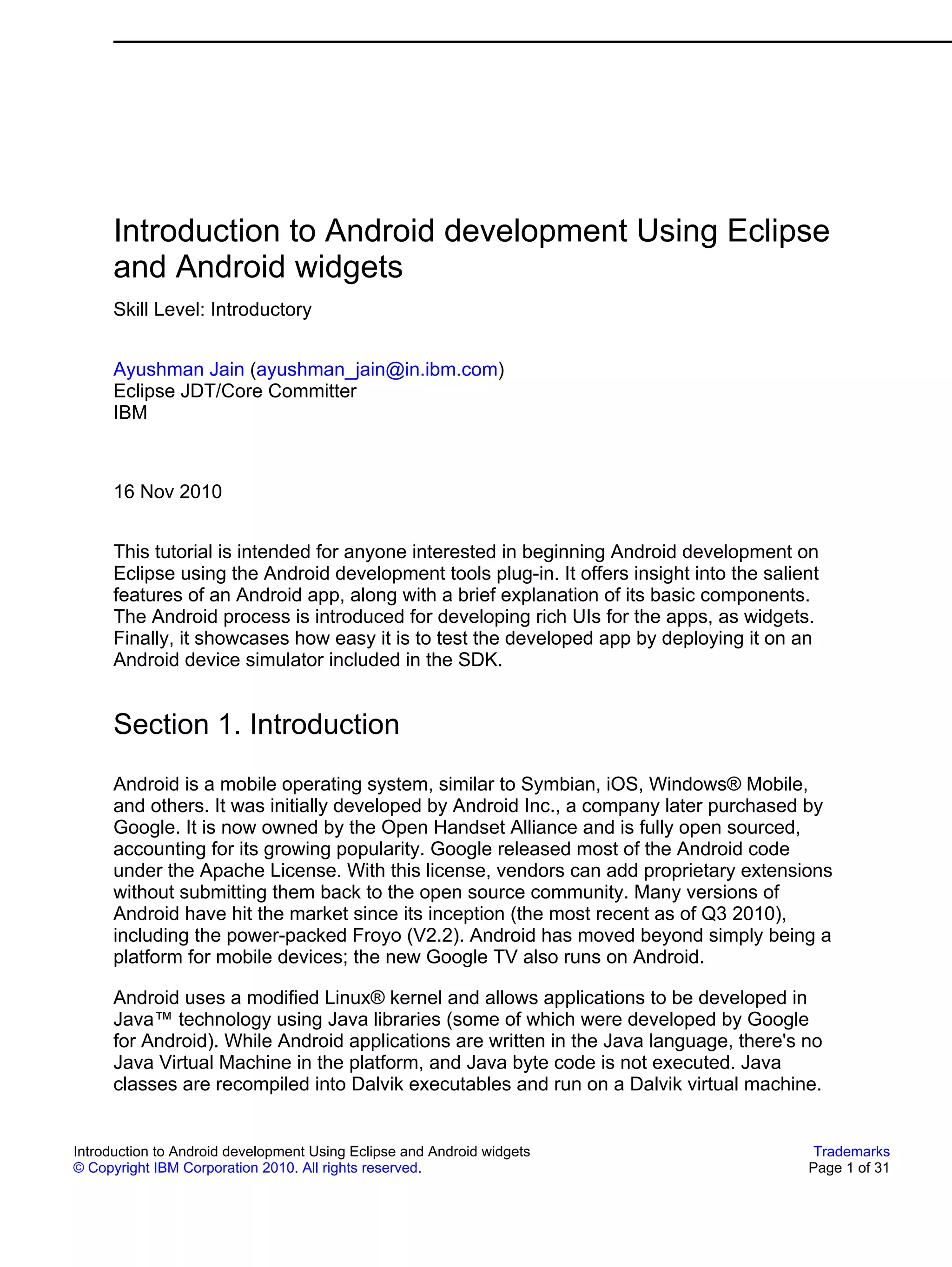

Introduction to Android development Using Eclipse
and Android widgets
Skill Level: Introductory

Ayushman Jain (ayushman_jain@in.ibm.com)
Eclipse JDT/Core Committer
IBM

16 Nov 2010

This tutorial is intended for anyone interested in beginning Android development on
Eclipse using the Android development tools plug-in. It offers insight into the salient
features of an Android app, along with a brief explanation of its basic components.
The Android process is introduced for developing rich UIs for the apps, as widgets.
Finally, it showcases how easy it is to test the developed app by deploying it on an
Android device simulator included in the SDK.

Section 1. Introduction
Android is a mobile operating system, similar to Symbian, iOS, Windows® Mobile,
and others. It was initially developed by Android Inc., a company later purchased by
Google. It is now owned by the Open Handset Alliance and is fully open sourced,
accounting for its growing popularity. Google released most of the Android code
under the Apache License. With this license, vendors can add proprietary extensions
without submitting them back to the open source community. Many versions of
Android have hit the market since its inception (the most recent as of Q3 2010),
including the power-packed Froyo (V2.2). Android has moved beyond simply being a
platform for mobile devices; the new Google TV also runs on Android.

Android uses a modified Linux® kernel and allows applications to be developed in
Java™ technology using Java libraries (some of which were developed by Google
for Android). While Android applications are written in the Java language, there's no
Java Virtual Machine in the platform, and Java byte code is not executed. Java
classes are recompiled into Dalvik executables and run on a Dalvik virtual machine.

Introduction to Android development Using Eclipse and Android widgets Trademarks
© Copyright IBM Corporation 2010. All rights reserved. Page 1 of 31

developerWorks® ibm.com/developerWorks

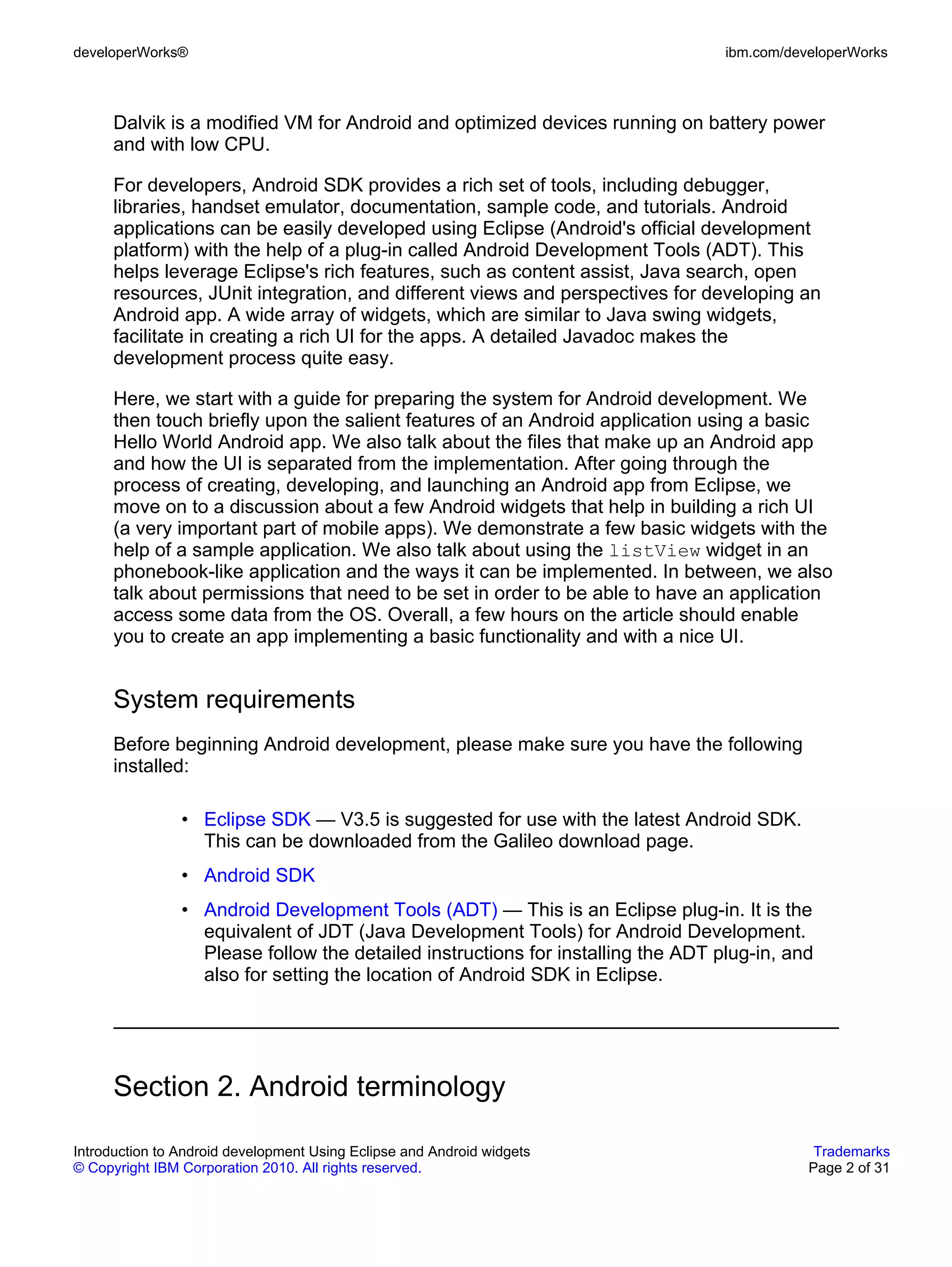

Dalvik is a modified VM for Android and optimized devices running on battery power
and with low CPU.

For developers, Android SDK provides a rich set of tools, including debugger,
libraries, handset emulator, documentation, sample code, and tutorials. Android
applications can be easily developed using Eclipse (Android's official development
platform) with the help of a plug-in called Android Development Tools (ADT). This
helps leverage Eclipse's rich features, such as content assist, Java search, open
resources, JUnit integration, and different views and perspectives for developing an
Android app. A wide array of widgets, which are similar to Java swing widgets,
facilitate in creating a rich UI for the apps. A detailed Javadoc makes the
development process quite easy.

Here, we start with a guide for preparing the system for Android development. We
then touch briefly upon the salient features of an Android application using a basic
Hello World Android app. We also talk about the files that make up an Android app
and how the UI is separated from the implementation. After going through the
process of creating, developing, and launching an Android app from Eclipse, we
move on to a discussion about a few Android widgets that help in building a rich UI
(a very important part of mobile apps). We demonstrate a few basic widgets with the
help of a sample application. We also talk about using the listView widget in an
phonebook-like application and the ways it can be implemented. In between, we also
talk about permissions that need to be set in order to be able to have an application
access some data from the OS. Overall, a few hours on the article should enable
you to create an app implementing a basic functionality and with a nice UI.

System requirements
Before beginning Android development, please make sure you have the following
installed:

• Eclipse SDK — V3.5 is suggested for use with the latest Android SDK.
This can be downloaded from the Galileo download page.
• Android SDK
• Android Development Tools (ADT) — This is an Eclipse plug-in. It is the
equivalent of JDT (Java Development Tools) for Android Development.
Please follow the detailed instructions for installing the ADT plug-in, and
also for setting the location of Android SDK in Eclipse.

Section 2. Android terminology


ibm.com/developerWorks developerWorks®

A typical Android application has the following components. Also given below are
definitions provided by the Android Developer site:

• Activity — An activity presents a visual UI for one focused endeavor the
user can undertake. For example, an activity might present a list of menu
items users may choose from, or it might display photographs along with
their captions. A text-messaging application might have one activity that
shows a list of contacts to send messages to, a second activity to write
the message to the chosen contact, and other activities to review old
messages or change settings. Though they work together to form a
cohesive UI, each activity is independent of the others.
• Content providers — A content provider makes a specific set of the
application's data available to other applications. The data can be stored
in the file system, in a SQLite database, or in any other logical manner.
• Service — A service doesn't have a visual UI, but runs in the background
for an indefinite period of time. For example, a service might play
background music as the user attends to other matters, or it might fetch
data over the network or calculate something and provide the result to
activities that need it.
• Broadcast receivers — A broadcast receiver is a component that does
nothing but receive and react to broadcast announcements. Many
broadcasts originate in system code — timezone-change
announcements, low-battery announcements, language-preference
changes, etc.
Some other terms worth knowing:

• Intent — Activities, services, and broadcast receivers are activated by
asynchronous messages called intents. An intent is an Intent object
that holds the content of the message. For example, it might convey a
request for an activity to present an image to the user or let the user edit
some text.
• Intent filter — An Intent object can explicitly name a target component. If it
does, Android finds that component (based on the declarations in the
manifest file) and activates it. If a target is not explicitly named, however,
Android must locate the best component to respond to the intent. It does
so by comparing the Intent object to the intent filters of potential targets. A
component's intent filters inform Android of the kinds of intents the
component is able to handle.
For an understanding of these components, refer to "Develop Android Applications
with Eclipse" and the Android Hello, World tutorial.



Section 3. Create an Android Virtual Device
This step is required in creating an Android phone emulator/Android Virtual Device
(AVD) on which applications can be run and tested. Note that it takes some time for
an AVD to start up. The good news is that separate AVDs are not needed for each
application to be deployed and tested. Once the AVD is launched, any number
applications can be deployed while it is still running, and it can even be used to
debug applications. To create an AVD:

1. In Eclipse, choose Window > Android SDK and AVD Manager.

2. Select Virtual Devices in the left panel.

3. Click New. The Create New AVD dialog appears.

4. Type the name of the AVD, such as "myPhone."

5. Choose a target. The target is the platform (that is, the version of the
Android SDK, such as 2.1) to be run on the emulator. You will also get an
option to choose the Google APIs, but that is unnecessary unless we
want to have some Google API in the app specifically. The rest of the
fields can be ignored for now.

6. Click Create AVD.

Once the AVD is launched, you can see how it gives the complete look and feel of a
real Android-based mobile phone, complete with keyboard and multi-touch support.
It can also be used in a variety of configurations to test your app, such as
landscape/portrait mode, network strength, and roaming network, etc. All of these
options can be configured using the AVD manager. The AVD is self-sufficient to
emulate different devices available. You can create different AVDs for different
configurations and test your application on each of them to make sure it is
compatible across device types.

Section 4. Create a new Android project
Here's how to create a new Android project in Eclipse (see Figure 1):



1. From Eclipse, select File > New > Project. A folder called Android
should be present in the dialog if the ADT plug-in for Eclipse has been
successfully installed. Expanding that folder should provide the option for
a new Android project. Select it and click Next.

2. You will be prompted to fill in the following details in a form:

• Project name — This is the name of your project and can be something
like "HelloWorld."
• Application name — This is the name that will appear everywhere in your
Android device, along with the icons in the menu, in the shortcuts, and on
the title bar when you run your application. This can be something like
"Hello Android."
• Package name — com.example.helloandroid or your own private
namespace. The package name follows the same rules as those in the
Java language.
• Create activity — We can call it SaySomething for our purposes here.
This is the name for the class stub that will be generated by ADT. This will
be a subclass of Android's Activity class. An activity is simply a class
that can run and do some work. It can optionally have a UI. An application
may contain one or more activities. They are typically on a 1:1
relationship with the screens found in an application. An application
moves from one activity to another by calling a method known as
startActivity() or startSubActivity().
• Min SDK version — This specifies the minimum API level required by
your application. The latest one is 7.
Figure 1. Create a new Android project



Section 5. Hello Android project details
The Hello Android is a basic Android project, which simply prints Hello World on the
screen. It has the following roles in this article:

• To demonstrate the process of creating a new Android project.
• To give an overview of the files in an Android project and their purpose.
• To demonstrate how to deploy an app on the AVD and test it.
To view the files and other resources part of the Android project and use the



Package Explorer view inside Eclipse (Window > Show View > Package
Explorer). The newly created Android project will consist of the following (see Figure
2):

• There are two folders that contain the source code:

1. src contains all the classes specified by the user, including the default
activity class.

2. gen contains the files automatically generated by ADT. R.java inside this
folder consists of static references to all the resources present in the res
folder so they can be easily and dynamically referenced from the Java
code. It is advised not to modify the contents of R.java manually.

Figure 2. Hello Android project contents



• A res folder contains all the resources for the project: icons, images,
strings, and layouts. Having a separate resource folder keeps non-source
code resources external to the code and resources can be dynamically
selected based on hardware, language, orientation, and location.
It consists of:

a. drawable folder(s) — Meant for all image files.



b. layout folder — Meant for the layouts specifying the UI screens for
the activities, in the form of XML code. Main.xml is automatically
generated. This folder pertains to the default portrait layout. For
representing some UI in the landscape layout (when an Android
device is turned 90 degrees), create a layout-land folder and put
your layout XML file there. The main.xml file has a nice UI
representation, as shown in Figure 3. You can drag and drop
different layouts and views onto a blank screen to build the UI
components for the activity.

c. values folder — Meant for all the name-value pairs (the strings
your application is going to define).

• AndroidManifest.xml is also an important part of the project. It's the
equivalent of a plugin.xml file for plug-ins. It basically defines the activities
in the applications and specifies the actions that have been specified for
each. It also lists out the permissions that the application requires to
perform various actions. Once again, it has a nice UI.
Figure 3. UI for main.xml

Let's look at the actual contents of the project folder on the disc. Open the Navigator
View in Eclipse (Window > Show View > Navigator). You'll get the structure for the
HelloWorld project as shown in Figure 4. Apart from the compiled class files, you
obtain the following three files inside a bin folder:



1. classes.dex — Executable generated from compiled classes.

2. HelloWorld.apk — Zipped archive file that will be shipped to the Android
device. The app can be installed on any Android device via this archive
file.

3. resources.ap_ — Zipped application resources.

Android project's directory structure



The primary 'Activity' of the application
Let's examine MainActivity.java.

Listing 1. MainActivity.java

package com.example.helloandroid;



import android.app.Activity;
import android.os.Bundle;
public class MainActivity extends Activity {
/** Called when the activity is first created. */
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.main);
}
}

Things to note about this file are:

• MainActivity extends a base Android class named Activity, which
is located in the android.app package.
• The onCreate() method is the default entry point to this activity and has
to be implemented for each new activity. It receives an argument of type
Bundle. Options and parameters required for the creation of the activity
are passed in this parameter.
• The setContentView() is responsible for creating the primary UI using
the R.layout.main argument. This is a constant defined in R.java and
represents the main layout found in the resources of the application.
Main.xml

This XML file describes the UI of the application. An activity can reference to this UI.
This UI, however, does not bind itself to any activity at all. A UI is built using layouts
and widgets. The main.xml that Eclipse builds by default consists of a single
LinearLayout, which means that all the elements are arranged in a single column. It
then defines a textView, which is used to display a static non-editable text. In this
case, the "hello" string defined in the strings.xml file (the '@' sign refers to a file
defined in the res folder). Each view element further has attributes, such as
layout_height and layout_width, etc.

Figure 5. Main.xml and the properties view



An easy to way to work with the main.xml file is through the properties view
(Window > Show View > Other > General > Properties). When a particular view is
selected in the outline view, the properties tab is populated with all possible
attributes of the view, as shown in Figure 5. Most of these attributes have only fixed
values to chose from, which can be selected from a drop-down menu adjacent to
each attribute in the properties tab. For example, to set the layout_height, you
can see the drop-down box and find that it has only two allowed values:
wrap_content and fill_parent. (wrap_content will only draw the view to its
original size, while fill_parent will stretch it to cover the whole height, or width,
or both.)
Note: For the layout_height and layout_width, you can also specify size in
the following two units: (a) Density-independent pixels (dp) — This size enables the
layout to look the same when viewed on devices of different screen sizes. For
example: layout_width = 10dp; (b) Scale-independent pixels (sp) — Similar to
dp, but this is the recommended standard for mobile phones. For example:
layout_width = 10sp.) Another important thing to note is that if you want to
reference some view/widget from Java code, it needs to have a unique ID. If you use
the layout tab of main.xml to drag and drop a widget, ADT will automatically create
an ID for the widget, which will be of the form "@+id/someView." In the Java code,
you can then reference it as R.id.someView.



Section 6. Running the app on the emulator
For deploying and running the app, you need to define a run configuration. Select
Open > Run > Dialog or shortcut on the toolbar within Eclipse, and select Android
application. Click New and fill in the name of the run configuration. Specify the
name of your project and default activity. Then in the target tab, choose some
desired emulator settings and specify an AVD you want to start. Click Run. You will
get an AVD as shown in Figure 6. The screen of the device is shown on the left,
alongside a QWERTY keypad on the bottom left, and common mobile buttons such
as dial, hang up, mute, volume, and home on the top left.

Figure 6. The Android Virtual Device

Section 7. Android widgets
Now that we know how to create and run a basic Android app, let's spruce things up



with widgets (see Figure 7):

• textView consists of widgets such as editText, Button, etc. Buttons
can be further categorized into:
• CheckBox
• RadioButton
• ToggleButton, etc.
• ImageView consists of widgets such as the ImageButton.
• ViewGroup consists of layouts such as:
• Relative Layout
• Table Layout
• Frame Layout
• Adapter View
• Linear Layout
For information about widgets, "A Visual Guide to Android GUI Widgets" is the best
guide. Be cautious, however, of inconsistencies introduced there because of rapid
changes in the Android platform. One glaring example is the use of id as an
identifier attribute for a widget in the main.xml in the above-mentioned guide. In
the latest Android platform, the fully qualified android:id should be used.

Figure 7. Android widgets hierarchy



Section 8. A sample application using widgets
We will now modify our existing application to look like Figure 8. The purpose of this
example is to make the reader familiar with the use of some basic widgets like
textView, editText, Button, and Toast in a real app.

Our application will consist of a title bar with the message "WELCOME!!!" It will have
three textView widgets starting from the top, arranged vertically: one saying "Hello
World, how're you?" in default font; the next saying "Welcome to my first Android
app" in italicized serif text, center-aligned, with white background; and a third saying
"Type anything and press the button" in bold monospace text, with red background.
These three are followed by an editText widget to take the user input, followed by
a button widget (the button goes with the message "Click Me!"). Whatever is typed in
the editText widget appears in a Toast widget at the bottom center of the screen
when the button is pressed.

There isn't much implementation code involved here. The reader should pay
attention to how the widgets are easily put into the app using ADT's GUI editor for



the XML files and how the widget properties are conveniently set using the
"properties" view provided by Eclipse. This example will also showcase how the UI
and implementation parts can be independently coded.

Figure 8. Android Virtual Device with widgets

string.xml

Let's add some new strings in the string.xml file, change the existing welcome string,
and finally the title string. Let's also define the white and red colors here for the
background for two textViews.

Listing 2. The string.xml file

<?xml version="1.0" encoding="utf-8"?>
<resources>
<string name="hello">Hello World, how're you?</string>
<string name="app_name">Hello Android</string>
<string name="title">WELCOME!!!</string>
<string name="mainText">Welcome to my first android app</string>
<string name="subText">Type anything and press the button</string>
<color name="White">#FFFFFF</color>
<color name="Red">#FF0000</color>
</resources>



We changed the "hello" string to contain "Hello World, how're you?" Notice the
escape character ('') is required here for the apostrophe. We also defined two
new strings: mainText and subText, and colors white and red.

main.xml

Let's use the layout tab of main.xml to drag and drop two new textViews: an
editText widget and a button widget. Then we'll use the properties tab in main.xml
to edit attributes for each widget.

Listing 3. The main.xml file

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="vertical"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
>
<TextView
android:layout_height="wrap_content"
android:text="@string/hello"
/>
<TextView
android:id="@+id/mainTextView"
android:gravity="center"
android:text="@string/mainText"
android:textStyle="italic"
android:typeface="serif"
android:background="@color/White">
</TextView>
<TextView
android:layout_margin="20sp"
android:gravity="left"
android:id="@+id/subTextView"
android:padding="10sp"
android:text="@string/subText"
android:textStyle="bold"
android:typeface="monospace"
android:background="@color/Red">
</TextView>
<EditText
android:text="Enter text here"
android:id="@+id/EditText01"
android:layout_width="wrap_content"
android:layout_height="wrap_content">
</EditText>
<Button
android:text="Click me!"
android:id="@+id/Button01"
android:layout_width="wrap_content"
android:layout_height="wrap_content">
</Button>
</LinearLayout>

With this, we have our UI defined. Now we have to link our activity code with it.



MainActivity.java

This is the file that actually links the UI to the implementation. Like the HelloWorld
application, we use the Activity.onCreate(Bundle) method to decorate all the
UI elements on the screen. The overridden onClick(View) method will contain the
functionality of the button click, wherein the user input text will be read and displayed
on the screen in a toast widget.

Listing 4. The MainActivity.java file

package com.example.helloandroid;
import android.app.Activity;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
import android.widget.Toast;
public class MainActivity extends Activity {
@Override
String title = getString(R.string.title);
setTitle(title); // done so that we can change the default title
//get handles to editText and button widgets
final EditText eText = (EditText) findViewById(R.id.EditText01);
final Button button = (Button) findViewById(R.id.Button01);
button.setOnClickListener(new Button.OnClickListener(){
@Override
public void onClick(View v) {
//get the String entered into the editText widget
CharSequence editText = eText.getText();
//display the toast
Toast.makeText(MainActivity.this, editText, Toast.LENGTH_LONG).show();
}
});
}
}

Using this code, we obtain the application as shown in Figure 8.

Section 9. Using the listView widget: A sample
application



In this section, we'll create a sample application (see Figures 9a, 9b) to display all
contacts in the phonebook using the listView widget. The purpose of this example
is to showcase not just the use of the listView widget but also to show how phone
data can be fetched using ContentProvider and ContentResolver classes. Pay
attention to the UI XML files because there are two UI layouts: one to specify how
the list shown by the listView widget fits into the main UI and another to specify
how each element of the list looks. Another important point is the setting of
permissions for the app to be able to read phone data. This example is the first step
to understanding how intents and intent filters can be incorporated in an app.
Although intents are beyond the scope of this article, the reader may note that to
convert this example app into a real-world phonebook app, one simply needs to
implement click actions on the list items and create a call intent and intent filter to
initiate a call to the selected contact.

In this example, the contacts will be displayed in a vertical linear fashion, and the
selected contact appears at the top of the list with a large italicized font and a blue
background. We also have a checkbox at the bottom left of the screen, which, when
checked, shows only starred (or favorited contacts). The title of the application in this
case is "Contact Manager." Here we use three types of widgets: textView,
listView, and checkBox. We use the textView widget to display the currently
selected contact. You can assume the listView widget to be a list of textView
widgets. A listView uses adapter design patterns to connect the data (the
contacts, in this case) and a data view (a textView, in this case) to the listView.
Any clicks on the listView can be captured by implementing
AdapterView.OnItemClickListener().

Before proceeding, we should have some stored contacts in the contacts section of
the Android emulator (AVD). This can be done by clicking Contacts on the home
screen of the AVD, then Menu to get the Add Contacts option. The Favorites
section says how to mark a contact as favorite/starred.

Figure 9a. The contacts application showing all contacts in a listView widget



Figure 9b. The contacts application showing all starred contacts in a listView
widget when the show-starred contacts checkbox is selected



Now we'll define a few strings.

Listing 5. Strings defined in the strings.xml file

<resources>
<string name="hello">Hello World, Manager!</string>
<string name="app_name">Contact Manager</string>
<string name="selectedEntry" />
<color name="White">#FFFFFF</color>
<color name="Black">#000000</color>
<color name="Blue">#0000FF</color>
<string name="showStarred">Show starred contacts only</string>
</resources>

main.xml

Let's define the main layout for our app. The listView widget will accommodate
the list of all contacts in the phonebook. The listView displays each item inside a
textView widget, which we'll define next.

Listing 6. main.xml




<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="vertical"
>
<TextView
android:gravity="center"
android:id="@+id/selectedContact"
android:padding="10dp"
android:textSize="20sp"
android:textStyle="italic"
android:typeface="serif"
android:background="@color/Blue"
android:textColor="@color/White"
android:text="@string/selectedEntry"/>
<ListView
android:id="@+id/contactsListView"
android:layout_weight="1">
</ListView>
<CheckBox android:layout_width="wrap_content"
android:id="@+id/showStarred"
android:text="@string/showStarred"/>
</LinearLayout>

Note that assigning a layout_weight of 1 to the listView makes sure that the list
covers as much screen area as it can until a new widget is defined.

contactItem.xml

Apart from the main layout, we need to define another layout here. This is to
represent each element in the listView. We use a simple textView here.

Listing 7. Code for textView widget, which constitutes each element of the
listView widget

<TextView
xmlns:android="http://schemas.android.com/apk/res/android"
android:padding="5dp"
android:textStyle="bold"
android:id="@+id/contactItem">
</TextView>

Note that Android by default provides a simple layout that can be used instead of
defining your own. This can be referenced via
android.R.layout.simple_list_item_1.

ManageContacts.java

Listing 8. shows how the main activity is implemented. The method



populateContactList() is the one we use to query the contacts database and
display them in the listView.

Listing 8. Implementation of the main activity

public class ManageContacts extends Activity {
private ListView mContactList;
private CheckBox mCheckBox;
private boolean mShowStarred;
private TextView selectedText;
@Override
mContactList = (ListView) findViewById(R.id.contactsListView);
mCheckBox = (CheckBox) findViewById(R.id.showStarred);
selectedText = (TextView) findViewById(R.id.selectedContact);
mShowStarred = false;
mCheckBox.setOnCheckedChangeListener(new CheckChangedListener());
mContactList.setOnItemClickListener(new ClickListener());
populateContactList();
}
public void populateContactList() {
Uri uri = ContactsContract.Contacts.CONTENT_URI;
String[] projection = new String[] {
ContactsContract.Contacts._ID,
ContactsContract.Contacts.DISPLAY_NAME,
};
String[] selectionArgs = null;
String sortOrder = ContactsContract.Contacts.DISPLAY_NAME +
" COLLATE LOCALIZED ASC";
String selection = mShowStarred? ContactsContract.Contacts.STARRED +
" ='1'" : null;
Cursor c = getContentResolver().query(uri, projection, selection, selectionArgs,
sortOrder);
String[] fields = new String[] {
ContactsContract.Data.DISPLAY_NAME
};
SimpleCursorAdapter adapter = new SimpleCursorAdapter(this, R.layout.contactitem,
c, fields, new int[] {R.id.contactItem});
mContactList.setAdapter(adapter);
}
private class ClickListener implements OnItemClickListener {
@Override
public void onItemClick(AdapterView<?> arg0, View textView, int pos, long arg3) {
if(textView instanceof TextView)
selectedText.setText(((TextView) textView).getText());
}
}
private class CheckChangedListener implements OnCheckedChangeListener {
@Override
public void onCheckedChanged(CompoundButton buttonView, boolean isChecked) {
mShowStarred = isChecked;



selectedText.setText("");
}
}
}

Things to note:

• We have two listeners — one each for handling clicks on a list item and
one for handling clicks on the checkbox. The former simply sets the text in
the blue textView box to the display name of the currently selected
contact. The latter is to set the mShowStarred field and repopulate the
list.
• To read the contacts from the phone database, we need to query it to get
a cursor. The query has the following parameters:

1. uri — The URI using the content:// scheme for the content to
retrieve.

2. projection — A list of which columns to return. Passing null will
return all columns, which is discouraged to prevent reading data
from storage that isn't going to be used.

3. selection — A filter declaring which rows to return, formatted as a
SQL WHERE clause (excluding the WHERE itself). Passing null will
return all rows for the given URI.

4. selectionArgs — You may include ?s, which will be replaced by
the values from selectionArgs, in the order that they appear in
the selection. The values will be bound as Strings.

5. sortOrder — How to order the rows, formatted as a SQL ORDER
BY clause (excluding the ORDER BY itself). Passing null will use the
default sort order, which may be unordered.
The result set cursor so obtained has to be linked to the UI via an adapter. We use a
SimpleCursorAdapter here, though Android also provides a ListAdapter.
Once the adapter is obtained, we need to attach it to the listView, and we're
done.

Permissions
A final step before our app would run successfully on an Android device is setting up
permissions. Without permissions to be able to read the contacts database, the



Linux kernel in the device will not allow the application to do so. So let's go to the
AndroidManifest.xml>Permissions tab, and set the following permissions:

1. android.permission.GET_ACCOUNTS

2. android.permission.READ_CONTACTS

These can be set by clicking on the U icon and defining the permission. Figure 10
shows how the permissions tab should look.

Figure 10. Android permissions manifest



listView widget using ListActivity

This example is meant to demonstrate another way of implementing a listView. In
the above application, note that our main activity implements the activity class.
When dealing with listView widgets, sometimes the ListActivity class comes
in handier because it has public APIs to handle clicks on list items, setting list
adapters, getting the click position, etc.

We can modify our activity to implement ListActivity as shown in Listing 9.

Listing 9. Implementation using ListActivity

public class ManageContacts extends ListActivity {
@Override
protected void onListItemClick(ListView l, View v,
int position, long id) {
// TODO Auto-generated method stub
super.onListItemClick(l, v, position, id);
if(v instanceof TextView)
selectedText.setText(((TextView) v).getText());
}
private CheckBox mCheckBox;
private boolean mShowStarred;
private TextView selectedText;
@Override
public void
onCreate(Bundle savedInstanceState) {
mCheckBox = (CheckBox) findViewById(R.id.showStarred);
selectedText = (TextView)
findViewById(R.id.selectedContact);
mShowStarred = false;
mCheckBox.setOnCheckedChangeListener(new
CheckChangedListener());
}
public void populateContactList() {
Uri uri = ContactsContract.Contacts.CONTENT_URI;
String[] projection = new String[] {
ContactsContract.Contacts._ID,
ContactsContract.Contacts.DISPLAY_NAME,
};
String[] selectionArgs = null;
String sortOrder =
ContactsContract.Contacts.DISPLAY_NAME +
" COLLATE LOCALIZED ASC";
String selection = mShowStarred?
ContactsContract.Contacts.STARRED + " ='1'" : null;
Cursor c =
getContentResolver().query(uri, projection,
selection, selectionArgs, sortOrder);
String[] fields = new String[] {
ContactsContract.Data.DISPLAY_NAME
};



ListAdapter adapter = new
SimpleCursorAdapter(this,
R.layout.contactitem, c, fields, new
int[]{R.id.contactItem});
setListAdapter(adapter);
}
private class CheckChangedListener
implements OnCheckedChangeListener {
@Override
public void onCheckedChanged(CompoundButton
buttonView, boolean isChecked) {
mShowStarred = isChecked;
selectedText.setText("");
}
}
}

Note that here we simply implemented onListItemClick method of
ListActivity, rather than declaring an anonymous class to handle clicks. We
also didn't need to refer to the listView widget defined in main.xml here because
ListActivity assumes that the listView widget is defined with an ID of
@android:id/list. This is important to note. Whenever we use ListActivity,
we have to define the listView widget in main.xml to have an ID of
@android:id/list; otherwise, the ListActivity will not know which listView to
refer to.

Section 10. Conclusion
In this tutorial, we learned how to set up Eclipse for Android development and how
the rich features of Eclipse assist in every step in writing Android apps. We also
learned how the apps can be easily deployed and tested on the Android emulator —
AVD. We covered the salient features of an Android application using a Hello World
example and learned about the files that make up an Android app. We touched upon
some of the widgets provided by Android and saw their use in some real-world
examples. You now should be well on the way to creating a cool application with a
neat UI. As a first step, extend the contacts app to implement click action on a list
item to display the phone number and contact details, and a button to call the
selected contact. A call intent should also be defined, along with an intent filter,
which should implement the call-making functionality.

Android is a powerful platform for mobile applications, and coding in Java
technology, along with Android Development Tools for Eclipse, make it easily
adoptable by beginners. Its wide array of widgets, along with its ability to dynamically



bind the UI elements to the implementation, provides a lot of flexibility and makes
the application lightweight, in spite of the rich UI. The concepts of activities, intents,
content providers, etc., make it easy to manage the UI and data elements, and
control the binding between them. It also has a vast array of networking APIs to
explore. In addition, Google APIs provide functionality for maps, search, and mail,
among other things, which can all be easily adopted in an Android application. So
dive into the wonderful world of Android and let your imagination run wild.



Resources
Learn
• The Developer's Guide is a practical introduction to developing applications for
Android.
• Read "Develop Android applications with Eclipse" for an introduction to Android
development with a quick introduction to the platform.
• Be sure to see the Android Hello, World tutorial.
• "A Visual Guide to Android GUI Widgets" offers more information.
• Check out Eclipse Day at the Googleplex: Developing for Android with Eclipse.
• Don't miss Lars Vogella's Android development tutorial.
• Check out a set of video tutorials for Android from the Elon Computing Sciences
Department.
• Check out the "Recommended Eclipse reading list."
• Browse all the Eclipse content on developerWorks.
• Follow developerWorks on Twitter.
• New to Eclipse? Read the developerWorks article "Get started with the Eclipse
Platform" to learn its origin and architecture, and how to extend Eclipse with
plug-ins.
• Expand your Eclipse skills by checking out IBM developerWorks' Eclipse project
resources.
• To listen to interesting interviews and discussions for software developers,
check out check out developerWorks podcasts.
• The My developerWorks community is an example of a successful general
community that covers a wide variety of topics.
• Stay current with developerWorks' Technical events and webcasts.
• Watch and learn about IBM and open source technologies and product
functions with the no-cost developerWorks On demand demos.
• Check out upcoming conferences, trade shows, webcasts, and other Events
around the world that are of interest to IBM open source developers.
• Visit the developerWorks Open source zone for extensive how-to information,
tools, and project updates to help you develop with open source technologies
and use them with IBM's products, as well as our most popular articles and
tutorials.



Get products and technologies
• Be sure to download Eclipse for RCP/Plug-in.
• Download the Android SDK.
• Get the ADT Plug-in for Eclipse.
• As someone interested in development with Eclipse, you might want to check
out a trial of IBM's Rational Application Developer Standard Edition, a
commercial development tool built on Eclipse technology.
• Check out the latest Eclipse technology downloads at IBM alphaWorks.
• Download Eclipse Platform and other projects from the Eclipse Foundation.
• Download IBM product evaluation versions or explore the online trials in the
IBM SOA Sandbox and get your hands on application development tools and
middleware products from DB2®, Lotus®, Rational®, Tivoli®, and
WebSphere®.
• Innovate your next open source development project with IBM trial software,
available for download or on DVD.
Discuss
• The Eclipse Platform newsgroups should be your first stop to discuss questions
regarding Eclipse. (Selecting this will launch your default Usenet news reader
application and open eclipse.platform.)
• The Eclipse newsgroups has many resources for people interested in using and
extending Eclipse.
• Participate in developerWorks blogs and get involved in the developerWorks
community.

About the author
Ayushman Jain
Ayushman Jain works on the Eclipse team at IBM India Software Labs,
Bangalore, as a JDT/Core committer. He leads the Eclipse@campus
initiative to evangelise Eclipse in Indian universities. He is enthusiastic
about Android as a platform and encourages its use due to ease of
development on Eclipse familiar environments. He is also the technical
editor for a youth magazine called NOW, in circulation in Delhi, India.
For NOW, he has reviewed HTC phones based on Android.


Os eclipse-androidwidget-pdf

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (6)

Similar to Os eclipse-androidwidget-pdf

Similar to Os eclipse-androidwidget-pdf (20)

Recently uploaded

Recently uploaded (20)

Os eclipse-androidwidget-pdf
